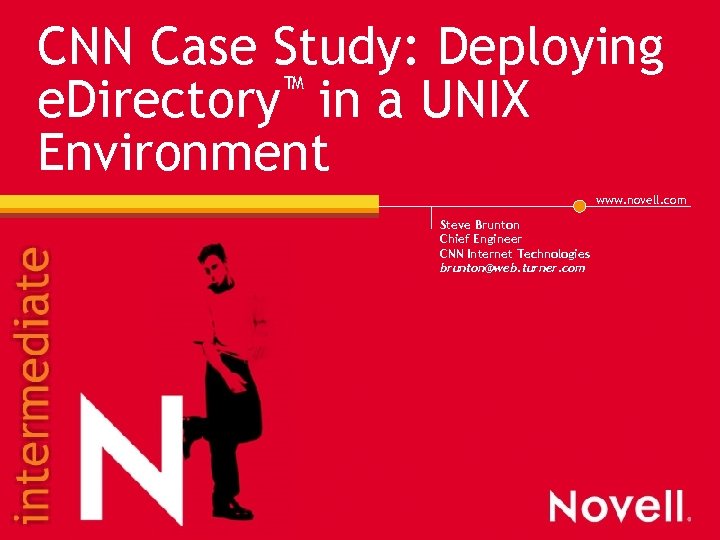

CNN Case Study: Deploying ™ in a UNIX e. Directory Environment www. novell. com CNN Case Study: Deploying ™ in a UNIX e. Directory Environment www. novell. com Steve Brunton Chief Engineer CNN Internet Technologies [email protected] turner. com

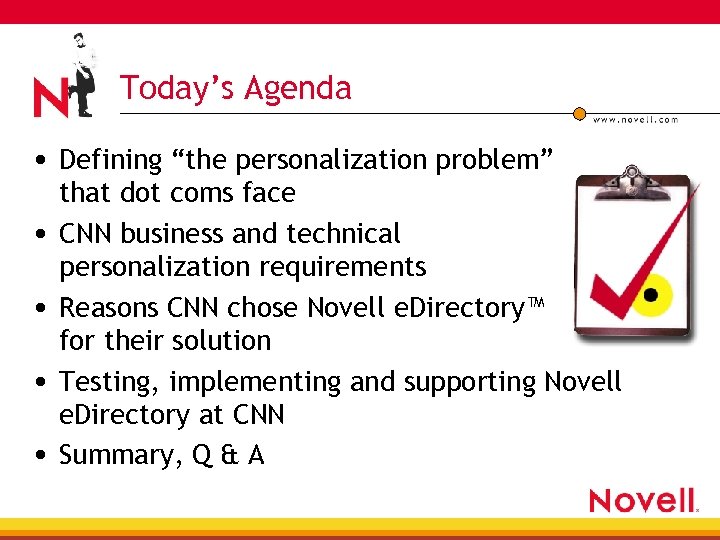

Today’s Agenda • Defining “the personalization problem” • • that dot coms face CNN Today’s Agenda • Defining “the personalization problem” • • that dot coms face CNN business and technical personalization requirements Reasons CNN chose Novell e. Directory™ for their solution Testing, implementing and supporting Novell e. Directory at CNN Summary, Q & A

Defining the personalization problem Defining the personalization problem

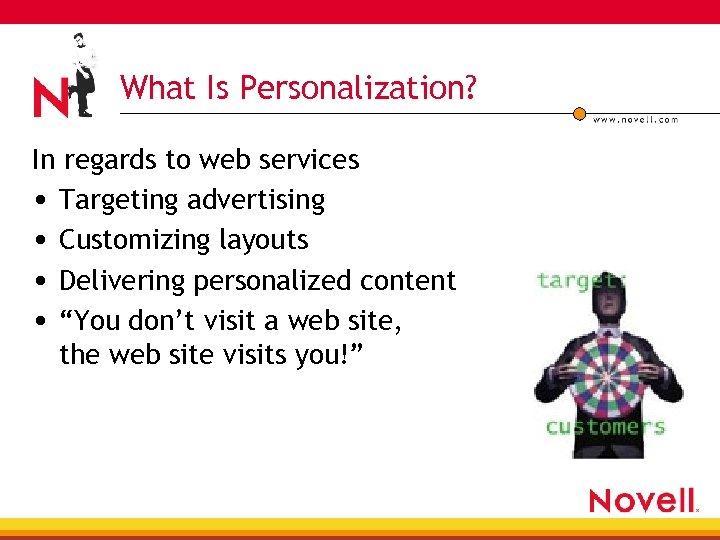

What Is Personalization? In regards to web services • Targeting advertising • Customizing layouts What Is Personalization? In regards to web services • Targeting advertising • Customizing layouts • Delivering personalized content • “You don’t visit a web site, the web site visits you!”

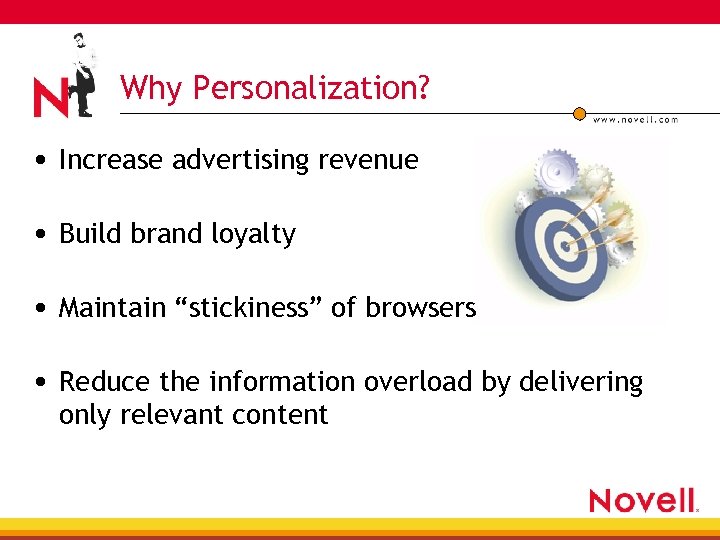

Why Personalization? • Increase advertising revenue • Build brand loyalty • Maintain “stickiness” of Why Personalization? • Increase advertising revenue • Build brand loyalty • Maintain “stickiness” of browsers • Reduce the information overload by delivering only relevant content

Why Use a Directory Service? “The directory has spent the last 10 years in Why Use a Directory Service? “The directory has spent the last 10 years in relative obscurity, as a sort of isolated application to generate user phone numbers and user IDs, or buried inside of things like a network operating system…. What changed all this was the Internet. What changed it even more than the Internet was the concept of personalization. ” — Richard Villars, IDC

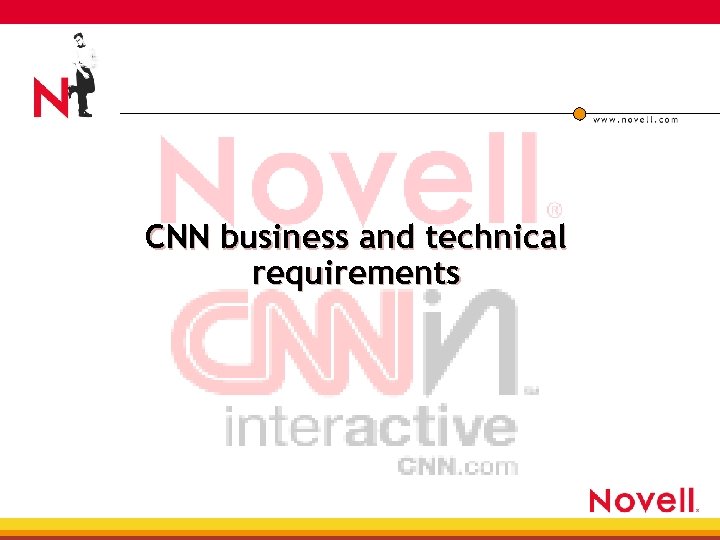

CNN business and technical requirements CNN business and technical requirements

CNN Requirements • Extremely high-performance 4 Just downright FAST • Extremely scaleable 4 Handle CNN Requirements • Extremely high-performance 4 Just downright FAST • Extremely scaleable 4 Handle more than 100 web servers with a few directory servers • Extremely flexible 4 Ability to change “how” the data is stored with no service interruption • Extremely fault tolerant 4 On line maintenance, fail-over, repair, determinism (isolationism)

CNN Requirements (cont. ) • 100% open standards-based 4 Fully RFC-compliant LDAPv 3 4 CNN Requirements (cont. ) • 100% open standards-based 4 Fully RFC-compliant LDAPv 3 4 Easy to develop to (open SDK) • Buy, not build 4 Shrink-wrap vs. internally developed 4 No code to maintain internally • Cross-platform 4 Ability to choose best suited OS 4 Could develop and deploy on different platforms if desired

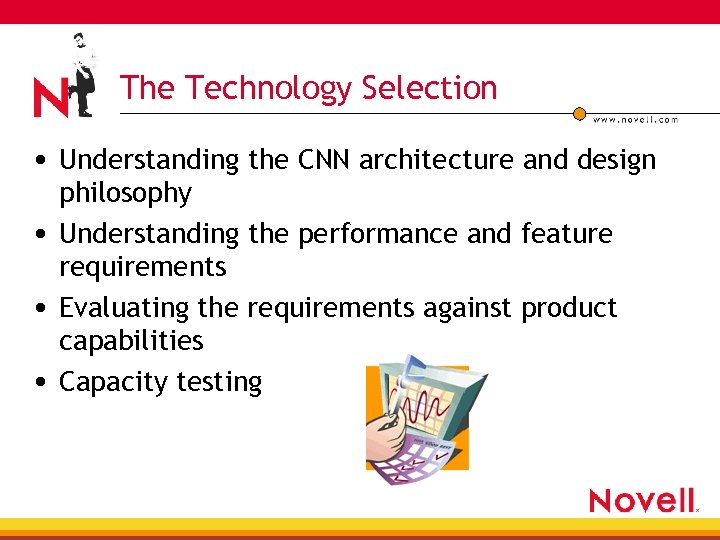

The Technology Selection • Understanding the CNN architecture and design philosophy • Understanding the The Technology Selection • Understanding the CNN architecture and design philosophy • Understanding the performance and feature requirements • Evaluating the requirements against product capabilities • Capacity testing

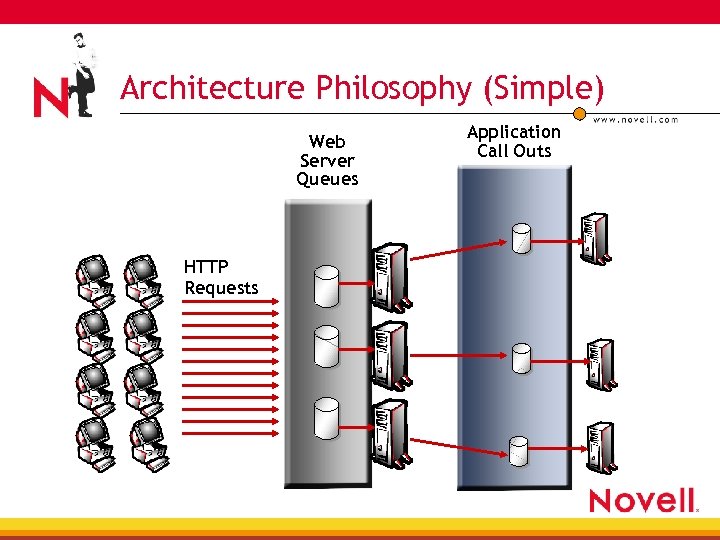

Architecture Philosophy (Simple) Web Server Queues HTTP Requests Application Call Outs Architecture Philosophy (Simple) Web Server Queues HTTP Requests Application Call Outs

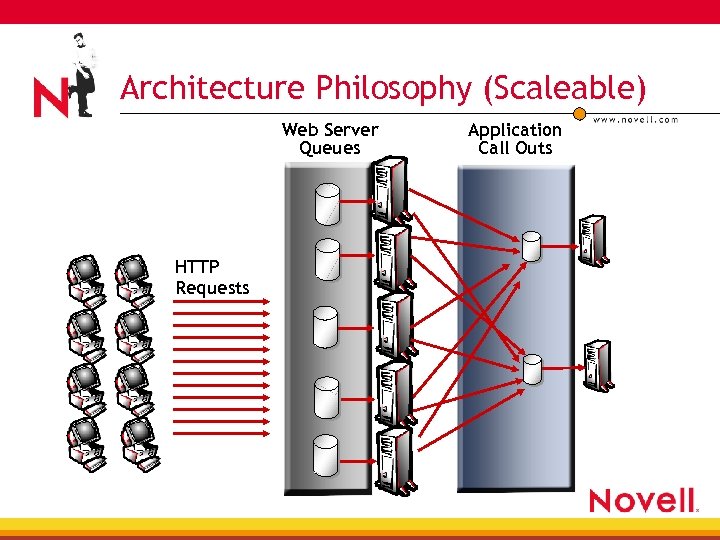

Architecture Philosophy (Scaleable) Web Server Queues HTTP Requests Application Call Outs Architecture Philosophy (Scaleable) Web Server Queues HTTP Requests Application Call Outs

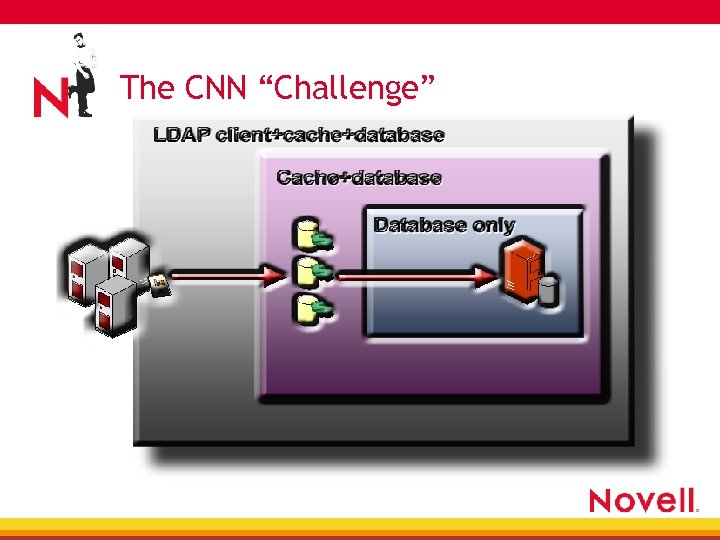

The CNN “Challenge” The CNN “Challenge”

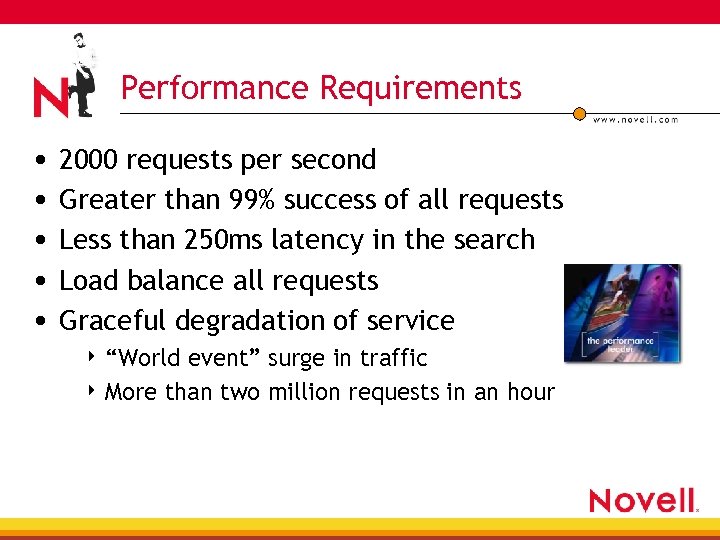

Performance Requirements • 2000 requests per second • Greater than 99% success of all Performance Requirements • 2000 requests per second • Greater than 99% success of all requests • Less than 250 ms latency in the search • Load balance all requests • Graceful degradation of service 4 “World event” surge in traffic 4 More than two million requests in an hour

Feature Requirements • Ease of implementation and support 4 Start to finish in weeks Feature Requirements • Ease of implementation and support 4 Start to finish in weeks 4 99. 999% uptime to date • Suitability to task 4 The technology matches the job • Ability to connect to anything 4 Via Dir. XML™, options are limitless • Quality of data 4 Integrity and speed of replication

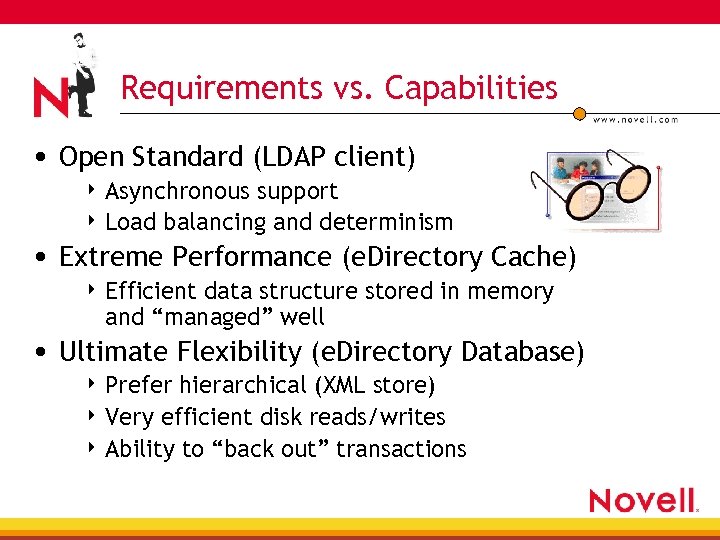

Requirements vs. Capabilities • Open Standard (LDAP client) 4 Asynchronous support 4 Load balancing Requirements vs. Capabilities • Open Standard (LDAP client) 4 Asynchronous support 4 Load balancing and determinism • Extreme Performance (e. Directory Cache) 4 Efficient data structure stored in memory and “managed” well • Ultimate Flexibility (e. Directory Database) 4 Prefer hierarchical (XML store) 4 Very efficient disk reads/writes 4 Ability to “back out” transactions

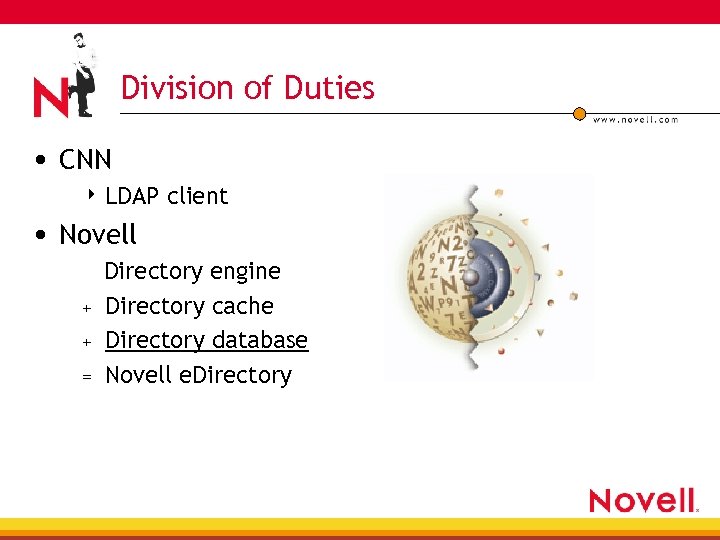

Division of Duties • CNN 4 LDAP client • Novell + + = Directory Division of Duties • CNN 4 LDAP client • Novell + + = Directory engine Directory cache Directory database Novell e. Directory

Testing Novell e. Directory Testing Novell e. Directory

Novell Super. Lab Testing • Steps to building the “test” 4 Find “killer” directory, Novell Super. Lab Testing • Steps to building the “test” 4 Find “killer” directory, methodology and testing knowledge • Enter Novell Consulting 4 Find similar architecture to CNN Web Farm (to measure load/performance) • Enter Novell Super. Lab 4 Transplant to a pilot on the CNN Web Farm for “real-world” testing • Enter Novell Systems Engineering

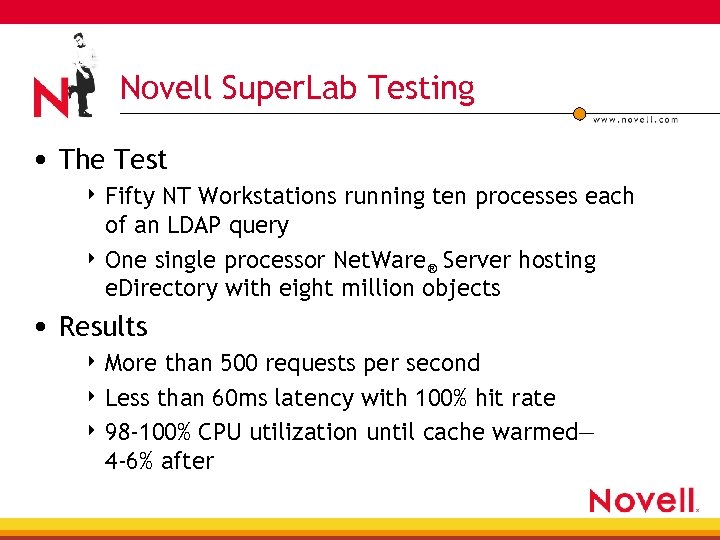

Novell Super. Lab Testing • The Test 4 Fifty NT Workstations running ten processes Novell Super. Lab Testing • The Test 4 Fifty NT Workstations running ten processes each of an LDAP query 4 One single processor Net. Ware® Server hosting e. Directory with eight million objects • Results 4 More than 500 requests per second 4 Less than 60 ms latency with 100% hit rate 4 98 -100% CPU utilization until cache warmed— 4 -6% after

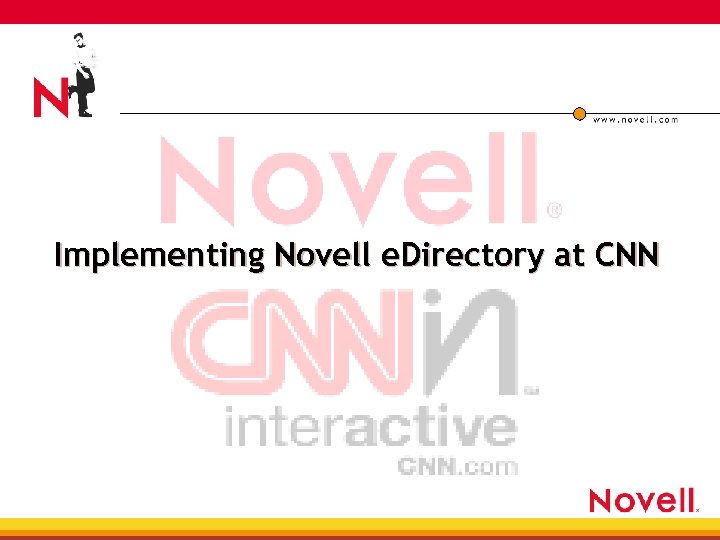

Implementing Novell e. Directory at CNN Implementing Novell e. Directory at CNN

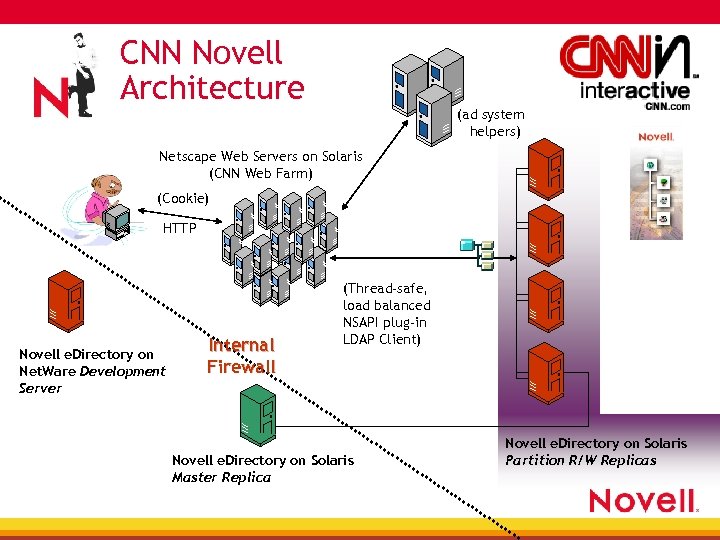

CNN Novell Architecture (ad system helpers) Netscape Web Servers on Solaris (CNN Web Farm) CNN Novell Architecture (ad system helpers) Netscape Web Servers on Solaris (CNN Web Farm) (Cookie) HTTP Novell e. Directory on Net. Ware Development Server Internal Firewall (Thread-safe, load balanced NSAPI plug-in LDAP Client) Novell e. Directory on Solaris Master Replica Novell e. Directory on Solaris Partition R/W Replicas

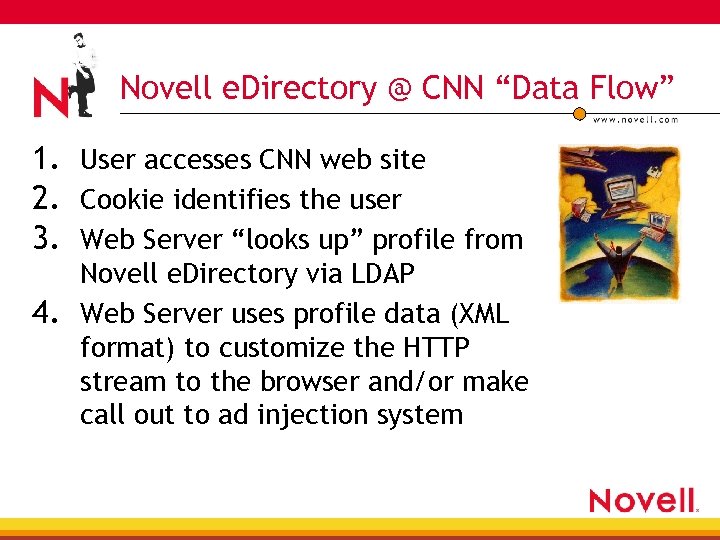

Novell e. Directory @ CNN “Data Flow” 1. User accesses CNN web site 2. Novell e. Directory @ CNN “Data Flow” 1. User accesses CNN web site 2. Cookie identifies the user 3. Web Server “looks up” profile from Novell e. Directory via LDAP 4. Web Server uses profile data (XML format) to customize the HTTP stream to the browser and/or make call out to ad injection system

Supporting Novell e. Directory at CNN Supporting Novell e. Directory at CNN

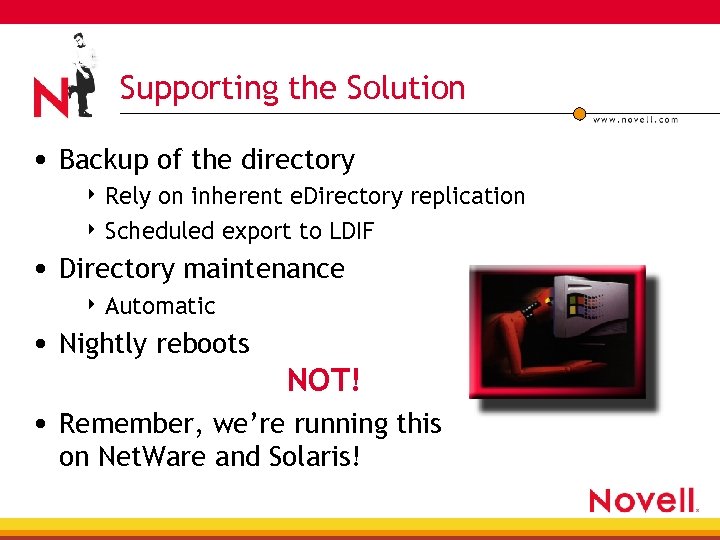

Supporting the Solution • Backup of the directory 4 Rely on inherent e. Directory Supporting the Solution • Backup of the directory 4 Rely on inherent e. Directory replication 4 Scheduled export to LDIF • Directory maintenance 4 Automatic • Nightly reboots • NOT! • Remember, we’re running this on Net. Ware and Solaris!
