Learning Objectives – 3. 1 Encryption Basics – 3. 2 Integrity Basics – 3. 3 Implementing Digital Certificates – 3. 4 VPN Topologies – 3. 5 VPN Technologies – 3. 6 IPSec © 2005 Cisco Systems, Inc. All rights reserved. 3

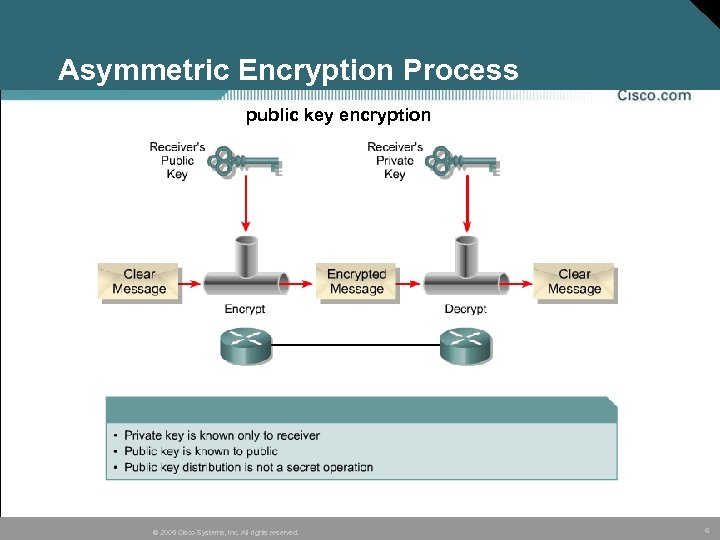

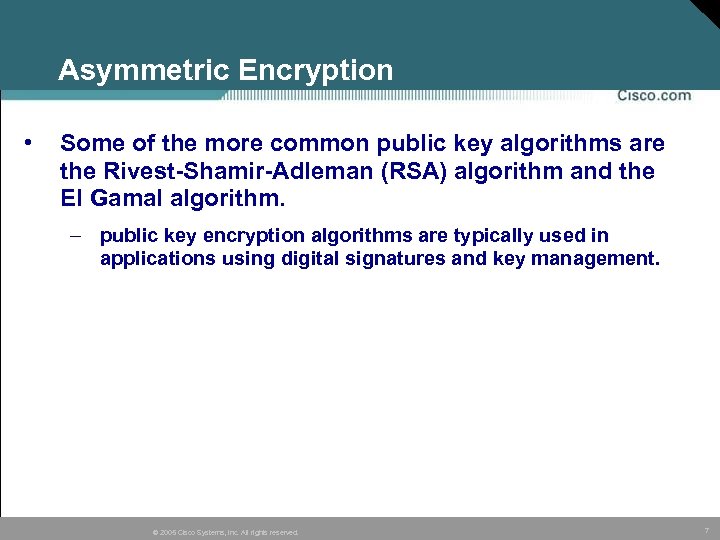

Asymmetric Encryption • Some of the more common public key algorithms are the Rivest-Shamir-Adleman (RSA) algorithm and the El Gamal algorithm. – public key encryption algorithms are typically used in applications using digital signatures and key management. © 2005 Cisco Systems, Inc. All rights reserved. 7

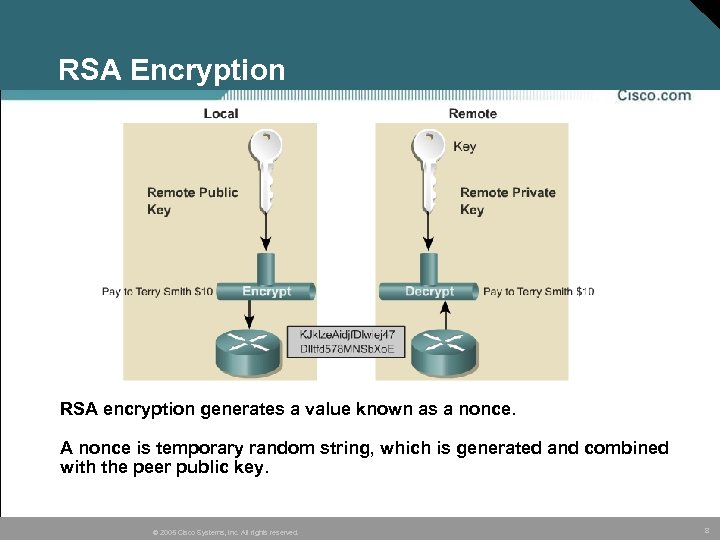

RSA Encryption RSA encryption generates a value known as a nonce. A nonce is temporary random string, which is generated and combined with the peer public key. © 2005 Cisco Systems, Inc. All rights reserved. 8

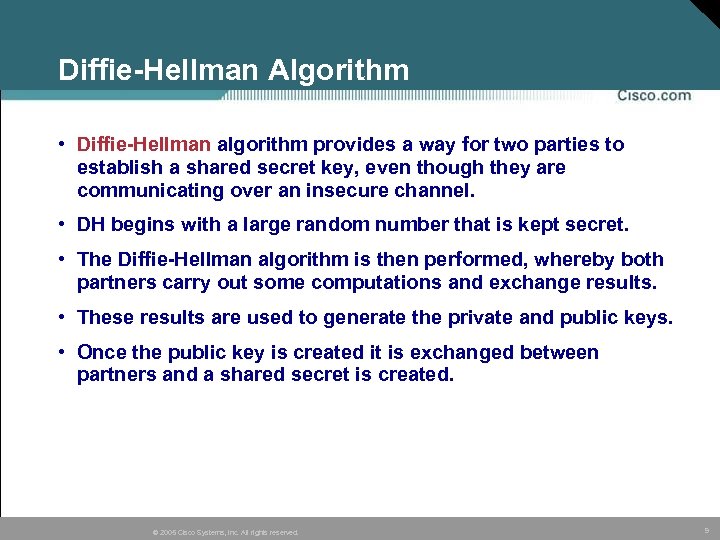

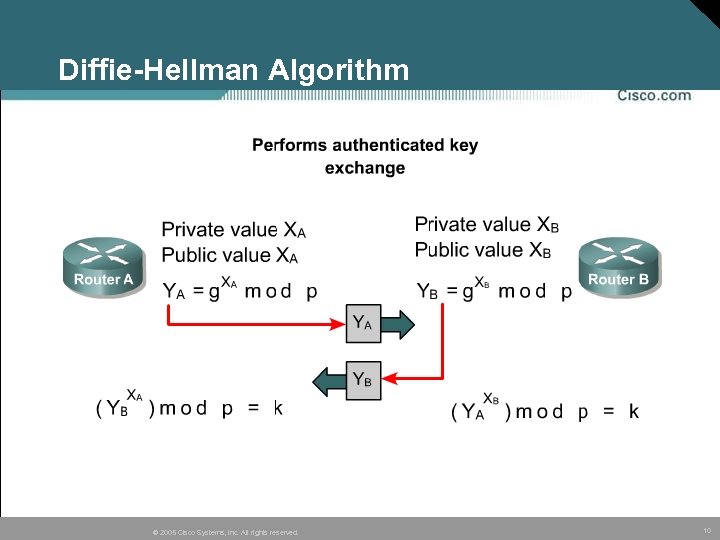

Diffie-Hellman Algorithm • Diffie-Hellman algorithm provides a way for two parties to establish a shared secret key, even though they are communicating over an insecure channel. • DH begins with a large random number that is kept secret. • The Diffie-Hellman algorithm is then performed, whereby both partners carry out some computations and exchange results. • These results are used to generate the private and public keys. • Once the public key is created it is exchanged between partners and a shared secret is created. © 2005 Cisco Systems, Inc. All rights reserved. 9

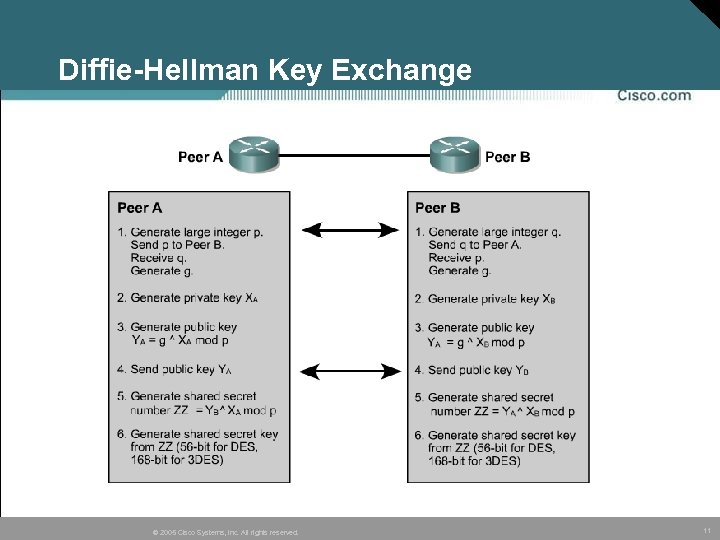

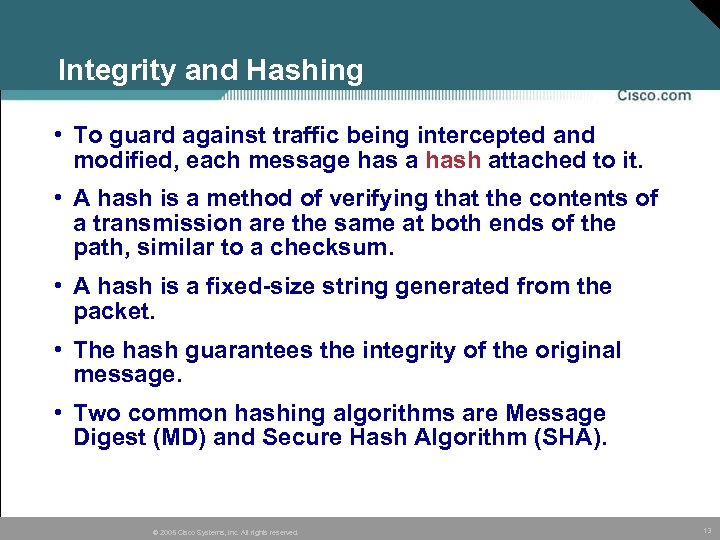

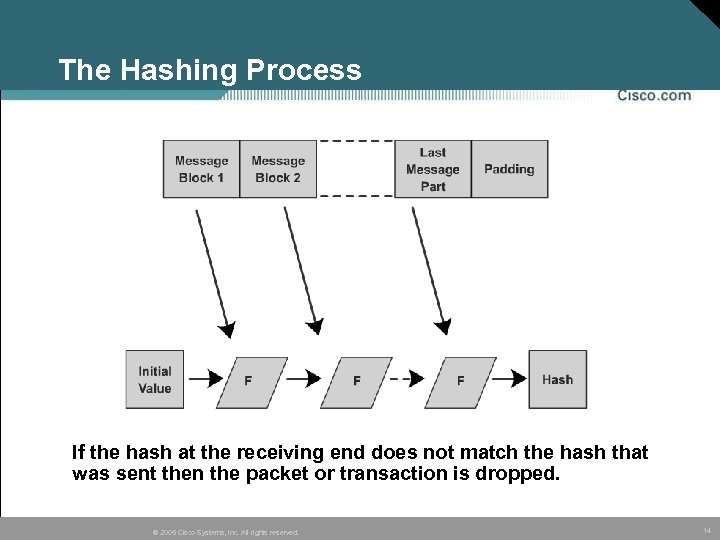

Integrity and Hashing • To guard against traffic being intercepted and modified, each message has a hash attached to it. • A hash is a method of verifying that the contents of a transmission are the same at both ends of the path, similar to a checksum. • A hash is a fixed-size string generated from the packet. • The hash guarantees the integrity of the original message. • Two common hashing algorithms are Message Digest (MD) and Secure Hash Algorithm (SHA). © 2005 Cisco Systems, Inc. All rights reserved. 13

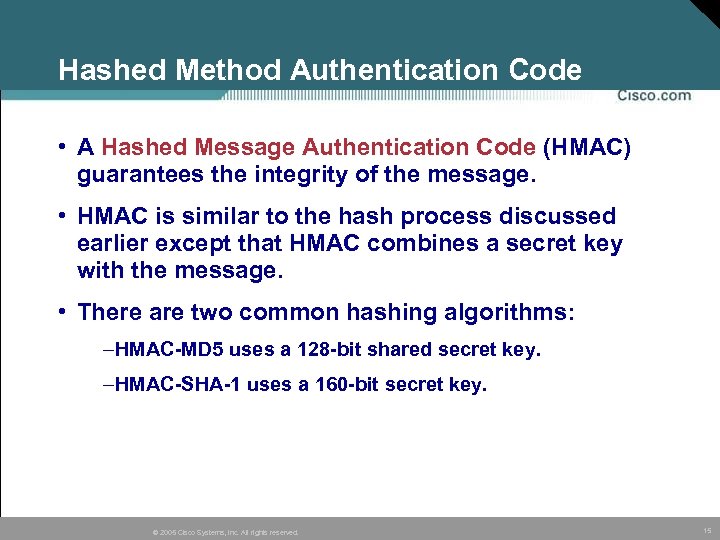

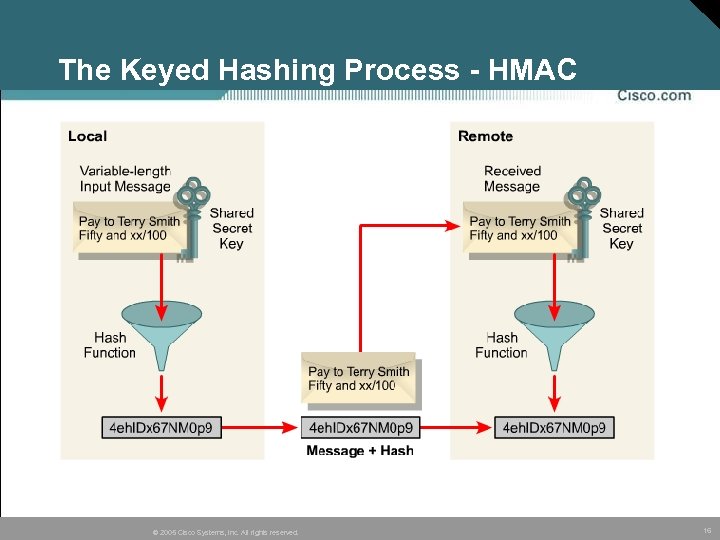

Hashed Method Authentication Code • A Hashed Message Authentication Code (HMAC) guarantees the integrity of the message. • HMAC is similar to the hash process discussed earlier except that HMAC combines a secret key with the message. • There are two common hashing algorithms: –HMAC-MD 5 uses a 128 -bit shared secret key. –HMAC-SHA-1 uses a 160 -bit secret key. © 2005 Cisco Systems, Inc. All rights reserved. 15

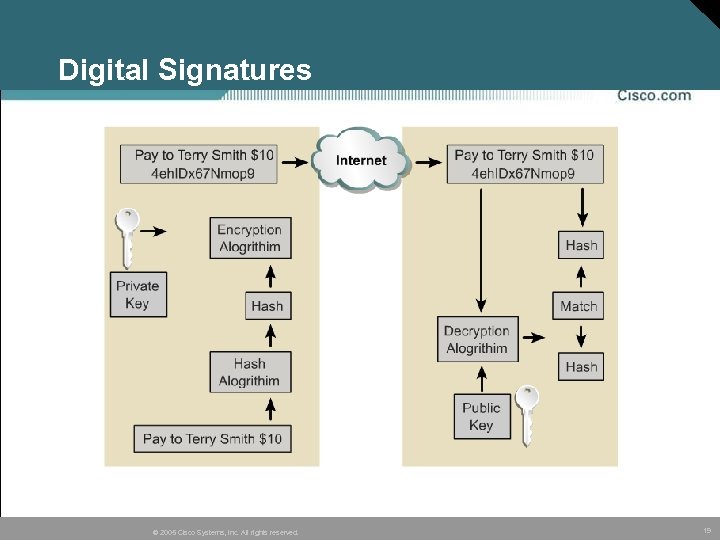

Digital Certificates • A digital signature, or digital certificate, is an encrypted hash that is appended to a document. • Digital certs are used to confirm the identity of the sender and the integrity of the document. • A digital certificate contains information to identify a user or device, such as the name, serial number, company, department or IP address as well as copy of the entity’s public key. • A Certificate Authority (CA) signs the certificate. – The CA is a third party that is explicitly trusted by the receiver to validate identities and to create digital certificates © 2005 Cisco Systems, Inc. All rights reserved. 18

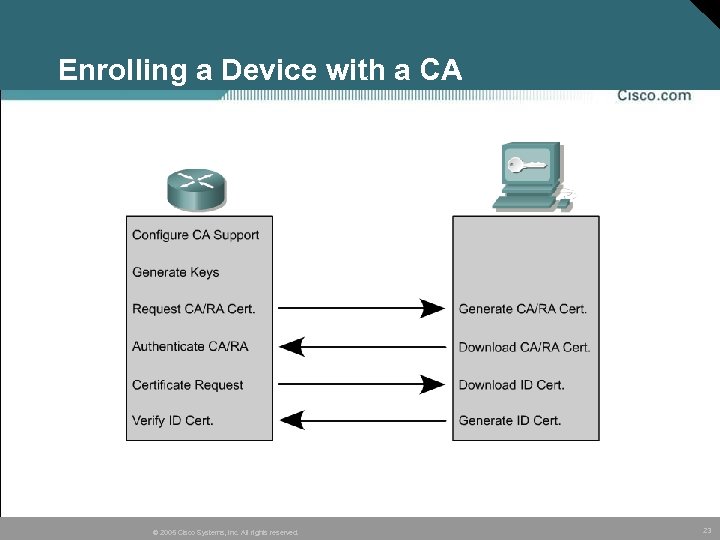

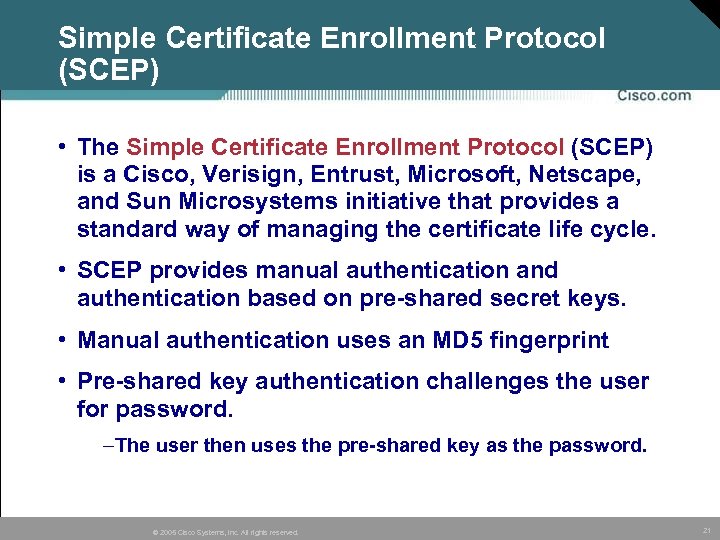

Simple Certificate Enrollment Protocol (SCEP) • The Simple Certificate Enrollment Protocol (SCEP) is a Cisco, Verisign, Entrust, Microsoft, Netscape, and Sun Microsystems initiative that provides a standard way of managing the certificate life cycle. • SCEP provides manual authentication and authentication based on pre-shared secret keys. • Manual authentication uses an MD 5 fingerprint • Pre-shared key authentication challenges the user for password. –The user then uses the pre-shared key as the password. © 2005 Cisco Systems, Inc. All rights reserved. 21

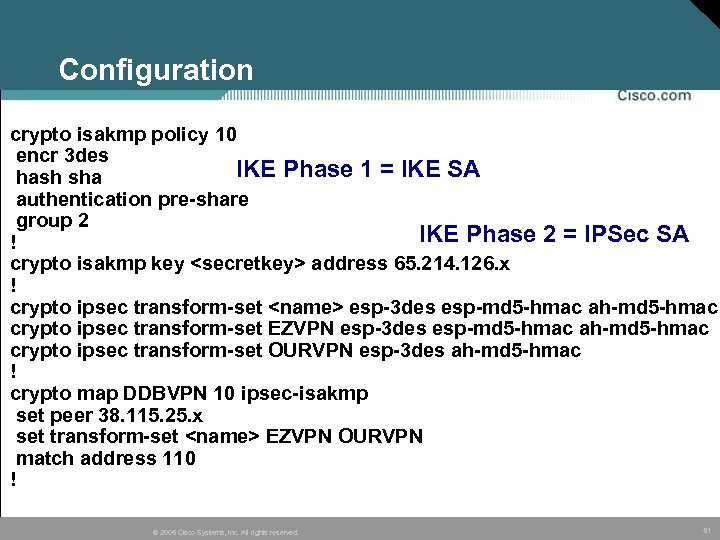

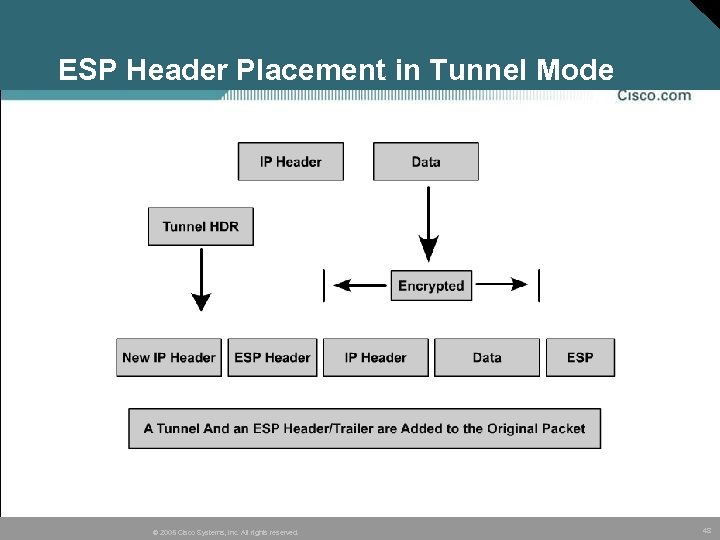

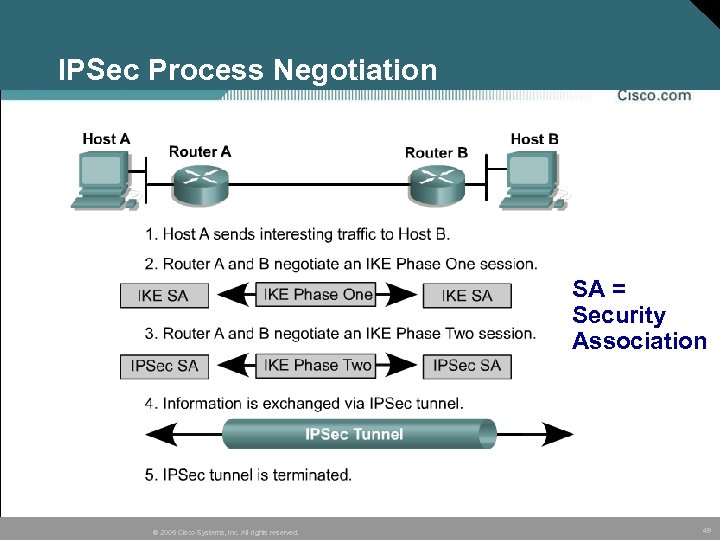

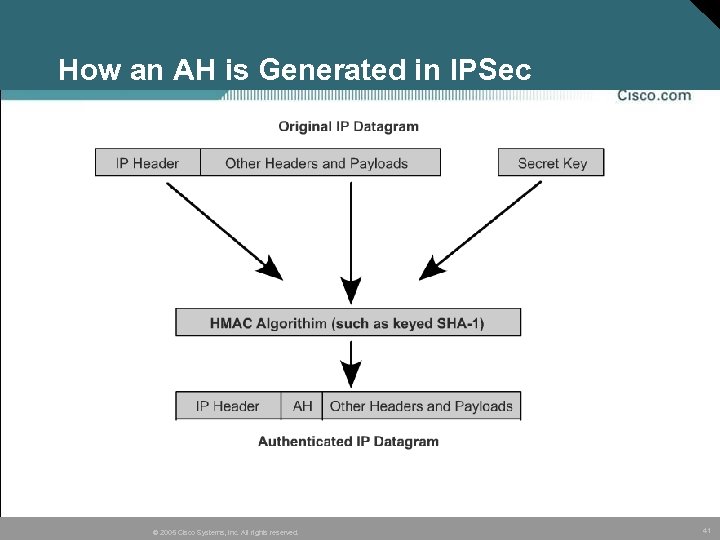

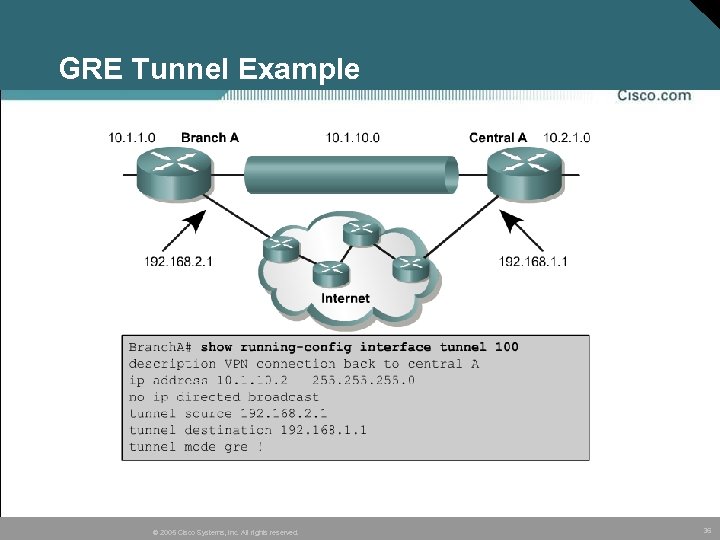

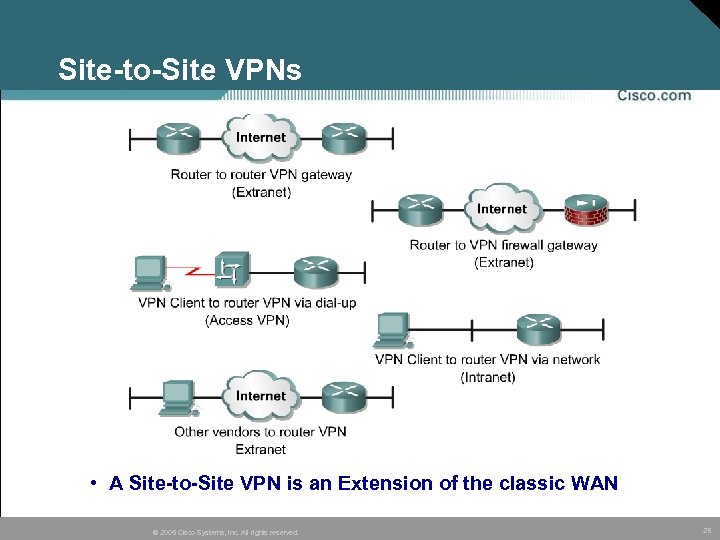

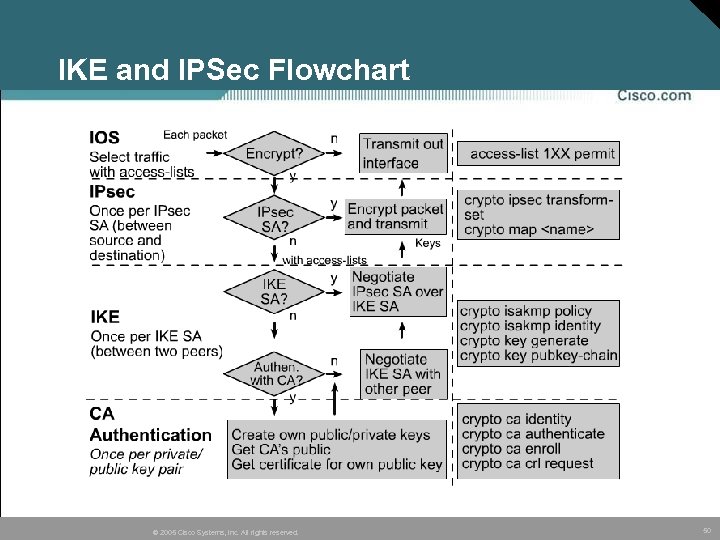

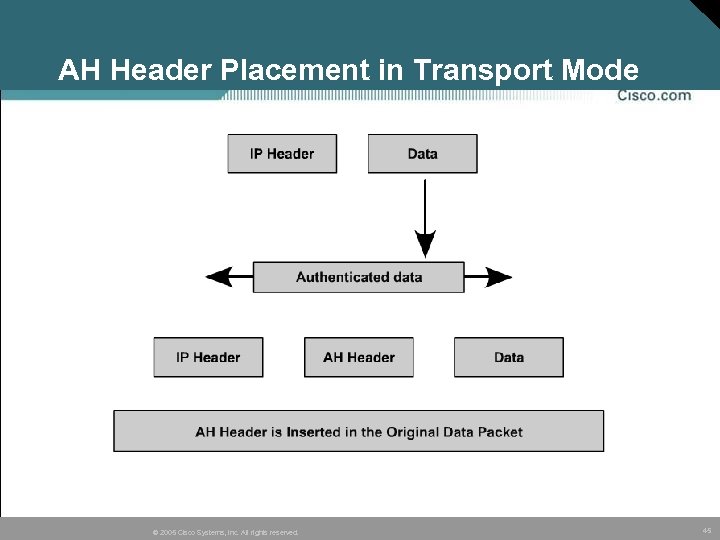

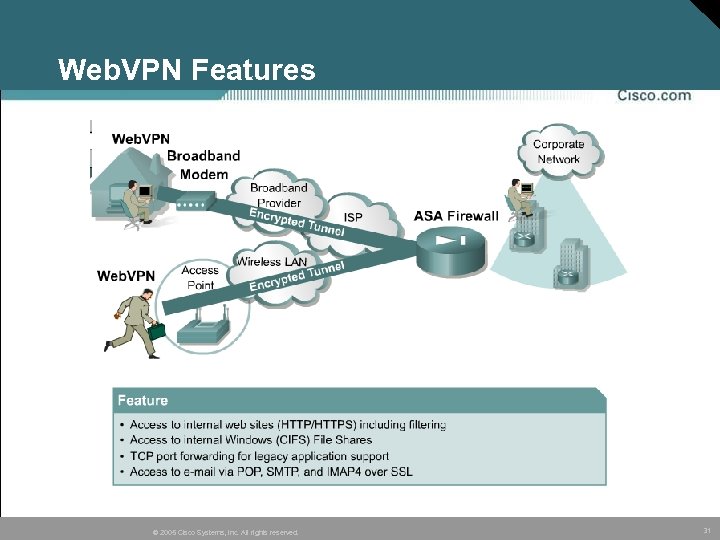

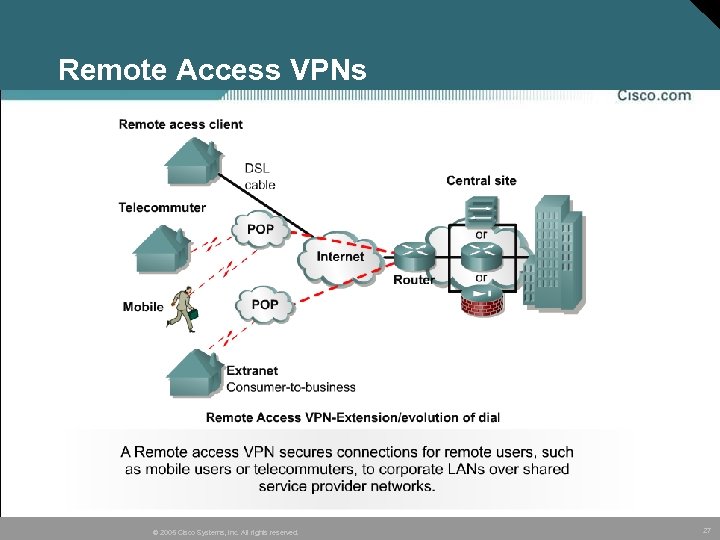

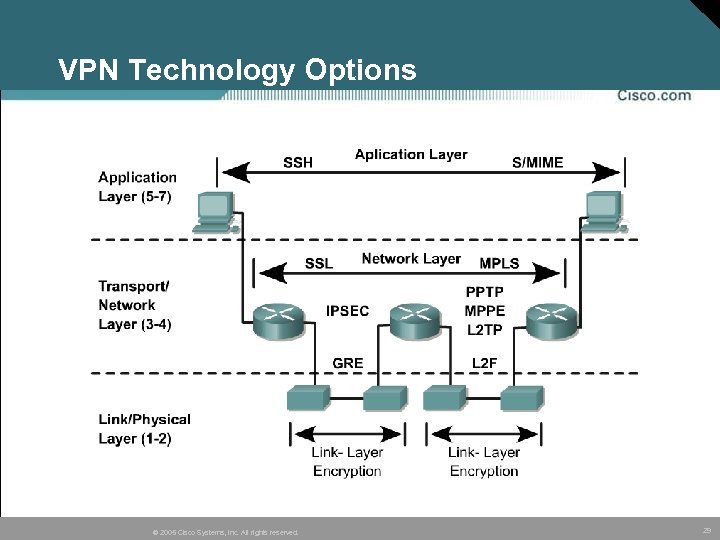

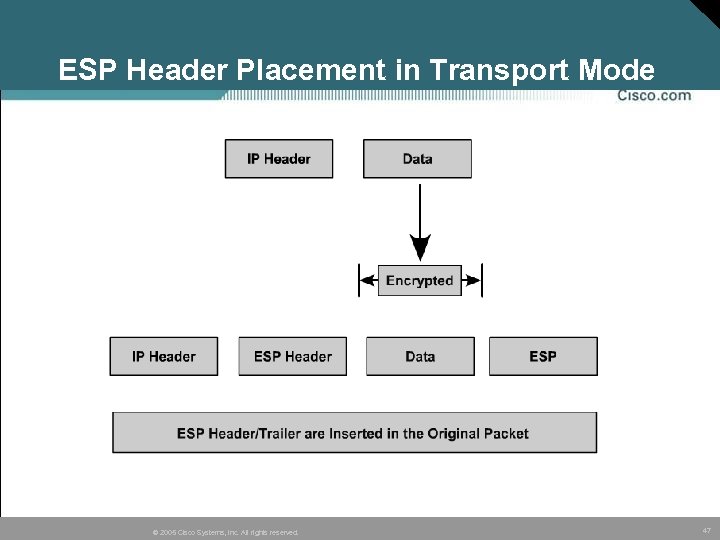

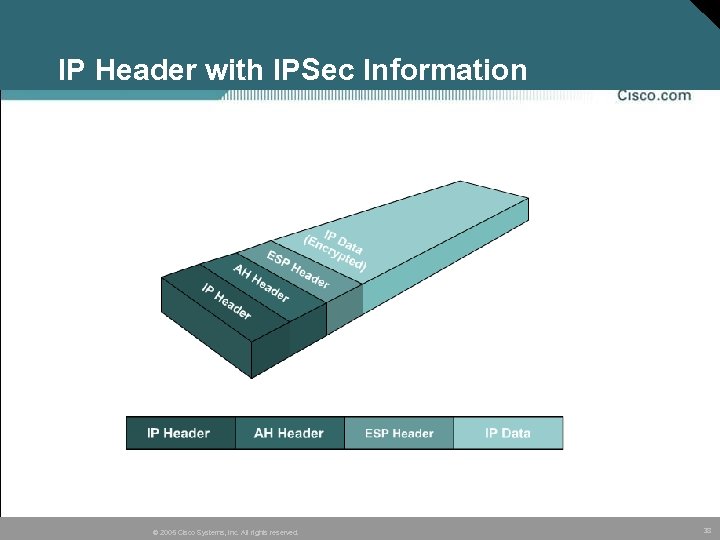

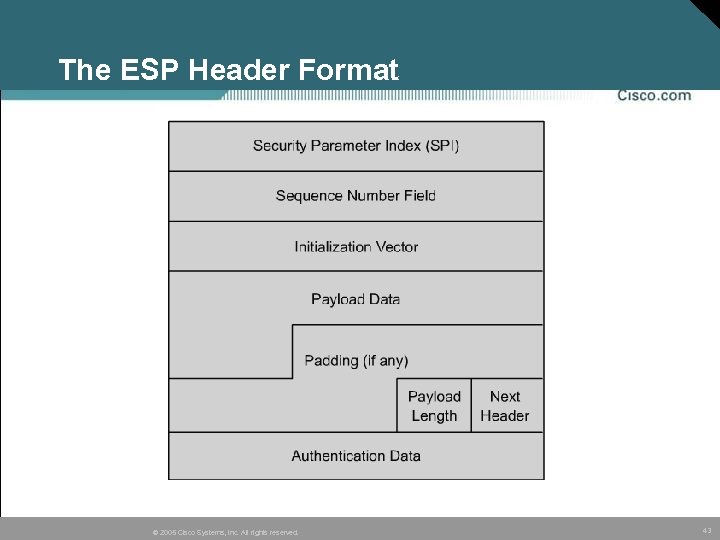

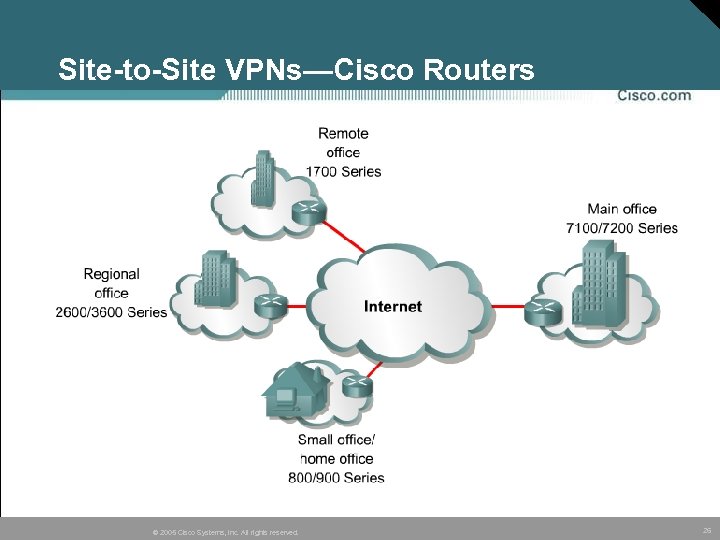

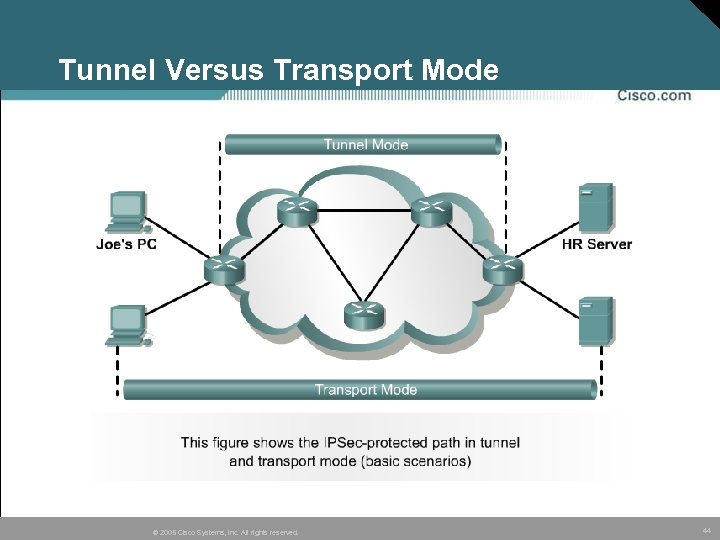

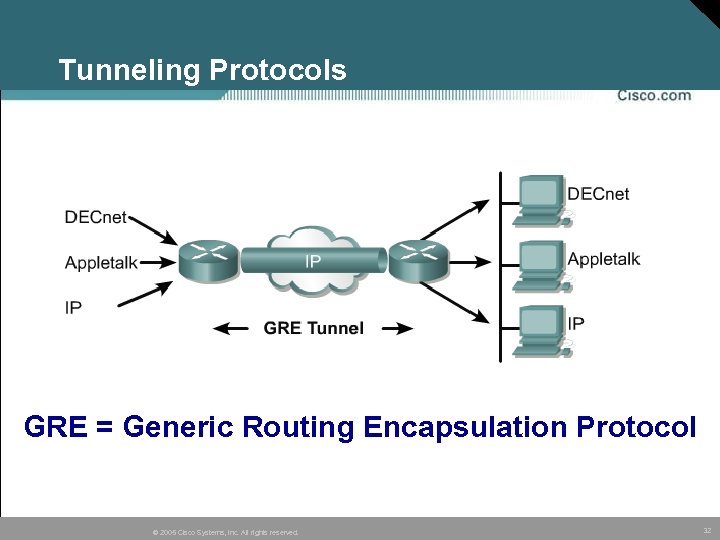

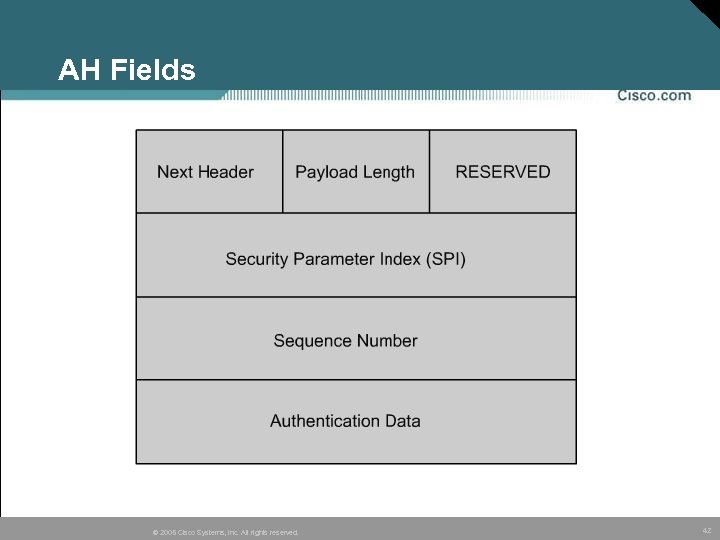

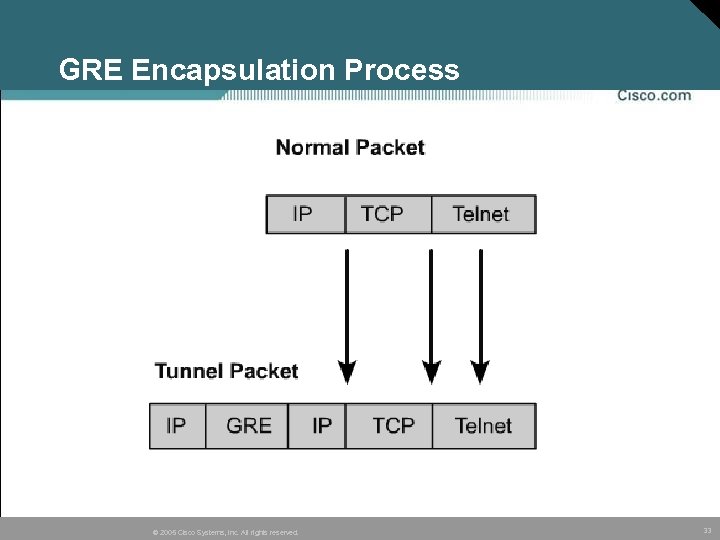

Configuration crypto isakmp policy 10 encr 3 des IKE Phase 1 = IKE SA hash sha authentication pre-share group 2 IKE Phase 2 = IPSec SA ! crypto isakmp key address 65. 214. 126. x ! crypto ipsec transform-set esp-3 des esp-md 5 -hmac ah-md 5 -hmac crypto ipsec transform-set EZVPN esp-3 des esp-md 5 -hmac ah-md 5 -hmac crypto ipsec transform-set OURVPN esp-3 des ah-md 5 -hmac ! crypto map DDBVPN 10 ipsec-isakmp set peer 38. 115. 25. x set transform-set EZVPN OURVPN match address 110 ! © 2005 Cisco Systems, Inc. All rights reserved. 51

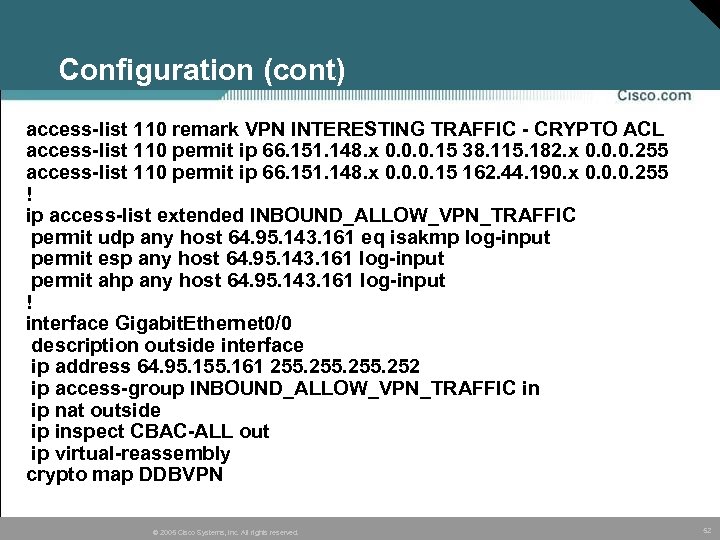

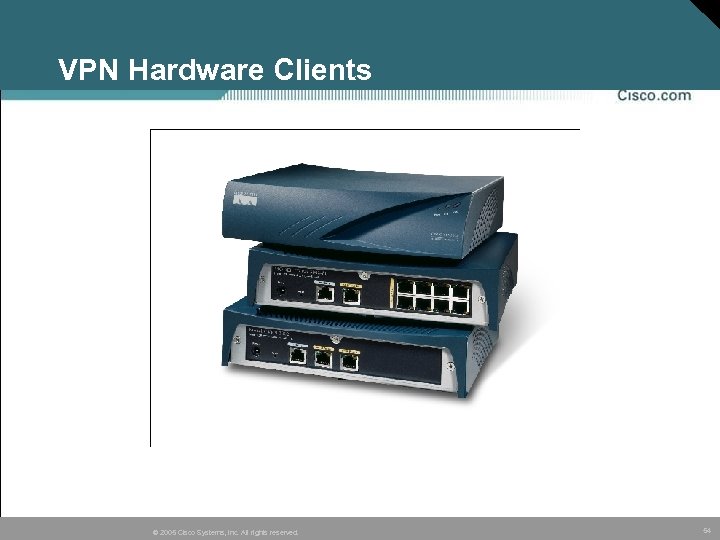

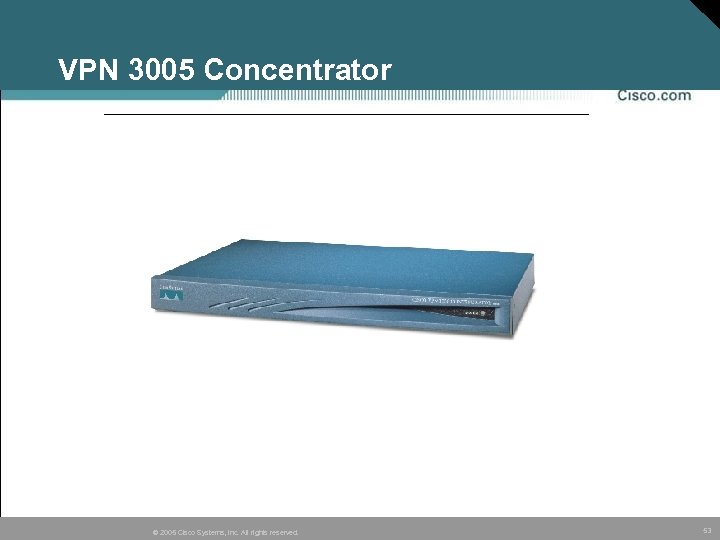

Configuration (cont) access-list 110 remark VPN INTERESTING TRAFFIC - CRYPTO ACL access-list 110 permit ip 66. 151. 148. x 0. 0. 0. 15 38. 115. 182. x 0. 0. 0. 255 access-list 110 permit ip 66. 151. 148. x 0. 0. 0. 15 162. 44. 190. x 0. 0. 0. 255 ! ip access-list extended INBOUND_ALLOW_VPN_TRAFFIC permit udp any host 64. 95. 143. 161 eq isakmp log-input permit esp any host 64. 95. 143. 161 log-input permit ahp any host 64. 95. 143. 161 log-input ! interface Gigabit. Ethernet 0/0 description outside interface ip address 64. 95. 155. 161 255. 252 ip access-group INBOUND_ALLOW_VPN_TRAFFIC in ip nat outside ip inspect CBAC-ALL out ip virtual-reassembly crypto map DDBVPN © 2005 Cisco Systems, Inc. All rights reserved. 52
