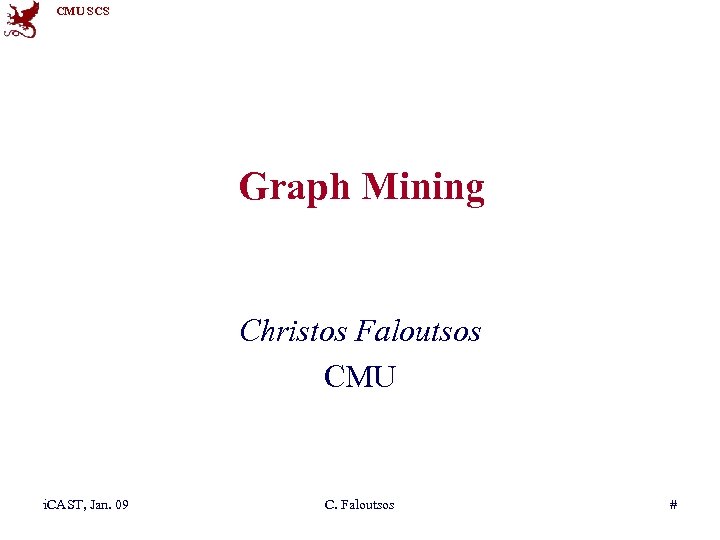

CMU SCS Graph Mining Christos Faloutsos CMU i

CMU SCS Graph Mining Christos Faloutsos CMU i. CAST, Jan. 09 C. Faloutsos #

CMU SCS Thank you! • Prof. Hsing-Kuo Kenneth Pao • Eric, Morgan, Ian, Teenet i. CAST, Jan. 09 C. Faloutsos 2

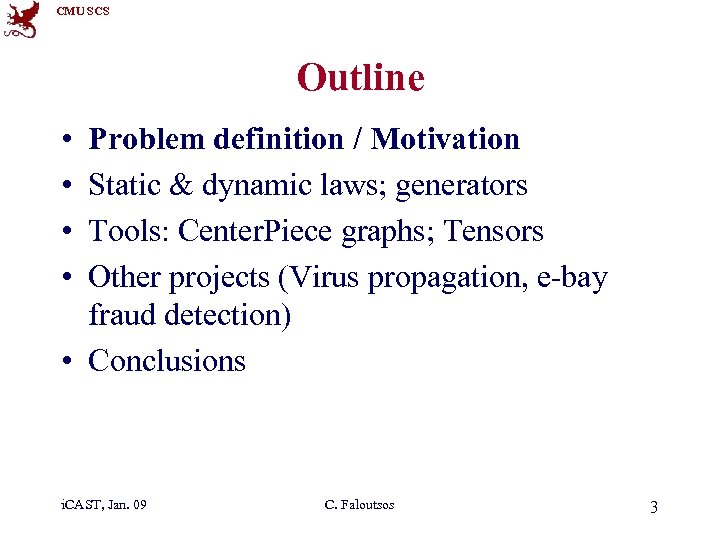

CMU SCS Outline • • Problem definition / Motivation Static & dynamic laws; generators Tools: Center. Piece graphs; Tensors Other projects (Virus propagation, e-bay fraud detection) • Conclusions i. CAST, Jan. 09 C. Faloutsos 3

CMU SCS Motivation Data mining: ~ find patterns (rules, outliers) • Problem#1: How do real graphs look like? • Problem#2: How do they evolve? • Problem#3: How to generate realistic graphs TOOLS • Problem#4: Who is the ‘master-mind’? • Problem#5: Track communities over time i. CAST, Jan. 09 C. Faloutsos 4

CMU SCS Problem#1: Joint work with Dr. Deepayan Chakrabarti (CMU/Yahoo R. L. ) i. CAST, Jan. 09 C. Faloutsos 5

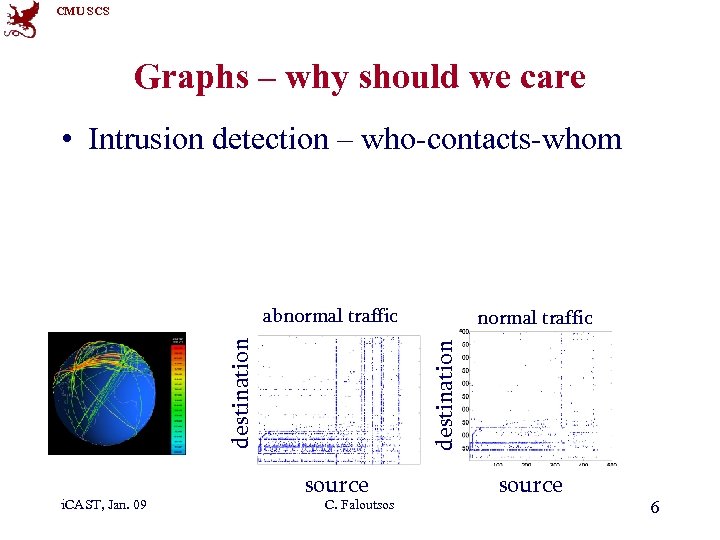

CMU SCS Graphs – why should we care • Intrusion detection – who-contacts-whom i. CAST, Jan. 09 normal traffic destination abnormal traffic source C. Faloutsos source 6

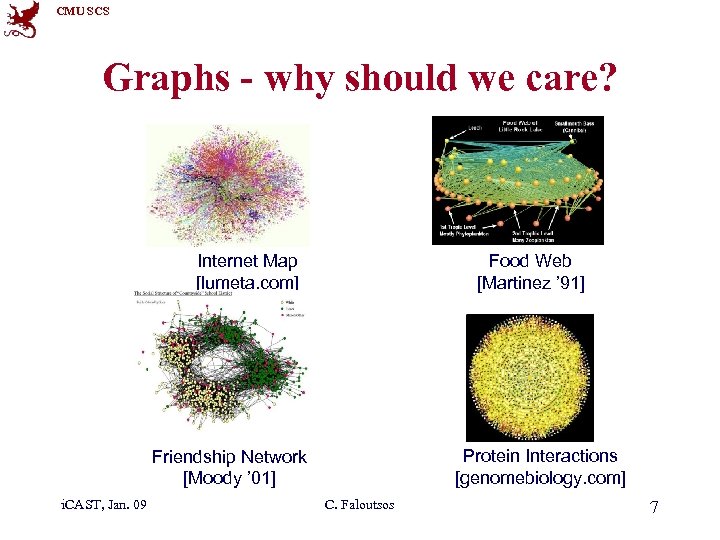

CMU SCS Graphs - why should we care? Internet Map [lumeta. com] Food Web [Martinez ’ 91] Protein Interactions [genomebiology. com] Friendship Network [Moody ’ 01] i. CAST, Jan. 09 C. Faloutsos 7

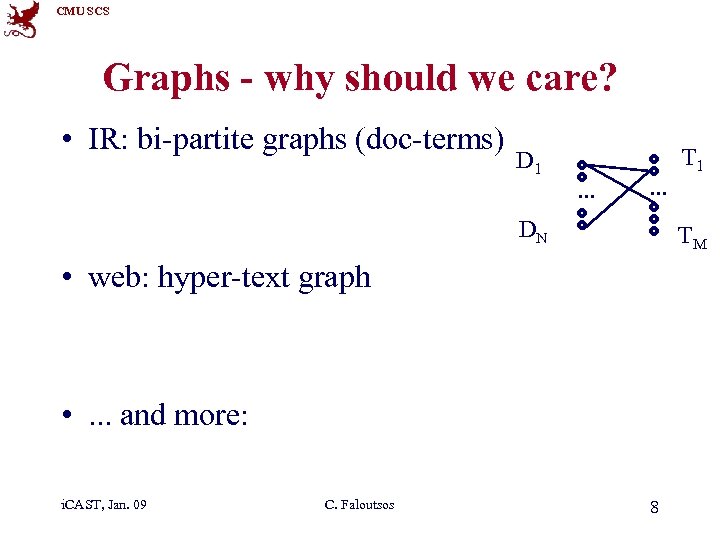

CMU SCS Graphs - why should we care? • IR: bi-partite graphs (doc-terms) D 1 . . . DN TM • web: hyper-text graph • . . . and more: i. CAST, Jan. 09 C. Faloutsos T 1 8

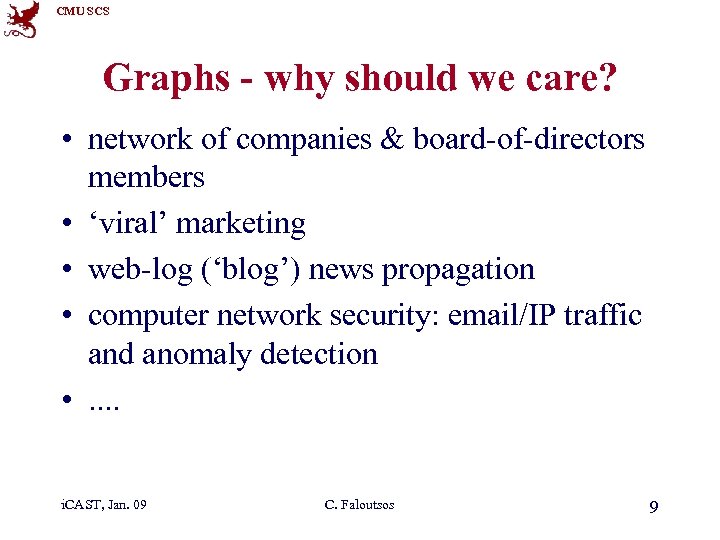

CMU SCS Graphs - why should we care? • network of companies & board-of-directors members • ‘viral’ marketing • web-log (‘blog’) news propagation • computer network security: email/IP traffic and anomaly detection • . . i. CAST, Jan. 09 C. Faloutsos 9

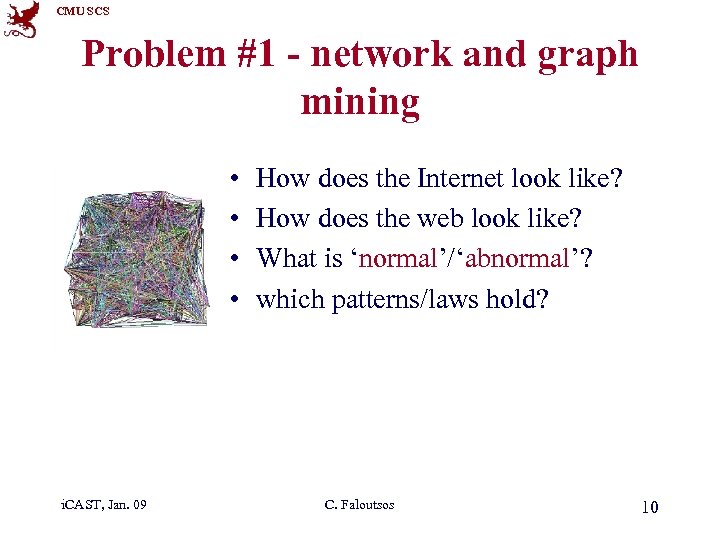

CMU SCS Problem #1 - network and graph mining • • i. CAST, Jan. 09 How does the Internet look like? How does the web look like? What is ‘normal’/‘abnormal’? which patterns/laws hold? C. Faloutsos 10

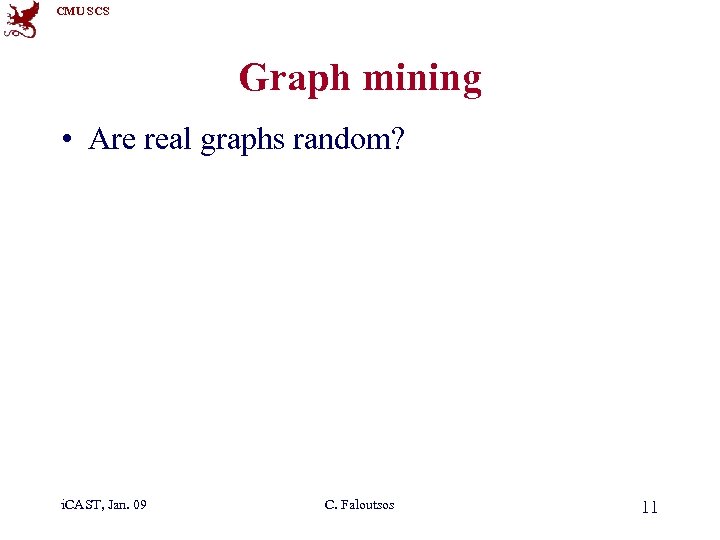

CMU SCS Graph mining • Are real graphs random? i. CAST, Jan. 09 C. Faloutsos 11

CMU SCS Laws and patterns • Are real graphs random? • A: NO!! – Diameter – in- and out- degree distributions – other (surprising) patterns i. CAST, Jan. 09 C. Faloutsos 12

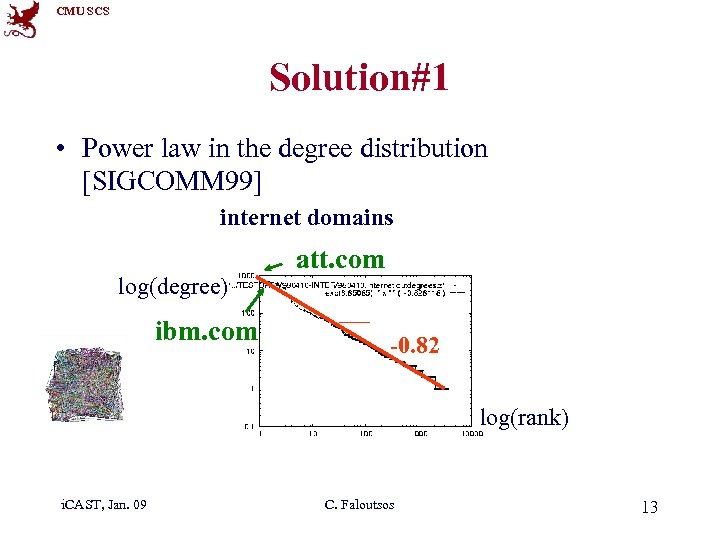

CMU SCS Solution#1 • Power law in the degree distribution [SIGCOMM 99] internet domains log(degree) ibm. com att. com -0. 82 log(rank) i. CAST, Jan. 09 C. Faloutsos 13

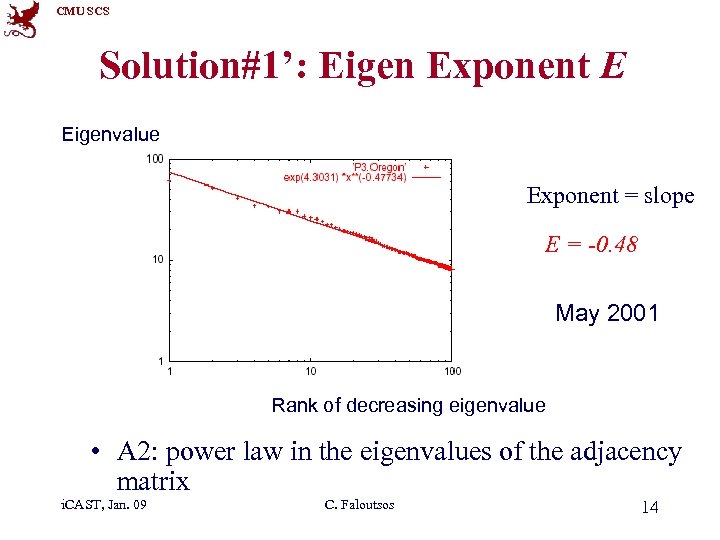

CMU SCS Solution#1’: Eigen Exponent E Eigenvalue Exponent = slope E = -0. 48 May 2001 Rank of decreasing eigenvalue • A 2: power law in the eigenvalues of the adjacency matrix i. CAST, Jan. 09 C. Faloutsos 14

CMU SCS Solution#1’: Eigen Exponent E Eigenvalue Exponent = slope E = -0. 48 May 2001 Rank of decreasing eigenvalue • [Mihail, Papadimitriou ’ 02]: slope is ½ of rank exponent i. CAST, Jan. 09 C. Faloutsos 15

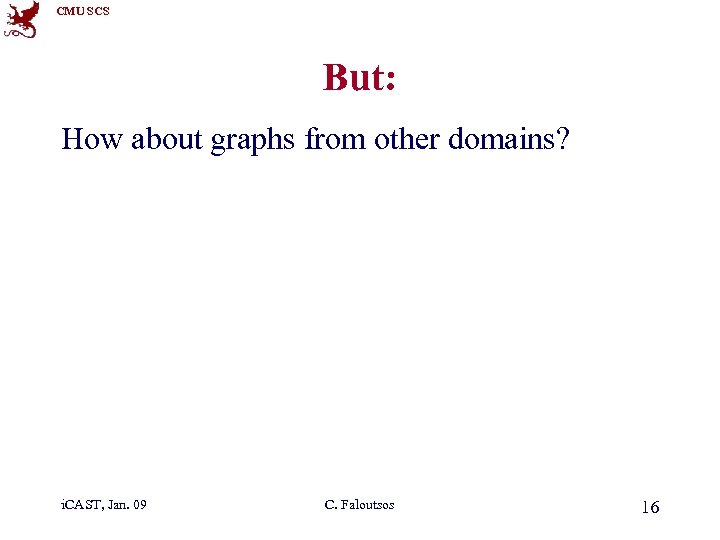

CMU SCS But: How about graphs from other domains? i. CAST, Jan. 09 C. Faloutsos 16

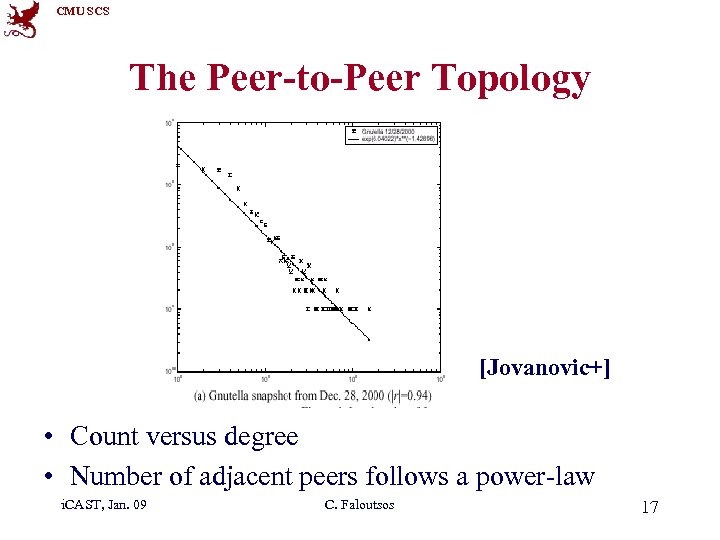

CMU SCS The Peer-to-Peer Topology [Jovanovic+] • Count versus degree • Number of adjacent peers follows a power-law i. CAST, Jan. 09 C. Faloutsos 17

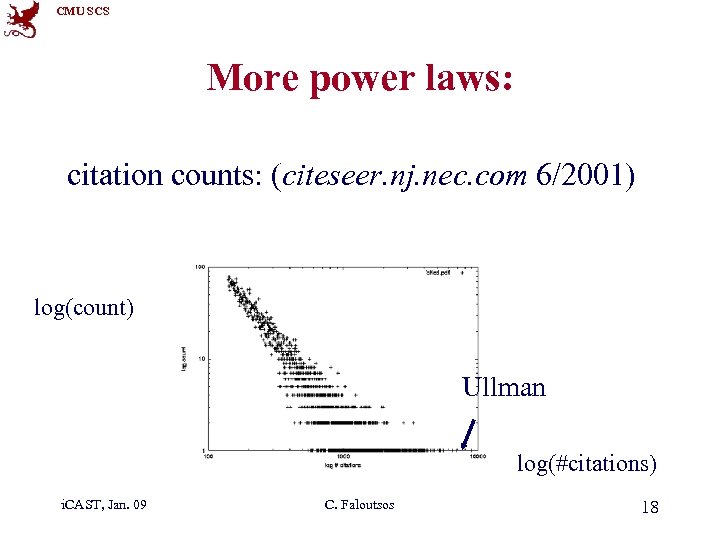

CMU SCS More power laws: citation counts: (citeseer. nj. nec. com 6/2001) log(count) Ullman log(#citations) i. CAST, Jan. 09 C. Faloutsos 18

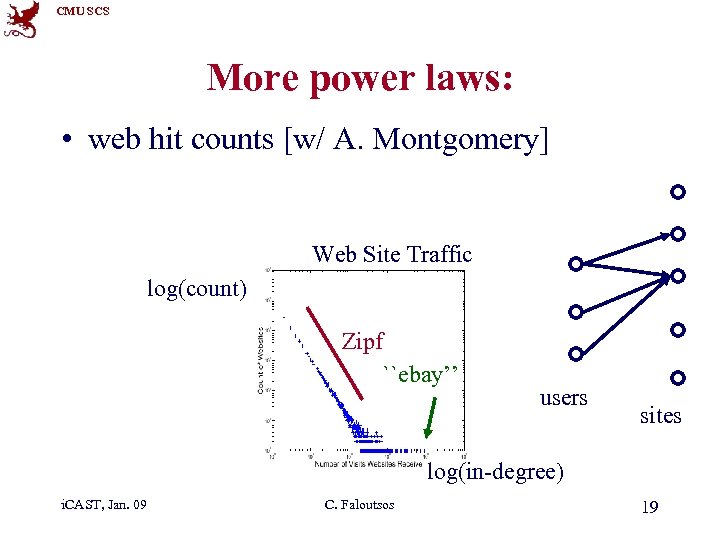

CMU SCS More power laws: • web hit counts [w/ A. Montgomery] Web Site Traffic log(count) Zipf ``ebay’’ users sites log(in-degree) i. CAST, Jan. 09 C. Faloutsos 19

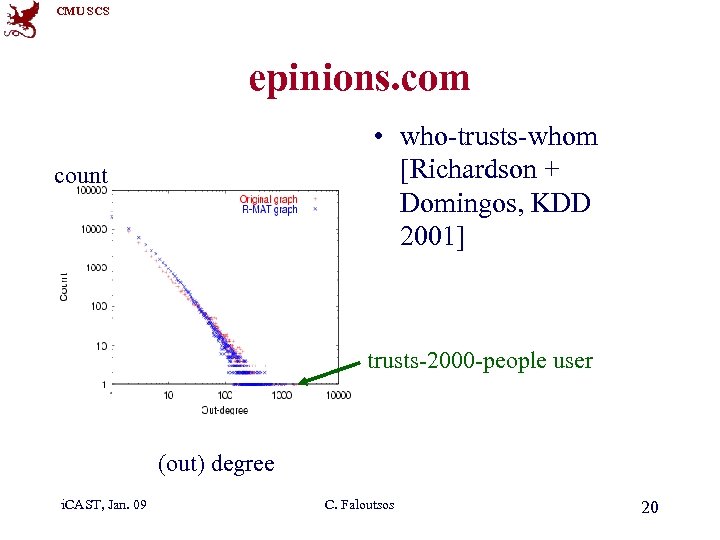

CMU SCS epinions. com • who-trusts-whom [Richardson + Domingos, KDD 2001] count trusts-2000 -people user (out) degree i. CAST, Jan. 09 C. Faloutsos 20

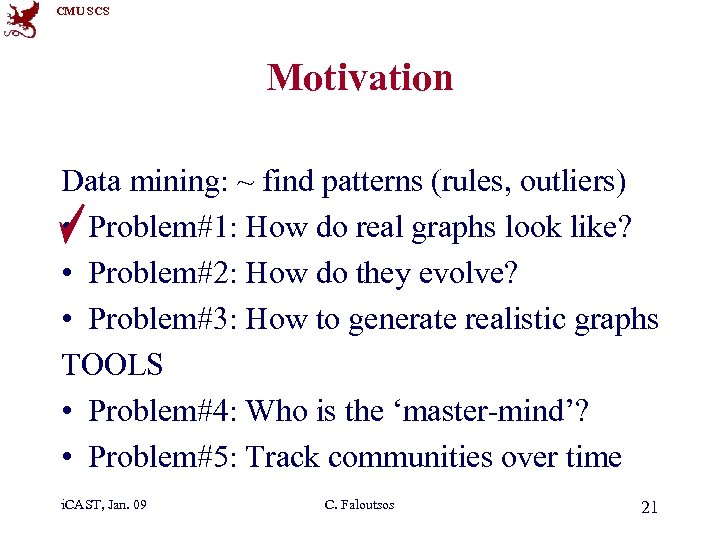

CMU SCS Motivation Data mining: ~ find patterns (rules, outliers) • Problem#1: How do real graphs look like? • Problem#2: How do they evolve? • Problem#3: How to generate realistic graphs TOOLS • Problem#4: Who is the ‘master-mind’? • Problem#5: Track communities over time i. CAST, Jan. 09 C. Faloutsos 21

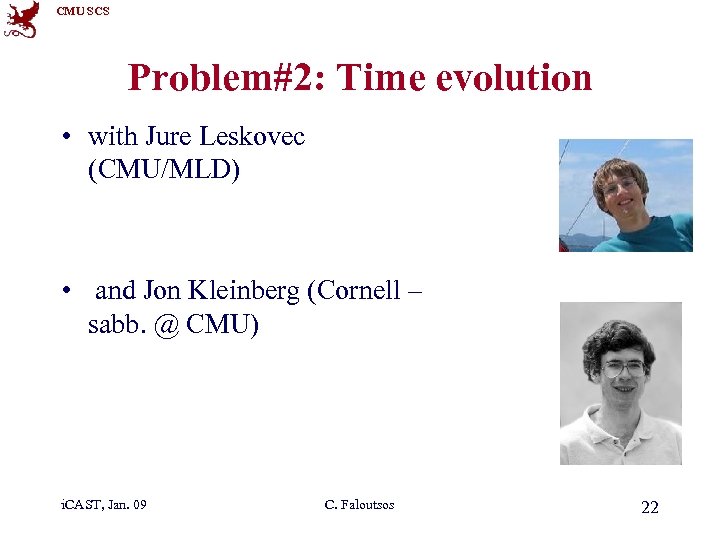

CMU SCS Problem#2: Time evolution • with Jure Leskovec (CMU/MLD) • and Jon Kleinberg (Cornell – sabb. @ CMU) i. CAST, Jan. 09 C. Faloutsos 22

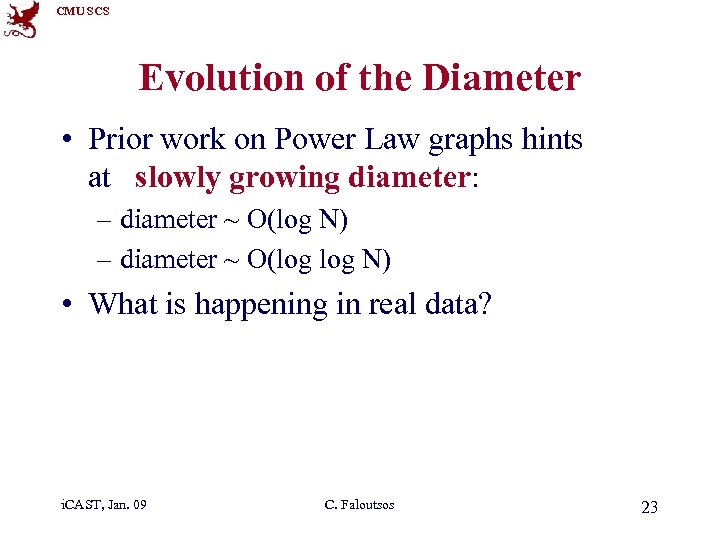

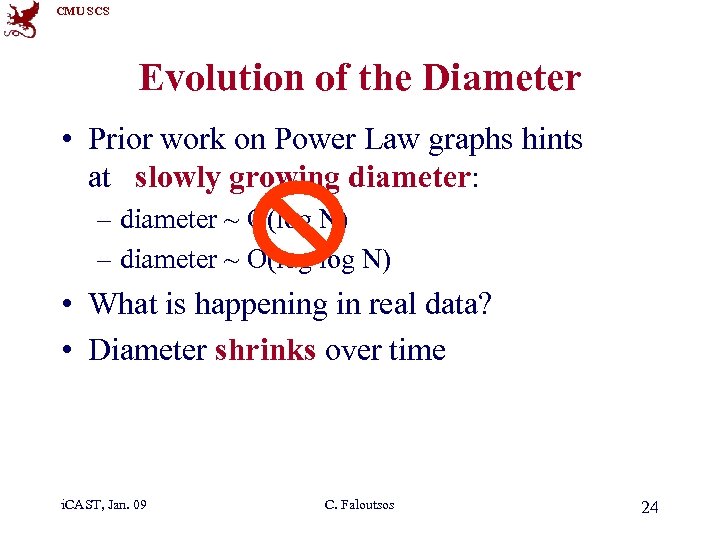

CMU SCS Evolution of the Diameter • Prior work on Power Law graphs hints at slowly growing diameter: – diameter ~ O(log N) • What is happening in real data? i. CAST, Jan. 09 C. Faloutsos 23

CMU SCS Evolution of the Diameter • Prior work on Power Law graphs hints at slowly growing diameter: – diameter ~ O(log N) • What is happening in real data? • Diameter shrinks over time i. CAST, Jan. 09 C. Faloutsos 24

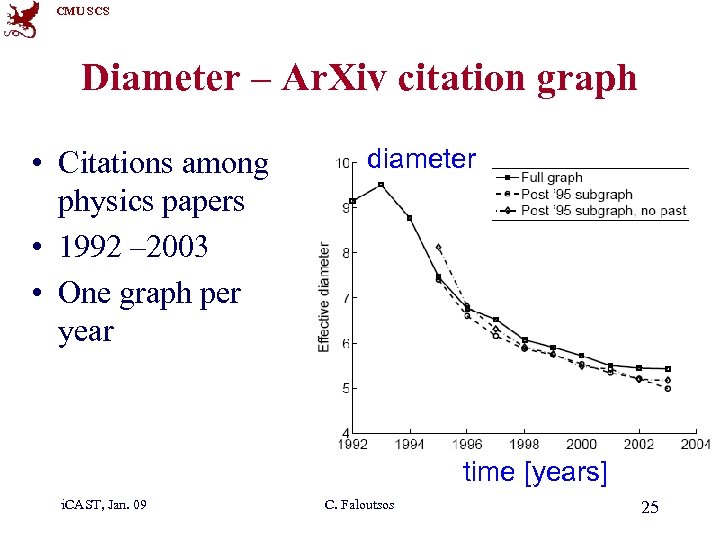

CMU SCS Diameter – Ar. Xiv citation graph • Citations among physics papers • 1992 – 2003 • One graph per year diameter time [years] i. CAST, Jan. 09 C. Faloutsos 25

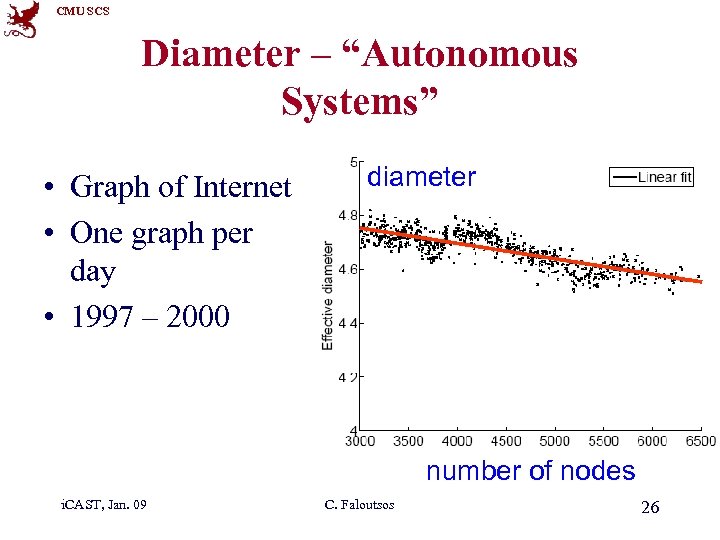

CMU SCS Diameter – “Autonomous Systems” • Graph of Internet • One graph per day • 1997 – 2000 diameter number of nodes i. CAST, Jan. 09 C. Faloutsos 26

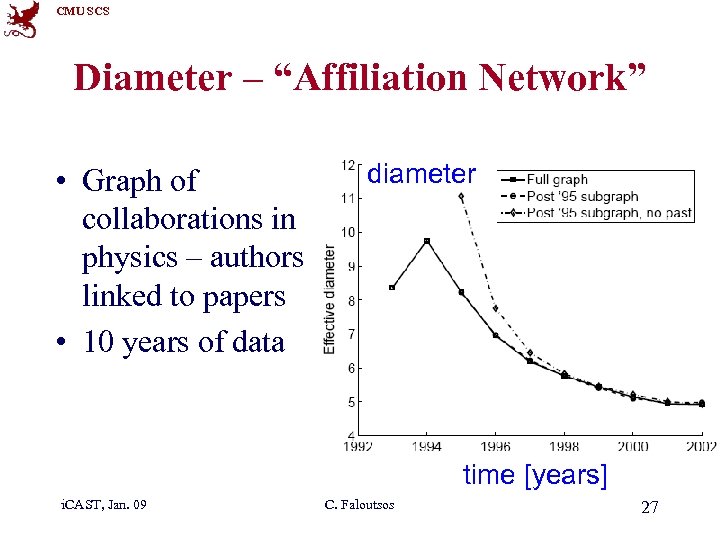

CMU SCS Diameter – “Affiliation Network” • Graph of collaborations in physics – authors linked to papers • 10 years of data diameter time [years] i. CAST, Jan. 09 C. Faloutsos 27

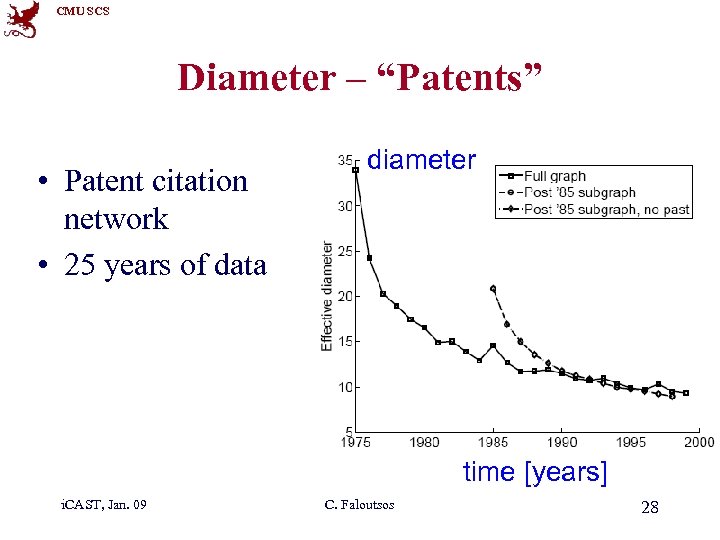

CMU SCS Diameter – “Patents” • Patent citation network • 25 years of data diameter time [years] i. CAST, Jan. 09 C. Faloutsos 28

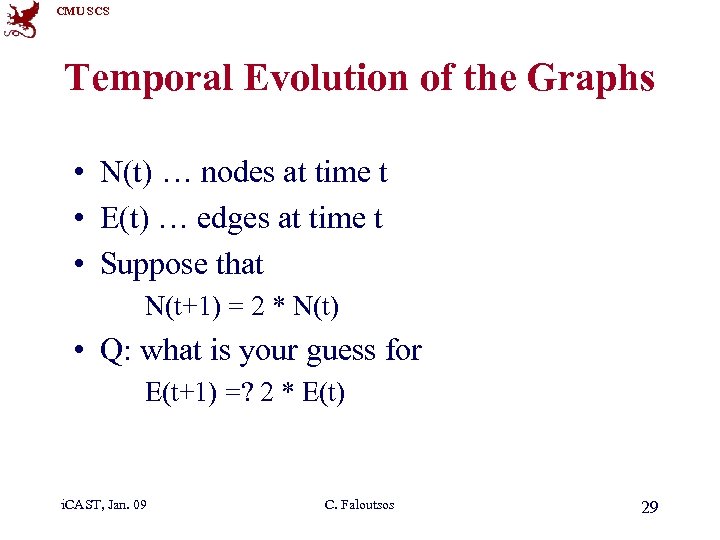

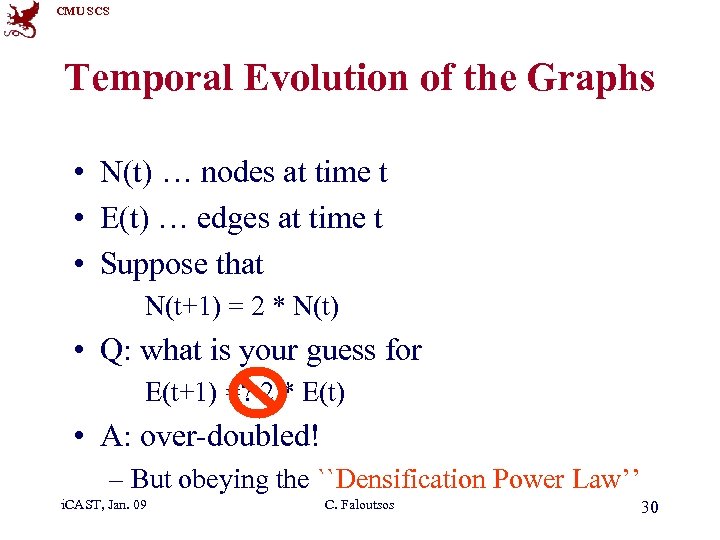

CMU SCS Temporal Evolution of the Graphs • N(t) … nodes at time t • E(t) … edges at time t • Suppose that N(t+1) = 2 * N(t) • Q: what is your guess for E(t+1) =? 2 * E(t) i. CAST, Jan. 09 C. Faloutsos 29

CMU SCS Temporal Evolution of the Graphs • N(t) … nodes at time t • E(t) … edges at time t • Suppose that N(t+1) = 2 * N(t) • Q: what is your guess for E(t+1) =? 2 * E(t) • A: over-doubled! – But obeying the ``Densification Power Law’’ i. CAST, Jan. 09 C. Faloutsos 30

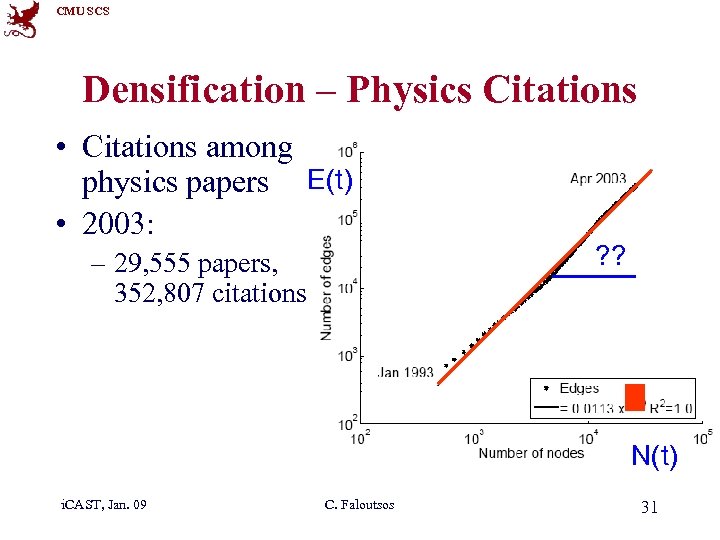

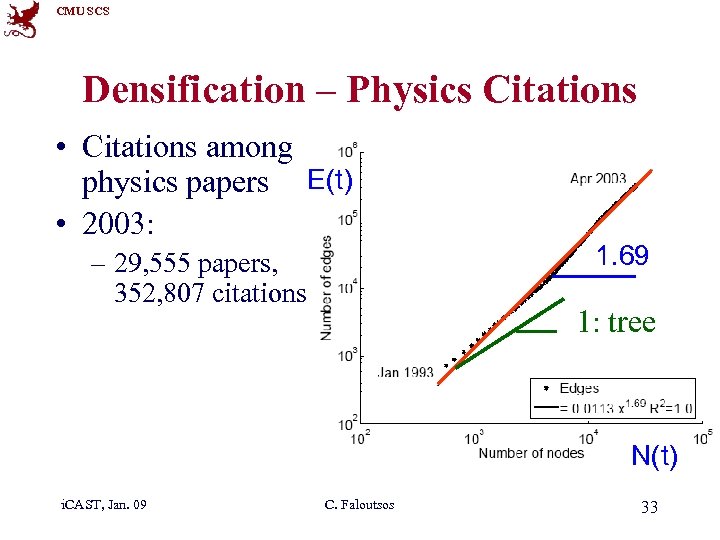

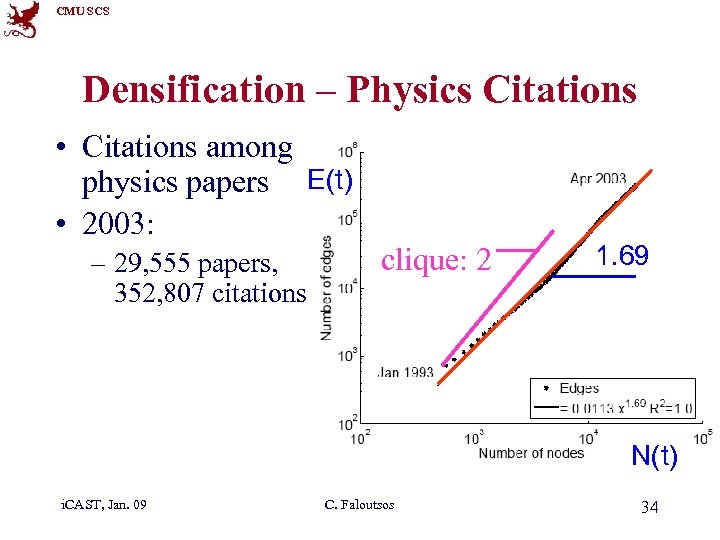

CMU SCS Densification – Physics Citations • Citations among physics papers E(t) • 2003: – 29, 555 papers, 352, 807 citations ? ? N(t) i. CAST, Jan. 09 C. Faloutsos 31

CMU SCS Densification – Physics Citations • Citations among physics papers E(t) • 2003: – 29, 555 papers, 352, 807 citations 1. 69 N(t) i. CAST, Jan. 09 C. Faloutsos 32

CMU SCS Densification – Physics Citations • Citations among physics papers E(t) • 2003: – 29, 555 papers, 352, 807 citations 1. 69 1: tree N(t) i. CAST, Jan. 09 C. Faloutsos 33

CMU SCS Densification – Physics Citations • Citations among physics papers E(t) • 2003: – 29, 555 papers, 352, 807 citations clique: 2 1. 69 N(t) i. CAST, Jan. 09 C. Faloutsos 34

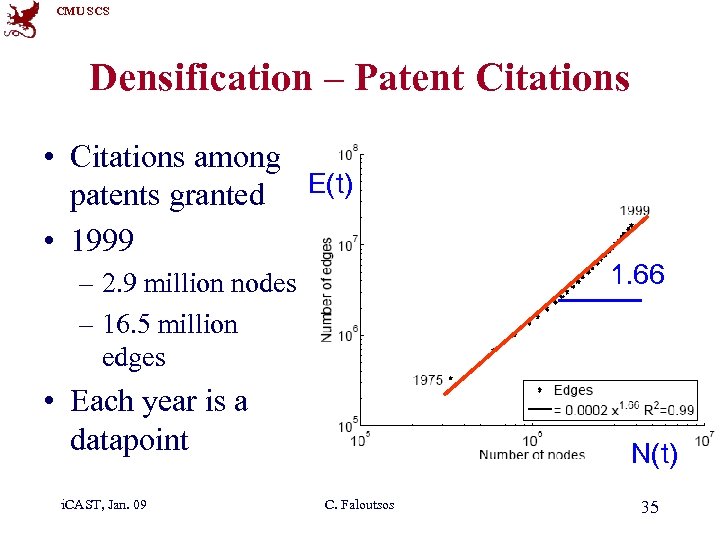

CMU SCS Densification – Patent Citations • Citations among patents granted E(t) • 1999 1. 66 – 2. 9 million nodes – 16. 5 million edges • Each year is a datapoint i. CAST, Jan. 09 N(t) C. Faloutsos 35

CMU SCS Densification – Autonomous Systems • Graph of Internet • 2000 E(t) 1. 18 – 6, 000 nodes – 26, 000 edges • One graph per day N(t) i. CAST, Jan. 09 C. Faloutsos 36

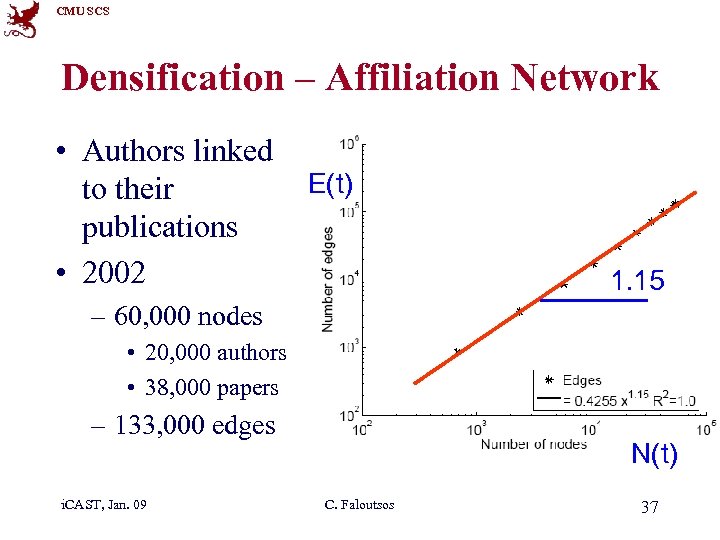

CMU SCS Densification – Affiliation Network • Authors linked to their publications • 2002 E(t) 1. 15 – 60, 000 nodes • 20, 000 authors • 38, 000 papers – 133, 000 edges i. CAST, Jan. 09 N(t) C. Faloutsos 37

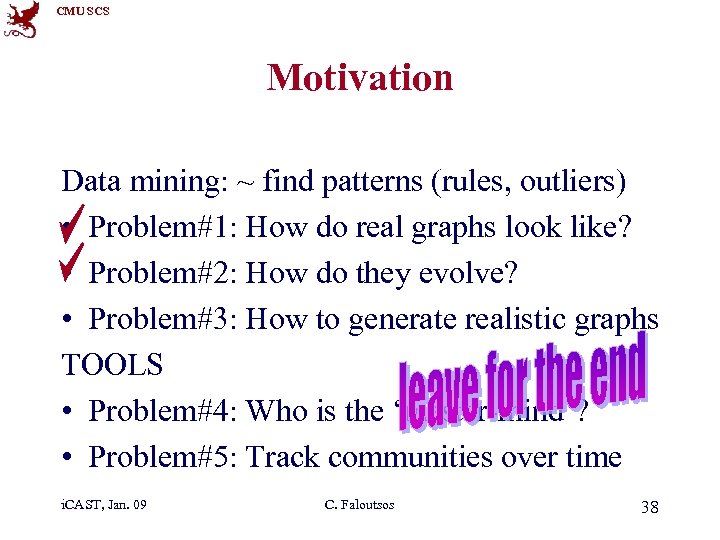

CMU SCS Motivation Data mining: ~ find patterns (rules, outliers) • Problem#1: How do real graphs look like? • Problem#2: How do they evolve? • Problem#3: How to generate realistic graphs TOOLS • Problem#4: Who is the ‘master-mind’? • Problem#5: Track communities over time i. CAST, Jan. 09 C. Faloutsos 38

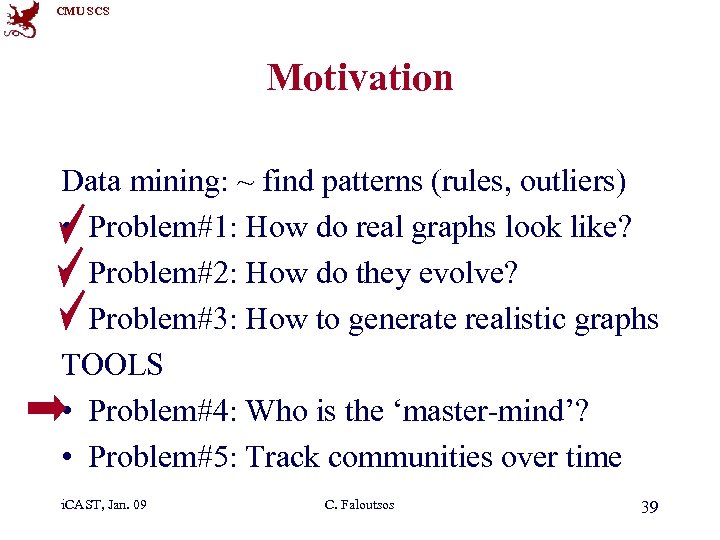

CMU SCS Motivation Data mining: ~ find patterns (rules, outliers) • Problem#1: How do real graphs look like? • Problem#2: How do they evolve? • Problem#3: How to generate realistic graphs TOOLS • Problem#4: Who is the ‘master-mind’? • Problem#5: Track communities over time i. CAST, Jan. 09 C. Faloutsos 39

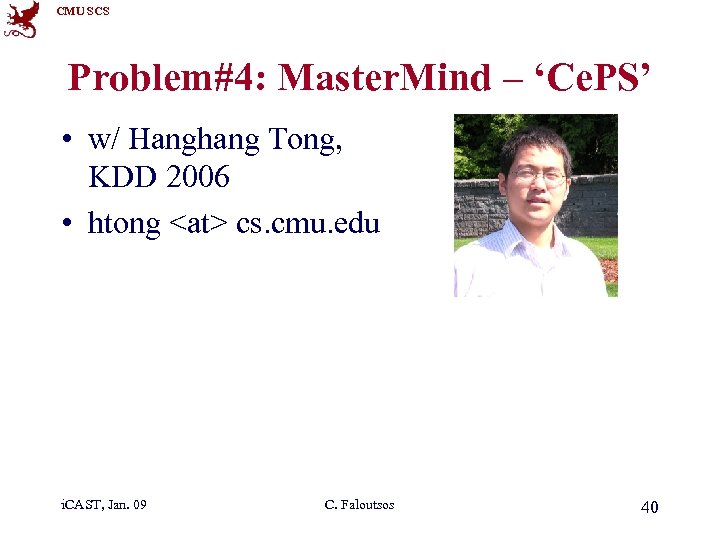

CMU SCS Problem#4: Master. Mind – ‘Ce. PS’ • w/ Hanghang Tong, KDD 2006 • htong cs. cmu. edu i. CAST, Jan. 09 C. Faloutsos 40

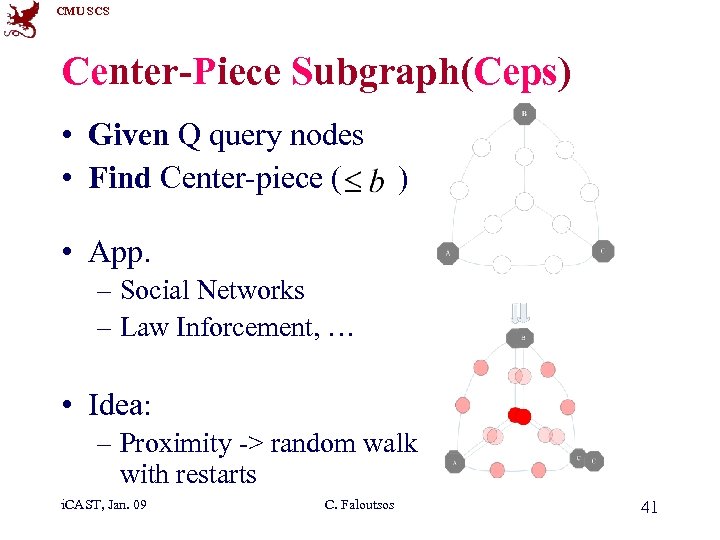

CMU SCS Center-Piece Subgraph(Ceps) • Given Q query nodes • Find Center-piece ( ) • App. – Social Networks – Law Inforcement, … • Idea: – Proximity -> random walk with restarts i. CAST, Jan. 09 C. Faloutsos 41

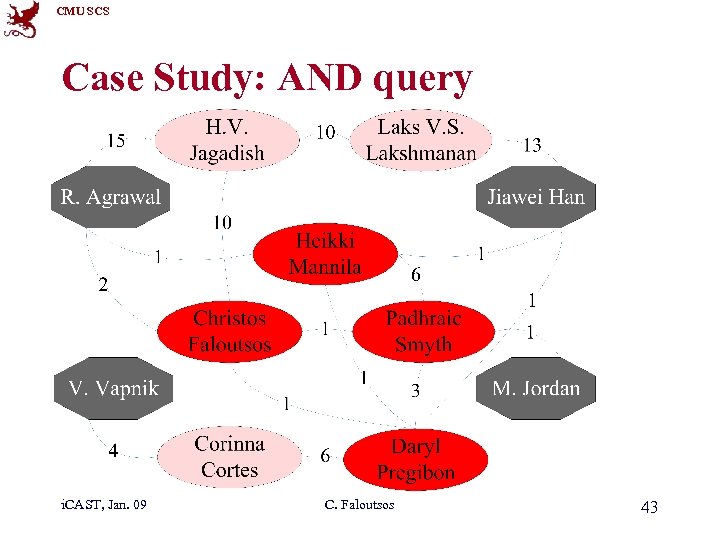

CMU SCS Case Study: AND query R. Agrawal Jiawei Han V. Vapnik M. Jordan i. CAST, Jan. 09 C. Faloutsos 42

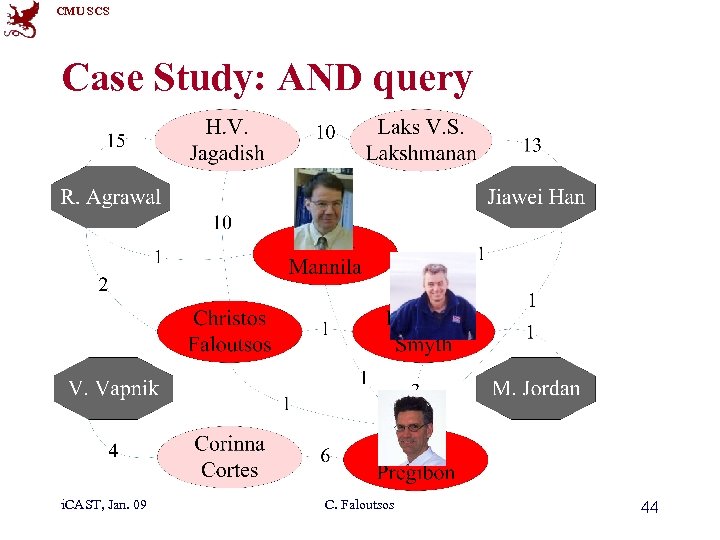

CMU SCS Case Study: AND query i. CAST, Jan. 09 C. Faloutsos 43

CMU SCS Case Study: AND query i. CAST, Jan. 09 C. Faloutsos 44

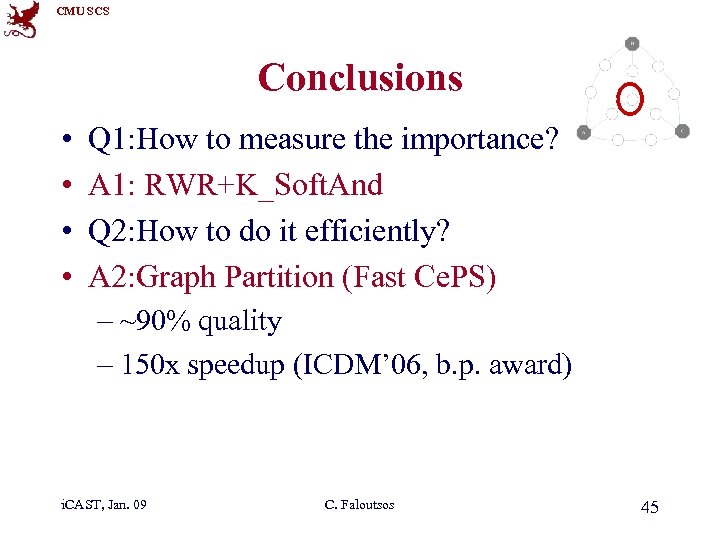

CMU SCS Conclusions • • Q 1: How to measure the importance? A 1: RWR+K_Soft. And Q 2: How to do it efficiently? A 2: Graph Partition (Fast Ce. PS) – ~90% quality – 150 x speedup (ICDM’ 06, b. p. award) i. CAST, Jan. 09 C. Faloutsos 45

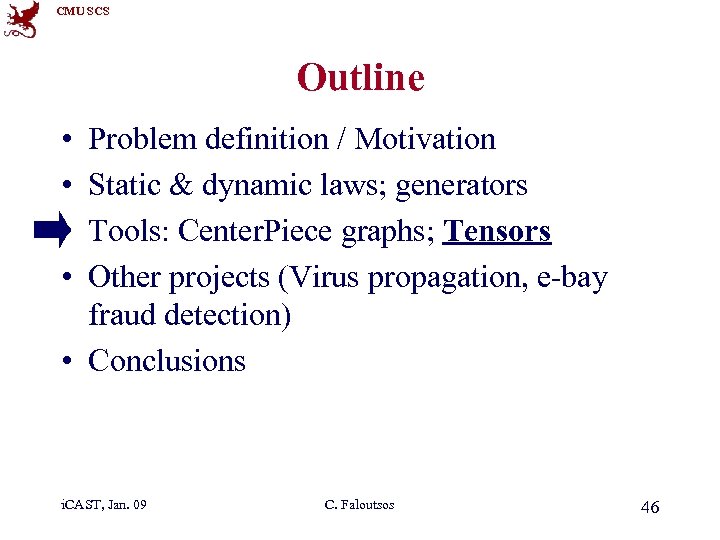

CMU SCS Outline • • Problem definition / Motivation Static & dynamic laws; generators Tools: Center. Piece graphs; Tensors Other projects (Virus propagation, e-bay fraud detection) • Conclusions i. CAST, Jan. 09 C. Faloutsos 46

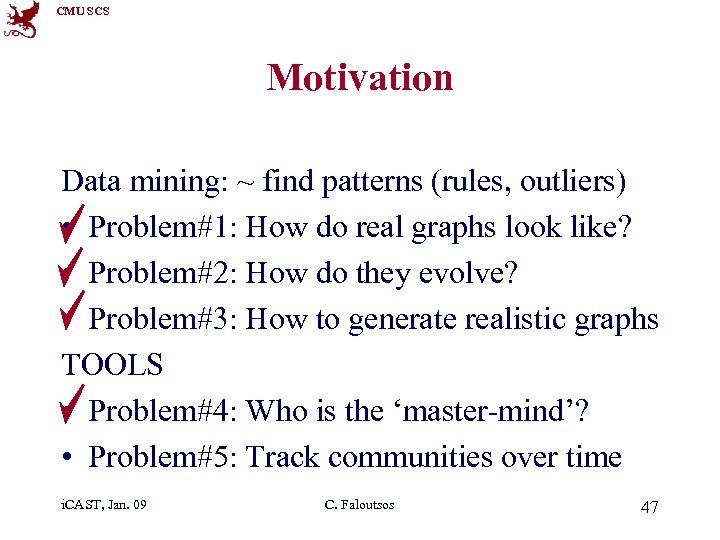

CMU SCS Motivation Data mining: ~ find patterns (rules, outliers) • Problem#1: How do real graphs look like? • Problem#2: How do they evolve? • Problem#3: How to generate realistic graphs TOOLS • Problem#4: Who is the ‘master-mind’? • Problem#5: Track communities over time i. CAST, Jan. 09 C. Faloutsos 47

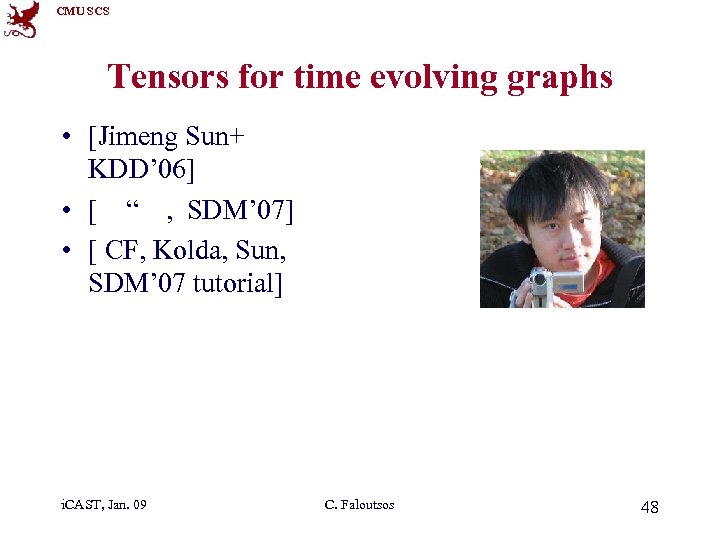

CMU SCS Tensors for time evolving graphs • [Jimeng Sun+ KDD’ 06] • [ “ , SDM’ 07] • [ CF, Kolda, Sun, SDM’ 07 tutorial] i. CAST, Jan. 09 C. Faloutsos 48

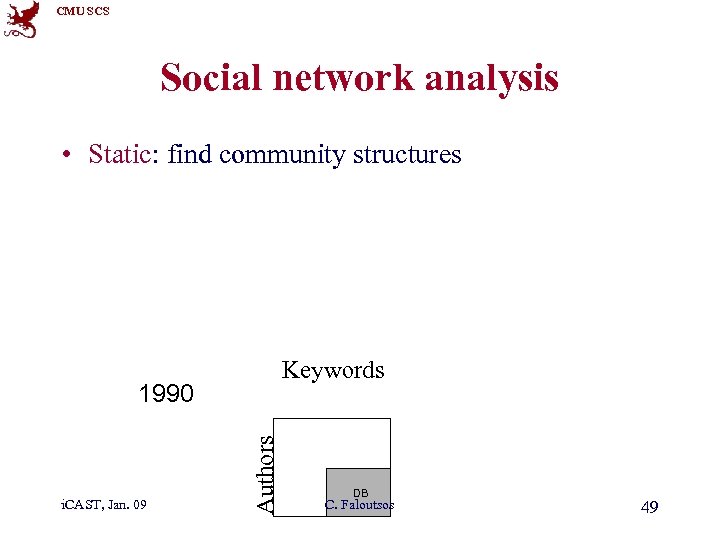

CMU SCS Social network analysis • Static: find community structures Keywords i. CAST, Jan. 09 Authors 1990 DB C. Faloutsos 49

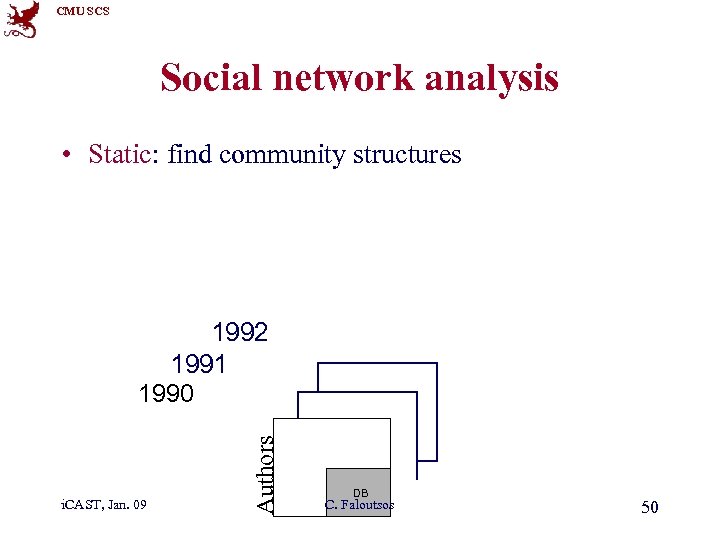

CMU SCS Social network analysis • Static: find community structures i. CAST, Jan. 09 Authors 1992 1991 1990 DB C. Faloutsos 50

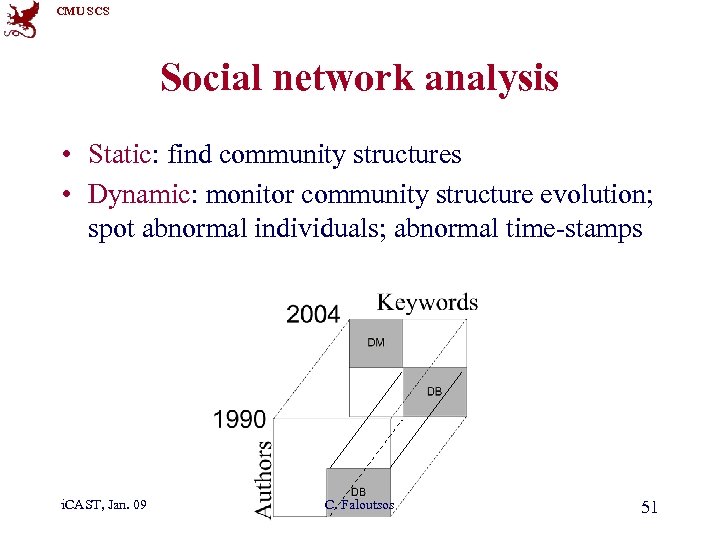

CMU SCS Social network analysis • Static: find community structures • Dynamic: monitor community structure evolution; spot abnormal individuals; abnormal time-stamps i. CAST, Jan. 09 C. Faloutsos 51

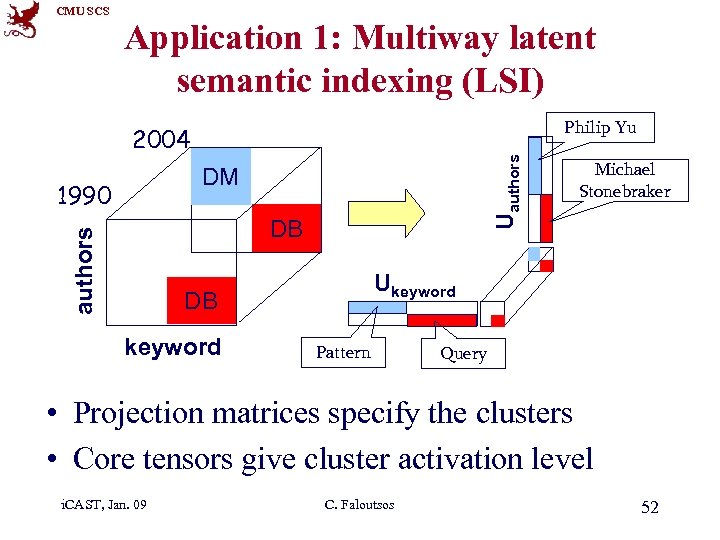

CMU SCS Application 1: Multiway latent semantic indexing (LSI) Philip Yu Uauthors 2004 DM 1990 authors DB Ukeyword DB keyword Michael Stonebraker Pattern Query • Projection matrices specify the clusters • Core tensors give cluster activation level i. CAST, Jan. 09 C. Faloutsos 52

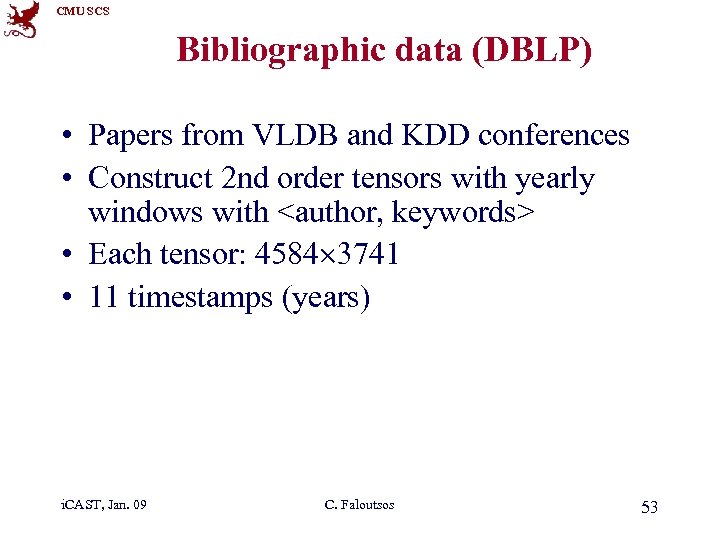

CMU SCS Bibliographic data (DBLP) • Papers from VLDB and KDD conferences • Construct 2 nd order tensors with yearly windows with • Each tensor: 4584 3741 • 11 timestamps (years) i. CAST, Jan. 09 C. Faloutsos 53

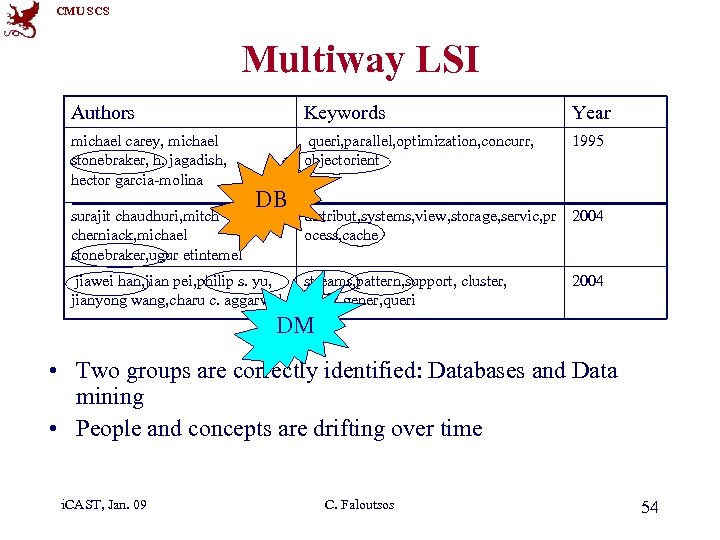

CMU SCS Multiway LSI Authors Keywords Year michael carey, michael stonebraker, h. jagadish, hector garcia-molina queri, parallel, optimization, concurr, objectorient 1995 surajit chaudhuri, mitch cherniack, michael stonebraker, ugur etintemel DB jiawei han, jian pei, philip s. yu, jianyong wang, charu c. aggarwal distribut, systems, view, storage, servic, pr 2004 ocess, cache streams, pattern, support, cluster, index, gener, queri 2004 DM • Two groups are correctly identified: Databases and Data mining • People and concepts are drifting over time i. CAST, Jan. 09 C. Faloutsos 54

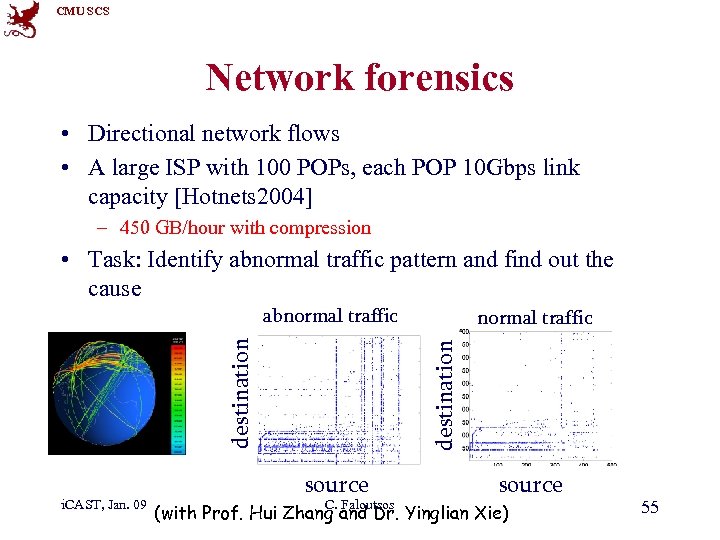

CMU SCS Network forensics • Directional network flows • A large ISP with 100 POPs, each POP 10 Gbps link capacity [Hotnets 2004] – 450 GB/hour with compression • Task: Identify abnormal traffic pattern and find out the cause i. CAST, Jan. 09 normal traffic destination abnormal traffic source C. Faloutsos source (with Prof. Hui Zhang and Dr. Yinglian Xie) 55

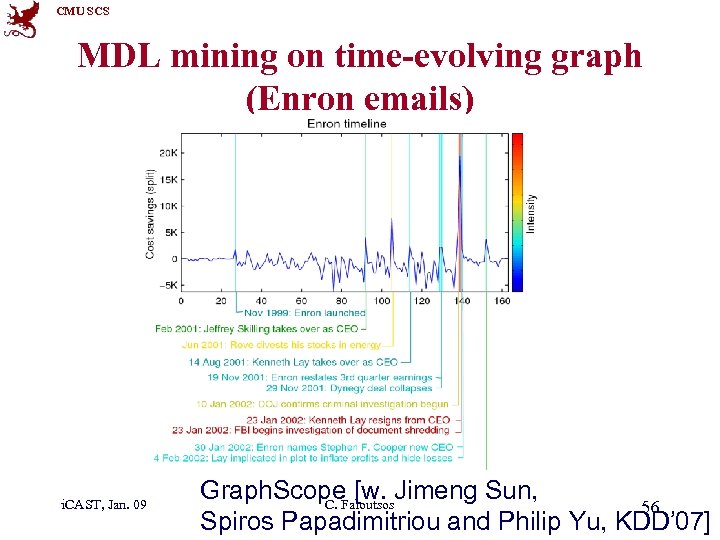

CMU SCS MDL mining on time-evolving graph (Enron emails) i. CAST, Jan. 09 Graph. Scope. Faloutsos. Jimeng Sun, [w. C. 56 Spiros Papadimitriou and Philip Yu, KDD’ 07]

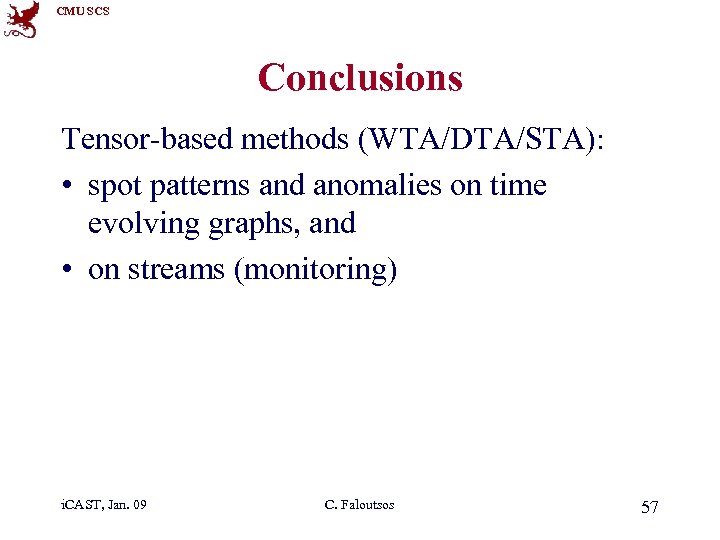

CMU SCS Conclusions Tensor-based methods (WTA/DTA/STA): • spot patterns and anomalies on time evolving graphs, and • on streams (monitoring) i. CAST, Jan. 09 C. Faloutsos 57

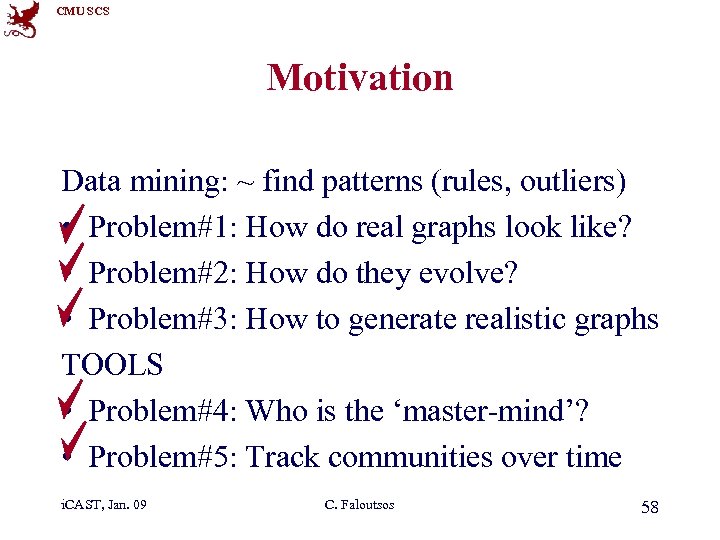

CMU SCS Motivation Data mining: ~ find patterns (rules, outliers) • Problem#1: How do real graphs look like? • Problem#2: How do they evolve? • Problem#3: How to generate realistic graphs TOOLS • Problem#4: Who is the ‘master-mind’? • Problem#5: Track communities over time i. CAST, Jan. 09 C. Faloutsos 58

CMU SCS Outline • • Problem definition / Motivation Static & dynamic laws; generators Tools: Center. Piece graphs; Tensors Other projects (e-bay fraud detection, blogs, weighted graphs) • Conclusions i. CAST, Jan. 09 C. Faloutsos 59

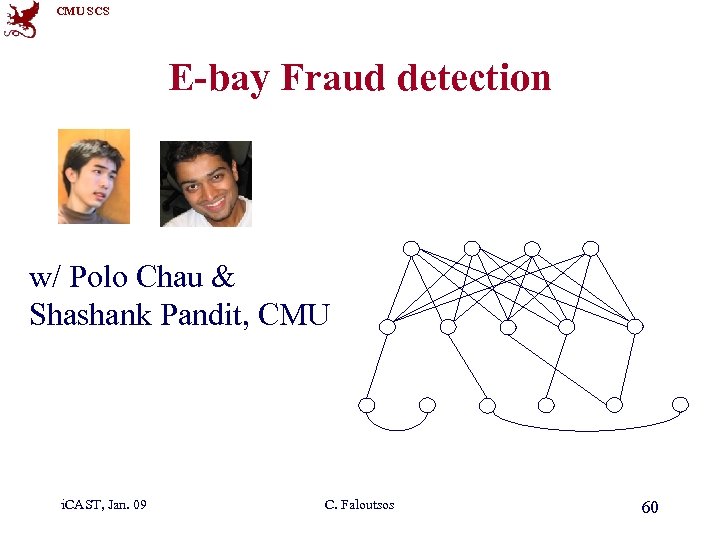

CMU SCS E-bay Fraud detection w/ Polo Chau & Shashank Pandit, CMU i. CAST, Jan. 09 C. Faloutsos 60

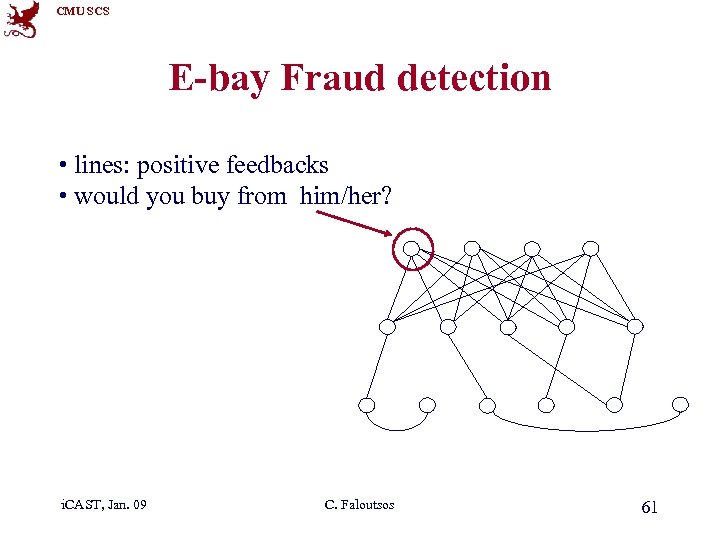

CMU SCS E-bay Fraud detection • lines: positive feedbacks • would you buy from him/her? i. CAST, Jan. 09 C. Faloutsos 61

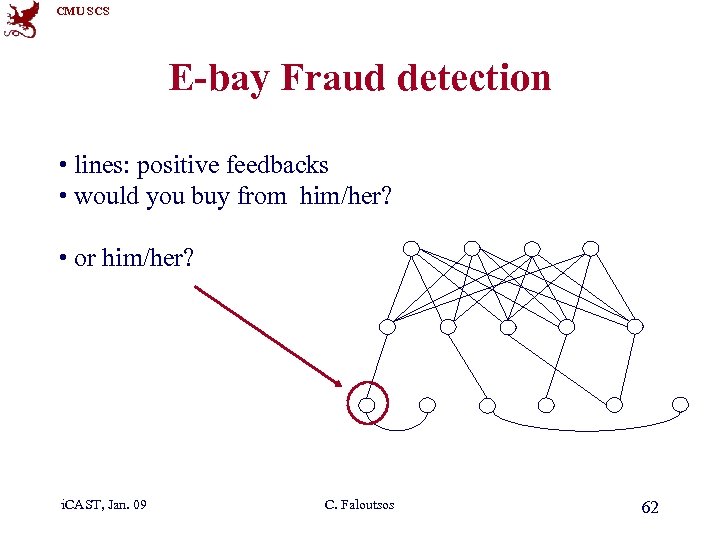

CMU SCS E-bay Fraud detection • lines: positive feedbacks • would you buy from him/her? • or him/her? i. CAST, Jan. 09 C. Faloutsos 62

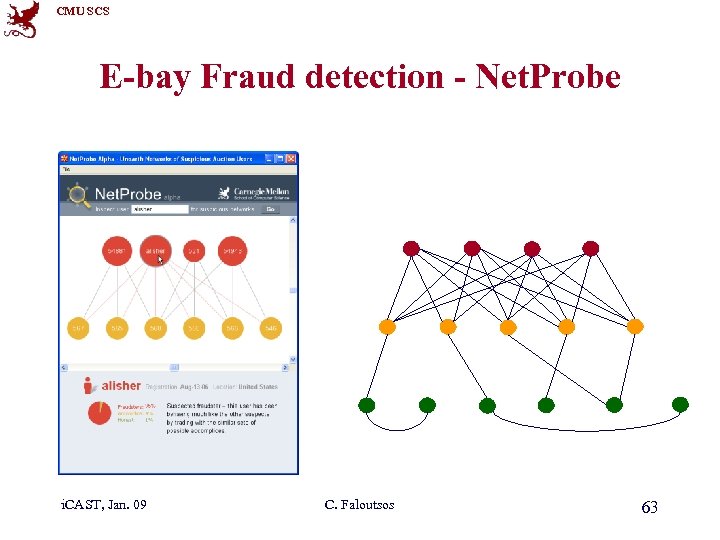

CMU SCS E-bay Fraud detection - Net. Probe i. CAST, Jan. 09 C. Faloutsos 63

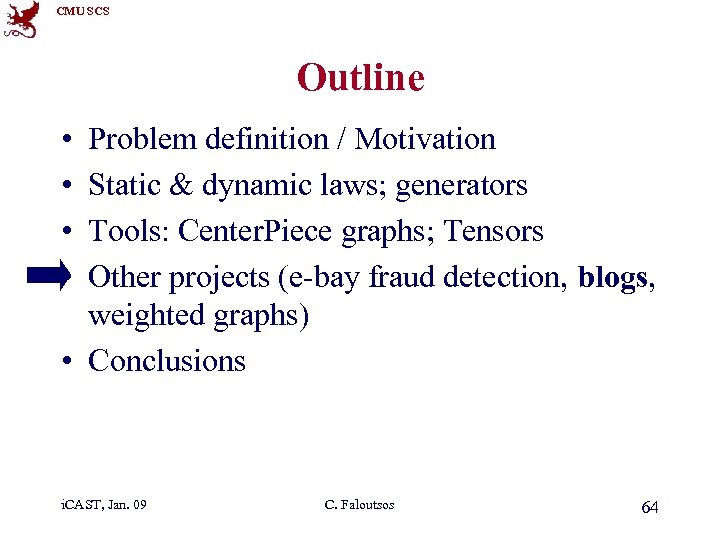

CMU SCS Outline • • Problem definition / Motivation Static & dynamic laws; generators Tools: Center. Piece graphs; Tensors Other projects (e-bay fraud detection, blogs, weighted graphs) • Conclusions i. CAST, Jan. 09 C. Faloutsos 64

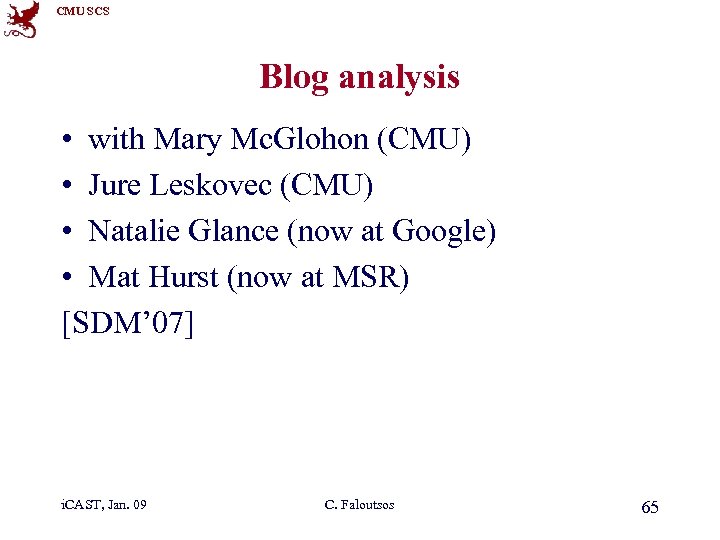

CMU SCS Blog analysis • with Mary Mc. Glohon (CMU) • Jure Leskovec (CMU) • Natalie Glance (now at Google) • Mat Hurst (now at MSR) [SDM’ 07] i. CAST, Jan. 09 C. Faloutsos 65

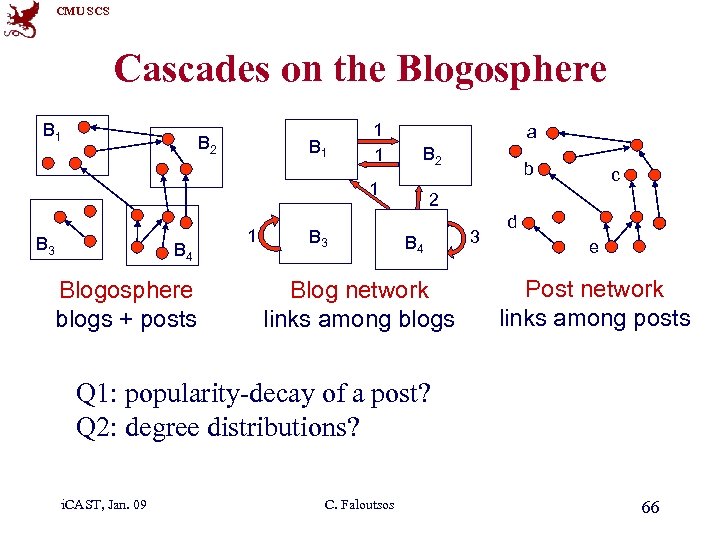

CMU SCS Cascades on the Blogosphere B 1 B 2 B 1 1 1 a B 2 1 B 3 B 4 Blogosphere blogs + posts 1 B 3 b c 2 B 4 Blog network links among blogs 3 d e Post network links among posts Q 1: popularity-decay of a post? Q 2: degree distributions? i. CAST, Jan. 09 C. Faloutsos 66

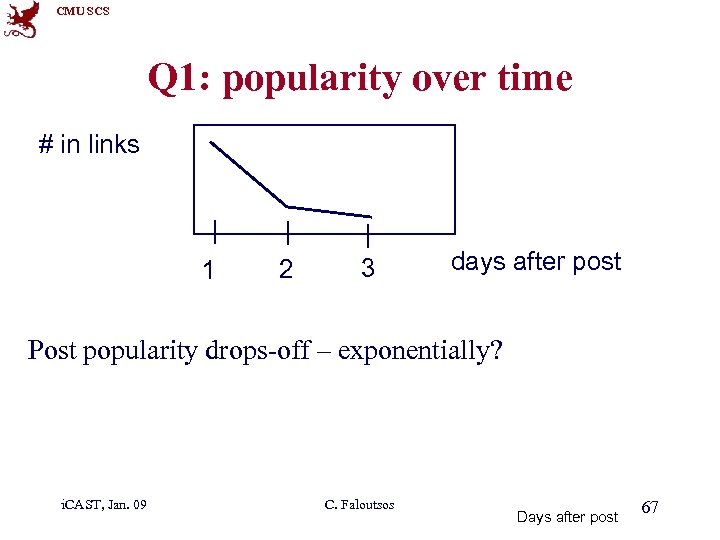

CMU SCS Q 1: popularity over time # in links 1 2 3 days after post Post popularity drops-off – exponentially? i. CAST, Jan. 09 C. Faloutsos Days after post 67

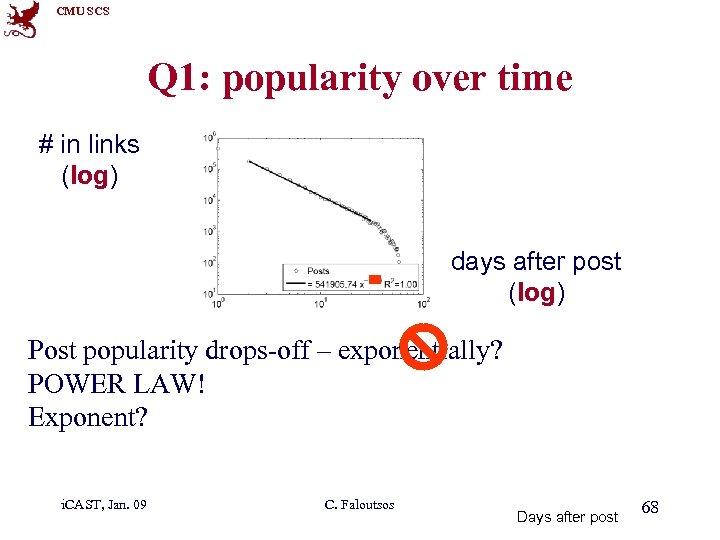

CMU SCS Q 1: popularity over time # in links (log) 1 2 3 days after post (log) Post popularity drops-off – exponentially? POWER LAW! Exponent? i. CAST, Jan. 09 C. Faloutsos Days after post 68

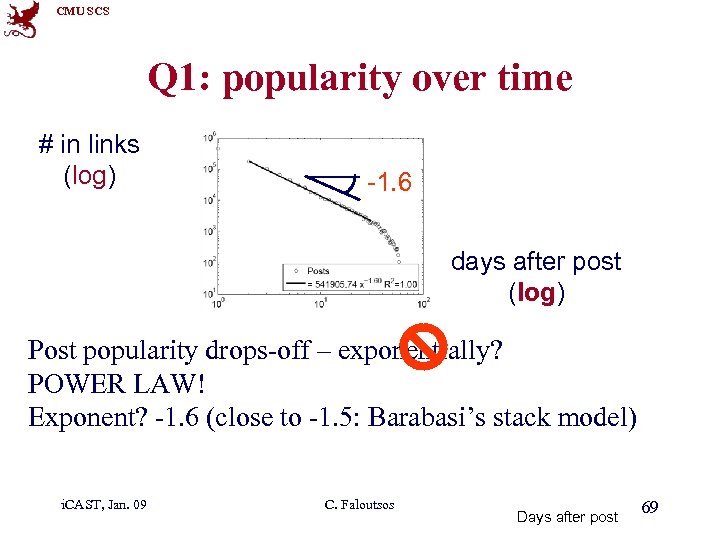

CMU SCS Q 1: popularity over time # in links (log) -1. 6 1 2 3 days after post (log) Post popularity drops-off – exponentially? POWER LAW! Exponent? -1. 6 (close to -1. 5: Barabasi’s stack model) i. CAST, Jan. 09 C. Faloutsos Days after post 69

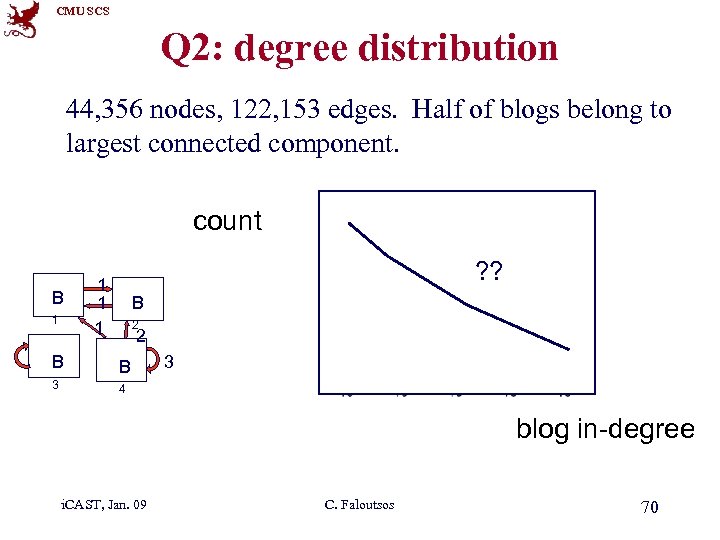

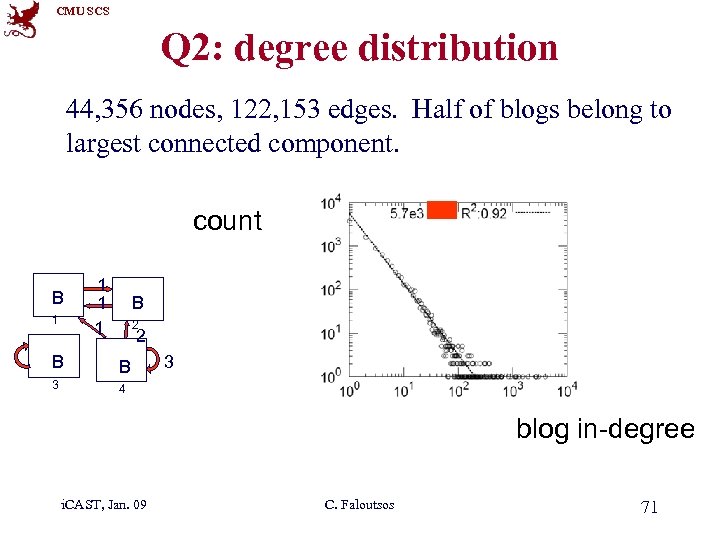

CMU SCS Q 2: degree distribution 44, 356 nodes, 122, 153 edges. Half of blogs belong to largest connected component. count B 1 ? ? 1 1 1 B 2 2 B B 3 3 4 blog in-degree i. CAST, Jan. 09 C. Faloutsos 70

CMU SCS Q 2: degree distribution 44, 356 nodes, 122, 153 edges. Half of blogs belong to largest connected component. count B 1 1 B 2 2 B B 3 3 4 blog in-degree i. CAST, Jan. 09 C. Faloutsos 71

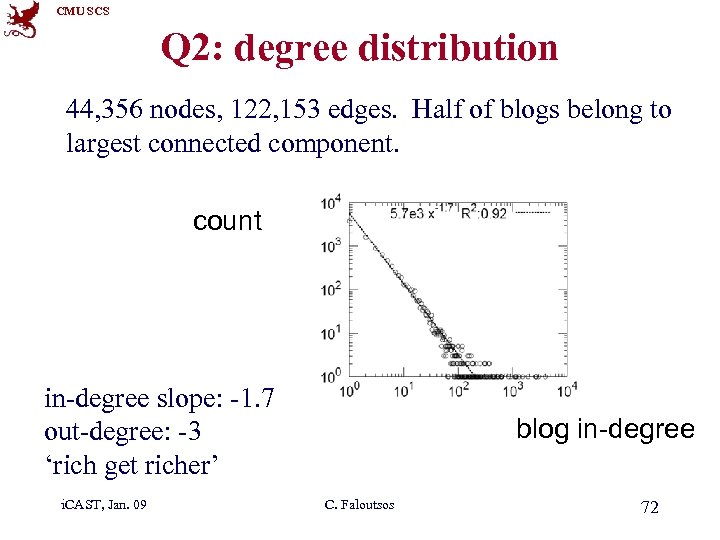

CMU SCS Q 2: degree distribution 44, 356 nodes, 122, 153 edges. Half of blogs belong to largest connected component. count in-degree slope: -1. 7 out-degree: -3 ‘rich get richer’ i. CAST, Jan. 09 blog in-degree C. Faloutsos 72

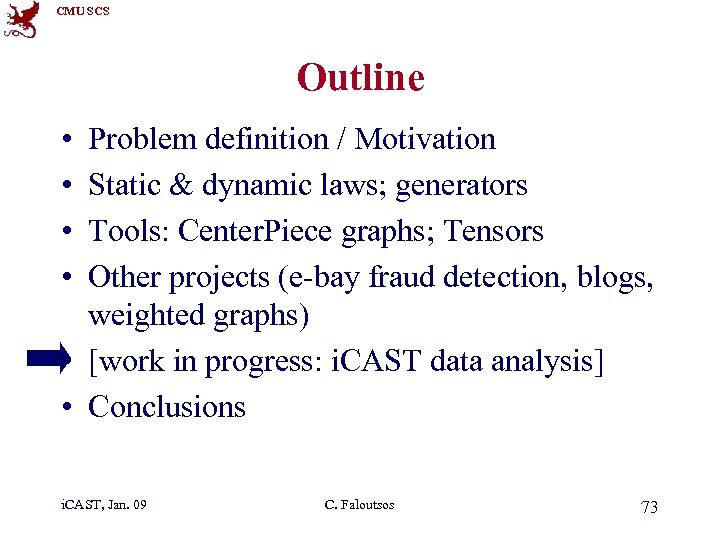

CMU SCS Outline • • Problem definition / Motivation Static & dynamic laws; generators Tools: Center. Piece graphs; Tensors Other projects (e-bay fraud detection, blogs, weighted graphs) • [work in progress: i. CAST data analysis] • Conclusions i. CAST, Jan. 09 C. Faloutsos 73

CMU SCS Joint work with Leman Akoglu www. andrew. cmu. edu/~lakoglu Mary Mc. Glohon www. cs. cmu. edu/~mmcgloho Thanks to Eric, Morgan, Ian, Teenet, for providing a copy of the dataset i. CAST, Jan. 09 C. Faloutsos 74

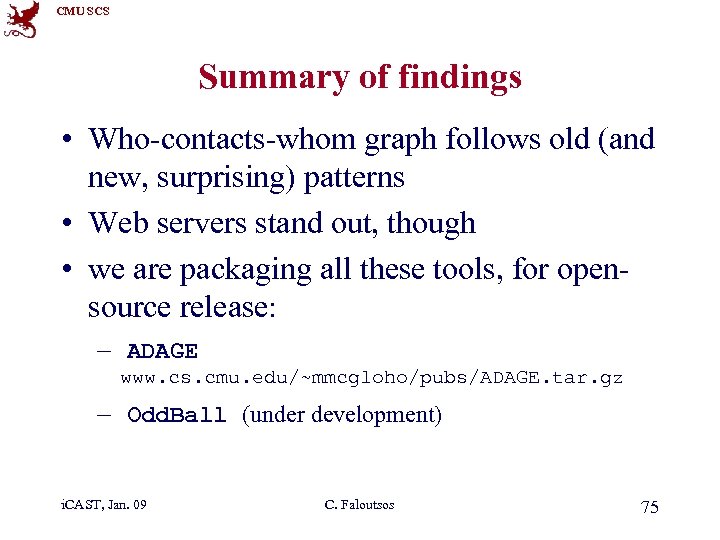

CMU SCS Summary of findings • Who-contacts-whom graph follows old (and new, surprising) patterns • Web servers stand out, though • we are packaging all these tools, for opensource release: – ADAGE www. cs. cmu. edu/~mmcgloho/pubs/ADAGE. tar. gz – Odd. Ball (under development) i. CAST, Jan. 09 C. Faloutsos 75

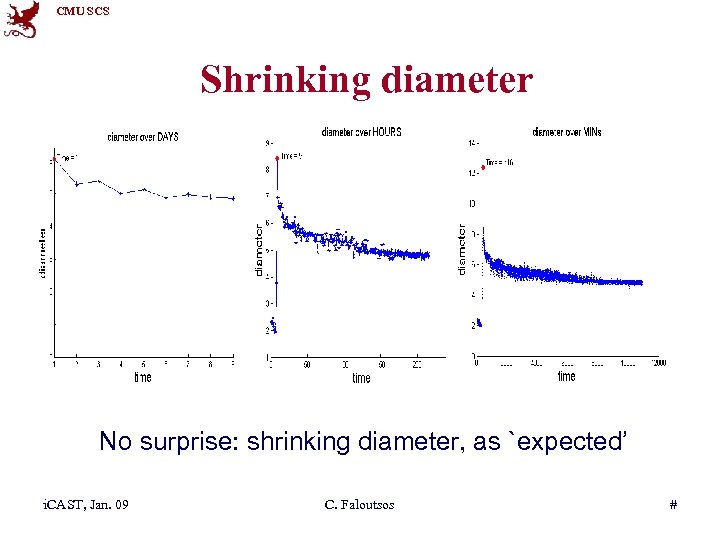

CMU SCS Shrinking diameter No surprise: shrinking diameter, as `expected’ i. CAST, Jan. 09 C. Faloutsos #

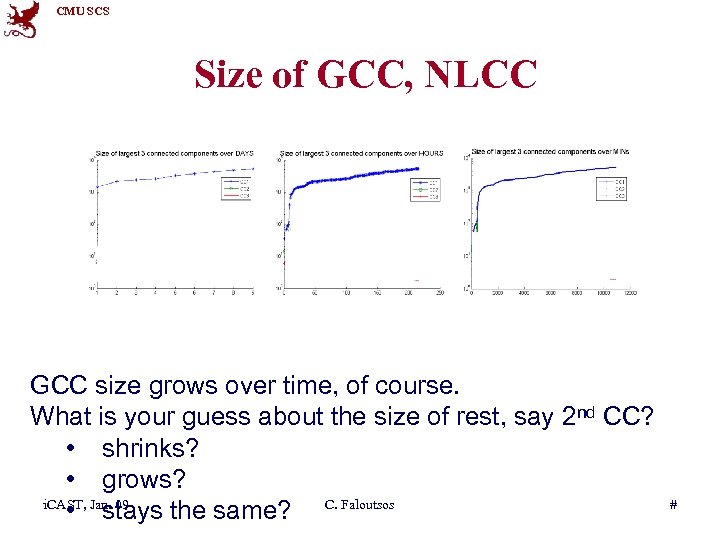

CMU SCS Size of GCC, NLCC GCC size grows over time, of course. What is your guess about the size of rest, say 2 nd CC? • shrinks? • grows? i. CAST, Jan. 09 • stays the same? C. Faloutsos #

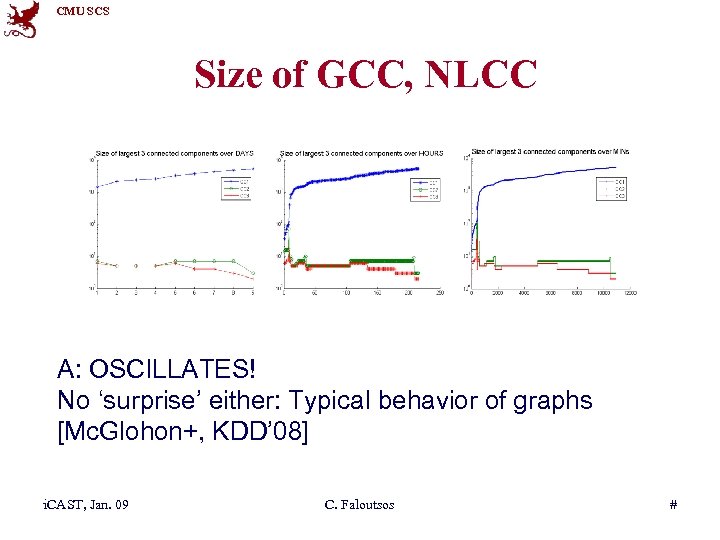

CMU SCS Size of GCC, NLCC A: OSCILLATES! No ‘surprise’ either: Typical behavior of graphs [Mc. Glohon+, KDD’ 08] i. CAST, Jan. 09 C. Faloutsos #

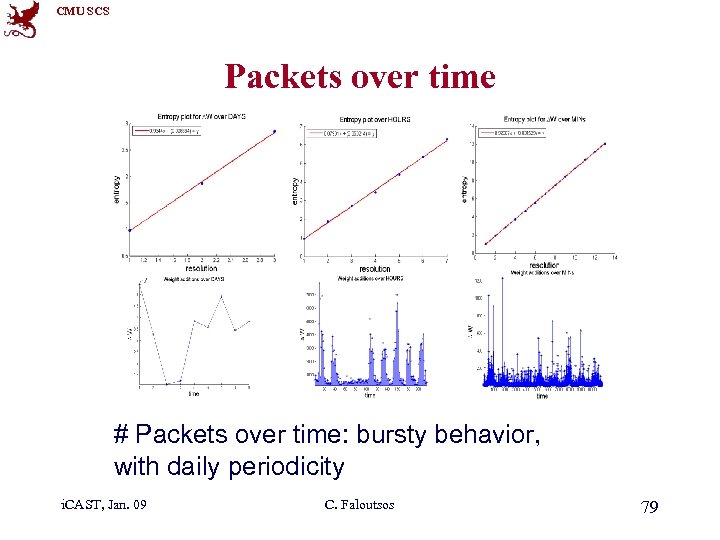

CMU SCS Packets over time # Packets over time: bursty behavior, with daily periodicity i. CAST, Jan. 09 C. Faloutsos 79

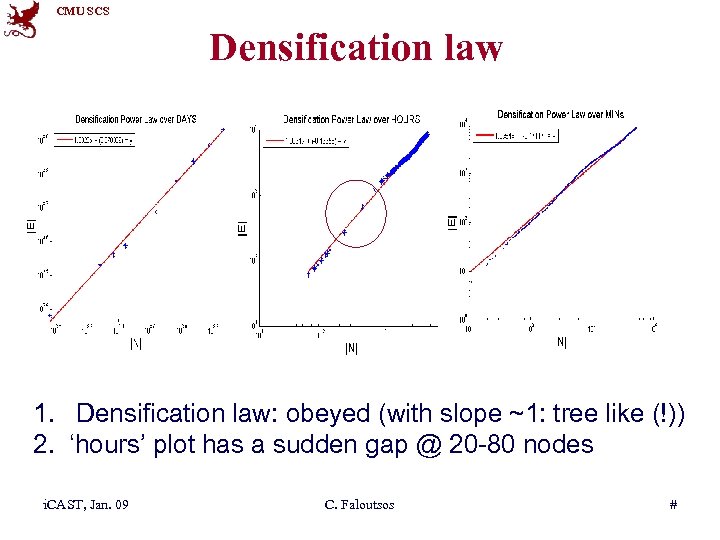

CMU SCS Densification law 1. Densification law: obeyed (with slope ~1: tree like (!)) 2. ‘hours’ plot has a sudden gap @ 20 -80 nodes i. CAST, Jan. 09 C. Faloutsos #

CMU SCS ‘Weight’ power law 1. 3 Weight: super-linear on number of edges – also ‘expected’: • the more contacts you have, • the even more packets you send! Slope 1. 3, 1. 15; plateau @ 100 edges i. CAST, Jan. 09 C. Faloutsos 81

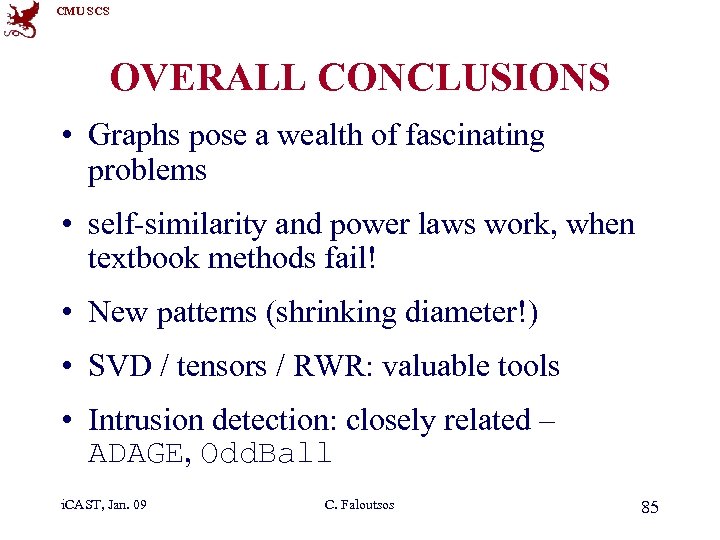

CMU SCS OVERALL CONCLUSIONS • Graphs pose a wealth of fascinating problems • self-similarity and power laws work, when textbook methods fail! • New patterns (shrinking diameter!) • SVD / tensors / RWR: valuable tools • Intrusion detection: closely related – ADAGE, Odd. Ball i. CAST, Jan. 09 C. Faloutsos 85

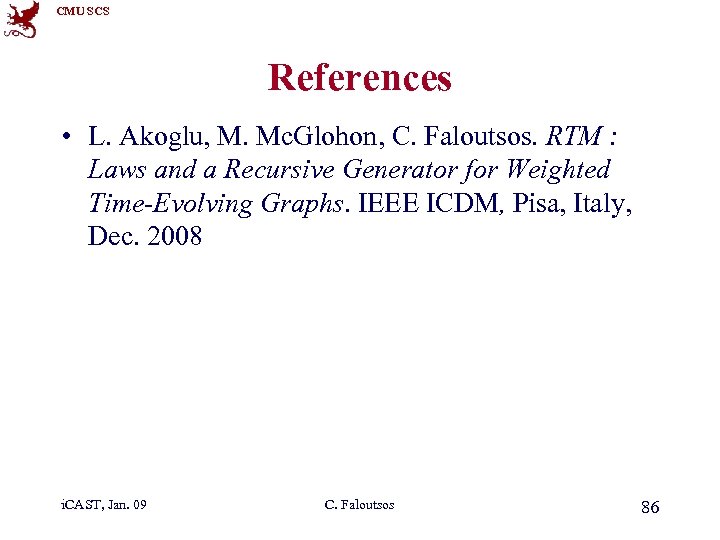

CMU SCS References • L. Akoglu, M. Mc. Glohon, C. Faloutsos. RTM : Laws and a Recursive Generator for Weighted Time-Evolving Graphs. IEEE ICDM, Pisa, Italy, Dec. 2008 i. CAST, Jan. 09 C. Faloutsos 86

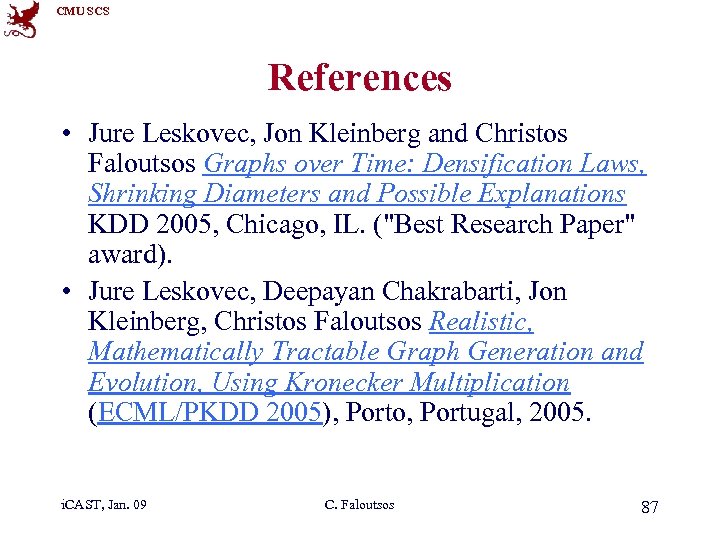

CMU SCS References • Jure Leskovec, Jon Kleinberg and Christos Faloutsos Graphs over Time: Densification Laws, Shrinking Diameters and Possible Explanations KDD 2005, Chicago, IL. ("Best Research Paper" award). • Jure Leskovec, Deepayan Chakrabarti, Jon Kleinberg, Christos Faloutsos Realistic, Mathematically Tractable Graph Generation and Evolution, Using Kronecker Multiplication (ECML/PKDD 2005), Porto, Portugal, 2005. i. CAST, Jan. 09 C. Faloutsos 87

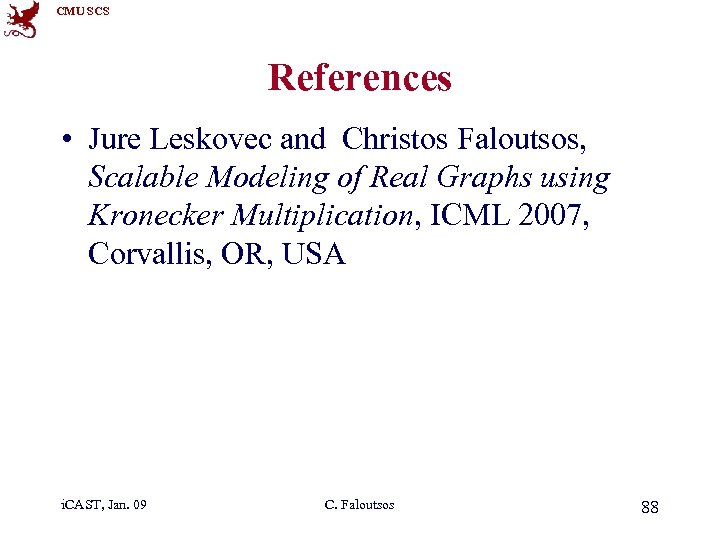

CMU SCS References • Jure Leskovec and Christos Faloutsos, Scalable Modeling of Real Graphs using Kronecker Multiplication, ICML 2007, Corvallis, OR, USA i. CAST, Jan. 09 C. Faloutsos 88

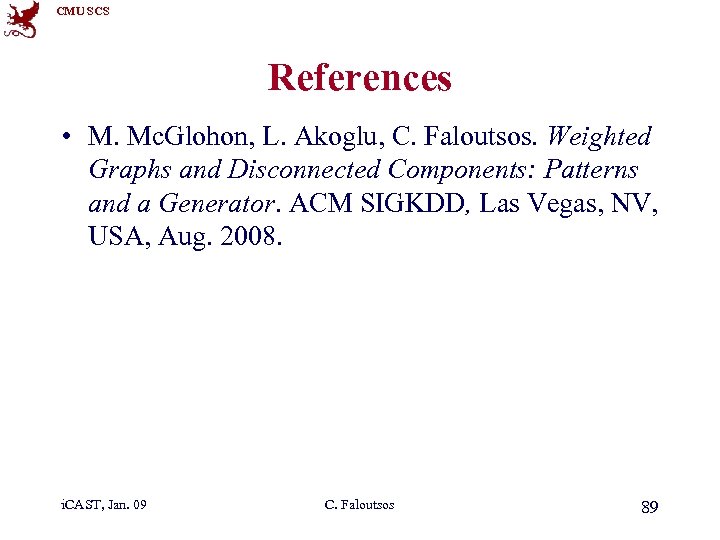

CMU SCS References • M. Mc. Glohon, L. Akoglu, C. Faloutsos. Weighted Graphs and Disconnected Components: Patterns and a Generator. ACM SIGKDD, Las Vegas, NV, USA, Aug. 2008. i. CAST, Jan. 09 C. Faloutsos 89

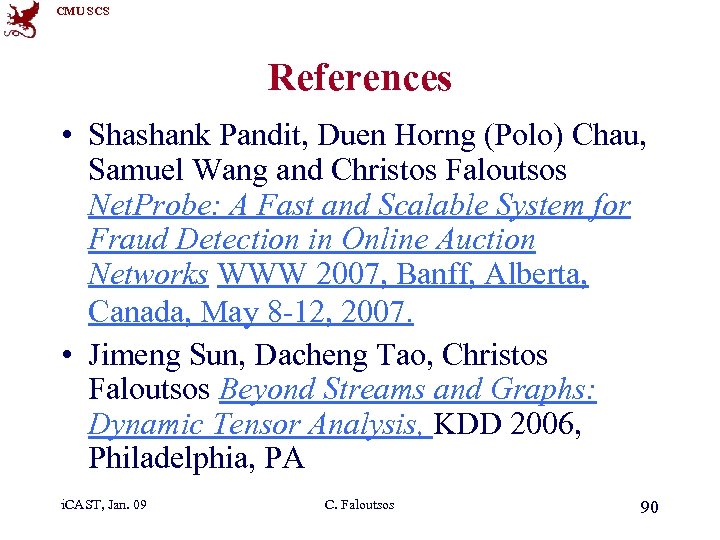

CMU SCS References • Shashank Pandit, Duen Horng (Polo) Chau, Samuel Wang and Christos Faloutsos Net. Probe: A Fast and Scalable System for Fraud Detection in Online Auction Networks WWW 2007, Banff, Alberta, Canada, May 8 -12, 2007. • Jimeng Sun, Dacheng Tao, Christos Faloutsos Beyond Streams and Graphs: Dynamic Tensor Analysis, KDD 2006, Philadelphia, PA i. CAST, Jan. 09 C. Faloutsos 90

CMU SCS References • Jimeng Sun, Yinglian Xie, Hui Zhang, Christos Faloutsos. Less is More: Compact Matrix Decomposition for Large Sparse Graphs, SDM, Minneapolis, Minnesota, Apr 2007. [pdf] • Jimeng Sun, Spiros Papadimitriou, Philip S. Yu, and Christos Faloutsos, Graph. Scope: Parameterfree Mining of Large Time-evolving Graphs ACM SIGKDD Conference, San Jose, CA, August 2007 i. CAST, Jan. 09 C. Faloutsos 91

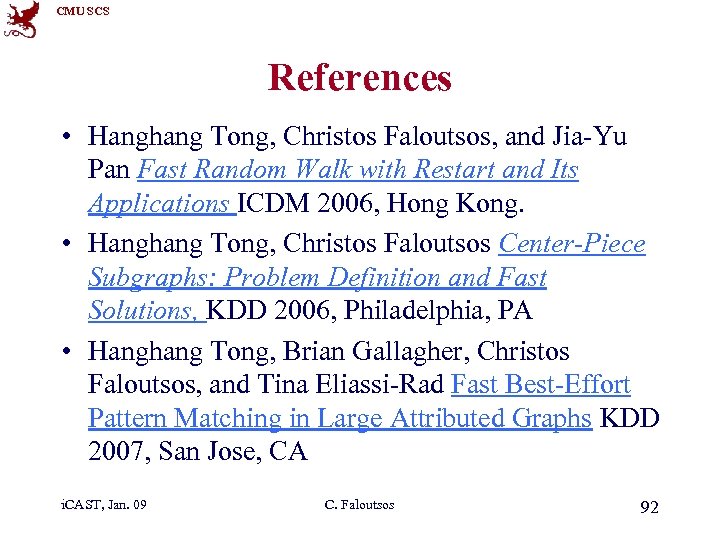

CMU SCS References • Hanghang Tong, Christos Faloutsos, and Jia-Yu Pan Fast Random Walk with Restart and Its Applications ICDM 2006, Hong Kong. • Hanghang Tong, Christos Faloutsos Center-Piece Subgraphs: Problem Definition and Fast Solutions, KDD 2006, Philadelphia, PA • Hanghang Tong, Brian Gallagher, Christos Faloutsos, and Tina Eliassi-Rad Fast Best-Effort Pattern Matching in Large Attributed Graphs KDD 2007, San Jose, CA i. CAST, Jan. 09 C. Faloutsos 92

CMU SCS Contact info: www. cs. cmu. edu /~christos (w/ papers, datasets, code, etc) i. CAST, Jan. 09 C. Faloutsos 93

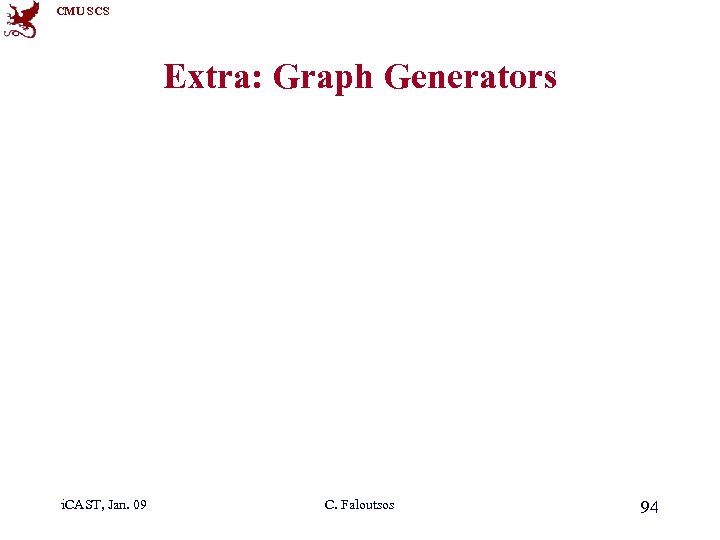

CMU SCS Extra: Graph Generators i. CAST, Jan. 09 C. Faloutsos 94

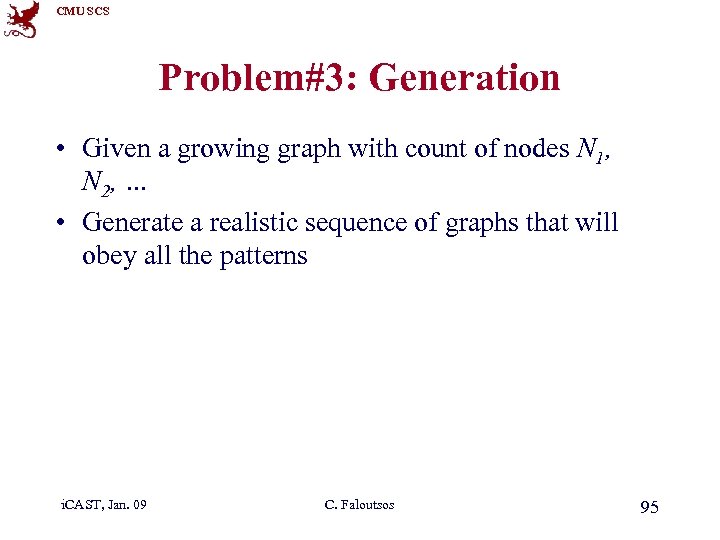

CMU SCS Problem#3: Generation • Given a growing graph with count of nodes N 1, N 2, … • Generate a realistic sequence of graphs that will obey all the patterns i. CAST, Jan. 09 C. Faloutsos 95

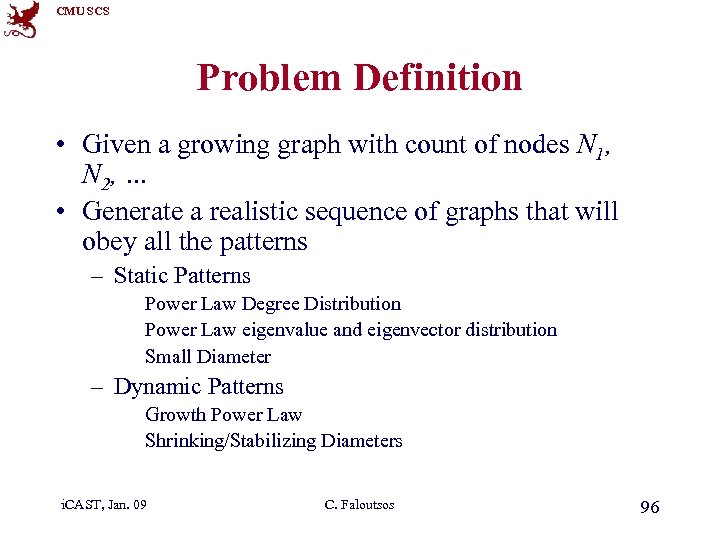

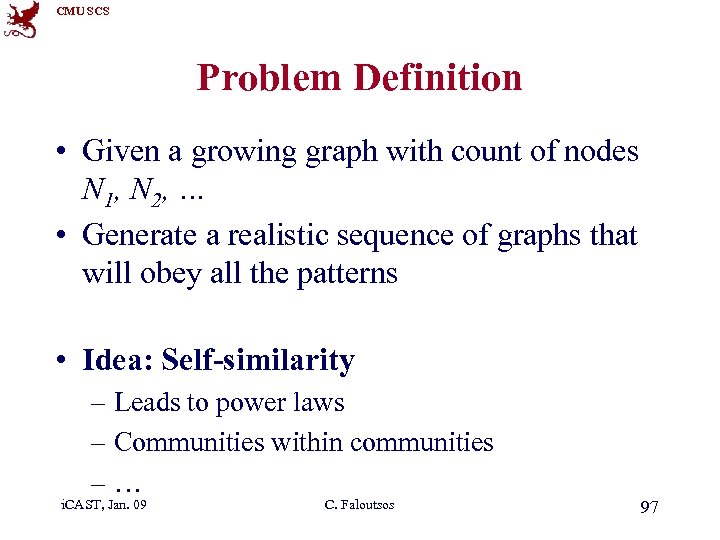

CMU SCS Problem Definition • Given a growing graph with count of nodes N 1, N 2, … • Generate a realistic sequence of graphs that will obey all the patterns – Static Patterns Power Law Degree Distribution Power Law eigenvalue and eigenvector distribution Small Diameter – Dynamic Patterns Growth Power Law Shrinking/Stabilizing Diameters i. CAST, Jan. 09 C. Faloutsos 96

CMU SCS Problem Definition • Given a growing graph with count of nodes N 1, N 2, … • Generate a realistic sequence of graphs that will obey all the patterns • Idea: Self-similarity – Leads to power laws – Communities within communities –… i. CAST, Jan. 09 C. Faloutsos 97

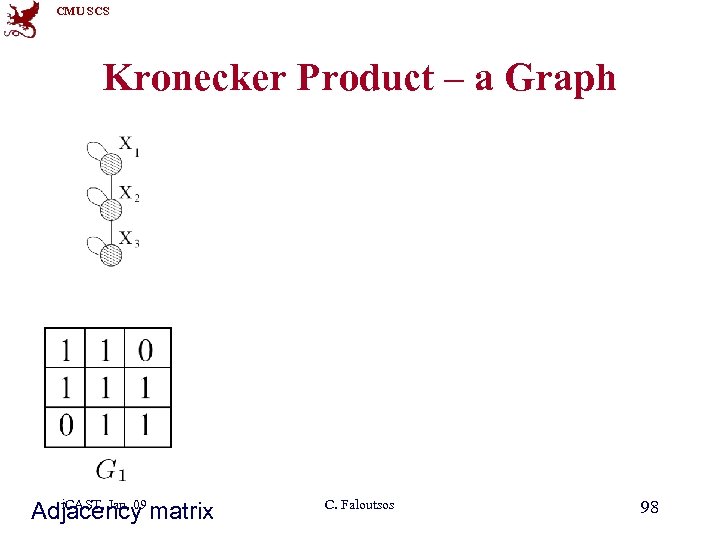

CMU SCS Kronecker Product – a Graph Intermediate stage i. CAST, Jan. 09 Adjacency matrix C. Faloutsos 98 Adjacency matrix

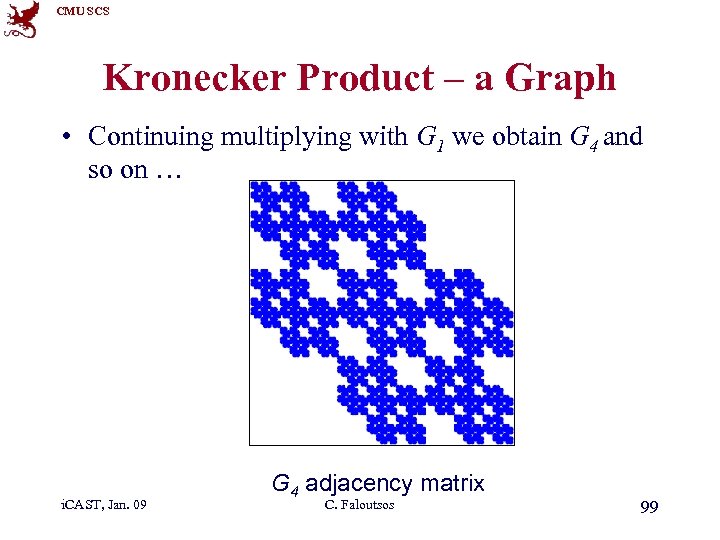

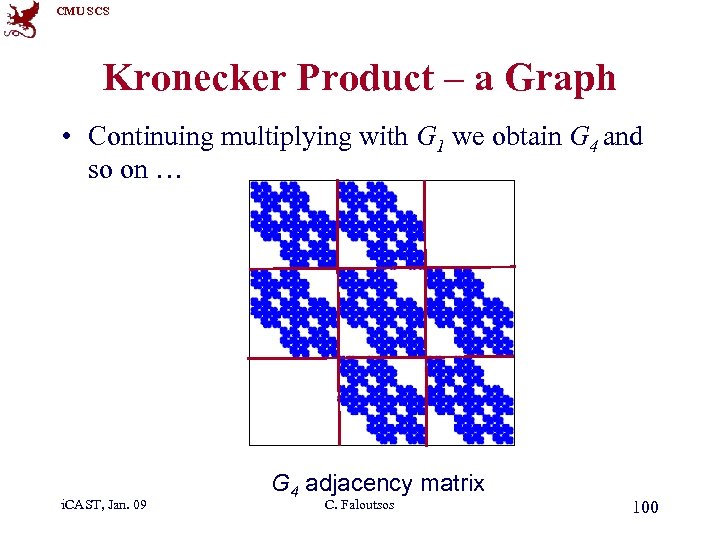

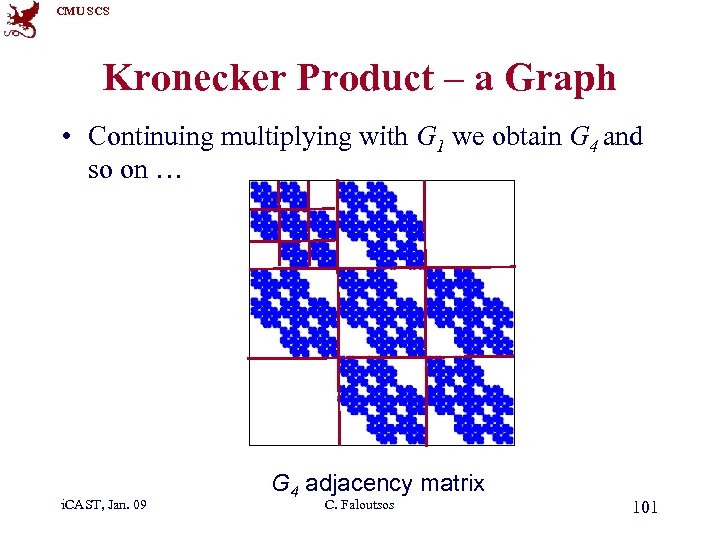

CMU SCS Kronecker Product – a Graph • Continuing multiplying with G 1 we obtain G 4 and so on … i. CAST, Jan. 09 G 4 adjacency matrix C. Faloutsos 99

CMU SCS Kronecker Product – a Graph • Continuing multiplying with G 1 we obtain G 4 and so on … i. CAST, Jan. 09 G 4 adjacency matrix C. Faloutsos 100

CMU SCS Kronecker Product – a Graph • Continuing multiplying with G 1 we obtain G 4 and so on … i. CAST, Jan. 09 G 4 adjacency matrix C. Faloutsos 101

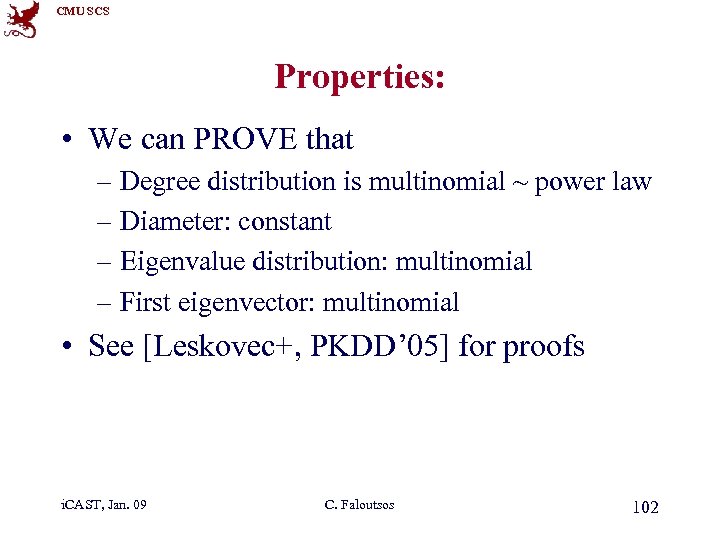

CMU SCS Properties: • We can PROVE that – Degree distribution is multinomial ~ power law – Diameter: constant – Eigenvalue distribution: multinomial – First eigenvector: multinomial • See [Leskovec+, PKDD’ 05] for proofs i. CAST, Jan. 09 C. Faloutsos 102

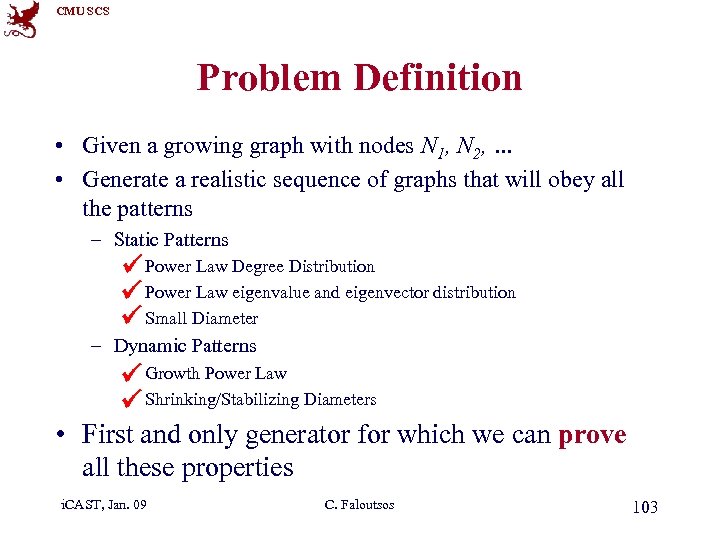

CMU SCS Problem Definition • Given a growing graph with nodes N 1, N 2, … • Generate a realistic sequence of graphs that will obey all the patterns – Static Patterns Power Law Degree Distribution Power Law eigenvalue and eigenvector distribution Small Diameter – Dynamic Patterns Growth Power Law Shrinking/Stabilizing Diameters • First and only generator for which we can prove all these properties i. CAST, Jan. 09 C. Faloutsos 103

CMU SCS skip Stochastic Kronecker Graphs • Create N 1 probability matrix P 1 • Compute the kth Kronecker power Pk • For each entry puv of Pk include an edge (u, v) with probability puv 0. 4 0. 2 0. 1 0. 3 Kronecker multiplication P 1 0. 16 0. 08 0. 04 0. 12 0. 06 0. 04 0. 02 0. 12 0. 06 0. 01 0. 03 0. 09 Pk i. CAST, Jan. 09 C. Faloutsos Instance Matrix G 2 flip biased coins 104

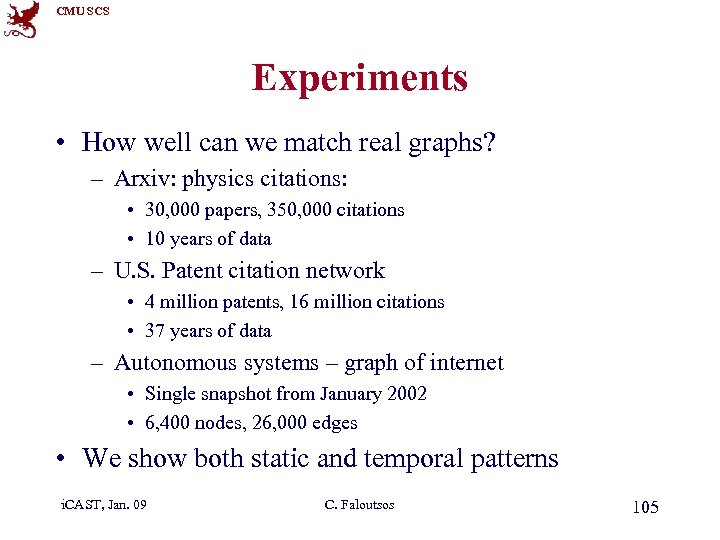

CMU SCS Experiments • How well can we match real graphs? – Arxiv: physics citations: • 30, 000 papers, 350, 000 citations • 10 years of data – U. S. Patent citation network • 4 million patents, 16 million citations • 37 years of data – Autonomous systems – graph of internet • Single snapshot from January 2002 • 6, 400 nodes, 26, 000 edges • We show both static and temporal patterns i. CAST, Jan. 09 C. Faloutsos 105

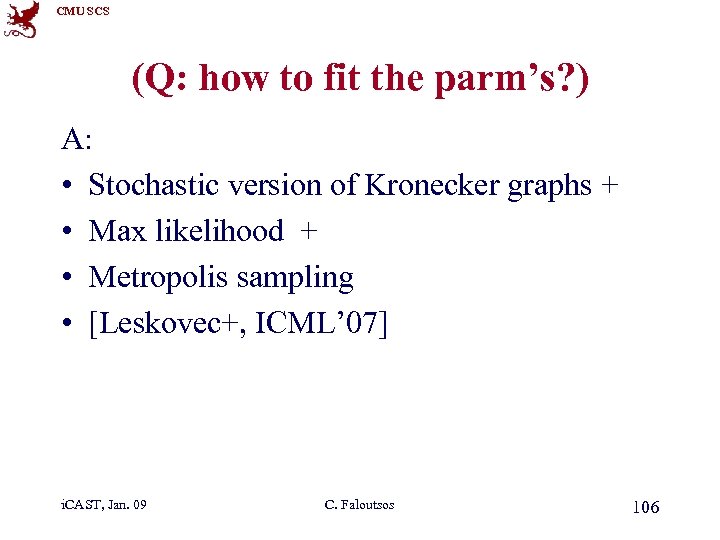

CMU SCS (Q: how to fit the parm’s? ) A: • Stochastic version of Kronecker graphs + • Max likelihood + • Metropolis sampling • [Leskovec+, ICML’ 07] i. CAST, Jan. 09 C. Faloutsos 106

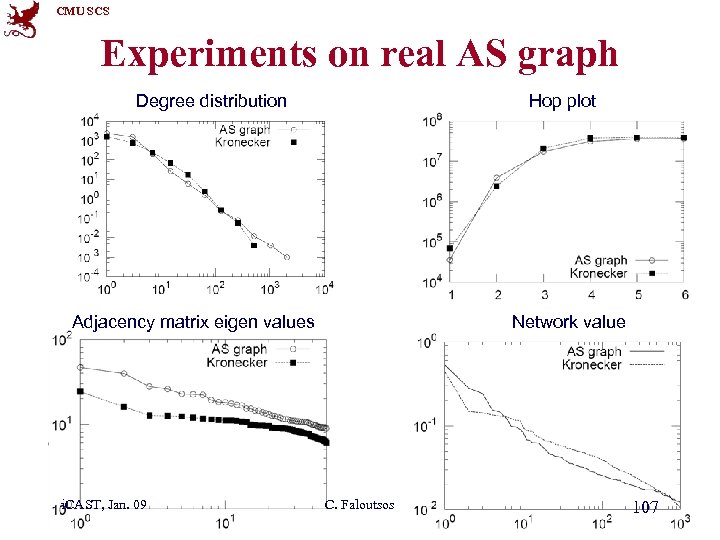

CMU SCS Experiments on real AS graph Degree distribution Hop plot Adjacency matrix eigen values i. CAST, Jan. 09 Network value C. Faloutsos 107

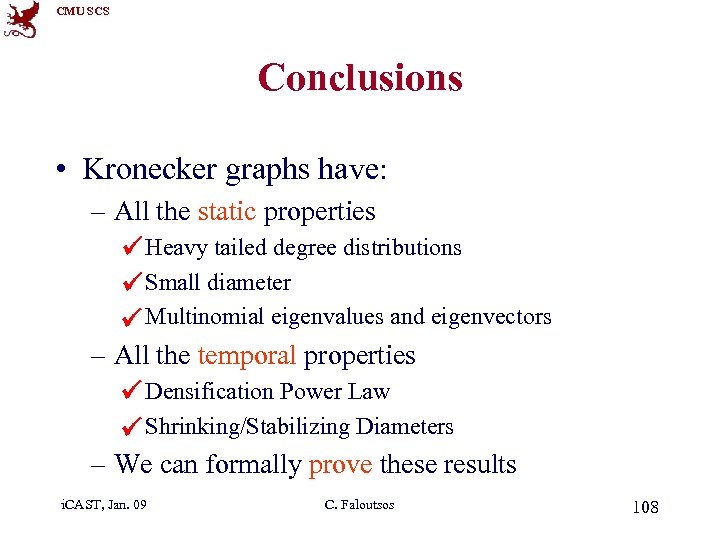

CMU SCS Conclusions • Kronecker graphs have: – All the static properties Heavy tailed degree distributions Small diameter Multinomial eigenvalues and eigenvectors – All the temporal properties Densification Power Law Shrinking/Stabilizing Diameters – We can formally prove these results i. CAST, Jan. 09 C. Faloutsos 108
