Clark County the Web Application Development Framework

Clark County & the Web Application Development Framework

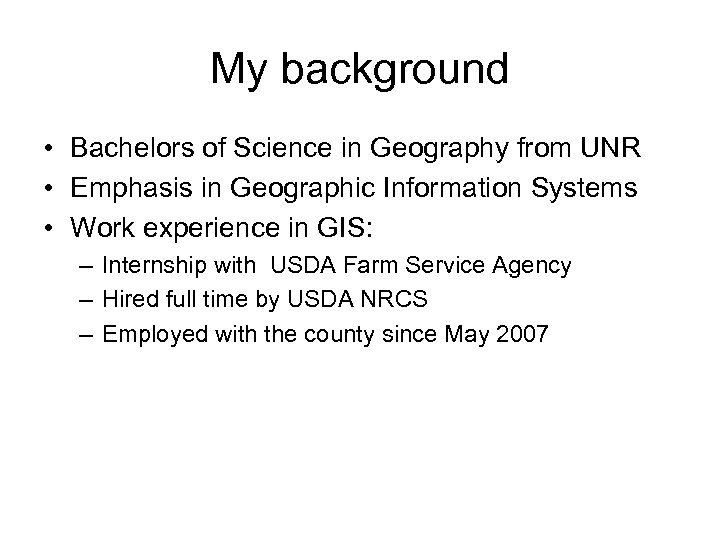

My background • Bachelors of Science in Geography from UNR • Emphasis in Geographic Information Systems • Work experience in GIS: – Internship with USDA Farm Service Agency – Hired full time by USDA NRCS – Employed with the county since May 2007

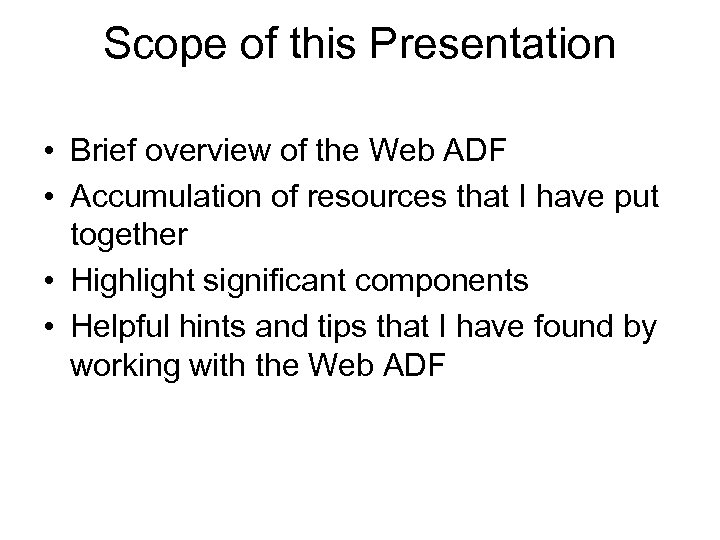

Scope of this Presentation • Brief overview of the Web ADF • Accumulation of resources that I have put together • Highlight significant components • Helpful hints and tips that I have found by working with the Web ADF

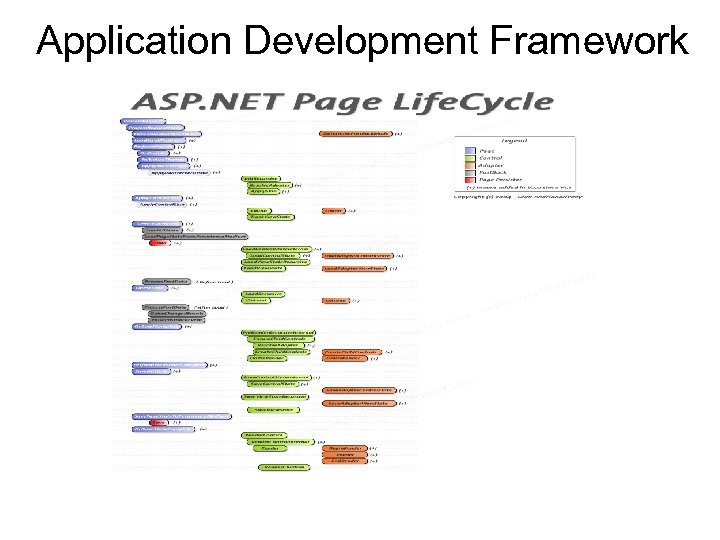

Application Development Framework

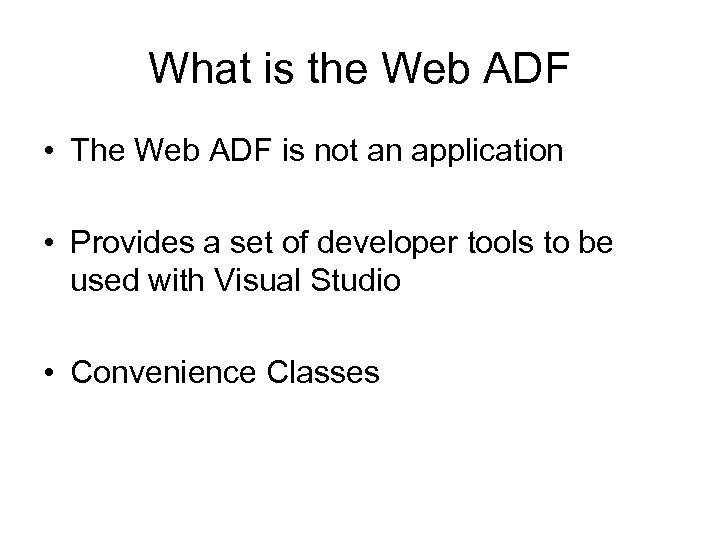

What is the Web ADF • The Web ADF is not an application • Provides a set of developer tools to be used with Visual Studio • Convenience Classes

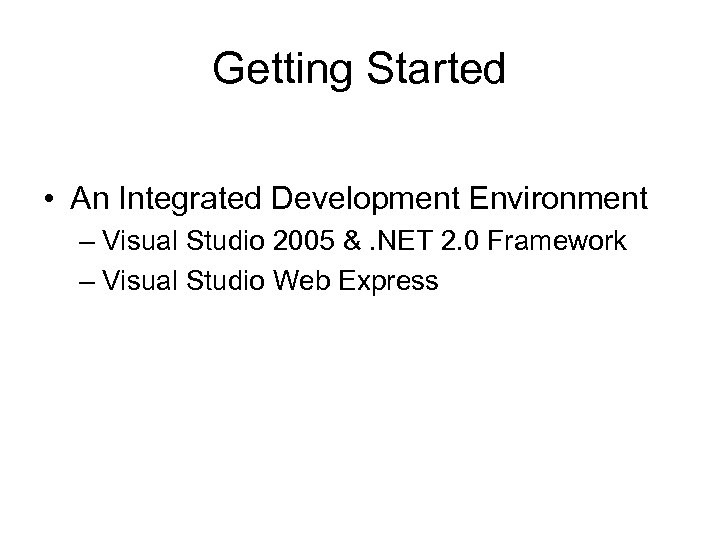

Getting Started • An Integrated Development Environment – Visual Studio 2005 &. NET 2. 0 Framework – Visual Studio Web Express

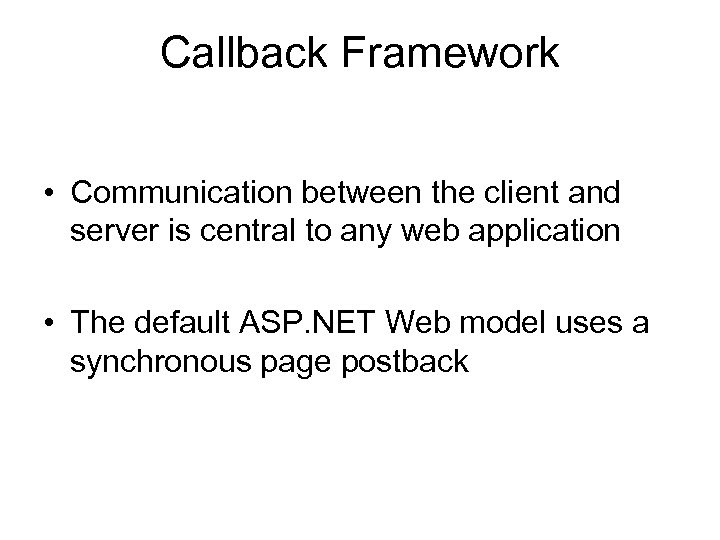

Callback Framework • Communication between the client and server is central to any web application • The default ASP. NET Web model uses a synchronous page postback

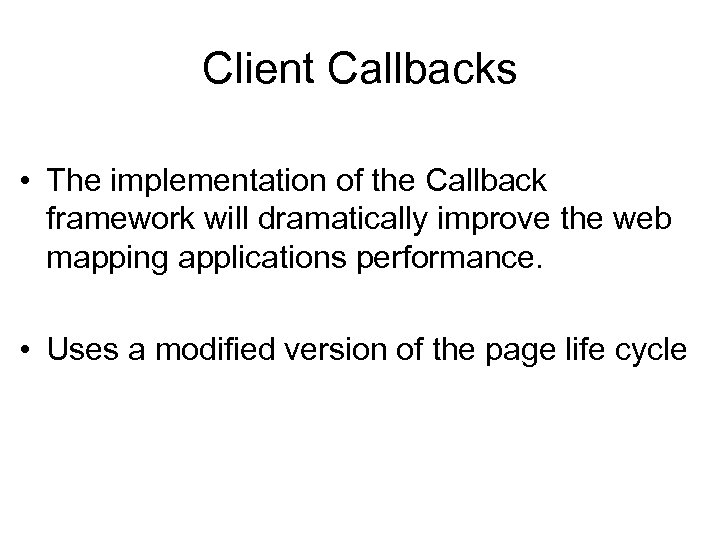

Client Callbacks • The implementation of the Callback framework will dramatically improve the web mapping applications performance. • Uses a modified version of the page life cycle

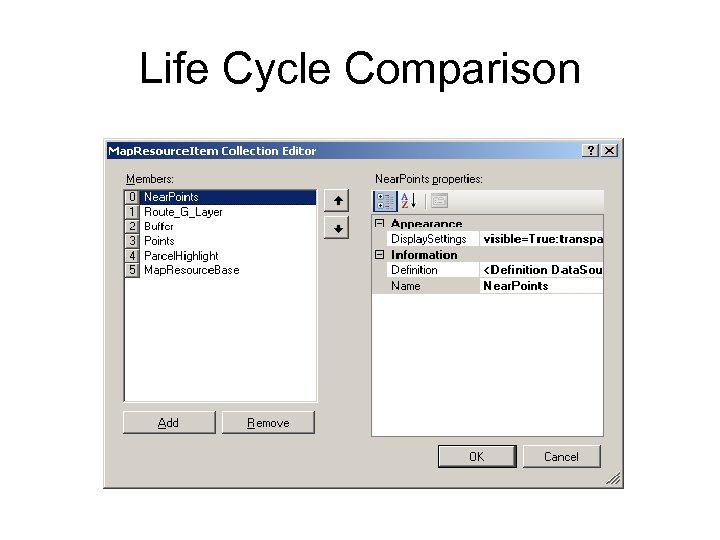

Life Cycle Comparison

AJAX • This modified version of the page life cycle: – Makes the page more responsive by only refreshing selected portions of a page – Allows interaction while still processing a callback – This is done by creating a new connection to the server

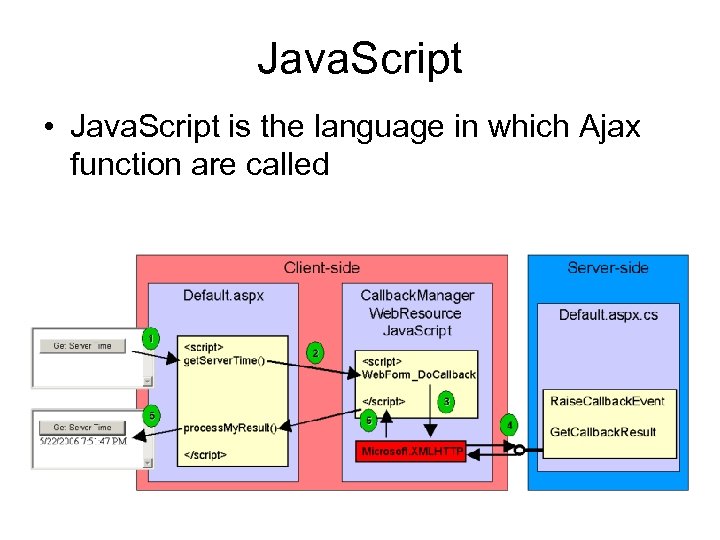

Java. Script • Java. Script is the language in which Ajax function are called

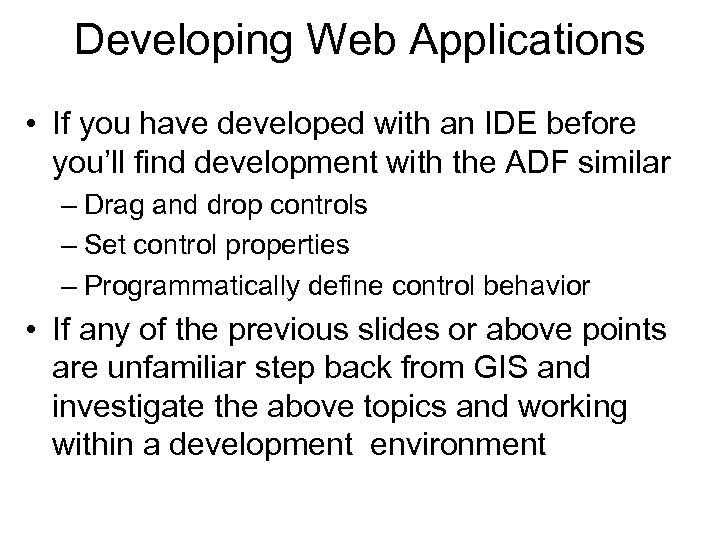

Developing Web Applications • If you have developed with an IDE before you’ll find development with the ADF similar – Drag and drop controls – Set control properties – Programmatically define control behavior • If any of the previous slides or above points are unfamiliar step back from GIS and investigate the above topics and working within a development environment

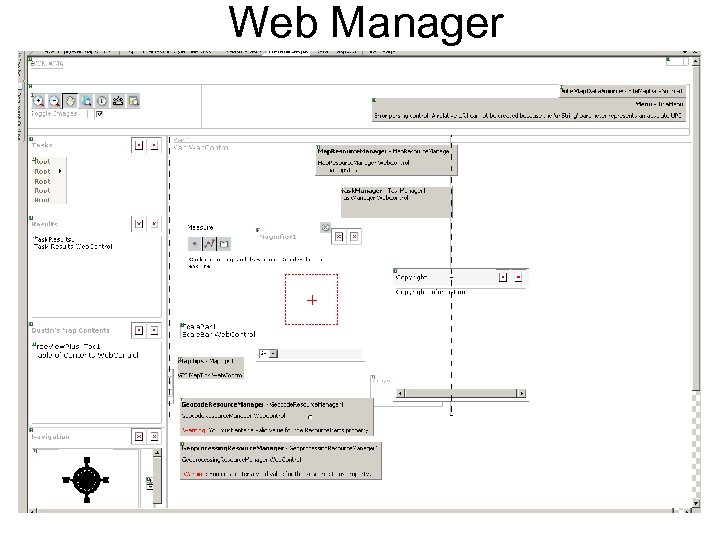

Web Manager

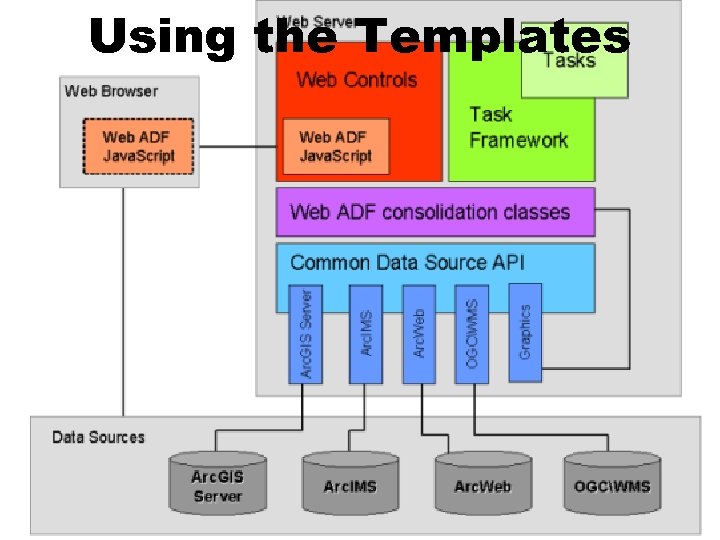

Using the Templates

Customizing Your Application • There are two basic types of modifications: – Modifying properties of Web controls and making basic HTML modifications. This is the equivalent of modifying the Arc. IMSparam. js in the Arc. IMS HTML Viewer applications (requires no programming) – Programming with application programming interfaces (API)

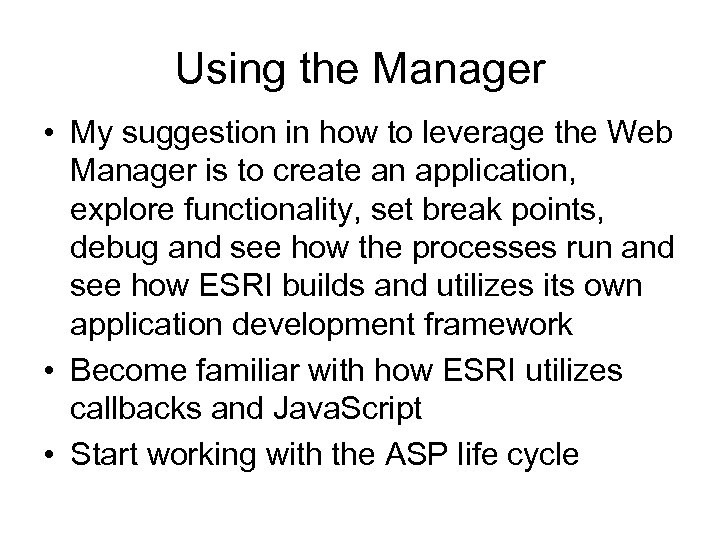

Using the Manager • My suggestion in how to leverage the Web Manager is to create an application, explore functionality, set break points, debug and see how the processes run and see how ESRI builds and utilizes its own application development framework • Become familiar with how ESRI utilizes callbacks and Java. Script • Start working with the ASP life cycle

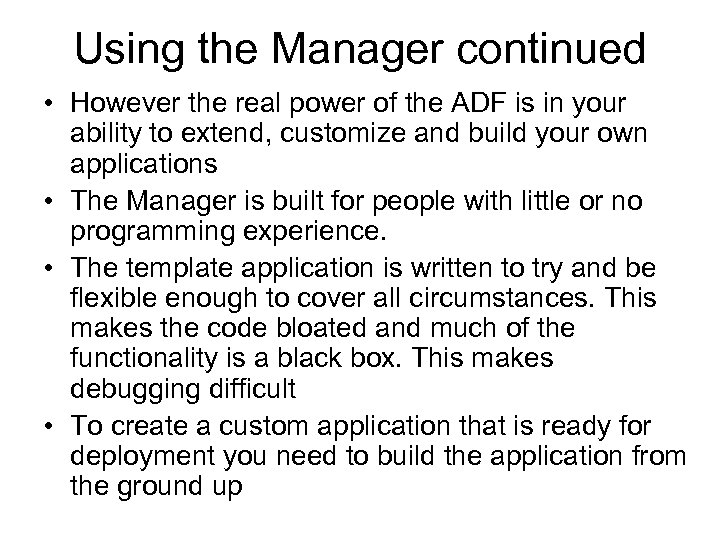

Using the Manager continued • However the real power of the ADF is in your ability to extend, customize and build your own applications • The Manager is built for people with little or no programming experience. • The template application is written to try and be flexible enough to cover all circumstances. This makes the code bloated and much of the functionality is a black box. This makes debugging difficult • To create a custom application that is ready for deployment you need to build the application from the ground up

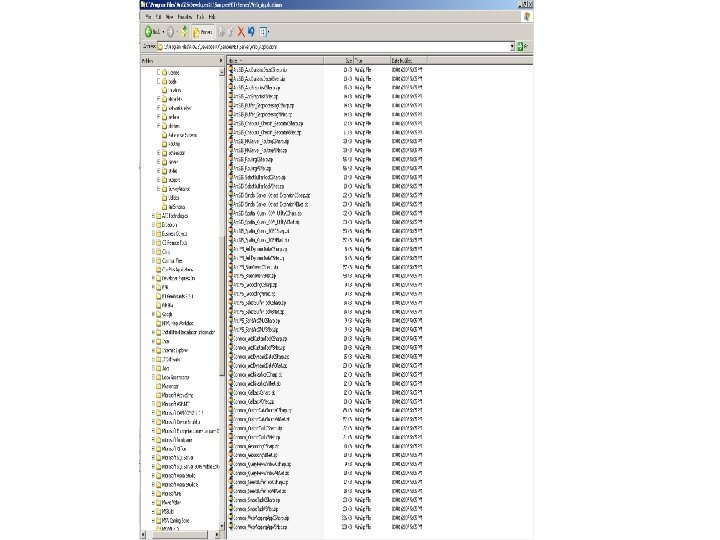

ADF Developer Kit Samples The developer kit samples are another great resource on where to start working with a specific GIS functionality

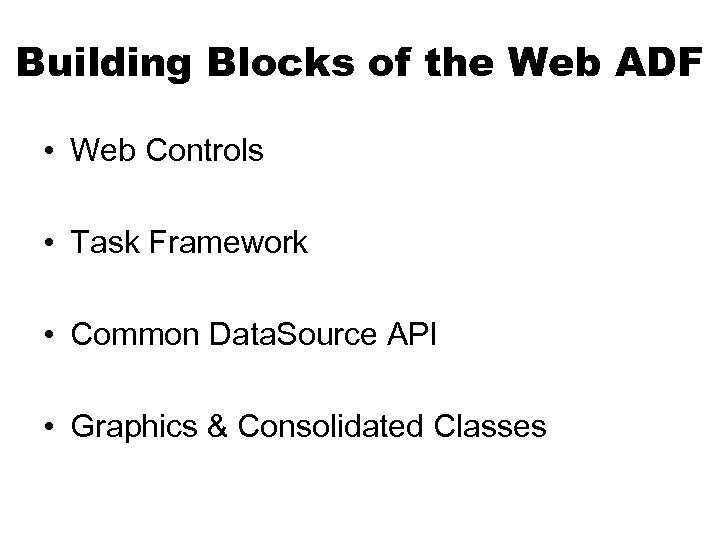

Building Blocks of the Web ADF • Web Controls • Task Framework • Common Data. Source API • Graphics & Consolidated Classes

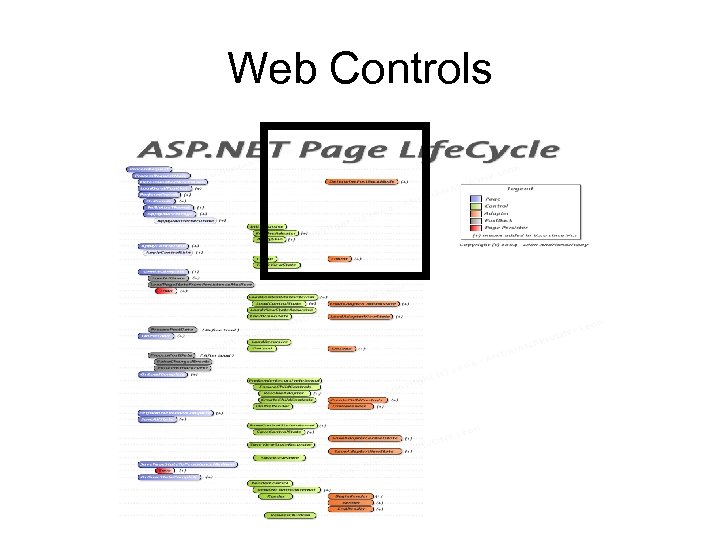

Web Controls

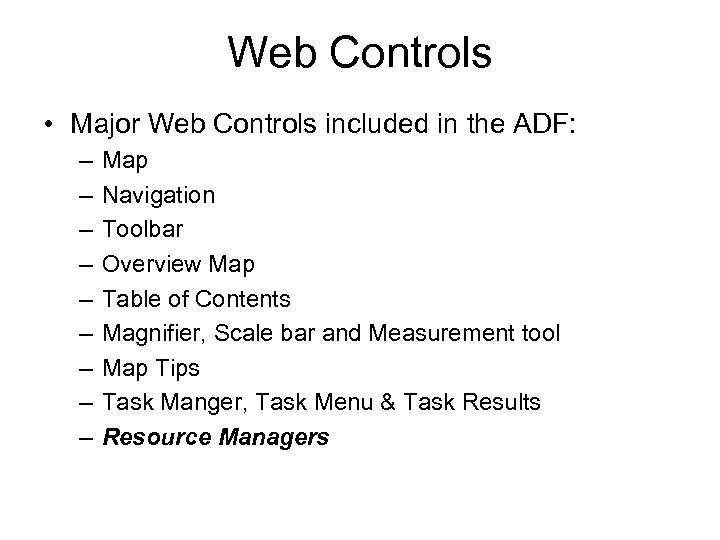

Web Controls • Major Web Controls included in the ADF: – – – – – Map Navigation Toolbar Overview Map Table of Contents Magnifier, Scale bar and Measurement tool Map Tips Task Manger, Task Menu & Task Results Resource Managers

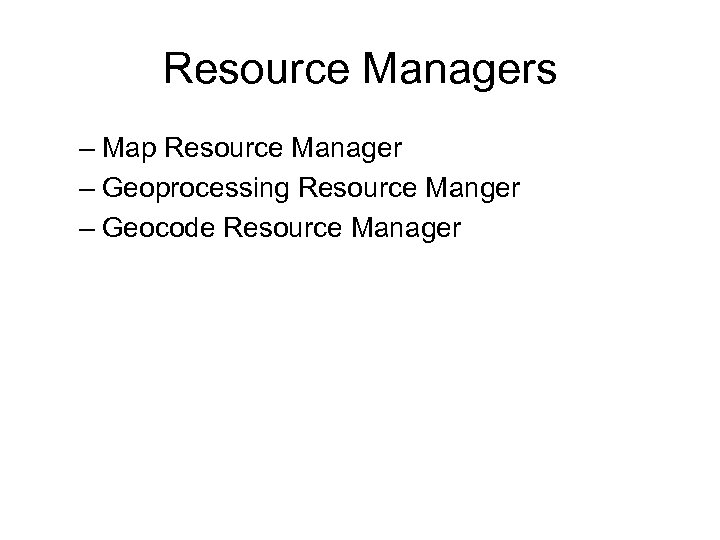

Resource Managers – Map Resource Manager – Geoprocessing Resource Manger – Geocode Resource Manager

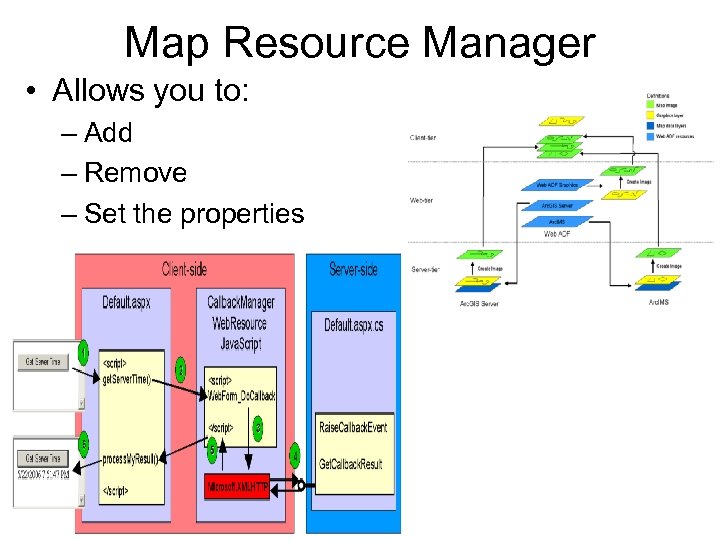

Map Resource Manager • Allows you to: – Add – Remove – Set the properties

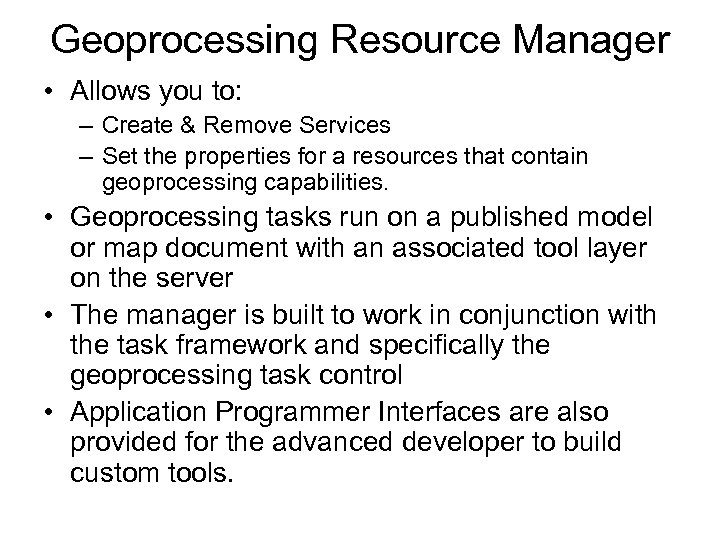

Geoprocessing Resource Manager • Allows you to: – Create & Remove Services – Set the properties for a resources that contain geoprocessing capabilities. • Geoprocessing tasks run on a published model or map document with an associated tool layer on the server • The manager is built to work in conjunction with the task framework and specifically the geoprocessing task control • Application Programmer Interfaces are also provided for the advanced developer to build custom tools.

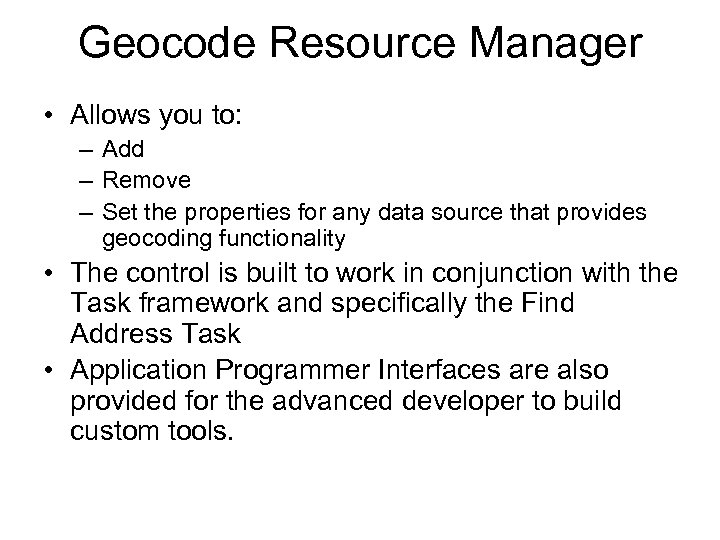

Geocode Resource Manager • Allows you to: – Add – Remove – Set the properties for any data source that provides geocoding functionality • The control is built to work in conjunction with the Task framework and specifically the Find Address Task • Application Programmer Interfaces are also provided for the advanced developer to build custom tools.

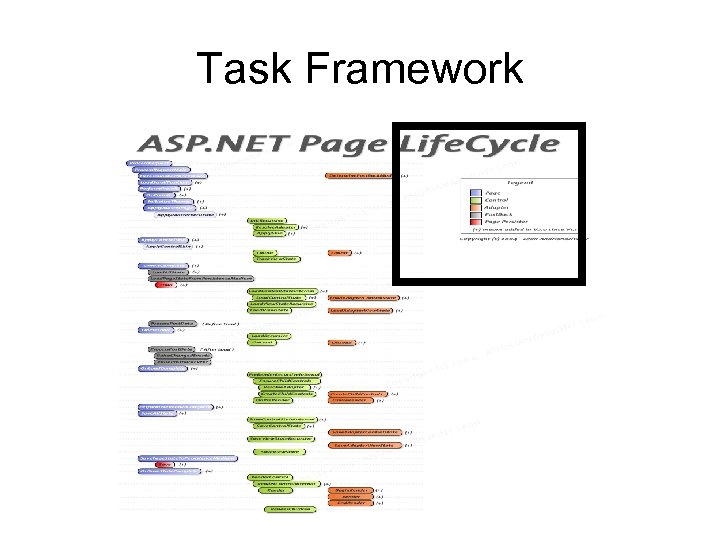

Task Framework

Task Framework • Tasks are defined as a set of related actions that provide a common results. • The Web ADF task framework delivers an encapsulated web control that performs predefined functionality or tasks. • The task framework delivers a set of easy to use tools for the basic GIS business operations in your application.

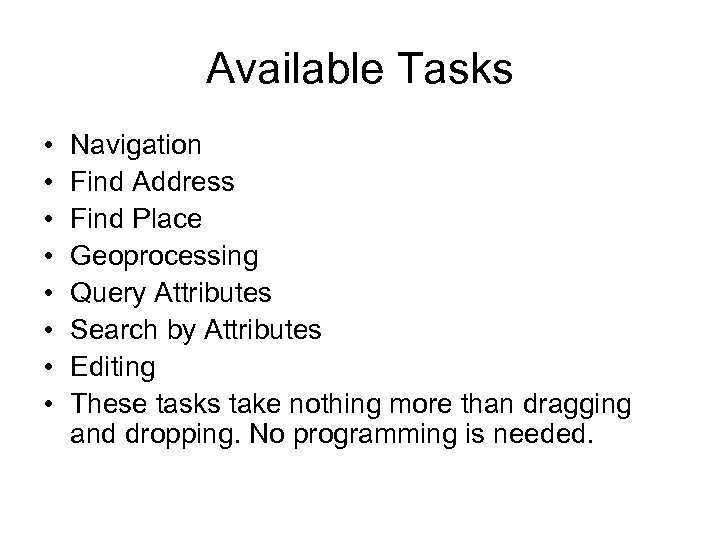

Available Tasks • • Navigation Find Address Find Place Geoprocessing Query Attributes Search by Attributes Editing These tasks take nothing more than dragging and dropping. No programming is needed.

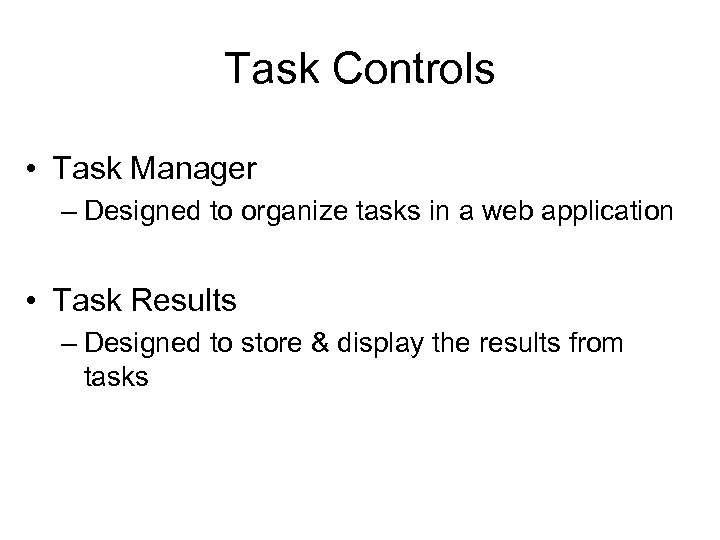

Task Controls • Task Manager – Designed to organize tasks in a web application • Task Results – Designed to store & display the results from tasks

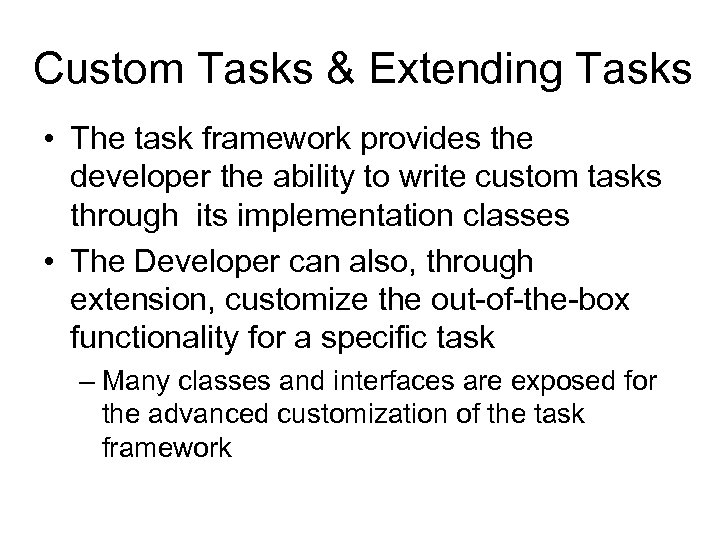

Custom Tasks & Extending Tasks • The task framework provides the developer the ability to write custom tasks through its implementation classes • The Developer can also, through extension, customize the out-of-the-box functionality for a specific task – Many classes and interfaces are exposed for the advanced customization of the task framework

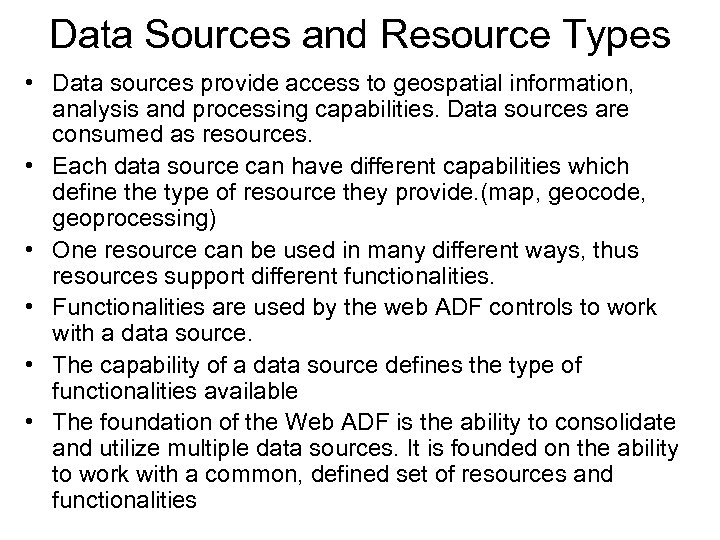

Data Sources and Resource Types • Data sources provide access to geospatial information, analysis and processing capabilities. Data sources are consumed as resources. • Each data source can have different capabilities which define the type of resource they provide. (map, geocode, geoprocessing) • One resource can be used in many different ways, thus resources support different functionalities. • Functionalities are used by the web ADF controls to work with a data source. • The capability of a data source defines the type of functionalities available • The foundation of the Web ADF is the ability to consolidate and utilize multiple data sources. It is founded on the ability to work with a common, defined set of resources and functionalities

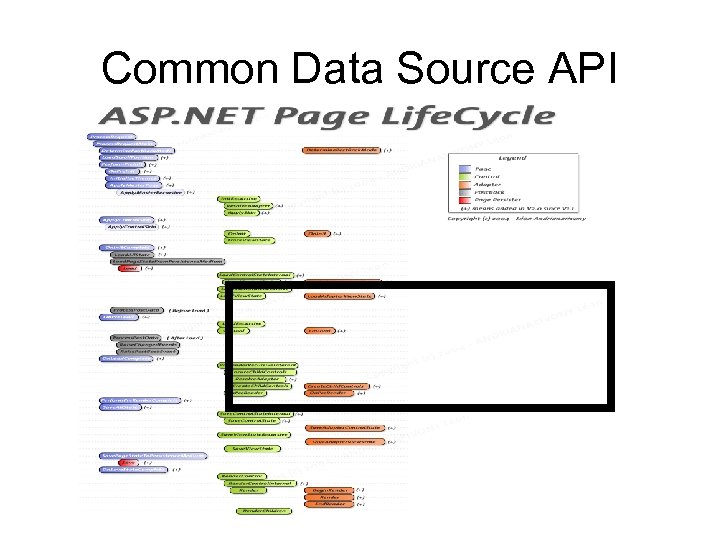

Common Data Source API

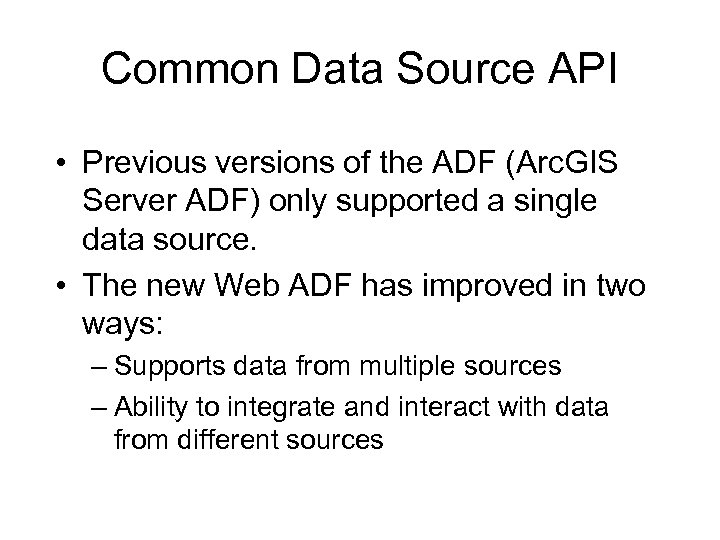

Common Data Source API • Previous versions of the ADF (Arc. GIS Server ADF) only supported a single data source. • The new Web ADF has improved in two ways: – Supports data from multiple sources – Ability to integrate and interact with data from different sources

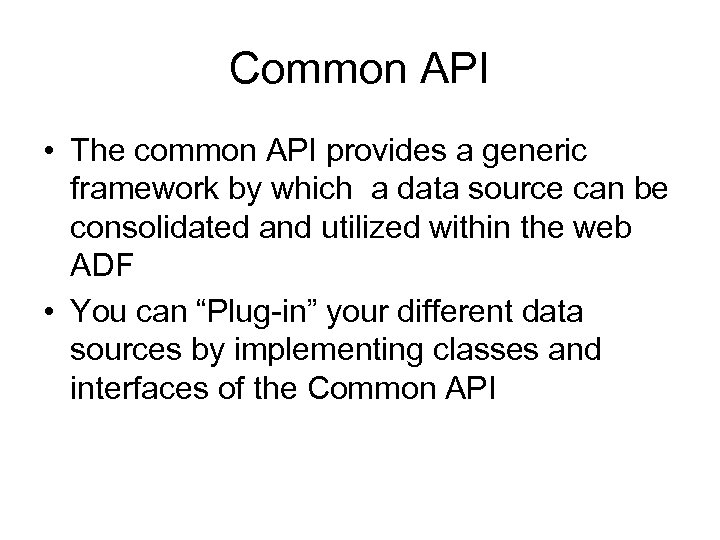

Common API • The common API provides a generic framework by which a data source can be consolidated and utilized within the web ADF • You can “Plug-in” your different data sources by implementing classes and interfaces of the Common API

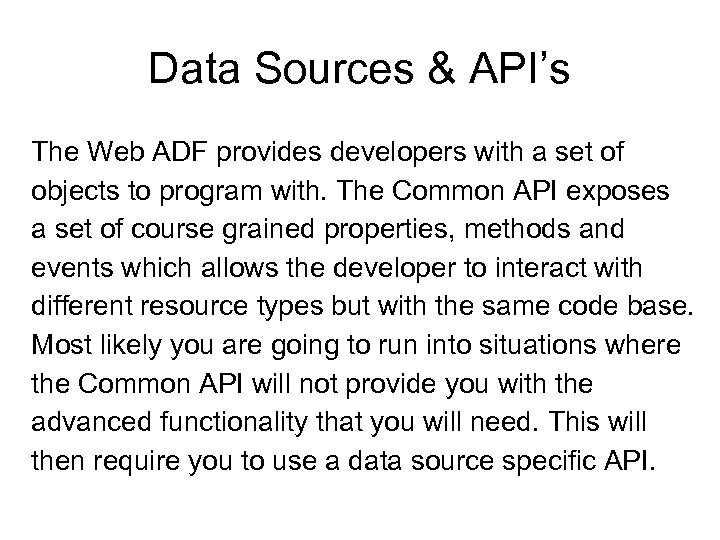

Data Sources & API’s The Web ADF provides developers with a set of objects to program with. The Common API exposes a set of course grained properties, methods and events which allows the developer to interact with different resource types but with the same code base. Most likely you are going to run into situations where the Common API will not provide you with the advanced functionality that you will need. This will then require you to use a data source specific API.

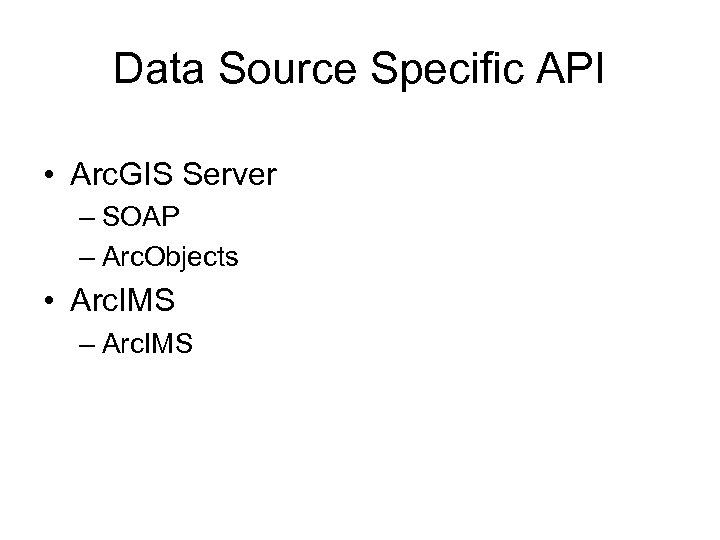

Data Source Specific API • Arc. GIS Server – SOAP – Arc. Objects • Arc. IMS – Arc. IMS

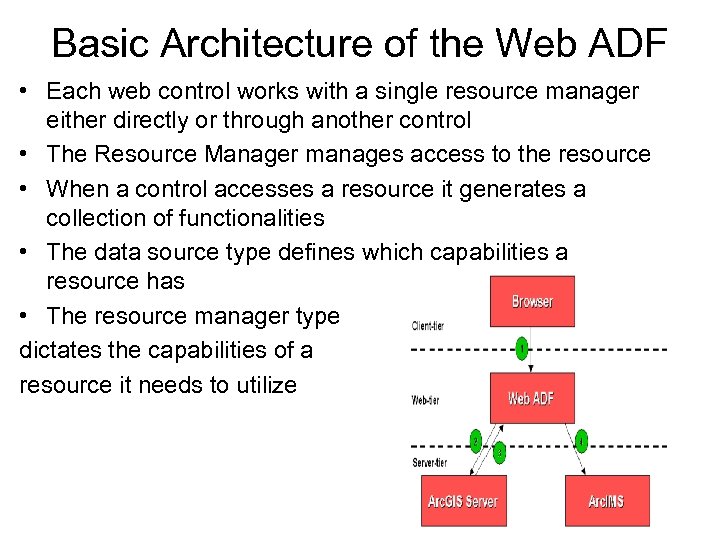

Basic Architecture of the Web ADF • Each web control works with a single resource manager either directly or through another control • The Resource Manager manages access to the resource • When a control accesses a resource it generates a collection of functionalities • The data source type defines which capabilities a resource has • The resource manager type dictates the capabilities of a resource it needs to utilize

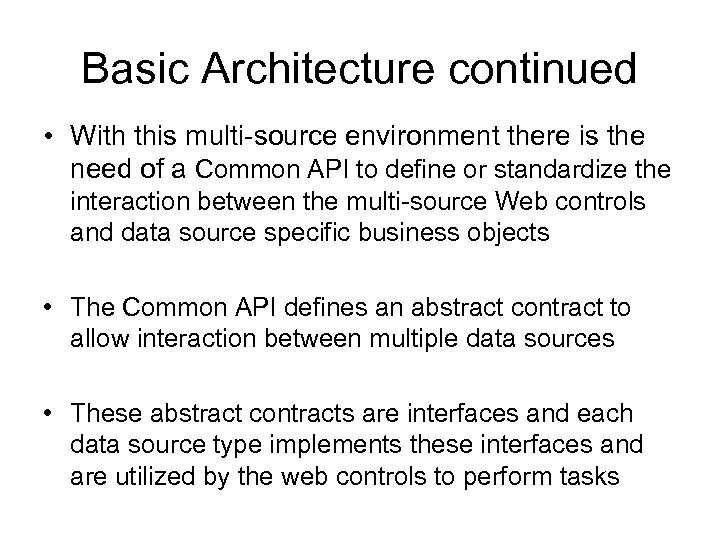

Basic Architecture continued • With this multi-source environment there is the need of a Common API to define or standardize the interaction between the multi-source Web controls and data source specific business objects • The Common API defines an abstract contract to allow interaction between multiple data sources • These abstract contracts are interfaces and each data source type implements these interfaces and are utilized by the web controls to perform tasks

Graphics & Consolidation Classes

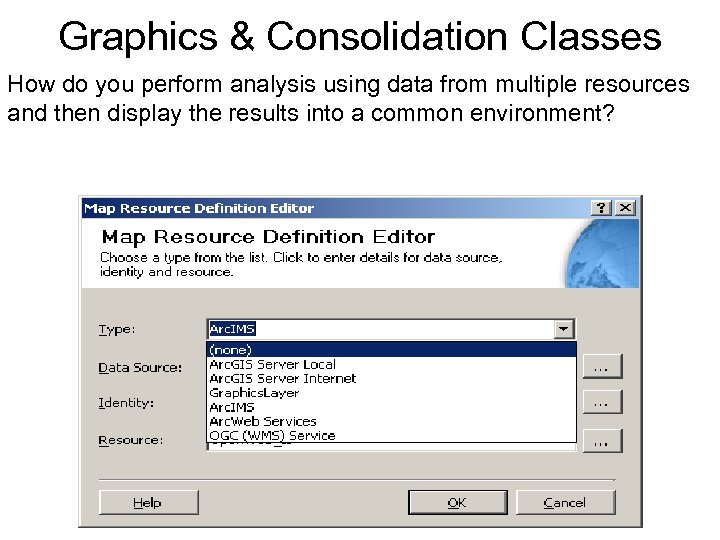

Graphics & Consolidation Classes How do you perform analysis using data from multiple resources and then display the results into a common environment?

Graphics & Consolidation Classes • The consolidated classes include such classes as: – – Geometry Spatial Reference Query Spatial Filters • The Web ADF also manages a set of classes that support web-tier graphics data sets and layers using web geometry, symbols and renderers. • Most of the graphics and consolidation classes are located in the ESRI. Arc. GIS. ADF. Web. dll. This assembly contains a number of namespaces to categorize its contents.

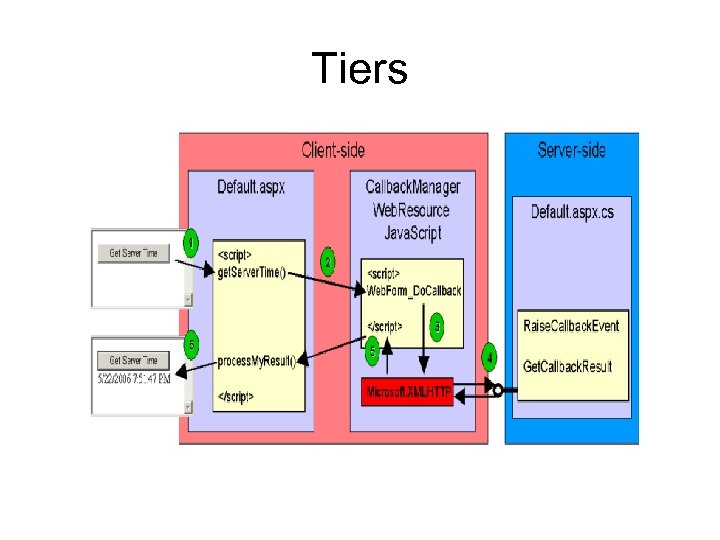

Tiers

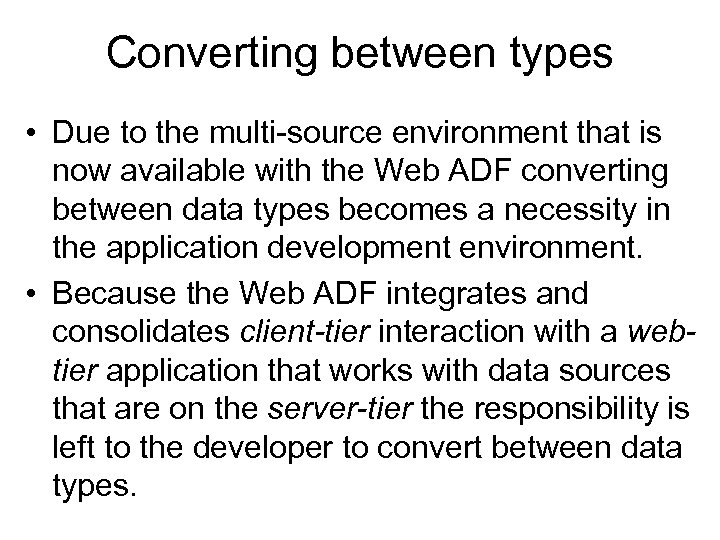

Converting between types • Due to the multi-source environment that is now available with the Web ADF converting between data types becomes a necessity in the application development environment. • Because the Web ADF integrates and consolidates client-tier interaction with a webtier application that works with data sources that are on the server-tier the responsibility is left to the developer to convert between data types.

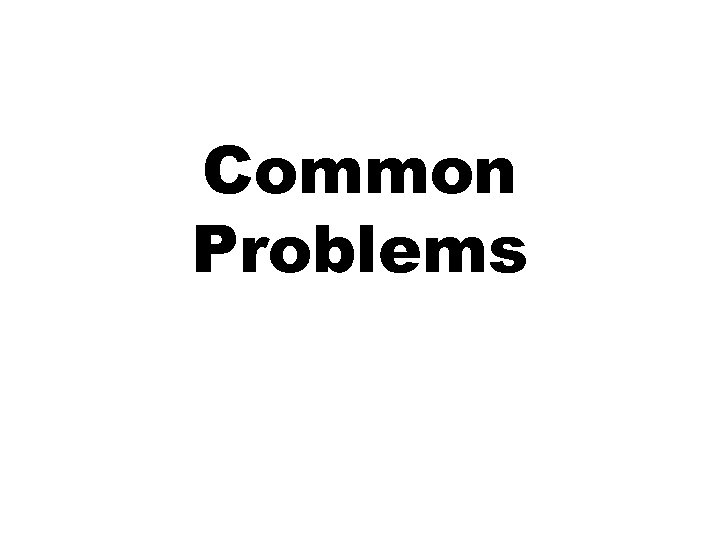

Common Problems

Project Management • Due to the large size of the Web ADF it is easy to get side tracked • Don’t start until you have a clear and defined scope • Define your business needs and design requirements before you even write a line of code • Separate your layer: – Business – Data management – Presentation • Read a best practices approach book

ASP & AJAX • You have to understand how these lifecycles work to build a working and useful application – Maintaining state – Updating multiple controls with one callback – Displaying results other than in the task results

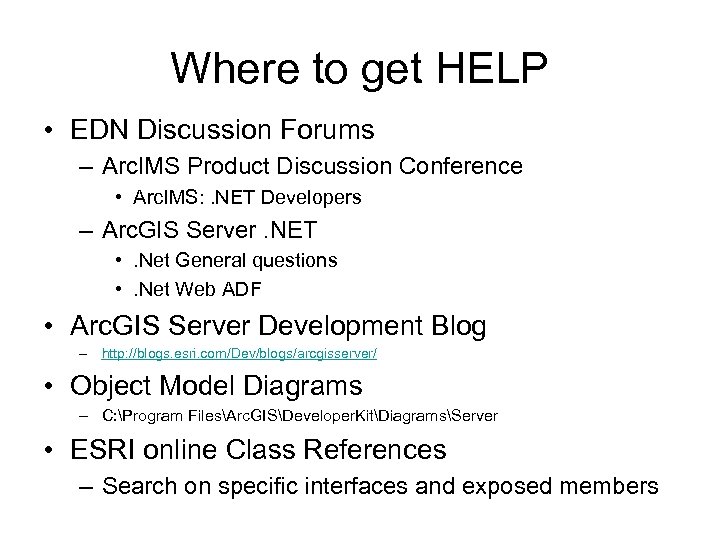

Where to get HELP • EDN Discussion Forums – Arc. IMS Product Discussion Conference • Arc. IMS: . NET Developers – Arc. GIS Server. NET • . Net General questions • . Net Web ADF • Arc. GIS Server Development Blog – http: //blogs. esri. com/Dev/blogs/arcgisserver/ • Object Model Diagrams – C: Program FilesArc. GISDeveloper. KitDiagramsServer • ESRI online Class References – Search on specific interfaces and exposed members

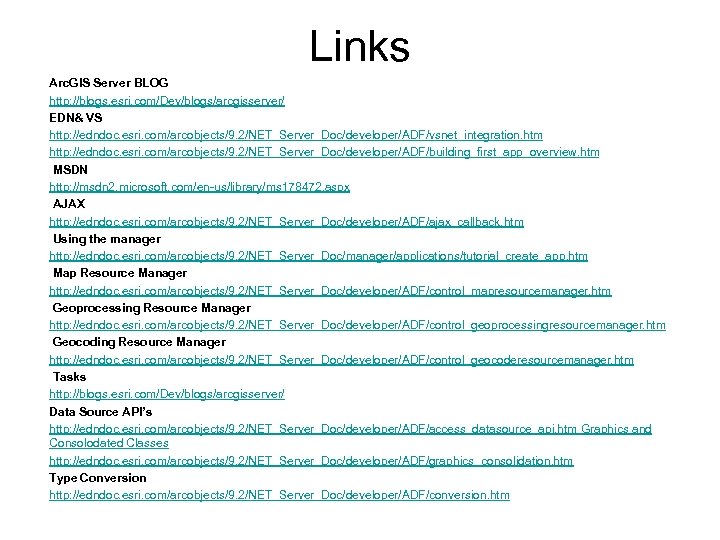

Links Arc. GIS Server BLOG http: //blogs. esri. com/Dev/blogs/arcgisserver/ EDN& VS http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/vsnet_integration. htm http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/building_first_app_overview. htm MSDN http: //msdn 2. microsoft. com/en-us/library/ms 178472. aspx AJAX http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/ajax_callback. htm Using the manager http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/manager/applications/tutorial_create_app. htm Map Resource Manager http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/control_mapresourcemanager. htm Geoprocessing Resource Manager http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/control_geoprocessingresourcemanager. htm Geocoding Resource Manager http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/control_geocoderesourcemanager. htm Tasks http: //blogs. esri. com/Dev/blogs/arcgisserver/ Data Source API’s http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/access_datasource_api. htm Graphics and Consolodated Classes http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/graphics_consolidation. htm Type Conversion http: //edndoc. esri. com/arcobjects/9. 2/NET_Server_Doc/developer/ADF/conversion. htm

Dustin W. Nelson Dwnelson@co. clark. nv. us
