CL 5200 PRODUCT INTRODUCTION FEB. 2013
have competitive price What’s the sales point? 1. CAS CL 5200 scale has obtained the OIML R 76/2006 certificate 1. CAS CL 5200 has obtained the OIML R 76/2006 certificate 2. CAS CL 5200 is compatible with all CAS label printing scale It’s different 3. CL 5200 has a Wide & high legible display 4. CAS CL 5200 has competitive price
Contents Summary 1 Software Hardware 3 2 Contents. Specifications Network Application 4 5 Focus 6 Contents.
Development Summary Development Background §Increased demand for the low-cost and high function label printing scale §Substitution of CL 5000 J, LP-1 §Achievement of cost competitiveness Target Market § CL 5500/CL 5000 J/LP-1 selling country § Market for the low-cost label printing Major Specification § Full compatibility with other label scale § Full graphic LCD display §Printer : Printing speed 100 mm/sec

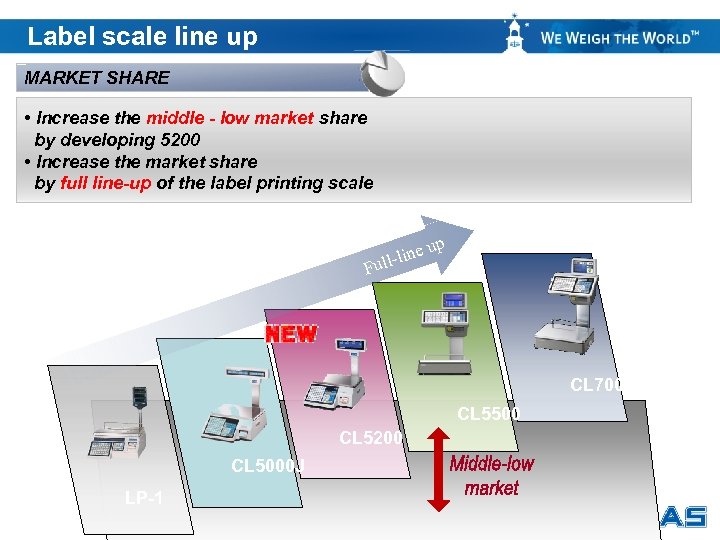

Label scale line up MARKET SHARE • Increase the middle - low market share by developing 5200 • Increase the market share by full line-up of the label printing scale p eu l-lin Ful CL 7000 CL 5500 CL 5200 CL 5000 J LP-1

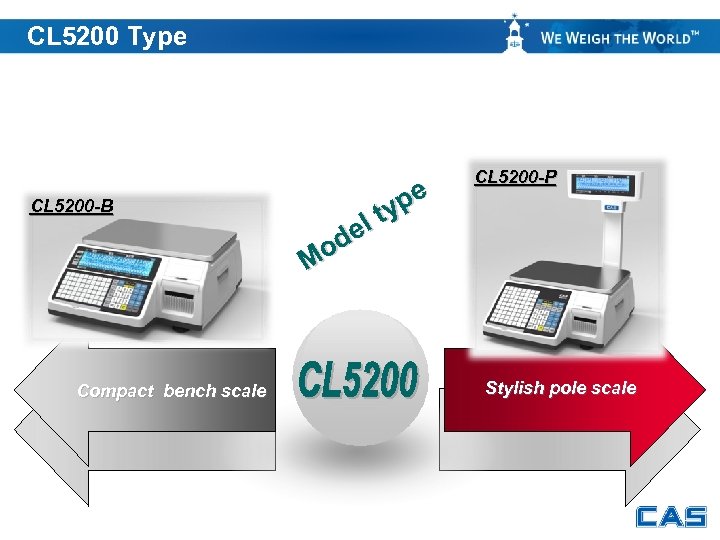

CL 5200 Type CL 5200 -B Compact bench scale pe ty el od M CL 5200 -P Stylish pole scale

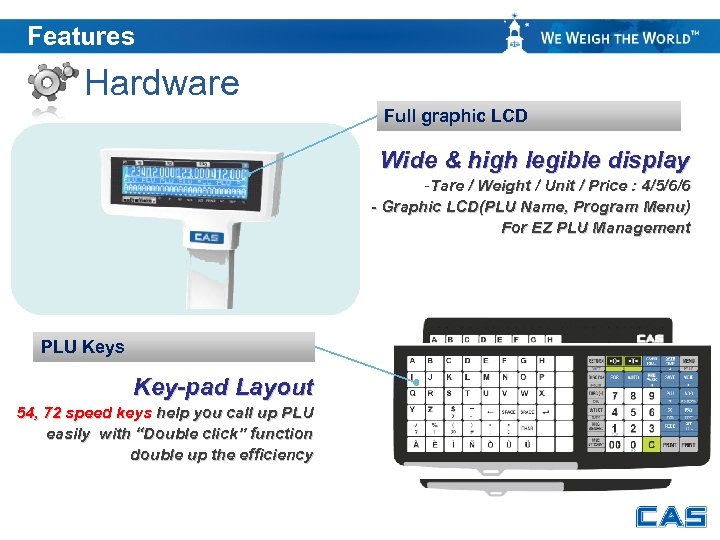

Features Hardware Full graphic LCD Wide & high legible display -Tare / Weight / Unit / Price : 4/5/6/6 - Graphic LCD(PLU Name, Program Menu) For EZ PLU Management PLU Keys Key-pad Layout 54, 72 speed keys help you call up PLU easily with “Double click” function double up the efficiency

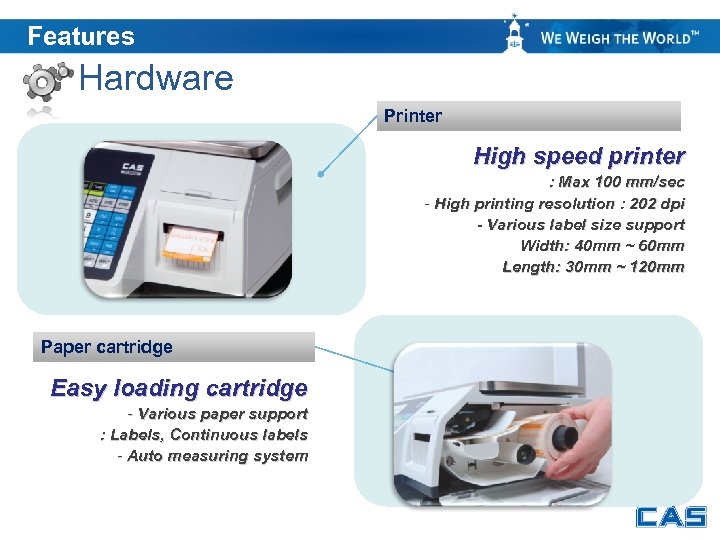

Features Hardware Printer High speed printer : Max 100 mm/sec - High printing resolution : 202 dpi - Various label size support Width: 40 mm ~ 60 mm Length: 30 mm ~ 120 mm Paper cartridge Easy loading cartridge - Various paper support : Labels, Continuous labels - Auto measuring system

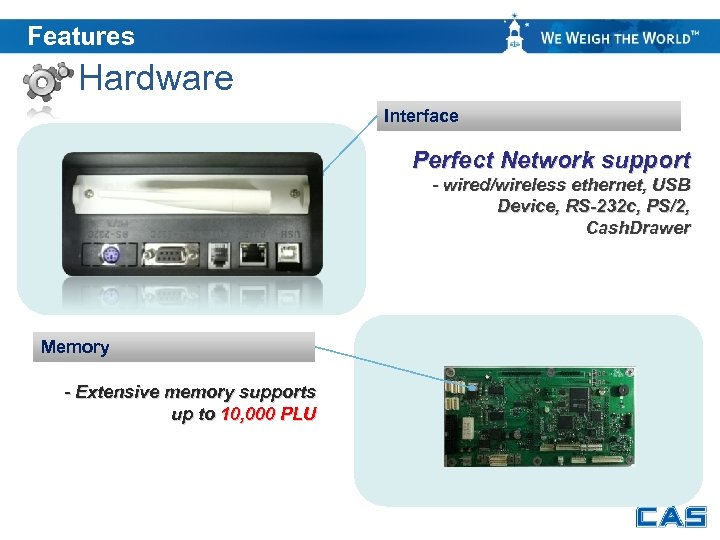

Features Hardware Interface Perfect Network support - wired/wireless ethernet, USB Device, RS-232 c, PS/2, Cash. Drawer Memory - Extensive memory supports up to 10, 000 PLU

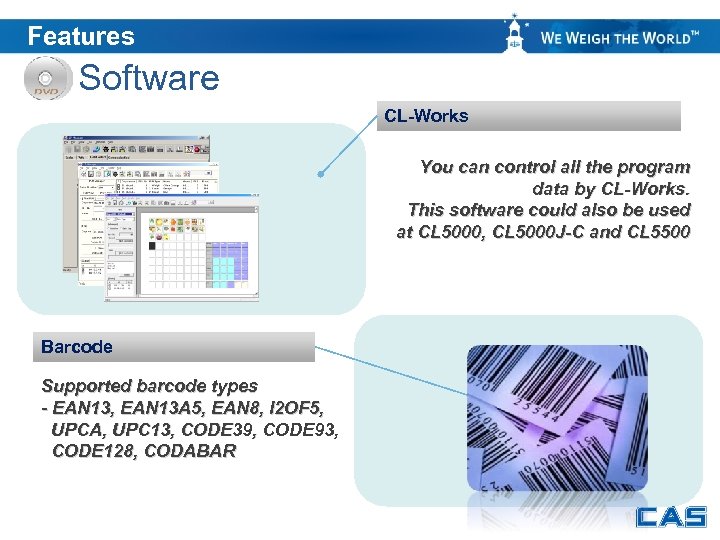

Features Software CL-Works You can control all the program data by CL-Works. This software could also be used at CL 5000, CL 5000 J-C and CL 5500 Barcode Supported barcode types - EAN 13, EAN 13 A 5, EAN 8, I 2 OF 5, UPCA, UPC 13, CODE 39, CODE 93, CODE 128, CODABAR
Features Software Powerful Sales Report Total Hourly Clerk Daily Group Monthly Label format 45 20 Fixed label format Free format PLU Total - Plan ahead with Powerful X, Z sales report - Manage your store more effectively

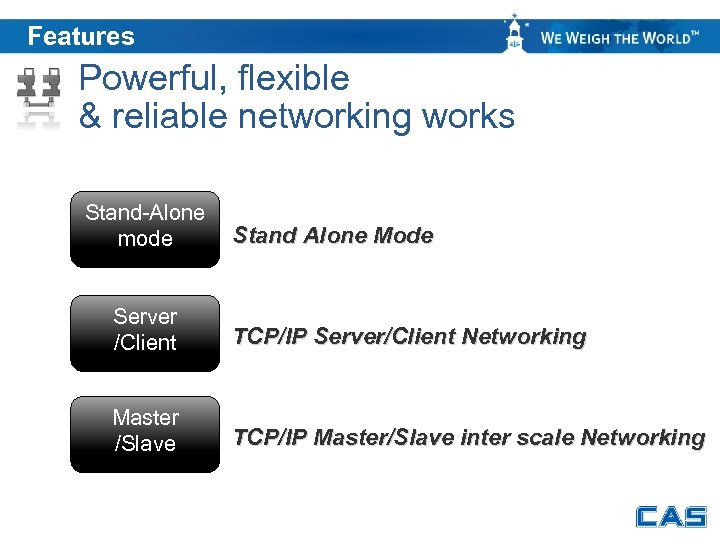

Features Powerful, flexible & reliable networking works Stand-Alone mode Stand Alone Mode Server /Client TCP/IP Server/Client Networking Master /Slave TCP/IP Master/Slave inter scale Networking
Features Network TCP/IP Server Scale # 1 Supreme Network connection Server Scale #2 Suitable for any market size Server Scale # 3 - Big, medium, small open markets - Pre-pack, self-service - Hyper market Security system for each scale

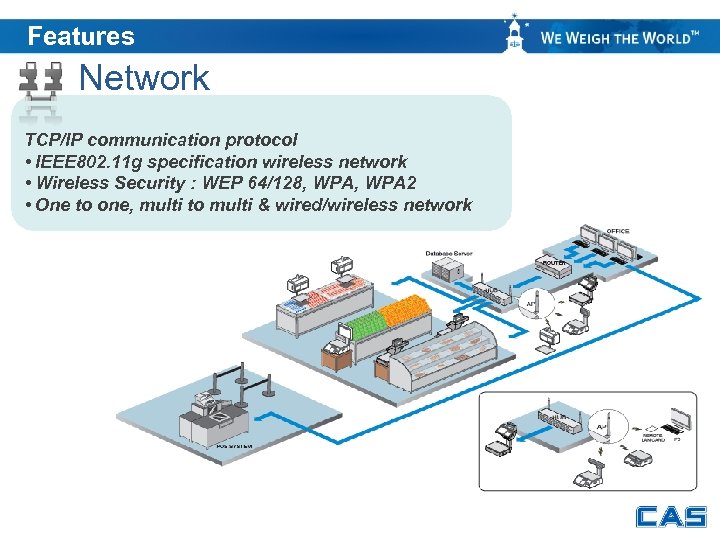

Features Network TCP/IP communication protocol • IEEE 802. 11 g specification wireless network • Wireless Security : WEP 64/128, WPA 2 • One to one, multi to multi & wired/wireless network

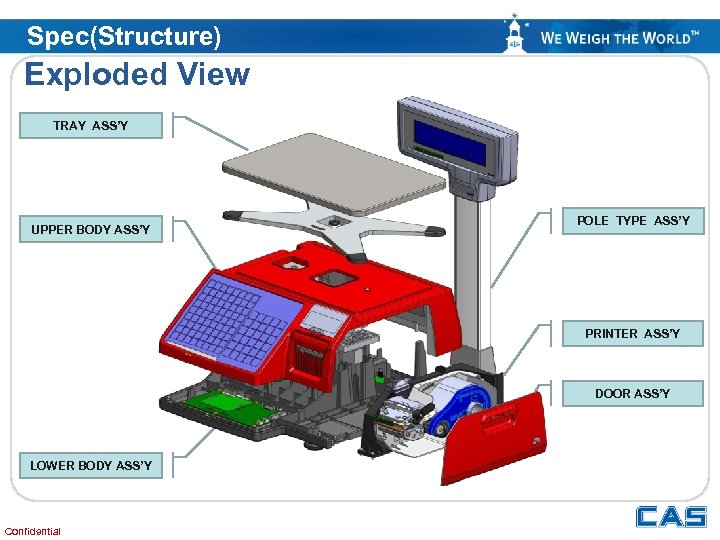

Spec(Structure) Exploded View TRAY ASS’Y UPPER BODY ASS’Y POLE TYPE ASS’Y PRINTER ASS’Y DOOR ASS’Y LOWER BODY ASS’Y Confidential

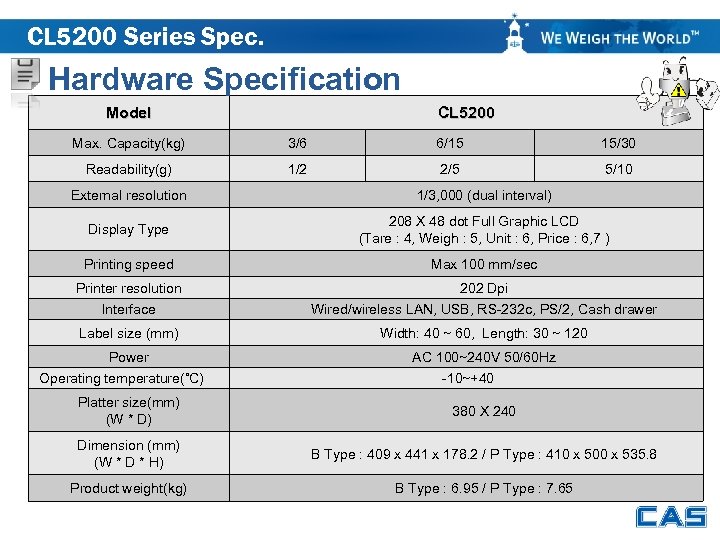

CL 5200 Series Spec. Hardware Specification Model CL 5200 Max. Capacity(kg) 3/6 6/15 15/30 Readability(g) 1/2 2/5 5/10 External resolution 1/3, 000 (dual interval) Display Type 208 X 48 dot Full Graphic LCD (Tare : 4, Weigh : 5, Unit : 6, Price : 6, 7 ) Printing speed Max 100 mm/sec Printer resolution 202 Dpi Interface Wired/wireless LAN, USB, RS-232 c, PS/2, Cash drawer Label size (mm) Width: 40 ~ 60, Length: 30 ~ 120 Power AC 100~240 V 50/60 Hz Operating temperature(˚C) -10~+40 Platter size(mm) (W * D) 380 X 240 Dimension (mm) (W * D * H) B Type : 409 x 441 x 178. 2 / P Type : 410 x 500 x 535. 8 Product weight(kg) B Type : 6. 95 / P Type : 7. 65

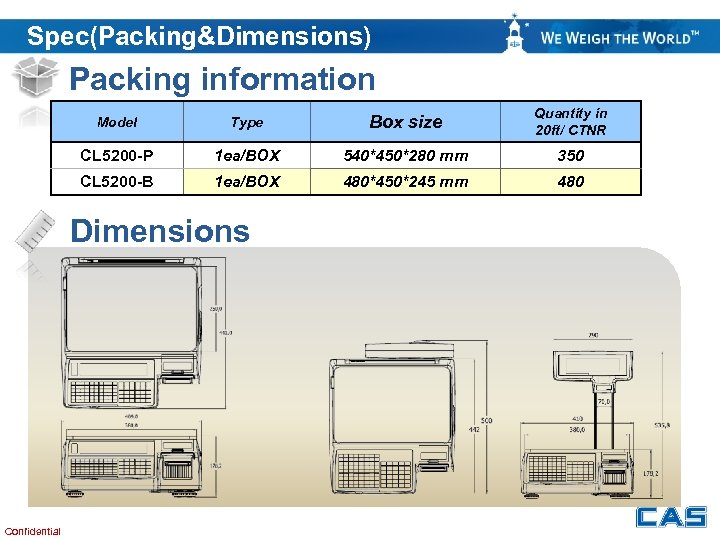

Spec(Packing&Dimensions) Packing information Model Type Box size Quantity in 20 ft/ CTNR CL 5200 -P 1 ea/BOX 540*450*280 mm 350 CL 5200 -B 1 ea/BOX 480*450*245 mm 480 Dimensions Confidential
Focus on Segments Anytime, An ywhere, Any p lace Open market Anyshop scale Supermarket Butcher shop
