Ciclovida Lifecycle Pedal Projection System Design Pedal

Ciclovida: Lifecycle Pedal Projection System Design

Pedal Projection System

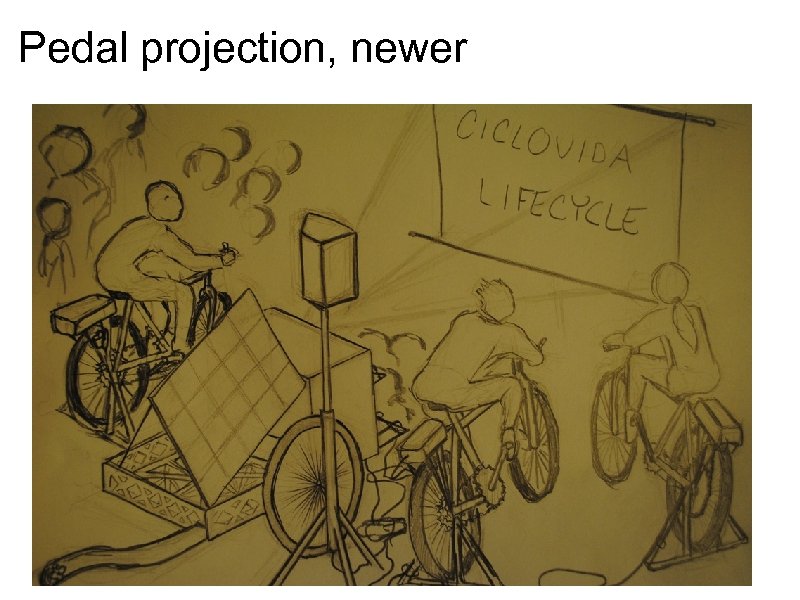

Pedal projection, newer

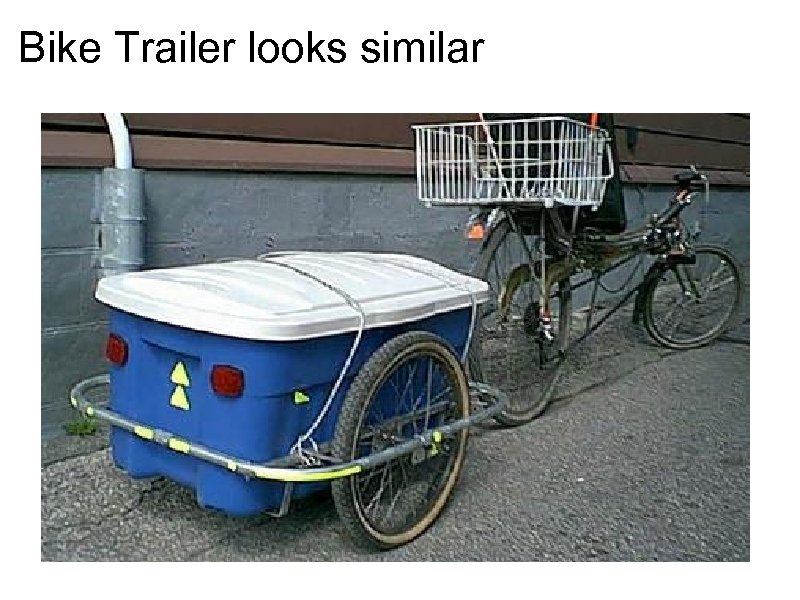

Bike Trailer looks similar

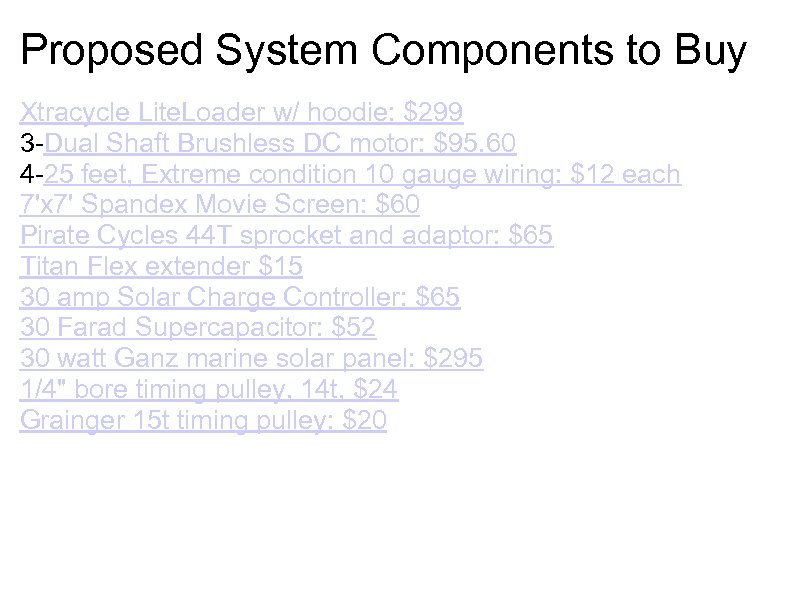

Proposed System Components to Buy Xtracycle Lite. Loader w/ hoodie: $299 3 -Dual Shaft Brushless DC motor: $95. 60 4 -25 feet, Extreme condition 10 gauge wiring: $12 each 7'x 7' Spandex Movie Screen: $60 Pirate Cycles 44 T sprocket and adaptor: $65 Titan Flex extender $15 30 amp Solar Charge Controller: $65 30 Farad Supercapacitor: $52 30 watt Ganz marine solar panel: $295 1/4" bore timing pulley, 14 t, $24 Grainger 15 t timing pulley: $20

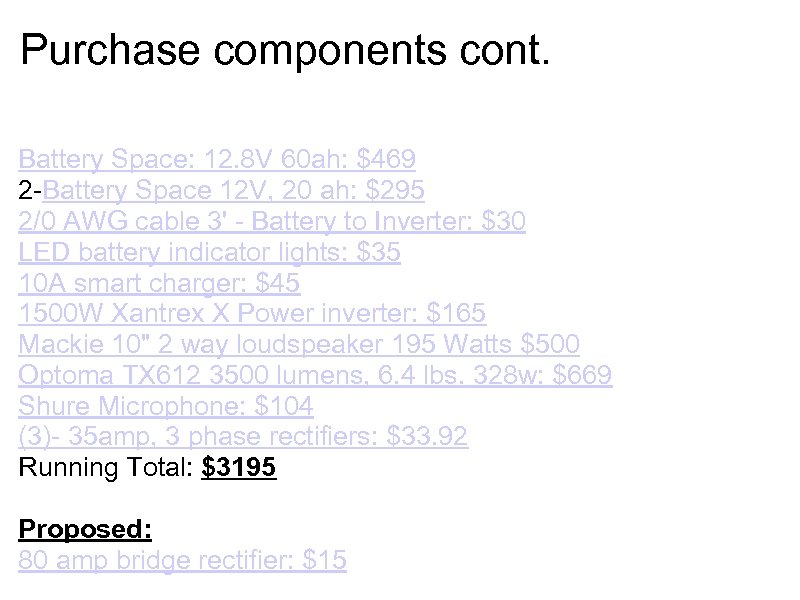

Purchase components cont. Battery Space: 12. 8 V 60 ah: $469 2 -Battery Space 12 V, 20 ah: $295 2/0 AWG cable 3' - Battery to Inverter: $30 LED battery indicator lights: $35 10 A smart charger: $45 1500 W Xantrex X Power inverter: $165 Mackie 10" 2 way loudspeaker 195 Watts $500 Optoma TX 612 3500 lumens, 6. 4 lbs. 328 w: $669 Shure Microphone: $104 (3)- 35 amp, 3 phase rectifiers: $33. 92 Running Total: $3195 Proposed: 80 amp bridge rectifier: $15

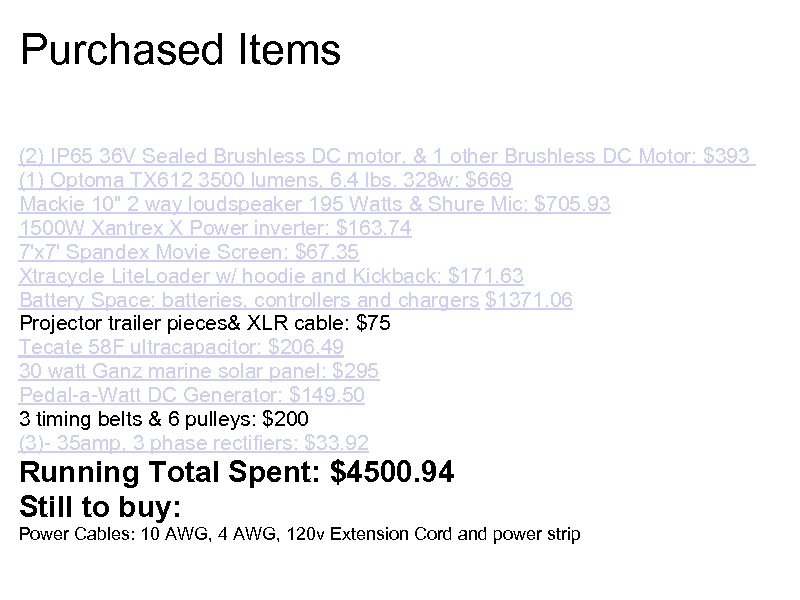

Purchased Items (2) IP 65 36 V Sealed Brushless DC motor, & 1 other Brushless DC Motor: $393 (1) Optoma TX 612 3500 lumens, 6. 4 lbs. 328 w: $669 Mackie 10" 2 way loudspeaker 195 Watts & Shure Mic: $705. 93 1500 W Xantrex X Power inverter: $163. 74 7'x 7' Spandex Movie Screen: $67. 35 Xtracycle Lite. Loader w/ hoodie and Kickback: $171. 63 Battery Space: batteries, controllers and chargers $1371. 06 Projector trailer pieces& XLR cable: $75 Tecate 58 F ultracapacitor: $206. 49 30 watt Ganz marine solar panel: $295 Pedal-a-Watt DC Generator: $149. 50 3 timing belts & 6 pulleys: $200 (3)- 35 amp, 3 phase rectifiers: $33. 92 Running Total Spent: $4500. 94 Still to buy: Power Cables: 10 AWG, 4 AWG, 120 v Extension Cord and power strip

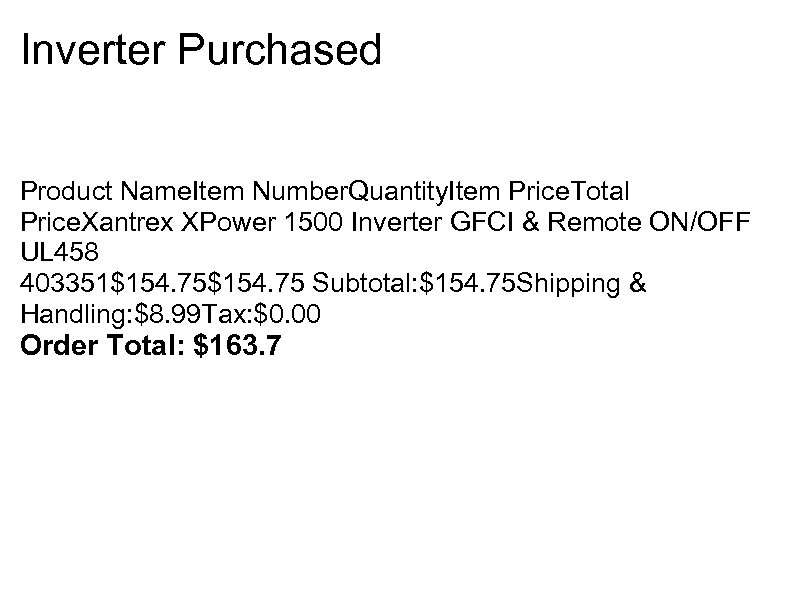

Inverter Purchased Product Name. Item Number. Quantity. Item Price. Total Price. Xantrex XPower 1500 Inverter GFCI & Remote ON/OFF UL 458 403351$154. 75 Subtotal: $154. 75 Shipping & Handling: $8. 99 Tax: $0. 00 Order Total: $163. 7

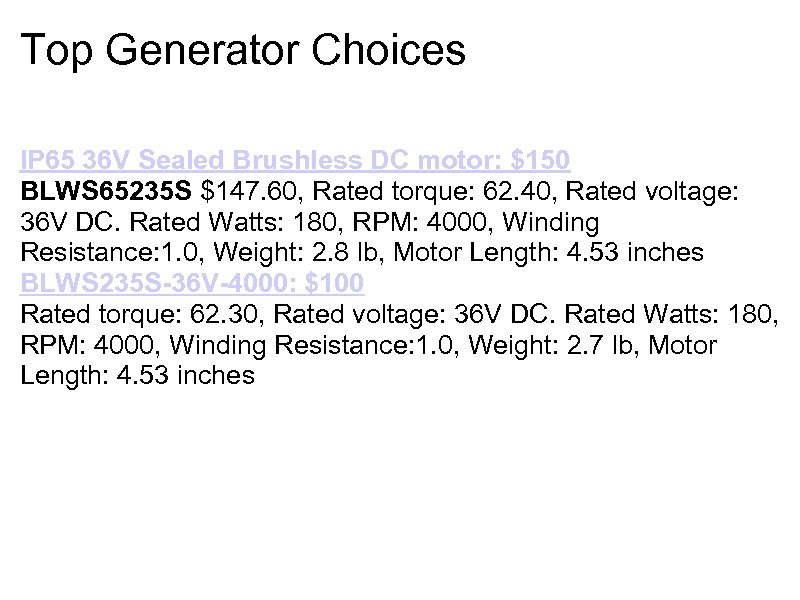

Top Generator Choices IP 65 36 V Sealed Brushless DC motor: $150 BLWS 65235 S $147. 60, Rated torque: 62. 40, Rated voltage: 36 V DC. Rated Watts: 180, RPM: 4000, Winding Resistance: 1. 0, Weight: 2. 8 lb, Motor Length: 4. 53 inches BLWS 235 S-36 V-4000: $100 Rated torque: 62. 30, Rated voltage: 36 V DC. Rated Watts: 180, RPM: 4000, Winding Resistance: 1. 0, Weight: 2. 7 lb, Motor Length: 4. 53 inches

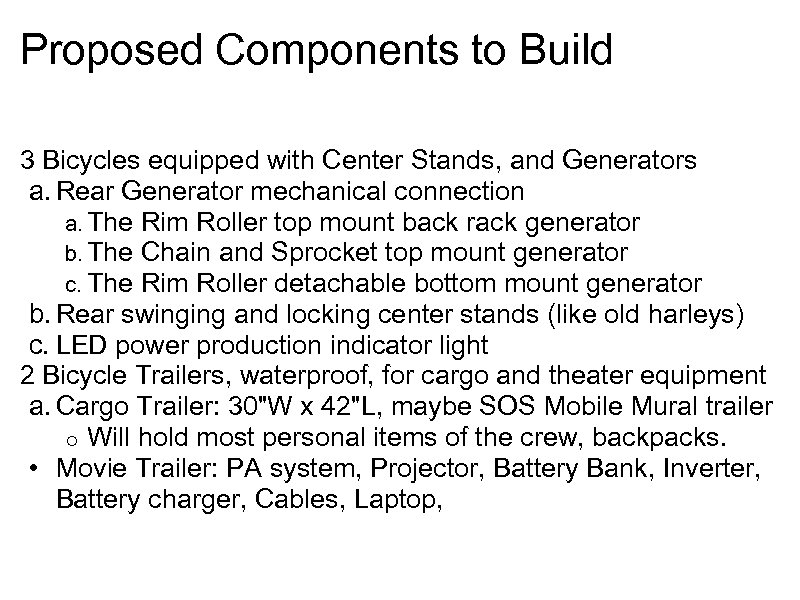

Proposed Components to Build 3 Bicycles equipped with Center Stands, and Generators a. Rear Generator mechanical connection a. The Rim Roller top mount back rack generator b. The Chain and Sprocket top mount generator c. The Rim Roller detachable bottom mount generator b. Rear swinging and locking center stands (like old harleys) c. LED power production indicator light 2 Bicycle Trailers, waterproof, for cargo and theater equipment a. Cargo Trailer: 30"W x 42"L, maybe SOS Mobile Mural trailer o Will hold most personal items of the crew, backpacks. • Movie Trailer: PA system, Projector, Battery Bank, Inverter, Battery charger, Cables, Laptop,

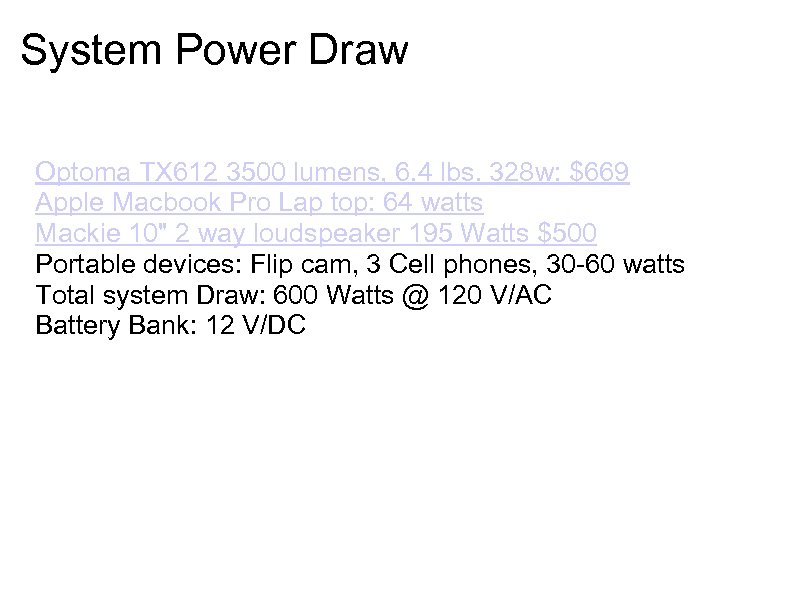

System Power Draw Optoma TX 612 3500 lumens, 6. 4 lbs. 328 w: $669 Apple Macbook Pro Lap top: 64 watts Mackie 10" 2 way loudspeaker 195 Watts $500 Portable devices: Flip cam, 3 Cell phones, 30 -60 watts Total system Draw: 600 Watts @ 120 V/AC Battery Bank: 12 V/DC

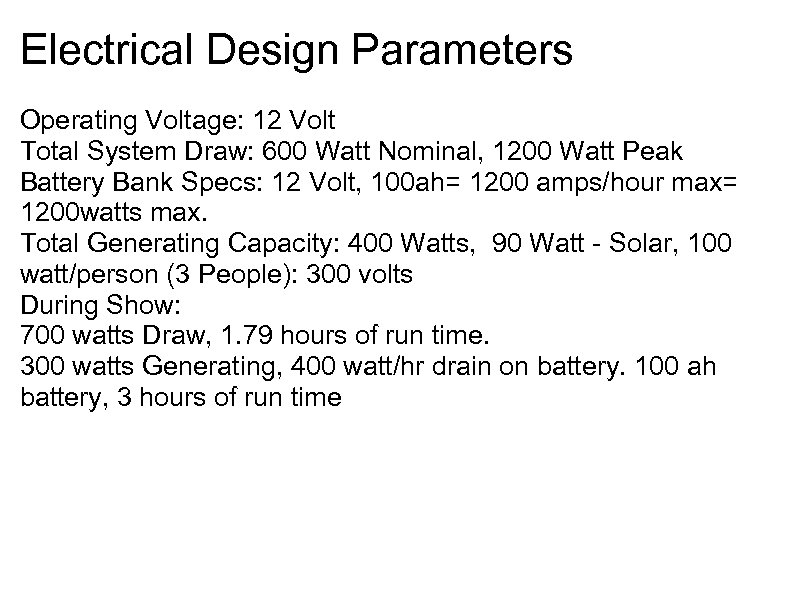

Electrical Design Parameters Operating Voltage: 12 Volt Total System Draw: 600 Watt Nominal, 1200 Watt Peak Battery Bank Specs: 12 Volt, 100 ah= 1200 amps/hour max= 1200 watts max. Total Generating Capacity: 400 Watts, 90 Watt - Solar, 100 watt/person (3 People): 300 volts During Show: 700 watts Draw, 1. 79 hours of run time. 300 watts Generating, 400 watt/hr drain on battery. 100 ah battery, 3 hours of run time

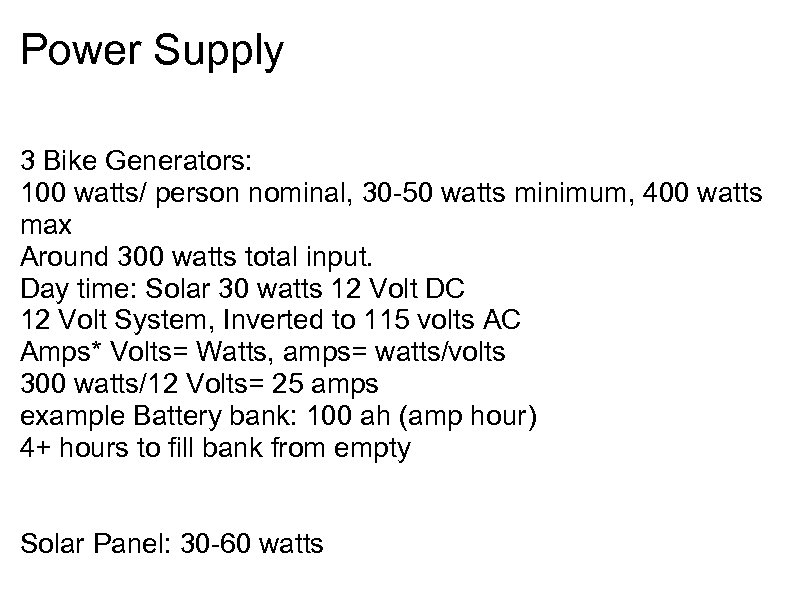

Power Supply 3 Bike Generators: 100 watts/ person nominal, 30 -50 watts minimum, 400 watts max Around 300 watts total input. Day time: Solar 30 watts 12 Volt DC 12 Volt System, Inverted to 115 volts AC Amps* Volts= Watts, amps= watts/volts 300 watts/12 Volts= 25 amps example Battery bank: 100 ah (amp hour) 4+ hours to fill bank from empty Solar Panel: 30 -60 watts

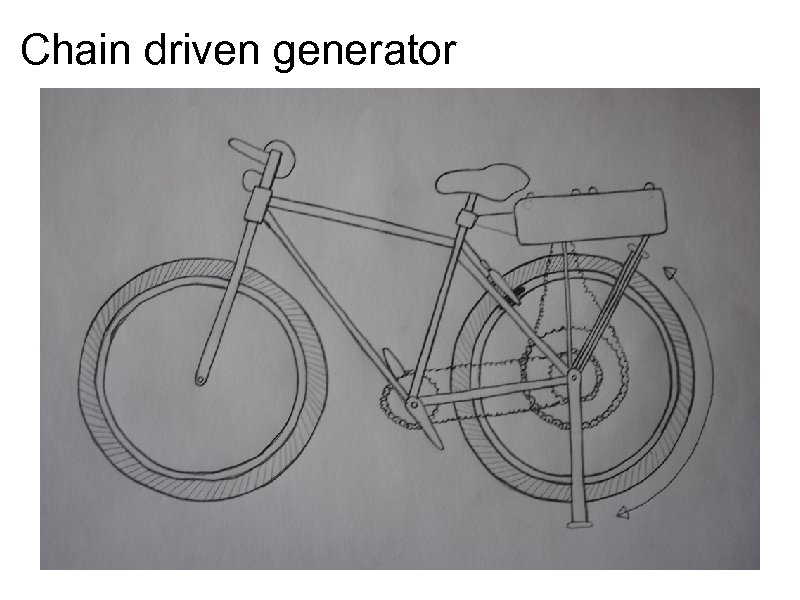

Chain driven generator

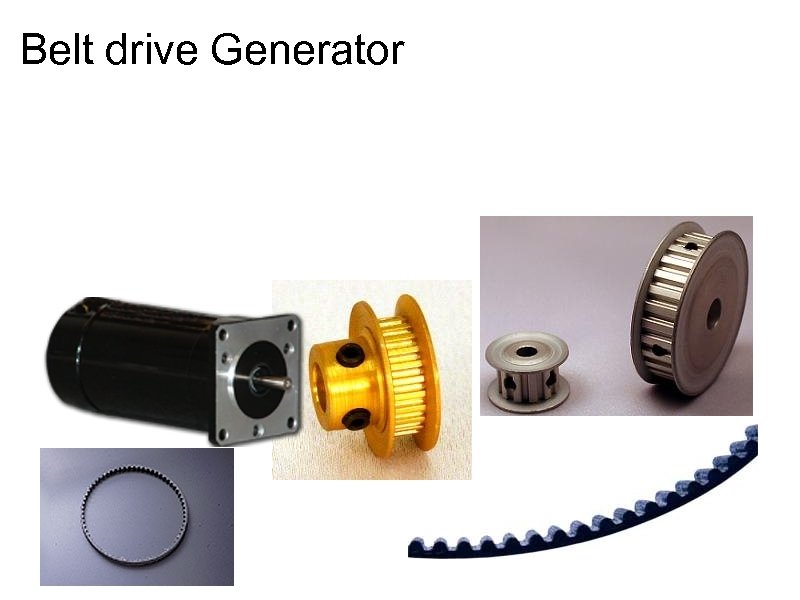

Belt drive Generator

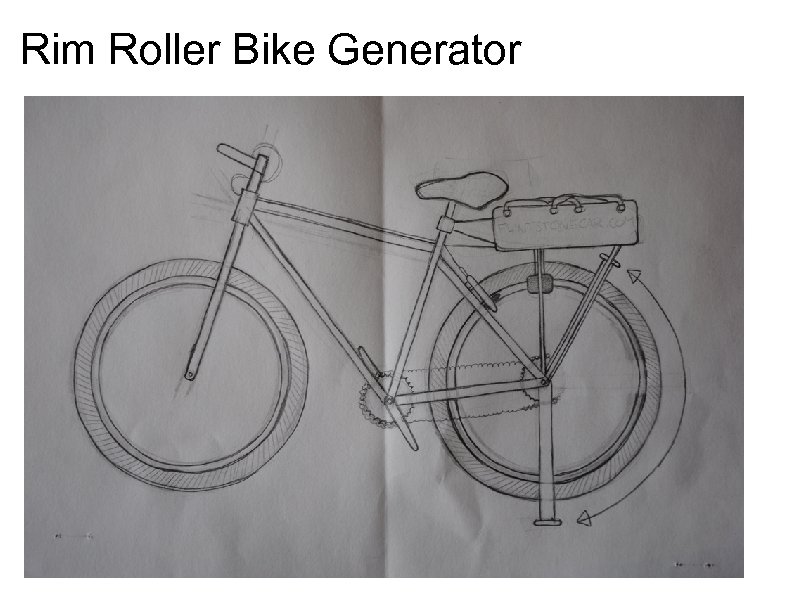

Rim Roller Bike Generator

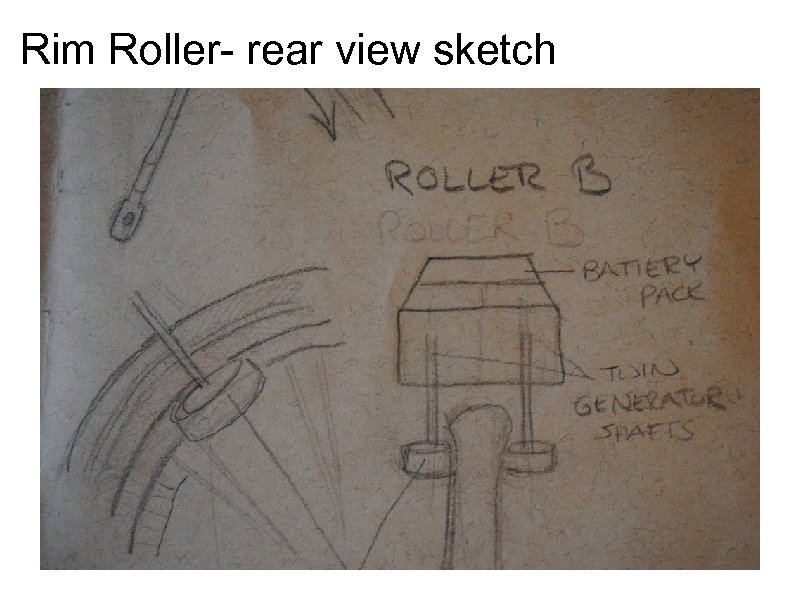

Rim Roller- rear view sketch

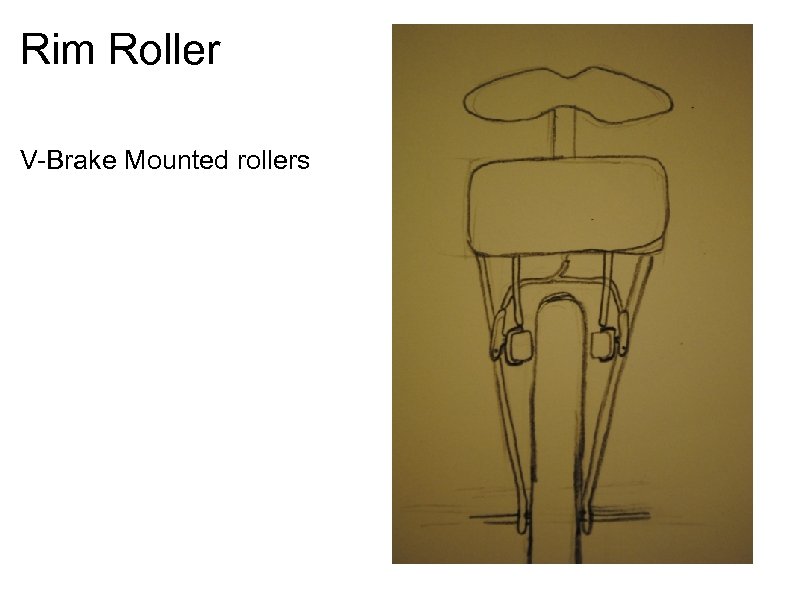

Rim Roller V-Brake Mounted rollers

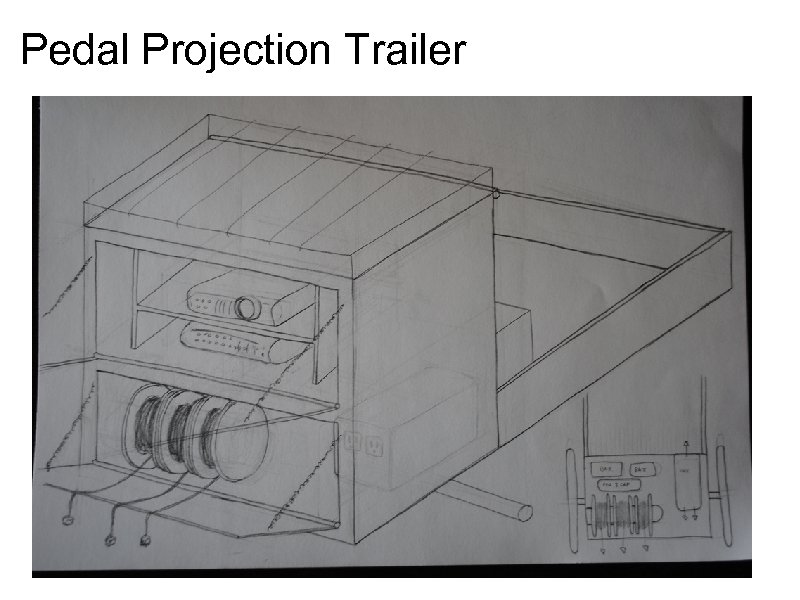

Pedal Projection Trailer

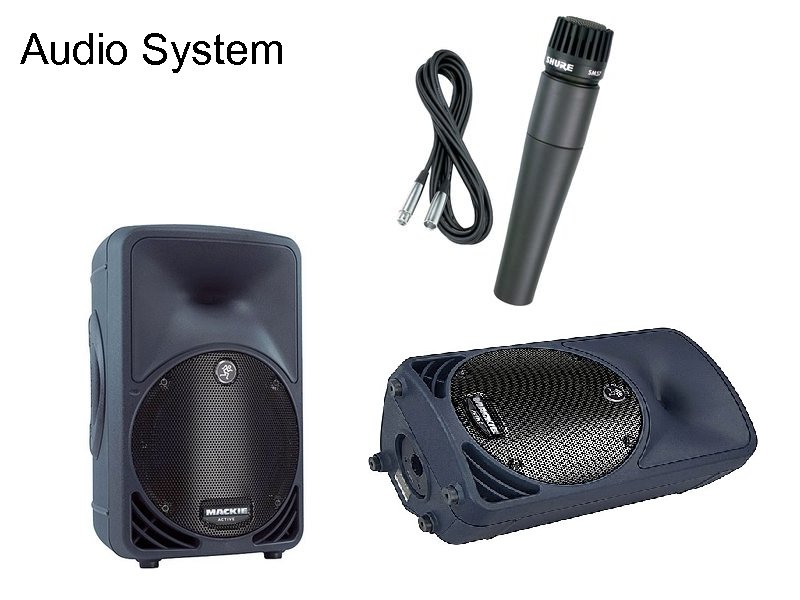

Audio System

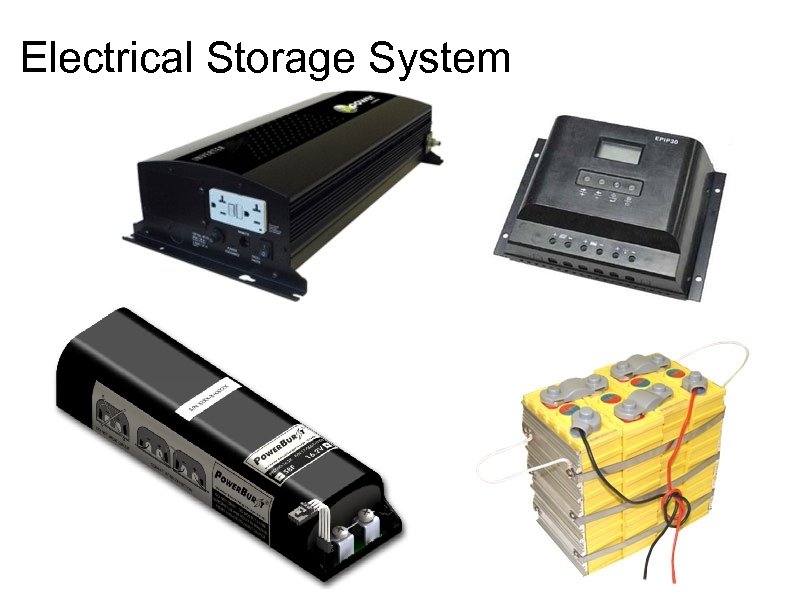

Electrical Storage System

Solar Charging System

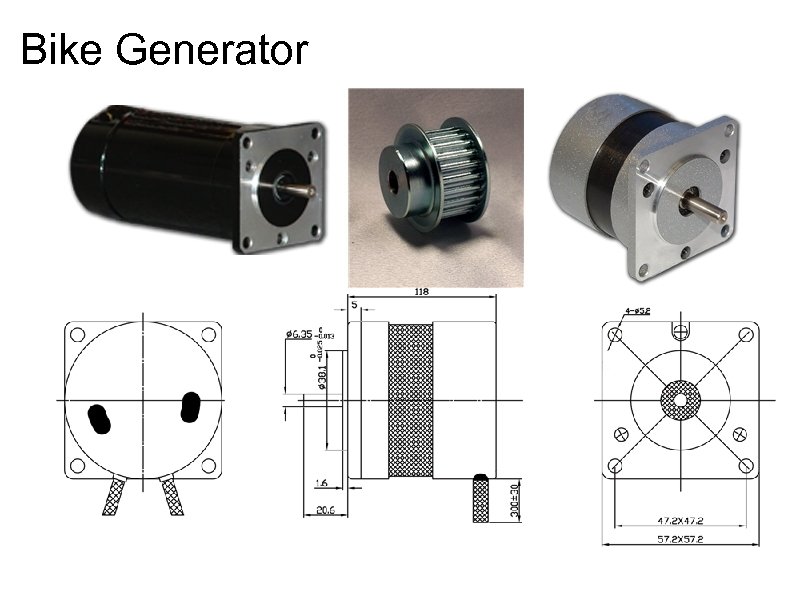

Bike Generator

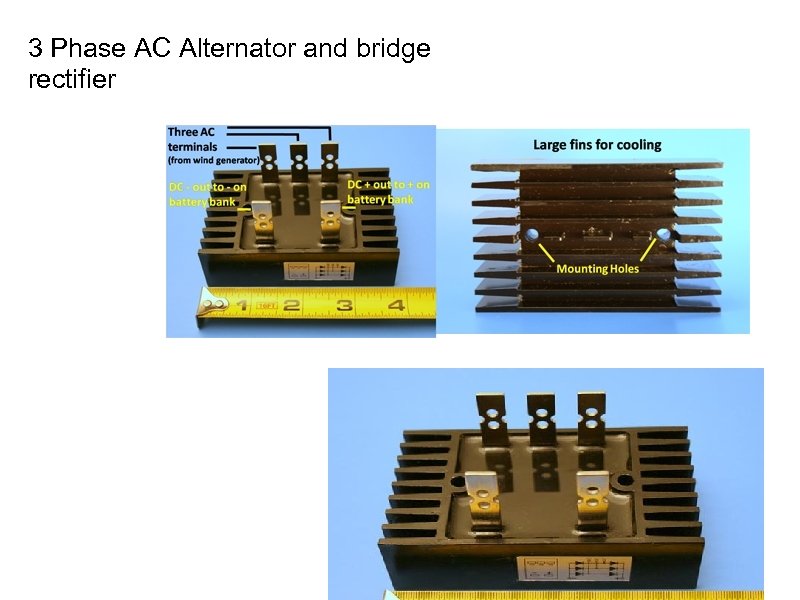

3 Phase AC Alternator and bridge rectifier

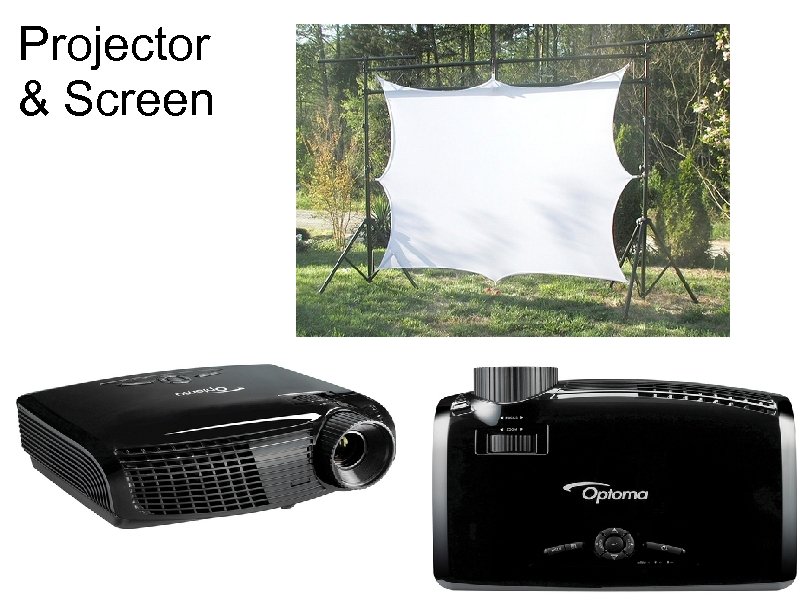

Projector & Screen

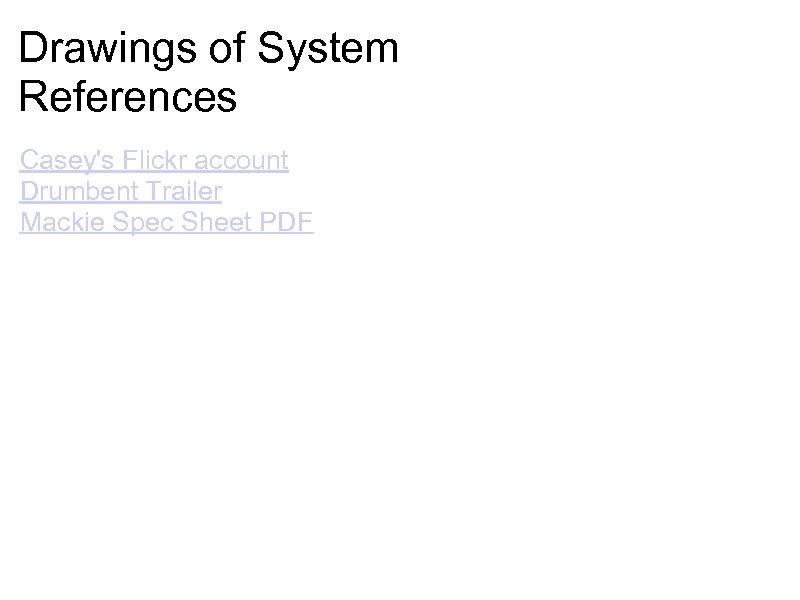

Drawings of System References Casey's Flickr account Drumbent Trailer Mackie Spec Sheet PDF
