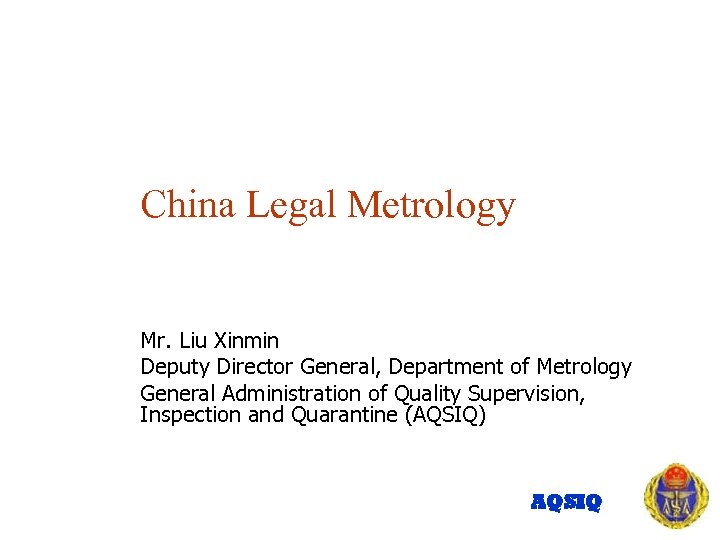

China Legal Metrology Mr. Liu Xinmin Deputy Director General, Department of Metrology General Administration of Quality Supervision, Inspection and Quarantine (AQSIQ) AQSIQ

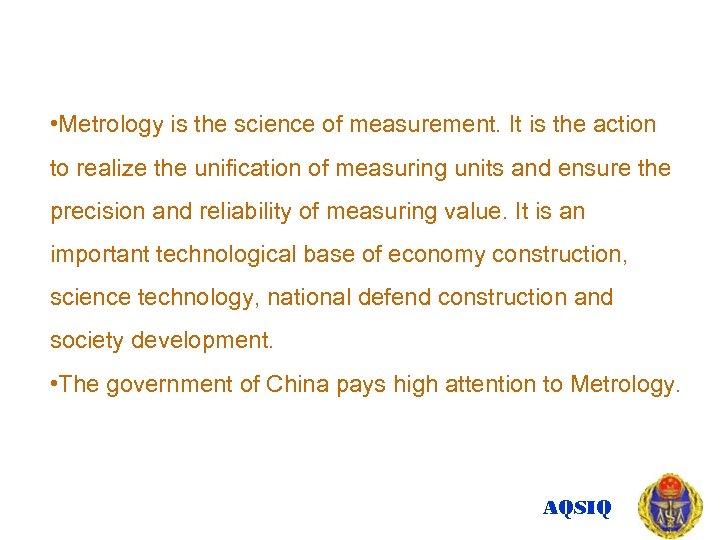

• Metrology is the science of measurement. It is the action to realize the unification of measuring units and ensure the precision and reliability of measuring value. It is an important technological base of economy construction, science technology, national defend construction and society development. • The government of China pays high attention to Metrology. AQSIQ

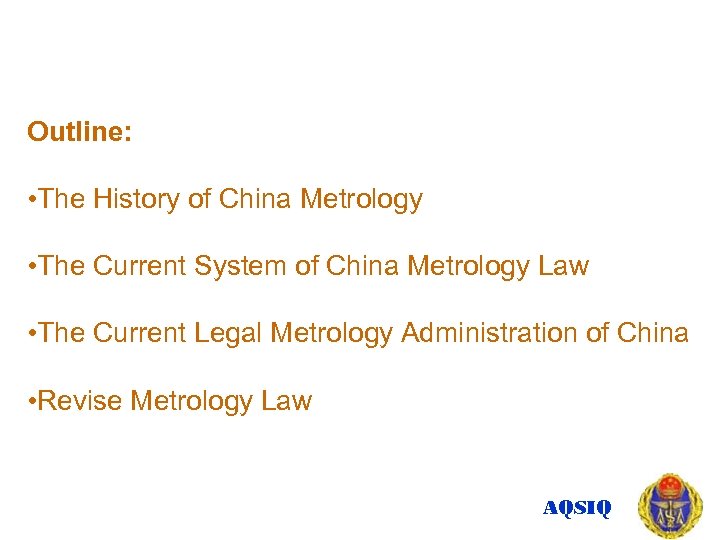

Outline: • The History of China Metrology • The Current System of China Metrology Law • The Current Legal Metrology Administration of China • Revise Metrology Law AQSIQ

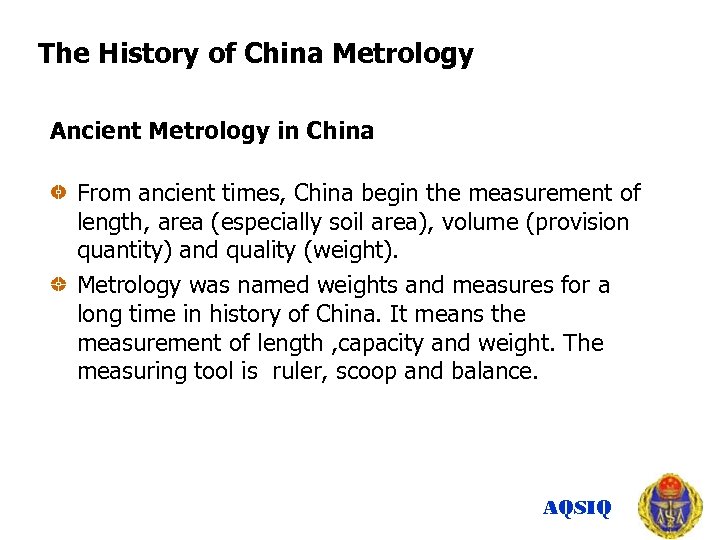

The History of China Metrology Ancient Metrology in China From ancient times, China begin the measurement of length, area (especially soil area), volume (provision quantity) and quality (weight). Metrology was named weights and measures for a long time in history of China. It means the measurement of length , capacity and weight. The measuring tool is ruler, scoop and balance. AQSIQ

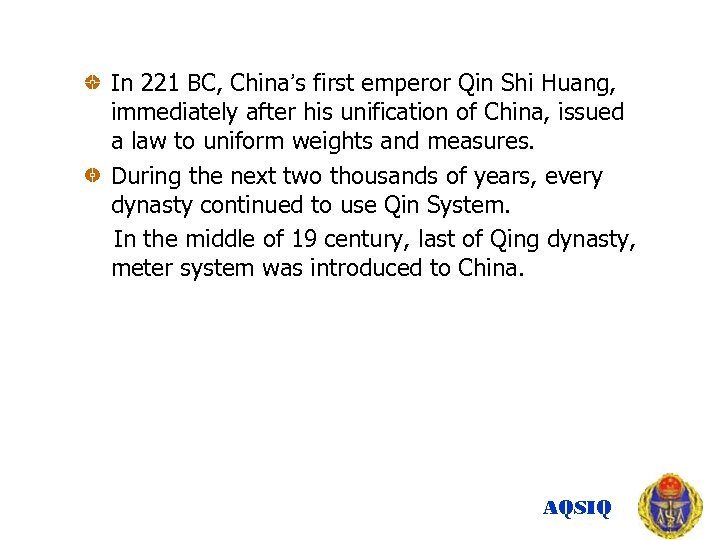

In 221 BC, China’s first emperor Qin Shi Huang, immediately after his unification of China, issued a law to uniform weights and measures. During the next two thousands of years, every dynasty continued to use Qin System. In the middle of 19 century, last of Qing dynasty, meter system was introduced to China. AQSIQ

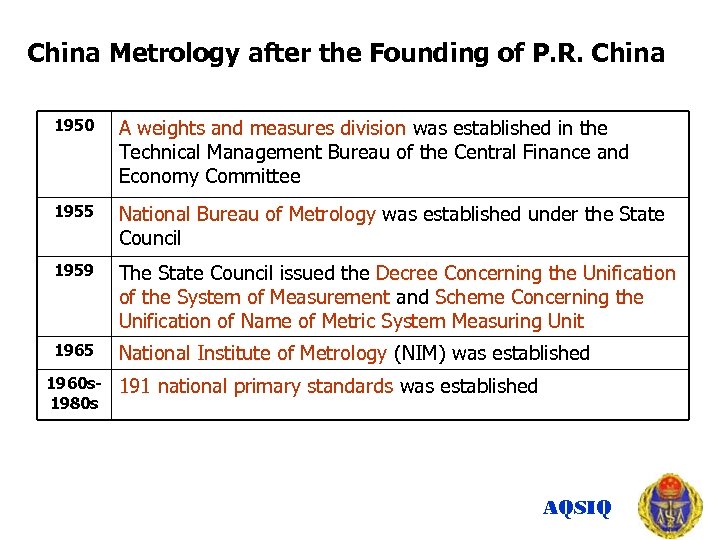

China Metrology after the Founding of P. R. China 1950 A weights and measures division was established in the Technical Management Bureau of the Central Finance and Economy Committee 1955 National Bureau of Metrology was established under the State Council 1959 The State Council issued the Decree Concerning the Unification of the System of Measurement and Scheme Concerning the Unification of Name of Metric System Measuring Unit 1965 National Institute of Metrology (NIM) was established 1960 s 1980 s 191 national primary standards was established AQSIQ

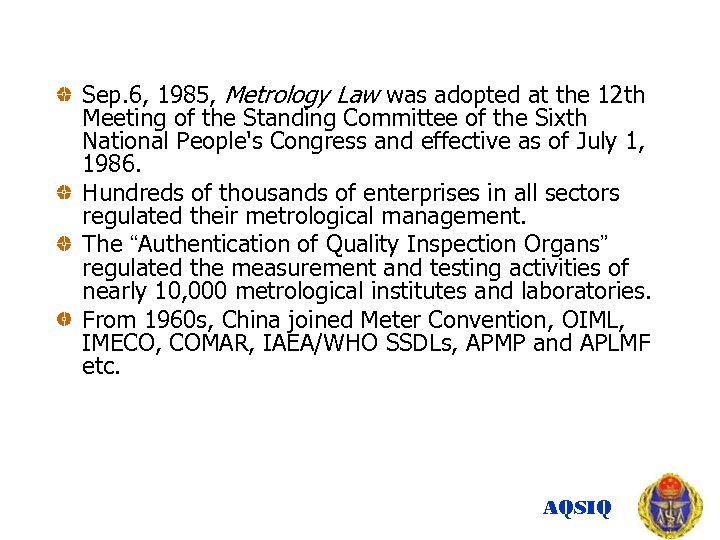

Sep. 6, 1985, Metrology Law was adopted at the 12 th Meeting of the Standing Committee of the Sixth National People's Congress and effective as of July 1, 1986. Hundreds of thousands of enterprises in all sectors regulated their metrological management. The “Authentication of Quality Inspection Organs” regulated the measurement and testing activities of nearly 10, 000 metrological institutes and laboratories. From 1960 s, China joined Meter Convention, OIML, IMECO, COMAR, IAEA/WHO SSDLs, APMP and APLMF etc. AQSIQ

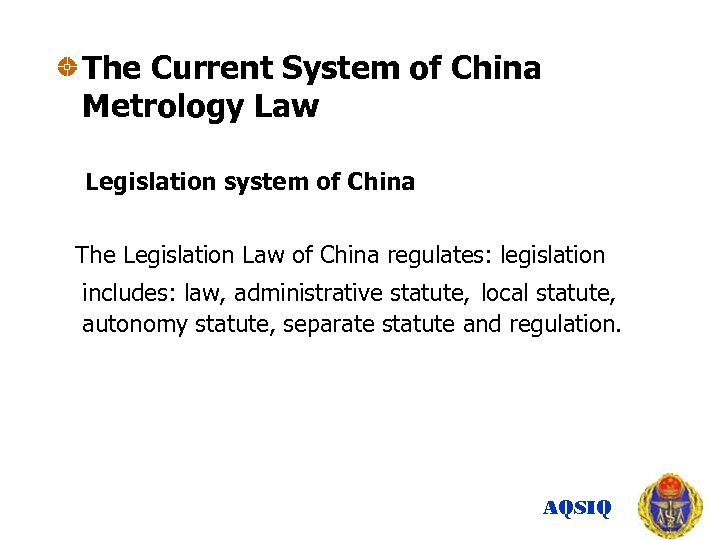

The Current System of China Metrology Law Legislation system of China The Legislation Law of China regulates: legislation includes: law, administrative statute, local statute, autonomy statute, separate statute and regulation. AQSIQ

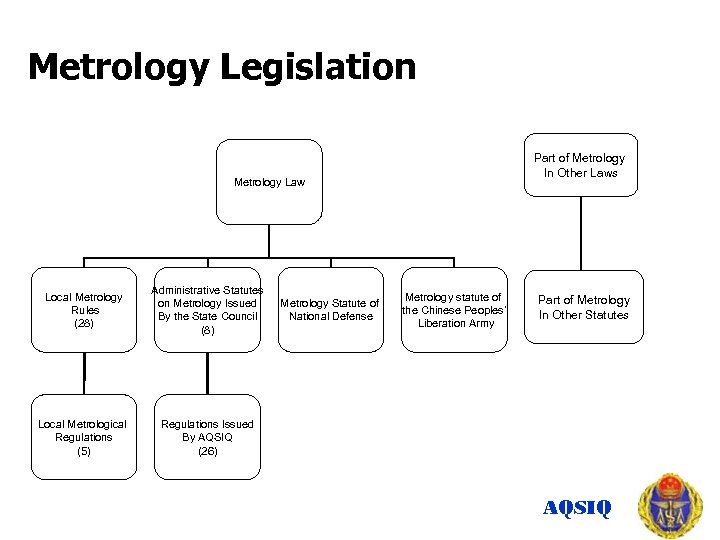

Metrology Legislation Part of Metrology In Other Laws Metrology Law Local Metrology Rules (28) Administrative Statutes on Metrology Issued By the State Council (8) Local Metrological Regulations (5) Regulations Issued By AQSIQ (26) Metrology Statute of National Defense Metrology statute of the Chinese Peoples’ Liberation Army Part of Metrology In Other Statutes AQSIQ

State Council Governments AQSIQ BQTS at provincial level BQTS at municipal level BTQS at country level Central Military Committee Ministries under the State Council The Metrological Administrative Departments of Ministries COSTIND The Metrological Administrative Departments of COSTIND General Armament Department The Metrological Administrative Departments of the Army AQSIQ: General Administration of Quality Supervision, Inspection and Quarantine COSTIND: Commission of Science Technology and Industry for National Defense BQTS: Bureau of Quality and Technical Supervision AQSIQ

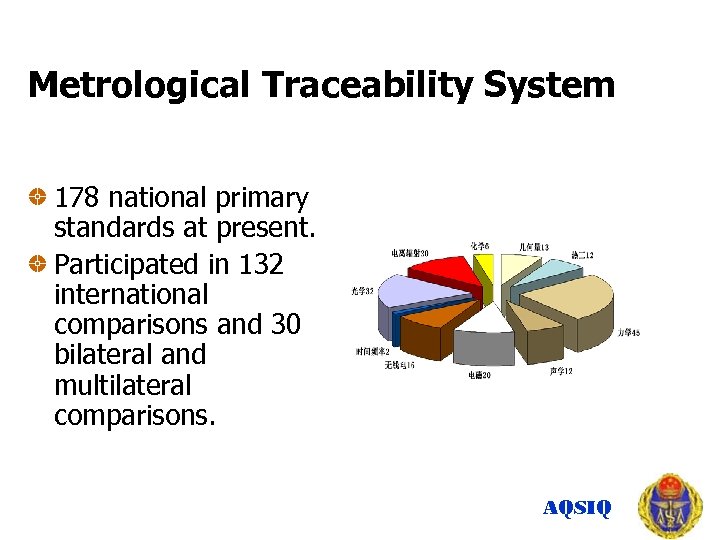

Metrological Traceability System 178 national primary standards at present. Participated in 132 international comparisons and 30 bilateral and multilateral comparisons. AQSIQ

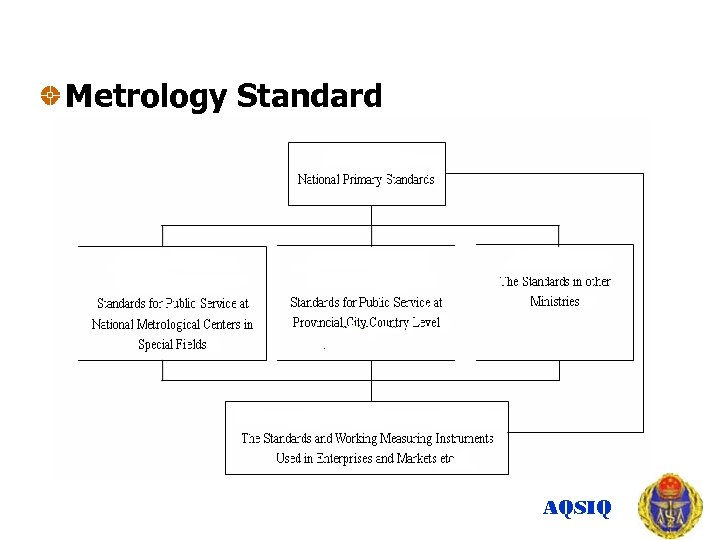

Metrology Standard AQSIQ

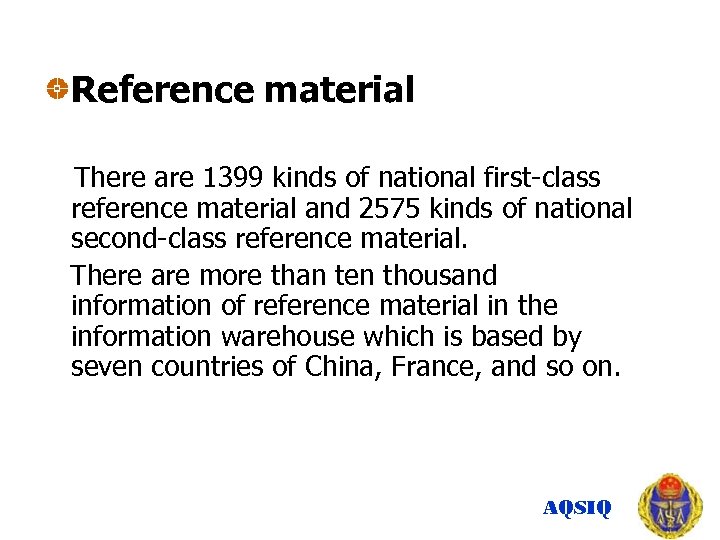

Reference material There are 1399 kinds of national first-class reference material and 2575 kinds of national second-class reference material. There are more than ten thousand information of reference material in the information warehouse which is based by seven countries of China, France, and so on. AQSIQ

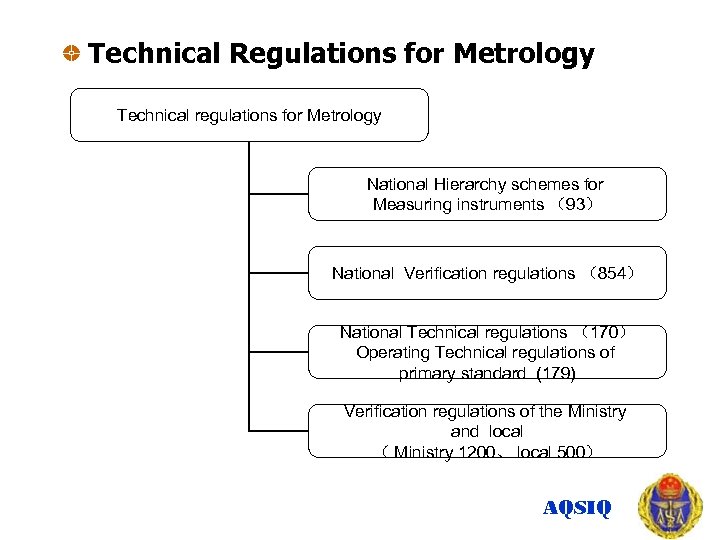

Technical Regulations for Metrology Technical regulations for Metrology National Hierarchy schemes for Measuring instruments （93） National Verification regulations （854） National Technical regulations （170） Operating Technical regulations of primary standard (179) Verification regulations of the Ministry and local （ Ministry 1200、 local 500） AQSIQ

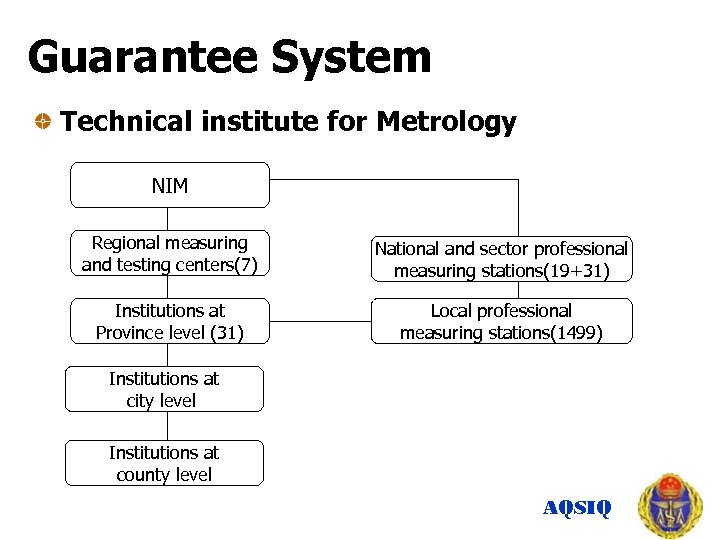

Guarantee System Technical institute for Metrology NIM Regional measuring and testing centers(7) National and sector professional measuring stations(19+31) Institutions at Province level (31) Local professional measuring stations(1499) Institutions at city level Institutions at county level AQSIQ

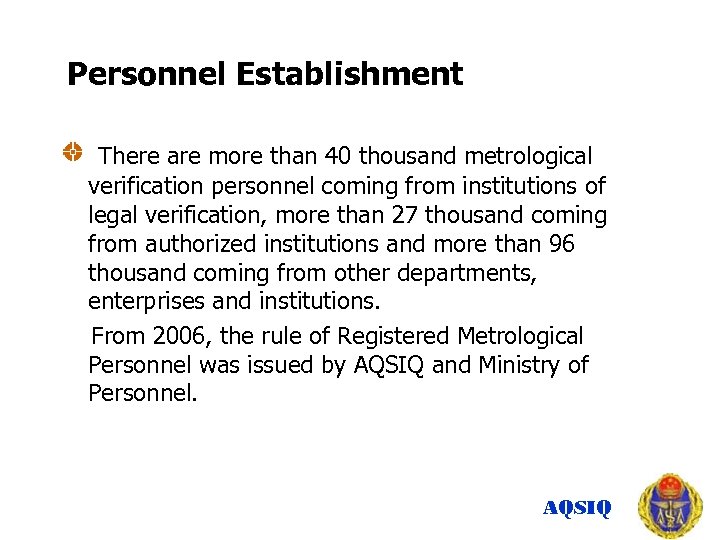

Personnel Establishment There are more than 40 thousand metrological verification personnel coming from institutions of legal verification, more than 27 thousand coming from authorized institutions and more than 96 thousand coming from other departments, enterprises and institutions. From 2006, the rule of Registered Metrological Personnel was issued by AQSIQ and Ministry of Personnel. AQSIQ

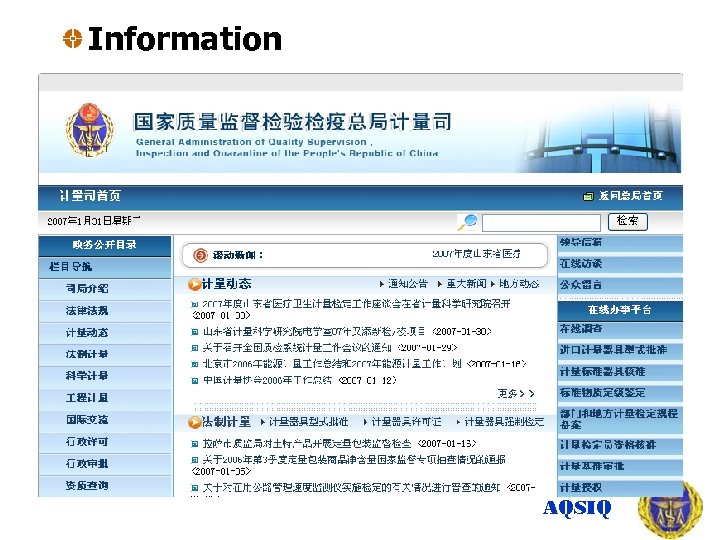

Information AQSIQ

Propagandize AQSIQ

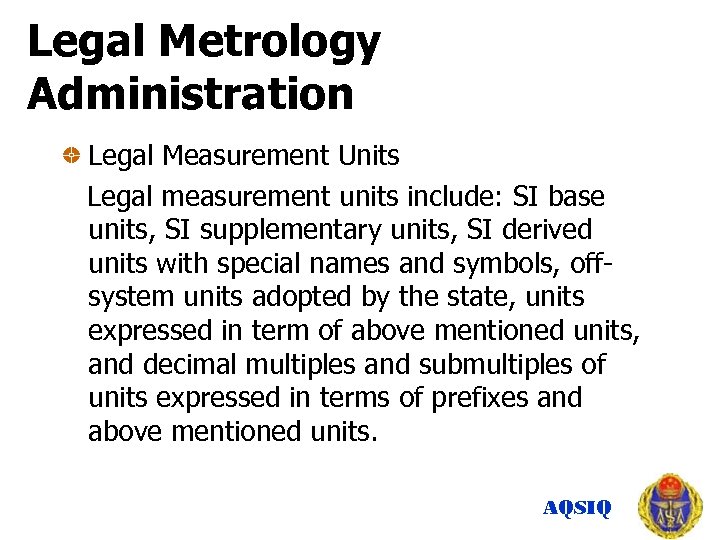

Legal Metrology Administration Legal Measurement Units Legal measurement units include: SI base units, SI supplementary units, SI derived units with special names and symbols, offsystem units adopted by the state, units expressed in term of above mentioned units, and decimal multiples and submultiples of units expressed in terms of prefixes and above mentioned units. AQSIQ

Administration of new type of measuring instrument Pattern approval is the assessment for the new type of measuring instrument which has not been produced in the state and is checked by AQSIQ and Quality Technical Supervision Bureau of province level. Prototype testing is the appraisal for new type of measuring instrument which has not been produced in its factory but has the type in the state, being checked by Quality Technical Supervision Bureau of province level. Recently, AQSIQ adopted international current way and unified the pattern approval, type appraisal and prototype testing to pattern approval and pattern appraisal. AQSIQ

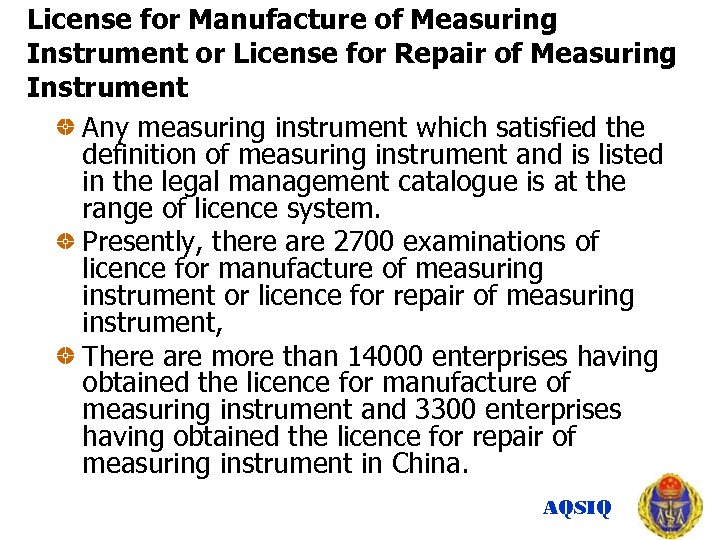

License for Manufacture of Measuring Instrument or License for Repair of Measuring Instrument Any measuring instrument which satisfied the definition of measuring instrument and is listed in the legal management catalogue is at the range of licence system. Presently, there are 2700 examinations of licence for manufacture of measuring instrument or licence for repair of measuring instrument, There are more than 14000 enterprises having obtained the licence for manufacture of measuring instrument and 3300 enterprises having obtained the licence for repair of measuring instrument in China. AQSIQ

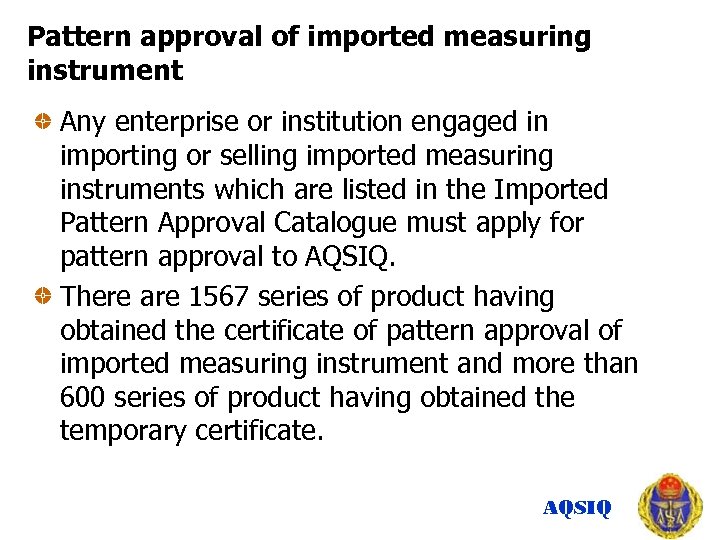

Pattern approval of imported measuring instrument Any enterprise or institution engaged in importing or selling imported measuring instruments which are listed in the Imported Pattern Approval Catalogue must apply for pattern approval to AQSIQ. There are 1567 series of product having obtained the certificate of pattern approval of imported measuring instrument and more than 600 series of product having obtained the temporary certificate. AQSIQ

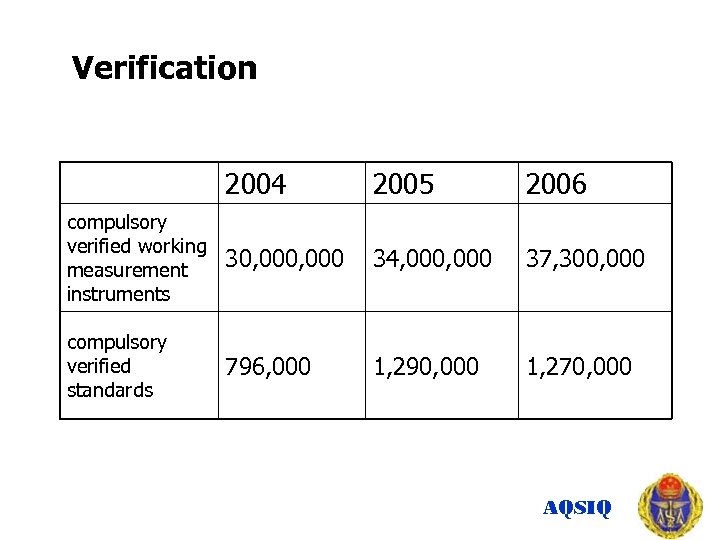

Verification 2004 2005 2006 compulsory verified working measurement instruments 30, 000 34, 000 37, 300, 000 compulsory verified standards 796, 000 1, 290, 000 1, 270, 000 AQSIQ

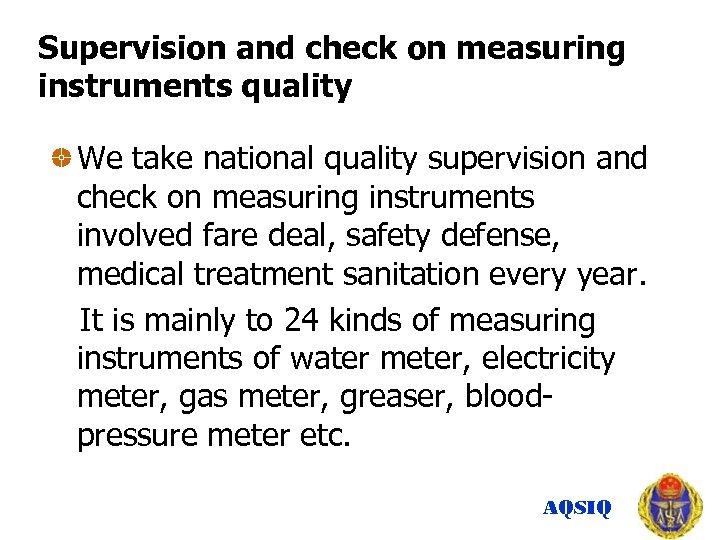

Supervision and check on measuring instruments quality We take national quality supervision and check on measuring instruments involved fare deal, safety defense, medical treatment sanitation every year. It is mainly to 24 kinds of measuring instruments of water meter, electricity meter, gas meter, greaser, bloodpressure meter etc. AQSIQ

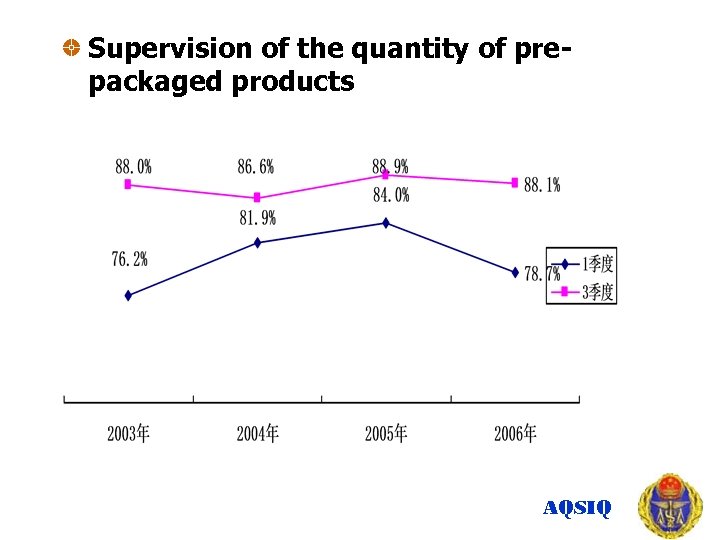

Supervision of the quantity of prepackaged products AQSIQ

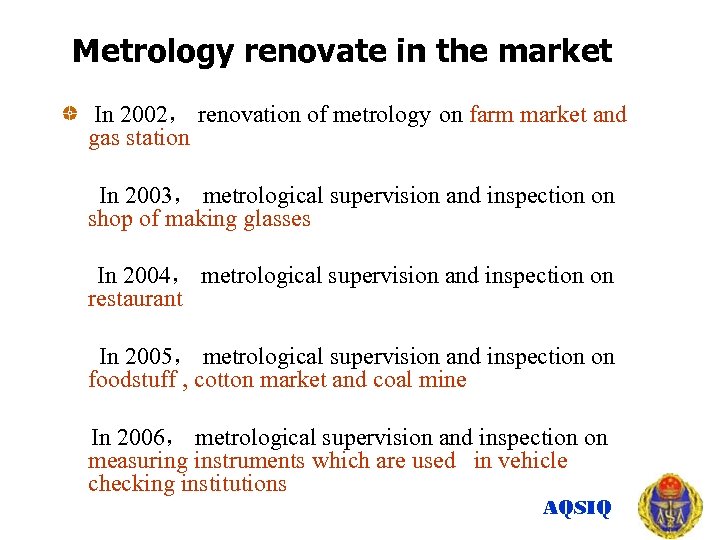

Metrology renovate in the market In 2002， renovation of metrology on farm market and gas station In 2003， metrological supervision and inspection on shop of making glasses In 2004， metrological supervision and inspection on restaurant In 2005， metrological supervision and inspection on foodstuff , cotton market and coal mine In 2006， metrological supervision and inspection on measuring instruments which are used in vehicle checking institutions AQSIQ

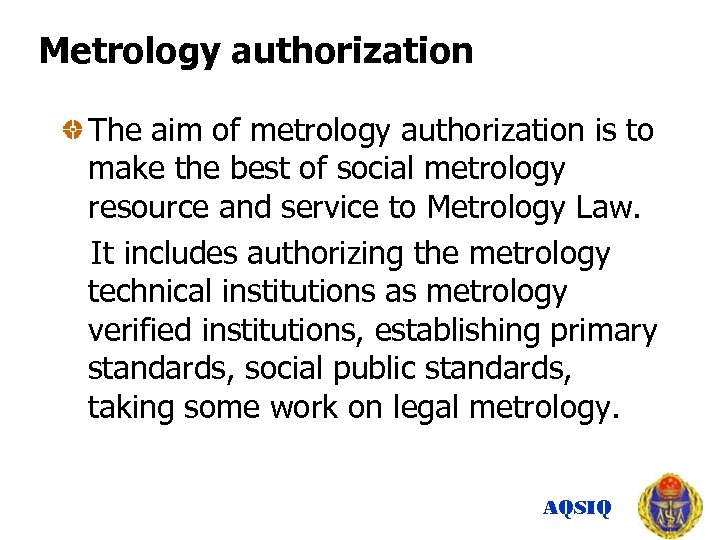

Metrology authorization The aim of metrology authorization is to make the best of social metrology resource and service to Metrology Law. It includes authorizing the metrology technical institutions as metrology verified institutions, establishing primary standards, social public standards, taking some work on legal metrology. AQSIQ

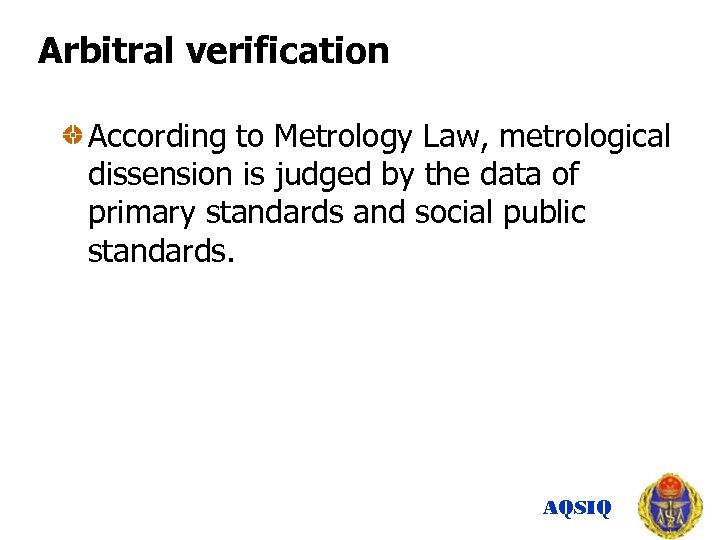

Arbitral verification According to Metrology Law, metrological dissension is judged by the data of primary standards and social public standards. AQSIQ

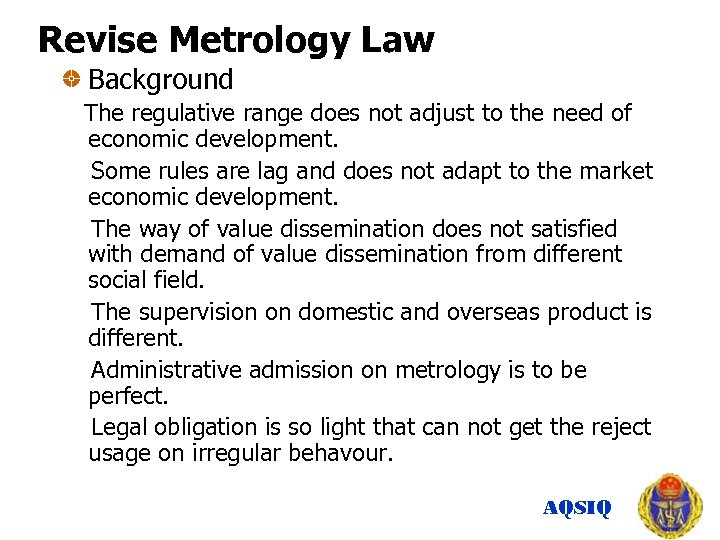

Revise Metrology Law Background The regulative range does not adjust to the need of economic development. Some rules are lag and does not adapt to the market economic development. The way of value dissemination does not satisfied with demand of value dissemination from different social field. The supervision on domestic and overseas product is different. Administrative admission on metrology is to be perfect. Legal obligation is so light that can not get the reject usage on irregular behavour. AQSIQ

Revise Metrology Law Revise course In 2000, startup. In 2004, list in the second legislation plan. In 2006, first solicit suggestion by State Council. In 2007, second solicit suggestion by State Council. AQSIQ

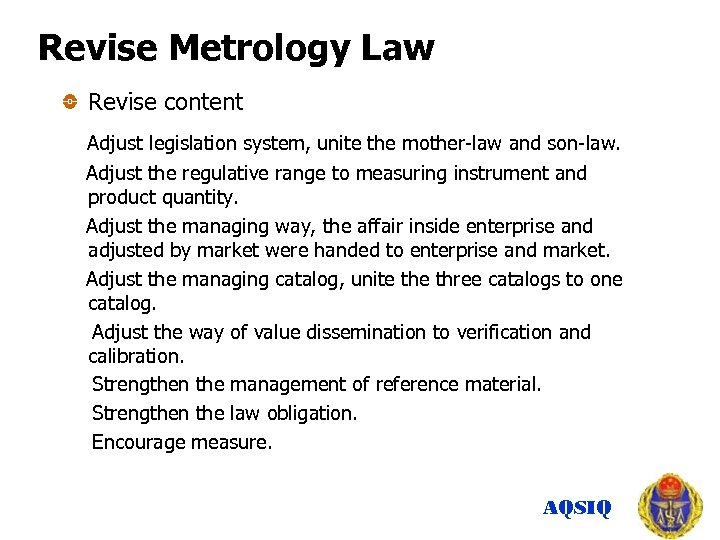

Revise Metrology Law Revise content Adjust legislation system, unite the mother-law and son-law. Adjust the regulative range to measuring instrument and product quantity. Adjust the managing way, the affair inside enterprise and adjusted by market were handed to enterprise and market. Adjust the managing catalog, unite three catalogs to one catalog. Adjust the way of value dissemination to verification and calibration. Strengthen the management of reference material. Strengthen the law obligation. Encourage measure. AQSIQ

Thank you for your attention! Best regards! AQSIQ
