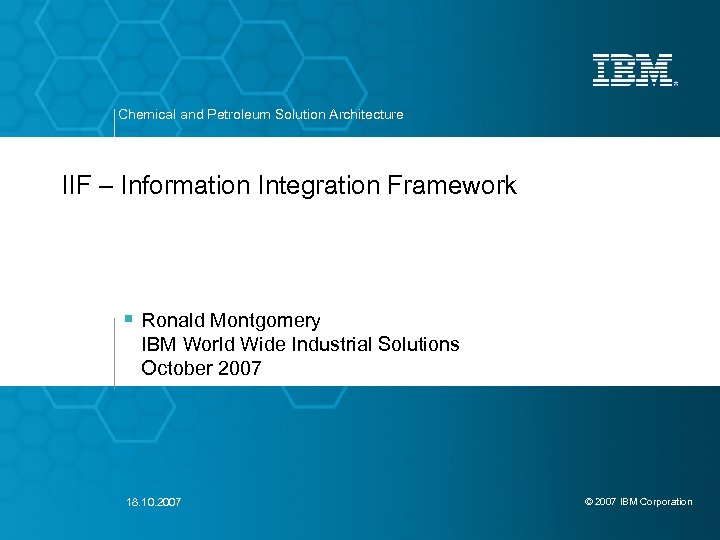

Chemical and Petroleum Solution Architecture IIF – Information Integration Framework § Ronald Montgomery IBM Chemical and Petroleum Solution Architecture IIF – Information Integration Framework § Ronald Montgomery IBM World Wide Industrial Solutions October 2007 18. 10. 2007 © 2007 IBM Corporation

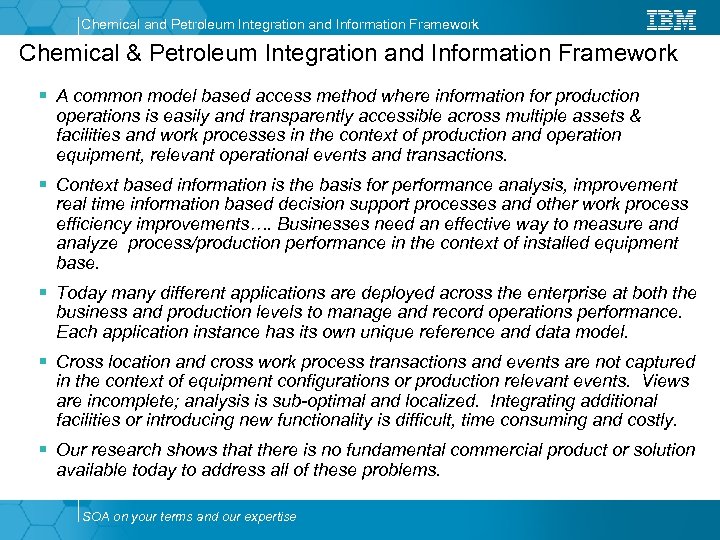

Chemical and Petroleum Integration and Information Framework Chemical & Petroleum Integration and Information Framework Chemical and Petroleum Integration and Information Framework Chemical & Petroleum Integration and Information Framework § A common model based access method where information for production operations is easily and transparently accessible across multiple assets & facilities and work processes in the context of production and operation equipment, relevant operational events and transactions. § Context based information is the basis for performance analysis, improvement real time information based decision support processes and other work process efficiency improvements…. Businesses need an effective way to measure and analyze process/production performance in the context of installed equipment base. § Today many different applications are deployed across the enterprise at both the business and production levels to manage and record operations performance. Each application instance has its own unique reference and data model. § Cross location and cross work process transactions and events are not captured in the context of equipment configurations or production relevant events. Views are incomplete; analysis is sub-optimal and localized. Integrating additional facilities or introducing new functionality is difficult, time consuming and costly. § Our research shows that there is no fundamental commercial product or solution available today to address all of these problems. SOA on your terms and our expertise

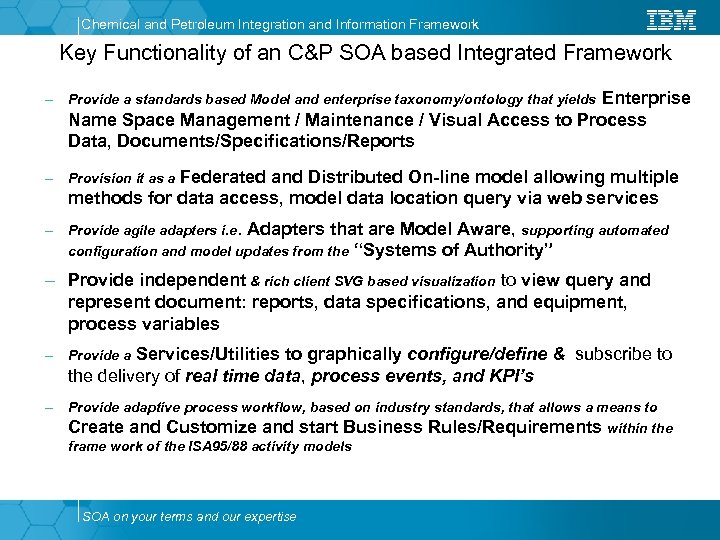

Chemical and Petroleum Integration and Information Framework Key Functionality of an C&P SOA based Chemical and Petroleum Integration and Information Framework Key Functionality of an C&P SOA based Integrated Framework Enterprise Name Space Management / Maintenance / Visual Access to Process Data, Documents/Specifications/Reports – Provide a standards based Model and enterprise taxonomy/ontology that yields – Provision it as a – Provide agile adapters i. e. Federated and Distributed On-line model allowing multiple methods for data access, model data location query via web services Adapters that are Model Aware, supporting automated configuration and model updates from the “Systems of Authority” – Provide independent & rich client SVG based visualization to view query and represent document: reports, data specifications, and equipment, process variables Services/Utilities to graphically configure/define & subscribe to the delivery of real time data, process events, and KPI’s – Provide adaptive process workflow, based on industry standards, that allows a means to Create and Customize and start Business Rules/Requirements frame work of the ISA 95/88 activity models SOA on your terms and our expertise within the

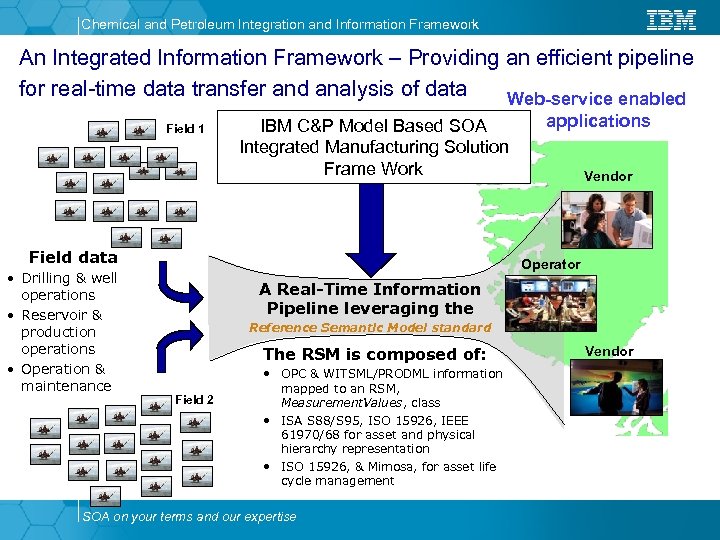

Chemical and Petroleum Integration and Information Framework An Integrated Information Framework – Providing an Chemical and Petroleum Integration and Information Framework An Integrated Information Framework – Providing an efficient pipeline for real-time data transfer and analysis of data Web-service enabled Field 1 IBM C&P Model Based SOA Integrated Manufacturing Solution Frame Work Field data • Drilling & well operations • Reservoir & production operations • Operation & maintenance applications Vendor Operator A Real-Time Information Pipeline leveraging the Reference Semantic Model standard The RSM is composed of: Field 2 • OPC & WITSML/PRODML information mapped to an RSM, Measurement. Values, class • ISA S 88/S 95, ISO 15926, IEEE 61970/68 for asset and physical hierarchy representation • ISO 15926, & Mimosa, for asset life cycle management SOA on your terms and our expertise Vendor

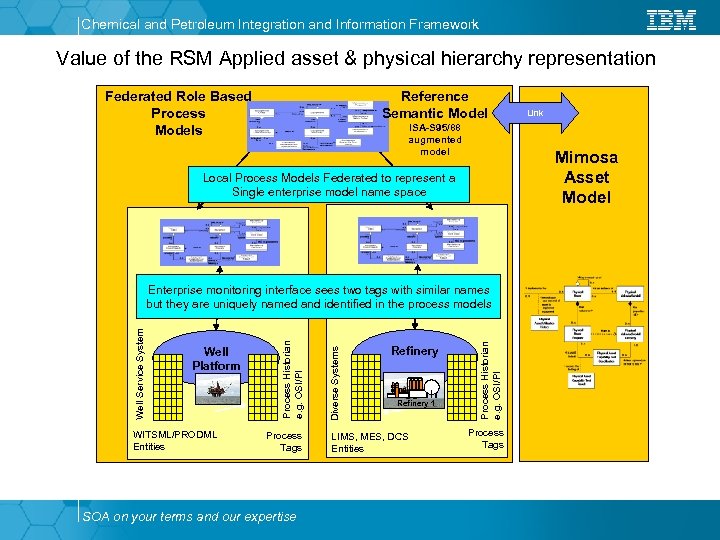

Chemical and Petroleum Integration and Information Framework Value of the RSM Applied asset & Chemical and Petroleum Integration and Information Framework Value of the RSM Applied asset & physical hierarchy representation Federated Role Based Process Models Reference Semantic Model ISA-S 95/88 augmented model Mimosa Asset Model Local Process Models Federated to represent a Single enterprise model name space WITSML/PRODML Entities Process Tags SOA on your terms and our expertise Refinery 1 LIMS, MES, DCS Entities Process Historian e. g. OSI/PI Diverse Systems Process Historian e. g. OSI/PI Well Service System Enterprise monitoring interface sees two tags with similar names but they are uniquely named and identified in the process models Well Platform Link Process Tags

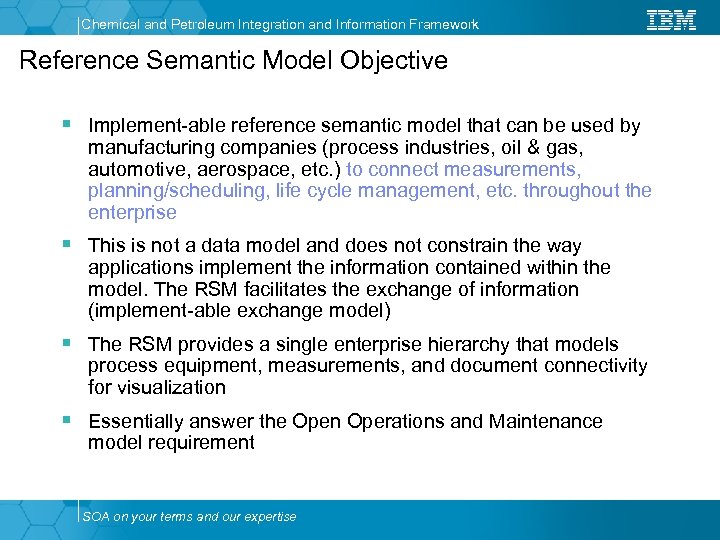

Chemical and Petroleum Integration and Information Framework Reference Semantic Model Objective § Implement-able reference Chemical and Petroleum Integration and Information Framework Reference Semantic Model Objective § Implement-able reference semantic model that can be used by manufacturing companies (process industries, oil & gas, automotive, aerospace, etc. ) to connect measurements, planning/scheduling, life cycle management, etc. throughout the enterprise § This is not a data model and does not constrain the way applications implement the information contained within the model. The RSM facilitates the exchange of information (implement-able exchange model) § The RSM provides a single enterprise hierarchy that models process equipment, measurements, and document connectivity for visualization § Essentially answer the Open Operations and Maintenance model requirement SOA on your terms and our expertise

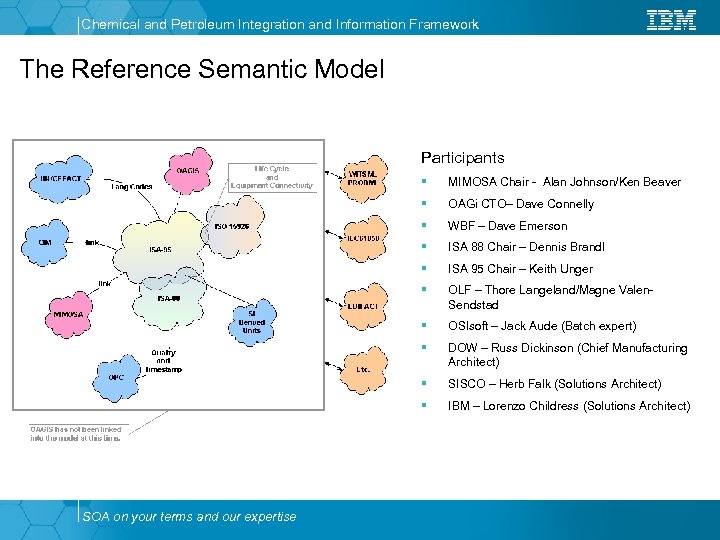

Chemical and Petroleum Integration and Information Framework The Reference Semantic Model Participants § § Chemical and Petroleum Integration and Information Framework The Reference Semantic Model Participants § § OAGi CTO– Dave Connelly § WBF – Dave Emerson § ISA 88 Chair – Dennis Brandl § ISA 95 Chair – Keith Unger § OLF – Thore Langeland/Magne Valen. Sendstad § OSIsoft – Jack Aude (Batch expert) § DOW – Russ Dickinson (Chief Manufacturing Architect) § SISCO – Herb Falk (Solutions Architect) § SOA on your terms and our expertise MIMOSA Chair - Alan Johnson/Ken Beaver IBM – Lorenzo Childress (Solutions Architect)

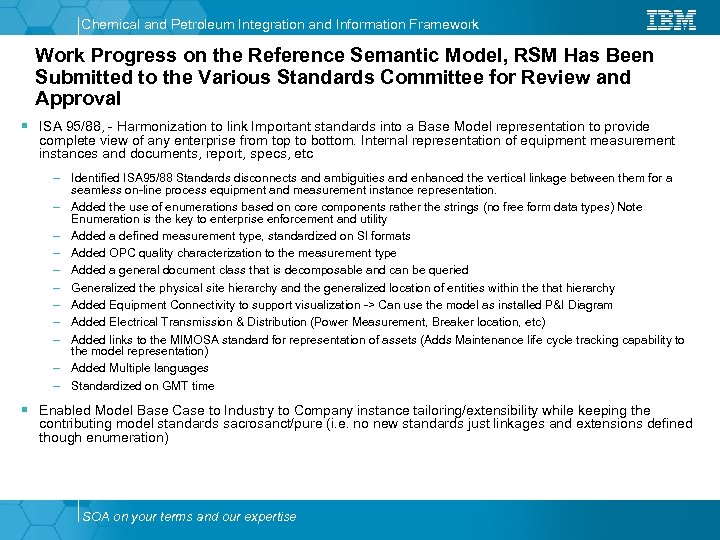

Chemical and Petroleum Integration and Information Framework Work Progress on the Reference Semantic Model, Chemical and Petroleum Integration and Information Framework Work Progress on the Reference Semantic Model, RSM Has Been Submitted to the Various Standards Committee for Review and Approval § ISA 95/88, - Harmonization to link Important standards into a Base Model representation to provide complete view of any enterprise from top to bottom. Internal representation of equipment measurement instances and documents, report, specs, etc – Identified ISA 95/88 Standards disconnects and ambiguities and enhanced the vertical linkage between them for a seamless on-line process equipment and measurement instance representation. – Added the use of enumerations based on core components rather the strings (no free form data types) Note Enumeration is the key to enterprise enforcement and utility – Added a defined measurement type, standardized on SI formats – Added OPC quality characterization to the measurement type – Added a general document class that is decomposable and can be queried – Generalized the physical site hierarchy and the generalized location of entities within the that hierarchy – Added Equipment Connectivity to support visualization -> Can use the model as installed P&I Diagram – Added Electrical Transmission & Distribution (Power Measurement, Breaker location, etc) – Added links to the MIMOSA standard for representation of assets (Adds Maintenance life cycle tracking capability to the model representation) – Added Multiple languages – Standardized on GMT time § Enabled Model Base Case to Industry to Company instance tailoring/extensibility while keeping the contributing model standards sacrosanct/pure (i. e. no new standards just linkages and extensions defined though enumeration) SOA on your terms and our expertise

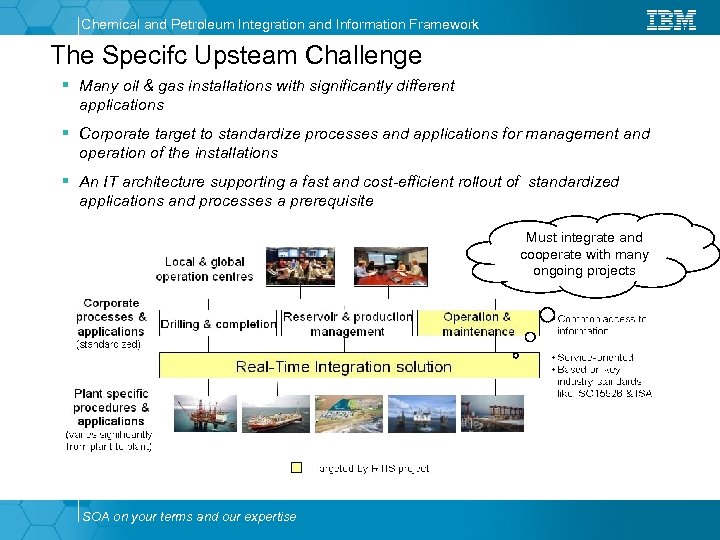

Chemical and Petroleum Integration and Information Framework The Specifc Upsteam Challenge § Many oil Chemical and Petroleum Integration and Information Framework The Specifc Upsteam Challenge § Many oil & gas installations with significantly different applications § Corporate target to standardize processes and applications for management and operation of the installations § An IT architecture supporting a fast and cost-efficient rollout of standardized applications and processes a prerequisite Must integrate and cooperate with many ongoing projects SOA on your terms and our expertise

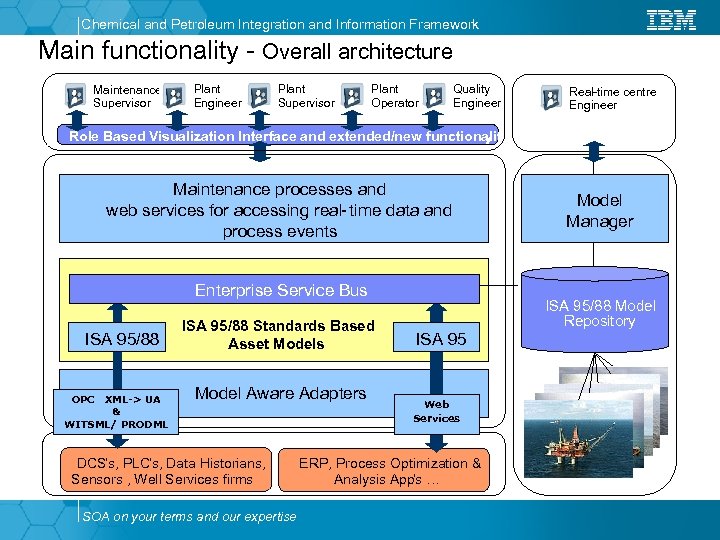

Chemical and Petroleum Integration and Information Framework Main functionality - Overall architecture Maintenance Supervisor Chemical and Petroleum Integration and Information Framework Main functionality - Overall architecture Maintenance Supervisor Plant Engineer Plant Supervisor Plant Operator Quality Engineer Real-time centre Engineer Role Based Visualization Interface and extended/new functionalit y Maintenance processes and web services for accessing real- time data and process events Enterprise Service Bus ISA 95/88 OPC XML-> UA & WITSML/ PRODML ISA 95/88 Standards Based Asset Models Model Aware Adapters DCS’s, PLC’s, Data Historians, Sensors , Well Services firms SOA on your terms and our expertise ISA 95 Web Services ERP, Process Optimization & Analysis App’s … Model Manager ISA 95/88 Model Repository

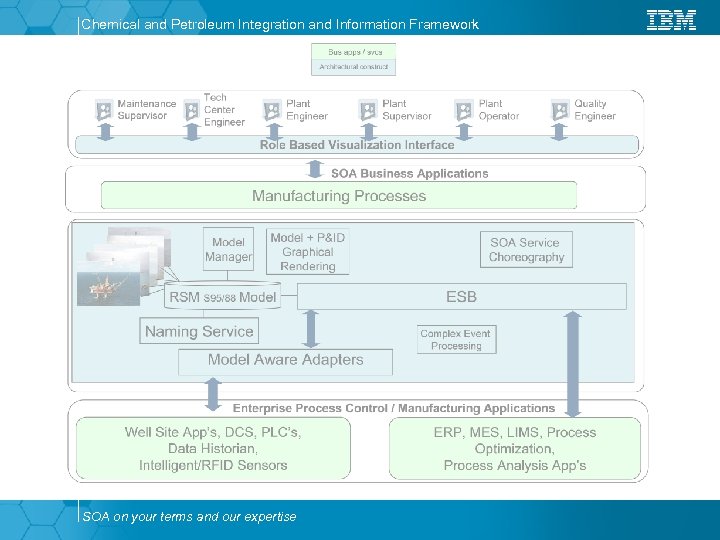

Chemical and Petroleum Integration and Information Framework SOA on your terms and our expertise Chemical and Petroleum Integration and Information Framework SOA on your terms and our expertise

Chemical and Petroleum Integration and Information Framework Architecture (detailed) SOA on your terms and Chemical and Petroleum Integration and Information Framework Architecture (detailed) SOA on your terms and our expertise

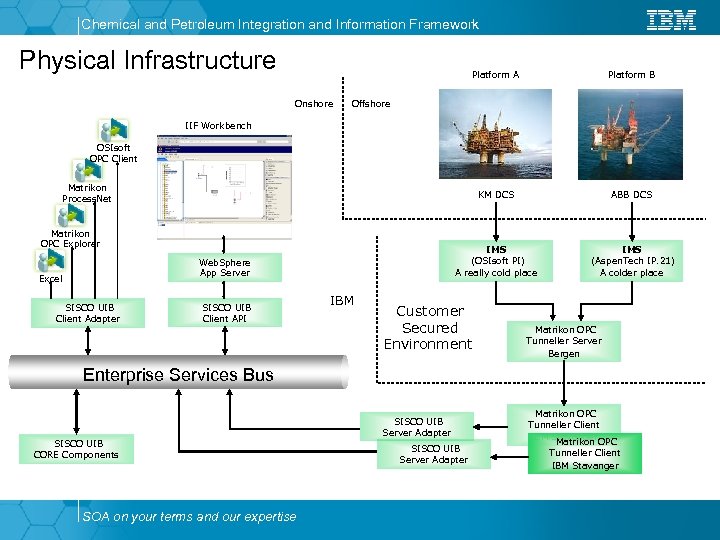

Chemical and Petroleum Integration and Information Framework Physical Infrastructure Platform A KM DCS ABB Chemical and Petroleum Integration and Information Framework Physical Infrastructure Platform A KM DCS ABB DCS IMS (OSIsoft PI) A really cold place Onshore Platform B IMS (Aspen. Tech IP. 21) A colder place Offshore IIF Workbench OSIsoft OPC Client Matrikon Process. Net Matrikon OPC Explorer Web. Sphere App Server Excel SISCO UIB Client Adapter SISCO UIB Client API IBM Customer Secured Environment Matrikon OPC Tunneller Server Bergen Enterprise Services Bus SISCO UIB Server Adapter SISCO UIB CORE Components SOA on your terms and our expertise SISCO UIB Server Adapter Matrikon OPC Tunneller Client IBM Stavanger

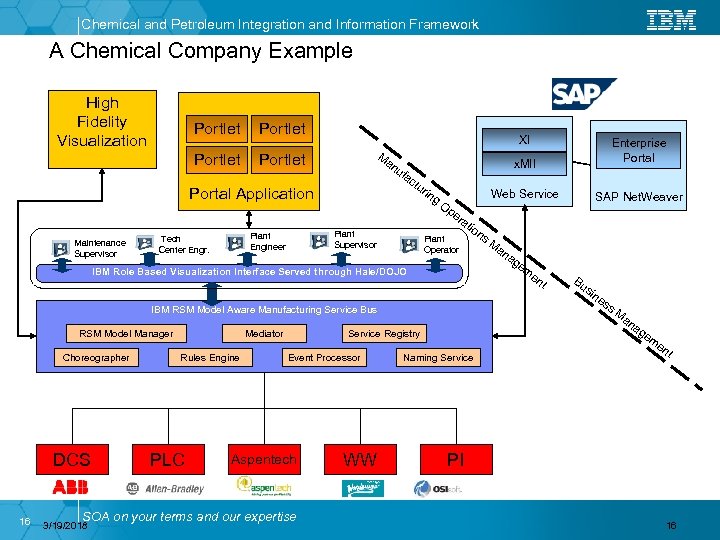

Chemical and Petroleum Integration and Information Framework A Chemical Company Example High Fidelity Visualization Chemical and Petroleum Integration and Information Framework A Chemical Company Example High Fidelity Visualization Portlet XI M Portlet an uf a Maintenance Supervisor rin g Web Service Op Plant Operator Choreographer DCS 16 Rules Engine PLC Aspentech SOA on your terms and our expertise 3/19/2018 WW t Bu sin es s. M an ag Service Registry Event Processor an ag en IBM RSM Model Aware Manufacturing Service Bus Mediator ns M em IBM Role Based Visualization Interface Served through Hale/DOJO RSM Model Manager SAP Net. Weaver er at io Plant Supervisor Plant Engineer Tech Center Engr. x. MII ctu Portal Application Enterprise Portal Naming Service em en t PI 16

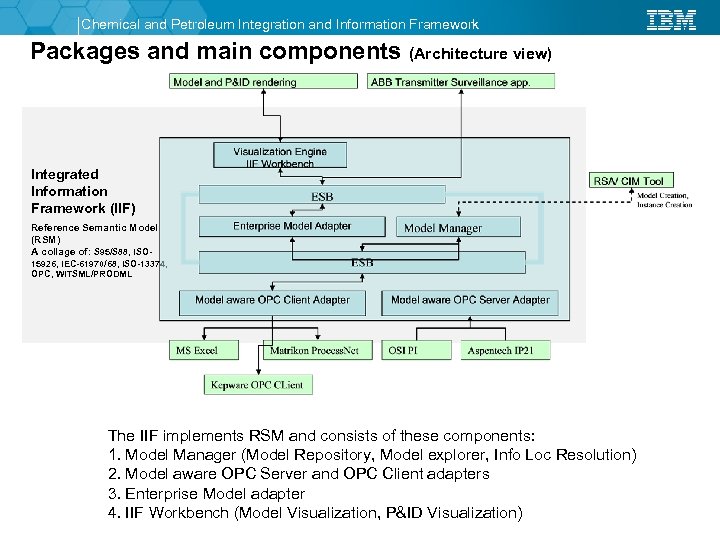

Chemical and Petroleum Integration and Information Framework Packages and main components (Architecture view) Integrated Chemical and Petroleum Integration and Information Framework Packages and main components (Architecture view) Integrated Information Framework (IIF) Reference Semantic Model (RSM) A collage of: S 95/S 88, ISO 15926, IEC-61970/68, ISO-13374, OPC, WITSML/PRODML The IIF implements RSM and consists of these components: 1. Model Manager (Model Repository, Model explorer, Info Loc Resolution) 2. Model aware OPC Server and OPC Client adapters 3. Enterprise Model adapter SOA 4. IIF Workbench (Model Visualization, P&ID Visualization) on your terms and our expertise

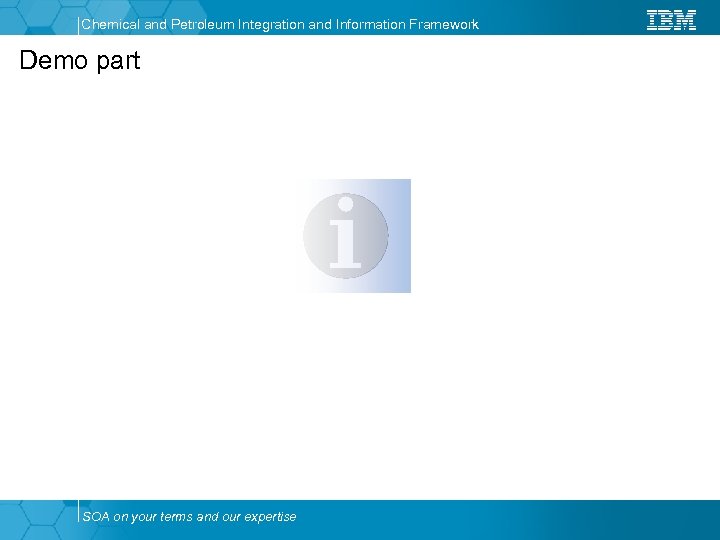

Chemical and Petroleum Integration and Information Framework Demo part SOA on your terms and Chemical and Petroleum Integration and Information Framework Demo part SOA on your terms and our expertise

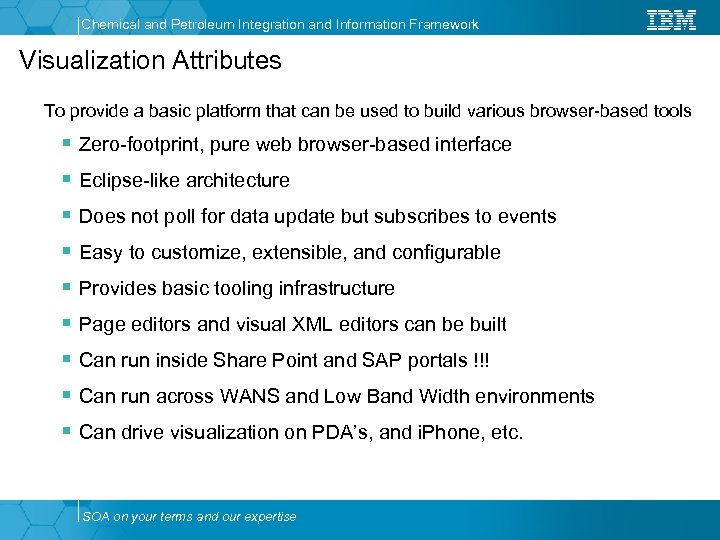

Chemical and Petroleum Integration and Information Framework Visualization Attributes To provide a basic platform Chemical and Petroleum Integration and Information Framework Visualization Attributes To provide a basic platform that can be used to build various browser-based tools § Zero-footprint, pure web browser-based interface § Eclipse-like architecture § Does not poll for data update but subscribes to events § Easy to customize, extensible, and configurable § Provides basic tooling infrastructure § Page editors and visual XML editors can be built § Can run inside Share Point and SAP portals !!! § Can run across WANS and Low Band Width environments § Can drive visualization on PDA’s, and i. Phone, etc. SOA on your terms and our expertise

Chemical and Petroleum Integration and Information Framework Use Cases Being Done For Customers 1. Chemical and Petroleum Integration and Information Framework Use Cases Being Done For Customers 1. Meta Model Creation, Model Instance Creation, Model Maintenance, and Measurement Instance Mapping 2. 3. 4. 5. 6. Configure the Instance Model Automatically Access all Process Historian’s Data Access all Distributed Control Systems Access all PLC’s Access by Siemens Ind. X and OSI PI Foundation to the RSM, and Process Visualizations 7. Visual configuration and subscription to Complex Events & Alarms Model Visualization, Model Maintenance, Web Service Definition, 8. RSM Model based P&ID Creation and Visualization 9. Microsoft and SAP Web Services Interface via Visual Subscription Service SOA on your terms and our expertise

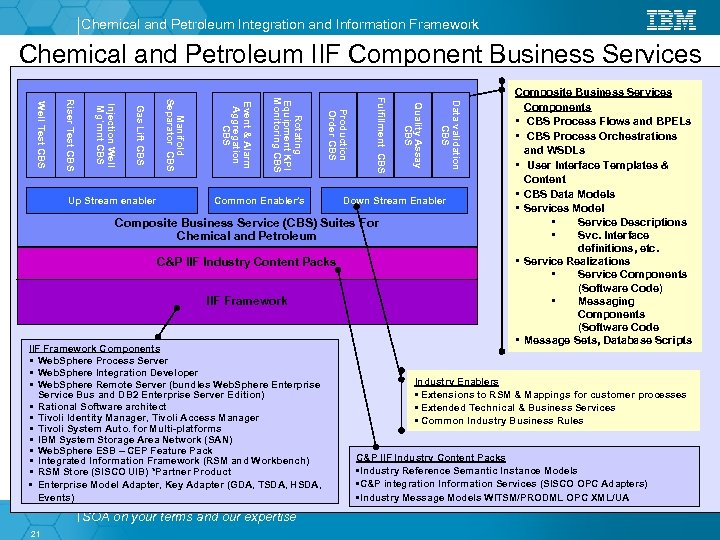

Chemical and Petroleum Integration and Information Framework Chemical and Petroleum IIF Component Business Services Chemical and Petroleum Integration and Information Framework Chemical and Petroleum IIF Component Business Services IIF Framework Components § Web. Sphere Process Server § Web. Sphere Integration Developer § Web. Sphere Remote Server (bundles Web. Sphere Enterprise Service Bus and DB 2 Enterprise Server Edition) § Rational Software architect § Tivoli Identity Manager, Tivoli Access Manager § Tivoli System Auto. for Multi-platforms § IBM System Storage Area Network (SAN) § Web. Sphere ESB – CEP Feature Pack § Integrated Information Framework (RSM and Workbench) § RSM Store (SISCO UIB) *Partner Product • Enterprise Model Adapter, Key Adapter (GDA, TSDA, HSDA, Events) SOA on your terms and our expertise 21 Data validation CBS Down Stream Enabler Composite Business Service (CBS) Suites For Chemical and Petroleum C&P IIF Industry Content Packs Quality Assay CBS Common Enabler’s Fulfillment CBS Production Order CBS Rotating Equipment KPI Monitoring CBS Event & Alarm Aggregation CBS Manifold Separator CBS Gas Lift CBS Injection Well Mg’mnt CBS Riser Test CBS Well Test CBS Up Stream enabler Composite Business Services Components • CBS Process Flows and BPELs • CBS Process Orchestrations and WSDLs • User Interface Templates & Content • CBS Data Models • Services Model • Service Descriptions • Svc. Interface definitions, etc. • Service Realizations • Service Components (Software Code) • Messaging Components (Software Code • Message Sets, Database Scripts Industry Enablers • Extensions to RSM & Mappings for customer processes • Extended Technical & Business Services • Common Industry Business Rules C&P IIF Industry Content Packs • Industry Reference Semantic Instance Models • C&P integration Information Services (SISCO OPC Adapters) • Industry Message Models WITSM/PRODML OPC XML/UA

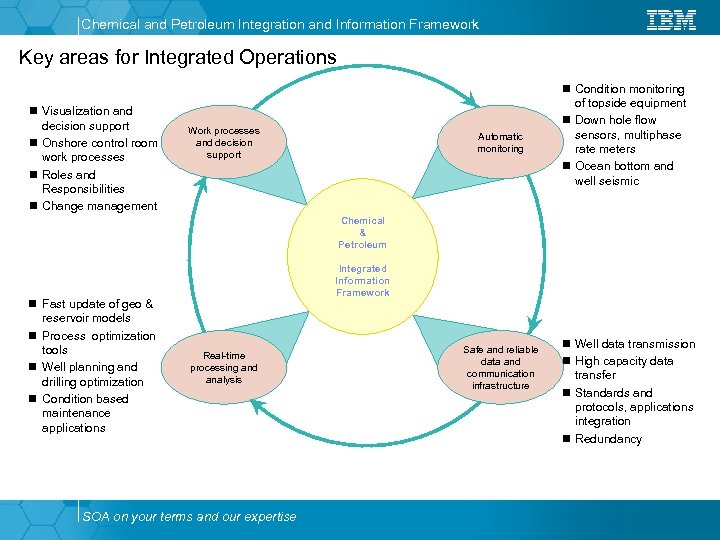

Chemical and Petroleum Integration and Information Framework Key areas for Integrated Operations n Condition Chemical and Petroleum Integration and Information Framework Key areas for Integrated Operations n Condition monitoring n Visualization and decision support n Onshore control room work processes n Roles and Responsibilities n Change management Work processes and decision support Automatic monitoring of topside equipment n Down hole flow sensors, multiphase rate meters n Ocean bottom and well seismic Chemical & Petroleum Integrated Information Framework n Fast update of geo & reservoir models n Process optimization tools n Well planning and drilling optimization n Condition based maintenance applications Real-time processing and analysis SOA on your terms and our expertise Safe and reliable data and communication infrastructure n Well data transmission n High capacity data transfer n Standards and protocols, applications integration n Redundancy
