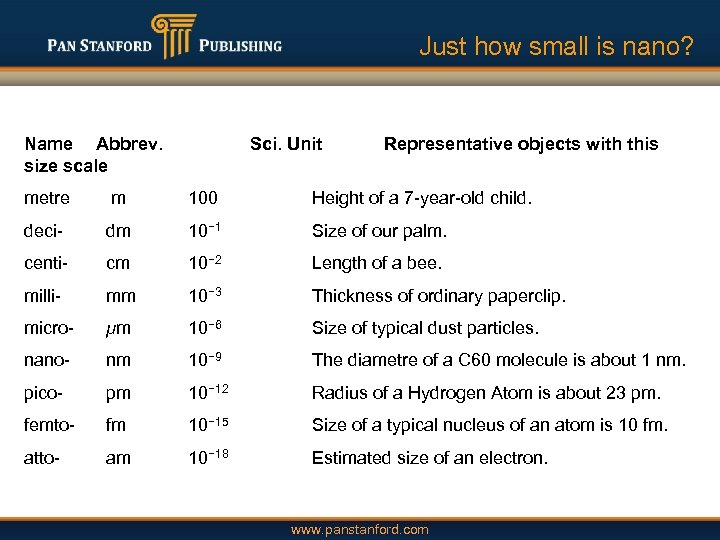

Just how small is nano? Name Abbrev. size scale Sci. Unit Representative objects with this metre m 100 Height of a 7 -year-old child. deci- dm 10− 1 Size of our palm. centi- cm 10− 2 Length of a bee. milli- mm 10− 3 Thickness of ordinary paperclip. micro- μm 10− 6 Size of typical dust particles. nano- nm 10− 9 The diametre of a C 60 molecule is about 1 nm. pico- pm 10− 12 Radius of a Hydrogen Atom is about 23 pm. femto- fm 10− 15 Size of a typical nucleus of an atom is 10 fm. atto- am 10− 18 Estimated size of an electron. www. panstanford. com

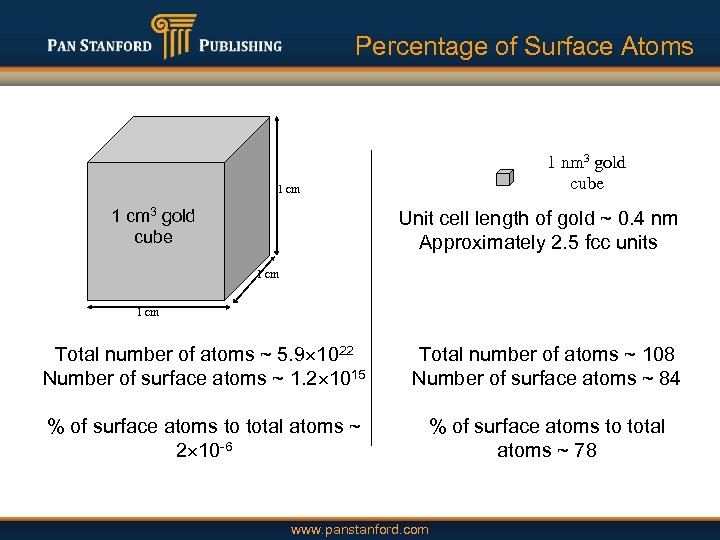

Percentage of Surface Atoms Percentage of surface atoms 1 nm 3 gold cube 1 cm 3 gold cube Unit cell length of gold ~ 0. 4 nm Approximately 2. 5 fcc units 1 cm Total number of atoms ~ 5. 9 1022 Number of surface atoms ~ 1. 2 1015 Total number of atoms ~ 108 Number of surface atoms ~ 84 % of surface atoms to total atoms ~ 2 10 -6 % of surface atoms to total atoms ~ 78 www. panstanford. com

Surface Relaxation and Restructuring d 12 = dbulk (a) d 12 < dbulk (b) (c) In surface relaxation, atoms in the surface layer may shift inwardly or laterally dangling bonds Dangling bonds may combine to form strained bonds between themselves, the surface layer is restructured with different bond lengths and/or angles. www. panstanford. com

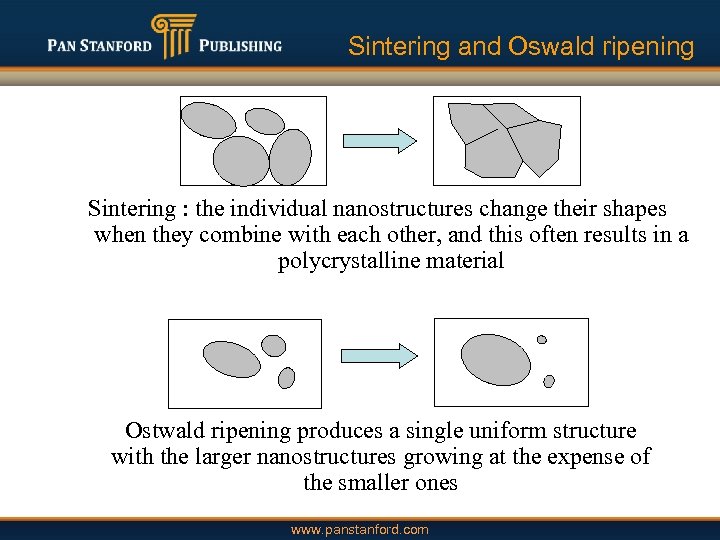

Sintering and Oswald ripening Sintering and Ostwald ripening Sintering : the individual nanostructures change their shapes when they combine with each other, and this often results in a polycrystalline material Ostwald ripening produces a single uniform structure with the larger nanostructures growing at the expense of the smaller ones www. panstanford. com

Catalysis at the Nanoscale With kind permission from Springer Science Business Media: J. Phys. D, Atomic Resolution electron microscopy of small metal clustes, 19, 293 (1991), J. -O. Boyin and J. -O. Malm. Copyright © 1991, Springer Berlin/Heldelberg. www. panstanford. com

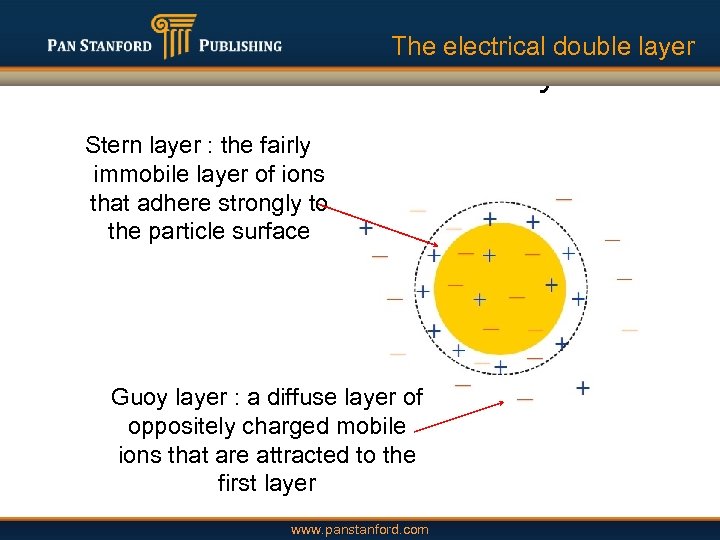

The electrical double layer Stern layer : the fairly immobile layer of ions that adhere strongly to the particle surface Guoy layer : a diffuse layer of oppositely charged mobile ions that are attracted to the first layer www. panstanford. com

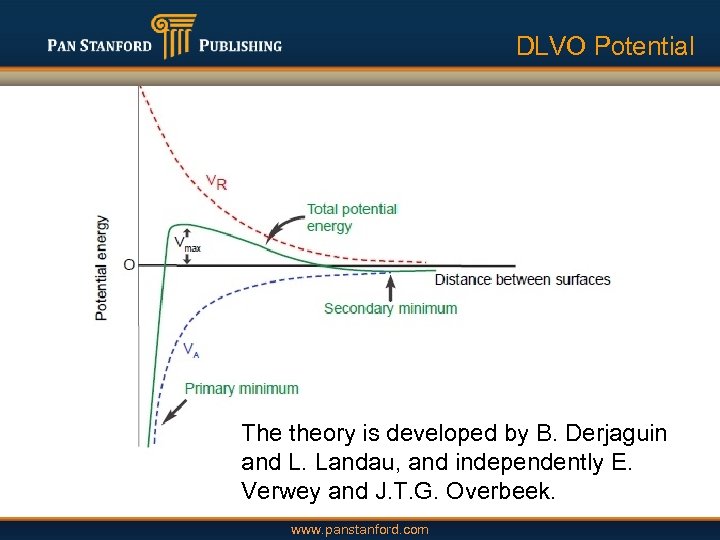

DLVO potential DLVO Potential The theory is developed by B. Derjaguin and L. Landau, and independently E. Verwey and J. T. G. Overbeek. www. panstanford. com

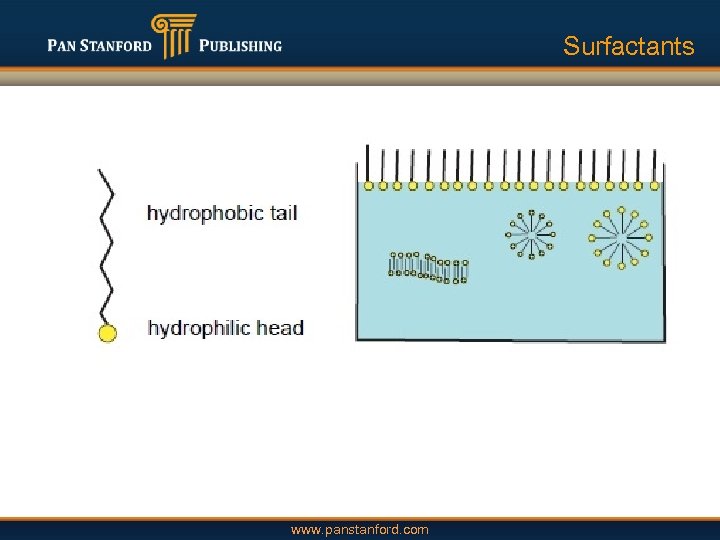

Surfactants www. panstanford. com Surfactants

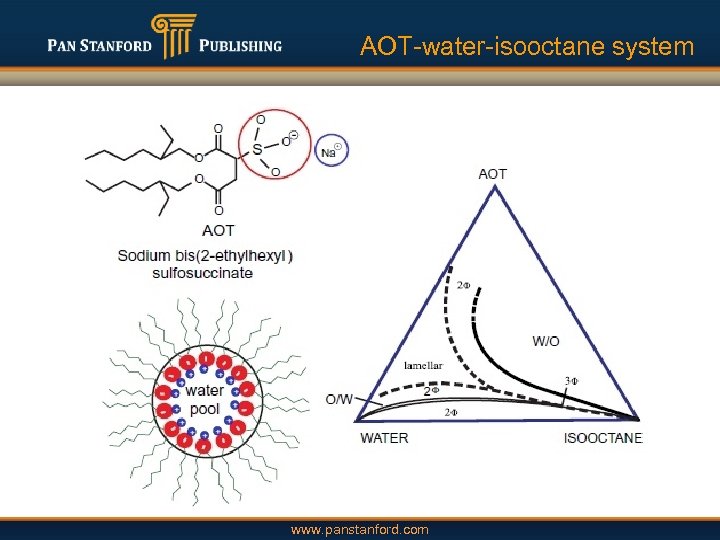

AOT-water-isooctane system www. panstanford. com

Chapter 6 www. panstanford. com

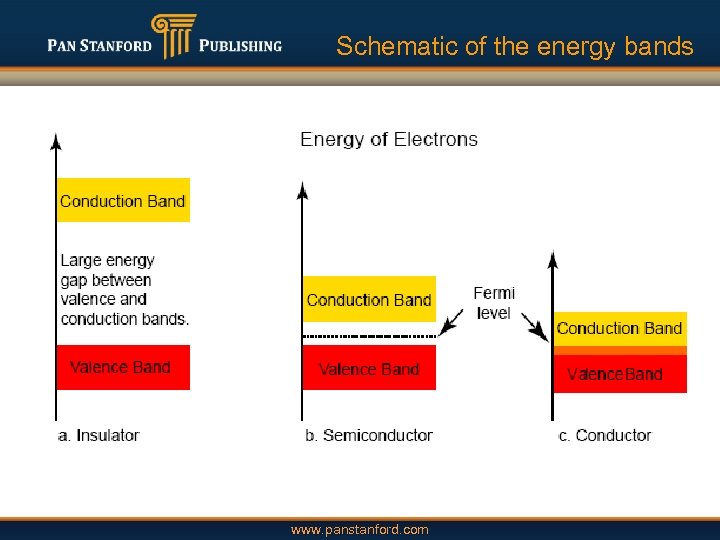

Schematic of the energy bands www. panstanford. com

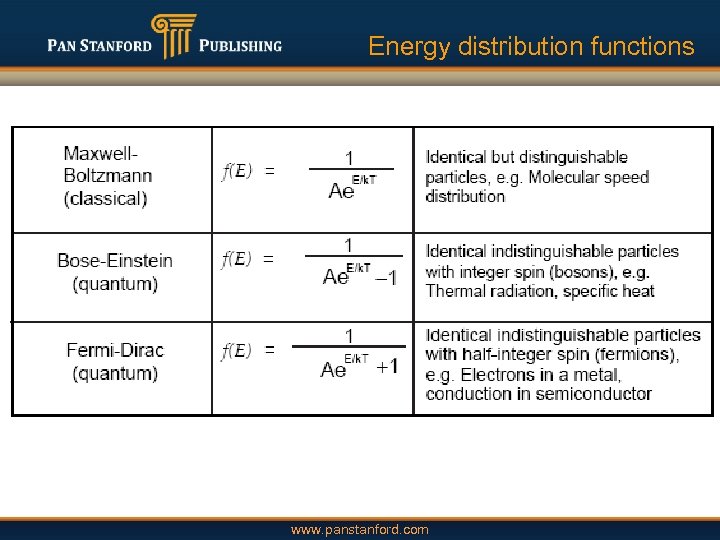

Energy distribution functions www. panstanford. com

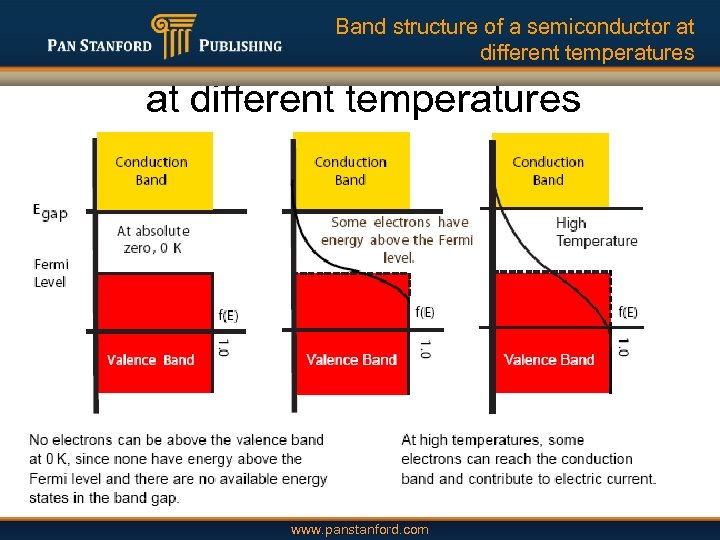

Band structure of a semiconductor at different temperatures www. panstanford. com

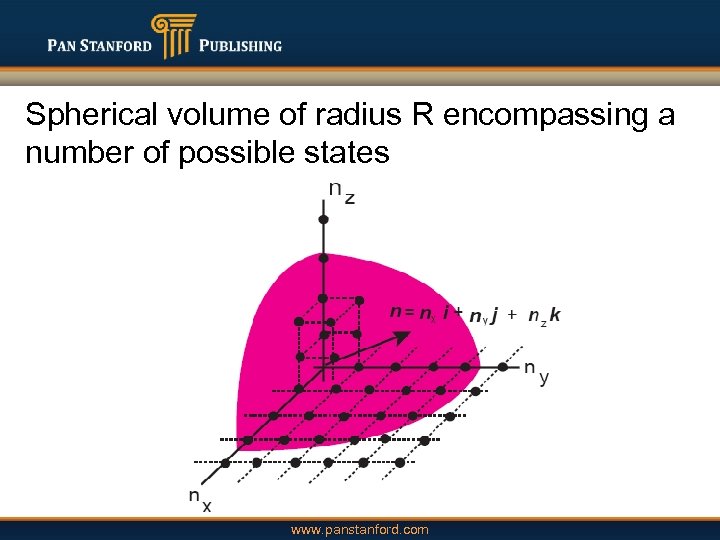

Spherical volume of radius R encompassing a number of possible states www. panstanford. com

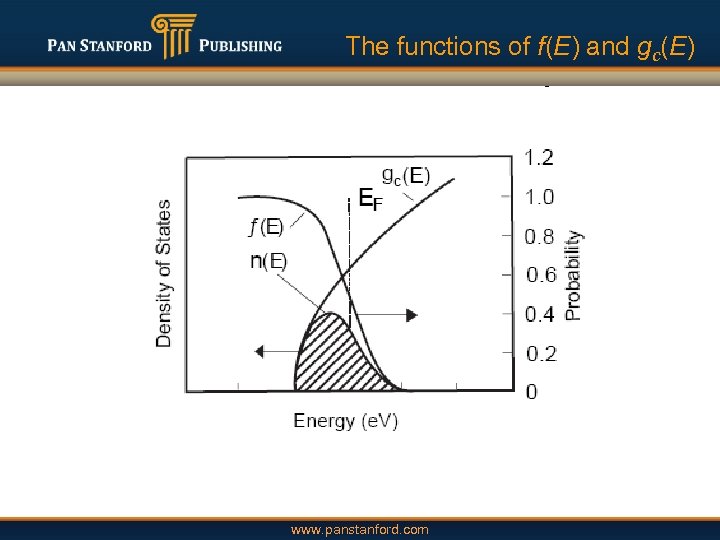

The functions of f(E) and gc(E) functions f(E) and gc(E) www. panstanford. com

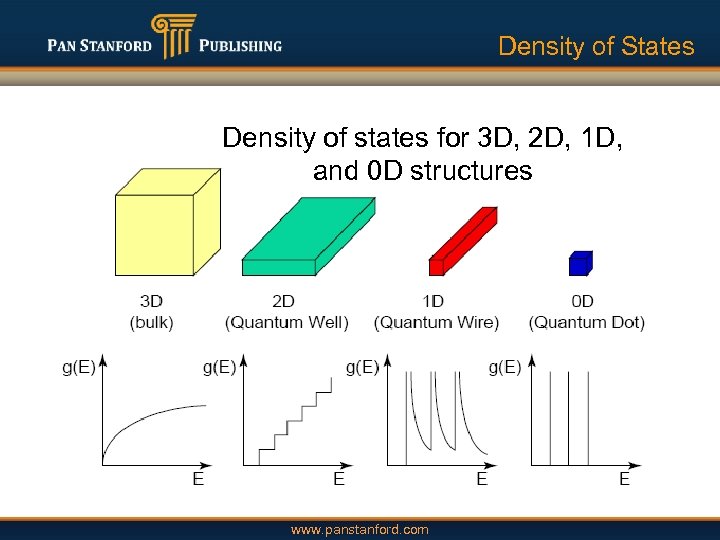

Density of States Density of states for 3 D, 2 D, 1 D, and 0 D structures www. panstanford. com

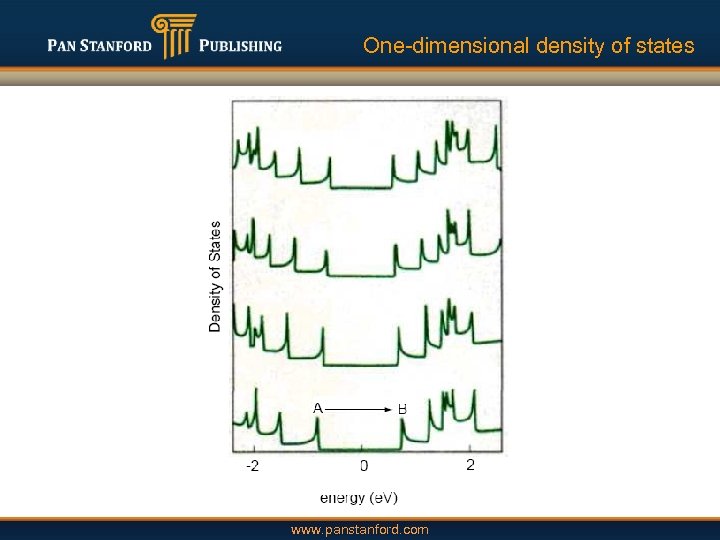

One-dimensional density of states www. panstanford. com

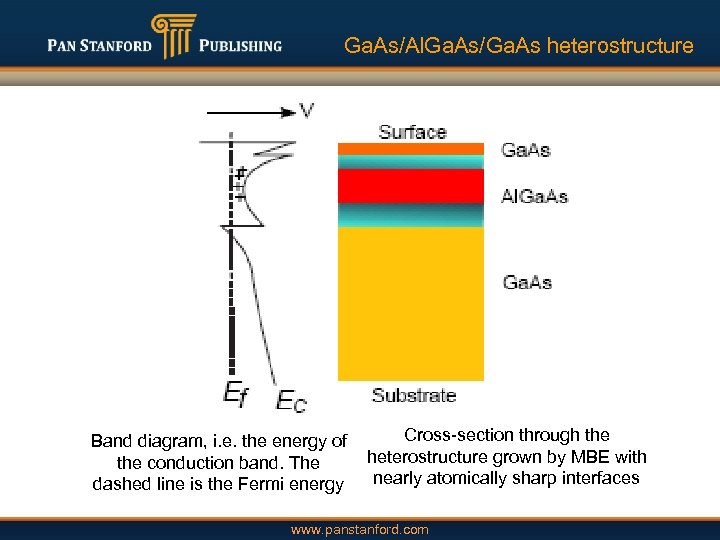

Ga. As/Al. Ga. As/Ga. As heterostructure Band diagram, i. e. the energy of the conduction band. The dashed line is the Fermi energy Cross-section through the heterostructure grown by MBE with nearly atomically sharp interfaces www. panstanford. com

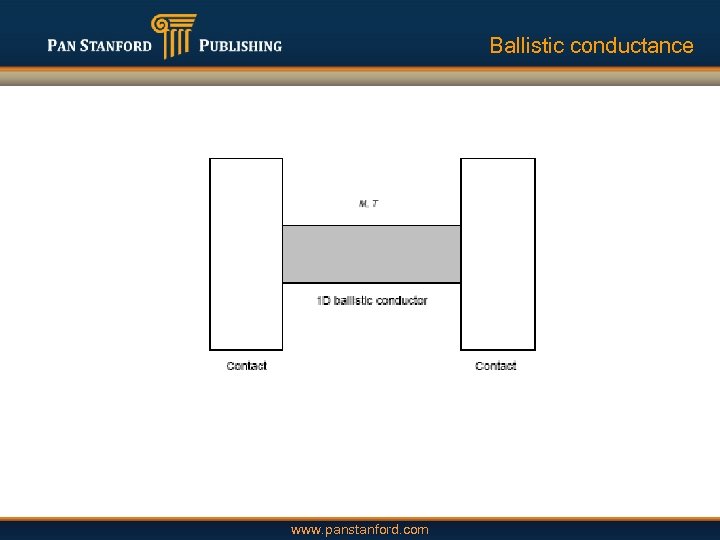

Ballistic conductance www. panstanford. com

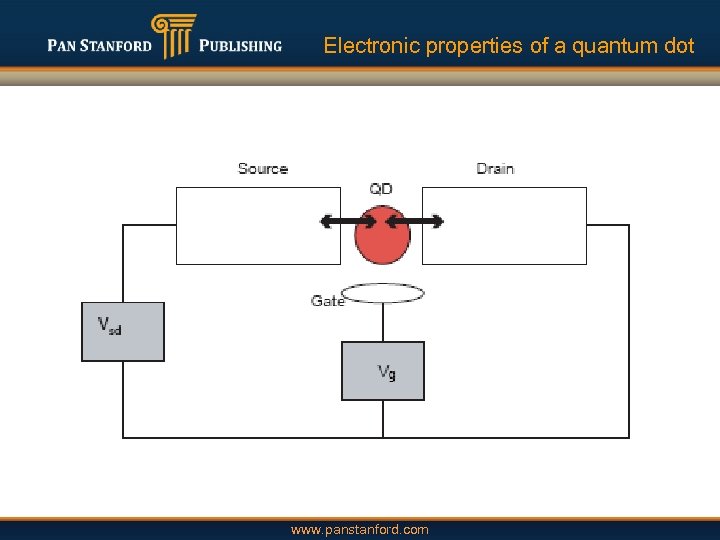

Electronic properties of a quantum dot www. panstanford. com

Energy level diagram of the single electron transistor www. panstanford. com

Chapter 7 www. panstanford. com

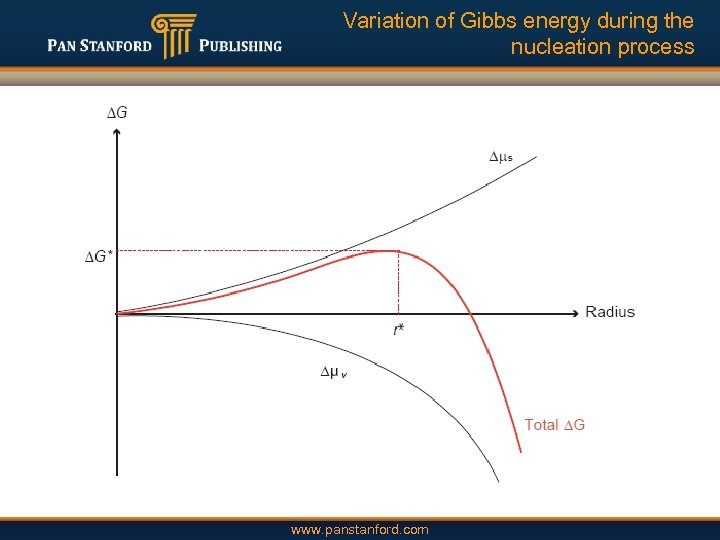

Variation of Gibbs energy during the nucleation process www. panstanford. com

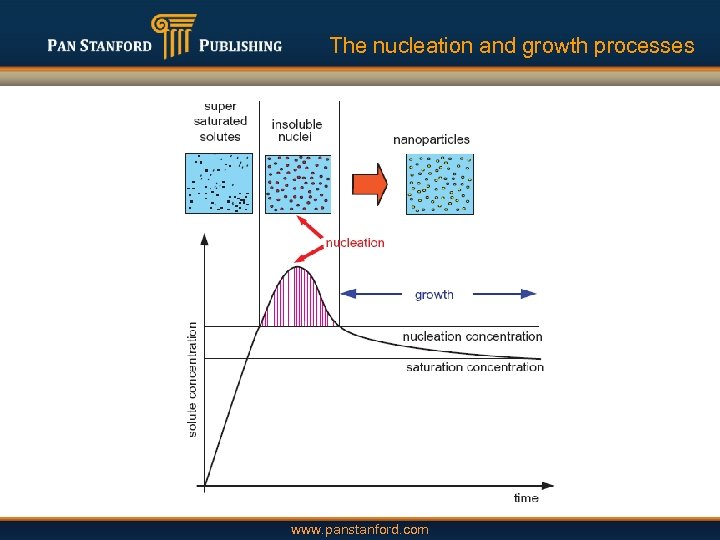

The nucleation and growth processes www. panstanford. com

Effect of capping molecule Cd. S nanocrystals produced with (a) higher and (b) lower amounts of the capping molecule hexadecylamine www. panstanford. com

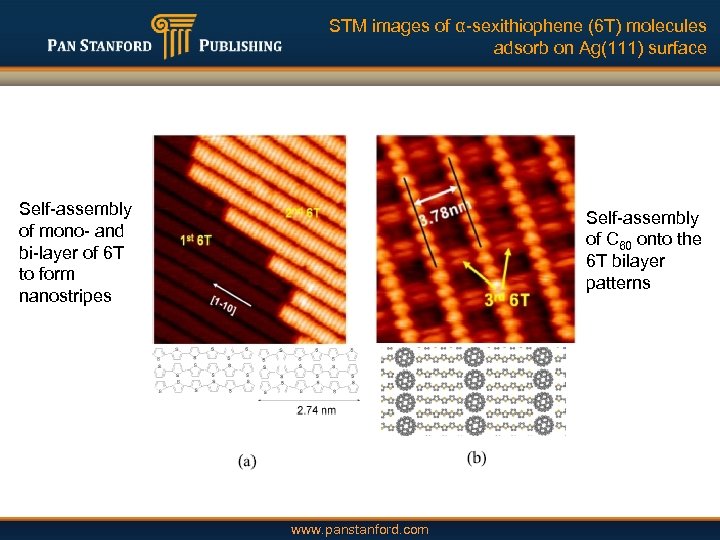

STM images of α-sexithiophene (6 T) molecules adsorb on Ag(111) surface Self-assembly of mono- and bi-layer of 6 T to form nanostripes Self-assembly of C 60 onto the 6 T bilayer patterns www. panstanford. com

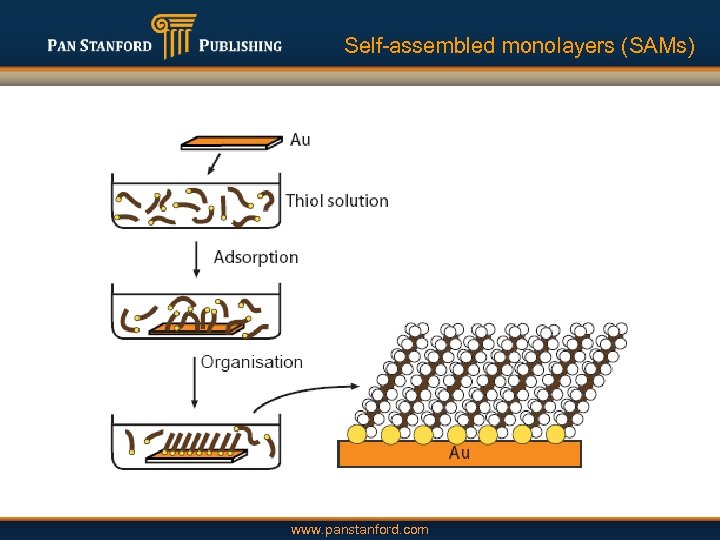

Self-assembled monolayers (SAMs) www. panstanford. com

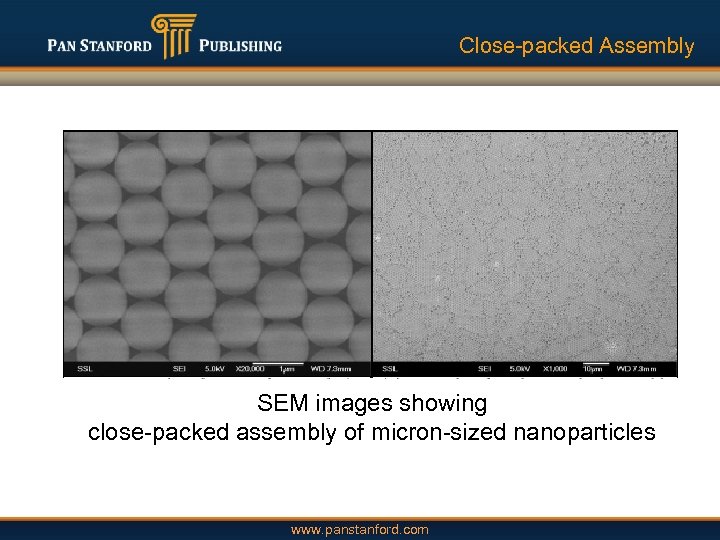

Close-packed Assembly SEM images showing close-packed assembly of micron-sized nanoparticles www. panstanford. com

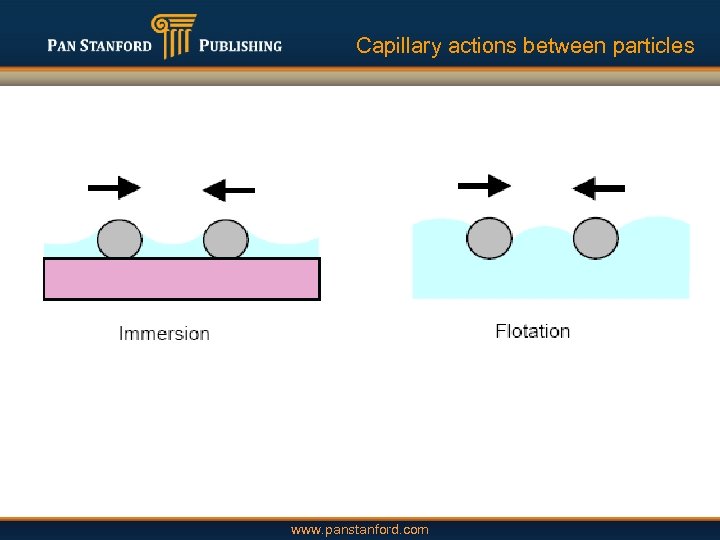

Capillary actions between particles www. panstanford. com

Chapter 8 www. panstanford. com

Optical microscope www. panstanford. com

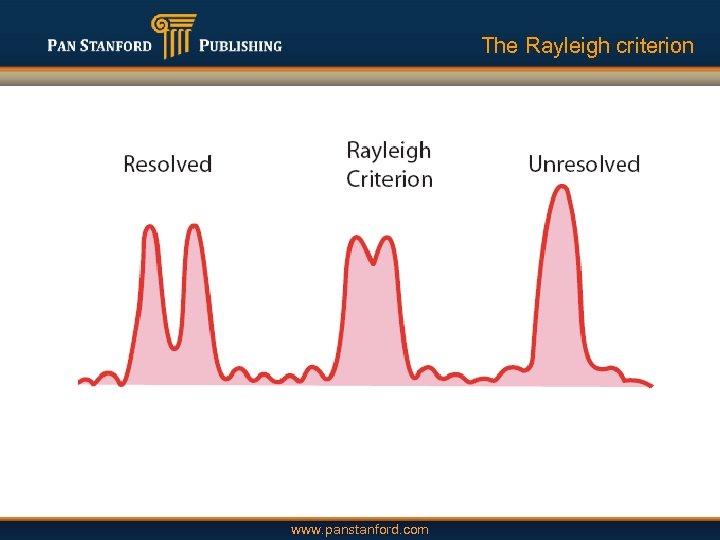

The Rayleigh criterion www. panstanford. com

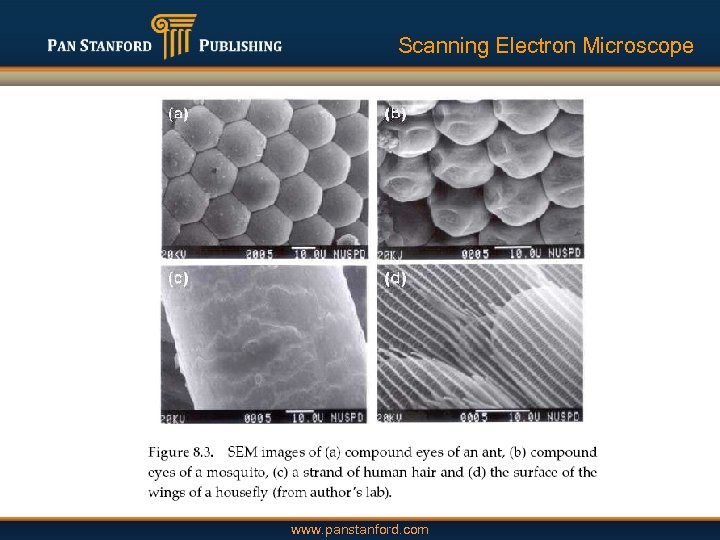

Scanning Electron Microscope www. panstanford. com

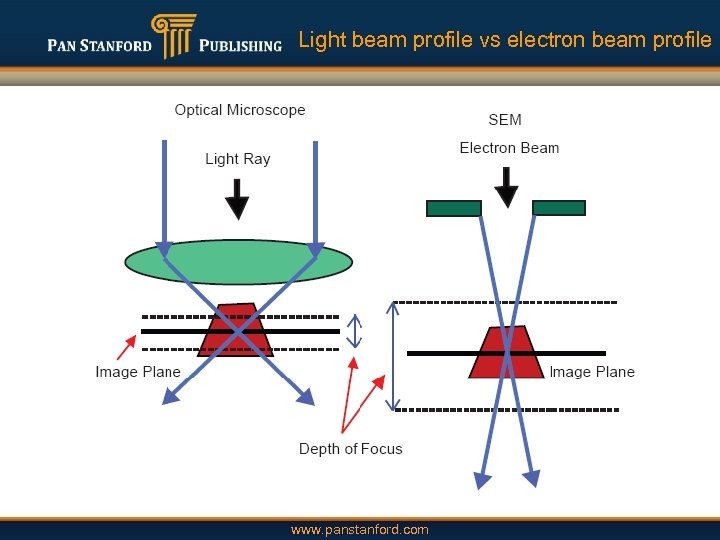

Light beam profile vs electron beam profile www. panstanford. com

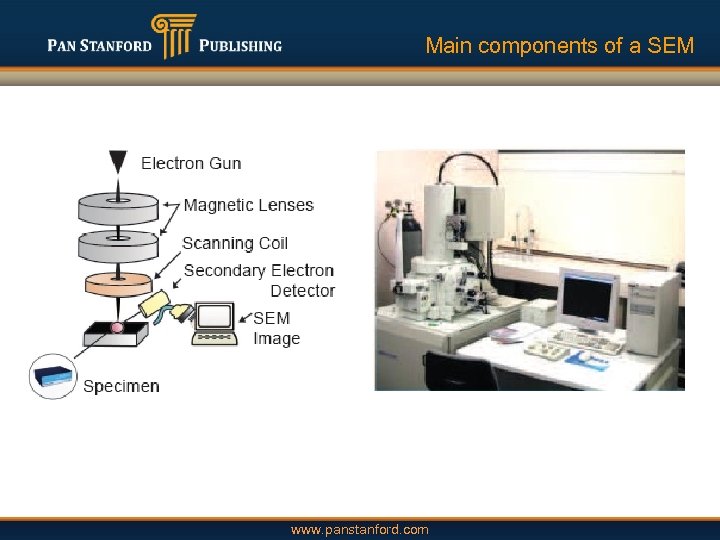

Main components of a SEM www. panstanford. com

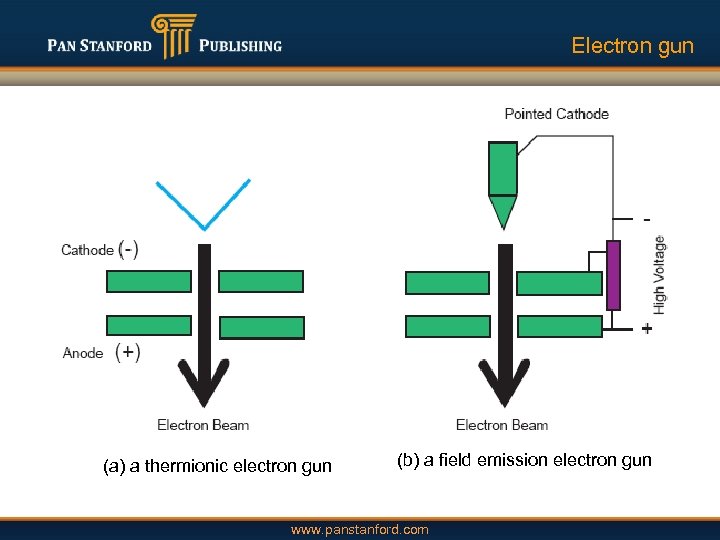

Electron gun (a) a thermionic electron gun (b) a field emission electron gun www. panstanford. com

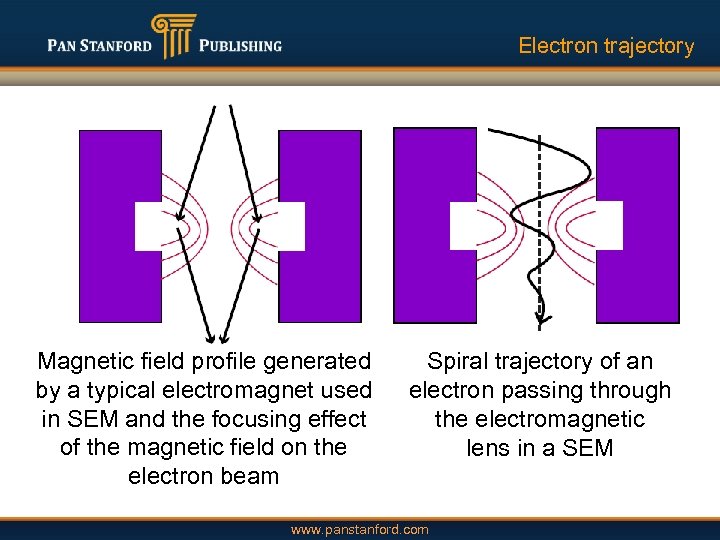

Electron trajectory Magnetic field profile generated by a typical electromagnet used in SEM and the focusing effect of the magnetic field on the electron beam Spiral trajectory of an electron passing through the electromagnetic lens in a SEM www. panstanford. com

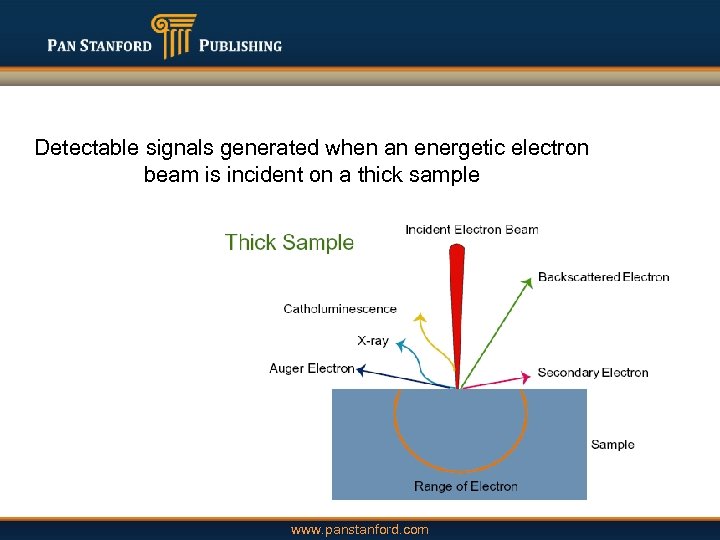

Detectable signals generated when an energetic electron beam is incident on a thick sample www. panstanford. com

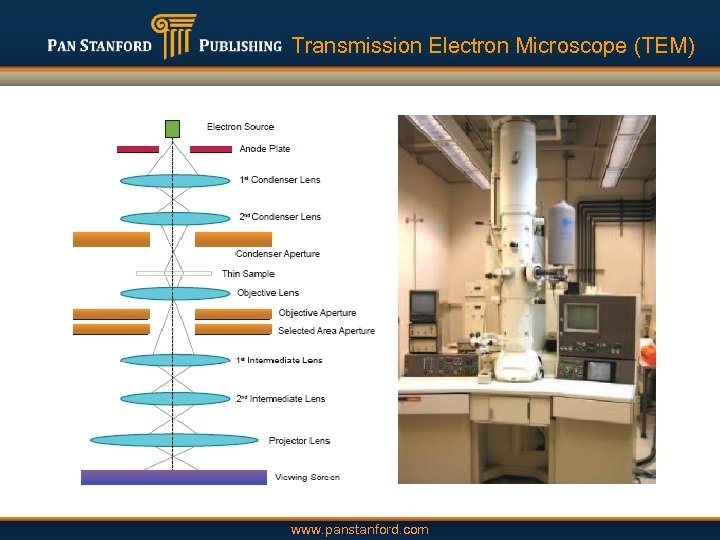

Transmission Electron Microscope (TEM) www. panstanford. com

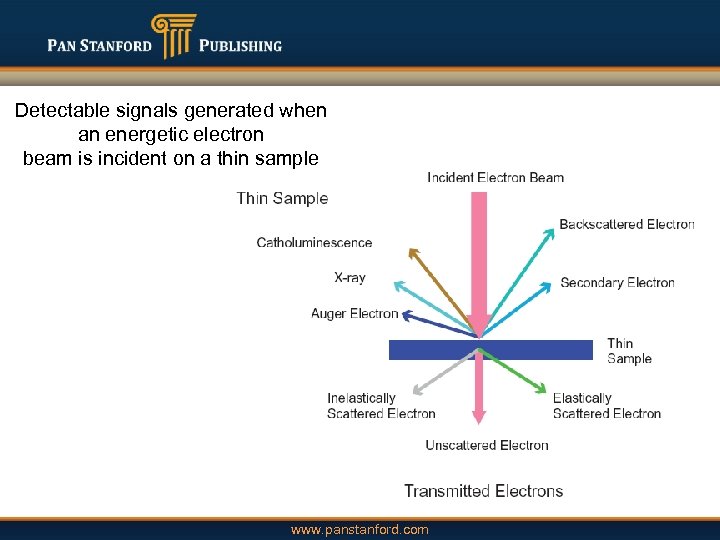

Detectable signals generated when an energetic electron beam is incident on a thin sample www. panstanford. com

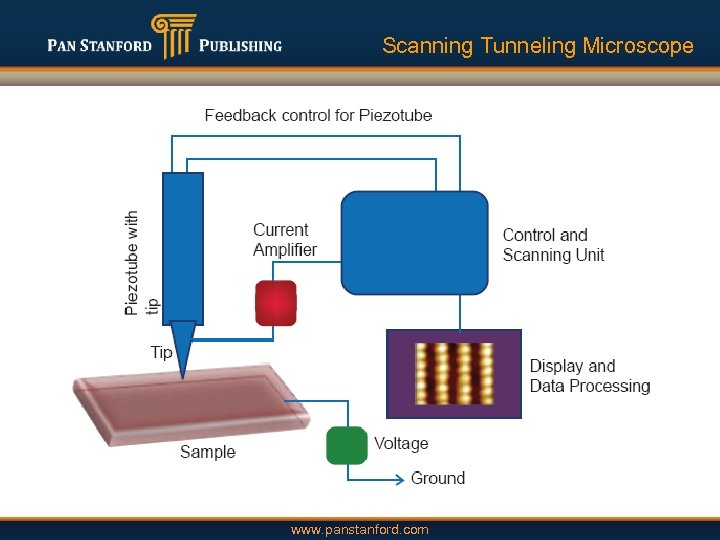

Scanning Tunneling Microscope www. panstanford. com

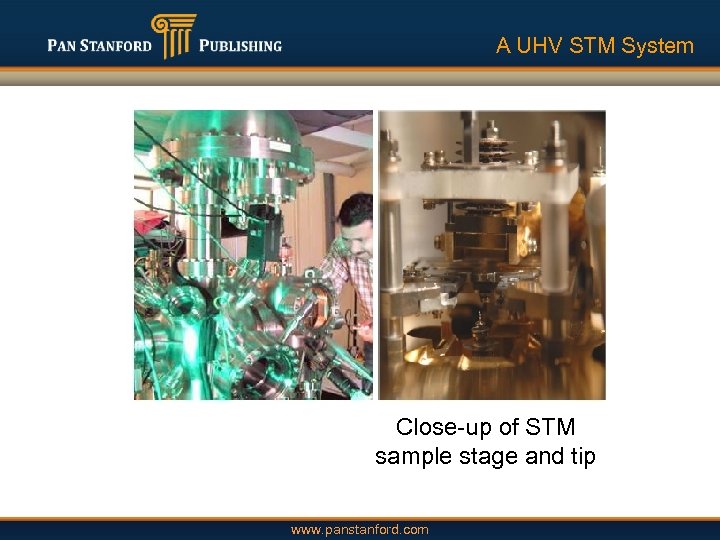

A UHV STM System Close-up of STM sample stage and tip www. panstanford. com

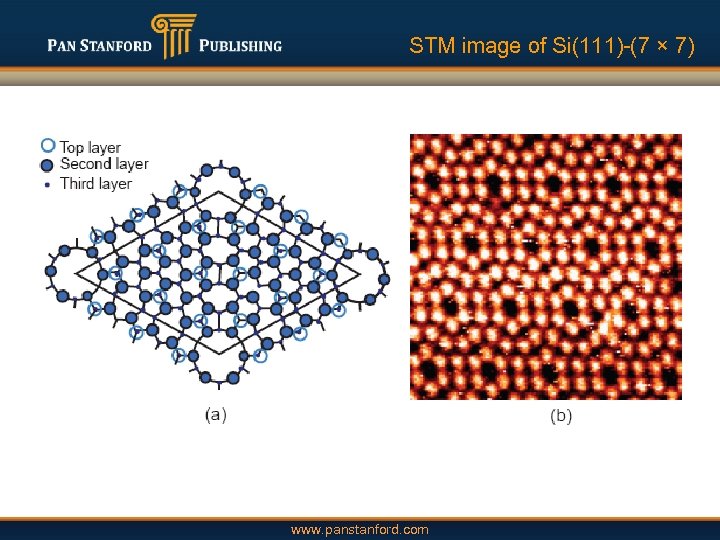

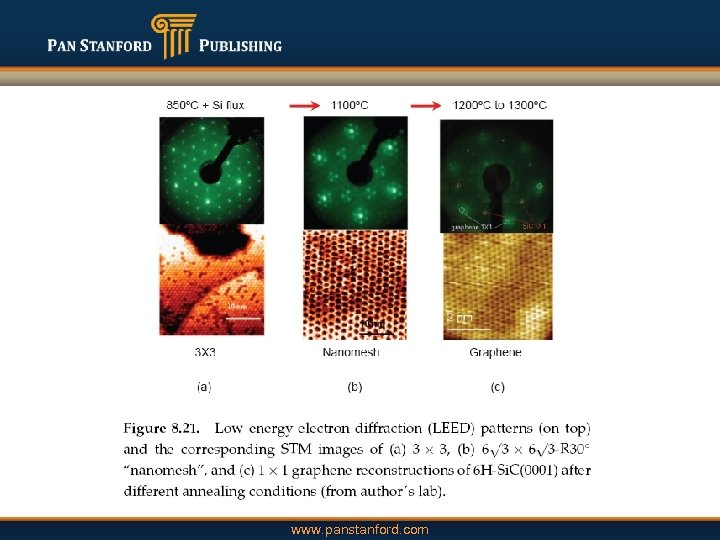

STM image of Si(111)-(7 × 7) www. panstanford. com

www. panstanford. com

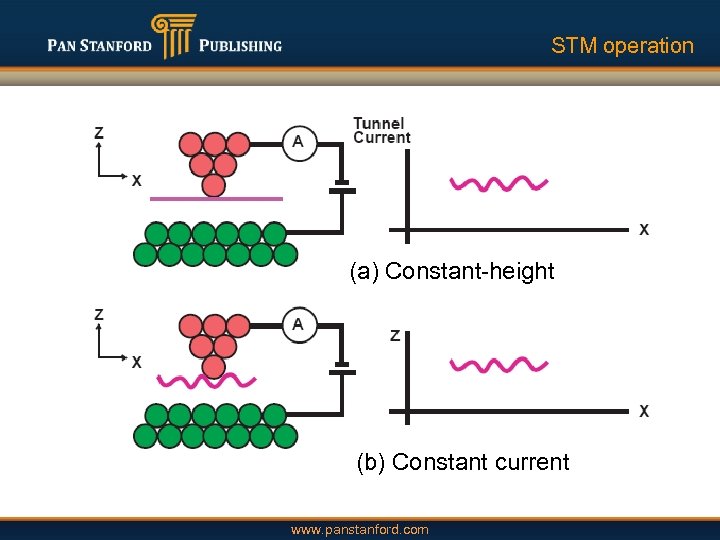

STM operation (a) Constant-height (b) Constant current www. panstanford. com

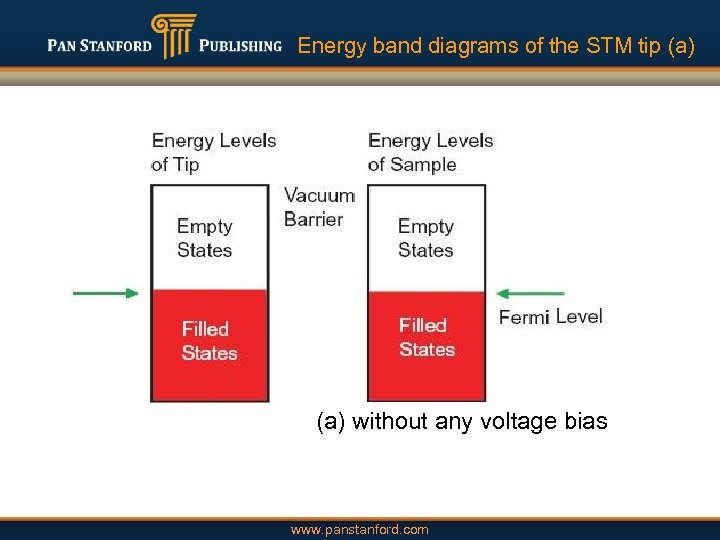

Energy band diagrams of the STM tip (a) without any voltage bias www. panstanford. com

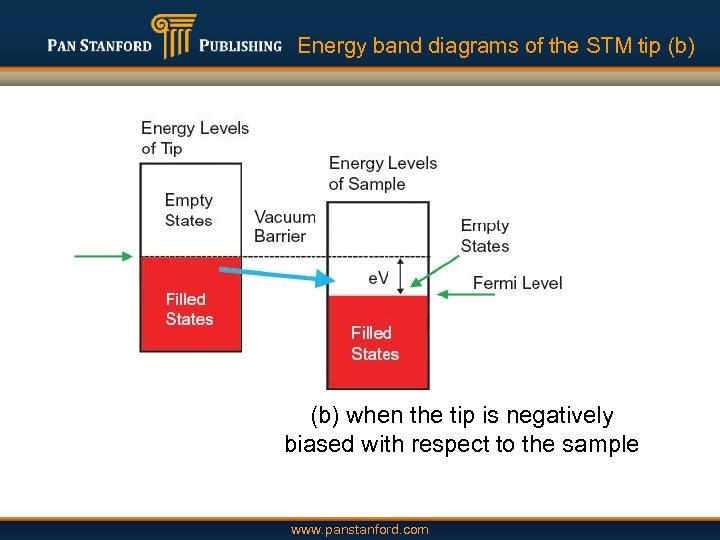

Energy band diagrams of the STM tip (b) when the tip is negatively biased with respect to the sample www. panstanford. com

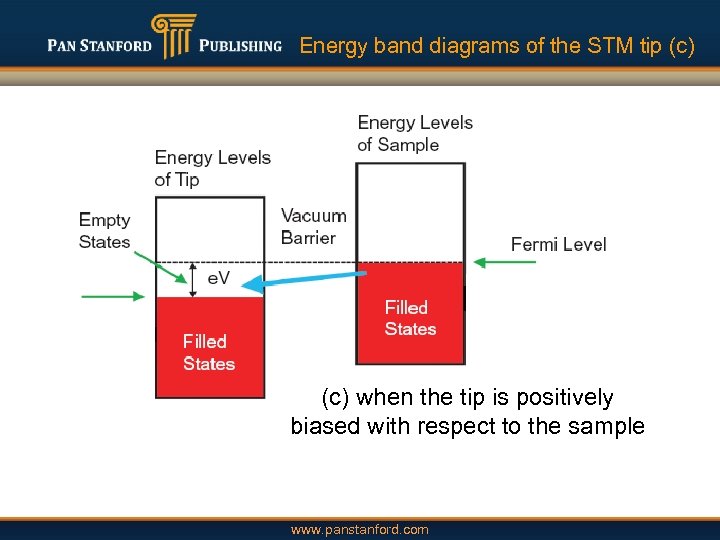

Energy band diagrams of the STM tip (c) when the tip is positively biased with respect to the sample www. panstanford. com

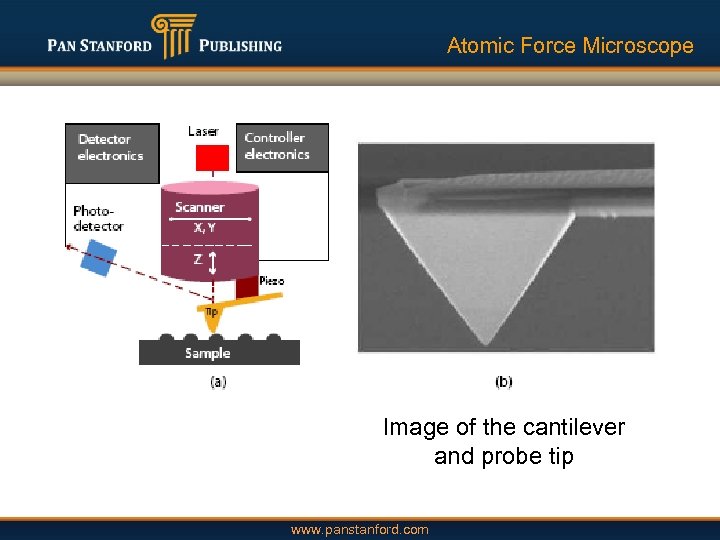

Atomic Force Microscope Image of the cantilever and probe tip www. panstanford. com

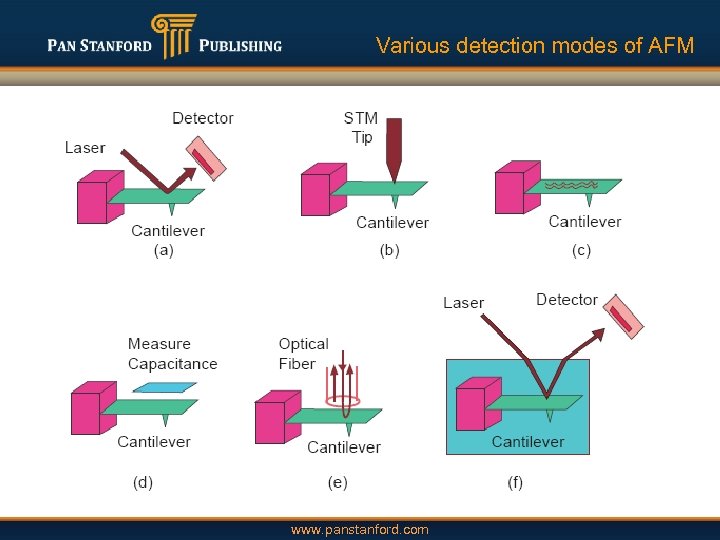

Various detection modes of AFM www. panstanford. com

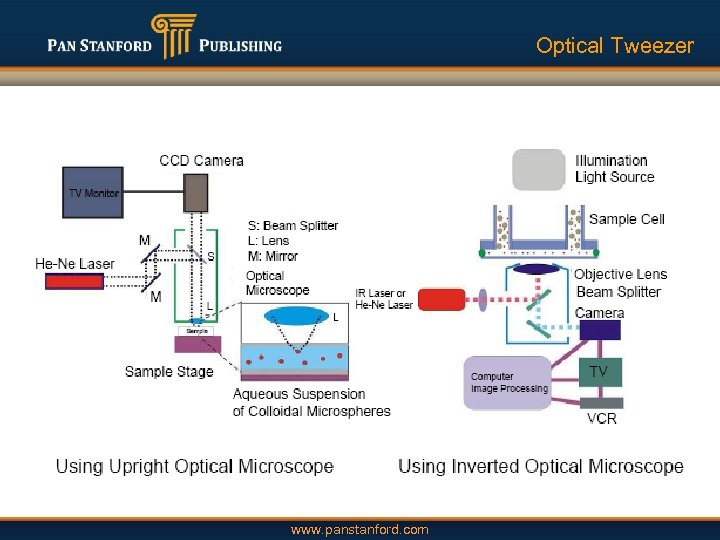

Optical Tweezer www. panstanford. com

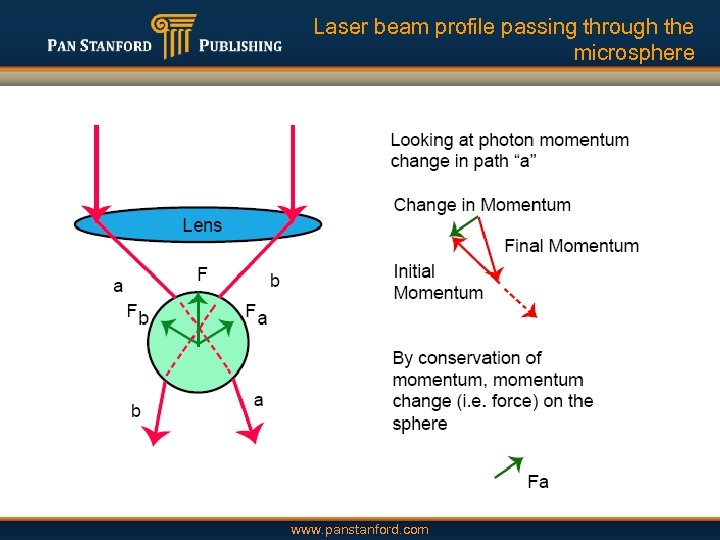

Laser beam profile passing through the microsphere www. panstanford. com

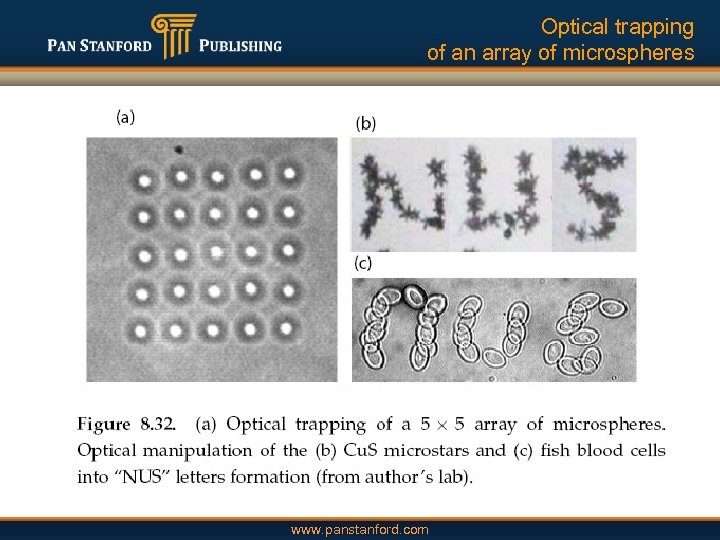

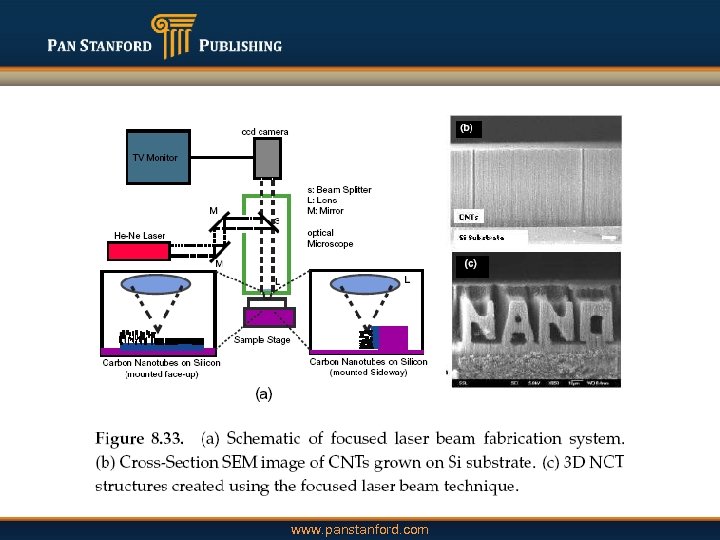

Optical trapping of an array of microspheres www. panstanford. com
