Chapter 6 Mass Wasting Palos Verdes Hills Landslide

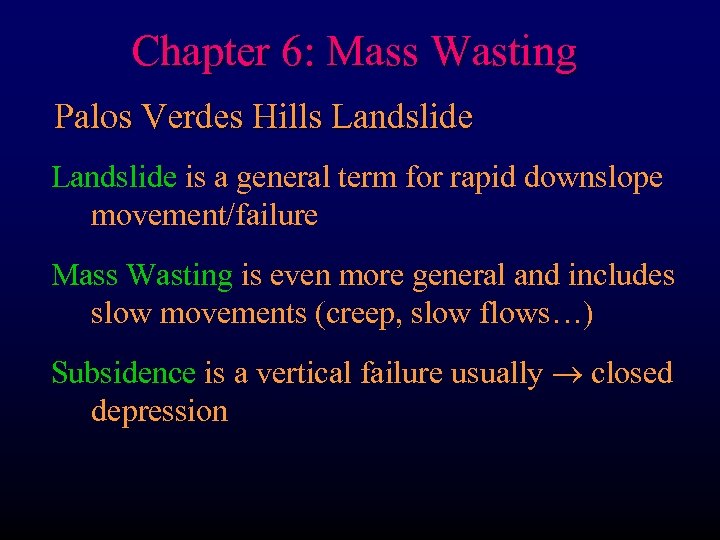

Chapter 6: Mass Wasting Palos Verdes Hills Landslide is a general term for rapid downslope movement/failure Mass Wasting is even more general and includes slow movements (creep, slow flows…) Subsidence is a vertical failure usually closed depression

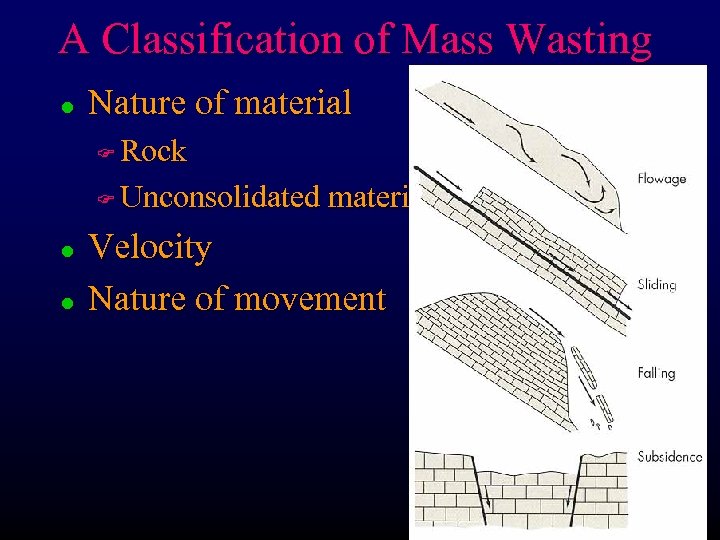

A Classification of Mass Wasting l Nature of material Rock F Unconsolidated material (debris, mud) F l l Velocity Nature of movement

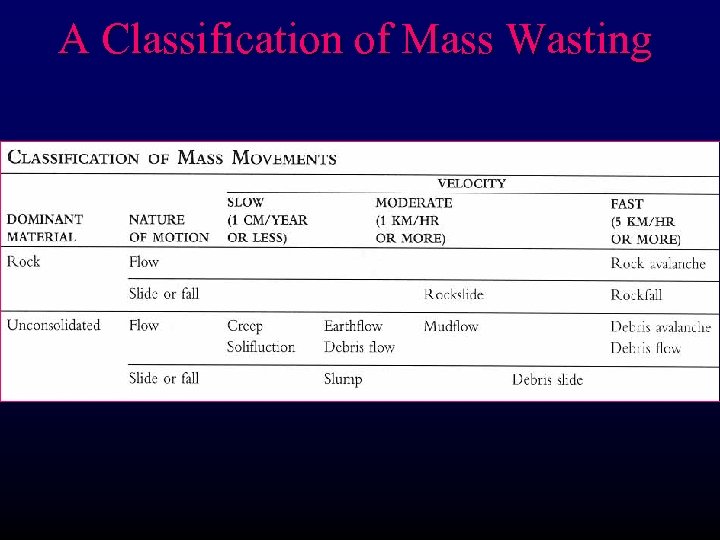

A Classification of Mass Wasting

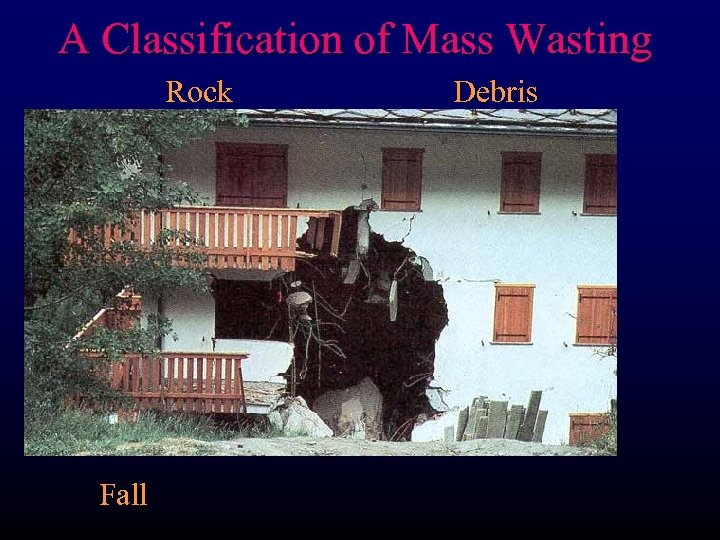

A Classification of Mass Wasting Rock Debris (rare) Fall

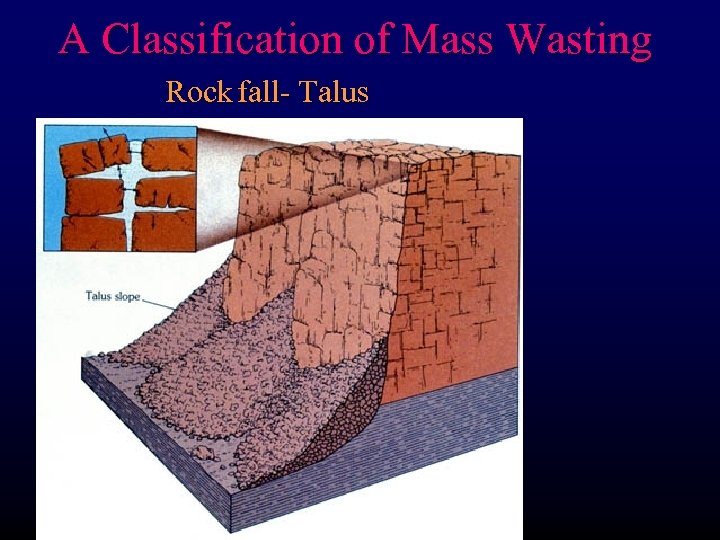

A Classification of Mass Wasting Rock fall- Talus

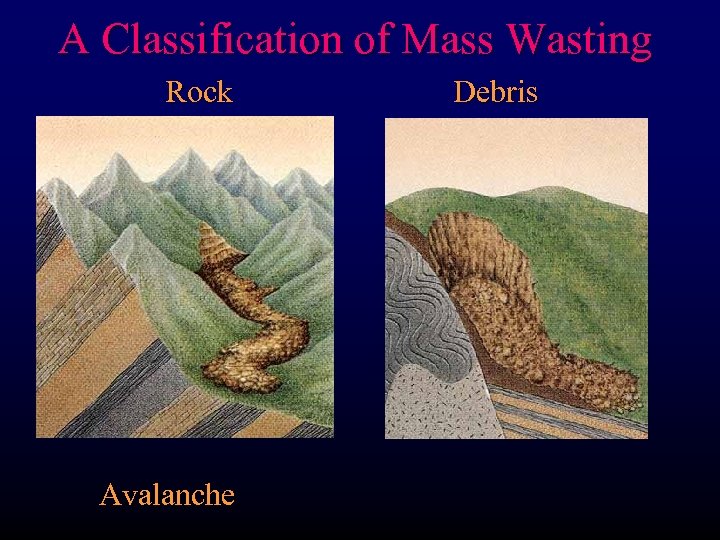

A Classification of Mass Wasting Rock Avalanche Debris

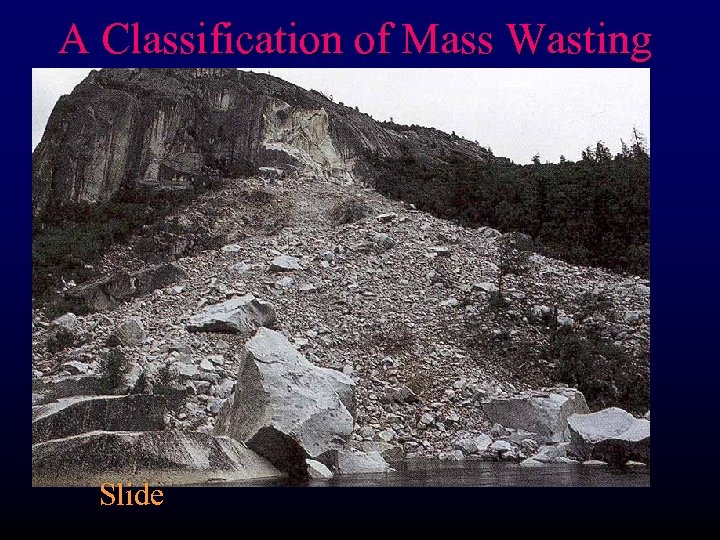

A Classification of Mass Wasting Rock Slide Debris

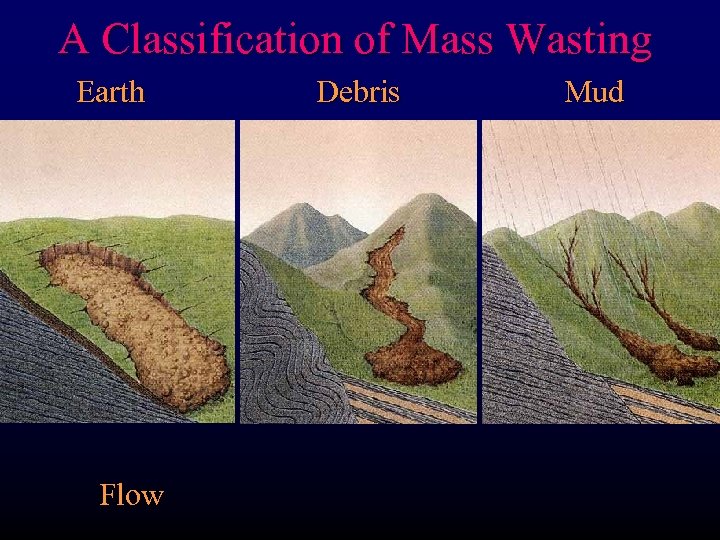

A Classification of Mass Wasting Earth Flow Debris Mud

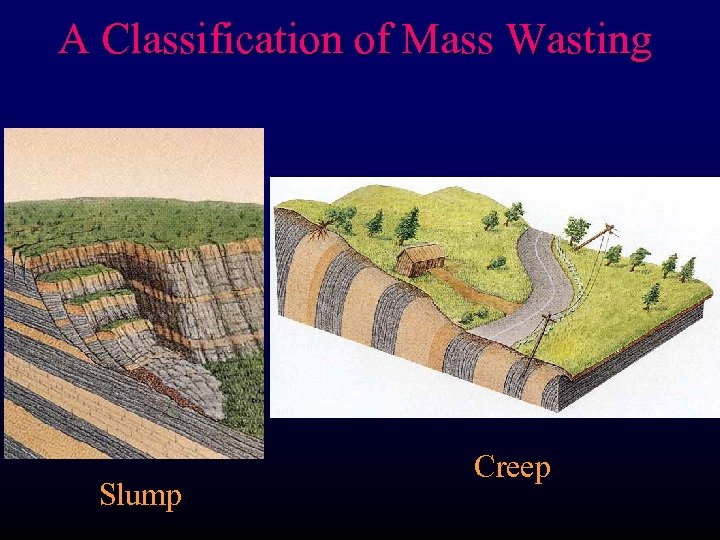

A Classification of Mass Wasting Slump Creep

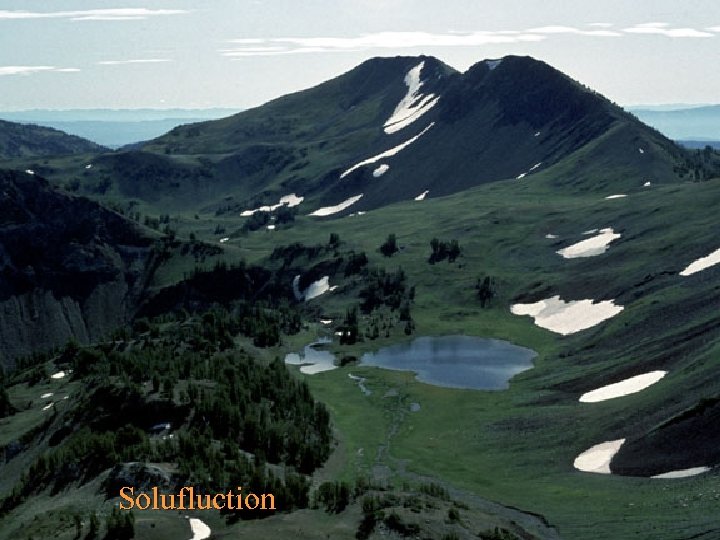

A Classification of Mass Wasting Solufluction

Solufluction

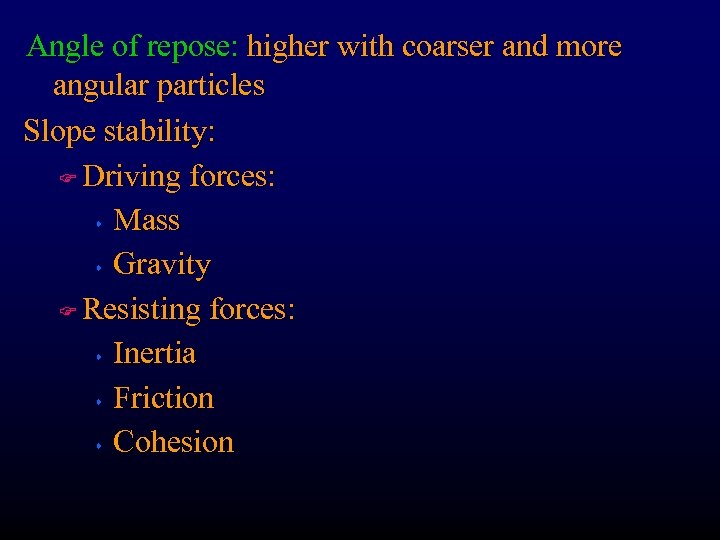

Angle of repose: higher with coarser and more angular particles Slope stability: F Driving forces: s Mass s Gravity F Resisting forces: s Inertia s Friction s Cohesion

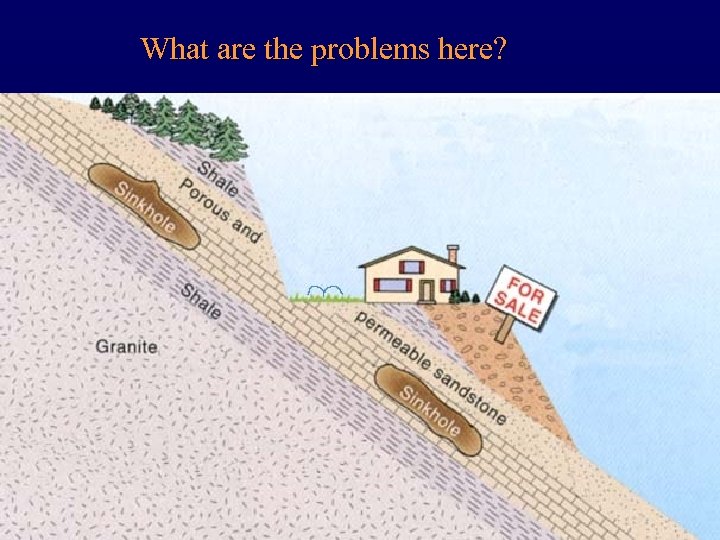

What are the problems here?

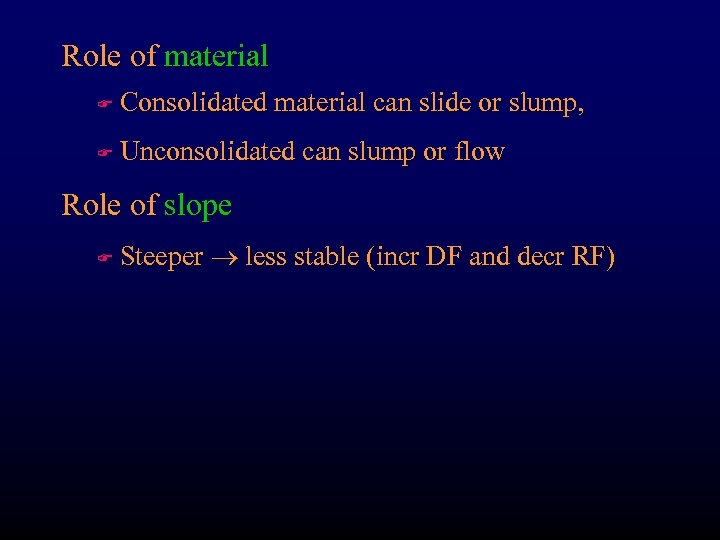

Role of material F Consolidated material can slide or slump, F Unconsolidated can slump or flow Role of slope F Steeper less stable (incr DF and decr RF)

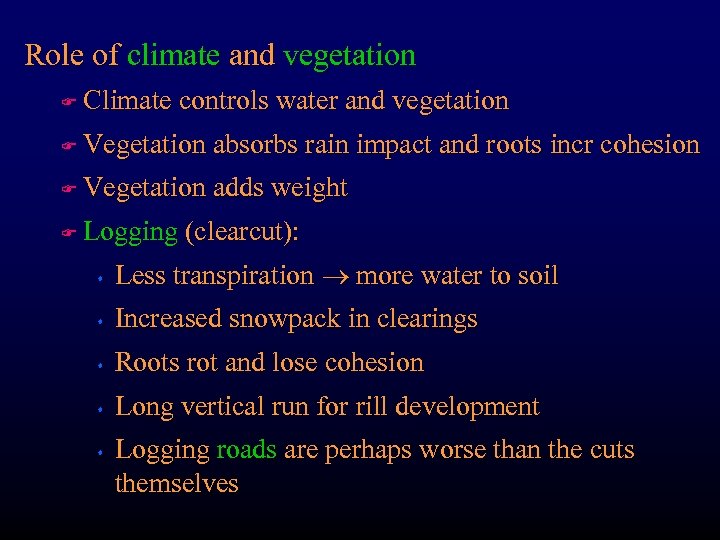

Role of climate and vegetation F Climate controls water and vegetation F Vegetation absorbs rain impact and roots incr cohesion F Vegetation adds weight F Logging (clearcut): s Less transpiration more water to soil s Increased snowpack in clearings s Roots rot and lose cohesion s Long vertical run for rill development s Logging roads are perhaps worse than the cuts themselves

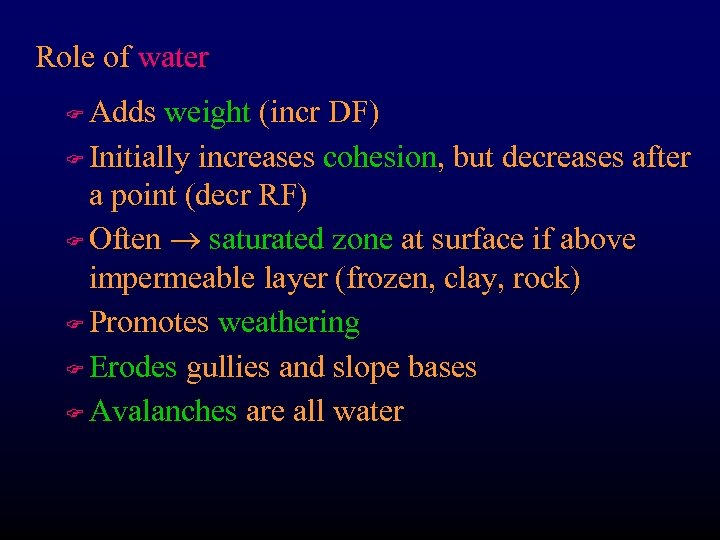

Role of water Adds weight (incr DF) F Initially increases cohesion, but decreases after a point (decr RF) F Often saturated zone at surface if above impermeable layer (frozen, clay, rock) F Promotes weathering F Erodes gullies and slope bases F Avalanches are all water F

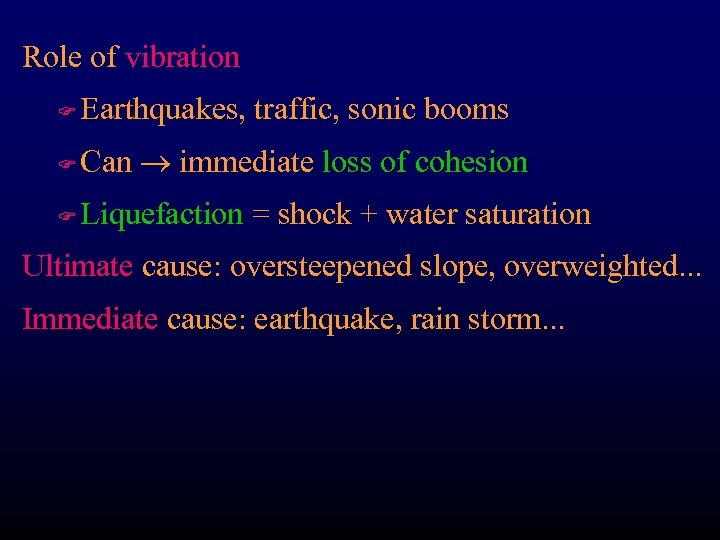

Role of vibration F Earthquakes, traffic, sonic booms F Can immediate loss of cohesion F Liquefaction = shock + water saturation Ultimate cause: oversteepened slope, overweighted. . . Immediate cause: earthquake, rain storm. . .

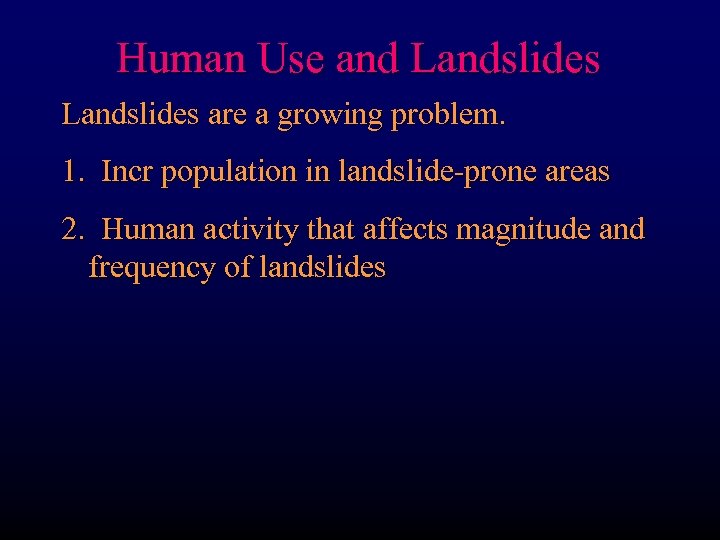

Human Use and Landslides are a growing problem. 1. Incr population in landslide-prone areas 2. Human activity that affects magnitude and frequency of landslides

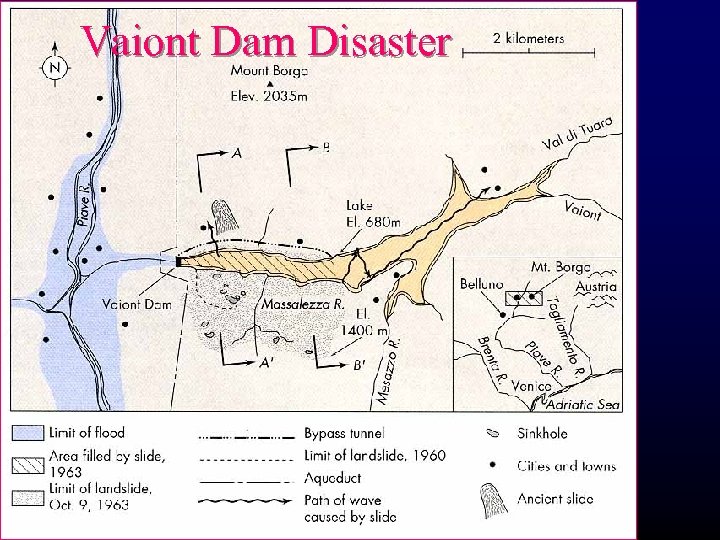

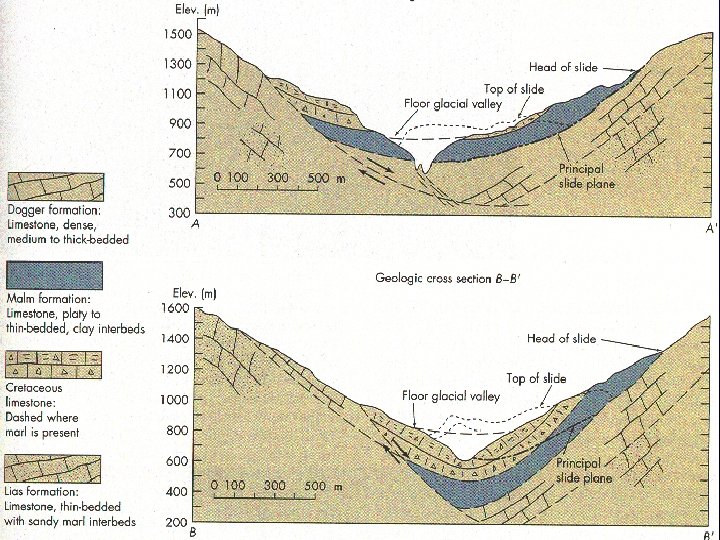

Vaiont Dam Disaster

Vaiont Dam Disaster

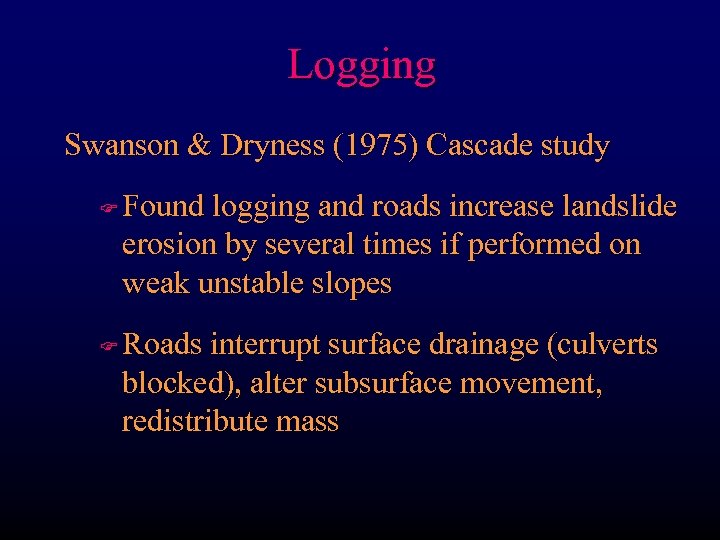

Logging Swanson & Dryness (1975) Cascade study F F Found logging and roads increase landslide erosion by several times if performed on weak unstable slopes Roads interrupt surface drainage (culverts blocked), alter subsurface movement, redistribute mass

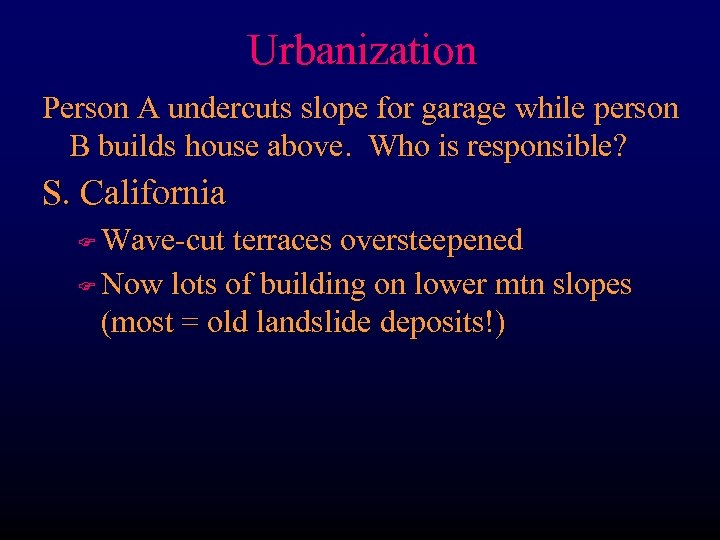

Urbanization Person A undercuts slope for garage while person B builds house above. Who is responsible? S. California Wave-cut terraces oversteepened F Now lots of building on lower mtn slopes (most = old landslide deposits!) F

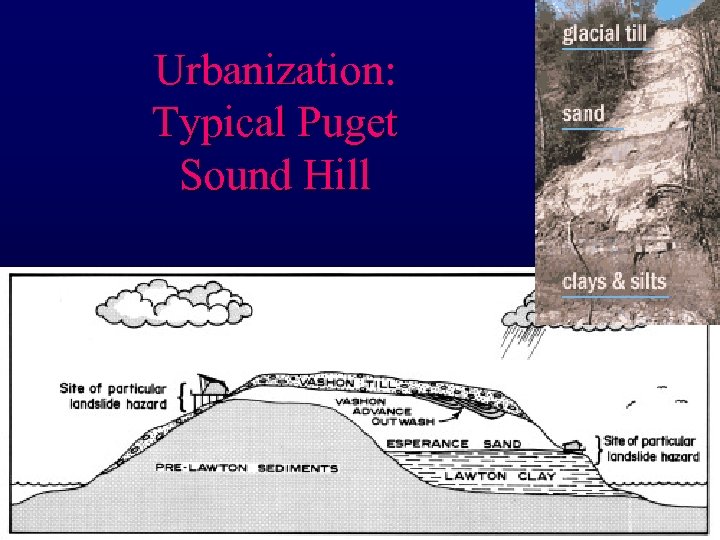

Urbanization: Typical Puget Sound Hill

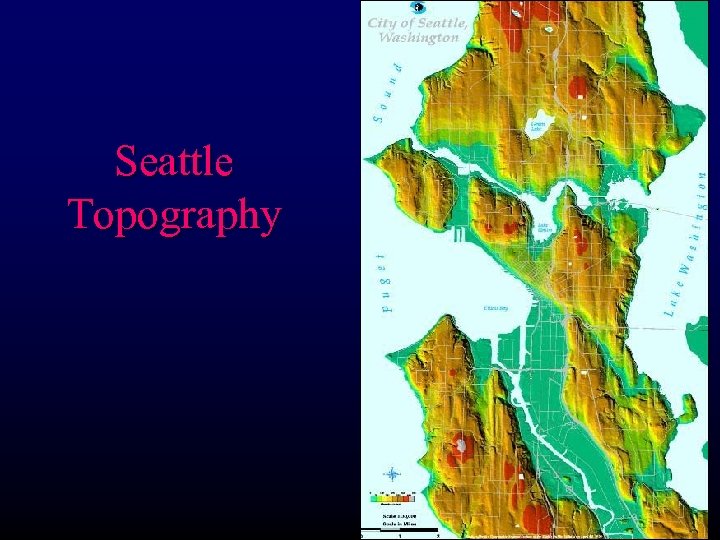

Seattle Topography

Slope Stability

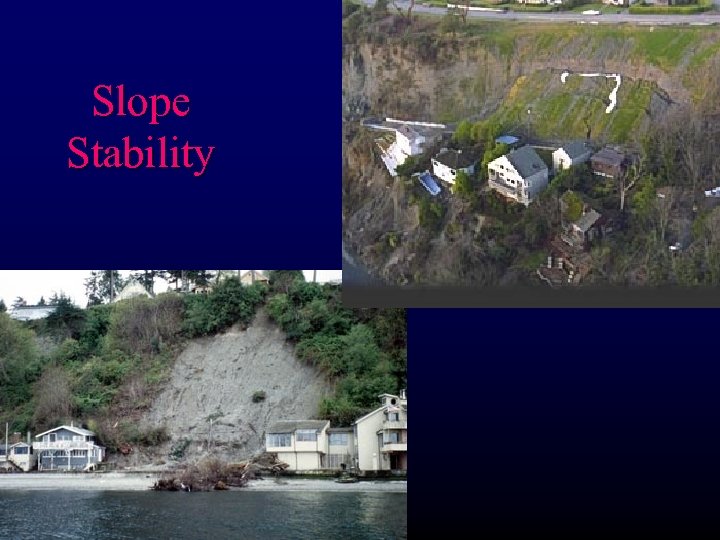

Slope Stability

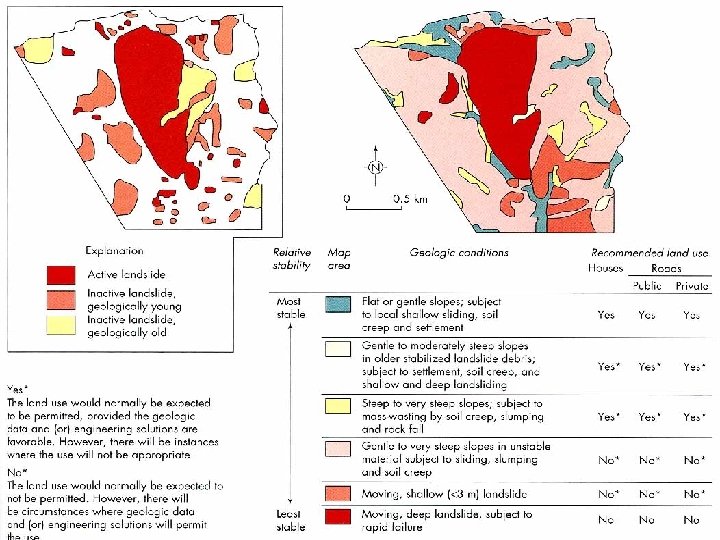

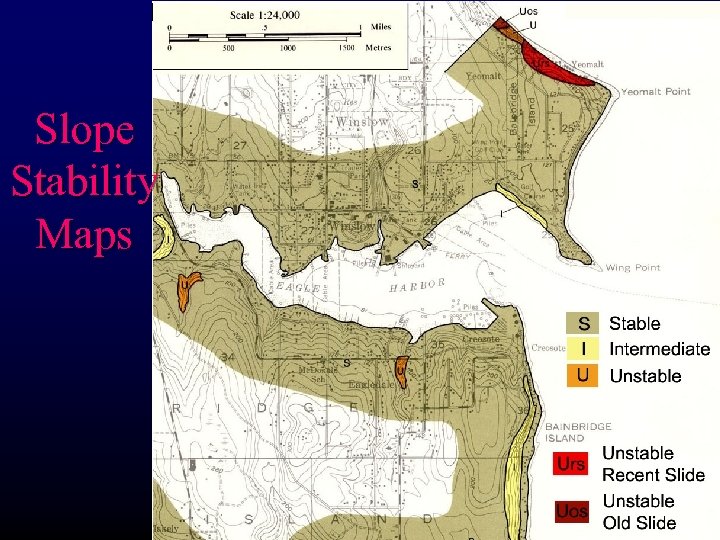

Slope Stability Maps

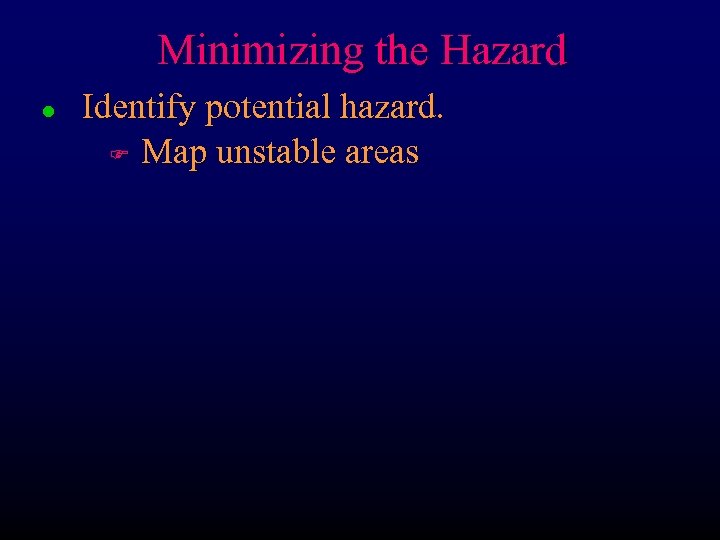

Minimizing the Hazard l Identify potential hazard. F Map unstable areas

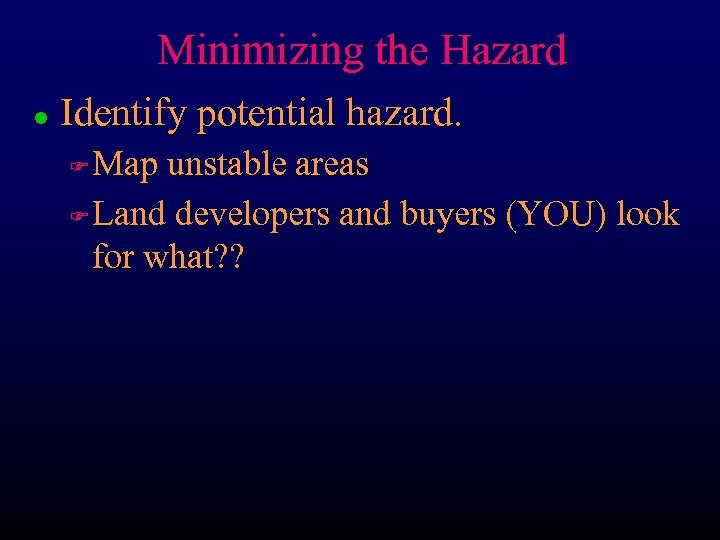

Minimizing the Hazard l Identify potential hazard. Map unstable areas F Land developers and buyers (YOU) look for what? ? F

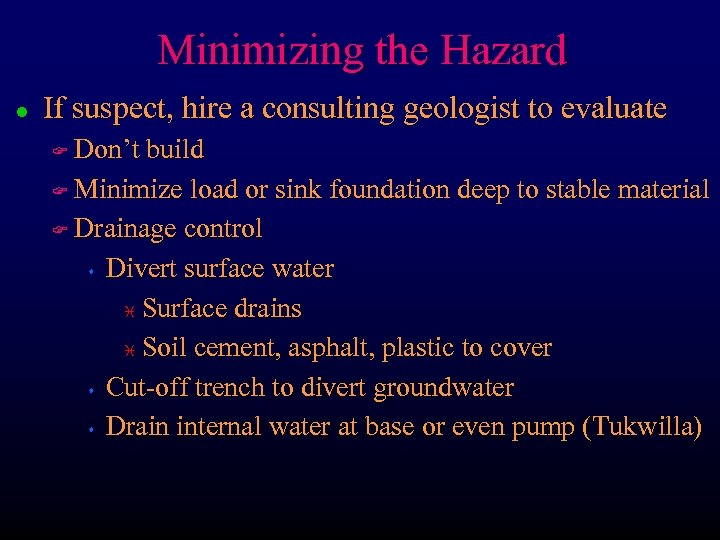

Minimizing the Hazard l If suspect, hire a consulting geologist to evaluate Don’t build F Minimize load or sink foundation deep to stable material F Drainage control s Divert surface water i Surface drains i Soil cement, asphalt, plastic to cover s Cut-off trench to divert groundwater s Drain internal water at base or even pump (Tukwilla) F

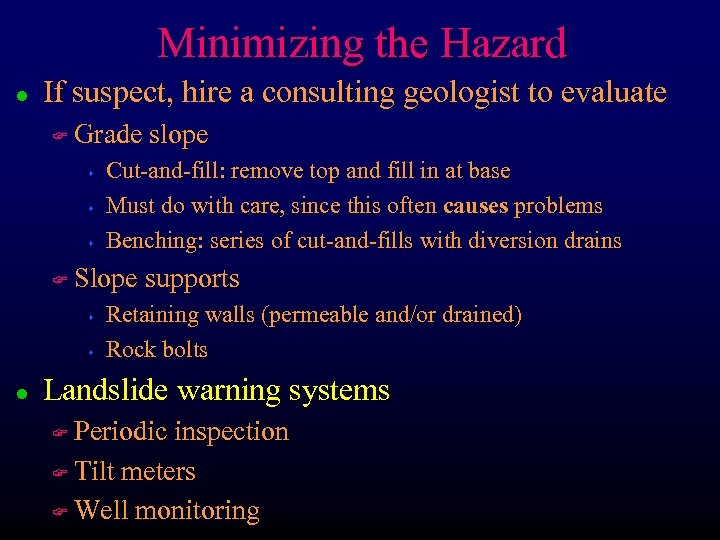

Minimizing the Hazard l If suspect, hire a consulting geologist to evaluate F Grade slope s s s F Slope supports s s l Cut-and-fill: remove top and fill in at base Must do with care, since this often causes problems Benching: series of cut-and-fills with diversion drains Retaining walls (permeable and/or drained) Rock bolts Landslide warning systems Periodic inspection F Tilt meters F Well monitoring F

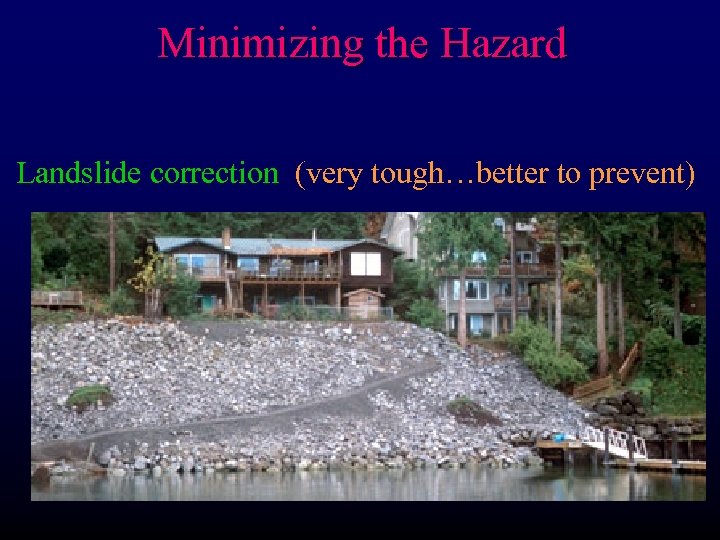

Minimizing the Hazard Landslide correction (very tough…better to prevent)

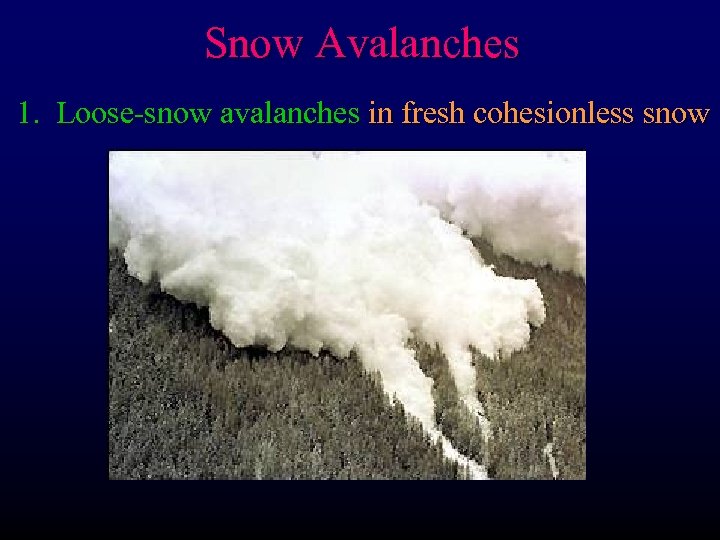

Snow Avalanches 1. Loose-snow avalanches in fresh cohesionless snow

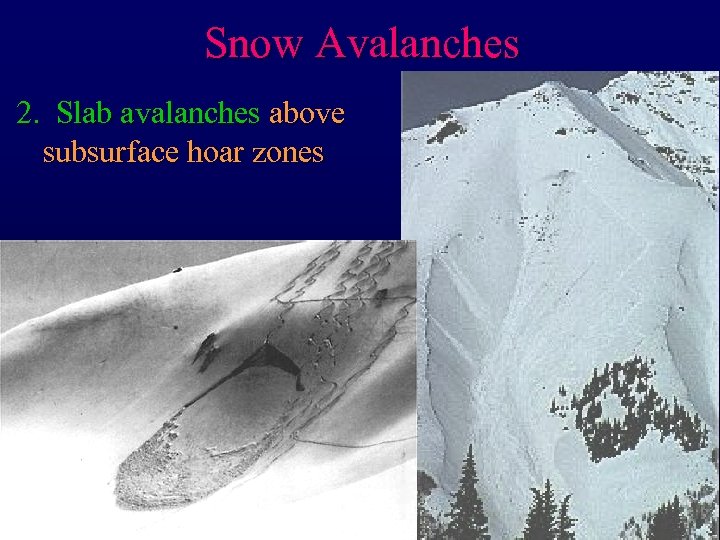

Snow Avalanches 2. Slab avalanches above subsurface hoar zones

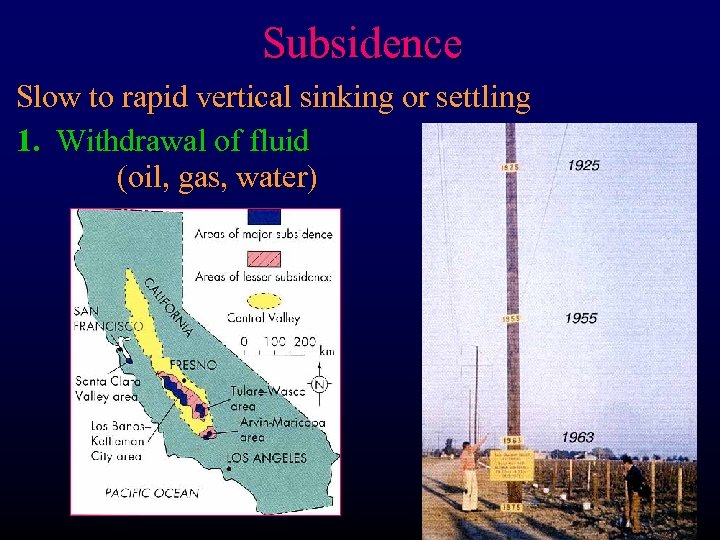

Subsidence Slow to rapid vertical sinking or settling 1. Withdrawal of fluid (oil, gas, water)

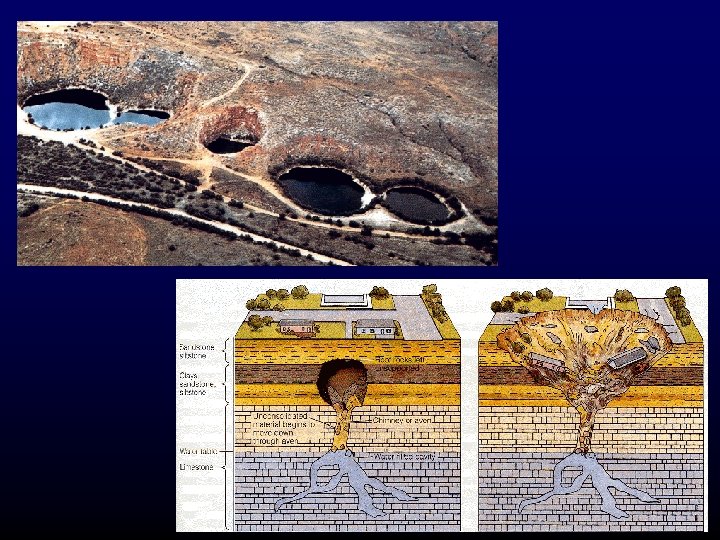

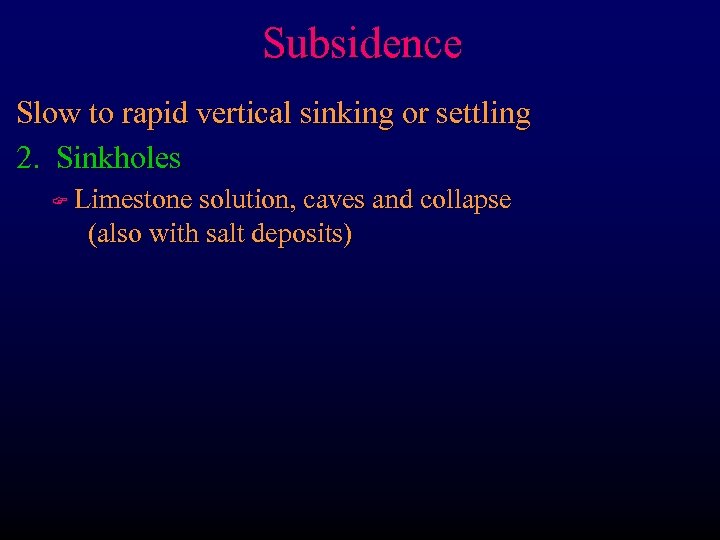

Subsidence Slow to rapid vertical sinking or settling 2. Sinkholes F Limestone solution, caves and collapse (also with salt deposits)

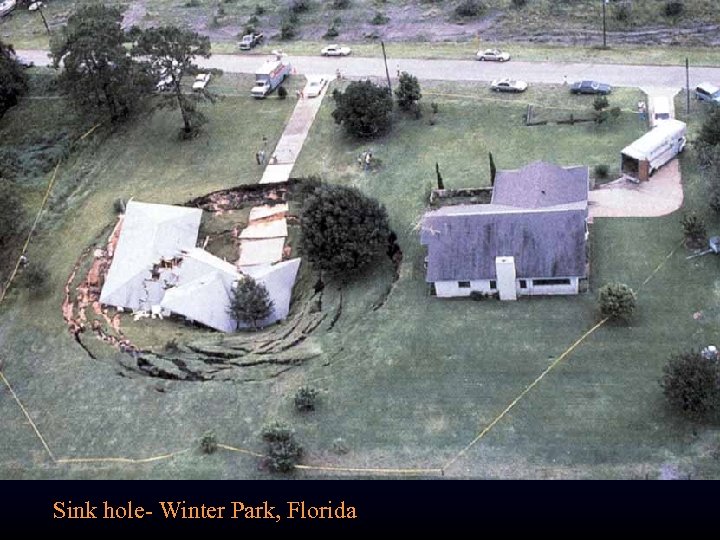

Sink hole- Winter Park, Florida

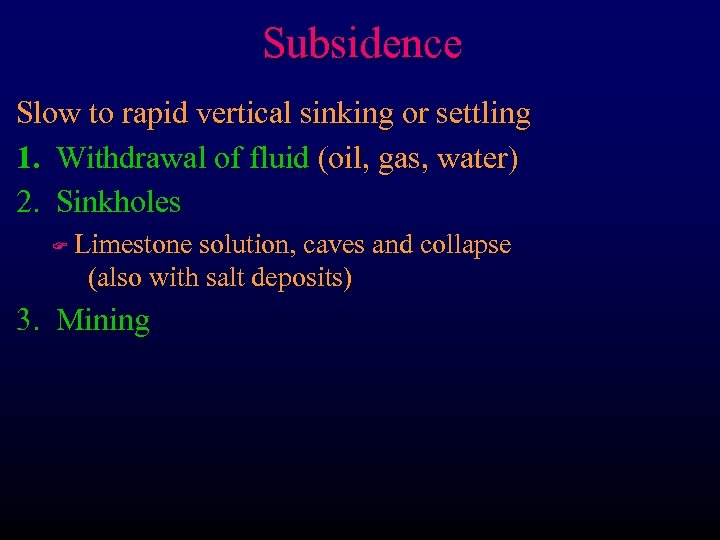

Subsidence Slow to rapid vertical sinking or settling 1. Withdrawal of fluid (oil, gas, water) 2. Sinkholes F Limestone solution, caves and collapse (also with salt deposits) 3. Mining
