Chapter 3 Physical Layer Business Data Communications and

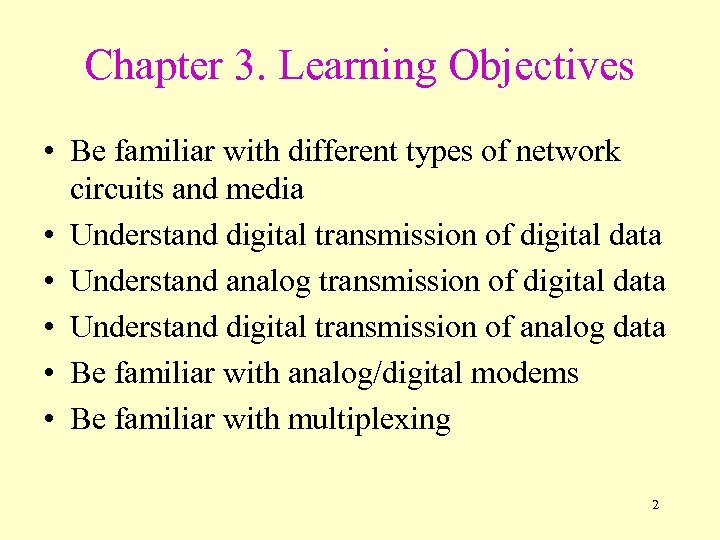

Chapter 3. Learning Objectives • Be familiar with different types of network circuits and media • Understand digital transmission of digital data • Understand analog transmission of digital data • Understand digital transmission of analog data • Be familiar with analog/digital modems • Be familiar with multiplexing 2

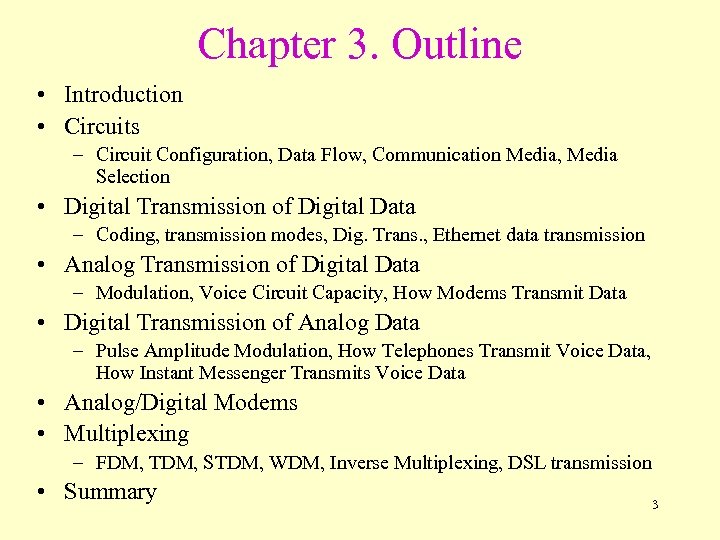

Chapter 3. Outline • Introduction • Circuits – Circuit Configuration, Data Flow, Communication Media, Media Selection • Digital Transmission of Digital Data – Coding, transmission modes, Dig. Trans. , Ethernet data transmission • Analog Transmission of Digital Data – Modulation, Voice Circuit Capacity, How Modems Transmit Data • Digital Transmission of Analog Data – Pulse Amplitude Modulation, How Telephones Transmit Voice Data, How Instant Messenger Transmits Voice Data • Analog/Digital Modems • Multiplexing – FDM, TDM, STDM, WDM, Inverse Multiplexing, DSL transmission • Summary 3

Introduction 4

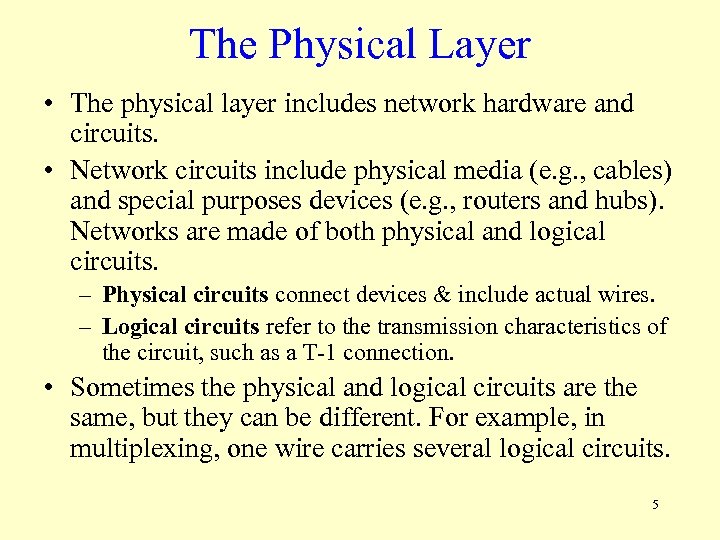

The Physical Layer • The physical layer includes network hardware and circuits. • Network circuits include physical media (e. g. , cables) and special purposes devices (e. g. , routers and hubs). Networks are made of both physical and logical circuits. – Physical circuits connect devices & include actual wires. – Logical circuits refer to the transmission characteristics of the circuit, such as a T-1 connection. • Sometimes the physical and logical circuits are the same, but they can be different. For example, in multiplexing, one wire carries several logical circuits. 5

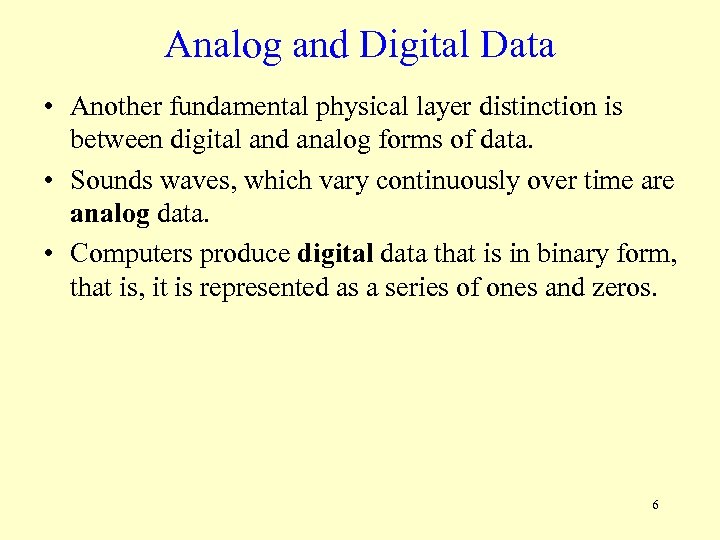

Analog and Digital Data • Another fundamental physical layer distinction is between digital and analog forms of data. • Sounds waves, which vary continuously over time are analog data. • Computers produce digital data that is in binary form, that is, it is represented as a series of ones and zeros. 6

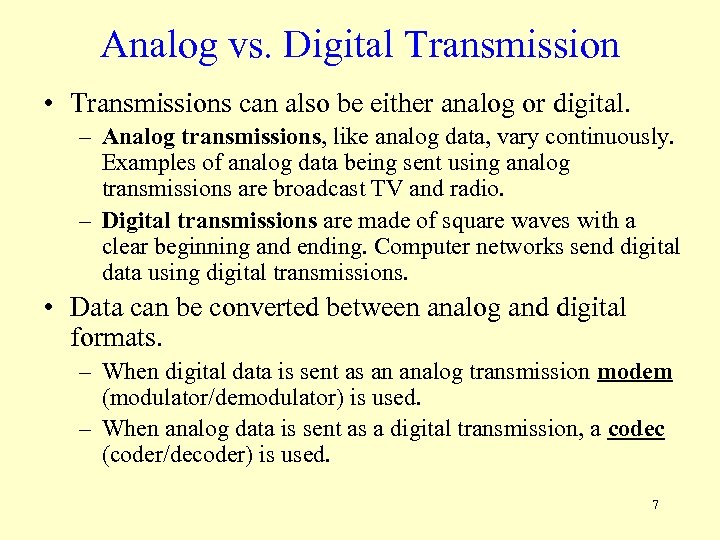

Analog vs. Digital Transmission • Transmissions can also be either analog or digital. – Analog transmissions, like analog data, vary continuously. Examples of analog data being sent using analog transmissions are broadcast TV and radio. – Digital transmissions are made of square waves with a clear beginning and ending. Computer networks send digital data using digital transmissions. • Data can be converted between analog and digital formats. – When digital data is sent as an analog transmission modem (modulator/demodulator) is used. – When analog data is sent as a digital transmission, a codec (coder/decoder) is used. 7

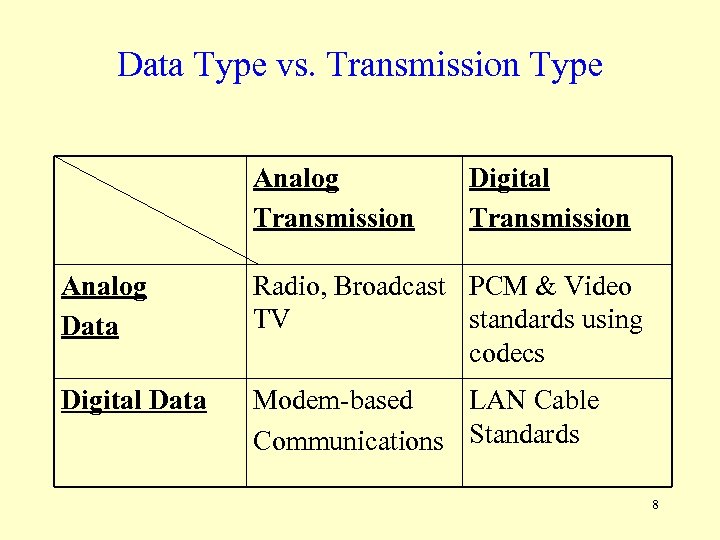

Data Type vs. Transmission Type Analog Transmission Digital Transmission Analog Data Radio, Broadcast PCM & Video TV standards using codecs Digital Data Modem-based LAN Cable Communications Standards 8

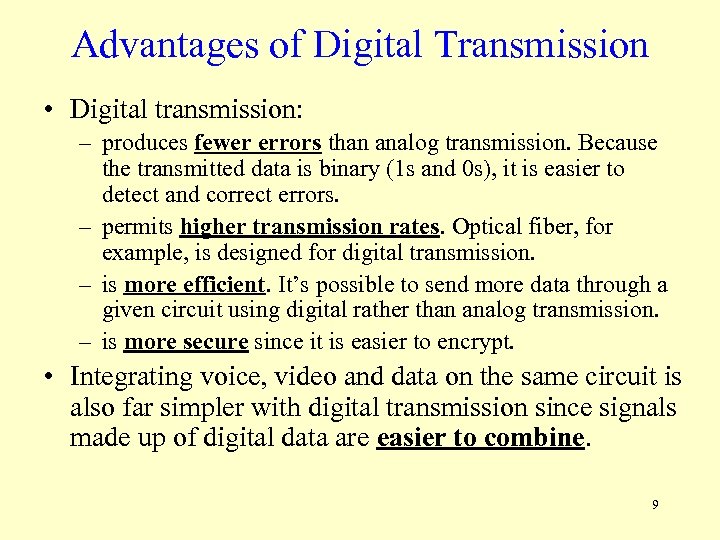

Advantages of Digital Transmission • Digital transmission: – produces fewer errors than analog transmission. Because the transmitted data is binary (1 s and 0 s), it is easier to detect and correct errors. – permits higher transmission rates. Optical fiber, for example, is designed for digital transmission. – is more efficient. It’s possible to send more data through a given circuit using digital rather than analog transmission. – is more secure since it is easier to encrypt. • Integrating voice, video and data on the same circuit is also far simpler with digital transmission since signals made up of digital data are easier to combine. 9

Circuits 10

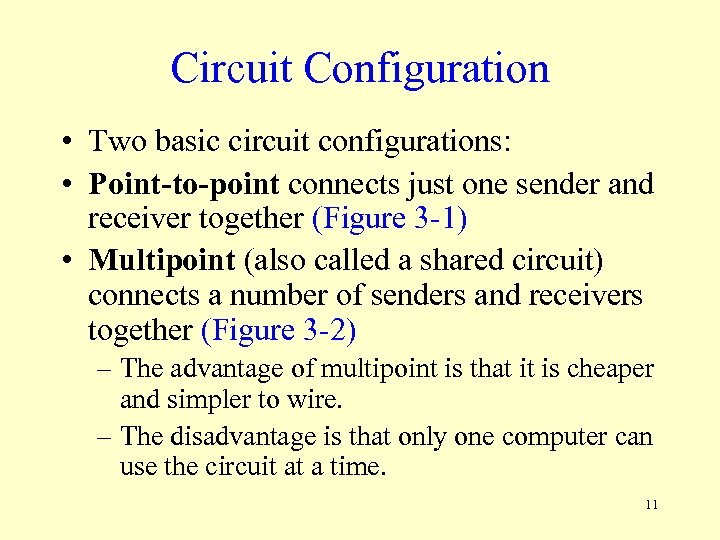

Circuit Configuration • Two basic circuit configurations: • Point-to-point connects just one sender and receiver together (Figure 3 -1) • Multipoint (also called a shared circuit) connects a number of senders and receivers together (Figure 3 -2) – The advantage of multipoint is that it is cheaper and simpler to wire. – The disadvantage is that only one computer can use the circuit at a time. 11

Figure 3 -1 Host-based architecture 12

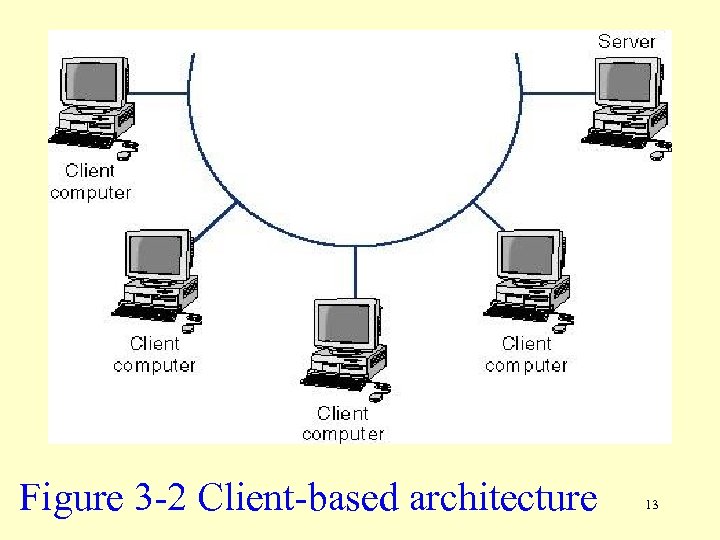

Figure 3 -2 Client-based architecture 13

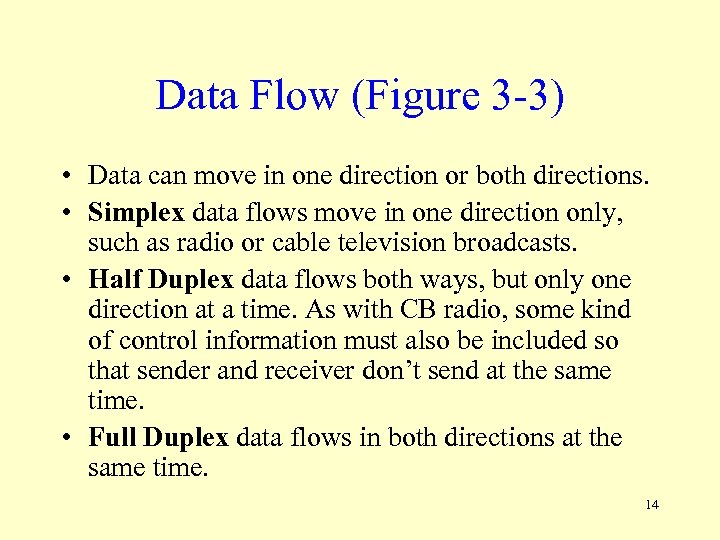

Data Flow (Figure 3 -3) • Data can move in one direction or both directions. • Simplex data flows move in one direction only, such as radio or cable television broadcasts. • Half Duplex data flows both ways, but only one direction at a time. As with CB radio, some kind of control information must also be included so that sender and receiver don’t send at the same time. • Full Duplex data flows in both directions at the same time. 14

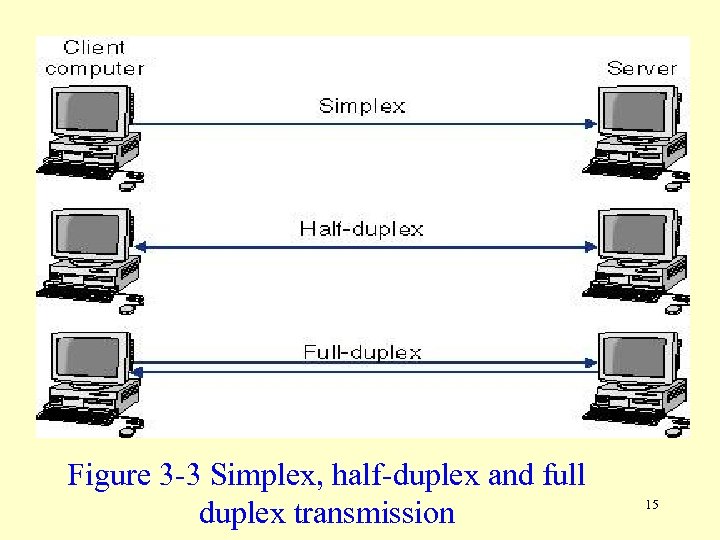

Figure 3 -3 Simplex, half-duplex and full duplex transmission 15

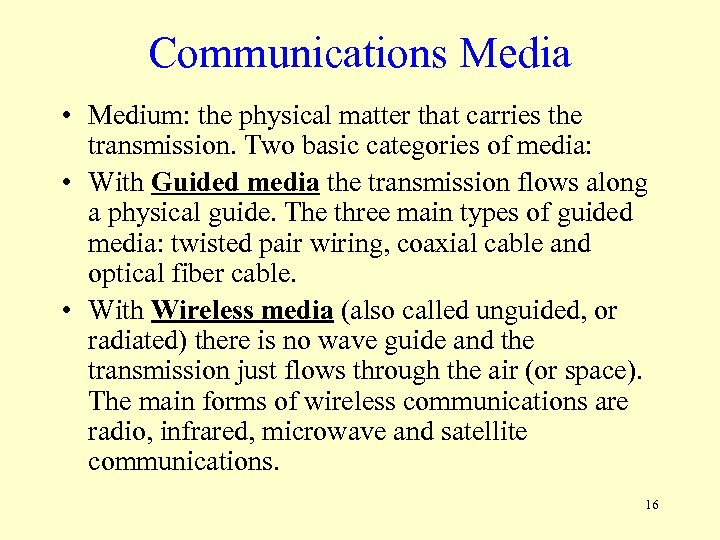

Communications Media • Medium: the physical matter that carries the transmission. Two basic categories of media: • With Guided media the transmission flows along a physical guide. The three main types of guided media: twisted pair wiring, coaxial cable and optical fiber cable. • With Wireless media (also called unguided, or radiated) there is no wave guide and the transmission just flows through the air (or space). The main forms of wireless communications are radio, infrared, microwave and satellite communications. 16

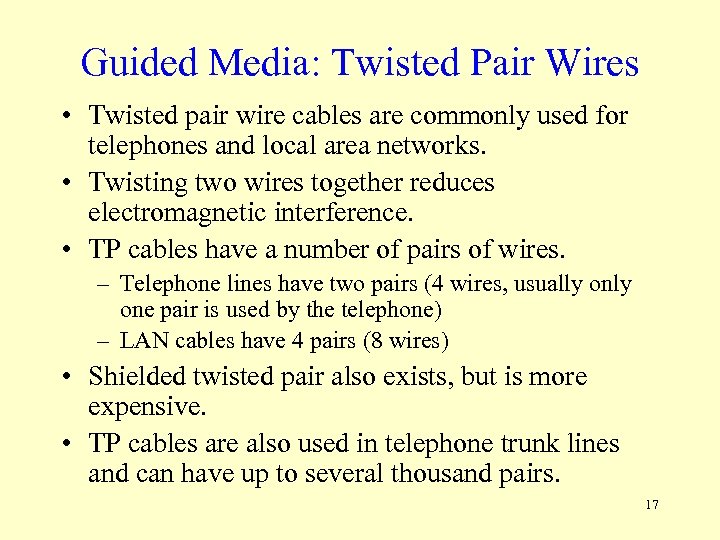

Guided Media: Twisted Pair Wires • Twisted pair wire cables are commonly used for telephones and local area networks. • Twisting two wires together reduces electromagnetic interference. • TP cables have a number of pairs of wires. – Telephone lines have two pairs (4 wires, usually one pair is used by the telephone) – LAN cables have 4 pairs (8 wires) • Shielded twisted pair also exists, but is more expensive. • TP cables are also used in telephone trunk lines and can have up to several thousand pairs. 17

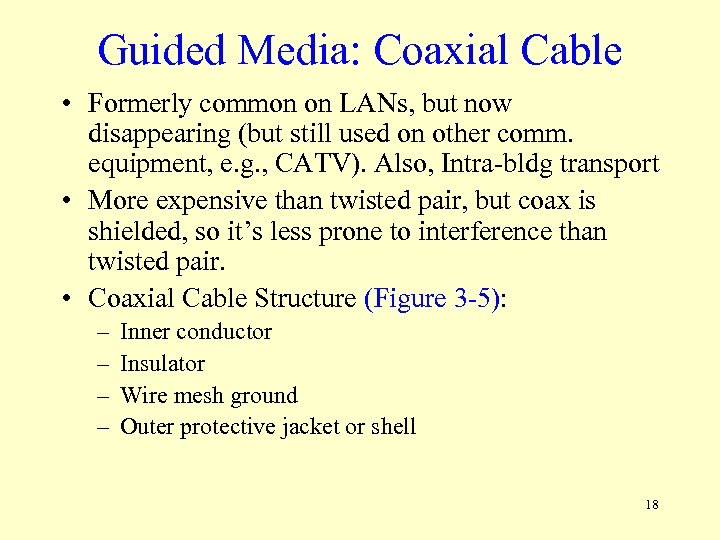

Guided Media: Coaxial Cable • Formerly common on LANs, but now disappearing (but still used on other comm. equipment, e. g. , CATV). Also, Intra-bldg transport • More expensive than twisted pair, but coax is shielded, so it’s less prone to interference than twisted pair. • Coaxial Cable Structure (Figure 3 -5): – – Inner conductor Insulator Wire mesh ground Outer protective jacket or shell 18

Figure 3 -5 Coaxial Cable 19

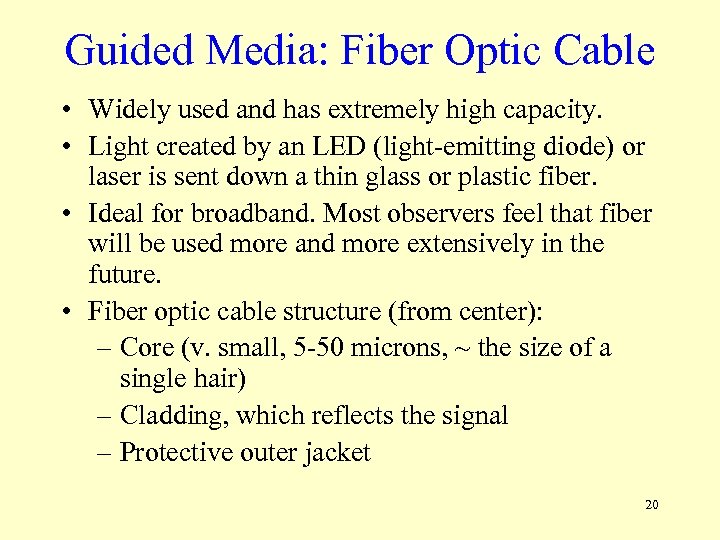

Guided Media: Fiber Optic Cable • Widely used and has extremely high capacity. • Light created by an LED (light-emitting diode) or laser is sent down a thin glass or plastic fiber. • Ideal for broadband. Most observers feel that fiber will be used more and more extensively in the future. • Fiber optic cable structure (from center): – Core (v. small, 5 -50 microns, ~ the size of a single hair) – Cladding, which reflects the signal – Protective outer jacket 20

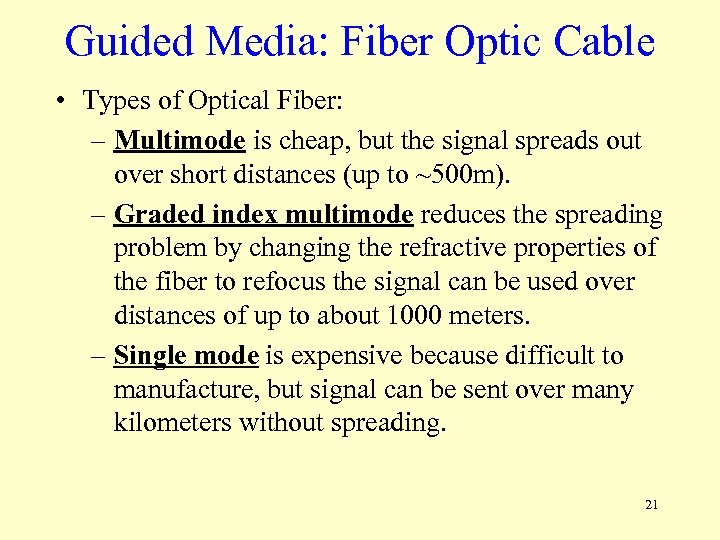

Guided Media: Fiber Optic Cable • Types of Optical Fiber: – Multimode is cheap, but the signal spreads out over short distances (up to ~500 m). – Graded index multimode reduces the spreading problem by changing the refractive properties of the fiber to refocus the signal can be used over distances of up to about 1000 meters. – Single mode is expensive because difficult to manufacture, but signal can be sent over many kilometers without spreading. 21

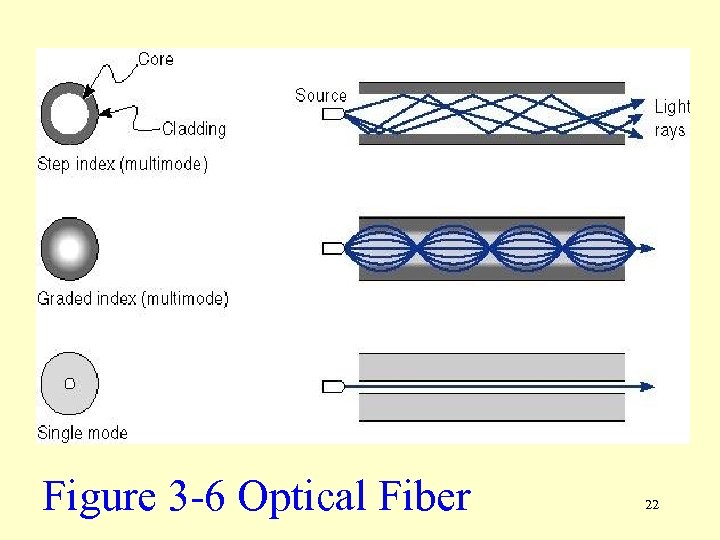

Figure 3 -6 Optical Fiber 22

Wireless Media (a. k. a. Radiated or Unguided) • Wireless media signals are becoming popular for LAN use. The main forms are: – Radio: wireless transmission of electrical. Includes AM and FM radio bands. Microwave is also a form of radio transmission. – Infrared: “invisible” electromagnetic waves whose frequency is below that of red light. Requires line of sight and general subject to interference from heavy rain. Used in remote control units (e. g. , TV). – Microwave: high frequency form of radio with extremely short wavelength (1 cm to 1 m). Often used for long distance terrestrial transmissions and cellular telephones. Requires line-of-sight. 23

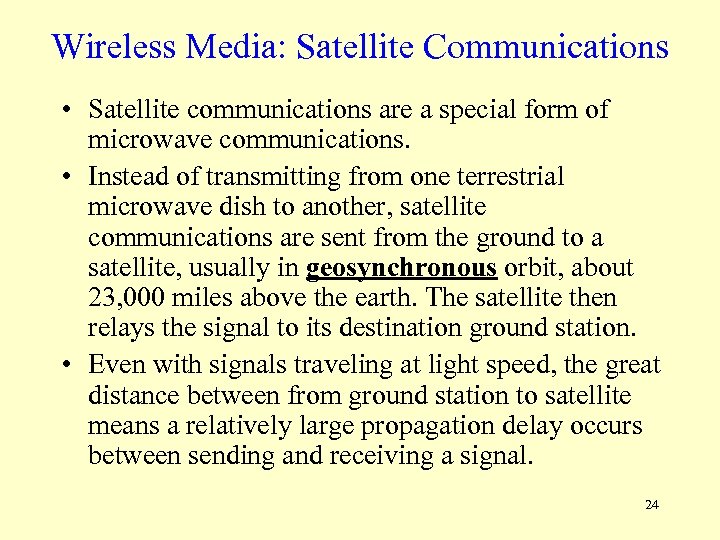

Wireless Media: Satellite Communications • Satellite communications are a special form of microwave communications. • Instead of transmitting from one terrestrial microwave dish to another, satellite communications are sent from the ground to a satellite, usually in geosynchronous orbit, about 23, 000 miles above the earth. The satellite then relays the signal to its destination ground station. • Even with signals traveling at light speed, the great distance between from ground station to satellite means a relatively large propagation delay occurs between sending and receiving a signal. 24

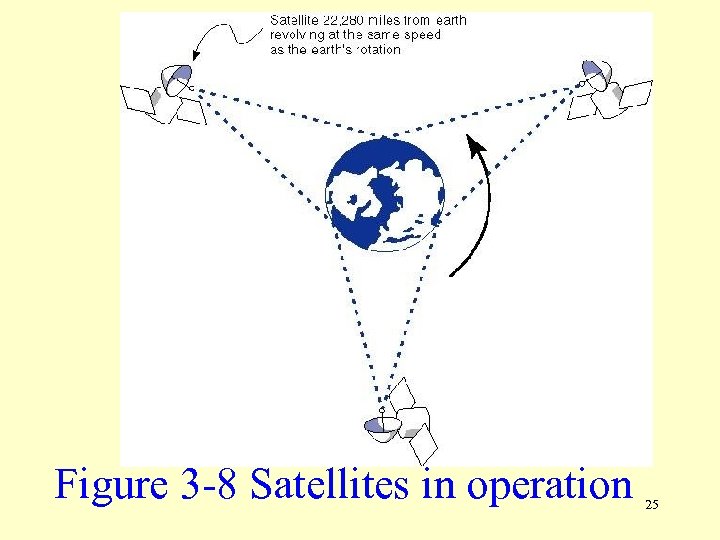

Figure 3 -8 Satellites in operation 25

Media Selection depends on many factors including: • Type of network (WAN use MDR or Satellite) • Cost (minimal investment) • Transmission distance (floor to floor, bldg to bldg, across the nation/world) • Security (what level is required) • Error rates (digital is best) • Transmission speeds (electrical and optical) 26

Digital Transmission of Digital Data 27

Coding • Any written language uses symbols but computers send signals in 1 s and 0 s (bits). • Each written character needs a bit code in order to be used by a computer. A set of these codes for a language is called a coding scheme. • The two main character codes in use in North America are ASCII and EBCDIC. – ASCII: American Standard Code for Information Interchange, originally used a 7 -bit code (128 combinations), but an 8 -bit version is now in use. – EBCDIC: Extended Binary Coded Decimal Interchange Code, an 8 -bit code developed by IBM. 28

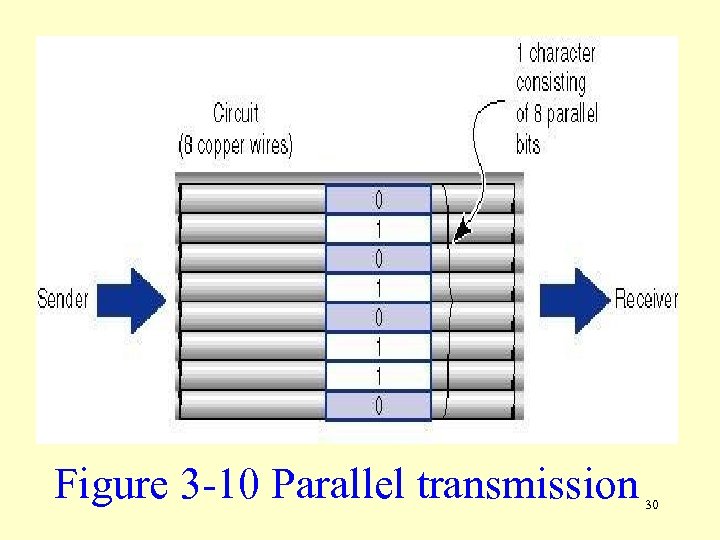

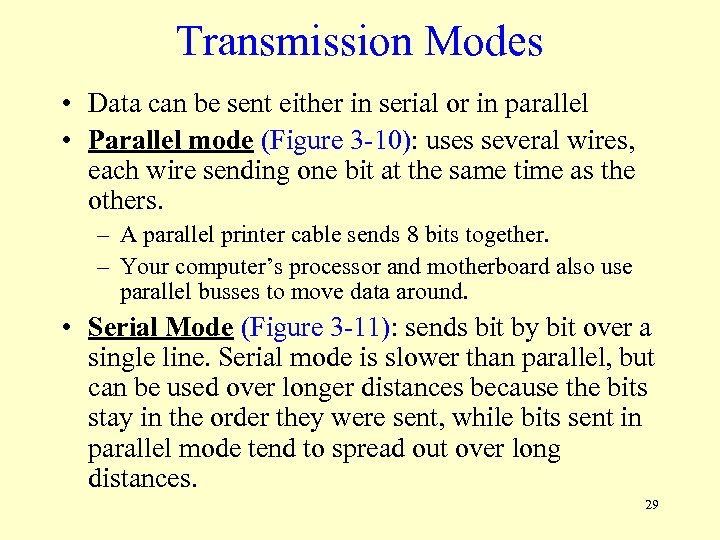

Transmission Modes • Data can be sent either in serial or in parallel • Parallel mode (Figure 3 -10): uses several wires, each wire sending one bit at the same time as the others. – A parallel printer cable sends 8 bits together. – Your computer’s processor and motherboard also use parallel busses to move data around. • Serial Mode (Figure 3 -11): sends bit by bit over a single line. Serial mode is slower than parallel, but can be used over longer distances because the bits stay in the order they were sent, while bits sent in parallel mode tend to spread out over long distances. 29

Figure 3 -10 Parallel transmission 30

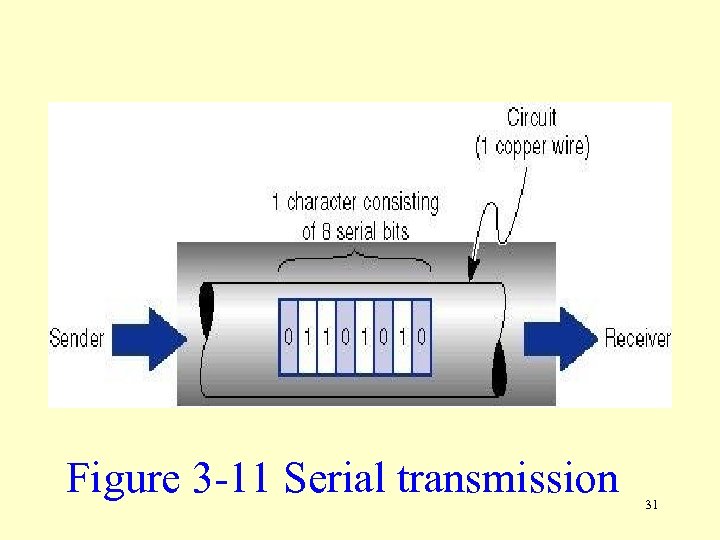

Figure 3 -11 Serial transmission 31

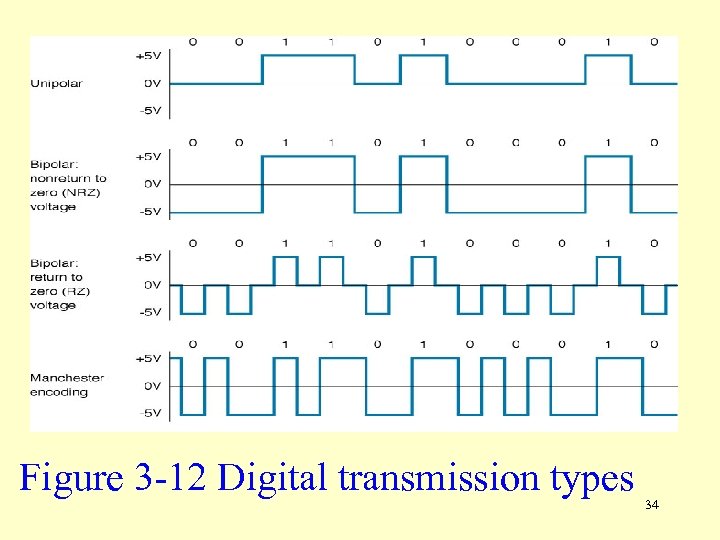

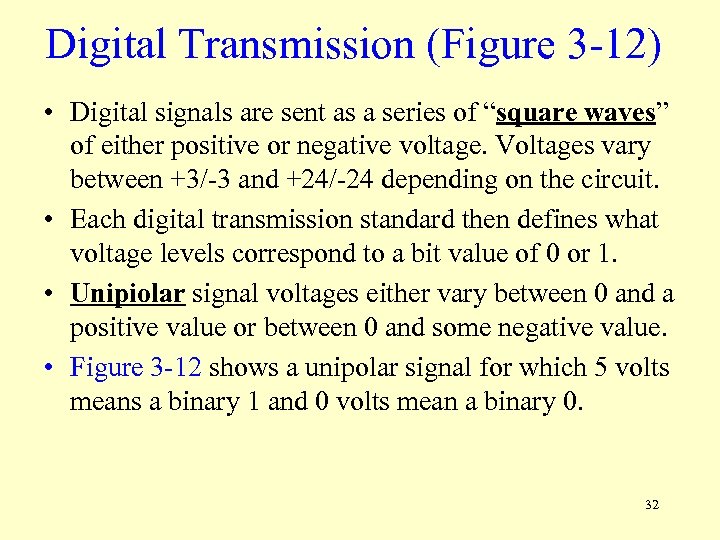

Digital Transmission (Figure 3 -12) • Digital signals are sent as a series of “square waves” of either positive or negative voltage. Voltages vary between +3/-3 and +24/-24 depending on the circuit. • Each digital transmission standard then defines what voltage levels correspond to a bit value of 0 or 1. • Unipiolar signal voltages either vary between 0 and a positive value or between 0 and some negative value. • Figure 3 -12 shows a unipolar signal for which 5 volts means a binary 1 and 0 volts mean a binary 0. 32

Digital Transmission (cont. ) • With bipolar signals, signals are sent using both positive and negative voltages. • A second digital transmission factor, called return to zero (RZ) means the signal returns to the 0 voltage level after sending a bit. In non return to zero (NRZ), the signals maintains its voltage at the end of a bit. • Ethernet uses Manchester encoding in which the bit value is defined by a mid-bit transition. A high to low voltage transition is a binary 0 and a low-high mid-bit transition defines a binary 1. 33

Figure 3 -12 Digital transmission types 34

Analog Transmission of Digital Data 35

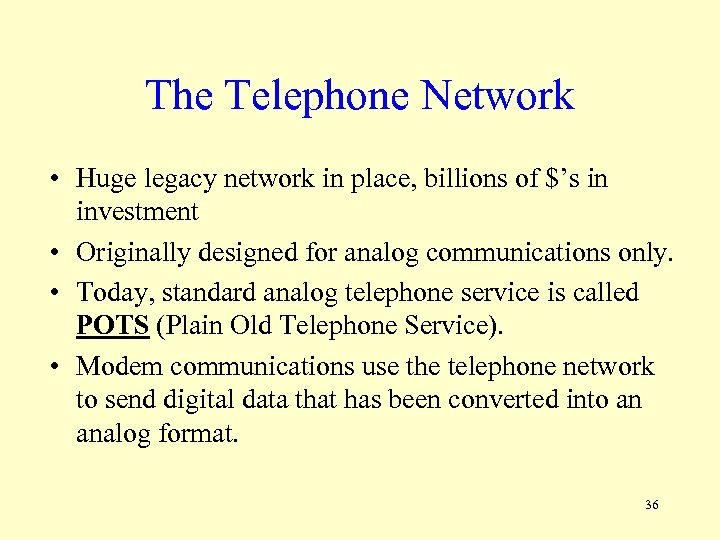

The Telephone Network • Huge legacy network in place, billions of $’s in investment • Originally designed for analog communications only. • Today, standard analog telephone service is called POTS (Plain Old Telephone Service). • Modem communications use the telephone network to send digital data that has been converted into an analog format. 36

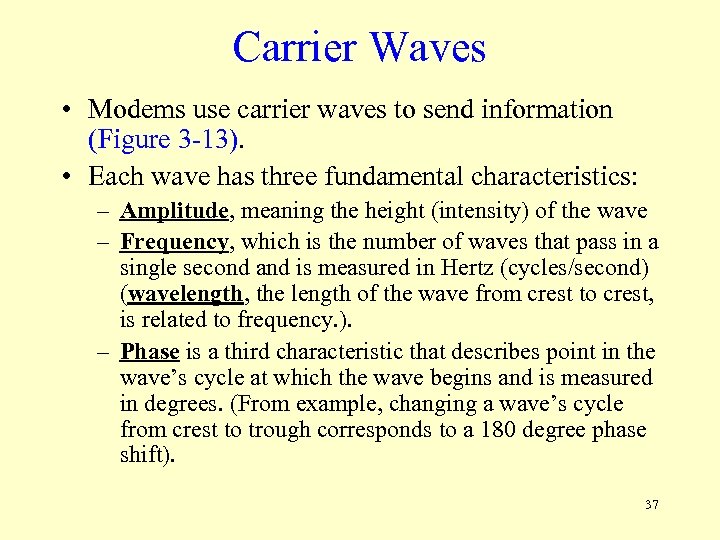

Carrier Waves • Modems use carrier waves to send information (Figure 3 -13). • Each wave has three fundamental characteristics: – Amplitude, meaning the height (intensity) of the wave – Frequency, which is the number of waves that pass in a single second and is measured in Hertz (cycles/second) (wavelength, the length of the wave from crest to crest, is related to frequency. ). – Phase is a third characteristic that describes point in the wave’s cycle at which the wave begins and is measured in degrees. (From example, changing a wave’s cycle from crest to trough corresponds to a 180 degree phase shift). 37

Figure 3 -13 A Carrier Wave 38

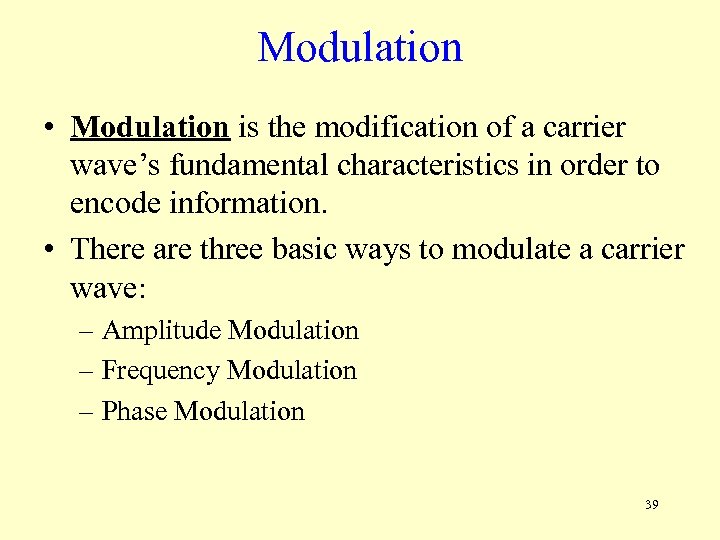

Modulation • Modulation is the modification of a carrier wave’s fundamental characteristics in order to encode information. • There are three basic ways to modulate a carrier wave: – Amplitude Modulation – Frequency Modulation – Phase Modulation 39

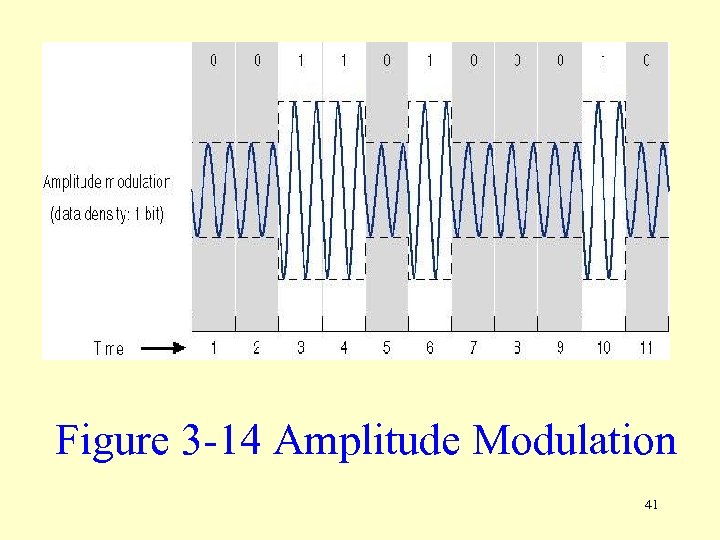

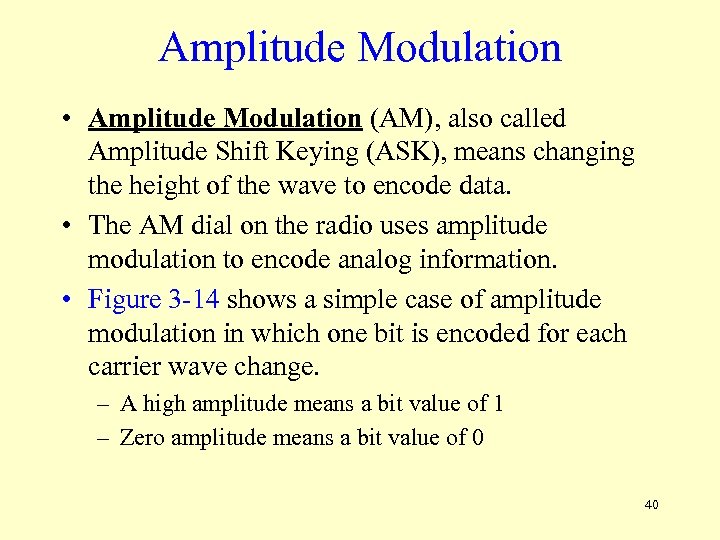

Amplitude Modulation • Amplitude Modulation (AM), also called Amplitude Shift Keying (ASK), means changing the height of the wave to encode data. • The AM dial on the radio uses amplitude modulation to encode analog information. • Figure 3 -14 shows a simple case of amplitude modulation in which one bit is encoded for each carrier wave change. – A high amplitude means a bit value of 1 – Zero amplitude means a bit value of 0 40

Figure 3 -14 Amplitude Modulation 41

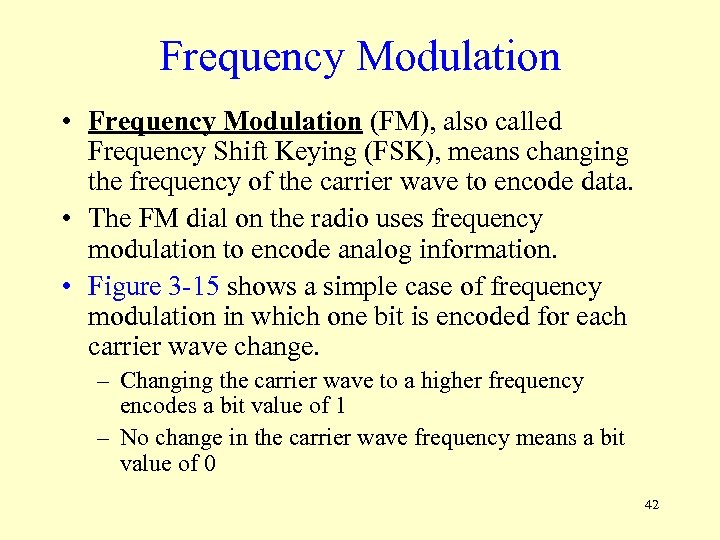

Frequency Modulation • Frequency Modulation (FM), also called Frequency Shift Keying (FSK), means changing the frequency of the carrier wave to encode data. • The FM dial on the radio uses frequency modulation to encode analog information. • Figure 3 -15 shows a simple case of frequency modulation in which one bit is encoded for each carrier wave change. – Changing the carrier wave to a higher frequency encodes a bit value of 1 – No change in the carrier wave frequency means a bit value of 0 42

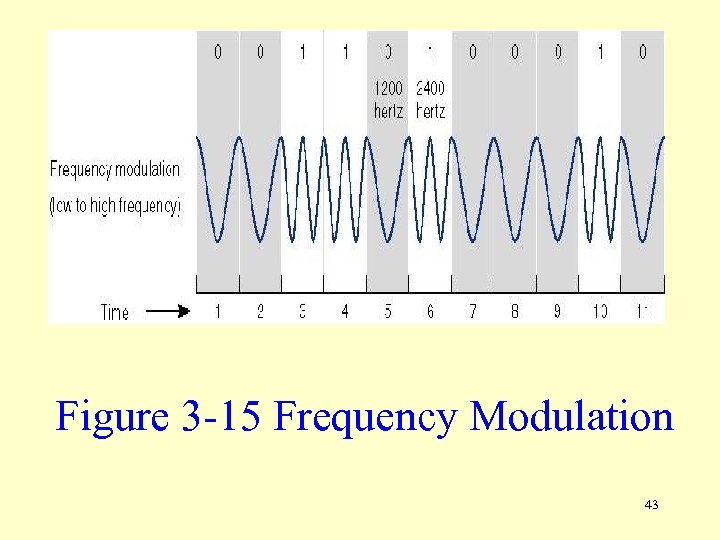

Figure 3 -15 Frequency Modulation 43

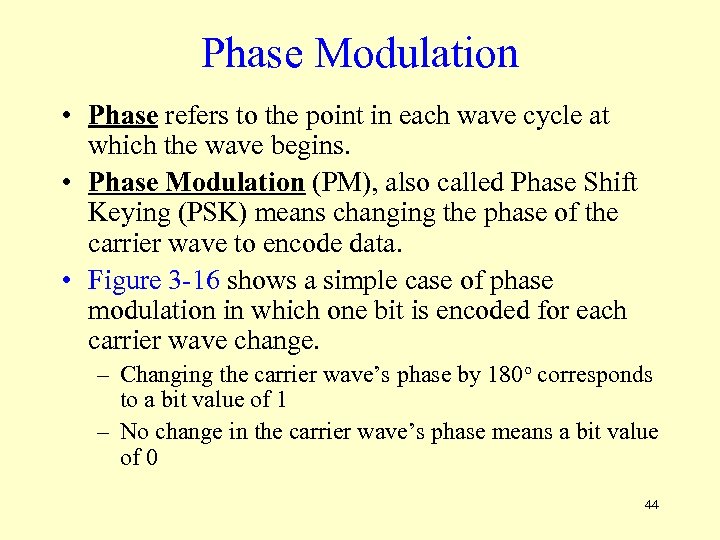

Phase Modulation • Phase refers to the point in each wave cycle at which the wave begins. • Phase Modulation (PM), also called Phase Shift Keying (PSK) means changing the phase of the carrier wave to encode data. • Figure 3 -16 shows a simple case of phase modulation in which one bit is encoded for each carrier wave change. – Changing the carrier wave’s phase by 180 o corresponds to a bit value of 1 – No change in the carrier wave’s phase means a bit value of 0 44

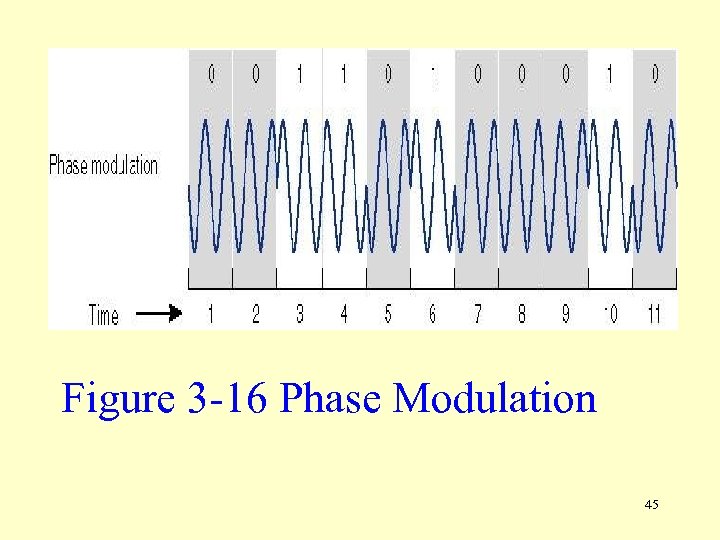

Figure 3 -16 Phase Modulation 45

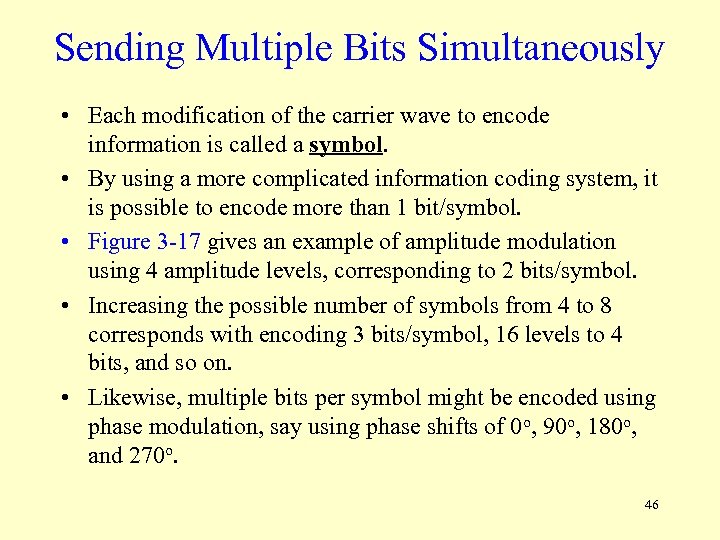

Sending Multiple Bits Simultaneously • Each modification of the carrier wave to encode information is called a symbol. • By using a more complicated information coding system, it is possible to encode more than 1 bit/symbol. • Figure 3 -17 gives an example of amplitude modulation using 4 amplitude levels, corresponding to 2 bits/symbol. • Increasing the possible number of symbols from 4 to 8 corresponds with encoding 3 bits/symbol, 16 levels to 4 bits, and so on. • Likewise, multiple bits per symbol might be encoded using phase modulation, say using phase shifts of 0 o, 90 o, 180 o, and 270 o. 46

Figure 3 -17 Amplitude Modulation 47

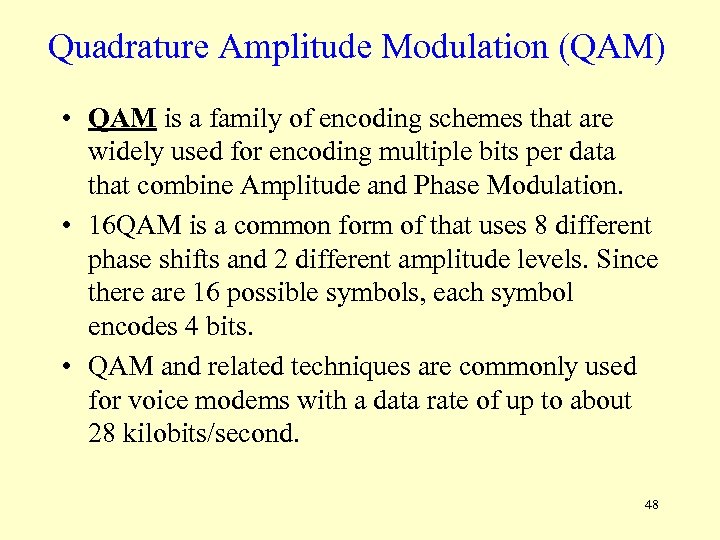

Quadrature Amplitude Modulation (QAM) • QAM is a family of encoding schemes that are widely used for encoding multiple bits per data that combine Amplitude and Phase Modulation. • 16 QAM is a common form of that uses 8 different phase shifts and 2 different amplitude levels. Since there are 16 possible symbols, each symbol encodes 4 bits. • QAM and related techniques are commonly used for voice modems with a data rate of up to about 28 kilobits/second. 48

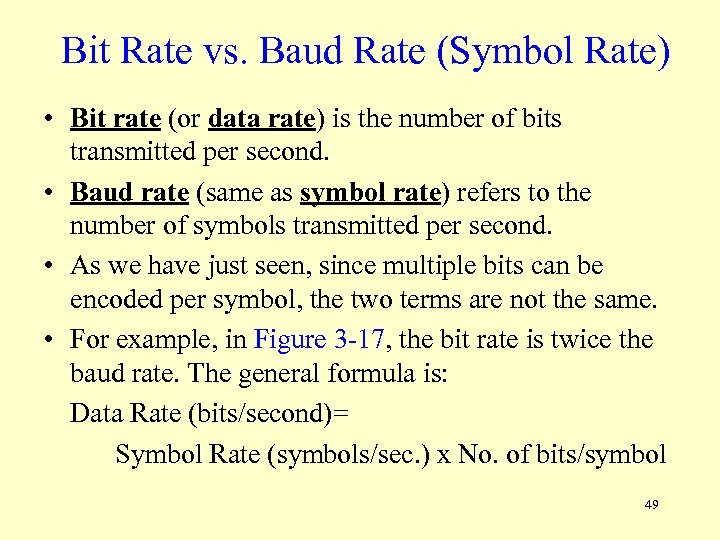

Bit Rate vs. Baud Rate (Symbol Rate) • Bit rate (or data rate) is the number of bits transmitted per second. • Baud rate (same as symbol rate) refers to the number of symbols transmitted per second. • As we have just seen, since multiple bits can be encoded per symbol, the two terms are not the same. • For example, in Figure 3 -17, the bit rate is twice the baud rate. The general formula is: Data Rate (bits/second)= Symbol Rate (symbols/sec. ) x No. of bits/symbol 49

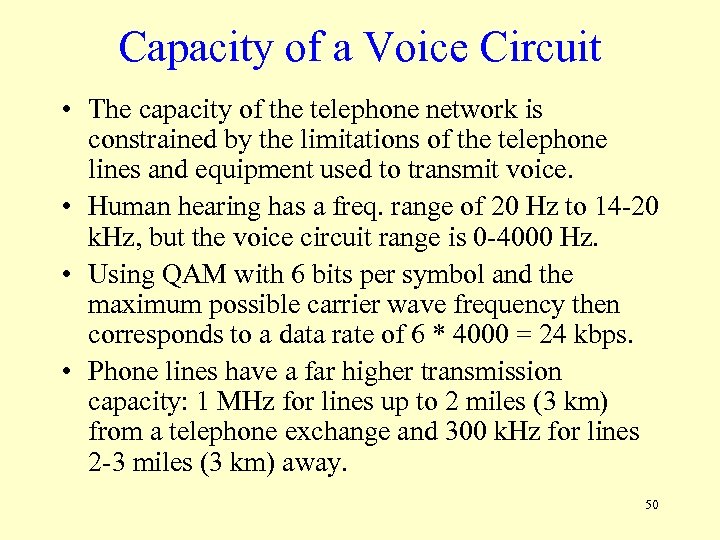

Capacity of a Voice Circuit • The capacity of the telephone network is constrained by the limitations of the telephone lines and equipment used to transmit voice. • Human hearing has a freq. range of 20 Hz to 14 -20 k. Hz, but the voice circuit range is 0 -4000 Hz. • Using QAM with 6 bits per symbol and the maximum possible carrier wave frequency then corresponds to a data rate of 6 * 4000 = 24 kbps. • Phone lines have a far higher transmission capacity: 1 MHz for lines up to 2 miles (3 km) from a telephone exchange and 300 k. Hz for lines 2 -3 miles (3 km) away. 50

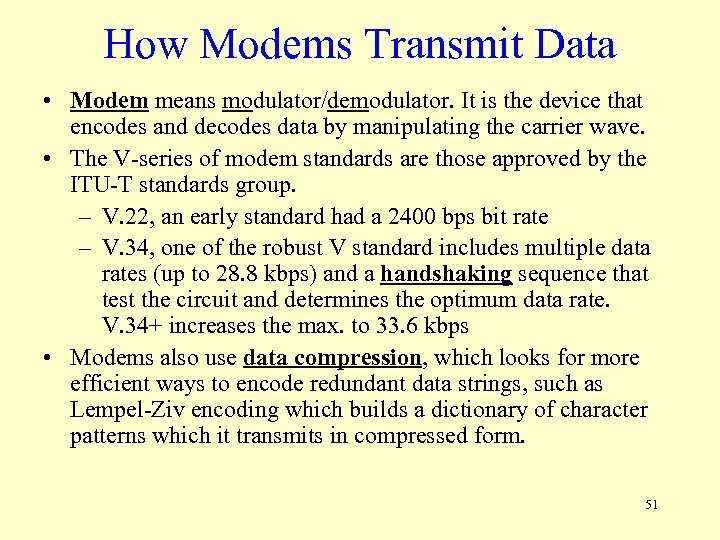

How Modems Transmit Data • Modem means modulator/demodulator. It is the device that encodes and decodes data by manipulating the carrier wave. • The V-series of modem standards are those approved by the ITU-T standards group. – V. 22, an early standard had a 2400 bps bit rate – V. 34, one of the robust V standard includes multiple data rates (up to 28. 8 kbps) and a handshaking sequence that test the circuit and determines the optimum data rate. V. 34+ increases the max. to 33. 6 kbps • Modems also use data compression, which looks for more efficient ways to encode redundant data strings, such as Lempel-Ziv encoding which builds a dictionary of character patterns which it transmits in compressed form. 51

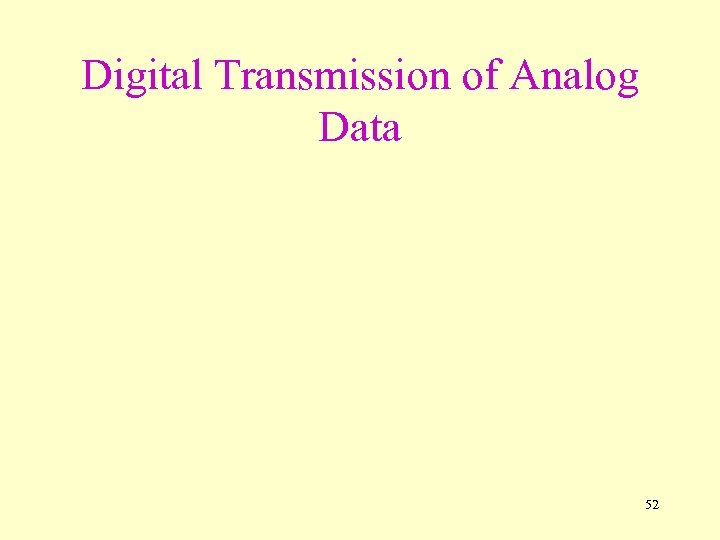

Digital Transmission of Analog Data 52

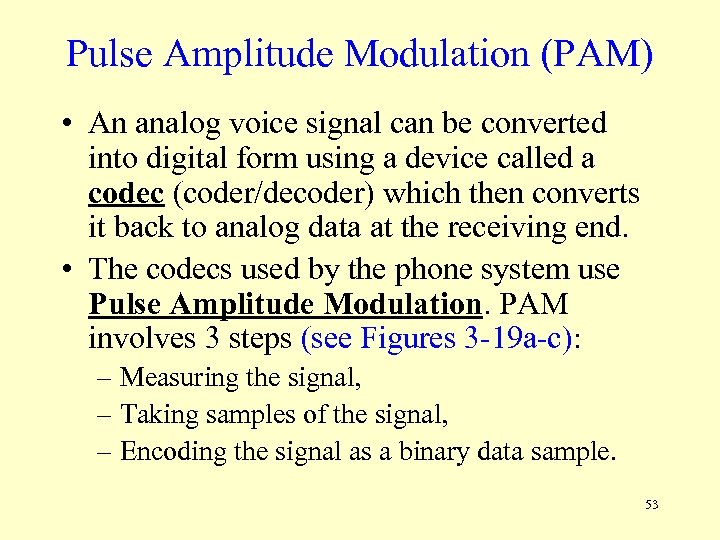

Pulse Amplitude Modulation (PAM) • An analog voice signal can be converted into digital form using a device called a codec (coder/decoder) which then converts it back to analog data at the receiving end. • The codecs used by the phone system use Pulse Amplitude Modulation. PAM involves 3 steps (see Figures 3 -19 a-c): – Measuring the signal, – Taking samples of the signal, – Encoding the signal as a binary data sample. 53

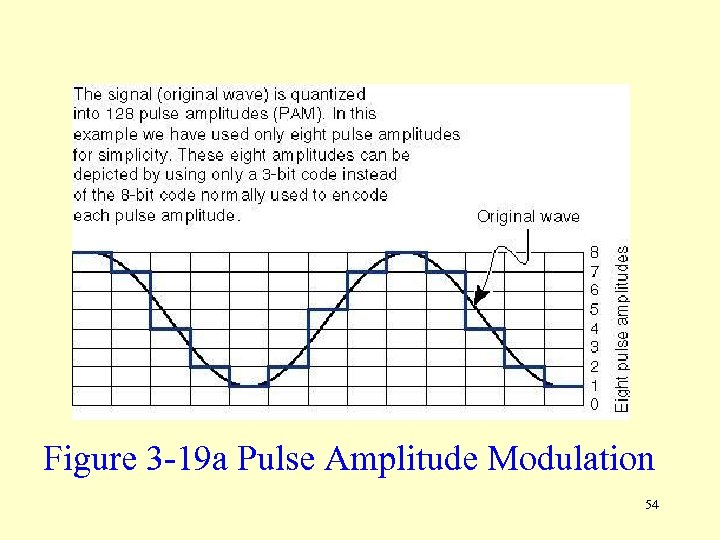

Figure 3 -19 a Pulse Amplitude Modulation 54

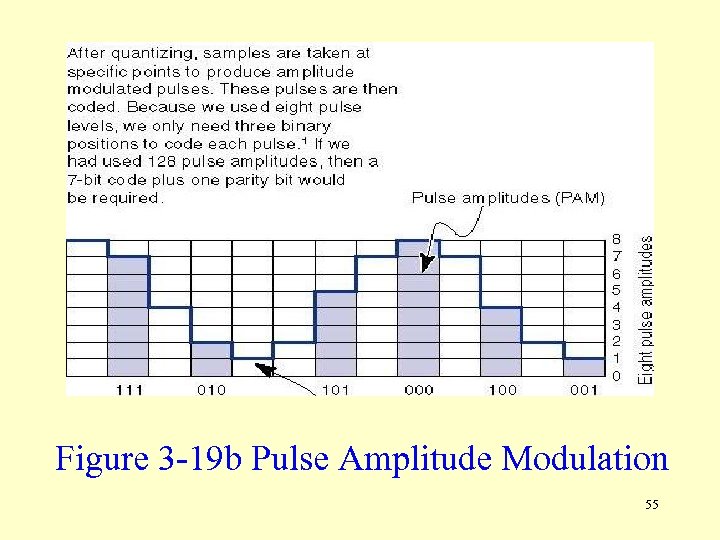

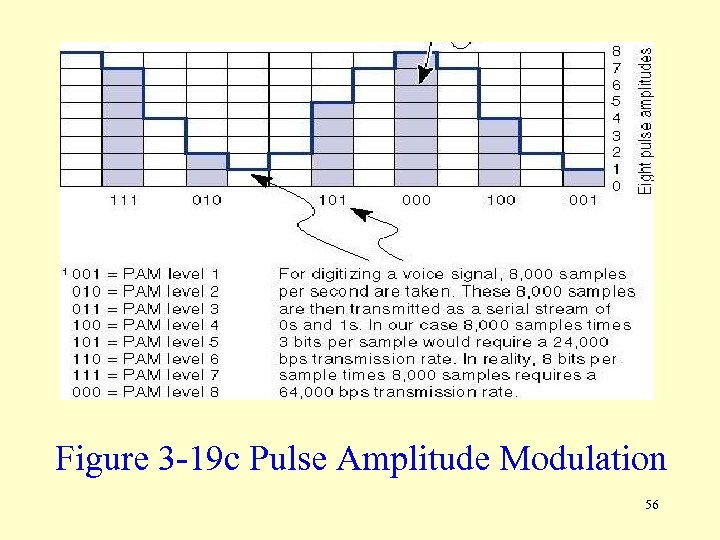

Figure 3 -19 b Pulse Amplitude Modulation 55

Figure 3 -19 c Pulse Amplitude Modulation 56

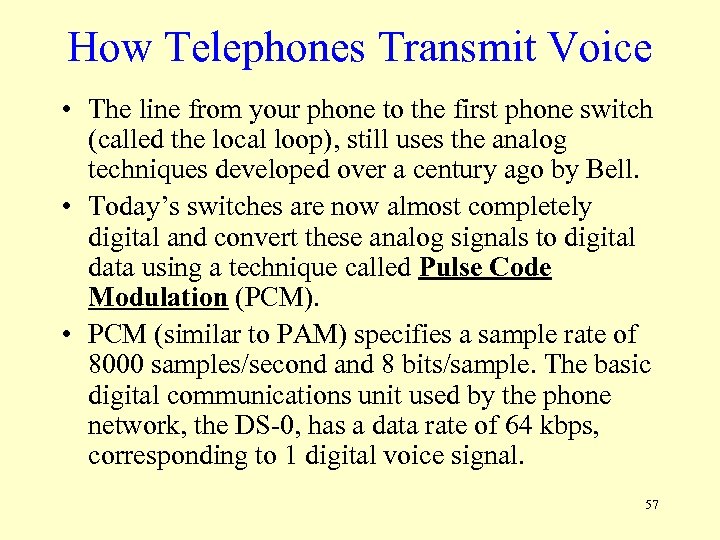

How Telephones Transmit Voice • The line from your phone to the first phone switch (called the local loop), still uses the analog techniques developed over a century ago by Bell. • Today’s switches are now almost completely digital and convert these analog signals to digital data using a technique called Pulse Code Modulation (PCM). • PCM (similar to PAM) specifies a sample rate of 8000 samples/second and 8 bits/sample. The basic digital communications unit used by the phone network, the DS-0, has a data rate of 64 kbps, corresponding to 1 digital voice signal. 57

How Instant Messenger Transmits Voice • Instead of PCM, Instant Messaging uses an alternative technique called ADPCM, adaptive differential pulse code modulation. • ADPCM encodes the differences between samples. Instead of an 8 bits/sample, ADPCM uses only 4 bits/sample, general at 8000 samples/second. This allows a voice signal to be sent at 32 kbps, which makes it possible for IM to send voice signals as digital signals using POTS-based analog phone lines. • ADPCM can also use lower sampling rates, at 8 or 16 kbps, but these produce lower quality voice signals. 58

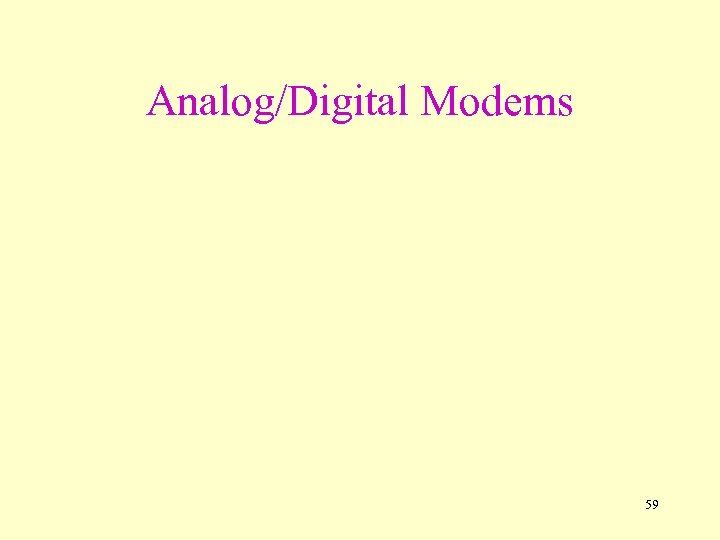

Analog/Digital Modems 59

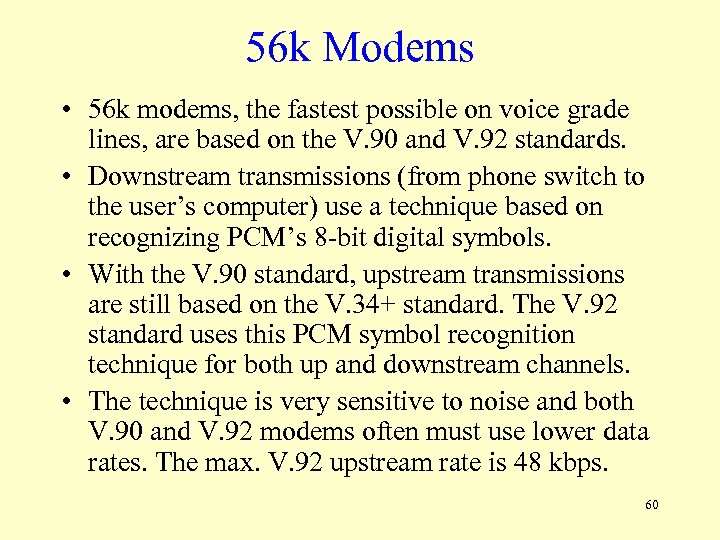

56 k Modems • 56 k modems, the fastest possible on voice grade lines, are based on the V. 90 and V. 92 standards. • Downstream transmissions (from phone switch to the user’s computer) use a technique based on recognizing PCM’s 8 -bit digital symbols. • With the V. 90 standard, upstream transmissions are still based on the V. 34+ standard. The V. 92 standard uses this PCM symbol recognition technique for both up and downstream channels. • The technique is very sensitive to noise and both V. 90 and V. 92 modems often must use lower data rates. The max. V. 92 upstream rate is 48 kbps. 60

Multiplexing 61

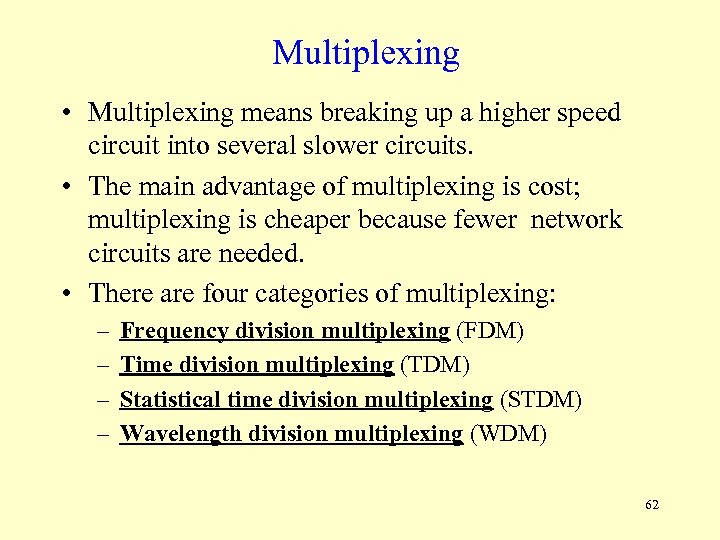

Multiplexing • Multiplexing means breaking up a higher speed circuit into several slower circuits. • The main advantage of multiplexing is cost; multiplexing is cheaper because fewer network circuits are needed. • There are four categories of multiplexing: – – Frequency division multiplexing (FDM) Time division multiplexing (TDM) Statistical time division multiplexing (STDM) Wavelength division multiplexing (WDM) 62

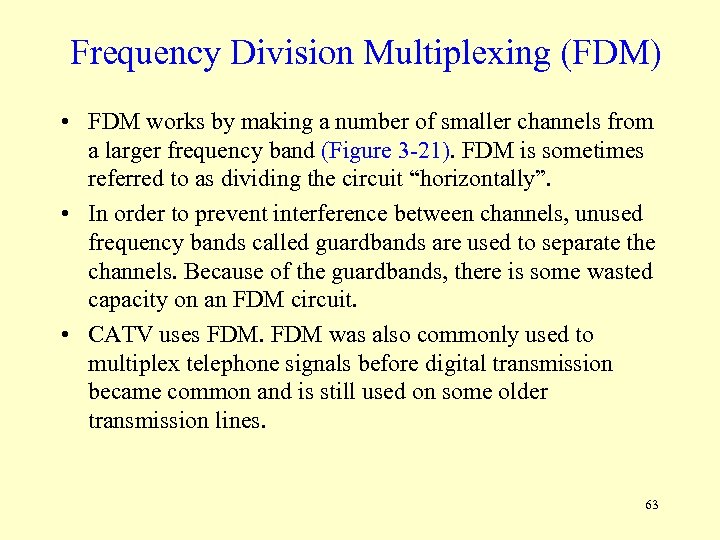

Frequency Division Multiplexing (FDM) • FDM works by making a number of smaller channels from a larger frequency band (Figure 3 -21). FDM is sometimes referred to as dividing the circuit “horizontally”. • In order to prevent interference between channels, unused frequency bands called guardbands are used to separate the channels. Because of the guardbands, there is some wasted capacity on an FDM circuit. • CATV uses FDM was also commonly used to multiplex telephone signals before digital transmission became common and is still used on some older transmission lines. 63

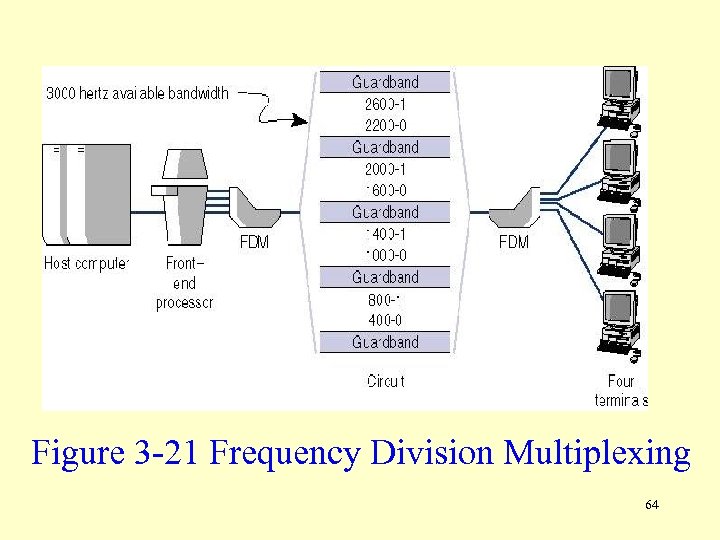

Figure 3 -21 Frequency Division Multiplexing 64

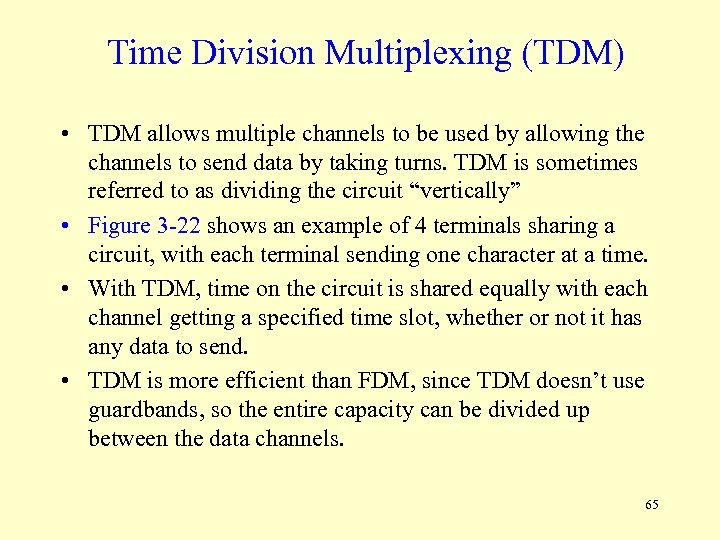

Time Division Multiplexing (TDM) • TDM allows multiple channels to be used by allowing the channels to send data by taking turns. TDM is sometimes referred to as dividing the circuit “vertically” • Figure 3 -22 shows an example of 4 terminals sharing a circuit, with each terminal sending one character at a time. • With TDM, time on the circuit is shared equally with each channel getting a specified time slot, whether or not it has any data to send. • TDM is more efficient than FDM, since TDM doesn’t use guardbands, so the entire capacity can be divided up between the data channels. 65

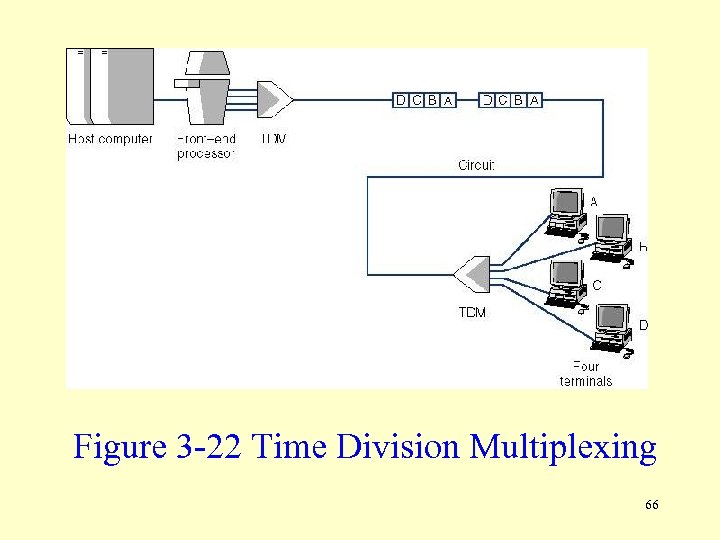

Figure 3 -22 Time Division Multiplexing 66

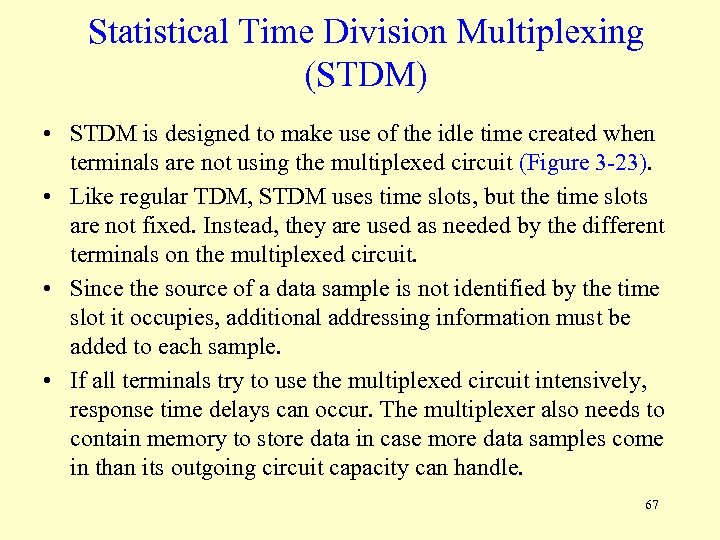

Statistical Time Division Multiplexing (STDM) • STDM is designed to make use of the idle time created when terminals are not using the multiplexed circuit (Figure 3 -23). • Like regular TDM, STDM uses time slots, but the time slots are not fixed. Instead, they are used as needed by the different terminals on the multiplexed circuit. • Since the source of a data sample is not identified by the time slot it occupies, additional addressing information must be added to each sample. • If all terminals try to use the multiplexed circuit intensively, response time delays can occur. The multiplexer also needs to contain memory to store data in case more data samples come in than its outgoing circuit capacity can handle. 67

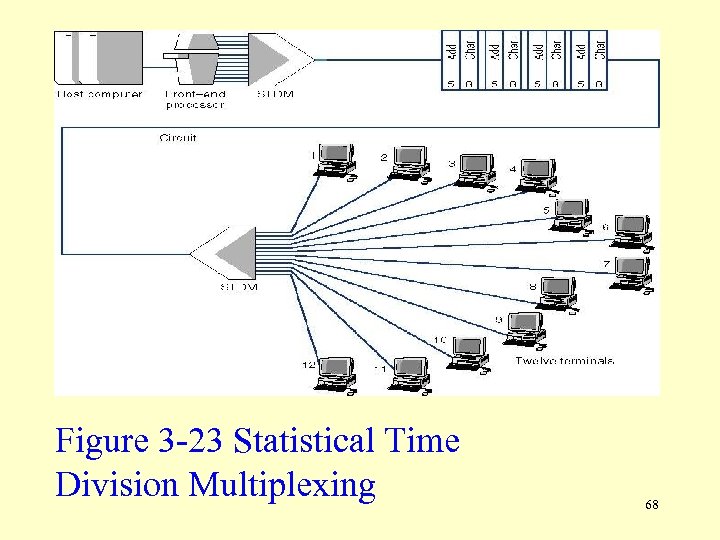

Figure 3 -23 Statistical Time Division Multiplexing 68

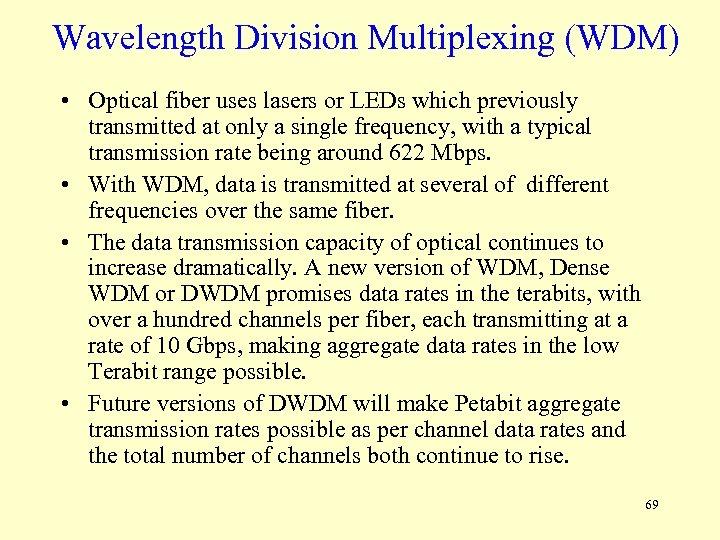

Wavelength Division Multiplexing (WDM) • Optical fiber uses lasers or LEDs which previously transmitted at only a single frequency, with a typical transmission rate being around 622 Mbps. • With WDM, data is transmitted at several of different frequencies over the same fiber. • The data transmission capacity of optical continues to increase dramatically. A new version of WDM, Dense WDM or DWDM promises data rates in the terabits, with over a hundred channels per fiber, each transmitting at a rate of 10 Gbps, making aggregate data rates in the low Terabit range possible. • Future versions of DWDM will make Petabit aggregate transmission rates possible as per channel data rates and the total number of channels both continue to rise. 69

Inverse Multiplexing (Figure 3 -24) • Instead of using a single line, an inverse multiplexer (IMUX) shares the load by sending multiplexed data over two or more lines. • For example, two T-1 lines can be used to send data, creating a combined multiplexed capacity of 2 x 1. 544 = 3. 088 Mbps. • A recent IMUX standard, the Bandwidth ON Demand Network Interoperability Group (BONDING) standard, is often used for videoconferencing applications. With the BONDING standard, 6 64 kbps lines can be combined to create an aggregate line of 384 kbps for transmitting video. 70

Figure 3 -24. Inverse Multiplexing 71

How DSL Transmits Data • Digital Subscriber Line is becoming popular as a way to increase data rates in the local loop. • Instead of using the 0 -4000 k. Hz voice channel, DSL uses the physical capacity of the copper phone lines of up to 1 MHz. • The 1 MHz capacity is split into: 1) a 4 k. Hz voice channel, 2) an upstream and 3) a downstream channels. • There are several versions of DSL, with the main differences being how much of the bandwidth is allocated between the upstream and downstream channels. • One form of DSL, G. Lite provides a 4 Khz voice channel, 384 kbps upstream and 1. 5 Mbps downstream (provided line conditions are optimal). (a. k. a. ADSL or asymmetrical) 72
