Chapter 3 Database Support in Data Mining Types

Chapter 3 Database Support in Data Mining Types of database systems How relate to data mining

結束 Contents Describes data warehousing and related database system. Discusses feature of data found in data warehouse Describes how data warehouses are typically implemented and operated Defines metadata in the context of data warehouses Show different data systems are typically used in data mining Provides real examples of database systems used in data mining Discusses the concept of data quality Reviews the database software market 3 -2

結束 Data management Retail organization generate masses of data that require very advanced data storage system. Wal-Mart relied on modern data management to engage with SCM. The manipulation of data is a key element in the data mining process. Data mining and other analysis can draw upon data collected in internal systems and external sources. 3 -3

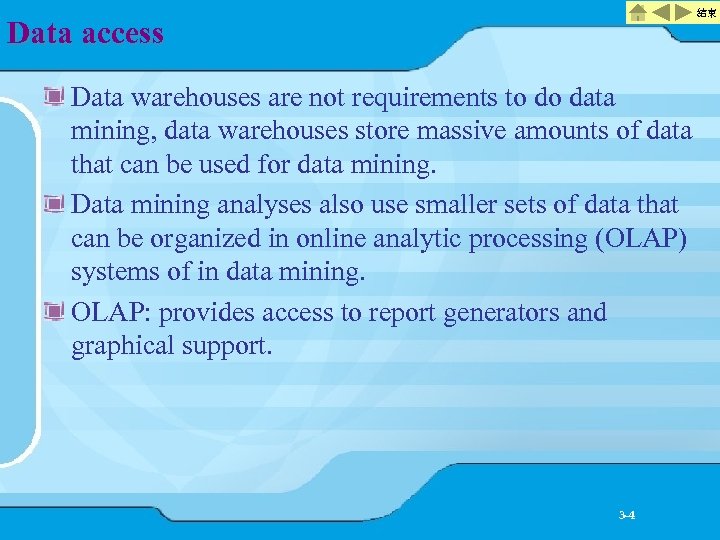

結束 Data access Data warehouses are not requirements to do data mining, data warehouses store massive amounts of data that can be used for data mining. Data mining analyses also use smaller sets of data that can be organized in online analytic processing (OLAP) systems of in data mining. OLAP: provides access to report generators and graphical support. 3 -4

結束 Contemporary Database Gain competitive advantage Øcustomer information systems üdata mining Develop and market new products ümicromarketing 3 -5

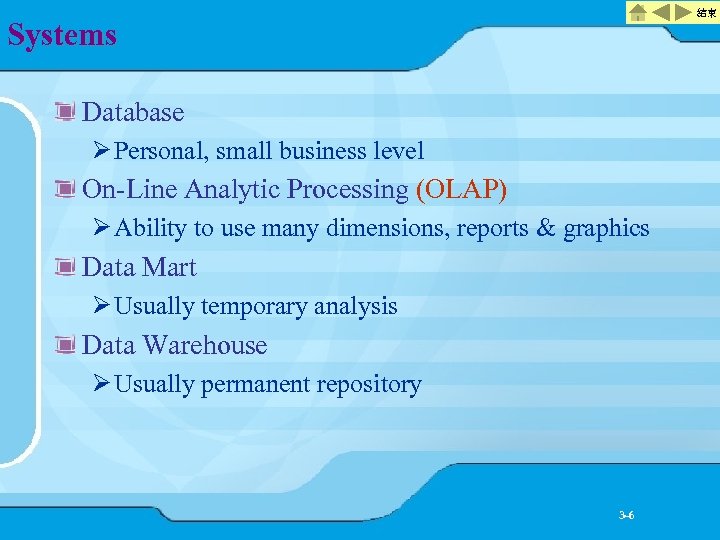

結束 Systems Database Ø Personal, small business level On-Line Analytic Processing (OLAP) Ø Ability to use many dimensions, reports & graphics Data Mart Ø Usually temporary analysis Data Warehouse Ø Usually permanent repository 3 -6

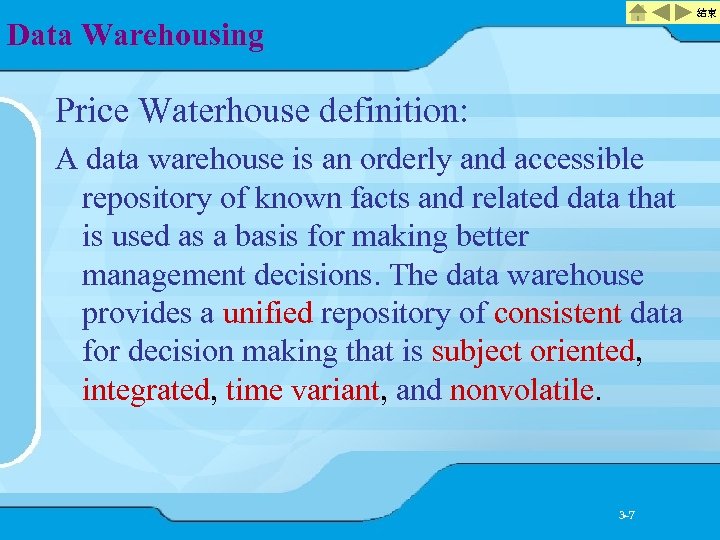

結束 Data Warehousing Price Waterhouse definition: A data warehouse is an orderly and accessible repository of known facts and related data that is used as a basis for making better management decisions. The data warehouse provides a unified repository of consistent data for decision making that is subject oriented, integrated, time variant, and nonvolatile. 3 -7

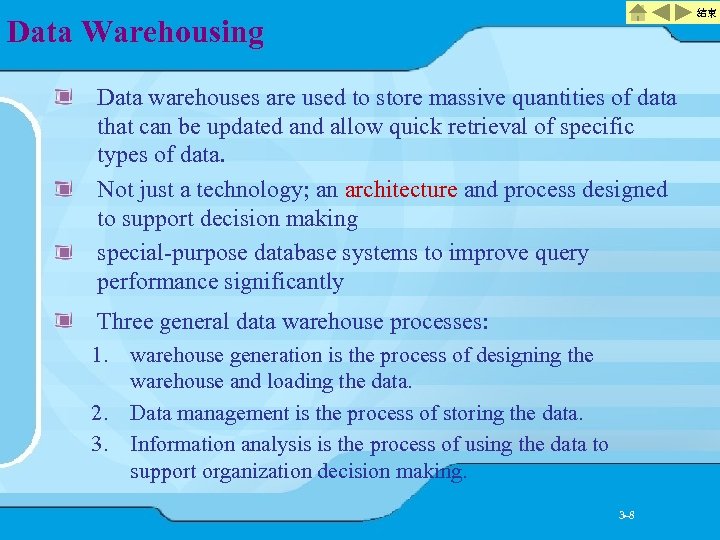

結束 Data Warehousing Data warehouses are used to store massive quantities of data that can be updated and allow quick retrieval of specific types of data. Not just a technology; an architecture and process designed to support decision making special-purpose database systems to improve query performance significantly Three general data warehouse processes: 1. warehouse generation is the process of designing the warehouse and loading the data. 2. Data management is the process of storing the data. 3. Information analysis is the process of using the data to support organization decision making. 3 -8

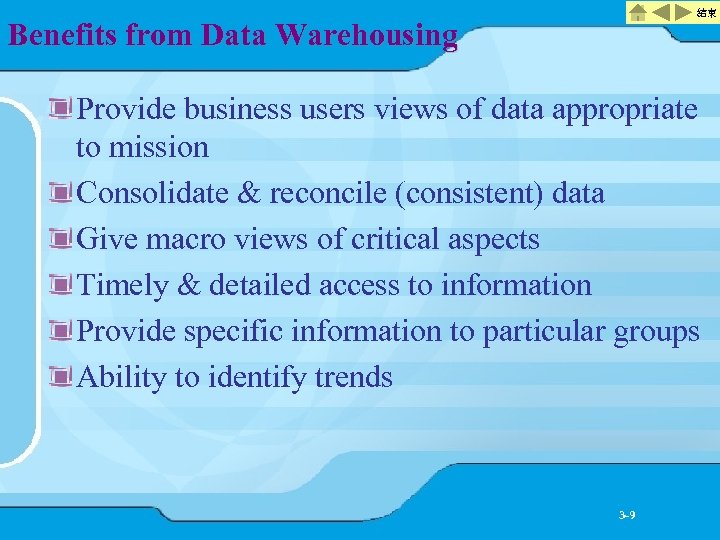

結束 Benefits from Data Warehousing Provide business users views of data appropriate to mission Consolidate & reconcile (consistent) data Give macro views of critical aspects Timely & detailed access to information Provide specific information to particular groups Ability to identify trends 3 -9

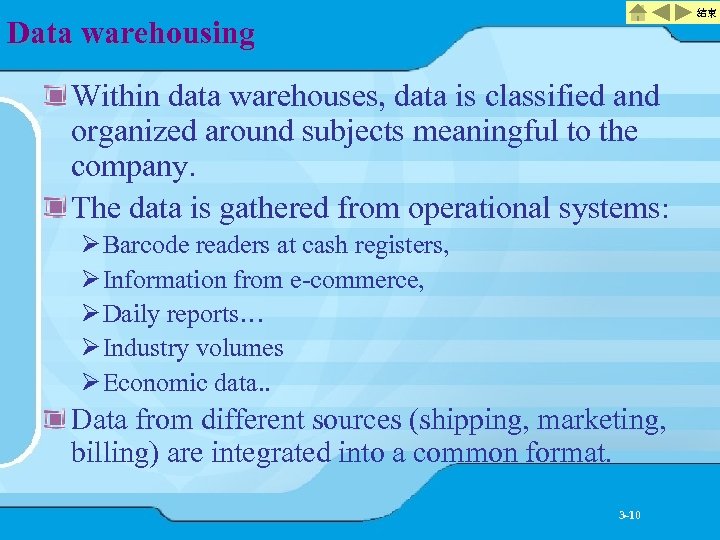

結束 Data warehousing Within data warehouses, data is classified and organized around subjects meaningful to the company. The data is gathered from operational systems: Ø Barcode readers at cash registers, Ø Information from e-commerce, Ø Daily reports… Ø Industry volumes Ø Economic data. . Data from different sources (shipping, marketing, billing) are integrated into a common format. 3 -10

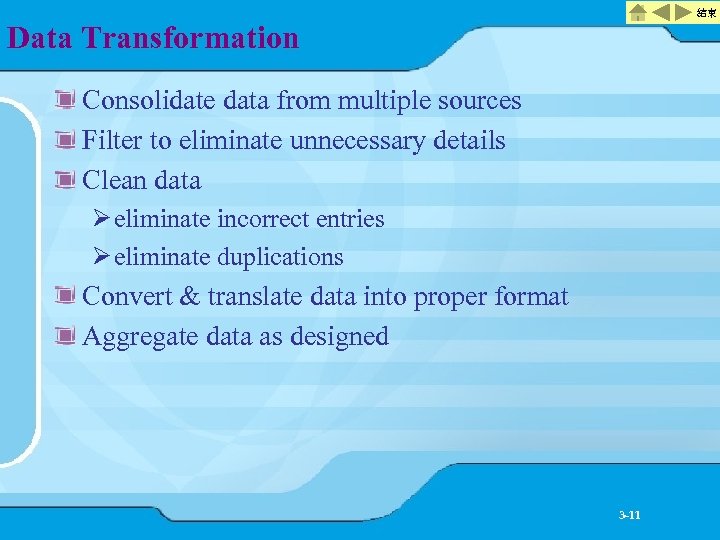

結束 Data Transformation Consolidate data from multiple sources Filter to eliminate unnecessary details Clean data Ø eliminate incorrect entries Ø eliminate duplications Convert & translate data into proper format Aggregate data as designed 3 -11

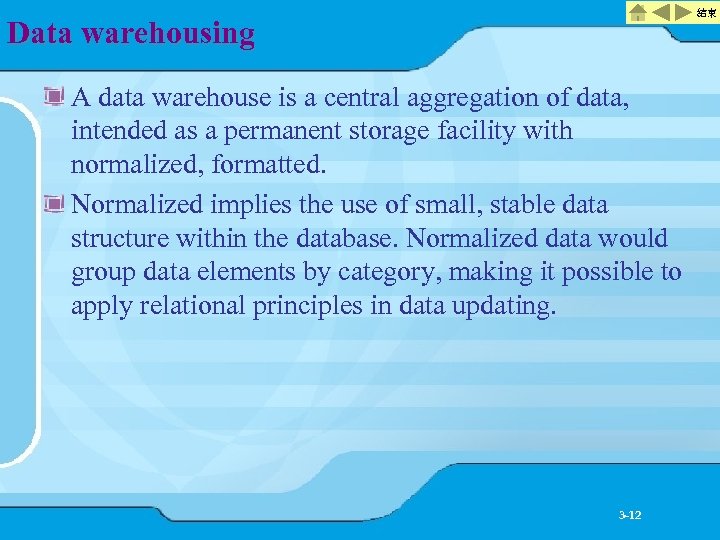

結束 Data warehousing A data warehouse is a central aggregation of data, intended as a permanent storage facility with normalized, formatted. Normalized implies the use of small, stable data structure within the database. Normalized data would group data elements by category, making it possible to apply relational principles in data updating. 3 -12

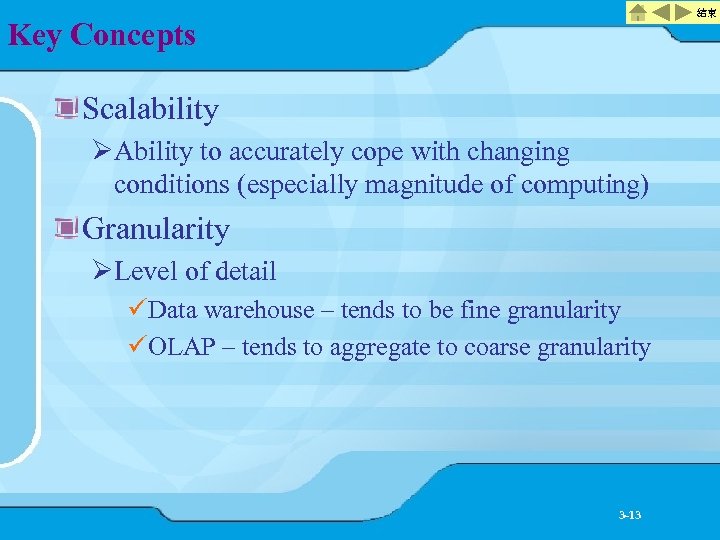

結束 Key Concepts Scalability ØAbility to accurately cope with changing conditions (especially magnitude of computing) Granularity ØLevel of detail üData warehouse – tends to be fine granularity üOLAP – tends to aggregate to coarse granularity 3 -13

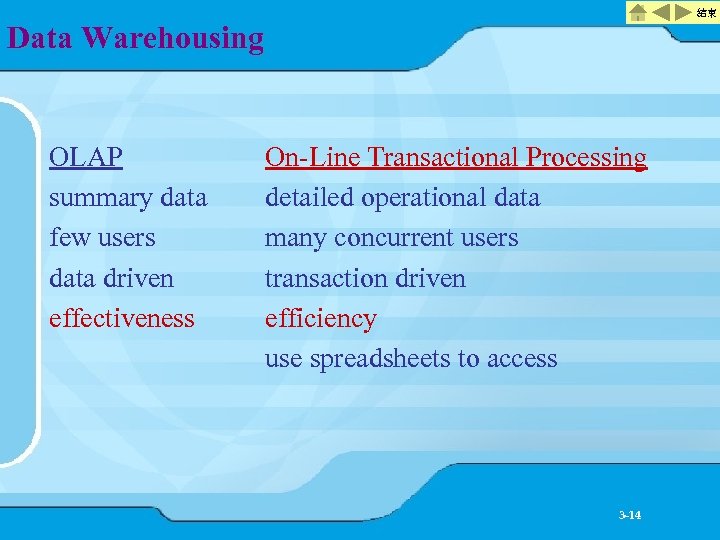

結束 Data Warehousing OLAP summary data few users data driven effectiveness On-Line Transactional Processing detailed operational data many concurrent users transaction driven efficiency use spreadsheets to access 3 -14

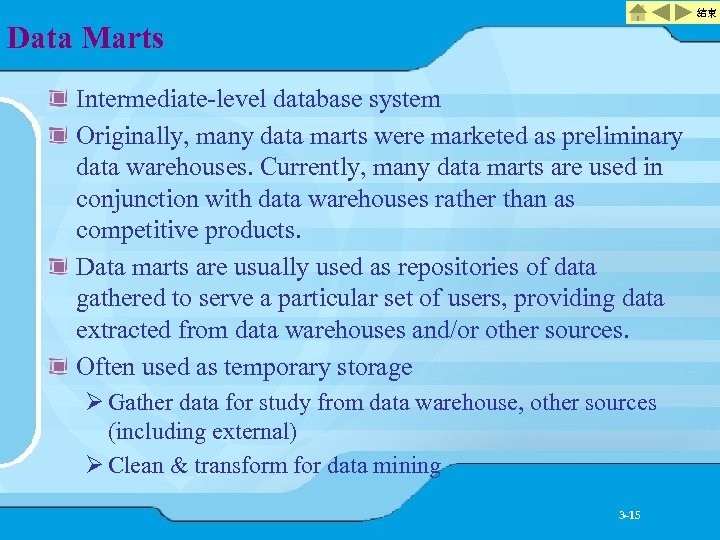

結束 Data Marts Intermediate-level database system Originally, many data marts were marketed as preliminary data warehouses. Currently, many data marts are used in conjunction with data warehouses rather than as competitive products. Data marts are usually used as repositories of data gathered to serve a particular set of users, providing data extracted from data warehouses and/or other sources. Often used as temporary storage Ø Gather data for study from data warehouse, other sources (including external) Ø Clean & transform for data mining 3 -15

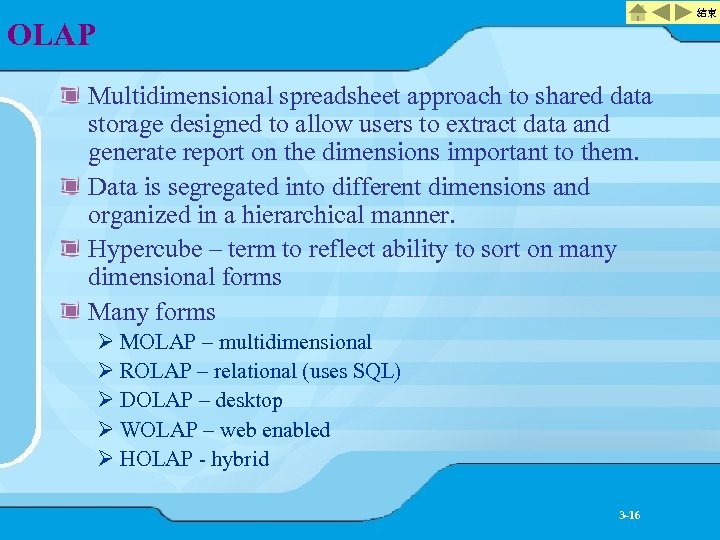

結束 OLAP Multidimensional spreadsheet approach to shared data storage designed to allow users to extract data and generate report on the dimensions important to them. Data is segregated into different dimensions and organized in a hierarchical manner. Hypercube – term to reflect ability to sort on many dimensional forms Many forms Ø MOLAP – multidimensional Ø ROLAP – relational (uses SQL) Ø DOLAP – desktop Ø WOLAP – web enabled Ø HOLAP - hybrid 3 -16

結束 OLAP One function of OLAP is standard report generation, including financial performance analysis on selected dimensions (such as by department, geographical region, product, salesperson, time…). Supporting the planning and forecasting projects using spreadsheet analytic tools. An OLAP product including a data warehouse, an OLAP server, and a client server on a local area network (LAN). OLAP functions – see page. 37 3 -17

結束 Relationships of database and DM Data warehouses are not required for data mining, nor are OLAP system. However, the existence of either presents many opportunities to data mining. 3 -18

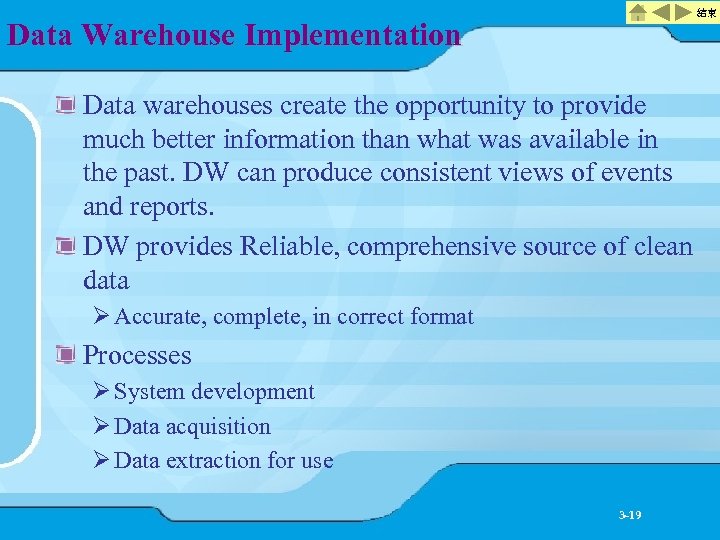

結束 Data Warehouse Implementation Data warehouses create the opportunity to provide much better information than what was available in the past. DW can produce consistent views of events and reports. DW provides Reliable, comprehensive source of clean data Ø Accurate, complete, in correct format Processes Ø System development Ø Data acquisition Ø Data extraction for use 3 -19

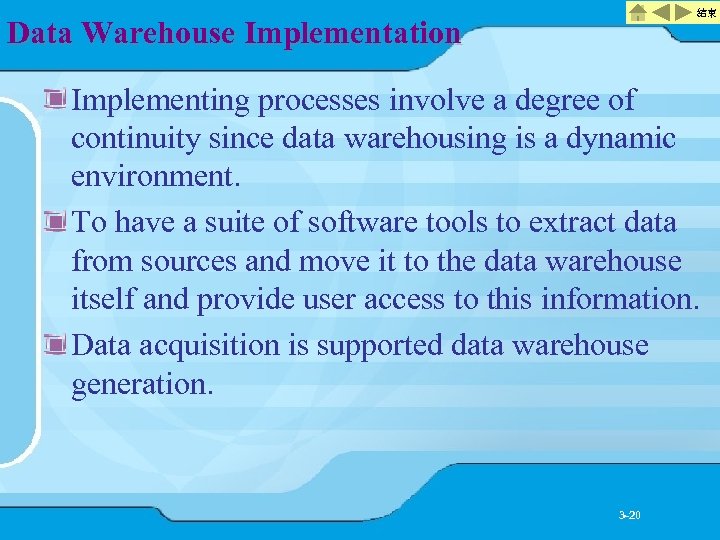

結束 Data Warehouse Implementation Implementing processes involve a degree of continuity since data warehousing is a dynamic environment. To have a suite of software tools to extract data from sources and move it to the data warehouse itself and provide user access to this information. Data acquisition is supported data warehouse generation. 3 -20

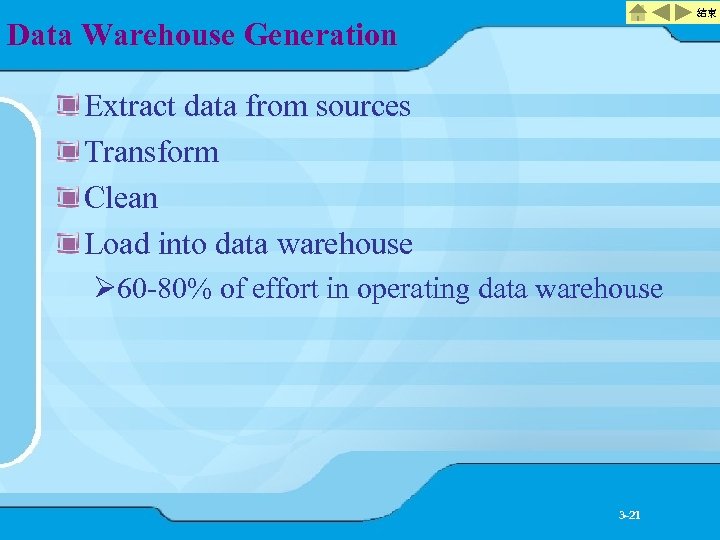

結束 Data Warehouse Generation Extract data from sources Transform Clean Load into data warehouse Ø 60 -80% of effort in operating data warehouse 3 -21

結束 Data Extraction Routines Extraction programs are executed periodically to obtain records, and copy the information to an intermediate file. Data extraction routines: ØInterpret data formats ØIdentify changed records ØCopy information to intermediate file 3 -22

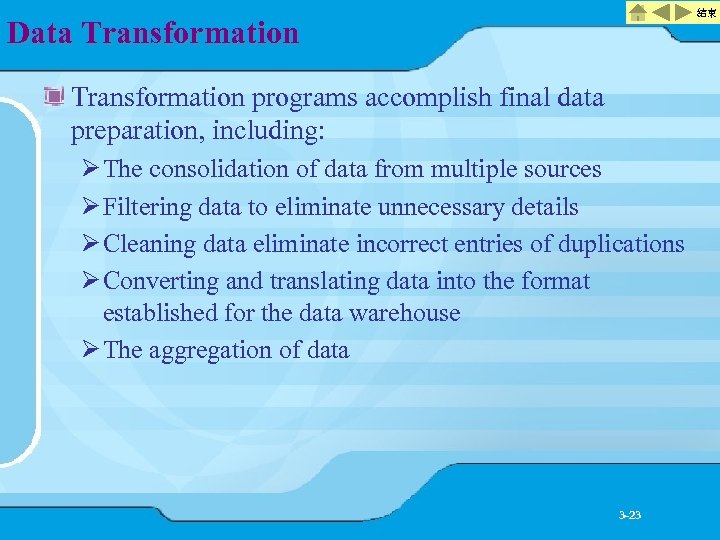

結束 Data Transformation programs accomplish final data preparation, including: Ø The consolidation of data from multiple sources Ø Filtering data to eliminate unnecessary details Ø Cleaning data eliminate incorrect entries of duplications Ø Converting and translating data into the format established for the data warehouse Ø The aggregation of data 3 -23

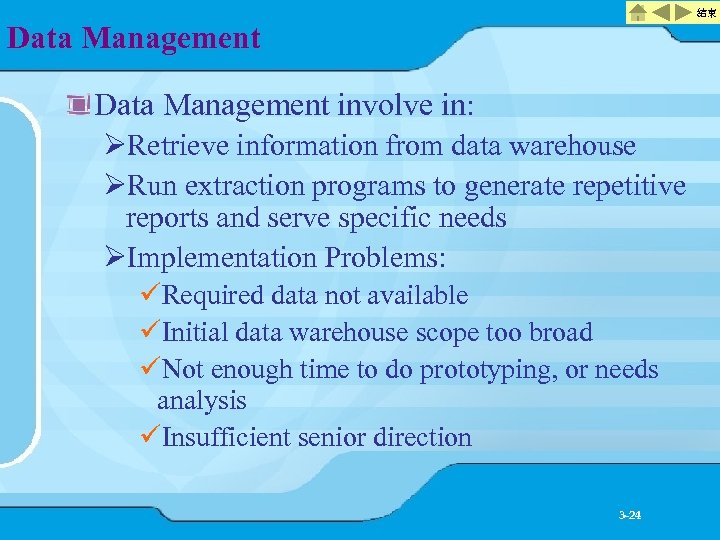

結束 Data Management involve in: ØRetrieve information from data warehouse ØRun extraction programs to generate repetitive reports and serve specific needs ØImplementation Problems: üRequired data not available üInitial data warehouse scope too broad üNot enough time to do prototyping, or needs analysis üInsufficient senior direction 3 -24

結束 Meta Data warehouse management vs. data management: Ø Data management concerns the management of all of the enterprise’s data. Ø Data warehouse management refers to the designs and operation of the data warehouse through all phases of its life cycle. Ø Manage meta data Ø Design data warehouse Ø Ensure data quality Ø Manage system during operations 3 -25

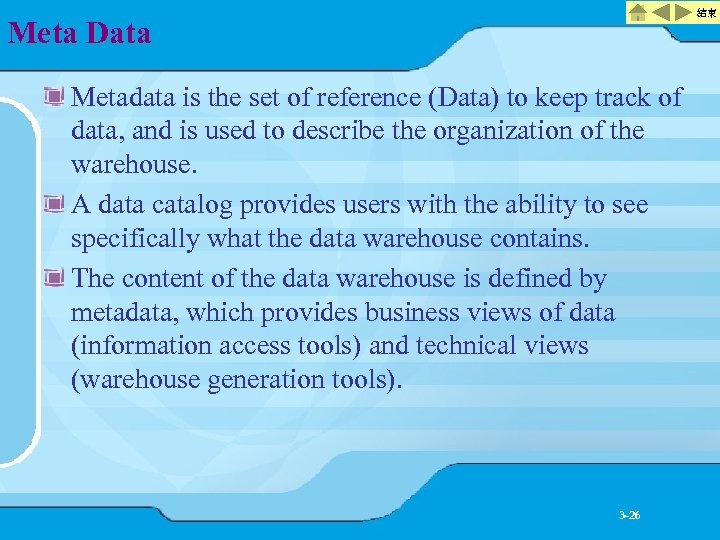

結束 Meta Data Metadata is the set of reference (Data) to keep track of data, and is used to describe the organization of the warehouse. A data catalog provides users with the ability to see specifically what the data warehouse contains. The content of the data warehouse is defined by metadata, which provides business views of data (information access tools) and technical views (warehouse generation tools). 3 -26

結束 Business Metadata What data are available Source of each data element Frequency of data updates Location of specific data Predefined reports & queries Methods of data access 3 -27

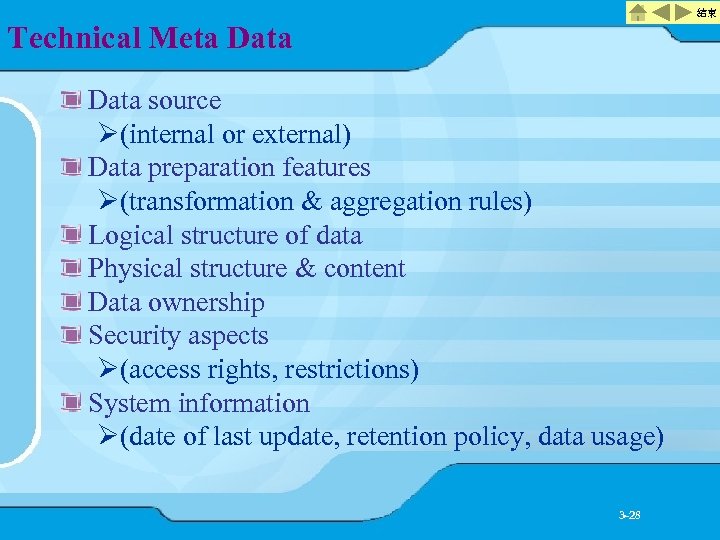

結束 Technical Meta Data source Ø(internal or external) Data preparation features Ø(transformation & aggregation rules) Logical structure of data Physical structure & content Data ownership Security aspects Ø(access rights, restrictions) System information Ø(date of last update, retention policy, data usage) 3 -28

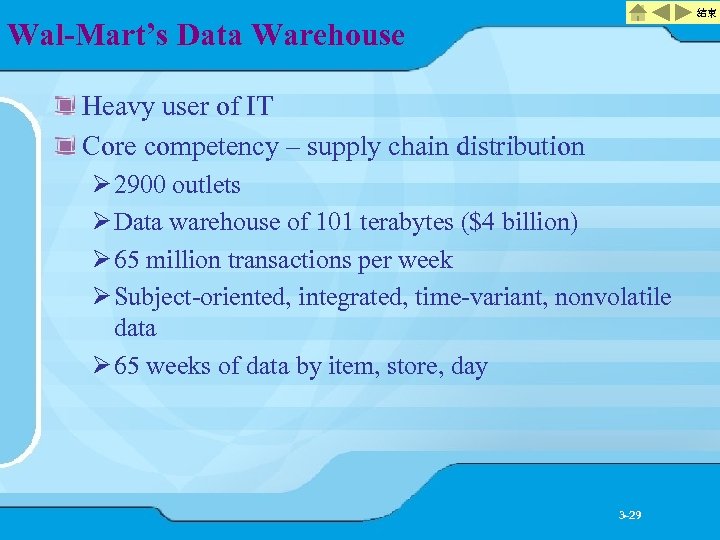

結束 Wal-Mart’s Data Warehouse Heavy user of IT Core competency – supply chain distribution Ø 2900 outlets Ø Data warehouse of 101 terabytes ($4 billion) Ø 65 million transactions per week Ø Subject-oriented, integrated, time-variant, nonvolatile data Ø 65 weeks of data by item, store, day 3 -29

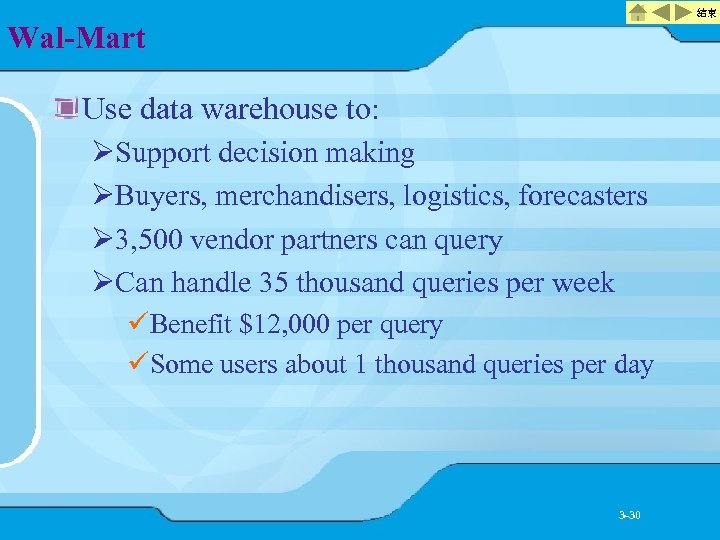

結束 Wal-Mart Use data warehouse to: ØSupport decision making ØBuyers, merchandisers, logistics, forecasters Ø 3, 500 vendor partners can query ØCan handle 35 thousand queries per week üBenefit $12, 000 per query üSome users about 1 thousand queries per day 3 -30

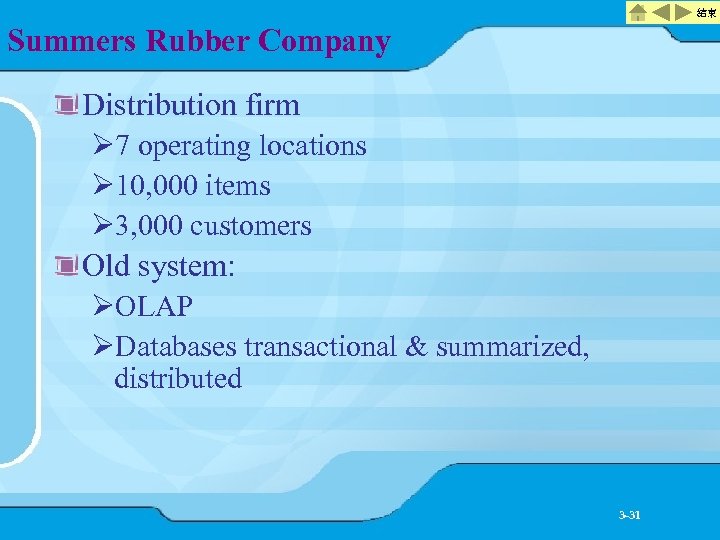

結束 Summers Rubber Company Distribution firm Ø 7 operating locations Ø 10, 000 items Ø 3, 000 customers Old system: ØOLAP ØDatabases transactional & summarized, distributed 3 -31

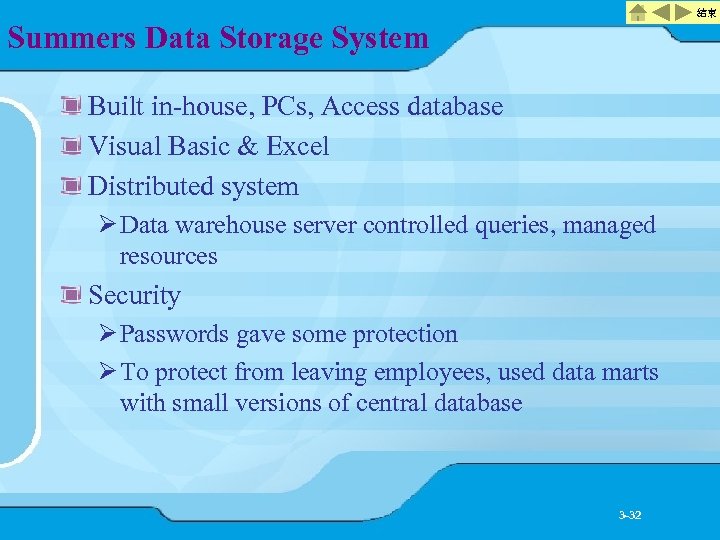

結束 Summers Data Storage System Built in-house, PCs, Access database Visual Basic & Excel Distributed system Ø Data warehouse server controlled queries, managed resources Security Ø Passwords gave some protection Ø To protect from leaving employees, used data marts with small versions of central database 3 -32

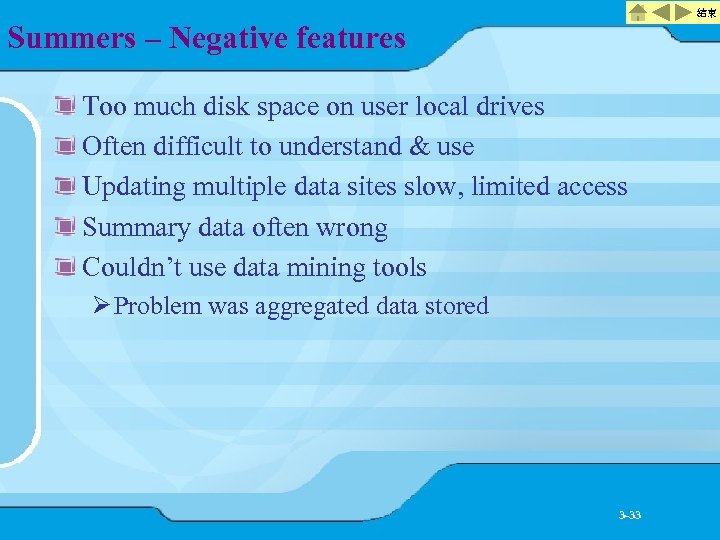

結束 Summers – Negative features Too much disk space on user local drives Often difficult to understand & use Updating multiple data sites slow, limited access Summary data often wrong Couldn’t use data mining tools Ø Problem was aggregated data stored 3 -33

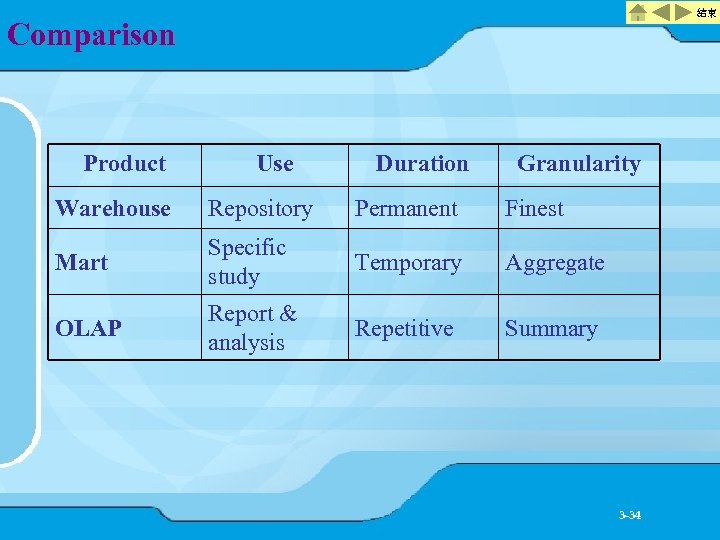

結束 Comparison Product Use Duration Granularity Warehouse Repository Permanent Finest Mart Specific study Temporary Aggregate OLAP Report & analysis Repetitive Summary 3 -34

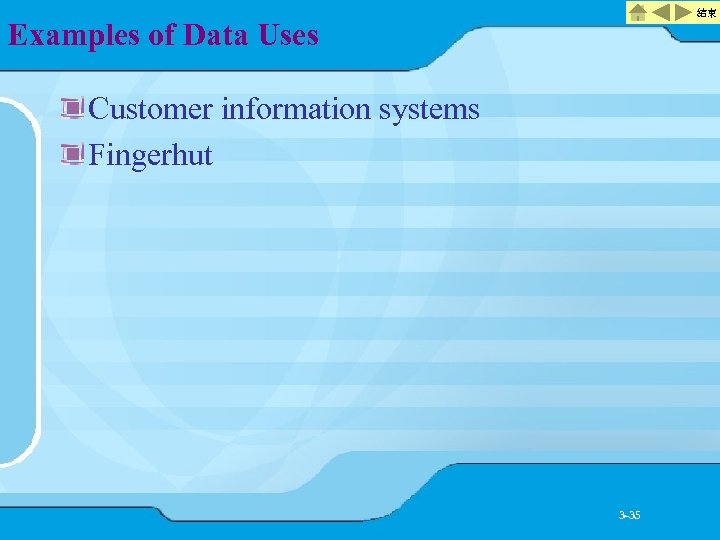

結束 Examples of Data Uses Customer information systems Fingerhut 3 -35

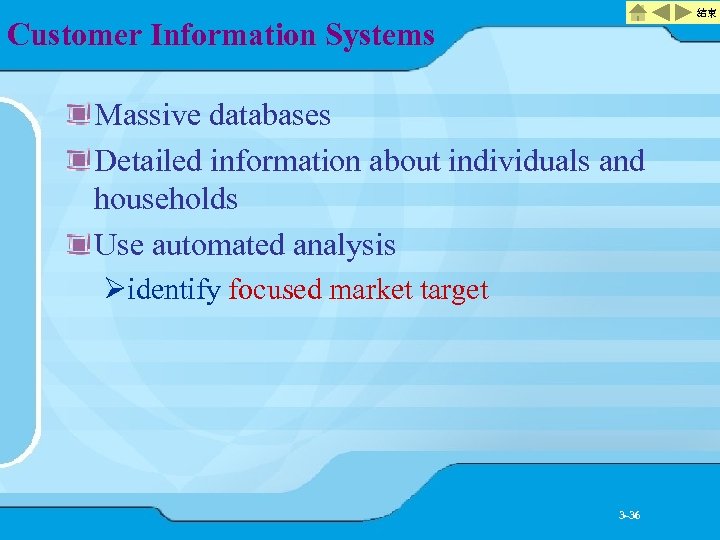

結束 Customer Information Systems Massive databases Detailed information about individuals and households Use automated analysis Øidentify focused market target 3 -36

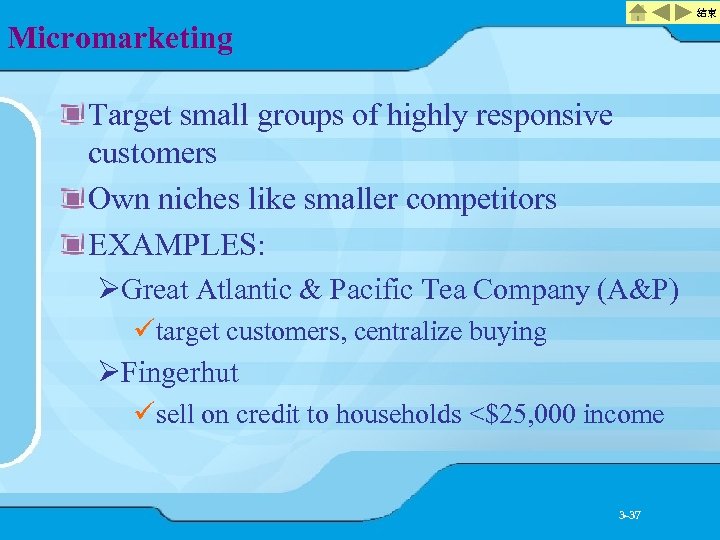

結束 Micromarketing Target small groups of highly responsive customers Own niches like smaller competitors EXAMPLES: ØGreat Atlantic & Pacific Tea Company (A&P) ütarget customers, centralize buying ØFingerhut üsell on credit to households <$25, 000 income 3 -37

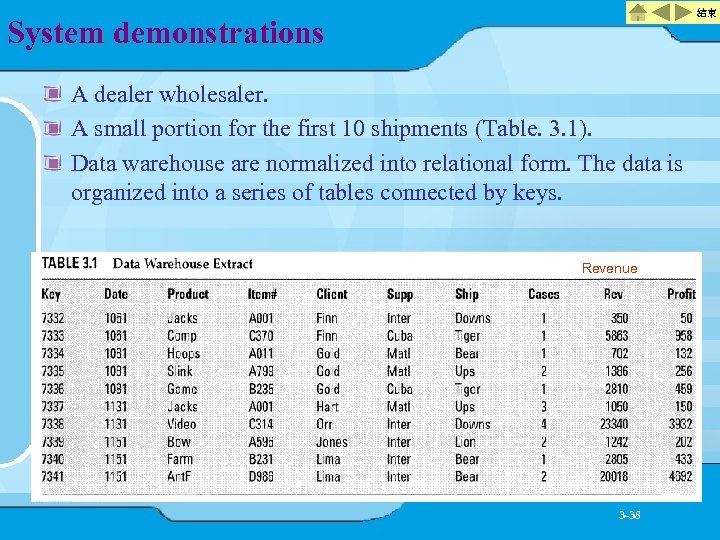

結束 System demonstrations A dealer wholesaler. A small portion for the first 10 shipments (Table. 3. 1). Data warehouse are normalized into relational form. The data is organized into a series of tables connected by keys. Revenue 3 -38

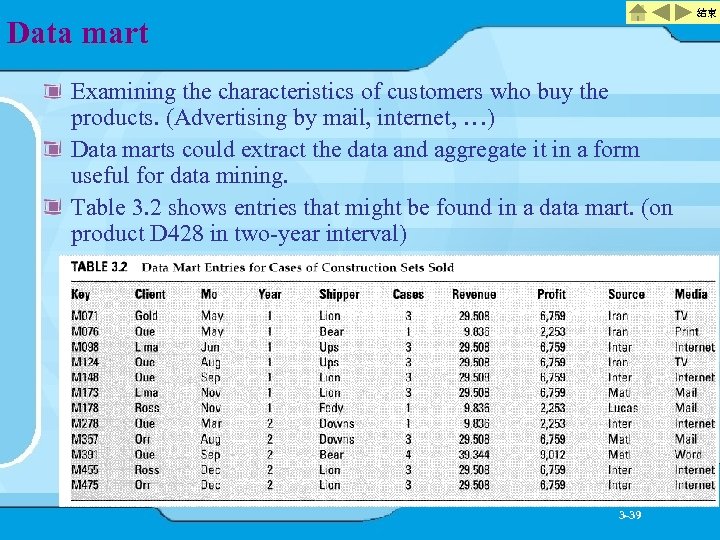

結束 Data mart Examining the characteristics of customers who buy the products. (Advertising by mail, internet, …) Data marts could extract the data and aggregate it in a form useful for data mining. Table 3. 2 shows entries that might be found in a data mart. (on product D 428 in two-year interval) 3 -39

結束 OLAP An OLAP application focuses more on analyzing trends or other aspects of organizational operations. It may obtain much of its information from the data warehouse, but extracts granular information. This information could be accessed to make a report by product category. Table. 3. 3. positive 3 -40

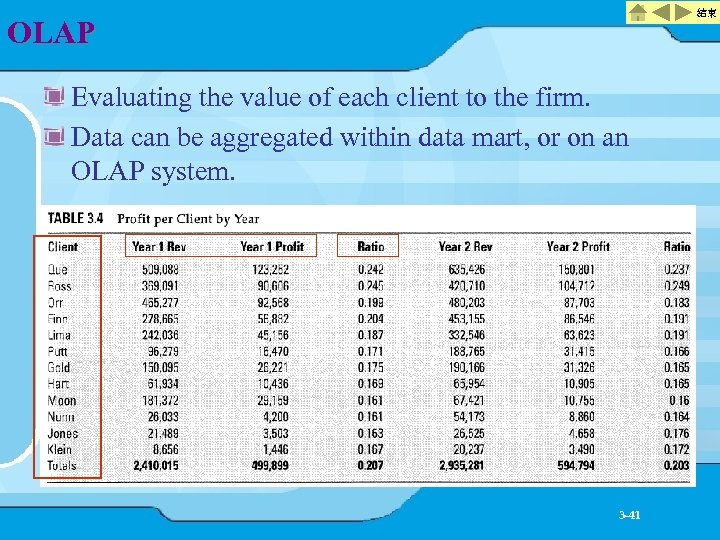

結束 OLAP Evaluating the value of each client to the firm. Data can be aggregated within data mart, or on an OLAP system. 3 -41

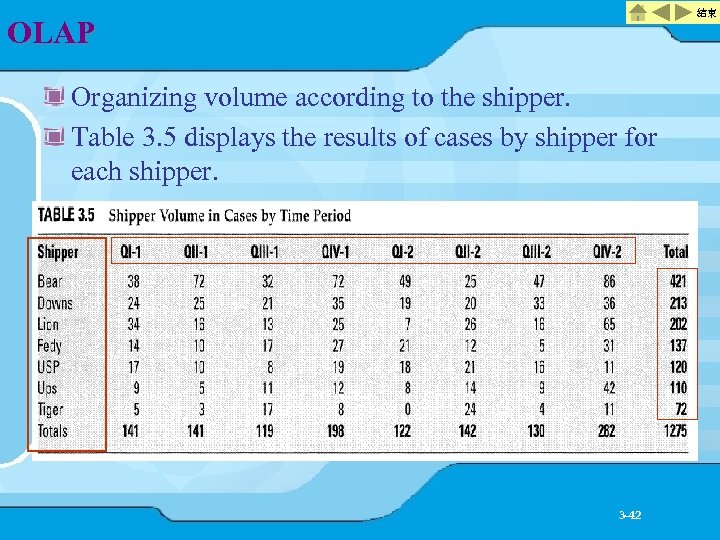

結束 OLAP Organizing volume according to the shipper. Table 3. 5 displays the results of cases by shipper for each shipper. 3 -42

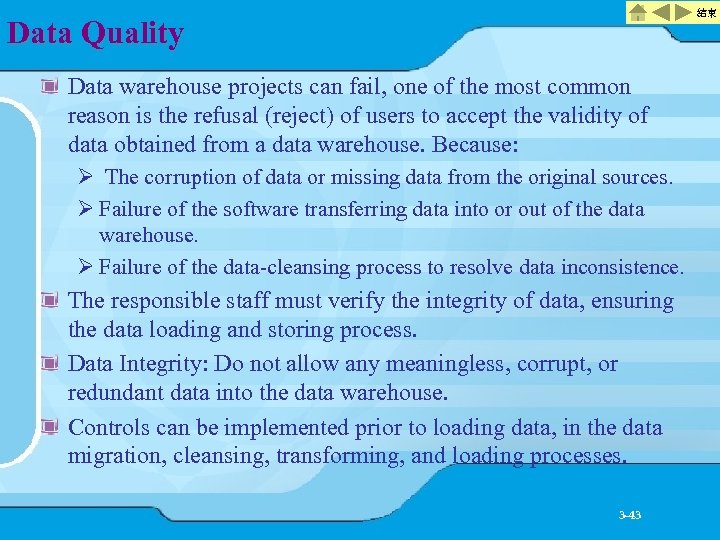

結束 Data Quality Data warehouse projects can fail, one of the most common reason is the refusal (reject) of users to accept the validity of data obtained from a data warehouse. Because: Ø The corruption of data or missing data from the original sources. Ø Failure of the software transferring data into or out of the data warehouse. Ø Failure of the data-cleansing process to resolve data inconsistence. The responsible staff must verify the integrity of data, ensuring the data loading and storing process. Data Integrity: Do not allow any meaningless, corrupt, or redundant data into the data warehouse. Controls can be implemented prior to loading data, in the data migration, cleansing, transforming, and loading processes. 3 -43

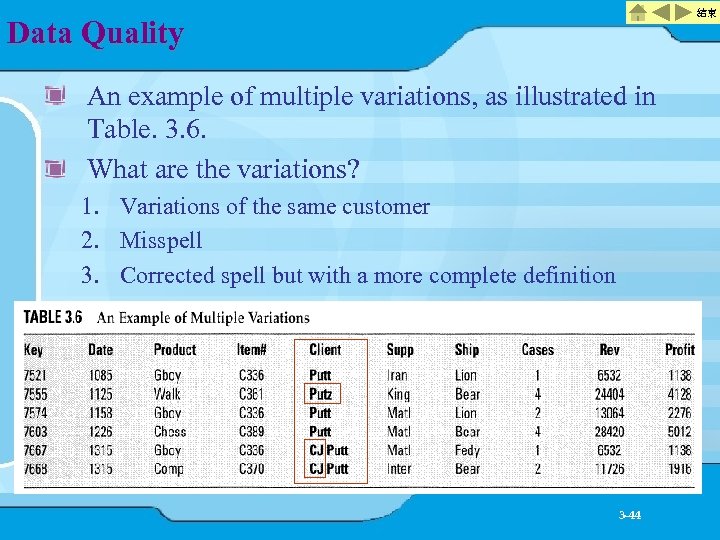

結束 Data Quality An example of multiple variations, as illustrated in Table. 3. 6. What are the variations? 1. Variations of the same customer 2. Misspell 3. Corrected spell but with a more complete definition 3 -44

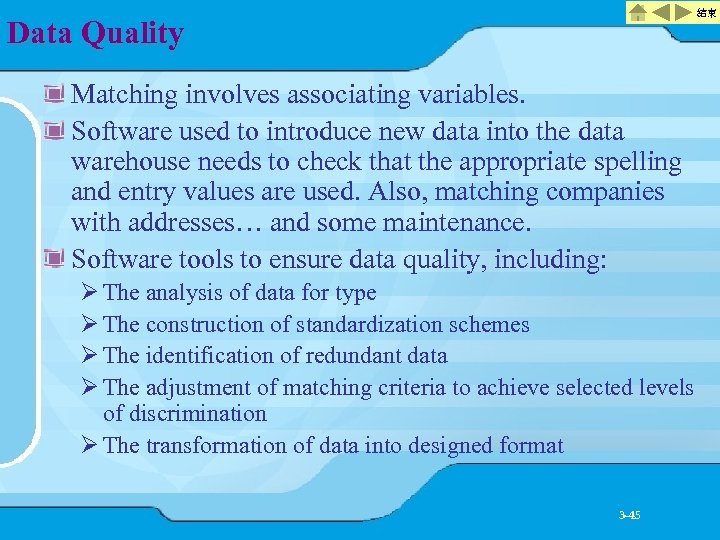

結束 Data Quality Matching involves associating variables. Software used to introduce new data into the data warehouse needs to check that the appropriate spelling and entry values are used. Also, matching companies with addresses… and some maintenance. Software tools to ensure data quality, including: Ø The analysis of data for type Ø The construction of standardization schemes Ø The identification of redundant data Ø The adjustment of matching criteria to achieve selected levels of discrimination Ø The transformation of data into designed format 3 -45

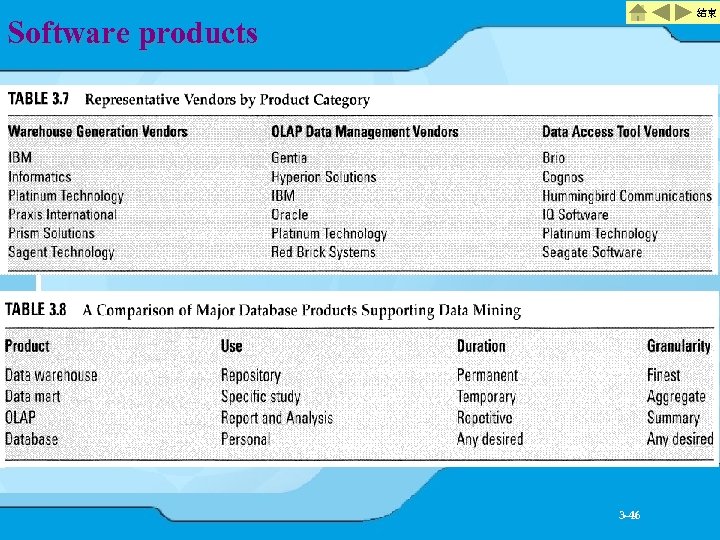

結束 Software products 3 -46
