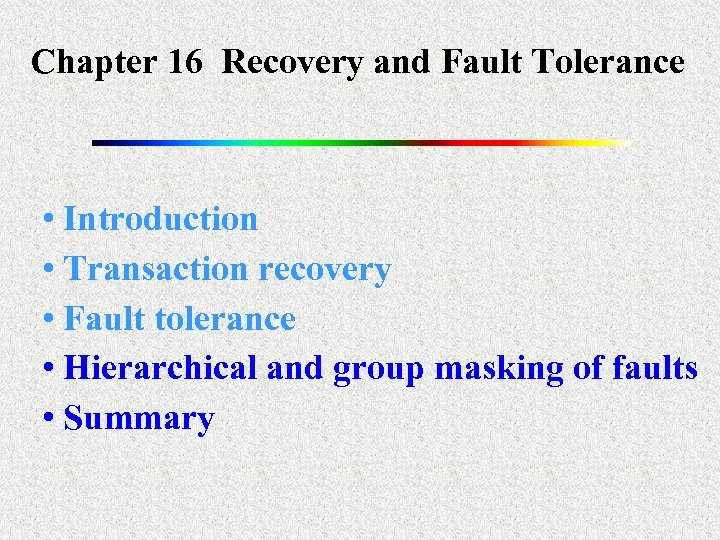

Chapter 16 Recovery and Fault Tolerance • Introduction • Transaction recovery • Fault tolerance Chapter 16 Recovery and Fault Tolerance • Introduction • Transaction recovery • Fault tolerance • Hierarchical and group masking of faults • Summary

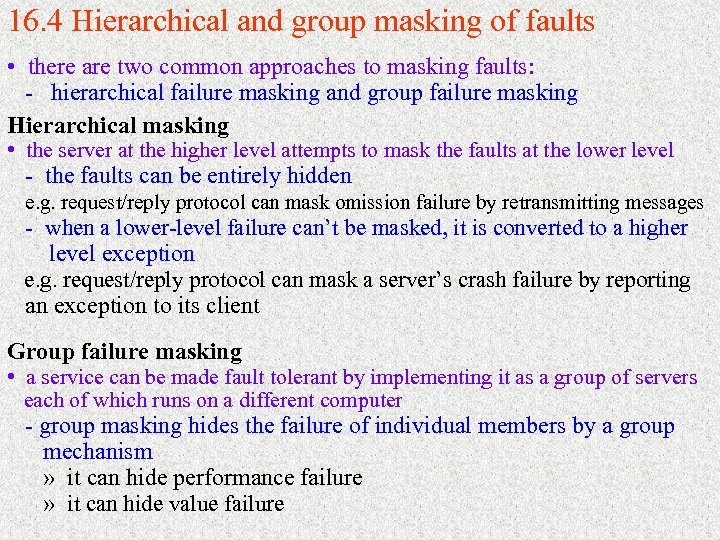

16. 4 Hierarchical and group masking of faults • there are two common approaches 16. 4 Hierarchical and group masking of faults • there are two common approaches to masking faults: - hierarchical failure masking and group failure masking Hierarchical masking • the server at the higher level attempts to mask the faults at the lower level - the faults can be entirely hidden e. g. request/reply protocol can mask omission failure by retransmitting messages - when a lower-level failure can’t be masked, it is converted to a higher level exception e. g. request/reply protocol can mask a server’s crash failure by reporting an exception to its client Group failure masking • a service can be made fault tolerant by implementing it as a group of servers each of which runs on a different computer - group masking hides the failure of individual members by a group mechanism » it can hide performance failure » it can hide value failure

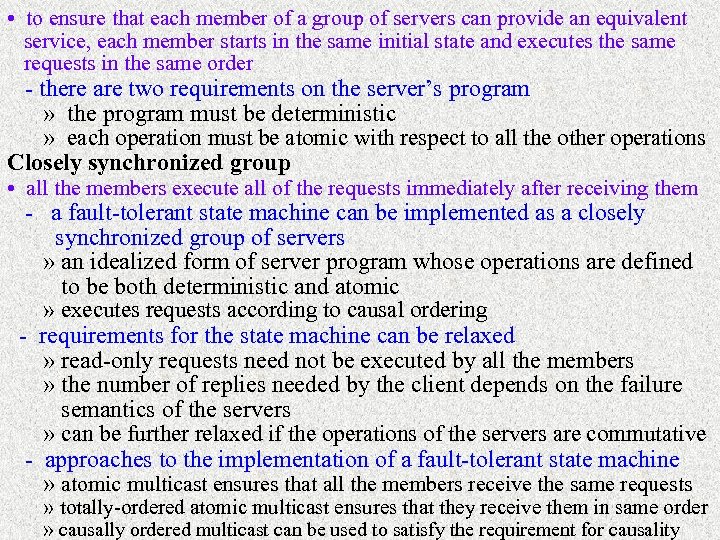

 • to ensure that each member of a group of servers can provide • to ensure that each member of a group of servers can provide an equivalent service, each member starts in the same initial state and executes the same requests in the same order - there are two requirements on the server’s program » the program must be deterministic » each operation must be atomic with respect to all the other operations Closely synchronized group • all the members execute all of the requests immediately after receiving them - a fault-tolerant state machine can be implemented as a closely synchronized group of servers » an idealized form of server program whose operations are defined to be both deterministic and atomic » executes requests according to causal ordering - requirements for the state machine can be relaxed » read-only requests need not be executed by all the members » the number of replies needed by the client depends on the failure semantics of the servers » can be further relaxed if the operations of the servers are commutative - approaches to the implementation of a fault-tolerant state machine » atomic multicast ensures that all the members receive the same requests » totally-ordered atomic multicast ensures that they receive them in same order » causally ordered multicast can be used to satisfy the requirement for causality

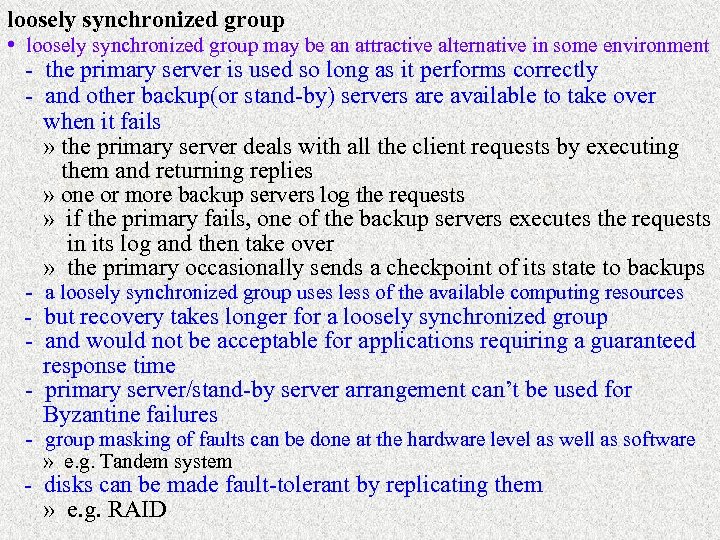

loosely synchronized group • loosely synchronized group may be an attractive alternative in some loosely synchronized group • loosely synchronized group may be an attractive alternative in some environment - the primary server is used so long as it performs correctly - and other backup(or stand-by) servers are available to take over when it fails » the primary server deals with all the client requests by executing them and returning replies » one or more backup servers log the requests » if the primary fails, one of the backup servers executes the requests in its log and then take over » the primary occasionally sends a checkpoint of its state to backups - a loosely synchronized group uses less of the available computing resources - but recovery takes longer for a loosely synchronized group - and would not be acceptable for applications requiring a guaranteed response time - primary server/stand-by server arrangement can’t be used for Byzantine failures - group masking of faults can be done at the hardware level as well as software » e. g. Tandem system - disks can be made fault-tolerant by replicating them » e. g. RAID

Stable storage • an example of group masking at the disk block level - Stable storage • an example of group masking at the disk block level - to ensure that any essential permanent data will be recoverable - uses group masking by duplicating a careful storage service » a careful storage service has only omission failure semantics » Read operation: uses checksum to convert value failures to omission failures » each stable block is represented by two careful disk blocks » Read operation reads one of the pair of stable blocks » enable storage Read operation to mask omission failures - a stable storage service guarantees that the following invariant is maintained: » Not more than one of the pair of blocks is bad » if both are good, they both have the most recent data, except during the execution of a Write operation - when a stable storage server is restarted and the recovery procedure - is invoked, each pair of stable blocks will be in one of the following states: » both good and the same » both good and different » one good, one bad the recovery does the following in each the above cases: » nothing » copies one block of the pair to the other block of the pair; » copies the good block to the bad one

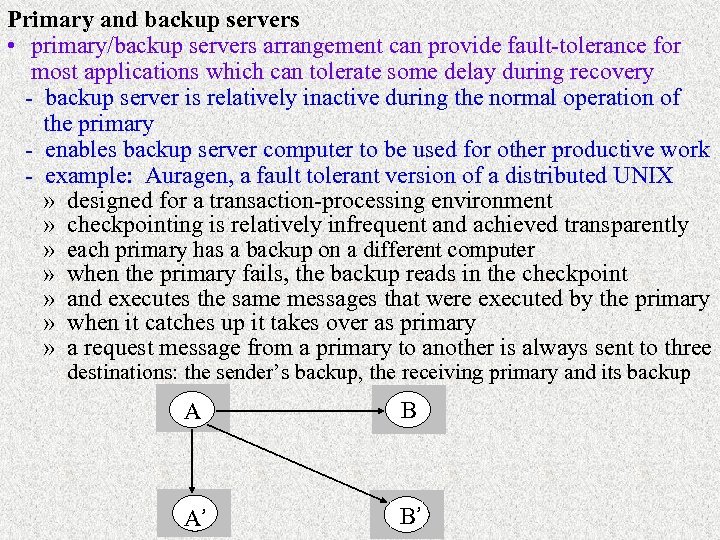

Primary and backup servers • primary/backup servers arrangement can provide fault-tolerance for most applications Primary and backup servers • primary/backup servers arrangement can provide fault-tolerance for most applications which can tolerate some delay during recovery - backup server is relatively inactive during the normal operation of the primary - enables backup server computer to be used for other productive work - example: Auragen, a fault tolerant version of a distributed UNIX » designed for a transaction-processing environment » checkpointing is relatively infrequent and achieved transparently » each primary has a backup on a different computer » when the primary fails, the backup reads in the checkpoint » and executes the same messages that were executed by the primary » when it catches up it takes over as primary » a request message from a primary to another is always sent to three destinations: the sender’s backup, the receiving primary and its backup A B A’ B’

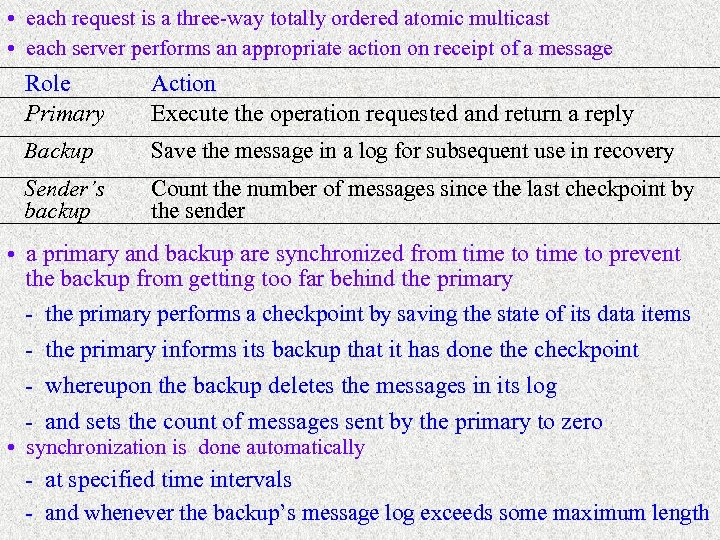

 • each request is a three-way totally ordered atomic multicast • each server • each request is a three-way totally ordered atomic multicast • each server performs an appropriate action on receipt of a message Role Primary Action Execute the operation requested and return a reply Backup Save the message in a log for subsequent use in recovery Sender’s backup Count the number of messages since the last checkpoint by the sender • a primary and backup are synchronized from time to prevent the backup from getting too far behind the primary - the primary performs a checkpoint by saving the state of its data items - the primary informs its backup that it has done the checkpoint - whereupon the backup deletes the messages in its log - and sets the count of messages sent by the primary to zero • synchronization is done automatically - at specified time intervals - and whenever the backup’s message log exceeds some maximum length

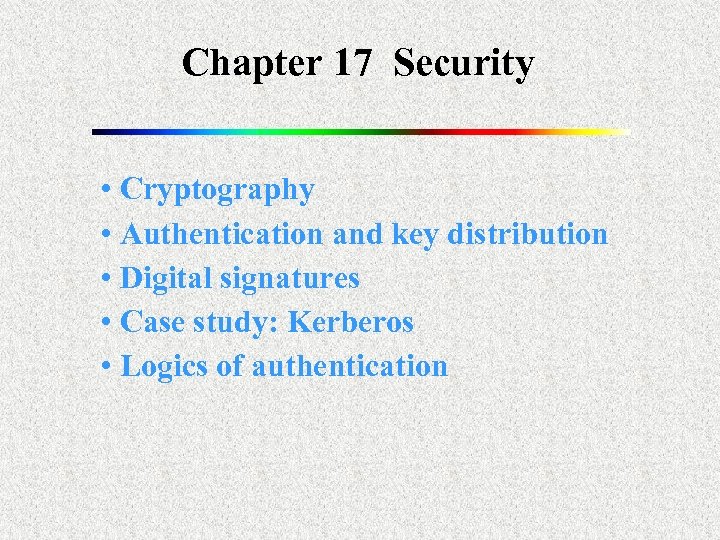

Chapter 17 Security • Cryptography • Authentication and key distribution • Digital signatures • Chapter 17 Security • Cryptography • Authentication and key distribution • Digital signatures • Case study: Kerberos • Logics of authentication

17. 1 Introduction Threats • some threats to security in distributed systems are obvious 17. 1 Introduction Threats • some threats to security in distributed systems are obvious - leakage: the acquisition of information by unauthorized recipients - tampering: the unauthorized alteration of information(including programs) - resource stealing: the use of facilities without authorization - vandalism: interference with the properation of a system without gain to the perpetrator Methods of attack • The methods by which security violations can be perpetrated include: - eavesdropping: obtaining copies of messages without authority - masquerading: sending or receiving messages using the identity of another principal without their authority - message tampering: intercepting messages and altering their contents before passing them on to the intended recipient - replaying: storing messages and sending them at a later date

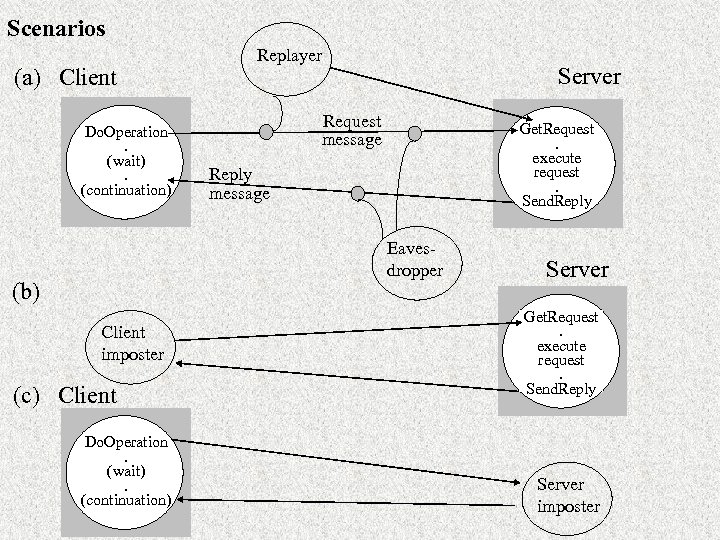

Scenarios (a) Client Do. Operation. (wait). (continuation) Replayer Server Request message Get. Request. execute Scenarios (a) Client Do. Operation. (wait). (continuation) Replayer Server Request message Get. Request. execute request. Send. Reply message Eavesdropper (b) Client imposter (c) Client Do. Operation. (wait). (continuation) Server Get. Request. execute request. Send. Reply Server imposter

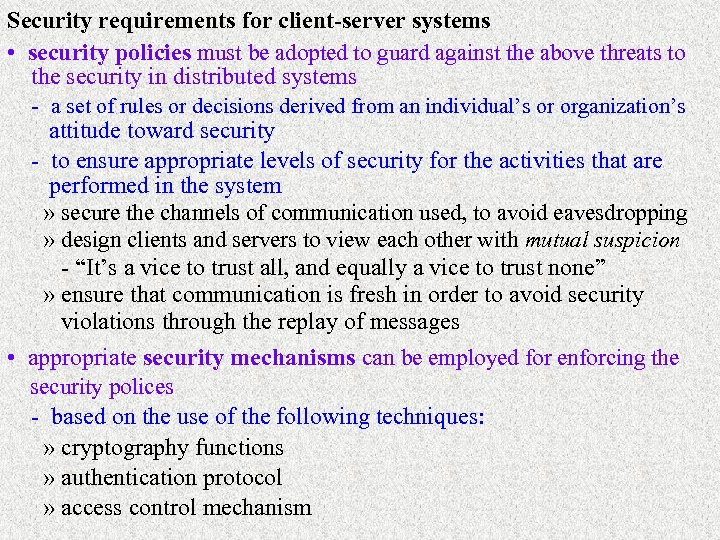

Security requirements for client-server systems • security policies must be adopted to guard against Security requirements for client-server systems • security policies must be adopted to guard against the above threats to the security in distributed systems - a set of rules or decisions derived from an individual’s or organization’s attitude toward security - to ensure appropriate levels of security for the activities that are performed in the system » secure the channels of communication used, to avoid eavesdropping » design clients and servers to view each other with mutual suspicion - “It’s a vice to trust all, and equally a vice to trust none” » ensure that communication is fresh in order to avoid security violations through the replay of messages • appropriate security mechanisms can be employed for enforcing the security polices - based on the use of the following techniques: » cryptography functions » authentication protocol » access control mechanism

Security services - Privacy: preventing unauthorized release of information - Authentication: verifying identity of Security services - Privacy: preventing unauthorized release of information - Authentication: verifying identity of the remote participant - Integrity: making sure message has not been altered security Security mechanism Cryptography algorithms Secret key (e. g. , DES) Public key (e. g. , RSA) Security services Privacy Authentication Message integrity Authentication Access control mechanism protocol (e. g. , Kerberos) (e. g. , access control list in UNIX) Message digest (e. g. , MD 5)

Cryptography • encryption of messages plays three major roles in the implementation of secure Cryptography • encryption of messages plays three major roles in the implementation of secure distributed systems: - used to conceal private information where it’s exposed in parts of the system - used in support of mechanisms for authenticating communication between pairs of principals - used to implement a mechanism known as a digital signature Authentication mechanism • the means by which the identities of servers and clients are reliably established - centralized systems: password check at the start of each interactive check - distributed system: based on the possession of encryption keys » a principal who possesses the appropriate secret encryption key has the identity that it claims - authentication mechanisms for distributed systems takes the form of an authentication service » require a key distribution service: generating, storing and distributed all of the encryption keys » rely on the use of encryption to guarantee security

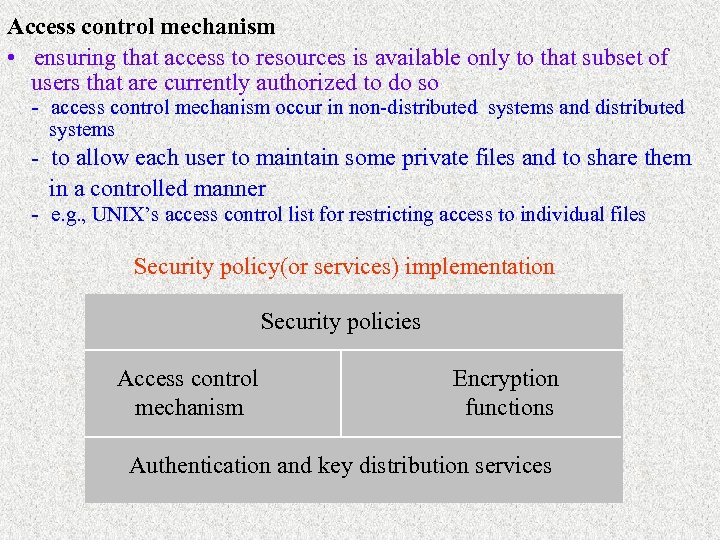

Access control mechanism • ensuring that access to resources is available only to that Access control mechanism • ensuring that access to resources is available only to that subset of users that are currently authorized to do so - access control mechanism occur in non-distributed systems and distributed systems - to allow each user to maintain some private files and to share them in a controlled manner - e. g. , UNIX’s access control list for restricting access to individual files Security policy(or services) implementation Security policies Access control mechanism Encryption functions Authentication and key distribution services

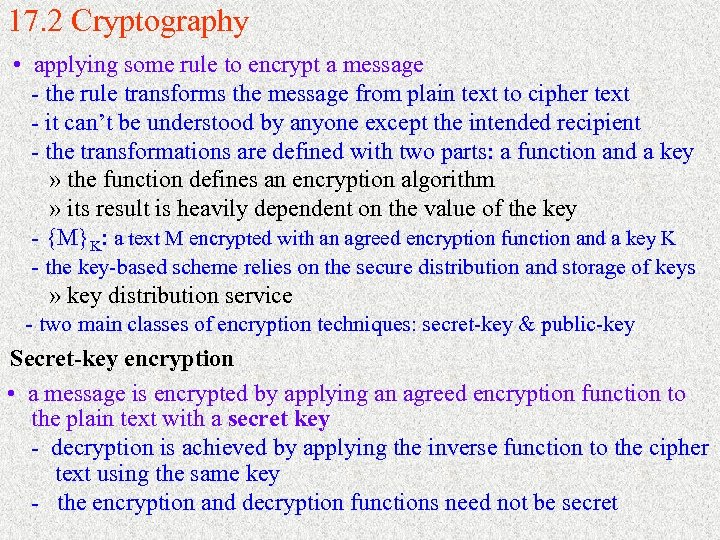

17. 2 Cryptography • applying some rule to encrypt a message - the rule 17. 2 Cryptography • applying some rule to encrypt a message - the rule transforms the message from plain text to cipher text - it can’t be understood by anyone except the intended recipient - the transformations are defined with two parts: a function and a key » the function defines an encryption algorithm » its result is heavily dependent on the value of the key - {M}K: a text M encrypted with an agreed encryption function and a key K - the key-based scheme relies on the secure distribution and storage of keys » key distribution service - two main classes of encryption techniques: secret-key & public-key Secret-key encryption • a message is encrypted by applying an agreed encryption function to the plain text with a secret key - decryption is achieved by applying the inverse function to the cipher text using the same key - the encryption and decryption functions need not be secret

- both sender and recipient must possess the encryption function(or its inverse) and a - both sender and recipient must possess the encryption function(or its inverse) and a shared key Sender A Recipient B 1. Acquire K 2. F(K, M)-->{M}k 3. Send {M}k 1. Acquire K 2. receive {M}k 3. F-1(K, {M}k)-->M • a key size and encryption function must be selected with care - secure against attempts to break it » attacks designed to discover M given{M}k » or to discover K given any specific message M and its encrypt form {M}K » so larger keys and more complex encryption functions must be used - Data Encryption Standard(DES) encryption algorithm is the most widely-used secret-key encryption method

Secret-key (DES) • developed by IBM and subsequently adopted as a US national standard Secret-key (DES) • developed by IBM and subsequently adopted as a US national standard • 64 -bit key(56 -bits + 8 -bit parity) - its encryption function maps a 64 -bit plain text into a 64 -bit encrypted output using a 56 -bit key • 19 stages - 3 key-independent transpositions » 1 st stage: key-independent transpositions on the 64 -bit plain text » last stage: the exact inverse of the transposition in 1 st stage » stage prior to the last: exchanges the left-most 32 bits with the right- most 32 bits - 16 key-dependent stages(or 16 rounds) » each stage takes two 32 -bit inputs and produces two 32 -bit outputs » the left output is simply a copy of the right input » the right output is the bitwise XOR of the left input and a function of the right input and the key for this stage » in each of the 16 stages, a different key is used » the function and the generation of the key in each stage not shown see Tanenbaum: , third edition

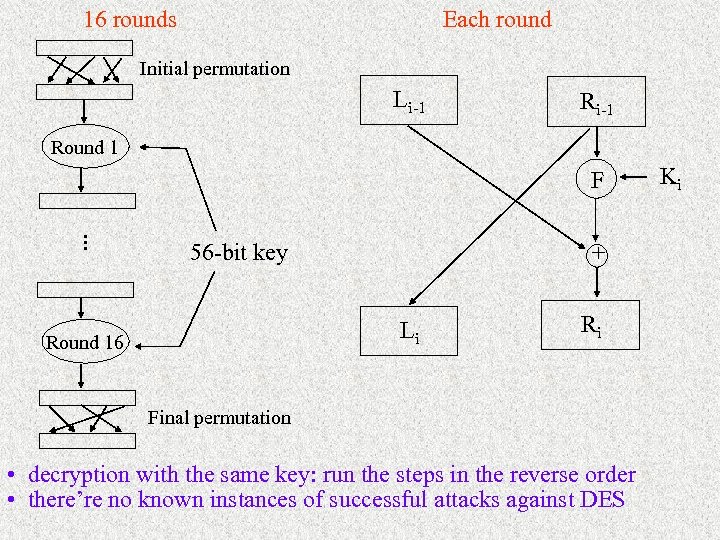

16 rounds Each round Initial permutation Li-1 Round 1 F + . . . 16 rounds Each round Initial permutation Li-1 Round 1 F + . . . 56 -bit key Li Round 16 Ri Final permutation • decryption with the same key: run the steps in the reverse order • there’re no known instances of successful attacks against DES Ki

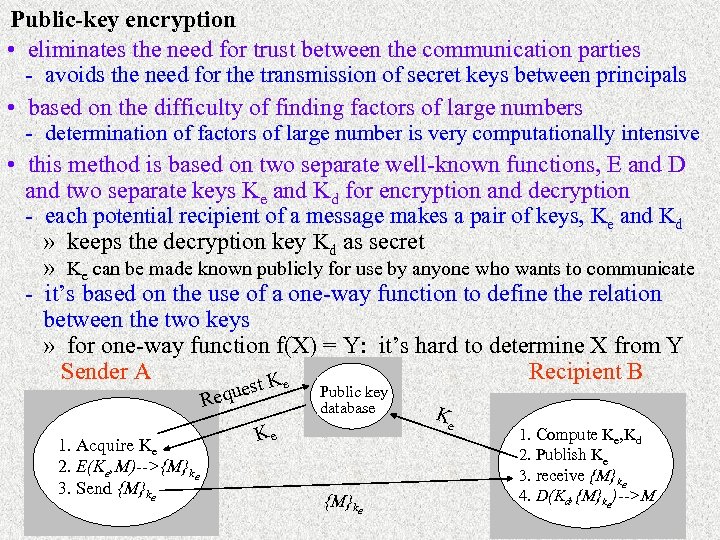

Public-key encryption • eliminates the need for trust between the communication parties - avoids Public-key encryption • eliminates the need for trust between the communication parties - avoids the need for the transmission of secret keys between principals • based on the difficulty of finding factors of large numbers - determination of factors of large number is very computationally intensive • this method is based on two separate well-known functions, E and D and two separate keys Ke and Kd for encryption and decryption - each potential recipient of a message makes a pair of keys, Ke and Kd » keeps the decryption key Kd as secret » Ke can be made known publicly for use by anyone who wants to communicate - it’s based on the use of a one-way function to define the relation between the two keys » for one-way function f(X) = Y: it’s hard to determine X from Y Sender A Recipient B Ke st e Requ 1. Acquire Ke 2. E(Ke, M)-->{M}ke 3. Send {M}ke Public key database Ke {M}ke Ke 1. Compute Ke, Kd 2. Publish Ke 3. receive {M}ke 4. D(Kd, {M}ke)-->M

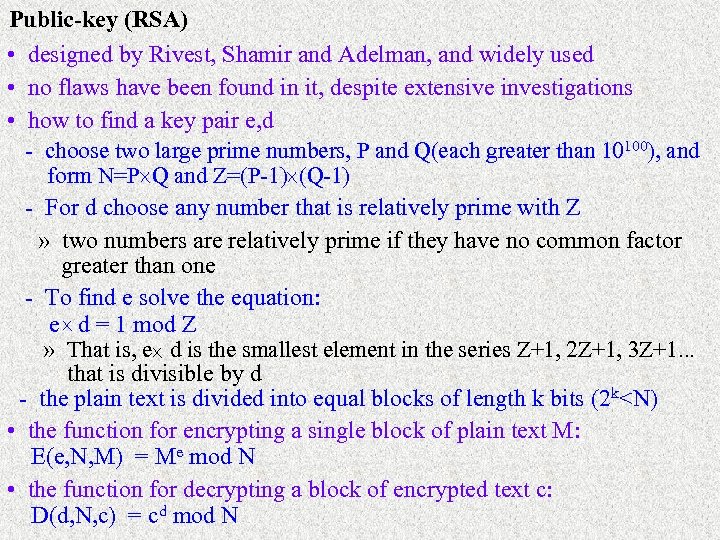

Public-key (RSA) • designed by Rivest, Shamir and Adelman, and widely used • no Public-key (RSA) • designed by Rivest, Shamir and Adelman, and widely used • no flaws have been found in it, despite extensive investigations • how to find a key pair e, d - choose two large prime numbers, P and Q(each greater than 10100), and form N=P Q and Z=(P-1) (Q-1) - For d choose any number that is relatively prime with Z » two numbers are relatively prime if they have no common factor greater than one - To find e solve the equation: e d = 1 mod Z » That is, e d is the smallest element in the series Z+1, 2 Z+1, 3 Z+1. . . that is divisible by d - the plain text is divided into equal blocks of length k bits (2 k

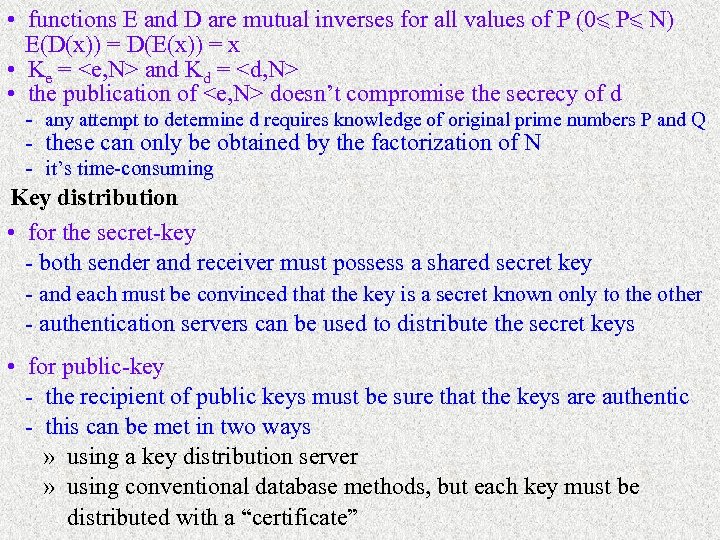

 • functions E and D are mutual inverses for all values of P • functions E and D are mutual inverses for all values of P (0< P< N) E(D(x)) = D(E(x)) = x • Ke = and Kd = • the publication of doesn’t compromise the secrecy of d - any attempt to determine d requires knowledge of original prime numbers P and Q - these can only be obtained by the factorization of N - it’s time-consuming Key distribution • for the secret-key - both sender and receiver must possess a shared secret key - and each must be convinced that the key is a secret known only to the other - authentication servers can be used to distribute the secret keys • for public-key - the recipient of public keys must be sure that the keys are authentic - this can be met in two ways » using a key distribution server » using conventional database methods, but each key must be distributed with a “certificate”

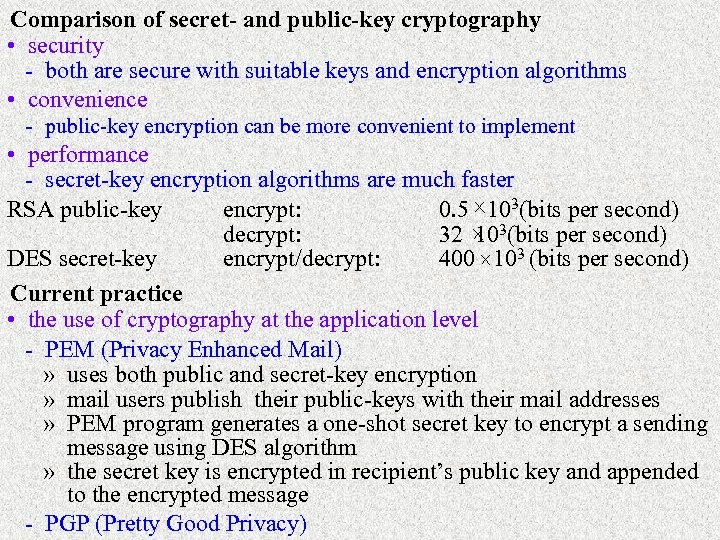

Comparison of secret- and public-key cryptography • security - both are secure with suitable Comparison of secret- and public-key cryptography • security - both are secure with suitable keys and encryption algorithms • convenience - public-key encryption can be more convenient to implement • performance - secret-key encryption algorithms are much faster RSA public-key encrypt: 0. 5 103(bits per second) decrypt: 32 103(bits per second) DES secret-key encrypt/decrypt: 400 103 (bits per second) Current practice • the use of cryptography at the application level - PEM (Privacy Enhanced Mail) » uses both public and secret-key encryption » mail users publish their public-keys with their mail addresses » PEM program generates a one-shot secret key to encrypt a sending message using DES algorithm » the secret key is encrypted in recipient’s public key and appended to the encrypted message - PGP (Pretty Good Privacy)

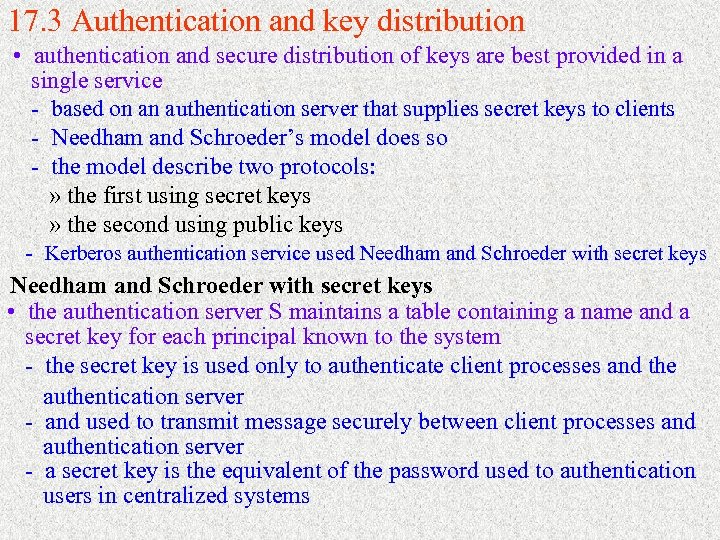

17. 3 Authentication and key distribution • authentication and secure distribution of keys are 17. 3 Authentication and key distribution • authentication and secure distribution of keys are best provided in a single service - based on an authentication server that supplies secret keys to clients - Needham and Schroeder’s model does so - the model describe two protocols: » the first using secret keys » the second using public keys - Kerberos authentication service used Needham and Schroeder with secret keys • the authentication server S maintains a table containing a name and a secret key for each principal known to the system - the secret key is used only to authenticate client processes and the authentication server - and used to transmit message securely between client processes and authentication server - a secret key is the equivalent of the password used to authentication users in centralized systems

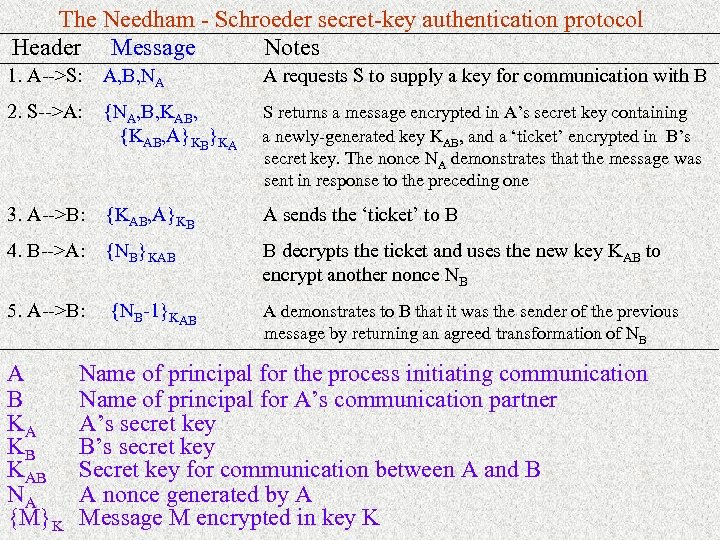

The Needham - Schroeder secret-key authentication protocol Header Message Notes 1. A-->S: A, B, The Needham - Schroeder secret-key authentication protocol Header Message Notes 1. A-->S: A, B, NA A requests S to supply a key for communication with B 2. S-->A: {NA, B, KAB, {KAB, A}KB}KA S returns a message encrypted in A’s secret key containing a newly-generated key KAB, and a ‘ticket’ encrypted in B’s secret key. The nonce NA demonstrates that the message was sent in response to the preceding one 3. A-->B: {KAB, A}KB A sends the ‘ticket’ to B 4. B-->A: {NB}KAB B decrypts the ticket and uses the new key KAB to encrypt another nonce NB 5. A-->B: {NB-1}KAB A demonstrates to B that it was the sender of the previous message by returning an agreed transformation of NB A B KA KB KAB NA {M}K Name of principal for the process initiating communication Name of principal for A’s communication partner A’s secret key B’s secret key Secret key for communication between A and B A nonce generated by A Message M encrypted in key K

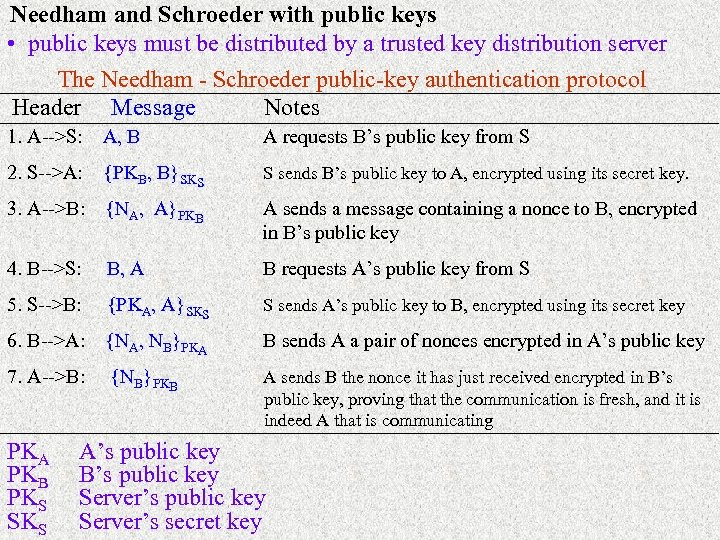

Needham and Schroeder with public keys • public keys must be distributed by a Needham and Schroeder with public keys • public keys must be distributed by a trusted key distribution server The Needham - Schroeder public-key authentication protocol Header Message Notes 1. A-->S: A, B A requests B’s public key from S 2. S-->A: {PKB, B}SKS S sends B’s public key to A, encrypted using its secret key. 3. A-->B: {NA, A}PKB A sends a message containing a nonce to B, encrypted in B’s public key 4. B-->S: B, A B requests A’s public key from S 5. S-->B: {PKA, A}SKS S sends A’s public key to B, encrypted using its secret key 6. B-->A: {NA, NB}PKA B sends A a pair of nonces encrypted in A’s public key 7. A-->B: {NB}PKB A sends B the nonce it has just received encrypted in B’s public key, proving that the communication is fresh, and it is indeed A that is communicating PKA PKB PKS SKS A’s public key B’s public key Server’s secret key

17. 4 Digital signatures • used to enable the recipient to verify that: - 17. 4 Digital signatures • used to enable the recipient to verify that: - the claimed originator of a document is the real originator - that the document has not subsequently been altered - and the originator will not be able to repudiate the document subsequently • Notation: - message M can be signed by a principal A by encrypting a copy of M in a key KA and attaching it to a plain-text copy of M and A’s identifier » signed document: • to reduce the size of digital signature for large documents, a digest function D is used to produce a characteristic value- message digest - e. g. MD 5 used in secure mail Message Digest • Cryptographic checksum - just as a regular checksum protects the receiver from accidental changes to the message - a cryptographic checksum protects the receiver from malicious changes to the message

Message Digest • One-way function - given a cryptographic checksum for a message, it’s Message Digest • One-way function - given a cryptographic checksum for a message, it’s virtually impossible to figure out what message produced that checksum; - it’s not computationally feasible to find two messages that hash to the same cryptographic checksum • Relevance - if you are given a checksum for a message, and you are able to compute exactly the same checksum for that message - then it’s highly likely that this message produced the checksum you were given Digital signatures with public keys Header Message Notes 1. A-->B: M, A {D(M)}KAprivate A sends the original message and the signature to B 2. B-->S: A B requests A’s public key from S 3. S-->B: A, KApublic S supplies A’s public key. B uses it to decrypt the signature received in Message 1 and compare it with a newly-computed value for D(M)

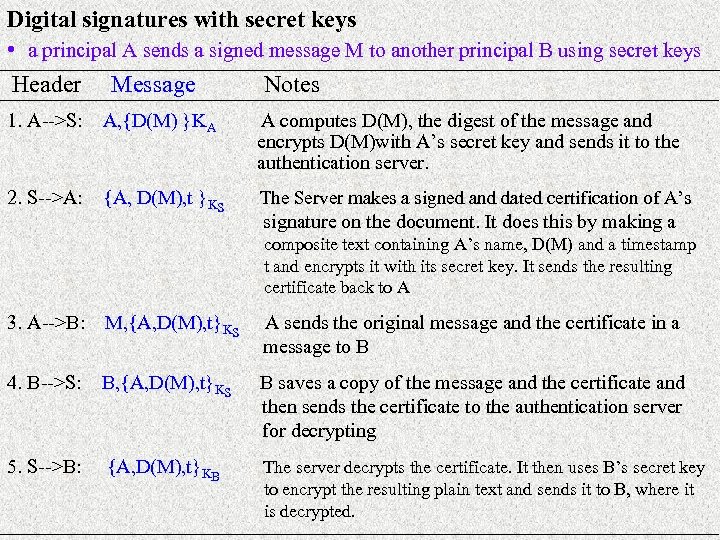

Digital signatures with secret keys • a principal A sends a signed message M Digital signatures with secret keys • a principal A sends a signed message M to another principal B using secret keys Header Message Notes 1. A-->S: A, {D(M) }KA A computes D(M), the digest of the message and encrypts D(M)with A’s secret key and sends it to the authentication server. 2. S-->A: {A, D(M), t }KS The Server makes a signed and dated certification of A’s signature on the document. It does this by making a composite text containing A’s name, D(M) and a timestamp t and encrypts it with its secret key. It sends the resulting certificate back to A 3. A-->B: M, {A, D(M), t}KS A sends the original message and the certificate in a message to B 4. B-->S: B, {A, D(M), t}KS B saves a copy of the message and the certificate and then sends the certificate to the authentication server for decrypting 5. S-->B: {A, D(M), t}KB The server decrypts the certificate. It then uses B’s secret key to encrypt the resulting plain text and sends it to B, where it is decrypted.

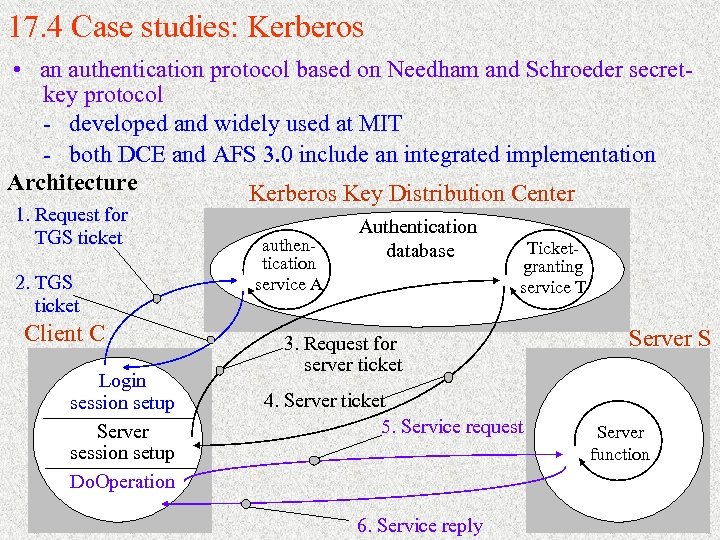

17. 4 Case studies: Kerberos • an authentication protocol based on Needham and Schroeder 17. 4 Case studies: Kerberos • an authentication protocol based on Needham and Schroeder secretkey protocol - developed and widely used at MIT - both DCE and AFS 3. 0 include an integrated implementation Architecture Kerberos Key Distribution Center 1. Request for TGS ticket 2. TGS ticket Client C Login session setup Server session setup Do. Operation authentication service A Authentication database Ticketgranting service T 3. Request for server ticket 4. Server ticket 5. Service request 6. Service reply Server S Server function

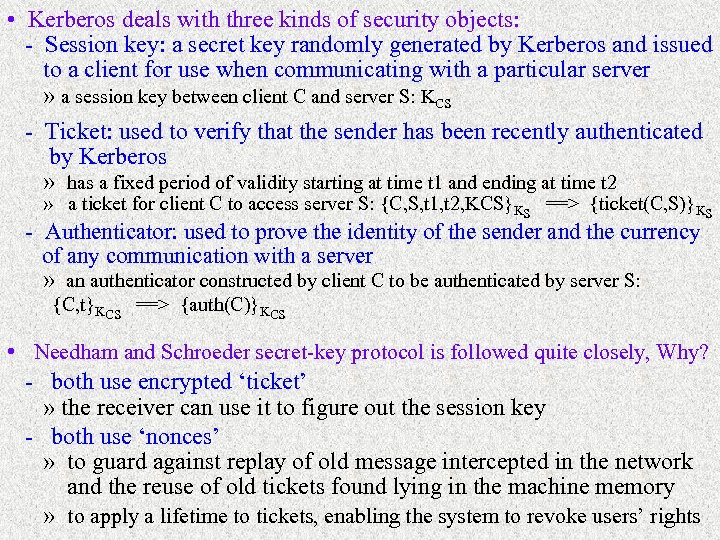

 • Kerberos deals with three kinds of security objects: - Session key: a • Kerberos deals with three kinds of security objects: - Session key: a secret key randomly generated by Kerberos and issued to a client for use when communicating with a particular server » a session key between client C and server S: KCS - Ticket: used to verify that the sender has been recently authenticated by Kerberos » has a fixed period of validity starting at time t 1 and ending at time t 2 » a ticket for client C to access server S: {C, S, t 1, t 2, KCS}KS ==> {ticket(C, S)}KS - Authenticator: used to prove the identity of the sender and the currency of any communication with a server » an authenticator constructed by client C to be authenticated by server S: {C, t}KCS ==> {auth(C)}KCS • Needham and Schroeder secret-key protocol is followed quite closely, Why? - both use encrypted ‘ticket’ » the receiver can use it to figure out the session key - both use ‘nonces’ » to guard against replay of old message intercepted in the network and the reuse of old tickets found lying in the machine memory » to apply a lifetime to tickets, enabling the system to revoke users’ rights

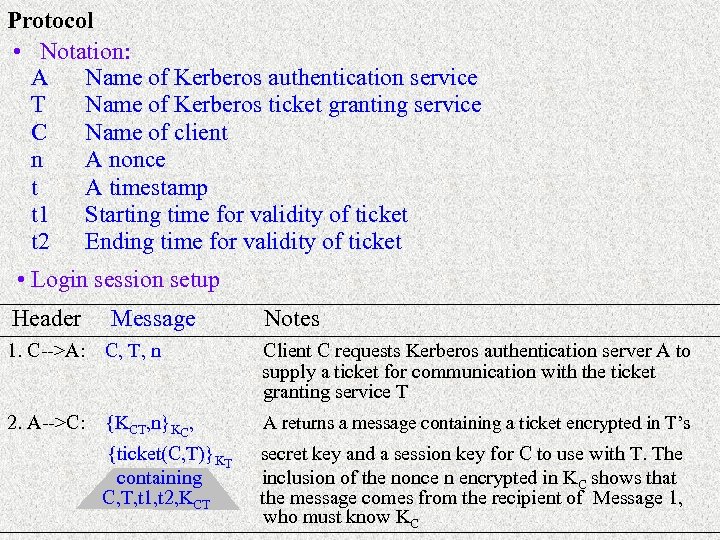

Protocol • Notation: A Name of Kerberos authentication service T Name of Kerberos ticket Protocol • Notation: A Name of Kerberos authentication service T Name of Kerberos ticket granting service C Name of client n A nonce t A timestamp t 1 Starting time for validity of ticket t 2 Ending time for validity of ticket • Login session setup Header Message Notes 1. C-->A: C, T, n Client C requests Kerberos authentication server A to supply a ticket for communication with the ticket granting service T 2. A-->C: {KCT, n}KC, A returns a message containing a ticket encrypted in T’s {ticket(C, T)}KT containing C, T, t 1, t 2, KCT secret key and a session key for C to use with T. The inclusion of the nonce n encrypted in KC shows that the message comes from the recipient of Message 1, who must know KC

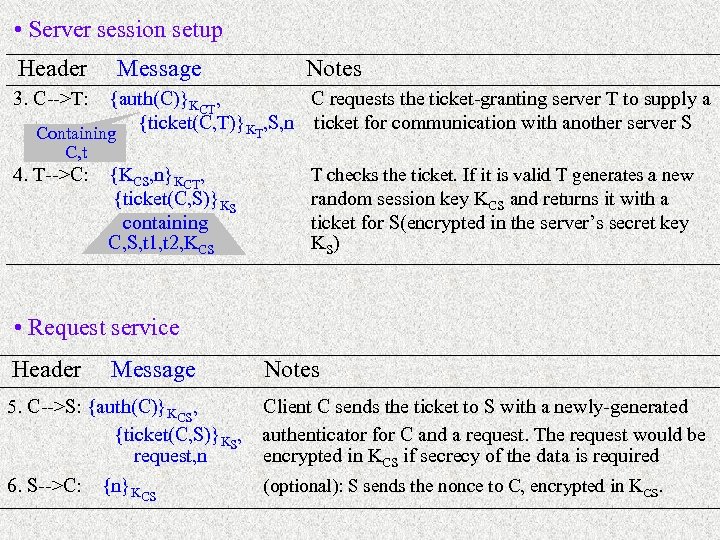

 • Server session setup Header Message Notes 3. C-->T: {auth(C)}KCT, C requests the • Server session setup Header Message Notes 3. C-->T: {auth(C)}KCT, C requests the ticket-granting server T to supply a {ticket(C, T)}KT, S, n ticket for communication with another server S Containing C, t 4. T-->C: {KCS, n}KCT, {ticket(C, S)}KS containing C, S, t 1, t 2, KCS T checks the ticket. If it is valid T generates a new random session key KCS and returns it with a ticket for S(encrypted in the server’s secret key KS ) • Request service Header Message Notes 5. C-->S: {auth(C)}KCS, {ticket(C, S)}KS, request, n Client C sends the ticket to S with a newly-generated authenticator for C and a request. The request would be encrypted in KCS if secrecy of the data is required 6. S-->C: (optional): S sends the nonce to C, encrypted in KCS. {n}KCS

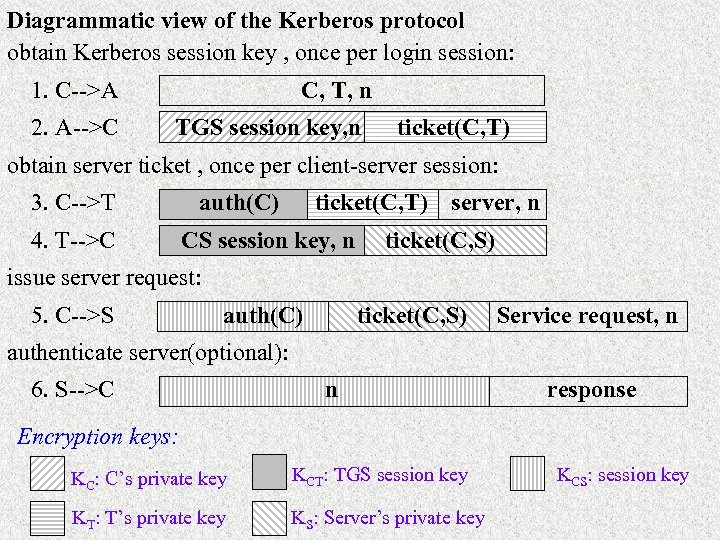

Diagrammatic view of the Kerberos protocol obtain Kerberos session key , once per login Diagrammatic view of the Kerberos protocol obtain Kerberos session key , once per login session: 1. C-->A 2. A-->C C, T, n TGS session key, n ticket(C, T) obtain server ticket , once per client-server session: 3. C-->T 4. T-->C auth(C) ticket(C, T) server, n CS session key, n ticket(C, S) issue server request: 5. C-->S auth(C) ticket(C, S) Service request, n authenticate server(optional): 6. S-->C n response Encryption keys: KC: C’s private key KCT: TGS session key KT: T’s private key KS: Server’s private key KCS: session key

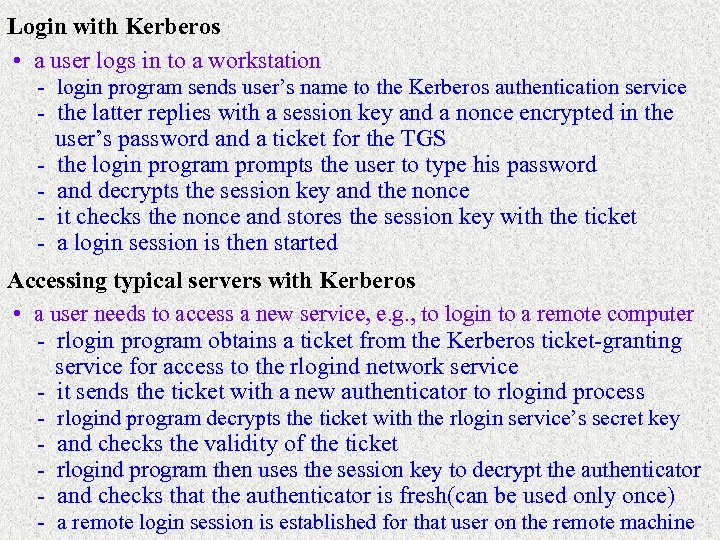

Login with Kerberos • a user logs in to a workstation - login program Login with Kerberos • a user logs in to a workstation - login program sends user’s name to the Kerberos authentication service - the latter replies with a session key and a nonce encrypted in the user’s password and a ticket for the TGS - the login program prompts the user to type his password - and decrypts the session key and the nonce - it checks the nonce and stores the session key with the ticket - a login session is then started Accessing typical servers with Kerberos • a user needs to access a new service, e. g. , to login to a remote computer - rlogin program obtains a ticket from the Kerberos ticket-granting service for access to the rlogind network service - it sends the ticket with a new authenticator to rlogind process - rlogind program decrypts the ticket with the rlogin service’s secret key - and checks the validity of the ticket - rlogind program then uses the session key to decrypt the authenticator - and checks that the authenticator is fresh(can be used only once) - a remote login session is established for that user on the remote machine

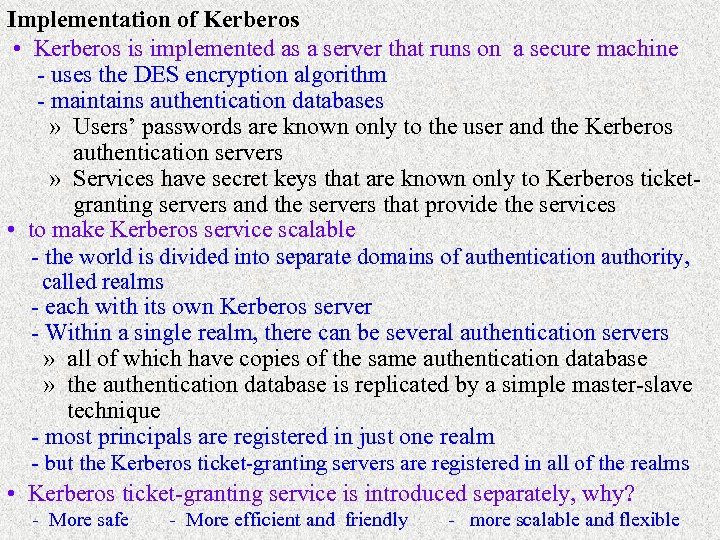

Implementation of Kerberos • Kerberos is implemented as a server that runs on a Implementation of Kerberos • Kerberos is implemented as a server that runs on a secure machine - uses the DES encryption algorithm - maintains authentication databases » Users’ passwords are known only to the user and the Kerberos authentication servers » Services have secret keys that are known only to Kerberos ticketgranting servers and the servers that provide the services • to make Kerberos service scalable - the world is divided into separate domains of authentication authority, called realms - each with its own Kerberos server - Within a single realm, there can be several authentication servers » all of which have copies of the same authentication database » the authentication database is replicated by a simple master-slave technique - most principals are registered in just one realm - but the Kerberos ticket-granting servers are registered in all of the realms • Kerberos ticket-granting service is introduced separately, why? - More safe - More efficient and friendly - more scalable and flexible
