Chapter 15 Messages Logs and Cleanup 1

Chapter 15 Messages, Logs, and Cleanup 1

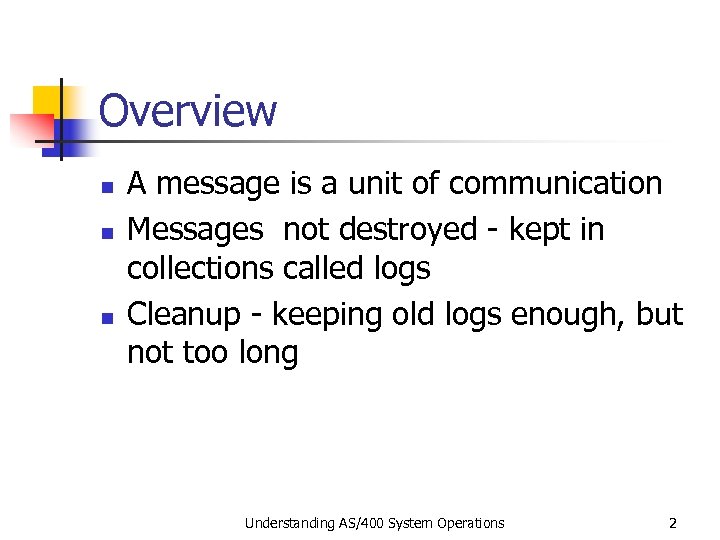

Overview n n n A message is a unit of communication Messages not destroyed - kept in collections called logs Cleanup - keeping old logs enough, but not too long Understanding AS/400 System Operations 2

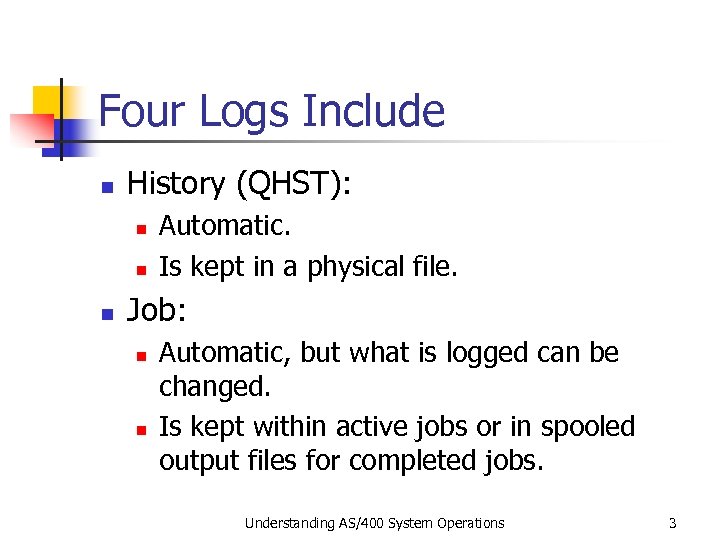

Four Logs Include n History (QHST): n n n Automatic. Is kept in a physical file. Job: n n Automatic, but what is logged can be changed. Is kept within active jobs or in spooled output files for completed jobs. Understanding AS/400 System Operations 3

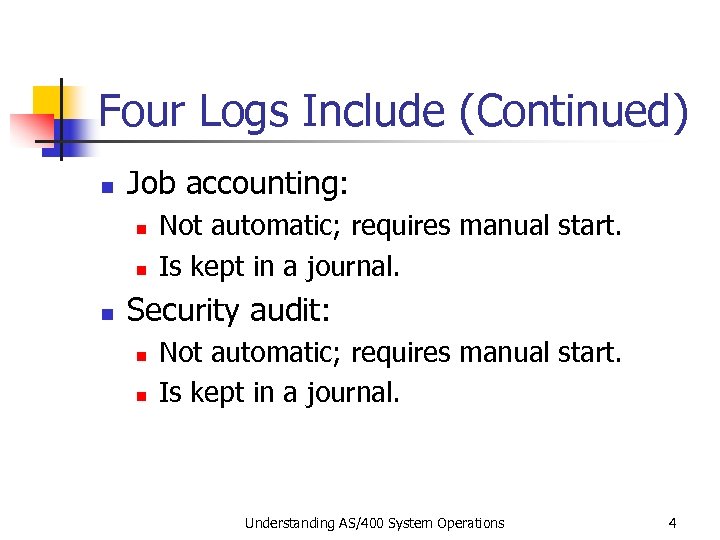

Four Logs Include (Continued) n Job accounting: n n n Not automatic; requires manual start. Is kept in a journal. Security audit: n n Not automatic; requires manual start. Is kept in a journal. Understanding AS/400 System Operations 4

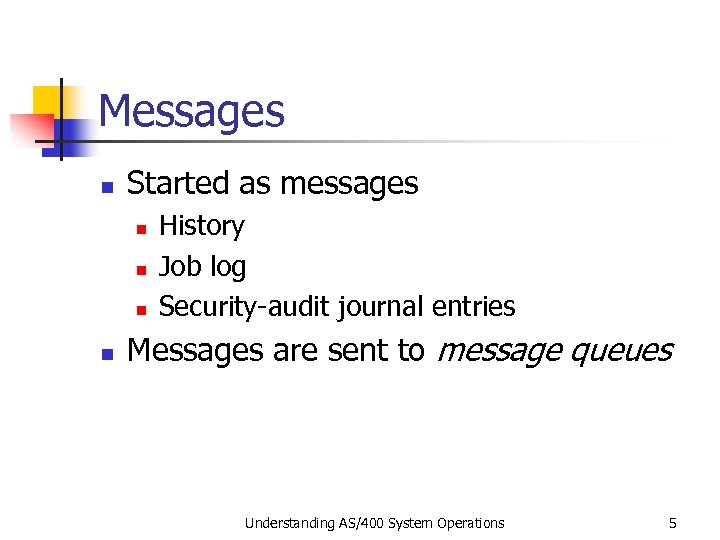

Messages n Started as messages n n History Job log Security-audit journal entries Messages are sent to message queues Understanding AS/400 System Operations 5

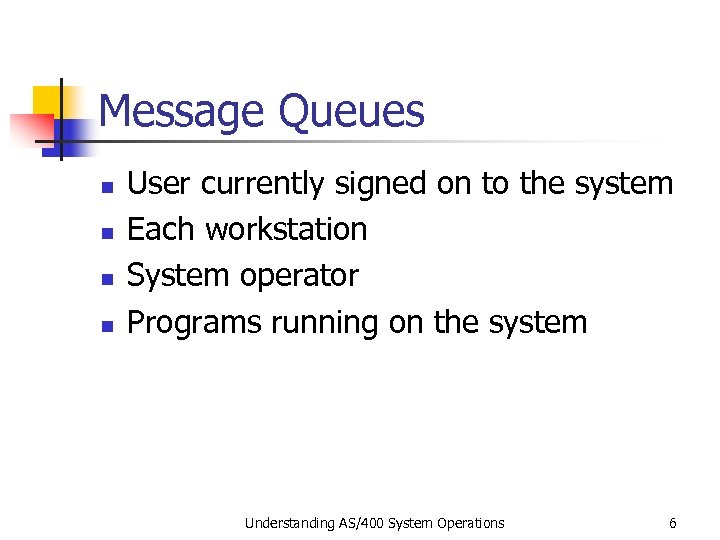

Message Queues n n User currently signed on to the system Each workstation System operator Programs running on the system Understanding AS/400 System Operations 6

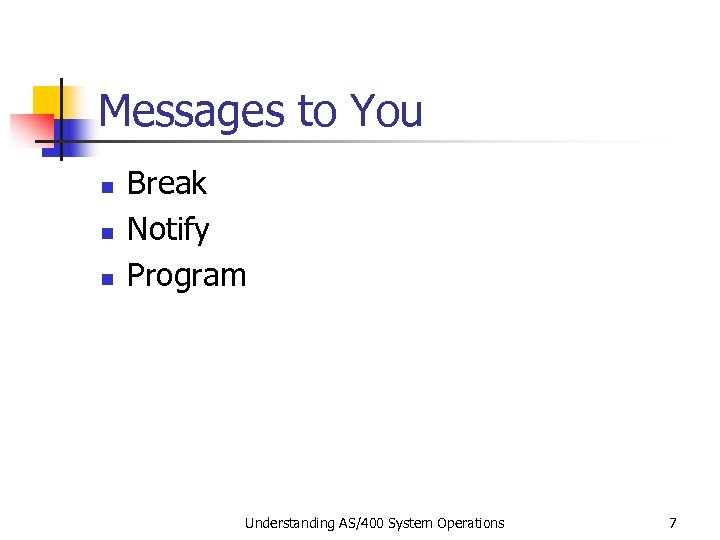

Messages to You n n n Break Notify Program Understanding AS/400 System Operations 7

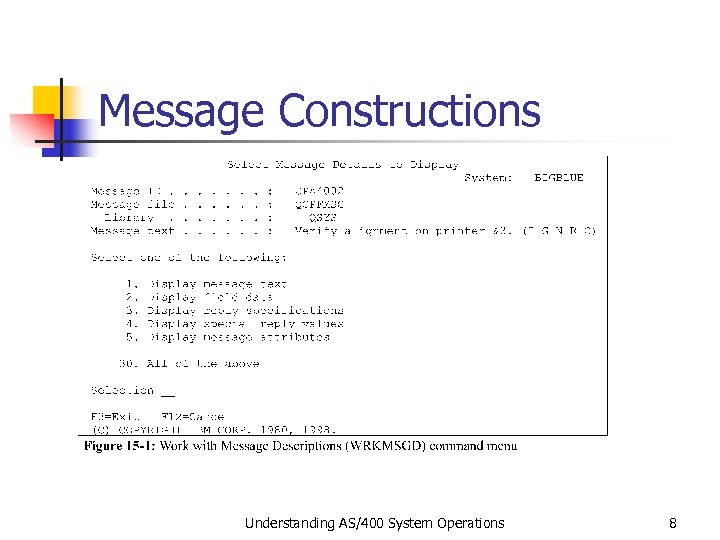

Message Constructions Understanding AS/400 System Operations 8

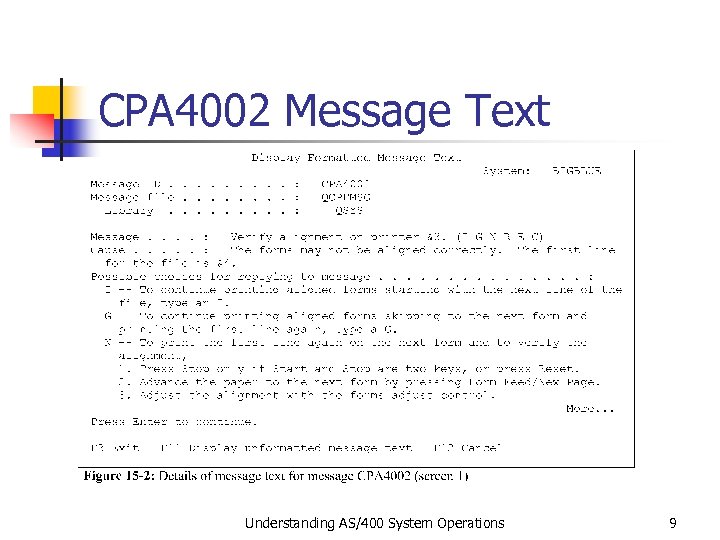

CPA 4002 Message Text Understanding AS/400 System Operations 9

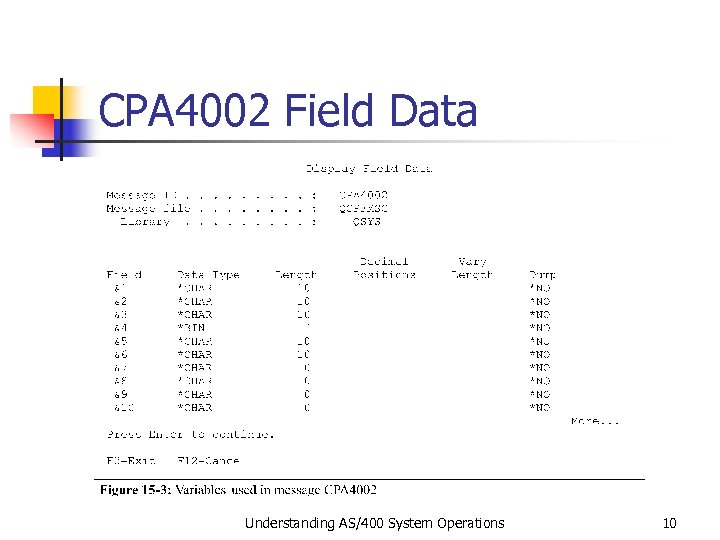

CPA 4002 Field Data Understanding AS/400 System Operations 10

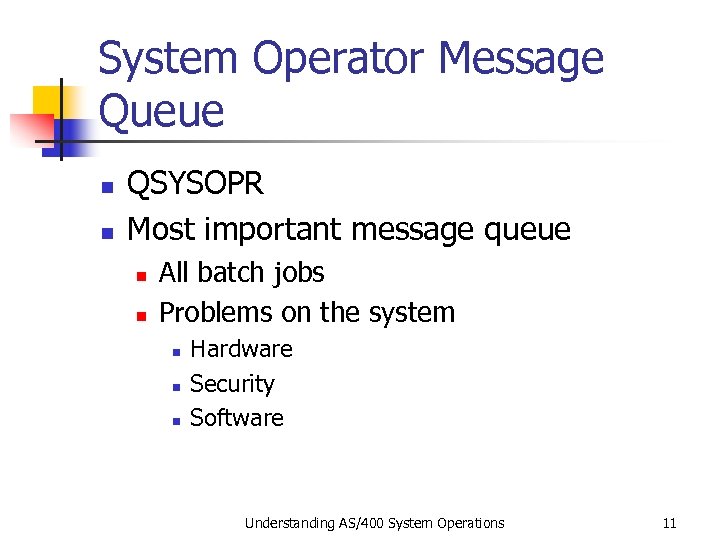

System Operator Message Queue n n QSYSOPR Most important message queue n n All batch jobs Problems on the system n n n Hardware Security Software Understanding AS/400 System Operations 11

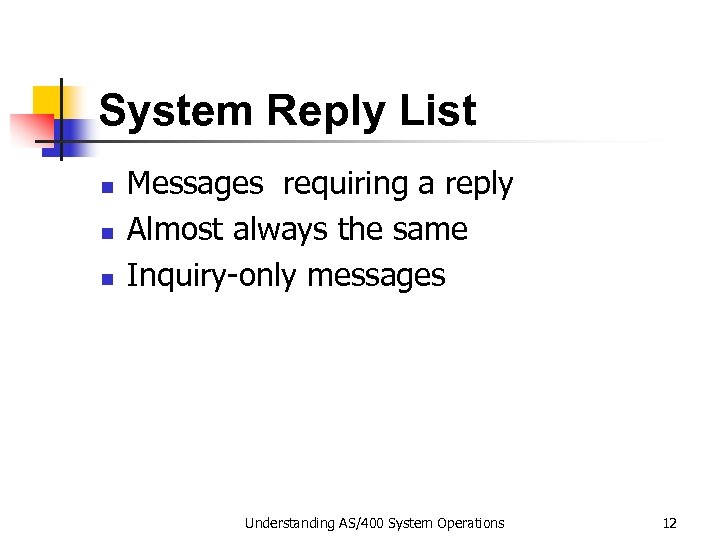

System Reply List n n n Messages requiring a reply Almost always the same Inquiry-only messages Understanding AS/400 System Operations 12

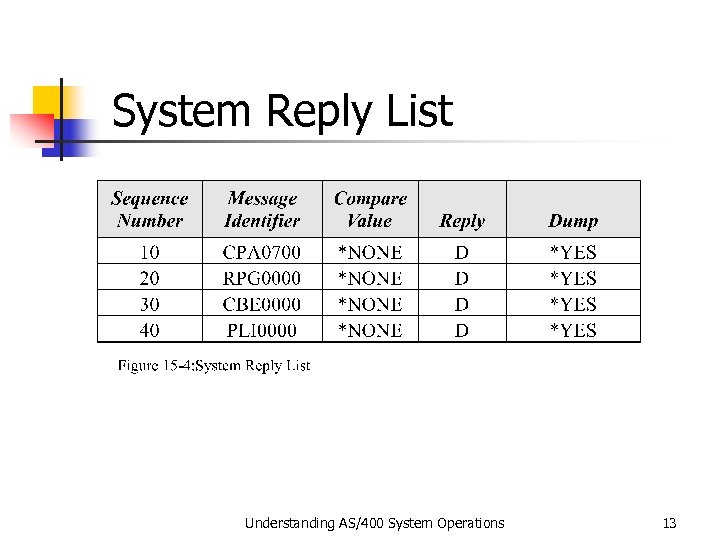

System Reply List Understanding AS/400 System Operations 13

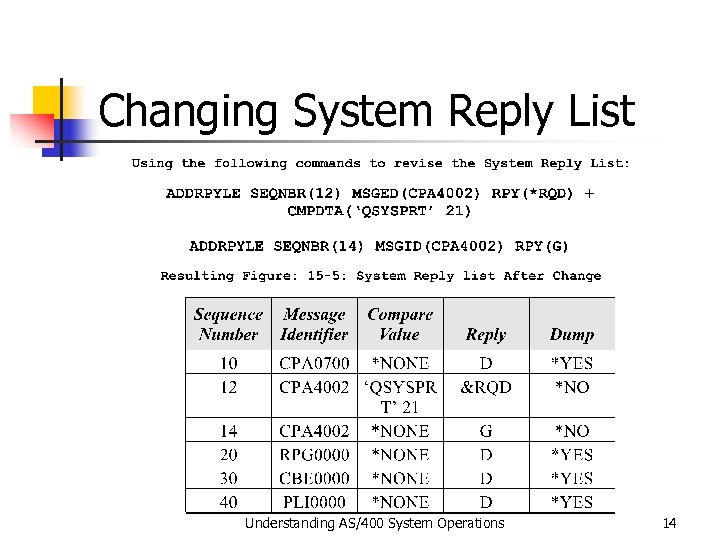

Changing System Reply List Understanding AS/400 System Operations 14

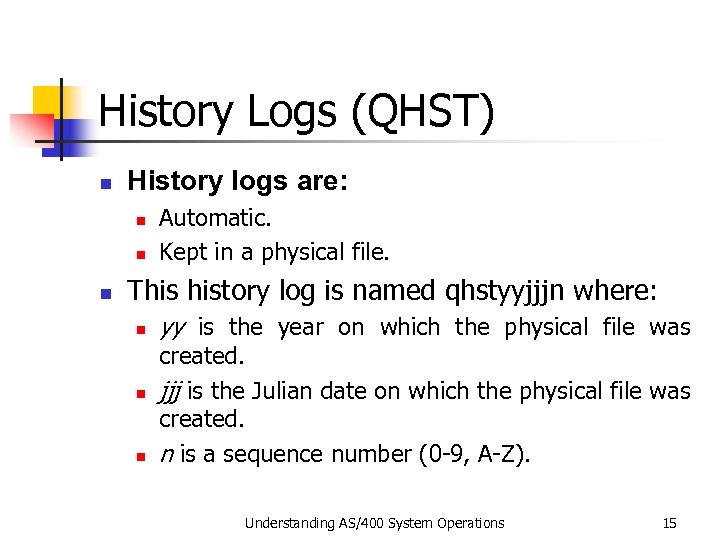

History Logs (QHST) n History logs are: n n n Automatic. Kept in a physical file. This history log is named qhstyyjjjn where: n n n yy is the year on which the physical file was created. jjj is the Julian date on which the physical file was created. n is a sequence number (0 -9, A-Z). Understanding AS/400 System Operations 15

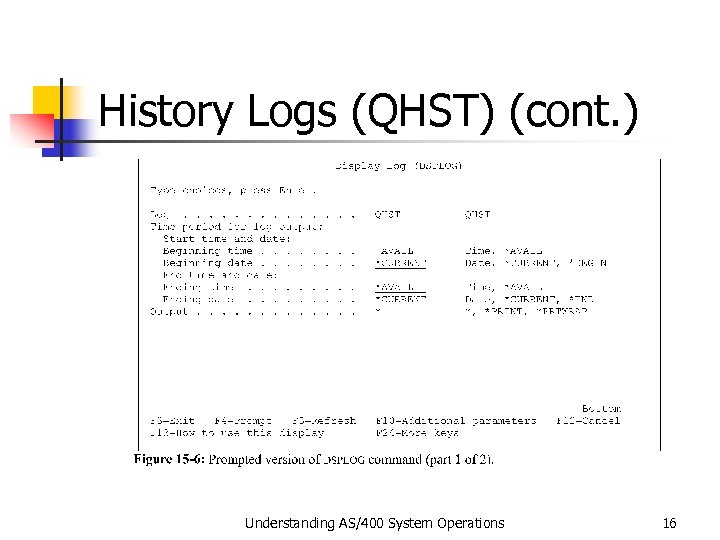

History Logs (QHST) (cont. ) Understanding AS/400 System Operations 16

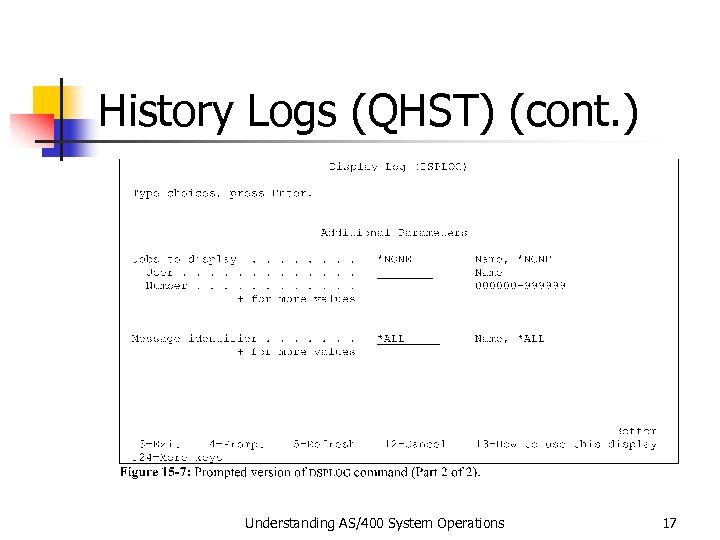

History Logs (QHST) (cont. ) Understanding AS/400 System Operations 17

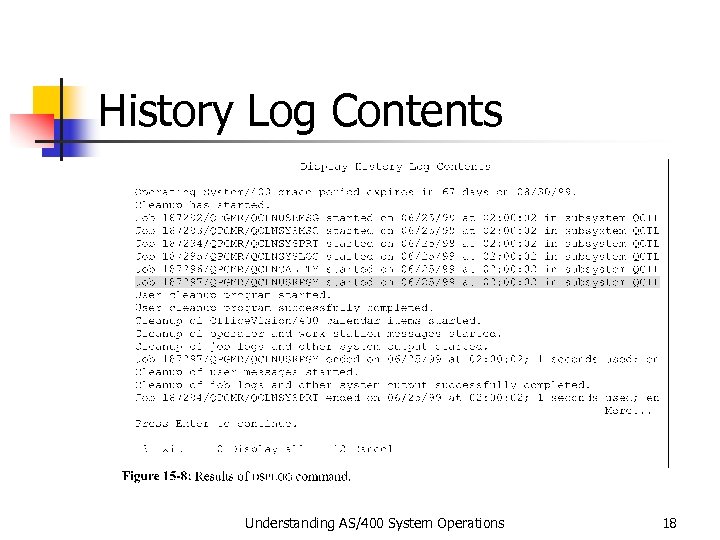

History Log Contents Understanding AS/400 System Operations 18

Expanded Message Screen Understanding AS/400 System Operations 19

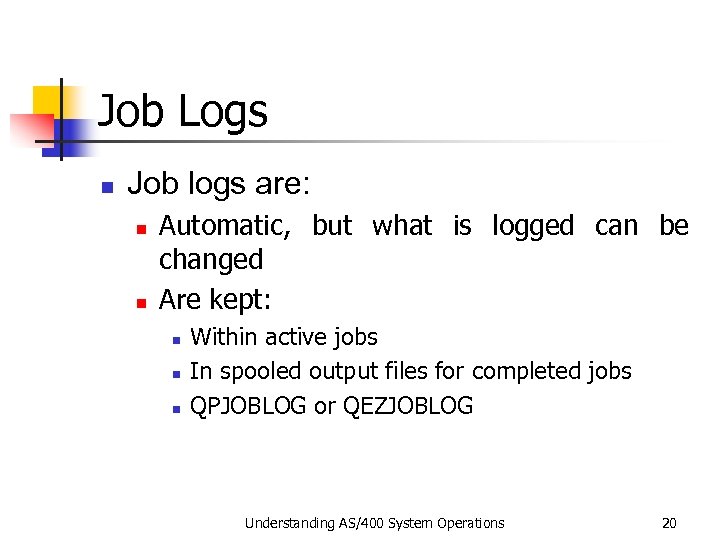

Job Logs n Job logs are: n n Automatic, but what is logged can be changed Are kept: n n n Within active jobs In spooled output files for completed jobs QPJOBLOG or QEZJOBLOG Understanding AS/400 System Operations 20

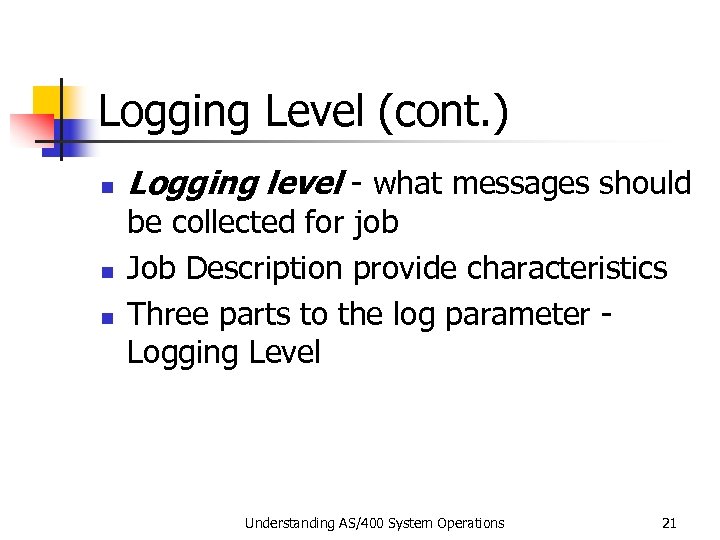

Logging Level (cont. ) n n n Logging level - what messages should be collected for job Job Description provide characteristics Three parts to the log parameter - Logging Level Understanding AS/400 System Operations 21

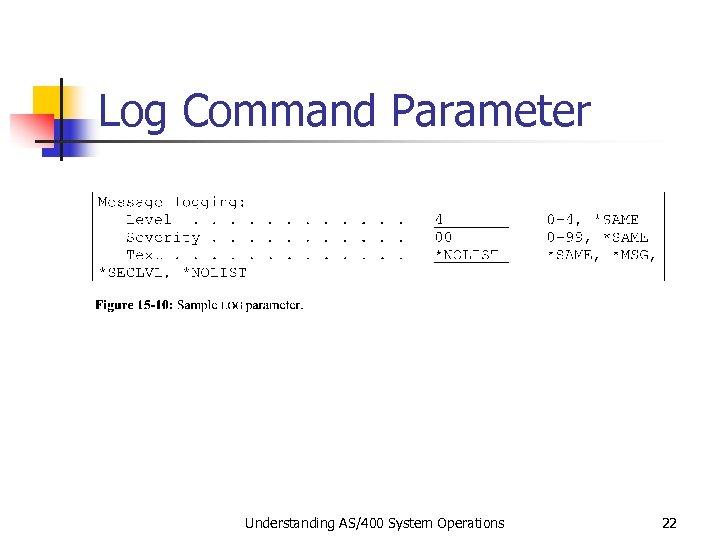

Log Command Parameter Understanding AS/400 System Operations 22

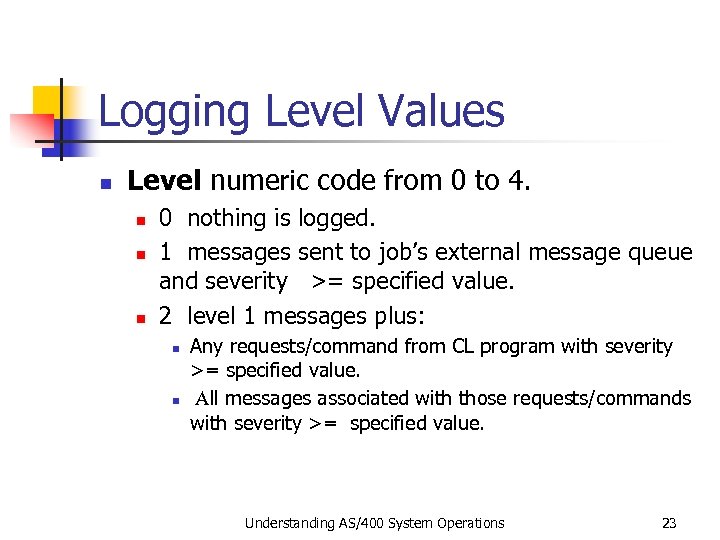

Logging Level Values n Level numeric code from 0 to 4. n n n 0 nothing is logged. 1 messages sent to job’s external message queue and severity >= specified value. 2 level 1 messages plus: n n Any requests/command from CL program with severity >= specified value. All messages associated with those requests/commands with severity >= specified value. Understanding AS/400 System Operations 23

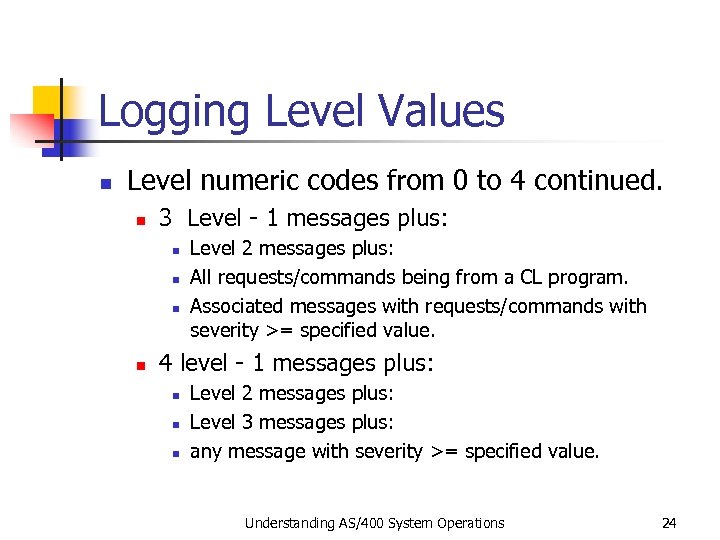

Logging Level Values n Level numeric codes from 0 to 4 continued. n 3 Level - 1 messages plus: n n Level 2 messages plus: All requests/commands being from a CL program. Associated messages with requests/commands with severity >= specified value. 4 level - 1 messages plus: n n n Level 2 messages plus: Level 3 messages plus: any message with severity >= specified value. Understanding AS/400 System Operations 24

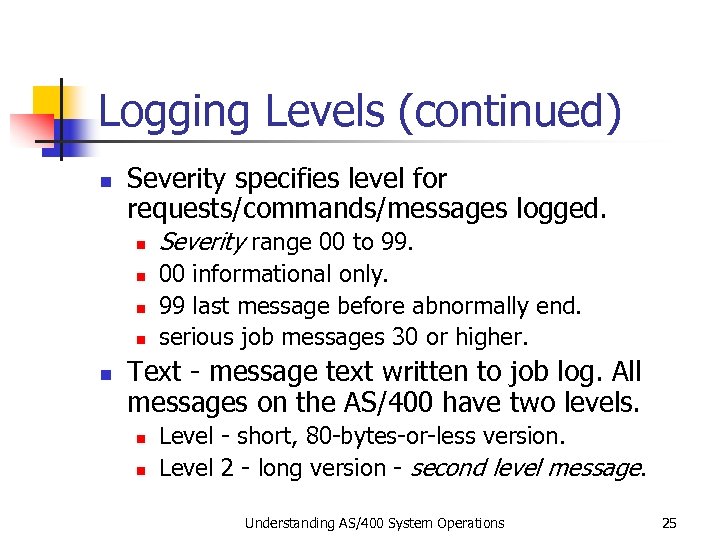

Logging Levels (continued) n Severity specifies level for requests/commands/messages logged. n n n Severity range 00 to 99. 00 informational only. 99 last message before abnormally end. serious job messages 30 or higher. Text - message text written to job log. All messages on the AS/400 have two levels. n n Level - short, 80 -bytes-or-less version. Level 2 - long version - second level message. Understanding AS/400 System Operations 25

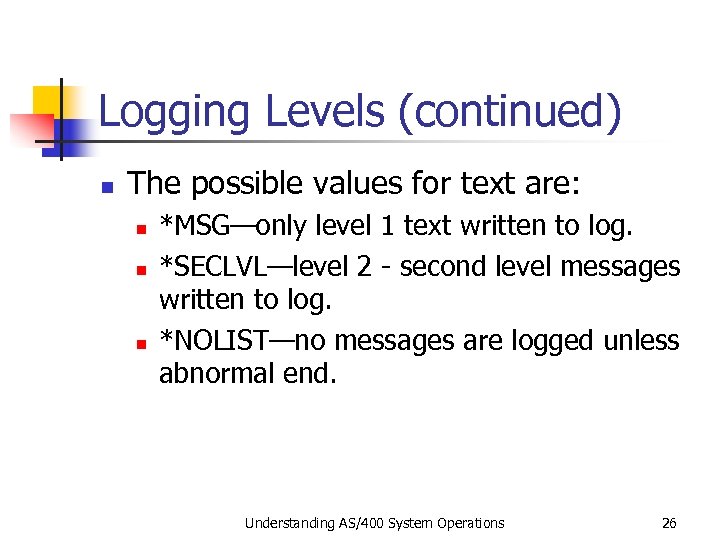

Logging Levels (continued) n The possible values for text are: n n n *MSG—only level 1 text written to log. *SECLVL—level 2 - second level messages written to log. *NOLIST—no messages are logged unless abnormal end. Understanding AS/400 System Operations 26

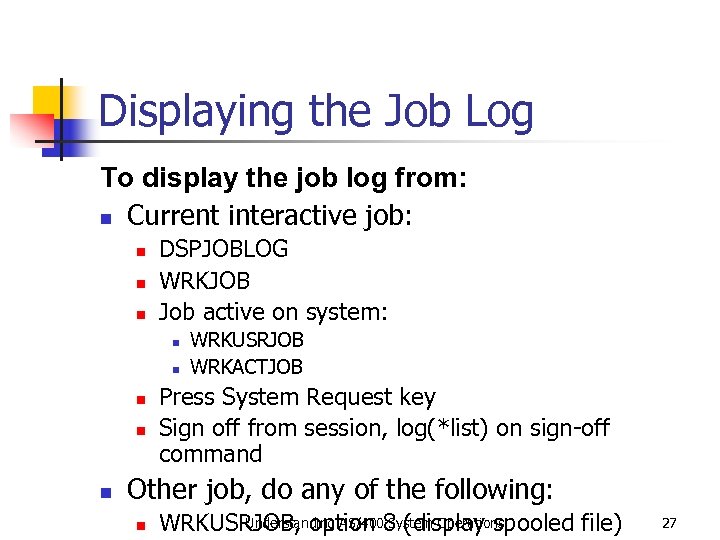

Displaying the Job Log To display the job log from: n Current interactive job: n n n DSPJOBLOG WRKJOB Job active on system: n n n WRKUSRJOB WRKACTJOB Press System Request key Sign off from session, log(*list) on sign-off command Other job, do any of the following: n Understanding AS/400 System Operations WRKUSRJOB, option 8 (display spooled file) 27

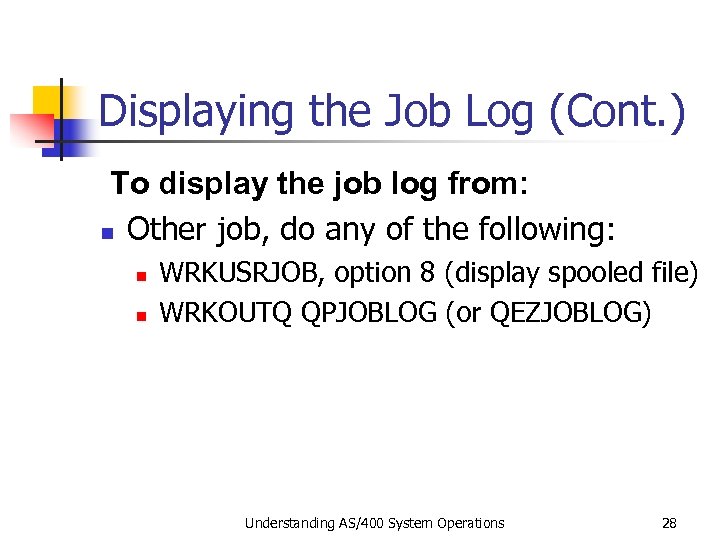

Displaying the Job Log (Cont. ) To display the job log from: n Other job, do any of the following: n n WRKUSRJOB, option 8 (display spooled file) WRKOUTQ QPJOBLOG (or QEZJOBLOG) Understanding AS/400 System Operations 28

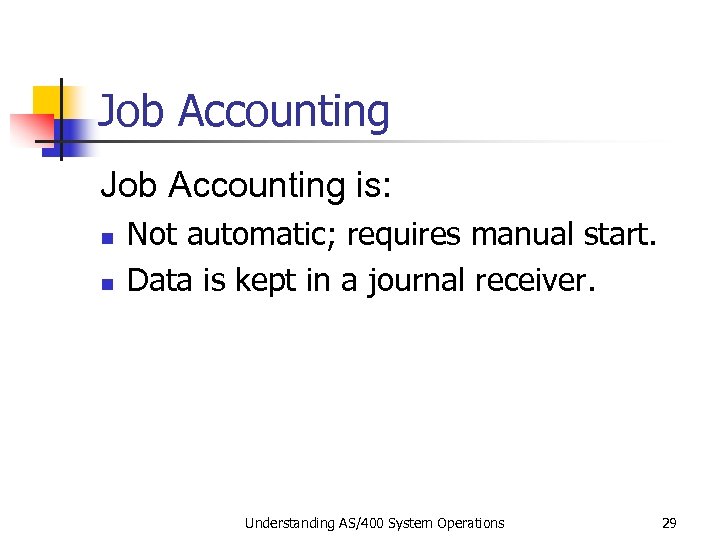

Job Accounting is: n n Not automatic; requires manual start. Data is kept in a journal receiver. Understanding AS/400 System Operations 29

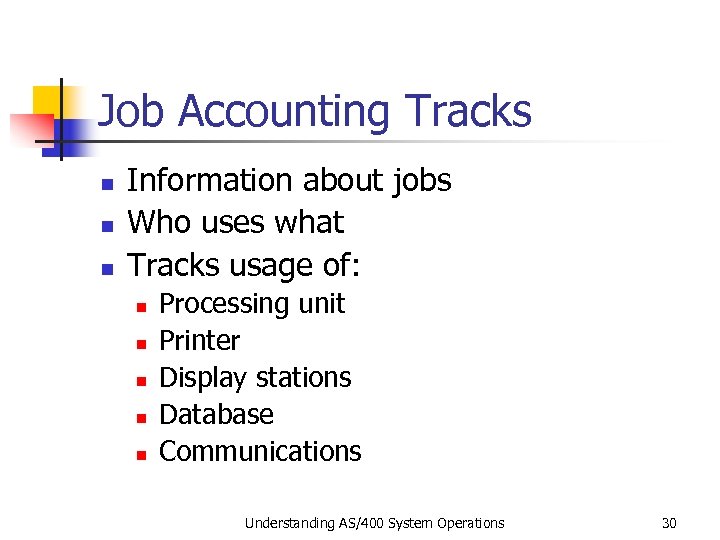

Job Accounting Tracks n n n Information about jobs Who uses what Tracks usage of: n n n Processing unit Printer Display stations Database Communications Understanding AS/400 System Operations 30

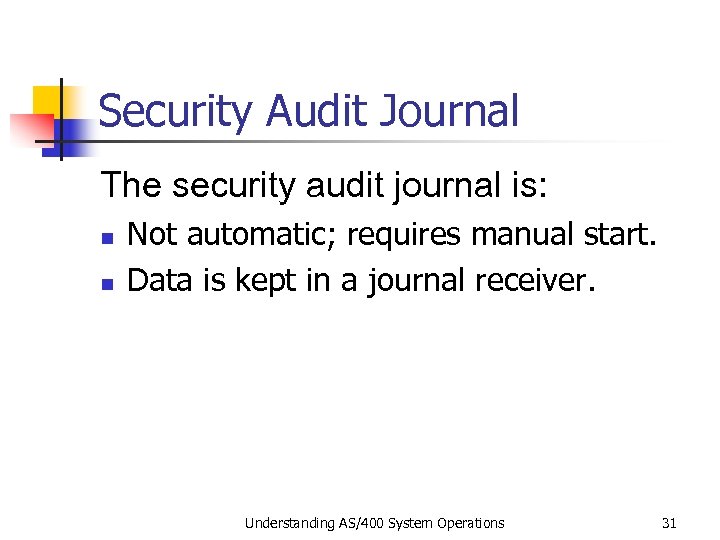

Security Audit Journal The security audit journal is: n n Not automatic; requires manual start. Data is kept in a journal receiver. Understanding AS/400 System Operations 31

AS/400 Security Audit Journal n n n Must be set up first Activated before use Security-related activities Operator sets up what is logged Log in a journal Understanding AS/400 System Operations 32

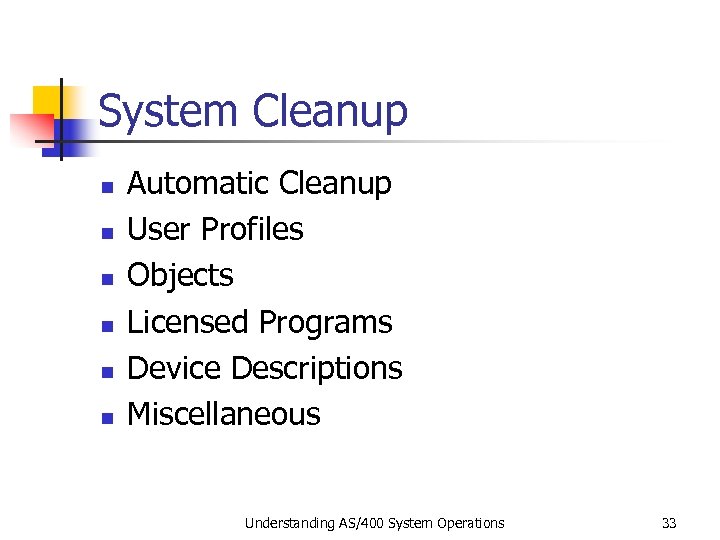

System Cleanup n n n Automatic Cleanup User Profiles Objects Licensed Programs Device Descriptions Miscellaneous Understanding AS/400 System Operations 33

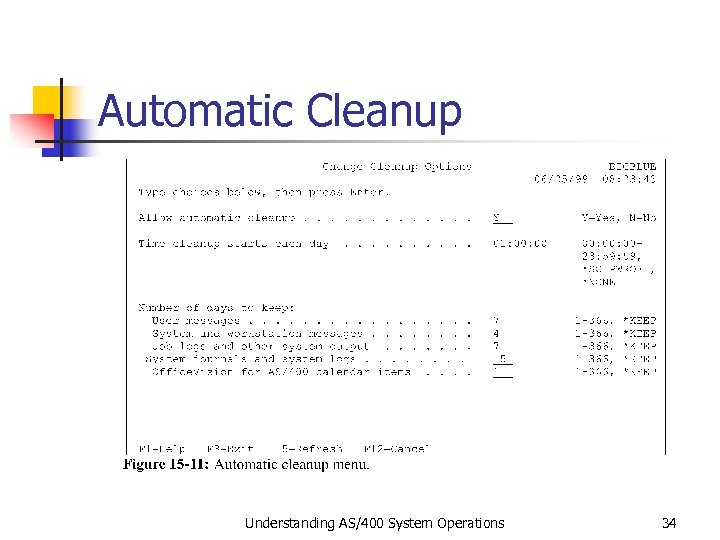

Automatic Cleanup Understanding AS/400 System Operations 34

User Profile Cleanup Understanding AS/400 System Operations 35

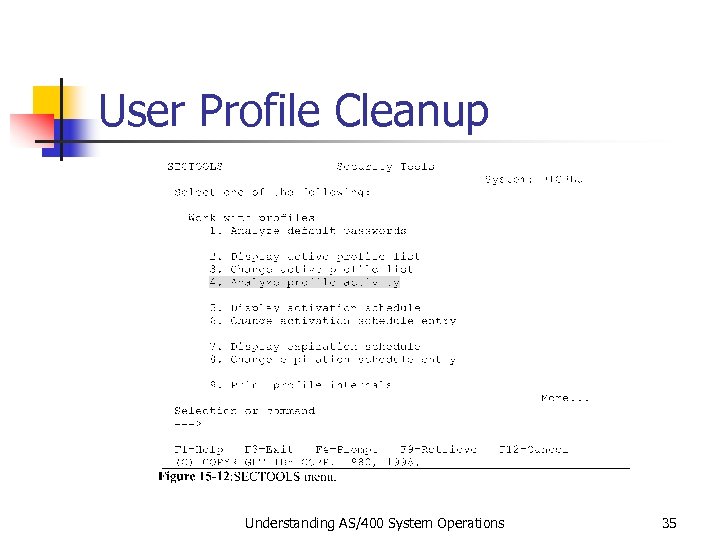

User Profile Cleanup (cont. ) Understanding AS/400 System Operations 36

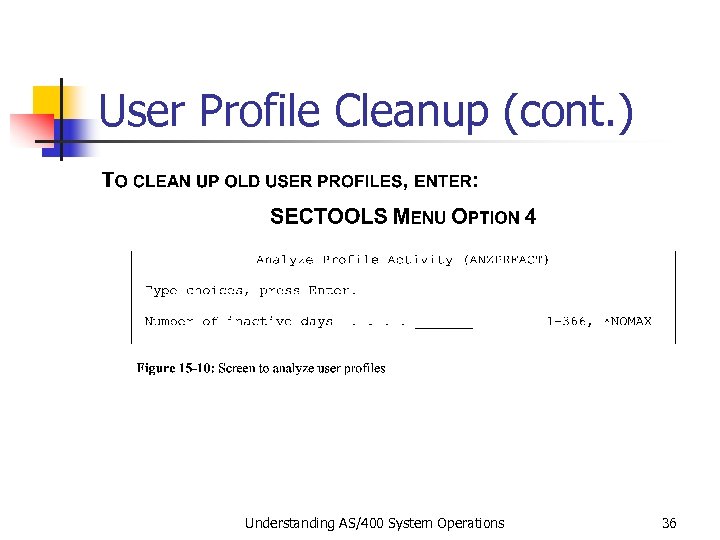

User Profile Cleanup (cont. ) Understanding AS/400 System Operations 37

Object Cleanup n Two Options for System Operator to cleanup owned objects 1. 2. Change Object’s ownership to another user profile Delete the object Understanding AS/400 System Operations 38

1. Object Cleanup Understanding AS/400 System Operations 39

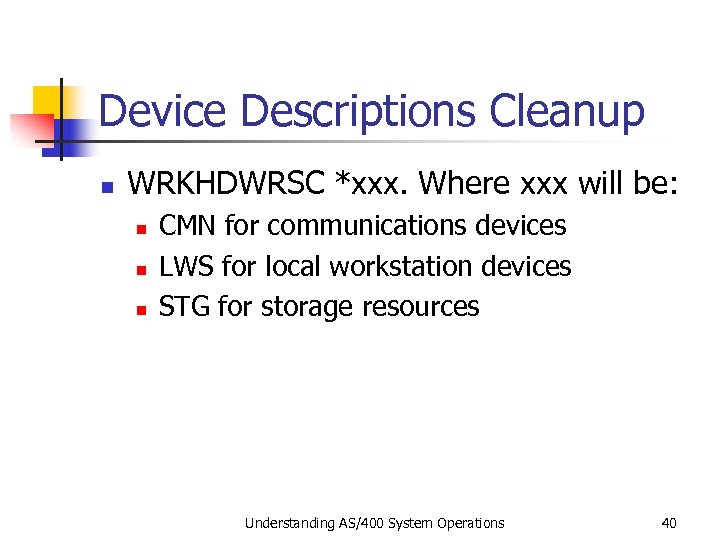

Device Descriptions Cleanup n WRKHDWRSC *xxx. Where xxx will be: n n n CMN for communications devices LWS for local workstation devices STG for storage resources Understanding AS/400 System Operations 40

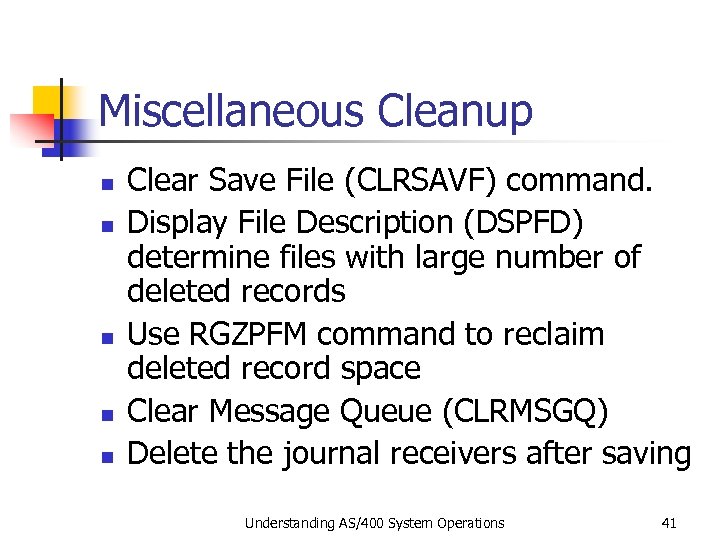

Miscellaneous Cleanup n n n Clear Save File (CLRSAVF) command. Display File Description (DSPFD) determine files with large number of deleted records Use RGZPFM command to reclaim deleted record space Clear Message Queue (CLRMSGQ) Delete the journal receivers after saving Understanding AS/400 System Operations 41
