Chapter 12 GROUP TECHNOLOGY by Dr. Richard A. Wysk

GROUP TECHNOLOGY IS A MANUFACTURING TECHNIQUE AND PHILOSOPHY TO INCREASE PRODUCTION EFFICIENCY BY EXPLOITING THE “UNDERLYING SAMENESS” OF COMPONENT SHAPE, DIMENSIONS, PROCESS ROUTE, ETC.

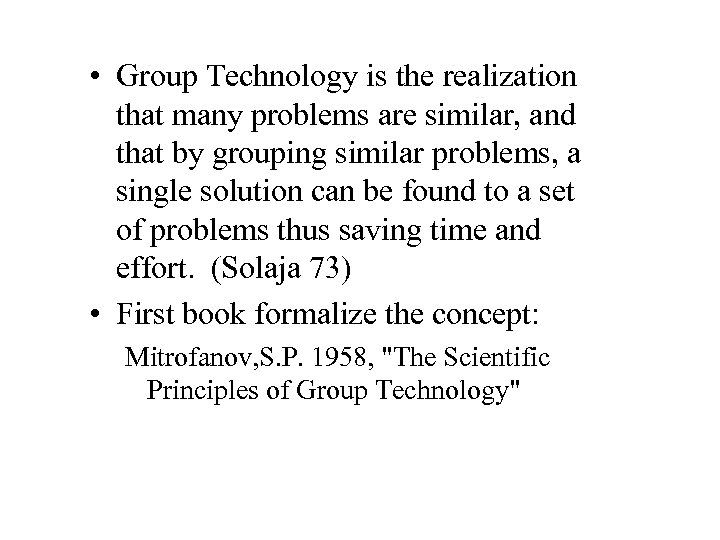

• Group Technology is the realization that many problems are similar, and that by grouping similar problems, a single solution can be found to a set of problems thus saving time and effort. (Solaja 73) • First book formalize the concept: Mitrofanov, S. P. 1958, "The Scientific Principles of Group Technology"

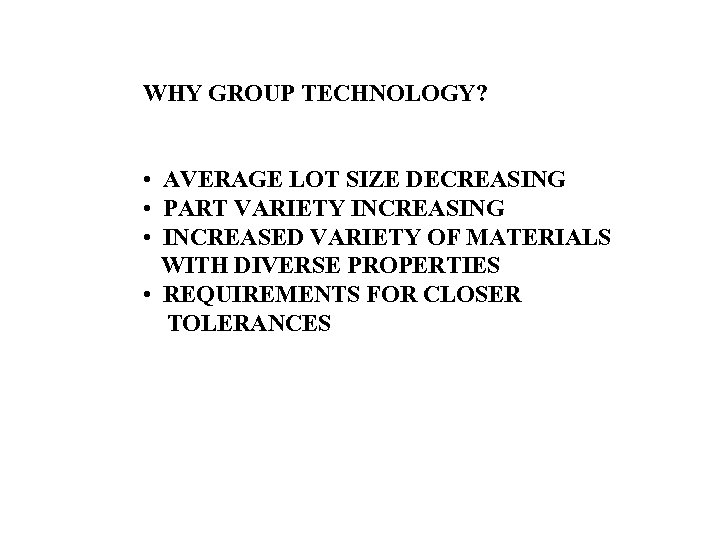

WHY GROUP TECHNOLOGY? • AVERAGE LOT SIZE DECREASING • PART VARIETY INCREASING • INCREASED VARIETY OF MATERIALS WITH DIVERSE PROPERTIES • REQUIREMENTS FOR CLOSER TOLERANCES

HIGH FL EX PR VOLUME TRANSFER LINE SPECIAL SYSTEM OD UC T IBI LIT Y IO NC AP A CI TY FLEXIBLE MANUFACTURING SYSTEM MANUFACTURING Cells STD. AND GEN. MACHINERY LOW VARIETY HIGH

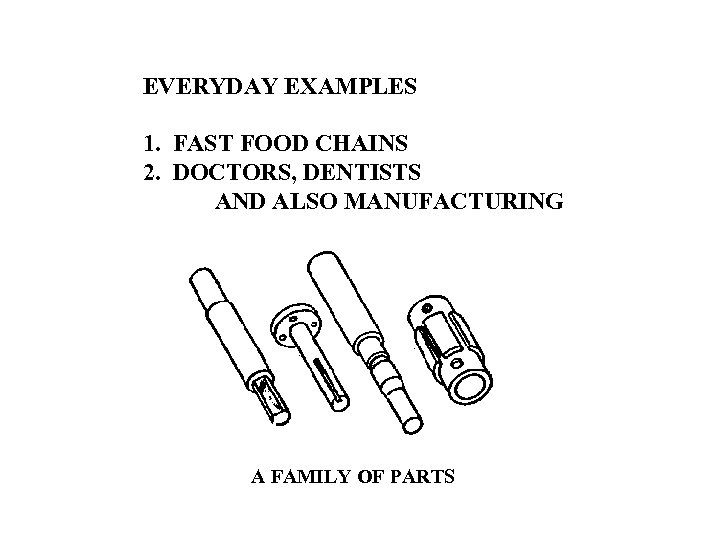

EVERYDAY EXAMPLES 1. FAST FOOD CHAINS 2. DOCTORS, DENTISTS AND ALSO MANUFACTURING A FAMILY OF PARTS

PRODUCTION FAMILY

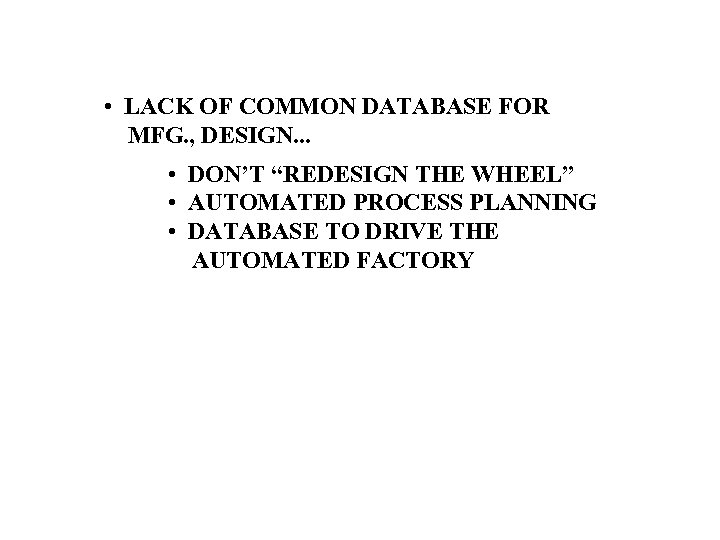

• LACK OF COMMON DATABASE FOR MFG. , DESIGN. . . • DON’T “REDESIGN THE WHEEL” • AUTOMATED PROCESS PLANNING • DATABASE TO DRIVE THE AUTOMATED FACTORY

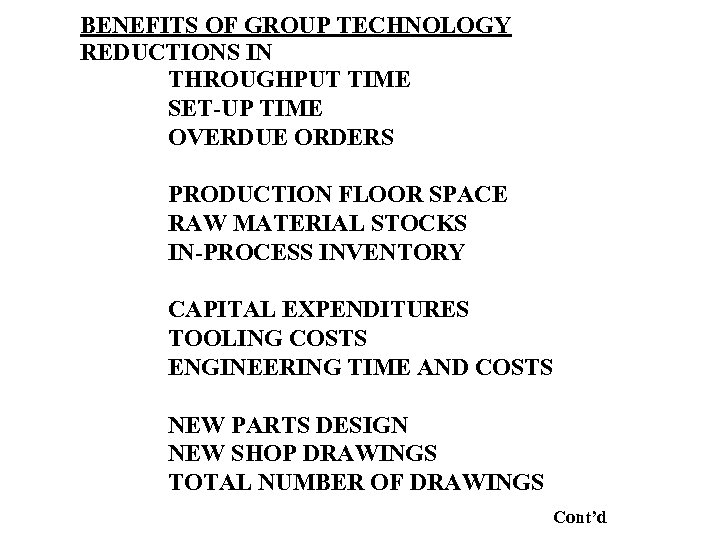

BENEFITS OF GROUP TECHNOLOGY REDUCTIONS IN THROUGHPUT TIME SET-UP TIME OVERDUE ORDERS PRODUCTION FLOOR SPACE RAW MATERIAL STOCKS IN-PROCESS INVENTORY CAPITAL EXPENDITURES TOOLING COSTS ENGINEERING TIME AND COSTS NEW PARTS DESIGN NEW SHOP DRAWINGS TOTAL NUMBER OF DRAWINGS Cont’d

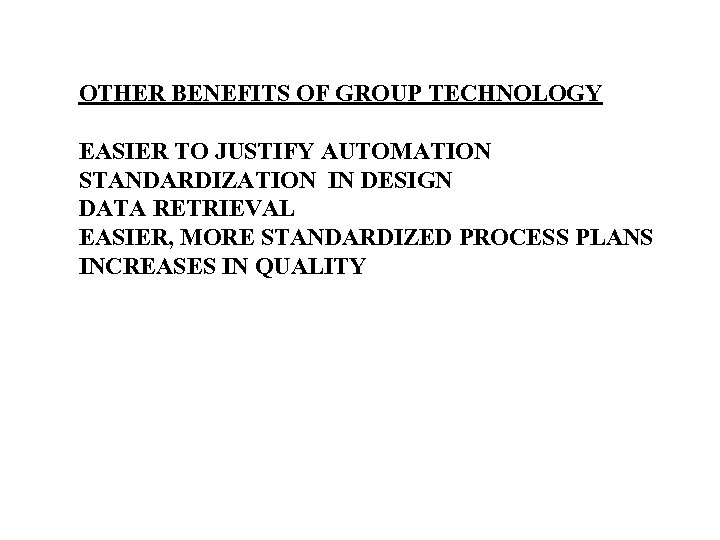

OTHER BENEFITS OF GROUP TECHNOLOGY EASIER TO JUSTIFY AUTOMATION STANDARDIZATION IN DESIGN DATA RETRIEVAL EASIER, MORE STANDARDIZED PROCESS PLANS INCREASES IN QUALITY

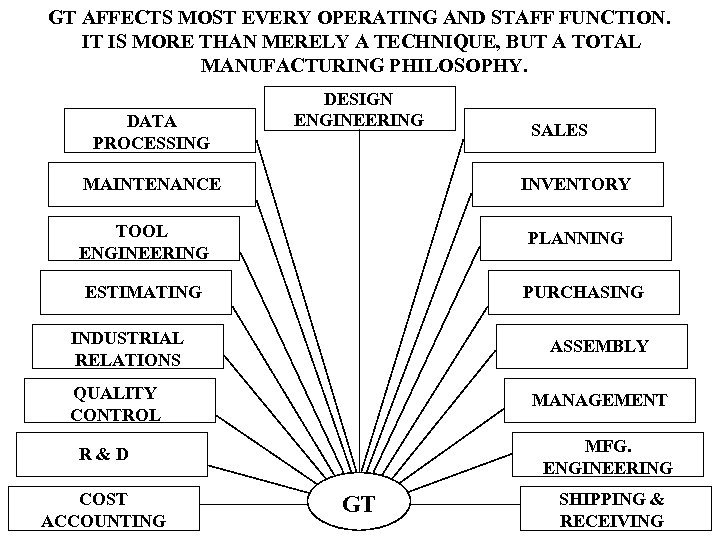

GT AFFECTS MOST EVERY OPERATING AND STAFF FUNCTION. IT IS MORE THAN MERELY A TECHNIQUE, BUT A TOTAL MANUFACTURING PHILOSOPHY. DATA PROCESSING DESIGN ENGINEERING MAINTENANCE INVENTORY TOOL ENGINEERING PLANNING ESTIMATING PURCHASING INDUSTRIAL RELATIONS ASSEMBLY QUALITY CONTROL MANAGEMENT MFG. ENGINEERING R&D COST ACCOUNTING SALES GT SHIPPING & RECEIVING

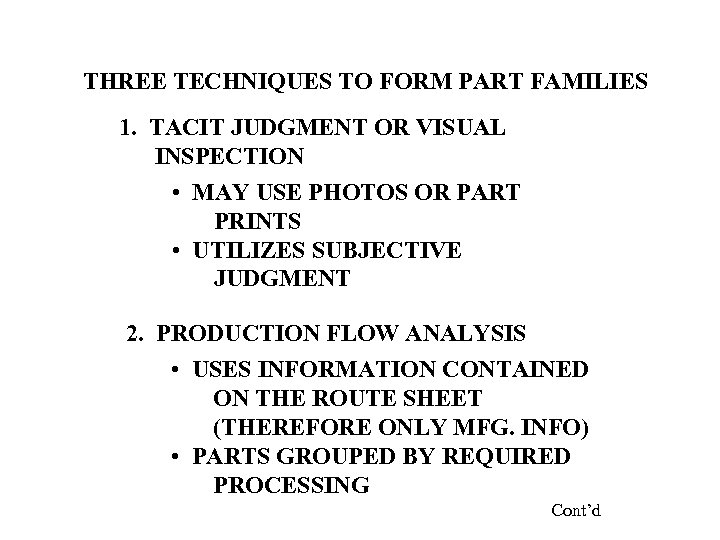

THREE TECHNIQUES TO FORM PART FAMILIES 1. TACIT JUDGMENT OR VISUAL INSPECTION • MAY USE PHOTOS OR PART PRINTS • UTILIZES SUBJECTIVE JUDGMENT 2. PRODUCTION FLOW ANALYSIS • USES INFORMATION CONTAINED ON THE ROUTE SHEET (THEREFORE ONLY MFG. INFO) • PARTS GROUPED BY REQUIRED PROCESSING Cont’d

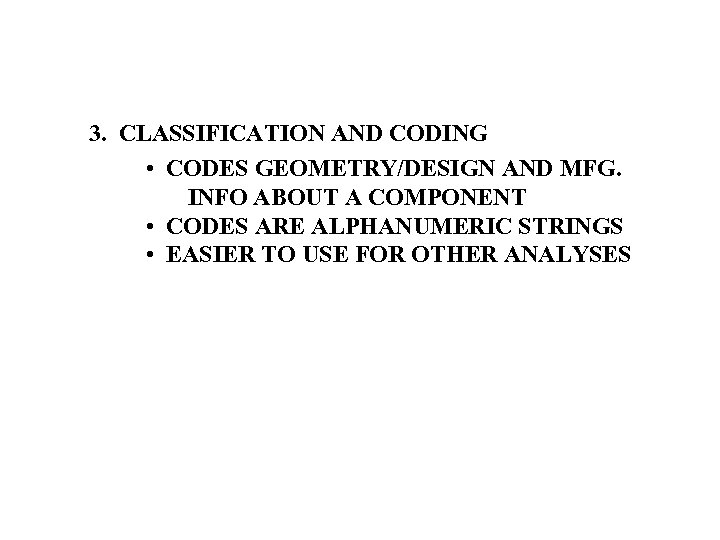

3. CLASSIFICATION AND CODING • CODES GEOMETRY/DESIGN AND MFG. INFO ABOUT A COMPONENT • CODES ARE ALPHANUMERIC STRINGS • EASIER TO USE FOR OTHER ANALYSES

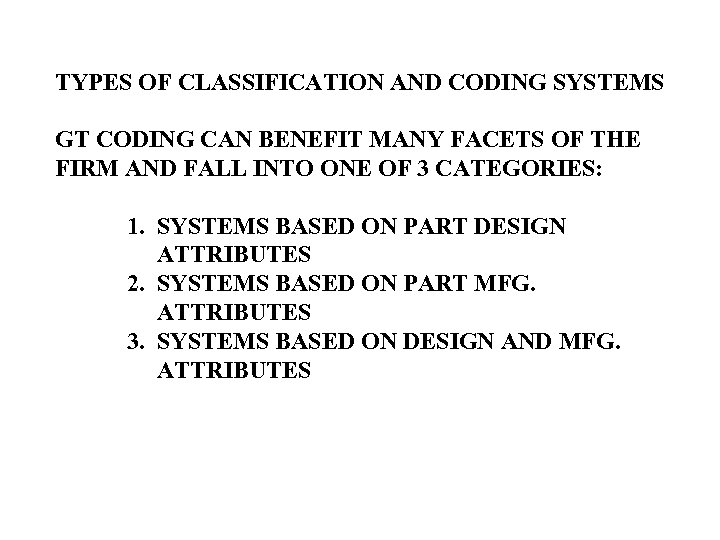

TYPES OF CLASSIFICATION AND CODING SYSTEMS GT CODING CAN BENEFIT MANY FACETS OF THE FIRM AND FALL INTO ONE OF 3 CATEGORIES: 1. SYSTEMS BASED ON PART DESIGN ATTRIBUTES 2. SYSTEMS BASED ON PART MFG. ATTRIBUTES 3. SYSTEMS BASED ON DESIGN AND MFG. ATTRIBUTES

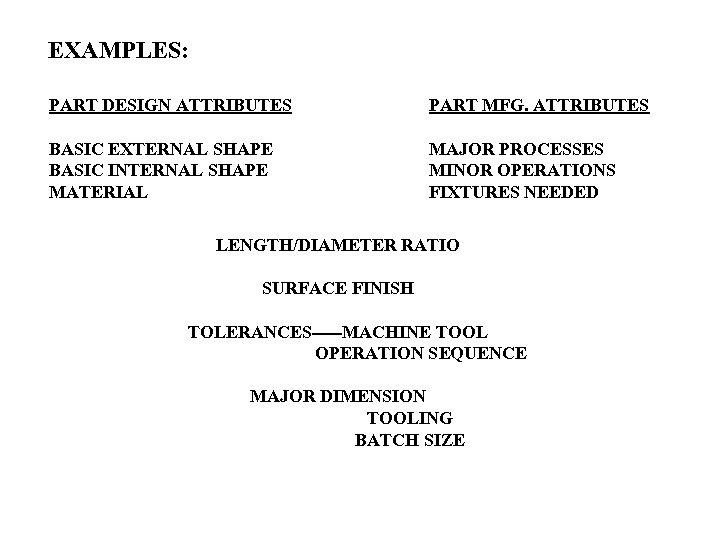

EXAMPLES: PART DESIGN ATTRIBUTES PART MFG. ATTRIBUTES BASIC EXTERNAL SHAPE BASIC INTERNAL SHAPE MATERIAL MAJOR PROCESSES MINOR OPERATIONS FIXTURES NEEDED LENGTH/DIAMETER RATIO SURFACE FINISH TOLERANCES-----MACHINE TOOL OPERATION SEQUENCE MAJOR DIMENSION TOOLING BATCH SIZE

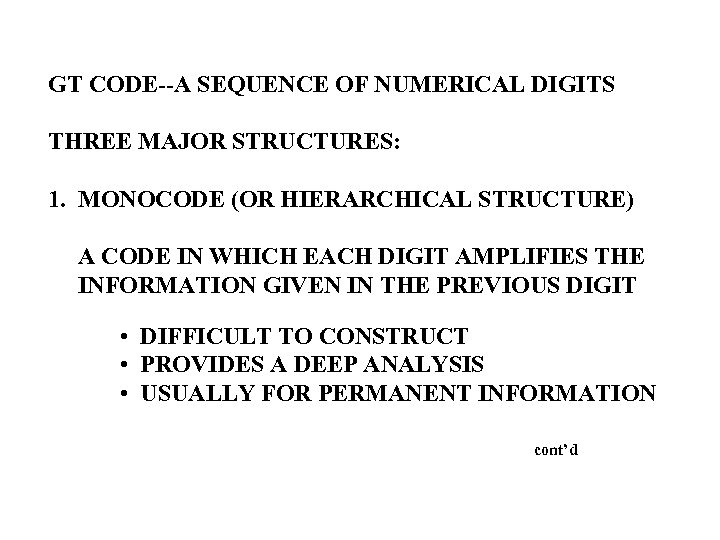

GT CODE--A SEQUENCE OF NUMERICAL DIGITS THREE MAJOR STRUCTURES: 1. MONOCODE (OR HIERARCHICAL STRUCTURE) A CODE IN WHICH EACH DIGIT AMPLIFIES THE INFORMATION GIVEN IN THE PREVIOUS DIGIT • DIFFICULT TO CONSTRUCT • PROVIDES A DEEP ANALYSIS • USUALLY FOR PERMANENT INFORMATION cont’d

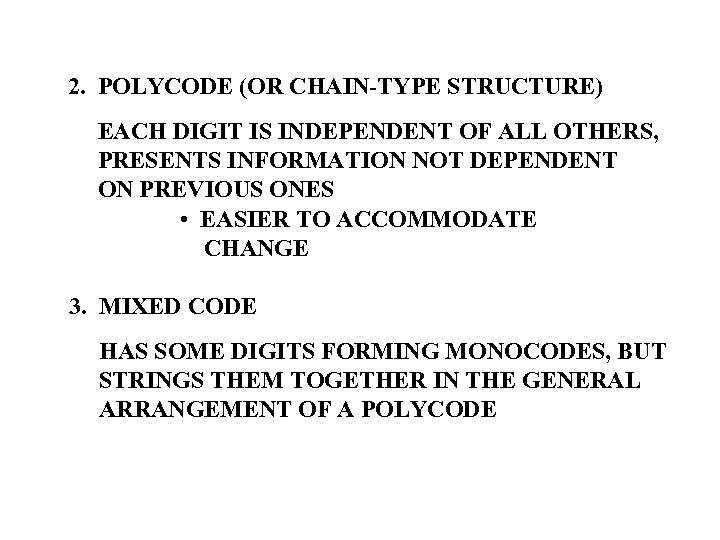

2. POLYCODE (OR CHAIN-TYPE STRUCTURE) EACH DIGIT IS INDEPENDENT OF ALL OTHERS, PRESENTS INFORMATION NOT DEPENDENT ON PREVIOUS ONES • EASIER TO ACCOMMODATE CHANGE 3. MIXED CODE HAS SOME DIGITS FORMING MONOCODES, BUT STRINGS THEM TOGETHER IN THE GENERAL ARRANGEMENT OF A POLYCODE

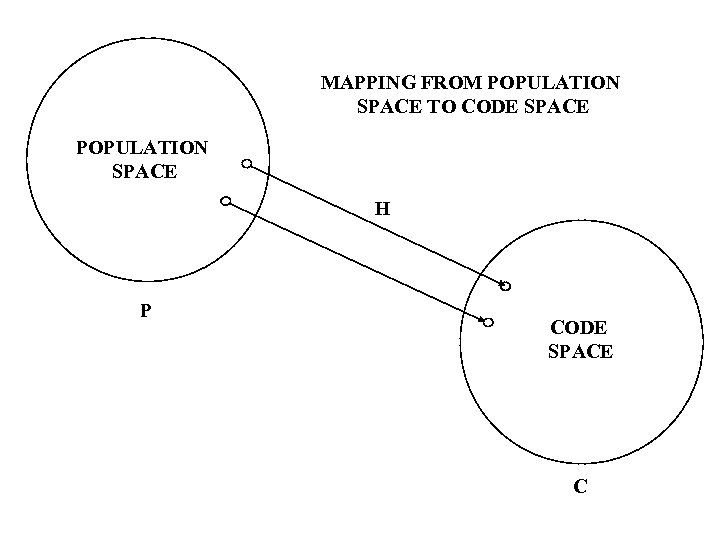

MAPPING FROM POPULATION SPACE TO CODE SPACE POPULATION SPACE H P CODE SPACE C

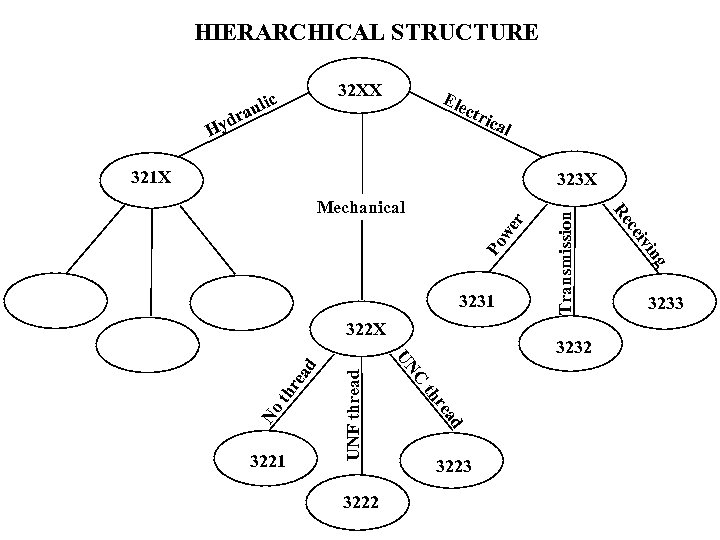

HIERARCHICAL STRUCTURE H Ele ctr ica l 321 X 323 X r we Po UNF thread d ea th r No ad 3223 g re th 3222 C UN 3221 3232 in 322 X iv ce 3231 Re Mechanical Transmission yd 32 XX ic aul r 3233

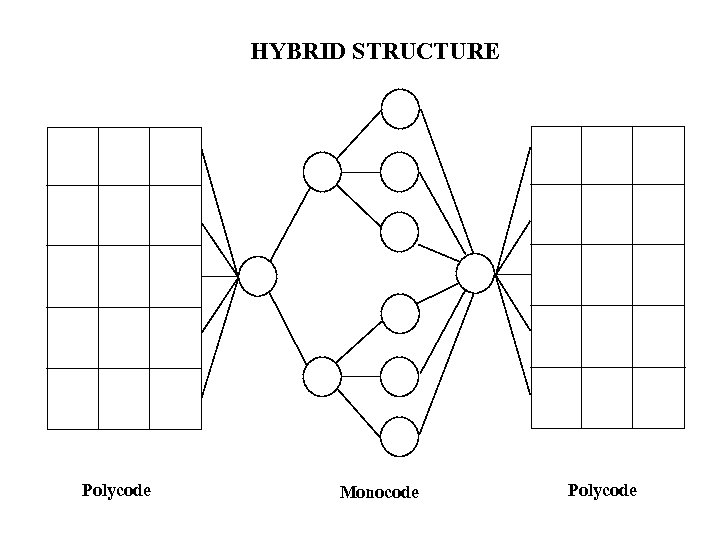

HYBRID STRUCTURE Polycode Monocode Polycode

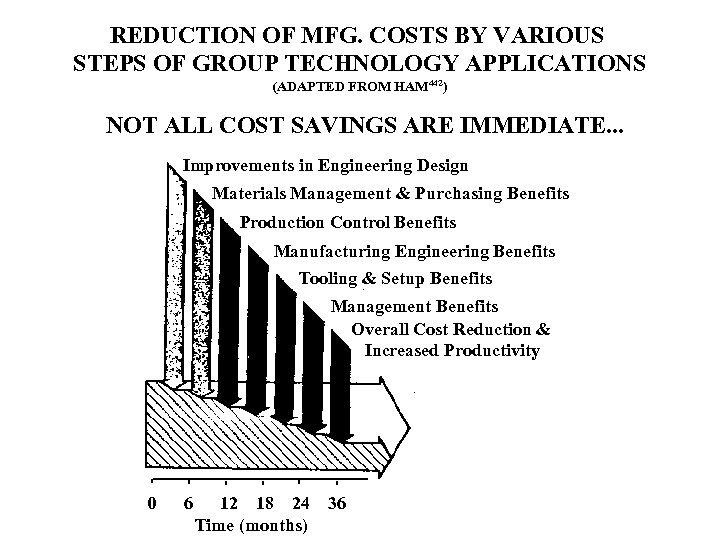

REDUCTION OF MFG. COSTS BY VARIOUS STEPS OF GROUP TECHNOLOGY APPLICATIONS (ADAPTED FROM HAM 442) NOT ALL COST SAVINGS ARE IMMEDIATE. . . Improvements in Engineering Design Materials Management & Purchasing Benefits Production Control Benefits Manufacturing Engineering Benefits Tooling & Setup Benefits Management Benefits Overall Cost Reduction & Increased Productivity 0 6 12 18 24 Time (months) 36

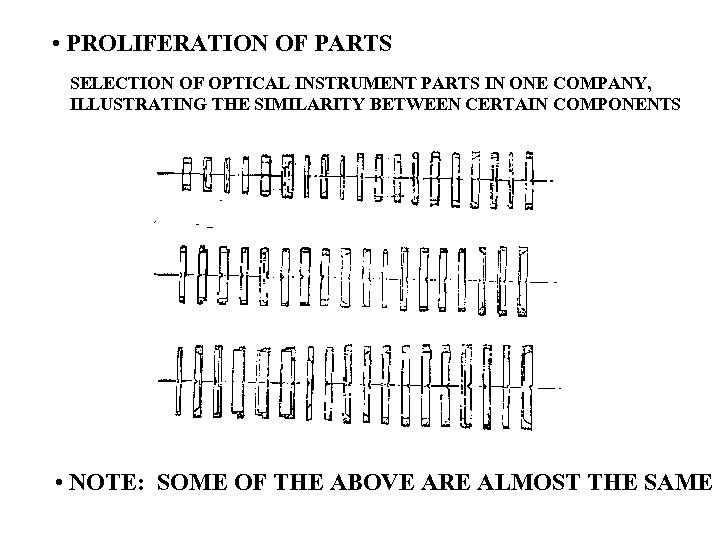

• PROLIFERATION OF PARTS SELECTION OF OPTICAL INSTRUMENT PARTS IN ONE COMPANY, ILLUSTRATING THE SIMILARITY BETWEEN CERTAIN COMPONENTS • NOTE: SOME OF THE ABOVE ARE ALMOST THE SAME

GT FOR DESIGN APPLICATION Conceptual design Design concept can be coded. Code is a rough model of the conceptual design. Coding (rough model) Retrieval existing designs Design archive Existing designs Design modification New Design Retrieve designs of similar shape or function and use them as the examples.

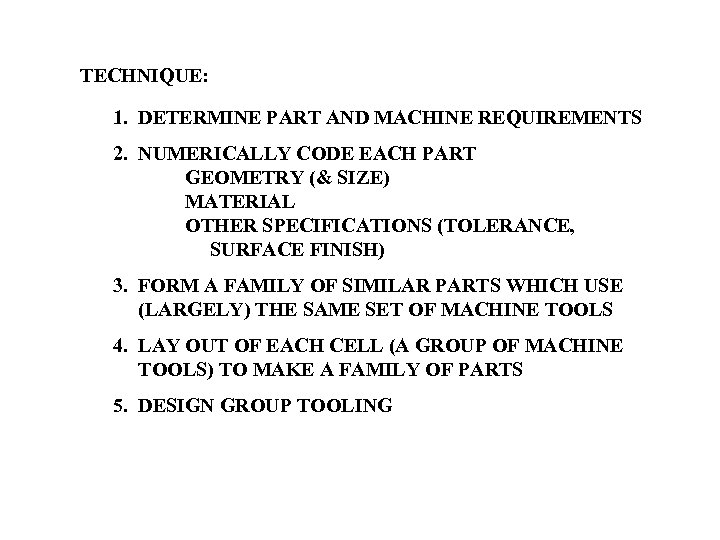

TECHNIQUE: 1. DETERMINE PART AND MACHINE REQUIREMENTS 2. NUMERICALLY CODE EACH PART GEOMETRY (& SIZE) MATERIAL OTHER SPECIFICATIONS (TOLERANCE, SURFACE FINISH) 3. FORM A FAMILY OF SIMILAR PARTS WHICH USE (LARGELY) THE SAME SET OF MACHINE TOOLS 4. LAY OUT OF EACH CELL (A GROUP OF MACHINE TOOLS) TO MAKE A FAMILY OF PARTS 5. DESIGN GROUP TOOLING

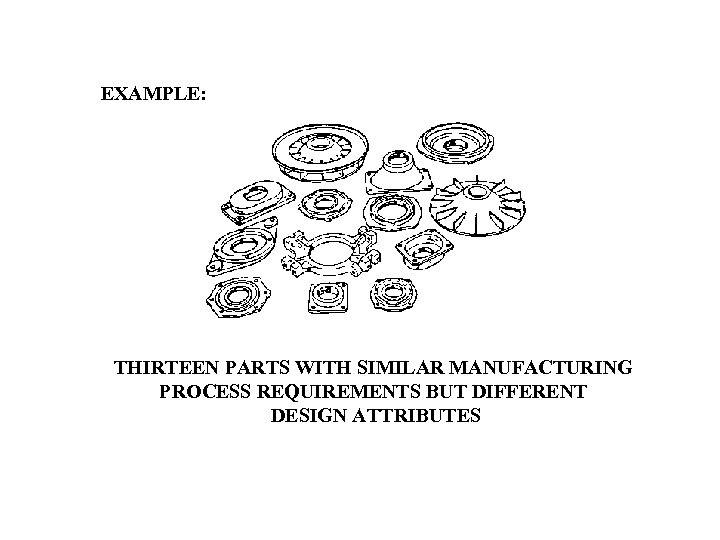

EXAMPLE: THIRTEEN PARTS WITH SIMILAR MANUFACTURING PROCESS REQUIREMENTS BUT DIFFERENT DESIGN ATTRIBUTES

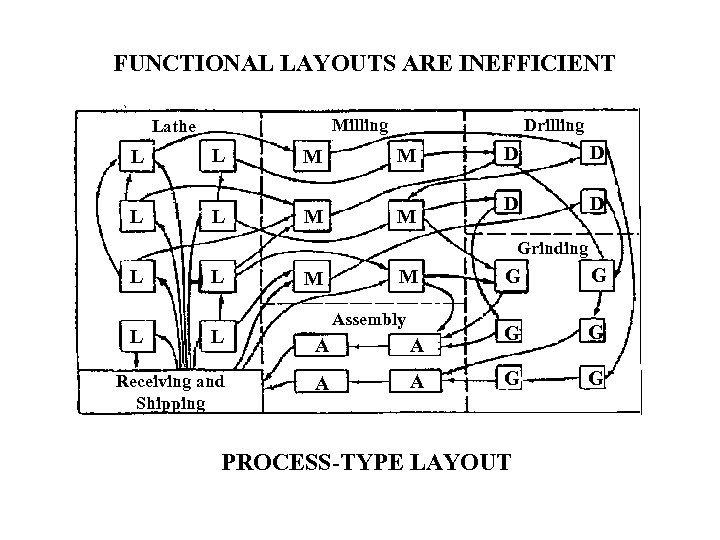

FUNCTIONAL LAYOUTS ARE INEFFICIENT Drilling Milling Lathe L L M M D D Grinding L L L M M Assembly L A A Receiving and Shipping A A G G G PROCESS-TYPE LAYOUT

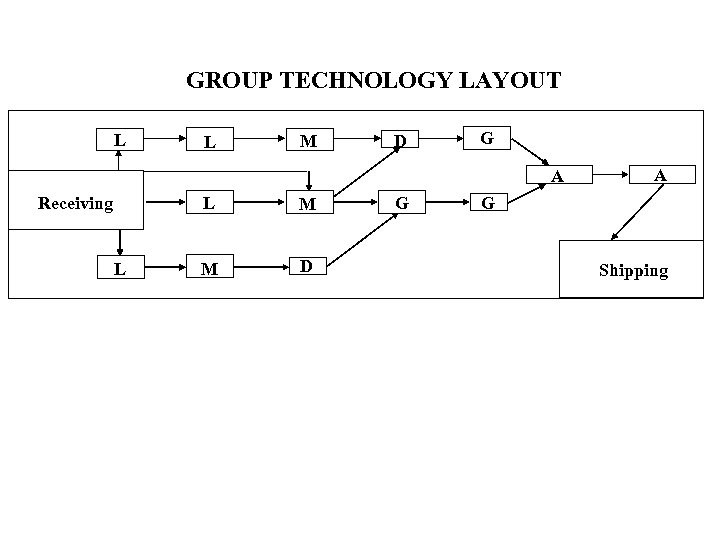

GROUP TECHNOLOGY LAYOUT L L M D G A Receiving L L M M D G A G Shipping

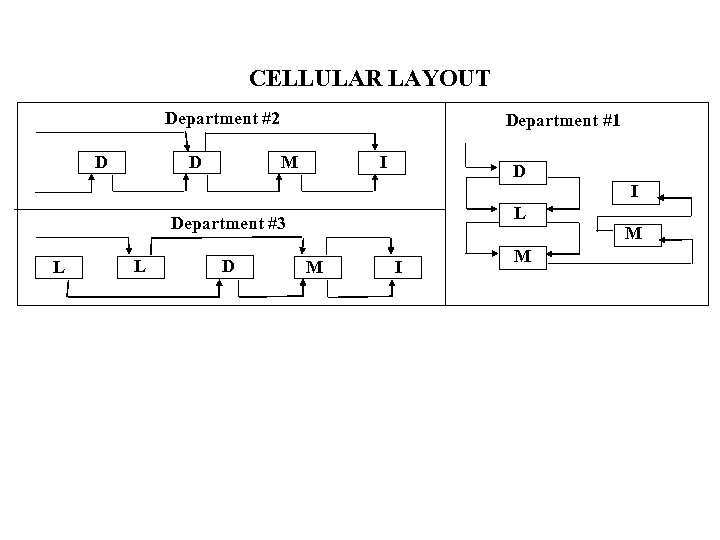

CELLULAR LAYOUT Department #2 D D Department #1 M I D I L Department #3 L L D M M I M

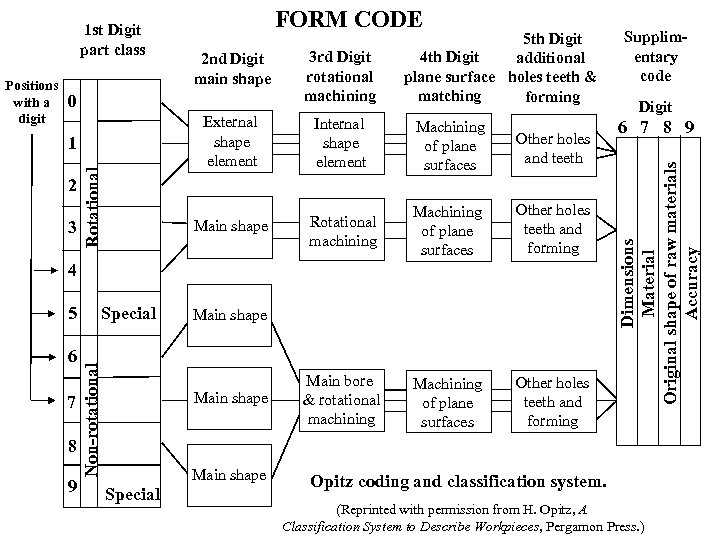

2 nd Digit main shape 0 Rotational 3 Internal shape element Machining of plane surfaces Other holes and teeth Main shape 1 2 3 rd Digit rotational machining 5 th Digit 4 th Digit additional plane surface holes teeth & matching forming External shape element Rotational machining Machining of plane surfaces Other holes teeth and forming Main bore & rotational machining Machining of plane surfaces Other holes teeth and forming 4 5 6 7 8 9 Special Non-rotational Positions with a digit FORM CODE Main shape Special Main shape Supplimentary code Digit 6 7 8 9 Dimensions Material Original shape of raw materials Accuracy 1 st Digit part class Opitz coding and classification system. (Reprinted with permission from H. Opitz, A Classification System to Describe Workpieces, Pergamon Press. )

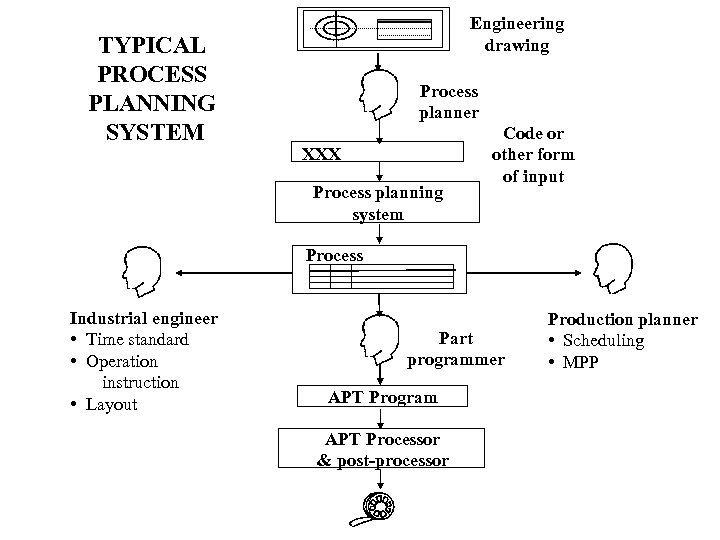

TYPICAL PROCESS PLANNING SYSTEM Engineering drawing Process planner XXX Process planning system Code or other form of input Process Industrial engineer • Time standard • Operation instruction • Layout Part programmer APT Program APT Processor & post-processor Production planner • Scheduling • MPP

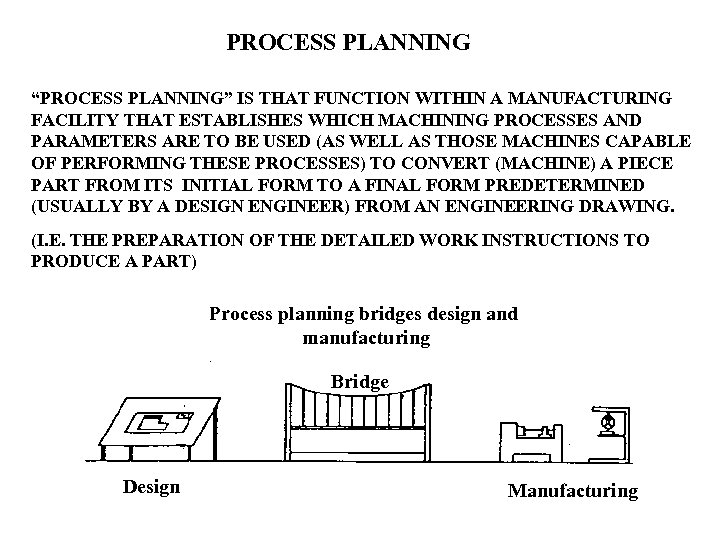

PROCESS PLANNING “PROCESS PLANNING” IS THAT FUNCTION WITHIN A MANUFACTURING FACILITY THAT ESTABLISHES WHICH MACHINING PROCESSES AND PARAMETERS ARE TO BE USED (AS WELL AS THOSE MACHINES CAPABLE OF PERFORMING THESE PROCESSES) TO CONVERT (MACHINE) A PIECE PART FROM ITS INITIAL FORM TO A FINAL FORM PREDETERMINED (USUALLY BY A DESIGN ENGINEER) FROM AN ENGINEERING DRAWING. (I. E. THE PREPARATION OF THE DETAILED WORK INSTRUCTIONS TO PRODUCE A PART) Process planning bridges design and manufacturing Bridge Design Manufacturing

VARIANT PROCESS PLANNING USES THE SIMILARITY AMONG COMPONENTS TO RETRIEVE EXISTING PROCESS PLANS (WHICH CAN BE MODIFIED) OVERVIEW: TWO STAGES FOR VP SYSTEMS 1. PREPARATORY STAGE • EXISTING PARTS CODED & CLASSIFIED (I. E. GT IS A PREREQUISITE) • PART FAMILIES ORGANIZED • STANDARD PLANS DEVELOPED • DATABASES CREATED (NOTE: THIS STAGE IS LABOR INTENSIVE) Cont’d

1. PREPARATORY STAGE OF VARIANT PROCESS PLANNING Part Drawing Coding Family One Standard Plan File Family Formation Process Plan (Indexed by Family Matrix)

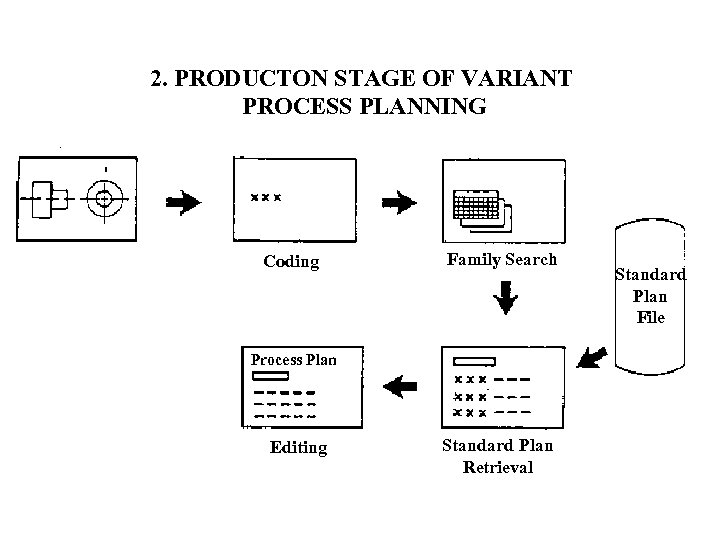

2. PRODUCTON STAGE OF VARIANT PROCESS PLANNING Coding Family Search Process Plan Editing Standard Plan Retrieval Standard Plan File
