Chapter 11 Security The Security Problem

Chapter 11 Security

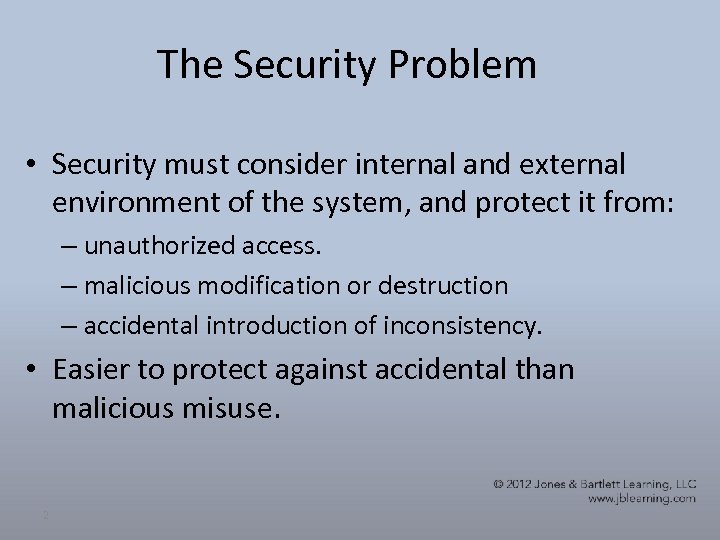

The Security Problem • Security must consider internal and external environment of the system, and protect it from: – unauthorized access. – malicious modification or destruction – accidental introduction of inconsistency. • Easier to protect against accidental than malicious misuse. 2

Security A system is secure if its resources are used and accessed as intended under all circumstances. • Computer security – Addresses the issue of preventing unauthorized access to resources and information maintained by computers – Encompasses the following issues: • Guaranteeing the privacy and integrity of sensitive data • Restricting the use of computer resources • Providing resilience against malicious attempts to incapacitate the system 3

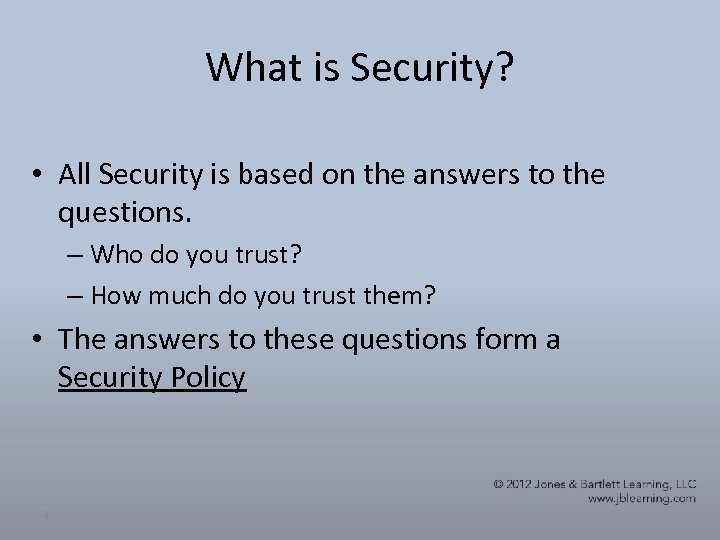

What is Security? • All Security is based on the answers to the questions. – Who do you trust? – How much do you trust them? • The answers to these questions form a Security Policy 4

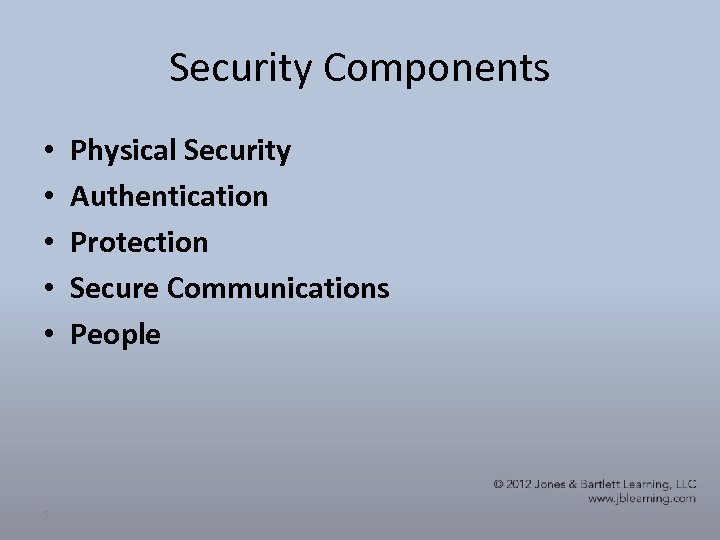

Security Components • • • 5 Physical Security Authentication Protection Secure Communications People

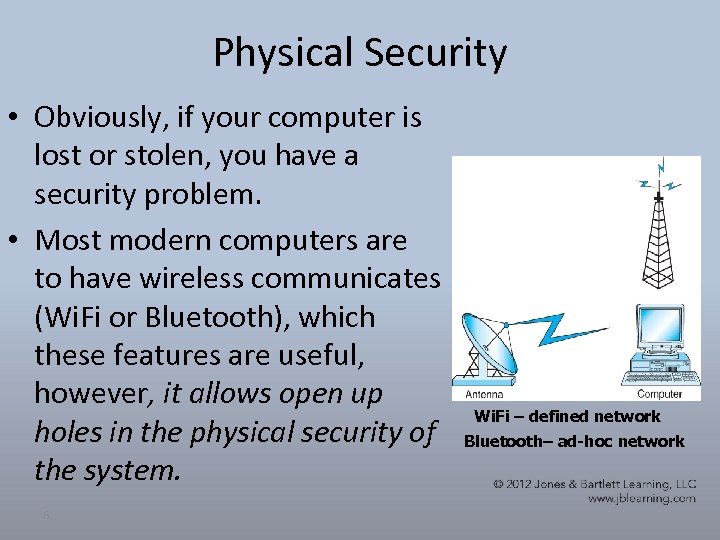

Physical Security • Obviously, if your computer is lost or stolen, you have a security problem. • Most modern computers are to have wireless communicates (Wi. Fi or Bluetooth), which these features are useful, however, it allows open up holes in the physical security of the system. 6 Wi. Fi – defined network Bluetooth– ad-hoc network

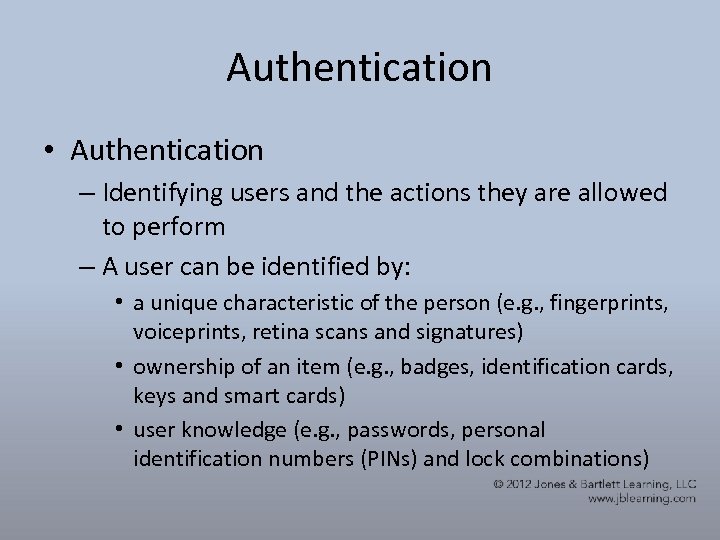

Authentication • Authentication – Identifying users and the actions they are allowed to perform – A user can be identified by: • a unique characteristic of the person (e. g. , fingerprints, voiceprints, retina scans and signatures) • ownership of an item (e. g. , badges, identification cards, keys and smart cards) • user knowledge (e. g. , passwords, personal identification numbers (PINs) and lock combinations)

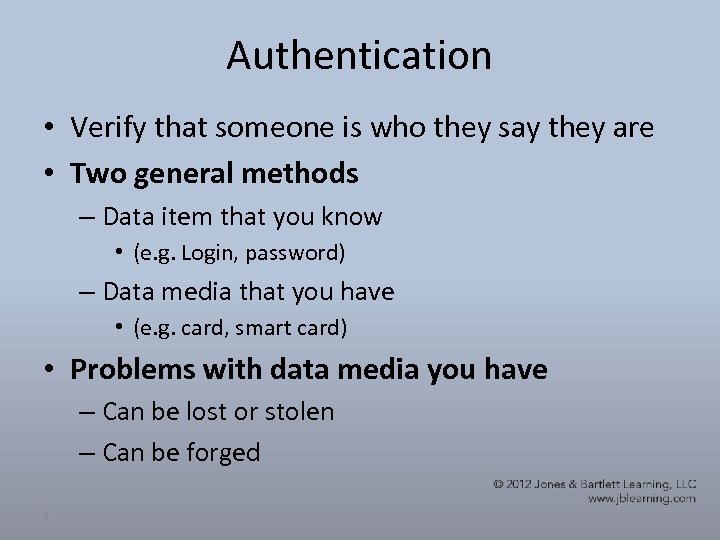

Authentication • Verify that someone is who they say they are • Two general methods – Data item that you know • (e. g. Login, password) – Data media that you have • (e. g. card, smart card) • Problems with data media you have – Can be lost or stolen – Can be forged 8

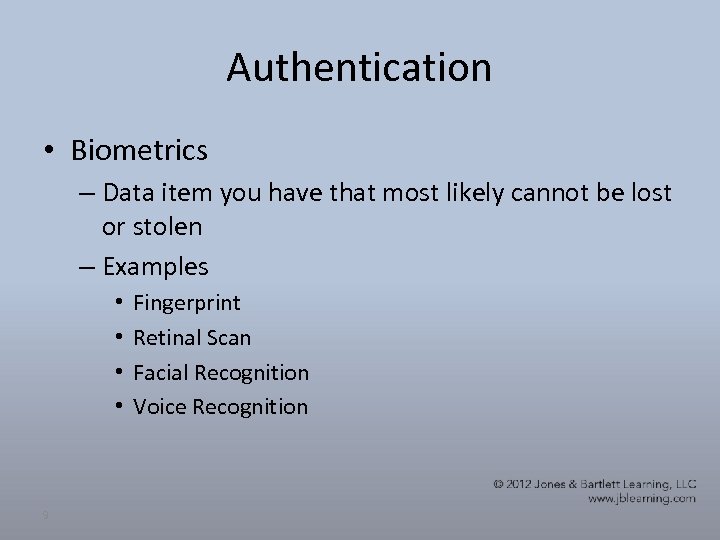

Authentication • Biometrics – Data item you have that most likely cannot be lost or stolen – Examples • • 9 Fingerprint Retinal Scan Facial Recognition Voice Recognition

Protection • Mechanisms to control what an authenticated user can do. – File Protection – Memory Protection – Web Protection • Mechanism to keep unauthorized users from accessing the system – Firewalls – Virus Detection – Spyware Detection 10

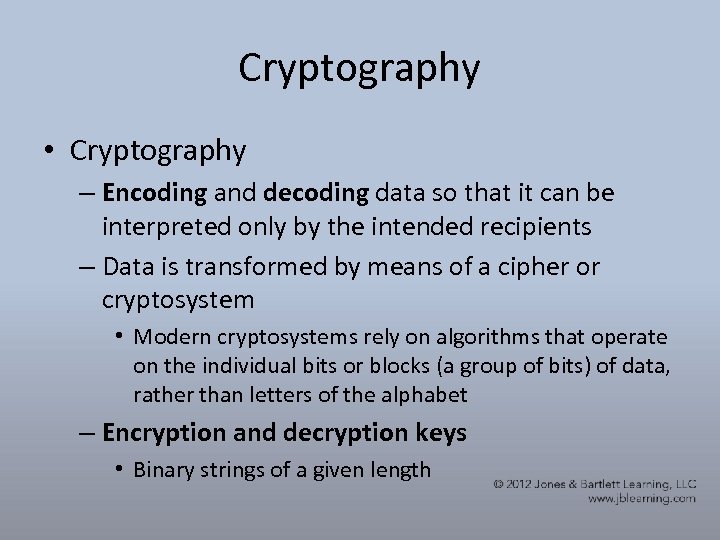

Cryptography • Cryptography – Encoding and decoding data so that it can be interpreted only by the intended recipients – Data is transformed by means of a cipher or cryptosystem • Modern cryptosystems rely on algorithms that operate on the individual bits or blocks (a group of bits) of data, rather than letters of the alphabet – Encryption and decryption keys • Binary strings of a given length

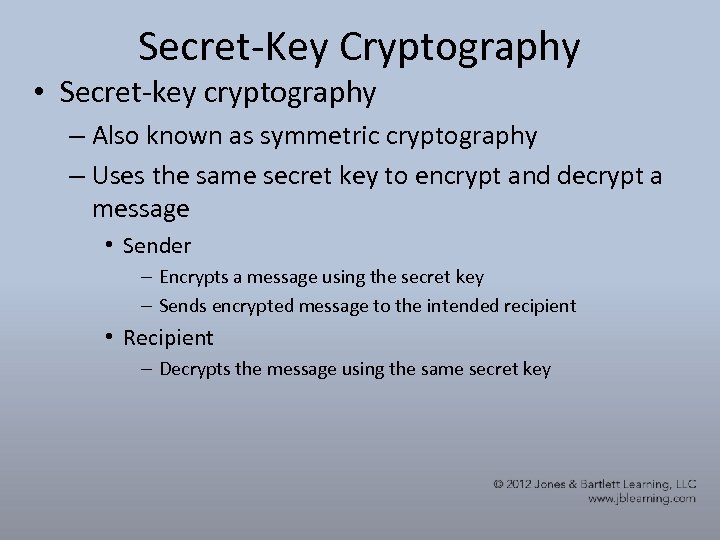

Secret-Key Cryptography • Secret-key cryptography – Also known as symmetric cryptography – Uses the same secret key to encrypt and decrypt a message • Sender – Encrypts a message using the secret key – Sends encrypted message to the intended recipient • Recipient – Decrypts the message using the same secret key

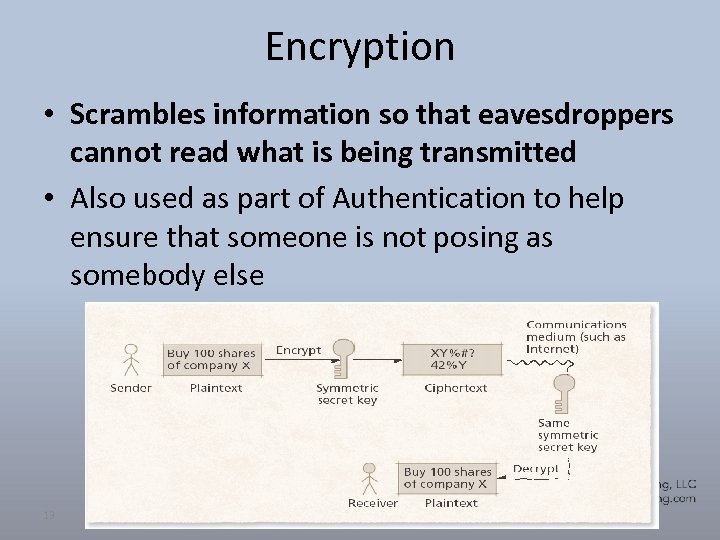

Encryption • Scrambles information so that eavesdroppers cannot read what is being transmitted • Also used as part of Authentication to help ensure that someone is not posing as somebody else 13

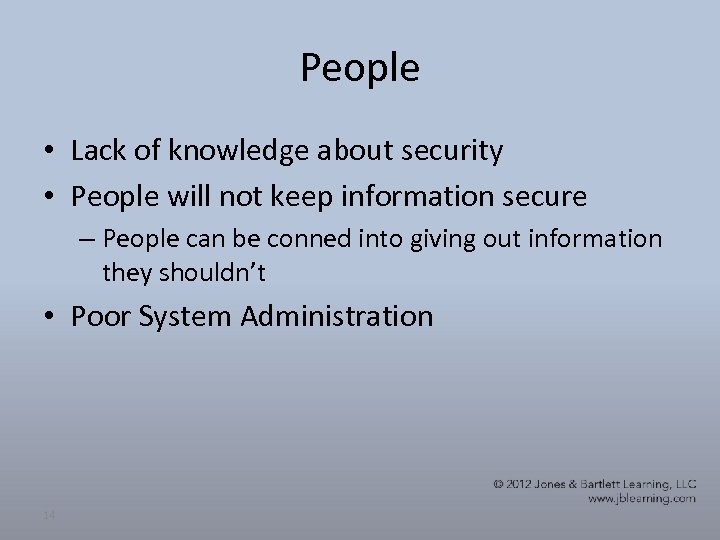

People • Lack of knowledge about security • People will not keep information secure – People can be conned into giving out information they shouldn’t • Poor System Administration 14

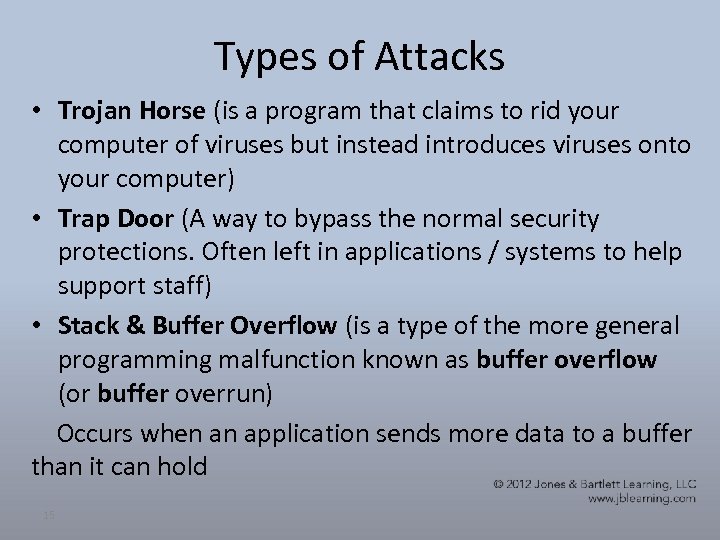

Types of Attacks • Trojan Horse (is a program that claims to rid your computer of viruses but instead introduces viruses onto your computer) • Trap Door (A way to bypass the normal security protections. Often left in applications / systems to help support staff) • Stack & Buffer Overflow (is a type of the more general programming malfunction known as buffer overflow (or buffer overrun) Occurs when an application sends more data to a buffer than it can hold 15

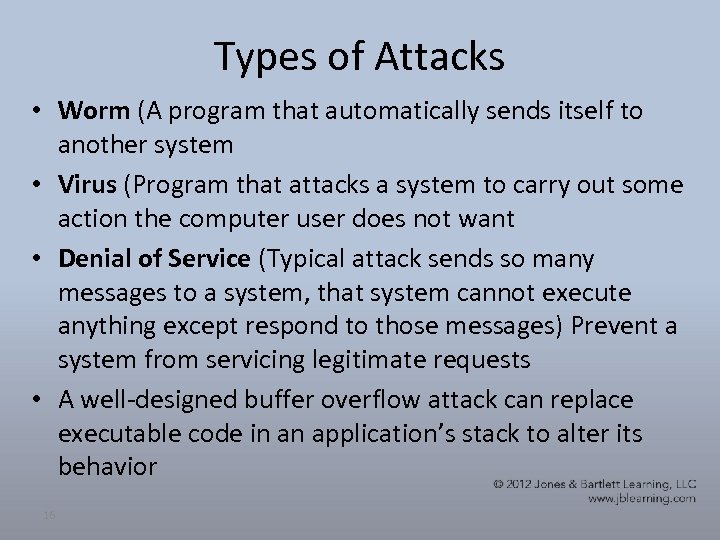

Types of Attacks • Worm (A program that automatically sends itself to another system • Virus (Program that attacks a system to carry out some action the computer user does not want • Denial of Service (Typical attack sends so many messages to a system, that system cannot execute anything except respond to those messages) Prevent a system from servicing legitimate requests • A well-designed buffer overflow attack can replace executable code in an application’s stack to alter its behavior 16

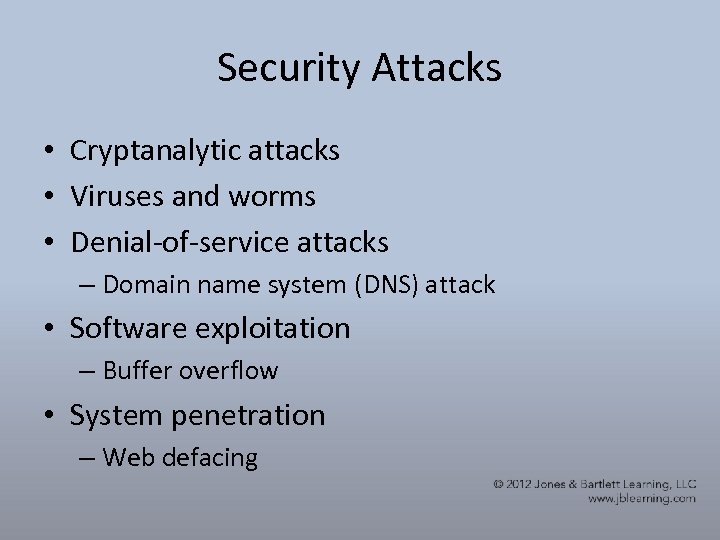

Security Attacks • Cryptanalytic attacks • Viruses and worms • Denial-of-service attacks – Domain name system (DNS) attack • Software exploitation – Buffer overflow • System penetration – Web defacing

Stack & Buffer Overflow • Send an incorrectly formatted command / message to a system. If system does not carry out adequate checking, it may execute some action it shouldn’t 18

Stack & Buffer Overflow • How does this happen? – Poorly Programmed Read • Should be read(file, buffer, 100) • Instead of read(file, buffer) which reads as much data as the remote system sends – Inadequate checking of the validity of the data that is received 19

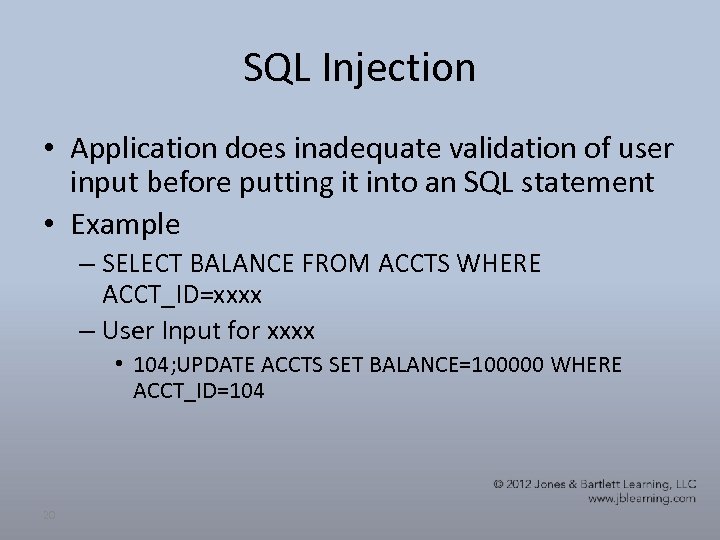

SQL Injection • Application does inadequate validation of user input before putting it into an SQL statement • Example – SELECT BALANCE FROM ACCTS WHERE ACCT_ID=xxxx – User Input for xxxx • 104; UPDATE ACCTS SET BALANCE=100000 WHERE ACCT_ID=104 20

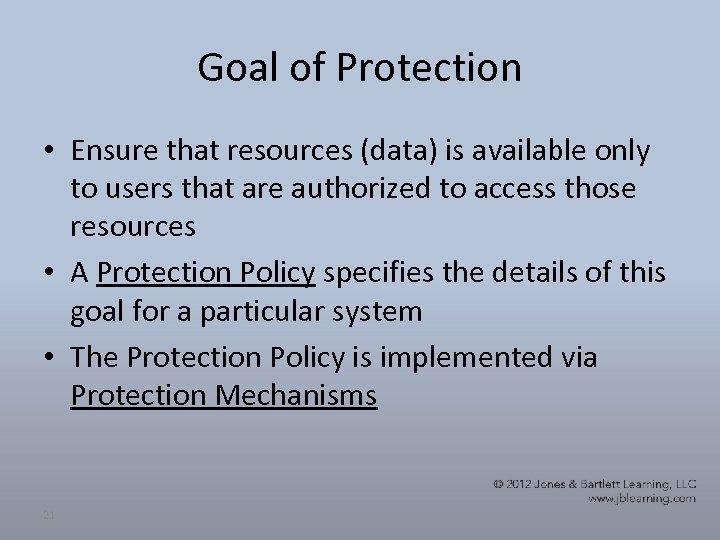

Goal of Protection • Ensure that resources (data) is available only to users that are authorized to access those resources • A Protection Policy specifies the details of this goal for a particular system • The Protection Policy is implemented via Protection Mechanisms 21

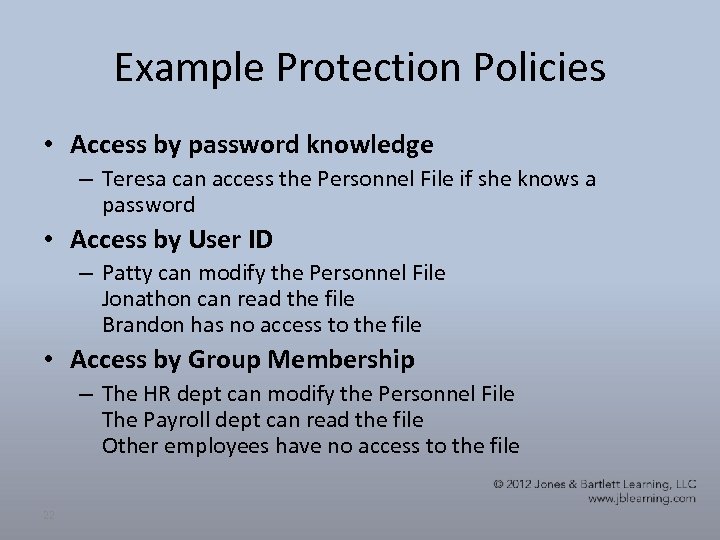

Example Protection Policies • Access by password knowledge – Teresa can access the Personnel File if she knows a password • Access by User ID – Patty can modify the Personnel File Jonathon can read the file Brandon has no access to the file • Access by Group Membership – The HR dept can modify the Personnel File The Payroll dept can read the file Other employees have no access to the file 22

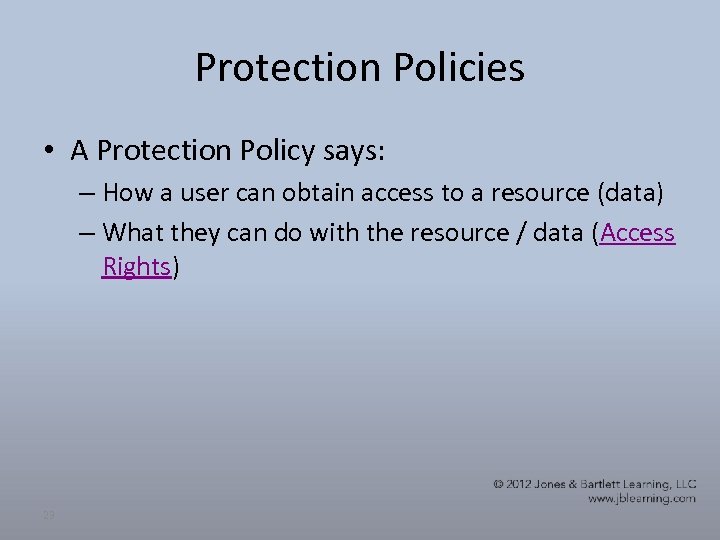

Protection Policies • A Protection Policy says: – How a user can obtain access to a resource (data) – What they can do with the resource / data (Access Rights) 23

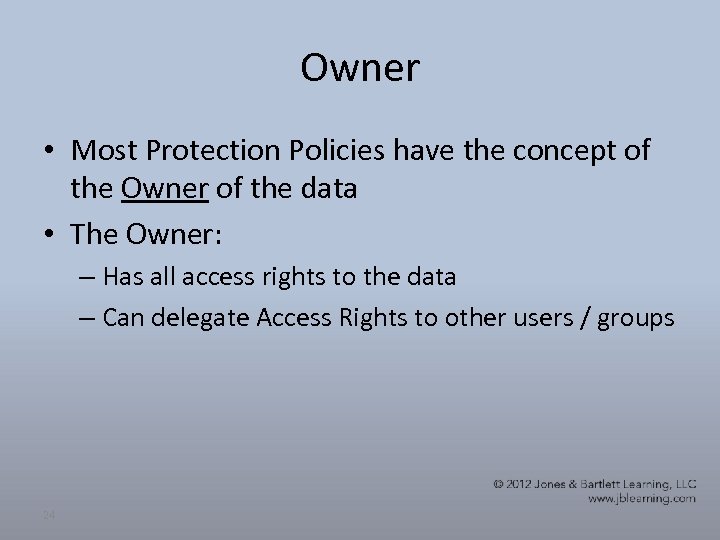

Owner • Most Protection Policies have the concept of the Owner of the data • The Owner: – Has all access rights to the data – Can delegate Access Rights to other users / groups 24

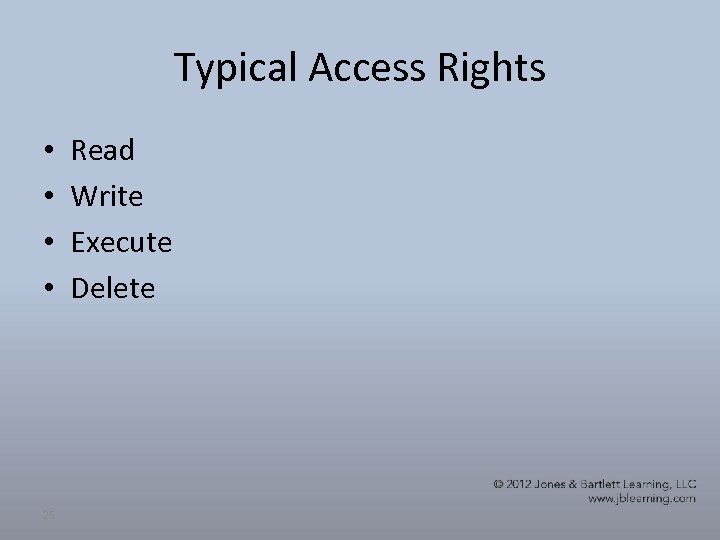

Typical Access Rights • • 25 Read Write Execute Delete

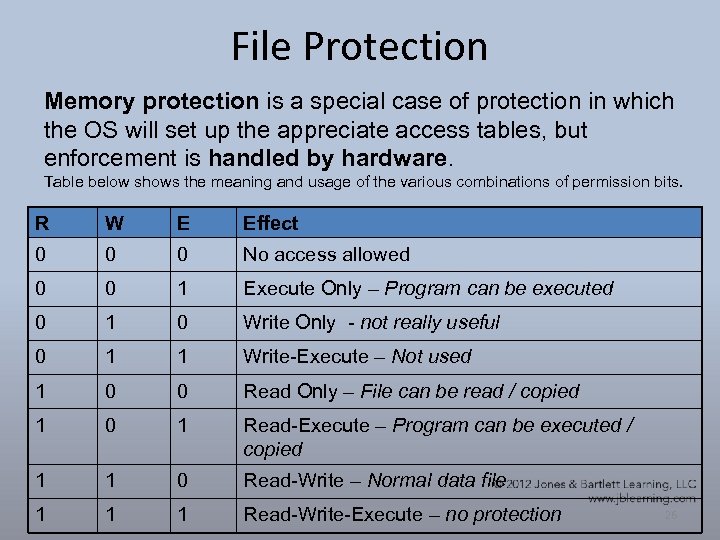

File Protection Memory protection is a special case of protection in which the OS will set up the appreciate access tables, but enforcement is handled by hardware. Table below shows the meaning and usage of the various combinations of permission bits. R W E Effect 0 0 0 No access allowed 0 0 1 Execute Only – Program can be executed 0 1 0 Write Only - not really useful 0 1 1 Write-Execute – Not used 1 0 0 Read Only – File can be read / copied 1 0 1 Read-Execute – Program can be executed / copied 1 1 0 Read-Write – Normal data file 1 1 1 Read-Write-Execute – no protection 26

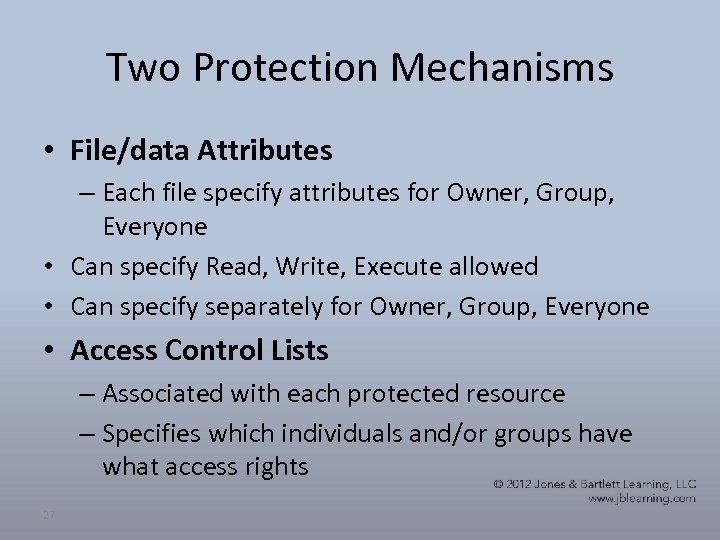

Two Protection Mechanisms • File/data Attributes – Each file specify attributes for Owner, Group, Everyone • Can specify Read, Write, Execute allowed • Can specify separately for Owner, Group, Everyone • Access Control Lists – Associated with each protected resource – Specifies which individuals and/or groups have what access rights 27

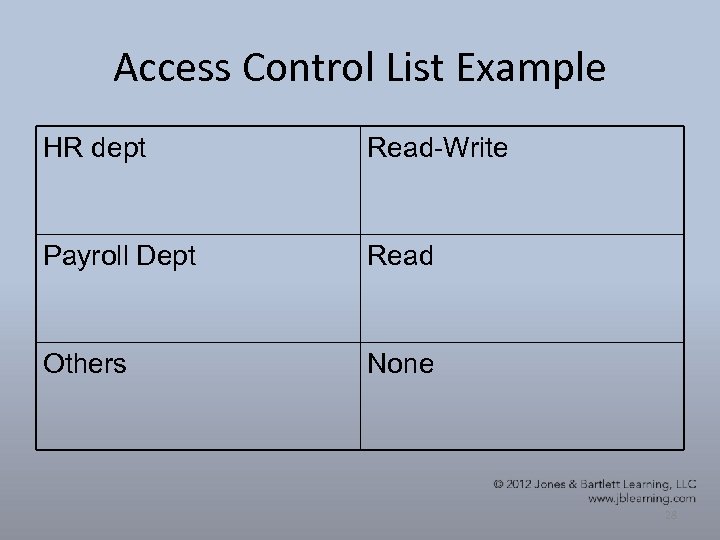

Access Control List Example HR dept Read-Write Payroll Dept Read Others None 28

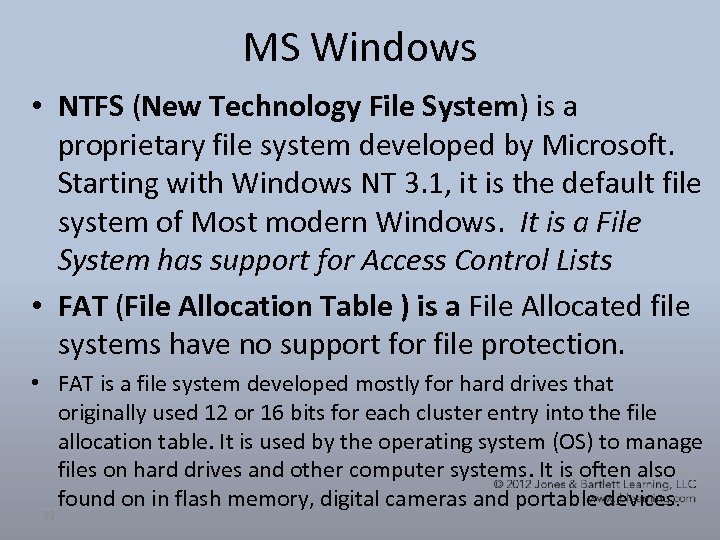

MS Windows • NTFS (New Technology File System) is a proprietary file system developed by Microsoft. Starting with Windows NT 3. 1, it is the default file system of Most modern Windows. It is a File System has support for Access Control Lists • FAT (File Allocation Table ) is a File Allocated file systems have no support for file protection. • FAT is a file system developed mostly for hard drives that originally used 12 or 16 bits for each cluster entry into the file allocation table. It is used by the operating system (OS) to manage files on hard drives and other computer systems. It is often also found on in flash memory, digital cameras and portable devices. 29

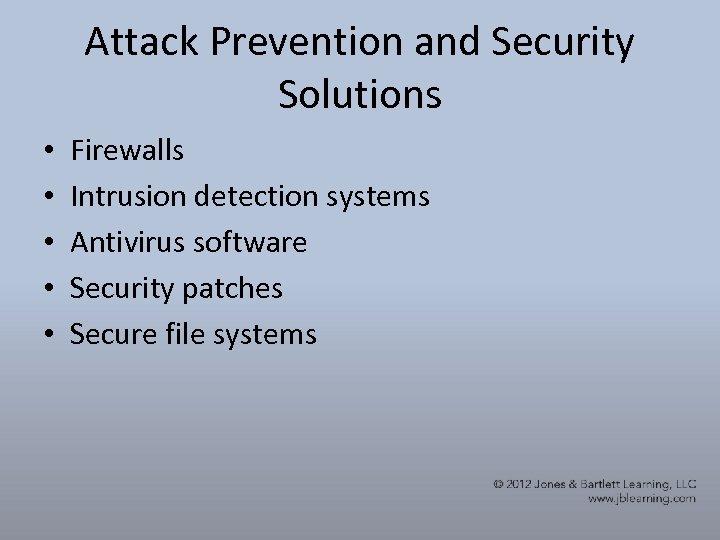

Attack Prevention and Security Solutions • • • Firewalls Intrusion detection systems Antivirus software Security patches Secure file systems

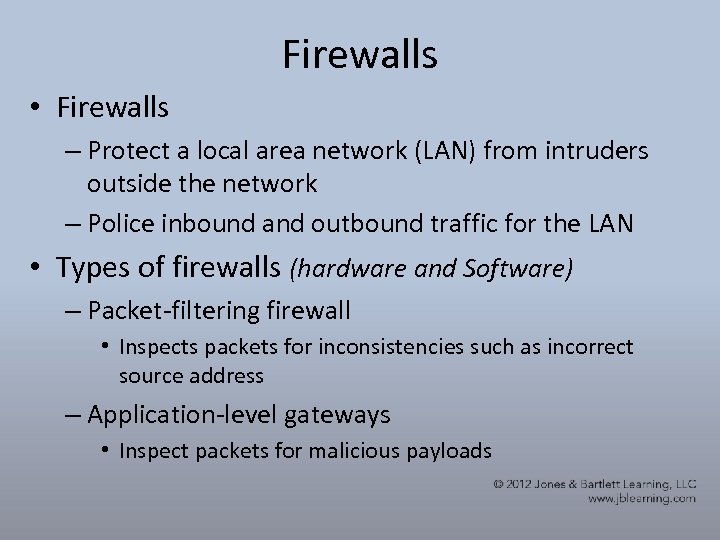

Firewalls • Firewalls – Protect a local area network (LAN) from intruders outside the network – Police inbound and outbound traffic for the LAN • Types of firewalls (hardware and Software) – Packet-filtering firewall • Inspects packets for inconsistencies such as incorrect source address – Application-level gateways • Inspect packets for malicious payloads

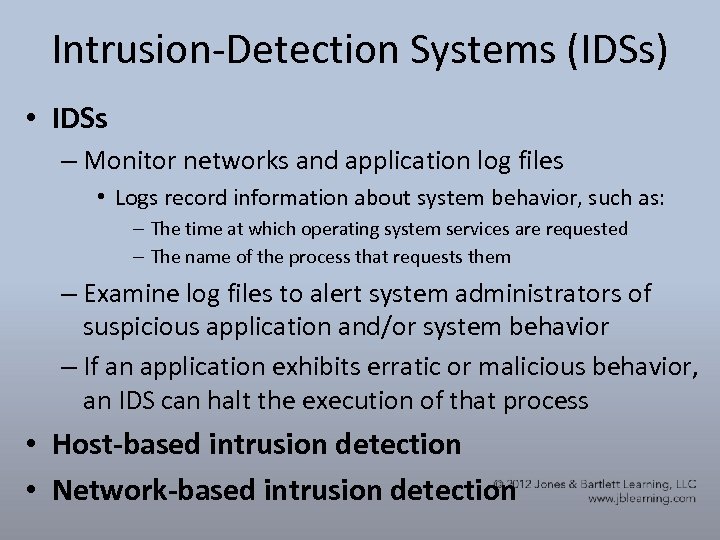

Intrusion-Detection Systems (IDSs) • IDSs – Monitor networks and application log files • Logs record information about system behavior, such as: – The time at which operating system services are requested – The name of the process that requests them – Examine log files to alert system administrators of suspicious application and/or system behavior – If an application exhibits erratic or malicious behavior, an IDS can halt the execution of that process • Host-based intrusion detection • Network-based intrusion detection

Virus Protection • Current Virus protection programs detect malware by use of a “signature” • Better technology is needed – Requires frequent updates – Virus writers starting to be able to trick the signature detection mechanisms 33

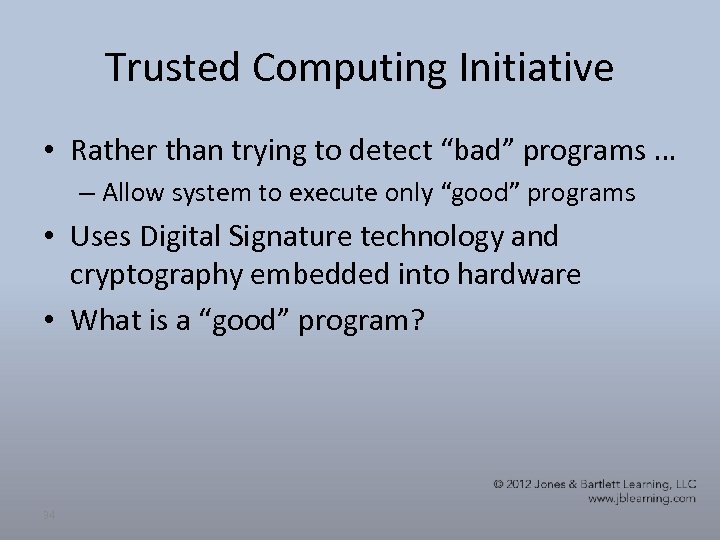

Trusted Computing Initiative • Rather than trying to detect “bad” programs … – Allow system to execute only “good” programs • Uses Digital Signature technology and cryptography embedded into hardware • What is a “good” program? 34

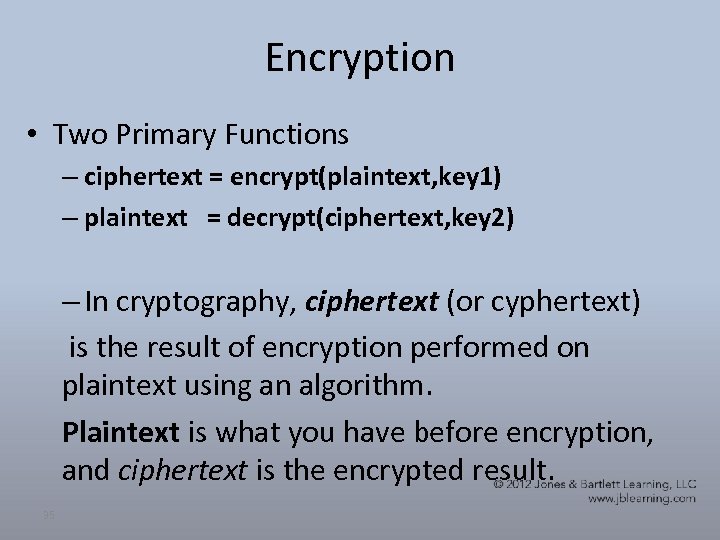

Encryption • Two Primary Functions – ciphertext = encrypt(plaintext, key 1) – plaintext = decrypt(ciphertext, key 2) – In cryptography, ciphertext (or cyphertext) is the result of encryption performed on plaintext using an algorithm. Plaintext is what you have before encryption, and ciphertext is the encrypted result. 35

Symmetric Systems • • 36 Key 1 = key 2 Both sides must know the key Both sides MUST keep the key secret Requires a secure channel to distribute the key(s)

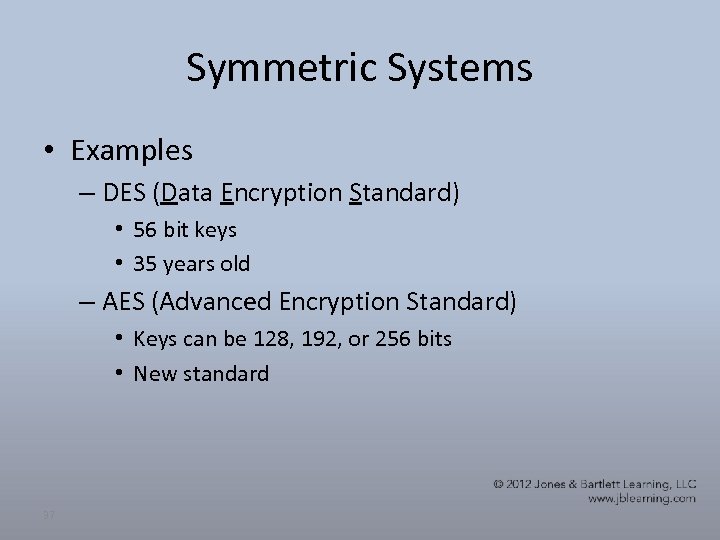

Symmetric Systems • Examples – DES (Data Encryption Standard) • 56 bit keys • 35 years old – AES (Advanced Encryption Standard) • Keys can be 128, 192, or 256 bits • New standard 37

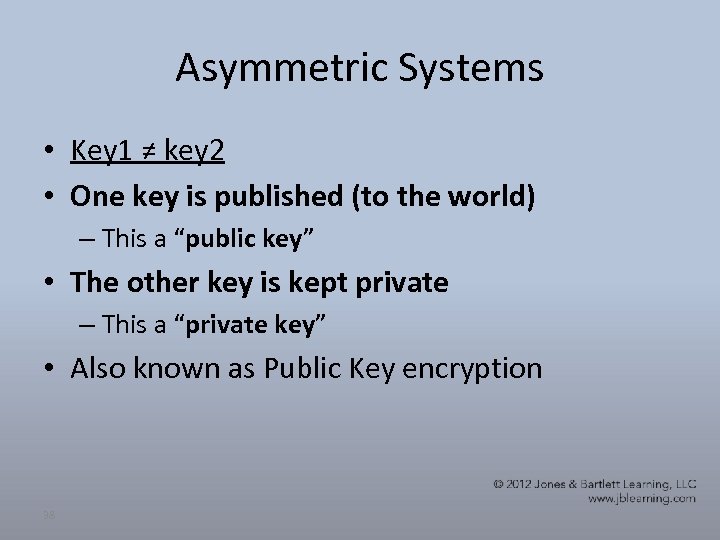

Asymmetric Systems • Key 1 ≠ key 2 • One key is published (to the world) – This a “public key” • The other key is kept private – This a “private key” • Also known as Public Key encryption 38

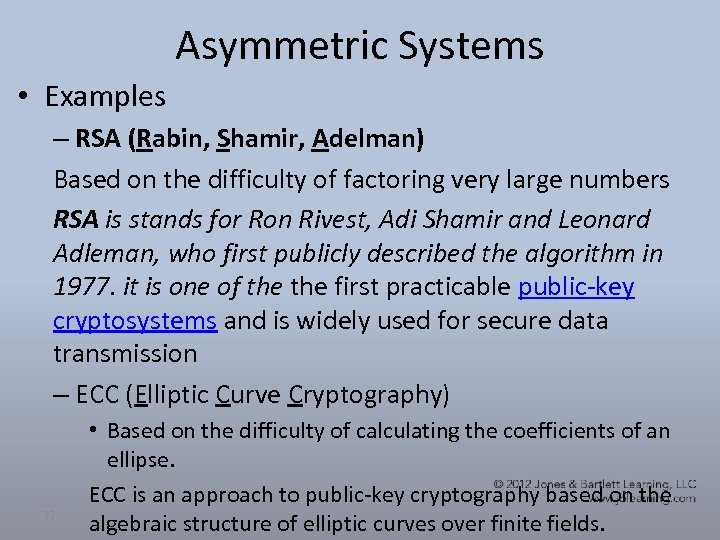

Asymmetric Systems • Examples – RSA (Rabin, Shamir, Adelman) Based on the difficulty of factoring very large numbers RSA is stands for Ron Rivest, Adi Shamir and Leonard Adleman, who first publicly described the algorithm in 1977. it is one of the first practicable public-key cryptosystems and is widely used for secure data transmission – ECC (Elliptic Curve Cryptography) 39 • Based on the difficulty of calculating the coefficients of an ellipse. ECC is an approach to public-key cryptography based on the algebraic structure of elliptic curves over finite fields.

Public Key Infrastructure (PKI) • A public key infrastructure (PKI) is a set of hardware, software, people, policies, and procedures needed to create, manage, distribute, use, store, and revoke Digital Certificates. • A business structure using – Digital Certificates – Certificate Authorities 40

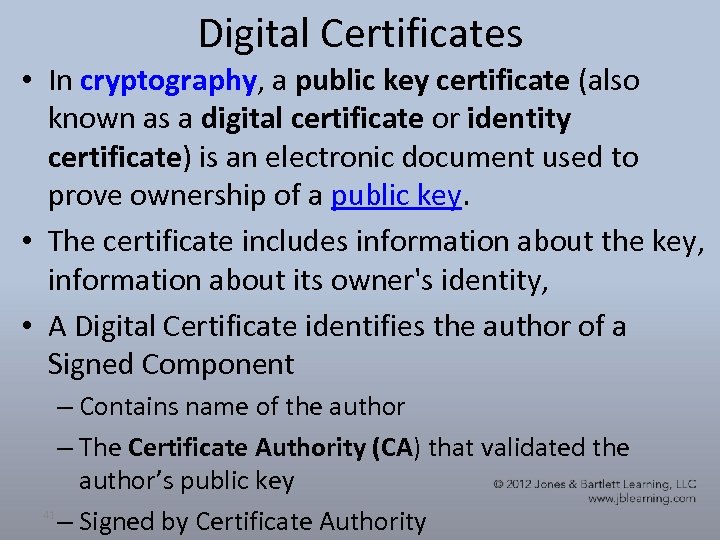

Digital Certificates • In cryptography, a public key certificate (also known as a digital certificate or identity certificate) is an electronic document used to prove ownership of a public key. • The certificate includes information about the key, information about its owner's identity, • A Digital Certificate identifies the author of a Signed Component – Contains name of the author – The Certificate Authority (CA) that validated the author’s public key 41 – Signed by Certificate Authority

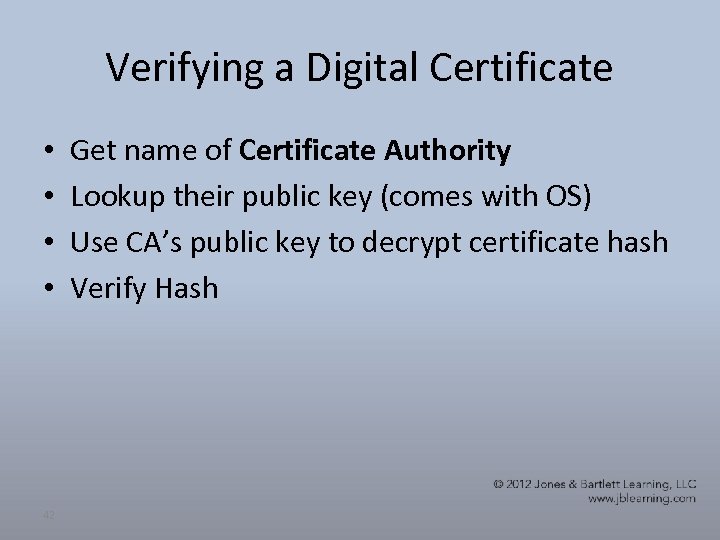

Verifying a Digital Certificate • • 42 Get name of Certificate Authority Lookup their public key (comes with OS) Use CA’s public key to decrypt certificate hash Verify Hash

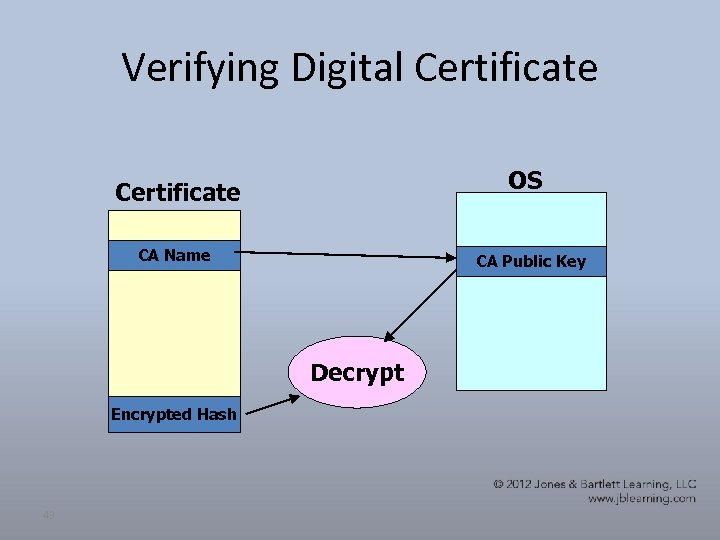

Verifying Digital Certificate OS Certificate CA Name CA Public Key Decrypt Encrypted Hash 43

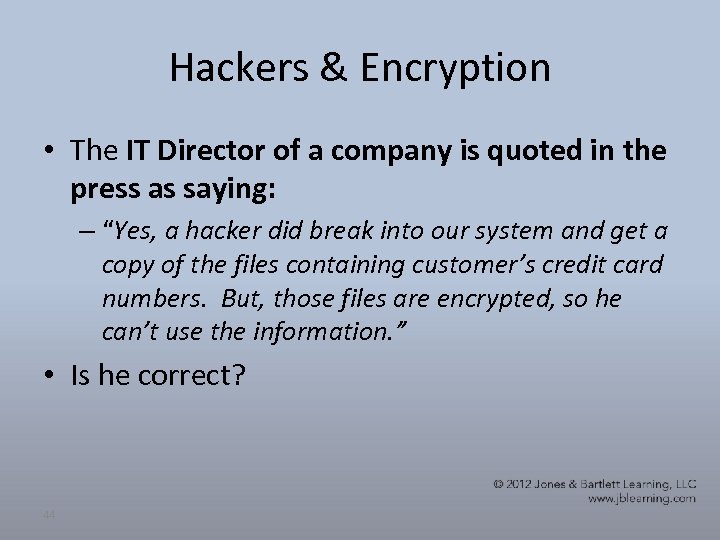

Hackers & Encryption • The IT Director of a company is quoted in the press as saying: – “Yes, a hacker did break into our system and get a copy of the files containing customer’s credit card numbers. But, those files are encrypted, so he can’t use the information. ” • Is he correct? 44

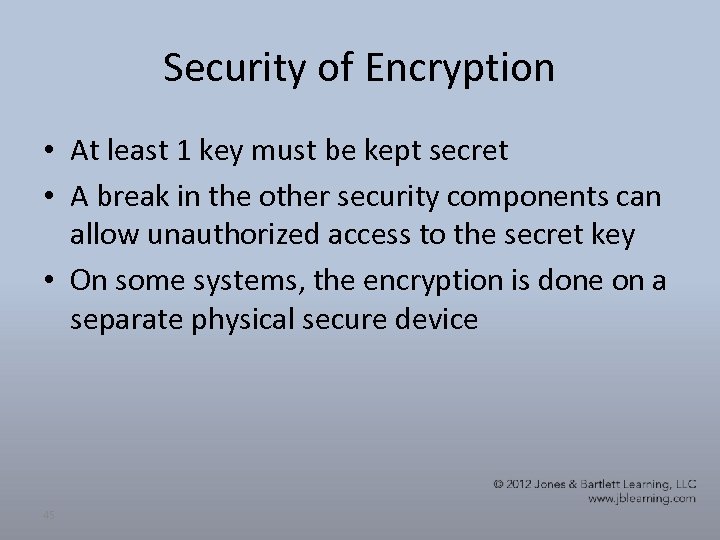

Security of Encryption • At least 1 key must be kept secret • A break in the other security components can allow unauthorized access to the secret key • On some systems, the encryption is done on a separate physical secure device 45
