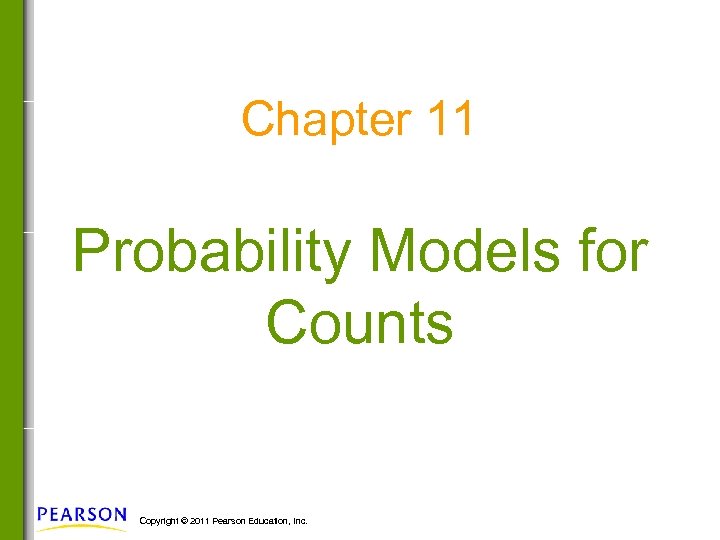

Chapter 11 Probability Models for Counts Copyright

11. 1 Random Variables for Counts How many doctors should management expect a pharmaceutical rep to meet in a day if only 40% of visits reach a doctor? Is a rep who meets 8 or more doctors in a day doing exceptionally well? § Need a discrete random variable to model counts and provide a method for finding probabilities 3 of 30 Copyright © 2011 Pearson Education, Inc.

11. 1 Random Variables for Counts Bernoulli Random Variable Bernoulli trials are random events with three characteristics: § § § Two possible outcomes (success, failure) Fixed probability of success (p) Independence 4 of 30 Copyright © 2011 Pearson Education, Inc.

11. 1 Random Variables for Counts Bernoulli Random Variable - Definition A random variable B with two possible values, 1 = success and 0 = failure, as determined in a Bernoulli trial. E(B) = p Var(B) = p(1 -p) 5 of 30 Copyright © 2011 Pearson Education, Inc.

11. 1 Random Variables for Counts Counting Successes (Binomial) § § § Y, the sum of iid Bernoulli random variables, is a binomial random variable Y = number of success in n Bernoulli trials (each trial with probability of success = p) Defined by two parameters: n and p 6 of 30 Copyright © 2011 Pearson Education, Inc.

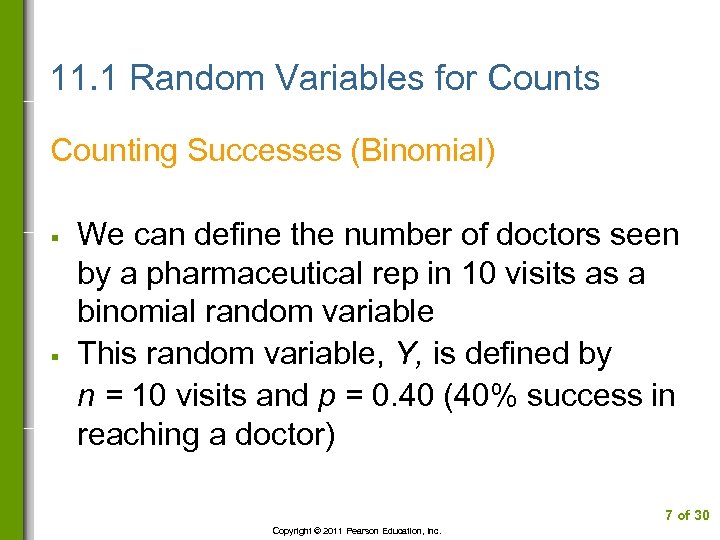

11. 1 Random Variables for Counts Counting Successes (Binomial) § § We can define the number of doctors seen by a pharmaceutical rep in 10 visits as a binomial random variable This random variable, Y, is defined by n = 10 visits and p = 0. 40 (40% success in reaching a doctor) 7 of 30 Copyright © 2011 Pearson Education, Inc.

11. 2 Binomial Model Assumptions § § Using a binomial random variable to describe a real phenomenon 10% Condition: if trials are selected at random, it is OK to ignore dependence caused by sampling from a finite population if the selected trials make up less than 10% of the population 8 of 30 Copyright © 2011 Pearson Education, Inc.

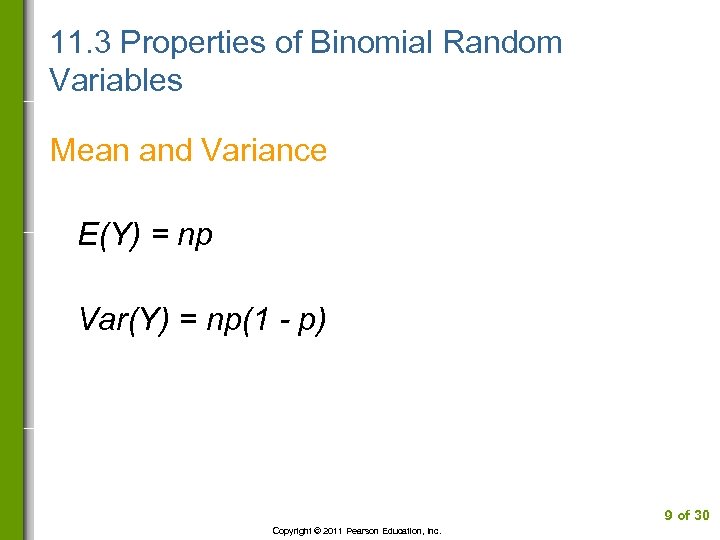

11. 3 Properties of Binomial Random Variables Mean and Variance E(Y) = np Var(Y)

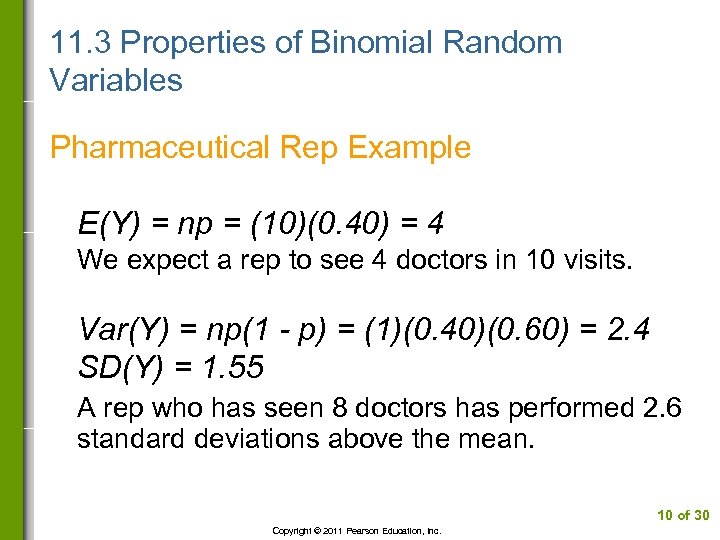

11. 3 Properties of Binomial Random Variables Pharmaceutical Rep Example E(Y) = np = (10)(0. 40) = 4 We expect a rep to see 4 doctors in 10 visits. Var(Y) = np(1 - p) = (1)(0. 40)(0. 60) = 2. 4 SD(Y) = 1. 55 A rep who has seen 8 doctors has performed 2. 6 standard deviations above the mean. 10 of 30 Copyright © 2011 Pearson Education, Inc.

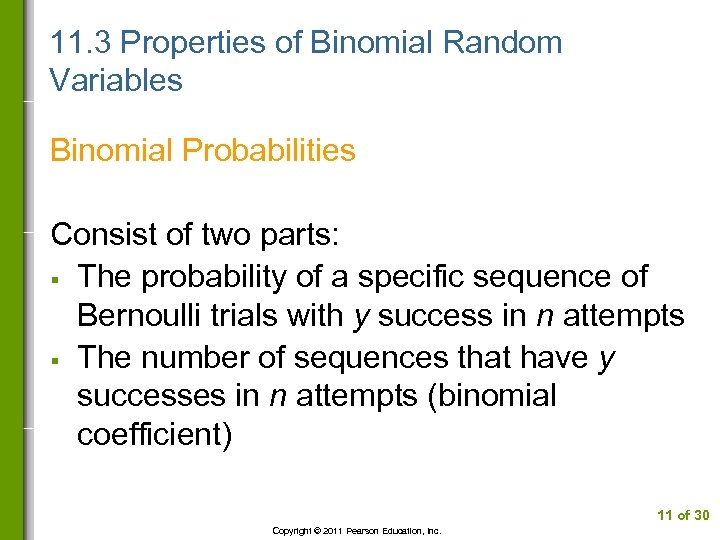

11. 3 Properties of Binomial Random Variables Binomial Probabilities Consist of two parts: § The probability of a specific sequence of Bernoulli trials with y success in n attempts § The number of sequences that have y successes in n attempts (binomial coefficient) 11 of 30 Copyright © 2011 Pearson Education, Inc.

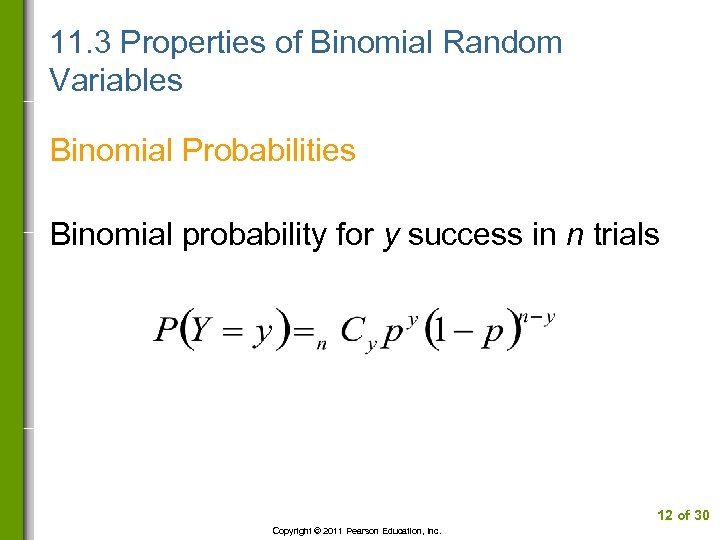

11. 3 Properties of Binomial Random Variables Binomial Probabilities Binomial probability for y success

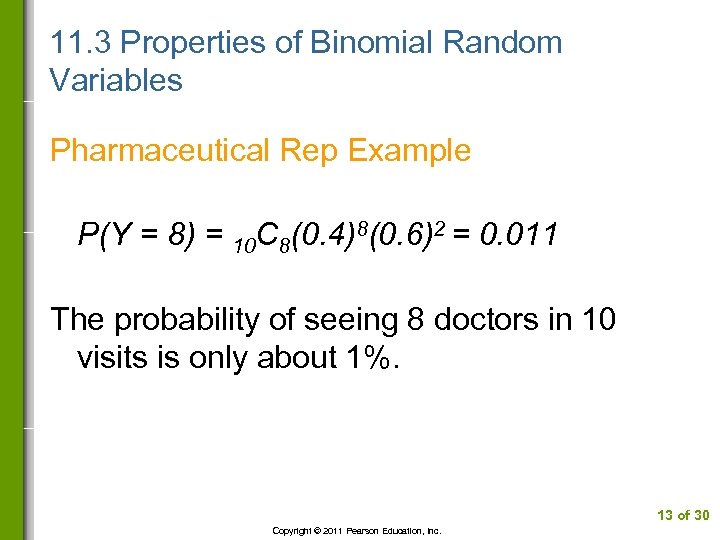

11. 3 Properties of Binomial Random Variables Pharmaceutical Rep Example P(Y = 8) = 10 C 8(0. 4)8(0. 6)2 = 0. 011 The probability of seeing 8 doctors in 10 visits is only about 1%. 13 of 30 Copyright © 2011 Pearson Education, Inc.

11. 3 Properties of Binomial Random Variables Probability Distribution for Rep Example 14 of

11. 3 Properties of Binomial Random Variables Pharmaceutical Rep Example P(Y ≥ 8)= P(Y = 8) + P(Y = 9) + P(Y = 10) = 0. 01062 + 0. 00157 + 0. 00010 = 0. 01229 The probability of seeing 8 or more doctors in 10 visits is only slightly above 1%. This rep is doing exceptionally well! 15 of 30 Copyright © 2011 Pearson Education, Inc.

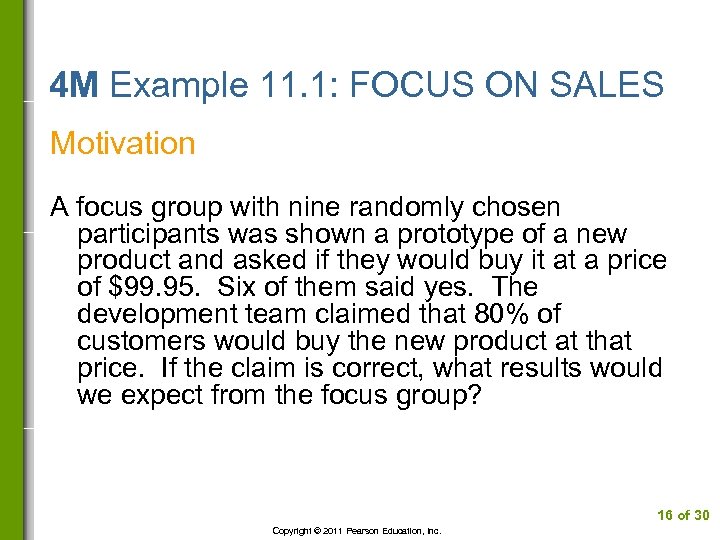

4 M Example 11. 1: FOCUS ON SALES Motivation A focus group with nine randomly chosen participants was shown a prototype of a new product and asked if they would buy it at a price of $99. 95. Six of them said yes. The development team claimed that 80% of customers would buy the new product at that price. If the claim is correct, what results would we expect from the focus group? 16 of 30 Copyright © 2011 Pearson Education, Inc.

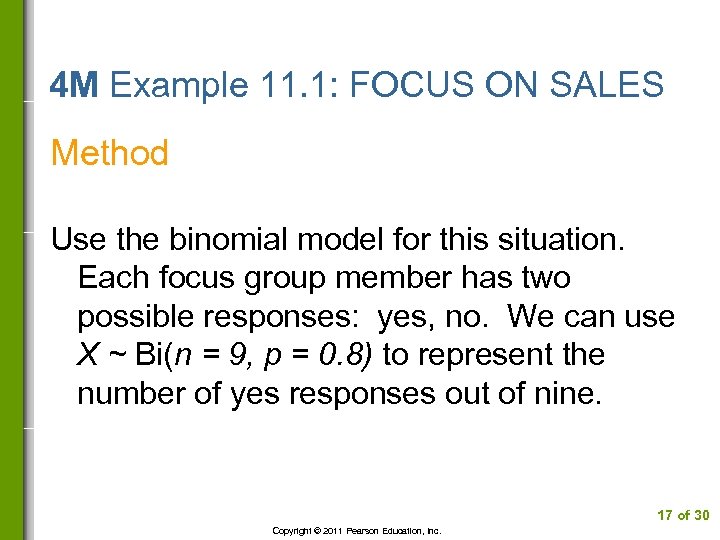

4 M Example 11. 1: FOCUS ON SALES Method Use the binomial model for this situation. Each focus group member has two possible responses: yes, no. We can use X ~ Bi(n = 9, p = 0. 8) to represent the number of yes responses out of nine. 17 of 30 Copyright © 2011 Pearson Education, Inc.

4 M Example 11. 1: FOCUS ON SALES Mechanics – Find E(X) and SD(X) E(X) = np = (9)(0. 8) = 7. 2 Var(X) = np(1 -p) = (9)(0. 8)(0. 2) = 1. 44 SD(X) = 1. 2 The expected number is higher than the observed number of 6. 18 of 30 Copyright © 2011 Pearson Education, Inc.

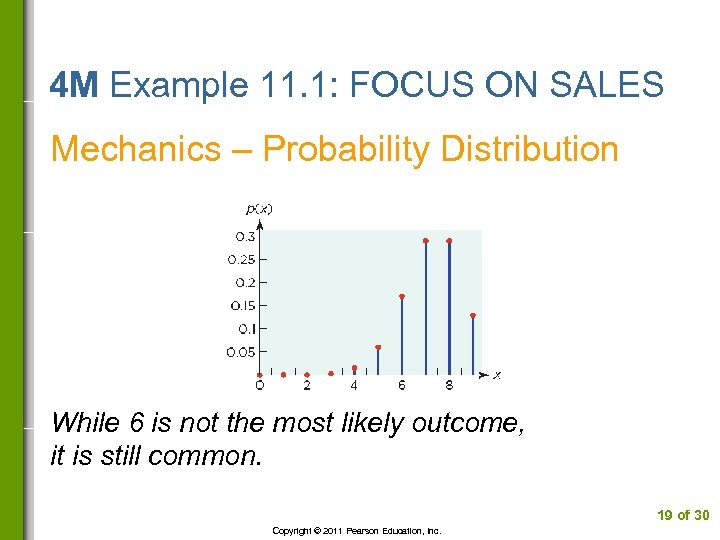

4 M Example 11. 1: FOCUS ON SALES Mechanics – Probability Distribution While 6

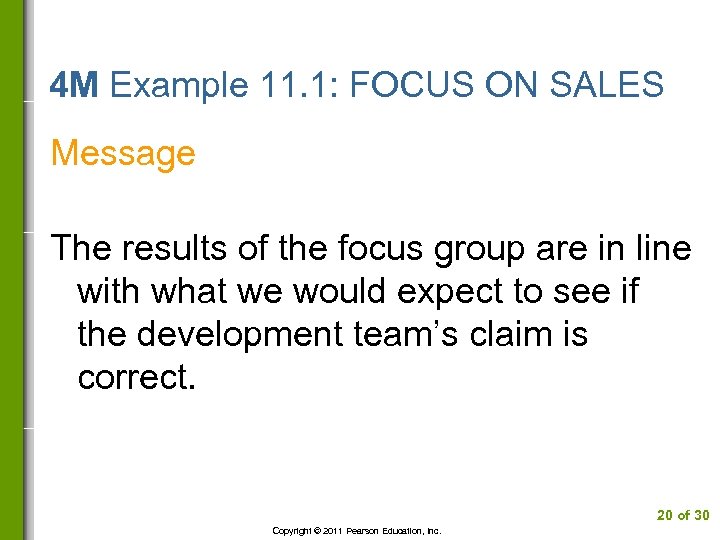

4 M Example 11. 1: FOCUS ON SALES Message The results of the focus group are in line with what we would expect to see if the development team’s claim is correct. 20 of 30 Copyright © 2011 Pearson Education, Inc.

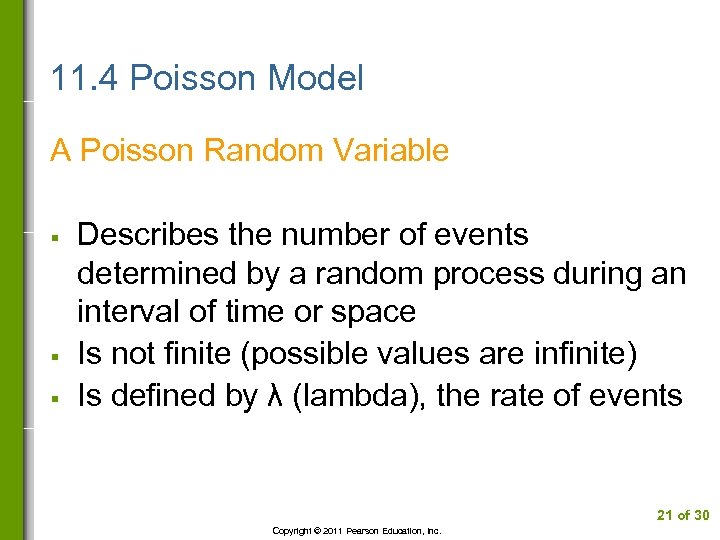

11. 4 Poisson Model A Poisson Random Variable § § § Describes the number of events determined by a random process during an interval of time or space Is not finite (possible values are infinite) Is defined by λ (lambda), the rate of events 21 of 30 Copyright © 2011 Pearson Education, Inc.

11. 4 Poisson Model The Poisson Probability Distribution E(X) = λ Var(X) = λ

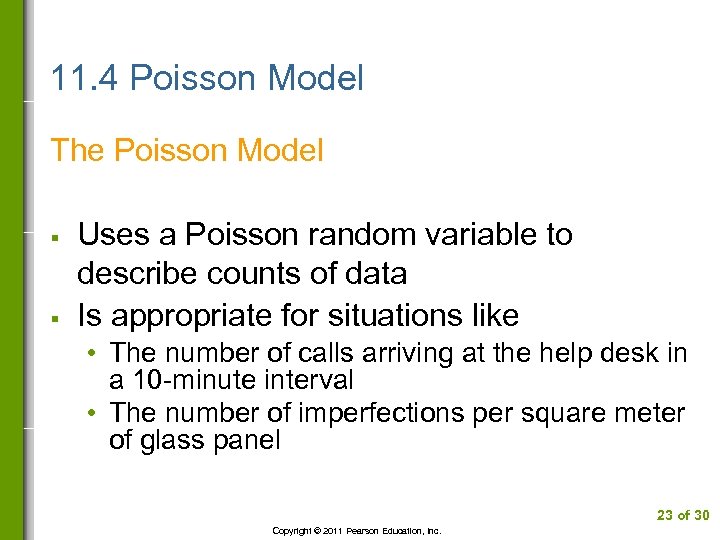

11. 4 Poisson Model The Poisson Model § § Uses a Poisson random variable to describe counts of data Is appropriate for situations like • The number of calls arriving at the help desk in a 10 -minute interval • The number of imperfections per square meter of glass panel 23 of 30 Copyright © 2011 Pearson Education, Inc.

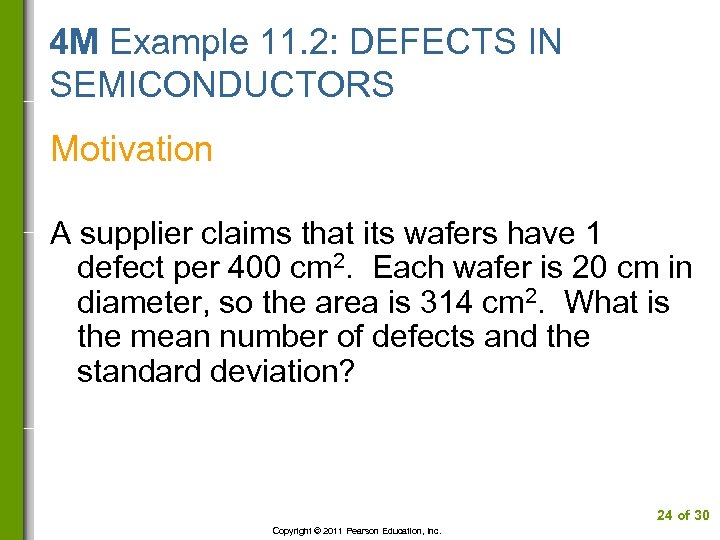

4 M Example 11. 2: DEFECTS IN SEMICONDUCTORS Motivation A supplier claims that its wafers have 1 defect per 400 cm 2. Each wafer is 20 cm in diameter, so the area is 314 cm 2. What is the mean number of defects and the standard deviation? 24 of 30 Copyright © 2011 Pearson Education, Inc.

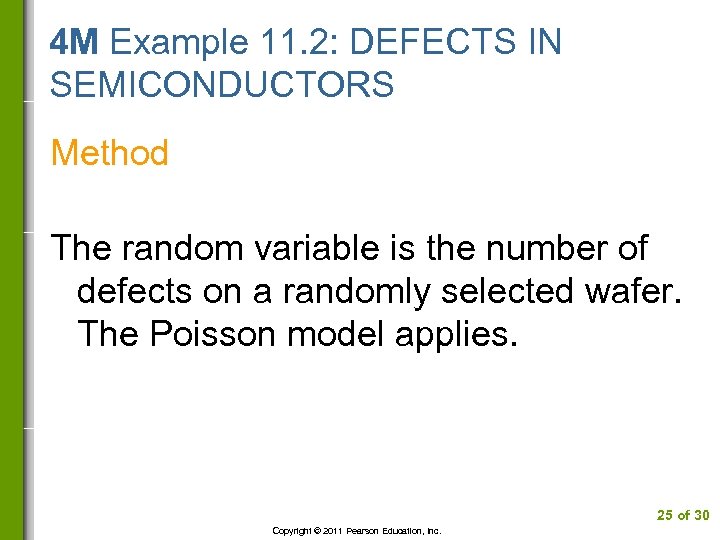

4 M Example 11. 2: DEFECTS IN SEMICONDUCTORS Method The random variable is the number of defects on a randomly selected wafer. The Poisson model applies. 25 of 30 Copyright © 2011 Pearson Education, Inc.

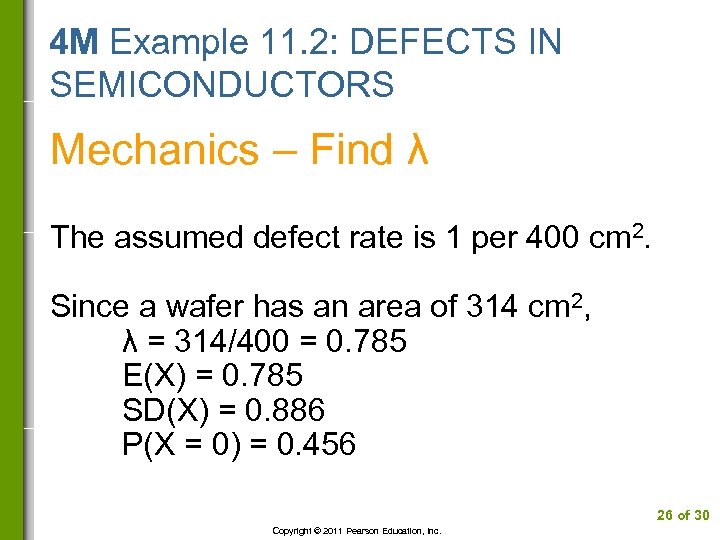

4 M Example 11. 2: DEFECTS IN SEMICONDUCTORS Mechanics – Find λ The assumed defect rate is 1 per 400 cm 2. Since a wafer has an area of 314 cm 2, λ = 314/400 = 0. 785 E(X) = 0. 785 SD(X) = 0. 886 P(X = 0) = 0. 456 26 of 30 Copyright © 2011 Pearson Education, Inc.

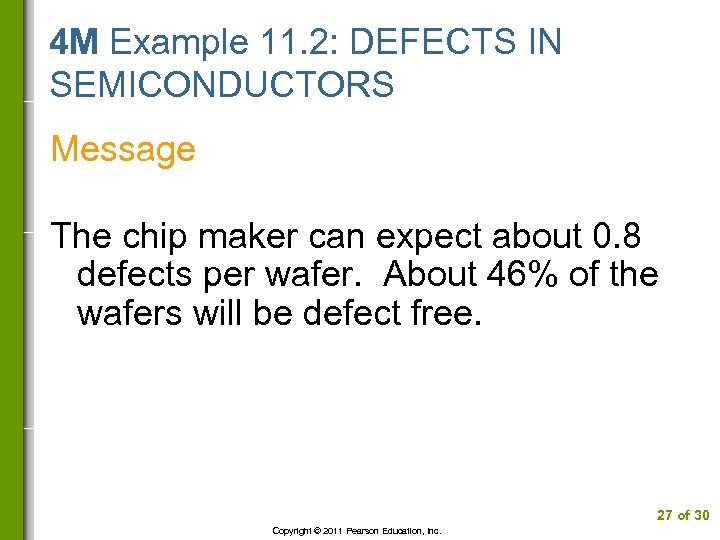

4 M Example 11. 2: DEFECTS IN SEMICONDUCTORS Message The chip maker can expect about 0. 8 defects per wafer. About 46% of the wafers will be defect free. 27 of 30 Copyright © 2011 Pearson Education, Inc.

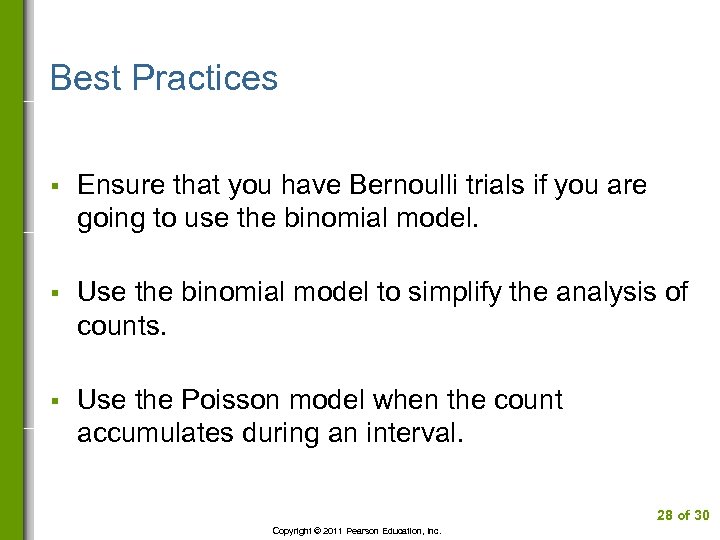

Best Practices § Ensure that you have Bernoulli trials if you are going to use the binomial model. § Use the binomial model to simplify the analysis of counts. § Use the Poisson model when the count accumulates during an interval. 28 of 30 Copyright © 2011 Pearson Education, Inc.
