Chapter 11 Energy in Thermal Processes

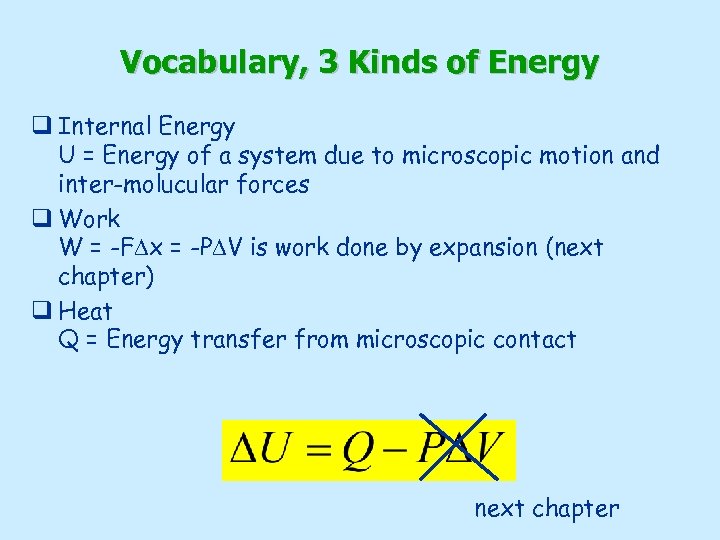

Vocabulary, 3 Kinds of Energy q Internal Energy U = Energy of a system due to microscopic motion and inter-molucular forces q Work W = -FDx = -PDV is work done by expansion (next chapter) q Heat Q = Energy transfer from microscopic contact next chapter

Temperature and Specific Heat q Add energy -> T rises mass of material Property of the material • c. H 20 = 1. 0 cal/(gºC) • 1 calorie = 4. 186 J

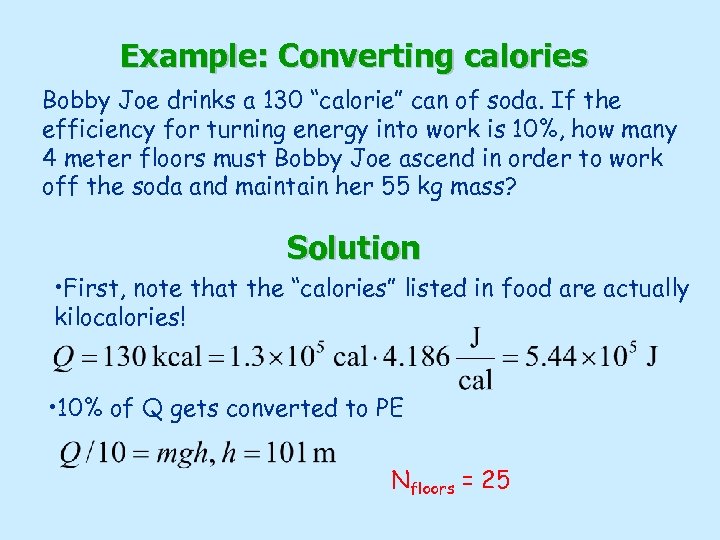

Example: Converting calories Bobby Joe drinks a 130 “calorie” can of soda. If the efficiency for turning energy into work is 10%, how many 4 meter floors must Bobby Joe ascend in order to work off the soda and maintain her 55 kg mass? Solution • First, note that the “calories” listed in food are actually kilocalories! • 10% of Q gets converted to PE Nfloors = 25

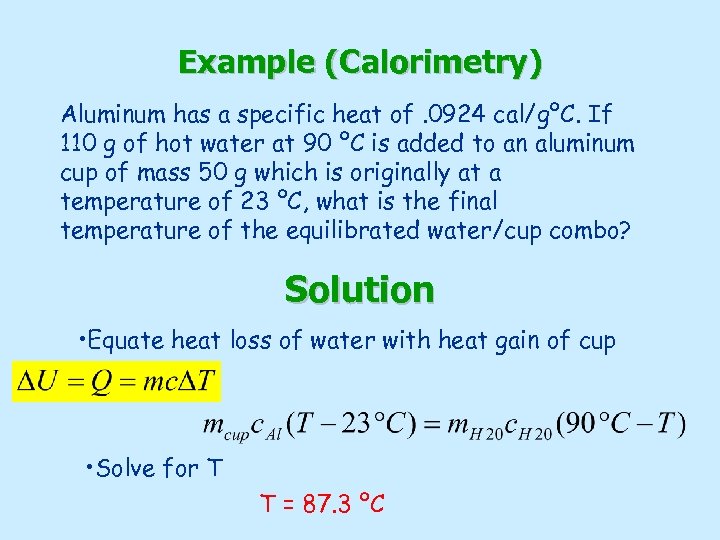

Example (Calorimetry) Aluminum has a specific heat of. 0924 cal/gºC. If 110 g of hot water at 90 ºC is added to an aluminum cup of mass 50 g which is originally at a temperature of 23 ºC, what is the final temperature of the equilibrated water/cup combo? Solution • Equate heat loss of water with heat gain of cup • Solve for T T = 87. 3 ºC

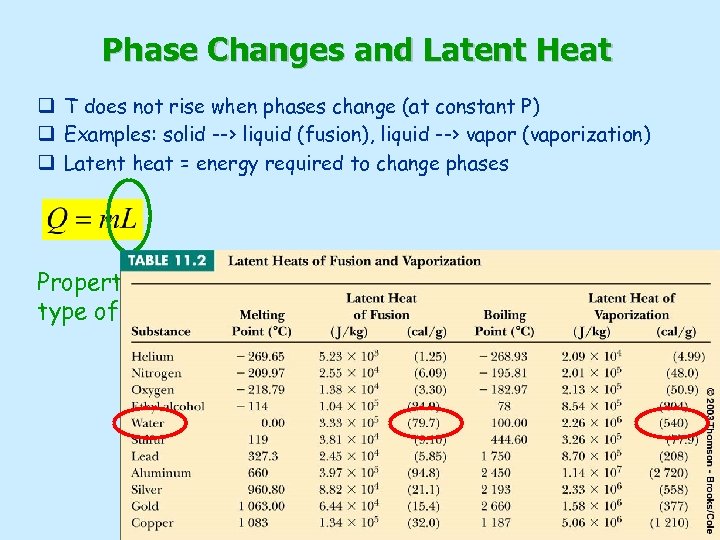

Phase Changes and Latent Heat q T does not rise when phases change (at constant P) q Examples: solid --> liquid (fusion), liquid --> vapor (vaporization) q Latent heat = energy required to change phases Property of substance and type of transition

Example: Boiling water 1. 0 liters of water is heated from 12 ºC to 100 ºC, then boiled away. a) How much energy is required to bring the water to boiling? b) How much extra energy is required to vaporize the water? c) If electricity costs $75 per 1000 k. W-hrs, what was the cost of boiling the water?

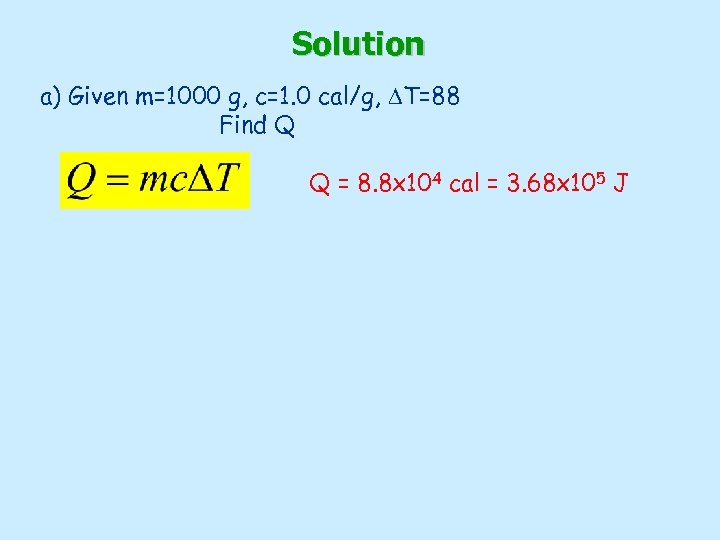

Solution a) Given m=1000 g, c=1. 0 cal/g, DT=88 Find Q Q = 8. 8 x 104 cal = 3. 68 x 105 J

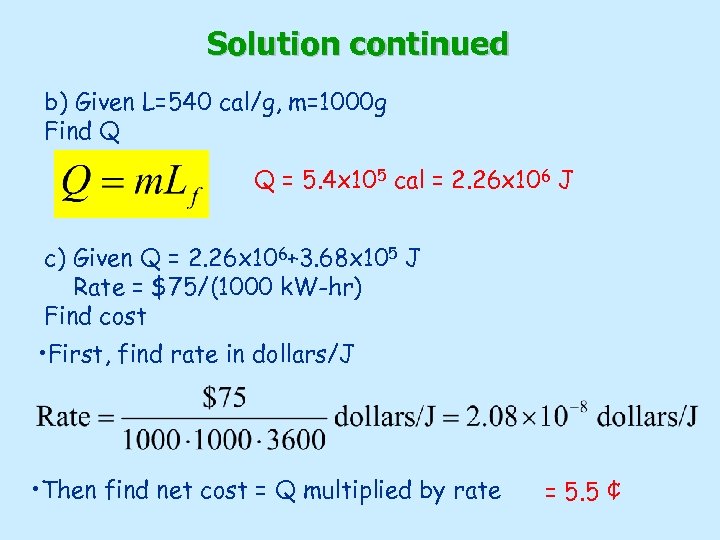

Solution continued b) Given L=540 cal/g, m=1000 g Find Q Q = 5. 4 x 105 cal = 2. 26 x 106 J c) Given Q = 2. 26 x 106+3. 68 x 105 J Rate = $75/(1000 k. W-hr) Find cost • First, find rate in dollars/J • Then find net cost = Q multiplied by rate = 5. 5 ¢

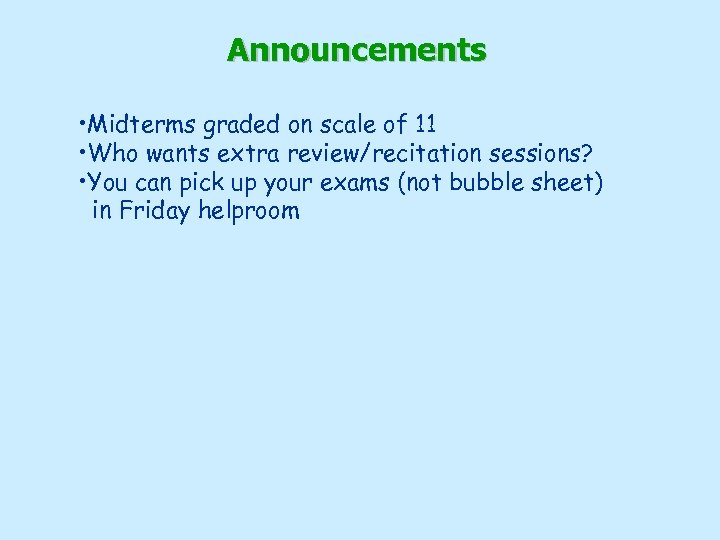

Announcements • Midterms graded on scale of 11 • Who wants extra review/recitation sessions? • You can pick up your exams (not bubble sheet) in Friday helproom

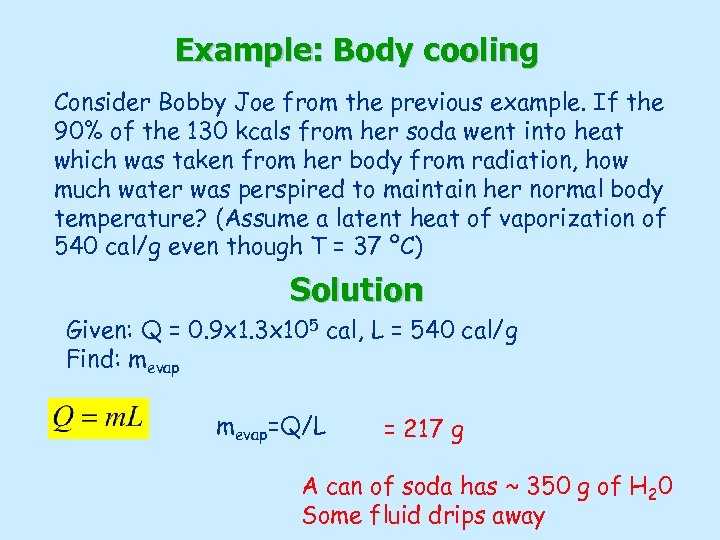

Example: Body cooling Consider Bobby Joe from the previous example. If the 90% of the 130 kcals from her soda went into heat which was taken from her body from radiation, how much water was perspired to maintain her normal body temperature? (Assume a latent heat of vaporization of 540 cal/g even though T = 37 ºC) Solution Given: Q = 0. 9 x 1. 3 x 105 cal, L = 540 cal/g Find: mevap=Q/L = 217 g A can of soda has ~ 350 g of H 20 Some fluid drips away

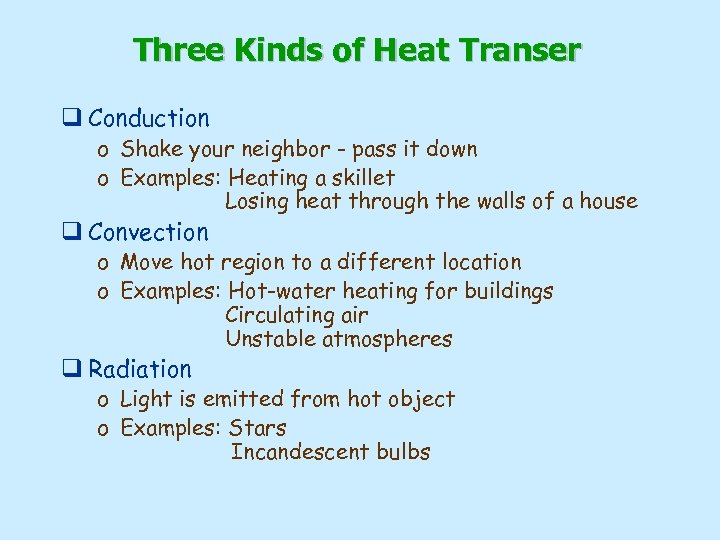

Three Kinds of Heat Transer q Conduction o Shake your neighbor - pass it down o Examples: Heating a skillet Losing heat through the walls of a house q Convection o Move hot region to a different location o Examples: Hot-water heating for buildings Circulating air Unstable atmospheres q Radiation o Light is emitted from hot object o Examples: Stars Incandescent bulbs

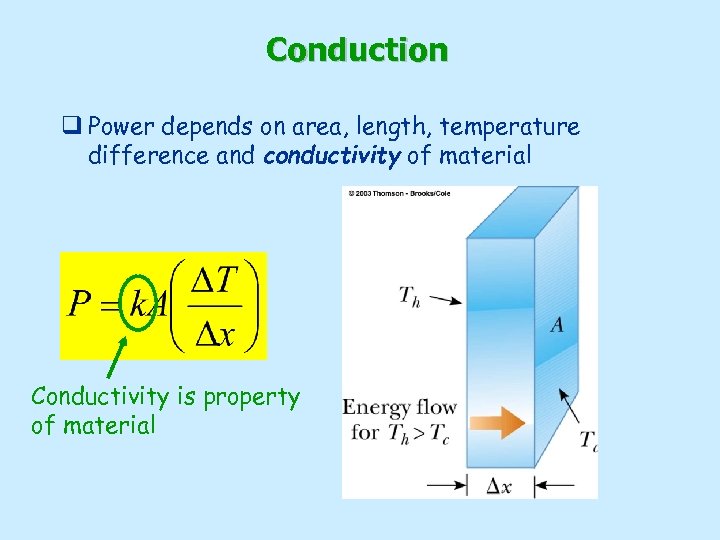

Conduction q Power depends on area, length, temperature difference and conductivity of material Conductivity is property of material

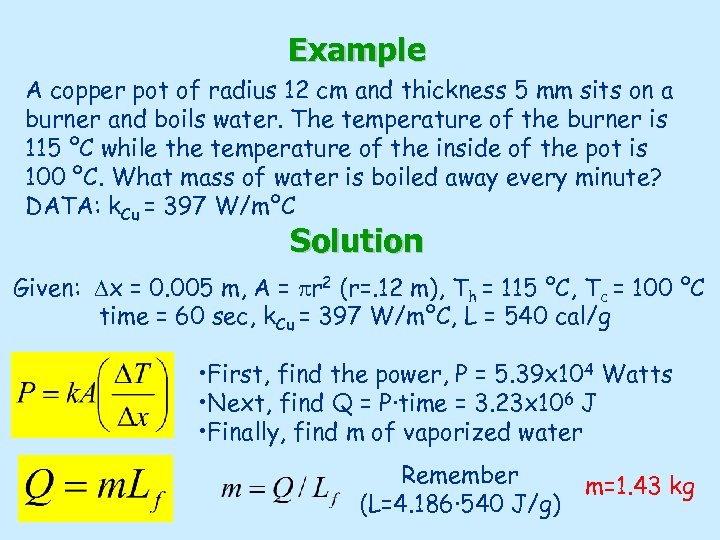

Example A copper pot of radius 12 cm and thickness 5 mm sits on a burner and boils water. The temperature of the burner is 115 ºC while the temperature of the inside of the pot is 100 ºC. What mass of water is boiled away every minute? DATA: k. Cu = 397 W/mºC Solution Given: Dx = 0. 005 m, A = pr 2 (r=. 12 m), Th = 115 ºC, Tc = 100 ºC time = 60 sec, k. Cu = 397 W/mºC, L = 540 cal/g • First, find the power, P = 5. 39 x 104 Watts • Next, find Q = P·time = 3. 23 x 106 J • Finally, find m of vaporized water Remember (L=4. 186· 540 J/g) m=1. 43 kg

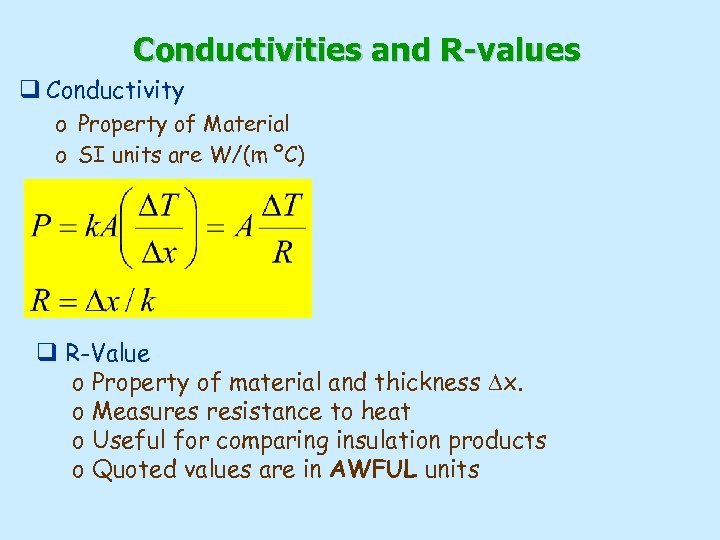

Conductivities and R-values q Conductivity o Property of Material o SI units are W/(m ºC) q R-Value o Property of material and thickness Dx. o Measures resistance to heat o Useful for comparing insulation products o Quoted values are in AWFUL units

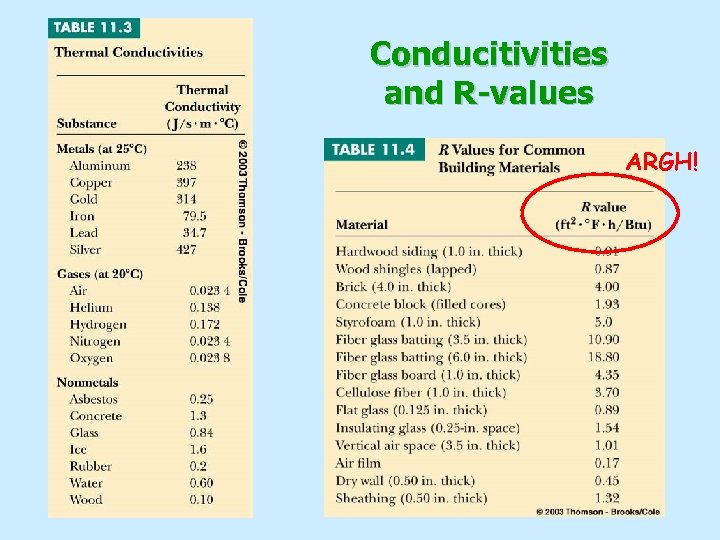

Conducitivities and R-values ARGH!

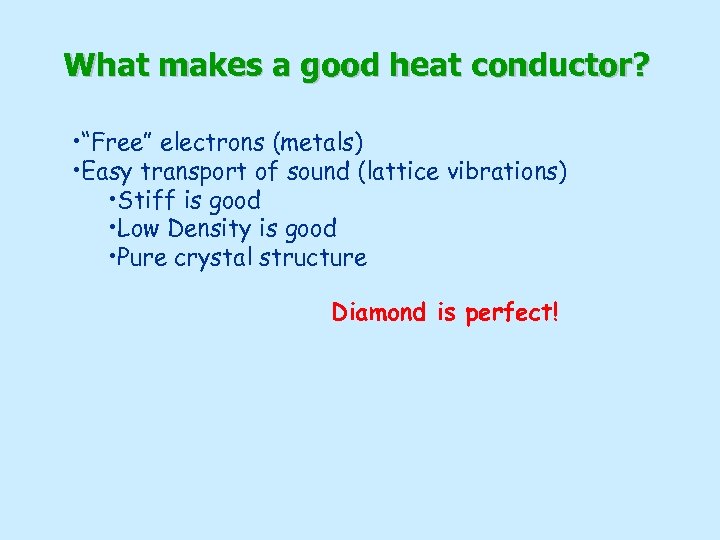

What makes a good heat conductor? • “Free” electrons (metals) • Easy transport of sound (lattice vibrations) • Stiff is good • Low Density is good • Pure crystal structure Diamond is perfect!

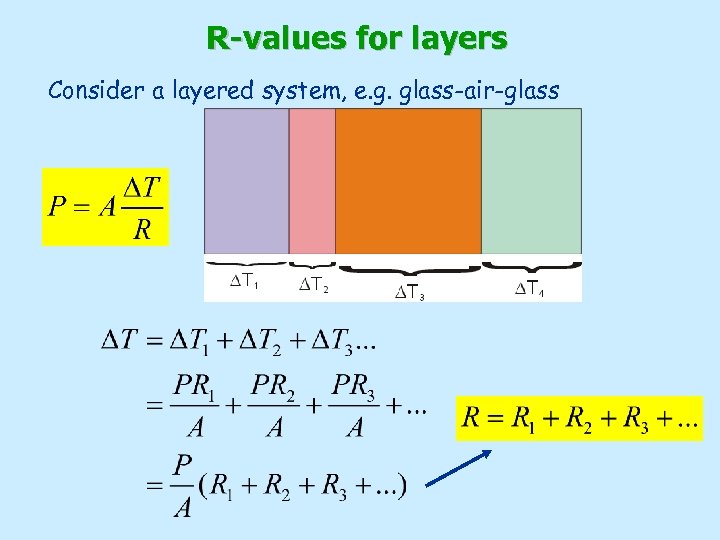

R-values for layers Consider a layered system, e. g. glass-air-glass

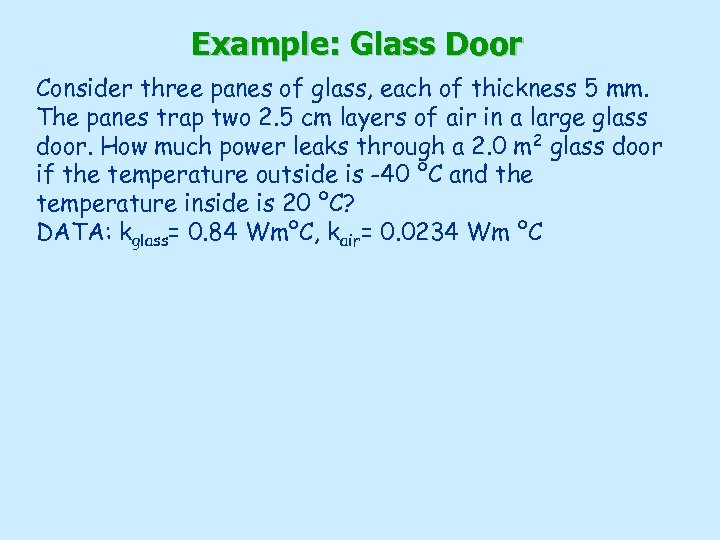

Example: Glass Door Consider three panes of glass, each of thickness 5 mm. The panes trap two 2. 5 cm layers of air in a large glass door. How much power leaks through a 2. 0 m 2 glass door if the temperature outside is -40 ºC and the temperature inside is 20 ºC? DATA: kglass= 0. 84 WmºC, kair= 0. 0234 Wm ºC

Solution Known: kglass=0. 84, Dxglass=0. 005, kair=0. 0234, Dxair=0. 025, A=2. 0, DT=60 Find: P • First, find Rglass and Rair for one layer of each Rglass=0. 00595, Rair=1. 068 • Next, find R for all the layers • Finally, find the power P = 55. 7 W

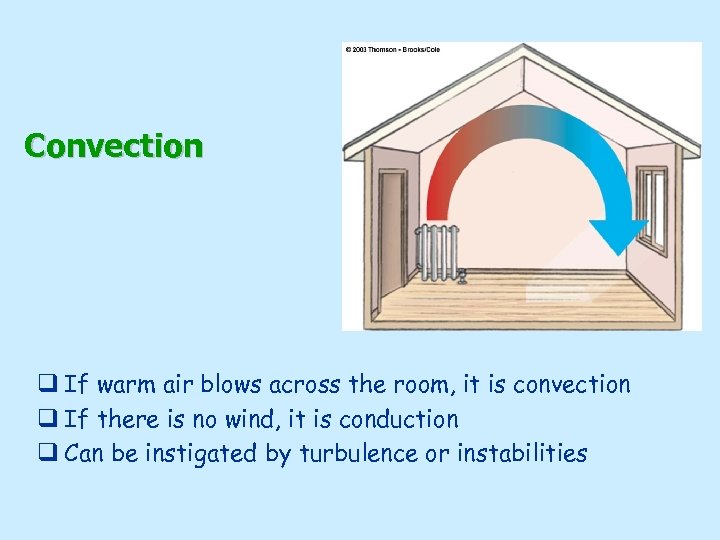

Convection q If warm air blows across the room, it is convection q If there is no wind, it is conduction q Can be instigated by turbulence or instabilities

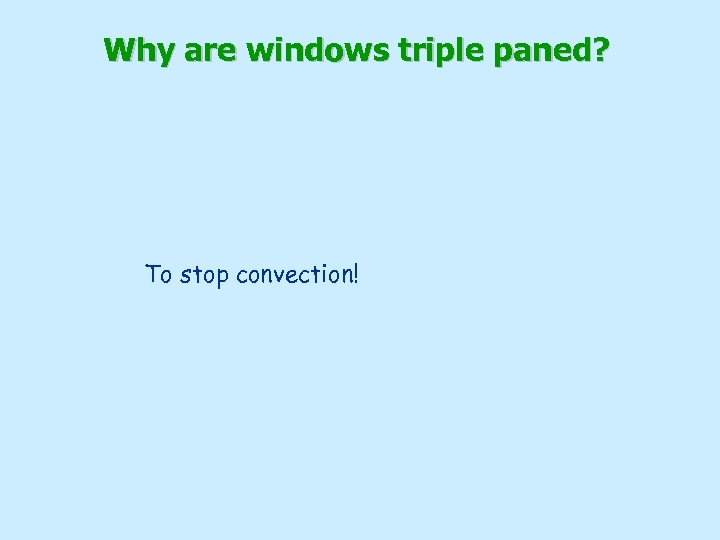

Why are windows triple paned? To stop convection!

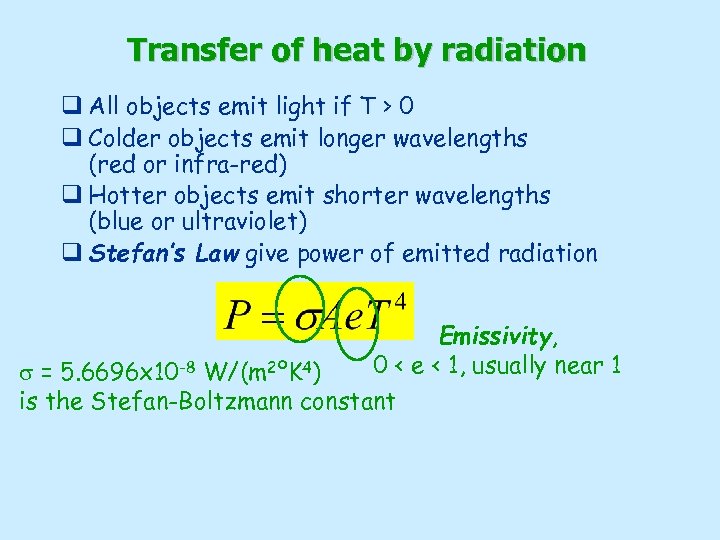

Transfer of heat by radiation q All objects emit light if T > 0 q Colder objects emit longer wavelengths (red or infra-red) q Hotter objects emit shorter wavelengths (blue or ultraviolet) q Stefan’s Law give power of emitted radiation Emissivity, 0 < e < 1, usually near 1 s = 5. 6696 x 10 -8 W/(m 2ºK 4) is the Stefan-Boltzmann constant

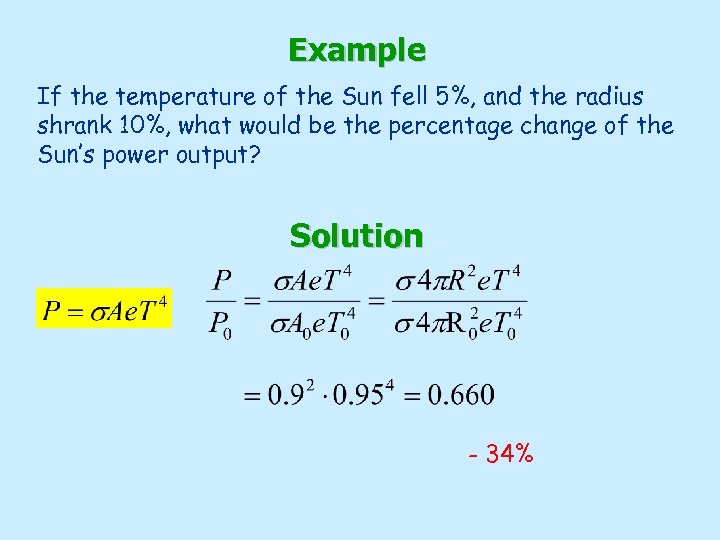

Example If the temperature of the Sun fell 5%, and the radius shrank 10%, what would be the percentage change of the Sun’s power output? Solution - 34%

Example: Power of the Sun DATA: The sun radiates 3. 74 x 1026 W Distance from Sun to Earth = 1. 5 x 1011 m Radius of Earth = 6. 36 x 106 m a) What is the intensity (power/m 2) of sunlight when it reaches Earth? b) How much power is absorbed by Earth in sunlight? (assume that none of the sunlight is reflected) c) What average temperature would allow Earth to radiate an amount of power equal to the amount of sun power absorbed?

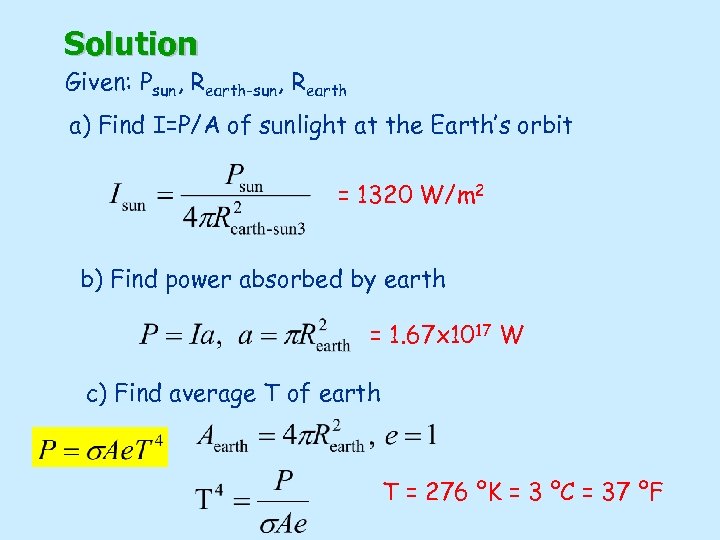

Solution Given: Psun, Rearth-sun, Rearth a) Find I=P/A of sunlight at the Earth’s orbit = 1320 W/m 2 b) Find power absorbed by earth = 1. 67 x 1017 W c) Find average T of earth T = 276 ºK = 3 ºC = 37 ºF

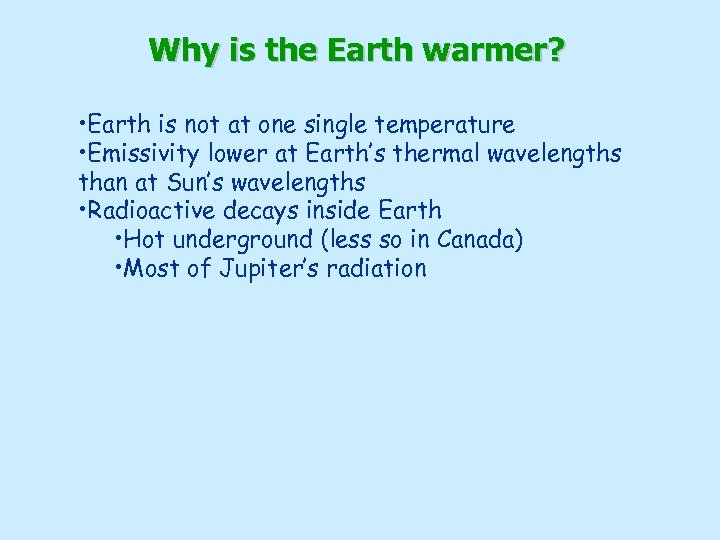

Why is the Earth warmer? • Earth is not at one single temperature • Emissivity lower at Earth’s thermal wavelengths than at Sun’s wavelengths • Radioactive decays inside Earth • Hot underground (less so in Canada) • Most of Jupiter’s radiation

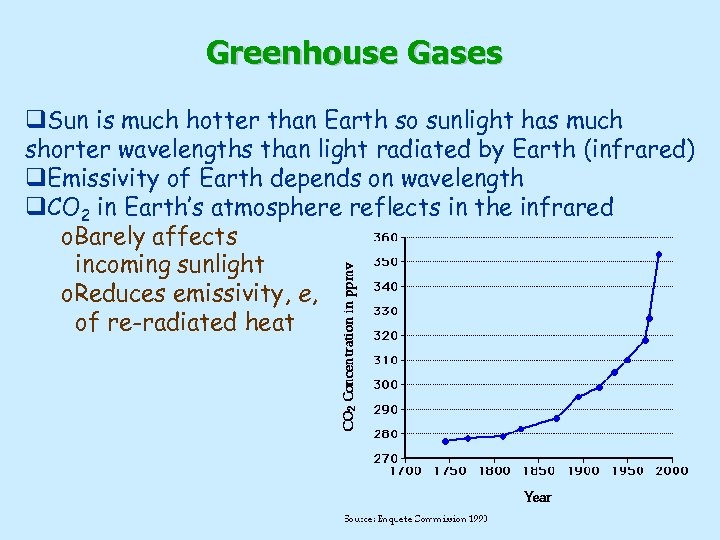

Greenhouse Gases q. Sun is much hotter than Earth so sunlight has much shorter wavelengths than light radiated by Earth (infrared) q. Emissivity of Earth depends on wavelength q. CO 2 in Earth’s atmosphere reflects in the infrared o. Barely affects incoming sunlight o. Reduces emissivity, e, of re-radiated heat

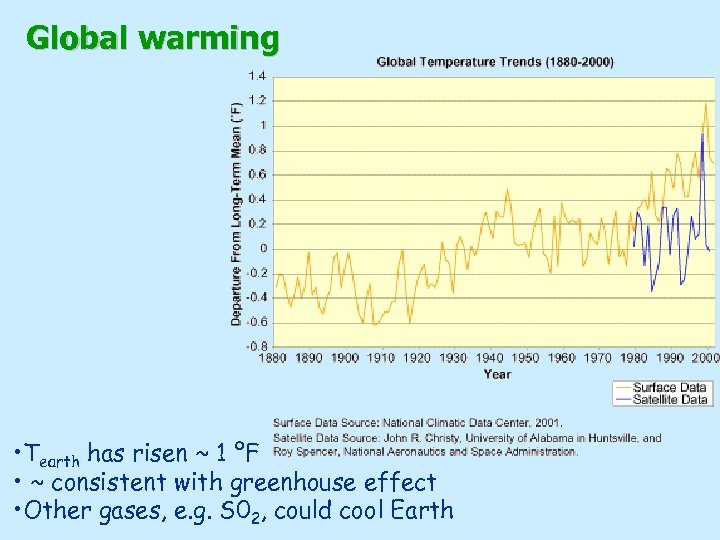

Global warming • Tearth has risen ~ 1 ºF • ~ consistent with greenhouse effect • Other gases, e. g. S 02, could cool Earth
