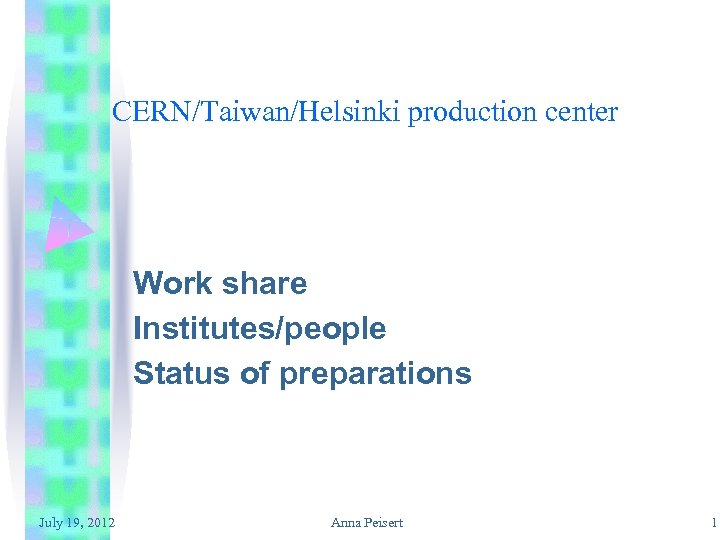

CERN/Taiwan/Helsinki production center Work share Institutes/people Status of preparations July 19, 2012 Anna Peisert 1

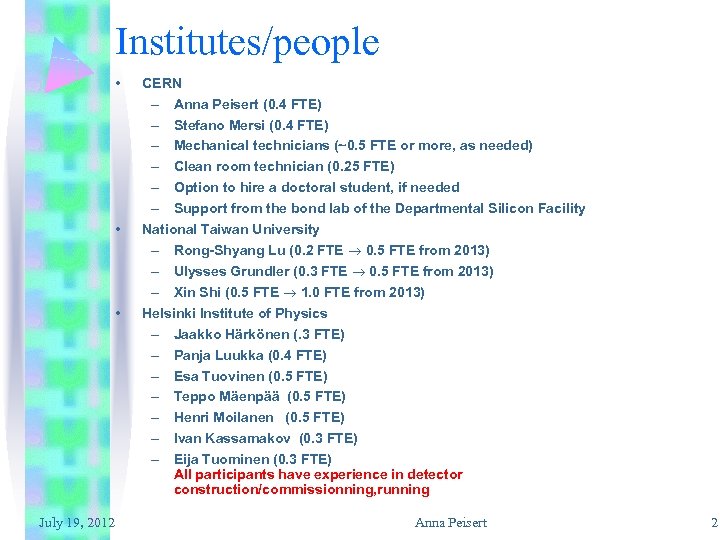

Institutes/people • • National Taiwan University – Rong-Shyang Lu (0. 2 FTE ® 0. 5 FTE from 2013) – Ulysses Grundler (0. 3 FTE ® 0. 5 FTE from 2013) – Xin Shi (0. 5 FTE ® 1. 0 FTE from 2013) • July 19, 2012 CERN – Anna Peisert (0. 4 FTE) – Stefano Mersi (0. 4 FTE) – Mechanical technicians (~0. 5 FTE or more, as needed) – Clean room technician (0. 25 FTE) – Option to hire a doctoral student, if needed – Support from the bond lab of the Departmental Silicon Facility Helsinki Institute of Physics – Jaakko Härkönen (. 3 FTE) – Panja Luukka (0. 4 FTE) – Esa Tuovinen (0. 5 FTE) – Teppo Mäenpää (0. 5 FTE) – Henri Moilanen (0. 5 FTE) – Ivan Kassamakov (0. 3 FTE) – Eija Tuominen (0. 3 FTE) All participants have experience in detector construction/commissionning, running Anna Peisert 2

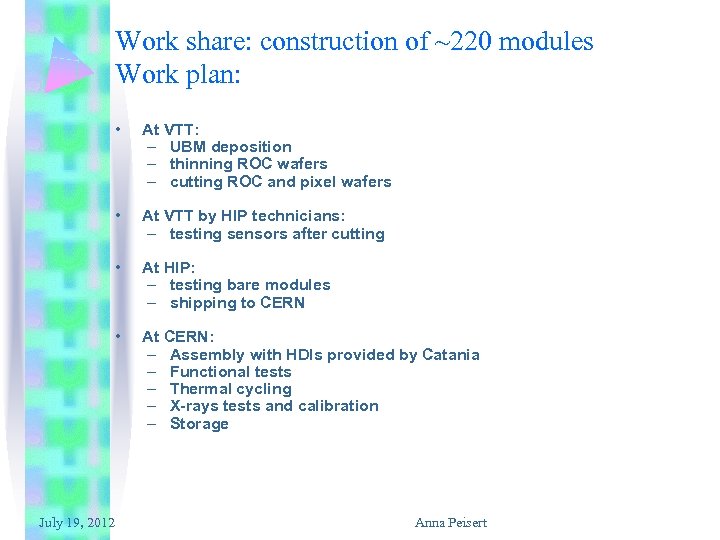

Work share: construction of ~220 modules Work plan: • • At VTT by HIP technicians: – testing sensors after cutting • At HIP: – testing bare modules – shipping to CERN • July 19, 2012 At VTT: – UBM deposition – thinning ROC wafers – cutting ROC and pixel wafers At CERN: – Assembly with HDIs provided by Catania – Functional tests – Thermal cycling – X-rays tests and calibration – Storage Anna Peisert

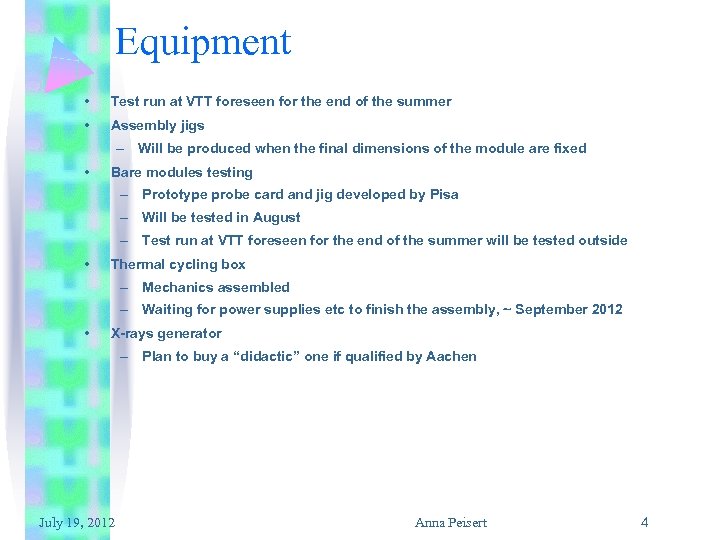

Equipment • Test run at VTT foreseen for the end of the summer • Assembly jigs – Will be produced when the final dimensions of the module are fixed • Bare modules testing – Prototype probe card and jig developed by Pisa – Will be tested in August – Test run at VTT foreseen for the end of the summer will be tested outside • Thermal cycling box – Mechanics assembled – Waiting for power supplies etc to finish the assembly, ~ September 2012 • X-rays generator – Plan to buy a “didactic” one if qualified by Aachen July 19, 2012 Anna Peisert 4
