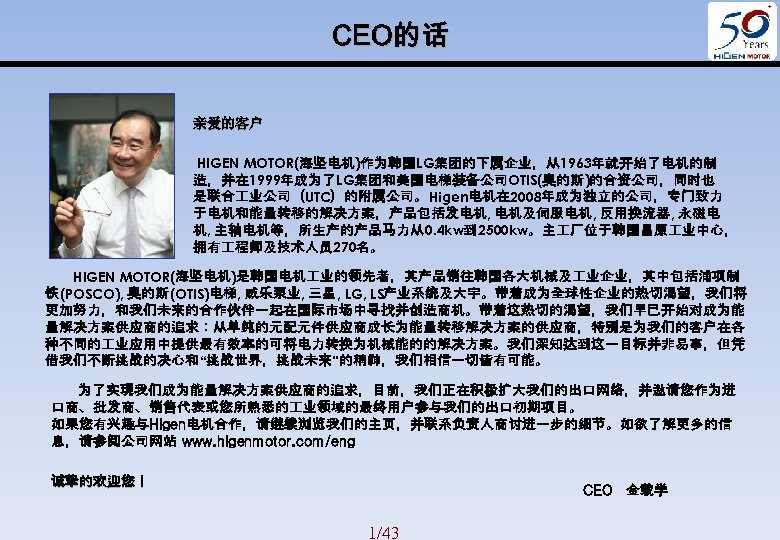

CEO的话 亲爱的客户 HIGEN MOTOR(海坚电机)作为韩国LG集团的下属企业,从1963年就开始了电机的制 造,并在 1999年成为了LG集团和美国电梯装备公司OTIS(奥的斯)的合资公司,同时也 是联合 业公司(UTC)的附属公司。Higen电机在 2008年成为独立的公司,专门致力 于电机和能量转移的解决方案,产品包括发电机, 电机及伺服电机, 反用换流器, 永磁电 机, 主轴电机等,所生产的产品马力从0. 4 kw到 2500 kw。主 厂位于韩国昌原 业中心, 拥有 程师及技术人员 270名。 HIGEN MOTOR(海坚电机)是韩国电机 业的领先者,其产品销往韩国各大机械及 业企业,其中包括浦项制 铁(POSCO), 奥的斯(OTIS)电梯, 威乐泵业, 三星, LG, LS产业系统及大宇。带着成为全球性企业的热切渴望,我们将 更加努力,和我们未来的合作伙伴一起在国际市场中寻找并创造商机。带着这热切的渴望,我们早已开始对成为能 量解决方案供应商的追求:从单纯的元配元件供应商成长为能量转移解决方案的供应商,特别是为我们的客户在各 种不同的 业应用中提供最有效率的可将电力转换为机械能的的解决方案。我们深知达到这一目标并非易事,但凭 借我们不断挑战的决心和“挑战世界,挑战未来”的精神,我们相信一切皆有可能。 为了实现我们成为能量解决方案供应商的追求,目前,我们正在积极扩大我们的出口网络,并邀请您作为进 口商、批发商、销售代表或您所熟悉的 业领域的最终用户参与我们的出口初期项目。 如果您有兴趣与Higen电机合作,请继续浏览我们的主页,并联系负责人商讨进一步的细节。如欲了解更多的信 息,请参阅公司网站 www. higenmotor. com/eng 诚挚的欢迎您! CEO 1/43 金载学

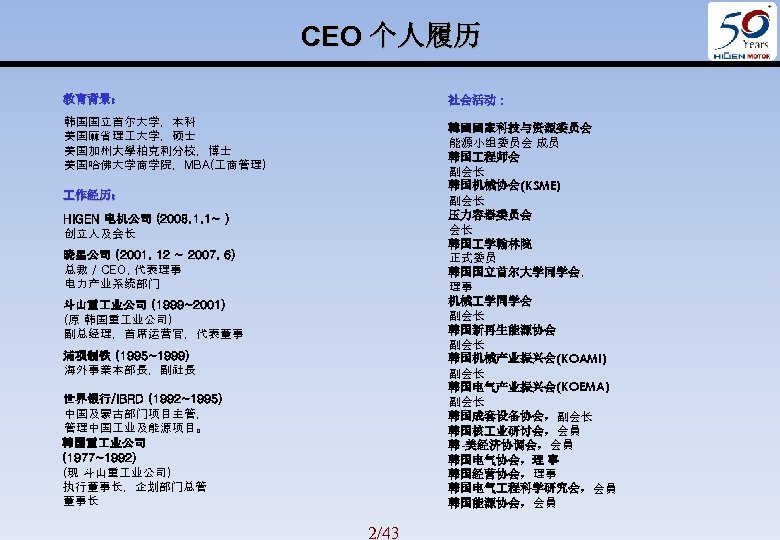

CEO 个人履历 社会活动 : 教育背景: 韩国国立首尔大学,本科 美国麻省理 大学,硕士 美国加州大學柏克利分校,博士 美国哈佛大学商学院,MBA( 商管理) 韓國國家科技与资源委员会 能源小组委员会 成员 韩国 程师会 副会长 韩国机械协会(KSME) 副会长 压力容器委员会 会长 韩国 学翰林院 正式委员 韩国国立首尔大学同学会, 理事 机械 学同学会 副会长 韩国新再生能源协会 副会长 韩国机械产业振兴会(KOAMI) 副会长 韩国电气产业振兴会(KOEMA) 副会长 韩国成套设备协会,副会长 韩国核 业研讨会,会員 韩-美经济协调会,会員 韩国电气协会,理 事 韩国经营协会,理事 韩国电气 程科学研究会,会員 韩国能源协会,会員 作经历: HIGEN 电机公司 (2008. 1. 1~ ) 创立人及会长 晓星公司 (2001. 12 ~ 2007. 6) 总裁 / CEO, 代表理事 电力产业系统部门 斗山重 业公司 (1999~2001) (原 韩国重 业公司) 副总经理,首席运营官,代表董事 浦项制铁 (1995~1999) 海外事業本部長,副社長 世界银行/IBRD (1992~1995) 中国及蒙古部门项目主管, 管理中国 业及能源项目。 韩国重 业公司 (1977~1992) (现 斗山重 业公司) 执行董事长,企划部门总管 董事长 2/43

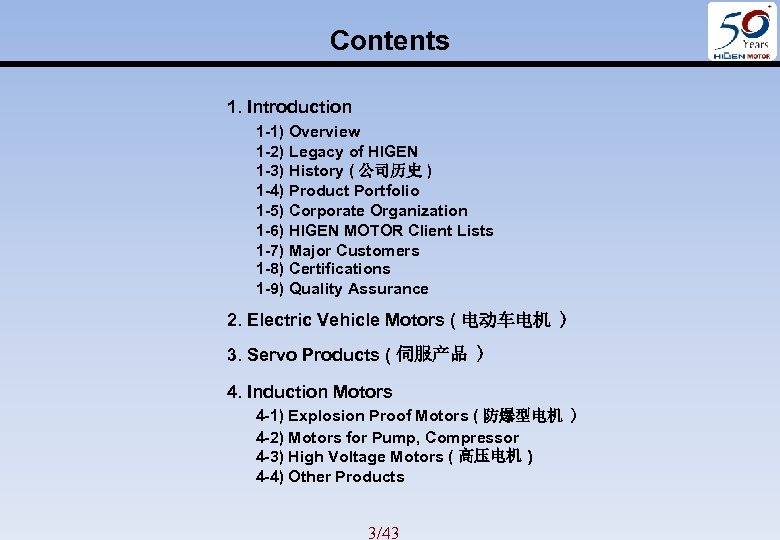

Contents 1. Introduction 1 -1) Overview 1 -2) Legacy of HIGEN 1 -3) History ( 公司历史 ) ( 1 -4) Product Portfolio 1 -5) Corporate Organization 1 -6) HIGEN MOTOR Client Lists 1 -7) Major Customers 1 -8) Certifications 1 -9) Quality Assurance 2. Electric Vehicle Motors ( 电动车电机 ) 3. Servo Products ( 伺服产品 ) 4. Induction Motors 4 -1) Explosion Proof Motors ( 防爆型电机 ) 4 -2) Motors for Pump, Compressor 4 -3) High Voltage Motors ( 高压电机 ) 4 -4) Other Products 3/43

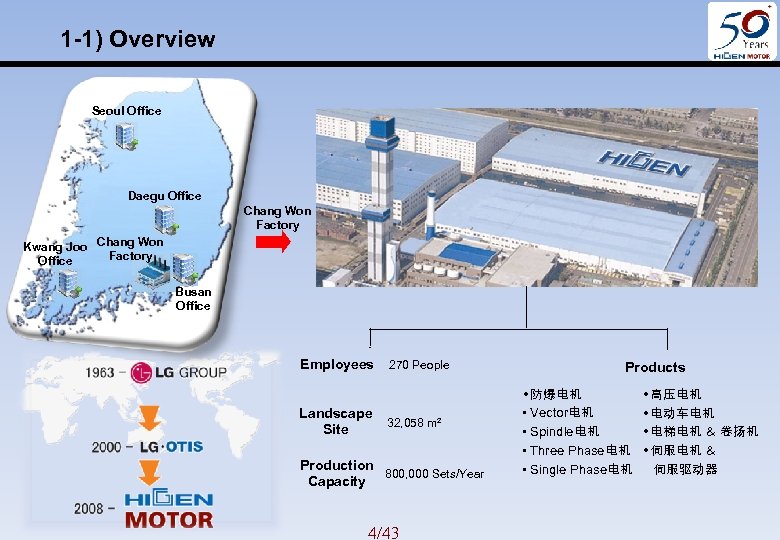

1 -1) Overview Seoul Office Daegu Office Chang Won Factory Kwang Joo Chang Won Factory Office Busan Office Employees Landscape Site 270 People 32, 058 m² Production 800, 000 Sets/Year Capacity 4/43 Products • 防爆电机 • Vector电机 • Spindle电机 • Three Phase电机 • Single Phase电机 • 高压电机 • 电动车电机 • 电梯电机 & 卷扬机 • 伺服电机 & 伺服驱动器
1 -2) Legacy of HIGEN MOTOR Started it! Joined it! Inspired it! 5/43

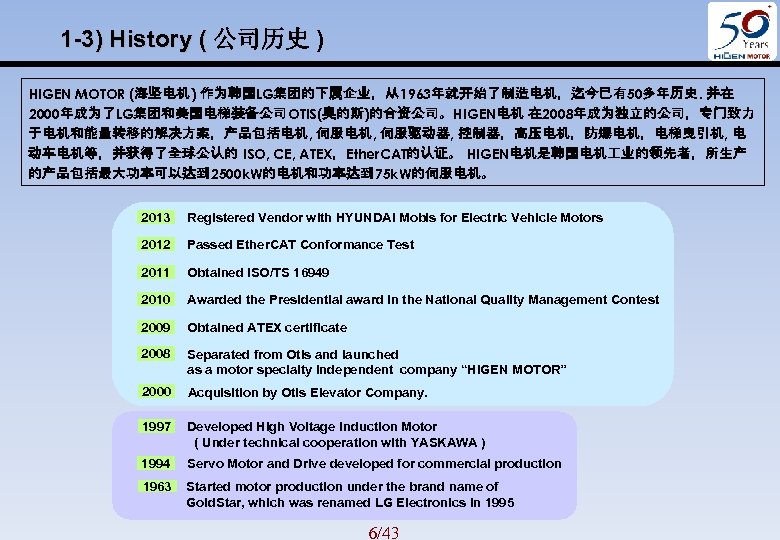

1 -3) History ( 公司历史 ) ( HIGEN MOTOR (海坚电机) 作为韩国LG集团的下属企业,从1963年就开始了制造电机,迄今已有50多年历史. 并在 2000年成为了LG集团和美国电梯装备公司OTIS(奥的斯)的合资公司。HIGEN电机 在 2008年成为独立的公司,专门致力 于电机和能量转移的解决方案,产品包括电机, 伺服驱动器, 控制器,高压电机,防爆电机,电梯曳引机, 电 动车电机等,并获得了全球公认的 ISO, CE, ATEX,Ether. CAT的认证。 HIGEN电机是韩国电机 业的领先者,所生产 的产品包括最大功率可以达到 2500 k. W的电机和功率达到 75 k. W的伺服电机。 2013 Registered Vendor with HYUNDAI Mobis for Electric Vehicle Motors 2012 Passed Ether. CAT Conformance Test 2011 Obtained ISO/TS 16949 2010 Awarded the Presidential award in the National Quality Management Contest 2009 Obtained ATEX certificate 2008 Separated from Otis and launched as a motor specialty independent company “HIGEN MOTOR” 2000 Acquisition by Otis Elevator Company. 1997 Developed High Voltage Induction Motor ( Under technical cooperation with YASKAWA ) 1994 Servo Motor and Drive developed for commercial production 1963 Started motor production under the brand name of Gold. Star, which was renamed LG Electronics in 1995 6/43

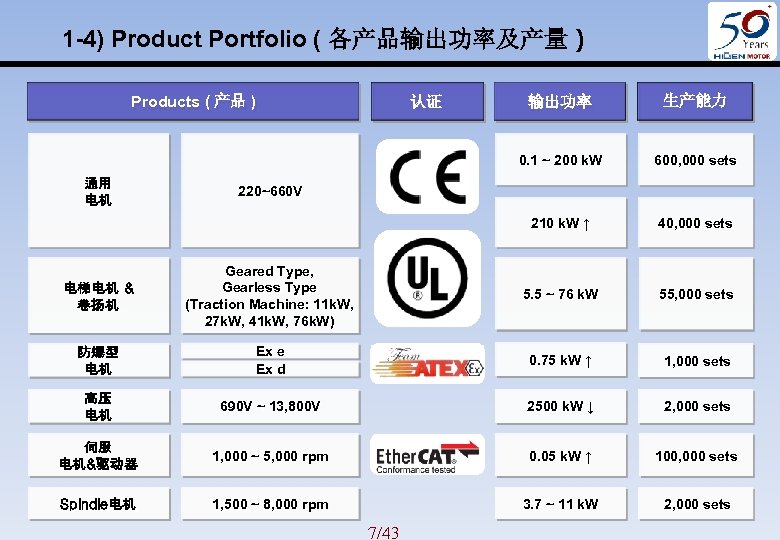

1 -4) Product Portfolio ( 各产品输出功率及产量 ) Products ( 产品 ) 输出功率 生产能力 0. 1 ~ 200 k. W 600, 000 sets 210 k. W ↑ 40, 000 sets 电梯电机 & 卷扬机 Geared Type, Gearless Type (Traction Machine: 11 k. W, 27 k. W, 41 k. W, 76 k. W) 5. 5 ~ 76 k. W 55, 000 sets 防爆型 电机 Ex e Ex d 0. 75 k. W ↑ 1, 000 sets 高压 电机 690 V ~ 13, 800 V 2500 k. W ↓ 2, 000 sets 伺服 电机&驱动器 1, 000 ~ 5, 000 rpm 0. 05 k. W ↑ 100, 000 sets Spindle电机 1, 500 ~ 8, 000 rpm 3. 7 ~ 11 k. W 2, 000 sets 通用 电机 认证 220~660 V 7/43

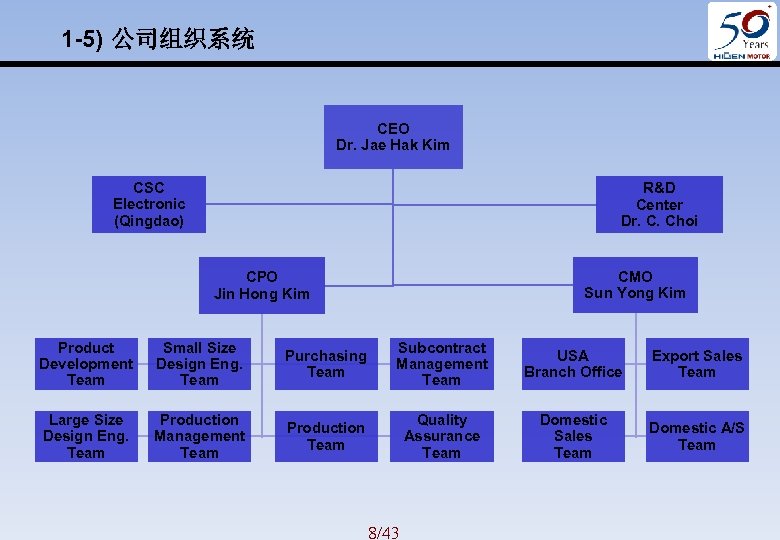

1 -5) 公司组织系统 CEO Dr. Jae Hak Kim CSC Electronic (Qingdao) R&D Center Dr. C. Choi CMO Sun Yong Kim CPO Jin Hong Kim Product Development Team Small Size Design Eng. Team Purchasing Team Subcontract Management Team USA Branch Office Export Sales Team Large Size Design Eng. Team Production Management Team Production Team Quality Assurance Team Domestic Sales Team Domestic A/S Team 8/43

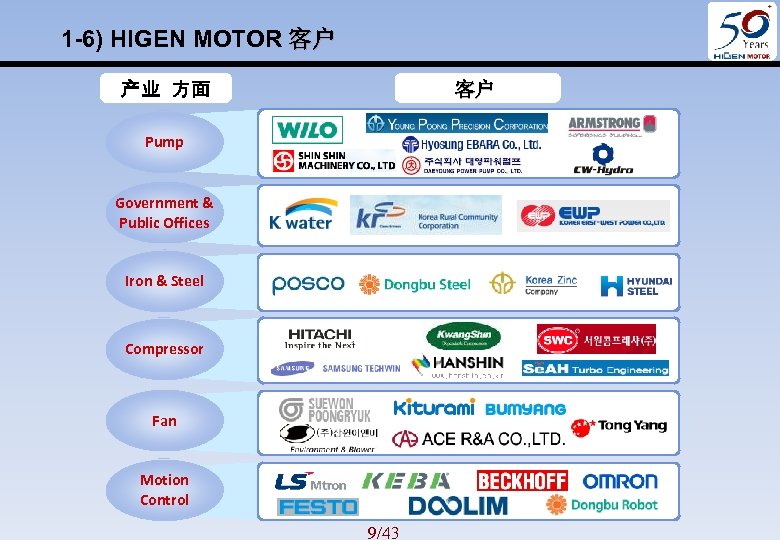

1 -6) HIGEN MOTOR 客户 产业 方面 客户 Pump Government & Public Offices Iron & Steel Compressor Fan Motion Control 9/43

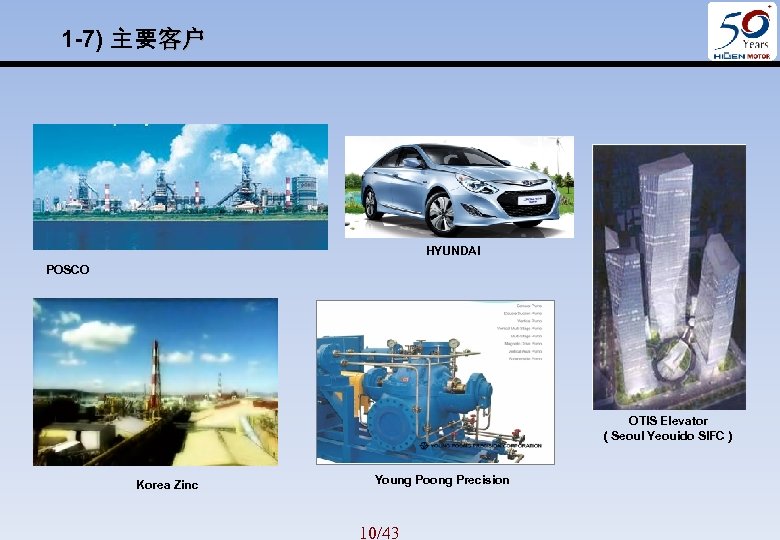

1 -7) 主要客户 HYUNDAI POSCO OTIS Elevator ( Seoul Yeouido SIFC ) Korea Zinc Young Poong Precision 10/43

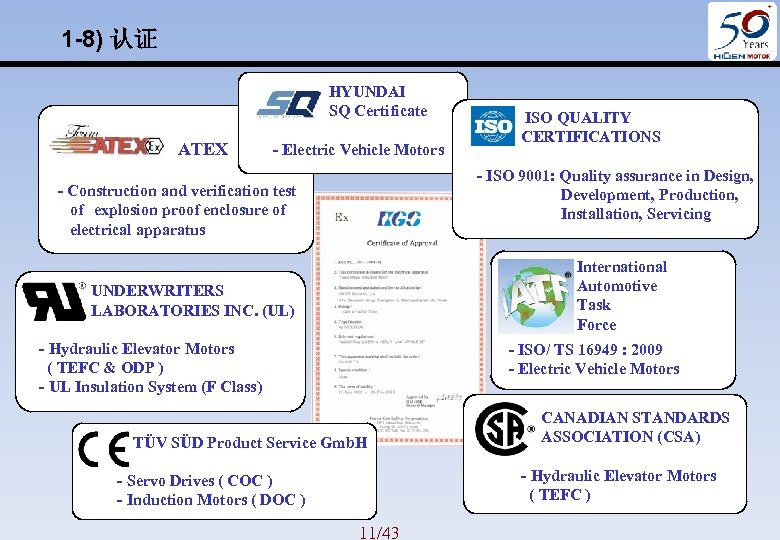

1 -8) 认证 1 -8) HYUNDAI SQ Certificate ATEX - Electric Vehicle Motors ISO QUALITY CERTIFICATIONS - ISO 9001: Quality assurance in Design, Development, Production, Installation, Servicing - Construction and verification test of explosion proof enclosure of electrical apparatus International Automotive Task Force UNDERWRITERS LABORATORIES INC. (UL) - Hydraulic Elevator Motors ( TEFC & ODP ) - UL Insulation System (F Class) - ISO/ TS 16949 : 2009 - Electric Vehicle Motors TÜV SÜD Product Service Gmb. H CANADIAN STANDARDS ASSOCIATION (CSA) - Hydraulic Elevator Motors ( TEFC ) - Servo Drives ( COC ) - Induction Motors ( DOC ) 11/43

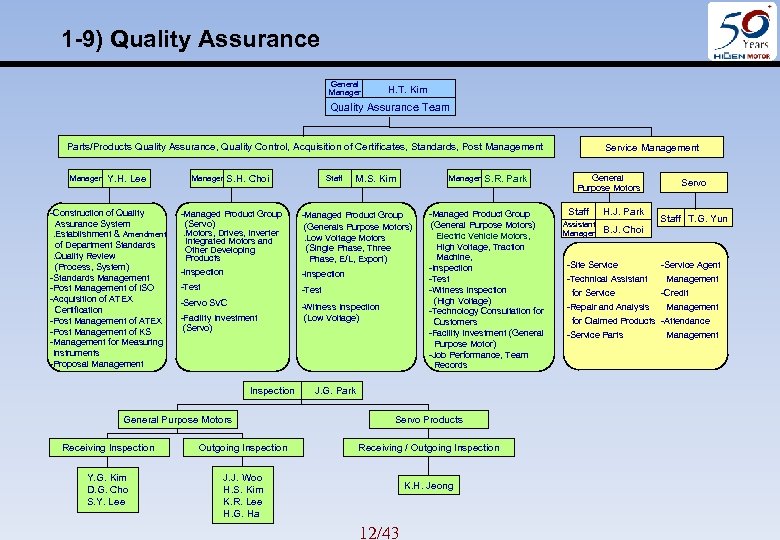

1 -9) Quality Assurance General Manager H. T. Kim Quality Assurance Team Parts/Products Quality Assurance, Quality Control, Acquisition of Certificates, Standards, Post Management Manager Y. H. Lee -Construction of Quality Assurance System. Establishment & Amendment of Department Standards. Quality Review (Process, System) -Standards Management -Post Management of ISO -Acquisition of ATEX Certification -Post Management of ATEX -Post Management of KS -Management for Measuring Instruments -Proposal Management S. H. Choi Manager Staff M. S. Kim Manager -Managed Product Group (Servo). Motors, Drives, Inverter Integrated Motors and Other Developing Products -Managed Product Group (Generals Purpose Motors). Low Voltage Motors (Single Phase, Three Phase, E/L, Export) -Inspection -Test -Servo SVC -Witness Inspection (Low Voltage) -Facility Investment (Servo) Inspection General Purpose Motors Receiving Inspection Outgoing Inspection Y. G. Kim D. G. Cho S. Y. Lee S. R. Park -Managed Product Group (General Purpose Motors) Electric Vehicle Motors, High Voltage, Traction Machine, -Inspection -Test -Witness Inspection (High Voltage) -Technology Consultation for Customers -Facility Investment (General Purpose Motor) -Job Performance, Team Records J. G. Park Servo Products Receiving / Outgoing Inspection J. J. Woo H. S. Kim K. R. Lee H. G. Ha K. H. Jeong 12/43 Service Management General Purpose Motors Staff H. J. Park Assistant Manager B. J. Choi -Site Service -Technical Assistant for Service -Repair and Analysis Servo Staff T. G. Yun -Service Agent Management -Credit Management for Claimed Products -Attendance -Service Parts Management

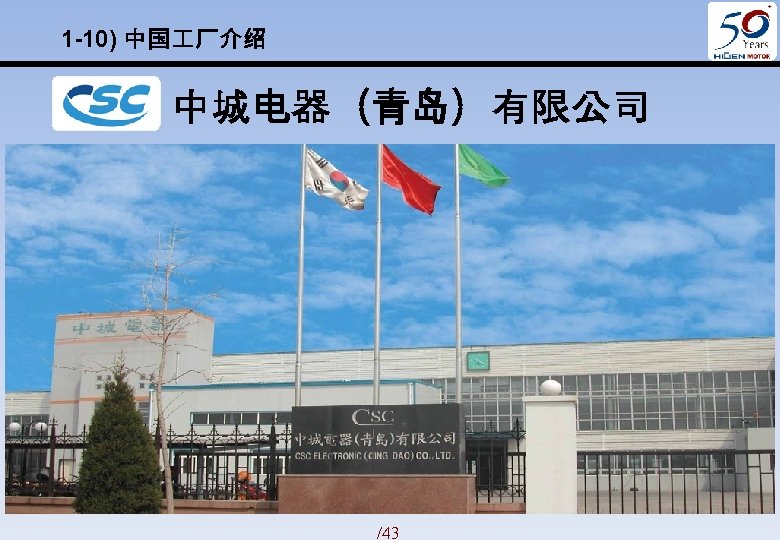

1 -10) 中国 厂介绍 中城电器(青岛)有限公司 /43

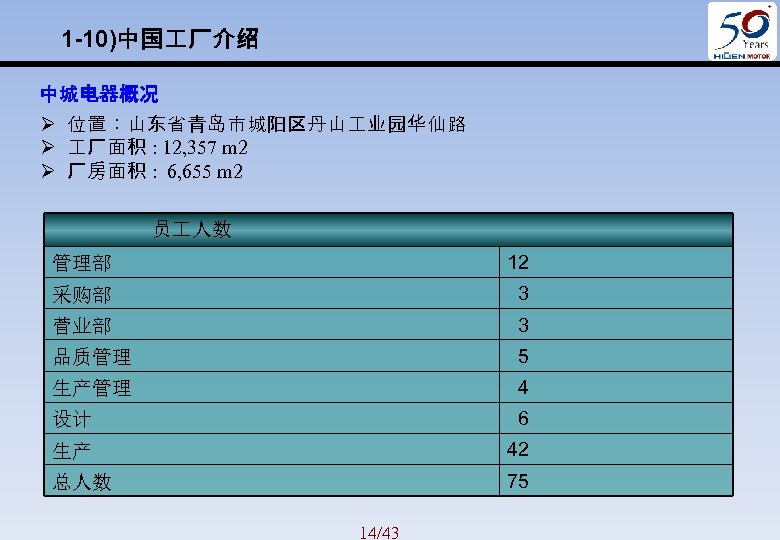

1 -10)中国 厂介绍 中城电器概况 Ø 位置:山东省青岛市城阳区丹山 业园华仙路 Ø 厂面积 : 12, 357 m 2 Ø 厂房面积 : 6, 655 m 2 员 人数 管理部 12 采购部 3 菅业部 3 品质管理 5 生产管理 4 设计 6 生产 42 总人数 75 14/43

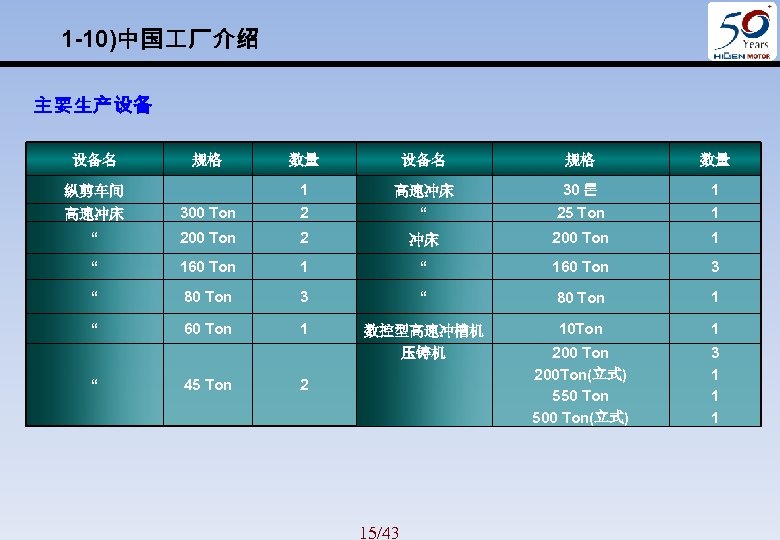

1 -10)中国 厂介绍 主要生产设备 设备名 规格 数量 1 纵剪车间 数量 30 톤 1 25 Ton 1 高速冲床 300 Ton 2 高速冲床 “ “ 200 Ton 2 冲床 200 Ton 1 “ 160 Ton 3 “ 80 Ton 1 “ 60 Ton 1 数控型高速冲槽机 10 Ton 1 压铸机 200 Ton 200 Ton(立式) 550 Ton 500 Ton(立式) 3 1 1 1 “ 45 Ton 2 15/43

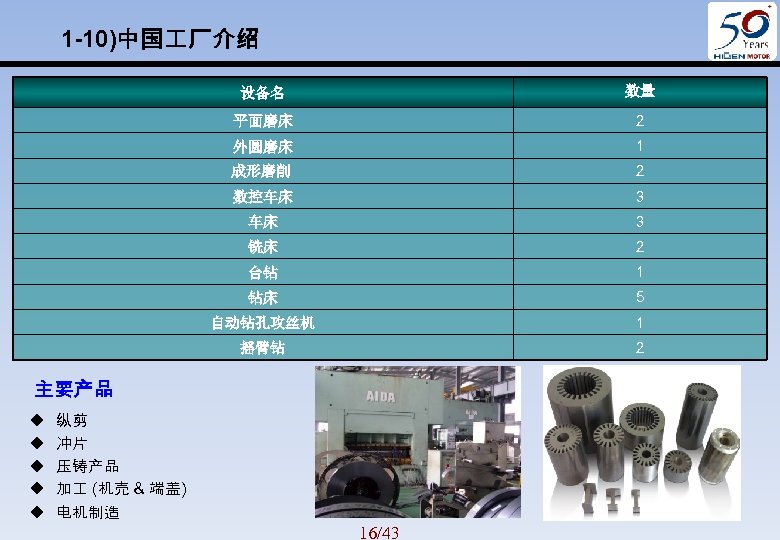

1 -10)中国 厂介绍 设备名 数量 平面磨床 2 外圆磨床 1 成形磨削 2 数控车床 3 铣床 2 台钻 1 钻床 5 自动钻孔攻丝机 1 摇臂钻 2 主要产品 u u u 纵剪 冲片 压铸产品 加 (机売 & 端盖) 电机制造 16/43

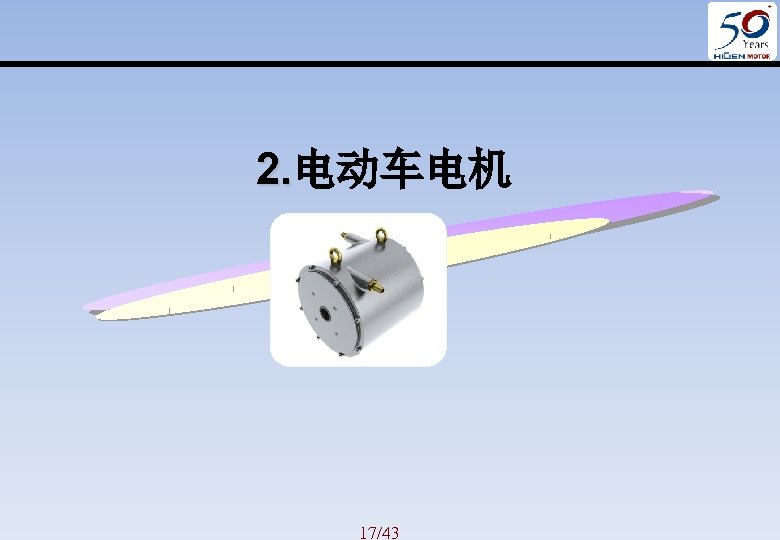

2. 电动车电机 2. 17/43

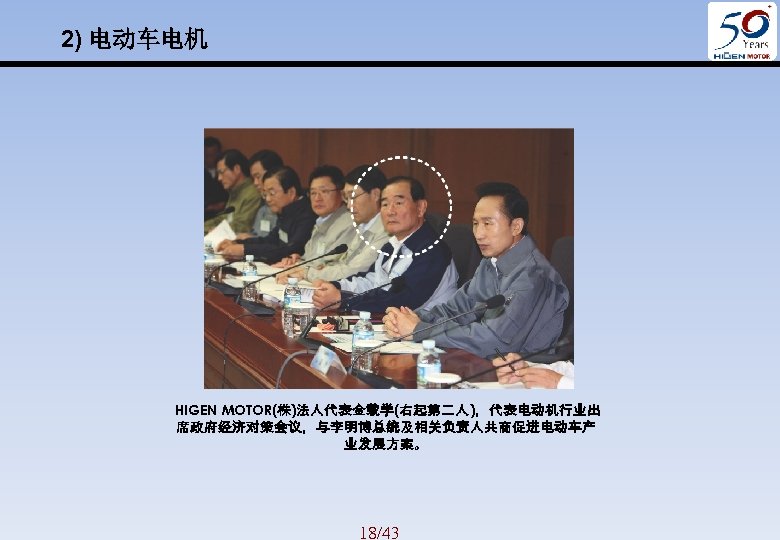

2) 电动车电机 HIGEN MOTOR(株)法人代表金载学(右起第二人),代表电动机行业出 席政府经济对策会议,与李明博总统及相关负责人共商促进电动车产 业发展方案。 18/43

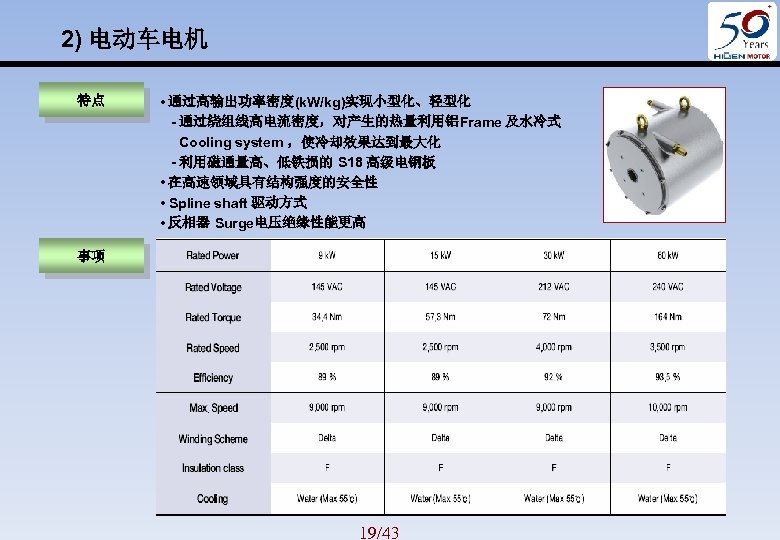

2) 电动车电机 特点 • 通过高输出功率密度(k. W/kg)实现小型化、轻型化 - 通过绕组线高电流密度,对产生的热量利用铝Frame 及水冷式 Cooling system ,使冷却效果达到最大化 - 利用磁通量高、低铁损的 S 18 高级电钢板 • 在高速领域具有结构强度的安全性 • Spline shaft 驱动方式 • 反相器 Surge电压绝缘性能更高 事项 19/43

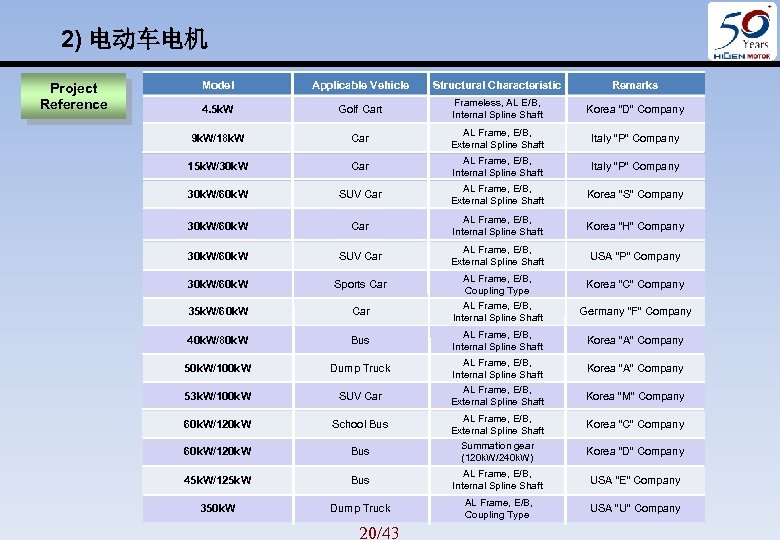

2) 电动车电机 Project Reference Model Applicable Vehicle Structural Characteristic Remarks 4. 5 k. W Golf Cart Frameless, AL E/B, Internal Spline Shaft Korea “D” Company 9 k. W/18 k. W Car AL Frame, E/B, External Spline Shaft Italy “P” Company 15 k. W/30 k. W Car AL Frame, E/B, Internal Spline Shaft Italy “P” Company 30 k. W/60 k. W SUV Car AL Frame, E/B, External Spline Shaft Korea “S” Company 30 k. W/60 k. W Car AL Frame, E/B, Internal Spline Shaft Korea “H” Company 30 k. W/60 k. W SUV Car AL Frame, E/B, External Spline Shaft USA “P” Company 30 k. W/60 k. W Sports Car AL Frame, E/B, Coupling Type Korea “C” Company 35 k. W/60 k. W Car AL Frame, E/B, Internal Spline Shaft Germany “F” Company 40 k. W/80 k. W Bus AL Frame, E/B, Internal Spline Shaft Korea “A” Company 50 k. W/100 k. W Dump Truck AL Frame, E/B, Internal Spline Shaft Korea “A” Company 53 k. W/100 k. W SUV Car AL Frame, E/B, External Spline Shaft Korea “M” Company 60 k. W/120 k. W School Bus 60 k. W/120 k. W Bus 45 k. W/125 k. W Bus AL Frame, E/B, Internal Spline Shaft USA “E” Company 350 k. W Dump Truck AL Frame, E/B, Coupling Type USA “U” Company 20/43 AL Frame, E/B, External Spline Shaft Summation gear (120 k. W/240 k. W) Korea “C” Company Korea “D” Company

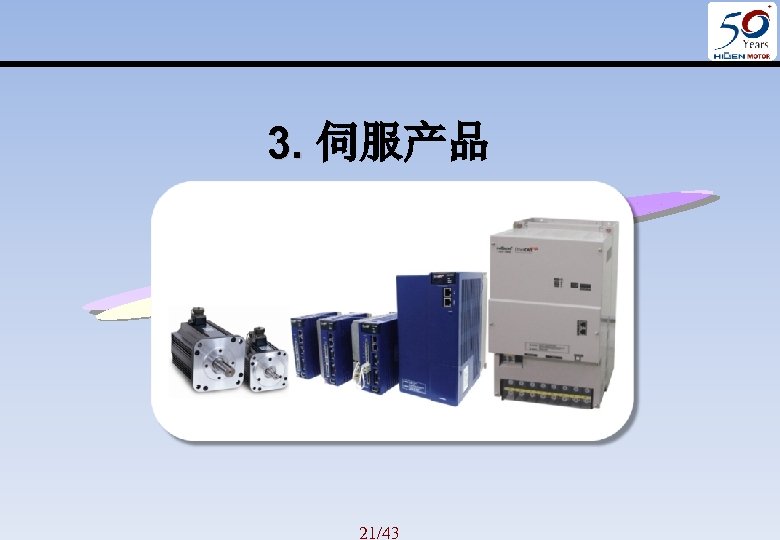

3. 伺服产品 3. 21/43

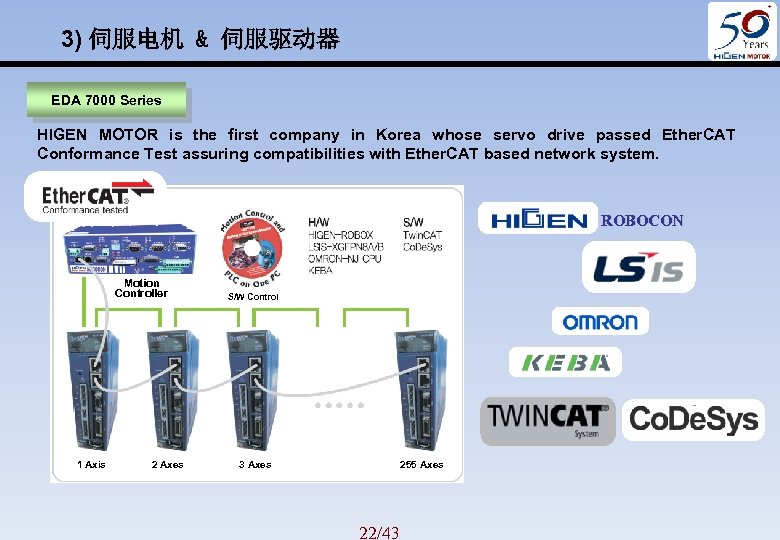

3) 伺服电机 & 伺服驱动器 EDA 7000 Series HIGEN MOTOR is the first company in Korea whose servo drive passed Ether. CAT Conformance Test assuring compatibilities with Ether. CAT based network system. ROBOCON Motion Controller 1 Axis 2 Axes S/W Control 3 Axes 255 Axes 22/43

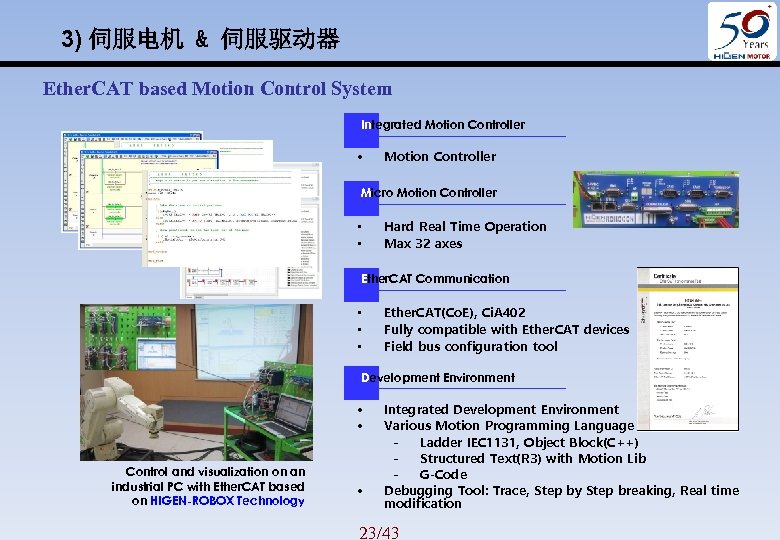

3) 伺服电机 & 伺服驱动器 Ether. CAT based Motion Control System Integrated Motion Controller • Motion Controller Micro Motion Controller • • Hard Real Time Operation Max 32 axes Ether. CAT Communication • • • Ether. CAT(Co. E), Ci. A 402 Fully compatible with Ether. CAT devices Field bus configuration tool Development Environment • • Control and visualization on an industrial PC with Ether. CAT based on HIGEN-ROBOX Technology • Integrated Development Environment Various Motion Programming Language Ladder IEC 1131, Object Block(C++) Structured Text(R 3) with Motion Lib G-Code Debugging Tool: Trace, Step by Step breaking, Real time modification 23/43

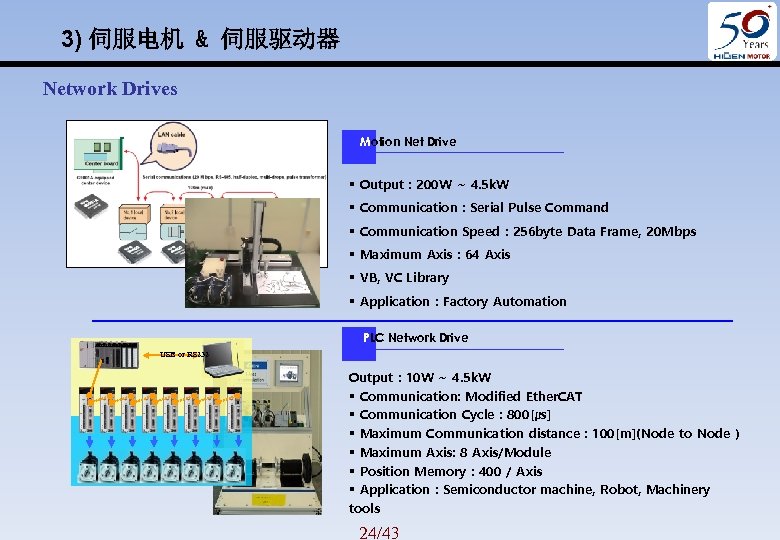

3) 伺服电机 & 伺服驱动器 Network Drives Motion Net Drive § Output : 200 W ~ 4. 5 k. W § Communication : Serial Pulse Command § Communication Speed : 256 byte Data Frame, 20 Mbps § Maximum Axis : 64 Axis § VB, VC Library § Application : Factory Automation PLC Network Drive USB or RS 232 Output : 10 W ~ 4. 5 k. W § Communication: Modified Ether. CAT § Communication Cycle : 800[㎲] § Maximum Communication distance : 100[m](Node to Node ) § Maximum Axis: 8 Axis/Module § Position Memory : 400 / Axis § Application : Semiconductor machine, Robot, Machinery tools 24/43

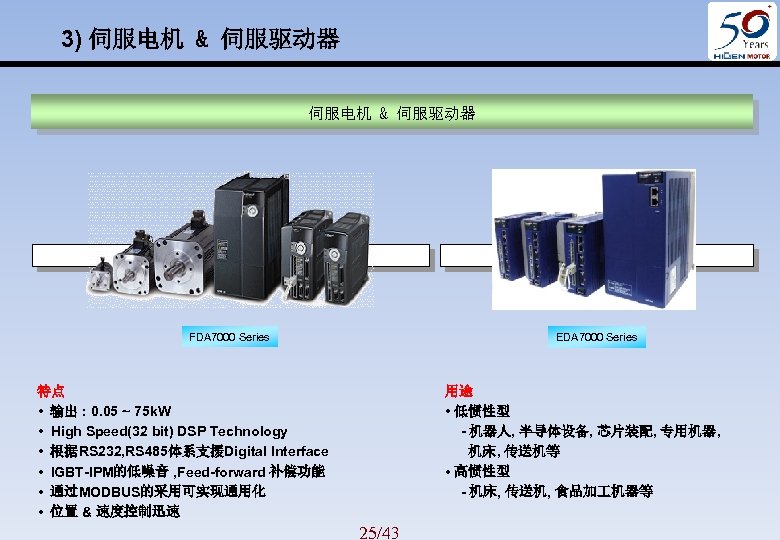

3) 伺服电机 & 伺服驱动器 FDA 7000 Series EDA 7000 Series 特点 • 输出 : 0. 05 ~ 75 k. W • High Speed(32 bit) DSP Technology • 根据RS 232, RS 485体系支援Digital Interface • IGBT-IPM的低噪音 , Feed-forward 补偿功能 • 通过MODBUS的采用可实现通用化 • 位置 & 速度控制迅速 用途 • 低惯性型 - 机器人, 半导体设备, 芯片装配, 专用机器, 机床, 传送机等 • 高惯性型 - 机床, 传送机, 食品加 机器等 25/43

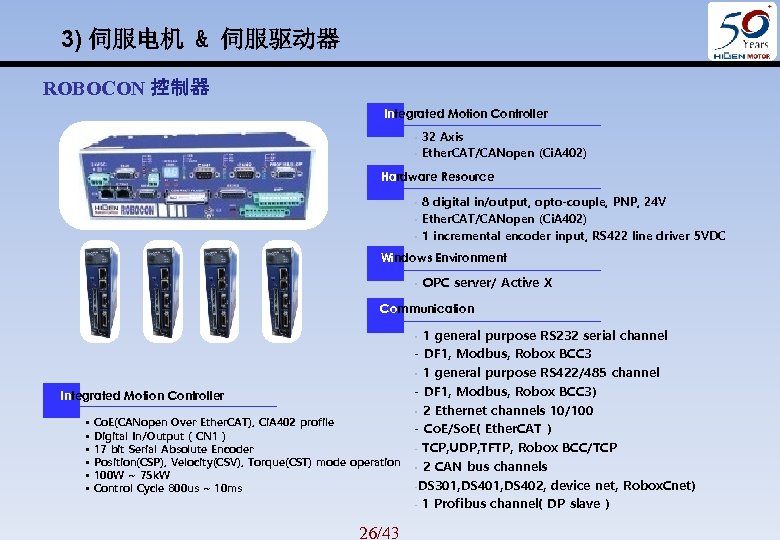

3) 伺服电机 & 伺服驱动器 ROBOCON 控制器 Integrated Motion Controller § § 32 Axis Ether. CAT/CANopen (Ci. A 402) Hardware Resource § § § 8 digital in/output, opto-couple, PNP, 24 V Ether. CAT/CANopen (Ci. A 402) 1 incremental encoder input, RS 422 line driver 5 VDC Windows Environment § OPC server/ Active X Communication 1 general purpose RS 232 serial channel - DF 1, Modbus, Robox BCC 3 § 1 general purpose RS 422/485 channel - DF 1, Modbus, Robox BCC 3) § 2 Ethernet channels 10/100 - Co. E/So. E( Ether. CAT ) - TCP, UDP, TFTP, Robox BCC/TCP § 2 CAN bus channels -DS 301, DS 402, device net, Robox. Cnet) - 1 Profibus channel( DP slave ) § Integrated Motion Controller • • • Co. E(CANopen Over Ether. CAT), Ci. A 402 profile Digital In/Output ( CN 1 ) 17 bit Serial Absolute Encoder Position(CSP), Velocity(CSV), Torque(CST) mode operation 100 W ~ 75 k. W Control Cycle 800 us ~ 10 ms 26/43

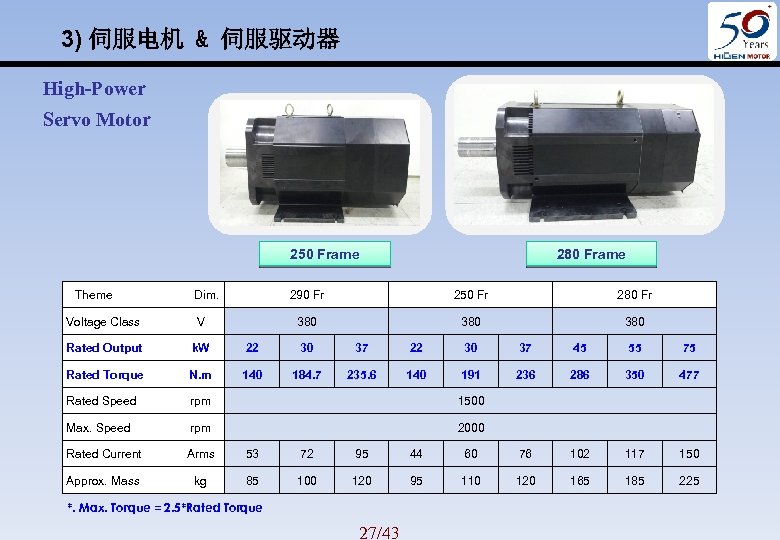

3) 伺服电机 & 伺服驱动器 High-Power Servo Motor 250 Frame 280 Frame Dim. 290 Fr 250 Fr 280 Fr Voltage Class V 380 380 Rated Output k. W 22 30 37 45 55 75 Rated Torque N. m 140 184. 7 235. 6 140 191 236 286 350 477 Rated Speed rpm 1500 Max. Speed rpm 2000 Theme Rated Current Arms 53 72 95 44 60 76 102 117 150 Approx. Mass kg 85 100 120 95 110 120 165 185 225 *. Max. Torque = 2. 5*Rated Torque 27/43

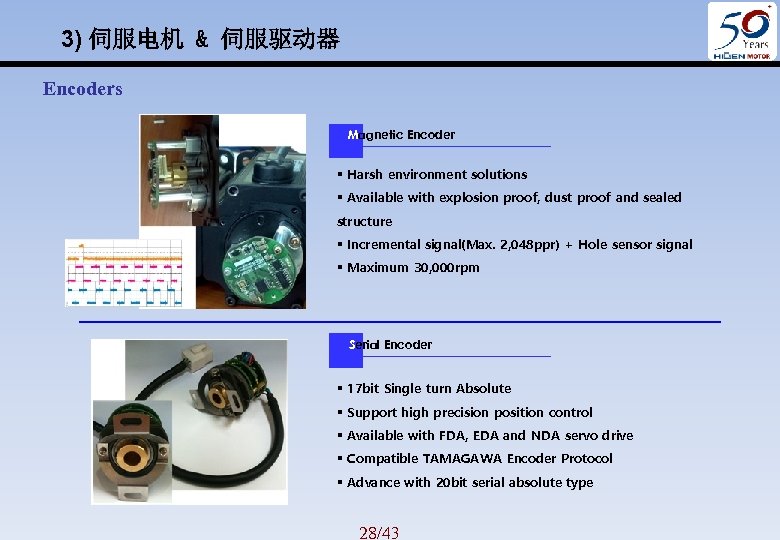

3) 伺服电机 & 伺服驱动器 Encoders Magnetic Encoder § Harsh environment solutions § Available with explosion proof, dust proof and sealed structure § Incremental signal(Max. 2, 048 ppr) + Hole sensor signal § Maximum 30, 000 rpm Serial Encoder § 17 bit Single turn Absolute § Support high precision position control § Available with FDA, EDA and NDA servo drive § Compatible TAMAGAWA Encoder Protocol § Advance with 20 bit serial absolute type 28/43

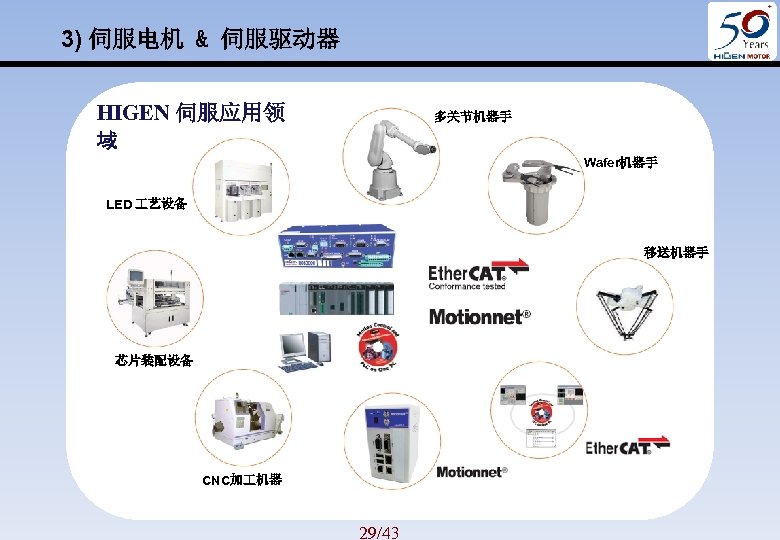

3) 伺服电机 & 伺服驱动器 HIGEN 伺服应用领 域 多关节机器手 Wafer机器手 LED 艺设备 移送机器手 芯片装配设备 CNC加 机器 29/43

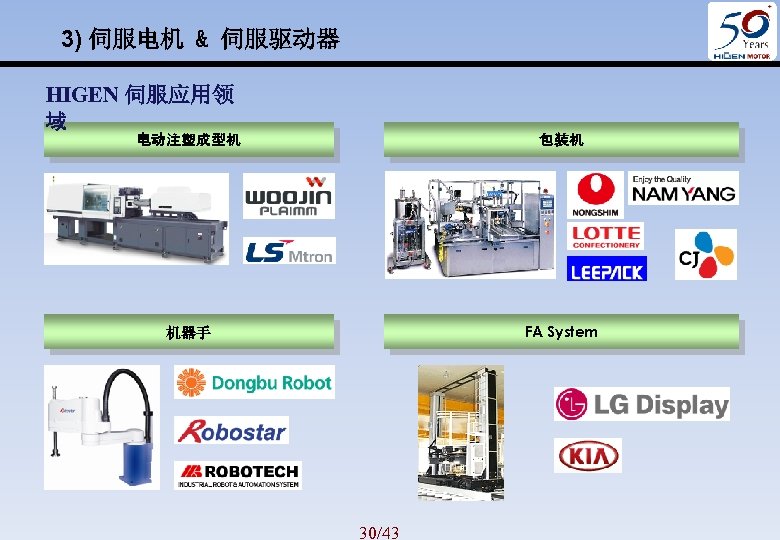

3) 伺服电机 & 伺服驱动器 HIGEN 伺服应用领 域 电动注塑成型机 包装机 机器手 FA System 30/43

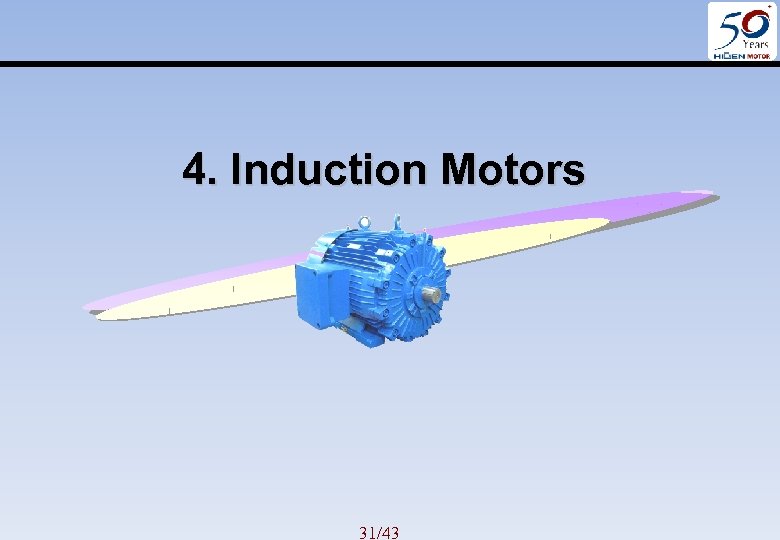

4. Induction Motors 31/43

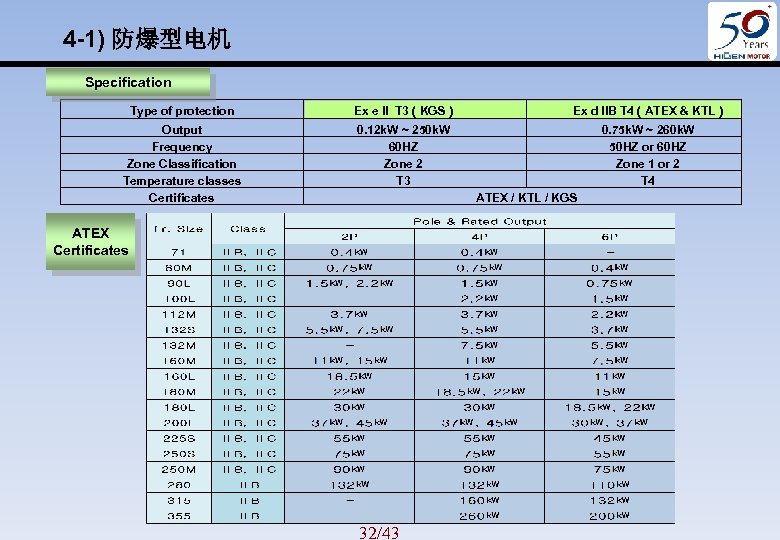

4 -1) 防爆型电机 Specification Type of protection Ex e ll T 3 ( KGS ) Ex d ll. B T 4 ( ATEX & KTL ) Output Frequency Zone Classification Temperature classes Certificates 0. 12 k. W ~ 250 k. W 60 HZ Zone 2 T 3 0. 75 k. W ~ 260 k. W 50 HZ or 60 HZ Zone 1 or 2 T 4 ATEX / KTL / KGS ATEX Certificates 32/43

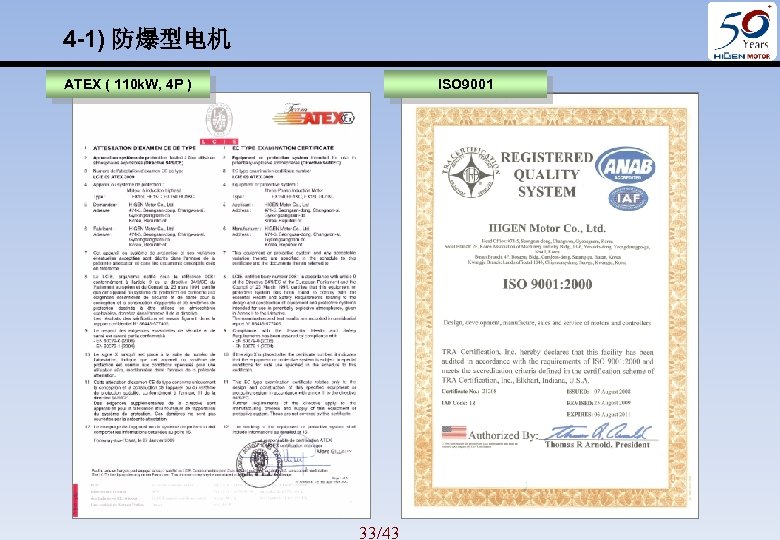

4 -1) 防爆型电机 ATEX ( 110 k. W, 4 P ) ISO 9001 33/43

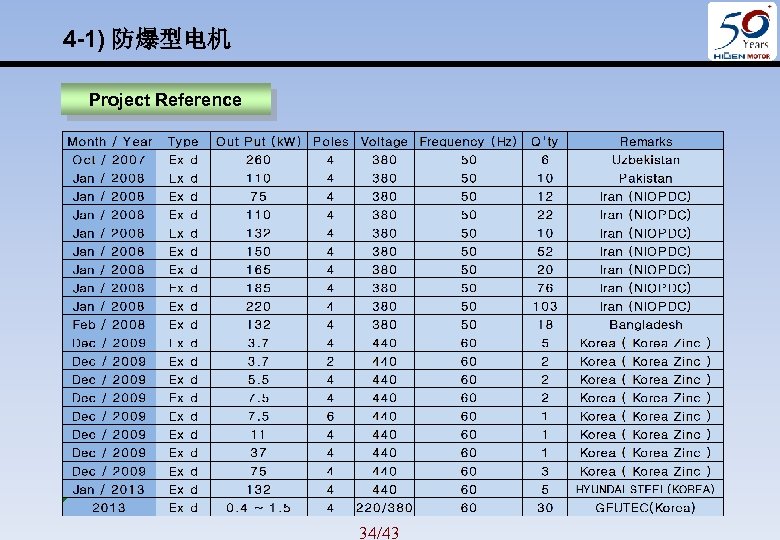

4 -1) 防爆型电机 Project Reference 34/43
4 -2) Motors for Pump Items Normal Pumps Industrial Pumps In-Line Pumps - Pole: 2, 4, 6 - Output: 0. 55 ~ 500 k. W - Output: 0. 55 ~ 185 k. W - Output: 0. 55 ~ 132 k. W Items Pumps for Construction Multistage Pumps Submersible Pumps - Pole: 2, 4 - Pole: 2 ~ 16 - Output: 1. 5 ~ 15 k. W - Output: 11 ~ 45 k. W - Output: 90 ~ 330 k. W 35/43

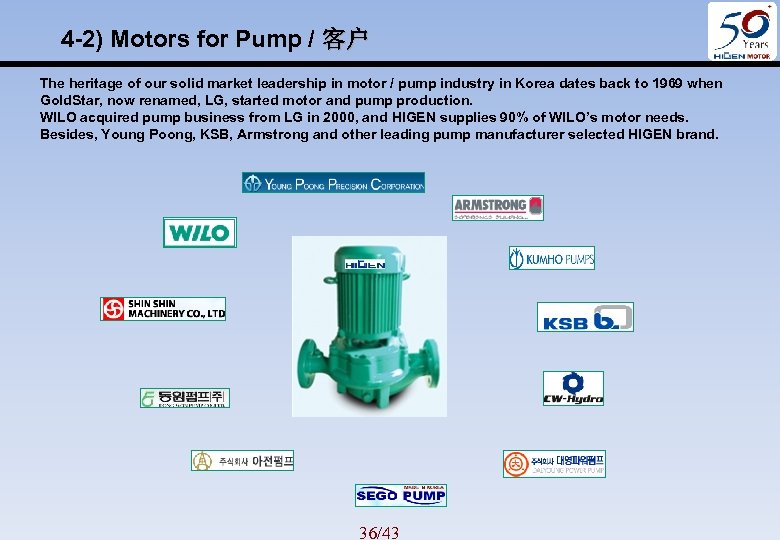

4 -2) Motors for Pump / 客户 The heritage of our solid market leadership in motor / pump industry in Korea dates back to 1969 when Gold. Star, now renamed, LG, started motor and pump production. WILO acquired pump business from LG in 2000, and HIGEN supplies 90% of WILO’s motor needs. Besides, Young Poong, KSB, Armstrong and other leading pump manufacturer selected HIGEN brand. 36/43

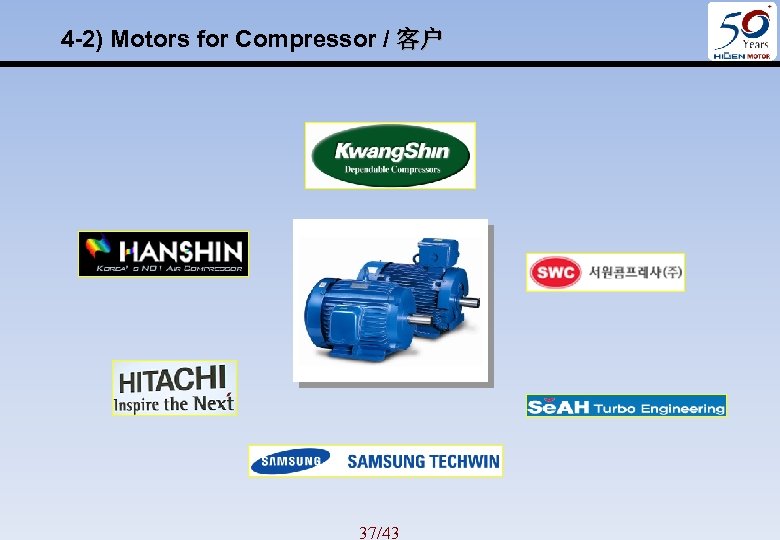

4 -2) Motors for Compressor / 客户 37/43

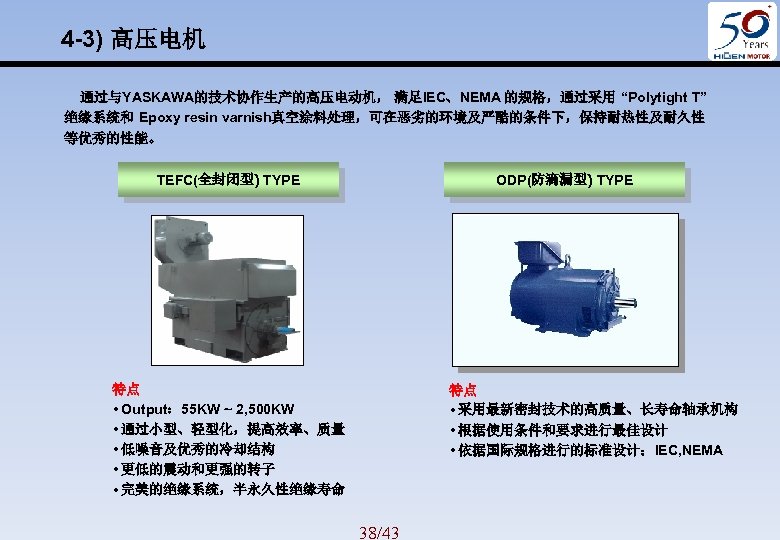

4 -3) 高压电机 通过与YASKAWA的技术协作生产的高压电动机, 满足IEC、NEMA 的规格,通过采用 “Polytight T” 绝缘系统和 Epoxy resin varnish真空涂料处理,可在恶劣的环境及严酷的条件下,保持耐热性及耐久性 等优秀的性能。 TEFC(全封闭型) TYPE ODP(防滴漏型) TYPE 特点 • Output: 55 KW ~ 2, 500 KW • 通过小型、轻型化,提高效率、质量 • 低噪音及优秀的冷却结构 • 更低的震动和更强的转子 • 完美的绝缘系统,半永久性绝缘寿命 特点 • 采用最新密封技术的高质量、长寿命轴承机构 • 根据使用条件和要求进行最佳设计 • 依据国际规格进行的标准设计:IEC, NEMA 38/43

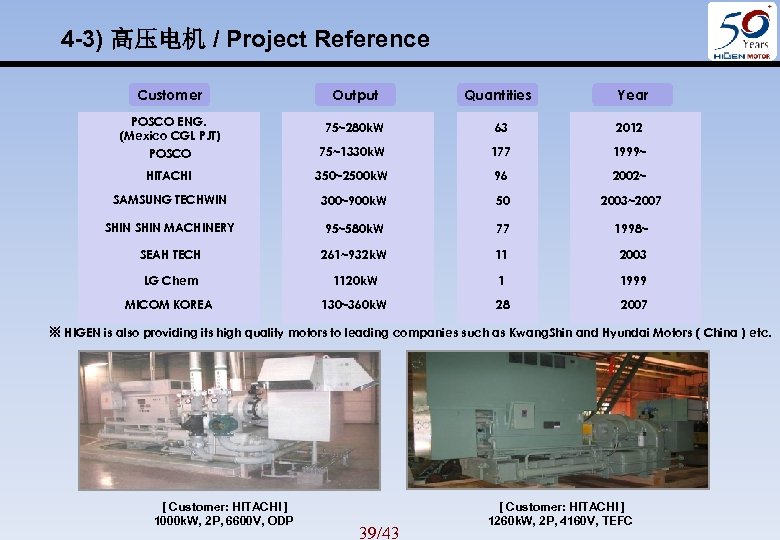

4 -3) 高压电机 / Project Reference Customer Output Quantities Year POSCO ENG. (Mexico CGL PJT) POSCO 75~280 k. W 63 2012 75~1330 k. W 177 1999~ HITACHI 350~2500 k. W 96 2002~ SAMSUNG TECHWIN 300~900 k. W 50 2003~2007 SHIN MACHINERY 95~580 k. W 77 1998~ SEAH TECH 261~932 k. W 11 2003 LG Chem 1120 k. W 1 1999 MICOM KOREA 130~360 k. W 28 2007 ※ HIGEN is also providing its high quality motors to leading companies such as Kwang. Shin and Hyundai Motors ( China ) etc. [ Customer: HITACHI ] 1000 k. W, 2 P, 6600 V, ODP 39/43 [ Customer: HITACHI ] 1260 k. W, 2 P, 4160 V, TEFC

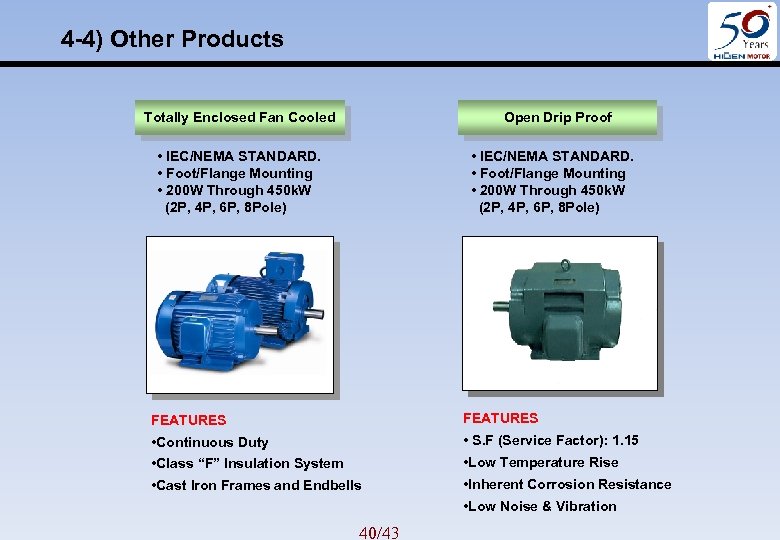

4 -4) Other Products Totally Enclosed Fan Cooled Open Drip Proof • IEC/NEMA STANDARD. • Foot/Flange Mounting • 200 W Through 450 k. W (2 P, 4 P, 6 P, 8 Pole) FEATURES • Continuous Duty • S. F (Service Factor): 1. 15 • Class “F” Insulation System • Low Temperature Rise • Cast Iron Frames and Endbells • Inherent Corrosion Resistance • Low Noise & Vibration 40/43

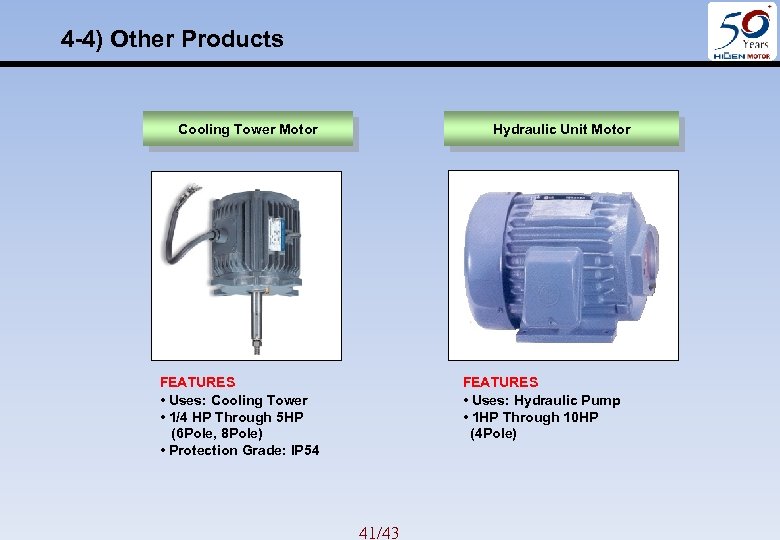

4 -4) Other Products Cooling Tower Motor Hydraulic Unit Motor FEATURES • Uses: Cooling Tower • 1/4 HP Through 5 HP (6 Pole, 8 Pole) • Protection Grade: IP 54 FEATURES • Uses: Hydraulic Pump • 1 HP Through 10 HP (4 Pole) 41/43

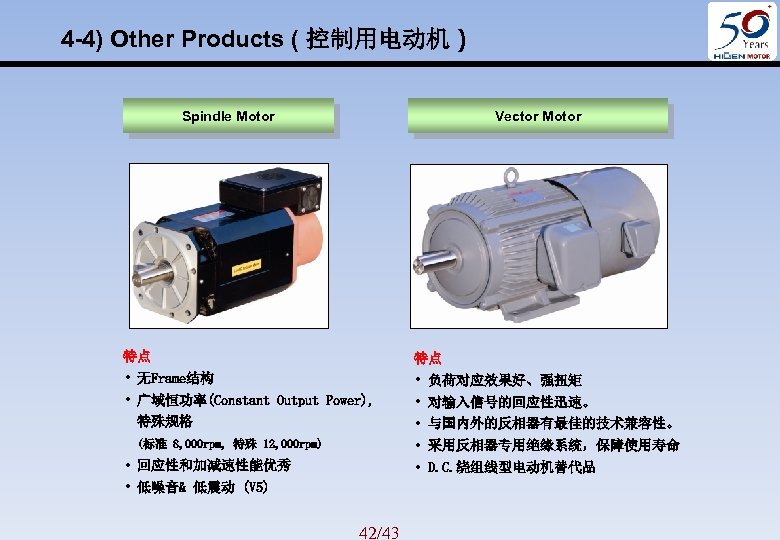

4 -4) Other Products ( 控制用电动机 ) Spindle Motor Vector Motor 特点 特点 • 无Frame结构 • 负荷对应效果好、强扭矩 • 广域恒功率(Constant Output Power), • 对输入信号的回应性迅速。 特殊规格 • 与国内外的反相器有最佳的技术兼容性。 (标准 8, 000 rpm, 特殊 12, 000 rpm) • 采用反相器专用绝缘系统,保障使用寿命 • 回应性和加减速性能优秀 • D. C. 绕组线型电动机替代品 • 低噪音& 低震动 (V 5) 42/43

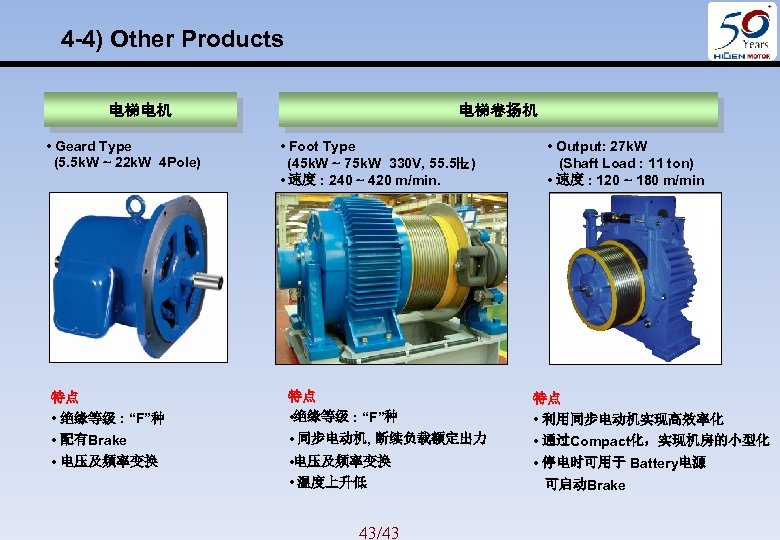

4 -4) Other Products 电梯卷扬机 电梯电机 • Geard Type (5. 5 k. W ~ 22 k. W 4 Pole) • Foot Type (45 k. W ~ 75 k. W 330 V, 55. 5㎐) • 速度 : 240 ~ 420 m/min. • Output: 27 k. W (Shaft Load : 11 ton) • 速度 : 120 ~ 180 m/min 特点 • 绝缘等级 : “F”种 特点 • 利用同步电动机实现高效率化 • 配有Brake • 同步电动机, 断续负载额定出力 • 通过Compact化,实现机房的小型化 • 电压及频率变换 • 温度上升低 • 停电时可用于 Battery电源 43/43 可启动Brake
적용사례 44/43
