CDM Study October 19, 2011 Stan But Manager, Economics & Load Forecasting 1

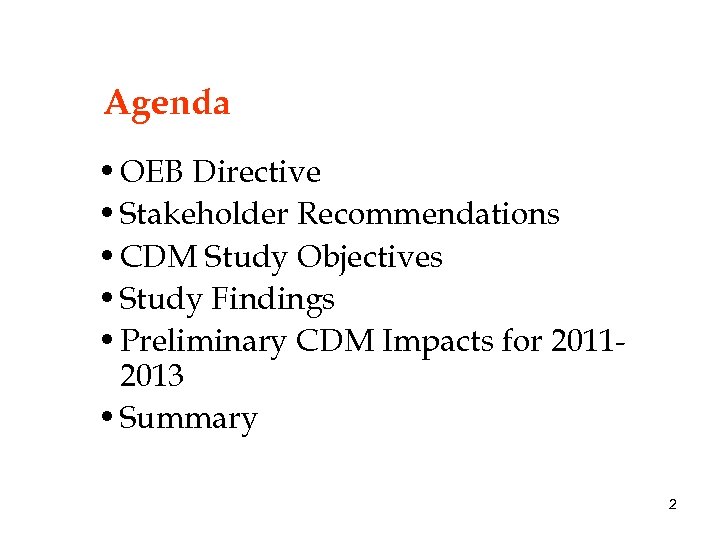

Agenda • OEB Directive • Stakeholder Recommendations • CDM Study Objectives • Study Findings • Preliminary CDM Impacts for 20112013 • Summary 2

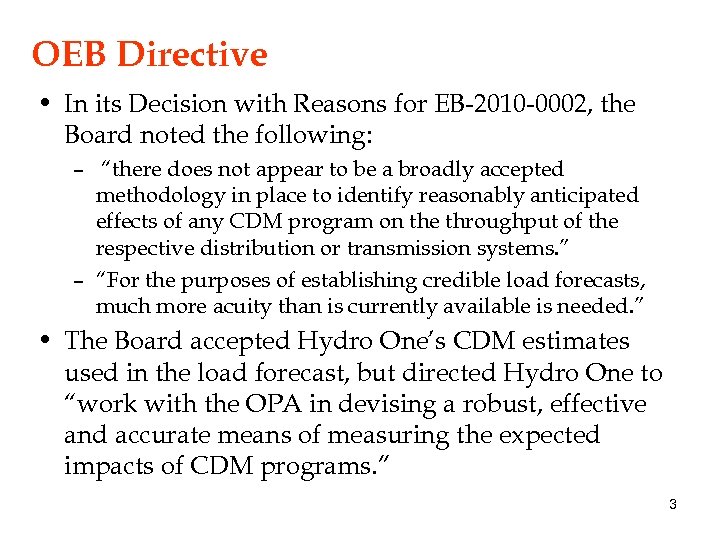

OEB Directive • In its Decision with Reasons for EB-2010 -0002, the Board noted the following: – “there does not appear to be a broadly accepted methodology in place to identify reasonably anticipated effects of any CDM program on the throughput of the respective distribution or transmission systems. ” – “For the purposes of establishing credible load forecasts, much more acuity than is currently available is needed. ” • The Board accepted Hydro One’s CDM estimates used in the load forecast, but directed Hydro One to “work with the OPA in devising a robust, effective and accurate means of measuring the expected impacts of CDM programs. ” 3

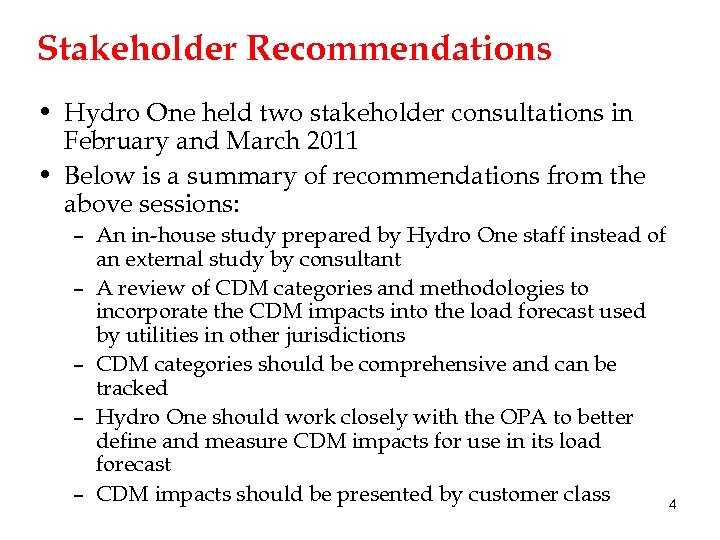

Stakeholder Recommendations • Hydro One held two stakeholder consultations in February and March 2011 • Below is a summary of recommendations from the above sessions: – An in-house study prepared by Hydro One staff instead of an external study by consultant – A review of CDM categories and methodologies to incorporate the CDM impacts into the load forecast used by utilities in other jurisdictions – CDM categories should be comprehensive and can be tracked – Hydro One should work closely with the OPA to better define and measure CDM impacts for use in its load forecast – CDM impacts should be presented by customer class 4

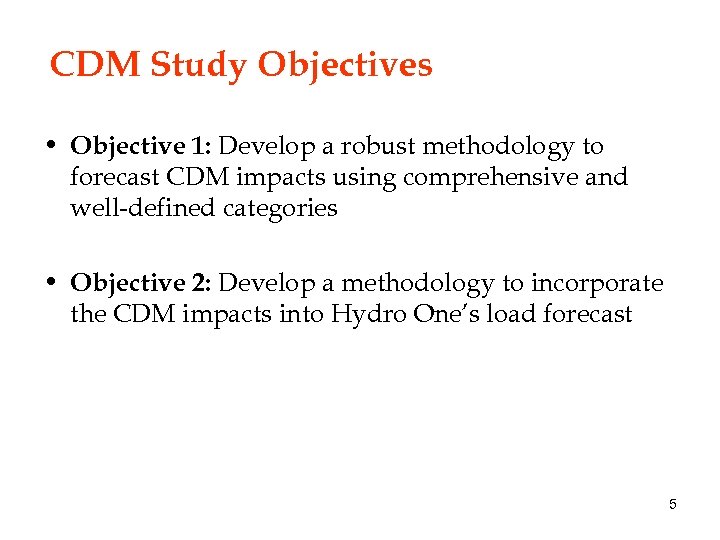

CDM Study Objectives • Objective 1: Develop a robust methodology to forecast CDM impacts using comprehensive and well-defined categories • Objective 2: Develop a methodology to incorporate the CDM impacts into Hydro One’s load forecast 5
Study Findings Literature Review • Utilities reviewed: – British Columbia, New York and California as recommended by stakeholders – Other major utilities in North America with CDM experience • Tools used: web-search and personal communication 6
Study Findings Load Forecast Survey • • A web-based survey was sent to about 100 utilities/organizations in North America and 41 responses were received The literature review and the survey provided a list of well-defined and comprehensive CDM categories: • • • Programs initiated by the utility Program initiated by other organizations Building codes and appliance efficiency standards Rate structures Increased conservation effect 7

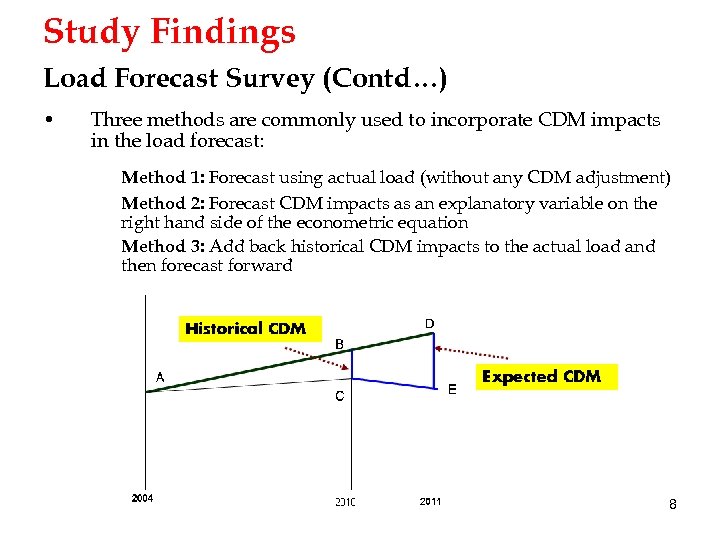

Study Findings Load Forecast Survey (Contd…) • Three methods are commonly used to incorporate CDM impacts in the load forecast: Method 1: Forecast using actual load (without any CDM adjustment) Method 2: Forecast CDM impacts as an explanatory variable on the right hand side of the econometric equation Method 3: Add back historical CDM impacts to the actual load and then forecast forward 8

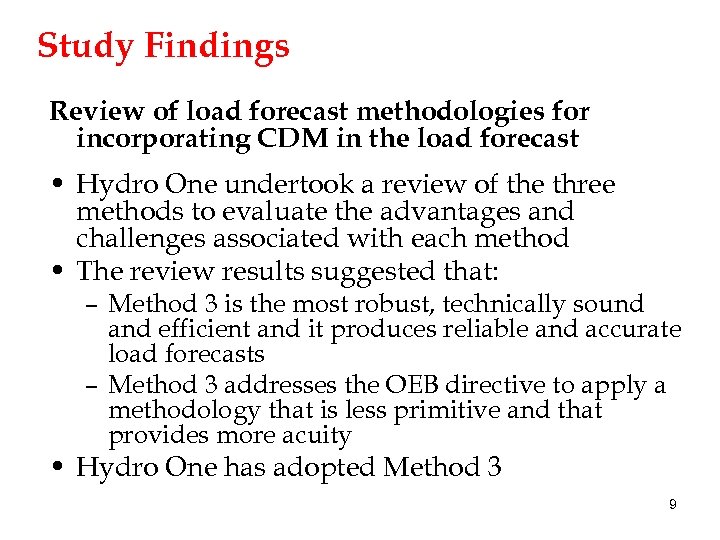

Study Findings Review of load forecast methodologies for incorporating CDM in the load forecast • Hydro One undertook a review of the three methods to evaluate the advantages and challenges associated with each method • The review results suggested that: – Method 3 is the most robust, technically sound and efficient and it produces reliable and accurate load forecasts – Method 3 addresses the OEB directive to apply a methodology that is less primitive and that provides more acuity • Hydro One has adopted Method 3 9
Study Findings • Alignment with the OPA 10

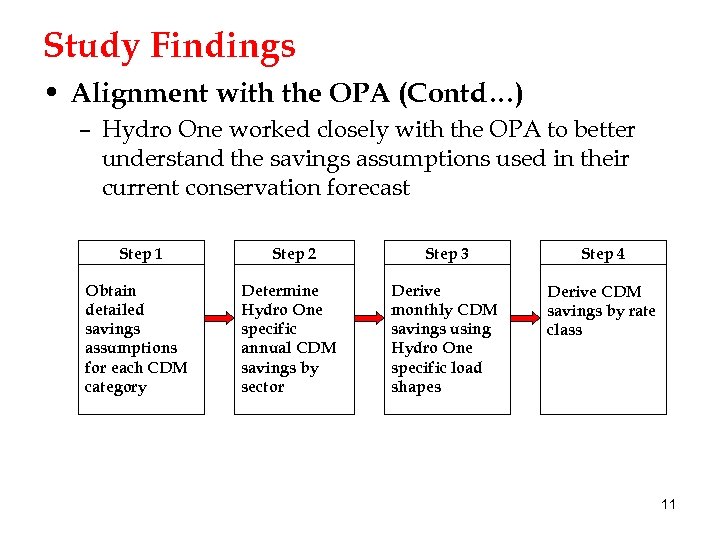

Study Findings • Alignment with the OPA (Contd…) – Hydro One worked closely with the OPA to better understand the savings assumptions used in their current conservation forecast Step 1 Obtain detailed savings assumptions for each CDM category Step 2 Determine Hydro One specific annual CDM savings by sector Step 3 Step 4 Derive monthly CDM savings using Hydro One specific load shapes Derive CDM savings by rate class 11

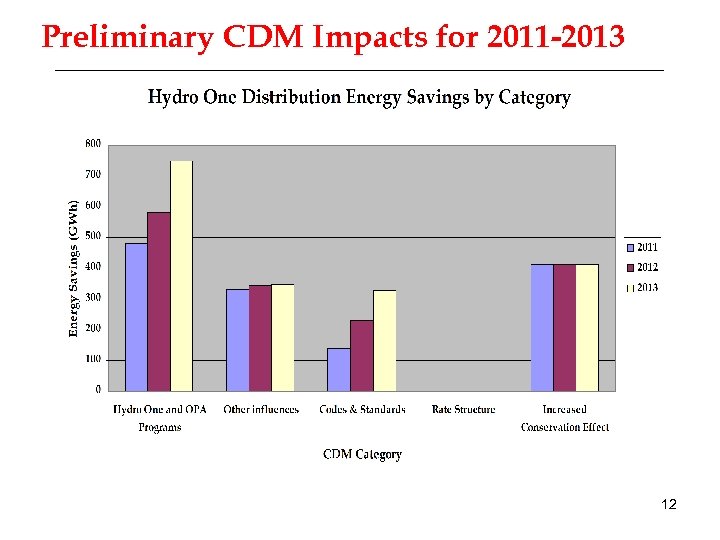

Preliminary CDM Impacts for 2011 -2013 12

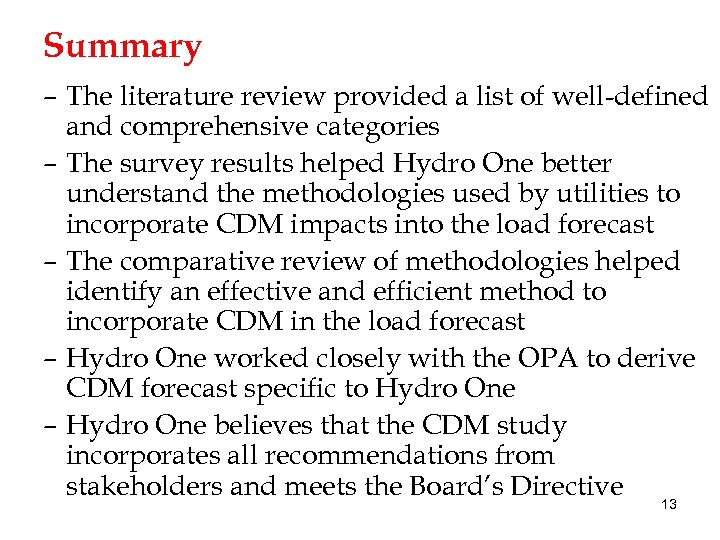

Summary – The literature review provided a list of well-defined and comprehensive categories – The survey results helped Hydro One better understand the methodologies used by utilities to incorporate CDM impacts into the load forecast – The comparative review of methodologies helped identify an effective and efficient method to incorporate CDM in the load forecast – Hydro One worked closely with the OPA to derive CDM forecast specific to Hydro One – Hydro One believes that the CDM study incorporates all recommendations from stakeholders and meets the Board’s Directive 13

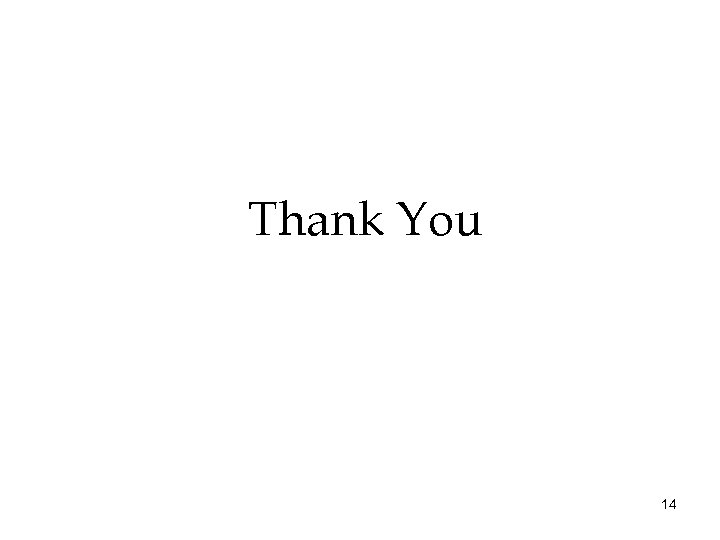

Thank You 14
