CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Label Solutions www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Roll-fed Pressure-sensitive Labels 152 mm Max Diameter Roll on 76 mm Core Print Width: 19 mm – 210 mm Print Length: 19 mm – 609 mm www. cdrobots. de | www. hantz. com Dual Ink Cartridges for waterproof labels
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 127 mm Max Diameter Roll on 50. 2 mm Core Roll-fed Pressure-sensitive Labels Fanfold, card and ticket stock supported Single Ink Cartridge Optional Cutter for individual label sizes Print Width: 19 mm – 101. 6 mm Print Length: 19 mm – 609. 6 mm www. cdrobots. de | www. hantz. com

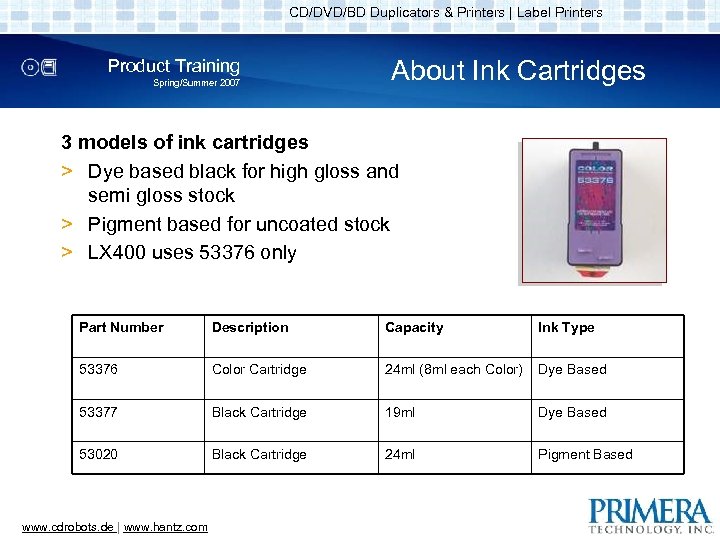

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 About Ink Cartridges 3 models of ink cartridges > Dye based black for high gloss and semi gloss stock > Pigment based for uncoated stock > LX 400 uses 53376 only Part Number Description Capacity Ink Type 53376 Color Cartridge 24 ml (8 ml each Color) Dye Based 53377 Black Cartridge 19 ml Dye Based 53020 Black Cartridge 24 ml Pigment Based www. cdrobots. de | www. hantz. com

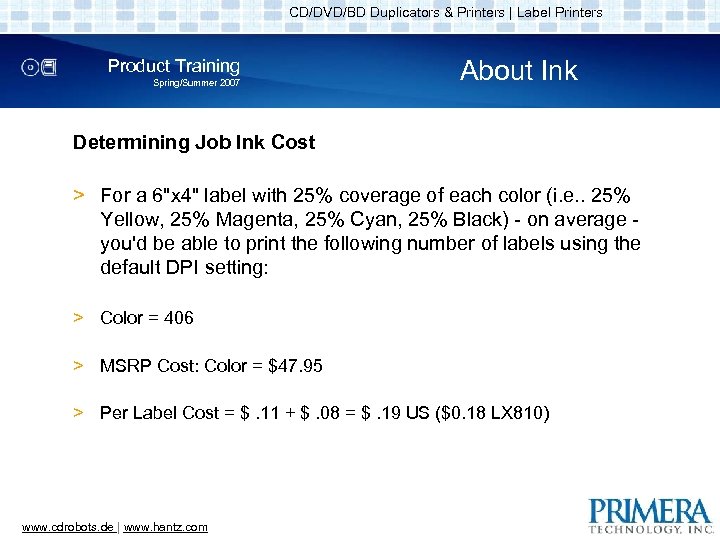

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 About Ink Determining Job Ink Cost > For a 6"x 4" label with 25% coverage of each color (i. e. . 25% Yellow, 25% Magenta, 25% Cyan, 25% Black) - on average - you'd be able to print the following number of labels using the default DPI setting: > Color = 406 > MSRP Cost: Color = $47. 95 > Per Label Cost = $. 11 + $. 08 = $. 19 US ($0. 18 LX 810) www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Label Printer Comparisons Product Price Cartridge Print Width Print Length $1495 19 mm – 101. 6 mm 19 mm – 609. 6 mm $2495 www. cdrobots. de | www. hantz. com Single Dual 19 mm – 210 mm 19 mm – 609. 6 mm
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 About Ink > Calculating Cost Per Label by Software 1. Run the utility and select your printer 2. Print a label 3. Calculate label cost by dividing yield into cartridge cost www. cdrobots. de | www. hantz. com

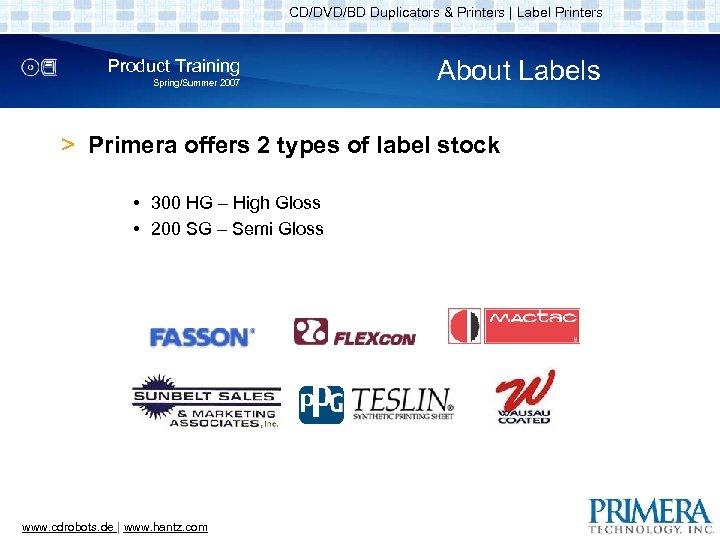

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 About Labels > Primera offers 2 types of label stock • 300 HG – High Gloss • 200 SG – Semi Gloss www. cdrobots. de | www. hantz. com

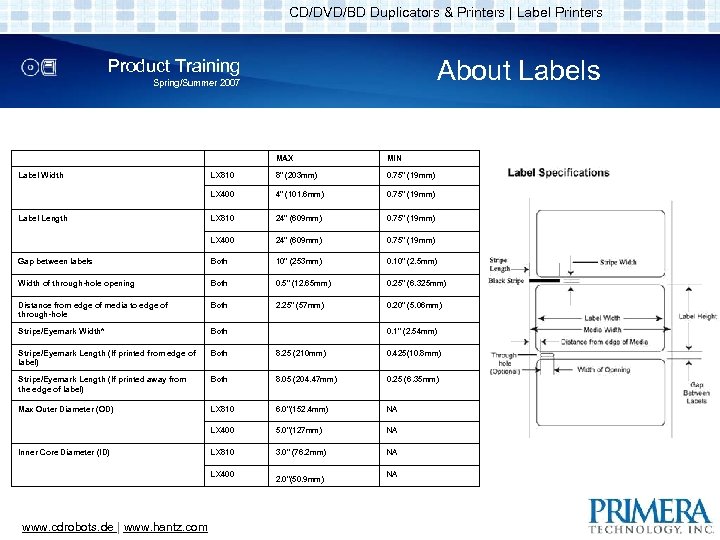

CD/DVD/BD Duplicators & Printers | Label Printers About Labels Product Training Spring/Summer 2007 MAX MIN Label Width LX 810 8" (203 mm) 0. 75" (19 mm) LX 400 4" (101. 6 mm) 0. 75" (19 mm) LX 810 24" (609 mm) 0. 75" (19 mm) LX 400 24" (609 mm) 0. 75" (19 mm) Gap between labels Both 10" (253 mm) 0. 10" (2. 5 mm) Width of through-hole opening Both 0. 5" (12. 65 mm) 0. 25" (6. 325 mm) Distance from edge of media to edge of through-hole Both 2. 25" (57 mm) 0. 20" (5. 06 mm) Stripe/Eyemark Width* Both 0. 1" (2. 54 mm) Stripe/Eyemark Length (If printed from edge of label) Both 8. 25 (210 mm) 0. 425(10. 8 mm) Stripe/Eyemark Length (If printed away from the edge of label) Both 8. 05 (204. 47 mm) 0. 25 (6. 35 mm) Max Outer Diameter (OD) LX 810 6. 0"(152. 4 mm) NA LX 400 5. 0"(127 mm) NA LX 810 3. 0" (76. 2 mm) NA Label Length Inner Core Diameter (ID) LX 400 www. cdrobots. de | www. hantz. com 2. 0"(50. 9 mm) NA
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 LX 400 Labels > Small labels( <1. 5”) may need a 3” OD, 2” ID core to prevent curling > Turret glue or removable tape must be used to secure stock to core so it can easily detach > Core width should match liner width > Masking tape can be used to secure labels for shipping or storage www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 If using through-hole stock or round labels: > Measure from edge to center of hole –OR> Measure from edge to center of circle > Set bar to this value www. cdrobots. de | www. hantz. com LX 400 Labels
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 > Using fan-fold stock – Lock the Label Stock Guide so it does not interfere with the stock as it feeds through the printer. Label Stock Guide www. cdrobots. de | www. hantz. com LX 400 Labels Unlocked Locked

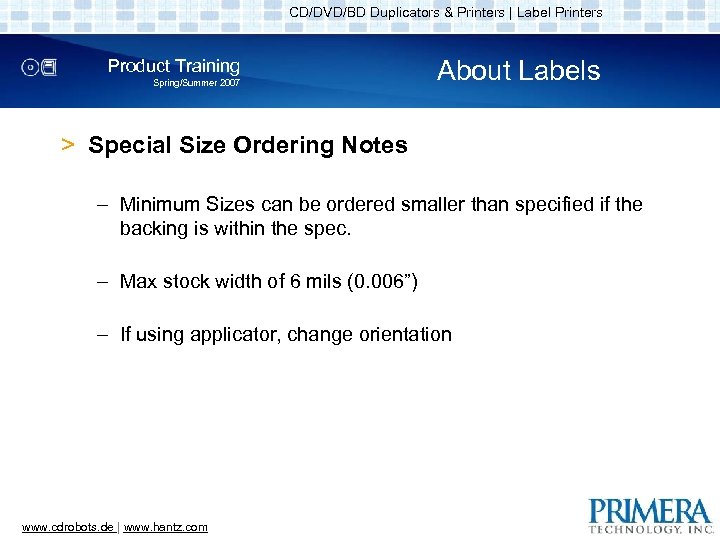

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 About Labels > Special Size Ordering Notes – Minimum Sizes can be ordered smaller than specified if the backing is within the spec. – Max stock width of 6 mils (0. 006”) – If using applicator, change orientation www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Label Printer Comparisons Product Speed (Black) 38 mm/ Second 51 mm/ Second www. cdrobots. de | www. hantz. com Speed (Color) Cartridge Support 38 mm/ Second -Dye Color -Dye Black -Pigment Black Feed -Roll -Tag Stock -Fan Fold Roll Fed

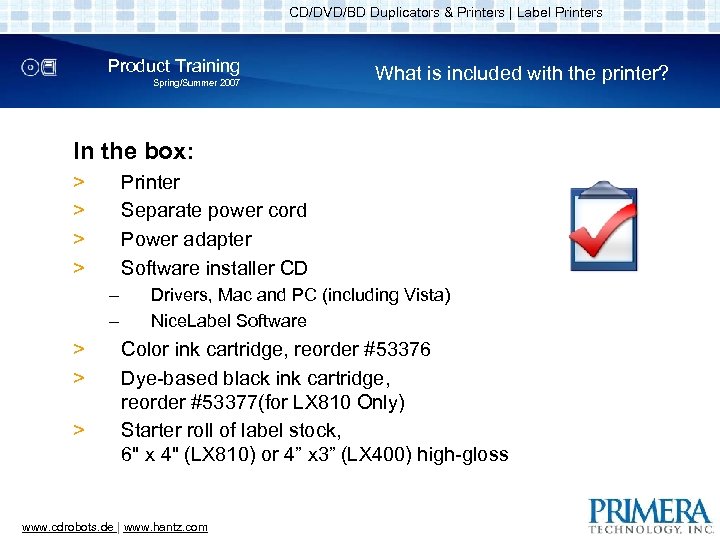

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 What is included with the printer? In the box: > > Printer Separate power cord Power adapter Software installer CD – – > > > Drivers, Mac and PC (including Vista) Nice. Label Software Color ink cartridge, reorder #53376 Dye-based black ink cartridge, reorder #53377(for LX 810 Only) Starter roll of label stock, 6" x 4" (LX 810) or 4” x 3” (LX 400) high-gloss www. cdrobots. de | www. hantz. com

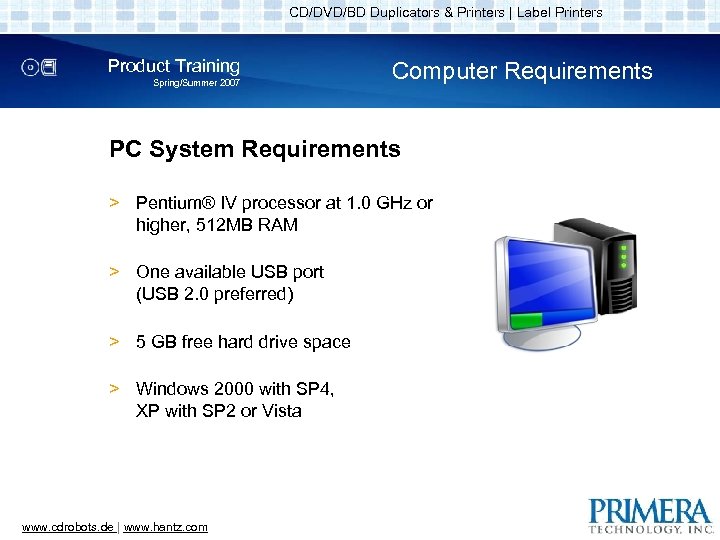

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Computer Requirements PC System Requirements > Pentium® IV processor at 1. 0 GHz or higher, 512 MB RAM > One available USB port (USB 2. 0 preferred) > 5 GB free hard drive space > Windows 2000 with SP 4, XP with SP 2 or Vista www. cdrobots. de | www. hantz. com

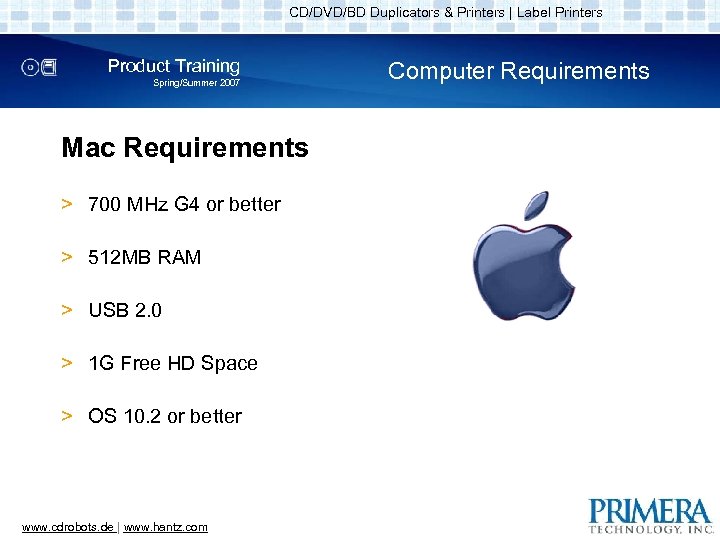

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Mac Requirements > 700 MHz G 4 or better > 512 MB RAM > USB 2. 0 > 1 G Free HD Space > OS 10. 2 or better www. cdrobots. de | www. hantz. com Computer Requirements
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Features and Software > LX 810 Color Label Printer www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Printer driver features Product Training Spring/Summer 2007 Custom Page Size > Refers to label size > Default is “Custom” > Best set from application H W www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features Orientation > Portrait or landscape > Not necessary if using Nice. Label Portrait www. cdrobots. de | www. hantz. com Landscape
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features Print Quality > 6 Levels > 1 = Fastest > 6 = Best Quality > Default is “ 3” www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features Ink Cartridge > Color > Black > Color + Black – Reduces ink, increase print time – Quality may be affected www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features Ink Saturation > Default 100% > Optimized for HG > Reduce if ink is not drying www. cdrobots. de | www. hantz. com

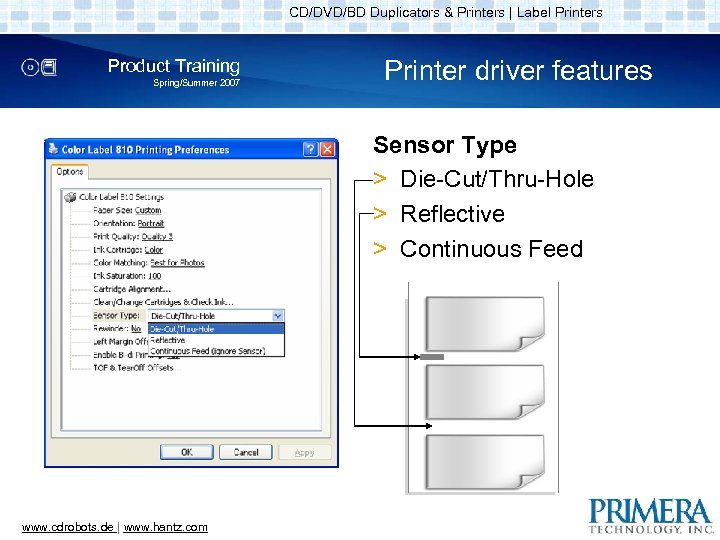

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features Sensor Type > Die-Cut/Thru-Hole > Reflective > Continuous Feed www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features Rewinder > “No” presents label at tear -off bar > Supported Rewinder: Label. Mate CAT-2 P www. cdrobots. de | www. hantz. com

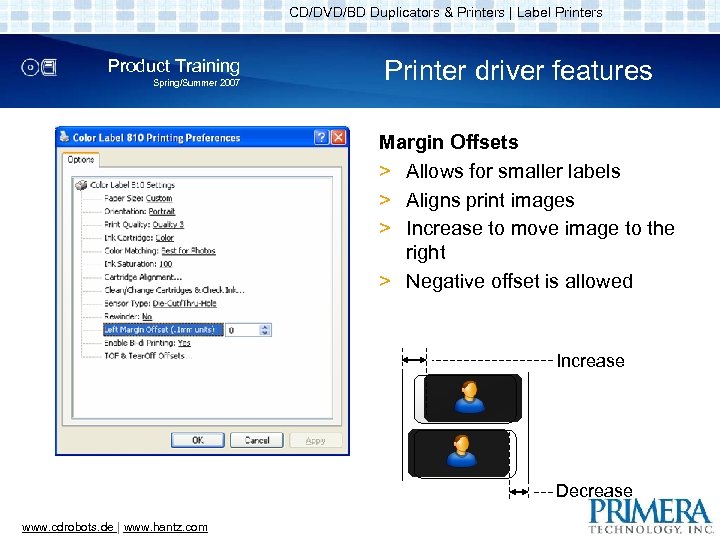

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features Margin Offsets > Allows for smaller labels > Aligns print images > Increase to move image to the right > Negative offset is allowed Increase Decrease www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features TOF Offset > Aligns print images, fine tune for label present > Decrease value to move image up > Increase value to move image down Decrease TOF Increase TOF www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Printer driver features NOTE: Overbleed on design > Increase page size by 0. 1” on V and H > Decrease TOF by 10 > Decrease left margin by 12 (corresponds to. 05”) Decrease TOF Increase TOF www. cdrobots. de | www. hantz. com

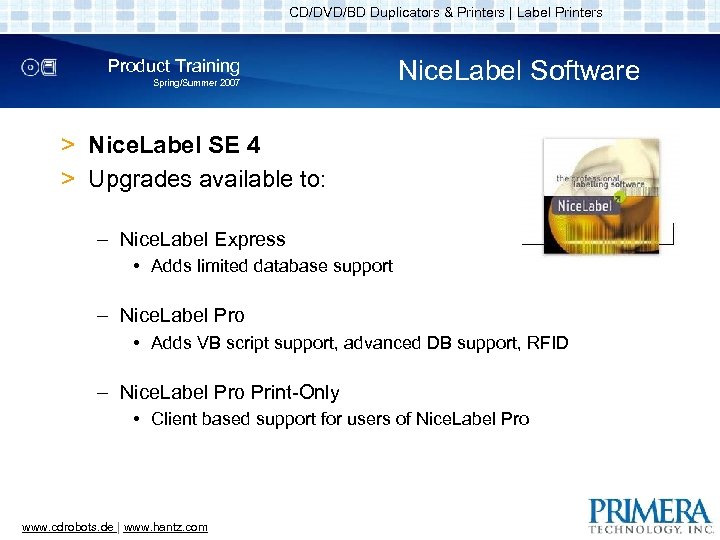

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Nice. Label Software > Nice. Label SE 4 > Upgrades available to: – Nice. Label Express • Adds limited database support – Nice. Label Pro • Adds VB script support, advanced DB support, RFID – Nice. Label Pro Print-Only • Client based support for users of Nice. Label Pro www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 Nice. Label > You can use any printing application • • • Photoshop Corel draw Illustrator Picture viewer Of course, Nice. Label www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 > Setting up a new label – Step 1: Label Dimensions www. cdrobots. de | www. hantz. com Nice. Label

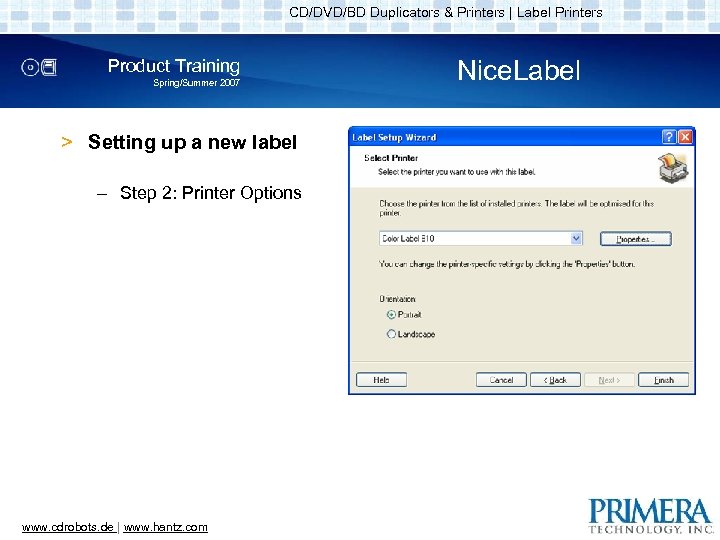

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 > Setting up a new label – Step 2: Printer Options www. cdrobots. de | www. hantz. com Nice. Label
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 > Workspace – – Picture Tool Alignment Barcode Text www. cdrobots. de | www. hantz. com Nice. Label
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 > Benefits – Cost • Half of nearest competitor at $2495 – Nothing like it in the market • $1495 MSRP LX 400 – Print Resolution • 4800 DPI – Widest label supported • 609 mm LX 810 – Easy Setup and Maintenance www. cdrobots. de | www. hantz. com Label Printers
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 > Advantages over Flexo. Press – No long lead times – No minimum orders – No obsolete label inventory – Lower cost on short run labels – Customization on demand www. cdrobots. de | www. hantz. com Label Printers
CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 > Label Printers Label Printer Markets 1. Specialty food, fruit and vegetable packaging 2. Water and wine bottle labeling 3. Specialty coffee beans and tea packaging 4. Private labeling for personal care products (e. g. shampoos, soaps and lotions) 5. Medical 6. Manufacturing www. cdrobots. de | www. hantz. com 7. Barcode and POS 8. Gifts and Promotional items 9. Vitamins and herbal remedies 10. Horticultural centers (plants, flowers etc. )

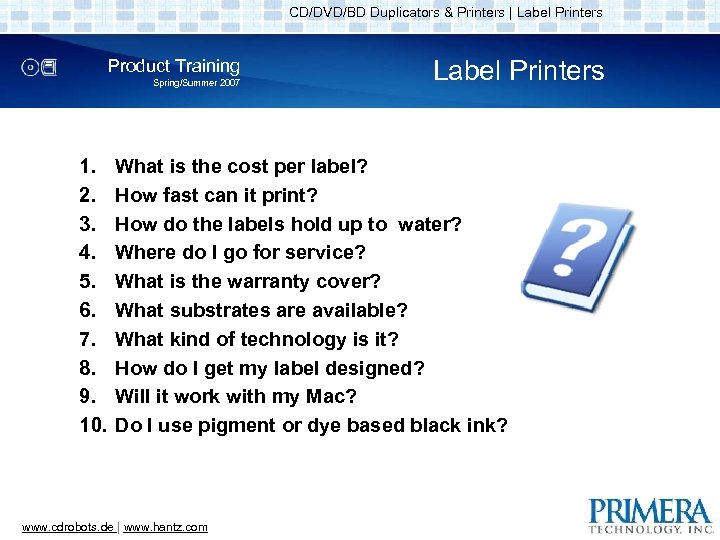

CD/DVD/BD Duplicators & Printers | Label Printers Product Training Spring/Summer 2007 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Label Printers What is the cost per label? How fast can it print? How do the labels hold up to water? Where do I go for service? What is the warranty cover? What substrates are available? What kind of technology is it? How do I get my label designed? Will it work with my Mac? Do I use pigment or dye based black ink? www. cdrobots. de | www. hantz. com
CD/DVD/BD Duplicators & Printers | Label Printers Wrap up Product Training Spring/Summer 2007 > QUESTIONS? Send your request to info@hantz. com check out www. hantz. com or www. CDRobots. com www. cdrobots. de | www. hantz. com
