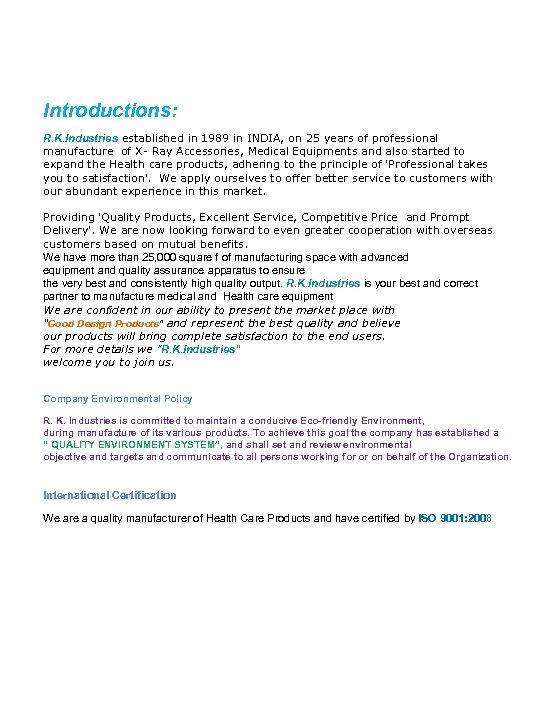

Introductions: R. K. Industries established in 1989 in INDIA, on 25 years of professional manufacture of X- Ray Accessories, Medical Equipments and also started to expand the Health care products, adhering to the principle of 'Professional takes you to satisfaction'. We apply ourselves to offer better service to customers with our abundant experience in this market. Providing 'Quality Products, Excellent Service, Competitive Price and Prompt Delivery'. We are now looking forward to even greater cooperation with overseas customers based on mutual benefits. We have more than 25, 000 square f of manufacturing space with advanced equipment and quality assurance apparatus to ensure the very best and consistently high quality output. R. K. Industries is your best and correct partner to manufacture medical and Health care equipment We are confident in our ability to present the market place with "Good Design Products" and represent the best quality and believe our products will bring complete satisfaction to the end users. For more details we "R. K. Industries" welcome you to join us. Company Environmental Policy R. K. Industries is committed to maintain a conducive Eco-friendly Environment, during manufacture of its various products. To achieve this goal the company has established a “ QUALITY ENVIRONMENT SYSTEM”, and shall set and review environmental objective and targets and communicate to all persons working for or on behalf of the Organization. International Certification We are a quality manufacturer of Health Care Products and have certified by ISO 9001: 2008

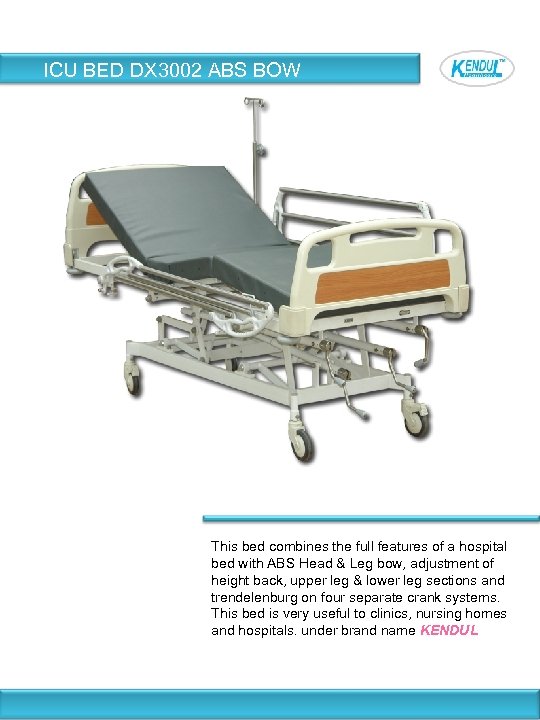

ICU BED DX 3002 ABS BOW This bed combines the full features of a hospital bed with ABS Head & Leg bow, adjustment of height back, upper leg & lower leg sections and trendelenburg on four separate crank systems. This bed is very useful to clinics, nursing homes and hospitals. under brand name KENDUL

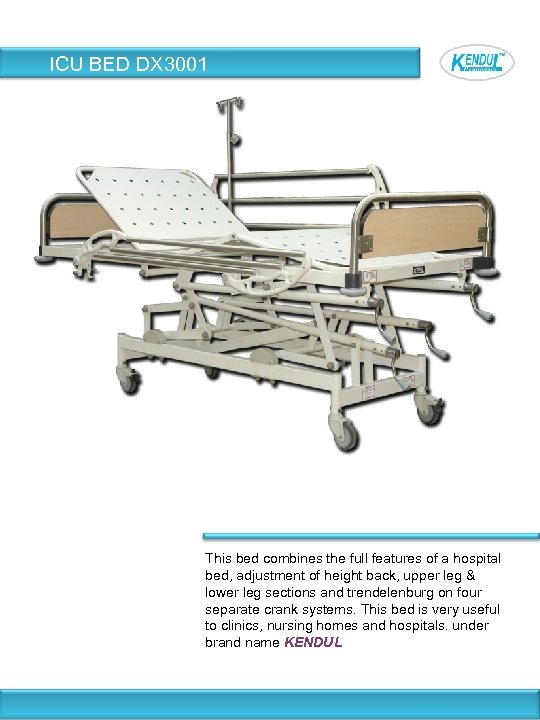

ICU BED DX 3001 This bed combines the full features of a hospital bed, adjustment of height back, upper leg & lower leg sections and trendelenburg on four separate crank systems. This bed is very useful to clinics, nursing homes and hospitals. under brand name KENDUL

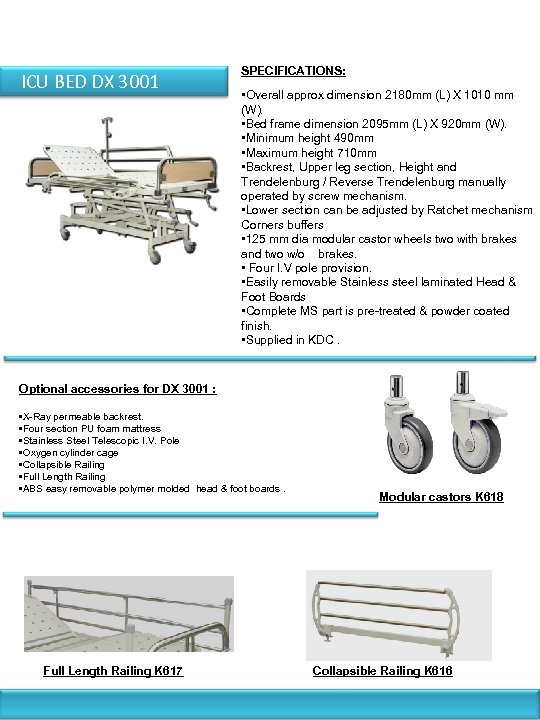

ICU BED DX 3001 SPECIFICATIONS: • Overall approx dimension 2180 mm (L) X 1010 mm (W). • Bed frame dimension 2095 mm (L) X 920 mm (W). • Minimum height 490 mm • Maximum height 710 mm • Backrest, Upper leg section, Height and Trendelenburg / Reverse Trendelenburg manually operated by screw mechanism. • Lower section can be adjusted by Ratchet mechanism Corners buffers • 125 mm dia modular castor wheels two with brakes and two w/o brakes. • Four I. V pole provision. • Easily removable Stainless steel laminated Head & Foot Boards • Complete MS part is pre-treated & powder coated finish. • Supplied in KDC. Optional accessories for DX 3001 : • X-Ray permeable backrest. • Four section PU foam mattress • Stainless Steel Telescopic I. V. Pole • Oxygen cylinder cage • Collapsible Railing • Full Length Railing • ABS easy removable polymer molded head & foot boards. Full Length Railing K 617 Modular castors K 618 Collapsible Railing K 616

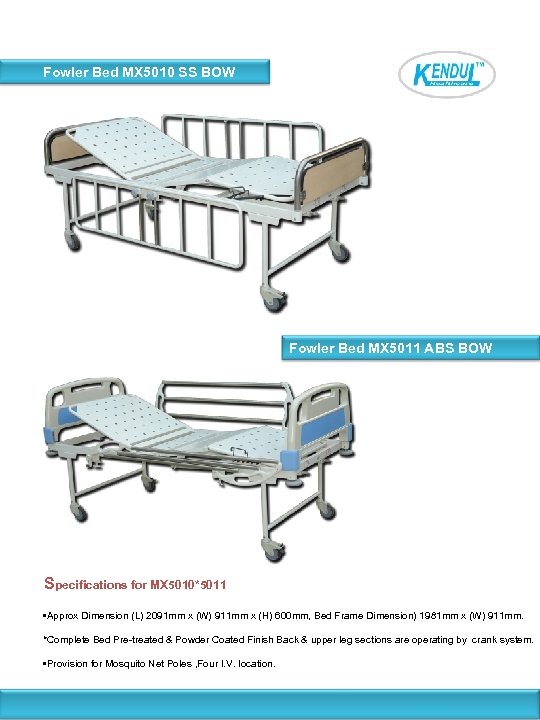

Fowler Bed MX 5010 SS BOW Fowler Bed MX 5011 ABS BOW Specifications for MX 5010*5011 • Approx Dimension (L) 2091 mm x (W) 911 mm x (H) 600 mm, Bed Frame Dimension) 1981 mm x (W) 911 mm. *Complete Bed Pre-treated & Powder Coated Finish Back & upper leg sections are operating by crank system. • Provision for Mosquito Net Poles , Four I. V. location.

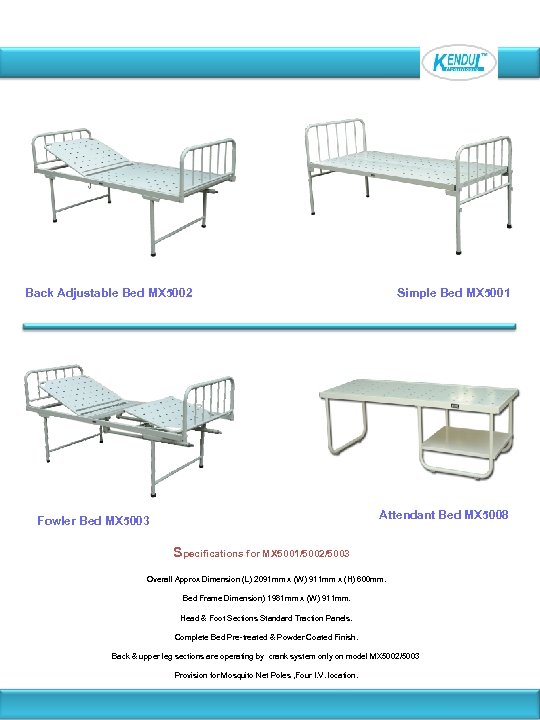

Back Adjustable Bed MX 5002 Simple Bed MX 5001 Attendant Bed MX 5008 Fowler Bed MX 5003 Specifications for MX 5001/5002/5003 Overall Approx Dimension (L) 2091 mm x (W) 911 mm x (H) 600 mm. Bed Frame Dimension) 1981 mm x (W) 911 mm. Head & Foot Sections Standard Traction Panels. Complete Bed Pre-treated & Powder Coated Finish. Back & upper leg sections are operating by crank system only on model MX 5002/5003 Provision for Mosquito Net Poles , Four I. V. location.

BEDSIDE LOCKER & TABLE ADJUSTABLE OVERBED TABLE (BA 1004) ADJUSTABLE OVERBED TABLE (BA 1003) Approx dimensions: Top 810 mm L x 352 mm W. Two section laminated top. MS tubular telescopic stem with geared SS / PC handle for height adjustable from approx 760 mm to 1050 mm. MS rectangular tubular base frame mounted on four twin wheel plastic molded castors, 50 mm dia, powder coated. Packed in kdc. Approx dimensions: Top 810 mm L x 352 mm W. Two section laminated top. MS tubular telescopic stem, fitted with gas spring for height adjustment. from approx 760 mm to 1050 mm. MS rectangular tubular base frame mounted on four swivel twin wheel castors, 50 mm dia, powder coated. Packed in kdc. OVERBED TABLE (BA 1005) overall approx dimension: 1121 mm. L*450 mm. W*965 mm. H MS tubular framework mounted on four swivel castors, 50 mm dia prelaminated top size 760 mm. L*450 mm. W powder coated finish , Packed in kdc BEDSIDE LOCKER (BA 1001) Overall approx dimensions: 400 mm square Height: 820 mm. Locker made from machine pressed CRCA steel sheets enclosed on three sides, having one box and drawer one blank space between the drawer & box, fitted with brush finish SS top, mounted on four swivel twin wheel plastic molded castors, 50 mm dia. complete powder coated finish. BEDSIDE LOCKER (BA 1000) Overall approx dimensions: 400 mm square Height: 820 mm Machine pressed CRCA steel sheets locker box with door brush finish SS top with rased edge on three sides MS tubular legs with rubber studs complete powder coated finish

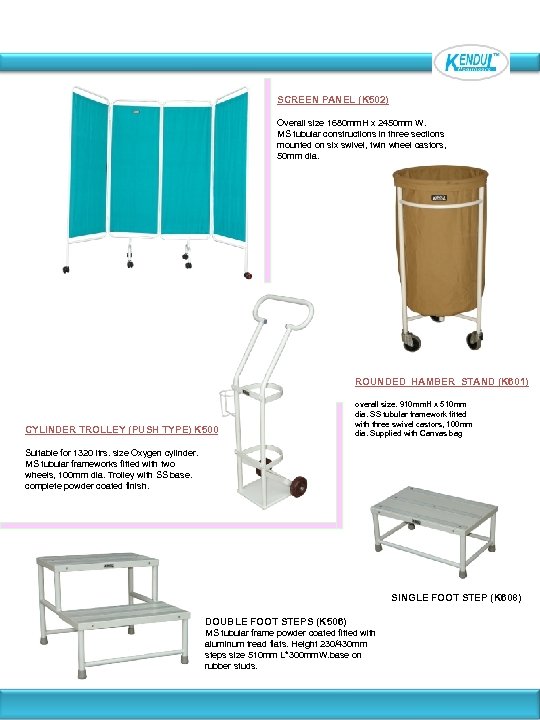

SCREEN PANEL (K 502) Overall size 1680 mm. H x 2450 mm W. MS tubular constructions in three sections mounted on six swivel, twin wheel castors, 50 mm dia. ROUNDED HAMBER STAND (K 601) CYLINDER TROLLEY (PUSH TYPE) K 500 overall size. 910 mm. H x 510 mm dia. SS tubular framework fitted with three swivel castors, 100 mm dia. Supplied with Canvas bag Suitable for 1320 ltrs. size Oxygen cylinder. MS tubular frameworks fitted with two wheels, 100 mm dia. Trolley with SS base. complete powder coated finish. SINGLE FOOT STEP (K 608) DOUBLE FOOT STEPS (K 506) MS tubular frame powder coated fitted with aluminum tread flats. Height 230/430 mm steps size 510 mm L*300 mm. W. base on rubber studs.

NURSING TROLLEY K 620 Overall approx size 27”L X 24”W X 45” H With 6” drawer on telescopic channel & 2 shelves mounted on 100 mm dia swivel castors two with brakes complete powder coated finish. BOWL STAND 1065 XK Two Tier Bowl Stand Approx Height : 840 mm With two removable SS bowl 350 mm dia (304 Salem), MS tubular frame work, Powder coated finish mounted on three swivel, twin wheel castors, 50 mm dia. SALINE STAND BA 1006 Strong MS tubular construction height adjustable 1625 mm to 2340 mm, mounted on five base fitted with swivel castors 50 mm dai. SS rod with double hooks height adjustable powder coated. REVOLVING STOOL (K 609) MS Tubular tripod base with SS revolving top height adjustable from approx 480 mm to 680 mm by accurately machined screw mechanisms. Legs fitted with rubber studs

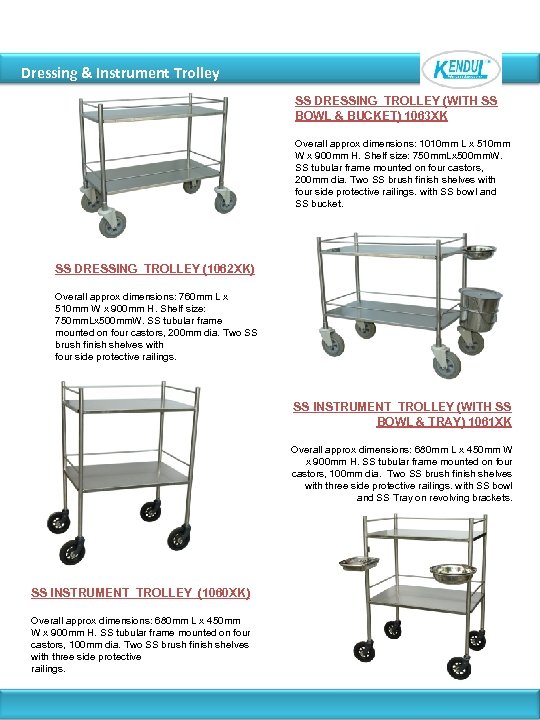

Dressing & Instrument Trolley SS DRESSING TROLLEY (WITH SS BOWL & BUCKET) 1063 XK Overall approx dimensions: 1010 mm L x 510 mm W x 900 mm H. Shelf size: 750 mm. Lx 500 mm. W. SS tubular frame mounted on four castors, 200 mm dia. Two SS brush finish shelves with four side protective railings. with SS bowl and SS bucket. SS DRESSING TROLLEY (1062 XK) Overall approx dimensions: 760 mm L x 510 mm W x 900 mm H. Shelf size: 750 mm. Lx 500 mm. W. SS tubular frame mounted on four castors, 200 mm dia. Two SS brush finish shelves with four side protective railings. SS INSTRUMENT TROLLEY (WITH SS BOWL & TRAY) 1061 XK Overall approx dimensions: 680 mm L x 450 mm W x 900 mm H. SS tubular frame mounted on four castors, 100 mm dia. Two SS brush finish shelves with three side protective railings. with SS bowl and SS Tray on revolving brackets. SS INSTRUMENT TROLLEY (1060 XK) Overall approx dimensions: 680 mm L x 450 mm W x 900 mm H. SS tubular frame mounted on four castors, 100 mm dia. Two SS brush finish shelves with three side protective railings.

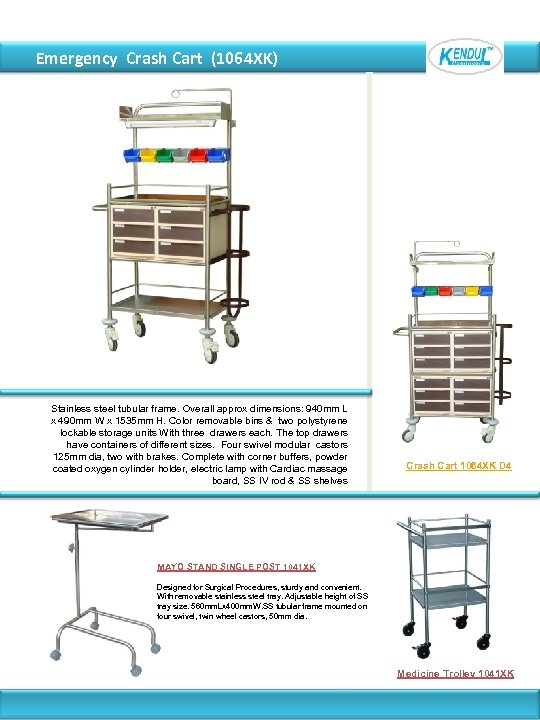

Emergency Crash Cart (1064 XK) Stainless steel tubular frame. Overall approx dimensions: 940 mm L x 490 mm W x 1535 mm H. Color removable bins & two polystyrene lockable storage units With three drawers each. The top drawers have containers of different sizes. Four swivel modular castors 125 mm dia, two with brakes. Complete with corner buffers, powder coated oxygen cylinder holder, electric lamp with Cardiac massage board, SS IV rod & SS shelves Crash Cart 1064 XK D 4 MAYO STAND SINGLE POST 1041 XK Designed for Surgical Procedures, sturdy and convenient. With removable stainless steel tray. Adjustable height of SS tray size. 560 mm. Lx 400 mm. W. SS tubular frame mounted on four swivel, twin wheel castors, 50 mm dia. Medicine Trolley 1041 XK

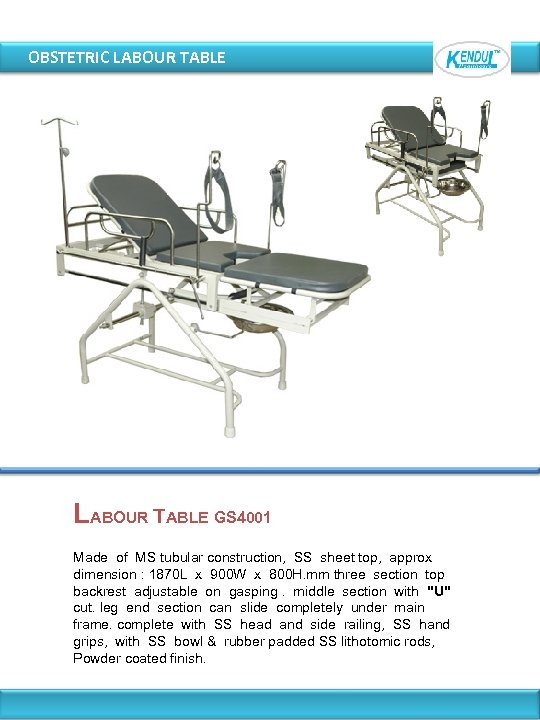

OBSTETRIC LABOUR TABLE GS 4001 Made of MS tubular construction, SS sheet top, approx dimension : 1870 L x 900 W x 800 H. mm three section top backrest adjustable on gasping. middle section with "U" cut. leg end section can slide completely under main frame. complete with SS head and side railing, SS hand grips, with SS bowl & rubber padded SS lithotomic rods, Powder coated finish.

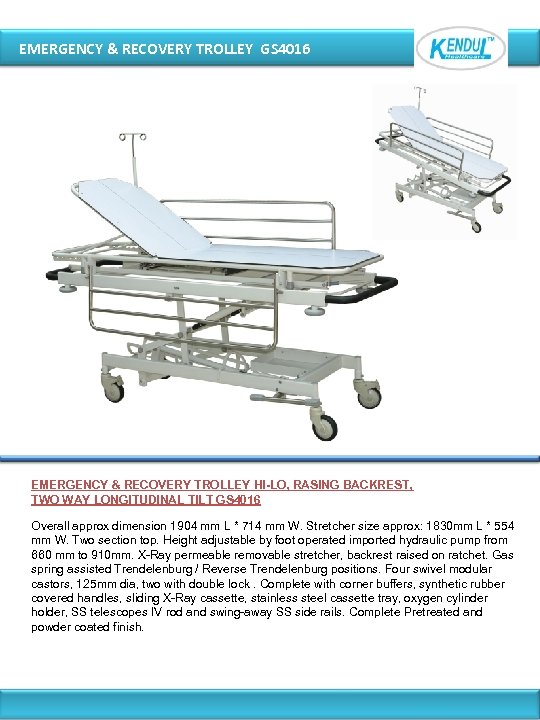

EMERGENCY & RECOVERY TROLLEY GS 4016 EMERGENCY & RECOVERY TROLLEY HI-LO, RASING BACKREST, TWO WAY LONGITUDINAL TILT GS 4016 Overall approx dimension 1904 mm L * 714 mm W. Stretcher size approx: 1830 mm L * 554 mm W. Two section top. Height adjustable by foot operated imported hydraulic pump from 660 mm to 910 mm. X-Ray permeable removable stretcher, backrest raised on ratchet. Gas spring assisted Trendelenburg / Reverse Trendelenburg positions. Four swivel modular castors, 125 mm dia, two with double lock. Complete with corner buffers, synthetic rubber covered handles, sliding X-Ray cassette, stainless steel cassette tray, oxygen cylinder holder, SS telescopes IV rod and swing-away SS side rails. Complete Pretreated and powder coated finish.

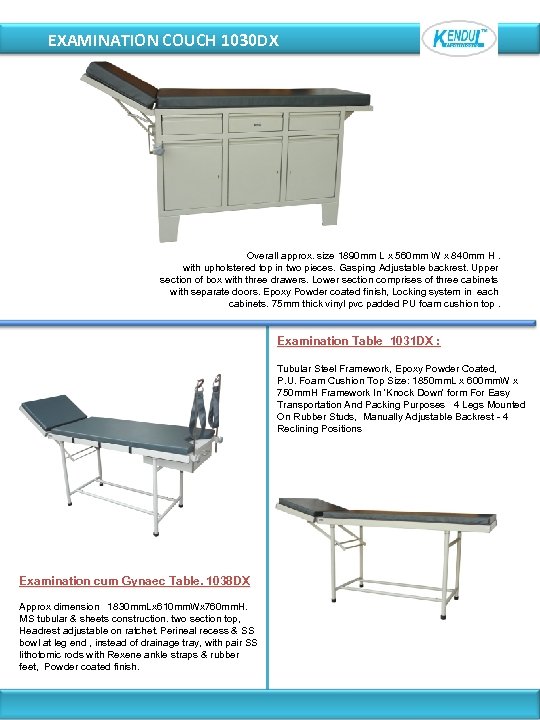

EXAMINATION COUCH 1030 DX Overall approx. size 1890 mm L x 560 mm W x 840 mm H. with upholstered top in two pieces. Gasping Adjustable backrest. Upper section of box with three drawers. Lower section comprises of three cabinets with separate doors. Epoxy Powder coated finish, Locking system in each cabinets. 75 mm thick vinyl pvc padded PU foam cushion top. Examination Table 1031 DX : Tubular Steel Framework, Epoxy Powder Coated, P. U. Foam Cushion Top Size: 1850 mm. L x 600 mm. W x 750 mm. H Framework In 'Knock Down' form For Easy Transportation And Packing Purposes 4 Legs Mounted On Rubber Studs, Manually Adjustable Backrest - 4 Reclining Positions Examination cum Gynaec Table. 1038 DX Approx dimension 1830 mm. Lx 610 mm. Wx 760 mm. H. MS tubular & sheets construction. two section top, Headrest adjustable on ratchet. Perineal recess & SS bowl at leg end , instead of drainage tray, with pair SS lithotomic rods with Rexene ankle straps & rubber feet, Powder coated finish.

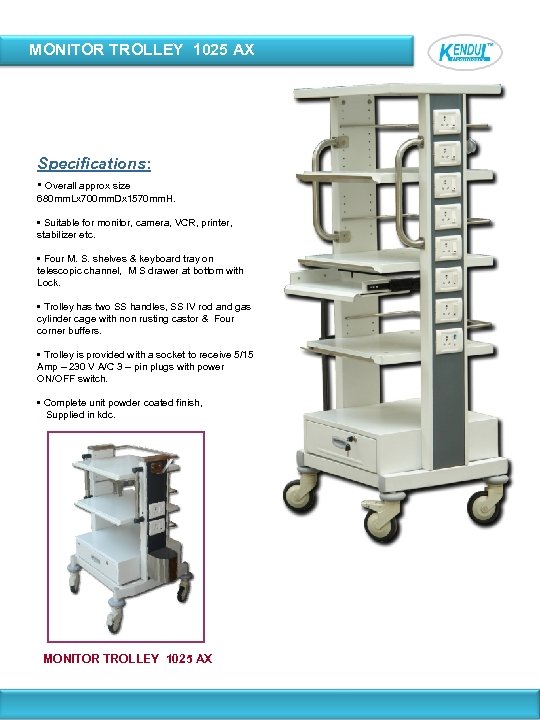

MONITOR TROLLEY 1025 AX Specifications: • Overall approx size 680 mm. Lx 700 mm. Dx 1570 mm. H. • Suitable for monitor, camera, VCR, printer, stabilizer etc. • Four M. S. shelves & keyboard tray on telescopic channel, M S drawer at bottom with Lock. • Trolley has two SS handles, SS IV rod and gas cylinder cage with non rusting castor & Four corner buffers. • Trolley is provided with a socket to receive 5/15 Amp – 230 V A/C 3 – pin plugs with power ON/OFF switch. • Complete unit powder coated finish, Supplied in kdc. MONITOR TROLLEY 1025 AX

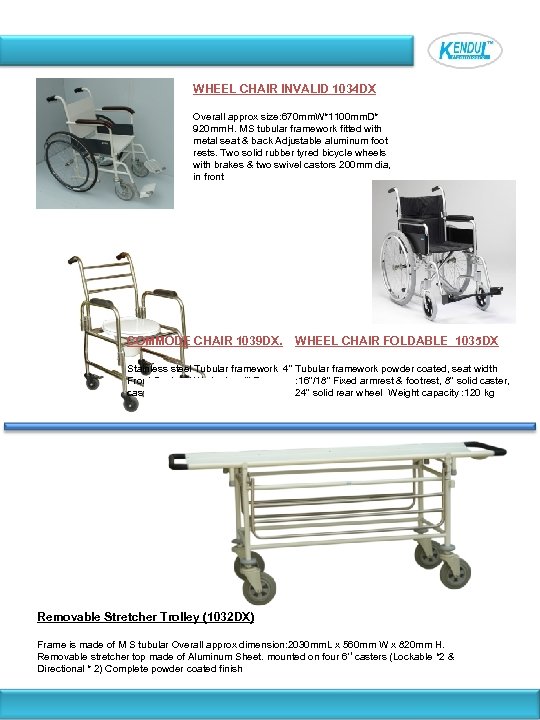

WHEEL CHAIR INVALID 1034 DX Overall approx size: 670 mm. W*1100 mm. D* 920 mm. H. MS tubular framework fitted with metal seat & back Adjustable aluminum foot rests. Two solid rubber tyred bicycle wheels with brakes & two swivel castors 200 mm dia, in front COMMODE CHAIR 1039 DX. WHEEL CHAIR FOLDABLE 1035 DX Stainless steel Tubular framework 4" Tubular framework powder coated, seat width Front Castors W/o brake, 4" Rear : 16"/18“ Fixed armrest & footrest, 8" solid caster, castors W/ Brake , white toilet sheat 24" solid rear wheel Weight capacity : 120 kg Removable Stretcher Trolley (1032 DX) Frame is made of M S tubular Overall approx dimension: 2030 mm. L x 560 mm W x 820 mm H. Removable stretcher top made of Aluminum Sheet. mounted on four 6'‘ casters (Lockable *2 & Directional * 2) Complete powder coated finish

X-Ray Accessories X-Ray Cassette Easy handling through smooth twin push lock / liver lock / bar lock Film - Screen contact through stable priestesses cover. A B S molded corner for extra protection. High grade aluminum for better x-ray absorption. Plastic coated bottom & scratchproof cover. O P G, Mammography & Grid Cassettes available on request OPG Twin Push lock Twin Bar lock

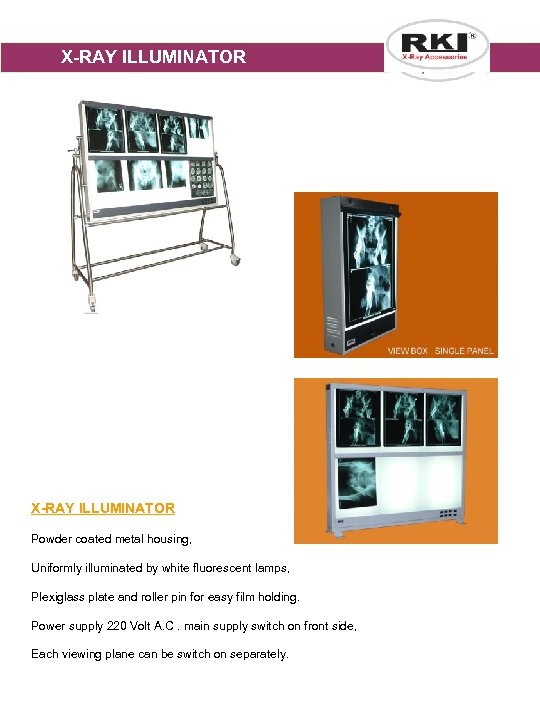

X-RAY ILLUMINATOR Powder coated metal housing, Uniformly illuminated by white fluorescent lamps, Plexiglass plate and roller pin for easy film holding. Power supply 220 Volt A. C. main supply switch on front side, Each viewing plane can be switch on separately.

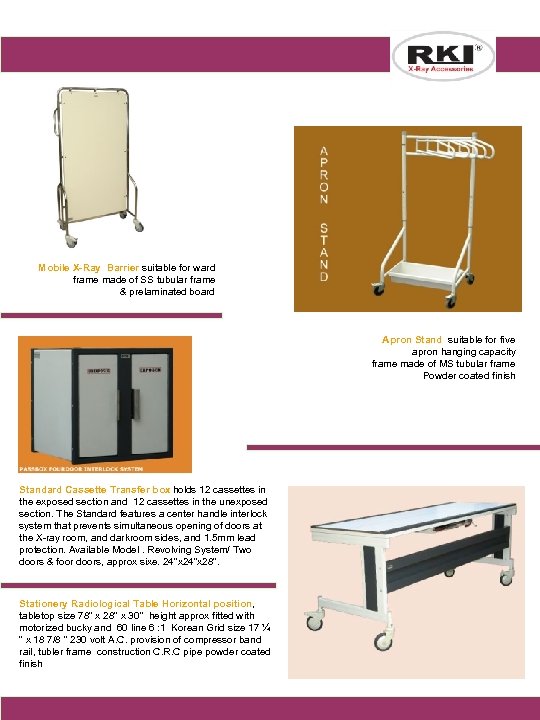

Mobile X-Ray Barrier suitable for ward frame made of SS tubular frame & prelaminated board Apron Stand suitable for five apron hanging capacity frame made of MS tubular frame Powder coated finish Standard Cassette Transfer box holds 12 cassettes in the exposed section and 12 cassettes in the unexposed section. The Standard features a center handle interlock system that prevents simultaneous opening of doors at the X-ray room, and darkroom sides, and 1. 5 mm lead protection. Available Model. Revolving System/ Two doors & foor doors, approx sixe. 24"x 28". Stationery Radiological Table Horizontal position, tabletop size 78" x 28" x 30" height approx fitted with motorized bucky and 60 line 6 : 1 Korean Grid size 17 ¼ " x 18 7/8 " 230 volt A. C. provision of compressor band rail, tubler frame construction C. R. C pipe powder coated finish

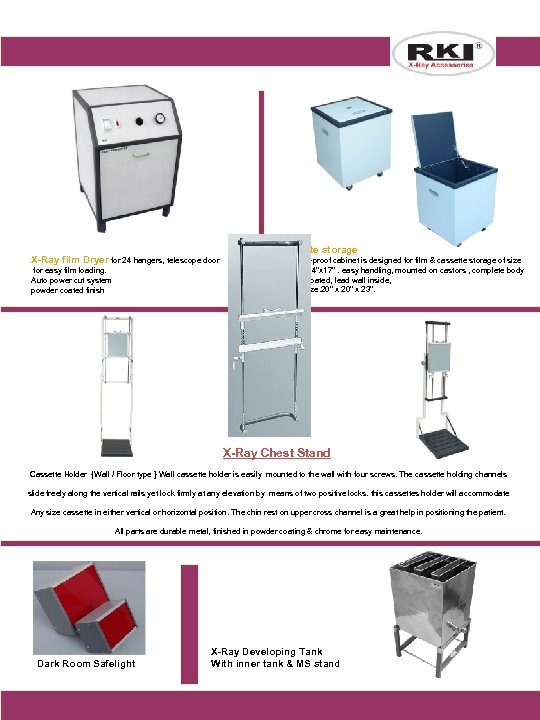

X-Ray film Dryer for 24 hangers, telescope door for easy film loading. Auto power cut system powder coated finish Cassette storage This light-proof cabinet is designed for film & cassette storage of size 5"x 7" to 14"x 17". easy handling, mounted on castors , complete body powder coated, lead wall inside, approx size. 20" x 23". X-Ray Chest Stand Cassette Holder {Wall / Floor type } Wall cassette holder is easily mounted to the wall with four screws. The cassette holding channels slide freely along the vertical rails yet lock firmly at any elevation by means of two positive locks. this cassettes holder will accommodate Any size cassette in either vertical or horizontal position. The chin rest on upper cross channel is a great help in positioning the patient. All parts are durable metal, finished in powder coating & chrome for easy maintenance. Dark Room Safelight X-Ray Developing Tank With inner tank & MS stand
