CARRIER COMFORT NETWORK BUS ARCHITECTURE Copyright Carrier

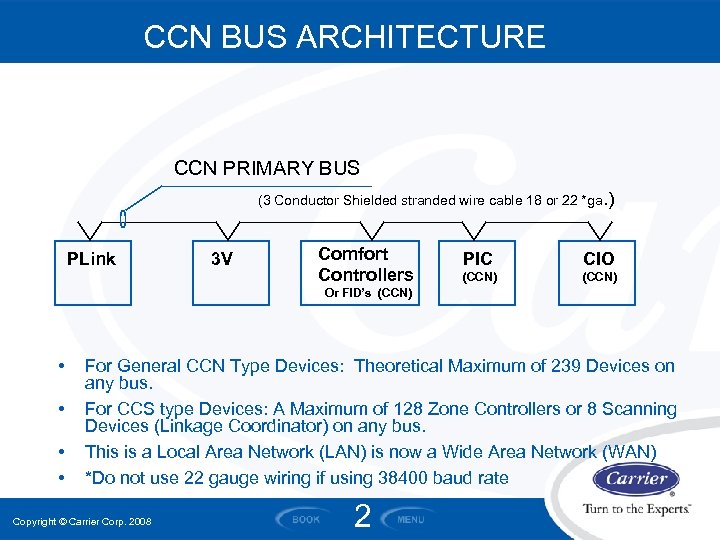

CCN BUS ARCHITECTURE CCN PRIMARY BUS (3 Conductor Shielded stranded wire cable 18 or 22 *ga. ) PLink 3 V Comfort Controllers PIC CIO (CCN) Or FID’s (CCN) • • For General CCN Type Devices: Theoretical Maximum of 239 Devices on any bus. For CCS type Devices: A Maximum of 128 Zone Controllers or 8 Scanning Devices (Linkage Coordinator) on any bus. This is a Local Area Network (LAN) is now a Wide Area Network (WAN) *Do not use 22 gauge wiring if using 38400 baud rate Copyright © Carrier Corp. 2008 2

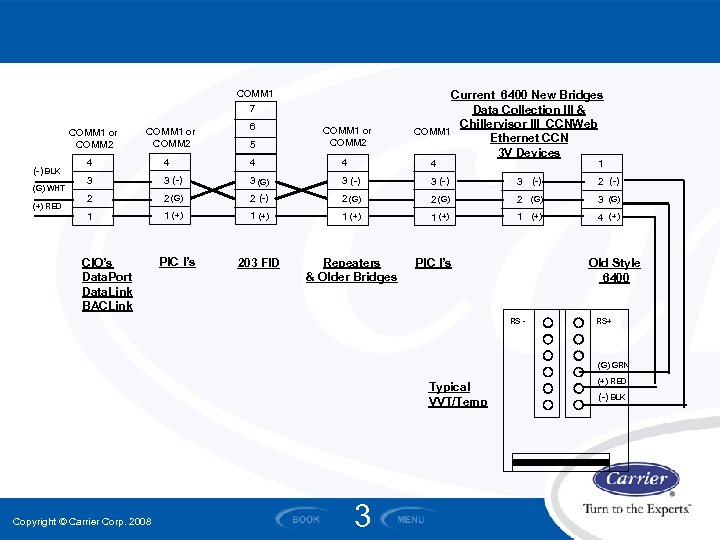

COMM 1 7 COMM 1 or COMM 2 6 5 COMM 1 or COMM 2 Current 6400 New Bridges Data Collection III & Chillervisor III CCNWeb COMM 1 Ethernet CCN 3 V Devices (G) WHT (+) RED 4 4 3 3 (-) 3 (G) 3 (-) 2 2 (G) 2 (-) 2 (G) 3 (G) 1 (-) BLK 1 (+) 1 (+) 4 (+) 203 FID Repeaters & Older Bridges CIO’s Data. Port Data. Link BACLink PIC I’s 4 1 PIC I’s Old Style 6400 RS - RS+ (G) GRN Typical VVT/Temp Copyright © Carrier Corp. 2008 3 (+) RED (-) BLK

PIC’s Product Integrated Control (Application Specific Controls) • Factory Mounted On Carrier HVAC Equipment With Sensors – – Copyright © Carrier Corp. 2008 VAV Air Terminals Air Handling Units Chillers Rooftop Units 4

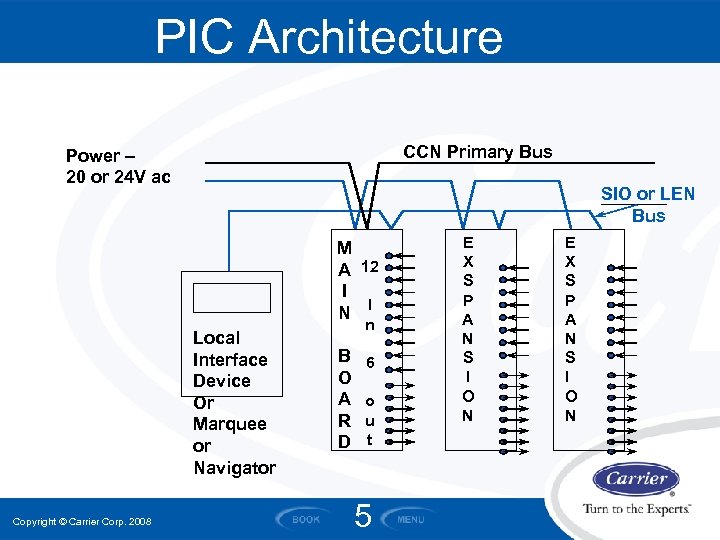

PIC Architecture CCN Primary Bus Power – 20 or 24 V ac SIO or LEN Bus M A 12 I N I Local Interface Device Or Marquee or Navigator Copyright © Carrier Corp. 2008 n B O A R D 6 o u t 5 E X S P A N S I O N

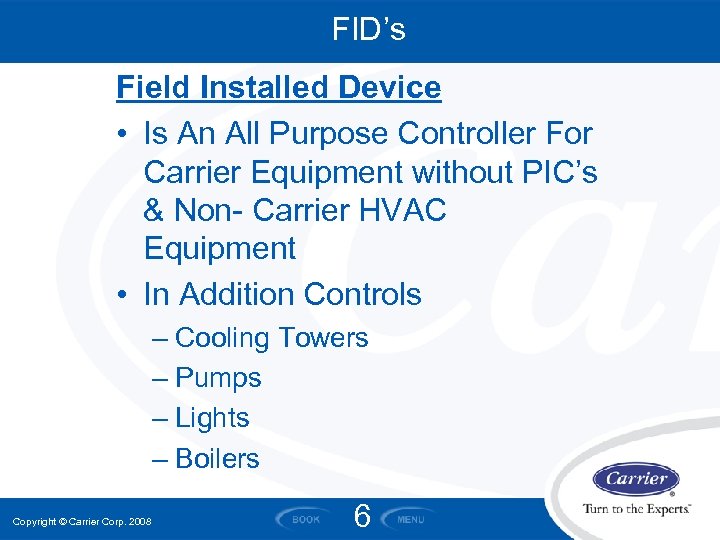

FID’s Field Installed Device • Is An All Purpose Controller For Carrier Equipment without PIC’s & Non- Carrier HVAC Equipment • In Addition Controls – Cooling Towers – Pumps – Lights – Boilers Copyright © Carrier Corp. 2008 6

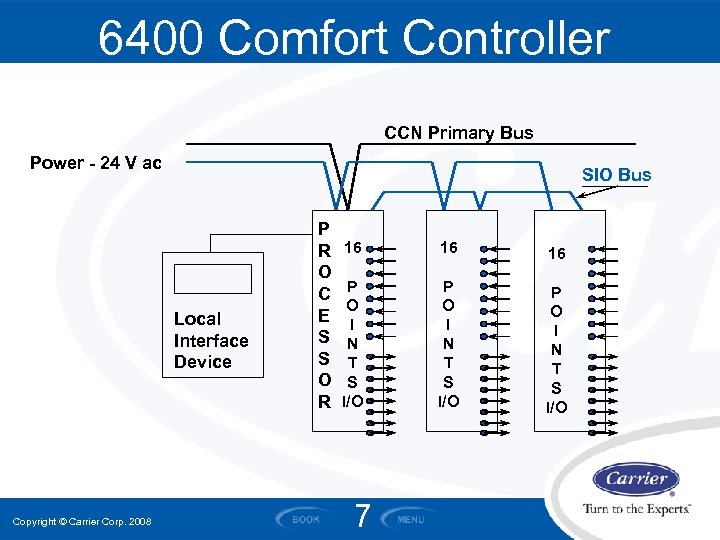

6400 Comfort Controller CCN Primary Bus Power - 24 V ac SIO Bus Local

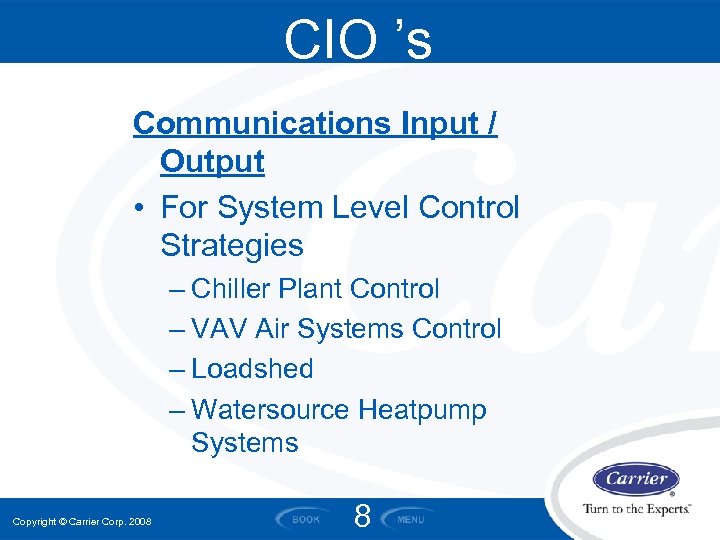

CIO ’s Communications Input / Output • For System Level Control Strategies – Chiller

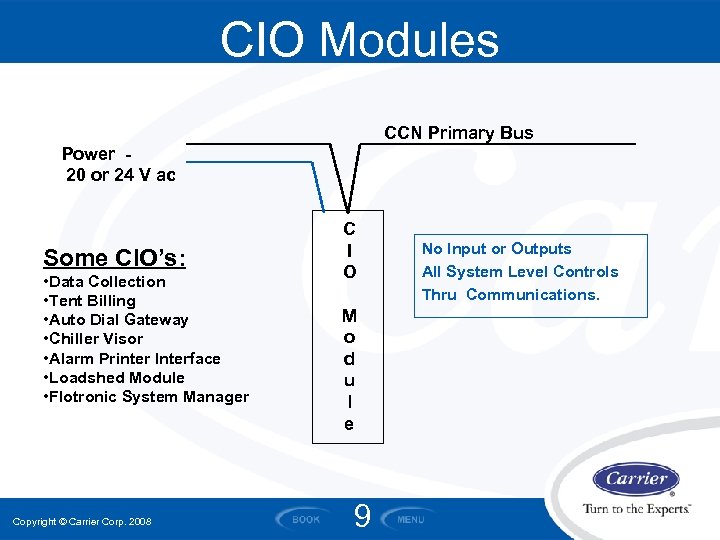

CIO Modules CCN Primary Bus Power 20 or 24 V ac Some CIO’s: • Data Collection • Tent Billing • Auto Dial Gateway • Chiller Visor • Alarm Printer Interface • Loadshed Module • Flotronic System Manager Copyright © Carrier Corp. 2008 C I O M o d u l e 9 No Input or Outputs All System Level Controls Thru Communications.

Questions ? ? ? Copyright © Carrier Corp. 2008 10

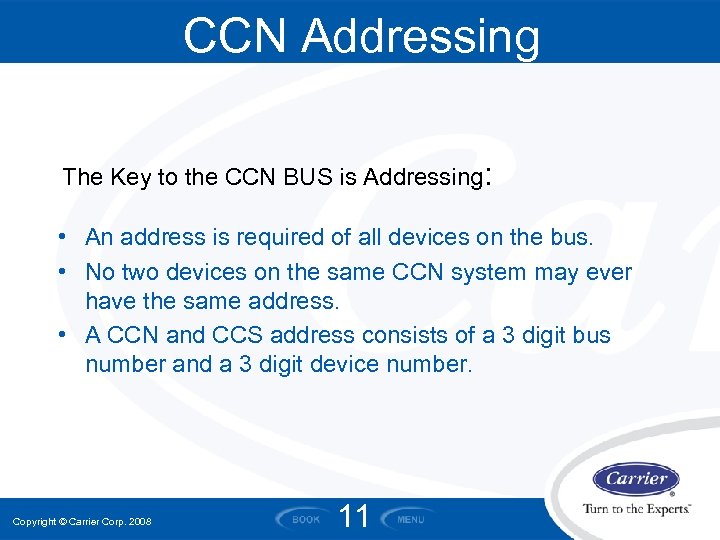

CCN Addressing The Key to the CCN BUS is Addressing: • An address is required of all devices on the bus. • No two devices on the same CCN system may ever have the same address. • A CCN and CCS address consists of a 3 digit bus number and a 3 digit device number. Copyright © Carrier Corp. 2008 11

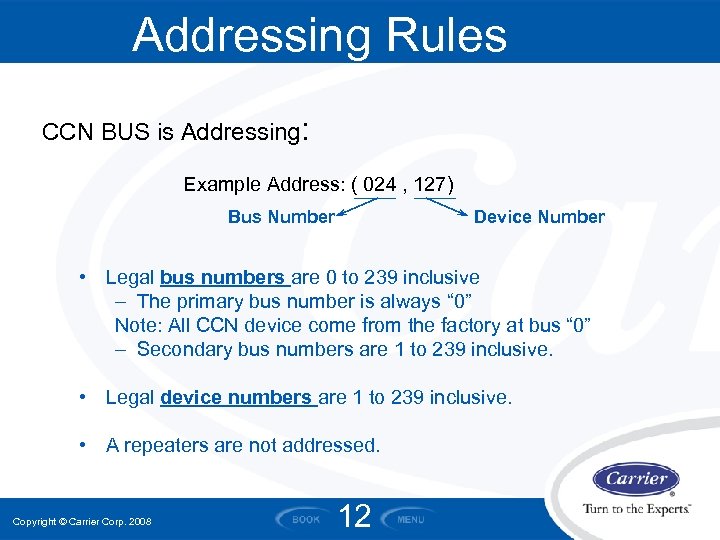

Addressing Rules CCN BUS is Addressing: Example Address: ( 024 , 127) Device Number Bus Number • Legal bus numbers are 0 to 239 inclusive – The primary bus number is always “ 0” Note: All CCN device come from the factory at bus “ 0” – Secondary bus numbers are 1 to 239 inclusive. • Legal device numbers are 1 to 239 inclusive. • A repeaters are not addressed. Copyright © Carrier Corp. 2008 12

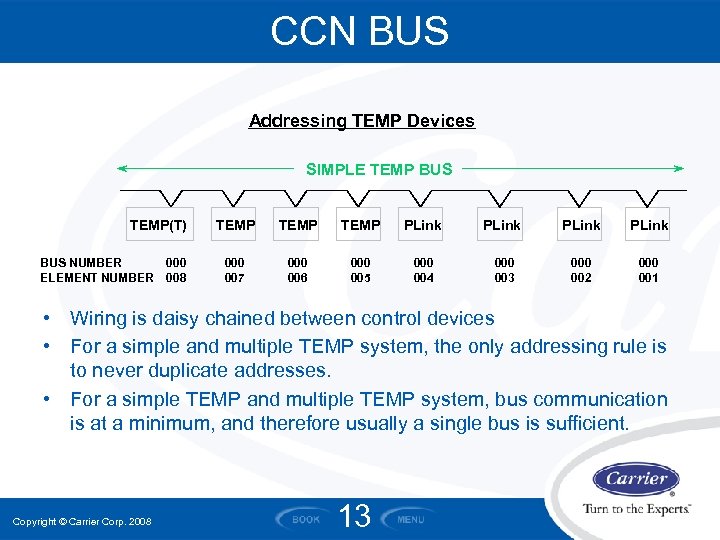

CCN BUS Addressing TEMP Devices SIMPLE TEMP BUS TEMP(T) BUS NUMBER ELEMENT NUMBER 000 008 TEMP PLink 000 007 000 006 000 005 000 004 000 003 000 002 000 001 • Wiring is daisy chained between control devices • For a simple and multiple TEMP system, the only addressing rule is to never duplicate addresses. • For a simple TEMP and multiple TEMP system, bus communication is at a minimum, and therefore usually a single bus is sufficient. Copyright © Carrier Corp. 2008 13

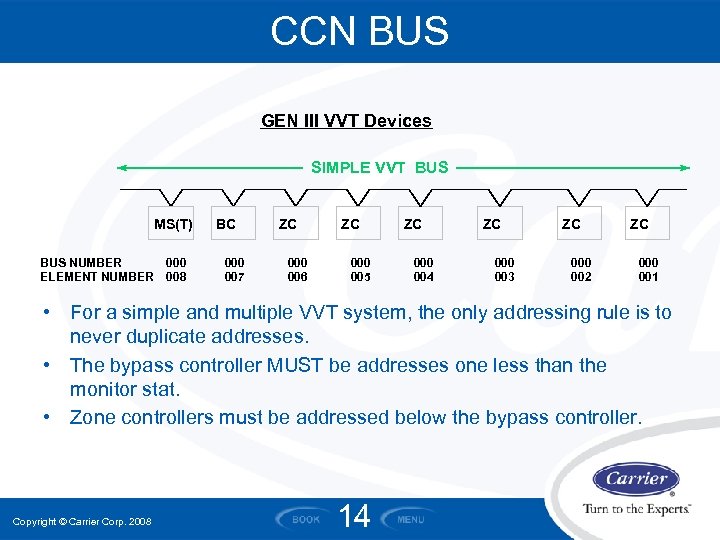

CCN BUS GEN III VVT Devices SIMPLE VVT BUS MS(T) BUS NUMBER ELEMENT NUMBER 000 008 BC 000 007 ZC 000 006 ZC 000 005 ZC 000 004 ZC 000 003 ZC 000 002 ZC 000 001 • For a simple and multiple VVT system, the only addressing rule is to never duplicate addresses. • The bypass controller MUST be addresses one less than the monitor stat. • Zone controllers must be addressed below the bypass controller. Copyright © Carrier Corp. 2008 14

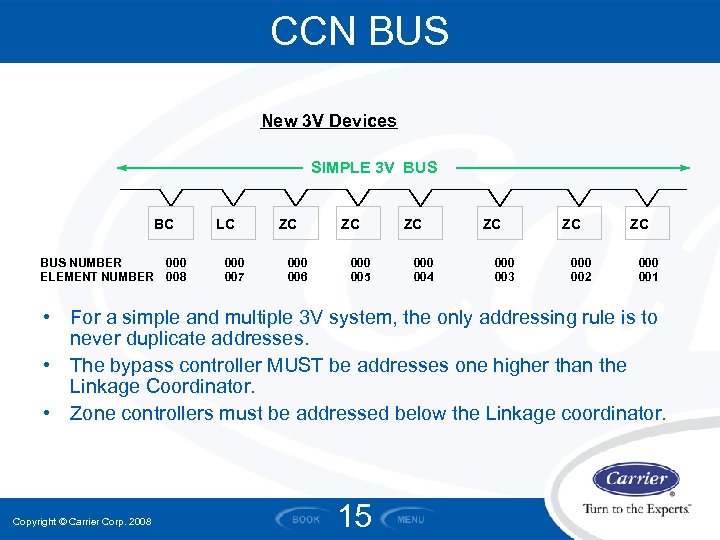

CCN BUS New 3 V Devices SIMPLE 3 V BUS BC BUS NUMBER ELEMENT NUMBER 000 008 LC 000 007 ZC 000 006 ZC 000 005 ZC 000 004 ZC 000 003 ZC 000 002 ZC 000 001 • For a simple and multiple 3 V system, the only addressing rule is to never duplicate addresses. • The bypass controller MUST be addresses one higher than the Linkage Coordinator. • Zone controllers must be addressed below the Linkage coordinator. Copyright © Carrier Corp. 2008 15

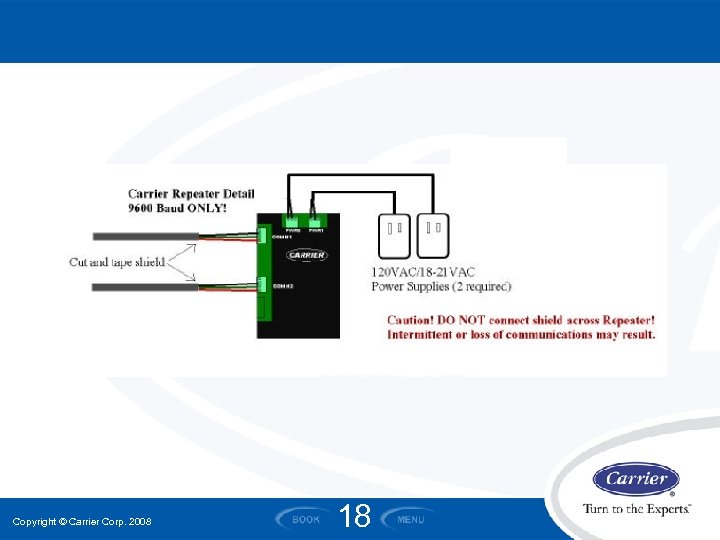

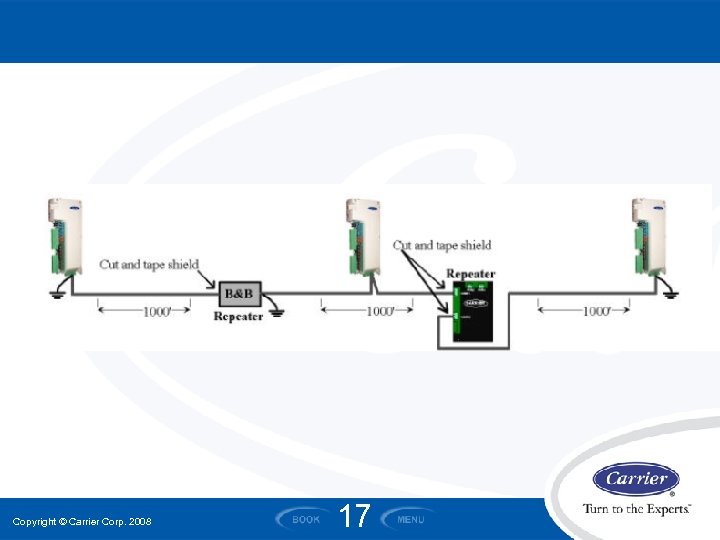

CCN BUS USE OF REPEATERS Repeater BC LC ZC ZC 60 DEVICES or 1, 000 Feet Repeater TEMP PIC CIO 6400 59 DEVICES or 1, 000 Feet • • TEMP 60 DEVICES or 1, 000 Feet Use a repeater every 60 devices (Reflective degradation) Use a repeater every 1, 000 feet (Signal strength degradation) Do not carry shielding bleed wire around repeaters Ground each bus segment separately and only at one end. Copyright © Carrier Corp. 2008 16

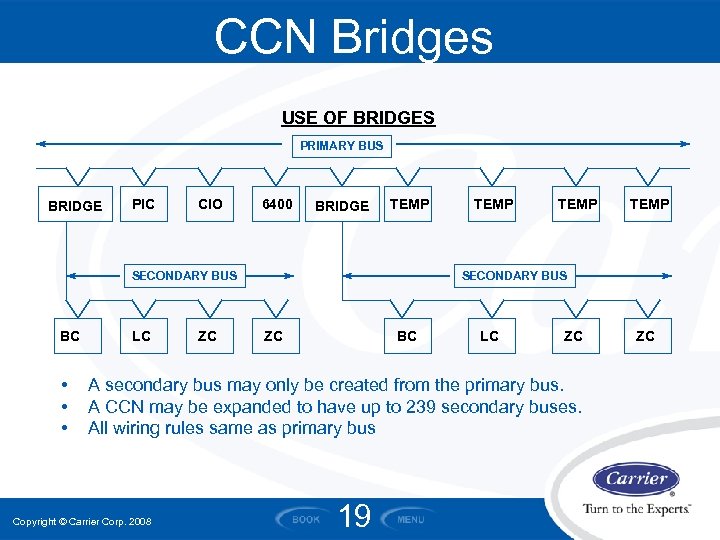

CCN Bridges USE OF BRIDGES PRIMARY BUS BRIDGE PIC CIO 6400 BRIDGE TEMP SECONDARY BUS BC • • • LC ZC TEMP SECONDARY BUS ZC BC LC ZC A secondary bus may only be created from the primary bus. A CCN may be expanded to have up to 239 secondary buses. All wiring rules same as primary bus Copyright © Carrier Corp. 2008 TEMP 19 ZC

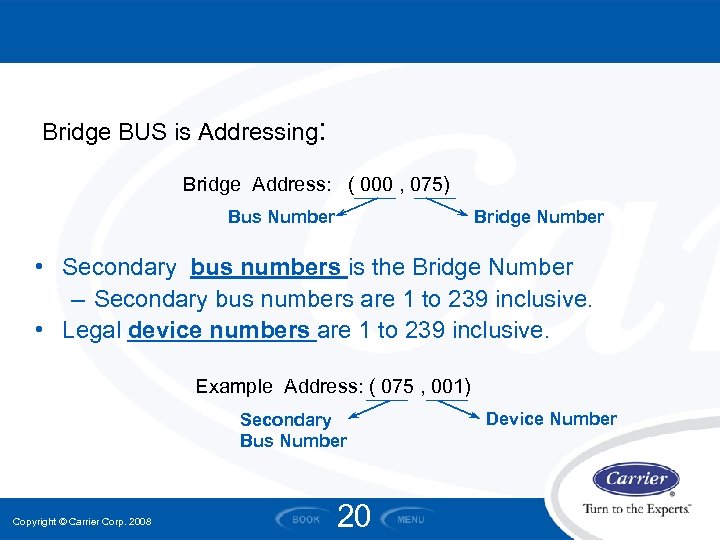

Bridge BUS is Addressing: Bridge Address: ( 000 , 075) Bridge Number Bus Number • Secondary bus numbers is the Bridge Number – Secondary bus numbers are 1 to 239 inclusive. • Legal device numbers are 1 to 239 inclusive. Example Address: ( 075 , 001) Secondary Bus Number Copyright © Carrier Corp. 2008 20 Device Number

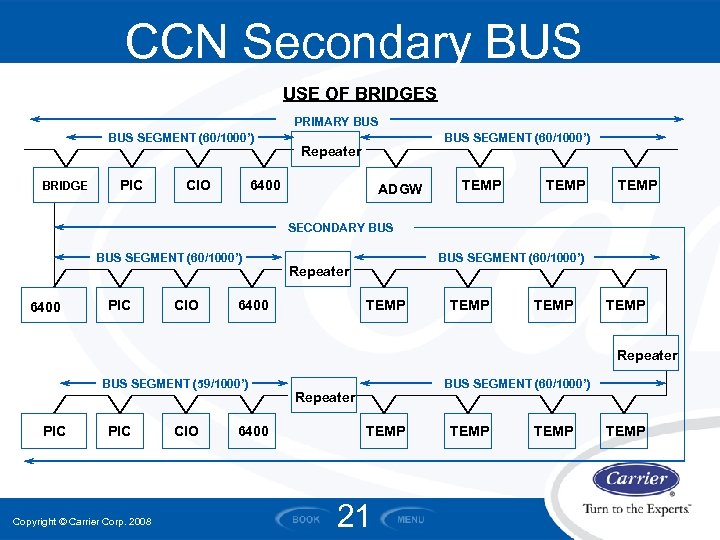

CCN Secondary BUS USE OF BRIDGES PRIMARY BUS SEGMENT (60/1000’) BRIDGE PIC CIO BUS SEGMENT (60/1000’) Repeater 6400 ADGW TEMP SECONDARY BUS SEGMENT (60/1000’) 6400 PIC CIO BUS SEGMENT (60/1000’) Repeater 6400 TEMP Repeater BUS SEGMENT (59/1000’) PIC Copyright © Carrier Corp. 2008 CIO 6400 BUS SEGMENT (60/1000’) Repeater TEMP 21 TEMP

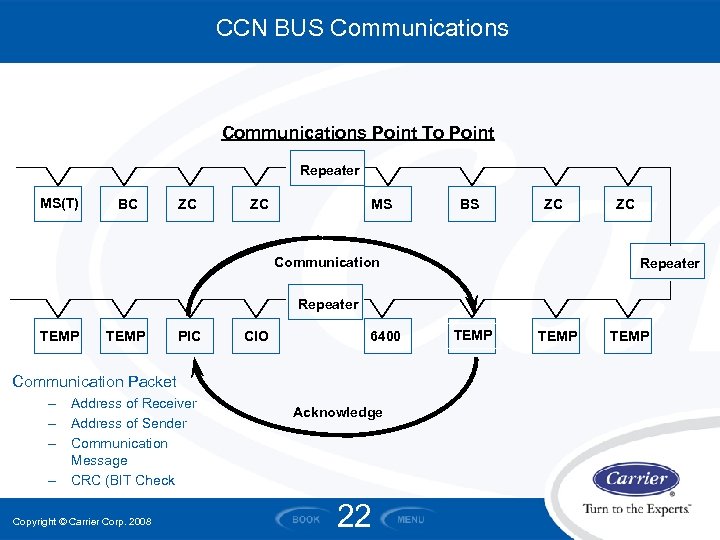

CCN BUS Communications Point To Point Repeater MS(T) BC ZC ZC MS BS ZC Communication ZC Repeater TEMP PIC CIO 6400 Communication Packet – Address of Receiver – Address of Sender – Communication Message – CRC (BIT Check Copyright © Carrier Corp. 2008 Acknowledge 22 TEMP

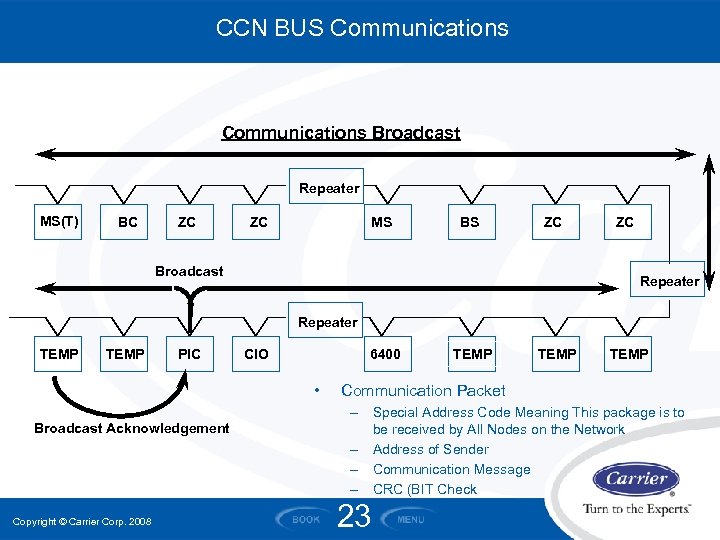

CCN BUS Communications Broadcast Repeater MS(T) BC ZC ZC MS BS ZC Broadcast ZC Repeater TEMP PIC CIO 6400 • Broadcast Acknowledgement Copyright © Carrier Corp. 2008 TEMP Communication Packet – Special Address Code Meaning This package is to be received by All Nodes on the Network – Address of Sender – Communication Message – CRC (BIT Check 23

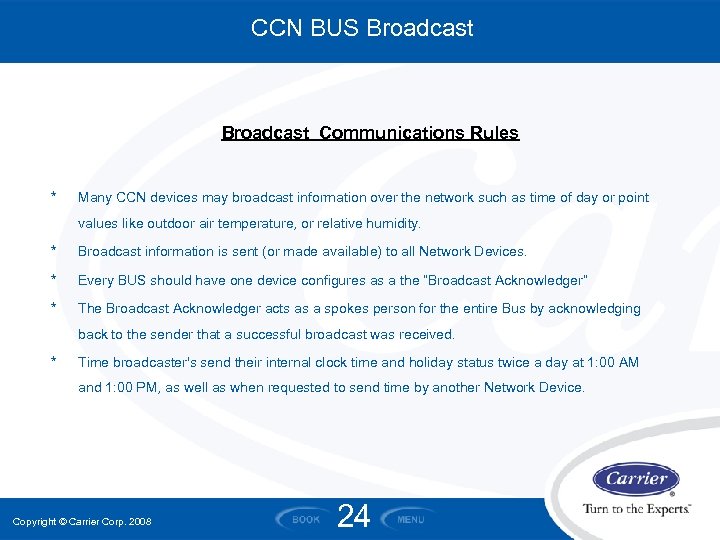

CCN BUS Broadcast Communications Rules * Many CCN devices may broadcast information over the network such as time of day or point values like outdoor air temperature, or relative humidity. * Broadcast information is sent (or made available) to all Network Devices. * Every BUS should have one device configures as a the “Broadcast Acknowledger” * The Broadcast Acknowledger acts as a spokes person for the entire Bus by acknowledging back to the sender that a successful broadcast was received. * Time broadcaster's send their internal clock time and holiday status twice a day at 1: 00 AM and 1: 00 PM, as well as when requested to send time by another Network Device. Copyright © Carrier Corp. 2008 24

Questions ? ? ? Copyright © Carrier Corp. 2008 25

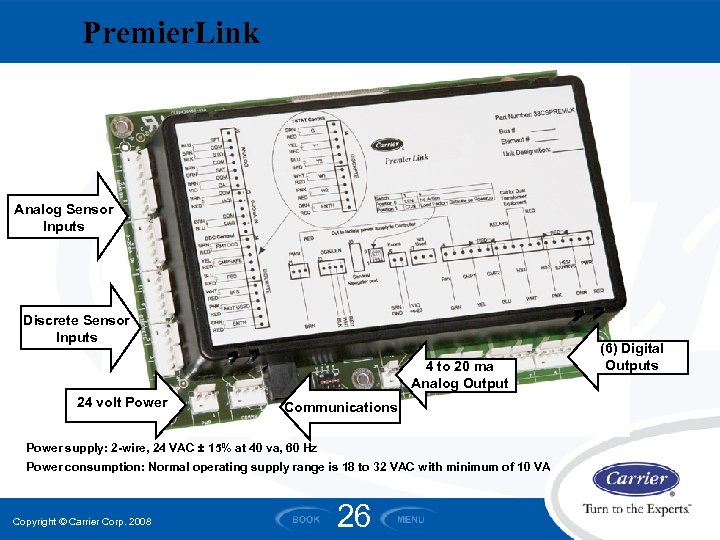

Premier. Link Analog Sensor Inputs Discrete Sensor Inputs 4 to 20 ma Analog Output 24 volt Power Communications Power supply: 2 -wire, 24 VAC ± 15% at 40 va, 60 Hz Power consumption: Normal operating supply range is 18 to 32 VAC with minimum of 10 VA Copyright © Carrier Corp. 2008 26 (6) Digital Outputs

Premier. Link Installation Fan, Cool, Heat & RV/EF Outputs Required for Economizer control! 4 -20 ma Economizer Output Must have RAT or SPT in space for standalone operation in case of Linkage com failure SAT always Required! Analog Sensor Connections Optional Discrete Inputs 24 vac Power CCN Com Bus Copyright © Carrier Corp. 2008 27

Questions ? ? ? Copyright © Carrier Corp. 2008 28

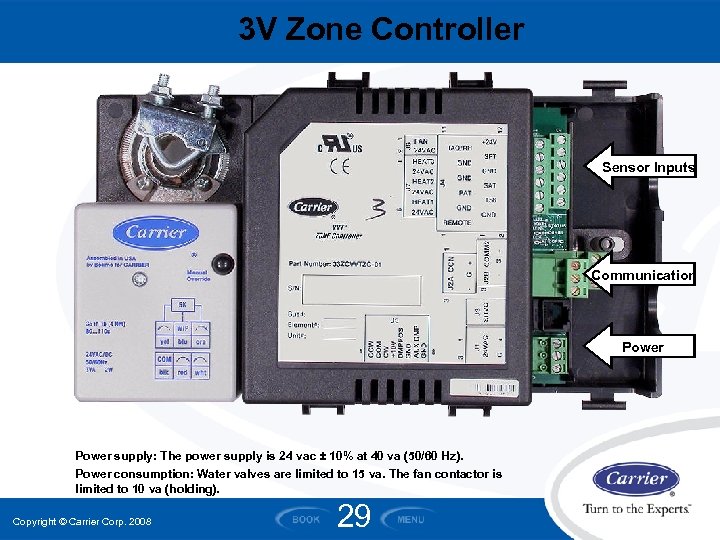

3 V Zone Controller Sensor Inputs Communication Power supply: The power supply is 24 vac ± 10% at 40 va (50/60 Hz). Power consumption: Water valves are limited to 15 va. The fan contactor is limited to 10 va (holding). Copyright © Carrier Corp. 2008 29

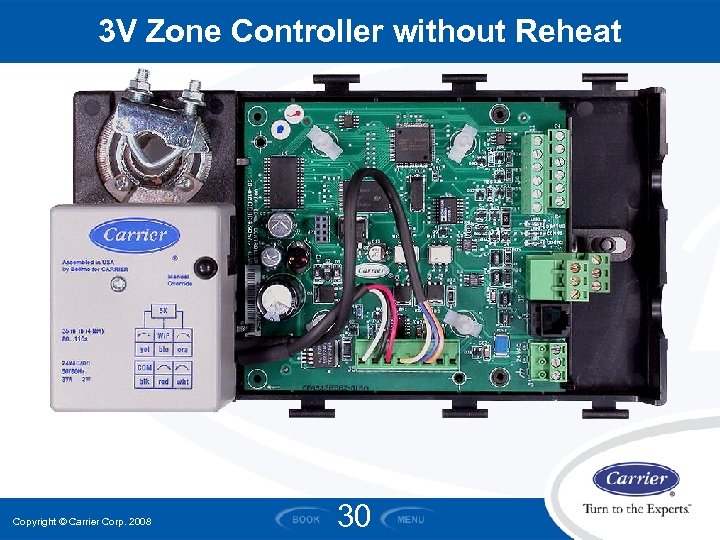

3 V Zone Controller without Reheat Copyright © Carrier Corp. 2008 30

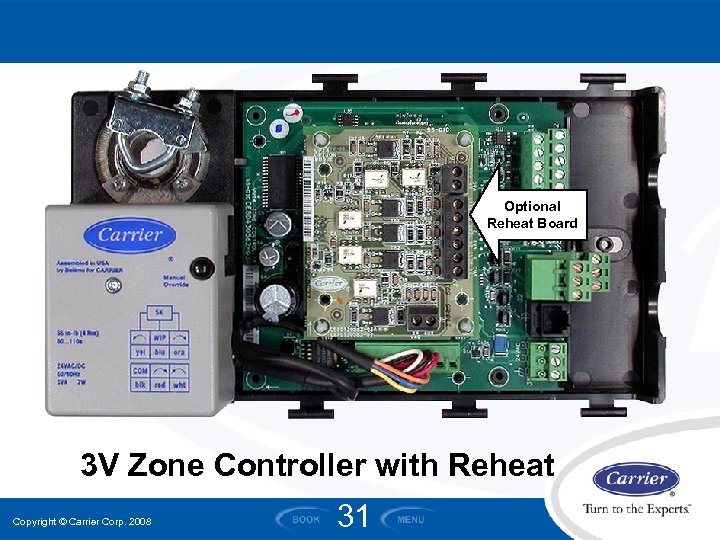

Optional Reheat Board 3 V Zone Controller with Reheat Copyright © Carrier Corp. 2008

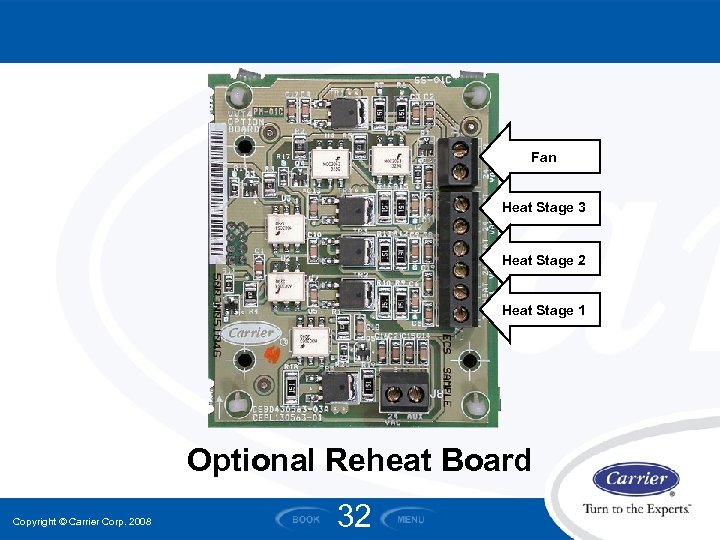

Fan Heat Stage 3 Heat Stage 2 Heat Stage 1 Optional Reheat Board Copyright

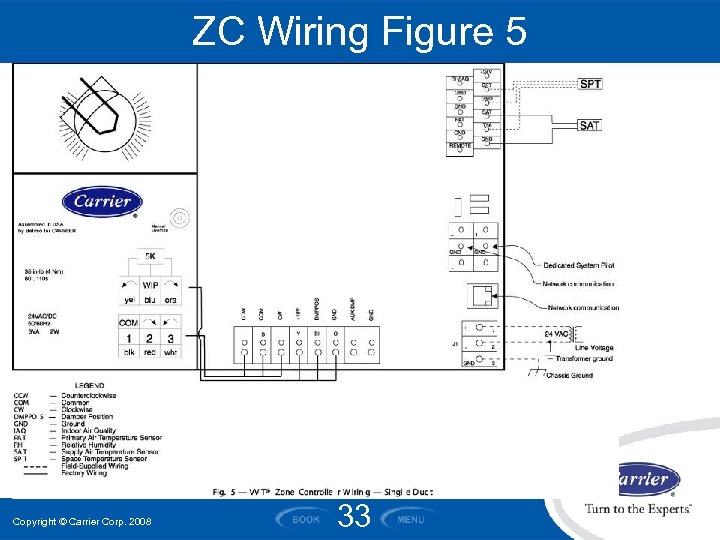

ZC Wiring Figure 5 Copyright © Carrier Corp. 2008 33

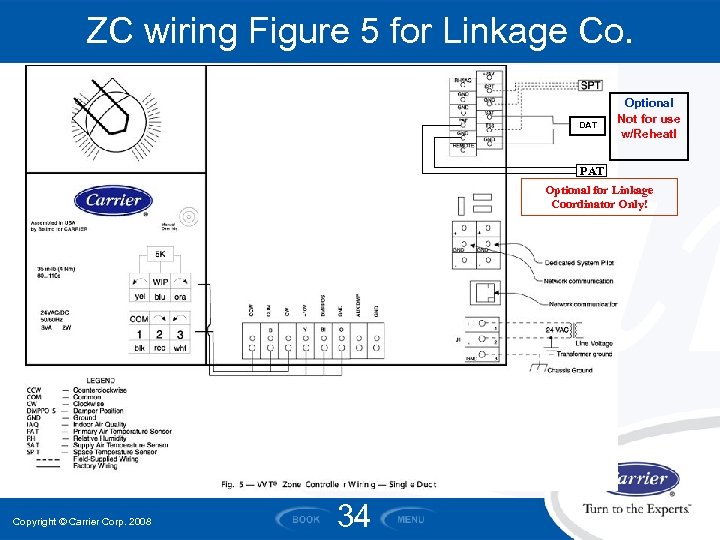

ZC wiring Figure 5 for Linkage Co. DAT Optional Not for use w/Reheat! PAT

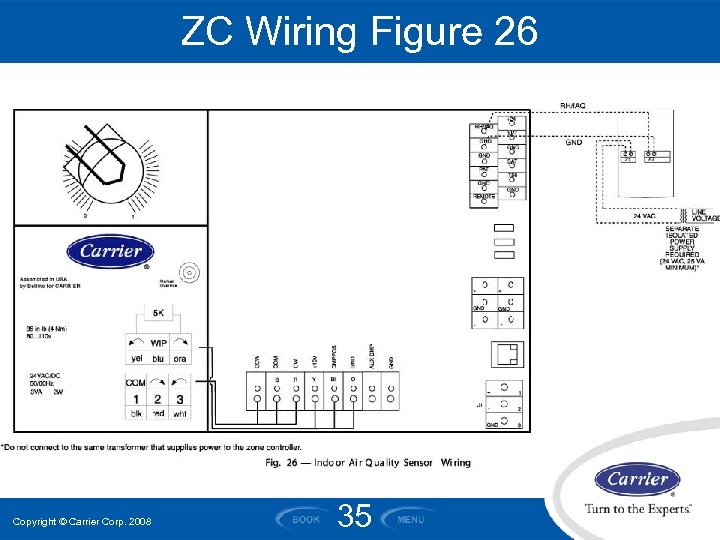

ZC Wiring Figure 26 Copyright © Carrier Corp. 2008 35

ZC Wiring Figure 28 Copyright © Carrier Corp. 2008 36

Questions ? ? ? Copyright © Carrier Corp. 2008 37

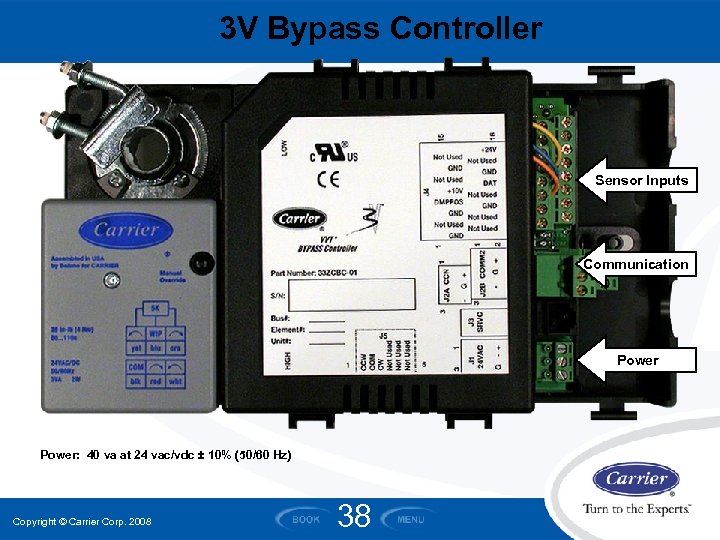

3 V Bypass Controller Sensor Inputs Communication Power: 40 va at 24 vac/vdc ±

Sensor Inputs Pressure Sensor Communication Actuator Power 3 V Bypass Controller (built in pressure

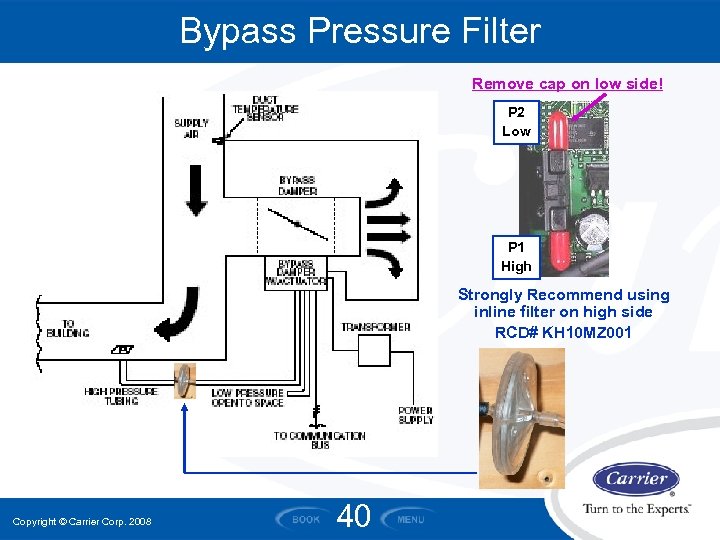

Bypass Pressure Filter Remove cap on low side! P 2 Low P 1 High

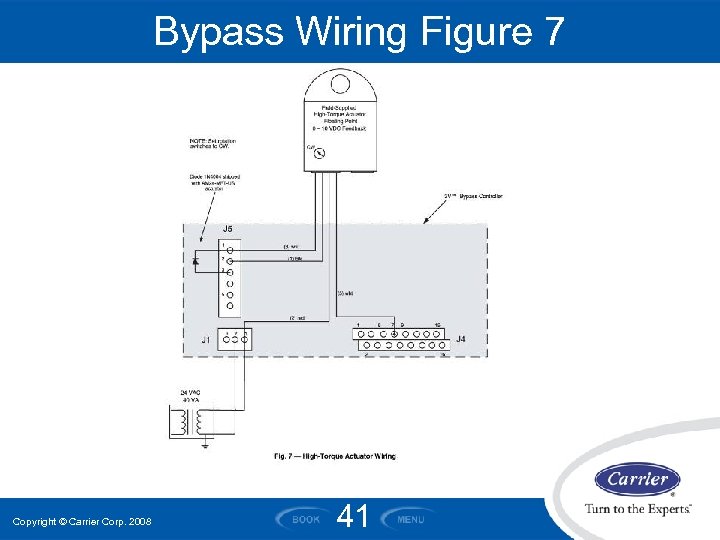

Bypass Wiring Figure 7 Copyright © Carrier Corp. 2008 41

Bypass Wiring Figure 8 Copyright © Carrier Corp. 2008 42

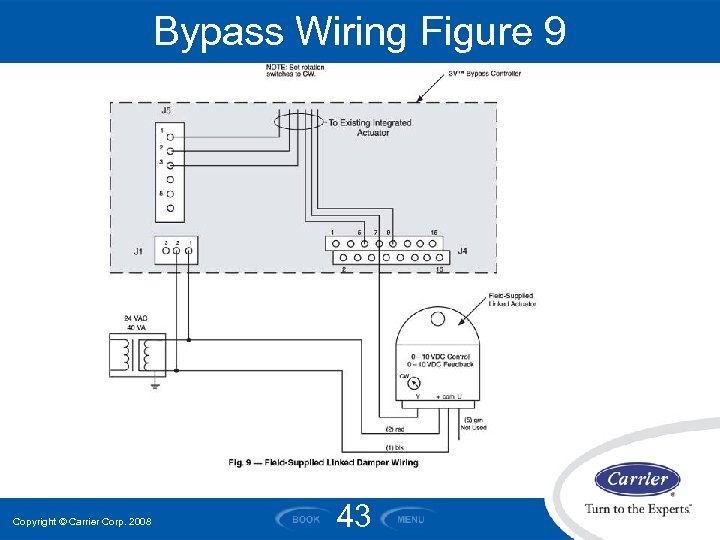

Bypass Wiring Figure 9 Copyright © Carrier Corp. 2008 43

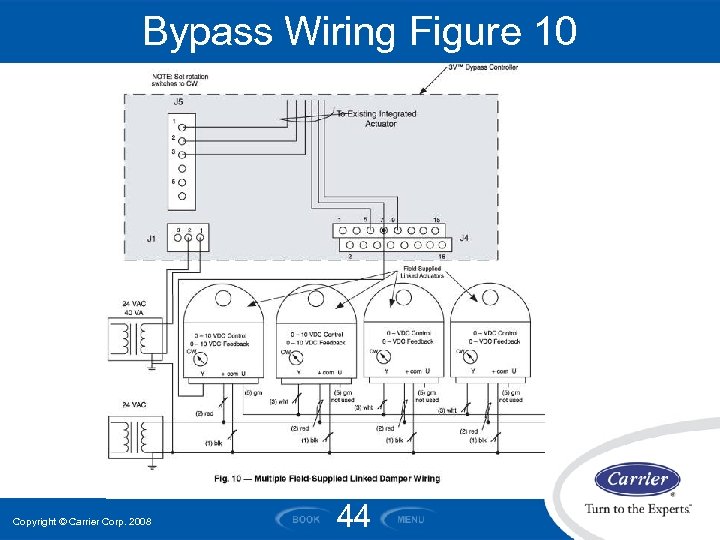

Bypass Wiring Figure 10 Copyright © Carrier Corp. 2008 44

Questions ? ? ? Copyright © Carrier Corp. 2008 45

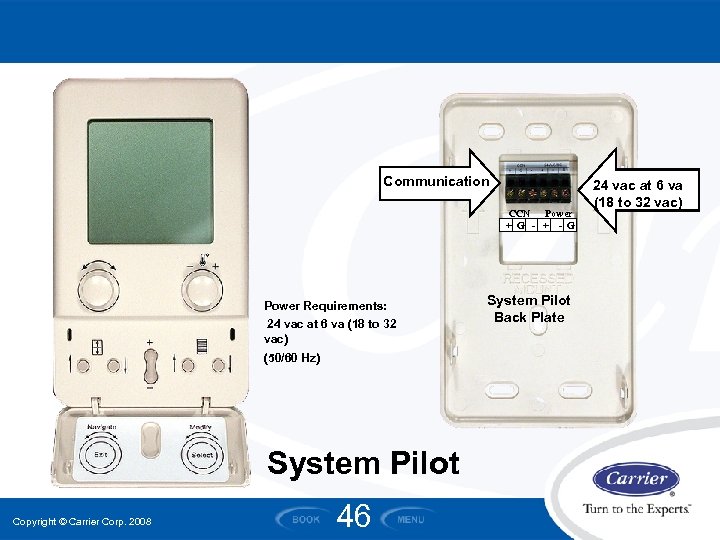

Communication CCN Power + G - + - G Power Requirements: 24 vac at

System Pilot Wiring Details Wire to ZC COMM 2 for Local sensor ZC COMM 1 for system access 24 vac HOT + PIN 1 24 vac COM - PIN 2 PIN 3 May be wired in PARALLEL ONLY w/ZC (or UC)! Copyright © Carrier Corp. 2008 47

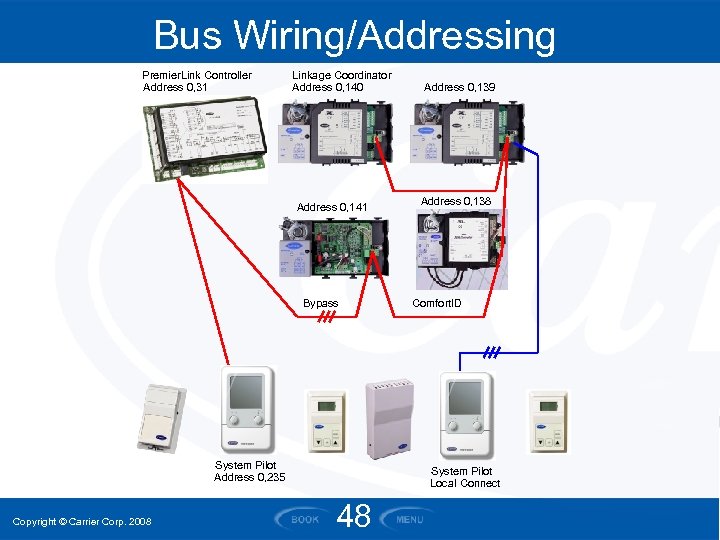

Bus Wiring/Addressing Premier. Link Controller Address 0, 31 Linkage Coordinator Address 0, 140 Address 0, 141 Bypass System Pilot Address 0, 235 Copyright © Carrier Corp. 2008 Address 0, 139 Address 0, 138 Comfort. ID System Pilot Local Connect 48

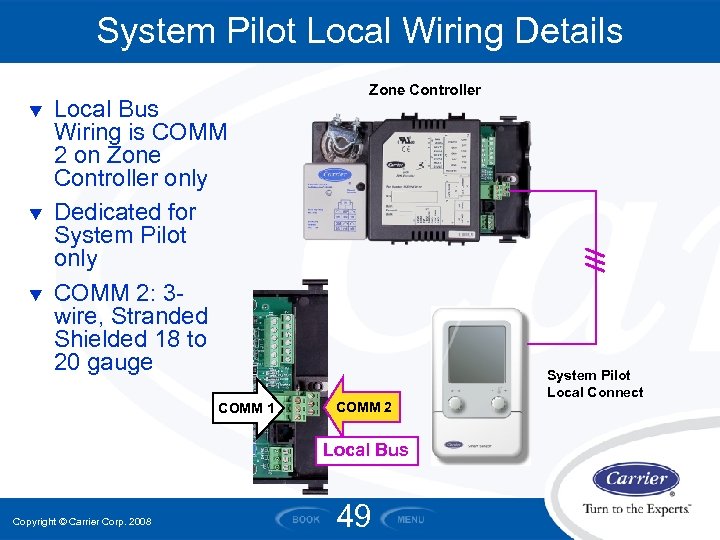

System Pilot Local Wiring Details Local Bus Wiring is COMM 2 on Zone Controller only Dedicated for System Pilot only COMM 2: 3 wire, Stranded Shielded 18 to 20 gauge Zone Controller COMM 1 COMM 2 Local Bus Copyright © Carrier Corp. 2008 49 System Pilot Local Connect

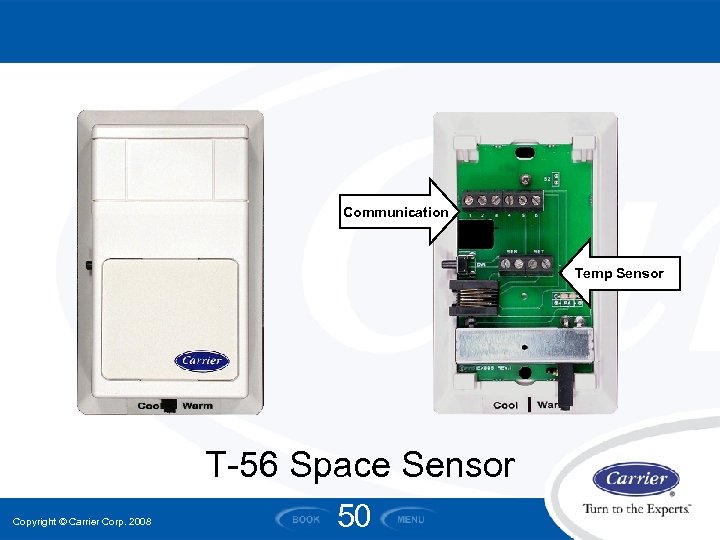

Communication Temp Sensor T-56 Space Sensor Copyright © Carrier Corp. 2008 50

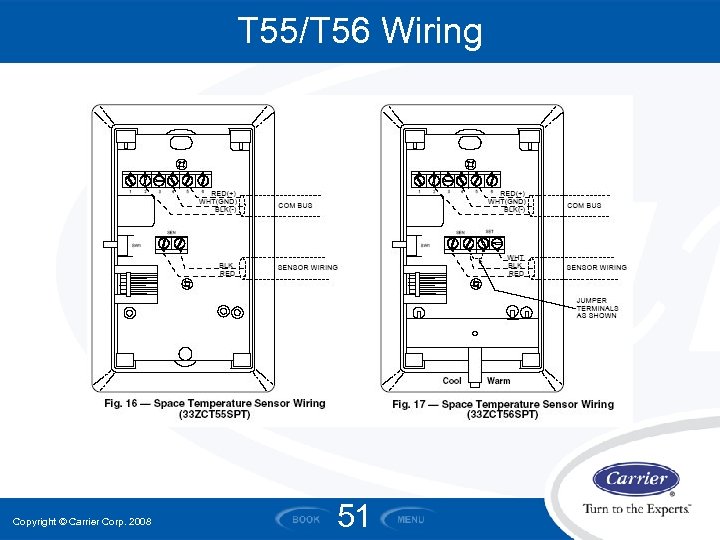

T 55/T 56 Wiring Copyright © Carrier Corp. 2008 51

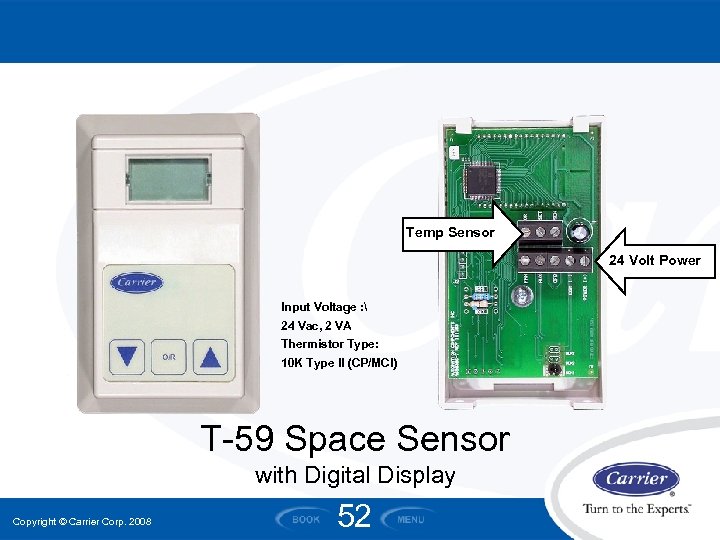

Temp Sensor 24 Volt Power Input Voltage : 24 Vac, 2 VA Thermistor

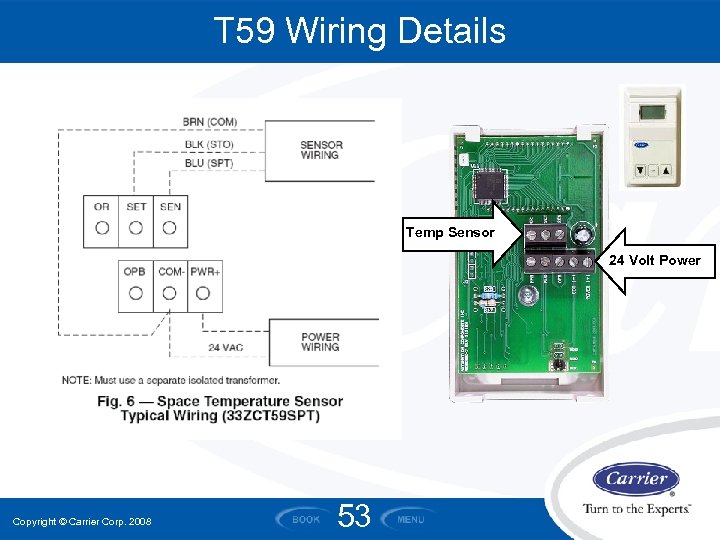

T 59 Wiring Details Temp Sensor 24 Volt Power Copyright © Carrier Corp. 2008

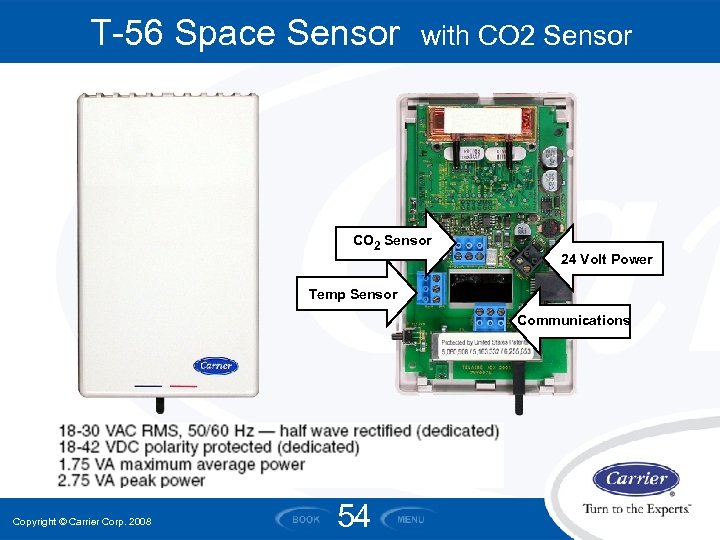

T-56 Space Sensor with CO 2 Sensor 24 Volt Power Temp Sensor Communications Copyright

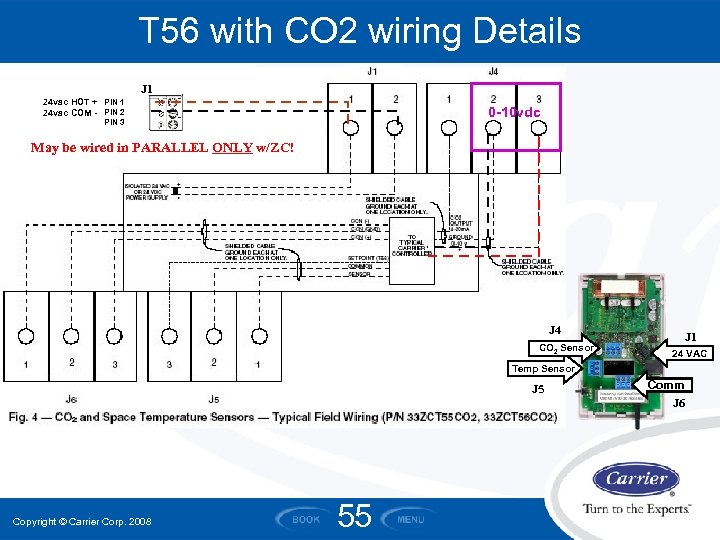

T 56 with CO 2 wiring Details J 1 24 vac HOT + PIN 1 24 vac COM - PIN 2 0 -10 vdc PIN 3 May be wired in PARALLEL ONLY w/ZC! J 4 CO 2 Sensor J 1 24 VAC Temp Sensor J 5 Copyright © Carrier Corp. 2008 55 Comm J 6

8 Configurable inputs • Discrete inputs can be dry contact or pulsed dry contact • Analog inputs can be 4 to 20 m. A or 0 to 10 vdc 8 Inputs • Temperature inputs can be 5 K or Type II and Type III 10 K ohm thermistors 8 Configurable outputs • Discrete outputs are 24 vdc at 80 m. A • Analog outputs are 4 to 20 m. A or 0 to 10 vdc 8 Outputs (varies with point type) Power Requirements 60 va at 24 vac ± 15% (1. 5 a at 33 vdc ± 15%) The power terminal is 1 & 2 not 2 & 3 Opposite Comfortable Controller Copyright © Carrier Corp. 2008 24 er Pow Volt Universal Controller 56 Communications Bus
