CAP 6135: Malware and Software Vulnerability Analysis Botnets Cliff Zou Spring 2010
Acknowledgement q This lecture uses some contents from the lecture notes from: q q q Dr. Dawn Song: CS 161: computer security Richard Wang – Sophos. Labs: The Development of Botnets Randy Marchany - VA Tech IT Security Lab: Botnets 2

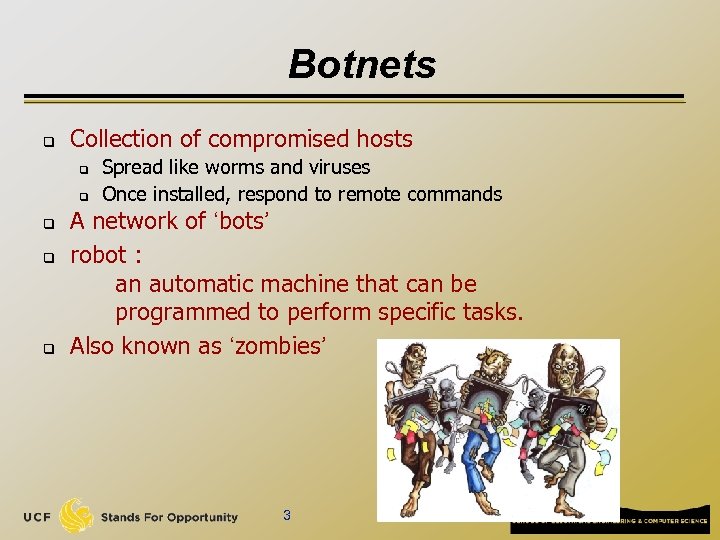

Botnets q Collection of compromised hosts q q q Spread like worms and viruses Once installed, respond to remote commands A network of ‘bots’ robot : an automatic machine that can be programmed to perform specific tasks. Also known as ‘zombies’ 3

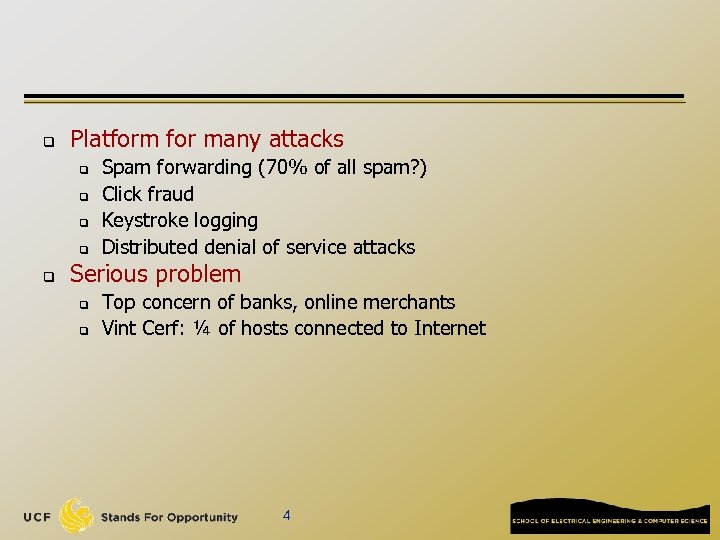

q Platform for many attacks q q q Spam forwarding (70% of all spam? ) Click fraud Keystroke logging Distributed denial of service attacks Serious problem q q Top concern of banks, online merchants Vint Cerf: ¼ of hosts connected to Internet 4
What are botnets used for? 5

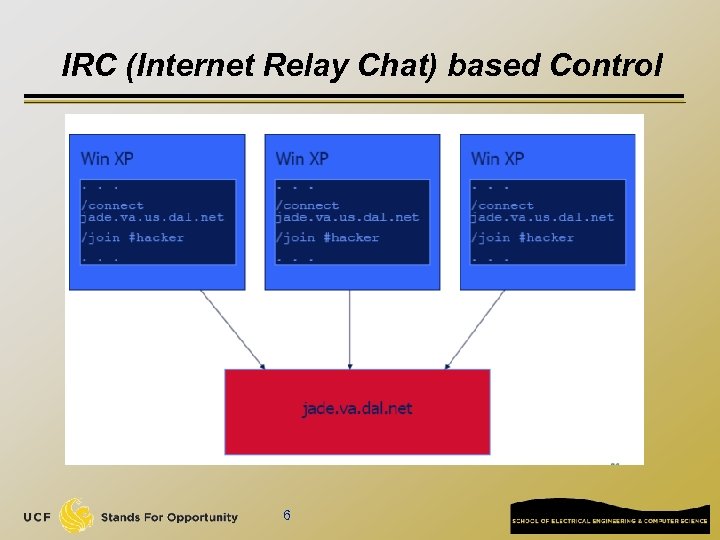

IRC (Internet Relay Chat) based Control 6

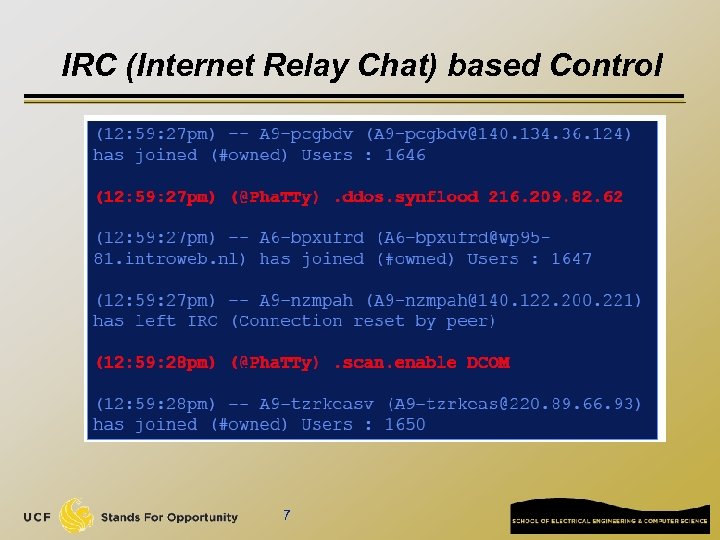

IRC (Internet Relay Chat) based Control 7

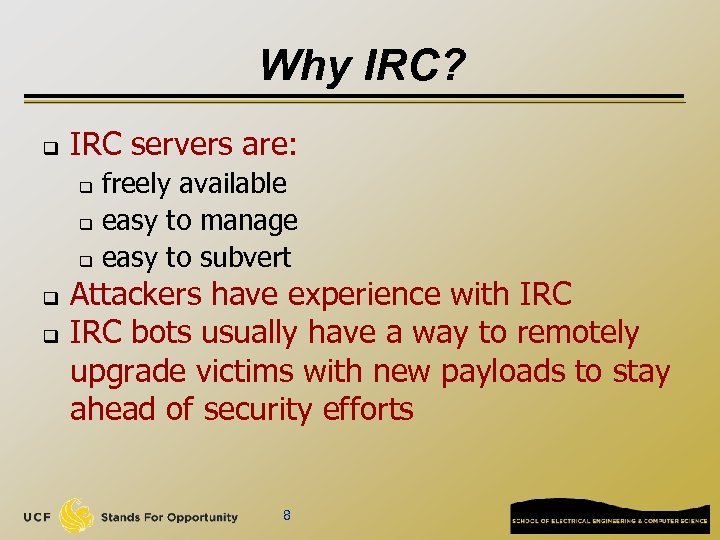

Why IRC? q IRC servers are: freely available q easy to manage q easy to subvert q q q Attackers have experience with IRC bots usually have a way to remotely upgrade victims with new payloads to stay ahead of security efforts 8

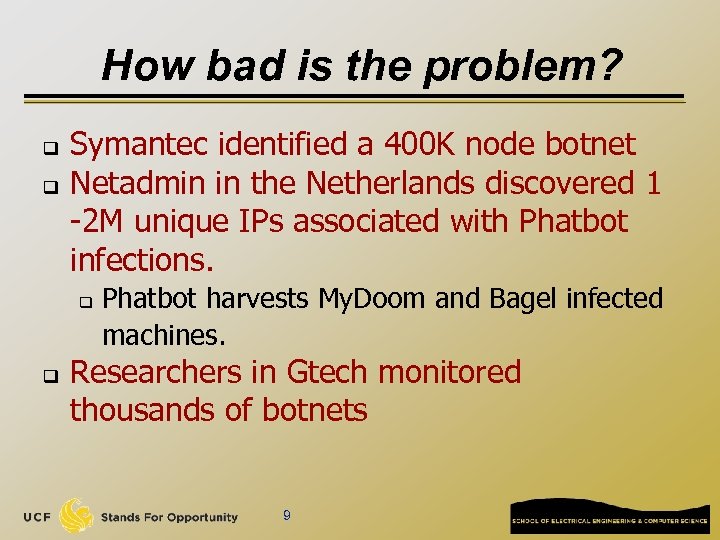

How bad is the problem? q q Symantec identified a 400 K node botnet Netadmin in the Netherlands discovered 1 -2 M unique IPs associated with Phatbot infections. q q Phatbot harvests My. Doom and Bagel infected machines. Researchers in Gtech monitored thousands of botnets 9

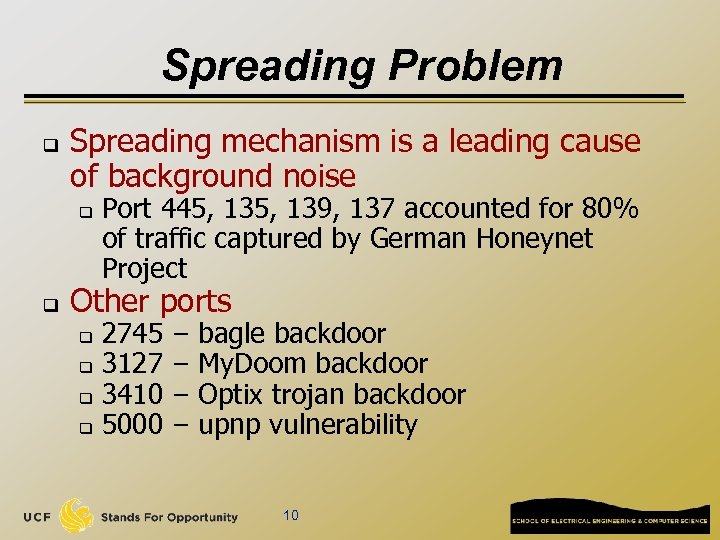

Spreading Problem q Spreading mechanism is a leading cause of background noise q q Port 445, 139, 137 accounted for 80% of traffic captured by German Honeynet Project Other ports 2745 q 3127 q 3410 q 5000 q – – bagle backdoor My. Doom backdoor Optix trojan backdoor upnp vulnerability 10

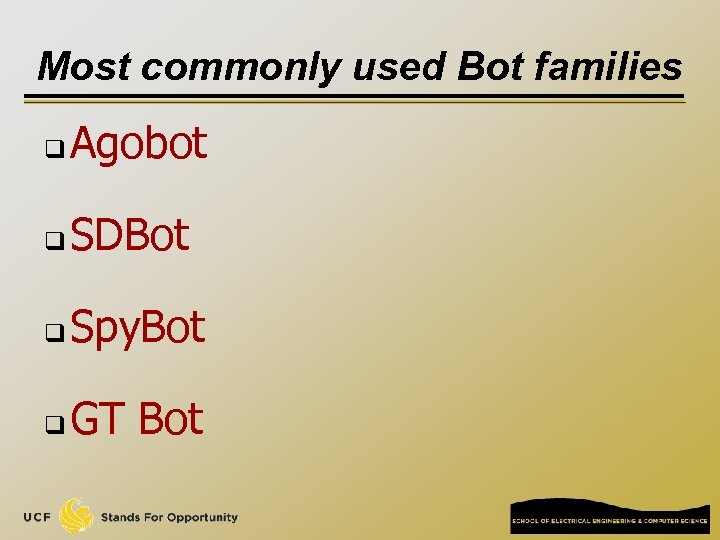

Most commonly used Bot families q Agobot q SDBot q Spy. Bot q GT Bot

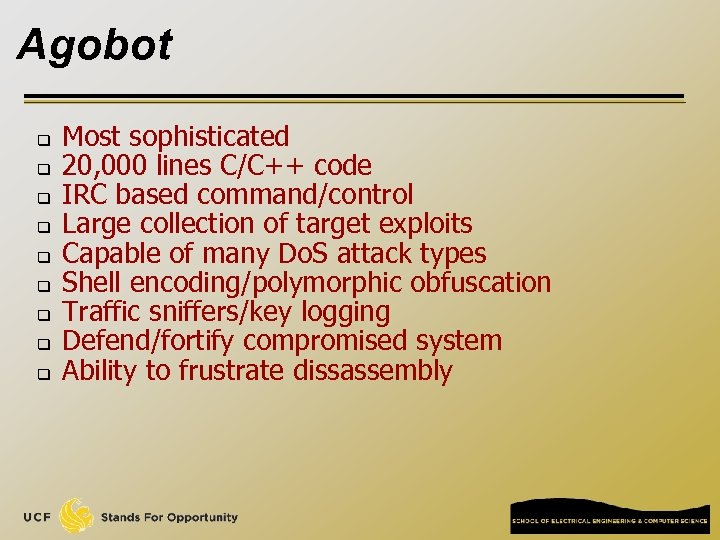

Agobot q q q q q Most sophisticated 20, 000 lines C/C++ code IRC based command/control Large collection of target exploits Capable of many Do. S attack types Shell encoding/polymorphic obfuscation Traffic sniffers/key logging Defend/fortify compromised system Ability to frustrate dissassembly

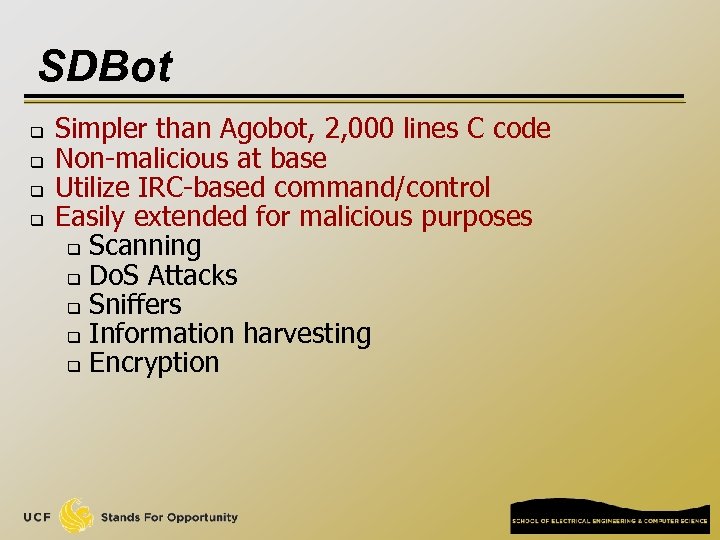

SDBot q q Simpler than Agobot, 2, 000 lines C code Non-malicious at base Utilize IRC-based command/control Easily extended for malicious purposes q Scanning q Do. S Attacks q Sniffers q Information harvesting q Encryption
Spy. Bot q q <3, 000 lines C code Possibly evolved from SDBot q Similar command/control engine q No attempts to hide malicious purposes

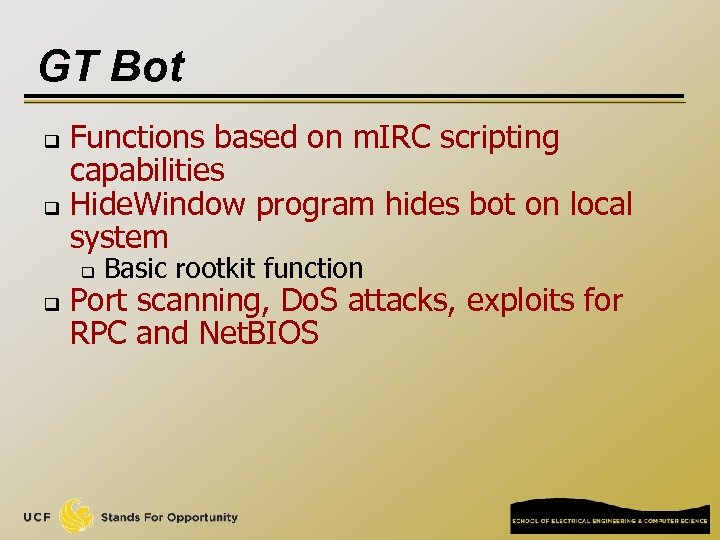

GT Bot Functions based on m. IRC scripting capabilities q Hide. Window program hides bot on local system q q q Basic rootkit function Port scanning, Do. S attacks, exploits for RPC and Net. BIOS

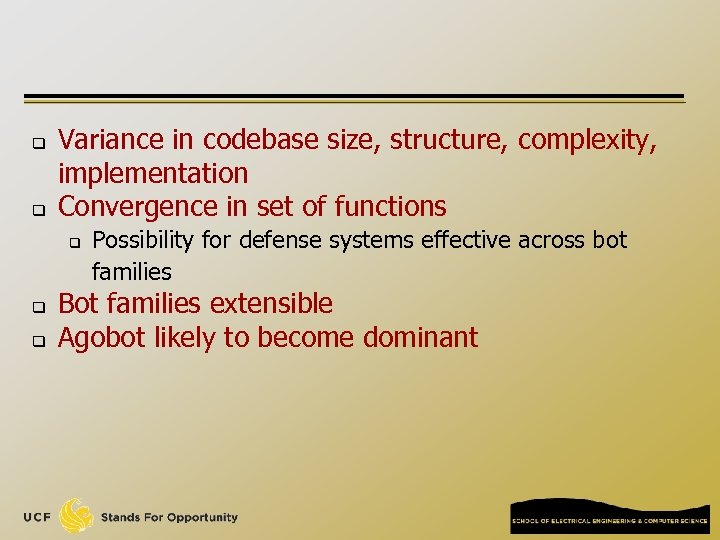

q q Variance in codebase size, structure, complexity, implementation Convergence in set of functions q q q Possibility for defense systems effective across bot families Bot families extensible Agobot likely to become dominant

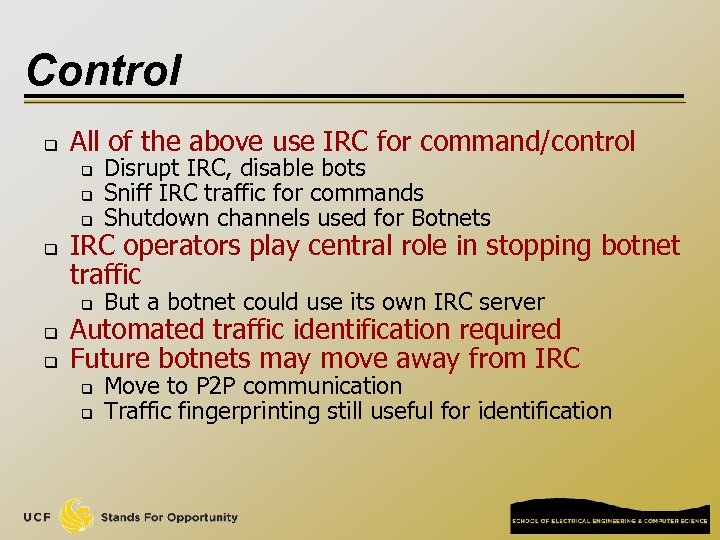

Control q All of the above use IRC for command/control q Disrupt IRC, disable bots Sniff IRC traffic for commands Shutdown channels used for Botnets q But a botnet could use its own IRC server q q q IRC operators play central role in stopping botnet traffic Automated traffic identification required Future botnets may move away from IRC q q Move to P 2 P communication Traffic fingerprinting still useful for identification

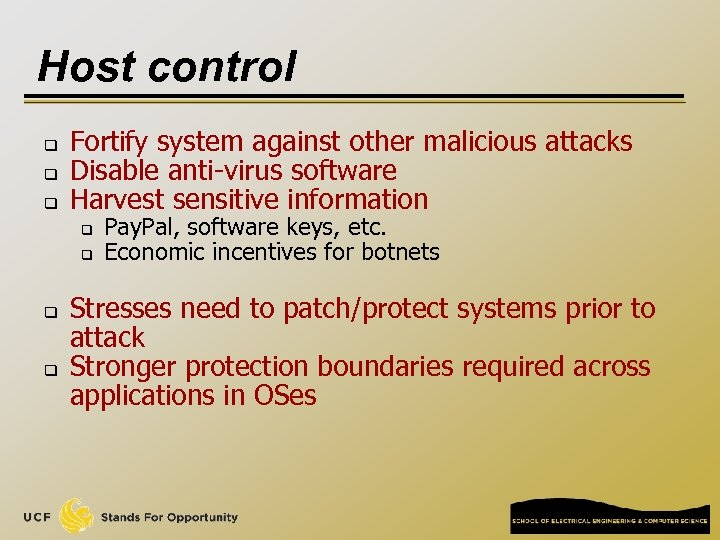

Host control q q q Fortify system against other malicious attacks Disable anti-virus software Harvest sensitive information q q Pay. Pal, software keys, etc. Economic incentives for botnets Stresses need to patch/protect systems prior to attack Stronger protection boundaries required across applications in OSes

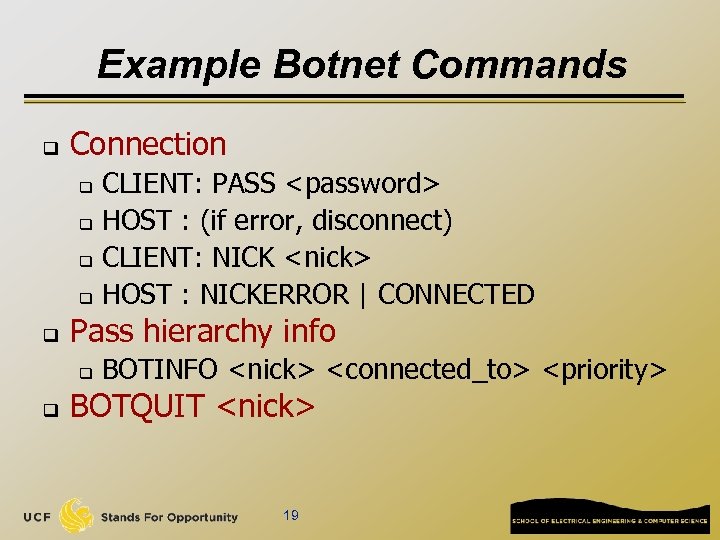

Example Botnet Commands q Connection CLIENT: PASS <password> q HOST : (if error, disconnect) q CLIENT: NICK <nick> q HOST : NICKERROR | CONNECTED q q Pass hierarchy info q q BOTINFO <nick> <connected_to> <priority> BOTQUIT <nick> 19

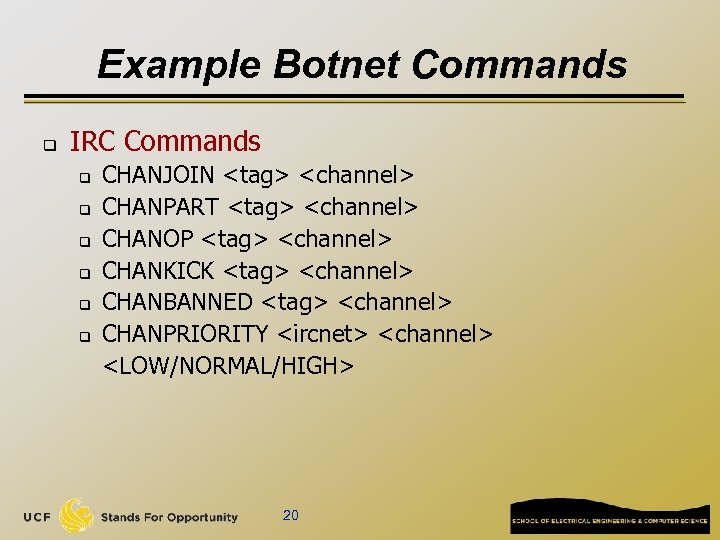

Example Botnet Commands q IRC Commands q q q CHANJOIN <tag> <channel> CHANPART <tag> <channel> CHANOP <tag> <channel> CHANKICK <tag> <channel> CHANBANNED <tag> <channel> CHANPRIORITY <ircnet> <channel> <LOW/NORMAL/HIGH> 20

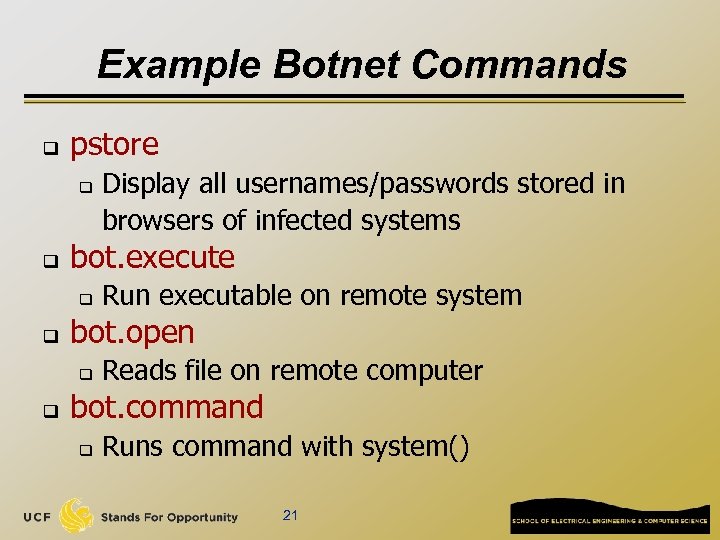

Example Botnet Commands q pstore q q bot. execute q q Run executable on remote system bot. open q q Display all usernames/passwords stored in browsers of infected systems Reads file on remote computer bot. command q Runs command with system() 21
Example Botnet Commands q http. execute Download and execute file through http q ftp. execute q q q ddos. udpflood ddos. synflod ddos. phaticmp redirect. http redirect. socks 22
Current Botnet Control Architecture botmaster C&C bot bot • More than one C&C server • Spread all around the world 23

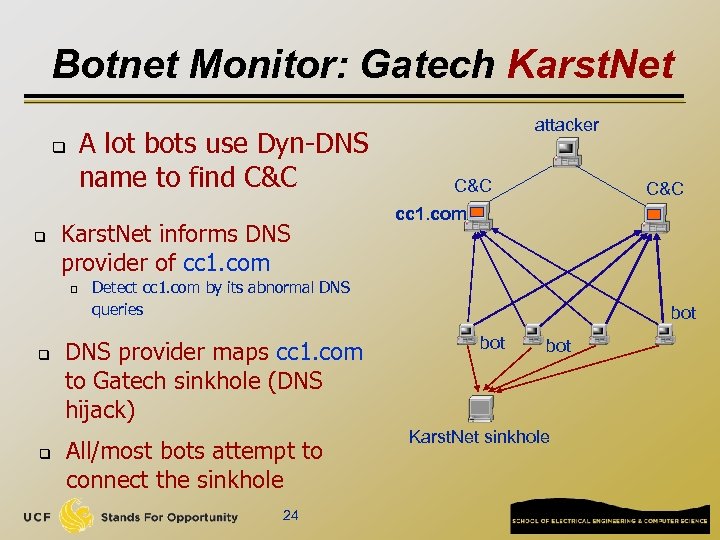

Botnet Monitor: Gatech Karst. Net A lot bots use Dyn-DNS name to find C&C q q Karst. Net informs DNS provider of cc 1. com q q q attacker C&C cc 1. com Detect cc 1. com by its abnormal DNS queries DNS provider maps cc 1. com to Gatech sinkhole (DNS hijack) All/most bots attempt to connect the sinkhole 24 bot bot Karst. Net sinkhole

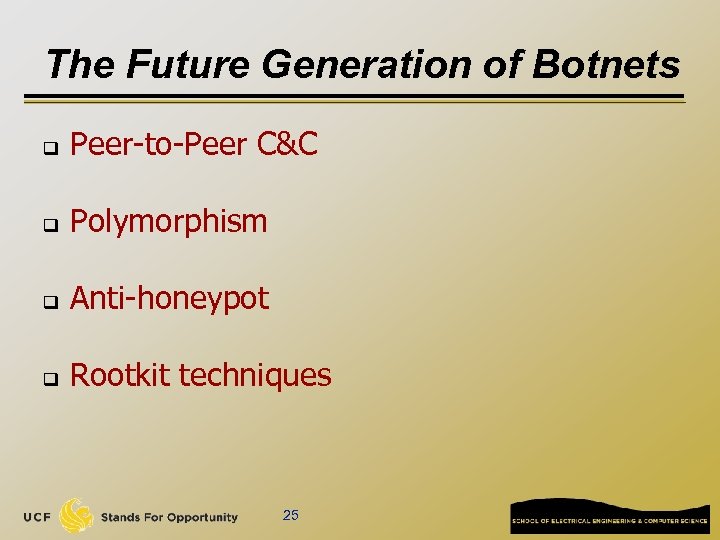

The Future Generation of Botnets q Peer-to-Peer C&C q Polymorphism q Anti-honeypot q Rootkit techniques 25
