Campylobacter C fetus veneralis C fetus C jejuni

Campylobacter C. fetus veneralis C. fetus C. jejuni C. coli C. upsaliensis C. lari C. hyointestinalis 1 קמפילובקטר

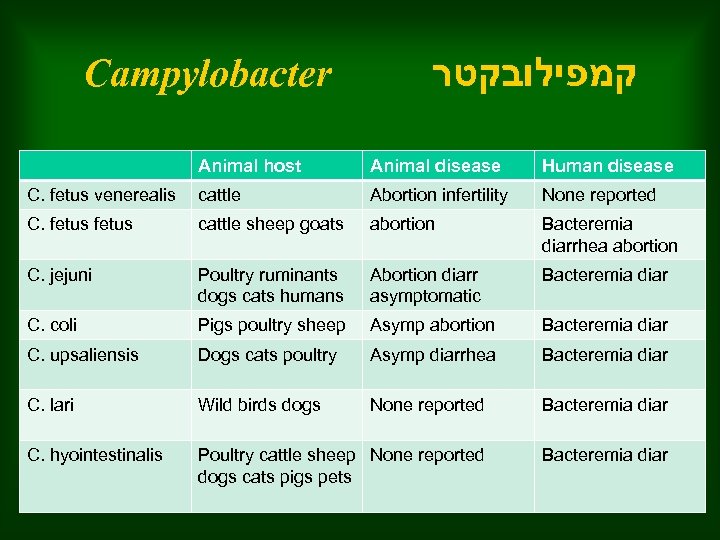

Campylobacter Animal host קמפילובקטר Animal disease Human disease C. fetus venerealis cattle Abortion infertility None reported C. fetus cattle sheep goats abortion Bacteremia diarrhea abortion C. jejuni Poultry ruminants dogs cats humans Abortion diarr asymptomatic Bacteremia diar C. coli Pigs poultry sheep Asymp abortion Bacteremia diar C. upsaliensis Dogs cats poultry Asymp diarrhea Bacteremia diar C. lari Wild birds dogs None reported Bacteremia diar C. hyointestinalis Poultry cattle sheep None reported dogs cats pigs pets Bacteremia diar 2

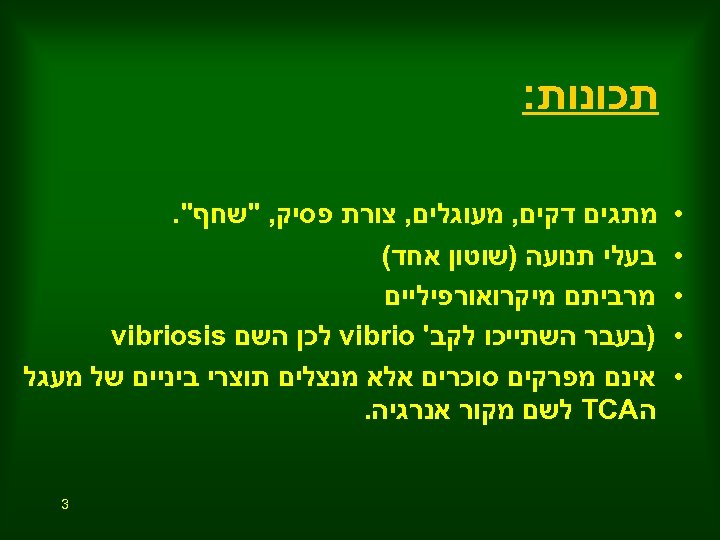

תכונות: • • • מתגים דקים, מעוגלים, צורת פסיק, "שחף". בעלי תנועה )שוטון אחד( מרביתם מיקרואורפיליים )בעבר השתייכו לקב' vibrio לכן השם vibriosis אינם מפרקים סוכרים אלא מנצלים תוצרי ביניים של מעגל ה TCA לשם מקור אנרגיה. 3

תרבית: • דרושים מצעים מיוחדים )תוספת אנטיביוטיקה + פירובט )כנגד רדיקלים של חמצן( • %5 חמצן, %012 CO ו%- גבוה של חנקן • צמיחה איטית )84 שעות ויותר( • לק. ונירליס דרוש מצע הובלה מיוחד 4

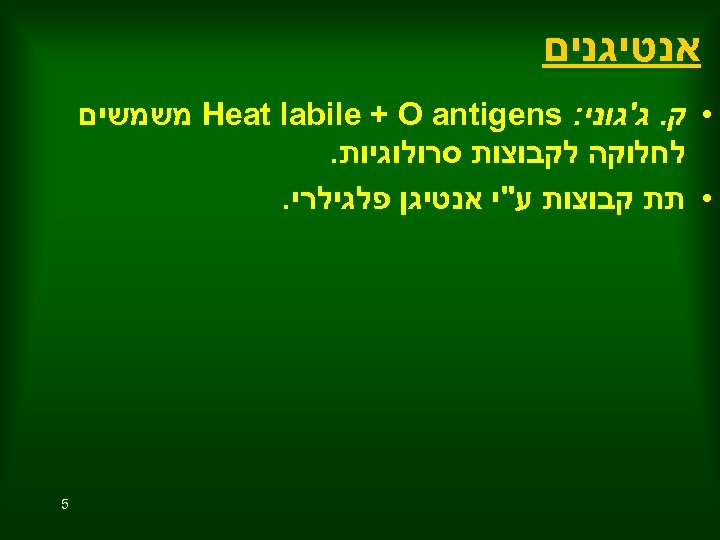

אנטיגנים • ק. ג'גוני: Heat labile + O antigens משמשים לחלוקה לקבוצות סרולוגיות. • תת קבוצות ע"י אנטיגן פלגילרי. 5

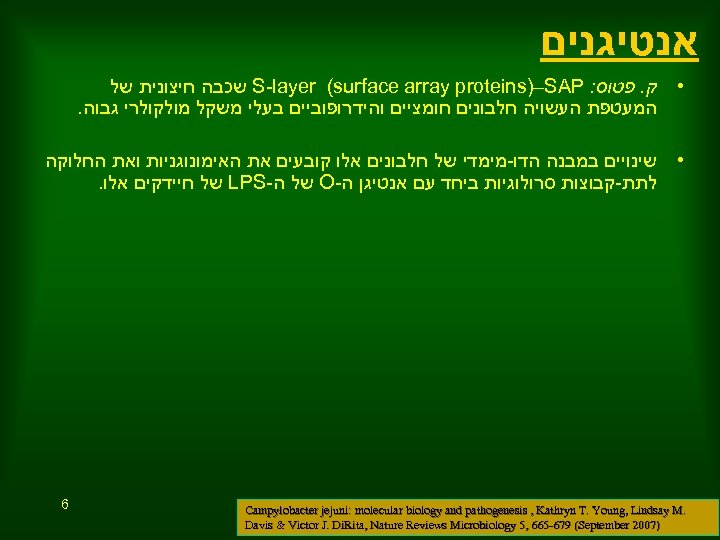

אנטיגנים • ק. פטוס: S-layer (surface array proteins)–SAP שכבה חיצונית של המעטפת העשויה חלבונים חומציים והידרופוביים בעלי משקל מולקולרי גבוה. • שינויים במבנה הדו-מימדי של חלבונים אלו קובעים את האימונוגניות ואת החלוקה לתת-קבוצות סרולוגיות ביחד עם אנטיגן ה- O של ה- LPS של חיידקים אלו. . Campylobacter jejuni: molecular biology and pathogenesis , Kathryn T. Young, Lindsay M )7002 Davis & Victor J. Di. Rita, Nature Reviews Microbiology 5, 665 -679 (September 6

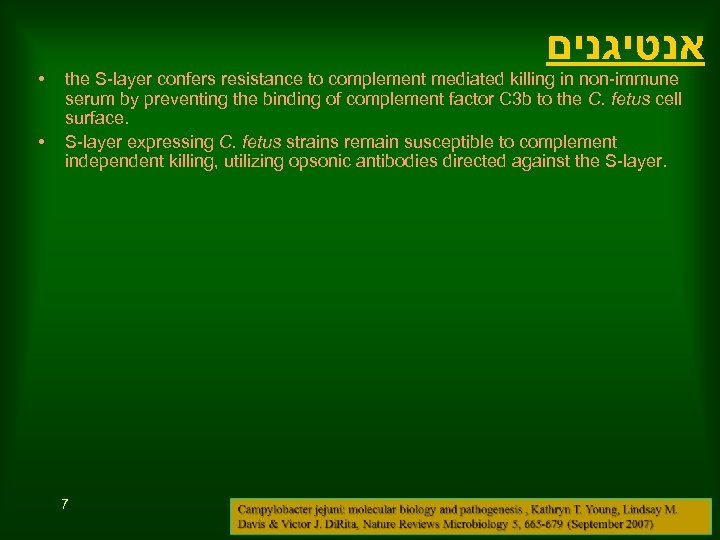

• • אנטיגנים the S-layer confers resistance to complement mediated killing in non-immune serum by preventing the binding of complement factor C 3 b to the C. fetus cell surface. S-layer expressing C. fetus strains remain susceptible to complement independent killing, utilizing opsonic antibodies directed against the S-layer. 7

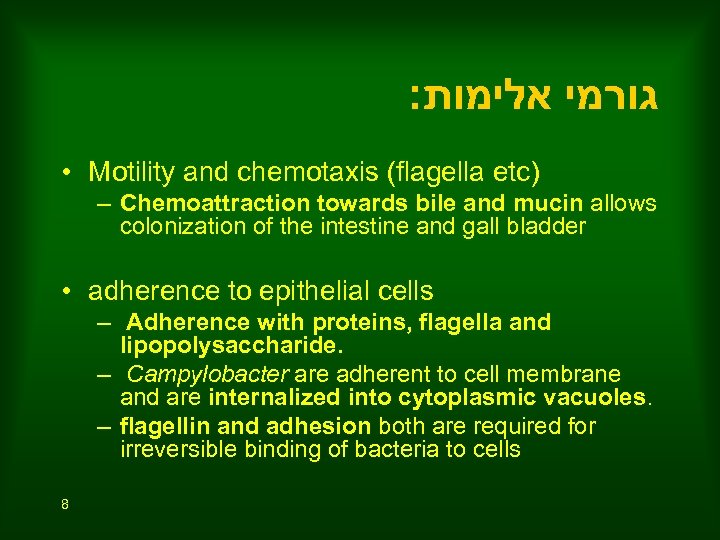

: גורמי אלימות • Motility and chemotaxis (flagella etc) – Chemoattraction towards bile and mucin allows colonization of the intestine and gall bladder • adherence to epithelial cells – Adherence with proteins, flagella and lipopolysaccharide. – Campylobacter are adherent to cell membrane and are internalized into cytoplasmic vacuoles. – flagellin and adhesion both are required for irreversible binding of bacteria to cells 8

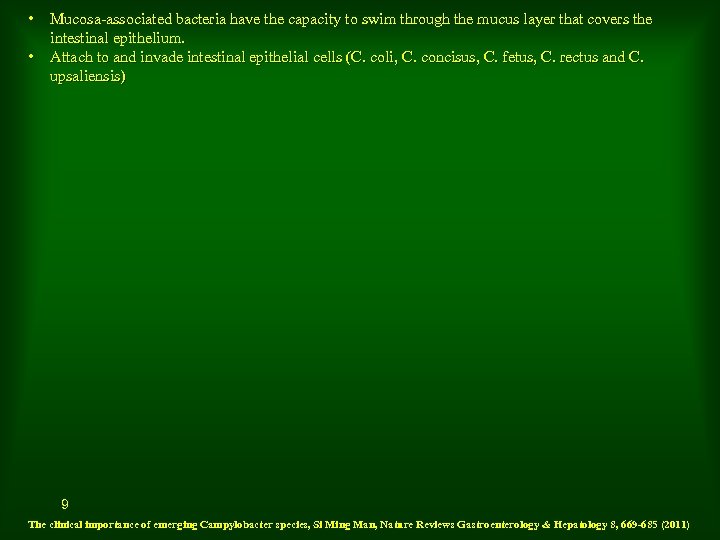

• Mucosa-associated bacteria have the capacity to swim through the mucus layer that covers the intestinal epithelium. • Attach to and invade intestinal epithelial cells (C. coli, C. concisus, C. fetus, C. rectus and C. upsaliensis) 9 The clinical importance of emerging Campylobacter species, Si Ming Man, Nature Reviews Gastroenterology & Hepatology 8, 669 -685 (2011)

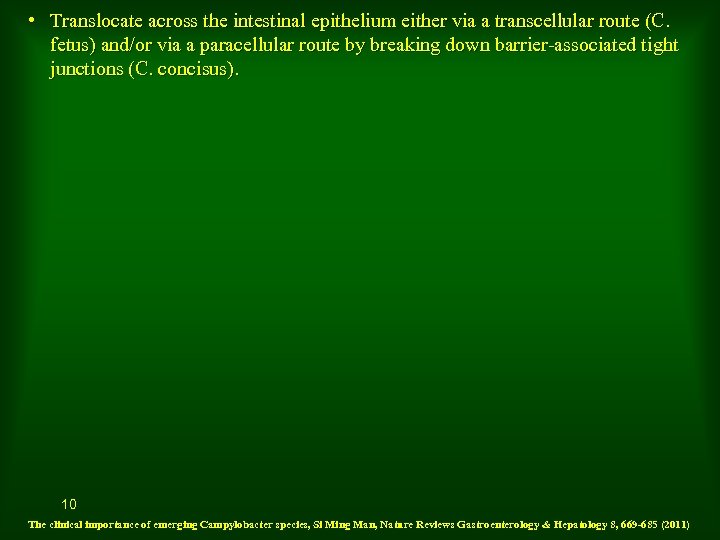

• Translocate across the intestinal epithelium either via a transcellular route (C. fetus) and/or via a paracellular route by breaking down barrier-associated tight junctions (C. concisus). 10 The clinical importance of emerging Campylobacter species, Si Ming Man, Nature Reviews Gastroenterology & Hepatology 8, 669 -685 (2011)

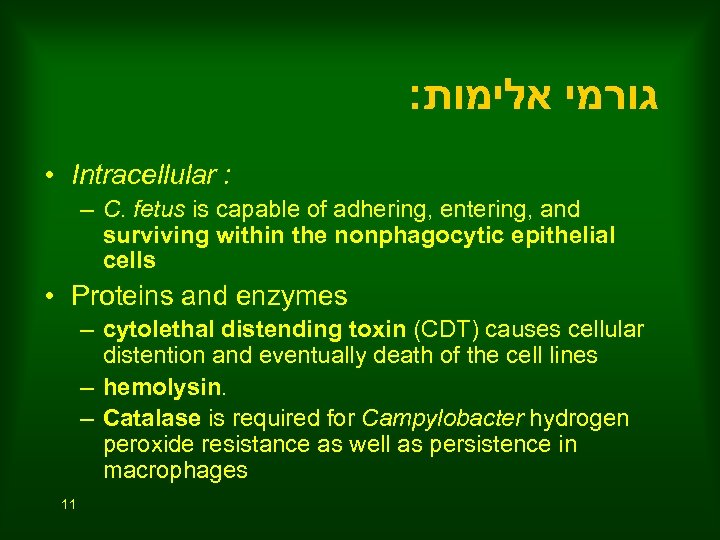

: גורמי אלימות • Intracellular : – C. fetus is capable of adhering, entering, and surviving within the nonphagocytic epithelial cells • Proteins and enzymes – cytolethal distending toxin (CDT) causes cellular distention and eventually death of the cell lines – hemolysin. – Catalase is required for Campylobacter hydrogen peroxide resistance as well as persistence in macrophages 11

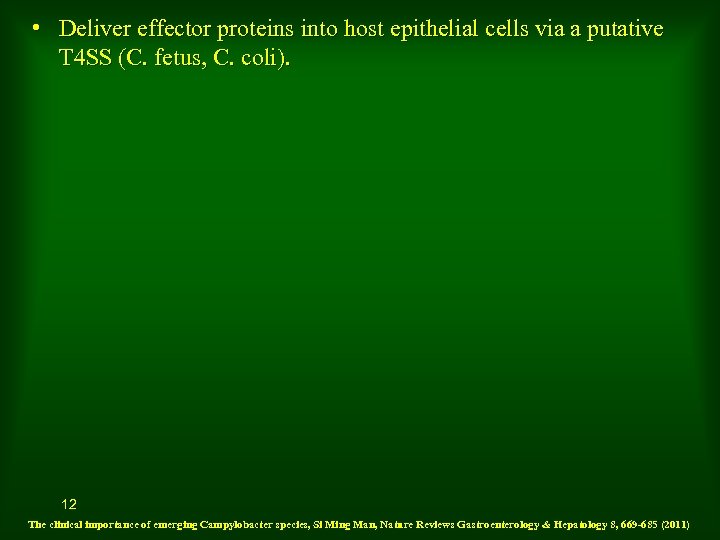

• Deliver effector proteins into host epithelial cells via a putative T 4 SS (C. fetus, C. coli). 12 The clinical importance of emerging Campylobacter species, Si Ming Man, Nature Reviews Gastroenterology & Hepatology 8, 669 -685 (2011)

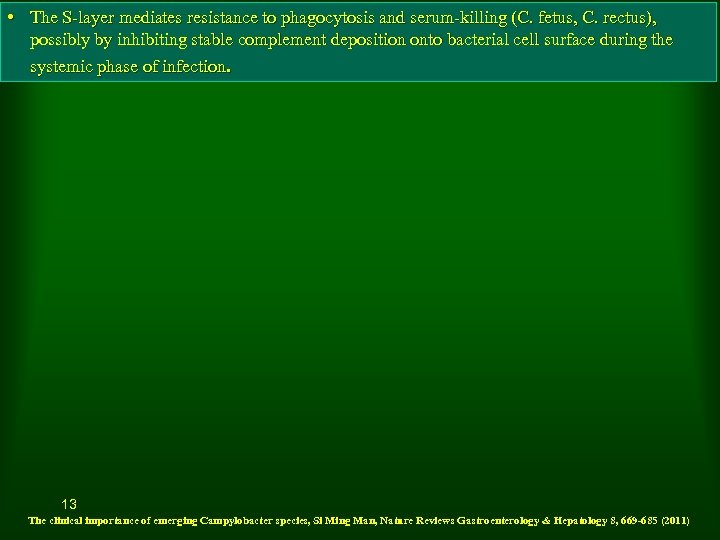

• The S-layer mediates resistance to phagocytosis and serum-killing (C. fetus, C. rectus), possibly by inhibiting stable complement deposition onto bacterial cell surface during the systemic phase of infection. 13 The clinical importance of emerging Campylobacter species, Si Ming Man, Nature Reviews Gastroenterology & Hepatology 8, 669 -685 (2011)

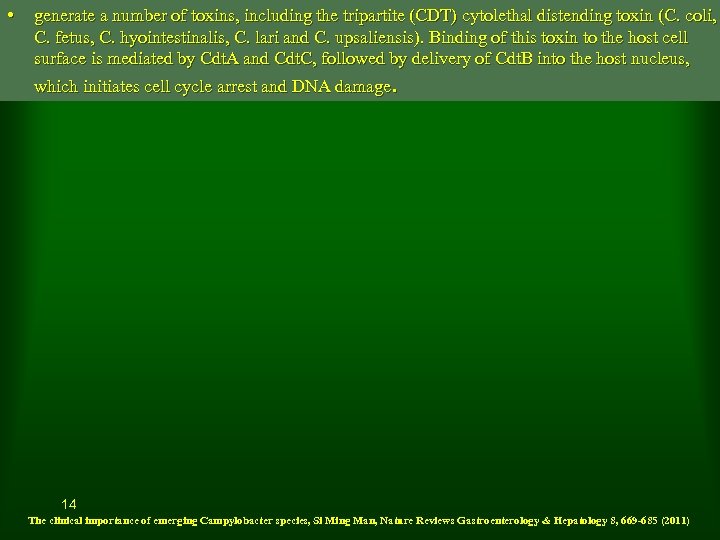

• generate a number of toxins, including the tripartite (CDT) cytolethal distending toxin (C. coli, C. fetus, C. hyointestinalis, C. lari and C. upsaliensis). Binding of this toxin to the host cell surface is mediated by Cdt. A and Cdt. C, followed by delivery of Cdt. B into the host nucleus, which initiates cell cycle arrest and DNA damage. 14 The clinical importance of emerging Campylobacter species, Si Ming Man, Nature Reviews Gastroenterology & Hepatology 8, 669 -685 (2011)

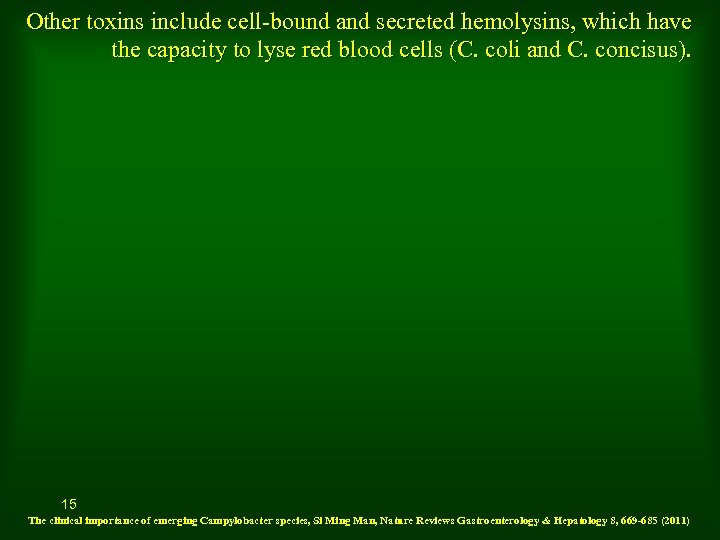

Other toxins include cell-bound and secreted hemolysins, which have the capacity to lyse red blood cells (C. coli and C. concisus). 15 The clinical importance of emerging Campylobacter species, Si Ming Man, Nature Reviews Gastroenterology & Hepatology 8, 669 -685 (2011)

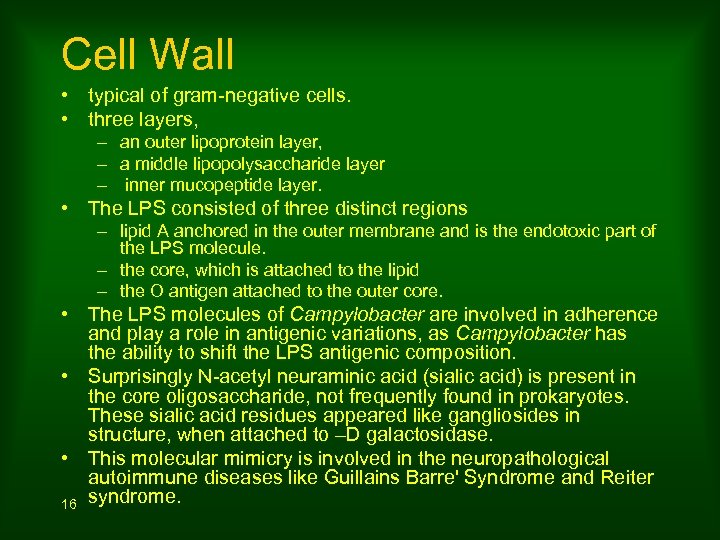

Cell Wall • typical of gram-negative cells. • three layers, – an outer lipoprotein layer, – a middle lipopolysaccharide layer – inner mucopeptide layer. • The LPS consisted of three distinct regions – lipid A anchored in the outer membrane and is the endotoxic part of the LPS molecule. – the core, which is attached to the lipid – the O antigen attached to the outer core. • The LPS molecules of Campylobacter are involved in adherence and play a role in antigenic variations, as Campylobacter has the ability to shift the LPS antigenic composition. • Surprisingly N-acetyl neuraminic acid (sialic acid) is present in the core oligosaccharide, not frequently found in prokaryotes. These sialic acid residues appeared like gangliosides in structure, when attached to –D galactosidase. • This molecular mimicry is involved in the neuropathological autoimmune diseases like Guillains Barre' Syndrome and Reiter 16 syndrome.

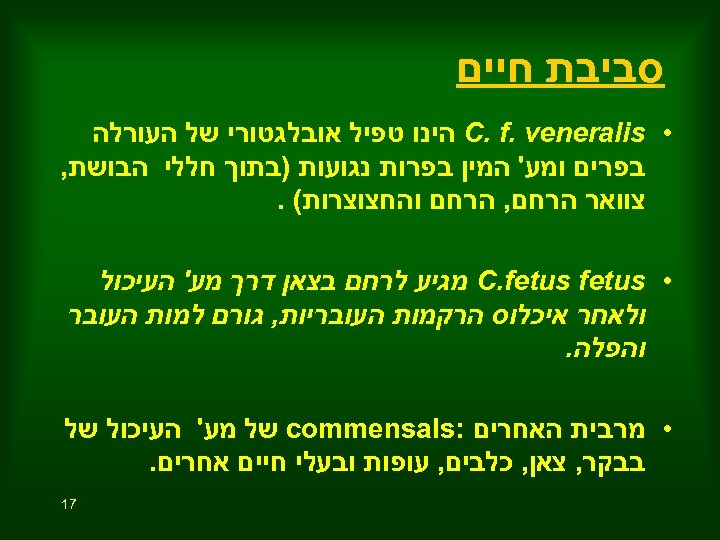

סביבת חיים • C. f. veneralis הינו טפיל אובלגטורי של העורלה בפרים ומע' המין בפרות נגועות )בתוך חללי הבושת, צוואר הרחם, הרחם והחצוצרות(. • C. fetus מגיע לרחם בצאן דרך מע' העיכול ולאחר איכלוס הרקמות העובריות, גורם למות העובר והפלה. • מרבית האחרים : commensals של מע' העיכול של בבקר, צאן, כלבים, עופות ובעלי חיים אחרים. 71

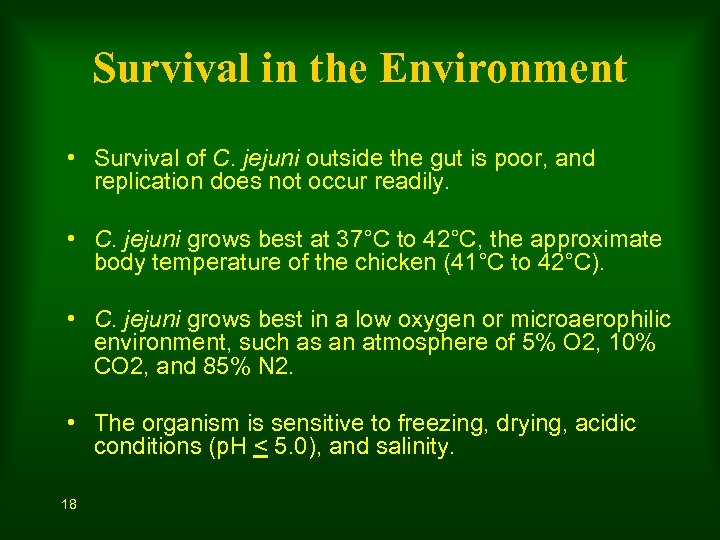

Survival in the Environment • Survival of C. jejuni outside the gut is poor, and replication does not occur readily. • C. jejuni grows best at 37°C to 42°C, the approximate body temperature of the chicken (41°C to 42°C). • C. jejuni grows best in a low oxygen or microaerophilic environment, such as an atmosphere of 5% O 2, 10% CO 2, and 85% N 2. • The organism is sensitive to freezing, drying, acidic conditions (p. H < 5. 0), and salinity. 18

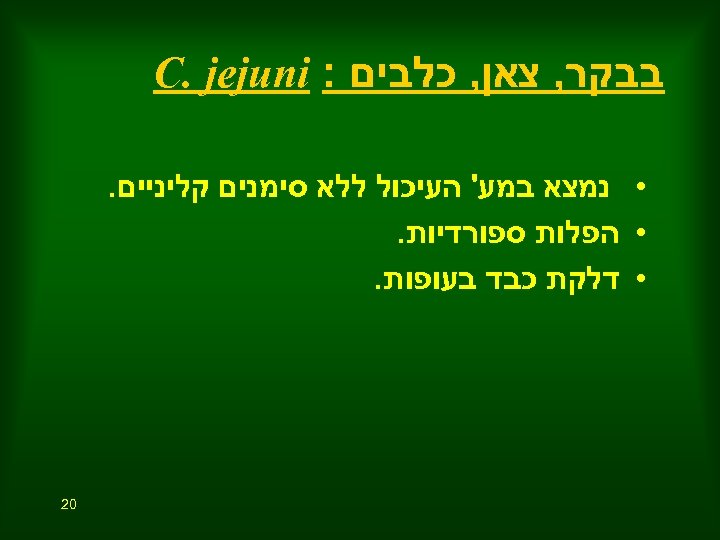

בבקר, צאן, כלבים : C. jejuni • נמצא במע' העיכול ללא סימנים קליניים. • הפלות ספורדיות. • דלקת כבד בעופות. 02

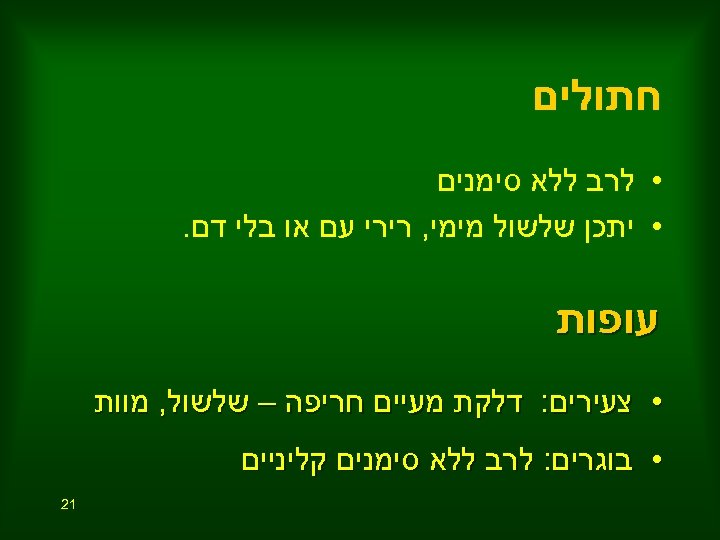

חתולים • לרב ללא סימנים • יתכן שלשול מימי, רירי עם או בלי דם. עופות • צעירים: דלקת מעיים חריפה – שלשול, מוות • בוגרים: לרב ללא סימנים קליניים 12

העברה • העברה אורו-פקאלית • מקורות: – צואה, זיהום משני, הפרשות רחם, נפלים, בשר עוף, בשר אחר, חלב לא מפוסטר, מים, ירקות מזוהמים, צדפים ועוד. – העברה מכאנית ע"י זבובים • מצב של נשאות בבע"ח אך בד"כ לא באדם. 22

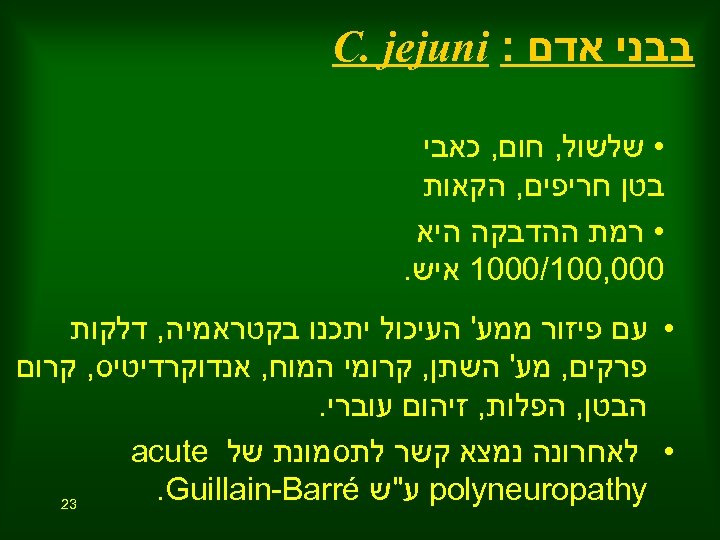

בבני אדם : C. jejuni • שלשול, חום, כאבי בטן חריפים, הקאות • רמת ההדבקה היא 000, 001/0001 איש. • עם פיזור ממע' העיכול יתכנו בקטראמיה, דלקות פרקים, מע' השתן, קרומי המוח, אנדוקרדיטיס, קרום הבטן, הפלות, זיהום עוברי. • לאחרונה נמצא קשר לתסמונת של acute polyneuropathy ע"ש . Guillain-Barré 32

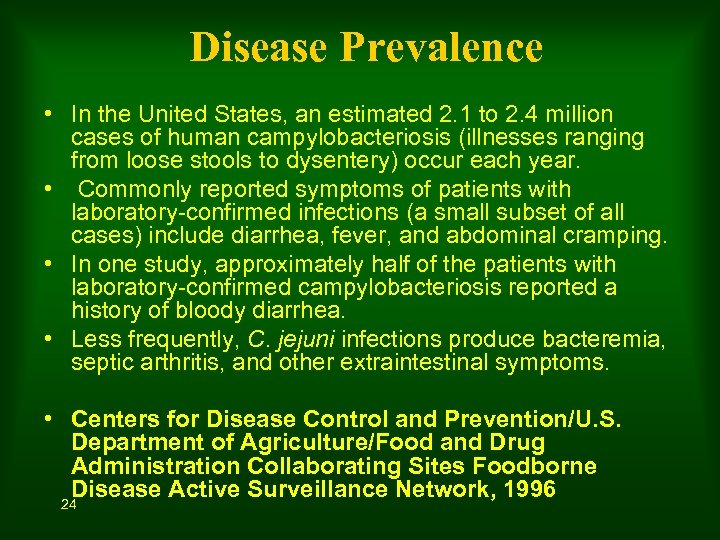

Disease Prevalence • In the United States, an estimated 2. 1 to 2. 4 million cases of human campylobacteriosis (illnesses ranging from loose stools to dysentery) occur each year. • Commonly reported symptoms of patients with laboratory-confirmed infections (a small subset of all cases) include diarrhea, fever, and abdominal cramping. • In one study, approximately half of the patients with laboratory-confirmed campylobacteriosis reported a history of bloody diarrhea. • Less frequently, C. jejuni infections produce bacteremia, septic arthritis, and other extraintestinal symptoms. • Centers for Disease Control and Prevention/U. S. Department of Agriculture/Food and Drug Administration Collaborating Sites Foodborne Disease Active Surveillance Network, 1996 24

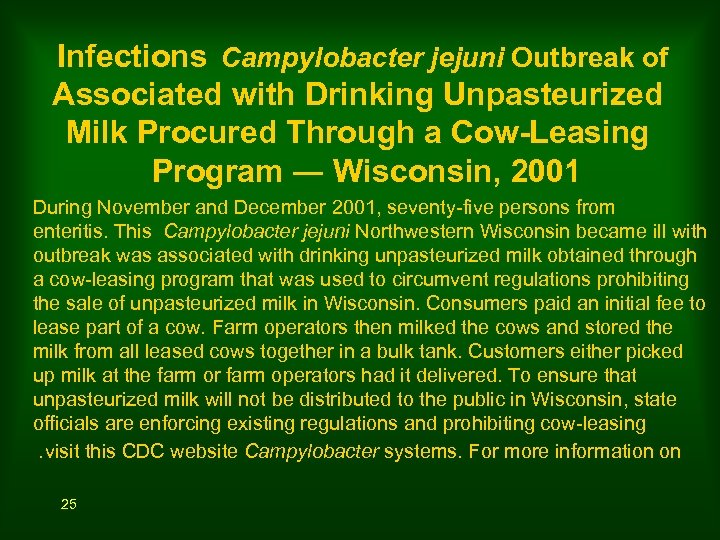

Infections Campylobacter jejuni Outbreak of Associated with Drinking Unpasteurized Milk Procured Through a Cow-Leasing Program ― Wisconsin, 2001 During November and December 2001, seventy-five persons from enteritis. This Campylobacter jejuni Northwestern Wisconsin became ill with outbreak was associated with drinking unpasteurized milk obtained through a cow-leasing program that was used to circumvent regulations prohibiting the sale of unpasteurized milk in Wisconsin. Consumers paid an initial fee to lease part of a cow. Farm operators then milked the cows and stored the milk from all leased cows together in a bulk tank. Customers either picked up milk at the farm or farm operators had it delivered. To ensure that unpasteurized milk will not be distributed to the public in Wisconsin, state officials are enforcing existing regulations and prohibiting cow-leasing . visit this CDC website Campylobacter systems. For more information on 25

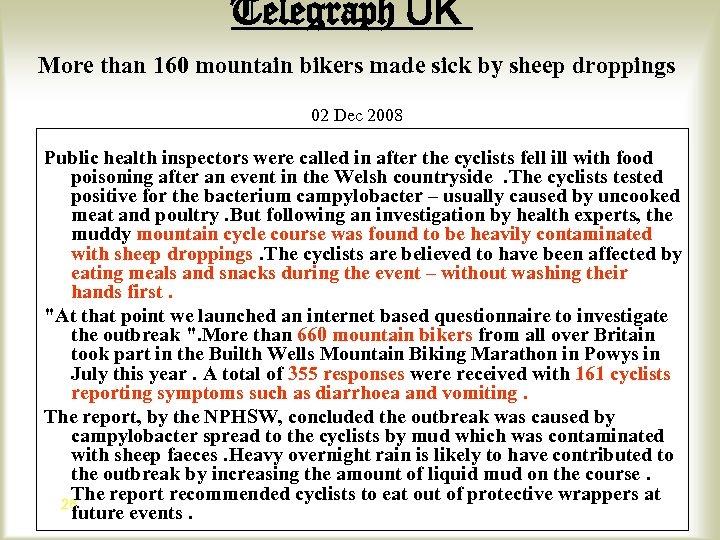

Telegraph UK More than 160 mountain bikers made sick by sheep droppings 02 Dec 2008 Public health inspectors were called in after the cyclists fell ill with food poisoning after an event in the Welsh countryside. The cyclists tested positive for the bacterium campylobacter – usually caused by uncooked meat and poultry. But following an investigation by health experts, the muddy mountain cycle course was found to be heavily contaminated with sheep droppings. The cyclists are believed to have been affected by eating meals and snacks during the event – without washing their hands first. "At that point we launched an internet based questionnaire to investigate the outbreak ". More than 660 mountain bikers from all over Britain took part in the Builth Wells Mountain Biking Marathon in Powys in July this year. A total of 355 responses were received with 161 cyclists reporting symptoms such as diarrhoea and vomiting. The report, by the NPHSW, concluded the outbreak was caused by campylobacter spread to the cyclists by mud which was contaminated with sheep faeces. Heavy overnight rain is likely to have contributed to the outbreak by increasing the amount of liquid mud on the course. The report recommended cyclists to eat out of protective wrappers at 26 future events.

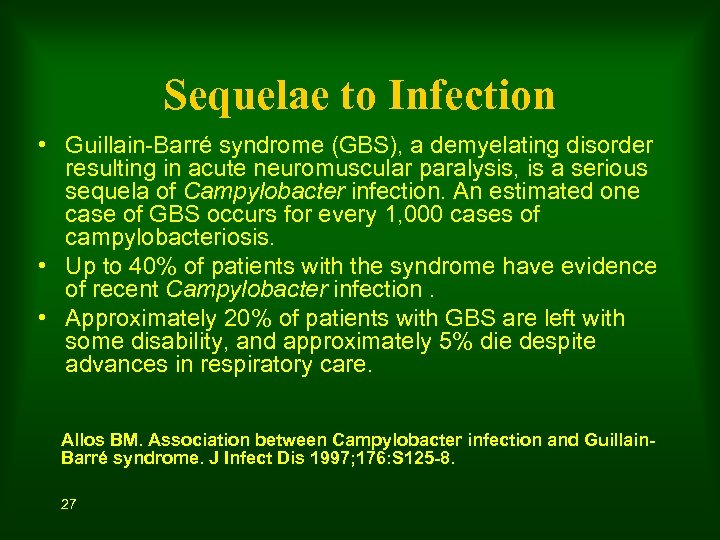

Sequelae to Infection • Guillain-Barré syndrome (GBS), a demyelating disorder resulting in acute neuromuscular paralysis, is a serious sequela of Campylobacter infection. An estimated one case of GBS occurs for every 1, 000 cases of campylobacteriosis. • Up to 40% of patients with the syndrome have evidence of recent Campylobacter infection. • Approximately 20% of patients with GBS are left with some disability, and approximately 5% die despite advances in respiratory care. Allos BM. Association between Campylobacter infection and Guillain. Barré syndrome. J Infect Dis 1997; 176: S 125 -8. 27

Guillain-Barre syndrome acute inflammatory demyelinating polyneuropathy (AIDP) 28

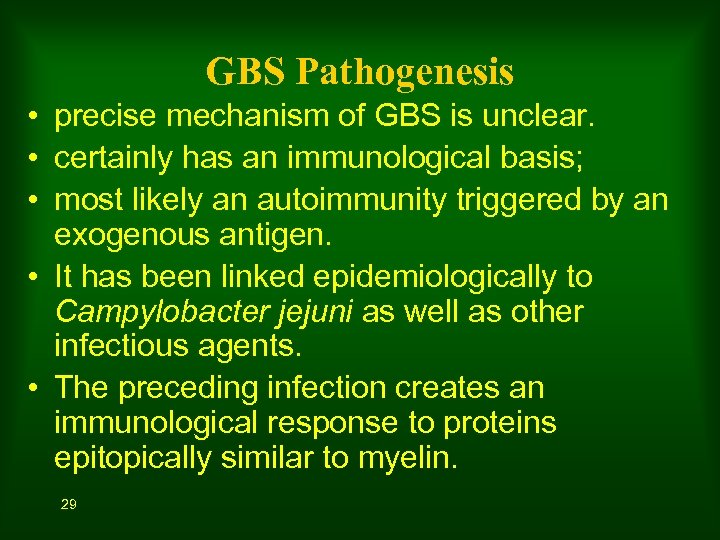

GBS Pathogenesis • precise mechanism of GBS is unclear. • certainly has an immunological basis; • most likely an autoimmunity triggered by an exogenous antigen. • It has been linked epidemiologically to Campylobacter jejuni as well as other infectious agents. • The preceding infection creates an immunological response to proteins epitopically similar to myelin. 29

This is a mid-power image of a nerve which has been stained with a different myelin stain, which stains the myelin blue. There is patchy myelin loss within the nerve. You an also see some small round lymphocyte nuclei. This is the same nerve as that in the image immediately above. This time it is stained with an axonal stain. The black horizontal lines are the axons. Note that the axons are preserved even in areas of myelin loss. 30

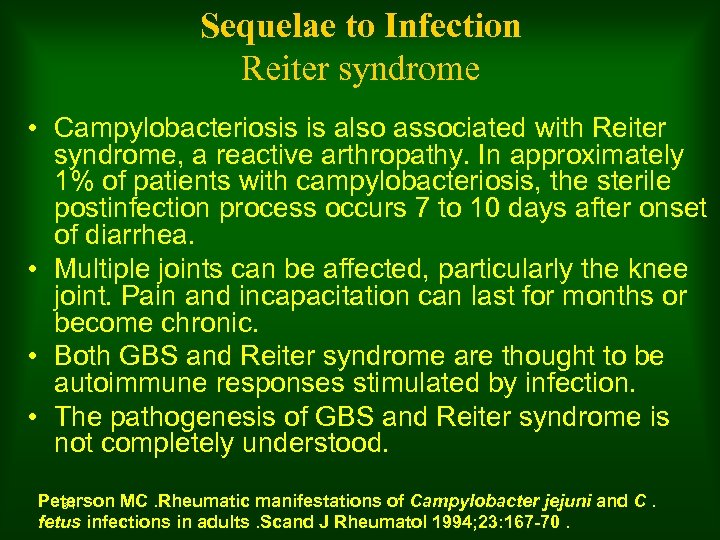

Sequelae to Infection Reiter syndrome • Campylobacteriosis is also associated with Reiter syndrome, a reactive arthropathy. In approximately 1% of patients with campylobacteriosis, the sterile postinfection process occurs 7 to 10 days after onset of diarrhea. • Multiple joints can be affected, particularly the knee joint. Pain and incapacitation can last for months or become chronic. • Both GBS and Reiter syndrome are thought to be autoimmune responses stimulated by infection. • The pathogenesis of GBS and Reiter syndrome is not completely understood. Peterson MC. Rheumatic manifestations of Campylobacter jejuni and C. 31 fetus infections in adults. Scand J Rheumatol 1994; 23: 167 -70.

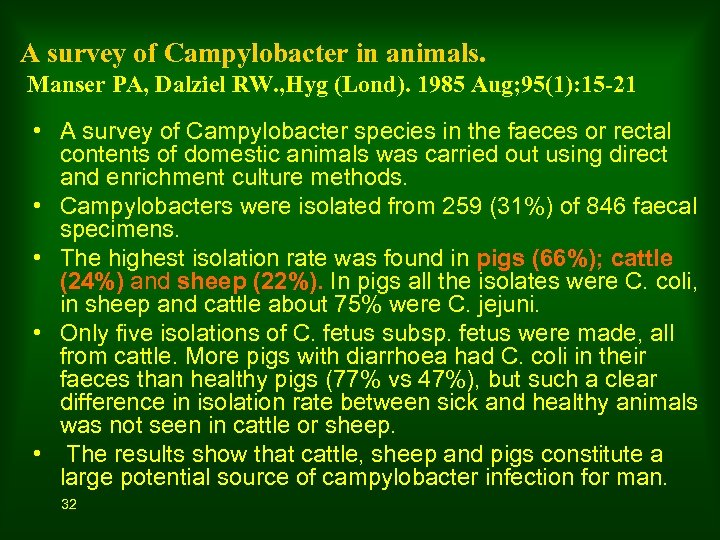

A survey of Campylobacter in animals. Manser PA, Dalziel RW. , Hyg (Lond). 1985 Aug; 95(1): 15 -21 • A survey of Campylobacter species in the faeces or rectal contents of domestic animals was carried out using direct and enrichment culture methods. • Campylobacters were isolated from 259 (31%) of 846 faecal specimens. • The highest isolation rate was found in pigs (66%); cattle (24%) and sheep (22%). In pigs all the isolates were C. coli, in sheep and cattle about 75% were C. jejuni. • Only five isolations of C. fetus subsp. fetus were made, all from cattle. More pigs with diarrhoea had C. coli in their faeces than healthy pigs (77% vs 47%), but such a clear difference in isolation rate between sick and healthy animals was not seen in cattle or sheep. • The results show that cattle, sheep and pigs constitute a large potential source of campylobacter infection for man. 32

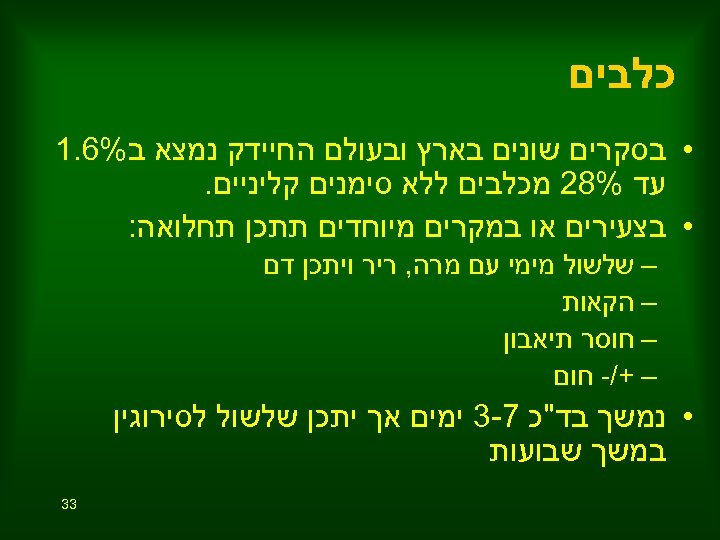

כלבים • בסקרים שונים בארץ ובעולם החיידק נמצא ב%6. 1 עד %82 מכלבים ללא סימנים קליניים. • בצעירים או במקרים מיוחדים תתכן תחלואה: – שלשול מימי עם מרה, ריר ויתכן דם – הקאות – חוסר תיאבון – +/- חום • נמשך בד"כ 7 -3 ימים אך יתכן שלשול לסירוגין במשך שבועות 33

34

Antimicrobial Resistance • The increasing rate of human infections caused by antimicrobial-resistant strains of C. jejuni makes clinical management of cases of campylobacter more difficult. • Antimicrobial resistance can prolong illness and compromise treatment of patients with bacteremia. • The rate of antimicrobial-resistant enteric infections is highest in the developing world, where the use of antimicrobial drugs in humans and animals is relatively unrestricted. • Piddock LJV. Quinolone resistance and Campylobacter spp. Antimicrob Agents Chemother 1995; 36: 891 -8. • Jacobs-Reitsma WF, Kan CA, Bolder NM. The induction of quinolone resistance in Campylobacteria in broilers by quinolone treatment. In: Campylobacters, helicobacters, and related organisms. Newell DG, Ketley JM, Feldman RA, editors. 35 New York: Plenum Press; 1996. p. 307 -11.

Antimicrobial Resistance • Experimental evidence demonstrates that fluoroquinolonesusceptible C. jejuni readily become drug-resistant in chickens when these drugs are administered. • After flouroquinolone use in poultry was approved in Europe, resistant C. jejuni strains emerged rapidly in humans during the early 1990 s. • Similarly, within 2 years of the 1995 approval of fluoroquinolone use for poultry in the United States, the number of domestically acquired human cases of ciprofloxacin-resistant campylobacteriosis doubled in Minnesota. Smith KE, Besser JM, Leano F, Bender J, Wicklund J, Johnson B, et al. Fluoroquinoloneresistant Campylobacter isolated from humans and poultry in Minnesota [abstract]. 36 Program of the 1 st International Conference on Emerging Infectious Diseases; Atlanta, Georgia; 1998 Mar 7 -10. Atlanta: Centers for Disease Control and Prevention; 1998.

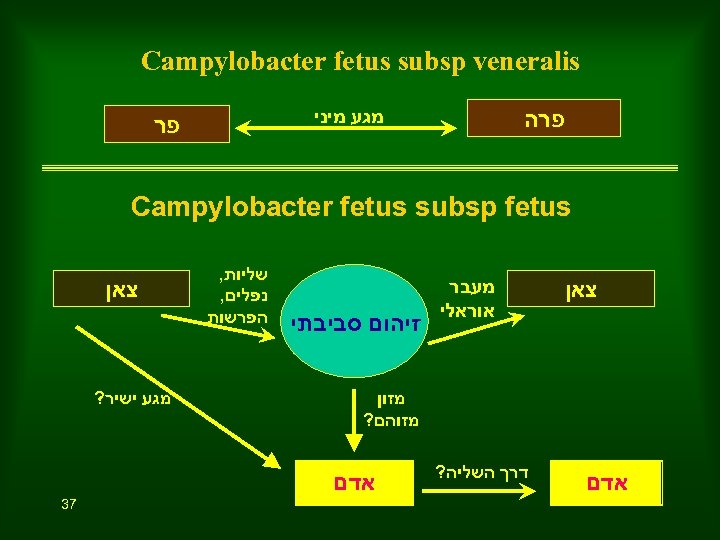

Campylobacter fetus subsp veneralis מגע מיני פרה פר Campylobacter fetus subsp fetus צאן מעבר אוראלי זיהום סביבתי מזון מזוהם? אדם דרך השליה? שליות, נפלים, הפרשות צאן מגע ישיר? אדם 73

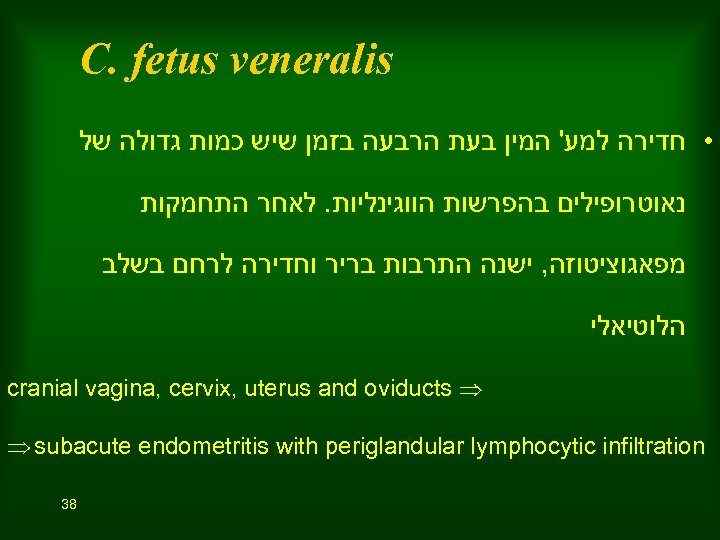

C. fetus veneralis • חדירה למע' המין בעת הרבעה בזמן שיש כמות גדולה של נאוטרופילים בהפרשות הווגינליות. לאחר התחמקות מפאגוציטוזה, ישנה התרבות בריר וחדירה לרחם בשלב הלוטיאלי cranial vagina, cervix, uterus and oviducts subacute endometritis with periglandular lymphocytic infiltration 83

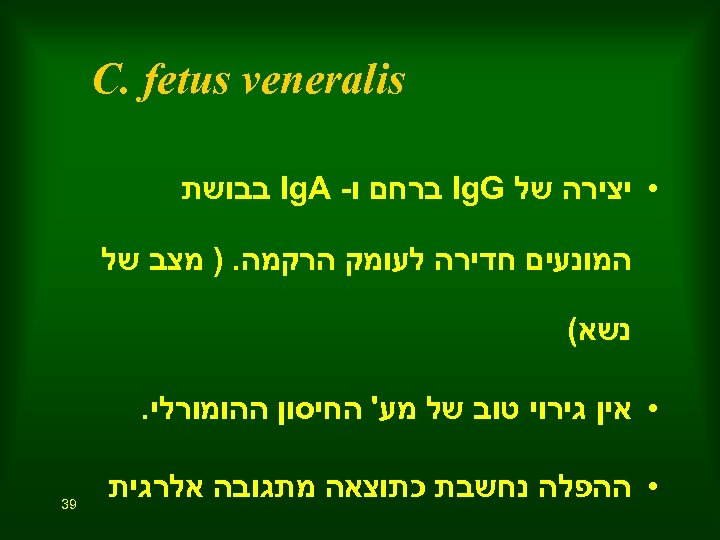

C. fetus veneralis • יצירה של Ig. G ברחם ו- Ig. A בבושת המונעים חדירה לעומק הרקמה. ) מצב של נשא( • אין גירוי טוב של מע' החיסון ההומורלי. • ההפלה נחשבת כתוצאה מתגובה אלרגית 93

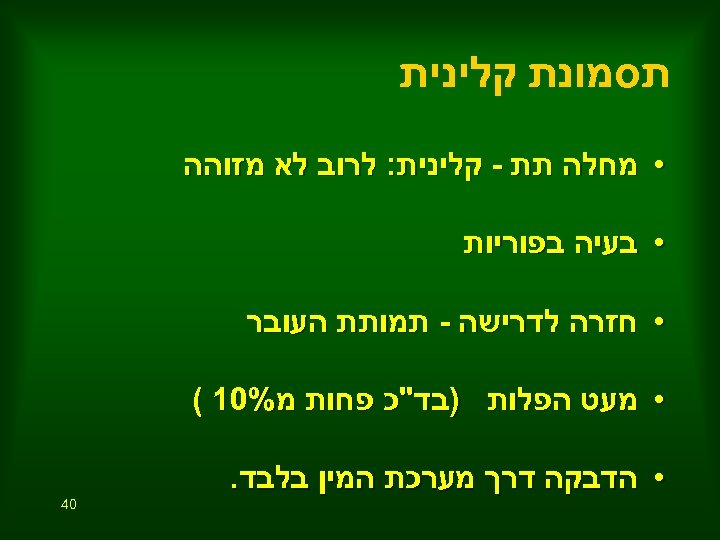

תסמונת קלינית • מחלה תת - קלינית: לרוב לא מזוהה • בעיה בפוריות • חזרה לדרישה - תמותת העובר • מעט הפלות )בד"כ פחות מ%01 ( • הדבקה דרך מערכת המין בלבד. 04

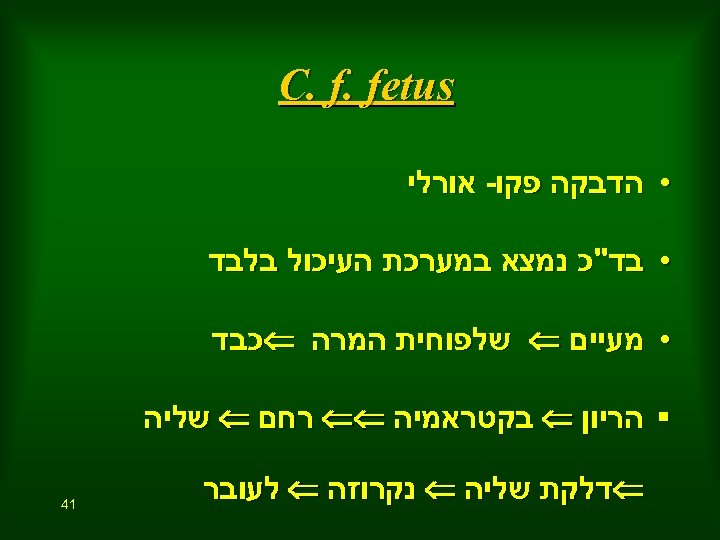

C. f. fetus • הדבקה פקו- אורלי • בד"כ נמצא במערכת העיכול בלבד • מעיים שלפוחית המרה כבד § הריון בקטראמיה רחם שליה דלקת שליה נקרוזה לעובר 14

Campylobacter fetus in man Campylobacter fetus subsp veneralis • – Few cases documented in man – Debilitating factors (pregnancy, alcoholism, neoplasia, cardiac dis. • Campylobacter fetus subsp fetus – Septicemia – 17% - 43% die – Abortion, premature birth, full term birth which up to 50% may die of meningoencephalitis 42

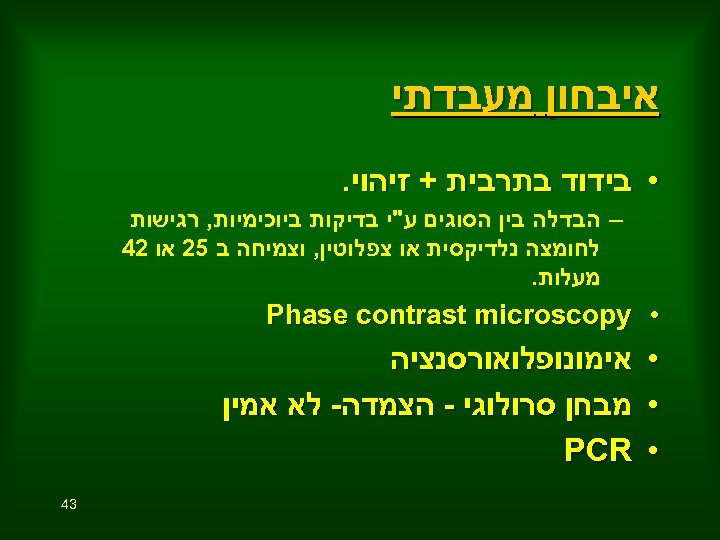

איבחון מעבדתי • בידוד בתרבית + זיהוי. – הבדלה בין הסוגים ע"י בדיקות ביוכימיות, רגישות לחומצה נלדיקסית או צפלוטין, וצמיחה ב 52 או 24 מעלות. • Phase contrast microscopy • • • אימונופלואורסנציה מבחן סרולוגי - הצמדה- לא אמין PCR 34

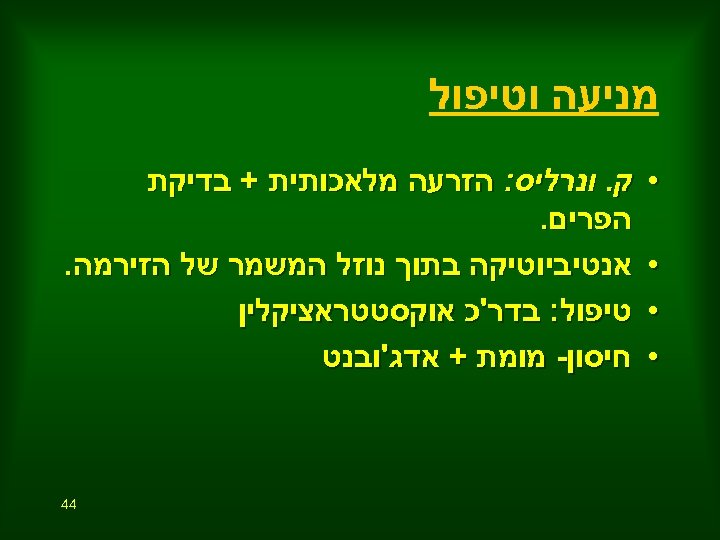

מניעה וטיפול • • ק. ונרליס: הזרעה מלאכותית + בדיקת הפרים. אנטיביוטיקה בתוך נוזל המשמר של הזירמה. טיפול: בדר'כ אוקסטטראציקלין חיסון- מומת + אדג'ובנט 44

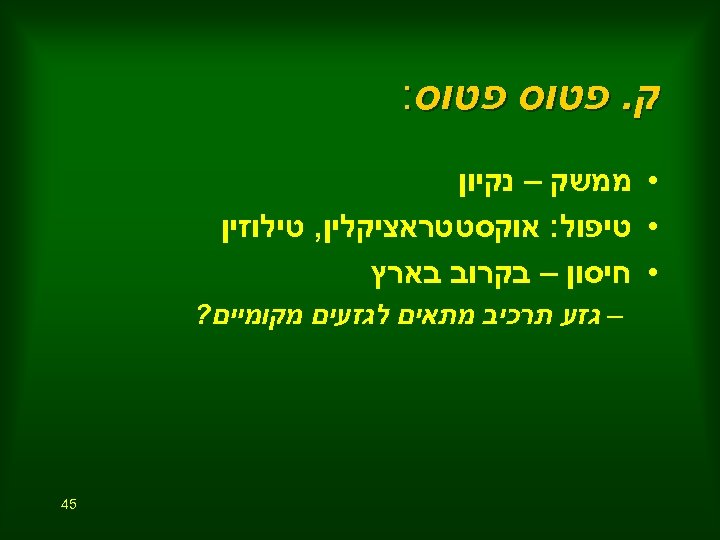

ק. פטוס: • ממשק – נקיון • טיפול: אוקסטטראציקלין, טילוזין • חיסון – בקרוב בארץ – גזע תרכיב מתאים לגזעים מקומיים? 54

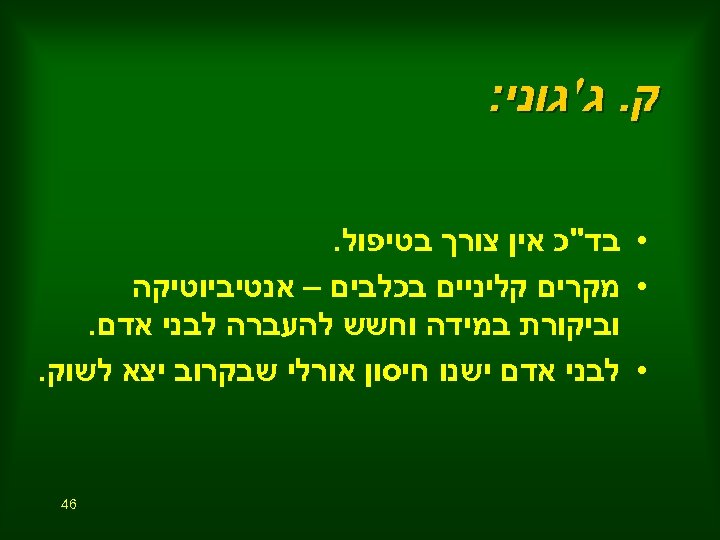

ק. ג'גוני: • בד"כ אין צורך בטיפול. • מקרים קליניים בכלבים – אנטיביוטיקה וביקורת במידה וחשש להעברה לבני אדם. • לבני אדם ישנו חיסון אורלי שבקרוב יצא לשוק. 64

Control of Campylobacter Infection On the Farm • Control of Campylobacter contamination on the farm may reduce contamination of carcasses, poultry, and red meat products at the retail level. • Epidemiologic studies indicate that strict hygiene reduces intestinal carriage in food-producing animals. • In field studies, poultry flocks that drank chlorinated water had lower intestinal colonization rates than poultry that drank unchlorinated water. • Experimentally, treatment of chicks with commensal bacteria and immunization of older birds reduced C. jejuni colonization. • Because intestinal colonization with campylobacters readily occurs in poultry flocks, even strict measures may not eliminate intestinal carriage by food-producing animals. Stern NJ. Mucosal competitive exclusion to diminish colonization of chickens by Campylobacter jejuni. Poult Sci 1994; 73: 402 -7. 47 Widders PR, Perry R, Muir WI, Husband AJ, Long KA. Immunization of chickens to reduce intestinal colonization with Campylobacter jejuni. Br Poult Sci 1996; 37: 765 -8.
