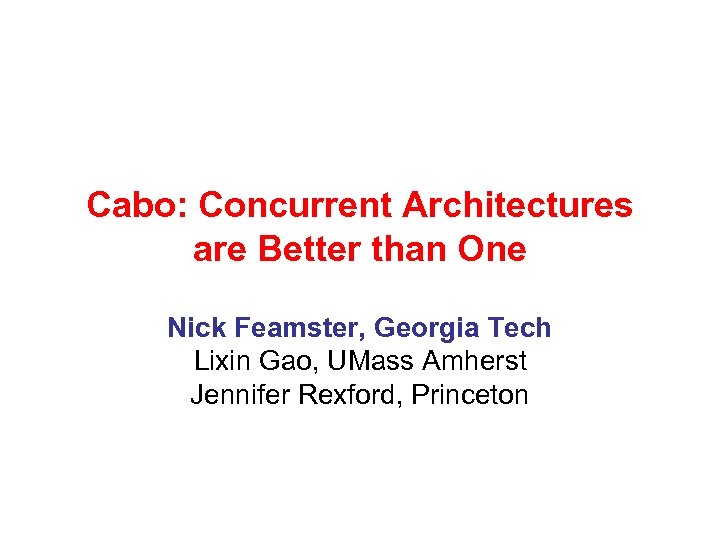

Cabo: Concurrent Architectures are Better than One Nick Feamster, Georgia Tech Lixin Gao, UMass Amherst Jennifer Rexford, Princeton

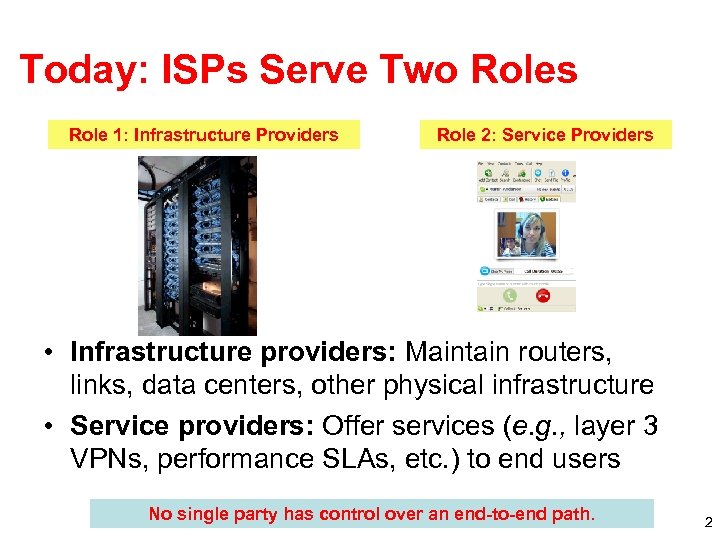

Today: ISPs Serve Two Roles Role 1: Infrastructure Providers Role 2: Service Providers • Infrastructure providers: Maintain routers, links, data centers, other physical infrastructure • Service providers: Offer services (e. g. , layer 3 VPNs, performance SLAs, etc. ) to end users No single party has control over an end-to-end path. 2

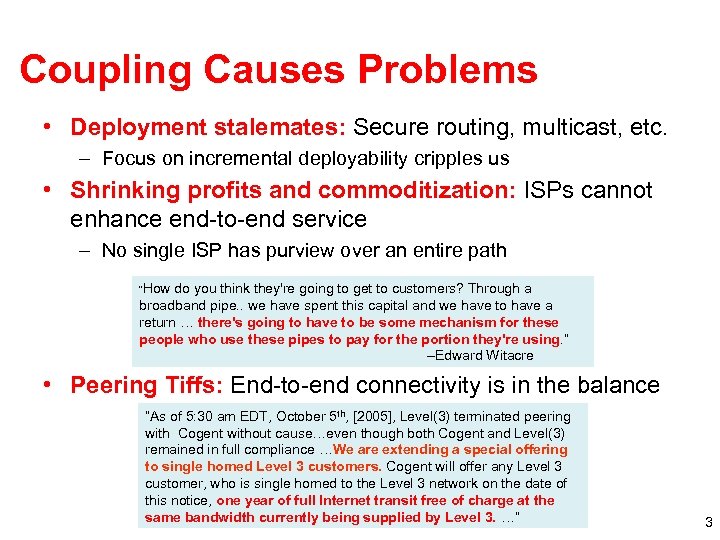

Coupling Causes Problems • Deployment stalemates: Secure routing, multicast, etc. – Focus on incremental deployability cripples us • Shrinking profits and commoditization: ISPs cannot enhance end-to-end service – No single ISP has purview over an entire path “How do you think they're going to get to customers? Through a broadband pipe. . we have spent this capital and we have to have a return … there's going to have to be some mechanism for these people who use these pipes to pay for the portion they're using. ” –Edward Witacre • Peering Tiffs: End-to-end connectivity is in the balance “As of 5: 30 am EDT, October 5 th, [2005], Level(3) terminated peering with Cogent without cause…even though both Cogent and Level(3) remained in full compliance …We are extending a special offering to single homed Level 3 customers. Cogent will offer any Level 3 customer, who is single homed to the Level 3 network on the date of this notice, one year of full Internet transit free of charge at the same bandwidth currently being supplied by Level 3. …” 3

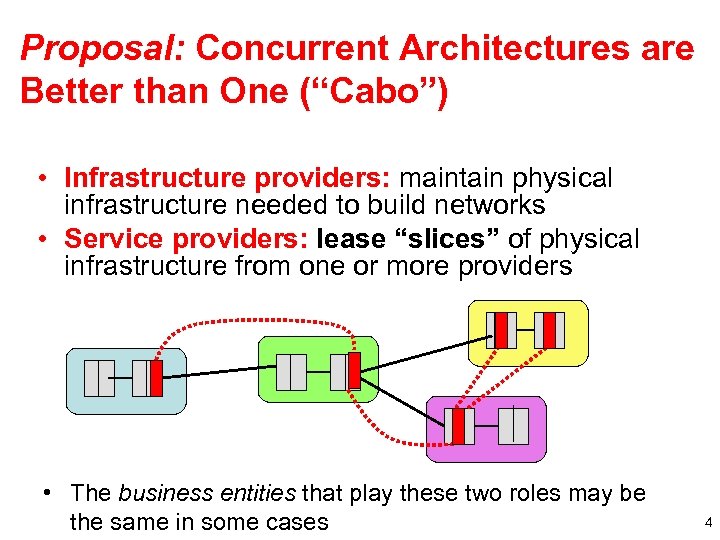

Proposal: Concurrent Architectures are Better than One (“Cabo”) • Infrastructure providers: maintain physical infrastructure needed to build networks • Service providers: lease “slices” of physical infrastructure from one or more providers • The business entities that play these two roles may be the same in some cases 4

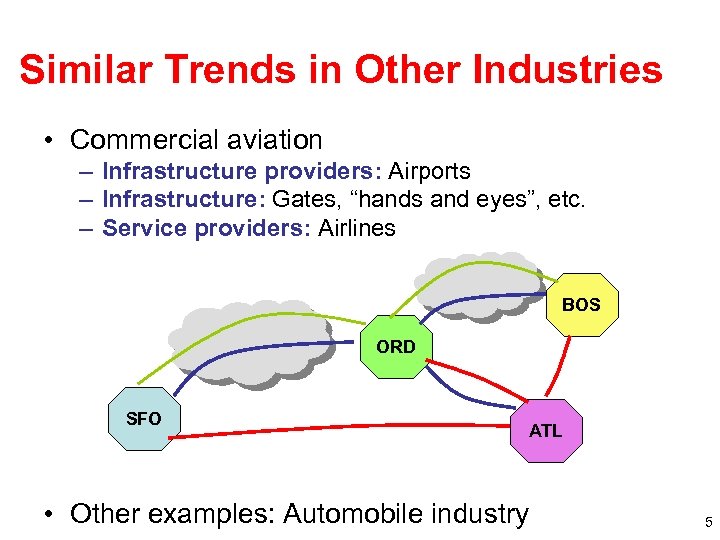

Similar Trends in Other Industries • Commercial aviation – Infrastructure providers: Airports – Infrastructure: Gates, “hands and eyes”, etc. – Service providers: Airlines BOS ORD SFO ATL • Other examples: Automobile industry 5
The Internet is not a plane. 6

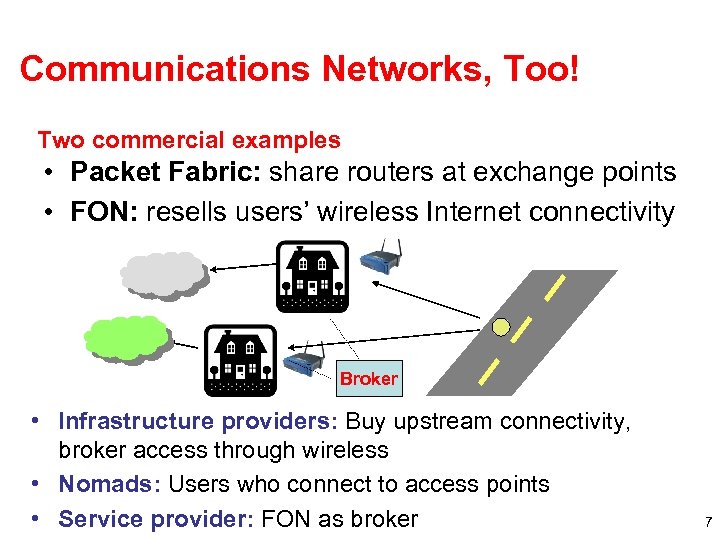

Communications Networks, Too! Two commercial examples • Packet Fabric: share routers at exchange points • FON: resells users’ wireless Internet connectivity Broker • Infrastructure providers: Buy upstream connectivity, broker access through wireless • Nomads: Users who connect to access points • Service provider: FON as broker 7

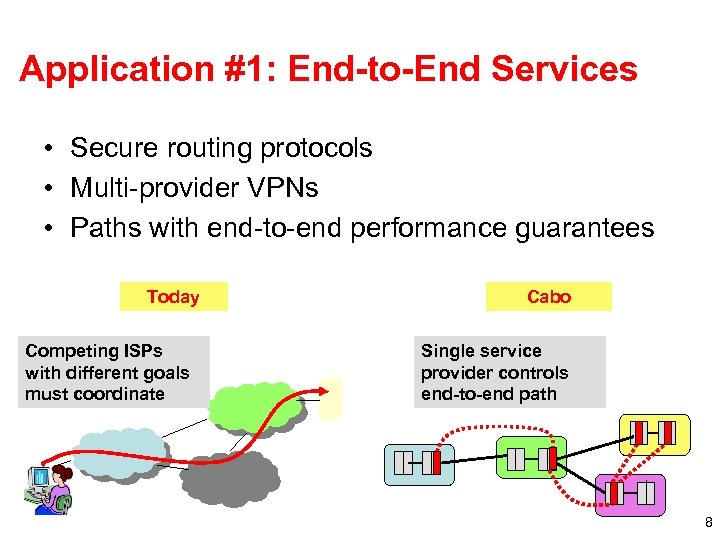

Application #1: End-to-End Services • Secure routing protocols • Multi-provider VPNs • Paths with end-to-end performance guarantees Today Competing ISPs with different goals must coordinate Cabo Single service provider controls end-to-end path 8

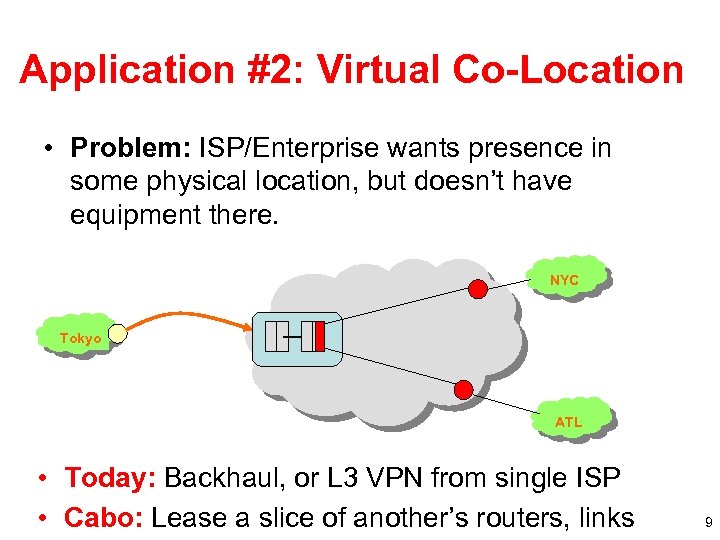

Application #2: Virtual Co-Location • Problem: ISP/Enterprise wants presence in some physical location, but doesn’t have equipment there. NYC Tokyo ATL • Today: Backhaul, or L 3 VPN from single ISP • Cabo: Lease a slice of another’s routers, links 9

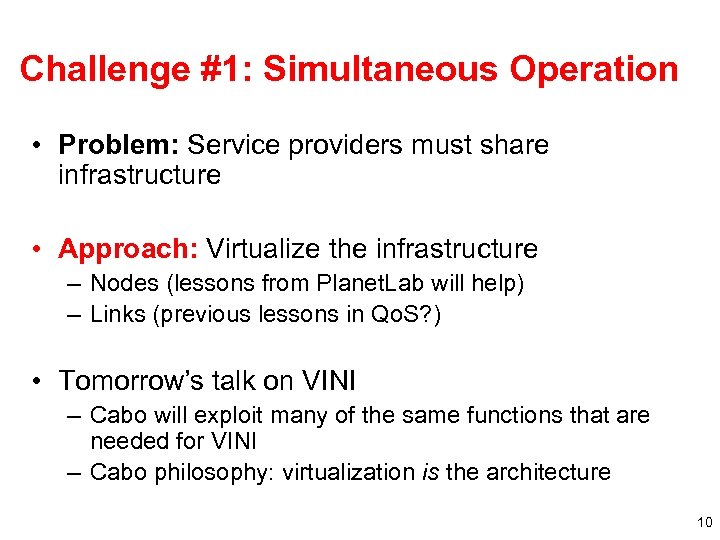

Challenge #1: Simultaneous Operation • Problem: Service providers must share infrastructure • Approach: Virtualize the infrastructure – Nodes (lessons from Planet. Lab will help) – Links (previous lessons in Qo. S? ) • Tomorrow’s talk on VINI – Cabo will exploit many of the same functions that are needed for VINI – Cabo philosophy: virtualization is the architecture 10

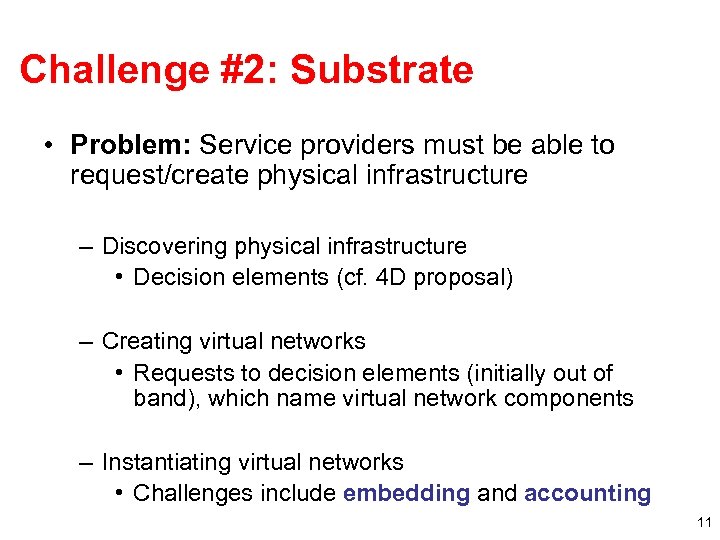

Challenge #2: Substrate • Problem: Service providers must be able to request/create physical infrastructure – Discovering physical infrastructure • Decision elements (cf. 4 D proposal) – Creating virtual networks • Requests to decision elements (initially out of band), which name virtual network components – Instantiating virtual networks • Challenges include embedding and accounting 11

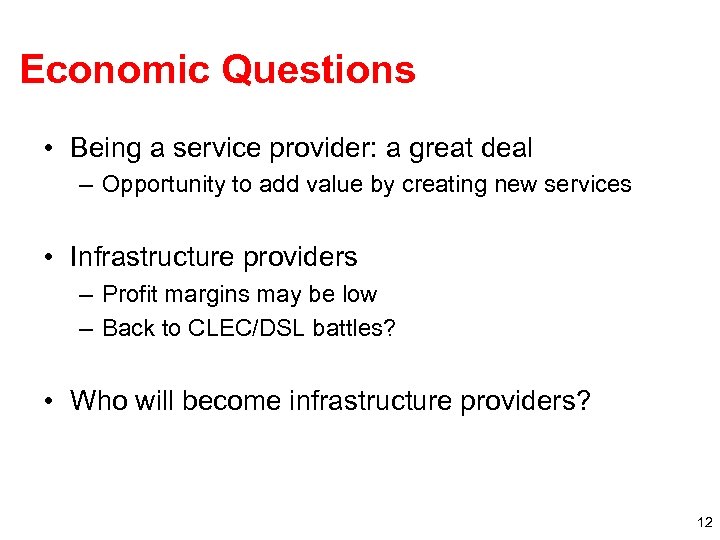

Economic Questions • Being a service provider: a great deal – Opportunity to add value by creating new services • Infrastructure providers – Profit margins may be low – Back to CLEC/DSL battles? • Who will become infrastructure providers? 12

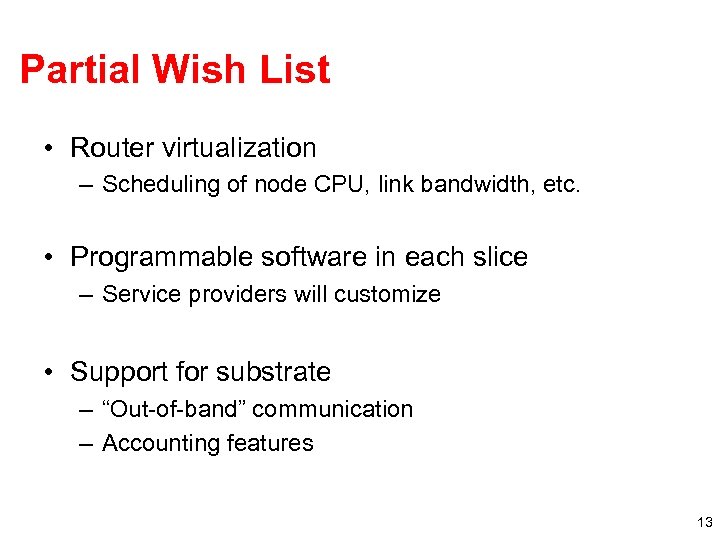

Partial Wish List • Router virtualization – Scheduling of node CPU, link bandwidth, etc. • Programmable software in each slice – Service providers will customize • Support for substrate – “Out-of-band” communication – Accounting features 13

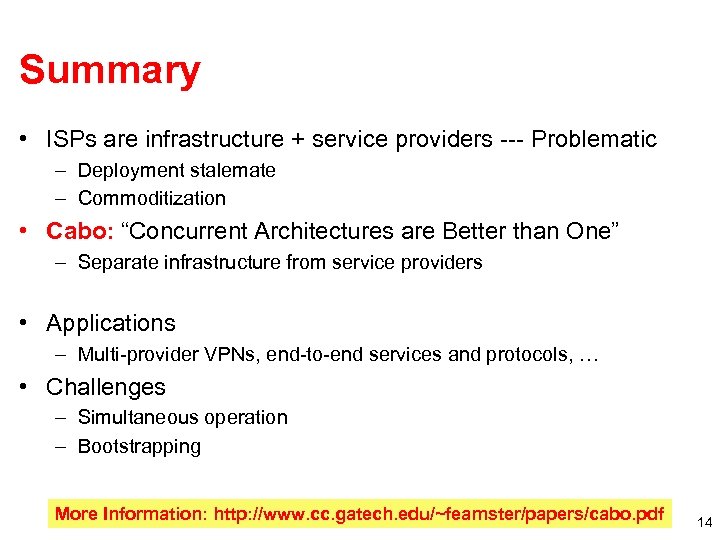

Summary • ISPs are infrastructure + service providers --- Problematic – Deployment stalemate – Commoditization • Cabo: “Concurrent Architectures are Better than One” – Separate infrastructure from service providers • Applications – Multi-provider VPNs, end-to-end services and protocols, … • Challenges – Simultaneous operation – Bootstrapping More Information: http: //www. cc. gatech. edu/~feamster/papers/cabo. pdf 14
