C L E A R S Y Formalized

C L E A R S Y Formalized Operation Principles Denis SABATIER

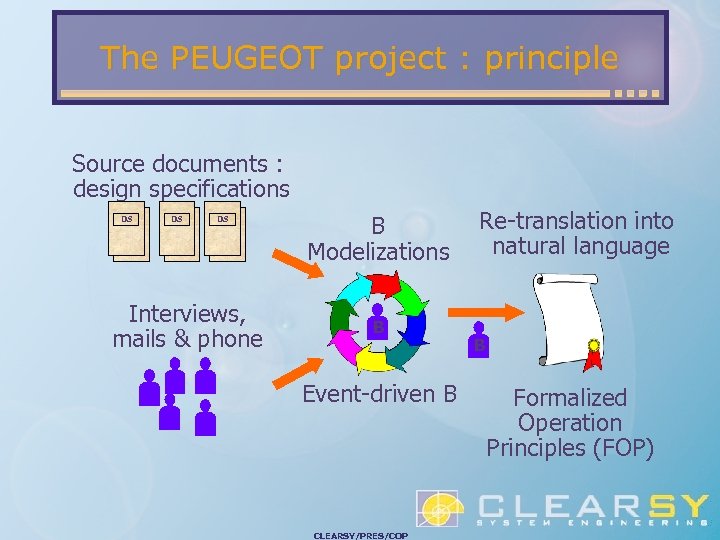

The PEUGEOT project : principle Source documents : design specifications DS STE Interviews, mails & phone B Modelizations B Event-driven B CLEARSY/PRES/COP Re-translation into natural language B Formalized Operation Principles (FOP)

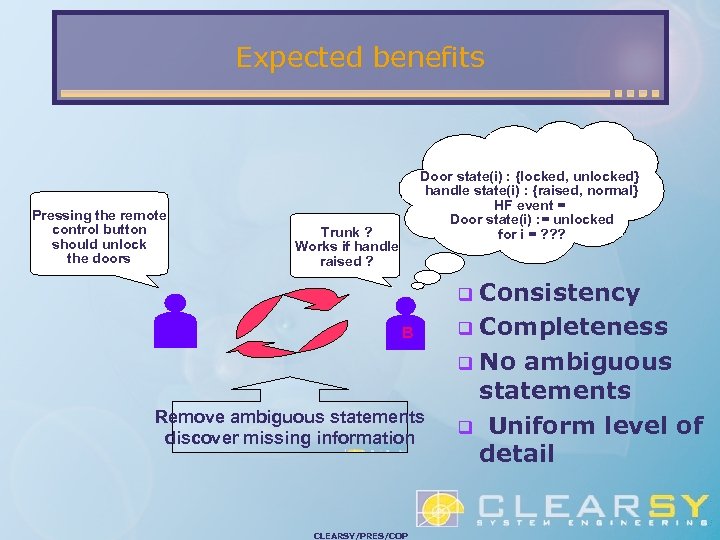

Expected benefits Pressing the remote control button should unlock the doors Door state(i) : {locked, unlocked} handle state(i) : {raised, normal} HF event = Door state(i) : = unlocked for i = ? ? ? Trunk ? Works if handle raised ? Consistency Completeness No ambiguous statements Uniform level of detail B Remove ambiguous statements discover missing information CLEARSY/PRES/COP

The chosen level of detail : replacable units Divide the car into Replacable Units Define the behavior of each Replacable Unit What it should do in every situation Interfaces : define the semantics, not the format FOP + Interface format documents = you can predict what messages and signals are exchanged in every situation CLEARSY/PRES/COP

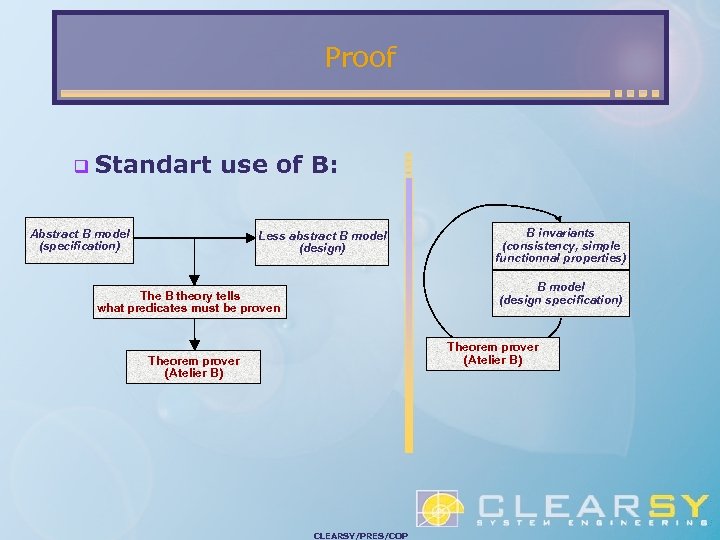

Proof Standart use of B: Abstract B model (specification) Less abstract B model (design) B invariants (consistency, simple functionnal properties) B model (design specification) The B theory tells what predicates must be proven Theorem prover (Atelier B) CLEARSY/PRES/COP

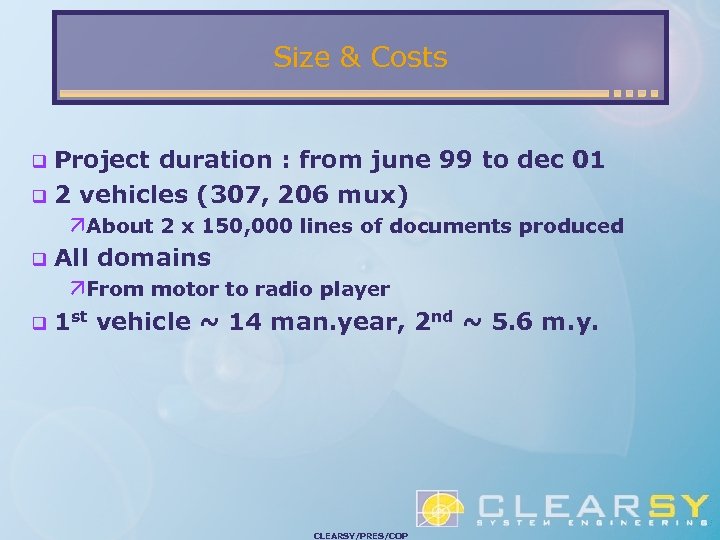

Size & Costs Project duration : from june 99 to dec 01 2 vehicles (307, 206 mux) About 2 x 150, 000 lines of documents produced All domains From motor to radio player 1 st vehicle ~ 14 man. year, 2 nd ~ 5. 6 m. y. CLEARSY/PRES/COP

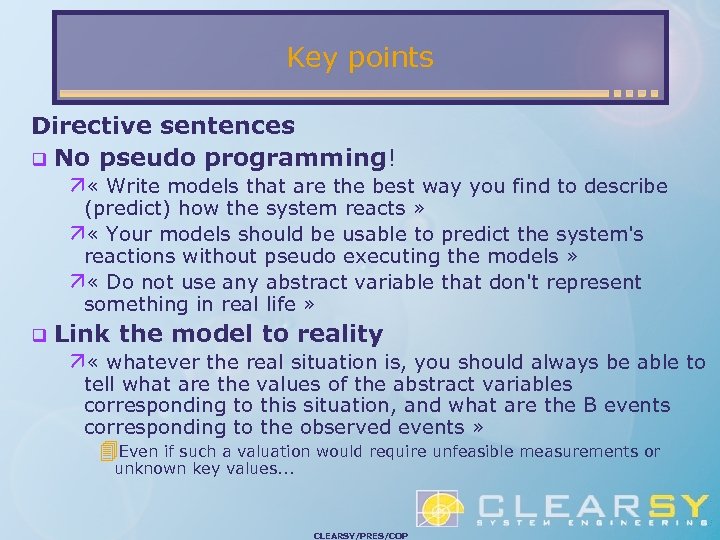

Key points Directive sentences No pseudo programming! « Write models that are the best way you find to describe (predict) how the system reacts » « Your models should be usable to predict the system's reactions without pseudo executing the models » « Do not use any abstract variable that don't represent something in real life » Link the model to reality « whatever the real situation is, you should always be able to tell what are the values of the abstract variables corresponding to this situation, and what are the B events corresponding to the observed events » Even if such a valuation would require unfeasible measurements or unknown key values. . . CLEARSY/PRES/COP

Results Very efficient to find missing information Formalization forces consistent definition of each detail from the specifications Can be done by a complete team of engineers Efficent questions for domain experts interviews When information is missing, B Models are completed using hypotheses; hypotheses become questions But. . . Formalized documents made afterward are difficult to insert in the product's process Formalization quality depends upon capacity of abstraction Model quality cannot be checked by compiling and running CLEARSY/PRES/COP

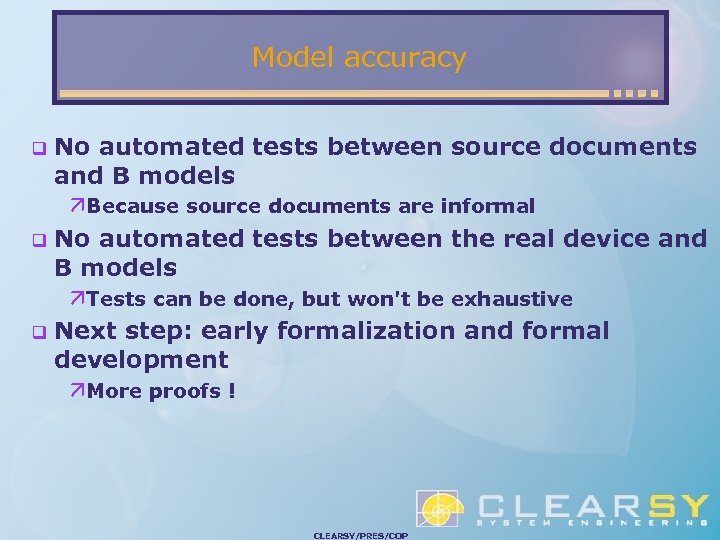

Model accuracy No automated tests between source documents and B models Because source documents are informal No automated tests between the real device and B models Tests can be done, but won't be exhaustive Next step: early formalization and formal development More proofs ! CLEARSY/PRES/COP

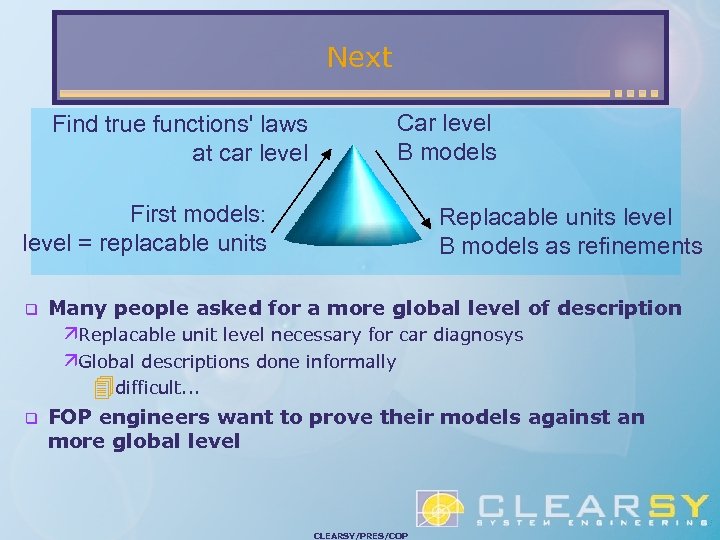

Next Find true functions' laws at car level Car level B models First models: level = replacable units Replacable units level B models as refinements Many people asked for a more global level of description Replacable unit level necessary for car diagnosys Global descriptions done informally difficult. . . FOP engineers want to prove their models against an more global level CLEARSY/PRES/COP

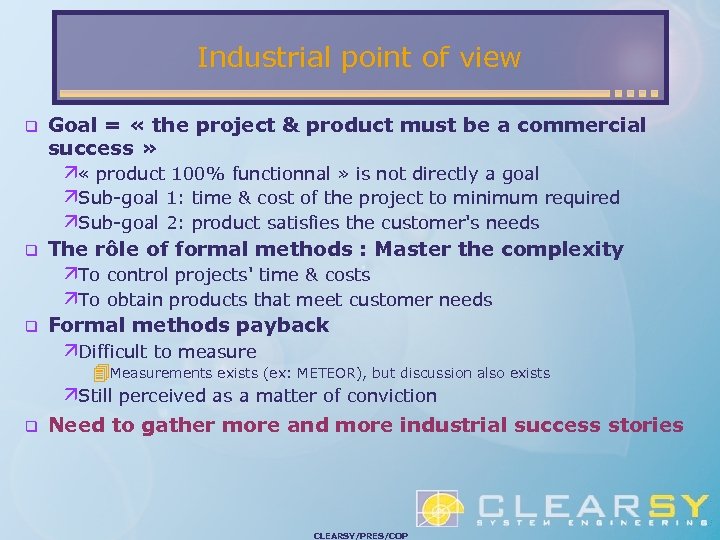

Industrial point of view Goal = « the project & product must be a commercial success » « product 100% functionnal » is not directly a goal Sub-goal 1: time & cost of the project to minimum required Sub-goal 2: product satisfies the customer's needs The rôle of formal methods : Master the complexity To control projects' time & costs To obtain products that meet customer needs Formal methods payback Difficult to measure Measurements exists (ex: METEOR), but discussion also exists Still perceived as a matter of conviction Need to gather more and more industrial success stories CLEARSY/PRES/COP

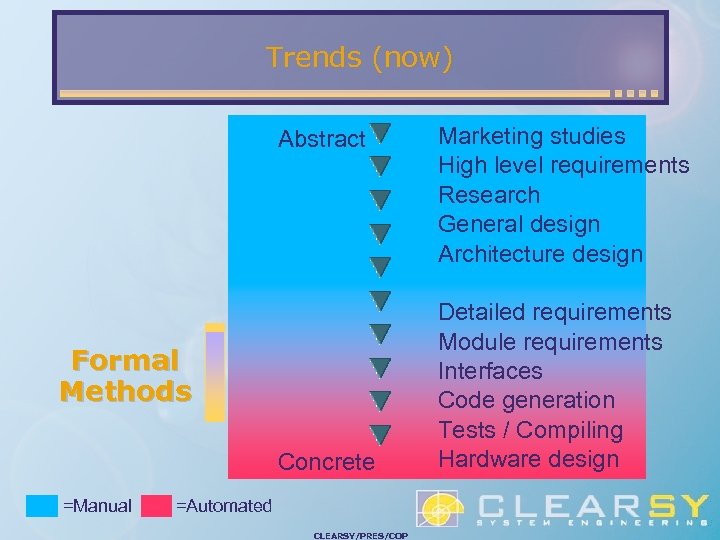

Trends (now) Abstract Formal Methods Concrete =Manual =Automated CLEARSY/PRES/COP Marketing studies High level requirements Research General design Architecture design Detailed requirements Module requirements Interfaces Code generation Tests / Compiling Hardware design

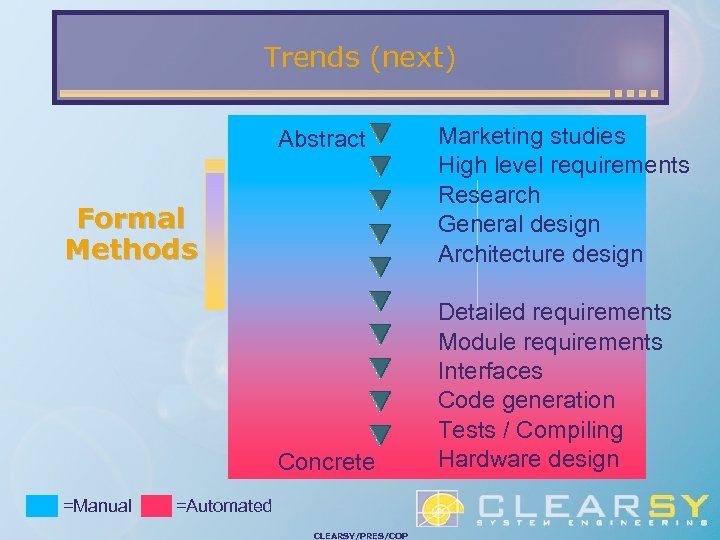

Trends (next) Abstract Formal Methods Concrete =Manual =Automated CLEARSY/PRES/COP Marketing studies High level requirements Research General design Architecture design Detailed requirements Module requirements Interfaces Code generation Tests / Compiling Hardware design
