BYU Rocket Team 2009 -2010 Special thanks to: Boise Discovery Teens Club Jeff Smith 1 Dr. David Fullwood
Outline About the Competition About the Rocket Nose Body Fins Flight Plan 2 Electronics Deployments Simulations Motor Recovery Plan

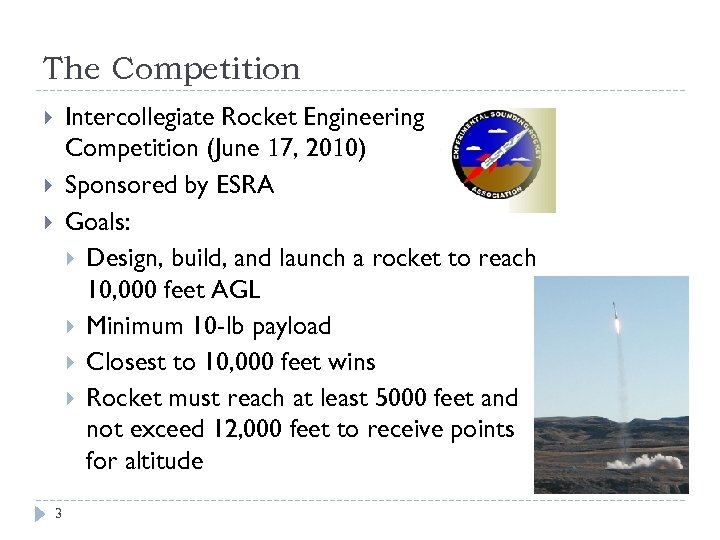

The Competition Intercollegiate Rocket Engineering Competition (June 17, 2010) Sponsored by ESRA Goals: Design, build, and launch a rocket to reach 10, 000 feet AGL Minimum 10 -lb payload Closest to 10, 000 feet wins Rocket must reach at least 5000 feet and not exceed 12, 000 feet to receive points for altitude 3
Last Year One successful Launch Learned lots of basics Most components were pre-fabricated 4

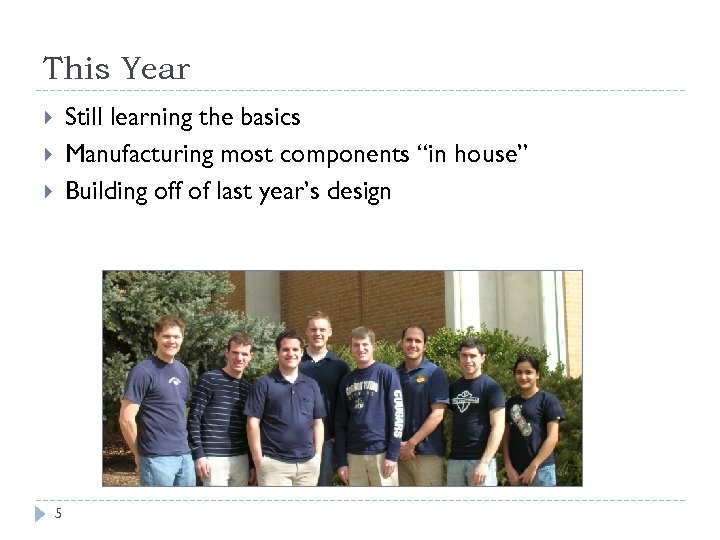

This Year Still learning the basics Manufacturing most components “in house” Building off of last year’s design 5

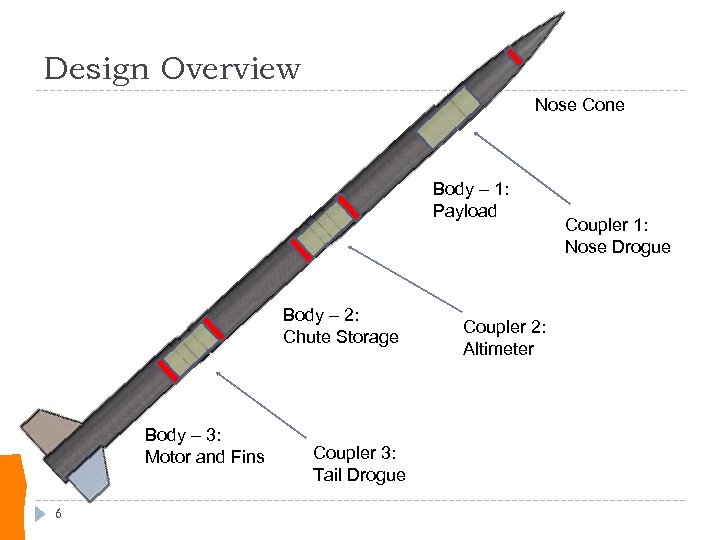

Design Overview Nose Cone Body – 1: Payload Body – 2: Chute Storage Body – 3: Motor and Fins 6 Coupler 3: Tail Drogue Coupler 2: Altimeter Coupler 1: Nose Drogue

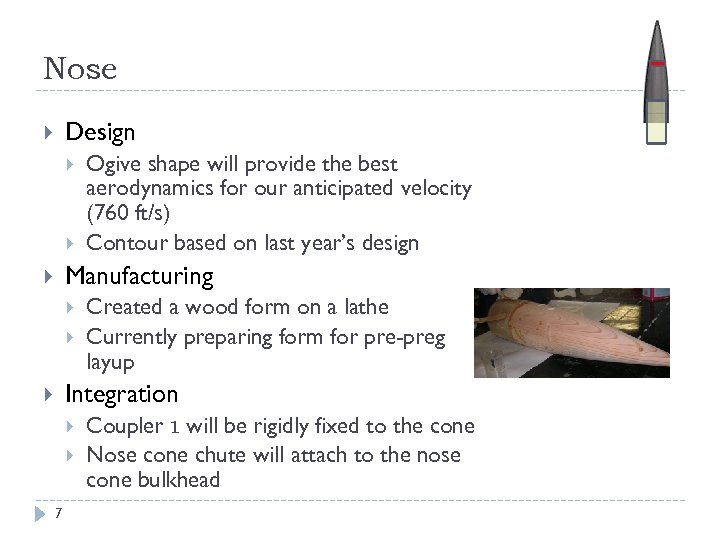

Nose Design Ogive shape will provide the best aerodynamics for our anticipated velocity (760 ft/s) Contour based on last year’s design Manufacturing Created a wood form on a lathe Currently preparing form for pre-preg layup Integration 7 Coupler 1 will be rigidly fixed to the cone Nose cone chute will attach to the nose cone bulkhead

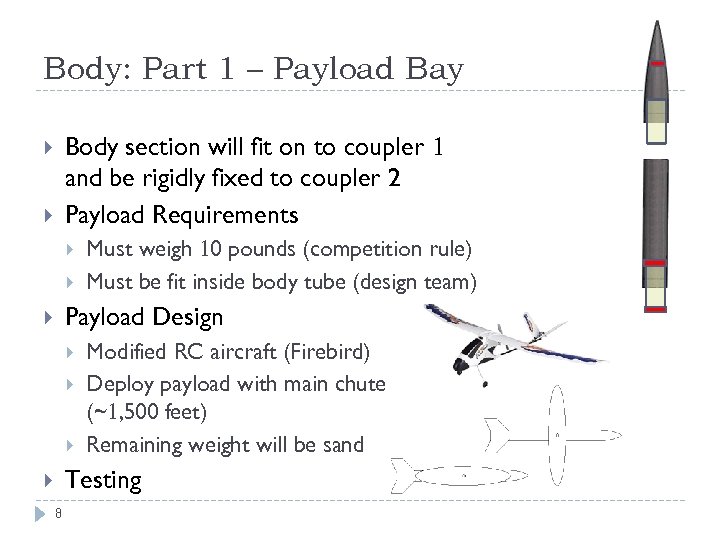

Body: Part 1 – Payload Bay Body section will fit on to coupler 1 and be rigidly fixed to coupler 2 Payload Requirements Must weigh 10 pounds (competition rule) Must be fit inside body tube (design team) Payload Design Modified RC aircraft (Firebird) Deploy payload with main chute (~1, 500 feet) Remaining weight will be sand Testing 8

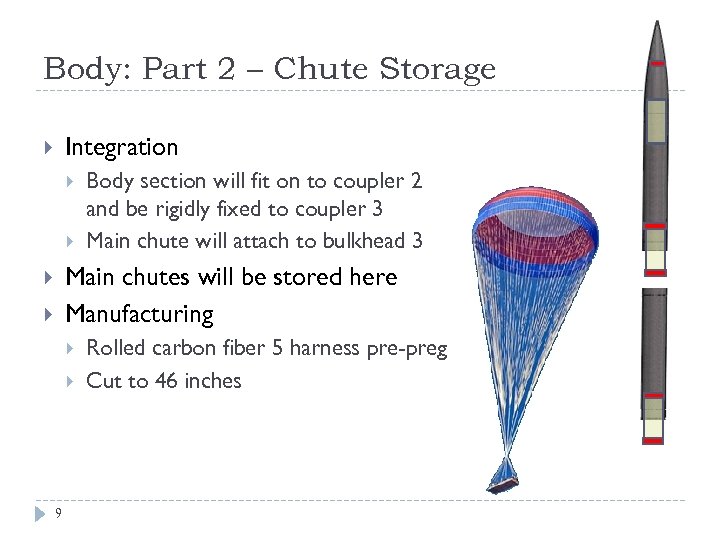

Body: Part 2 – Chute Storage Integration Body section will fit on to coupler 2 and be rigidly fixed to coupler 3 Main chute will attach to bulkhead 3 Main chutes will be stored here Manufacturing 9 Rolled carbon fiber 5 harness pre-preg Cut to 46 inches

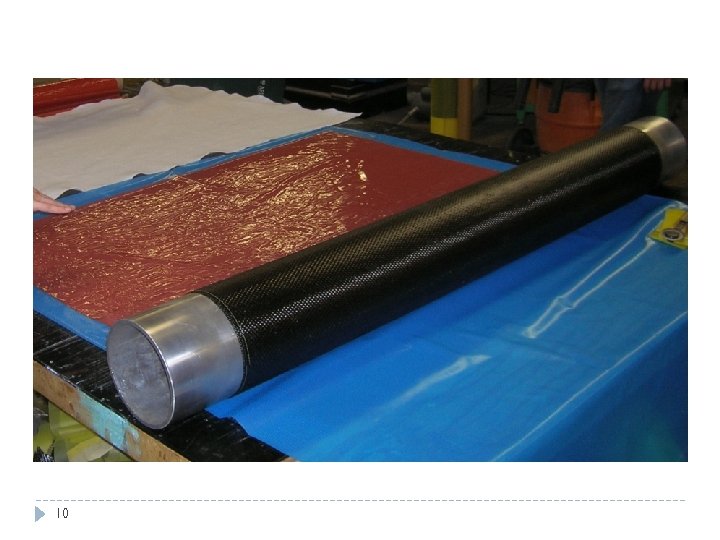

10
Body: Part 3 – Motor and Fins Motor will be housed here Manufacturing Integration Rolled carbon fiber 5 harness pre-preg Cut to 46 inches Tail Drogue will attach to bulk head 4 Motor will mount inside body part 3 Body part 3 will slip fit over coupler 3 Slots will be cut for fins Fins will attach to the bottom 11

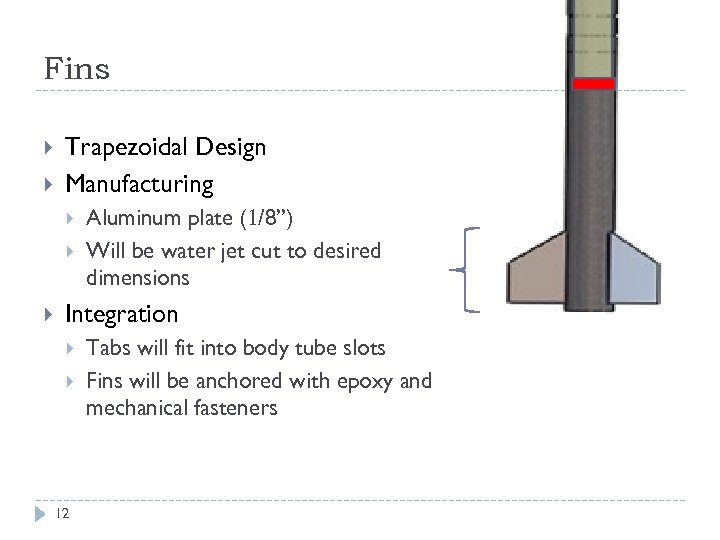

Fins Trapezoidal Design Manufacturing Aluminum plate (1/8”) Will be water jet cut to desired dimensions Integration 12 Tabs will fit into body tube slots Fins will be anchored with epoxy and mechanical fasteners

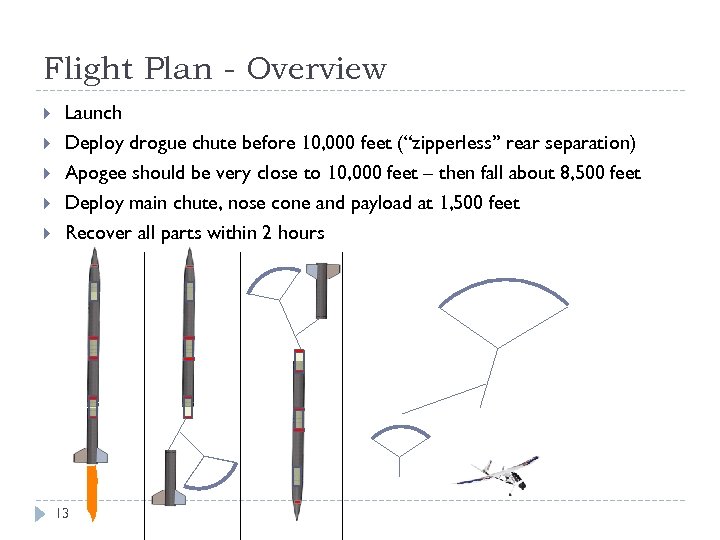

Flight Plan - Overview Launch Deploy drogue chute before 10, 000 feet (“zipperless” rear separation) Apogee should be very close to 10, 000 feet – then fall about 8, 500 feet Deploy main chute, nose cone and payload at 1, 500 feet Recover all parts within 2 hours 13

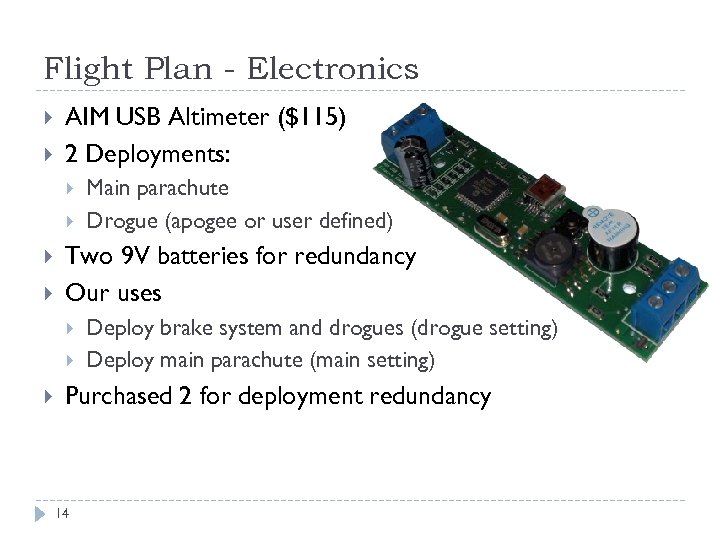

Flight Plan - Electronics AIM USB Altimeter ($115) 2 Deployments: Two 9 V batteries for redundancy Our uses Main parachute Drogue (apogee or user defined) Deploy brake system and drogues (drogue setting) Deploy main parachute (main setting) Purchased 2 for deployment redundancy 14

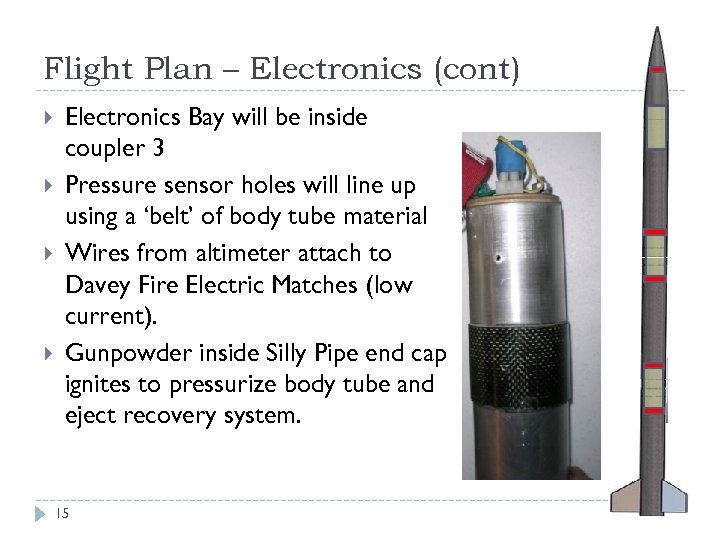

Flight Plan – Electronics (cont) Electronics Bay will be inside coupler 3 Pressure sensor holes will line up using a ‘belt’ of body tube material Wires from altimeter attach to Davey Fire Electric Matches (low current). Gunpowder inside Silly Pipe end cap ignites to pressurize body tube and eject recovery system. 15

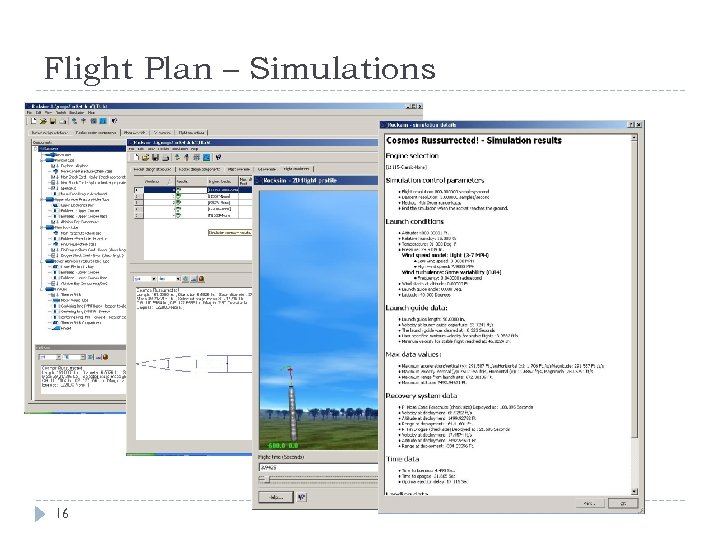

Flight Plan – Simulations 16

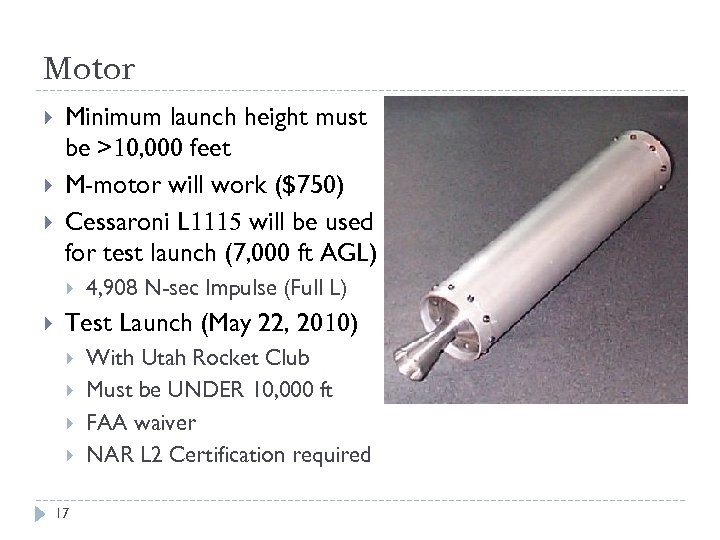

Motor Minimum launch height must be >10, 000 feet M-motor will work ($750) Cessaroni L 1115 will be used for test launch (7, 000 ft AGL) 4, 908 N-sec Impulse (Full L) Test Launch (May 22, 2010) 17 With Utah Rocket Club Must be UNDER 10, 000 ft FAA waiver NAR L 2 Certification required

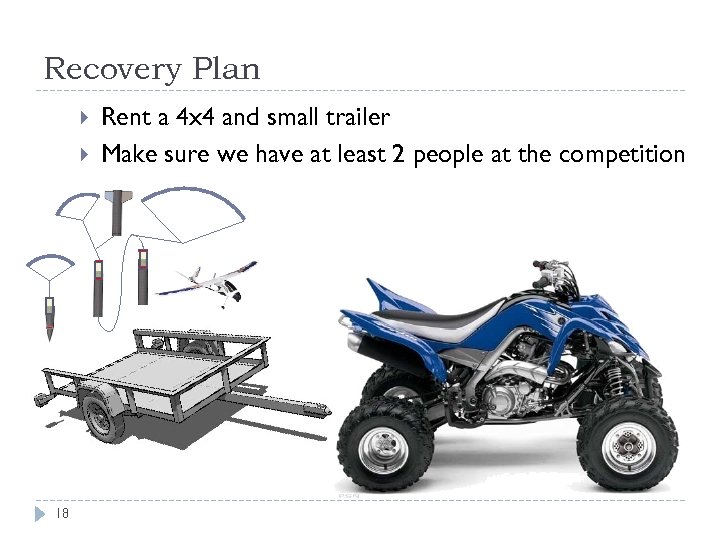

Recovery Plan 18 Rent a 4 x 4 and small trailer Make sure we have at least 2 people at the competition

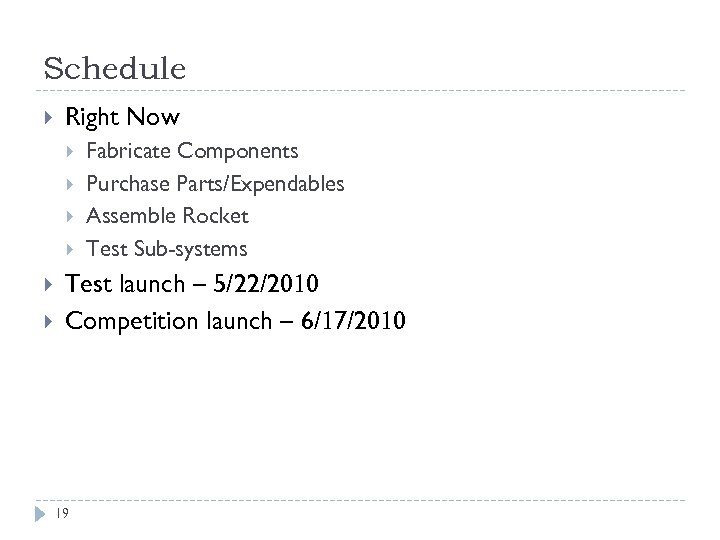

Schedule Right Now Fabricate Components Purchase Parts/Expendables Assemble Rocket Test Sub-systems Test launch – 5/22/2010 Competition launch – 6/17/2010 19
Questions? 20
