Business Technology Solutions Smart Grid Program Consumers Energy’s focus on Using and Enhancing Industry Standards Business Technology Solutions
Business Technology Solutions About Consumers Energy Serving Michigan families and businesses since 1886 We provide electric and natural gas service to 6. 5 million people 8, 000 employees Serving all 68 Lower Peninsula counties Business Technology Solutions Smart Grid Program

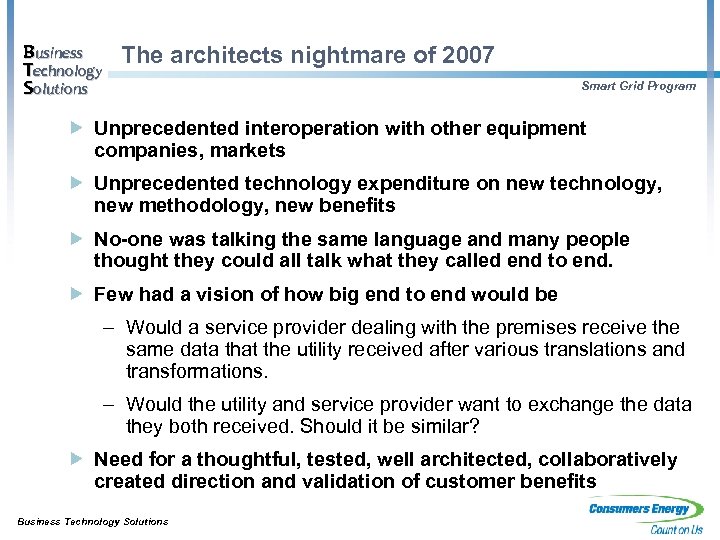

Business Technology Solutions The architects nightmare of 2007 Smart Grid Program Unprecedented interoperation with other equipment companies, markets Unprecedented technology expenditure on new technology, new methodology, new benefits No-one was talking the same language and many people thought they could all talk what they called end to end. Few had a vision of how big end to end would be – Would a service provider dealing with the premises receive the same data that the utility received after various translations and transformations. – Would the utility and service provider want to exchange the data they both received. Should it be similar? Need for a thoughtful, tested, well architected, collaboratively created direction and validation of customer benefits Business Technology Solutions
Business The Technology Solutions Assessment Architecture and development methodology Smart Grid Program SAP, SCADA, OMS, 3 MDUS vendors, 7 network vendors, many smart appliances, many smart devices, many Service providers Premises effecting tests, outages, disconnects, etc. Q 3 2010 Architecture • • Design of the network, systems, interfaces, applications, etc. Work with vendors on system technical requirements and standards Final Architectural Recommendation Field Pilot Quasi production environment for controls & processes Study and operate vendors/technologies as designed by architecture Rigorous functional testing and operational performance Up to 4 network vendors Test business case assumptions Business Technology Solutions Mass Deployment Highly Structured Environment: * Full scale production environment * 3. 5 million meters

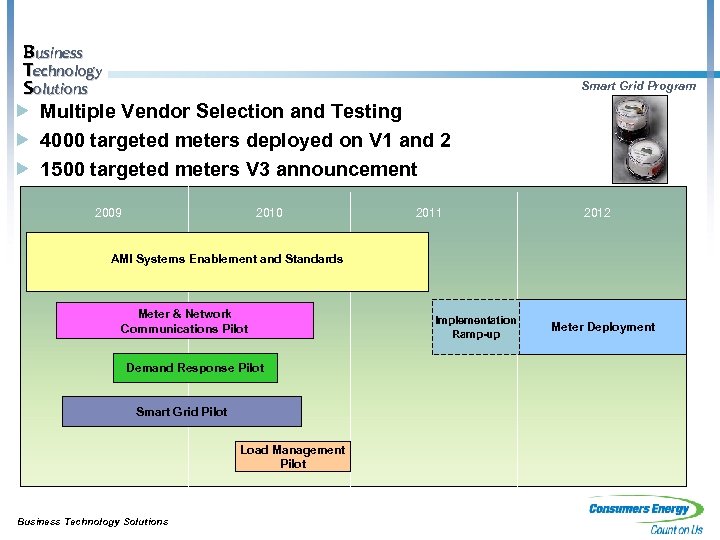

Business Technology Solutions Multiple Vendor Selection and Testing 4000 targeted meters deployed on V 1 and 2 1500 targeted meters V 3 announcement 2009 2010 2011 Smart Grid Program 2012 AMI Systems Enablement and Standards Meter & Network Communications Pilot Demand Response Pilot Smart Grid Pilot Load Management Pilot Business Technology Solutions Implementation Ramp-up Meter Deployment

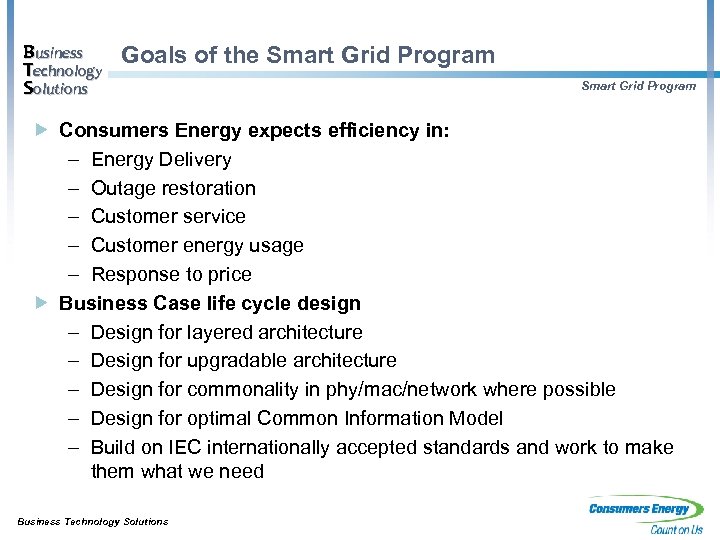

Business Technology Solutions Goals of the Smart Grid Program Consumers Energy expects efficiency in: – Energy Delivery – Outage restoration – Customer service – Customer energy usage – Response to price Business Case life cycle design – Design for layered architecture – Design for upgradable architecture – Design for commonality in phy/mac/network where possible – Design for optimal Common Information Model – Build on IEC internationally accepted standards and work to make them what we need Business Technology Solutions
Business Technology Solutions Strategy for getting key suppliers to use standards Smart Grid Program Translation and Transformation is at best a necessary evil Standards need extensions to meet requirements Users need to get together in task forces to state requirements Incorporate industry best practices extensions into Standards. Consumers Philosophy – Work with others and collaborate don’t build a one off – Through users groups speak with a common industry voice – Get many areas moving to the same standard – Validate reality over geek speak – Put your money and your time where your mouth is. – Save money through economy of scale and simplicity of solution Business Technology Solutions

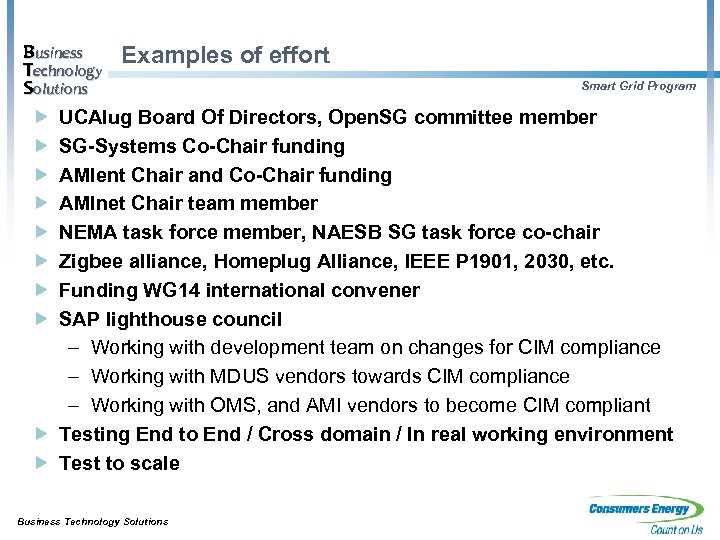

Business Examples of effort Technology Smart Grid Program Solutions UCAIug Board Of Directors, Open. SG committee member SG-Systems Co-Chair funding AMIent Chair and Co-Chair funding AMInet Chair team member NEMA task force member, NAESB SG task force co-chair Zigbee alliance, Homeplug Alliance, IEEE P 1901, 2030, etc. Funding WG 14 international convener SAP lighthouse council – Working with development team on changes for CIM compliance – Working with MDUS vendors towards CIM compliance – Working with OMS, and AMI vendors to become CIM compliant Testing End to End / Cross domain / In real working environment Test to scale Business Technology Solutions

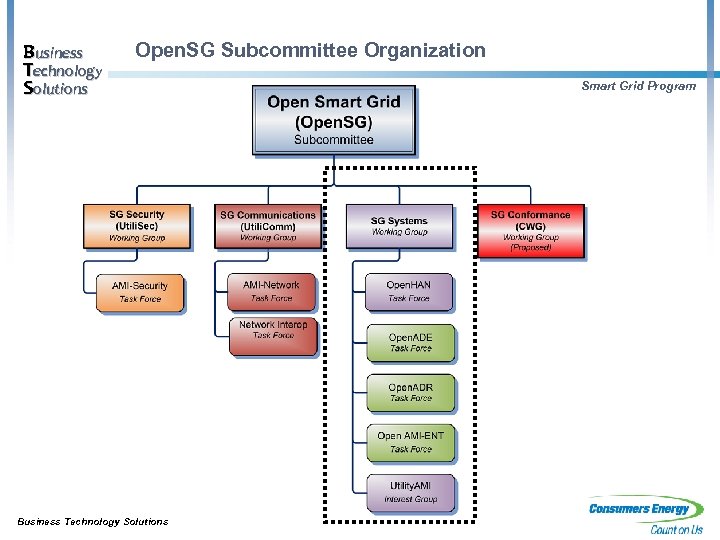

Business Technology Solutions Open. SG Subcommittee Organization Business Technology Solutions Smart Grid Program

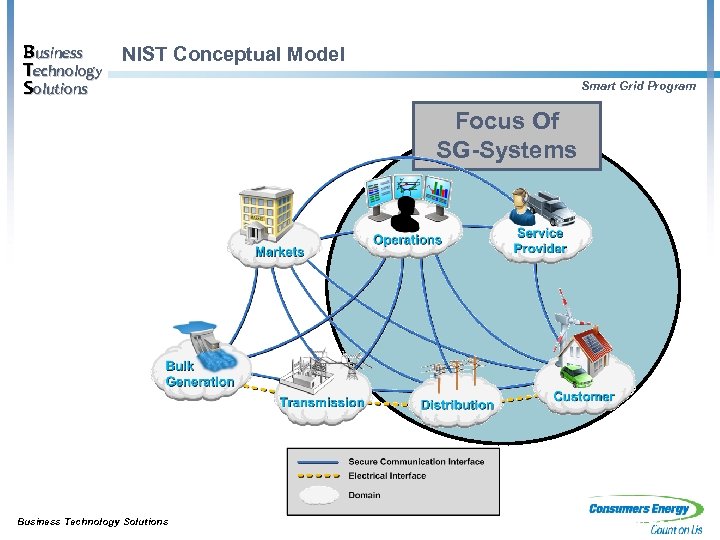

Business NIST Conceptual Model Technology Solutions Smart Grid Program Focus Of SG-Systems Business Technology Solutions [Source: NIST Interim Roadmap]

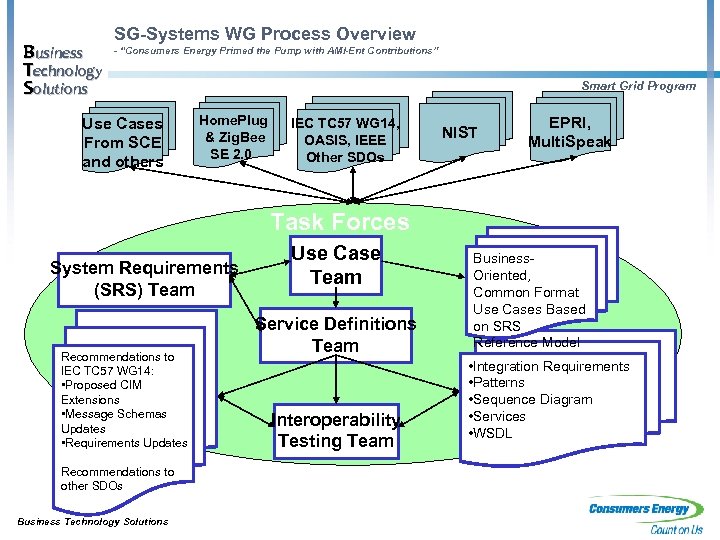

Business Technology Solutions SG-Systems WG Process Overview - “Consumers Energy Primed the Pump with AMI-Ent Contributions” Use Cases From SCE and others Smart Grid Program Home. Plug & Zig. Bee SE 2. 0 IEC TC 57 WG 14, OASIS, IEEE Other SDOs NIST EPRI, Multi. Speak Task Forces System Requirements (SRS) Team Recommendations to IEC TC 57 WG 14: • Proposed CIM Extensions • Message Schemas Updates • Requirements Updates Recommendations to other SDOs Business Technology Solutions Use Case Team Service Definitions Team Interoperability Testing Team Business. Oriented, Common Format Use Cases Based on SRS Reference Model • Integration Requirements • Patterns • Sequence Diagram • Services • WSDL
Business Use Technology Solutions Case Driven Business Technology Solutions Smart Grid Program

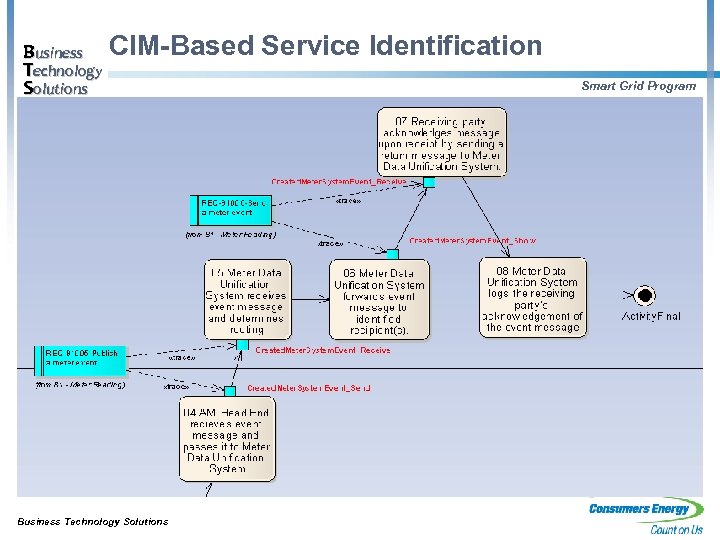

Business Technology Solutions CIM-Based Service Identification Business Technology Solutions Smart Grid Program

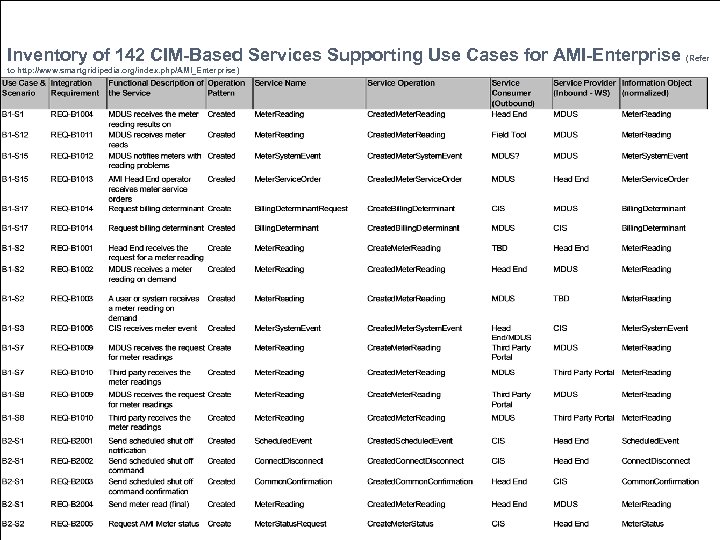

Business Inventory of 142 CIM-Based Services Supporting Use Cases for AMI-Enterprise Technology Solutions (Refer to http: //www. smartgridipedia. org/index. php/AMI_Enterprise ) Business Technology Solutions Smart Grid Program

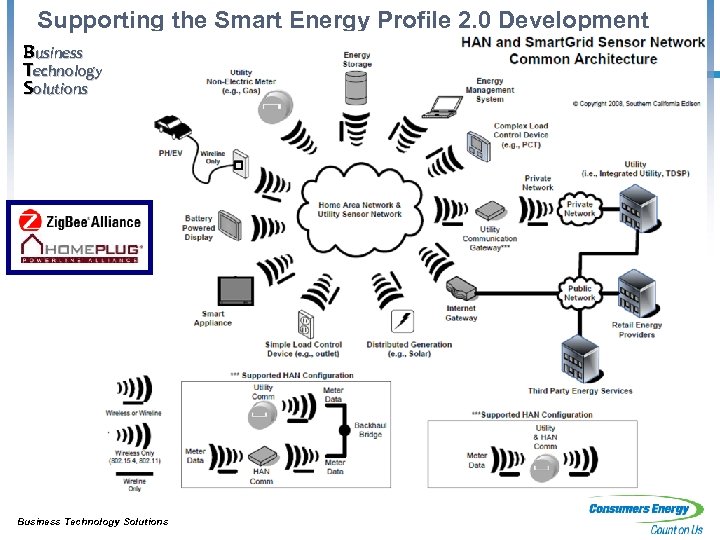

Supporting the Smart Energy Profile 2. 0 Development Business Technology Solutions Smart Grid Program

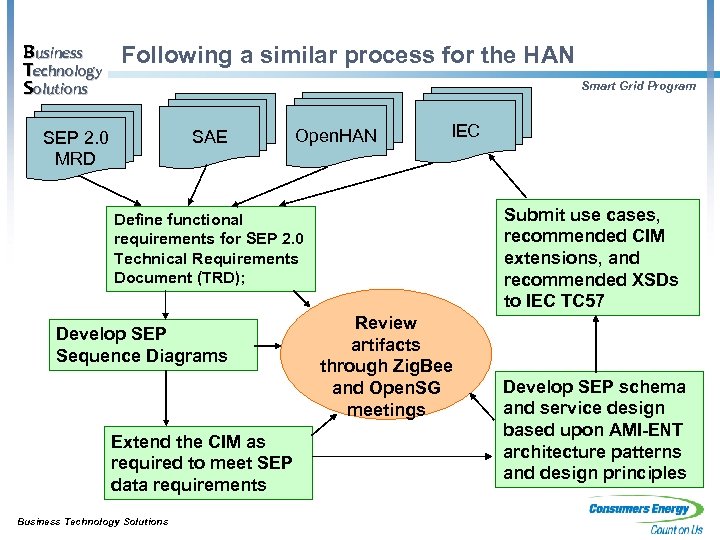

Business Technology Solutions Following a similar process for the HAN Smart Grid Program SAE SEP 2. 0 MRD Open. HAN IEC Submit use cases, recommended CIM extensions, and recommended XSDs to IEC TC 57 Define functional requirements for SEP 2. 0 Technical Requirements Document (TRD); Develop SEP Sequence Diagrams Extend the CIM as required to meet SEP data requirements Business Technology Solutions Review artifacts through Zig. Bee and Open. SG meetings Develop SEP schema and service design based upon AMI-ENT architecture patterns and design principles
Business Technology Solutions Smart Grid Program

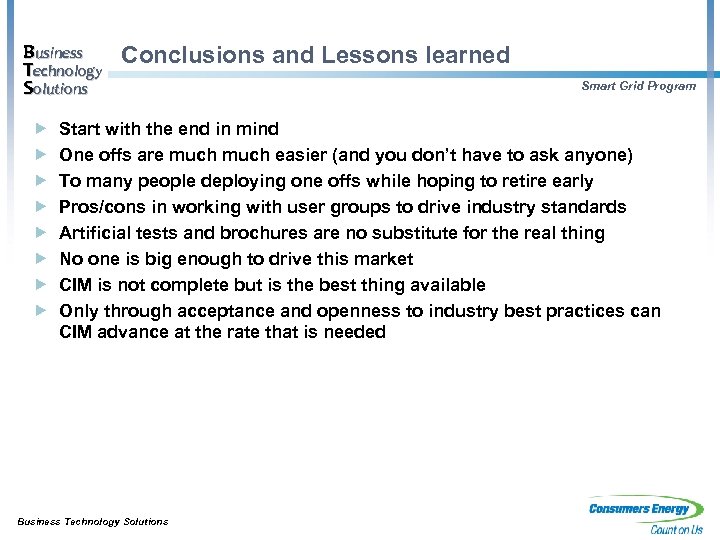

Business Technology Solutions Conclusions and Lessons learned Smart Grid Program Start with the end in mind One offs are much easier (and you don’t have to ask anyone) To many people deploying one offs while hoping to retire early Pros/cons in working with user groups to drive industry standards Artificial tests and brochures are no substitute for the real thing No one is big enough to drive this market CIM is not complete but is the best thing available Only through acceptance and openness to industry best practices can CIM advance at the rate that is needed Business Technology Solutions

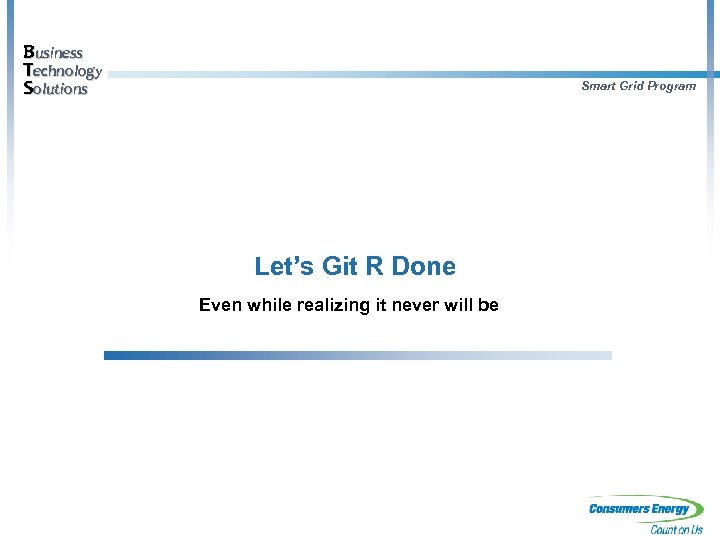

Business Technology Solutions Smart Grid Program Let’s Git R Done Even while realizing it never will be
