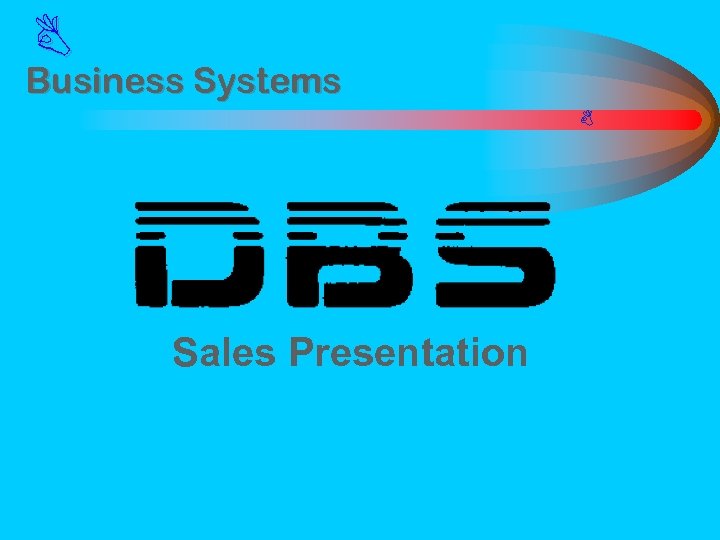

Business Systems Sales Presentation Euro ISDN

Business Systems Sales Presentation

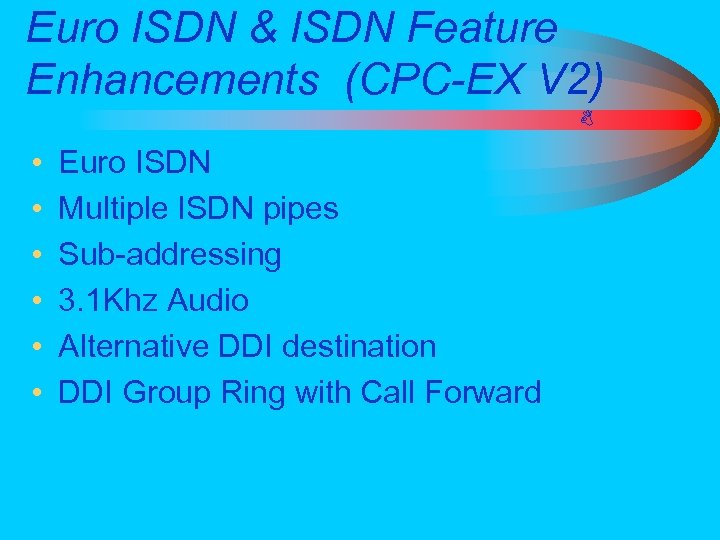

Euro ISDN & ISDN Feature Enhancements (CPC-EX V 2) • • • Euro ISDN Multiple ISDN pipes Sub-addressing 3. 1 Khz Audio Alternative DDI destination DDI Group Ring with Call Forward

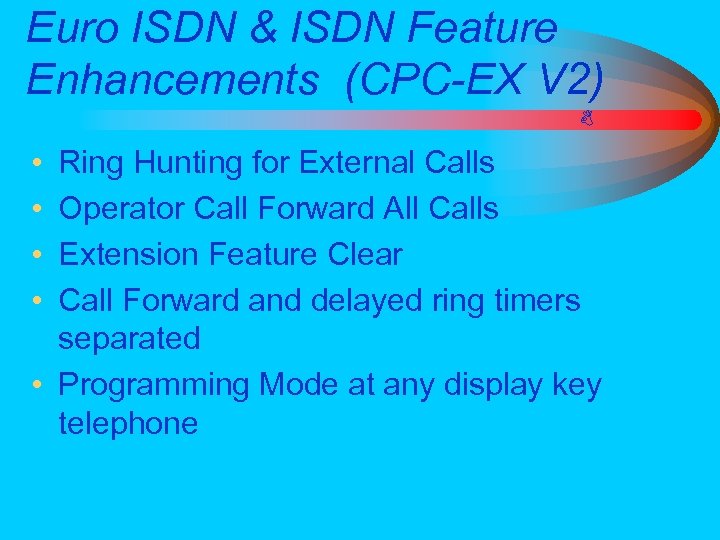

Euro ISDN & ISDN Feature Enhancements (CPC-EX V 2) • • Ring Hunting for External Calls Operator Call Forward All Calls Extension Feature Clear Call Forward and delayed ring timers separated • Programming Mode at any display key telephone

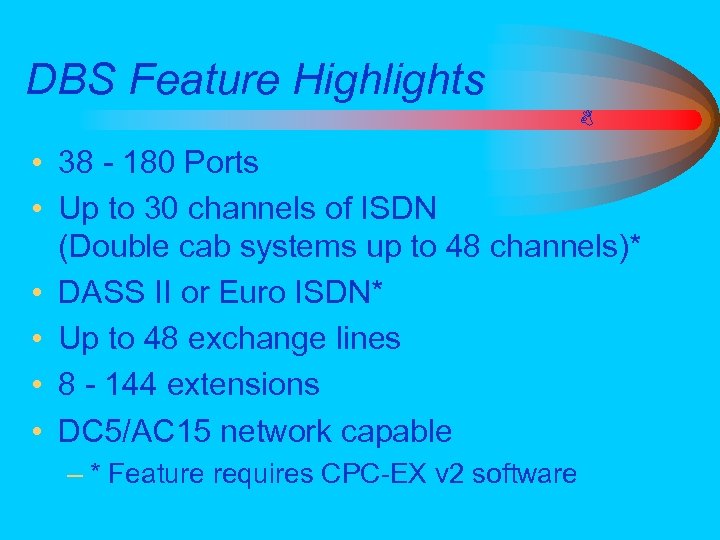

DBS Feature Highlights • 38 - 180 Ports • Up to 30 channels of ISDN (Double cab systems up to 48 channels)* • DASS II or Euro ISDN* • Up to 48 exchange lines • 8 - 144 extensions • DC 5/AC 15 network capable – * Feature requires CPC-EX v 2 software

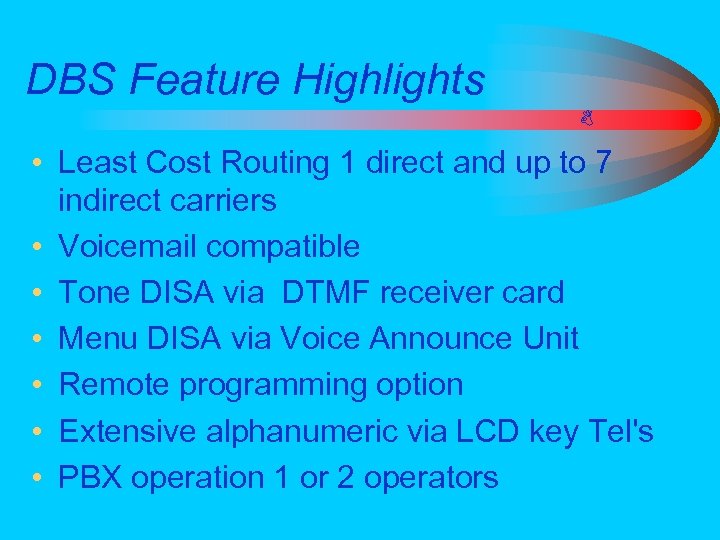

DBS Feature Highlights • Least Cost Routing 1 direct and up to 7 indirect carriers • Voicemail compatible • Tone DISA via DTMF receiver card • Menu DISA via Voice Announce Unit • Remote programming option • Extensive alphanumeric via LCD key Tel's • PBX operation 1 or 2 operators

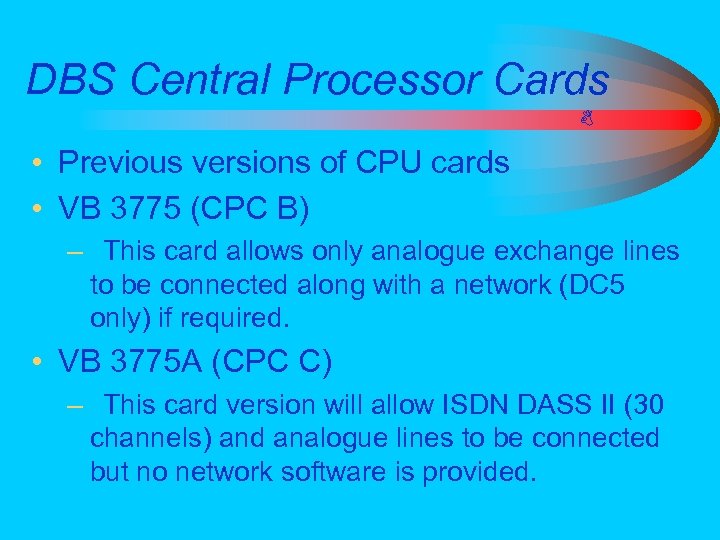

DBS Central Processor Cards • Previous versions of CPU cards • VB 3775 (CPC B) – This card allows only analogue exchange lines to be connected along with a network (DC 5 only) if required. • VB 3775 A (CPC C) – This card version will allow ISDN DASS II (30 channels) and analogue lines to be connected but no network software is provided.

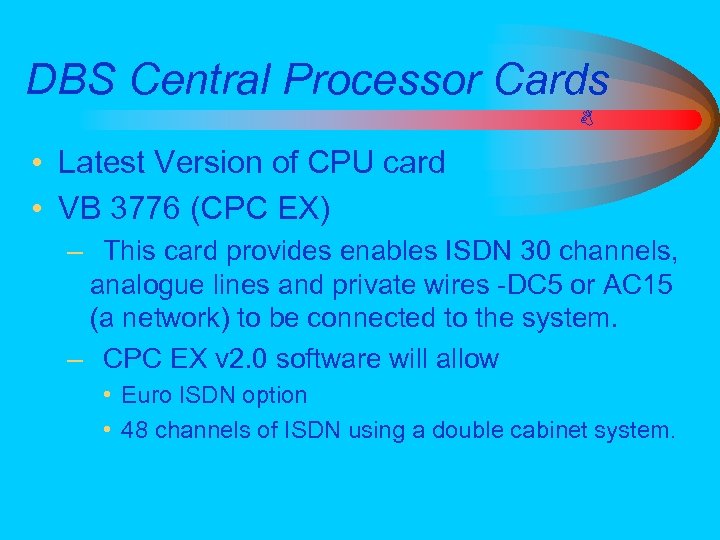

DBS Central Processor Cards • Latest Version of CPU card • VB 3776 (CPC EX) – This card provides enables ISDN 30 channels, analogue lines and private wires -DC 5 or AC 15 (a network) to be connected to the system. – CPC EX v 2. 0 software will allow • Euro ISDN option • 48 channels of ISDN using a double cabinet system.

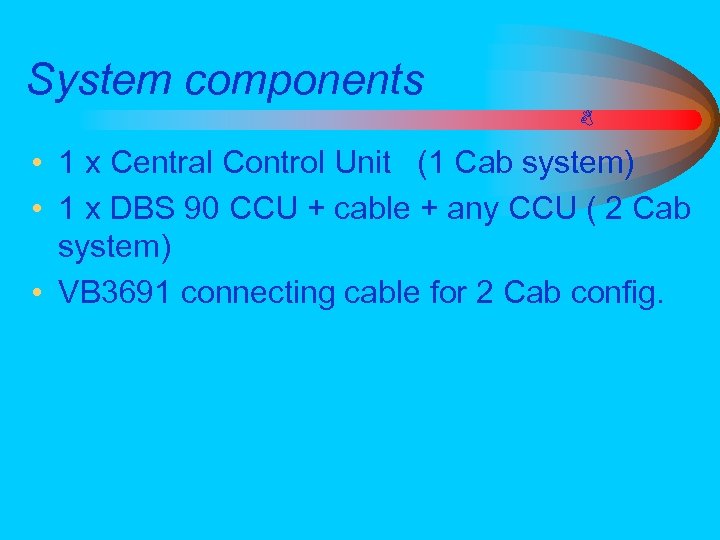

System components • 1 x Central Control Unit (1 Cab system) • 1 x DBS 90 CCU + cable + any CCU ( 2 Cab system) • VB 3691 connecting cable for 2 Cab config.

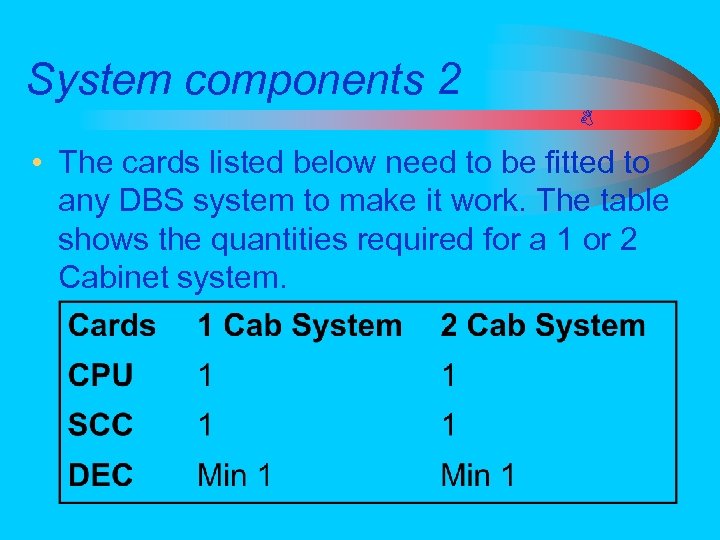

System components 2 • The cards listed below need to be fitted to any DBS system to make it work. The table shows the quantities required for a 1 or 2 Cabinet system.

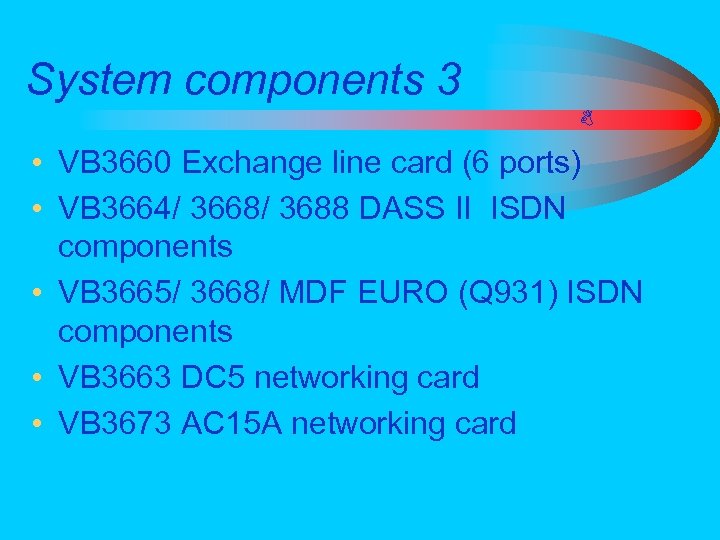

System components 3 • VB 3660 Exchange line card (6 ports) • VB 3664/ 3668/ 3688 DASS II ISDN components • VB 3665/ 3668/ MDF EURO (Q 931) ISDN components • VB 3663 DC 5 networking card • VB 3673 AC 15 A networking card

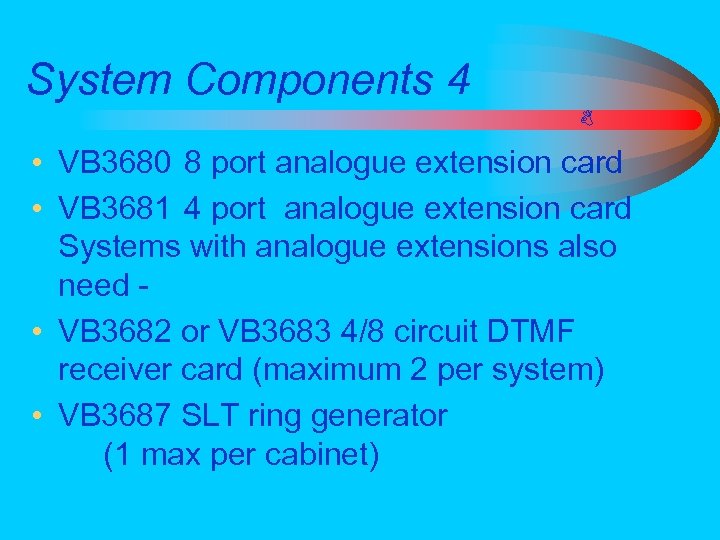

System Components 4 • VB 3680 8 port analogue extension card • VB 3681 4 port analogue extension card Systems with analogue extensions also need • VB 3682 or VB 3683 4/8 circuit DTMF receiver card (maximum 2 per system) • VB 3687 SLT ring generator (1 max per cabinet)

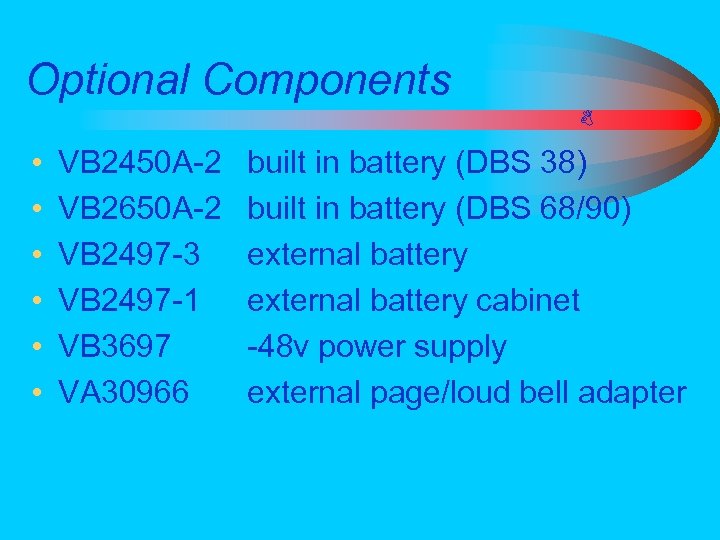

Optional Components • • • VB 2450 A-2 VB 2650 A-2 VB 2497 -3 VB 2497 -1 VB 3697 VA 30966 built in battery (DBS 38) built in battery (DBS 68/90) external battery cabinet -48 v power supply external page/loud bell adapter

Optional Components 2 • VB 3666 A • VB 3473 • VL 568 G/ 582 A • VB 3632 Remote Administration Interface Doorphone adapter Doorphone intercom units Digital voice announce unit.

DBS Non ISDN Maximum Configurations

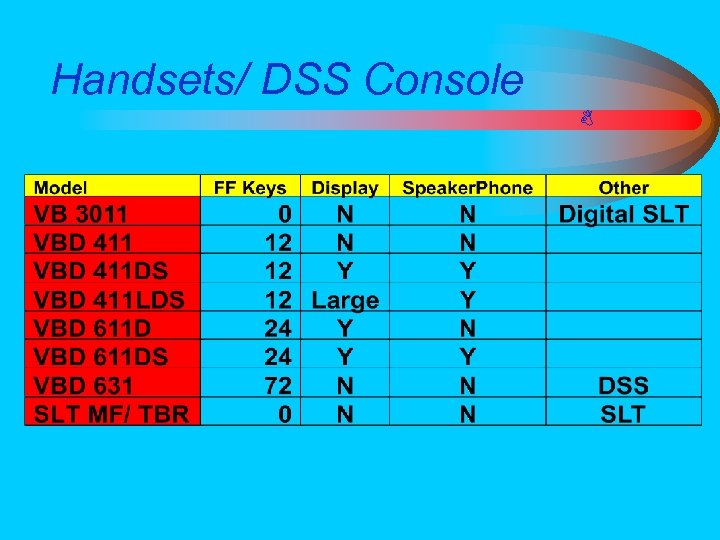

Handsets/ DSS Console

DBS System Maximums .

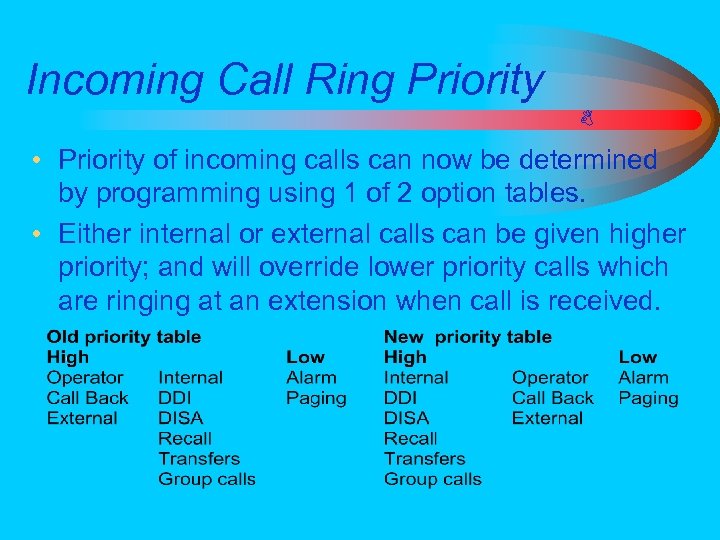

Incoming Call Ring Priority • Priority of incoming calls can now be determined by programming using 1 of 2 option tables. • Either internal or external calls can be given higher priority; and will override lower priority calls which are ringing at an extension when call is received.

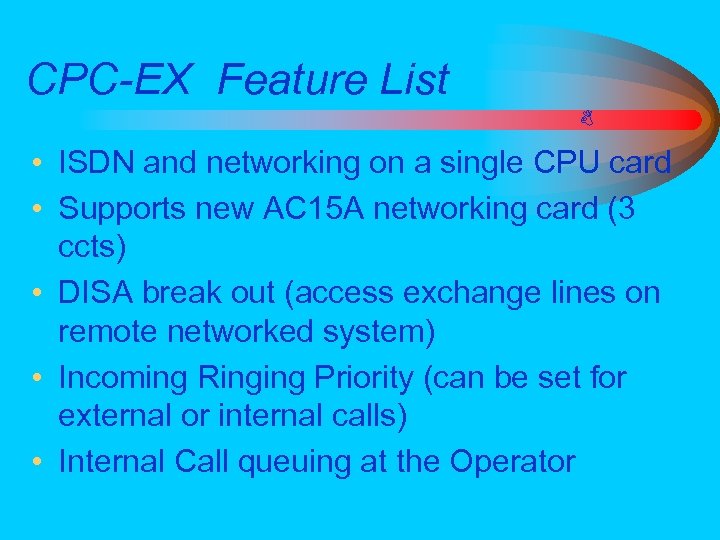

CPC-EX Feature List • ISDN and networking on a single CPU card • Supports new AC 15 A networking card (3 ccts) • DISA break out (access exchange lines on remote networked system) • Incoming Ringing Priority (can be set for external or internal calls) • Internal Call queuing at the Operator

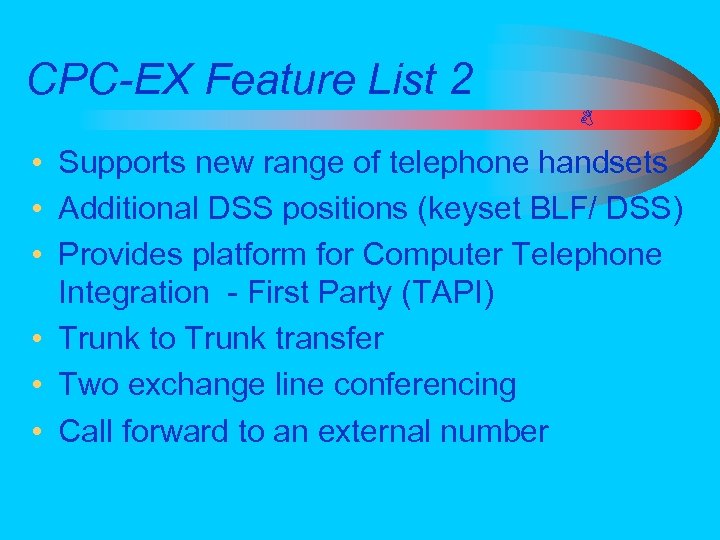

CPC-EX Feature List 2 • Supports new range of telephone handsets • Additional DSS positions (keyset BLF/ DSS) • Provides platform for Computer Telephone Integration - First Party (TAPI) • Trunk to Trunk transfer • Two exchange line conferencing • Call forward to an external number

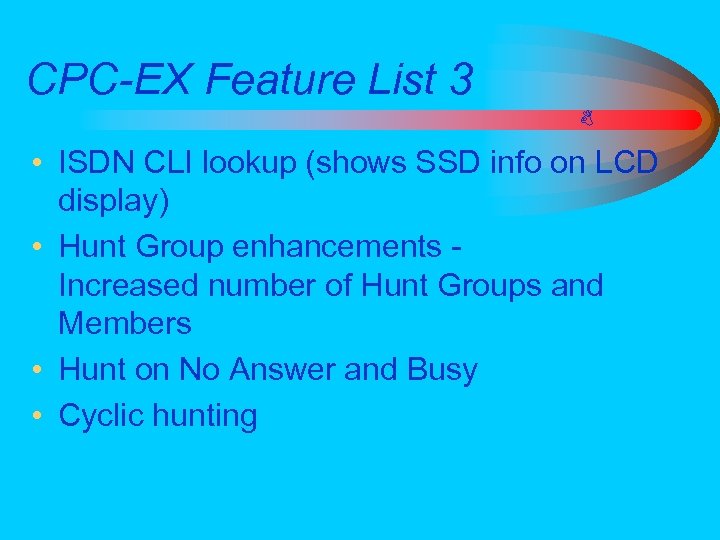

CPC-EX Feature List 3 • ISDN CLI lookup (shows SSD info on LCD display) • Hunt Group enhancements Increased number of Hunt Groups and Members • Hunt on No Answer and Busy • Cyclic hunting

Answering Calls • • Direct Inward System Access (DISA) DISA Break Out Flexible Ringing Assignment Incoming Line Name Assignment Call Pick Up (Group/ Direct) Off Hook Signaling Answer & Release Keys

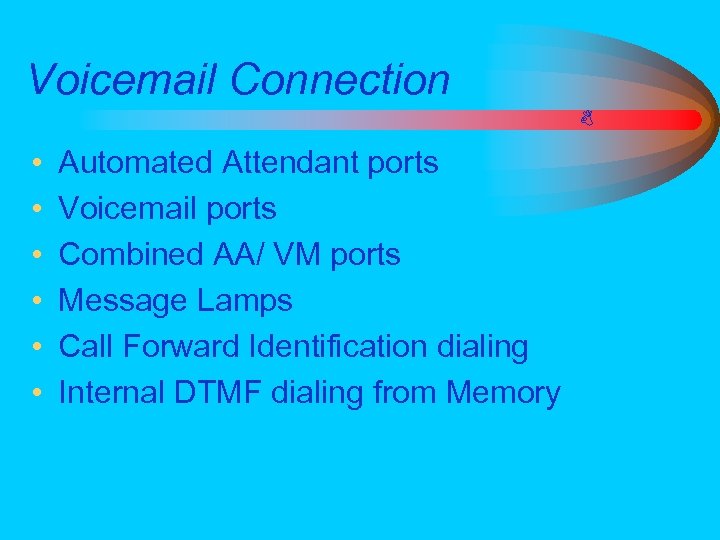

Voicemail Connection • • • Automated Attendant ports Voicemail ports Combined AA/ VM ports Message Lamps Call Forward Identification dialing Internal DTMF dialing from Memory

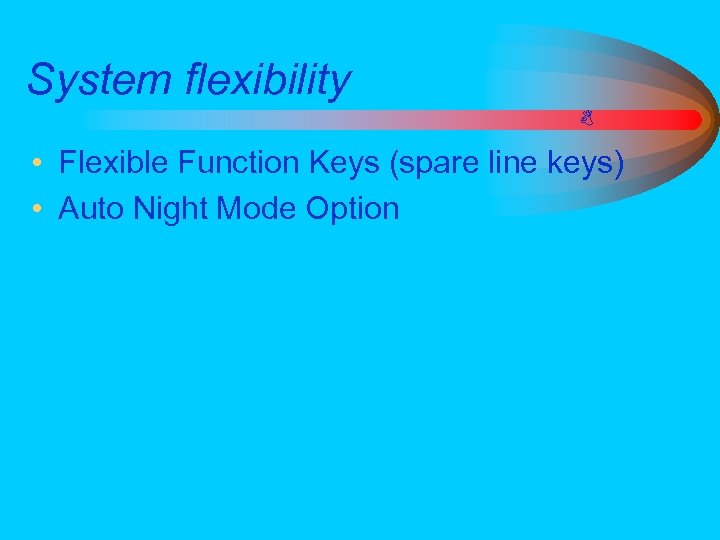

System flexibility • Flexible Function Keys (spare line keys) • Auto Night Mode Option

Holding Calls • • System Hold Exclusive Hold Call Park/ Park Pickup Automatic Hold

Transferring & Intercom Calls • Internal Voice/ Tone calls • Transfer (screened/ unscreened) • Conference Calls • Privacy & Privacy Release • Group Ringing • Call Forward to an External Number • Trunk to Trunk transfer & Conference

Locating Calls • Paging with Meet Me • Camp On • Talk Back Key • Camp on with Message • Voice Announce • Busy override/ Break In

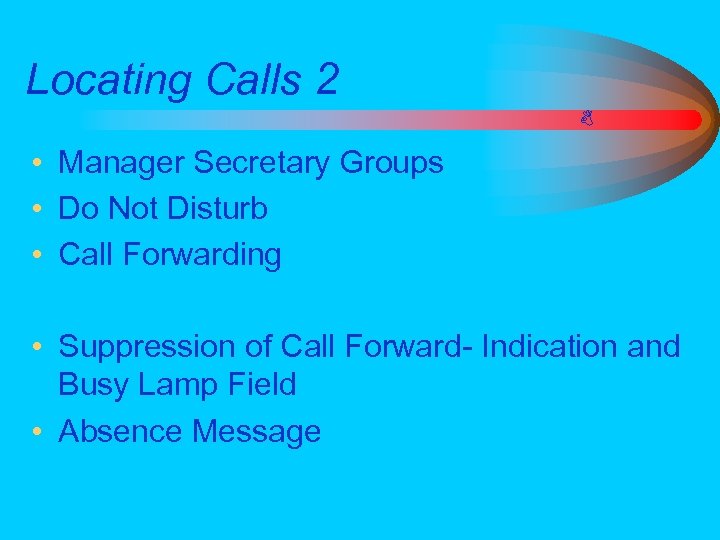

Locating Calls 2 • Manager Secretary Groups • Do Not Disturb • Call Forwarding • Suppression of Call Forward- Indication and Busy Lamp Field • Absence Message

Locating Calls 3 • Hunt Groups • Hunt Group CPC EX Enhancements – Cyclic Hunting – No Answer Hunting

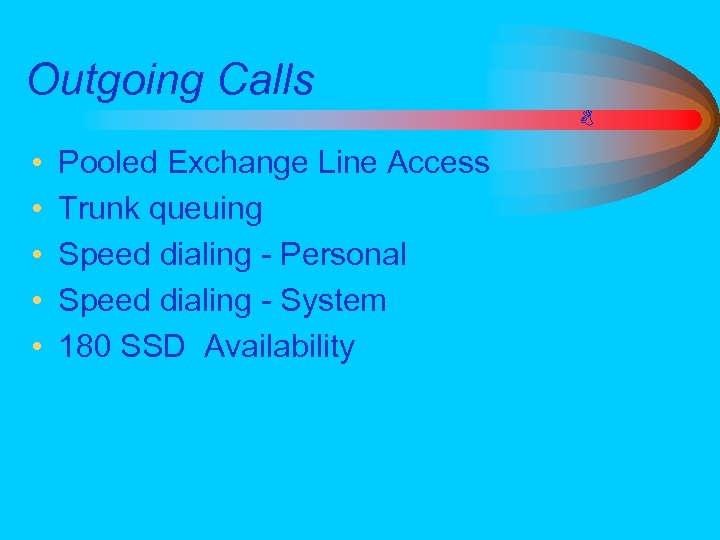

Outgoing Calls • • • Pooled Exchange Line Access Trunk queuing Speed dialing - Personal Speed dialing - System 180 SSD Availability

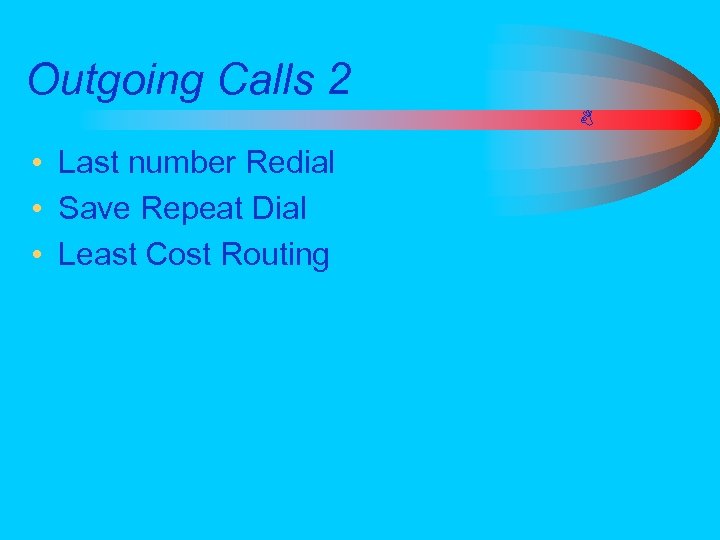

Outgoing Calls 2 • Last number Redial • Save Repeat Dial • Least Cost Routing

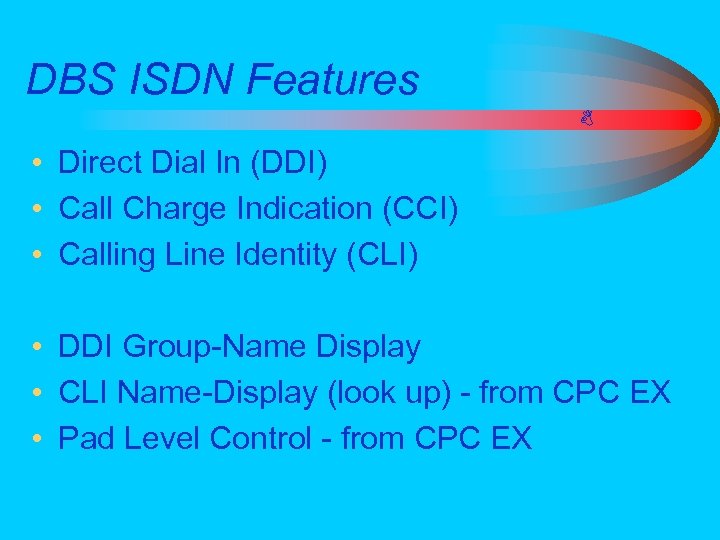

DBS ISDN Features • Direct Dial In (DDI) • Call Charge Indication (CCI) • Calling Line Identity (CLI) • DDI Group-Name Display • CLI Name-Display (look up) - from CPC EX • Pad Level Control - from CPC EX

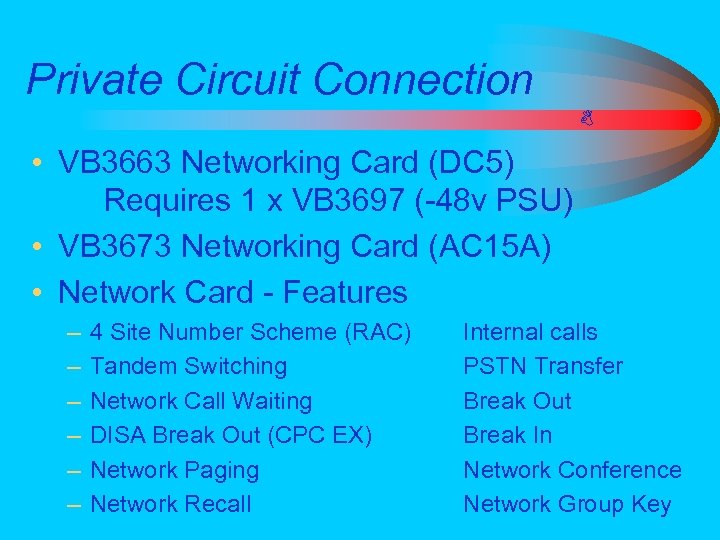

Private Circuit Connection • VB 3663 Networking Card (DC 5) Requires 1 x VB 3697 (-48 v PSU) • VB 3673 Networking Card (AC 15 A) • Network Card - Features – – – 4 Site Number Scheme (RAC) Tandem Switching Network Call Waiting DISA Break Out (CPC EX) Network Paging Network Recall Internal calls PSTN Transfer Break Out Break In Network Conference Network Group Key

Private Circuit Connection System Maximums

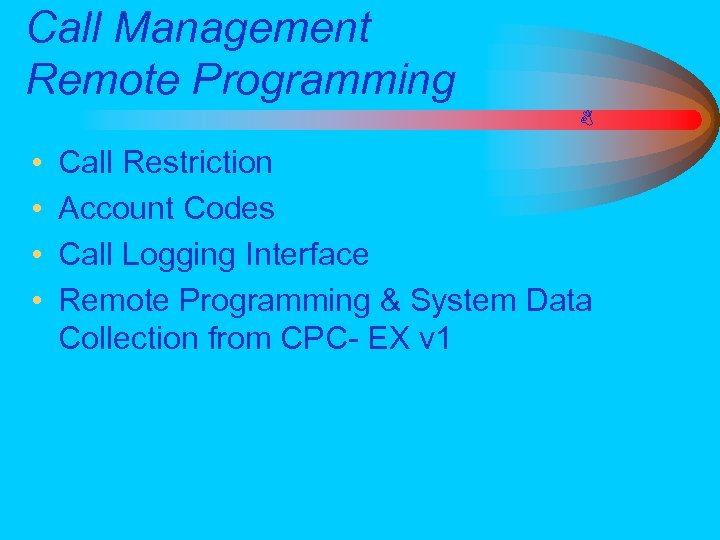

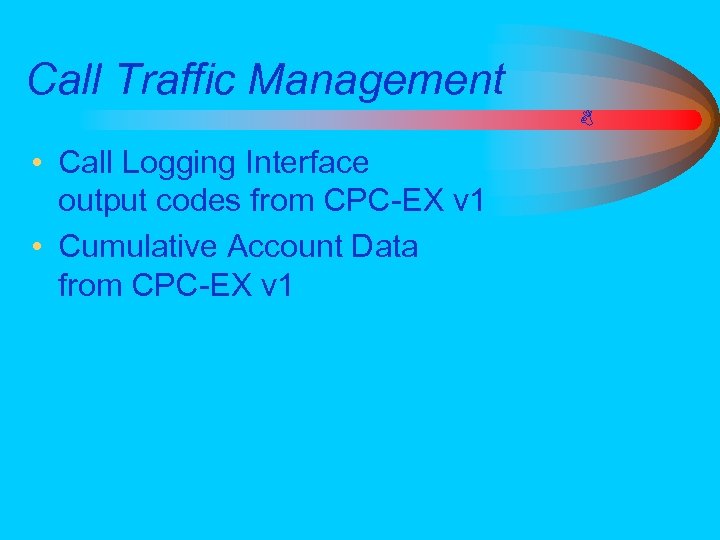

Call Management Remote Programming • • Call Restriction Account Codes Call Logging Interface Remote Programming & System Data Collection from CPC- EX v 1

Call Traffic Management • Call Logging Interface output codes from CPC-EX v 1 • Cumulative Account Data from CPC-EX v 1

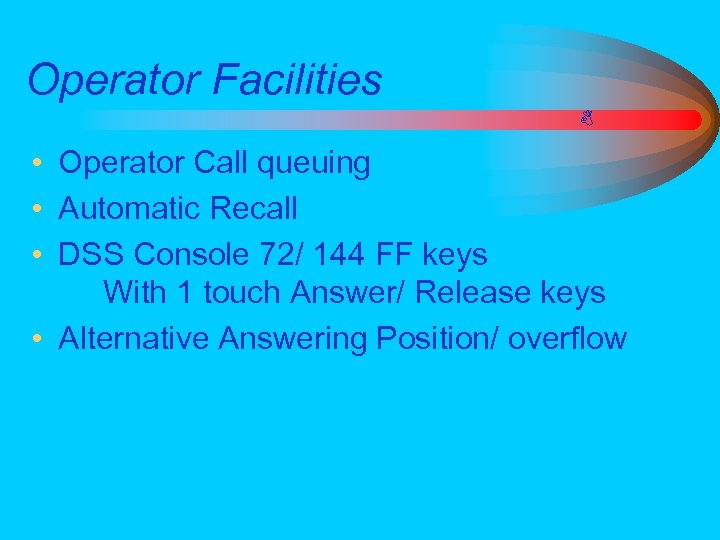

Operator Facilities • Operator Call queuing • Automatic Recall • DSS Console 72/ 144 FF keys With 1 touch Answer/ Release keys • Alternative Answering Position/ overflow
