Business and Markets Served Ducon Corporate Tree The

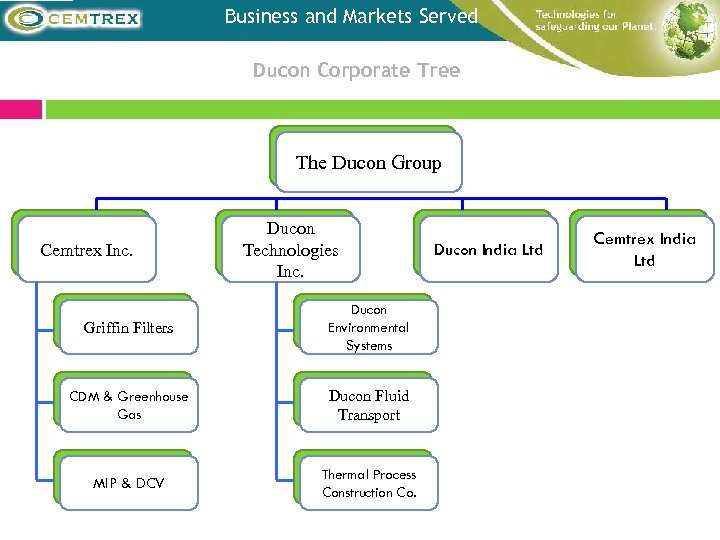

Business and Markets Served Ducon Corporate Tree The Ducon Group Cemtrex Inc. Ducon Technologies Inc. Griffin Filters Ducon Environmental Systems CDM & Greenhouse Gas Ducon Fluid Transport MIP & DCV Thermal Process Construction Co. Ducon India Ltd Cemtrex India Ltd

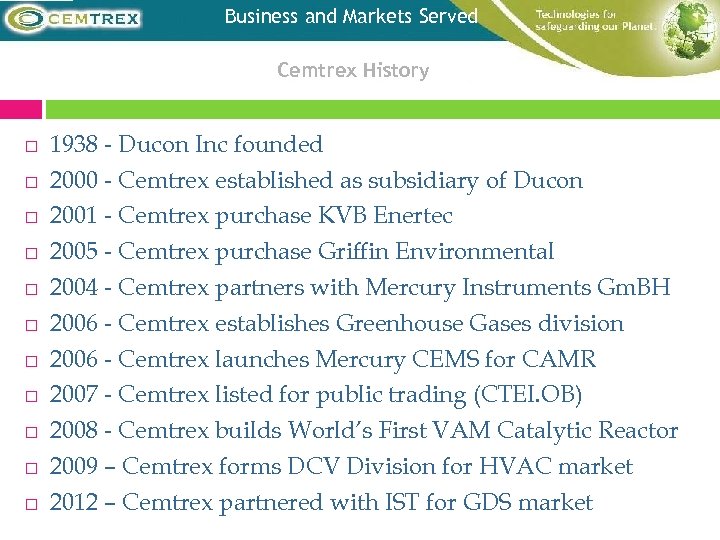

Business and Markets Served Cemtrex History 1938 - Ducon Inc founded 2000 - Cemtrex established as subsidiary of Ducon 2001 - Cemtrex purchase KVB Enertec 2005 - Cemtrex purchase Griffin Environmental 2004 - Cemtrex partners with Mercury Instruments Gm. BH 2006 - Cemtrex establishes Greenhouse Gases division 2006 - Cemtrex launches Mercury CEMS for CAMR 2007 - Cemtrex listed for public trading (CTEI. OB) 2008 - Cemtrex builds World’s First VAM Catalytic Reactor 2009 – Cemtrex forms DCV Division for HVAC market 2012 – Cemtrex partnered with IST for GDS market

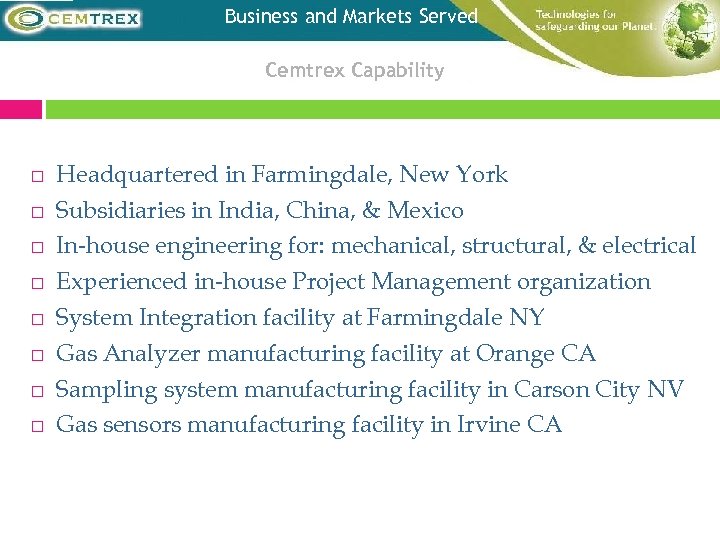

Business and Markets Served Cemtrex Capability Headquartered in Farmingdale, New York Subsidiaries in India, China, & Mexico In-house engineering for: mechanical, structural, & electrical Experienced in-house Project Management organization System Integration facility at Farmingdale NY Gas Analyzer manufacturing facility at Orange CA Sampling system manufacturing facility in Carson City NV Gas sensors manufacturing facility in Irvine CA

Business and Markets Served Cemtrex Global Presence Headquarters Subsidiaries Sales Offices

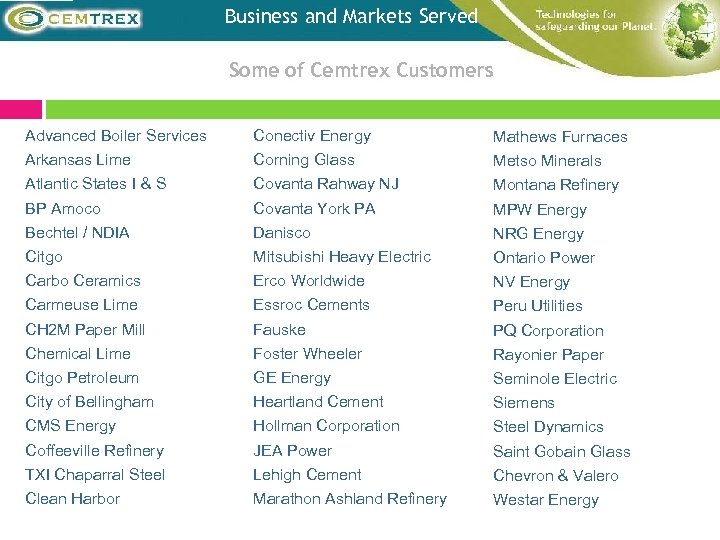

Business and Markets Served Some of Cemtrex Customers Advanced Boiler Services Conectiv Energy Mathews Furnaces Arkansas Lime Corning Glass Metso Minerals Atlantic States I & S Covanta Rahway NJ Montana Refinery BP Amoco Covanta York PA MPW Energy Bechtel / NDIA Danisco NRG Energy Citgo Mitsubishi Heavy Electric Ontario Power Carbo Ceramics Erco Worldwide NV Energy Carmeuse Lime Essroc Cements Peru Utilities CH 2 M Paper Mill Fauske PQ Corporation Chemical Lime Foster Wheeler Rayonier Paper Citgo Petroleum GE Energy Seminole Electric City of Bellingham Heartland Cement Siemens CMS Energy Hollman Corporation Steel Dynamics Coffeeville Refinery JEA Power Saint Gobain Glass TXI Chaparral Steel Lehigh Cement Chevron & Valero Clean Harbor Marathon Ashland Refinery Westar Energy

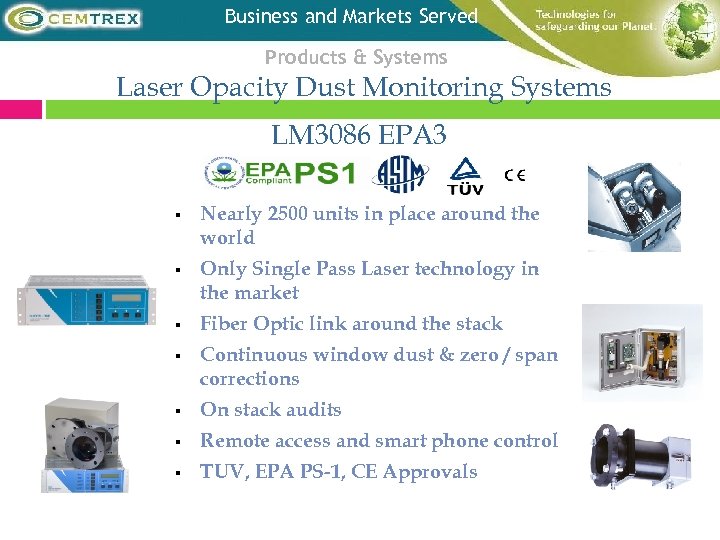

Business and Markets Served Products & Systems Laser Opacity Dust Monitoring Systems LM 3086 EPA 3 § § Nearly 2500 units in place around the world Only Single Pass Laser technology in the market Fiber Optic link around the stack Continuous window dust & zero / span corrections § On stack audits § Remote access and smart phone control § TUV, EPA PS-1, CE Approvals

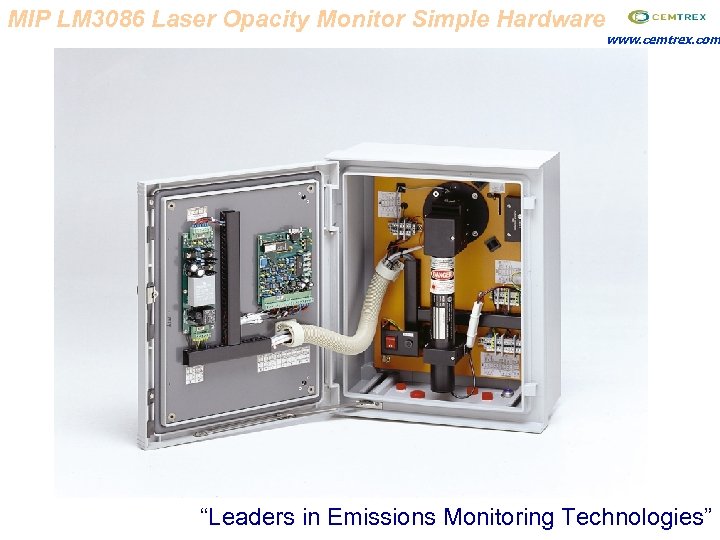

MIP LM 3086 Laser Opacity Monitor Simple Hardware www. cemtrex. com “Leaders in Emissions Monitoring Technologies”

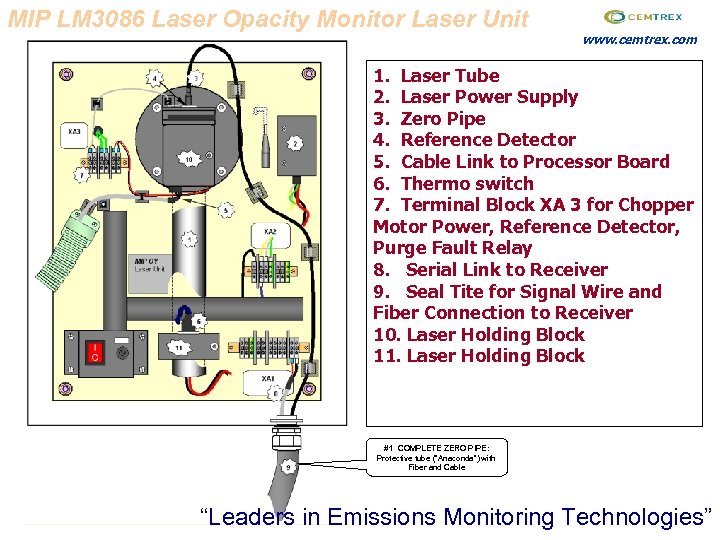

MIP LM 3086 Laser Opacity Monitor Laser Unit www. cemtrex. com 1. Laser Tube 2. Laser Power Supply 3. Zero Pipe 4. Reference Detector 5. Cable Link to Processor Board 6. Thermo switch 7. Terminal Block XA 3 for Chopper Motor Power, Reference Detector, Purge Fault Relay 8. Serial Link to Receiver 9. Seal Tite for Signal Wire and Fiber Connection to Receiver 10. Laser Holding Block 11. Laser Holding Block #1 COMPLETE ZERO PIPE: Protective tube (“Anaconda”) with Fiber and Cable “Leaders in Emissions Monitoring Technologies”

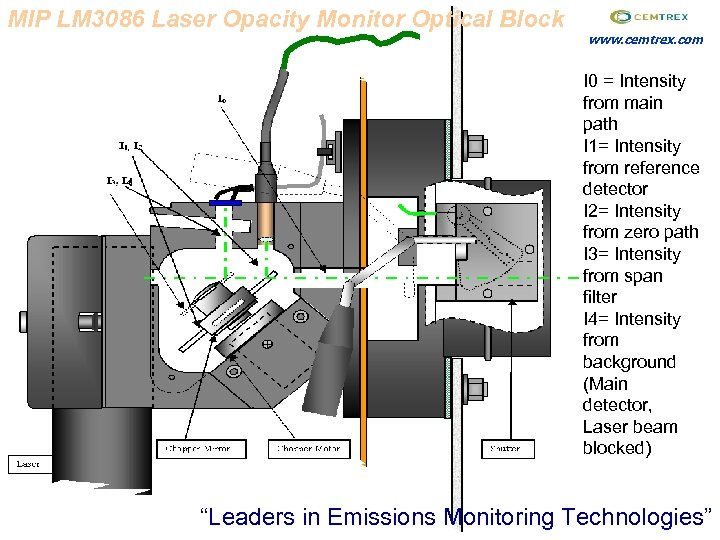

MIP LM 3086 Laser Opacity Monitor Optical Block www. cemtrex. com I 0 = Intensity from main path I 1= Intensity from reference detector I 2= Intensity from zero path I 3= Intensity from span filter I 4= Intensity from background (Main detector, Laser beam blocked) “Leaders in Emissions Monitoring Technologies”

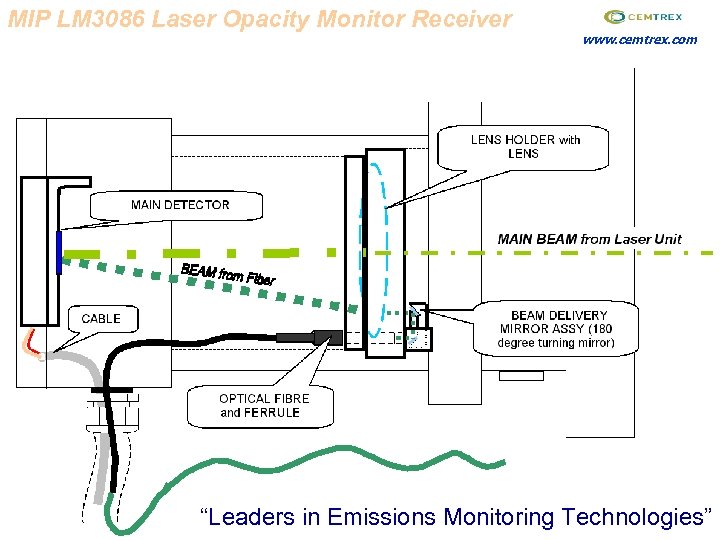

MIP LM 3086 Laser Opacity Monitor Receiver www. cemtrex. com “Leaders in Emissions Monitoring Technologies”

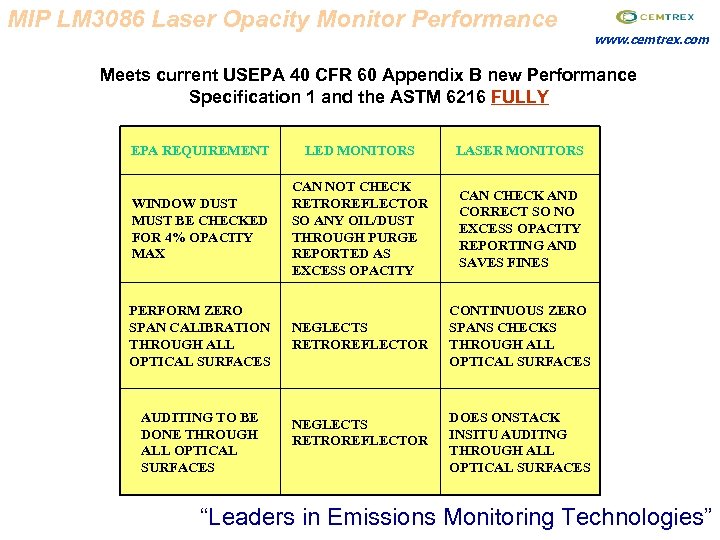

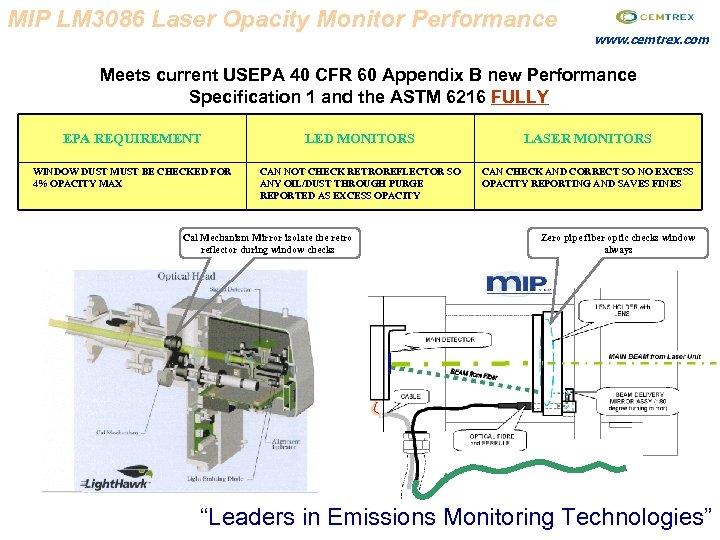

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Meets current USEPA 40 CFR 60 Appendix B new Performance Specification 1 and the ASTM 6216 FULLY EPA REQUIREMENT LED MONITORS LASER MONITORS WINDOW DUST MUST BE CHECKED FOR 4% OPACITY MAX CAN NOT CHECK RETROREFLECTOR SO ANY OIL/DUST THROUGH PURGE REPORTED AS EXCESS OPACITY CAN CHECK AND CORRECT SO NO EXCESS OPACITY REPORTING AND SAVES FINES NEGLECTS RETROREFLECTOR CONTINUOUS ZERO SPANS CHECKS THROUGH ALL OPTICAL SURFACES PERFORM ZERO SPAN CALIBRATION THROUGH ALL OPTICAL SURFACES AUDITING TO BE DONE THROUGH ALL OPTICAL SURFACES NEGLECTS RETROREFLECTOR DOES ONSTACK INSITU AUDITNG THROUGH ALL OPTICAL SURFACES “Leaders in Emissions Monitoring Technologies”

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Meets current USEPA 40 CFR 60 Appendix B new Performance Specification 1 and the ASTM 6216 FULLY EPA REQUIREMENT LED MONITORS LASER MONITORS WINDOW DUST MUST BE CHECKED FOR 4% OPACITY MAX CAN NOT CHECK RETROREFLECTOR SO ANY OIL/DUST THROUGH PURGE REPORTED AS EXCESS OPACITY CAN CHECK AND CORRECT SO NO EXCESS OPACITY REPORTING AND SAVES FINES Cal Mechanism Mirror isolate the retro reflector during window checks Zero pipe fiber optic checks window always “Leaders in Emissions Monitoring Technologies”

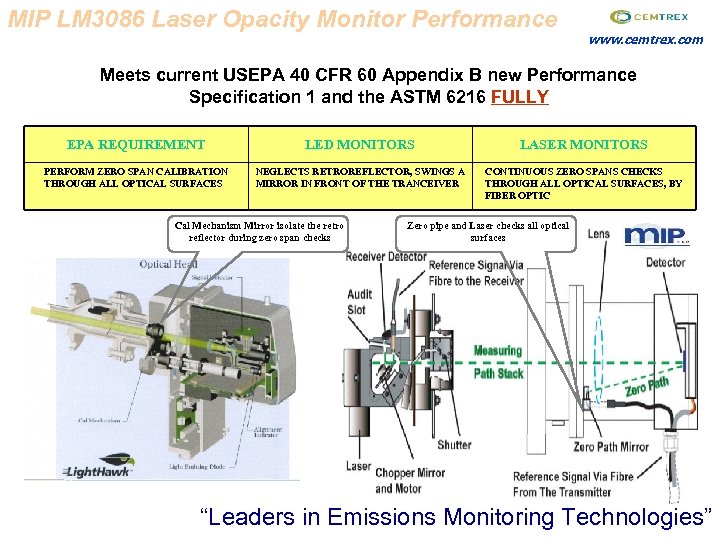

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Meets current USEPA 40 CFR 60 Appendix B new Performance Specification 1 and the ASTM 6216 FULLY EPA REQUIREMENT LED MONITORS LASER MONITORS PERFORM ZERO SPAN CALIBRATION THROUGH ALL OPTICAL SURFACES NEGLECTS RETROREFLECTOR, SWINGS A MIRROR IN FRONT OF THE TRANCEIVER CONTINUOUS ZERO SPANS CHECKS THROUGH ALL OPTICAL SURFACES, BY FIBER OPTIC Cal Mechanism Mirror isolate the retro reflector during zero span checks Zero pipe and Laser checks all optical surfaces “Leaders in Emissions Monitoring Technologies”

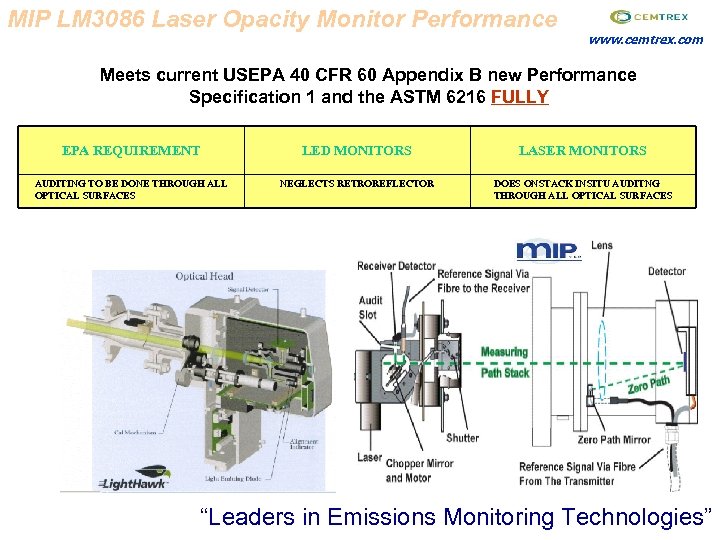

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Meets current USEPA 40 CFR 60 Appendix B new Performance Specification 1 and the ASTM 6216 FULLY EPA REQUIREMENT LED MONITORS LASER MONITORS AUDITING TO BE DONE THROUGH ALL OPTICAL SURFACES NEGLECTS RETROREFLECTOR DOES ONSTACK INSITU AUDITNG THROUGH ALL OPTICAL SURFACES “Leaders in Emissions Monitoring Technologies”

MIP LM 3086 Laser Opacity Monitor Performance Add audit jig lighthawk www. cemtrex. com Major advantages compared to other Monitors EPA REQUIREMENT LED MONITORS LASER MONITORS AUDITING HAS TO BE DONE OFF-STACK, BY ASSEMBLING TRANSMITTER, AUDIT JIG AND RETROREFLECTOR (AUDIT JIG EXTRA COST), ONLY MANUAL AUDIT REPORTS POSSIBLE DOES ONSTACK INSITU AUDITNG THROUGH, NO NEED TO DISTURB THE TRANMITTER AND RECEIVER, AUTOMATICALLY REPORTS AUDIT RESULTS AUDIT SLOT 4. PRINT REPORT 3. PRESS BUTTON 2. INSERT FILTER IN SLOT 1. OPEN DOOR “Leaders in Emissions Monitoring Technologies”

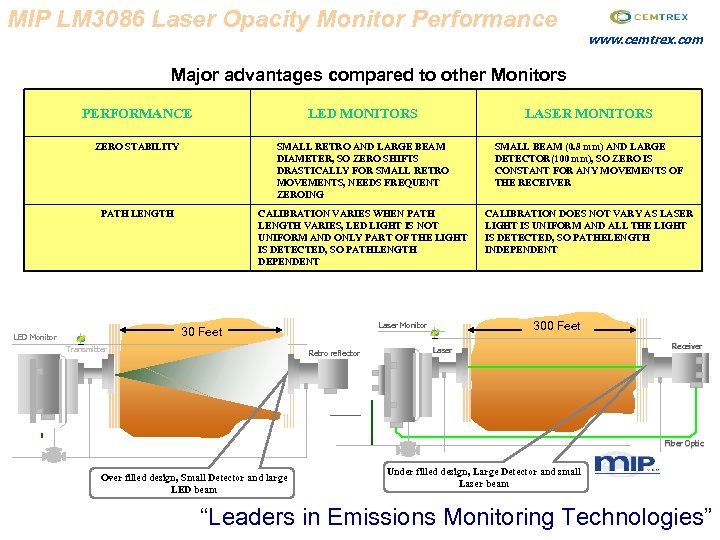

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Major advantages compared to other Monitors PERFORMANCE LED MONITORS LASER MONITORS ZERO STABILITY SMALL RETRO AND LARGE BEAM DIAMETER, SO ZERO SHIFTS DRASTICALLY FOR SMALL RETRO MOVEMENTS, NEEDS FREQUENT ZEROING SMALL BEAM (0. 8 mm) AND LARGE DETECTOR(100 mm), SO ZERO IS CONSTANT FOR ANY MOVEMENTS OF THE RECEIVER PATH LENGTH CALIBRATION VARIES WHEN PATH LENGTH VARIES, LED LIGHT IS NOT UNIFORM AND ONLY PART OF THE LIGHT IS DETECTED, SO PATHLENGTH DEPENDENT CALIBRATION DOES NOT VARY AS LASER LIGHT IS UNIFORM AND ALL THE LIGHT IS DETECTED, SO PATHELENGTH INDEPENDENT LED Monitor Transmitter 300 Feet Laser Monitor 30 Feet Retro reflector Laser Receiver Fiber Optic Over filled design, Small Detector and large LED beam Under filled design, Large Detector and small Laser beam “Leaders in Emissions Monitoring Technologies”

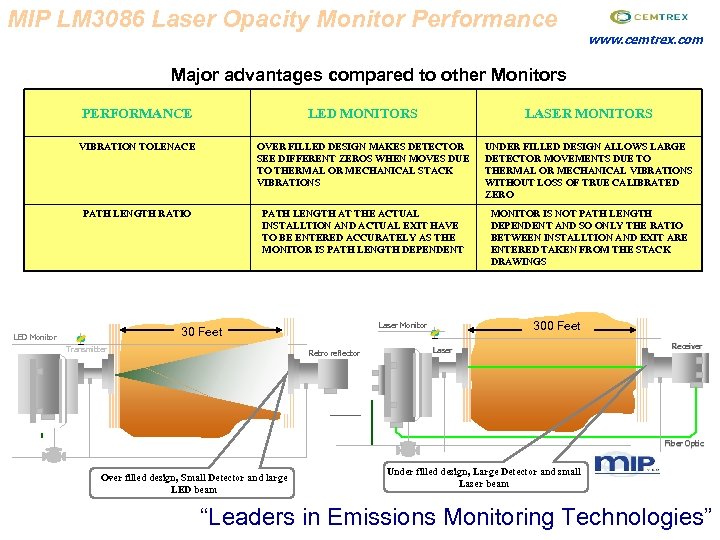

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Major advantages compared to other Monitors PERFORMANCE LED MONITORS LASER MONITORS VIBRATION TOLENACE OVER FILLED DESIGN MAKES DETECTOR SEE DIFFERENT ZEROS WHEN MOVES DUE TO THERMAL OR MECHANICAL STACK VIBRATIONS UNDER FILLED DESIGN ALLOWS LARGE DETECTOR MOVEMENTS DUE TO THERMAL OR MECHANICAL VIBRATIONS WITHOUT LOSS OF TRUE CALIBRATED ZERO PATH LENGTH RATIO PATH LENGTH AT THE ACTUAL INSTALLTION AND ACTUAL EXIT HAVE TO BE ENTERED ACCURATELY AS THE MONITOR IS PATH LENGTH DEPENDENT MONITOR IS NOT PATH LENGTH DEPENDENT AND SO ONLY THE RATIO BETWEEN INSTALLTION AND EXIT ARE ENTERED TAKEN FROM THE STACK DRAWINGS LED Monitor Transmitter 300 Feet Laser Monitor 30 Feet Retro reflector Laser Receiver Fiber Optic Over filled design, Small Detector and large LED beam Under filled design, Large Detector and small Laser beam “Leaders in Emissions Monitoring Technologies”

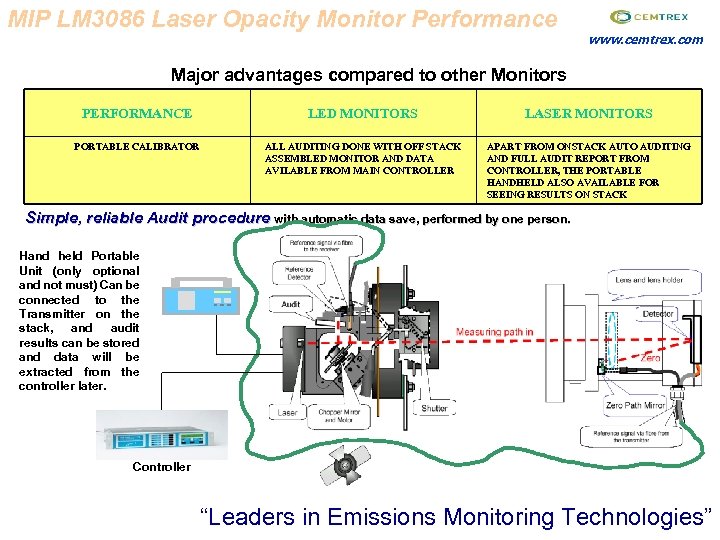

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Major advantages compared to other Monitors PERFORMANCE LED MONITORS LASER MONITORS PORTABLE CALIBRATOR ALL AUDITING DONE WITH OFF STACK ASSEMBLED MONITOR AND DATA AVILABLE FROM MAIN CONTROLLER APART FROM ONSTACK AUTO AUDITING AND FULL AUDIT REPORT FROM CONTROLLER, THE PORTABLE HANDHELD ALSO AVAILABLE FOR SEEING RESULTS ON STACK Simple, reliable Audit procedure with automatic data save, performed by one person. Hand held Portable Unit (only optional and not must) Can be connected to the Transmitter on the stack, and audit results can be stored and data will be extracted from the controller later. Controller “Leaders in Emissions Monitoring Technologies”

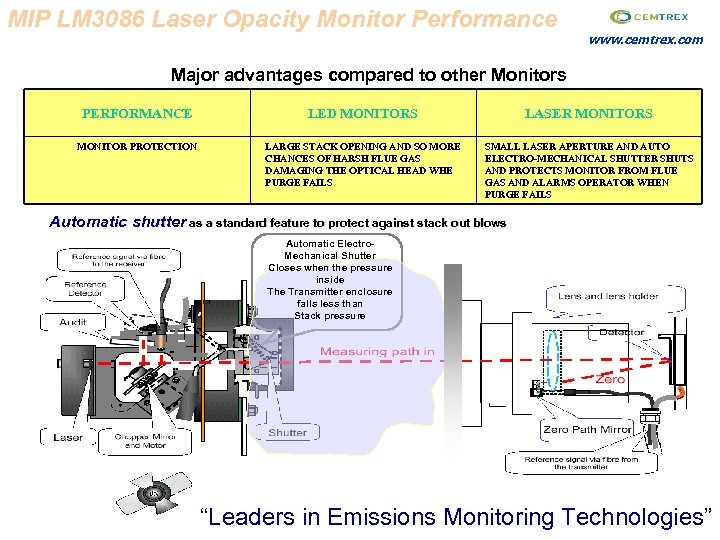

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com Major advantages compared to other Monitors PERFORMANCE LED MONITORS LASER MONITORS MONITOR PROTECTION LARGE STACK OPENING AND SO MORE CHANCES OF HARSH FLUE GAS DAMAGING THE OPTICAL HEAD WHE PURGE FAILS SMALL LASER APERTURE AND AUTO ELECTRO-MECHANICAL SHUTTER SHUTS AND PROTECTS MONITOR FROM FLUE GAS AND ALARMS OPERATOR WHEN PURGE FAILS Automatic shutter as a standard feature to protect against stack out blows Automatic Electro. Mechanical Shutter Closes when the pressure inside The Transmitter enclosure falls less than Stack pressure “Leaders in Emissions Monitoring Technologies”

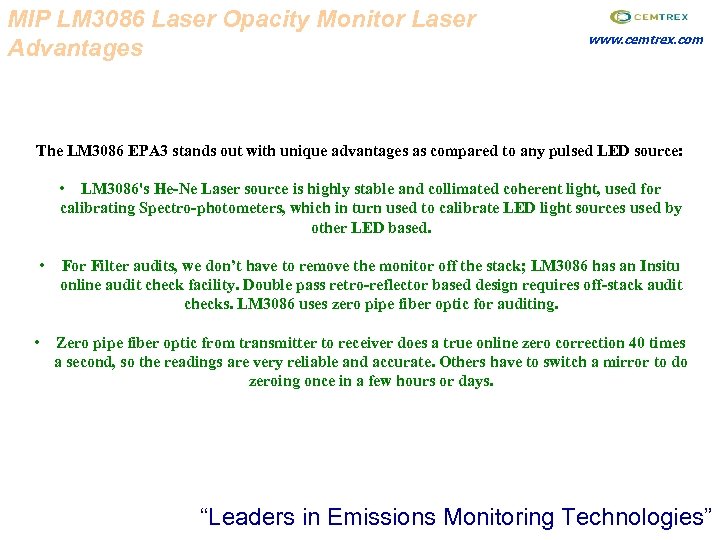

MIP LM 3086 Laser Opacity Monitor Laser Advantages www. cemtrex. com The LM 3086 EPA 3 stands out with unique advantages as compared to any pulsed LED source: • LM 3086's He-Ne Laser source is highly stable and collimated coherent light, used for calibrating Spectro-photometers, which in turn used to calibrate LED light sources used by other LED based. • • For Filter audits, we don’t have to remove the monitor off the stack; LM 3086 has an Insitu online audit check facility. Double pass retro-reflector based design requires off-stack audit checks. LM 3086 uses zero pipe fiber optic for auditing. Zero pipe fiber optic from transmitter to receiver does a true online zero correction 40 times a second, so the readings are very reliable and accurate. Others have to switch a mirror to do zeroing once in a few hours or days. “Leaders in Emissions Monitoring Technologies”

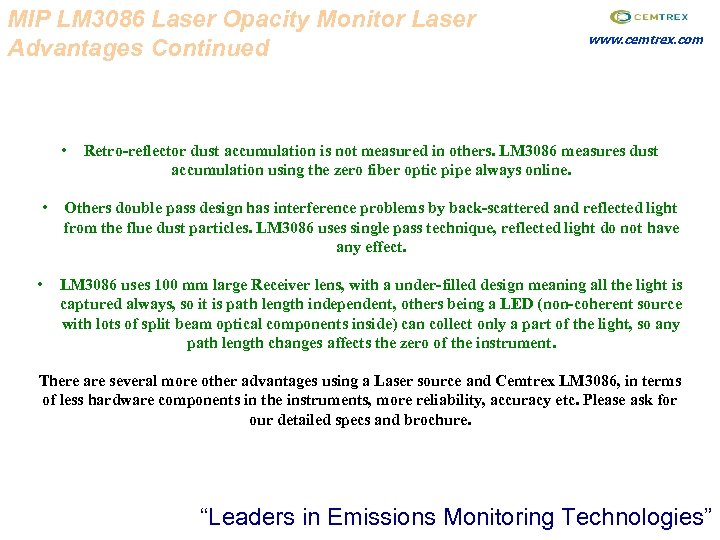

MIP LM 3086 Laser Opacity Monitor Laser Advantages Continued www. cemtrex. com • Retro-reflector dust accumulation is not measured in others. LM 3086 measures dust accumulation using the zero fiber optic pipe always online. • Others double pass design has interference problems by back-scattered and reflected light from the flue dust particles. LM 3086 uses single pass technique, reflected light do not have any effect. • LM 3086 uses 100 mm large Receiver lens, with a under-filled design meaning all the light is captured always, so it is path length independent, others being a LED (non-coherent source with lots of split beam optical components inside) can collect only a part of the light, so any path length changes affects the zero of the instrument. There are several more other advantages using a Laser source and Cemtrex LM 3086, in terms of less hardware components in the instruments, more reliability, accuracy etc. Please ask for our detailed specs and brochure. “Leaders in Emissions Monitoring Technologies”

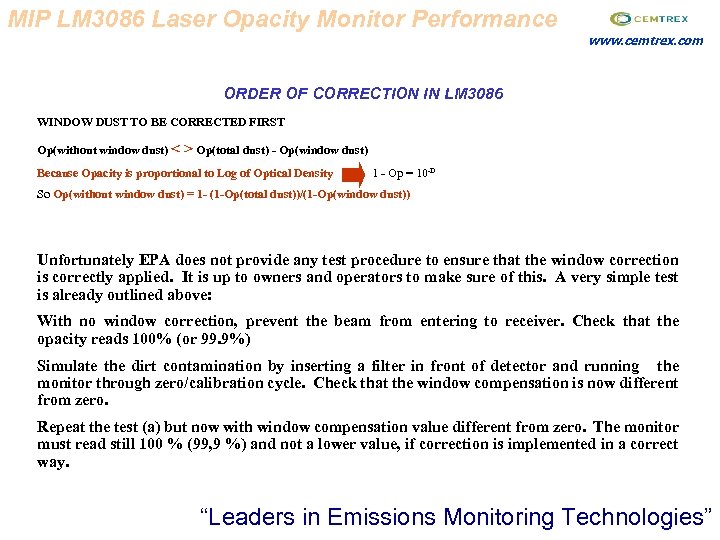

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com ORDER OF CORRECTION IN LM 3086 WINDOW DUST TO BE CORRECTED FIRST Op(without window dust) < > Op(total dust) - Op(window dust) Because Opacity is proportional to Log of Optical Density 1 - Op = 10 -D So Op(without window dust) = 1 - (1 -Op(total dust))/(1 -Op(window dust)) Unfortunately EPA does not provide any test procedure to ensure that the window correction is correctly applied. It is up to owners and operators to make sure of this. A very simple test is already outlined above: With no window correction, prevent the beam from entering to receiver. Check that the opacity reads 100% (or 99. 9%) Simulate the dirt contamination by inserting a filter in front of detector and running the monitor through zero/calibration cycle. Check that the window compensation is now different from zero. Repeat the test (a) but now with window compensation value different from zero. The monitor must read still 100 % (99, 9 %) and not a lower value, if correction is implemented in a correct way. “Leaders in Emissions Monitoring Technologies”

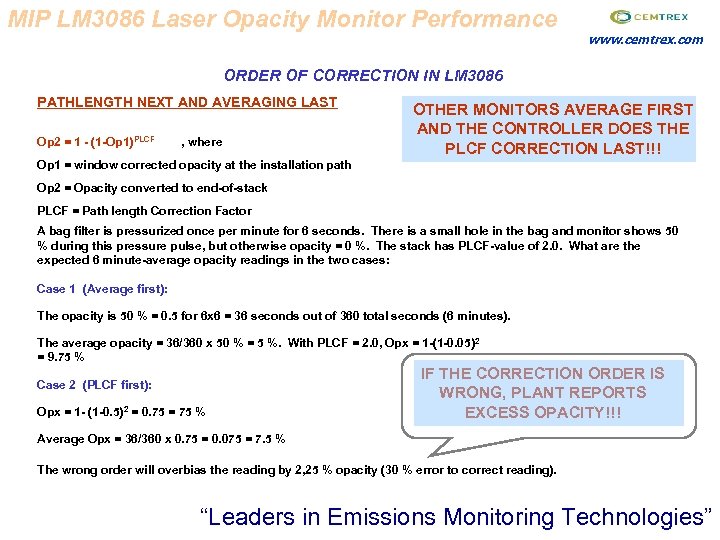

MIP LM 3086 Laser Opacity Monitor Performance www. cemtrex. com ORDER OF CORRECTION IN LM 3086 PATHLENGTH NEXT AND AVERAGING LAST Op 2 = 1 - (1 -Op 1)PLCF , where Op 1 = window corrected opacity at the installation path Op 2 = Opacity converted to end-of-stack PLCF = Path length Correction Factor OTHER MONITORS AVERAGE FIRST AND THE CONTROLLER DOES THE PLCF CORRECTION LAST!!! A bag filter is pressurized once per minute for 6 seconds. There is a small hole in the bag and monitor shows 50 % during this pressure pulse, but otherwise opacity = 0 %. The stack has PLCF-value of 2. 0. What are the expected 6 minute-average opacity readings in the two cases: Case 1 (Average first): The opacity is 50 % = 0. 5 for 6 x 6 = 36 seconds out of 360 total seconds (6 minutes). The average opacity = 36/360 x 50 % = 5 %. With PLCF = 2. 0, Opx = 1 -(1 -0. 05) 2 = 9. 75 % IF THE CORRECTION ORDER IS Case 2 (PLCF first): WRONG, PLANT REPORTS Opx = 1 - (1 -0. 5)2 = 0. 75 = 75 % EXCESS OPACITY!!! Average Opx = 36/360 x 0. 75 = 0. 075 = 7. 5 % The wrong order will overbias the reading by 2, 25 % opacity (30 % error to correct reading). “Leaders in Emissions Monitoring Technologies”

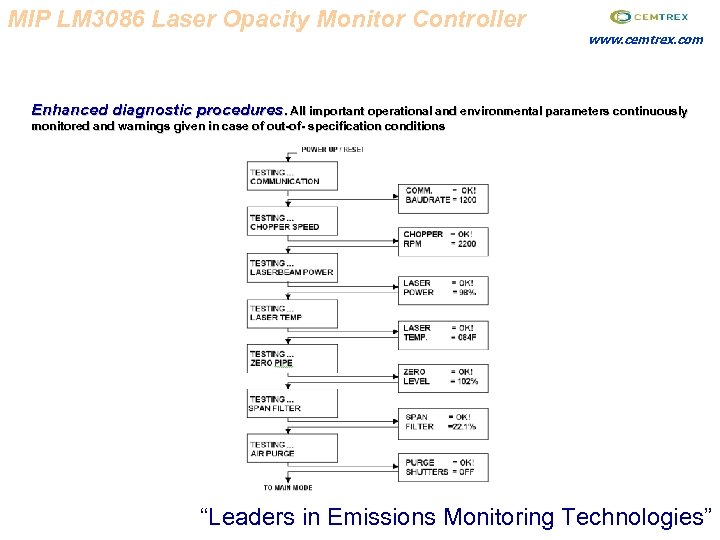

MIP LM 3086 Laser Opacity Monitor Controller www. cemtrex. com Enhanced diagnostic procedures. All important operational and environmental parameters continuously monitored and warnings given in case of out-of- specification conditions “Leaders in Emissions Monitoring Technologies”

MIP LM 3086 Laser Opacity Monitor Controller www. cemtrex. com Comprehensive data storage in the controller which can be downloaded into a PC with date/time stamps 127 Average Opacity Values 32 Zeros 32 Calibrations 32 Window Values 32 SEC Values 3 x 32 Audit Values 9 System Logs “Leaders in Emissions Monitoring Technologies”

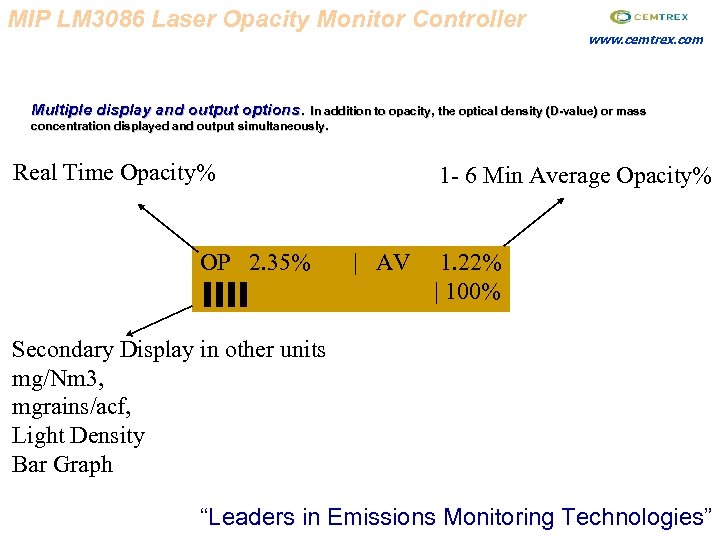

MIP LM 3086 Laser Opacity Monitor Controller www. cemtrex. com Multiple display and output options. In addition to opacity, the optical density (D-value) or mass concentration displayed and output simultaneously. Real Time Opacity% 1 - 6 Min Average Opacity% OP 2. 35% | AV 1. 22% | 100% Secondary Display in other units mg/Nm 3, mgrains/acf, Light Density Bar Graph “Leaders in Emissions Monitoring Technologies”

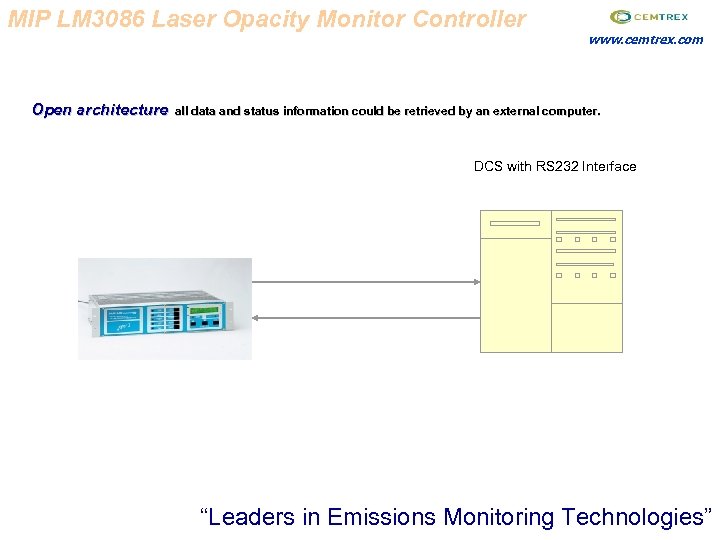

MIP LM 3086 Laser Opacity Monitor Controller www. cemtrex. com Open architecture all data and status information could be retrieved by an external computer. DCS with RS 232 Interface “Leaders in Emissions Monitoring Technologies”

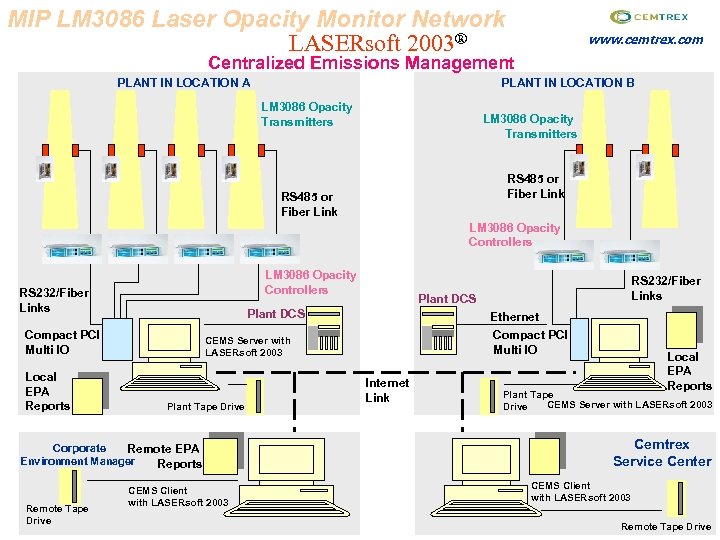

MIP LM 3086 Laser Opacity Monitor Network LASERsoft 2003® www. cemtrex. com Centralized Emissions Management CENTRALIZED EMISSIONS MANAGEMENT PLANT IN LOCATION A PLANT IN LOCATION B LM 3086 Opacity Transmitters RS 485 or Fiber Link LM 3086 Opacity Controllers RS 232/Fiber Links Local EPA Reports Ethernet Compact PCI Multi IO CEMS Server with LASERsoft 2003 Plant Tape Drive Corporate Remote EPA Environment Manager Reports Remote Tape Drive Plant DCS Compact PCI Multi IO CEMS Client with LASERsoft 2003 RS 232/Fiber Links Internet Link Local EPA Reports Plant Tape CEMS Server with LASERsoft 2003 Drive Cemtrex Service Center CEMS Client with LASERsoft 2003 Remote Tape Drive

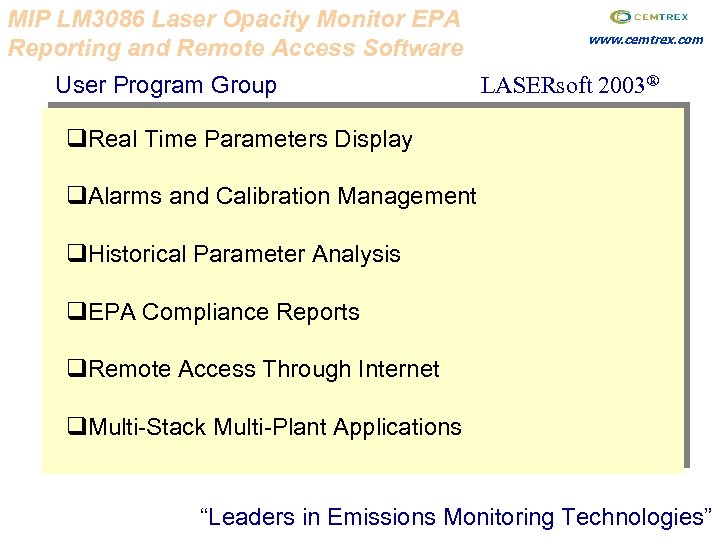

MIP LM 3086 Laser Opacity Monitor EPA Reporting and Remote Access Software User Program Group www. cemtrex. com LASERsoft 2003® q. Real Time Parameters Display q. Alarms and Calibration Management q. Historical Parameter Analysis q. EPA Compliance Reports q. Remote Access Through Internet q. Multi-Stack Multi-Plant Applications “Leaders in Emissions Monitoring Technologies”

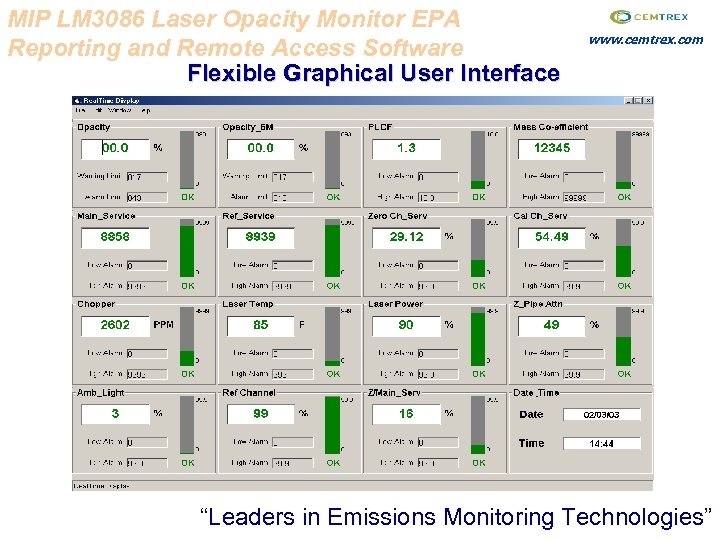

MIP LM 3086 Laser Opacity Monitor EPA Reporting and Remote Access Software Flexible Graphical User Interface www. cemtrex. com “Leaders in Emissions Monitoring Technologies”

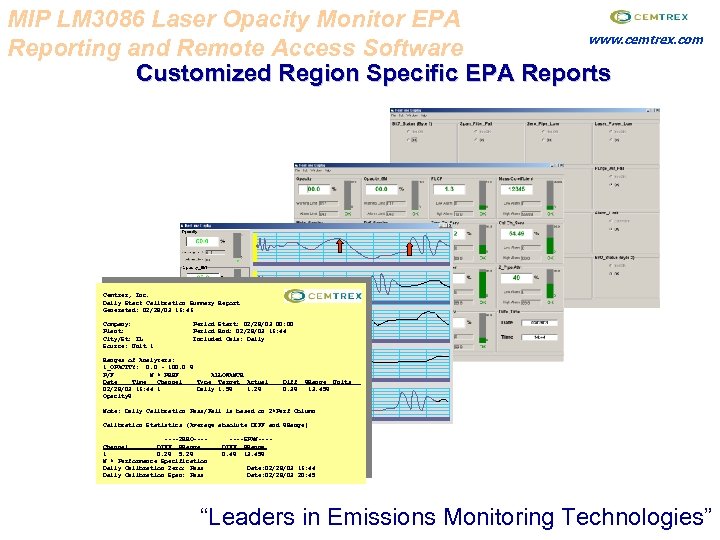

MIP LM 3086 Laser Opacity Monitor EPA www. cemtrex. com Reporting and Remote Access Software Customized Region Specific EPA Reports Cemtrex, Inc. Daily Stack Calibration Summary Report Generated: 02/28/03 16: 46 Company: Period Start: 02/28/03 00: 00 Plant: Period End: 02/28/03 16: 44 City/St: IL Included Cals: Daily Source: Unit 1 Ranges of Analyzers: 1_OPACITY: 0. 0 - 100. 0 % P/F N * PERF ALLOWANCE Date Time Channel Type Target Actual Diff %Range Units 02/28/03 16: 44 1 Daily 1. 5% 1. 2% 0. 3% 13. 45% Opacity% Note: Daily Calibration Pass/Fail is based on 2*Perf Column Calibration Statistics (Average absolute DIFF and %Range) ----ZERO----SPAN---Channel DIFF %Range 1 0. 2% 5. 2% 0. 4% 13. 45% N * Performance Specification Daily Calibration Zero: Pass Date: 02/28/03 16: 44 Daily Calibration Span: Pass Date: 02/28/03 20: 45 “Leaders in Emissions Monitoring Technologies”

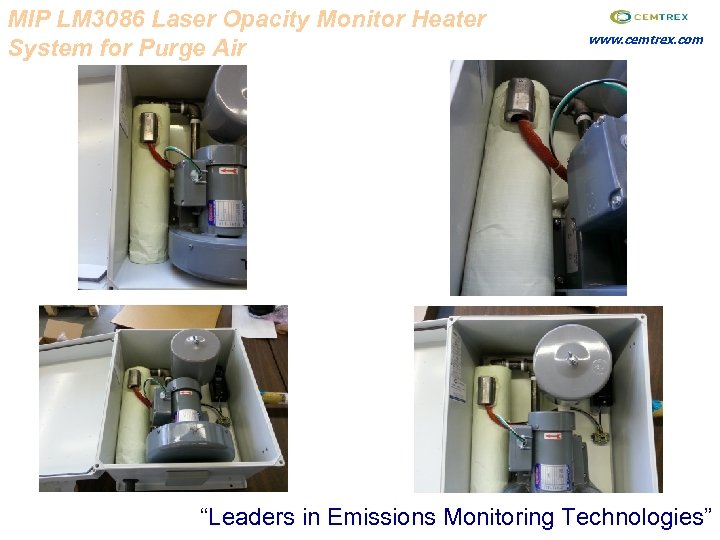

MIP LM 3086 Laser Opacity Monitor Heater System for Purge Air www. cemtrex. com “Leaders in Emissions Monitoring Technologies”

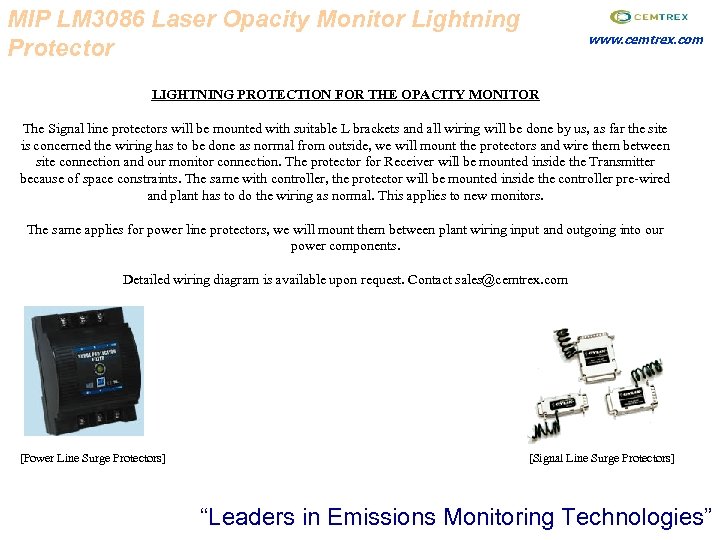

MIP LM 3086 Laser Opacity Monitor Lightning Protector www. cemtrex. com LIGHTNING PROTECTION FOR THE OPACITY MONITOR The Signal line protectors will be mounted with suitable L brackets and all wiring will be done by us, as far the site is concerned the wiring has to be done as normal from outside, we will mount the protectors and wire them between site connection and our monitor connection. The protector for Receiver will be mounted inside the Transmitter because of space constraints. The same with controller, the protector will be mounted inside the controller pre-wired and plant has to do the wiring as normal. This applies to new monitors. The same applies for power line protectors, we will mount them between plant wiring input and outgoing into our power components. Detailed wiring diagram is available upon request. Contact sales@cemtrex. com [Power Line Surge Protectors] [Signal Line Surge Protectors] “Leaders in Emissions Monitoring Technologies”
