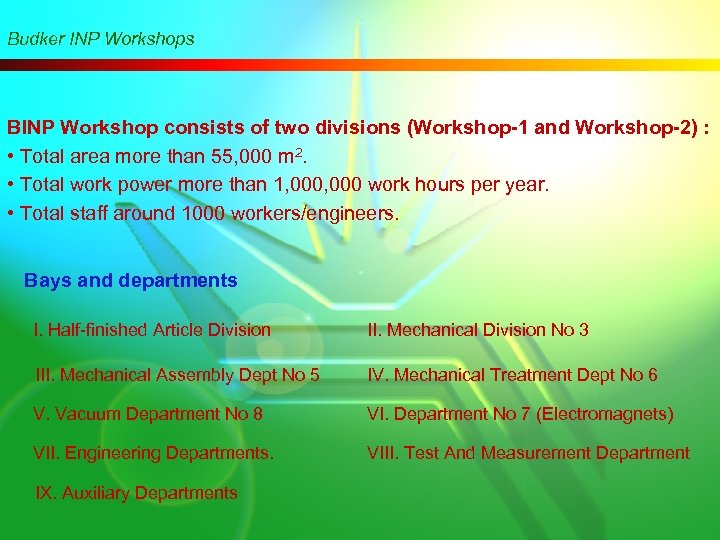

Budker INP Workshops BINP Workshop consists of two divisions (Workshop-1 and Workshop-2) : • Total area more than 55, 000 m 2. • Total work power more than 1, 000 work hours per year. • Total staff around 1000 workers/engineers. Bays and departments I. Half-finished Article Division II. Mechanical Division No 3 III. Mechanical Assembly Dept No 5 IV. Mechanical Treatment Dept No 6 V. Vacuum Department No 8 VI. Department No 7 (Electromagnets) VII. Engineering Departments. VIII. Test And Measurement Department IX. Auxiliary Departments
Budker INP Workshops Technology capability Maximum element weight Maximum diameter of treated element Maximum size of treated element Accuracy Roughness 20 tons 4000 mm 6000 x 1500 mm 2. 5 micron 0. 05 micron Maximum sizes of vacuum furnace (T = 950 C) Ø 2000 x 1000 mm Maximum temperature in thermal furnace Maximum hydraulic press force 1500 C 1000 tons

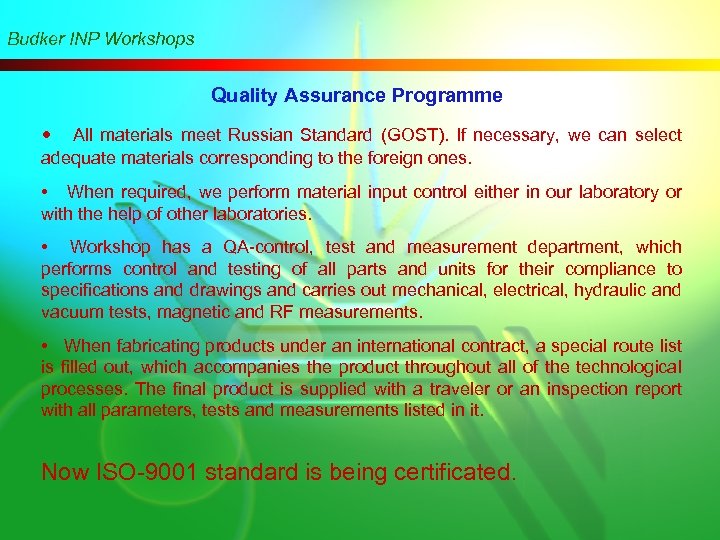

Budker INP Workshops Quality Assurance Programme • All materials meet Russian Standard (GOST). If necessary, we can select adequate materials corresponding to the foreign ones. • When required, we perform material input control either in our laboratory or with the help of other laboratories. • Workshop has a QA-control, test and measurement department, which performs control and testing of all parts and units for their compliance to specifications and drawings and carries out mechanical, electrical, hydraulic and vacuum tests, magnetic and RF measurements. • When fabricating products under an international contract, a special route list is filled out, which accompanies the product throughout all of the technological processes. The final product is supplied with a traveler or an inspection report with all parameters, tests and measurements listed in it. Now ISO-9001 standard is being certificated.
