BRTS INTEGRATION – APPLICATION OF INTELLIGENT TRANSPORT MANAGEMENT SYSTEMS (ITMS) ASIA BRTS- AMDAVAD 7. 9. 12 Sanjeev Kumar Lohia OSD and E. O JS(UT), Ministry of Urban Development, Govt of India

ITMS benefits and Opportunities Intelligent Transit Management System Operational Efficiency by use of IT enabled process management Enhanced Service Standards, bring in commuter oriented approach, better organization of planning and operations, including customer facing information delivery. Capital Improvements & Control, marketing, and automates collection and payment of transit fares. Productivity through Integration of Financial Processes, Operations Management, Commuter driven approach ensuring high availability.

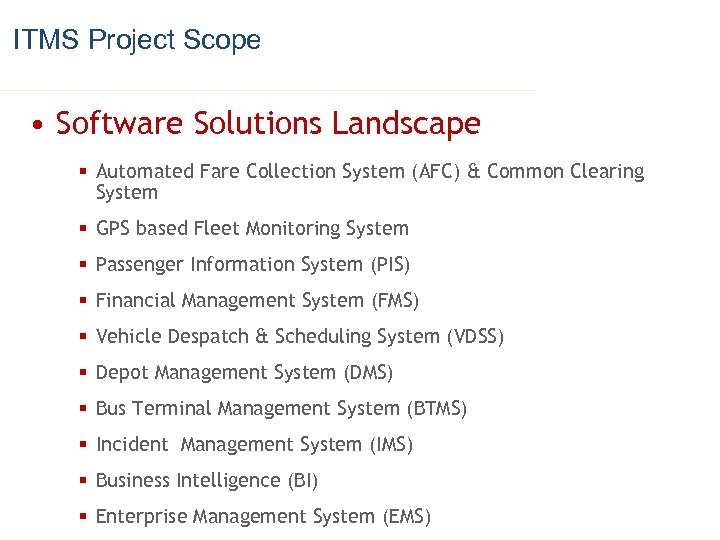

ITMS Project Scope • Software Solutions Landscape § Automated Fare Collection System (AFC) & Common Clearing System § GPS based Fleet Monitoring System § Passenger Information System (PIS) § Financial Management System (FMS) § Vehicle Despatch & Scheduling System (VDSS) § Depot Management System (DMS) § Bus Terminal Management System (BTMS) § Incident Management System (IMS) § Business Intelligence (BI) § Enterprise Management System (EMS)

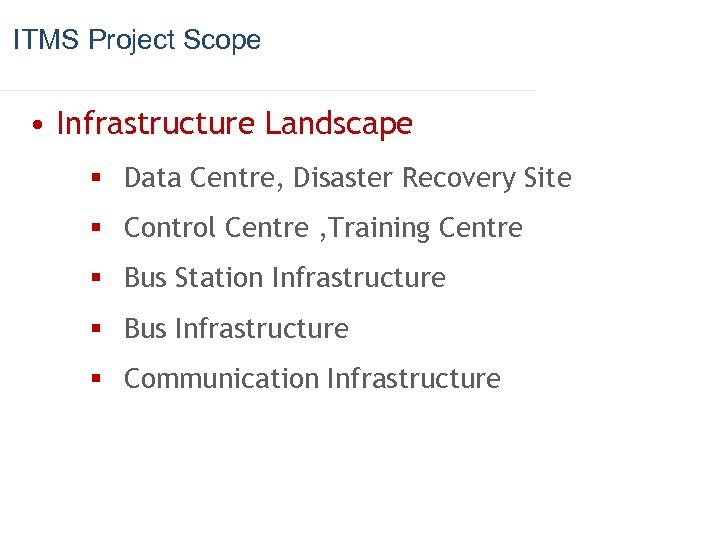

ITMS Project Scope • Infrastructure Landscape § Data Centre, Disaster Recovery Site § Control Centre , Training Centre § Bus Station Infrastructure § Bus Infrastructure § Communication Infrastructure

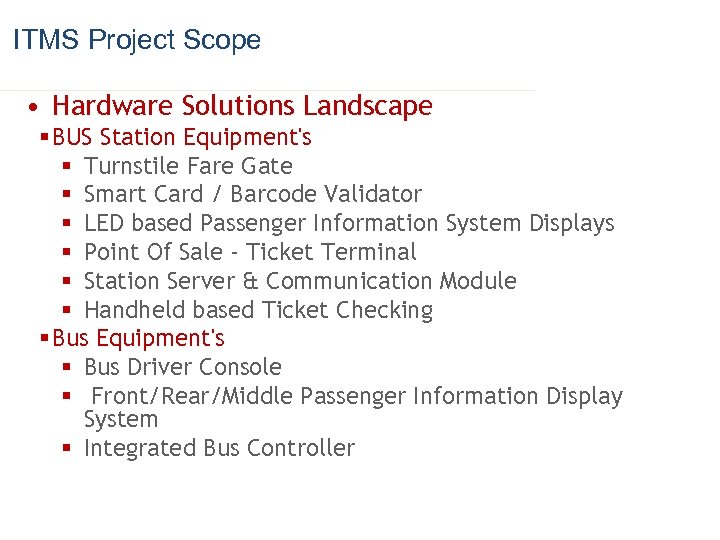

ITMS Project Scope • Hardware Solutions Landscape § BUS Station Equipment's § Turnstile Fare Gate § Smart Card / Barcode Validator § LED based Passenger Information System Displays § Point Of Sale - Ticket Terminal § Station Server & Communication Module § Handheld based Ticket Checking § Bus Equipment's § Bus Driver Console § Front/Rear/Middle Passenger Information Display System § Integrated Bus Controller

Contd… §Control Center and Disaster Recovery Center § Automated Fare Collection System § Financial Management System & Central Clearing House System § Vehicle Location System § Bulk Initialization System § Card Personalization System § Central Communications System § Depot Management System § Bus Terminal Management System § Vehicle Scheduling & Dispatch System § Incident Management System § Enterprise Management System § Video Wall for Operations Management

ITMS Project Scope • Operations, Management & Maintenance Services § Ticket Operators, Control Centre operators § Level-1 (Control Centre), Level-2 (Technical Operators) and Level-3 (bug fixing & roll out) Support § System Administration and Database Administration § Ticket Terminal Operations § Over all Operations of AFC § Vehicle Monitoring and communication services § Incident Management System § Vehicle Scheduling & Dispatch Service § Passenger Information System § Bus Terminal management System § Depot Management System The service provider manages all operational activities within the guidelines decided of the transport company and hence provides management bandwidth to enable operations management and efficiency enhancement.

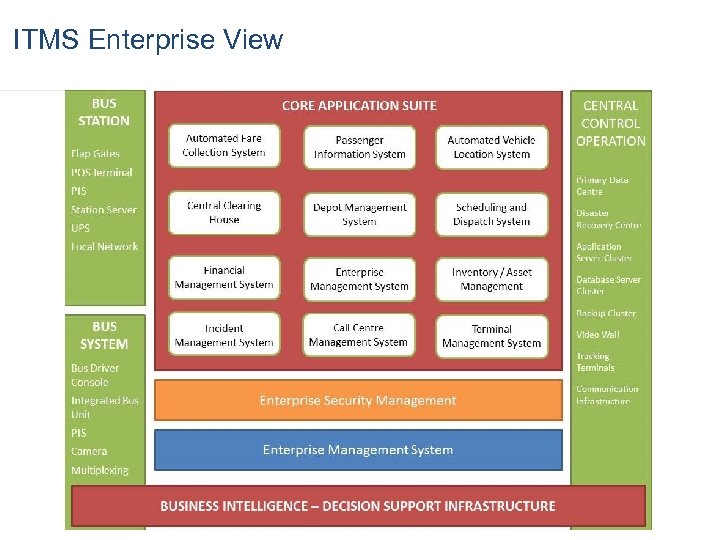

ITMS Enterprise View

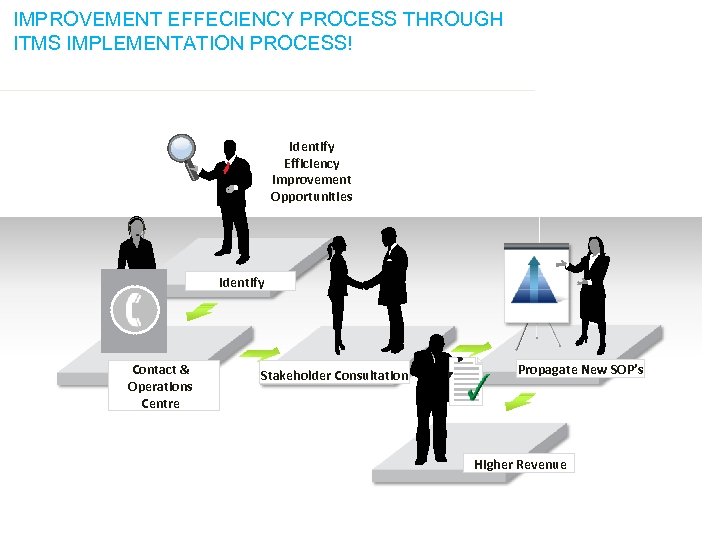

IMPROVEMENT EFFECIENCY PROCESS THROUGH ITMS IMPLEMENTATION PROCESS! Identify Efficiency Improvement Opportunities Identify Contact & Operations Centre Stakeholder Consultation Propagate New SOP’s Higher Revenue

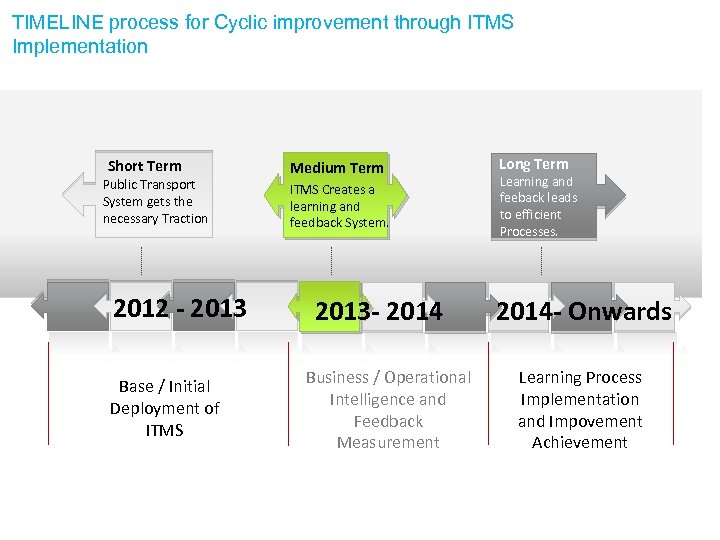

TIMELINE process for Cyclic improvement through ITMS Implementation Short Term Public Transport System gets the necessary Traction 2012 - 2013 Base / Initial Deployment of ITMS Medium Term ITMS Creates a learning and feedback System. 2013 - 2014 Business / Operational Intelligence and Feedback Measurement Long Term Learning and feeback leads to efficient Processes. 2014 - Onwards Learning Process Implementation and Impovement Achievement

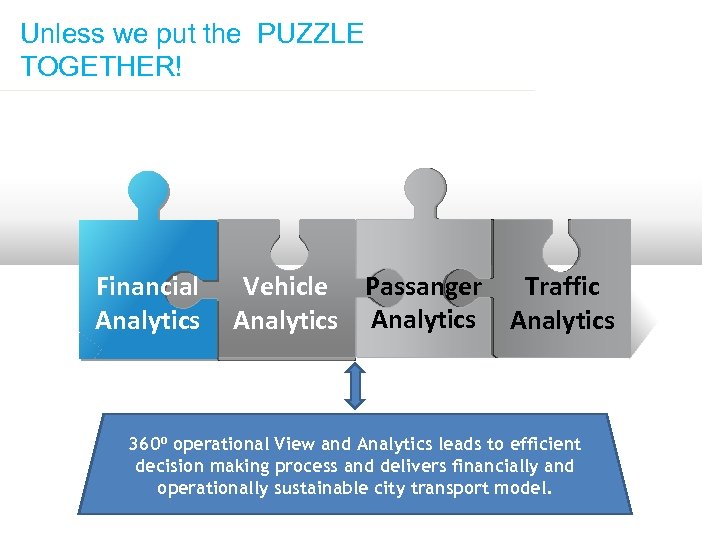

Unless we put the PUZZLE TOGETHER! Financial Analytics Vehicle Passanger Traffic Analytics 360⁰ operational View and Analytics leads to efficient decision making process and delivers financially and operationally sustainable city transport model.

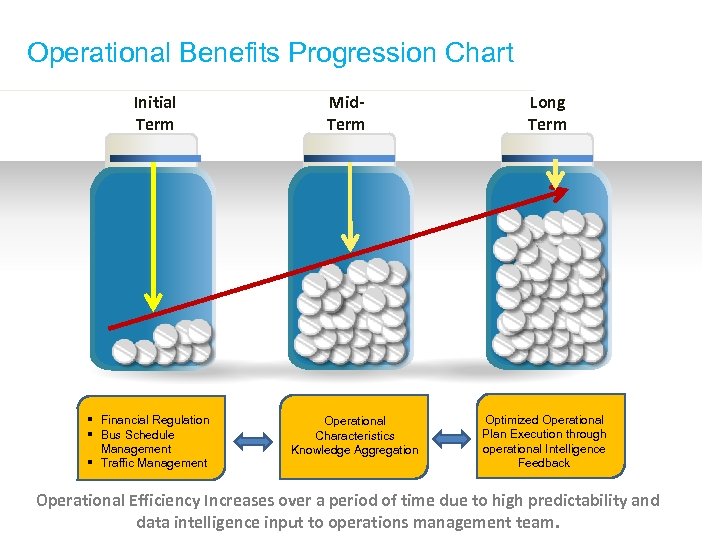

Operational Benefits Progression Chart Initial Term § Financial Regulation § Bus Schedule Management § Traffic Management Mid. Term Operational Characteristics Knowledge Aggregation Long Term Optimized Operational Plan Execution through operational Intelligence Feedback Operational Efficiency Increases over a period of time due to high predictability and data intelligence input to operations management team.

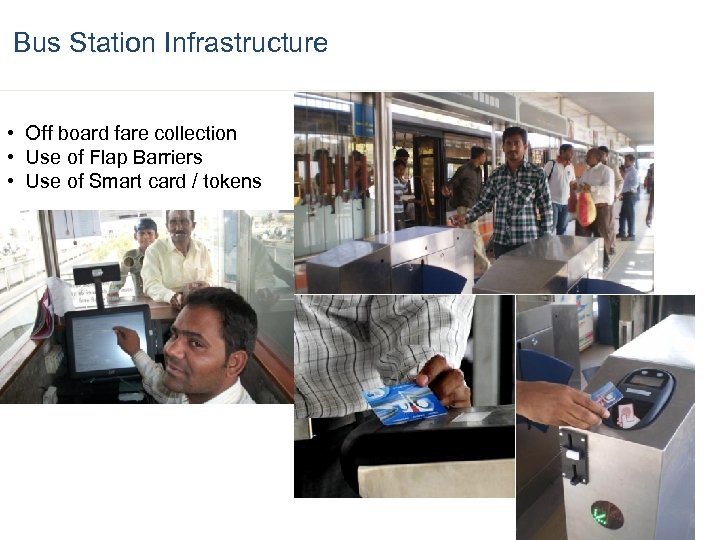

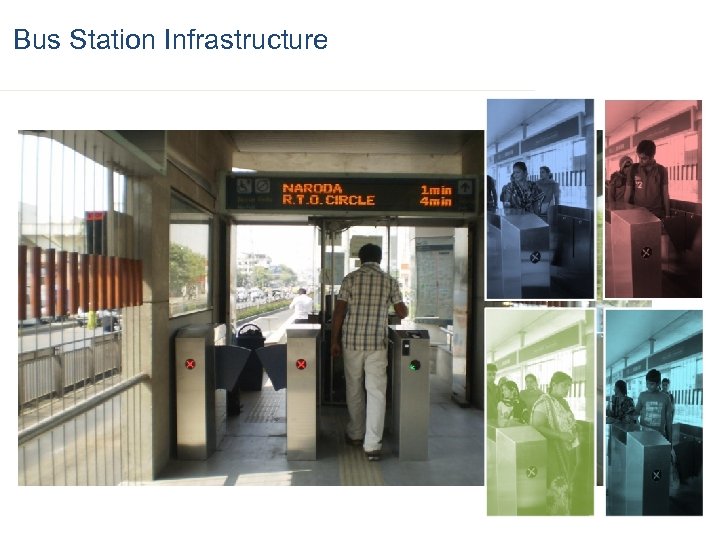

Bus Station Infrastructure • Off board fare collection • Use of Flap Barriers • Use of Smart card / tokens

Bus Station Infrastructure

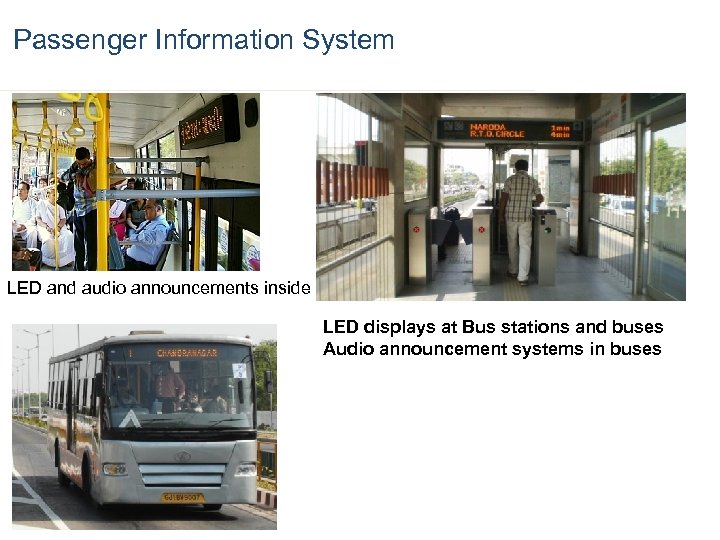

Passenger Information System LED and audio announcements inside buses LED displays at Bus stations and buses Audio announcement systems in buses

Bus ITS Equipment's Bus Driver Console

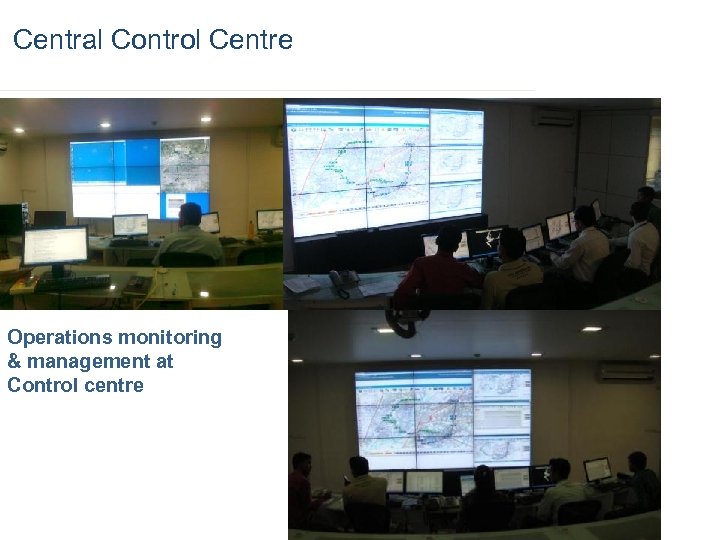

Central Control Centre Operations monitoring & management at Control centre

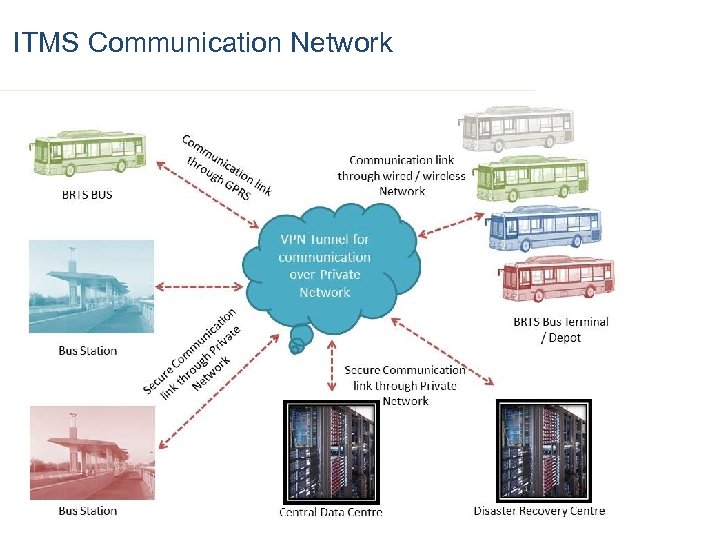

ITMS Communication Network

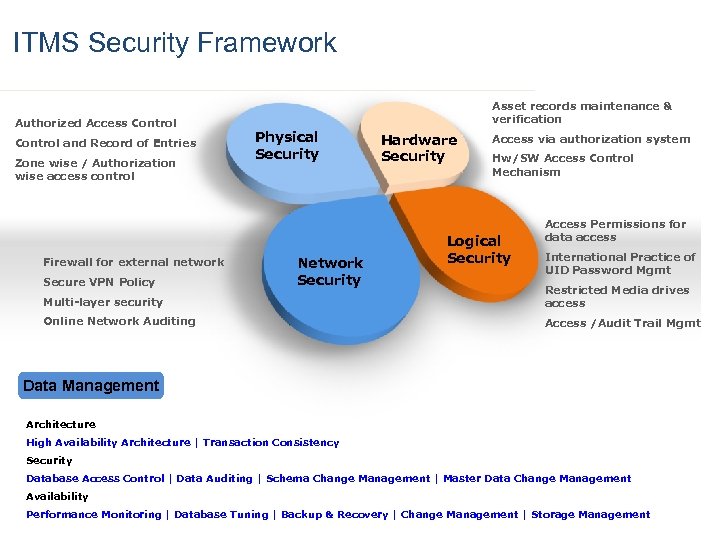

ITMS Security Framework Authorized Access Control and Record of Entries Zone wise / Authorization wise access control Firewall for external network Secure VPN Policy Asset records maintenance & verification Physical Security Network Security Hardware Security Access via authorization system Hw/SW Access Control Mechanism Logical Security Access Permissions for data access International Practice of UID Password Mgmt Multi-layer security Restricted Media drives access Online Network Auditing Access /Audit Trail Mgmt Data Management Architecture High Availability Architecture | Transaction Consistency Security Database Access Control | Data Auditing | Schema Change Management | Master Data Change Management Availability Performance Monitoring | Database Tuning | Backup & Recovery | Change Management | Storage Management

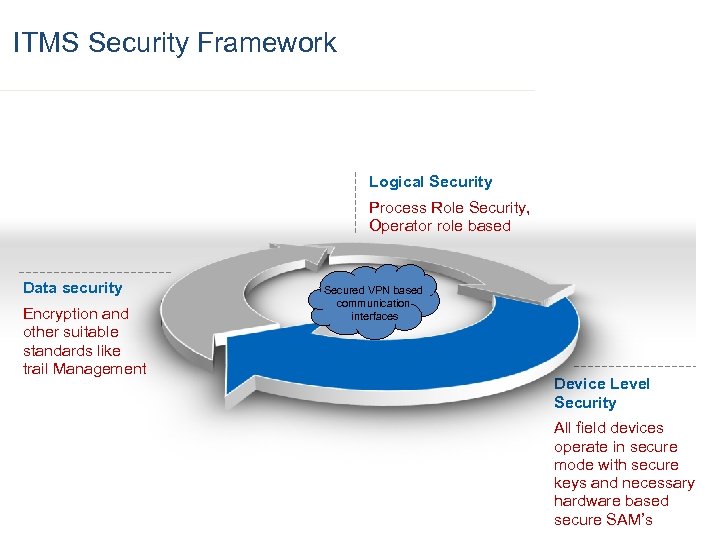

ITMS Security Framework Logical Security Process Role Security, Operator role based Data security Encryption and other suitable standards like trail Management Secured VPN based communication interfaces Device Level Security All field devices operate in secure mode with secure keys and necessary hardware based secure SAM’s

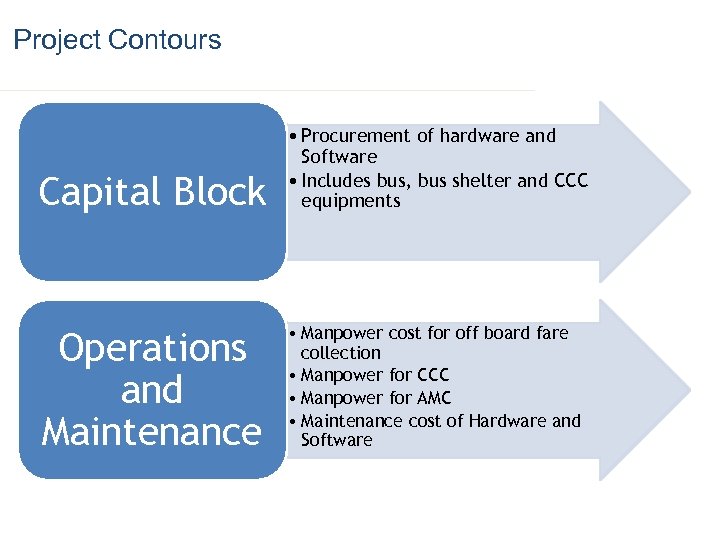

Project Contours Capital Block • Procurement of hardware and Software • Includes bus, bus shelter and CCC equipments Operations and Maintenance • Manpower cost for off board fare collection • Manpower for CCC • Manpower for AMC • Maintenance cost of Hardware and Software

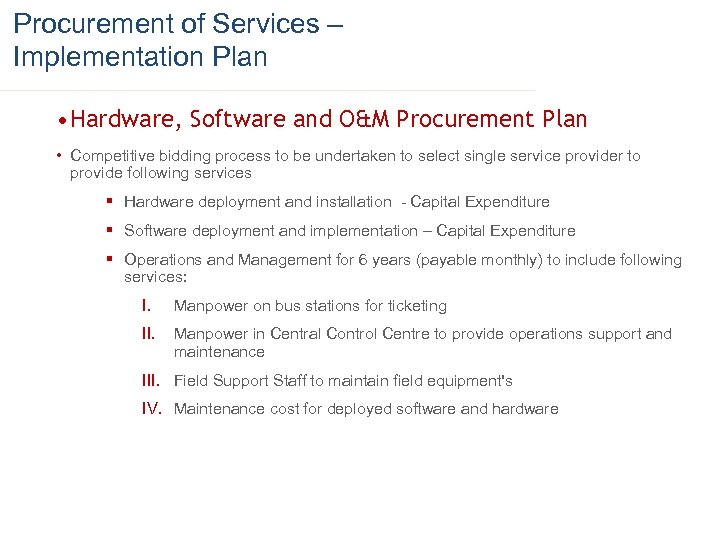

Procurement of Services – Implementation Plan • Hardware, Software and O&M Procurement Plan • Competitive bidding process to be undertaken to select single service provider to provide following services § Hardware deployment and installation - Capital Expenditure § Software deployment and implementation – Capital Expenditure § Operations and Management for 6 years (payable monthly) to include following services: I. Manpower on bus stations for ticketing II. Manpower in Central Control Centre to provide operations support and maintenance III. Field Support Staff to maintain field equipment's IV. Maintenance cost for deployed software and hardware
