Brief Summary of LOTW Do you QSL

Brief Summary of LOTW • Do you QSL? • Do you like to save money? • Do you use LOTW? WHY NOT?

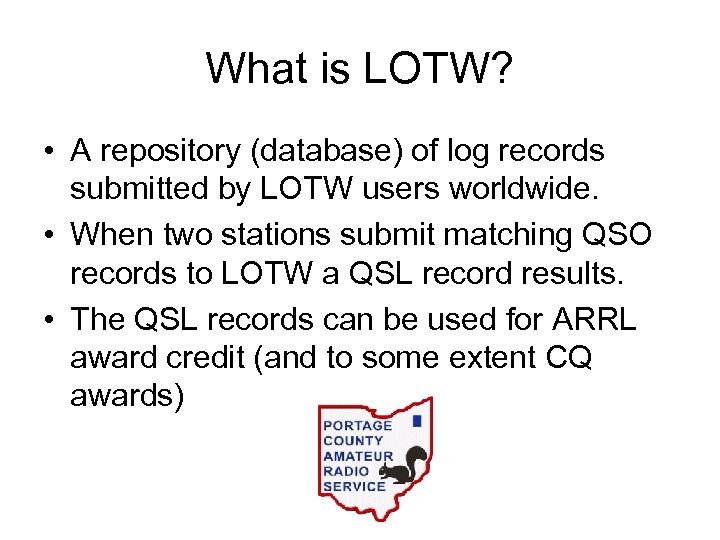

What is LOTW? • A repository (database) of log records submitted by LOTW users worldwide. • When two stations submit matching QSO records to LOTW a QSL record results. • The QSL records can be used for ARRL award credit (and to some extent CQ awards)

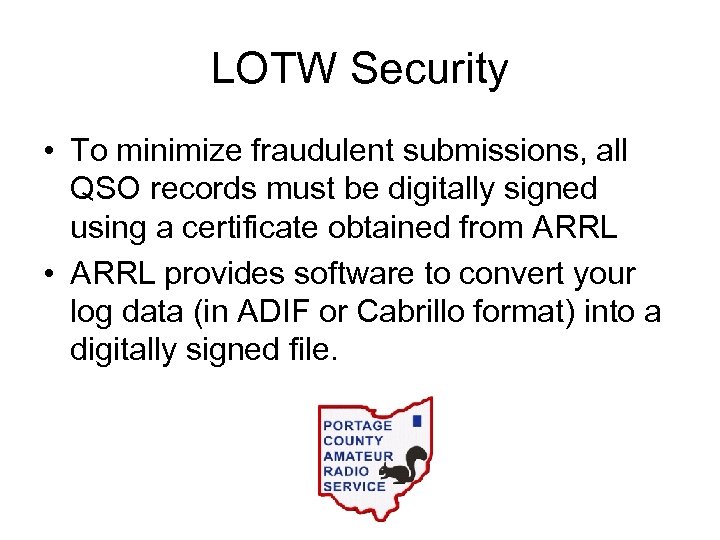

LOTW Security • To minimize fraudulent submissions, all QSO records must be digitally signed using a certificate obtained from ARRL • ARRL provides software to convert your log data (in ADIF or Cabrillo format) into a digitally signed file.

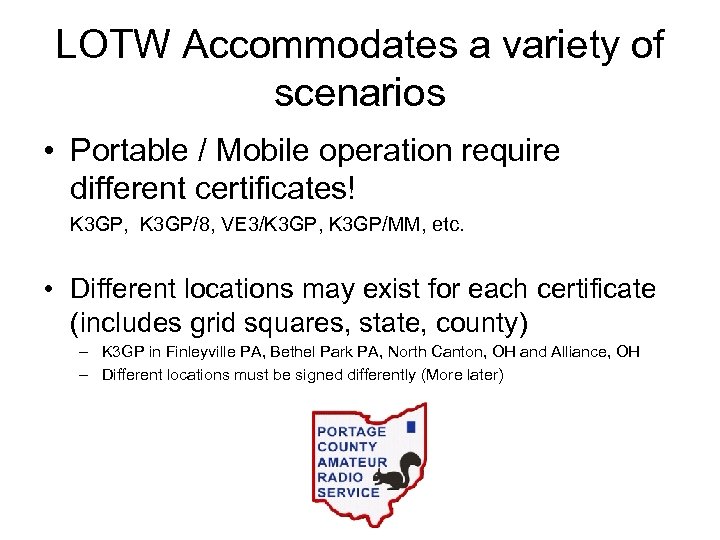

LOTW Accommodates a variety of scenarios • Portable / Mobile operation require different certificates! K 3 GP, K 3 GP/8, VE 3/K 3 GP, K 3 GP/MM, etc. • Different locations may exist for each certificate (includes grid squares, state, county) – K 3 GP in Finleyville PA, Bethel Park PA, North Canton, OH and Alliance, OH – Different locations must be signed differently (More later)

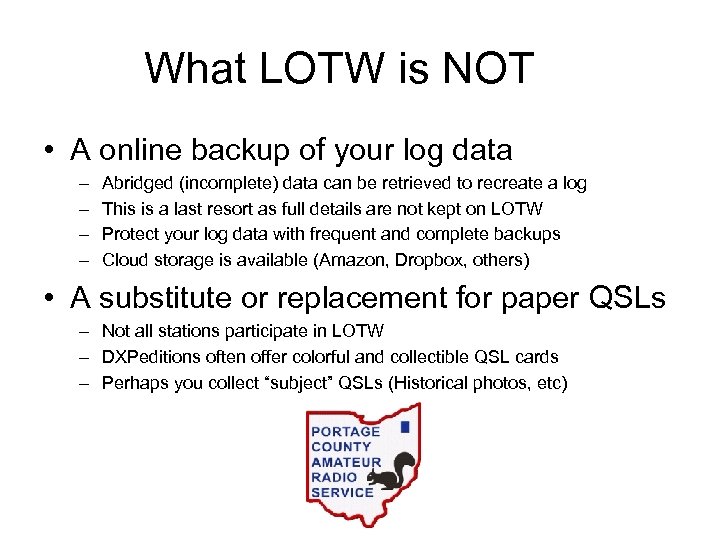

What LOTW is NOT • A online backup of your log data – – Abridged (incomplete) data can be retrieved to recreate a log This is a last resort as full details are not kept on LOTW Protect your log data with frequent and complete backups Cloud storage is available (Amazon, Dropbox, others) • A substitute or replacement for paper QSLs – Not all stations participate in LOTW – DXPeditions often offer colorful and collectible QSL cards – Perhaps you collect “subject” QSLs (Historical photos, etc)

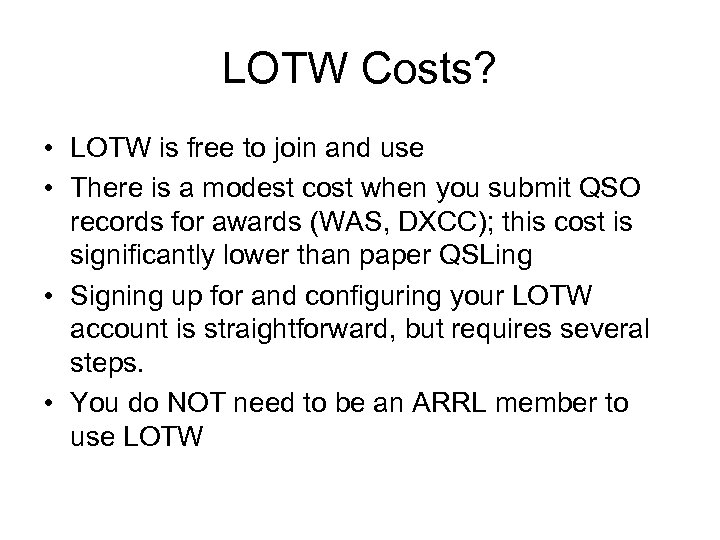

LOTW Costs? • LOTW is free to join and use • There is a modest cost when you submit QSO records for awards (WAS, DXCC); this cost is significantly lower than paper QSLing • Signing up for and configuring your LOTW account is straightforward, but requires several steps. • You do NOT need to be an ARRL member to use LOTW

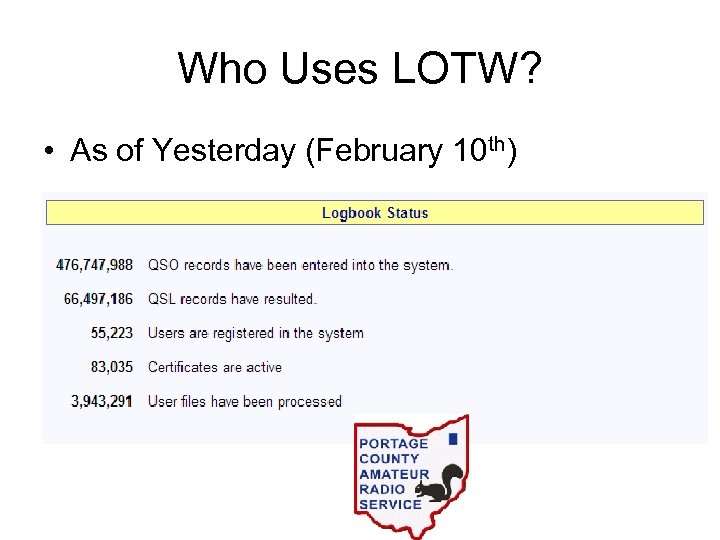

Who Uses LOTW? • As of Yesterday (February 10 th)

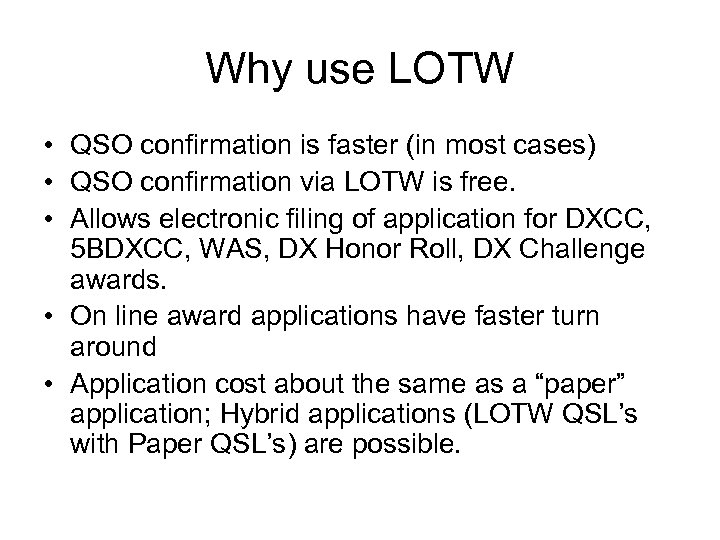

Why use LOTW • QSO confirmation is faster (in most cases) • QSO confirmation via LOTW is free. • Allows electronic filing of application for DXCC, 5 BDXCC, WAS, DX Honor Roll, DX Challenge awards. • On line award applications have faster turn around • Application cost about the same as a “paper” application; Hybrid applications (LOTW QSL’s with Paper QSL’s) are possible.

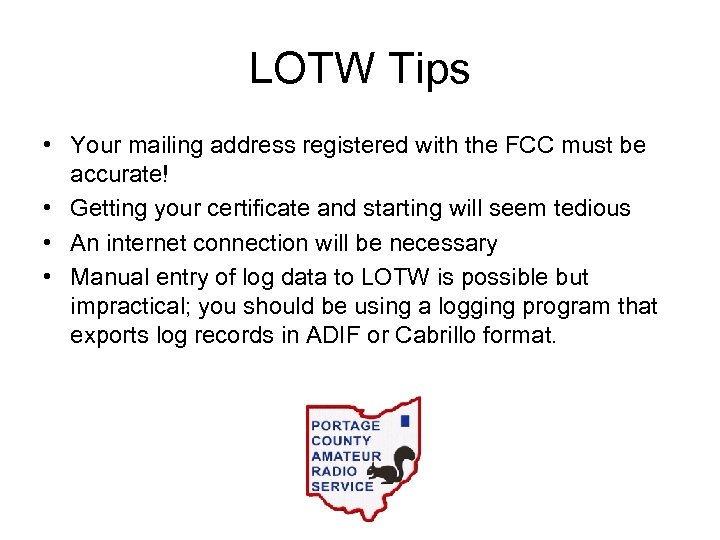

LOTW Tips • Your mailing address registered with the FCC must be accurate! • Getting your certificate and starting will seem tedious • An internet connection will be necessary • Manual entry of log data to LOTW is possible but impractical; you should be using a logging program that exports log records in ADIF or Cabrillo format.

Setting up a new LOTW account Set up a new folder on your hard drive for LOTW The basic steps to creating a LOTW account: 1. Download the TQSL software from the ARRL • Software is Operating System Specific (windows, MAC, Linux) 2. Create a certificate request for your call sign 3. Upload the request (then wait for postcard) 4. Authenticate your request (With 8 digit code on postcard) 5. Load the certificate (emailed to you by ARRL) 6. Create station location(s) 7. Back up the certificate Detailed step by step instructions at: http: //www. arrl. org/instructions

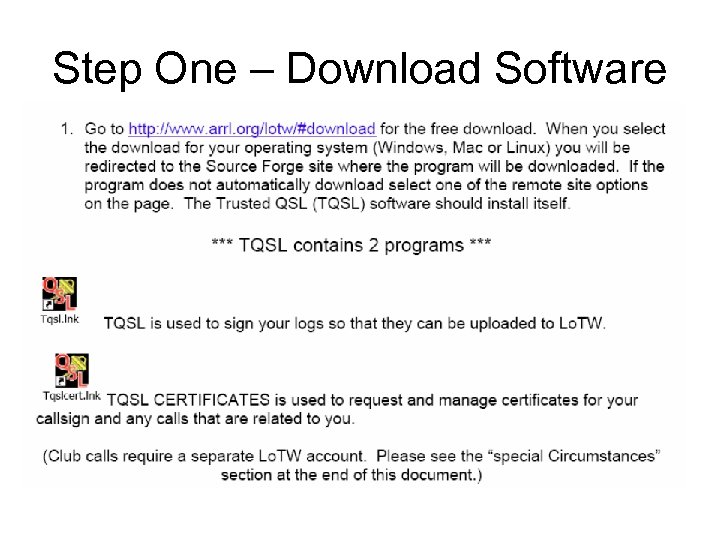

Step One – Download Software

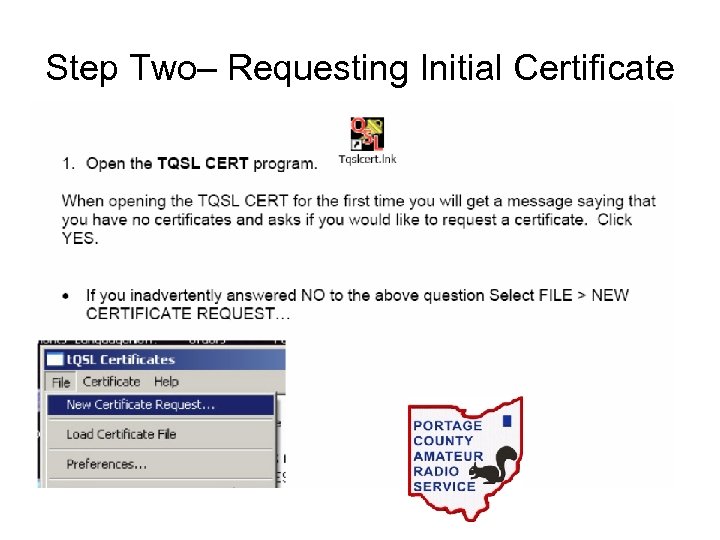

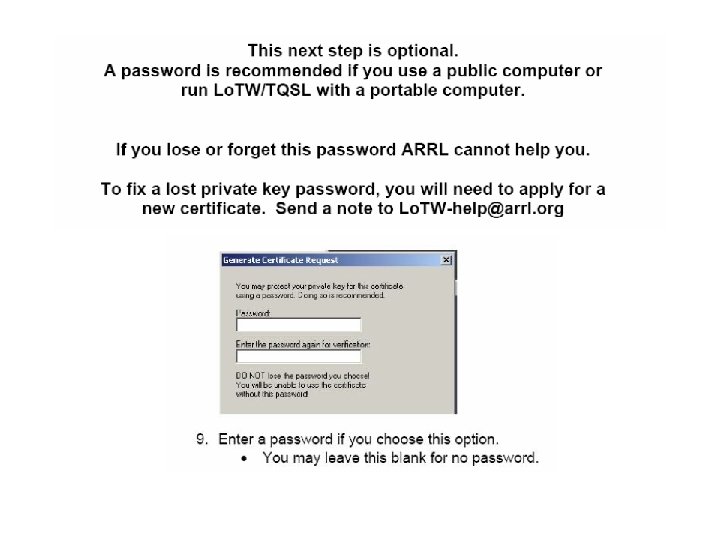

Step Two– Requesting Initial Certificate

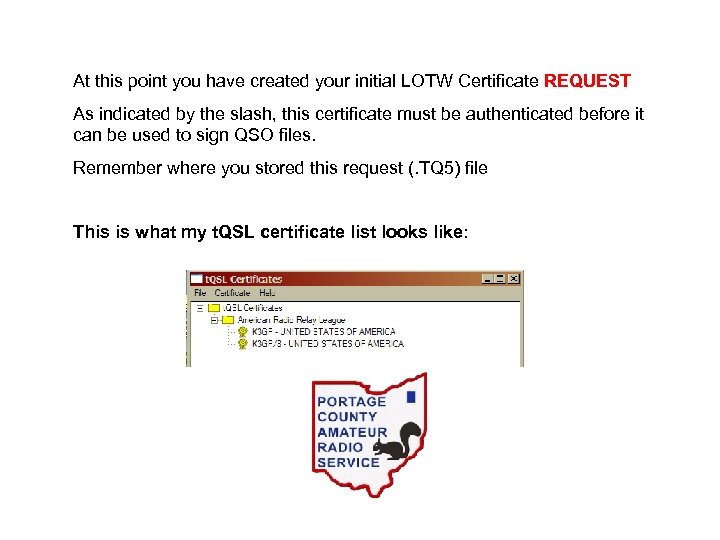

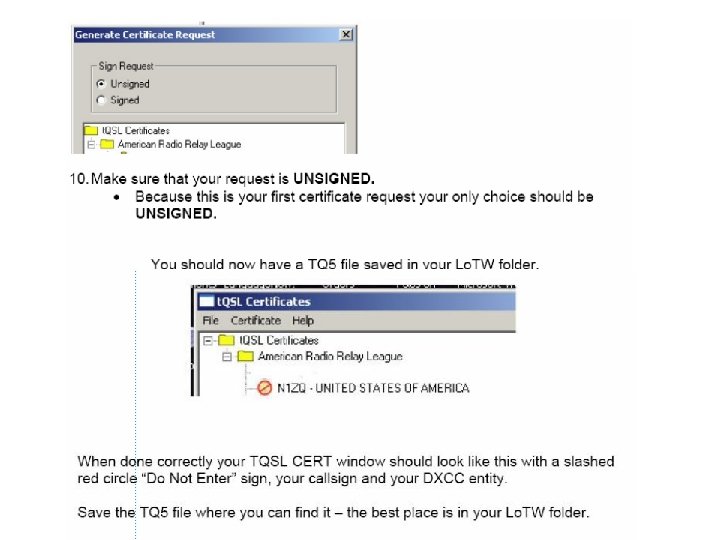

At this point you have created your initial LOTW Certificate REQUEST As indicated by the slash, this certificate must be authenticated before it can be used to sign QSO files. Remember where you stored this request (. TQ 5) file This is what my t. QSL certificate list looks like:

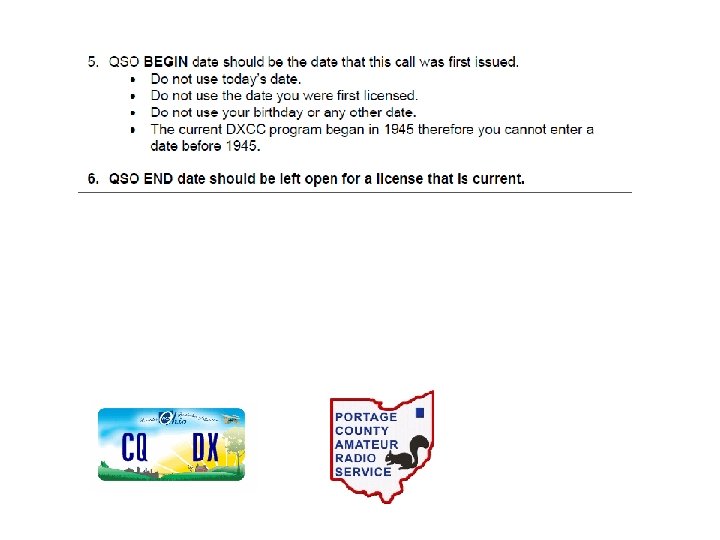

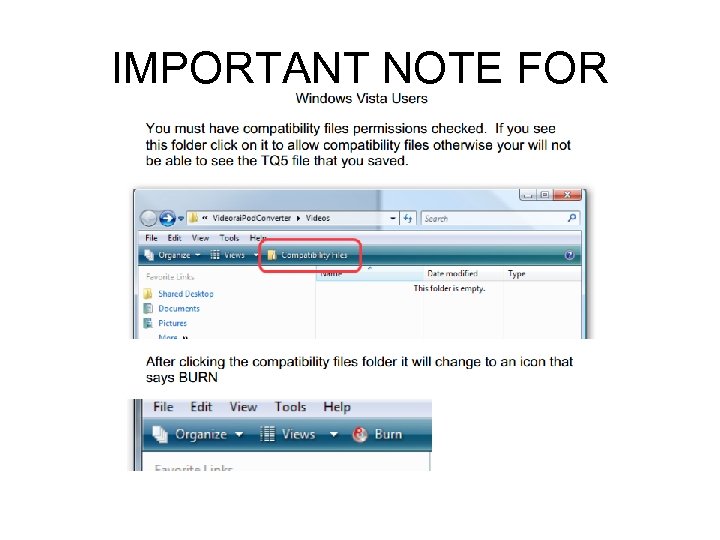

IMPORTANT NOTE FOR

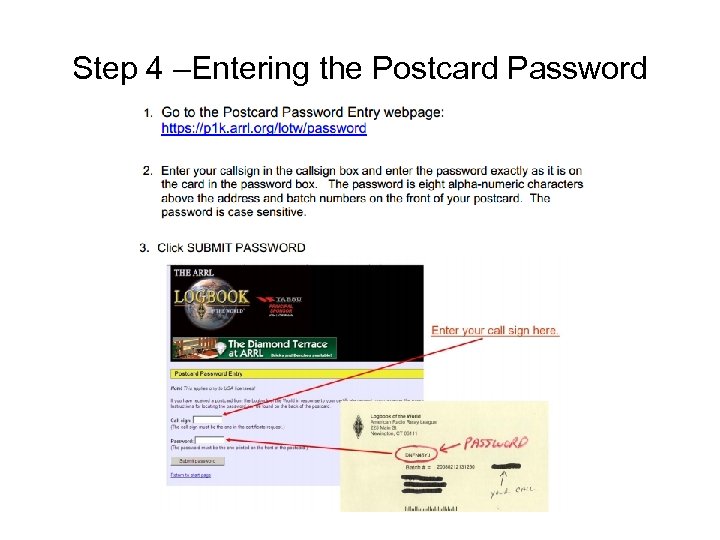

Step 4 –Entering the Postcard Password

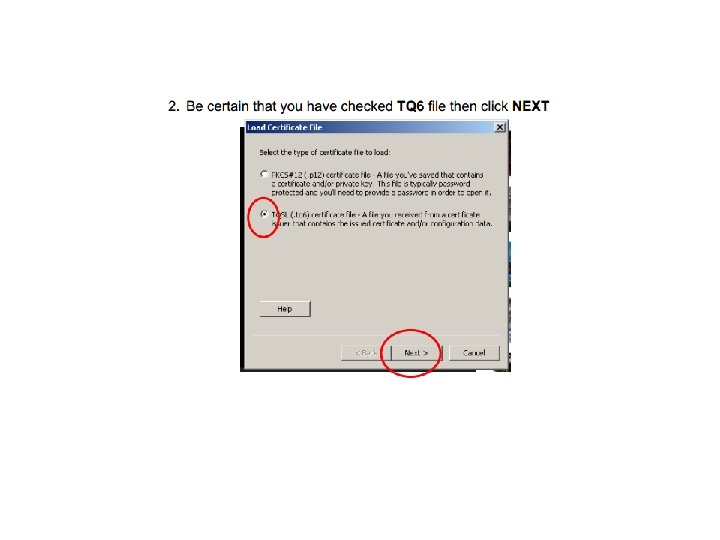

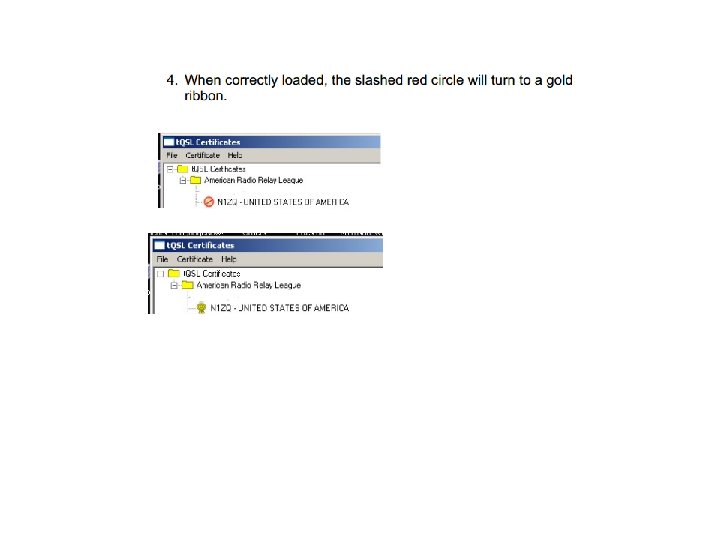

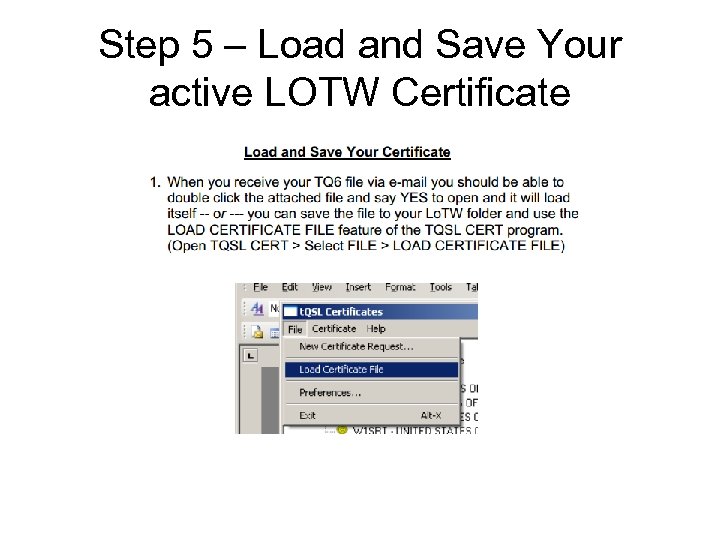

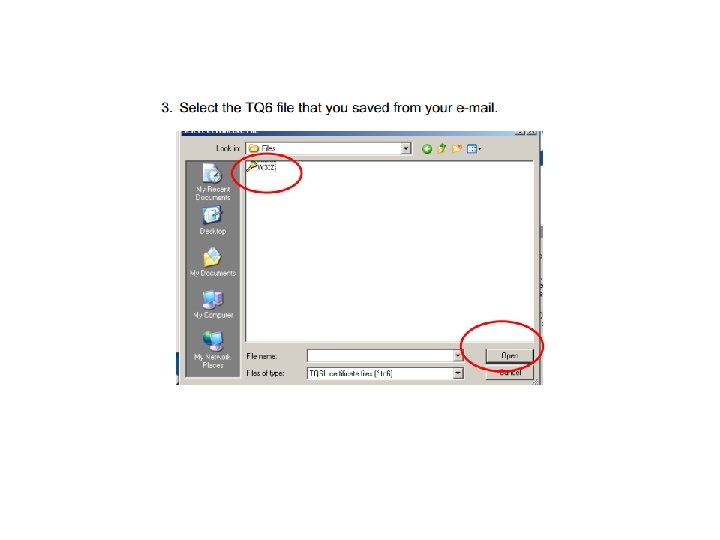

Step 5 – Load and Save Your active LOTW Certificate

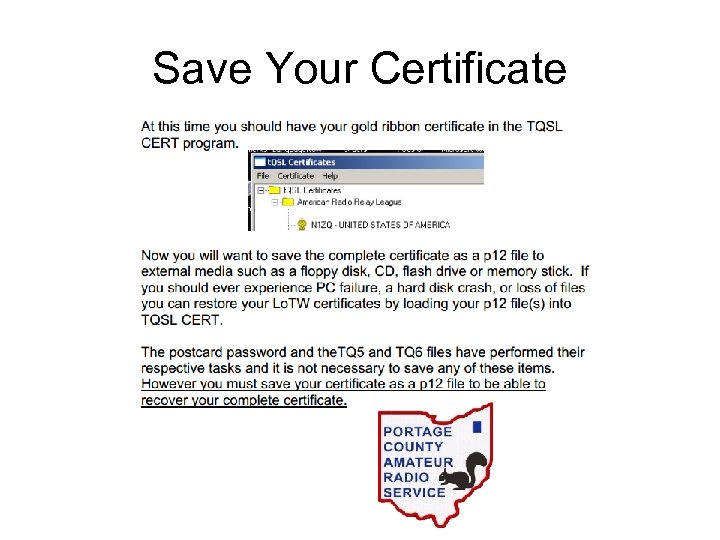

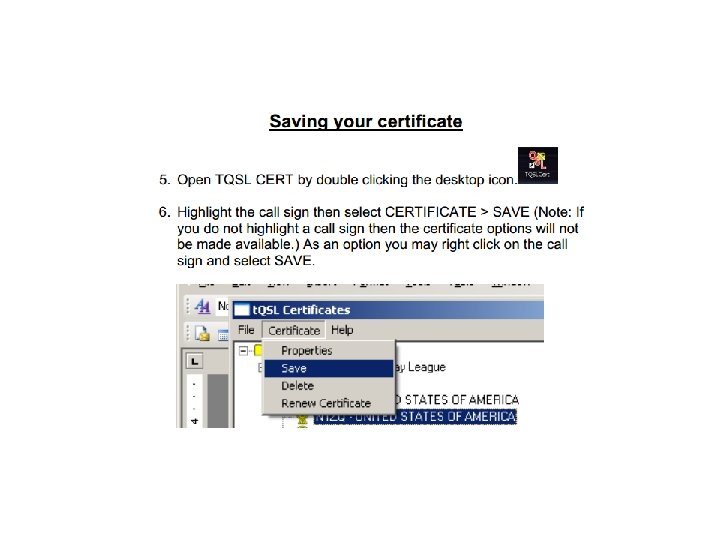

Save Your Certificate

This completes the certificate process. Advanced topics such as certificates for signed portable operation, DXpedition operation and club calls are beyond the scope of this presentation.

Creating Station Locations

Creating your station location(s) • The station location contains all of the geographic information for your operation. This includes ITU and CQ zones, grid square, US State and county and IOTA number if you operated from an IOTA island. • Please be accurate and complete when entering the information in this step because this is how the other station will receive credit for your geographic positions from a QSO with you. I also have separate station location records for my previous QTH in North Canton, and my old Pennsylvania QTH, Bethel Park Enter all of the information about your station location and click next

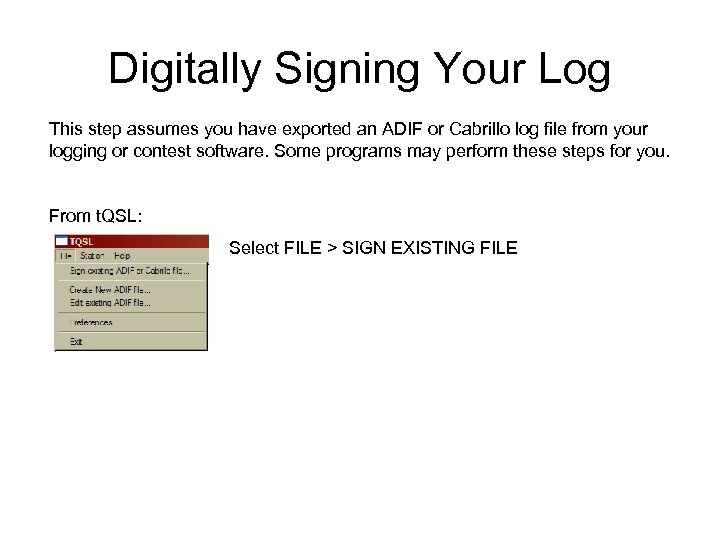

Digitally Signing Your Log This step assumes you have exported an ADIF or Cabrillo log file from your logging or contest software. Some programs may perform these steps for you. From t. QSL: Select FILE > SIGN EXISTING FILE

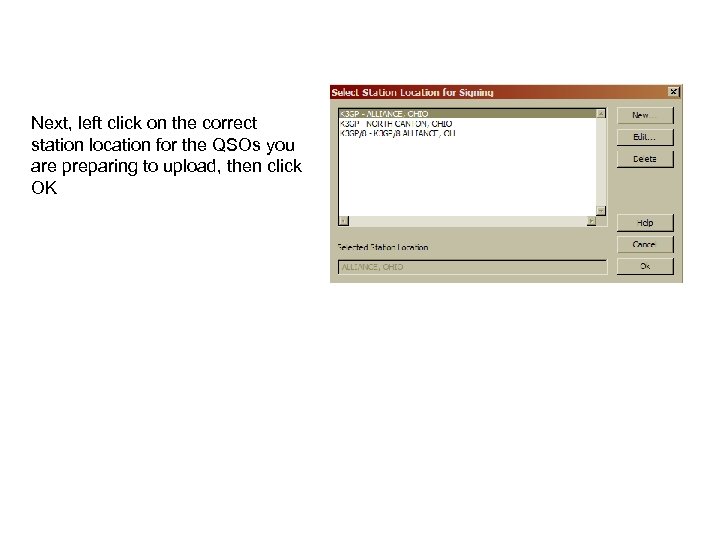

Next, left click on the correct station location for the QSOs you are preparing to upload, then click OK

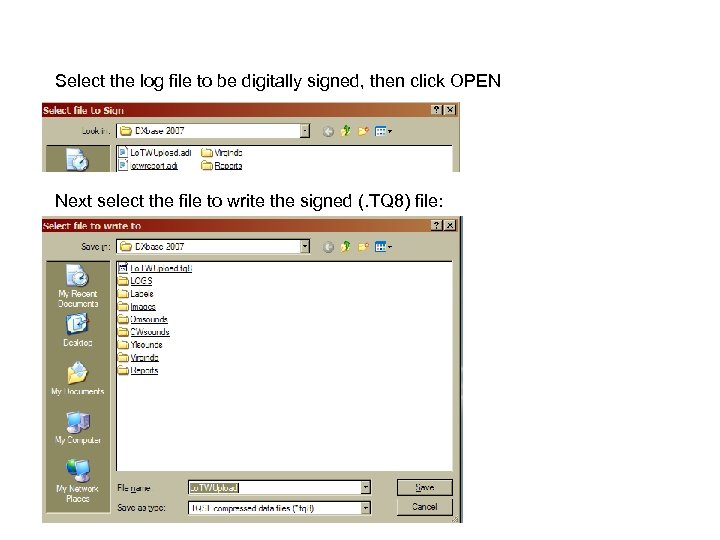

Select the log file to be digitally signed, then click OPEN Next select the file to write the signed (. TQ 8) file:

Next you will be asked to confirm the signing of your file: If you have multiple certificates, be sure you are signing the file using the correct certificate.

You have the option of entering a date range for the QSOs to be uploaded. You may leave either date blank. If duplicate QSOs are being uploaded, the most recent upload will overwrite previous QSO information.

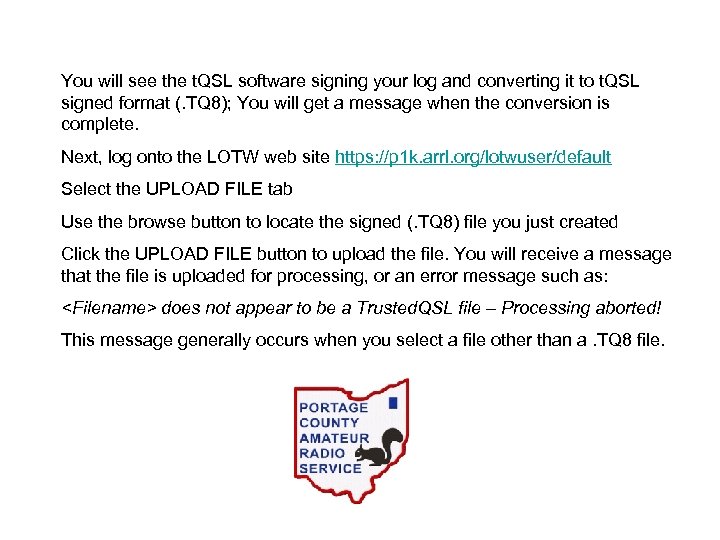

You will see the t. QSL software signing your log and converting it to t. QSL signed format (. TQ 8); You will get a message when the conversion is complete. Next, log onto the LOTW web site https: //p 1 k. arrl. org/lotwuser/default Select the UPLOAD FILE tab Use the browse button to locate the signed (. TQ 8) file you just created Click the UPLOAD FILE button to upload the file. You will receive a message that the file is uploaded for processing, or an error message such as: <Filename> does not appear to be a Trusted. QSL file – Processing aborted! This message generally occurs when you select a file other than a. TQ 8 file.

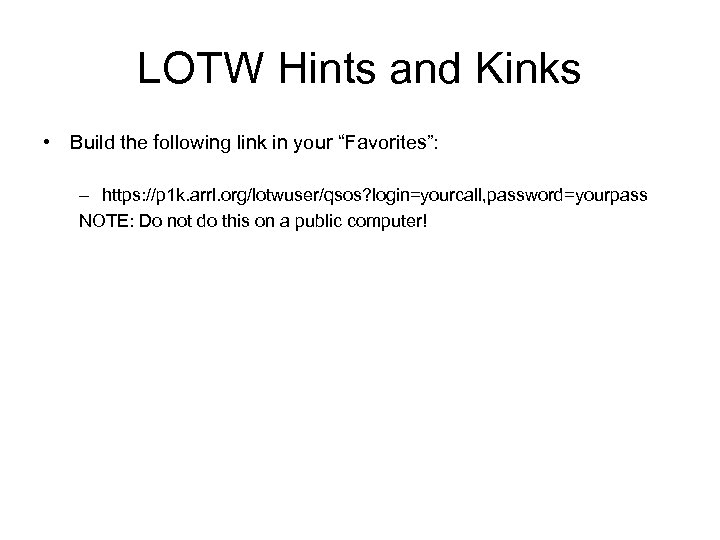

LOTW Hints and Kinks • Build the following link in your “Favorites”: – https: //p 1 k. arrl. org/lotwuser/qsos? login=yourcall, password=yourpass NOTE: Do not do this on a public computer!

Sample Confirmed QSO Query Result Report

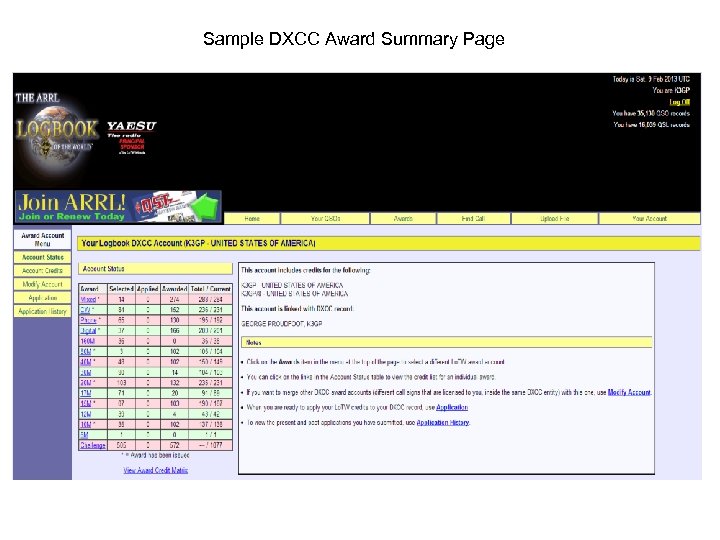

Sample DXCC Award Summary Page

My experience with LOTW • • • I have been on LOTW since it became active September 2003 I have 30 K + QSOs uploaded and 16 K + Confirmed (45. 6% rate) Heaviest users are contesters and DXers I have 5 B DXCC completed on LOTW, 6 th band ready to submit Including paper cards, I could qualify for 8 band DXCC Observations – – LOTW great for repeat QSL requests from same station/band/mode LOTW stressed heavily immediately at conclusion of a contest Until recently log uploads could take days to process to account Cost savings substantial. Consider 5 B DXCC: By QSL cards at $4 per QSL average: 5 x 100 x $4 = $2, 000 + Application fees. By LOTW, Application fees only. – US Postage rates just rose and USPS stopped selling IRC’s

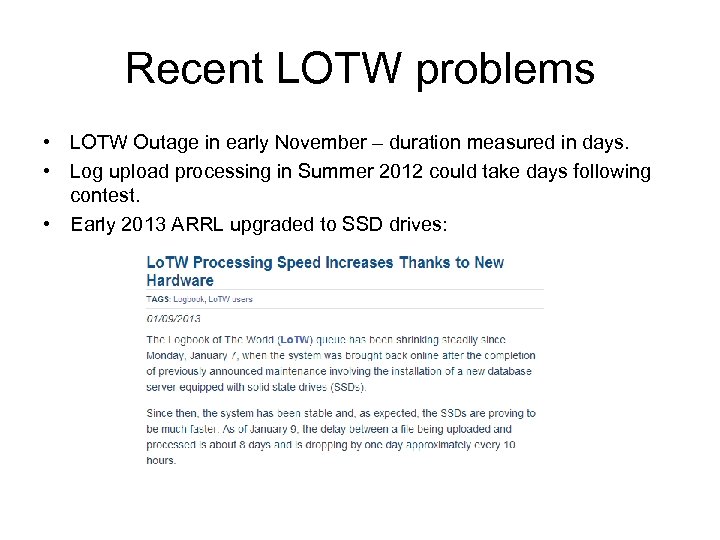

Recent LOTW problems • LOTW Outage in early November – duration measured in days. • Log upload processing in Summer 2012 could take days following contest. • Early 2013 ARRL upgraded to SSD drives:

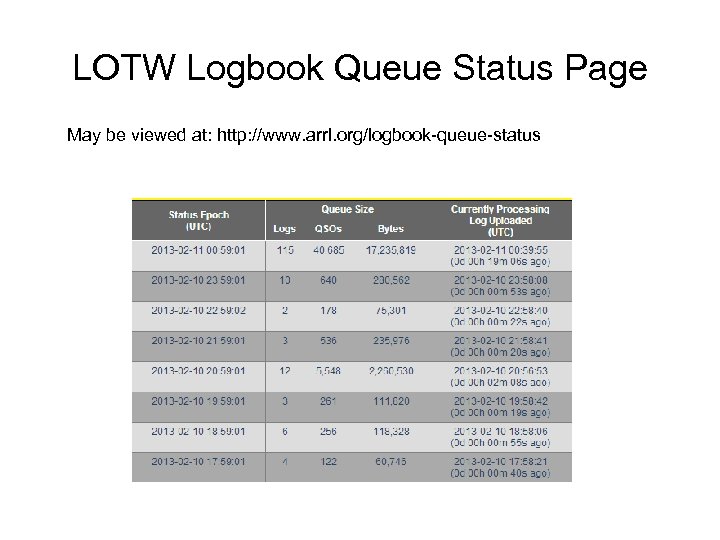

LOTW Logbook Queue Status Page May be viewed at: http: //www. arrl. org/logbook-queue-status

What are you waiting for? • Get started this week! • I’ll be glad to help PCARS members get set up and started on LOTW. – Prefer on-the-air assistance so we both can be in front of the computer.
