Bridges between Certification Authorities 15 martie 2018

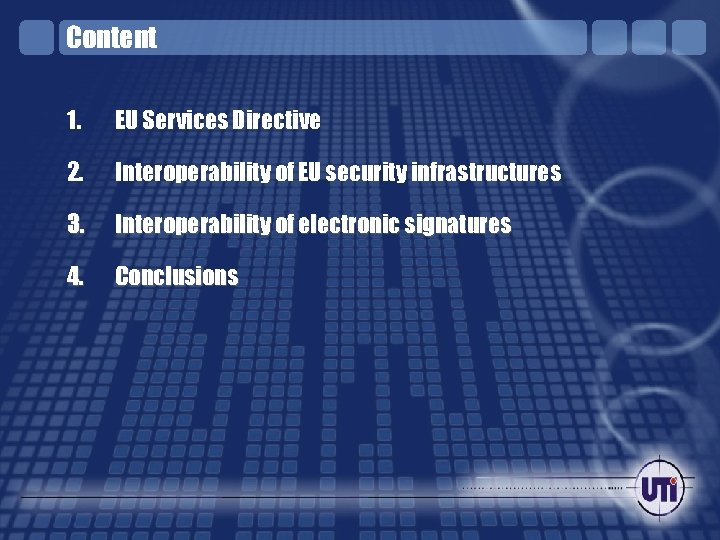

Content 1. EU Services Directive 2. Interoperability of EU security infrastructures 3. Interoperability of electronic signatures 4. Conclusions

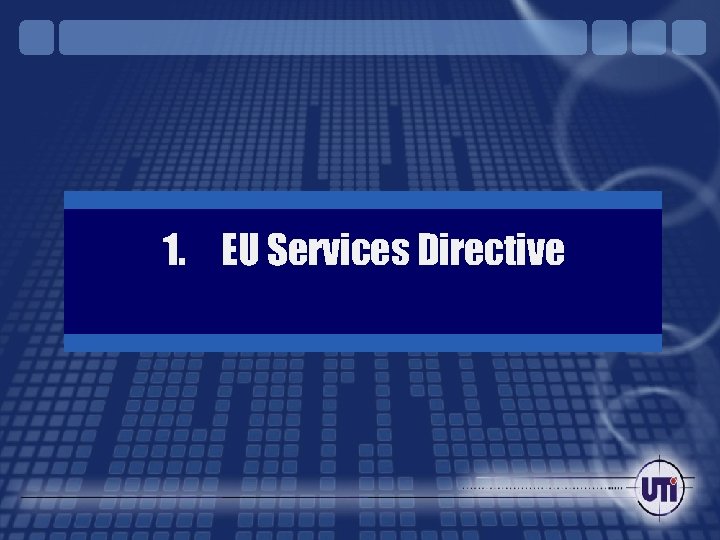

1. EU Services Directive
Directive 2006/123/EC By the end of 2009, service providers should be able to use, nationally and cross-borders, electronic procedures as set out in Art. 8 of the Services Directive. Main building blocks for the use of e-procedures: e-signatures e-identification and e-documents

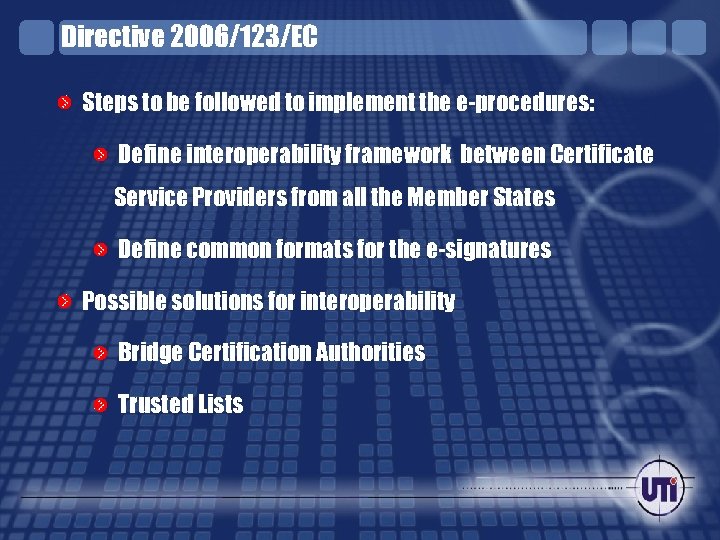

Directive 2006/123/EC Steps to be followed to implement the e-procedures: Define interoperability framework between Certificate Service Providers from all the Member States Define common formats for the e-signatures Possible solutions for interoperability Bridge Certification Authorities Trusted Lists

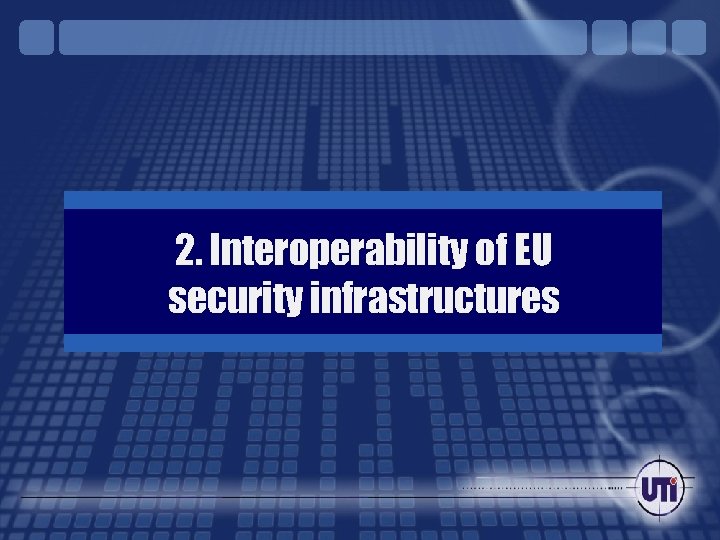

2. Interoperability of EU security infrastructures

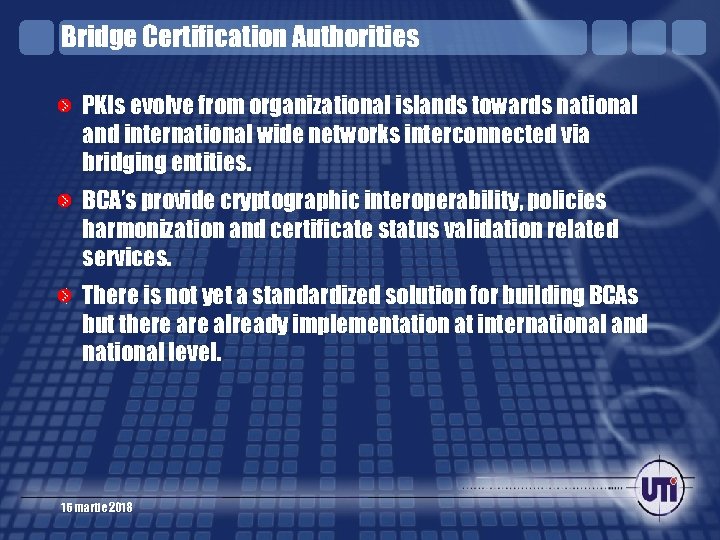

Bridge Certification Authorities PKIs evolve from organizational islands towards national and international wide networks interconnected via bridging entities. BCA’s provide cryptographic interoperability, policies harmonization and certificate status validation related services. There is not yet a standardized solution for building BCAs but there already implementation at international and national level. 15 martie 2018

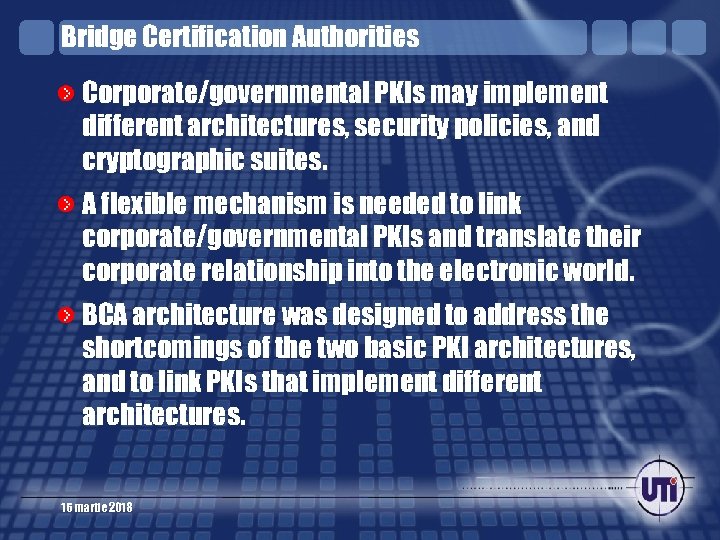

Bridge Certification Authorities Corporate/governmental PKIs may implement different architectures, security policies, and cryptographic suites. A flexible mechanism is needed to link corporate/governmental PKIs and translate their corporate relationship into the electronic world. BCA architecture was designed to address the shortcomings of the two basic PKI architectures, and to link PKIs that implement different architectures. 15 martie 2018
Bridge Certification Authorities 15 martie 2018

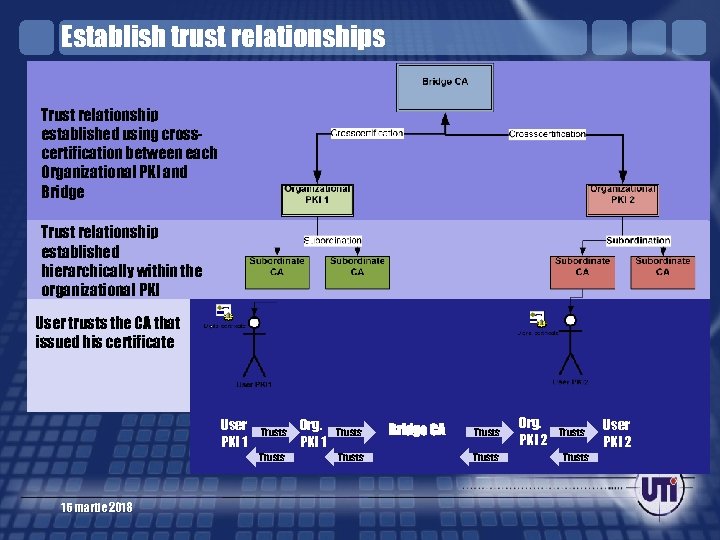

Establish trust relationships Trust relationship established using crosscertification between each Organizational PKI and Bridge Trust relationship established hierarchically within the organizational PKI User trusts the CA that issued his certificate User PKI 1 Trusts 15 martie 2018 Org. PKI 1 Trusts Bridge CA Trusts Org. PKI 2 Trusts User PKI 2

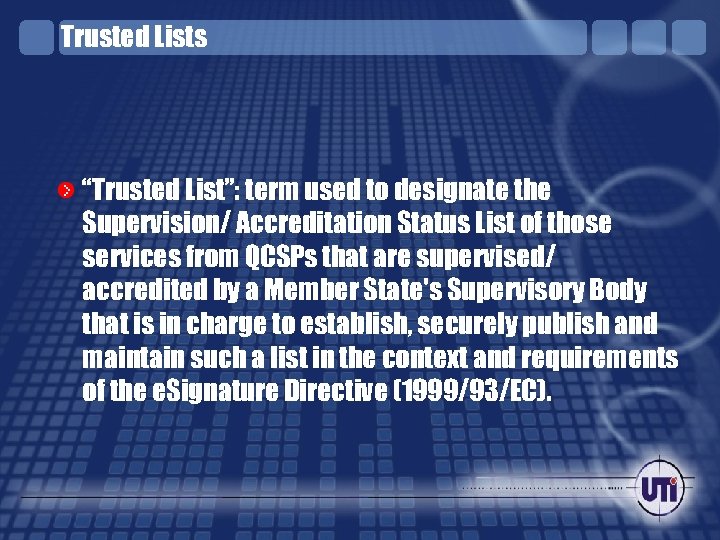

Trusted Lists “Trusted List”: term used to designate the Supervision/ Accreditation Status List of those services from QCSPs that are supervised/ accredited by a Member State's Supervisory Body that is in charge to establish, securely publish and maintain such a list in the context and requirements of the e. Signature Directive (1999/93/EC).

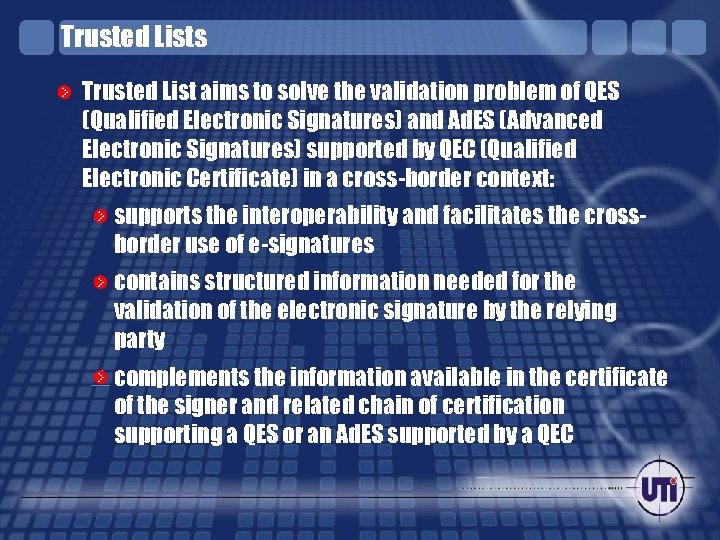

Trusted Lists Trusted List aims to solve the validation problem of QES (Qualified Electronic Signatures) and Ad. ES (Advanced Electronic Signatures) supported by QEC (Qualified Electronic Certificate) in a cross-border context: supports the interoperability and facilitates the crossborder use of e-signatures contains structured information needed for the validation of the electronic signature by the relying party complements the information available in the certificate of the signer and related chain of certification supporting a QES or an Ad. ES supported by a QEC
3. Interoperability of electronic signatures

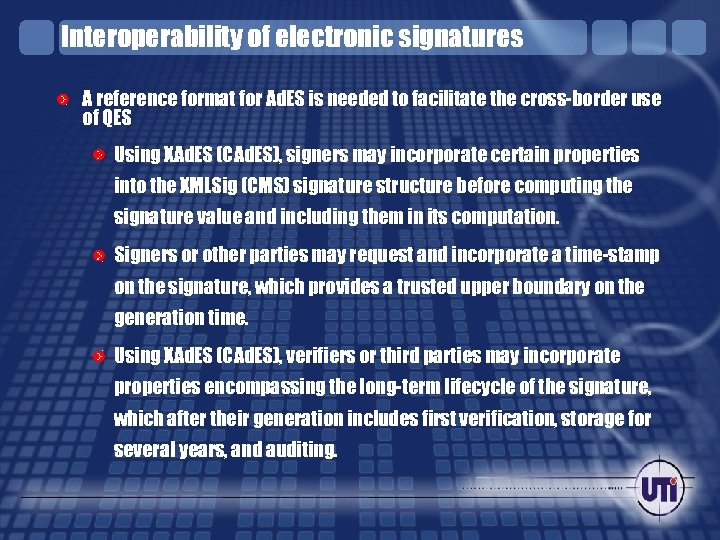

Interoperability of electronic signatures A reference format for Ad. ES is needed to facilitate the cross-border use of QES Using XAd. ES (CAd. ES), signers may incorporate certain properties into the XMLSig (CMS) signature structure before computing the signature value and including them in its computation. Signers or other parties may request and incorporate a time-stamp on the signature, which provides a trusted upper boundary on the generation time. Using XAd. ES (CAd. ES), verifiers or third parties may incorporate properties encompassing the long-term lifecycle of the signature, which after their generation includes first verification, storage for several years, and auditing.

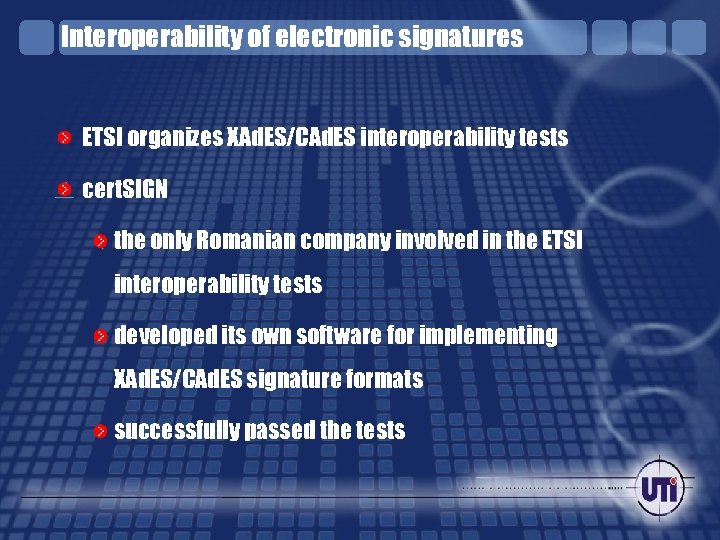

Interoperability of electronic signatures ETSI organizes XAd. ES/CAd. ES interoperability tests cert. SIGN the only Romanian company involved in the ETSI interoperability tests developed its own software for implementing XAd. ES/CAd. ES signature formats successfully passed the tests
4. Conclusions

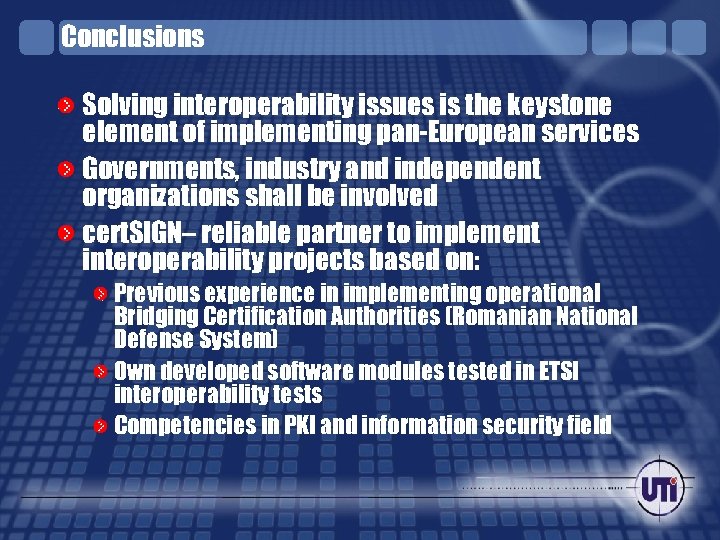

Conclusions Solving interoperability issues is the keystone element of implementing pan-European services Governments, industry and independent organizations shall be involved cert. SIGN– reliable partner to implement interoperability projects based on: Previous experience in implementing operational Bridging Certification Authorities (Romanian National Defense System) Own developed software modules tested in ETSI interoperability tests Competencies in PKI and information security field

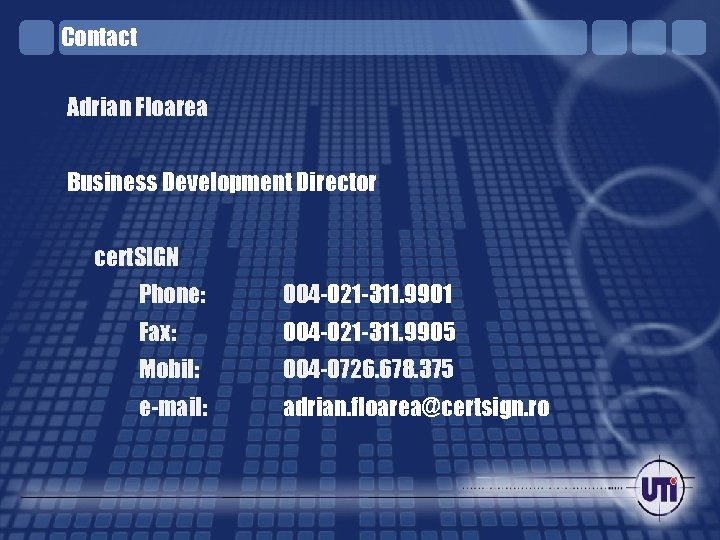

Contact Adrian Floarea Business Development Director cert. SIGN Phone: 004 -021 -311. 9901 Fax: 004 -021 -311. 9905 Mobil: 004 -0726. 678. 375 e-mail: adrian. floarea@certsign. ro
