Breeze. LINK Introduction Gilad Peleg Director Technical Support

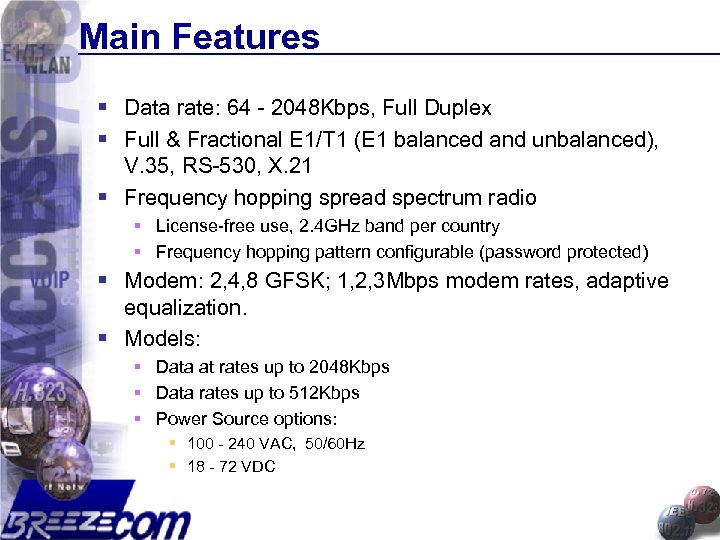

Main Features § Data rate: 64 - 2048 Kbps, Full Duplex § Full & Fractional E 1/T 1 (E 1 balanced and unbalanced), V. 35, RS-530, X. 21 § Frequency hopping spread spectrum radio § License-free use, 2. 4 GHz band per country § Frequency hopping pattern configurable (password protected) § Modem: 2, 4, 8 GFSK; 1, 2, 3 Mbps modem rates, adaptive equalization. § Models: § Data at rates up to 2048 Kbps § Data rates up to 512 Kbps § Power Source options: § 100 - 240 VAC, 50/60 Hz § 18 - 72 VDC
Breeze. LINK 121

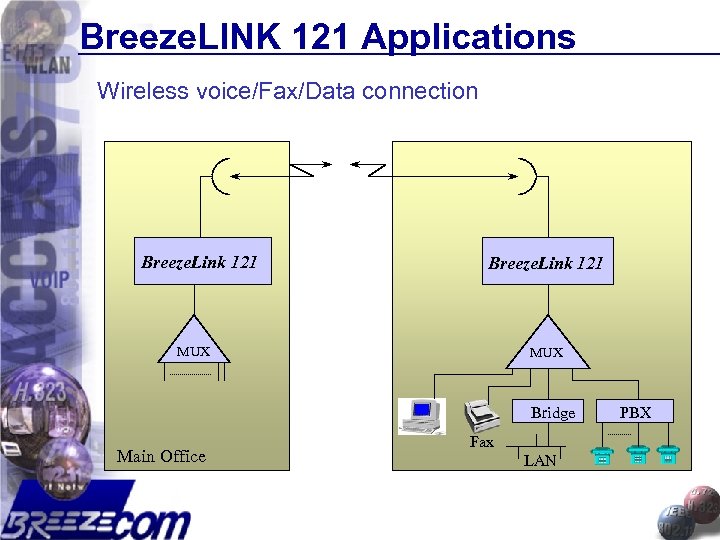

Breeze. LINK 121 Applications Wireless voice/Fax/Data connection Remote site Breeze. Link 121 MUX Bridge Main Office Fax LAN PBX

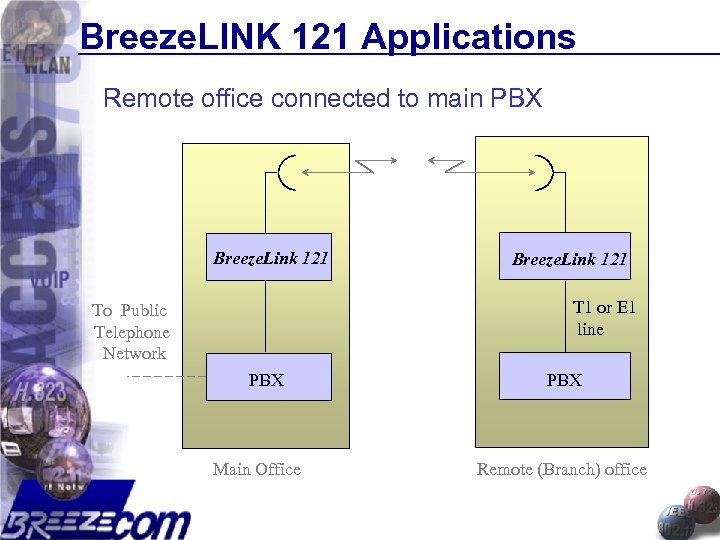

Breeze. LINK 121 Applications Remote office connected to main PBX Breeze. Link 121 T 1 or E 1 line To Public Telephone Network PBX Main Office PBX Remote (Branch) office

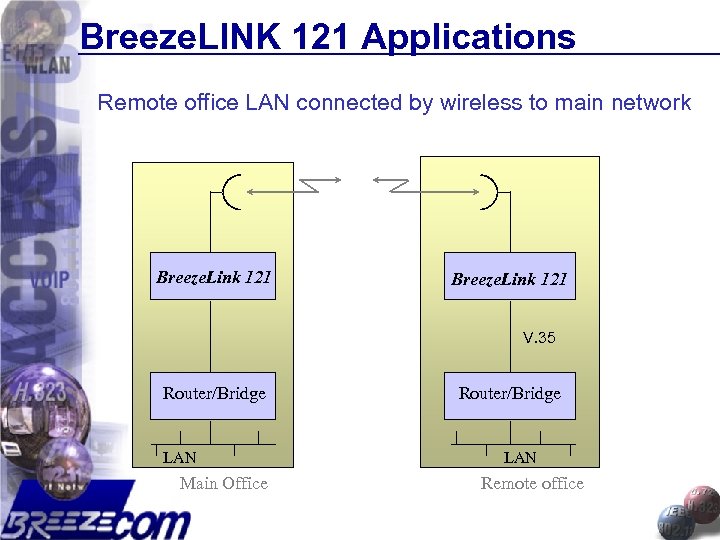

Breeze. LINK 121 Applications Remote office LAN connected by wireless to main network Breeze. Link 121 V. 35 Router/Bridge LAN Main Office Router/Bridge LAN Remote office

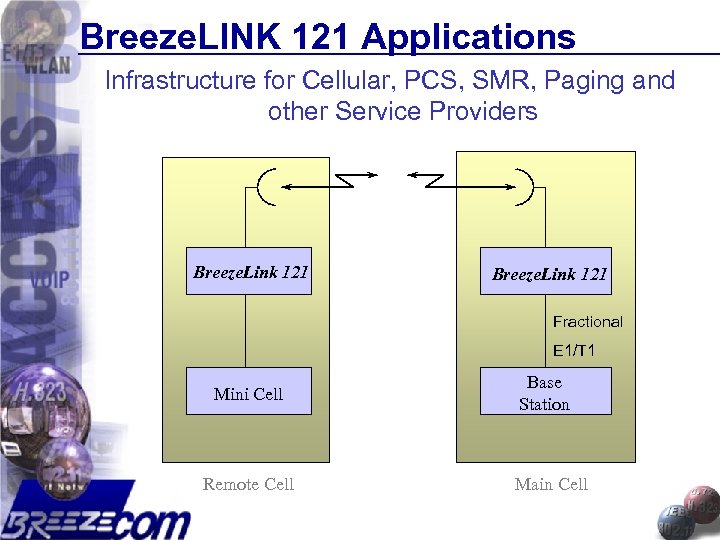

Breeze. LINK 121 Applications Infrastructure for Cellular, PCS, SMR, Paging and other Service Providers Breeze. Link 121 Fractional E 1/T 1 Mini Cell Remote Cell Base Station Main Cell
Vodacom South Africa • GSM provider using Breeze. LINK 13 d. Bi antenna 8. 5 d. Bi antenna

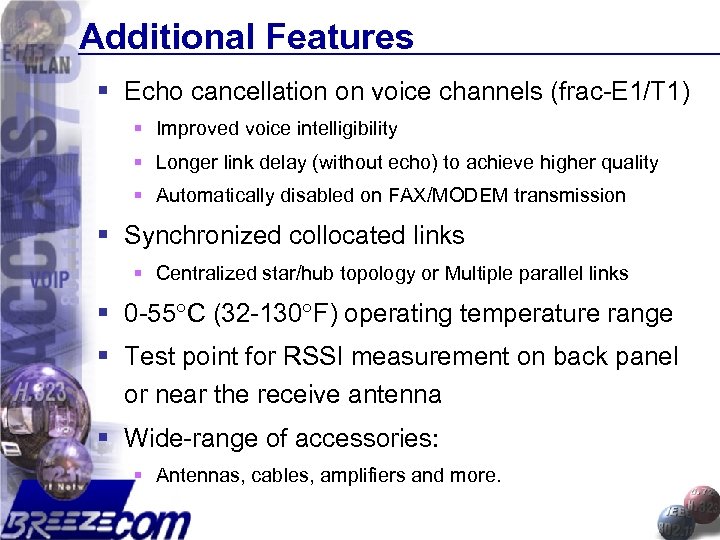

Additional Features § Echo cancellation on voice channels (frac-E 1/T 1) § Improved voice intelligibility § Longer link delay (without echo) to achieve higher quality § Automatically disabled on FAX/MODEM transmission § Synchronized collocated links § Centralized star/hub topology or Multiple parallel links § 0 -55 C (32 -130 F) operating temperature range § Test point for RSSI measurement on back panel or near the receive antenna § Wide-range of accessories: § Antennas, cables, amplifiers and more.

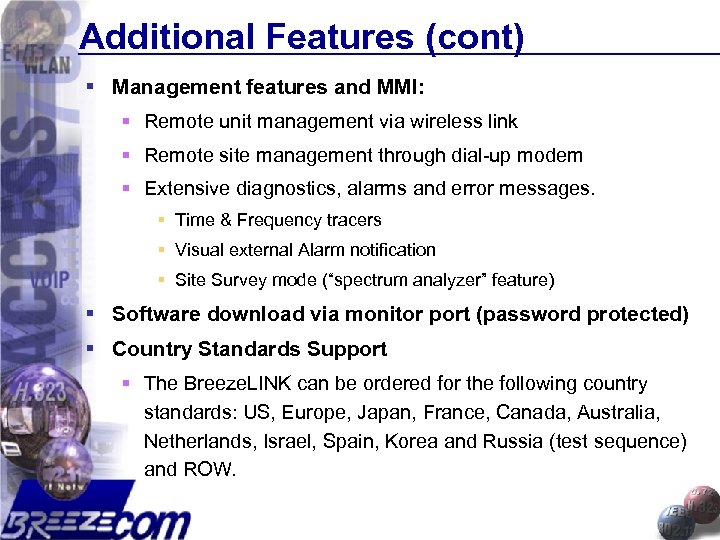

Additional Features (cont) § Management features and MMI: § Remote unit management via wireless link § Remote site management through dial-up modem § Extensive diagnostics, alarms and error messages. § Time & Frequency tracers § Visual external Alarm notification § Site Survey mode (“spectrum analyzer” feature) § Software download via monitor port (password protected) § Country Standards Support § The Breeze. LINK can be ordered for the following country standards: US, Europe, Japan, France, Canada, Australia, Netherlands, Israel, Spain, Korea and Russia (test sequence) and ROW.

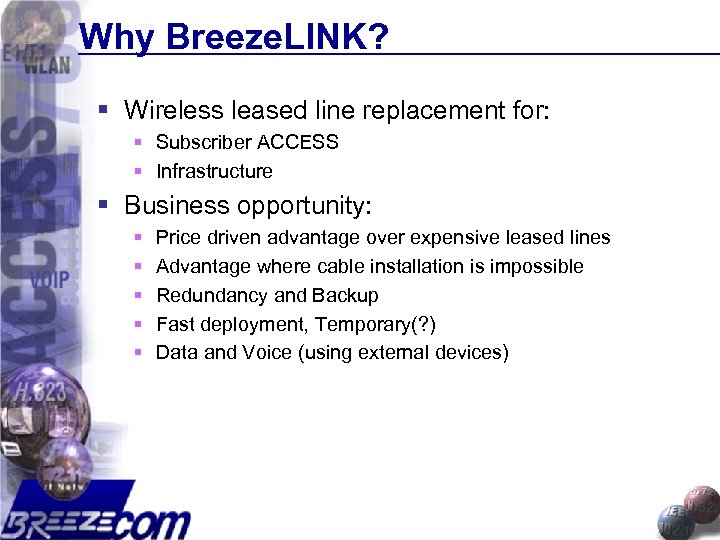

Why Breeze. LINK? § Wireless leased line replacement for: § Subscriber ACCESS § Infrastructure § Business opportunity: § § § Price driven advantage over expensive leased lines Advantage where cable installation is impossible Redundancy and Backup Fast deployment, Temporary(? ) Data and Voice (using external devices)
