Breathing New Life Into An Old Laptop

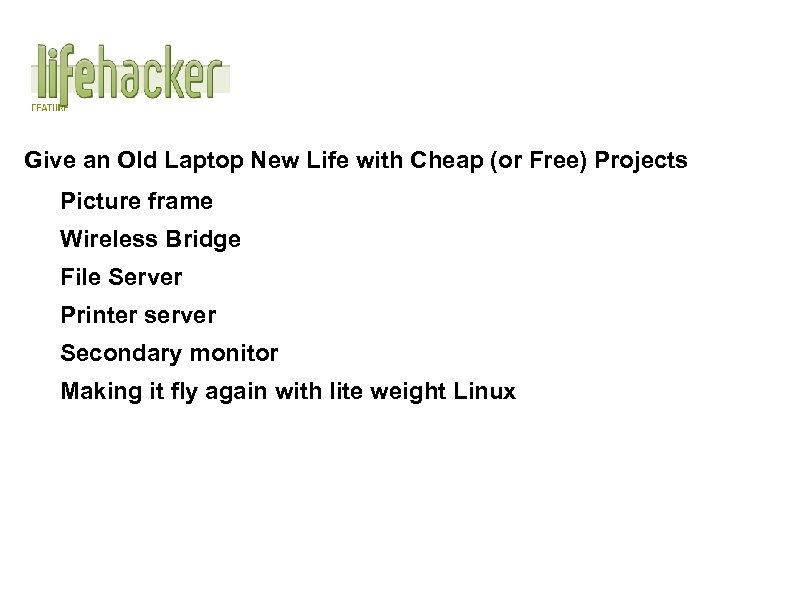

Give an Old Laptop New Life with Cheap (or Free) Projects Picture frame Wireless Bridge File Server Printer server Secondary monitor Making it fly again with lite weight Linux

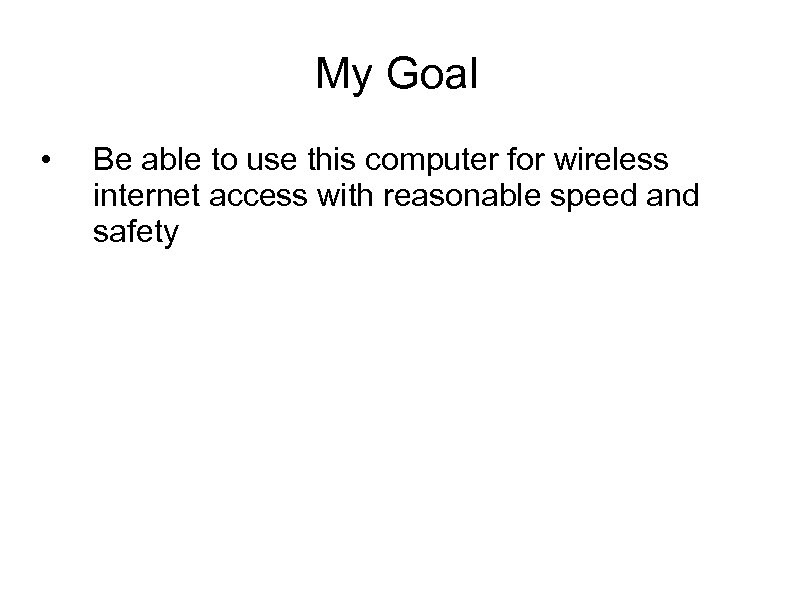

My Goal • Be able to use this computer for wireless internet access with reasonable speed and safety
My Laptop Specs Processor: Celeron 700 MHz Installed Memory: 64 MB (SDRAM) Hard Drive: 10 GB IDE MHz Motherboard Bus Speed: 100 MHz Memory Installed RAM: 64 MB RAM Technology: SDRAM Max Supported RAM: 192 MB Installed Cache Memory: 128 KB Hard Drive Capacity: 10 GB Storage Controller Type: IDE CD / DVD Type: CD-ROM Optical Drive Read Speed: 24 x (CD) Other Drives Floppy Drive: 3. 5" 1. 44 MB floppy Display Color Support: 24 -bit (16. 7 million colors) Display Max. Resolution: 800 x 600 Video Installed Video Memory: 4 MB External Video Resolution: 1280 x 1024 Audio Output Type: Sound card PC Technical Features Input Method: Accupoint II · Keyboard Modem Type: Fax / Modem Analog Modulation

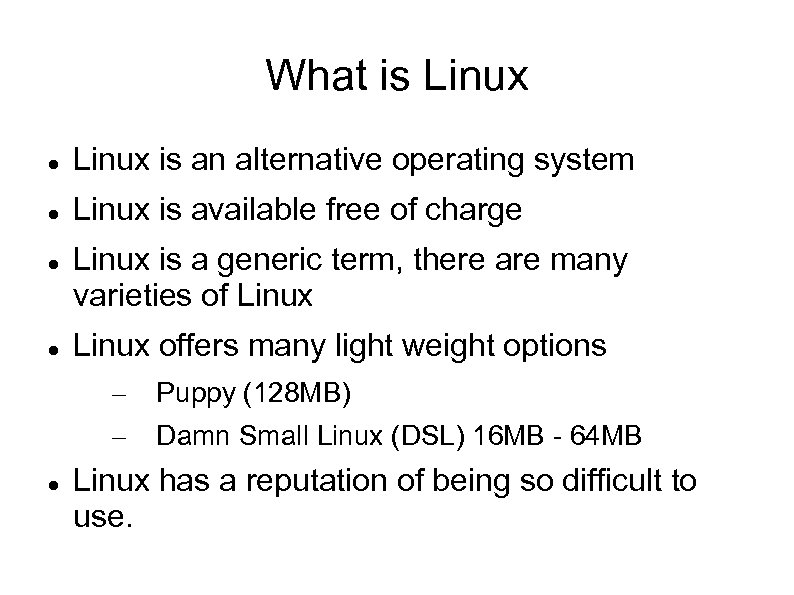

What is Linux is an alternative operating system Linux is available free of charge Linux is a generic term, there are many varieties of Linux offers many light weight options – – Puppy (128 MB) Damn Small Linux (DSL) 16 MB - 64 MB Linux has a reputation of being so difficult to use.
Linux isn't only for the super geek

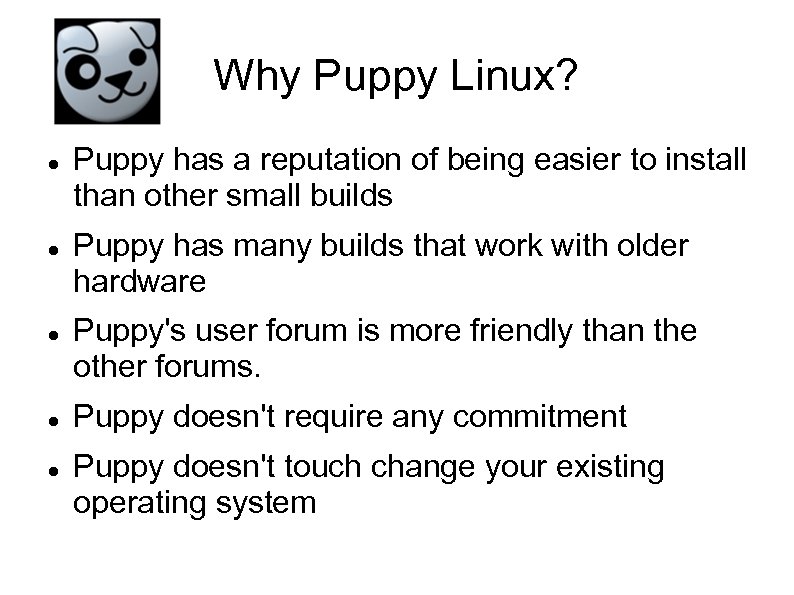

Why Puppy Linux? Puppy has a reputation of being easier to install than other small builds Puppy has many builds that work with older hardware Puppy's user forum is more friendly than the other forums. Puppy doesn't require any commitment Puppy doesn't touch change your existing operating system

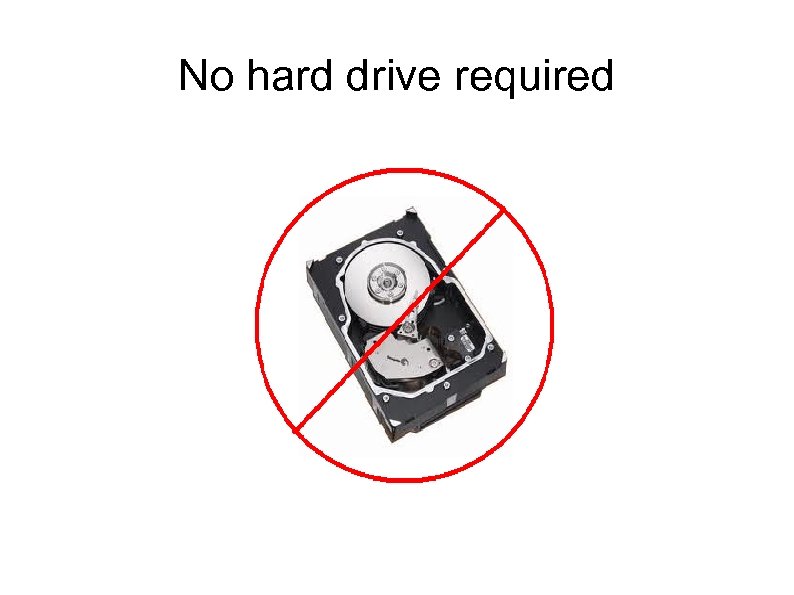

No hard drive required

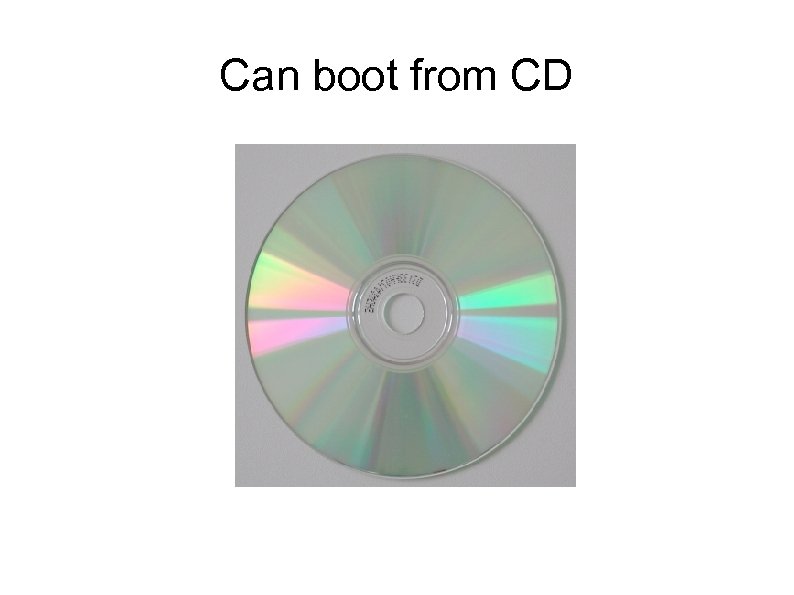

Can boot from CD
Can boot from USB stick If the BIOS allows it

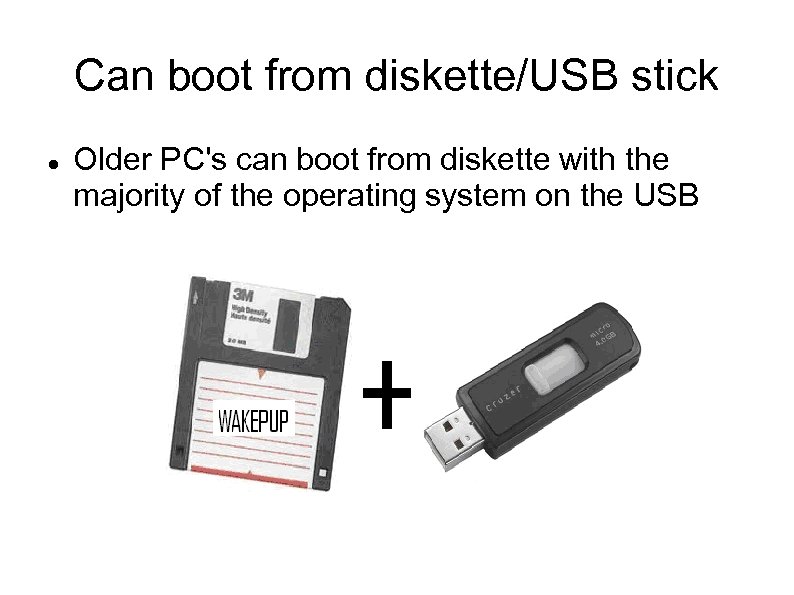

Can boot from diskette/USB stick Older PC's can boot from diskette with the majority of the operating system on the USB

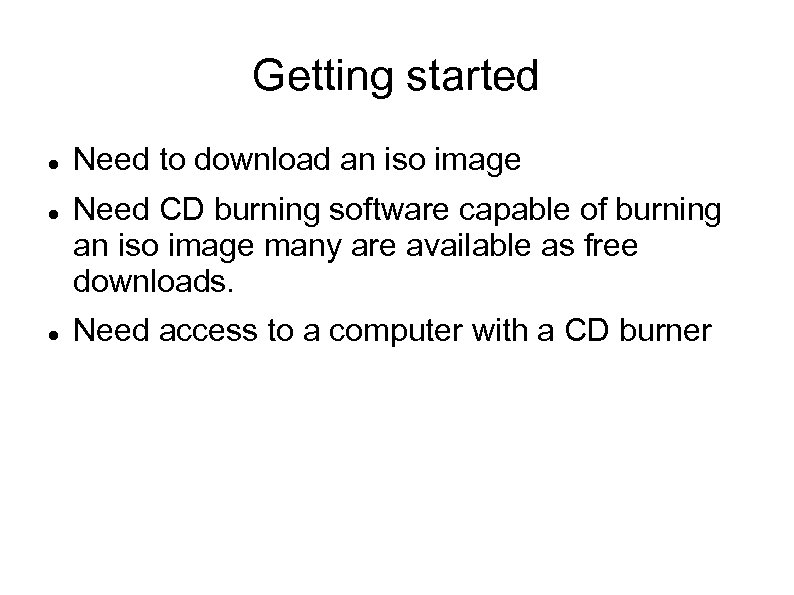

Getting started Need to download an iso image Need CD burning software capable of burning an iso image many are available as free downloads. Need access to a computer with a CD burner

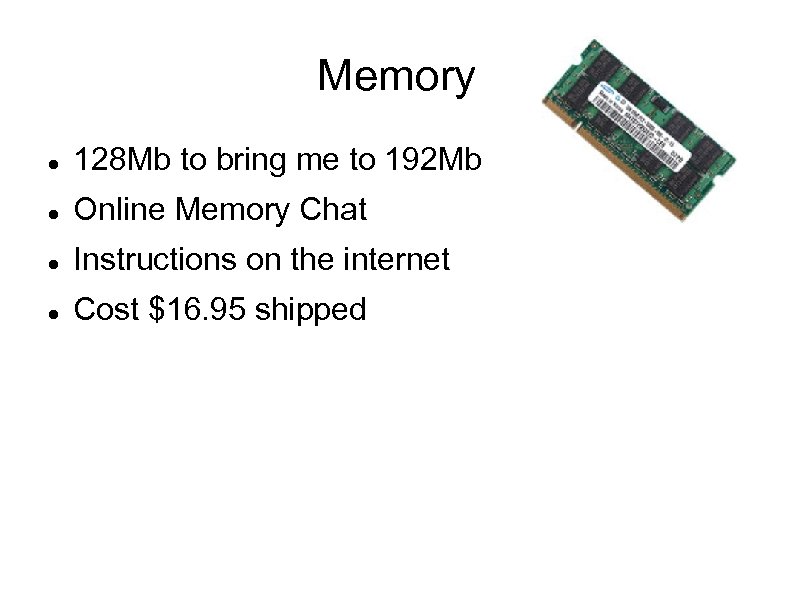

Memory 128 Mb to bring me to 192 Mb Online Memory Chat Instructions on the internet Cost $16. 95 shipped

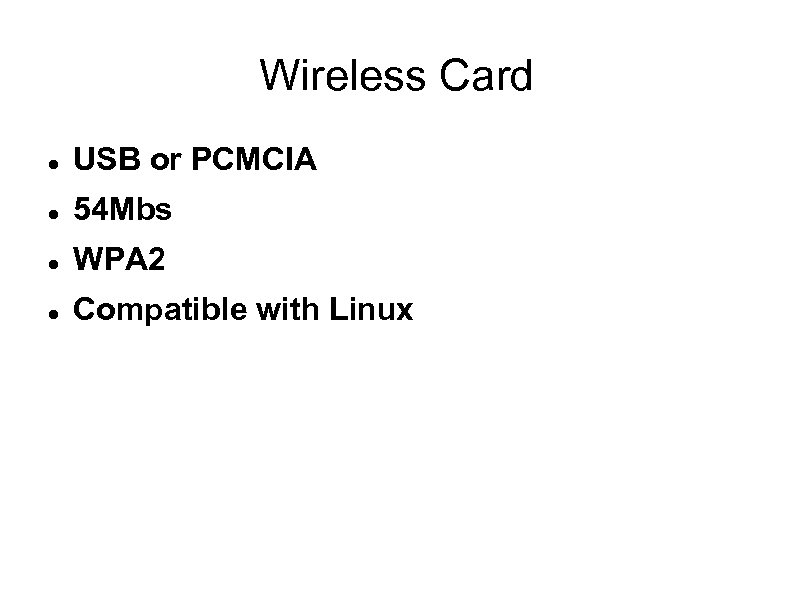

Wireless Card USB or PCMCIA 54 Mbs WPA 2 Compatible with Linux

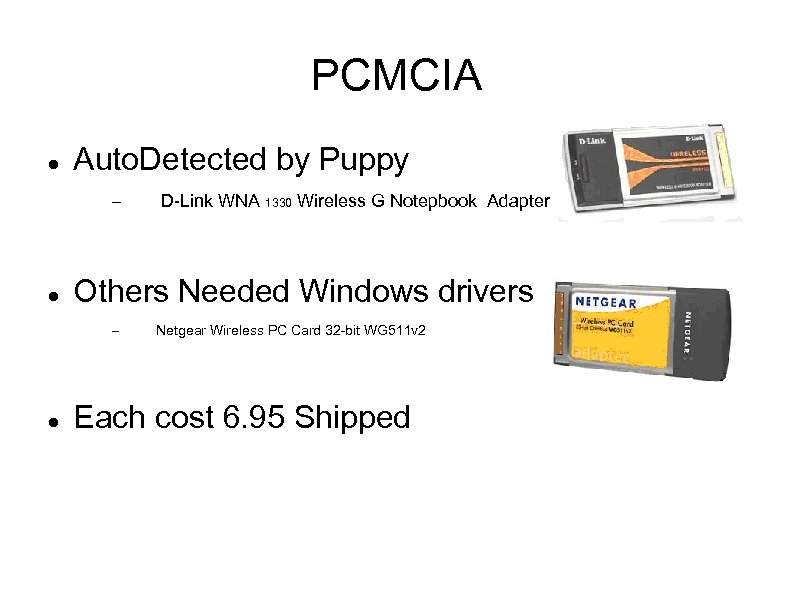

PCMCIA Auto. Detected by Puppy – Others Needed Windows drivers – D-Link WNA 1330 Wireless G Notepbook Adapter Netgear Wireless PC Card 32 -bit WG 511 v 2 Each cost 6. 95 Shipped

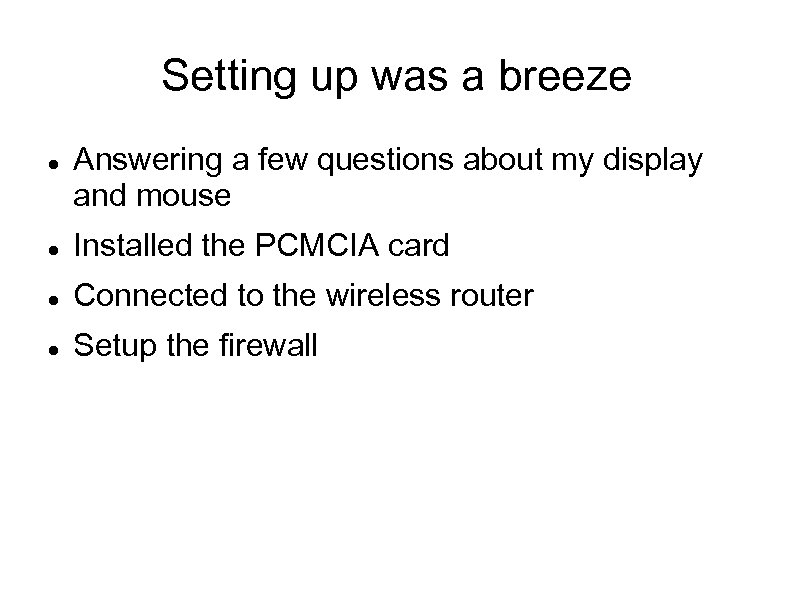

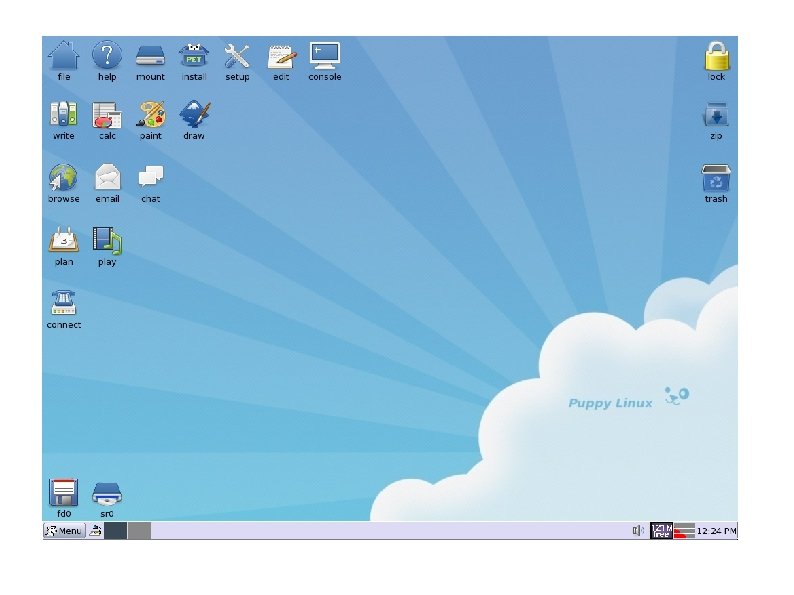

Setting up was a breeze Answering a few questions about my display and mouse Installed the PCMCIA card Connected to the wireless router Setup the firewall

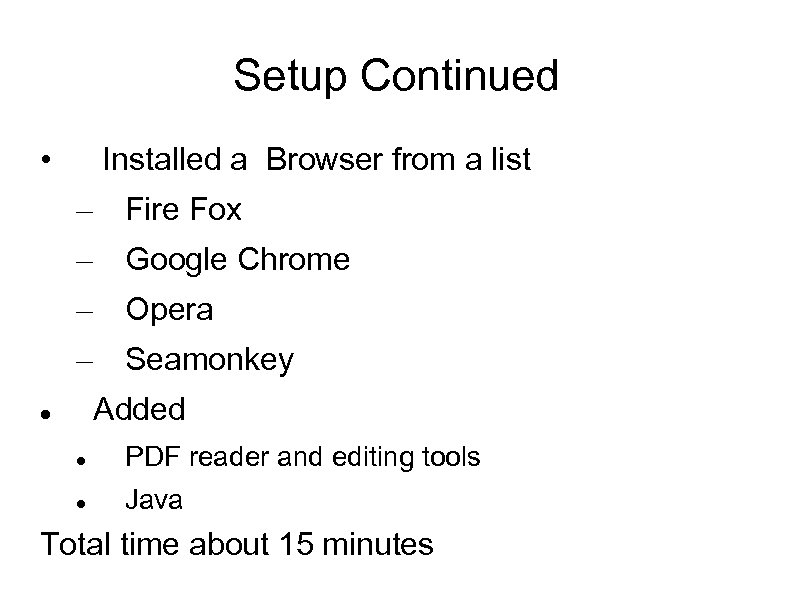

Setup Continued Installed a Browser from a list • – Fire Fox – Google Chrome – Opera – Seamonkey Added PDF reader and editing tools Java Total time about 15 minutes

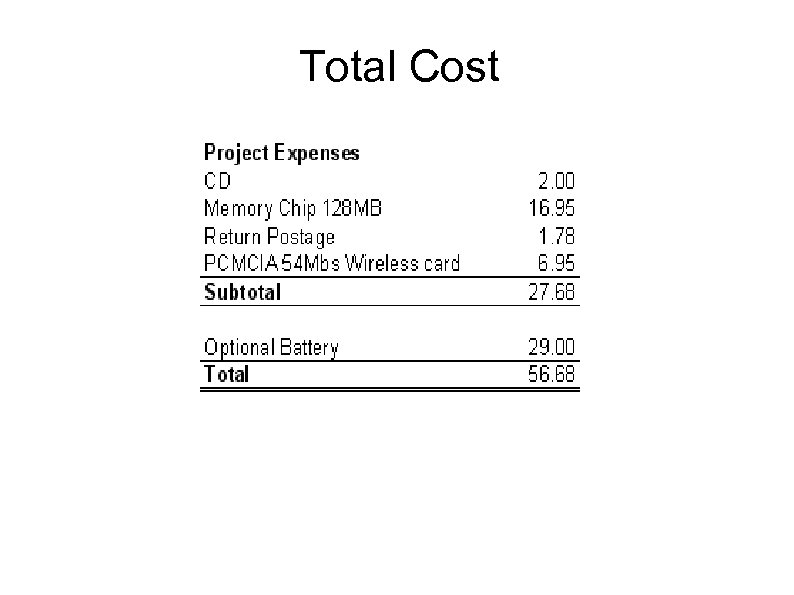

Total Cost

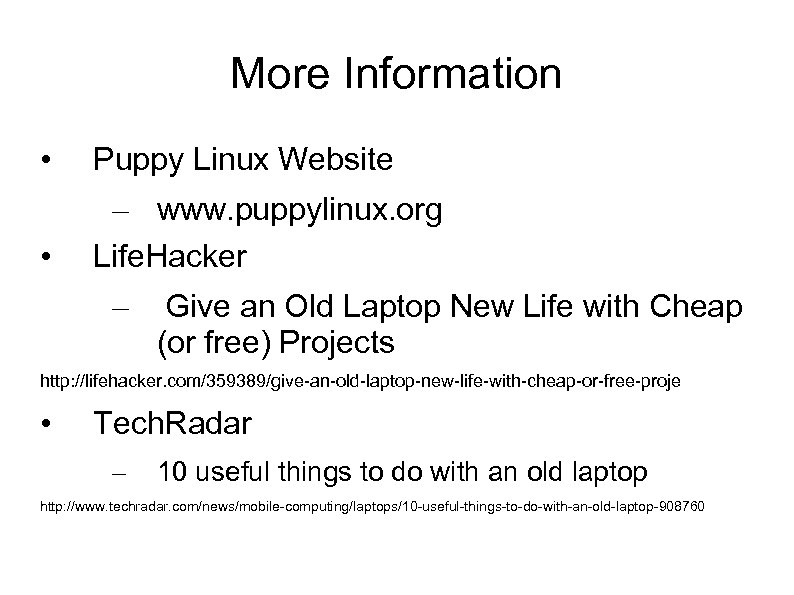

More Information • Puppy Linux Website • – www. puppylinux. org Life. Hacker – Give an Old Laptop New Life with Cheap (or free) Projects http: //lifehacker. com/359389/give-an-old-laptop-new-life-with-cheap-or-free-proje • Tech. Radar – 10 useful things to do with an old laptop http: //www. techradar. com/news/mobile-computing/laptops/10 -useful-things-to-do-with-an-old-laptop-908760
