Body Electrical n n n Lighting Combination Meter

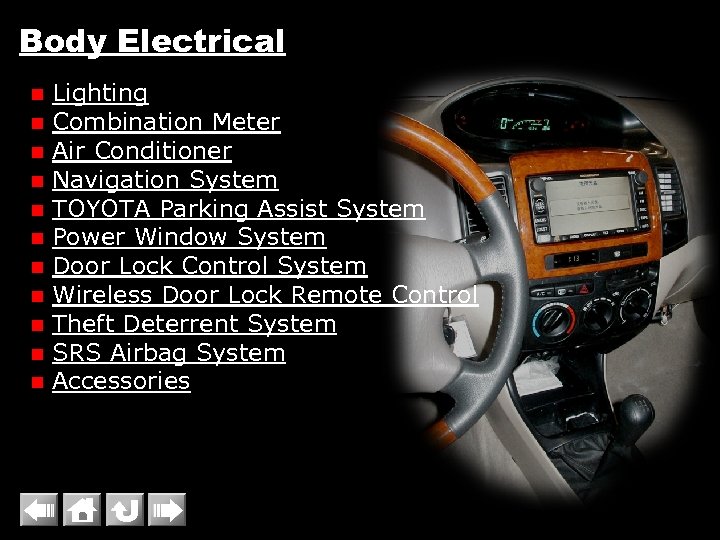

Body Electrical n n n Lighting Combination Meter Air Conditioner Navigation System TOYOTA Parking Assist System Power Window System Door Lock Control System Wireless Door Lock Remote Control Theft Deterrent System SRS Airbag System Accessories

Body Electrical n Lighting • Front Light Headlight (High/Low Beam) -C -R -T Position Light Turn Signal Light Front Fog Light -M

Body Electrical n -C -R -T Lighting • Rear Light Turn Signal Light Back-up Light Rear Fog Light Tail & Stop Light Reflex Reflector -M

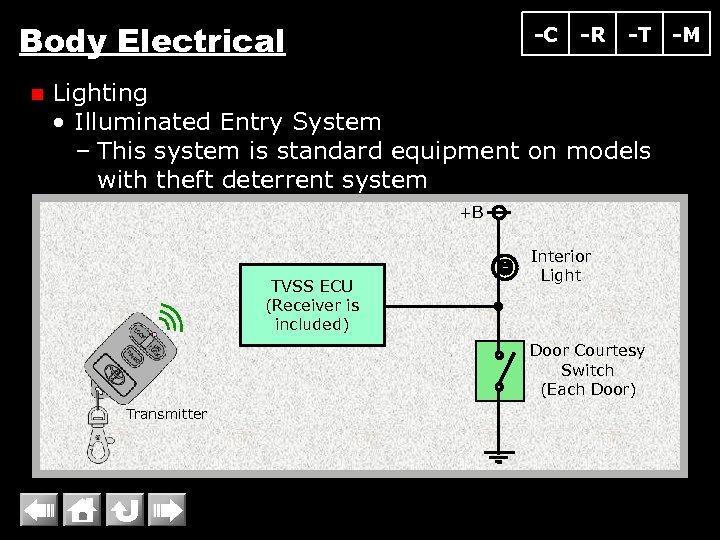

Body Electrical n -C -R -T Lighting • Illuminated Entry System – This system is standard equipment on models with theft deterrent system +B TVSS ECU (Receiver is included) Interior Light Door Courtesy Switch (Each Door) Transmitter -M

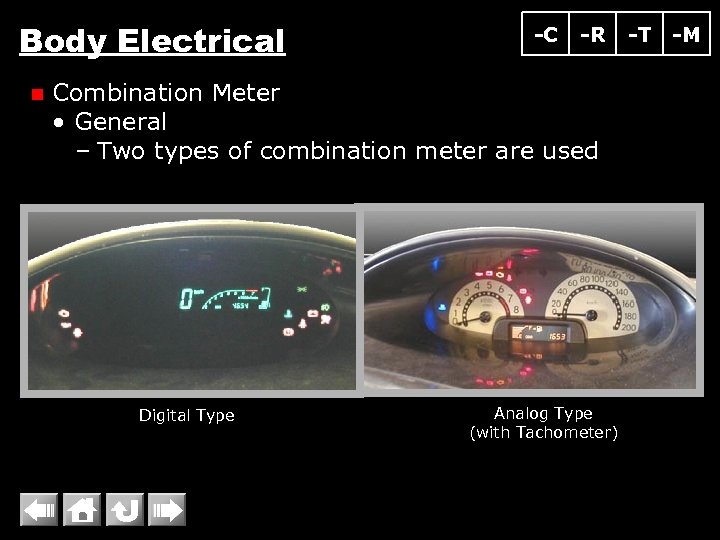

Body Electrical n -C -R Combination Meter • General – Two types of combination meter are used Digital Type Analog Type (with Tachometer) -T -M

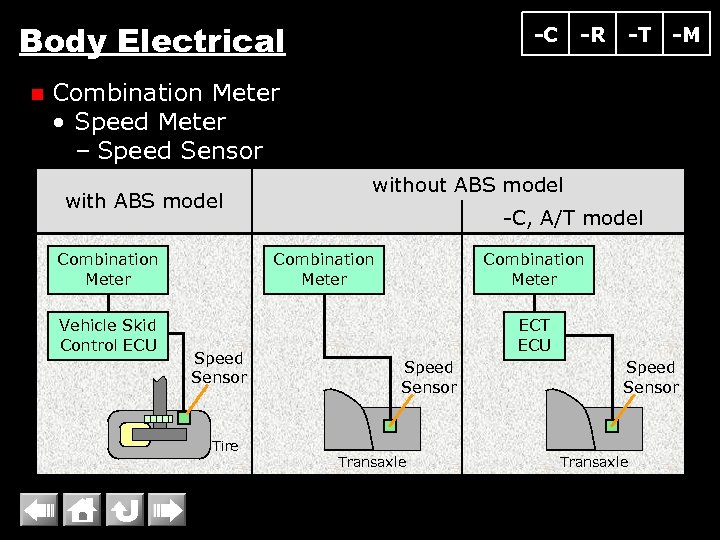

Body Electrical n -C -R -T -M Combination Meter • Speed Meter – Speed Sensor with ABS model Combination Meter Vehicle Skid Control ECU without ABS model -C, A/T model Combination Meter Speed Sensor Tire Combination Meter ECT ECU Speed Sensor Transaxle

Body Electrical n -C -R -T -M Combination Meter • Water Temperature Indicator – The indicator light change in accordance with the engine coolant temp. Indicator Light Condition Engine Coolant Temp. Illuminate Blink - Below approx. 60 °C Above approx. 117°C Not illuminate Other

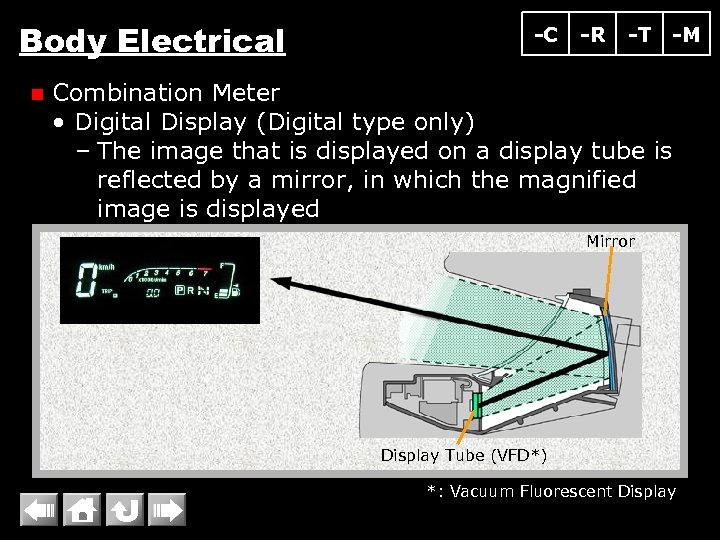

Body Electrical n -C -R -T -M Combination Meter • Digital Display (Digital type only) – The image that is displayed on a display tube is reflected by a mirror, in which the magnified image is displayed Mirror Display Tube (VFD*) *: Vacuum Fluorescent Display

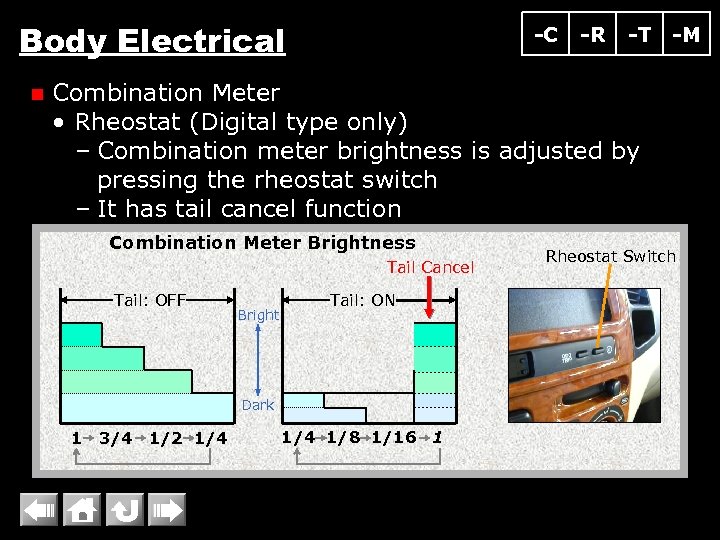

Body Electrical n -C -R -T -M Combination Meter • Rheostat (Digital type only) – Combination meter brightness is adjusted by pressing the rheostat switch – It has tail cancel function Combination Meter Brightness Tail Cancel Tail: OFF Bright Tail: ON Dark 1 3/4 1/2 1/4 1/8 1/16 1 Rheostat Switch

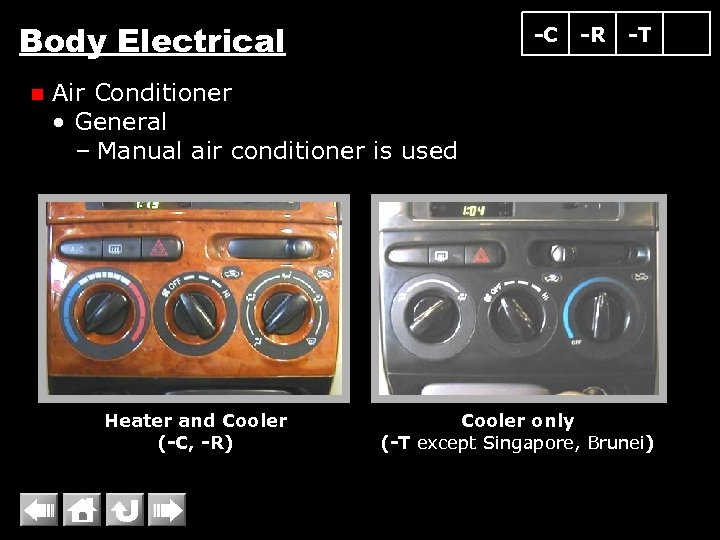

Body Electrical n -C -R -T Air Conditioner • General – Manual air conditioner is used Heater and Cooler (-C, -R) Cooler only (-T except Singapore, Brunei)

Body Electrical n -C -R Air Conditioner • Main Components SFA (Straight Flow Aluminum) Heater Core Sub-cool Condenser MS (Multi Tank Super Slim Structure) Evaporator Compact, Lightweight 10 S 11 Compressor -T -M

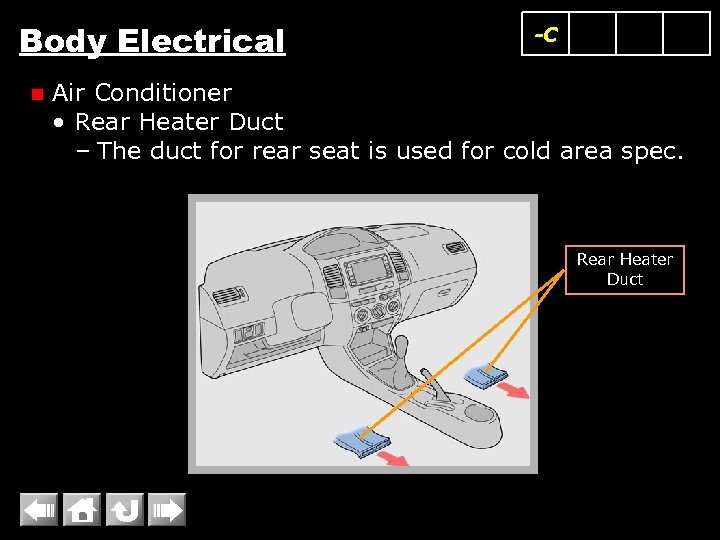

Body Electrical n -C Air Conditioner • Rear Heater Duct – The duct for rear seat is used for cold area spec. Rear Heater Duct

Body Electrical n -C GLX-i, GL-i only Navigation System • General – 6. 5 inch LCD screen with pressure sensitive touch panel and DVD voice navigation

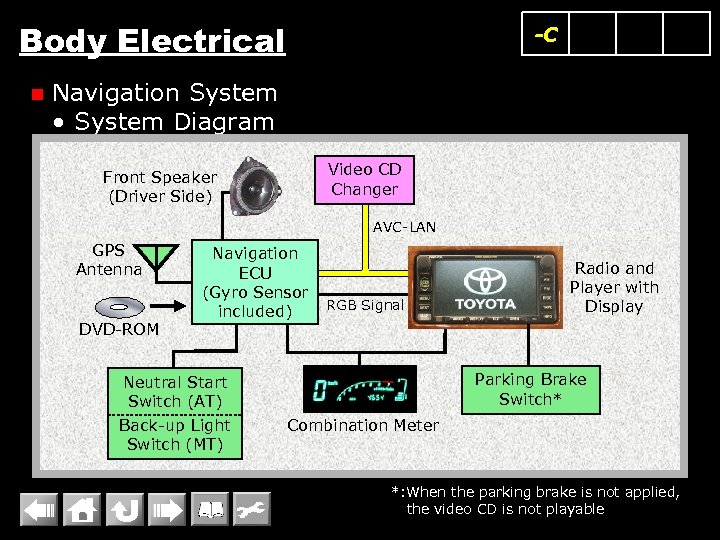

Body Electrical n -C Navigation System • System Diagram Video CD Changer Front Speaker (Driver Side) AVC-LAN GPS Antenna DVD-ROM Navigation ECU (Gyro Sensor included) RGB Signal Parking Brake Switch* Neutral Start Switch (AT) Back-up Light Switch (MT) Radio and Player with Display Combination Meter *: When the parking brake is not applied, the video CD is not playable

Body Electrical n -C Navigation System • Location GPS Antenna Radio and Player with Display Navigation ECU Video CD Changer

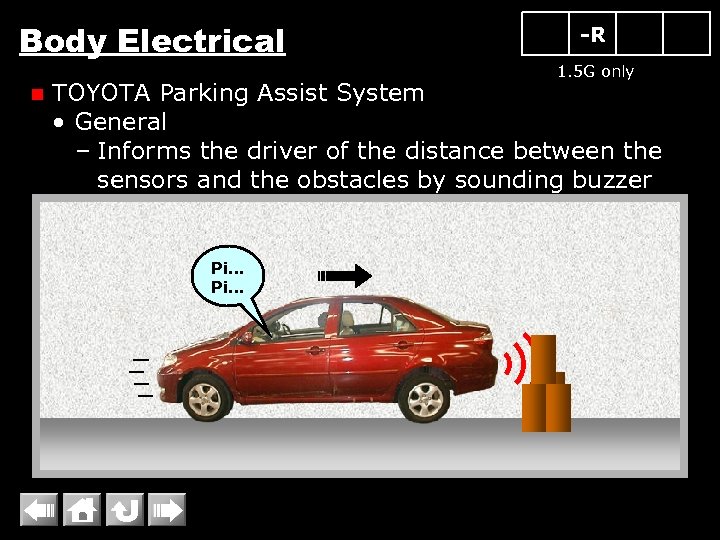

Body Electrical n -R 1. 5 G only TOYOTA Parking Assist System • General – Informs the driver of the distance between the sensors and the obstacles by sounding buzzer Pi…

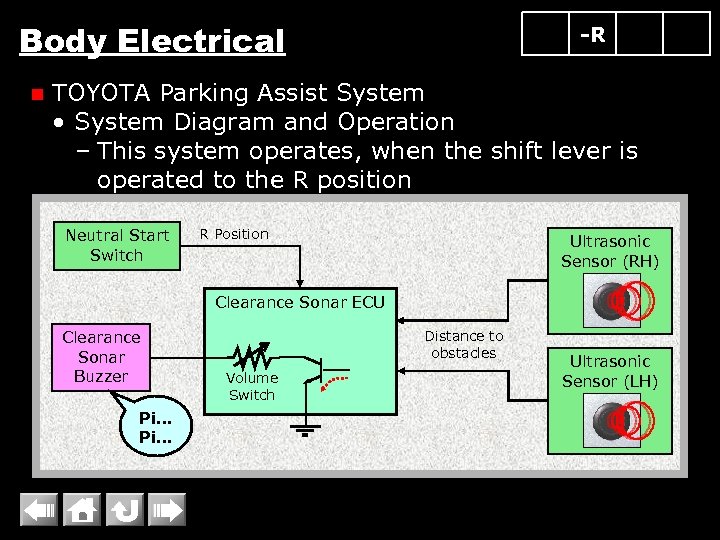

Body Electrical n -R TOYOTA Parking Assist System • System Diagram and Operation – This system operates, when the shift lever is operated to the R position Neutral Start Switch R Position Ultrasonic Sensor (RH) Clearance Sonar ECU Clearance Sonar Buzzer Pi… Distance to obstacles Volume Switch Ultrasonic Sensor (LH)

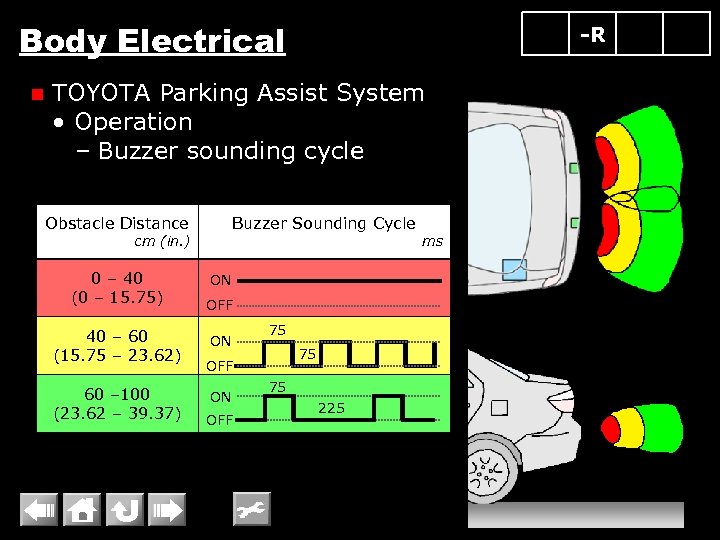

Body Electrical n -R TOYOTA Parking Assist System • Operation – Buzzer sounding cycle Obstacle Distance Buzzer Sounding Cycle cm (in. ) 0 – 40 (0 – 15. 75) 40 – 60 (15. 75 – 23. 62) 60 – 100 (23. 62 – 39. 37) ON OFF ON 75 75 OFF ON OFF 75 225 ms

Body Electrical n -R TOYOTA Parking Assist System • Location Ultrasonic Sensor (LH and RH) Clearance Sonar ECU Clearance Sonar Buzzer Volume Switch

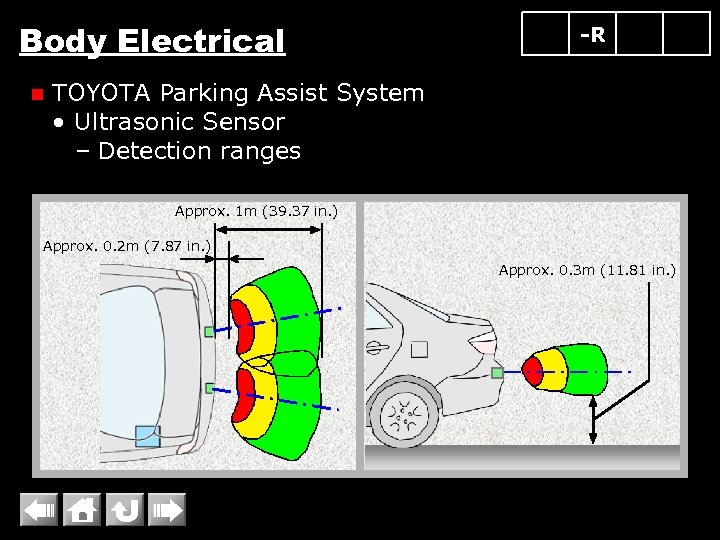

Body Electrical n -R TOYOTA Parking Assist System • Ultrasonic Sensor – Detection ranges Approx. 1 m (39. 37 in. ) Approx. 0. 2 m (7. 87 in. ) Approx. 0. 3 m (11. 81 in. )

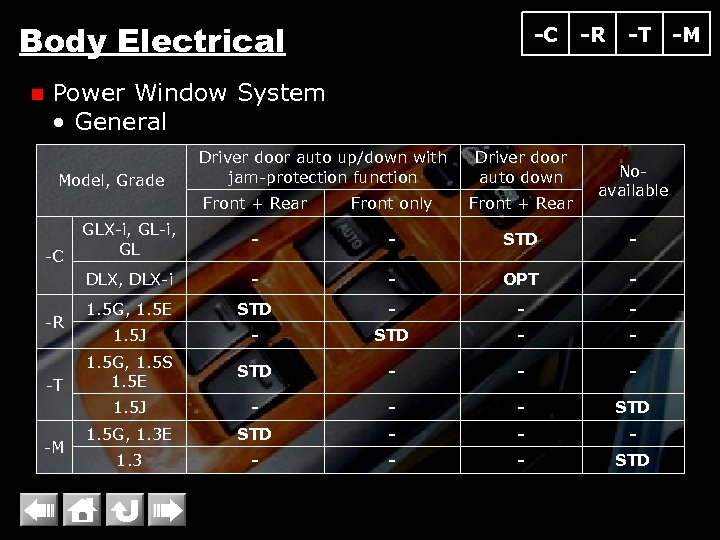

Body Electrical n -C -R -T Power Window System • General Model, Grade Driver door auto up/down with jam-protection function Driver door auto down Noavailable Front + Rear -T -M GLX-i, GL - - STD - - - OPT - 1. 5 G, 1. 5 E STD - - - 1. 5 J - STD - - 1. 5 G, 1. 5 S 1. 5 E STD - - - 1. 5 J -R Front + Rear DLX, DLX-i -C Front only - - - STD 1. 5 G, 1. 3 E STD - - - 1. 3 - - - STD -M

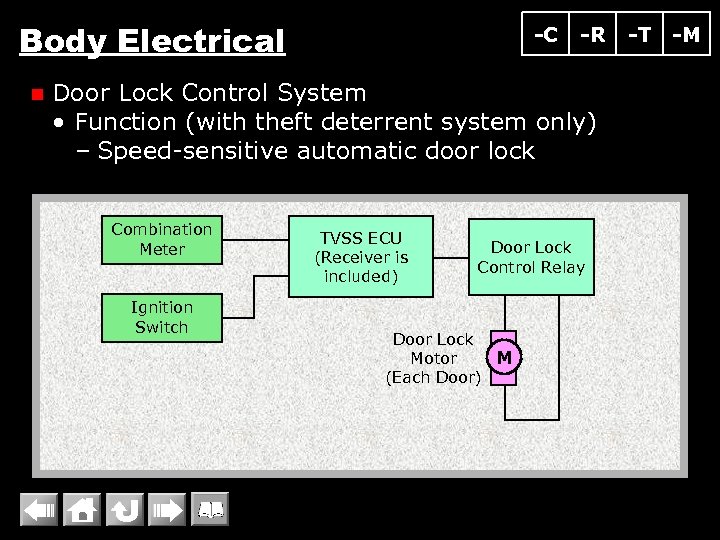

Body Electrical n -C -R Door Lock Control System • Function (with theft deterrent system only) – Speed-sensitive automatic door lock Combination Meter Ignition Switch TVSS ECU (Receiver is included) Door Lock Control Relay Door Lock M Motor (Each Door) -T -M

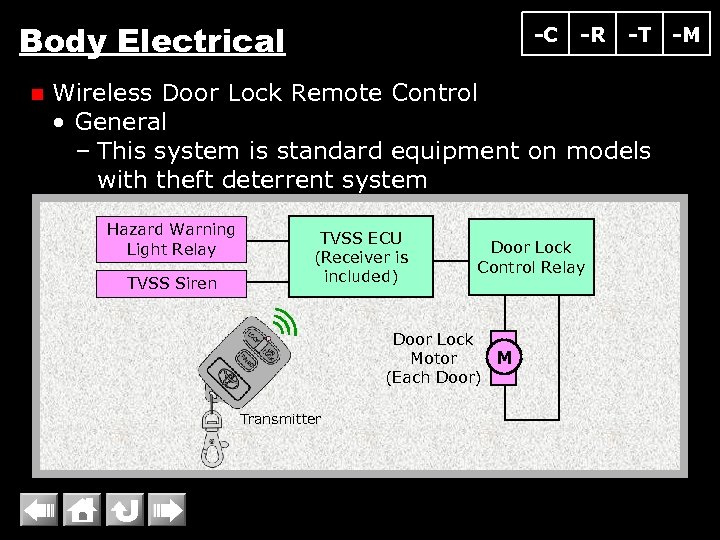

Body Electrical n -C -R -T Wireless Door Lock Remote Control • General – This system is standard equipment on models with theft deterrent system Hazard Warning Light Relay TVSS Siren TVSS ECU (Receiver is included) Door Lock Control Relay Door Lock M Motor (Each Door) Transmitter -M

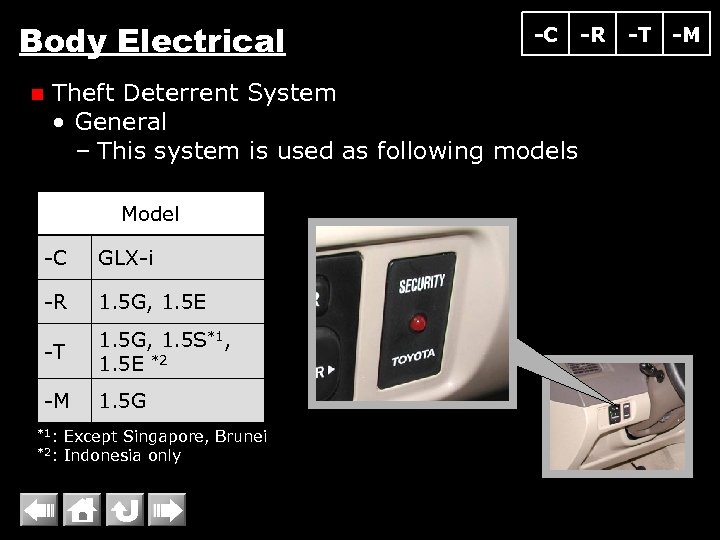

Body Electrical n -C Theft Deterrent System • General – This system is used as following models Model -C GLX-i -R 1. 5 G, 1. 5 E -T 1. 5 G, 1. 5 S*1, 1. 5 E *2 -M 1. 5 G *1: Except Singapore, Brunei *2: Indonesia only -R -T -M

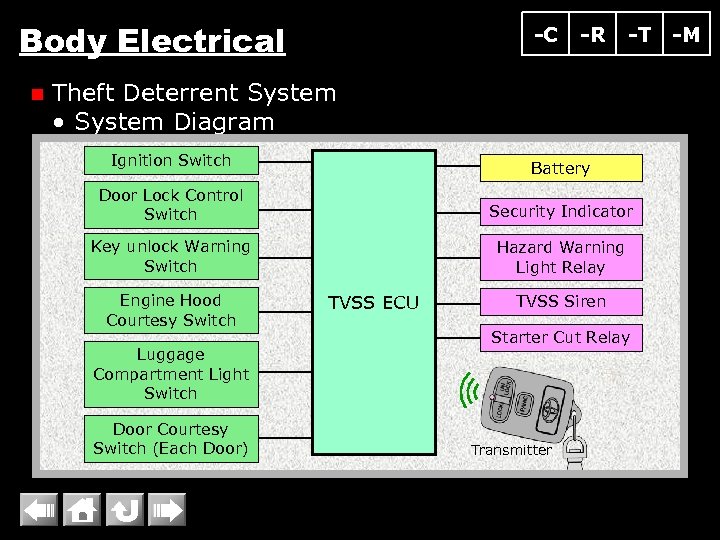

Body Electrical n -C -R -T Theft Deterrent System • System Diagram Ignition Switch Battery Door Lock Control Switch Security Indicator Key unlock Warning Switch Hazard Warning Light Relay Engine Hood Courtesy Switch Luggage Compartment Light Switch Door Courtesy Switch (Each Door) TVSS ECU TVSS Siren Starter Cut Relay Transmitter -M

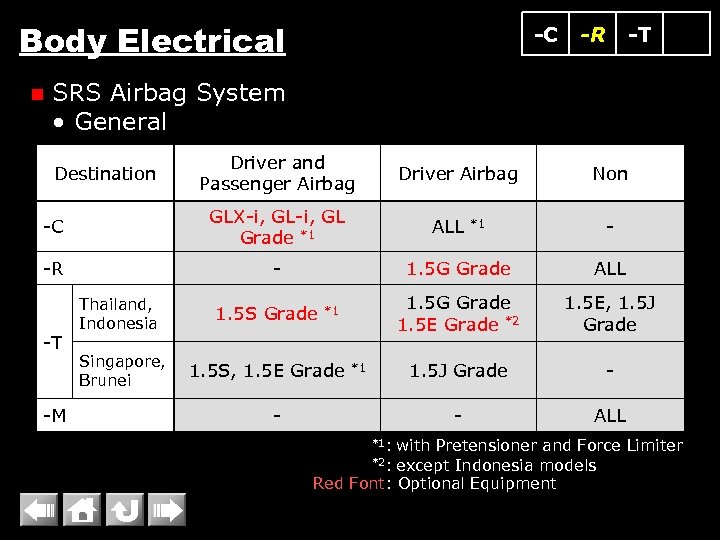

Body Electrical n -C -R -T SRS Airbag System • General Destination Driver and Passenger Airbag -C GLX-i, GL Grade *1 -R Driver Airbag - -T -M ALL *1 Non - 1. 5 G Grade 1. 5 S Grade Singapore, Brunei 1. 5 S, 1. 5 E Grade 1. 5 G Grade 1. 5 E Grade *2 1. 5 J Grade *1 *1 *1: 1. 5 E, 1. 5 J Grade - - Thailand, Indonesia ALL with Pretensioner and Force Limiter *2: except Indonesia models Red Font: Optional Equipment

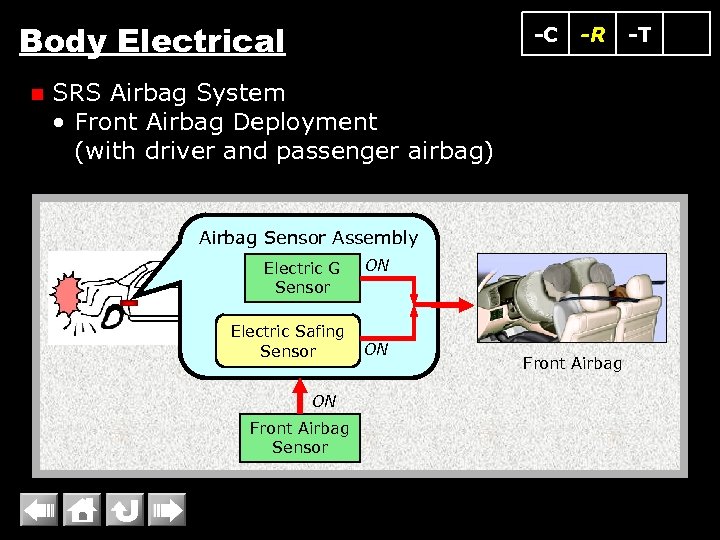

Body Electrical n -C -R SRS Airbag System • Front Airbag Deployment (with driver and passenger airbag) Airbag Sensor Assembly Electric G Sensor Electric Safing Sensor ON Front Airbag Sensor ON ON Front Airbag -T

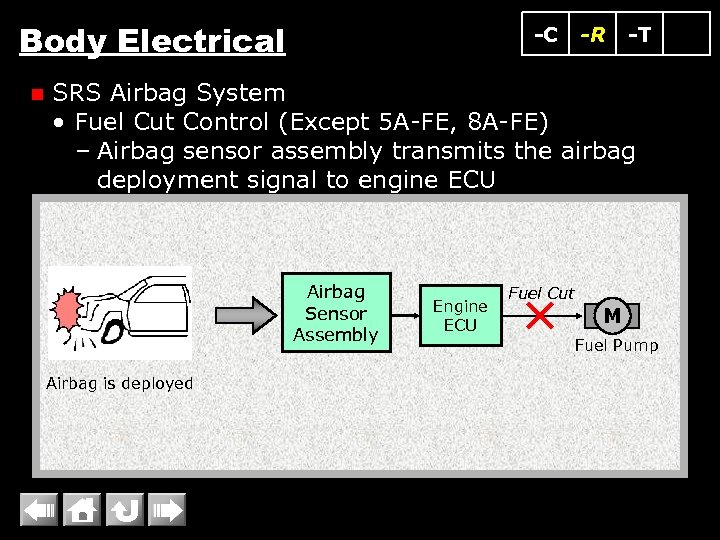

Body Electrical n -C -R -T SRS Airbag System • Fuel Cut Control (Except 5 A-FE, 8 A-FE) – Airbag sensor assembly transmits the airbag deployment signal to engine ECU Airbag Sensor Assembly Airbag is deployed Engine ECU Fuel Cut M Fuel Pump

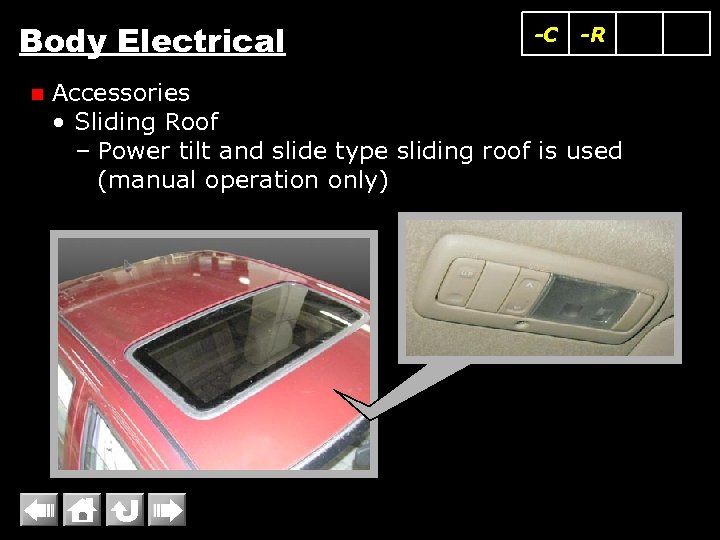

Body Electrical n -C -R Accessories • Sliding Roof – Power tilt and slide type sliding roof is used (manual operation only)

Body Electrical n -C -R -C: GLX-i -R: 1. 5 G Accessories • Telephone – In this system, telephone call is possible without releasing a hand from handle Front Speaker (Driver Side) Mobile Telephone Adapter Telephone ECU Wire (DOP) Telephone Microphone

Body Electrical n -C -R Accessories • Telephone – Location Telephone Adapter Telephone Microphone
