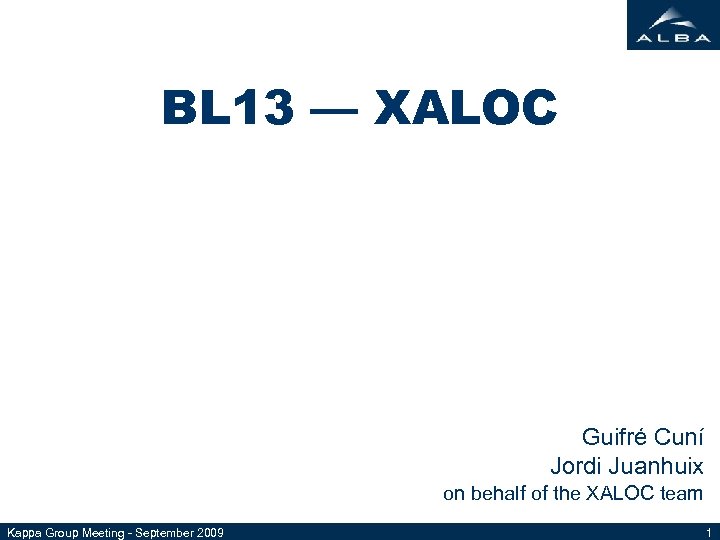

BL 13 — XALOC Guifré Cuní Jordi Juanhuix on behalf of the XALOC team Kappa Group Meeting - September 2009 1

BL 13 -XALOC – Status BL 13 Current Monochromator and mirrors: installed OH Status Undulator: Sep 2010 Lead hutches: installed Remaining optics End 2009 Personal safety system: installed End station elements: Beginning 2010 EH Kappa Group Meeting - September 2009 Electrical power, fluids and cable trays: installed Beamline commissioning: End 2010 2

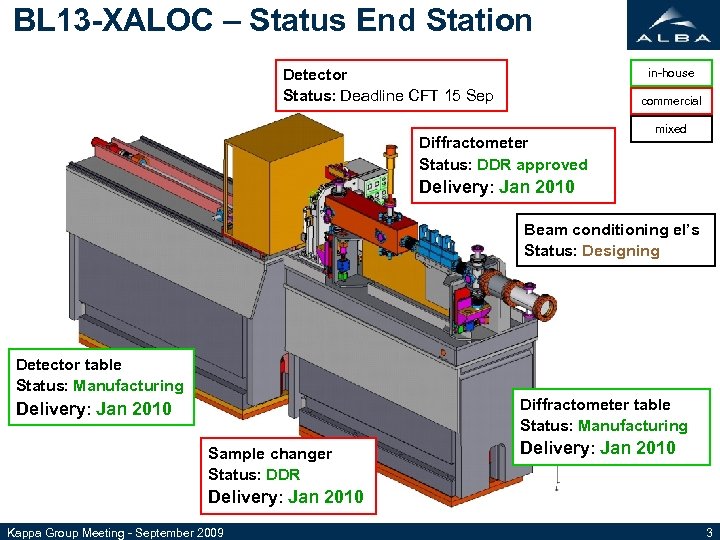

BL 13 -XALOC – Status End Station Detector Status: Deadline CFT 15 Sep in-house commercial Diffractometer Status: DDR approved mixed Delivery: Jan 2010 Beam conditioning el’s Status: Designing Detector table Status: Manufacturing Diffractometer table Status: Manufacturing Delivery: Jan 2010 Sample changer Status: DDR Delivery: Jan 2010 Kappa Group Meeting - September 2009 3

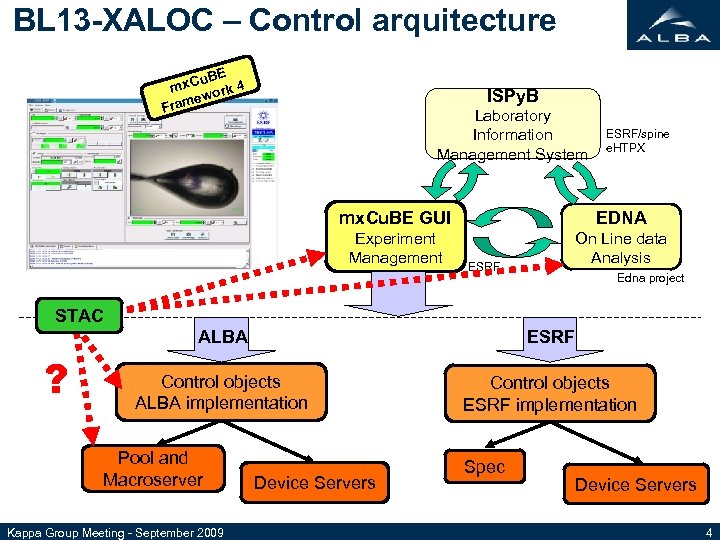

BL 13 -XALOC – Control arquitecture BE x. Cu rk 4 m ewo ram F ISPy. B Laboratory Information Management System ESRF/spine e. HTPX mx. Cu. BE GUI EDNA Experiment Management On Line data Analysis ESRF Edna project STAC ALBA ? ESRF Control objects ALBA implementation Control objects ESRF implementation Pool and Macroserver Kappa Group Meeting - September 2009 Device Servers Spec Device Servers 4

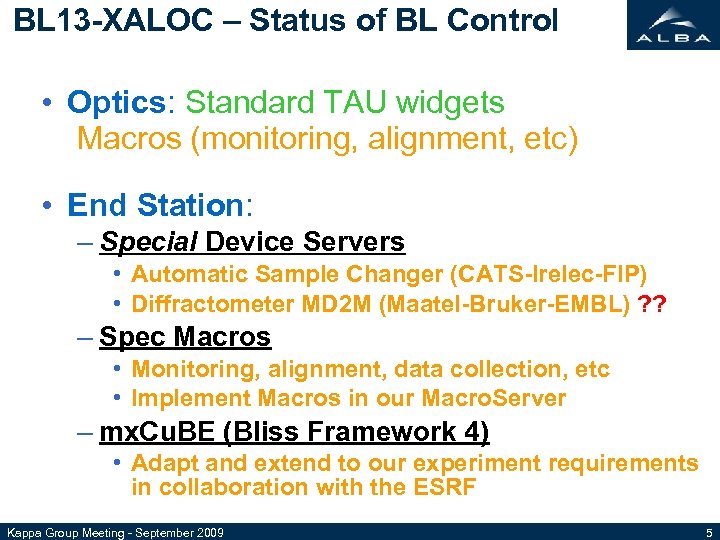

BL 13 -XALOC – Status of BL Control • Optics: Standard TAU widgets Macros (monitoring, alignment, etc) • End Station: – Special Device Servers • Automatic Sample Changer (CATS-Irelec-FIP) • Diffractometer MD 2 M (Maatel-Bruker-EMBL) ? ? – Spec Macros • Monitoring, alignment, data collection, etc • Implement Macros in our Macro. Server – mx. Cu. BE (Bliss Framework 4) • Adapt and extend to our experiment requirements in collaboration with the ESRF Kappa Group Meeting - September 2009 5
