Biometrics Viktor MINKIN minkin@elsys. ru

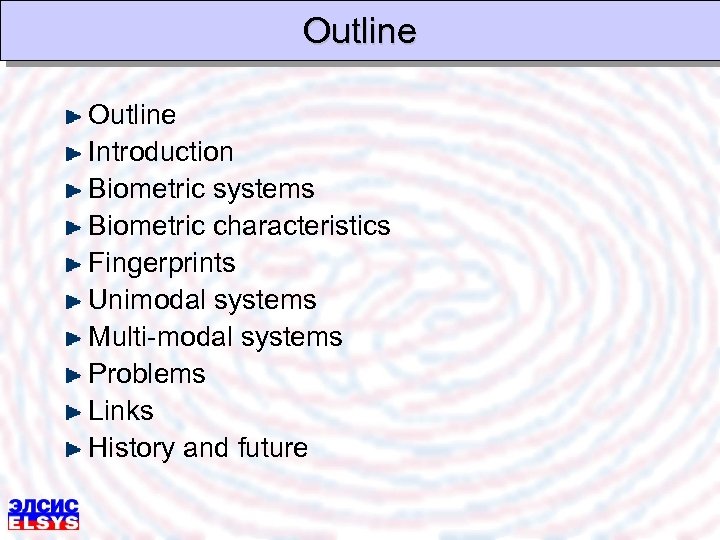

Outline Introduction Biometric systems Biometric characteristics Fingerprints Unimodal systems Multi-modal systems Problems Links History and future

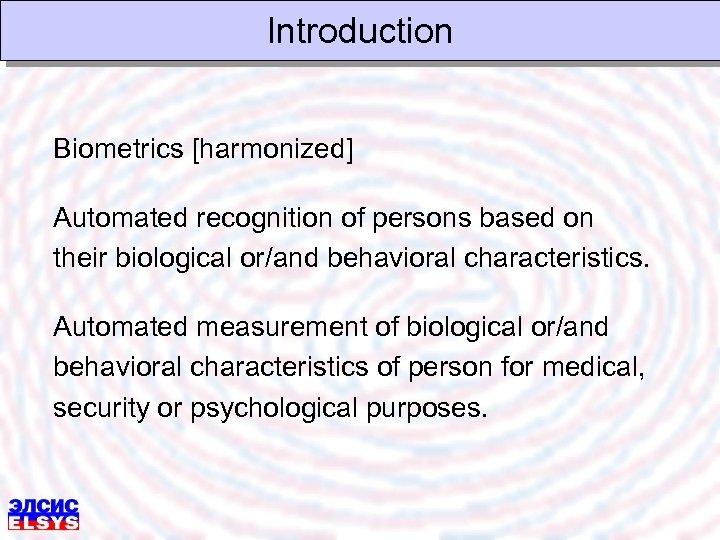

Introduction Biometrics [harmonized] Automated recognition of persons based on their biological or/and behavioral characteristics. Automated measurement of biological or/and behavioral characteristics of person for medical, security or psychological purposes.

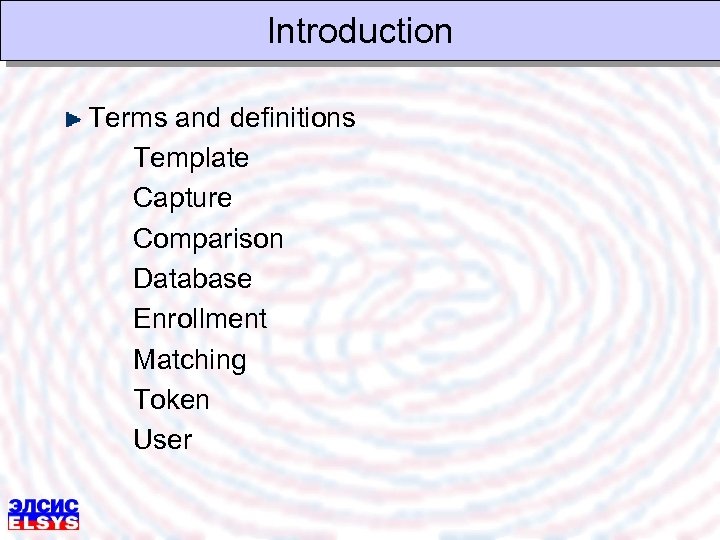

Introduction Terms and definitions Template Capture Comparison Database Enrollment Matching Token User

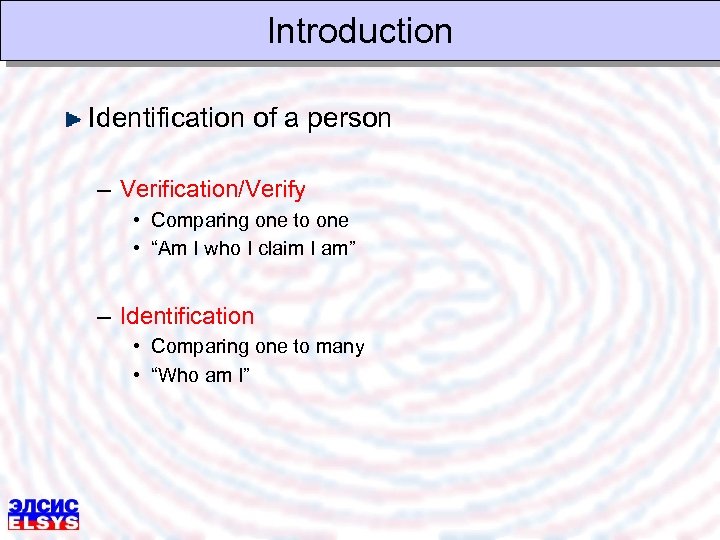

Introduction Identification of a person – Verification/Verify • Comparing one to one • “Am I who I claim I am” – Identification • Comparing one to many • “Who am I”

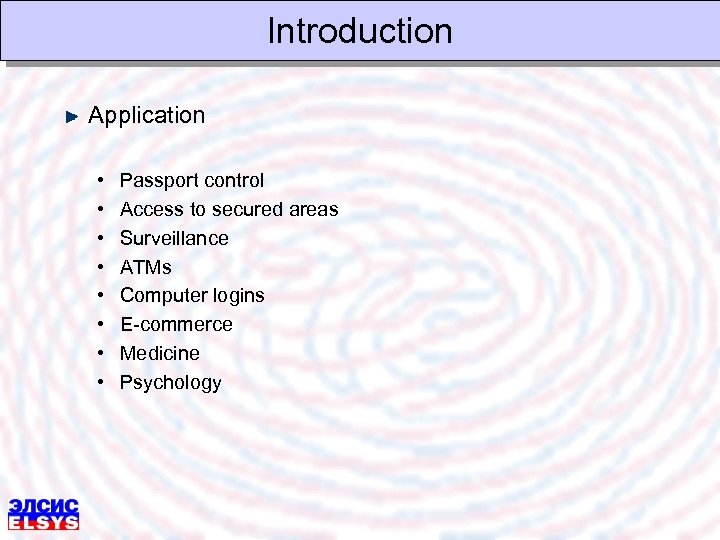

Introduction Application • • Passport control Access to secured areas Surveillance ATMs Computer logins E-commerce Medicine Psychology

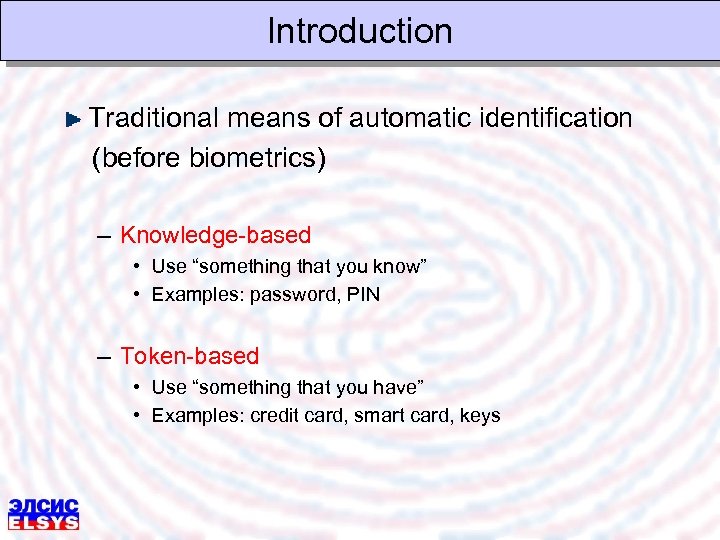

Introduction Traditional means of automatic identification (before biometrics) – Knowledge-based • Use “something that you know” • Examples: password, PIN – Token-based • Use “something that you have” • Examples: credit card, smart card, keys

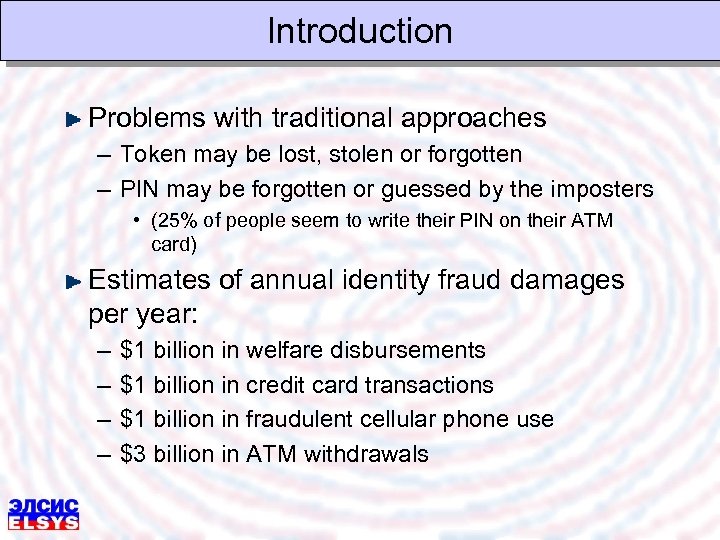

Introduction Problems with traditional approaches – Token may be lost, stolen or forgotten – PIN may be forgotten or guessed by the imposters • (25% of people seem to write their PIN on their ATM card) Estimates of annual identity fraud damages per year: – – $1 billion in welfare disbursements $1 billion in credit card transactions $1 billion in fraudulent cellular phone use $3 billion in ATM withdrawals

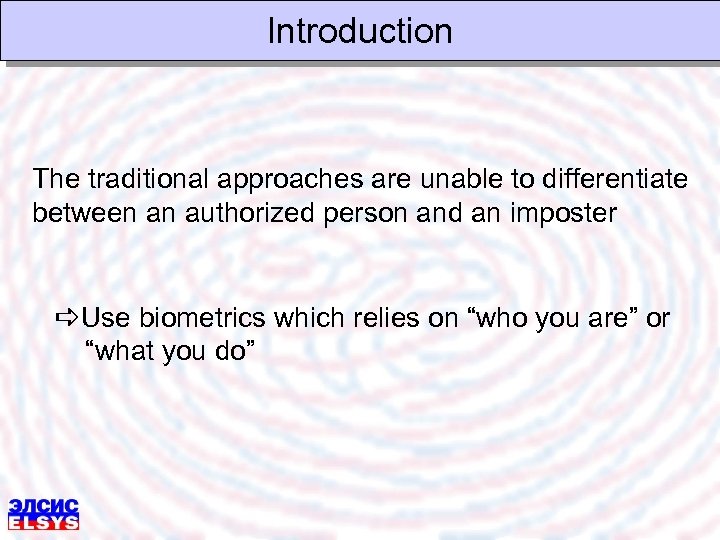

Introduction The traditional approaches are unable to differentiate between an authorized person and an imposter a. Use biometrics which relies on “who you are” or “what you do”

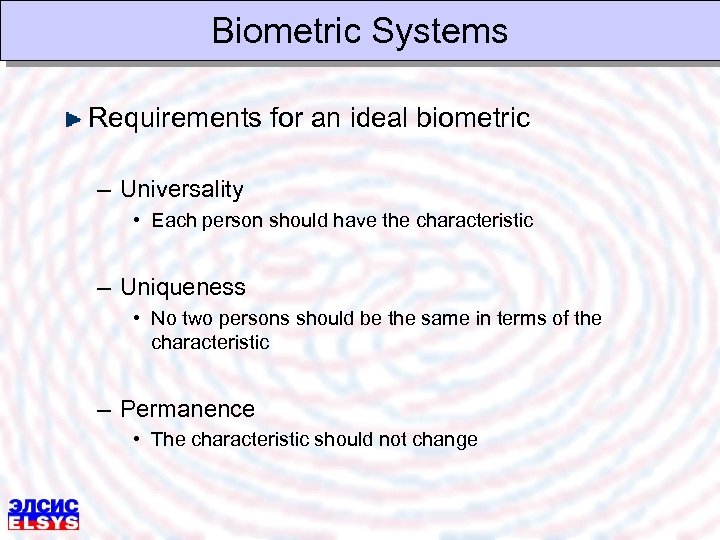

Biometric Systems Requirements for an ideal biometric – Universality • Each person should have the characteristic – Uniqueness • No two persons should be the same in terms of the characteristic – Permanence • The characteristic should not change

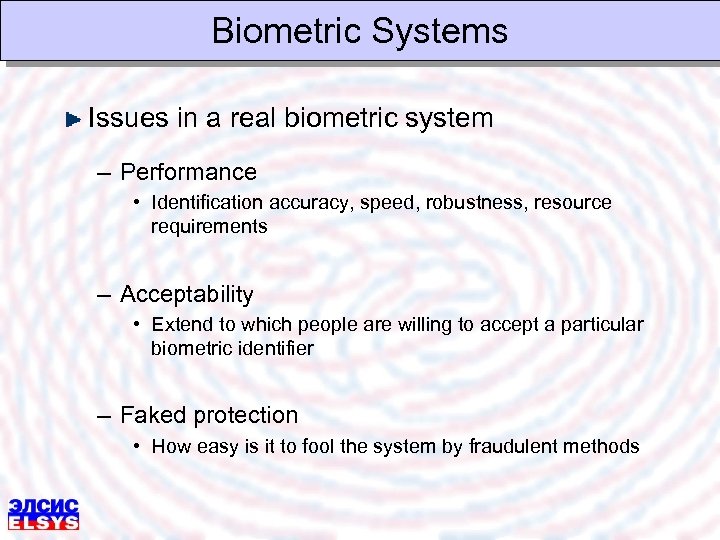

Biometric Systems Issues in a real biometric system – Performance • Identification accuracy, speed, robustness, resource requirements – Acceptability • Extend to which people are willing to accept a particular biometric identifier – Faked protection • How easy is it to fool the system by fraudulent methods

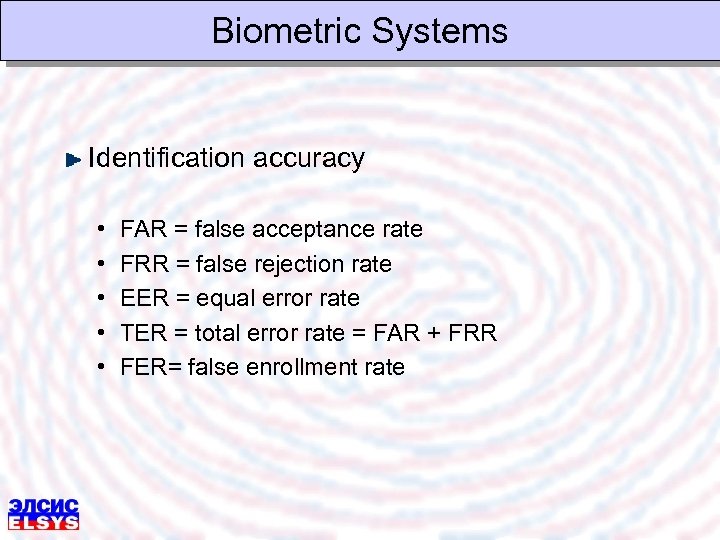

Biometric Systems Identification accuracy • • • FAR = false acceptance rate FRR = false rejection rate EER = equal error rate TER = total error rate = FAR + FRR FER= false enrollment rate

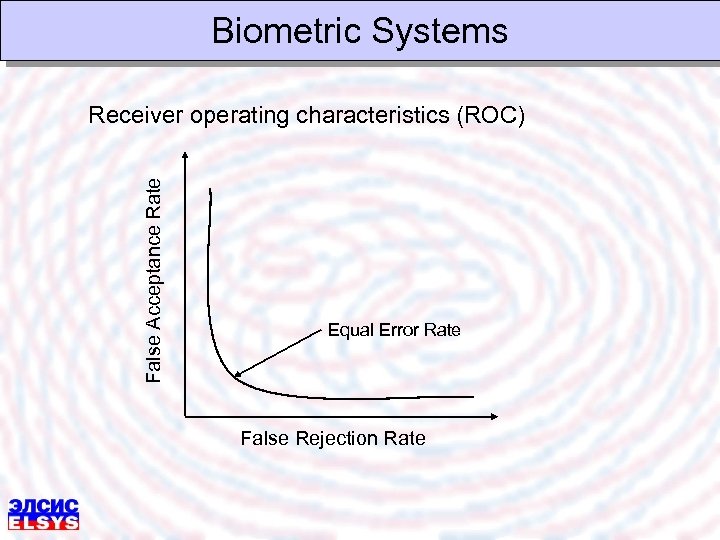

Biometric Systems False Acceptance Rate Receiver operating characteristics (ROC) Equal Error Rate False Rejection Rate

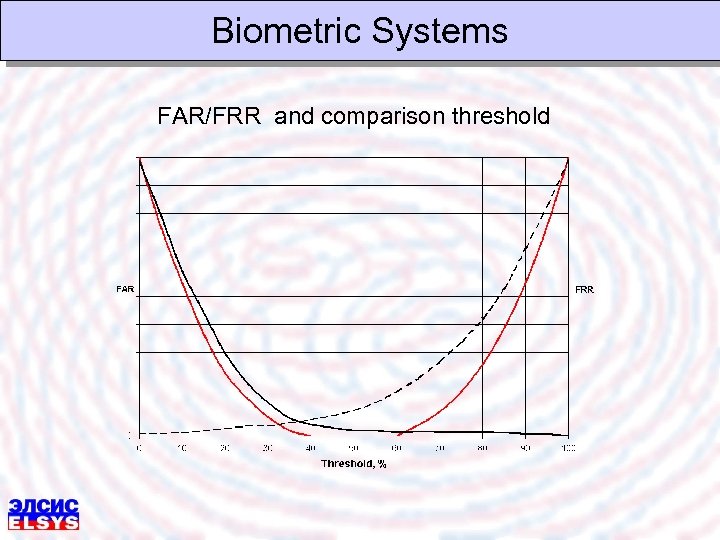

Biometric Systems FAR/FRR and comparison threshold

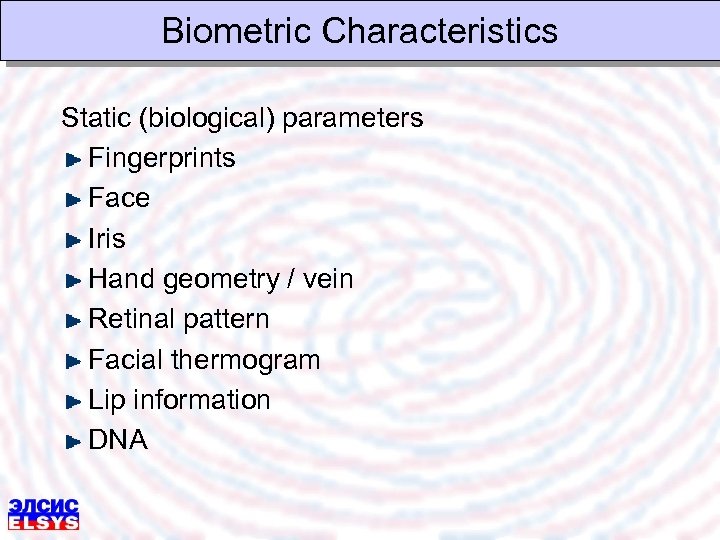

Biometric Characteristics Static (biological) parameters Fingerprints Face Iris Hand geometry / vein Retinal pattern Facial thermogram Lip information DNA

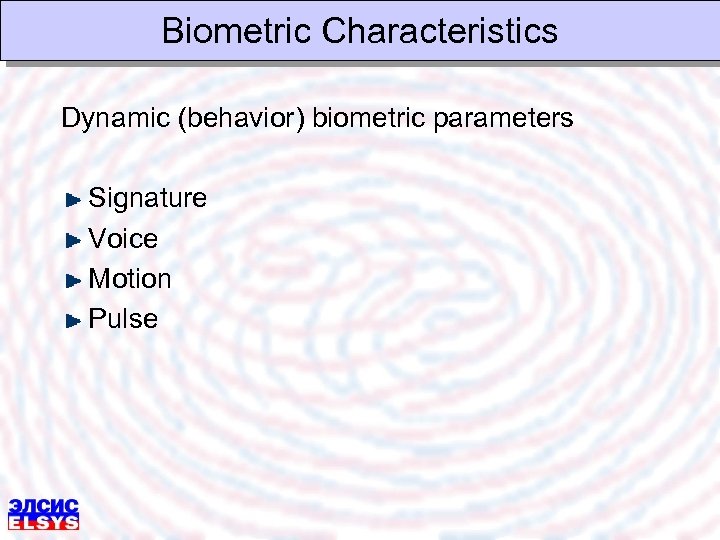

Biometric Characteristics Dynamic (behavior) biometric parameters Signature Voice Motion Pulse

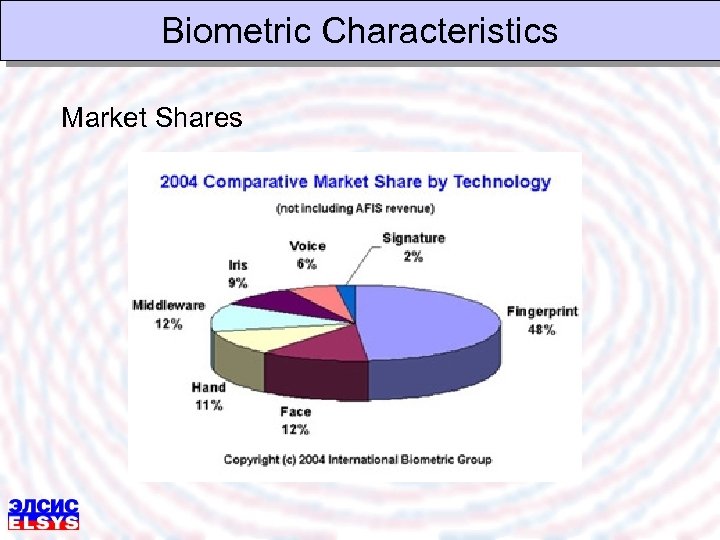

Biometric Characteristics Market Shares

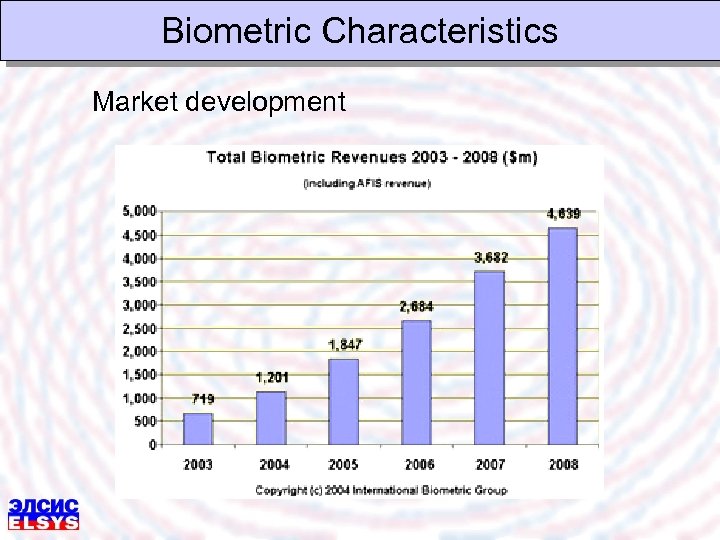

Biometric Characteristics Market development

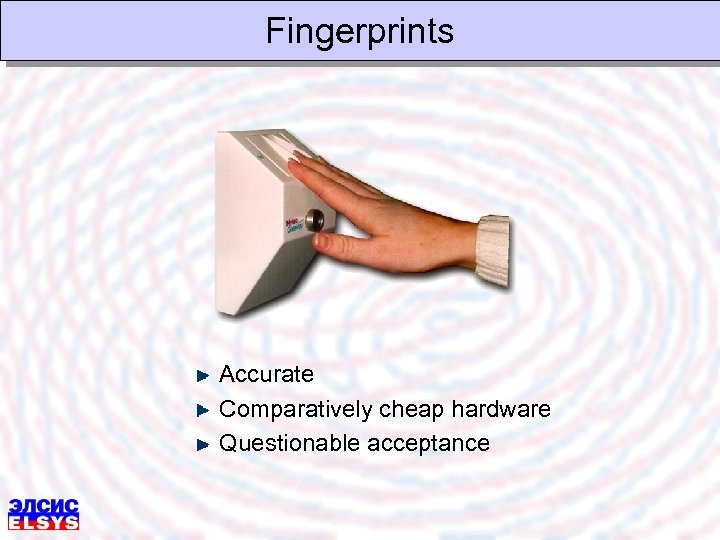

Fingerprints Accurate Comparatively cheap hardware Questionable acceptance

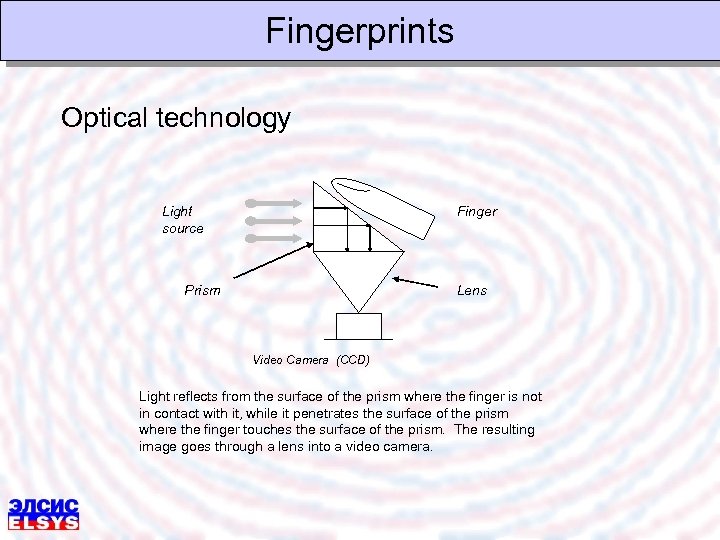

Fingerprints Optical technology Light source Finger Prism Lens Video Camera (CCD) Light reflects from the surface of the prism where the finger is not in contact with it, while it penetrates the surface of the prism where the finger touches the surface of the prism. The resulting image goes through a lens into a video camera.

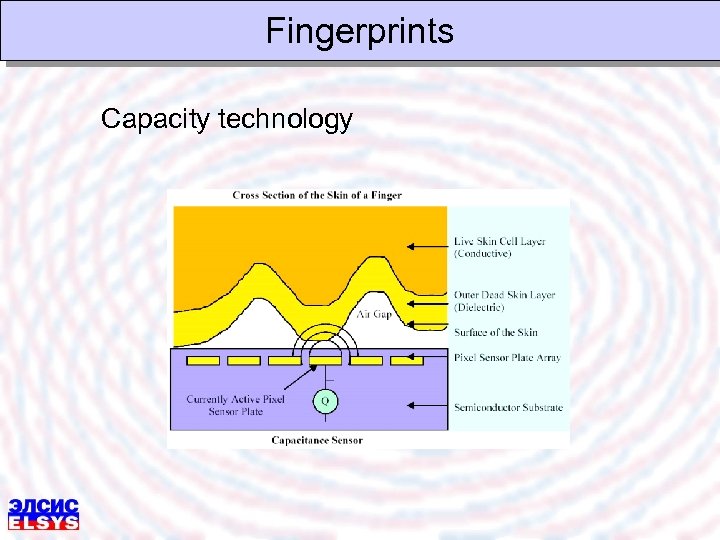

Fingerprints Capacity technology

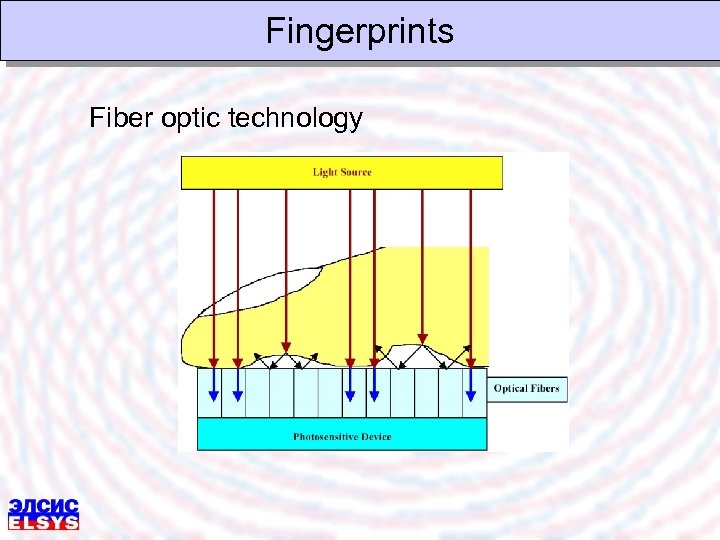

Fingerprints Fiber optic technology

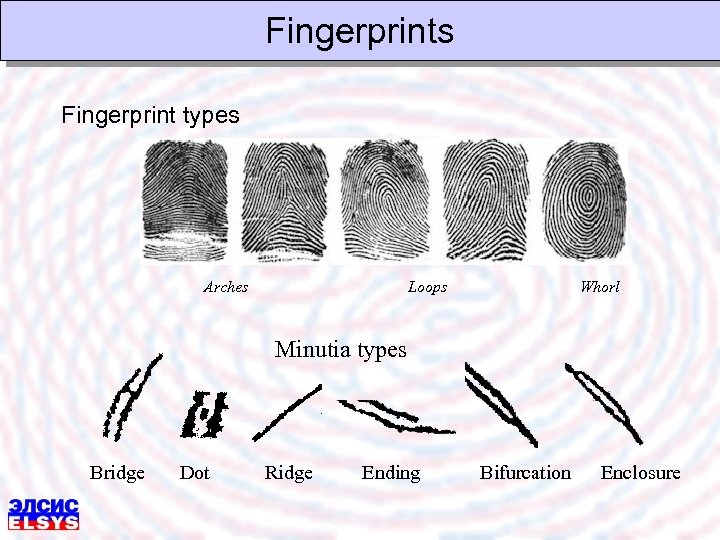

Fingerprints Fingerprint types Arches Loops Whorl Minutia types Bridge Dot Ridge Ending Bifurcation Enclosure

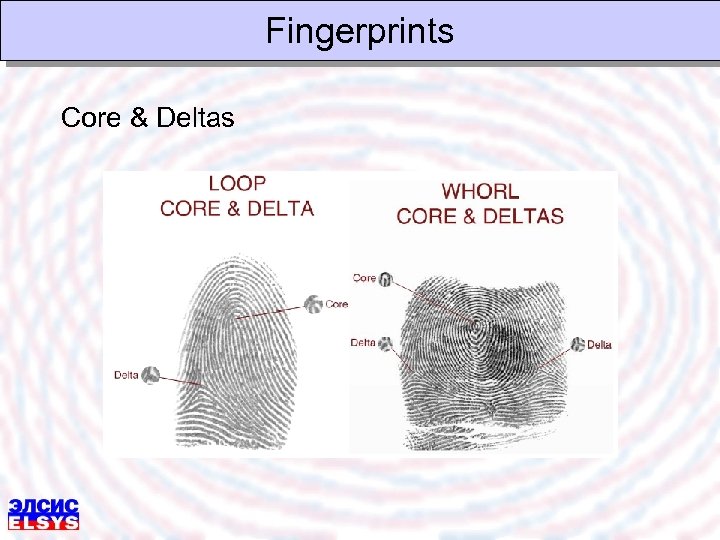

Fingerprints Core & Deltas

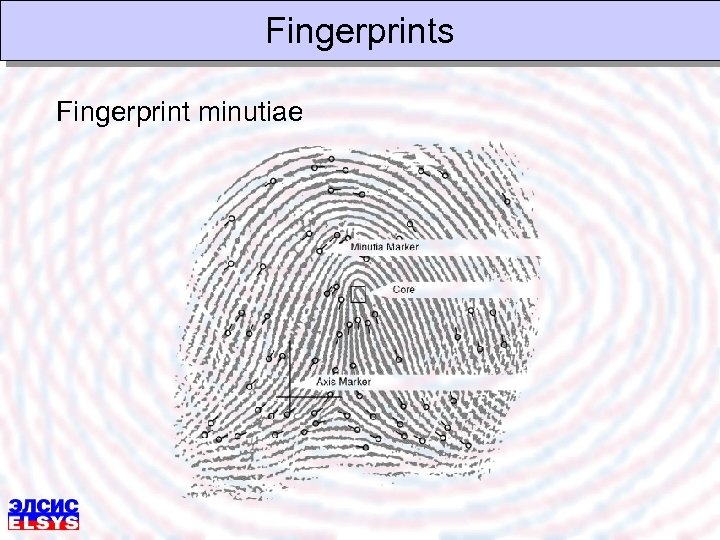

Fingerprints Fingerprint minutiae

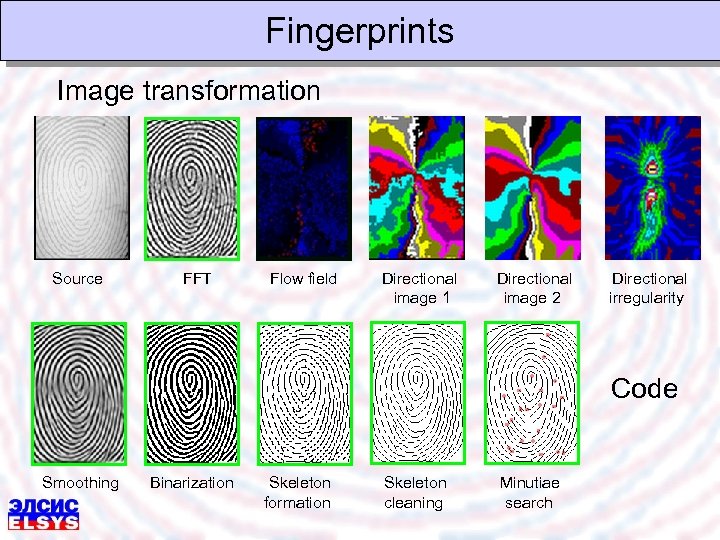

Fingerprints Image transformation Source FFT Flow field Directional image 1 Directional image 2 Directional irregularity Code Smoothing Binarization Skeleton formation Skeleton cleaning Minutiae search

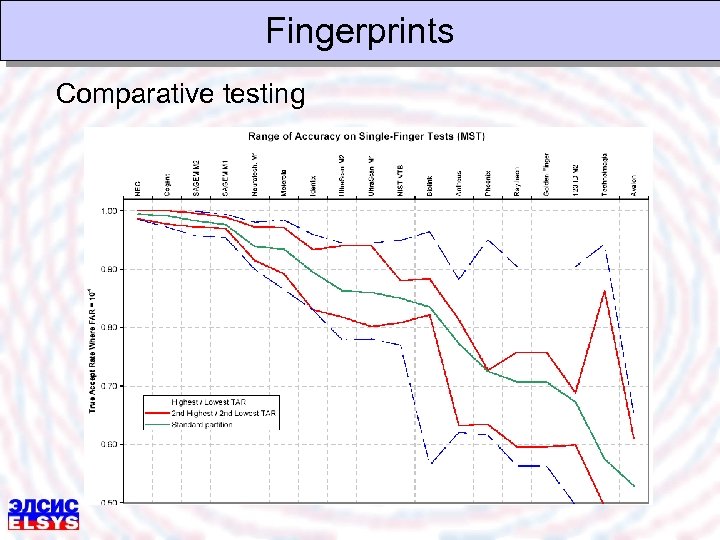

Fingerprints Comparative testing

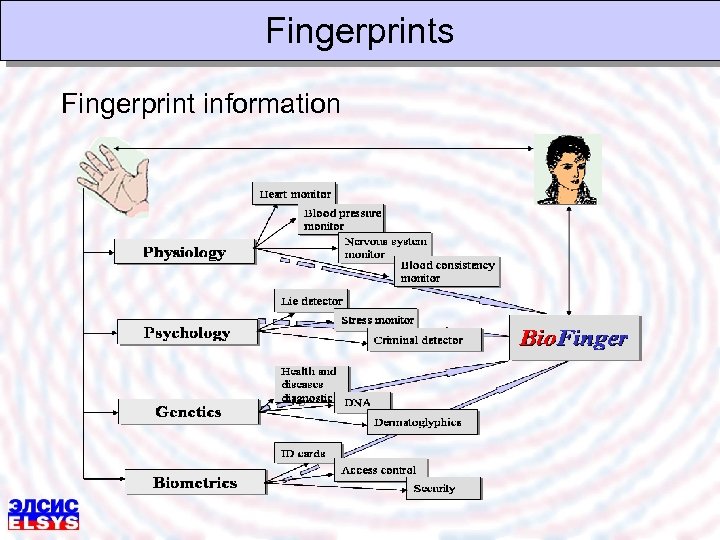

Fingerprints Fingerprint information

Unimodal Systems Facial ID Illumination Head pose Occlusion

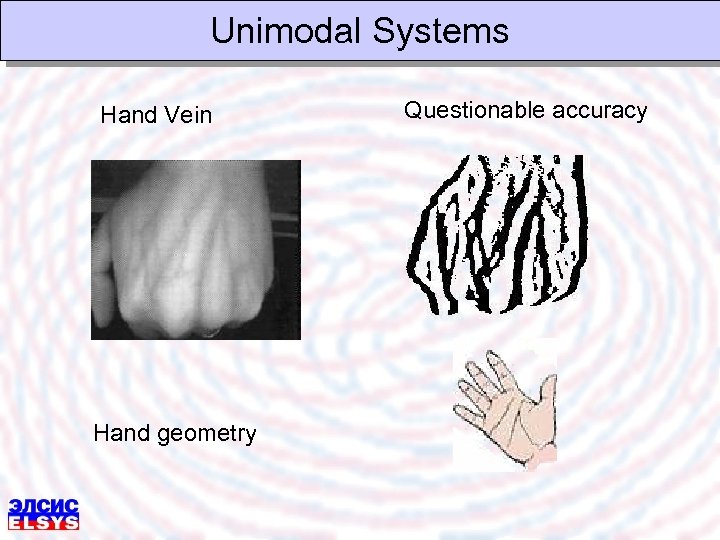

Unimodal Systems Hand Vein Hand geometry Questionable accuracy

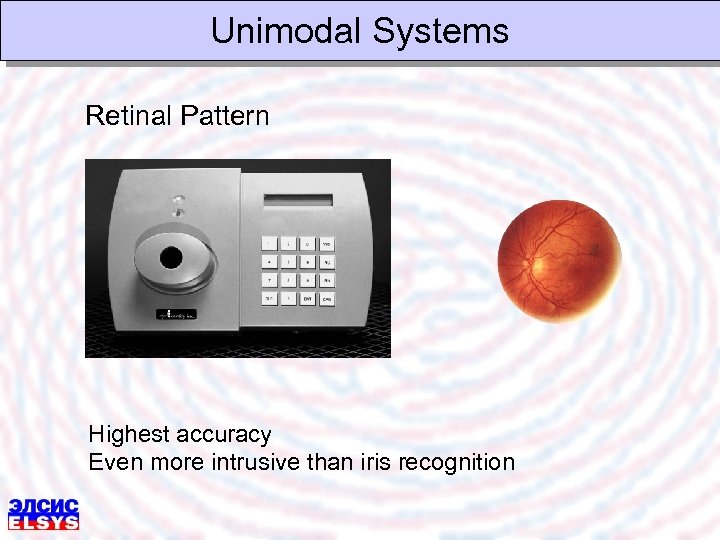

Unimodal Systems Retinal Pattern Highest accuracy Even more intrusive than iris recognition

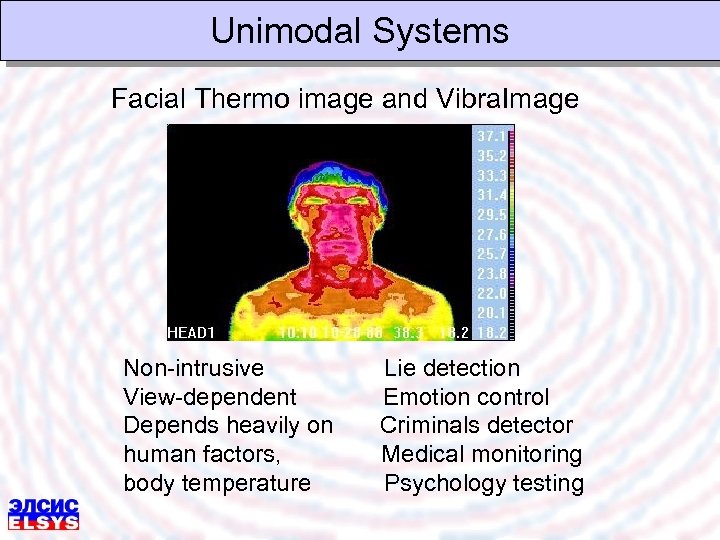

Unimodal Systems Facial Thermo image and Vibra. Image Non-intrusive View-dependent Depends heavily on human factors, body temperature Lie detection Emotion control Criminals detector Medical monitoring Psychology testing

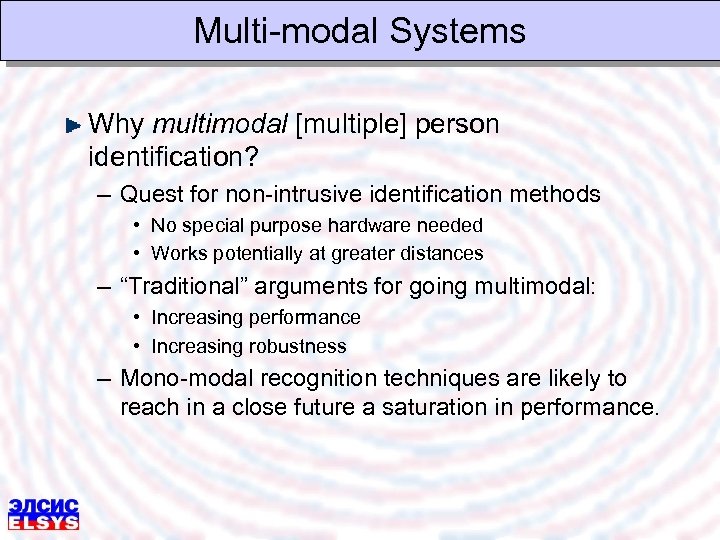

Multi-modal Systems Why multimodal [multiple] person identification? – Quest for non-intrusive identification methods • No special purpose hardware needed • Works potentially at greater distances – “Traditional” arguments for going multimodal: • Increasing performance • Increasing robustness – Mono-modal recognition techniques are likely to reach in a close future a saturation in performance.

Multi-modal Systems: Fusion “Early integration” or “sensor fusion” Integration is performed on the feature level Classification is done on the combined feature vector Features Modality 1 Features Modality 2 Features Modality n-1 Features Modality n Classifier Identity

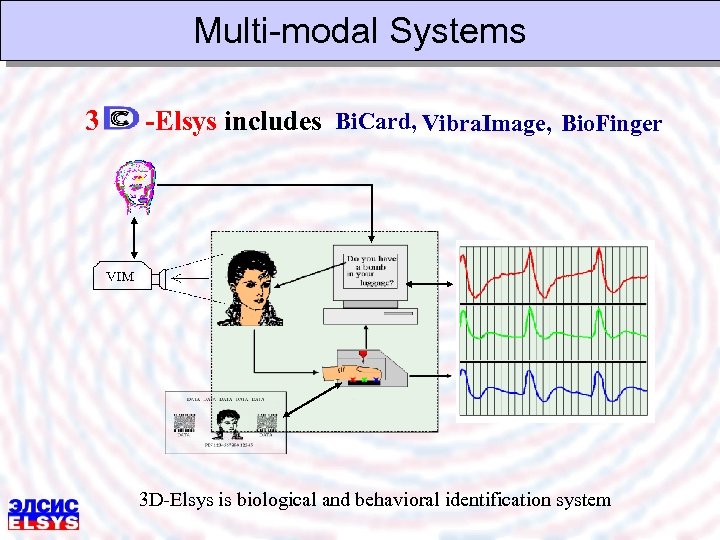

Multi-modal Systems 3 -Elsys includes Bi. Card, Vibra. Image, Bio. Finger 3 D-Elsys is biological and behavioral identification system

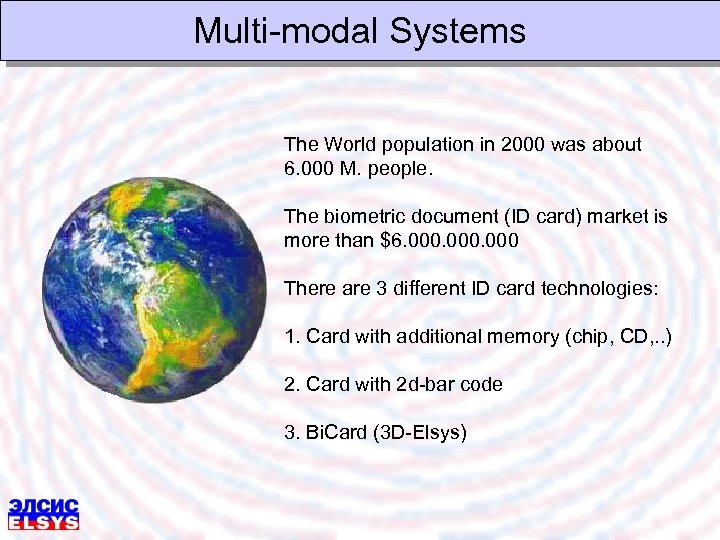

Multi-modal Systems The World population in 2000 was about 6. 000 M. people. The biometric document (ID card) market is more than $6. 000 There are 3 different ID card technologies: 1. Card with additional memory (chip, CD, . . ) 2. Card with 2 d-bar code 3. Bi. Card (3 D-Elsys)

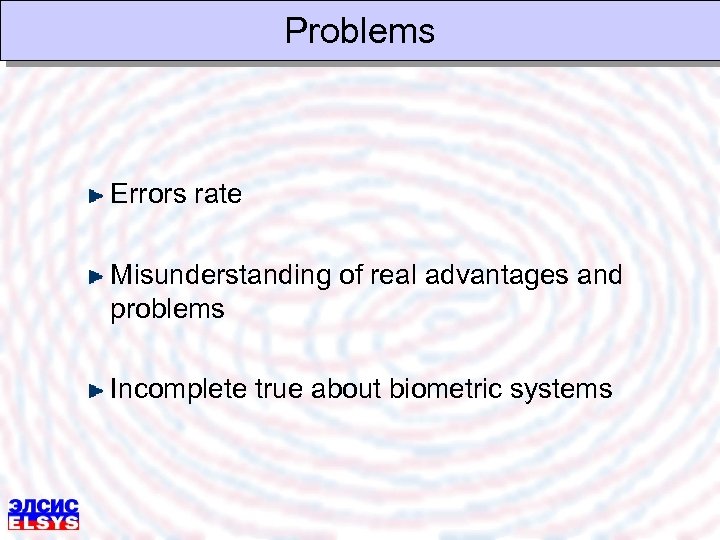

Problems Errors rate Misunderstanding of real advantages and problems Incomplete true about biometric systems

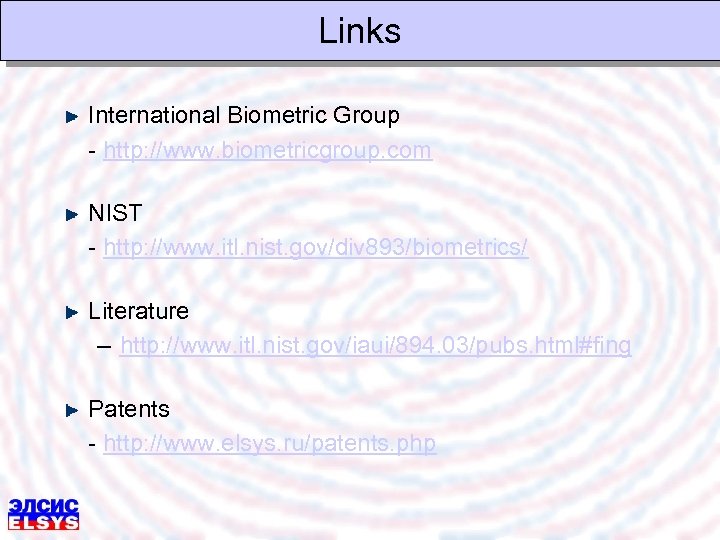

Links International Biometric Group - http: //www. biometricgroup. com NIST - http: //www. itl. nist. gov/div 893/biometrics/ Literature – http: //www. itl. nist. gov/iaui/894. 03/pubs. html#fing Patents - http: //www. elsys. ru/patents. php

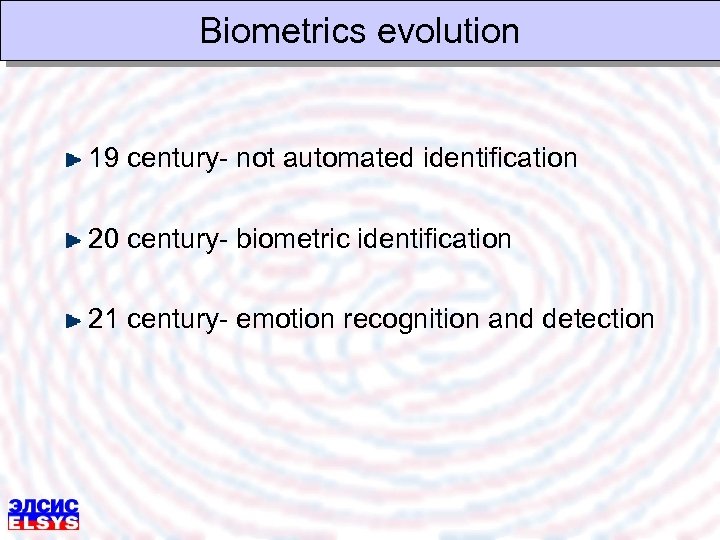

Biometrics evolution 19 century- not automated identification 20 century- biometric identification 21 century- emotion recognition and detection
