Bilateral Mesh Denoising Shachar Fleishman Iddo Drori Daniel Cohen-Or Tel Aviv University

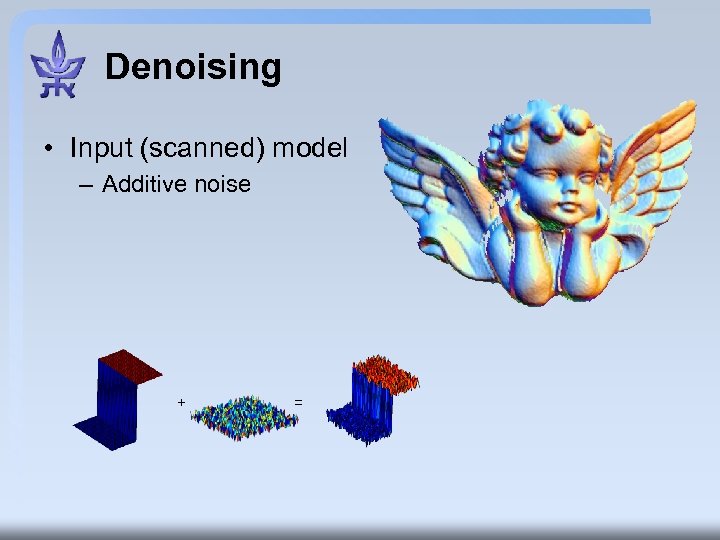

Denoising • Input (scanned) model – Additive noise + =

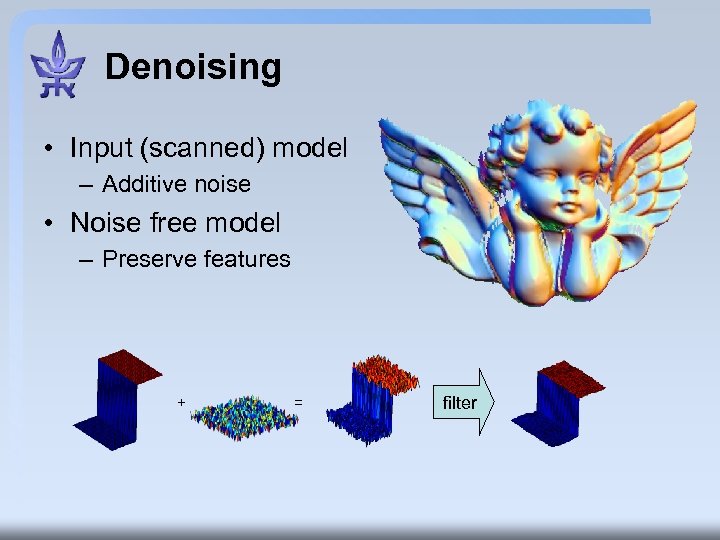

Denoising • Input (scanned) model – Additive noise • Noise free model – Preserve features + = filter

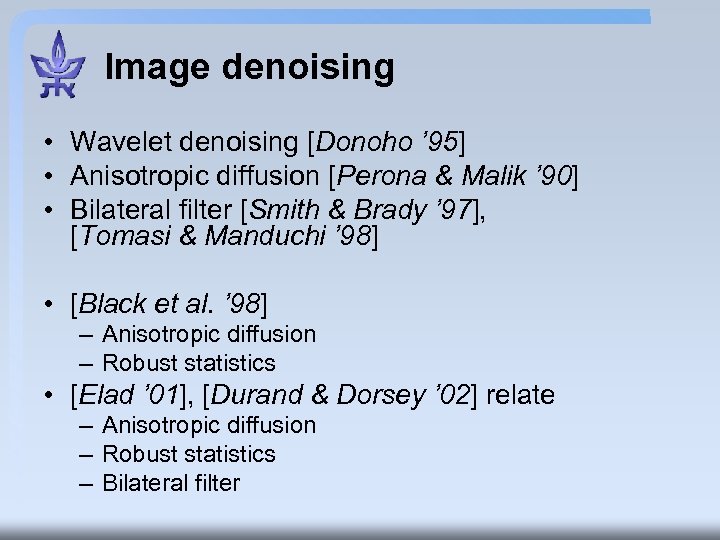

Image denoising • Wavelet denoising [Donoho ’ 95] • Anisotropic diffusion [Perona & Malik ’ 90] • Bilateral filter [Smith & Brady ’ 97], [Tomasi & Manduchi ’ 98] • [Black et al. ’ 98] – Anisotropic diffusion – Robust statistics • [Elad ’ 01], [Durand & Dorsey ’ 02] relate – Anisotropic diffusion – Robust statistics – Bilateral filter
Original and noisy ( 2=900) images Images courtesy of Michael Elad
TV filtering: 50 iterations 10 iterations (MSE=146. 3339) (MSE=131. 5013) Images courtesy of Michael Elad

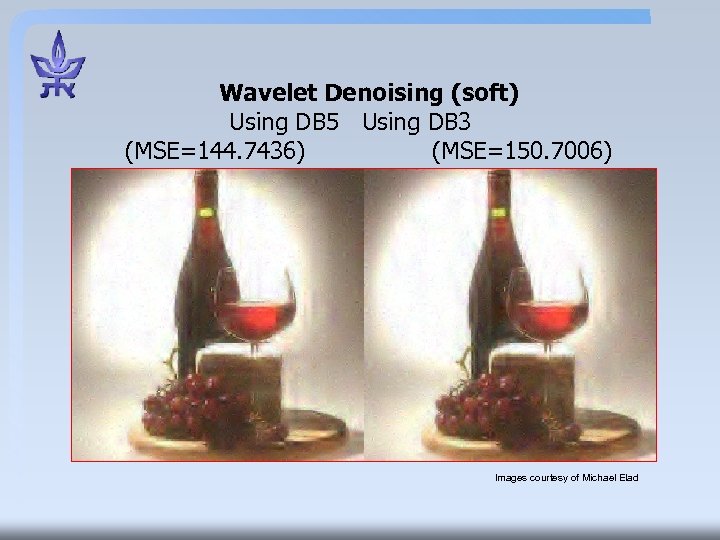

Wavelet Denoising (soft) Using DB 5 Using DB 3 (MSE=144. 7436) (MSE=150. 7006) Images courtesy of Michael Elad

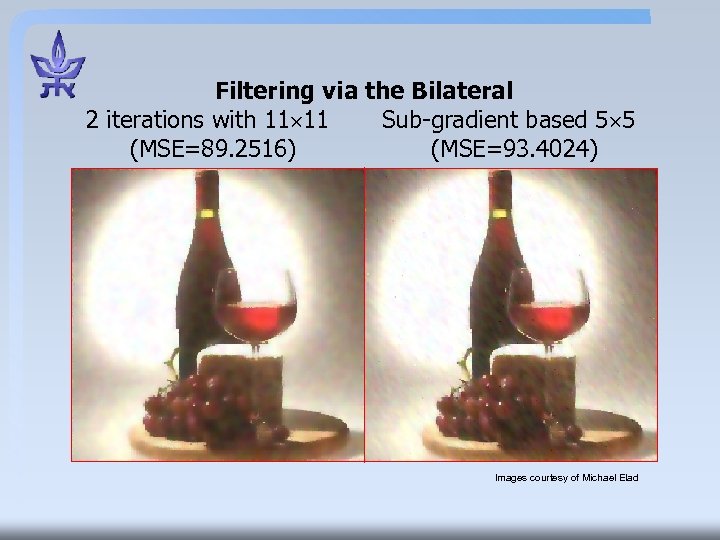

Filtering via the Bilateral 2 iterations with 11 11 Sub-gradient based 5 5 (MSE=89. 2516) (MSE=93. 4024) Images courtesy of Michael Elad

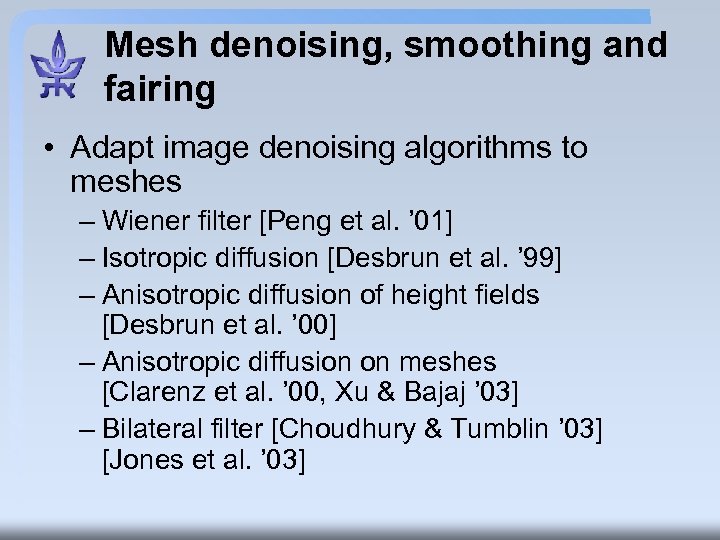

Mesh denoising, smoothing and fairing • Adapt image denoising algorithms to meshes – Wiener filter [Peng et al. ’ 01] – Isotropic diffusion [Desbrun et al. ’ 99] – Anisotropic diffusion of height fields [Desbrun et al. ’ 00] – Anisotropic diffusion on meshes [Clarenz et al. ’ 00, Xu & Bajaj ’ 03] – Bilateral filter [Choudhury & Tumblin ’ 03] [Jones et al. ’ 03]

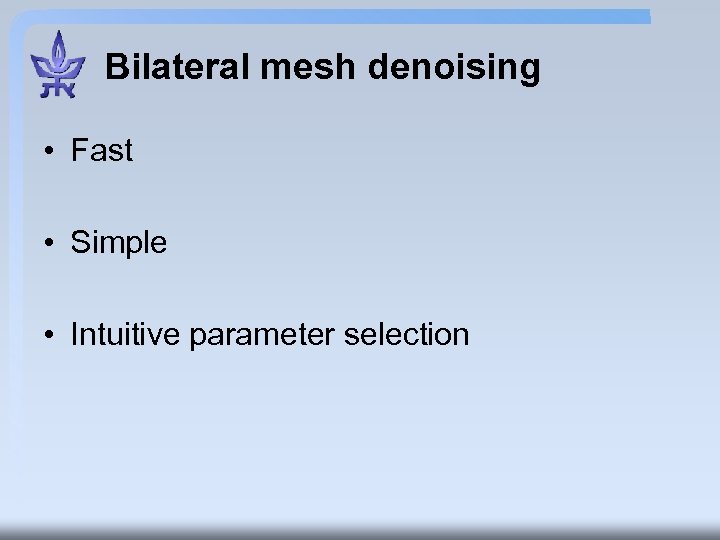

Bilateral mesh denoising • Fast • Simple • Intuitive parameter selection

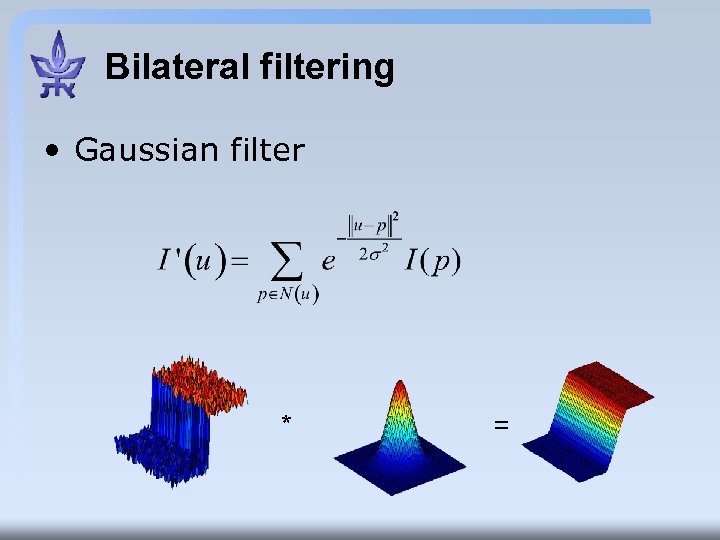

Bilateral filtering • Gaussian filter * =

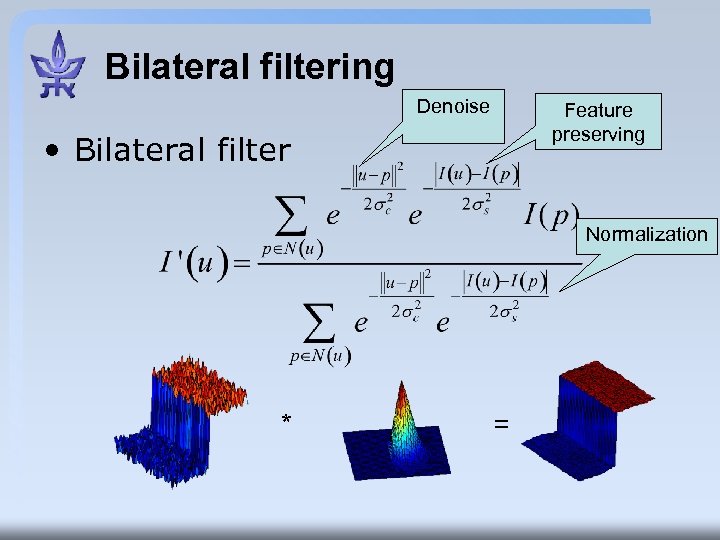

Bilateral filtering Denoise Feature preserving • Bilateral filter Normalization * =

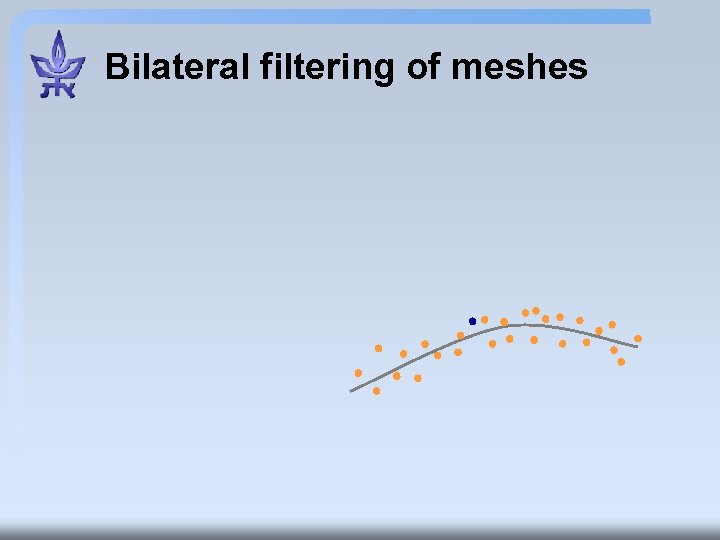

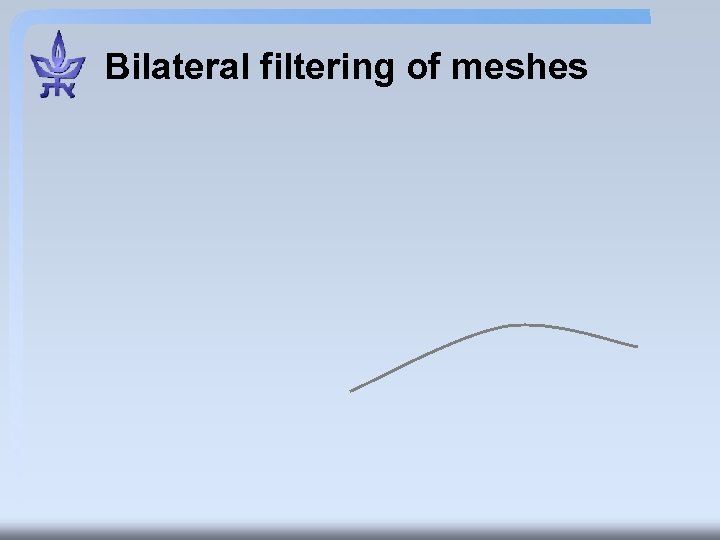

Bilateral filtering of meshes
Bilateral filtering of meshes
Bilateral filtering of meshes • Height above surface is equivalent to the gray level values in images

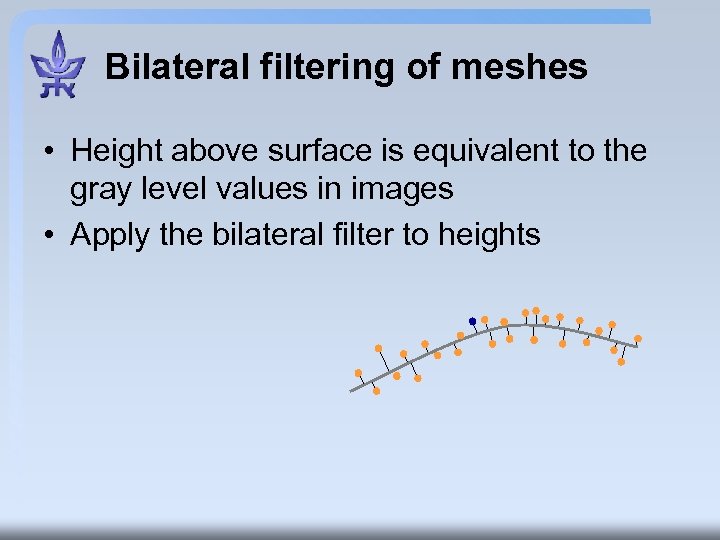

Bilateral filtering of meshes • Height above surface is equivalent to the gray level values in images • Apply the bilateral filter to heights

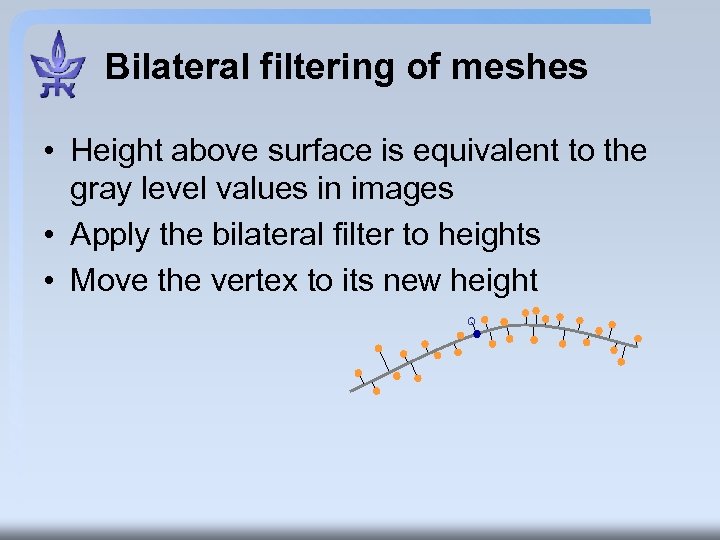

Bilateral filtering of meshes • Height above surface is equivalent to the gray level values in images • Apply the bilateral filter to heights • Move the vertex to its new height

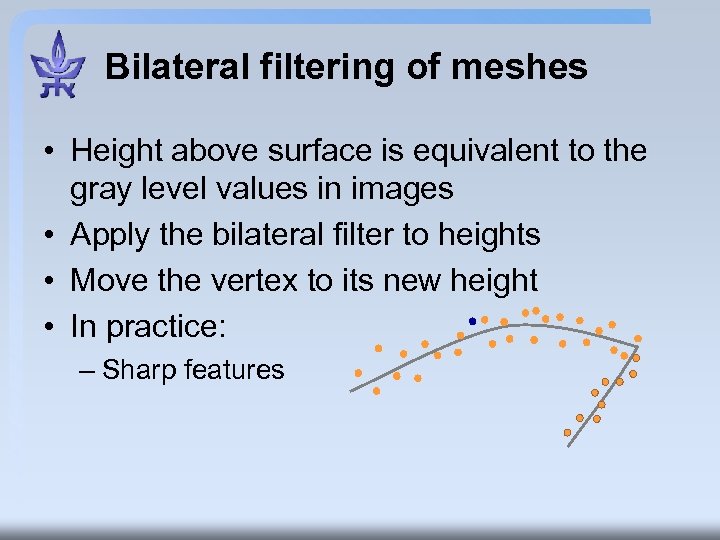

Bilateral filtering of meshes • Height above surface is equivalent to the gray level values in images • Apply the bilateral filter to heights • Move the vertex to its new height • In practice: – Sharp features
Bilateral filtering of meshes • Height above surface is equivalent to the gray level values in images • Apply the bilateral filter to heights • Move the vertex to its new height • In practice: – Sharp features – The noise-free surface is unknown

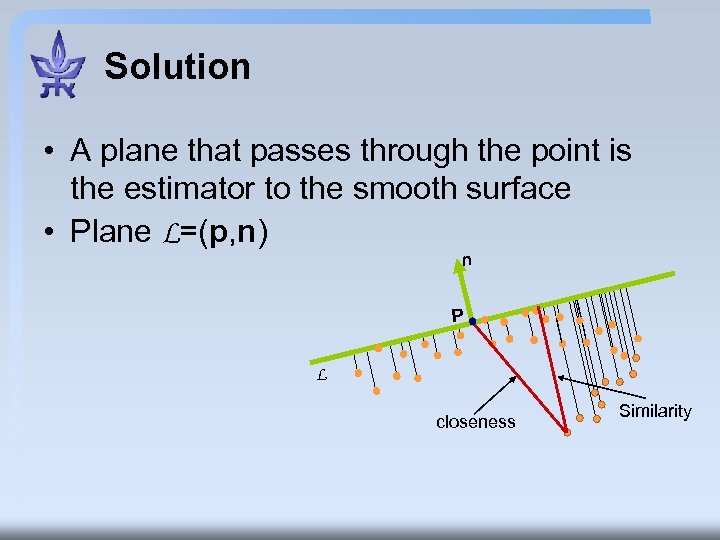

Solution • A plane that passes through the point is the estimator to the smooth surface • Plane L=(p, n) n P L
Solution • A plane that passes through the point is the estimator to the smooth surface • Plane L=(p, n) n P L closeness Similarity

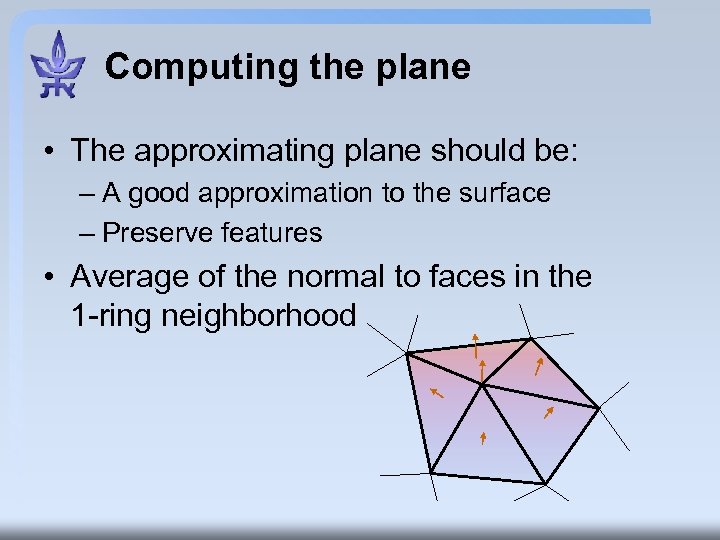

Computing the plane • The approximating plane should be: – A good approximation to the surface – Preserve features • Average of the normal to faces in the 1 -ring neighborhood
Denoise. Point(Vertex v, Normal n) {qi} = neighborhood(v) K=|{qi}| sum=0 normalizer=0 for i : = 1 to K t = ||v-qi|| h = <n, v-qi> Wc=exp(-t 2/(2σc 2)) Ws=exp(-h 2/(2σs 2)) Sum +=(wc*ws)h Normalizer += wc*ws End Return v+n*(sum/normalizer) v
Denoise. Point(Vertex v, Normal n) {qi} = neighborhood(v) K=|{qi}| sum=0 iterate over neighborhood normalizer=0 v for i : = 1 to K t = ||v-qi|| h = <n, v-qi> Wc=exp(-t 2/(2σc 2)) Ws=exp(-h 2/(2σs 2)) Sum +=(wc*ws)h Normalizer += wc*ws End Return v+n*(sum/normalizer)

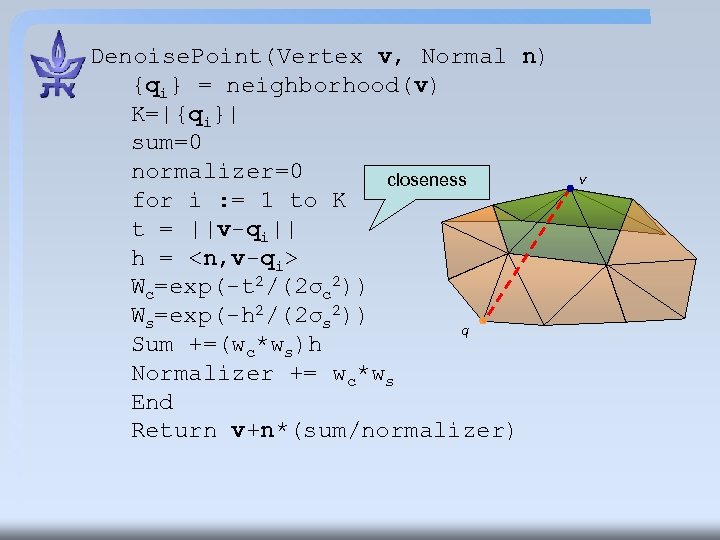

Denoise. Point(Vertex v, Normal n) {qi} = neighborhood(v) K=|{qi}| sum=0 normalizer=0 closeness for i : = 1 to K t = ||v-qi|| h = <n, v-qi> Wc=exp(-t 2/(2σc 2)) Ws=exp(-h 2/(2σs 2)) q Sum +=(wc*ws)h Normalizer += wc*ws End Return v+n*(sum/normalizer) v

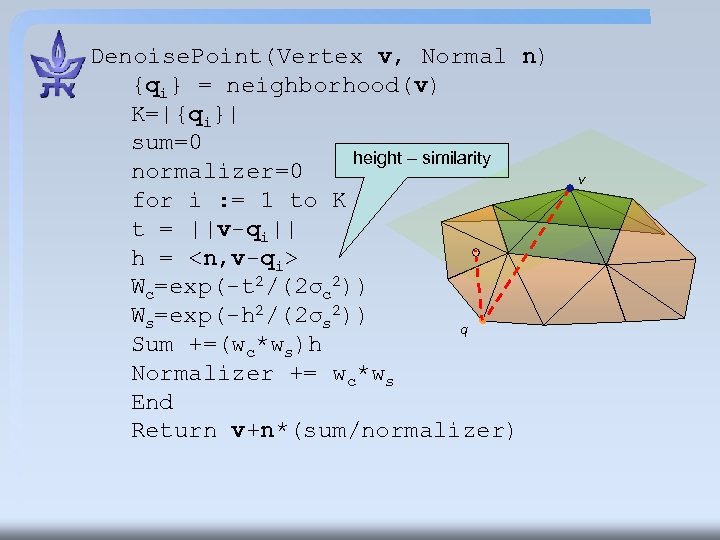

Denoise. Point(Vertex v, Normal n) {qi} = neighborhood(v) K=|{qi}| sum=0 height – similarity normalizer=0 for i : = 1 to K t = ||v-qi|| h = <n, v-qi> Wc=exp(-t 2/(2σc 2)) Ws=exp(-h 2/(2σs 2)) q Sum +=(wc*ws)h Normalizer += wc*ws End Return v+n*(sum/normalizer) v

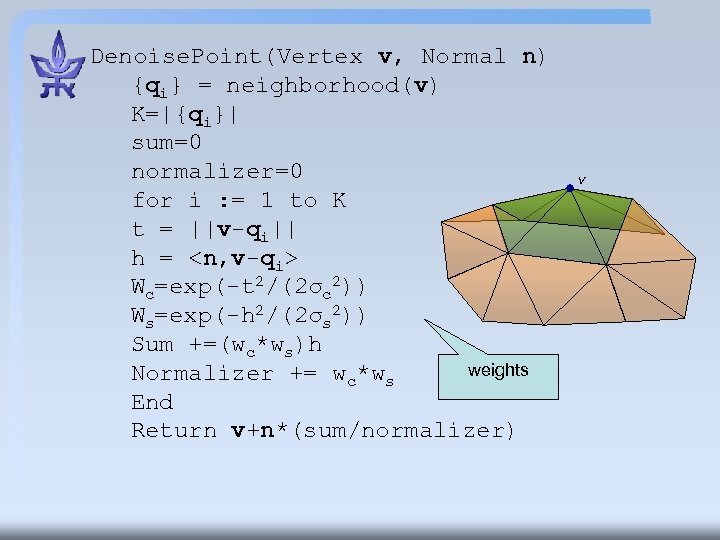

Denoise. Point(Vertex v, Normal n) {qi} = neighborhood(v) K=|{qi}| sum=0 normalizer=0 for i : = 1 to K t = ||v-qi|| h = <n, v-qi> Wc=exp(-t 2/(2σc 2)) Ws=exp(-h 2/(2σs 2)) Sum +=(wc*ws)h weights Normalizer += wc*ws End Return v+n*(sum/normalizer) v

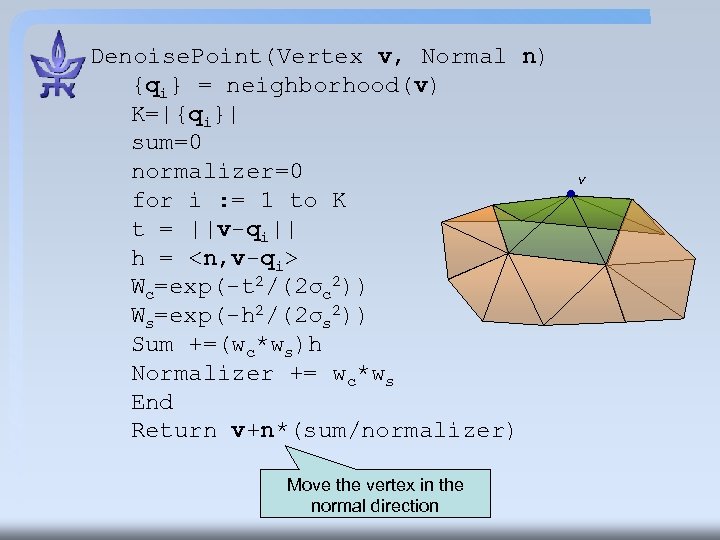

Denoise. Point(Vertex v, Normal n) {qi} = neighborhood(v) K=|{qi}| sum=0 normalizer=0 for i : = 1 to K t = ||v-qi|| h = <n, v-qi> Wc=exp(-t 2/(2σc 2)) Ws=exp(-h 2/(2σs 2)) Sum +=(wc*ws)h Normalizer += wc*ws End Return v+n*(sum/normalizer) Move the vertex in the normal direction v

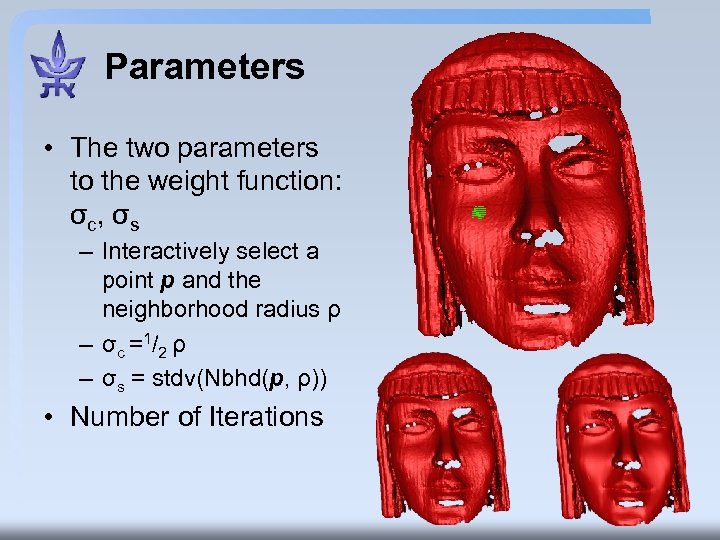

Parameters • The two parameters to the weight function: σc, σs – Interactively select a point p and the neighborhood radius ρ – σ c = 1/ 2 ρ – σs = stdv(Nbhd(p, ρ)) • Number of Iterations

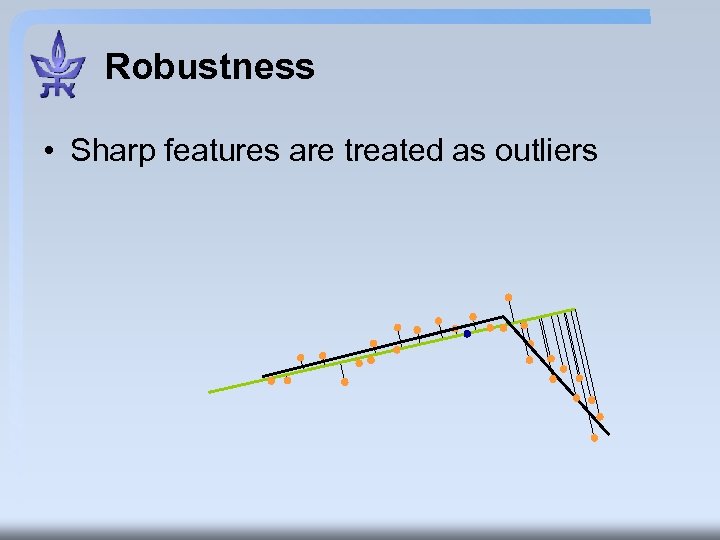

Robustness • Sharp features are treated as outliers

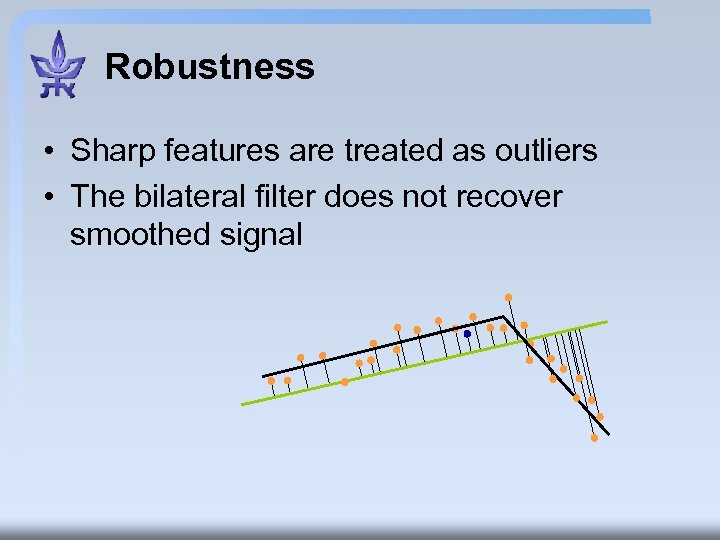

Robustness • Sharp features are treated as outliers • The bilateral filter does not recover smoothed signal

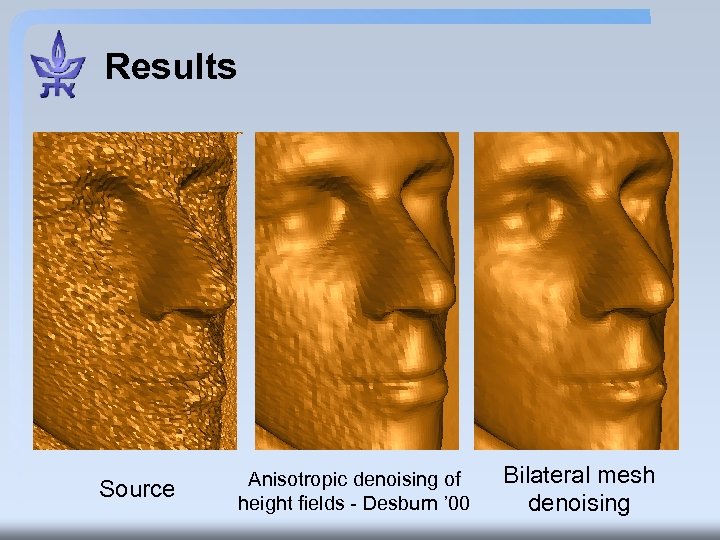

Results Source Anisotropic denoising of height fields - Desburn ’ 00 Bilateral mesh denoising
Results Source Anisotropic Geometric Diffusion in Surface Processing - Clarenz ‘ 00 Bilateral mesh denoising

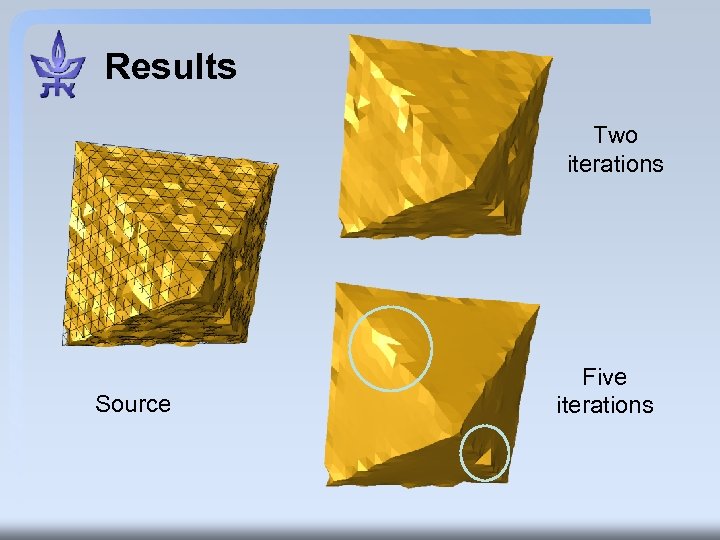

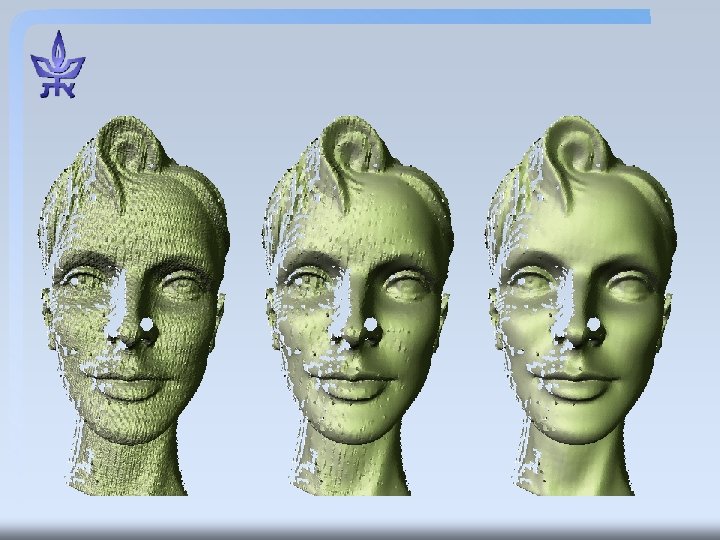

Results Two iterations Source Five iterations

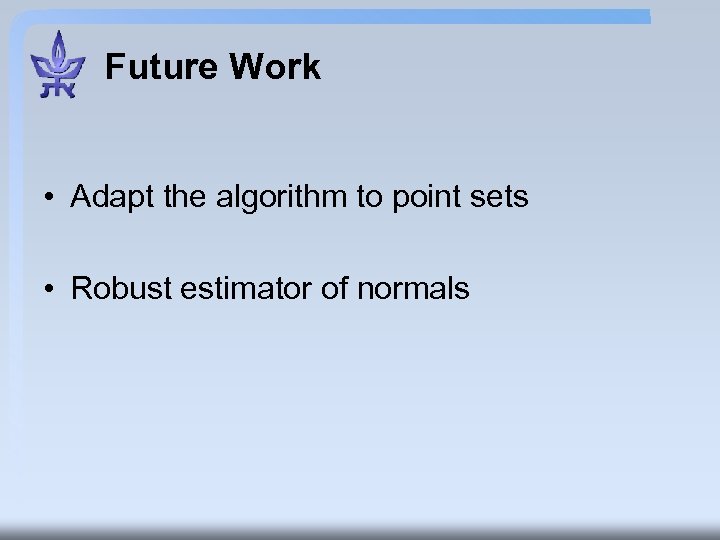

Future Work • Adapt the algorithm to point sets • Robust estimator of normals

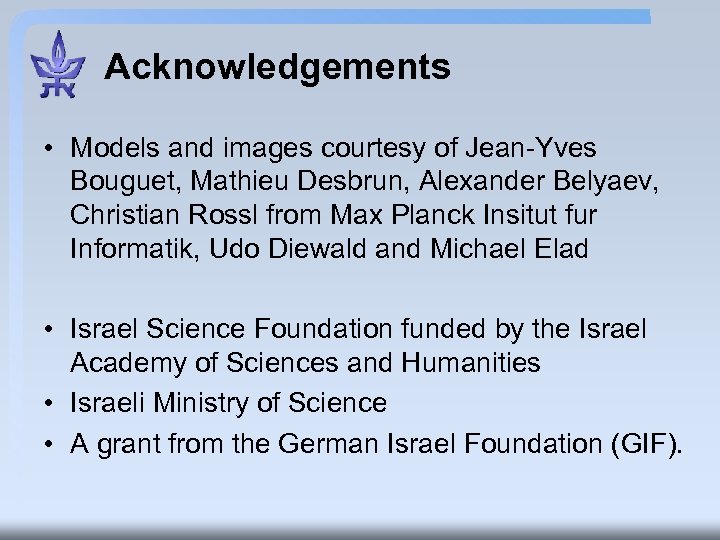

Acknowledgements • Models and images courtesy of Jean-Yves Bouguet, Mathieu Desbrun, Alexander Belyaev, Christian Rossl from Max Planck Insitut fur Informatik, Udo Diewald and Michael Elad • Israel Science Foundation funded by the Israel Academy of Sciences and Humanities • Israeli Ministry of Science • A grant from the German Israel Foundation (GIF).
Input Non-iterative, Feature Preserving Mesh smoothing Bilateral mesh denoising
Source Non-iterative, Feature Preserving Mesh smoothing Bilateral mesh denoising
Non-iterative, Feature Preserving Mesh smoothing Bilateral mesh denoising
Comparison - predictors Bilateral mesh denoising Non-iterative, Feature Preserving Mesh smoothing
New results Bilateral mesh denoising Extended Bilateral mesh denoising
