Best Practice for Performance Edward M. Kwang President

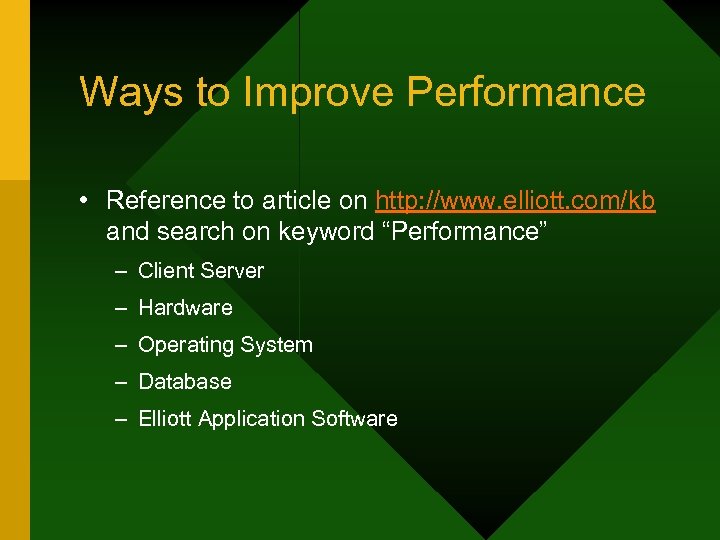

Ways to Improve Performance • Reference to article on http: //www. elliott. com/kb and search on keyword “Performance” – Client Server – Hardware – Operating System – Database – Elliott Application Software

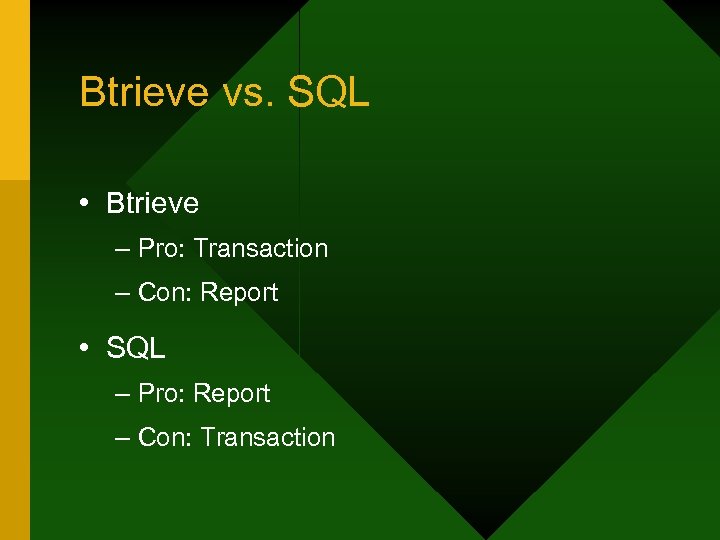

Btrieve vs. SQL • Btrieve – Pro: Transaction – Con: Report • SQL – Pro: Report – Con: Transaction

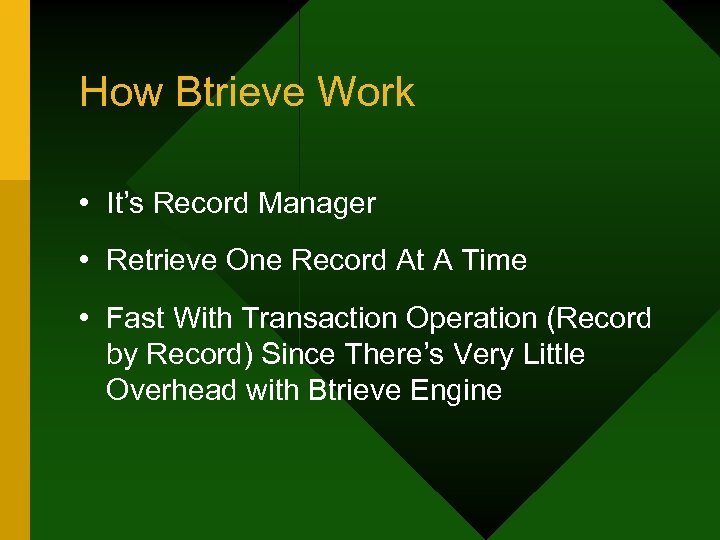

How Btrieve Work • It’s Record Manager • Retrieve One Record At A Time • Fast With Transaction Operation (Record by Record) Since There’s Very Little Overhead with Btrieve Engine

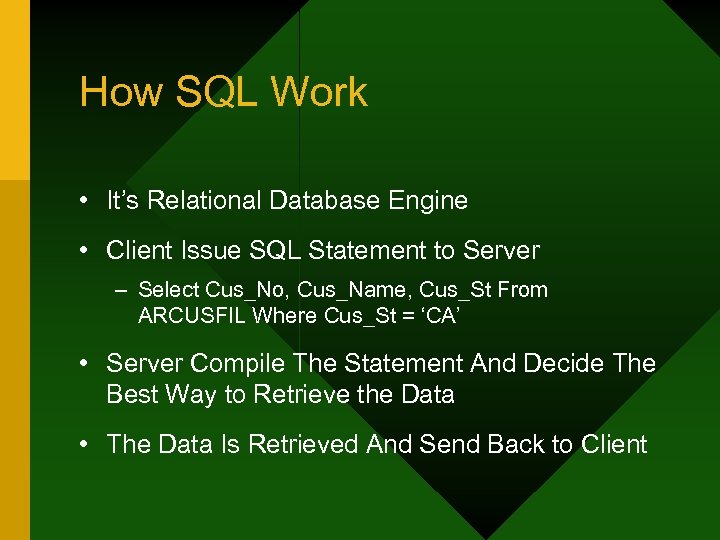

How SQL Work • It’s Relational Database Engine • Client Issue SQL Statement to Server – Select Cus_No, Cus_Name, Cus_St From ARCUSFIL Where Cus_St = ‘CA’ • Server Compile The Statement And Decide The Best Way to Retrieve the Data • The Data Is Retrieved And Send Back to Client

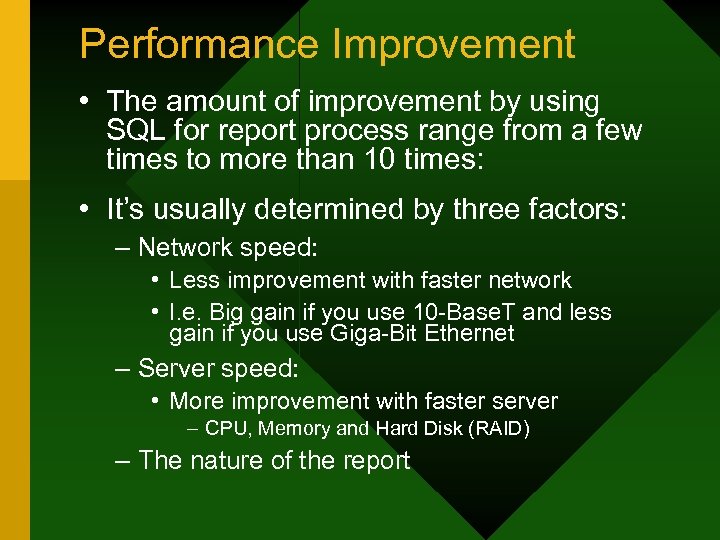

Performance Improvement • The amount of improvement by using SQL for report process range from a few times to more than 10 times: • It’s usually determined by three factors: – Network speed: • Less improvement with faster network • I. e. Big gain if you use 10 -Base. T and less gain if you use Giga-Bit Ethernet – Server speed: • More improvement with faster server – CPU, Memory and Hard Disk (RAID) – The nature of the report

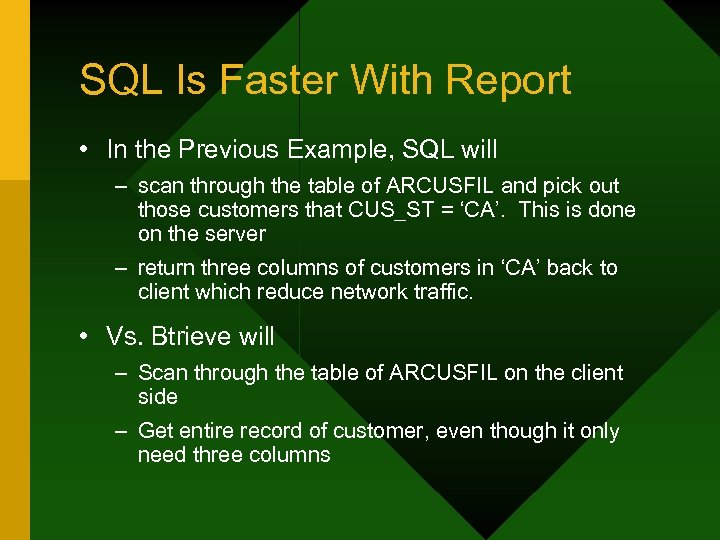

SQL Is Faster With Report • In the Previous Example, SQL will – scan through the table of ARCUSFIL and pick out those customers that CUS_ST = ‘CA’. This is done on the server – return three columns of customers in ‘CA’ back to client which reduce network traffic. • Vs. Btrieve will – Scan through the table of ARCUSFIL on the client side – Get entire record of customer, even though it only need three columns

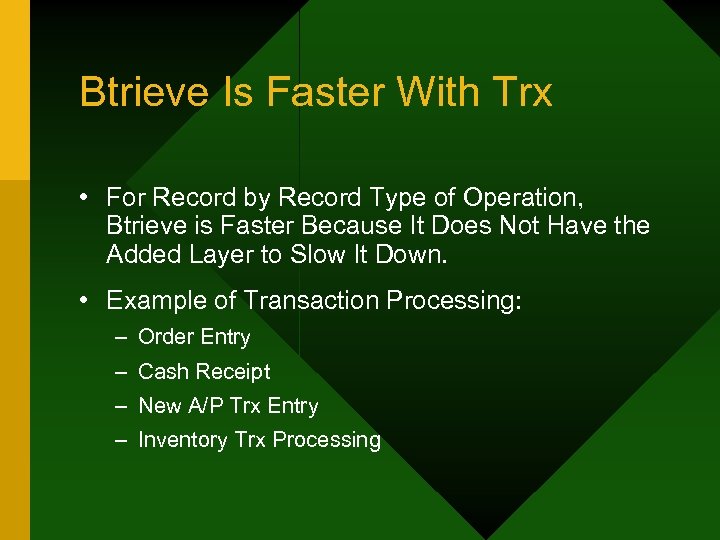

Btrieve Is Faster With Trx • For Record by Record Type of Operation, Btrieve is Faster Because It Does Not Have the Added Layer to Slow It Down. • Example of Transaction Processing: – Order Entry – Cash Receipt – New A/P Trx Entry – Inventory Trx Processing

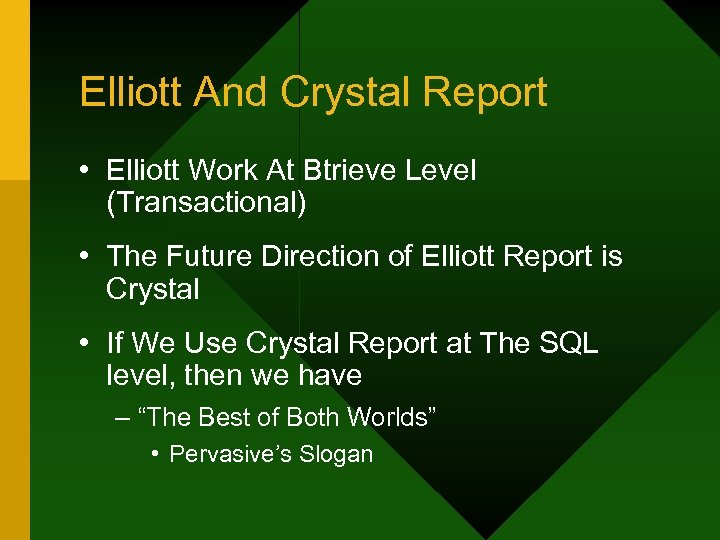

Elliott And Crystal Report • Elliott Work At Btrieve Level (Transactional) • The Future Direction of Elliott Report is Crystal • If We Use Crystal Report at The SQL level, then we have – “The Best of Both Worlds” • Pervasive’s Slogan

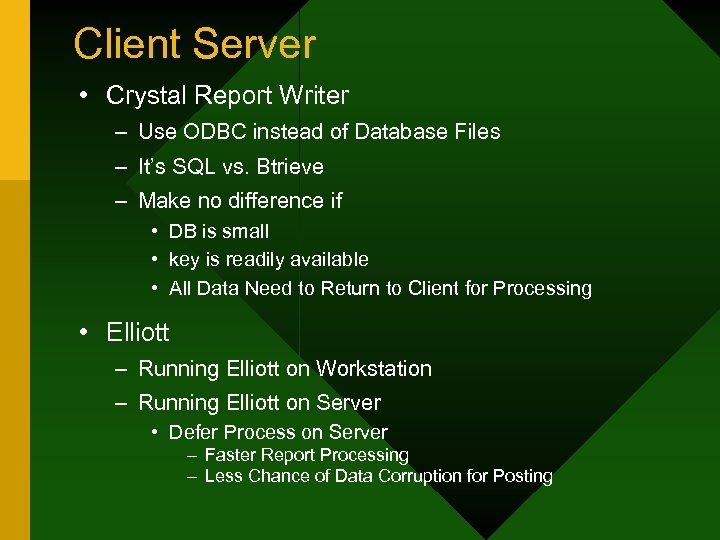

Client Server • Crystal Report Writer – Use ODBC instead of Database Files – It’s SQL vs. Btrieve – Make no difference if • DB is small • key is readily available • All Data Need to Return to Client for Processing • Elliott – Running Elliott on Workstation – Running Elliott on Server • Defer Process on Server – Faster Report Processing – Less Chance of Data Corruption for Posting

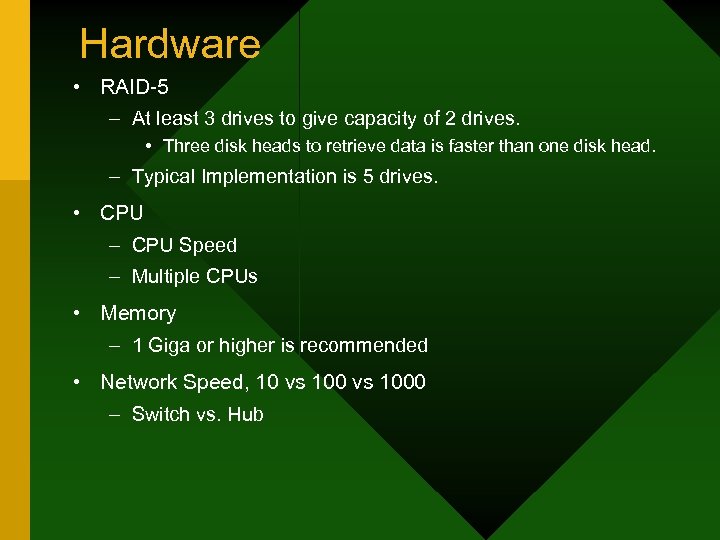

Hardware • RAID-5 – At least 3 drives to give capacity of 2 drives. • Three disk heads to retrieve data is faster than one disk head. – Typical Implementation is 5 drives. • CPU – CPU Speed – Multiple CPUs • Memory – 1 Giga or higher is recommended • Network Speed, 10 vs 1000 – Switch vs. Hub

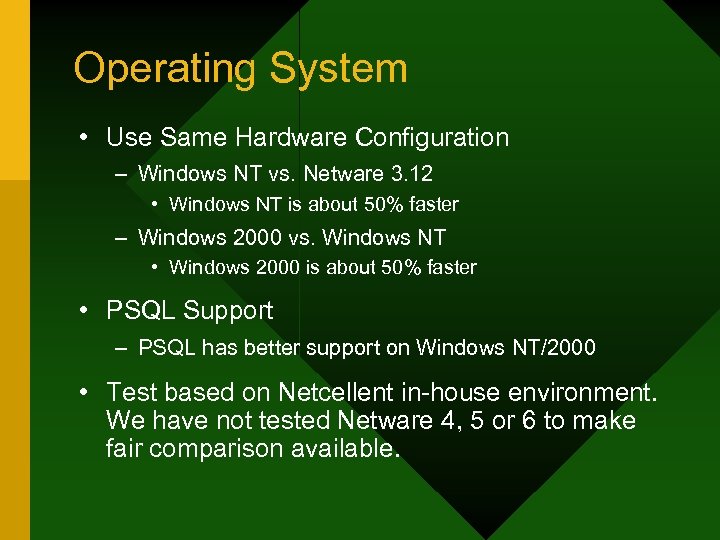

Operating System • Use Same Hardware Configuration – Windows NT vs. Netware 3. 12 • Windows NT is about 50% faster – Windows 2000 vs. Windows NT • Windows 2000 is about 50% faster • PSQL Support – PSQL has better support on Windows NT/2000 • Test based on Netcellent in-house environment. We have not tested Netware 4, 5 or 6 to make fair comparison available.

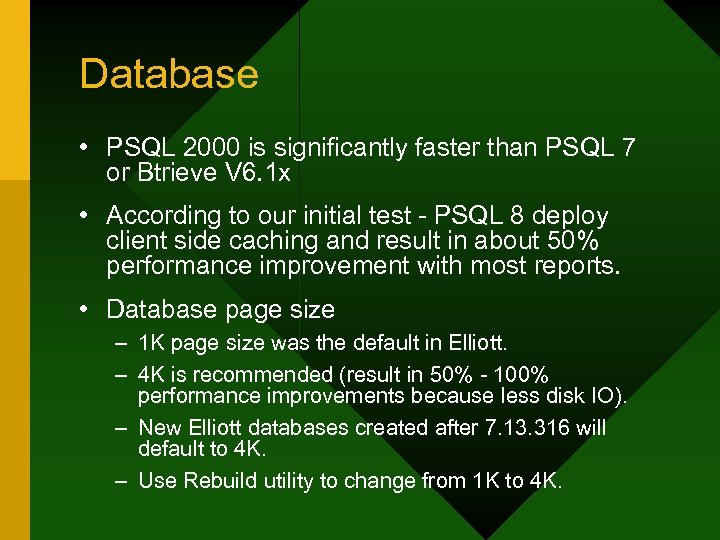

Database • PSQL 2000 is significantly faster than PSQL 7 or Btrieve V 6. 1 x • According to our initial test - PSQL 8 deploy client side caching and result in about 50% performance improvement with most reports. • Database page size – 1 K page size was the default in Elliott. – 4 K is recommended (result in 50% - 100% performance improvements because less disk IO). – New Elliott databases created after 7. 13. 316 will default to 4 K. – Use Rebuild utility to change from 1 K to 4 K.

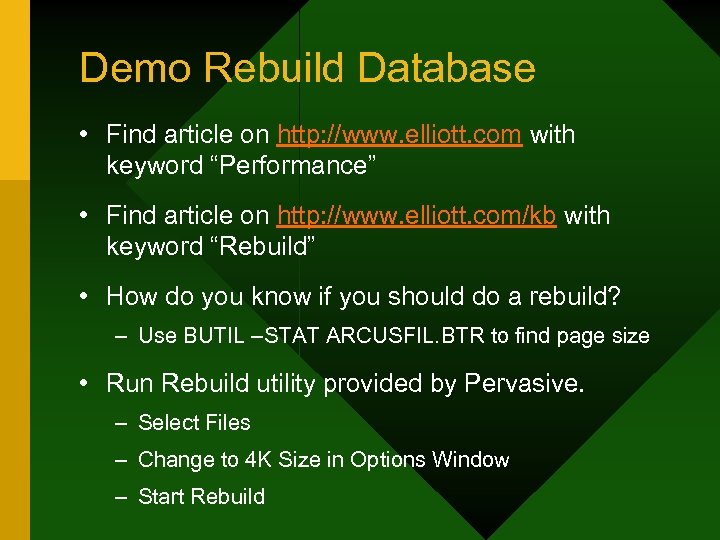

Demo Rebuild Database • Find article on http: //www. elliott. com with keyword “Performance” • Find article on http: //www. elliott. com/kb with keyword “Rebuild” • How do you know if you should do a rebuild? – Use BUTIL –STAT ARCUSFIL. BTR to find page size • Run Rebuild utility provided by Pervasive. – Select Files – Change to 4 K Size in Options Window – Start Rebuild

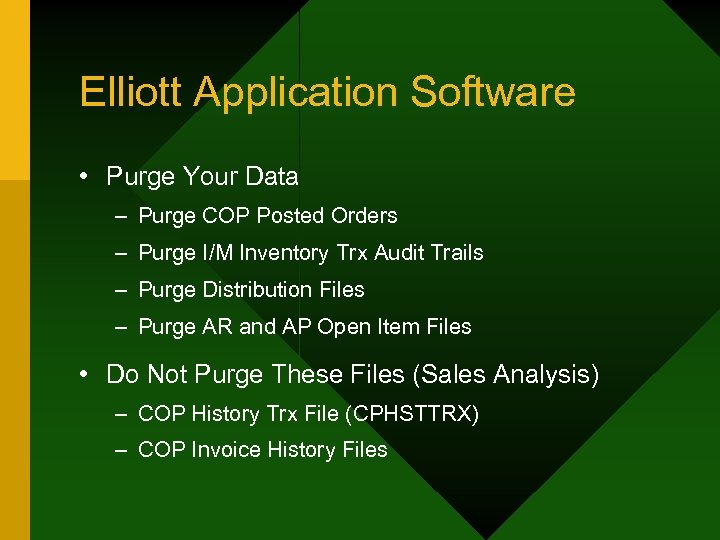

Elliott Application Software • Purge Your Data – Purge COP Posted Orders – Purge I/M Inventory Trx Audit Trails – Purge Distribution Files – Purge AR and AP Open Item Files • Do Not Purge These Files (Sales Analysis) – COP History Trx File (CPHSTTRX) – COP Invoice History Files

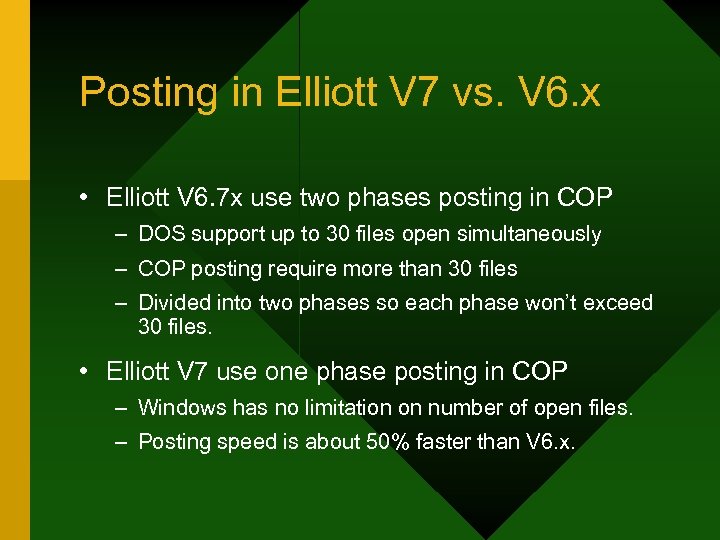

Posting in Elliott V 7 vs. V 6. x • Elliott V 6. 7 x use two phases posting in COP – DOS support up to 30 files open simultaneously – COP posting require more than 30 files – Divided into two phases so each phase won’t exceed 30 files. • Elliott V 7 use one phase posting in COP – Windows has no limitation on number of open files. – Posting speed is about 50% faster than V 6. x.

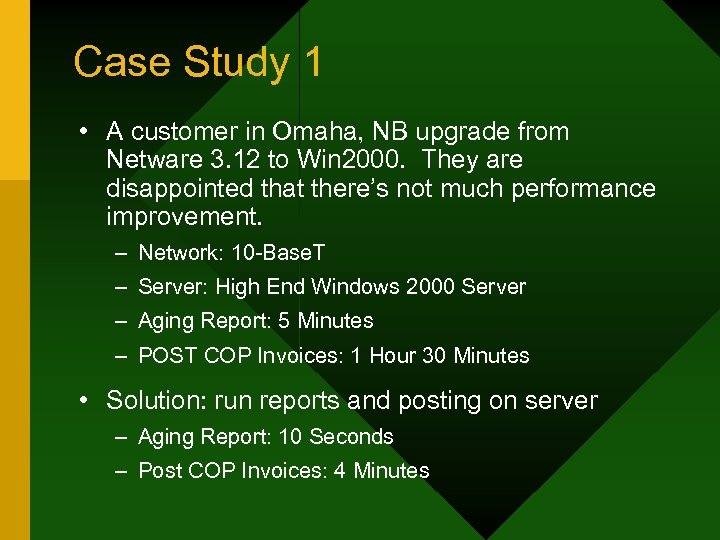

Case Study 1 • A customer in Omaha, NB upgrade from Netware 3. 12 to Win 2000. They are disappointed that there’s not much performance improvement. – Network: 10 -Base. T – Server: High End Windows 2000 Server – Aging Report: 5 Minutes – POST COP Invoices: 1 Hour 30 Minutes • Solution: run reports and posting on server – Aging Report: 10 Seconds – Post COP Invoices: 4 Minutes

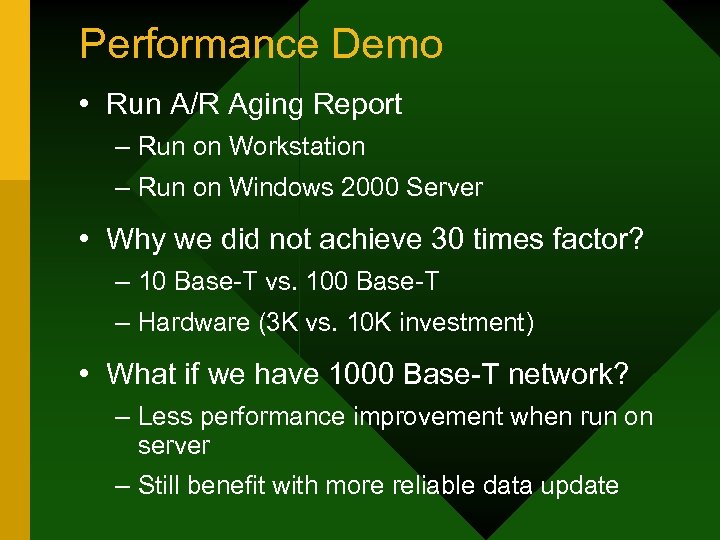

Performance Demo • Run A/R Aging Report – Run on Workstation – Run on Windows 2000 Server • Why we did not achieve 30 times factor? – 10 Base-T vs. 100 Base-T – Hardware (3 K vs. 10 K investment) • What if we have 1000 Base-T network? – Less performance improvement when run on server – Still benefit with more reliable data update

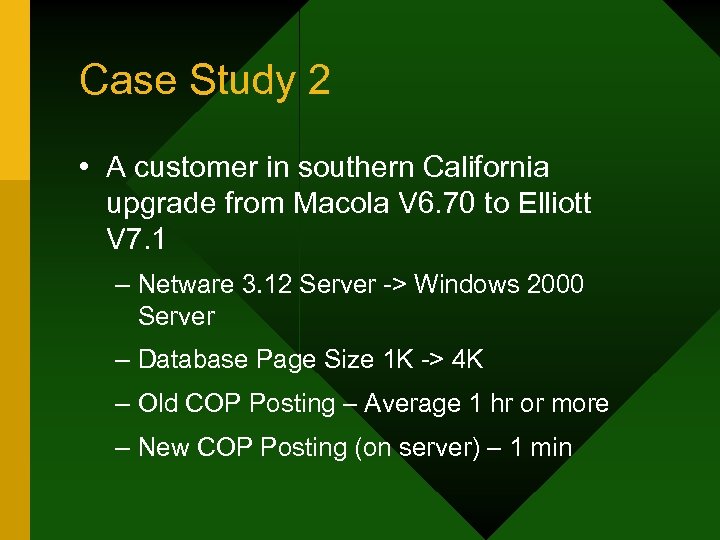

Case Study 2 • A customer in southern California upgrade from Macola V 6. 70 to Elliott V 7. 1 – Netware 3. 12 Server -> Windows 2000 Server – Database Page Size 1 K -> 4 K – Old COP Posting – Average 1 hr or more – New COP Posting (on server) – 1 min

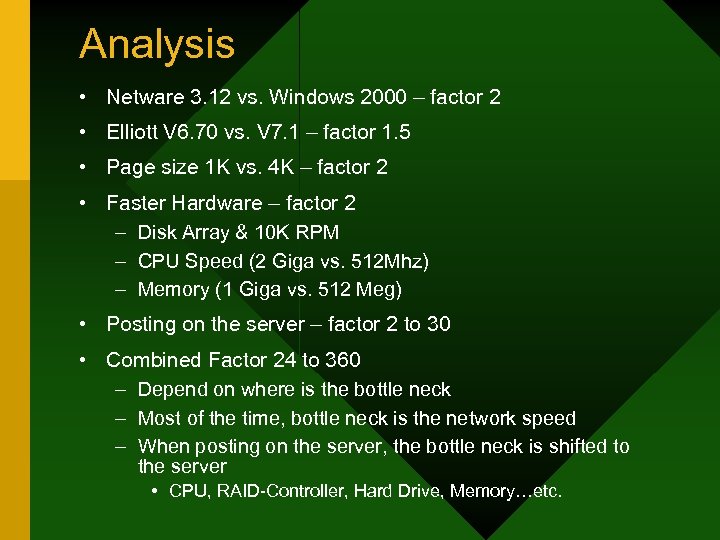

Analysis • Netware 3. 12 vs. Windows 2000 – factor 2 • Elliott V 6. 70 vs. V 7. 1 – factor 1. 5 • Page size 1 K vs. 4 K – factor 2 • Faster Hardware – factor 2 – Disk Array & 10 K RPM – CPU Speed (2 Giga vs. 512 Mhz) – Memory (1 Giga vs. 512 Meg) • Posting on the server – factor 2 to 30 • Combined Factor 24 to 360 – Depend on where is the bottle neck – Most of the time, bottle neck is the network speed – When posting on the server, the bottle neck is shifted to the server • CPU, RAID-Controller, Hard Drive, Memory…etc.

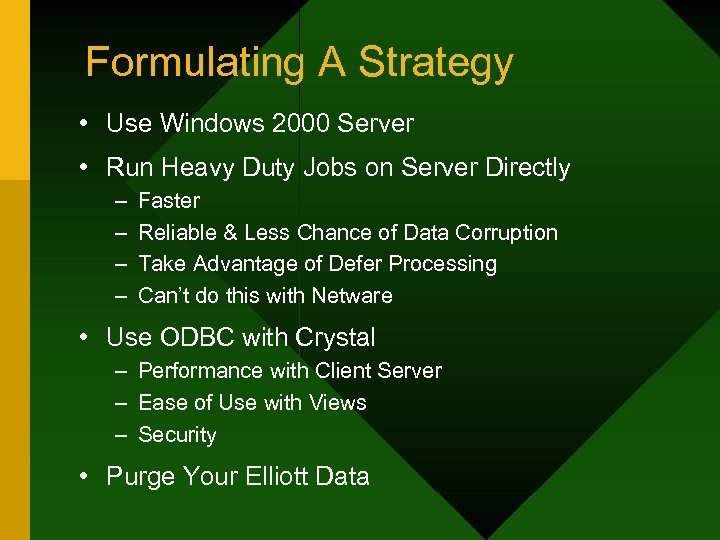

Formulating A Strategy • Use Windows 2000 Server • Run Heavy Duty Jobs on Server Directly – – Faster Reliable & Less Chance of Data Corruption Take Advantage of Defer Processing Can’t do this with Netware • Use ODBC with Crystal – Performance with Client Server – Ease of Use with Views – Security • Purge Your Elliott Data

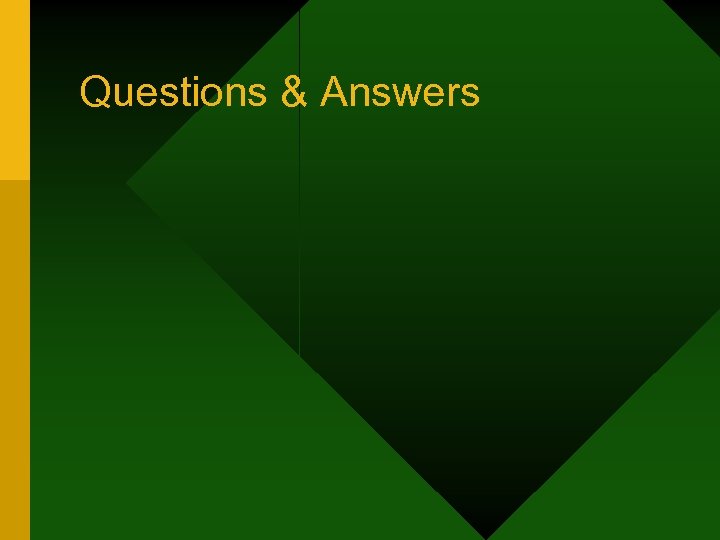

Questions & Answers
