Berkeley Meeting Mar 19 -23, 2005 Logistics, Drilling, Deployment Bob Morse, Univ of Wisconsin WBS 1. 2 ---Implementation PAP March 9 -10, 2005, Implementation
Implementation-Introduction • • Field Season Strategic Planning Logistics—Terry Hannaford Drilling—Alan Elcheikh, Jeff Cherwinka Installation---Tom Ham Counting House Operations Liaison---NSF, RPSC Training of Seasonal Drillers, Installers Training Platforms—PSL (Madison) Mar 19 -23, 2005 Berkeley 2

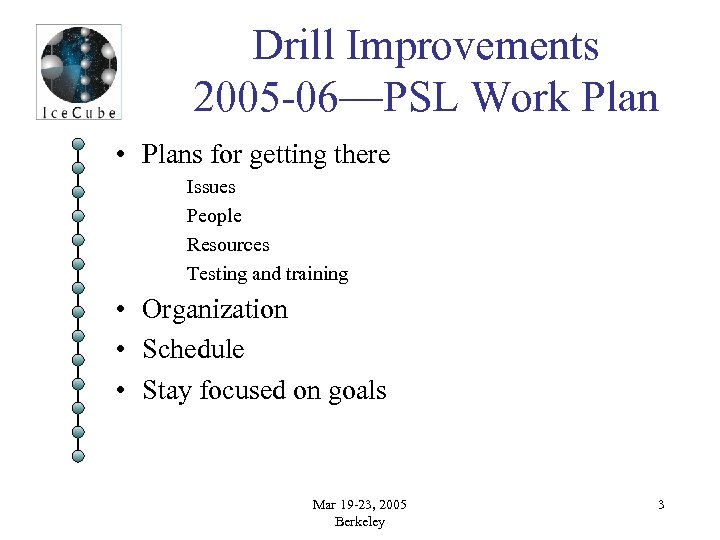

Drill Improvements 2005 -06—PSL Work Plan • Plans for getting there Issues People Resources Testing and training • Organization • Schedule • Stay focused on goals Mar 19 -23, 2005 Berkeley 3
Goals for 2005 -2006 • • Set up as early as possible up to Dec 10 7 week drill/deploy period (Dec 11, Jan 28) Target drill speed 48 hrs/hole, including firn Target deploy speed 24 hrs/hole Use both towers to leapfrog 2 strings per week Drill and deploy 10 -12 strings Mar 19 -23, 2005 Berkeley 4
Drill performance issues • • Speed limitations (deep drill and firn) Second tower (shipped) New crescent Drill control software Set up and hole-to-hole move Fuel delivery systems Generators Mar 19 -23, 2005 Berkeley 5
Drill reliability issues • • • Motor drives and controls Drill supply hose Flow, temperature and pressures sensors Heaters Condensate pumps E-stop false events Weight stack Load cells Communication networks Reels and reel brakes Mar 19 -23, 2005 Berkeley 6
Personnel Now: • Alan Elcheikh • Jeff Cherwinka • Terry Matt • Mark Thoma • Lee Greenler • Brian Pechan • Farshid Feyzi • Jack Ambuel • Ted Shultz • Chuck Rentmeesters • Harold Mattison • Carl Baumann • Phil Robl • Robin Bolsey • Dave Pernic • Alan Rogers • Dave Scott • Jim Koehler • Terry Hannaford • Tom Ham Students: • Peter Hoeft • Scott Haman • Terry Benson • Brian White • Aaron Kurth Soon • Dennis Duling • New programmer • Drillers Outside help • Ice-water interface modeling • UNICO solutions review • Software assessment Bob Morse’s group • Newt Ganugapati • • Mar 19 -23, 2005 Berkeley Varun Gopalakrishna Anupam Singh 7

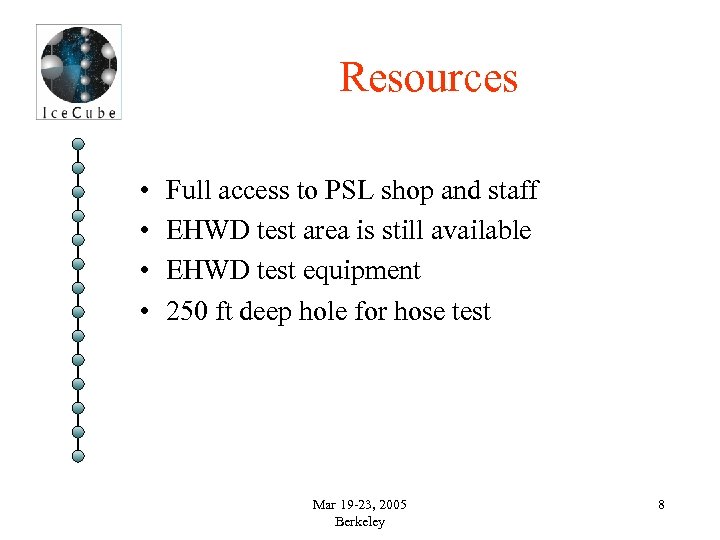

Resources • • Full access to PSL shop and staff EHWD test area is still available EHWD test equipment 250 ft deep hole for hose test Mar 19 -23, 2005 Berkeley 8

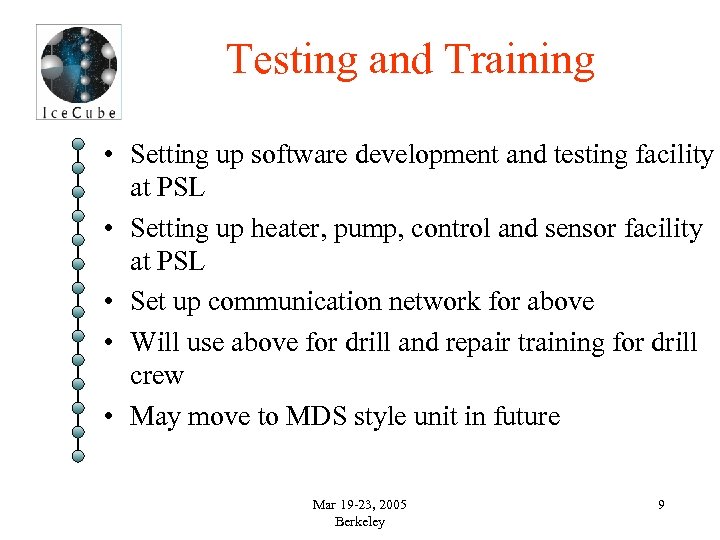

Testing and Training • Setting up software development and testing facility at PSL • Setting up heater, pump, control and sensor facility at PSL • Set up communication network for above • Will use above for drill and repair training for drill crew • May move to MDS style unit in future Mar 19 -23, 2005 Berkeley 9

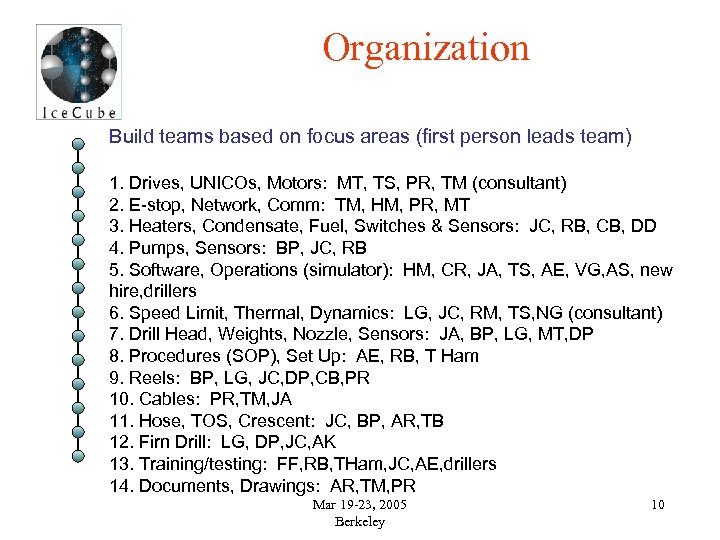

Organization Build teams based on focus areas (first person leads team) 1. Drives, UNICOs, Motors: MT, TS, PR, TM (consultant) 2. E-stop, Network, Comm: TM, HM, PR, MT 3. Heaters, Condensate, Fuel, Switches & Sensors: JC, RB, CB, DD 4. Pumps, Sensors: BP, JC, RB 5. Software, Operations (simulator): HM, CR, JA, TS, AE, VG, AS, new hire, drillers 6. Speed Limit, Thermal, Dynamics: LG, JC, RM, TS, NG (consultant) 7. Drill Head, Weights, Nozzle, Sensors: JA, BP, LG, MT, DP 8. Procedures (SOP), Set Up: AE, RB, T Ham 9. Reels: BP, LG, JC, DP, CB, PR 10. Cables: PR, TM, JA 11. Hose, TOS, Crescent: JC, BP, AR, TB 12. Firn Drill: LG, DP, JC, AK 13. Training/testing: FF, RB, THam, JC, AE, drillers 14. Documents, Drawings: AR, TM, PR Mar 19 -23, 2005 Berkeley 10

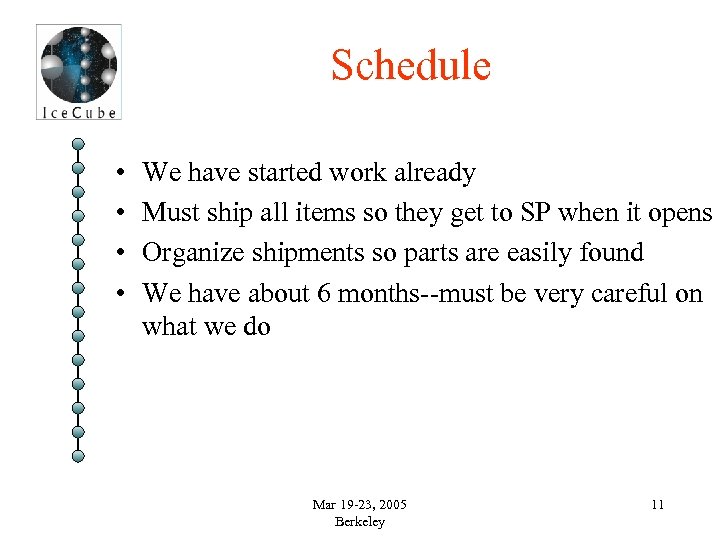

Schedule • • We have started work already Must ship all items so they get to SP when it opens Organize shipments so parts are easily found We have about 6 months--must be very careful on what we do Mar 19 -23, 2005 Berkeley 11

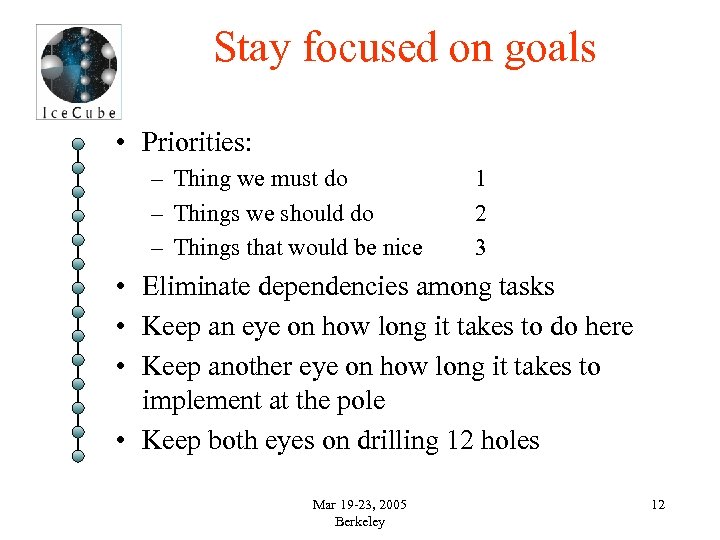

Stay focused on goals • Priorities: – Thing we must do – Things we should do – Things that would be nice 1 2 3 • Eliminate dependencies among tasks • Keep an eye on how long it takes to do here • Keep another eye on how long it takes to implement at the pole • Keep both eyes on drilling 12 holes Mar 19 -23, 2005 Berkeley 12

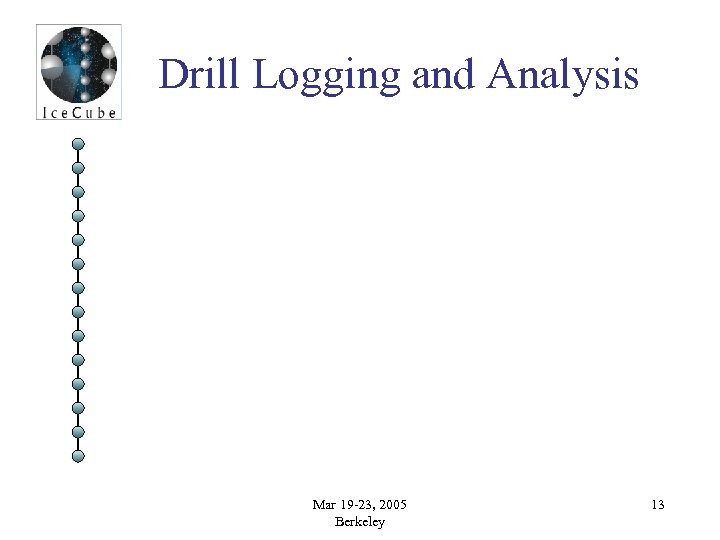

Drill Logging and Analysis Mar 19 -23, 2005 Berkeley 13

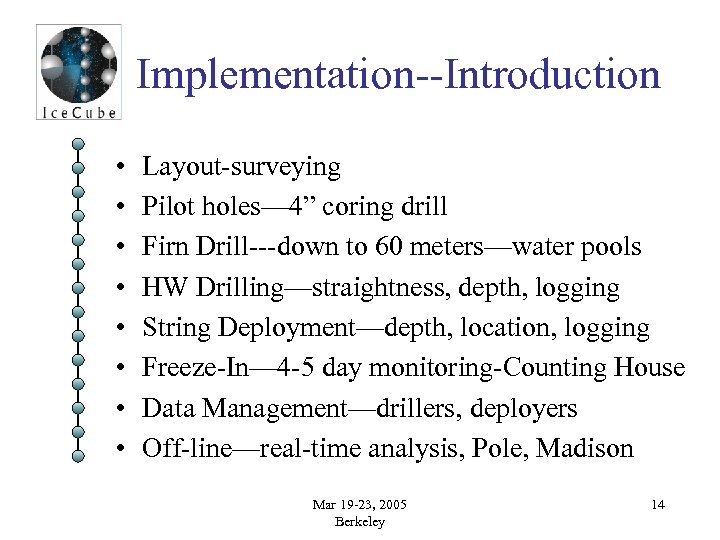

Implementation--Introduction • • Layout-surveying Pilot holes— 4” coring drill Firn Drill---down to 60 meters—water pools HW Drilling—straightness, depth, logging String Deployment—depth, location, logging Freeze-In— 4 -5 day monitoring-Counting House Data Management—drillers, deployers Off-line—real-time analysis, Pole, Madison Mar 19 -23, 2005 Berkeley 14

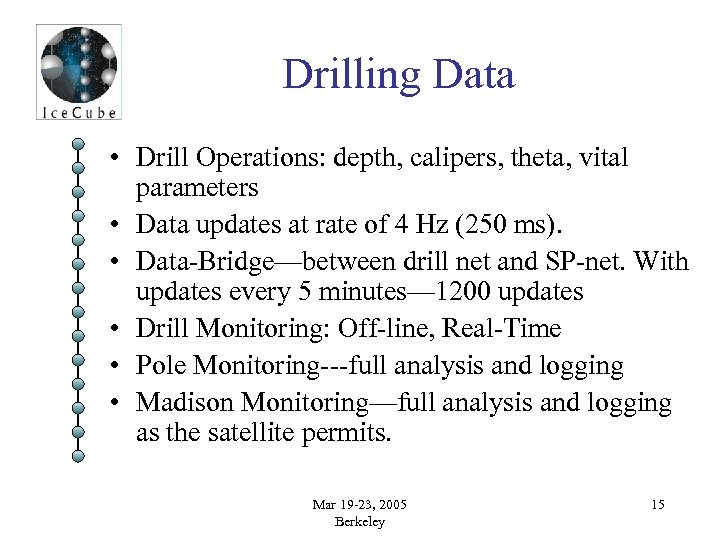

Drilling Data • Drill Operations: depth, calipers, theta, vital parameters • Data updates at rate of 4 Hz (250 ms). • Data-Bridge—between drill net and SP-net. With updates every 5 minutes— 1200 updates • Drill Monitoring: Off-line, Real-Time • Pole Monitoring---full analysis and logging • Madison Monitoring—full analysis and logging as the satellite permits. Mar 19 -23, 2005 Berkeley 15
Off-line Real-Time Analysis At South Pole and Madison • • • Tension (cable and drill-head) Depth (from winch payout and pressure) Hole Diameter—Calipers Drill-Angle—Straightness, Theta Logging X-Y or “birds-eye” plots Mar 19 -23, 2005 Berkeley 16

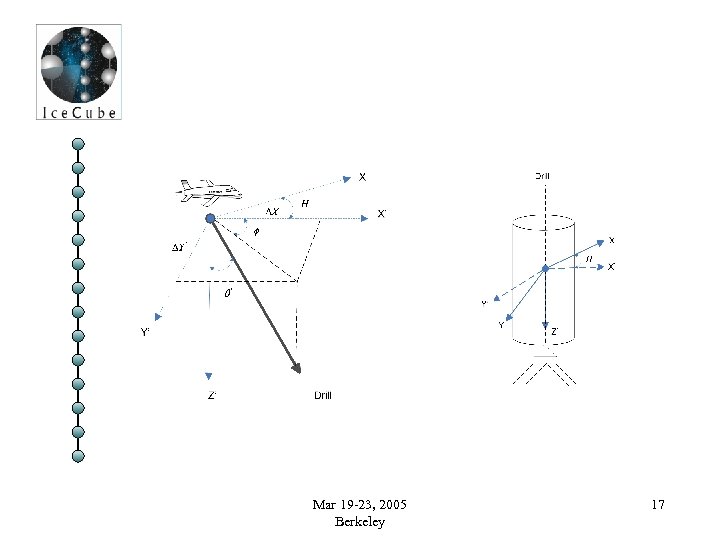

Mar 19 -23, 2005 Berkeley 17

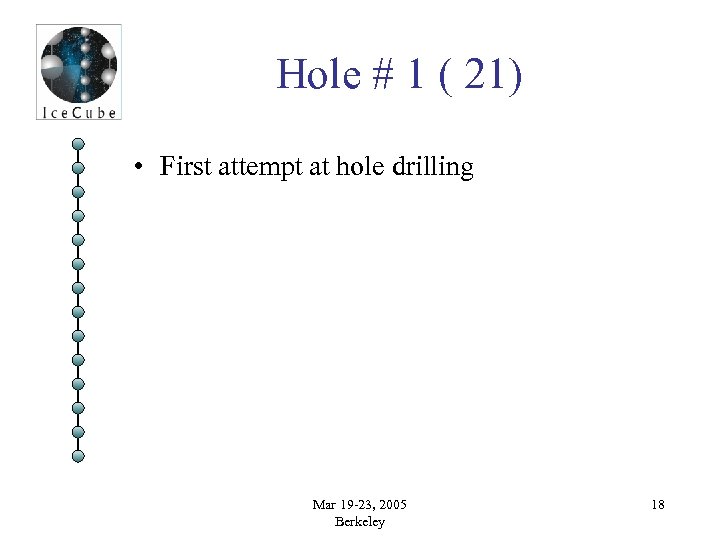

Hole # 1 ( 21) • First attempt at hole drilling Mar 19 -23, 2005 Berkeley 18

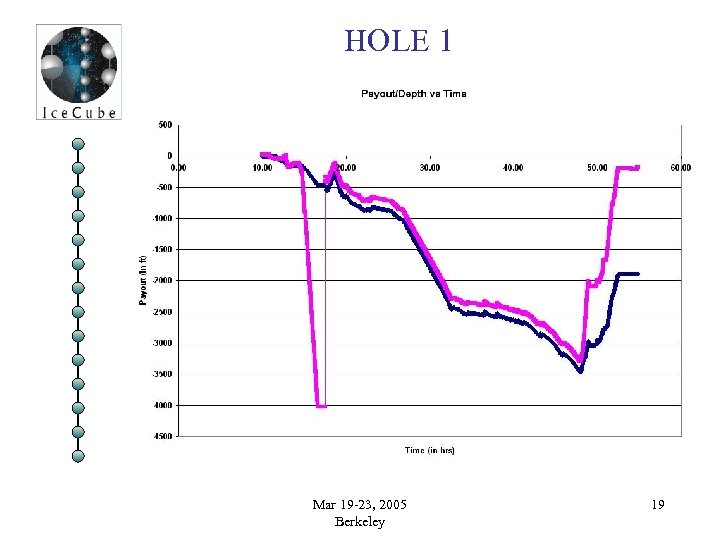

HOLE 1 Mar 19 -23, 2005 Berkeley 19

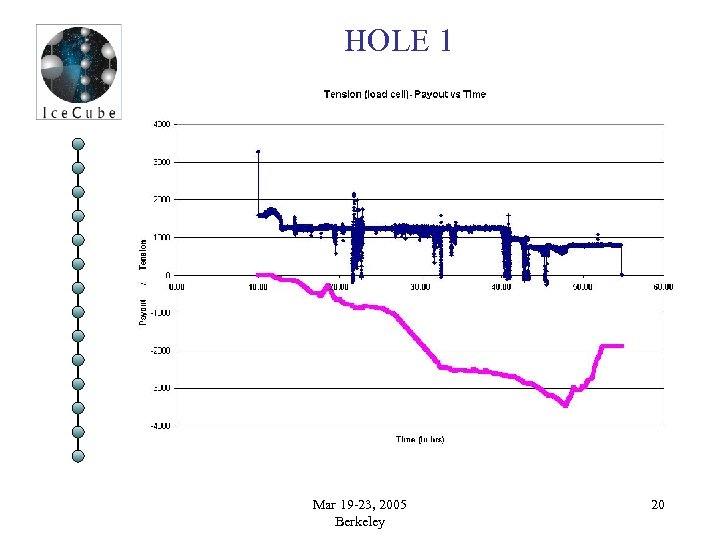

HOLE 1 Mar 19 -23, 2005 Berkeley 20

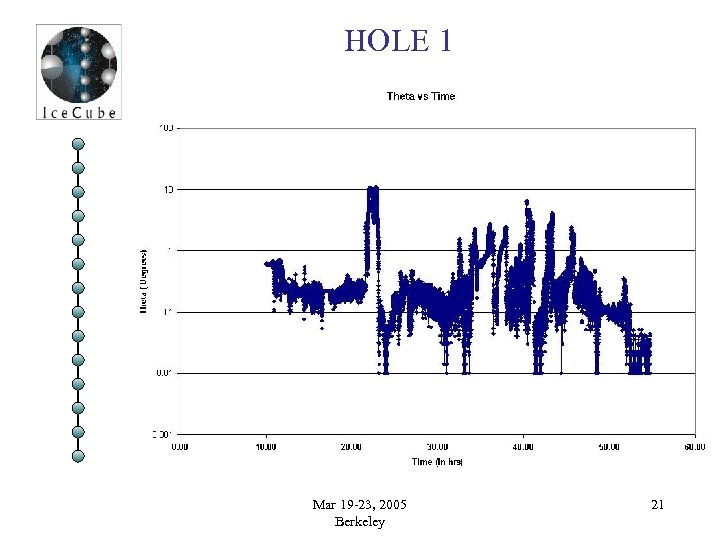

HOLE 1 Mar 19 -23, 2005 Berkeley 21

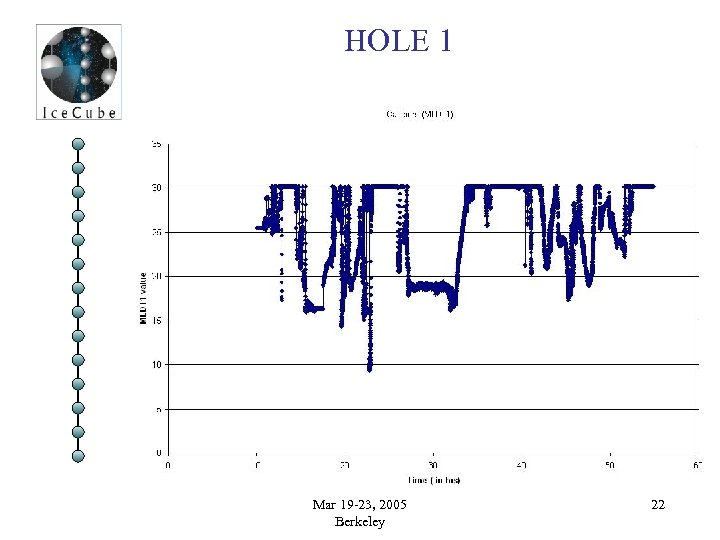

HOLE 1 Mar 19 -23, 2005 Berkeley 22

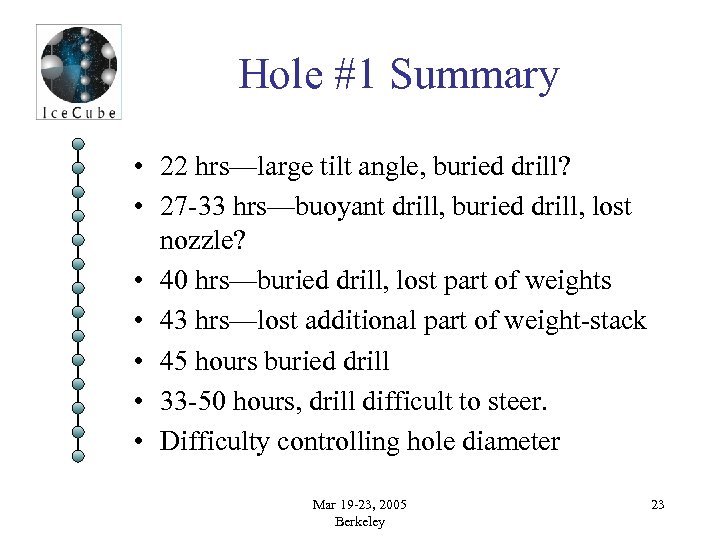

Hole #1 Summary • 22 hrs—large tilt angle, buried drill? • 27 -33 hrs—buoyant drill, buried drill, lost nozzle? • 40 hrs—buried drill, lost part of weights • 43 hrs—lost additional part of weight-stack • 45 hours buried drill • 33 -50 hours, drill difficult to steer. • Difficulty controlling hole diameter Mar 19 -23, 2005 Berkeley 23

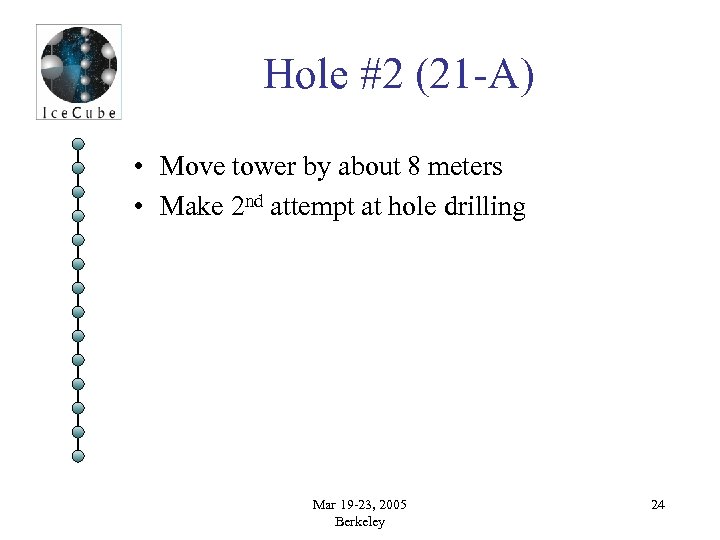

Hole #2 (21 -A) • Move tower by about 8 meters • Make 2 nd attempt at hole drilling Mar 19 -23, 2005 Berkeley 24

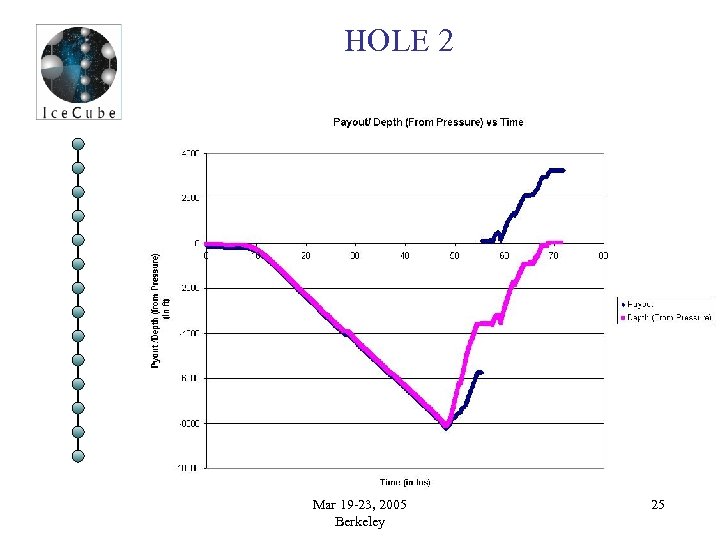

HOLE 2 Mar 19 -23, 2005 Berkeley 25

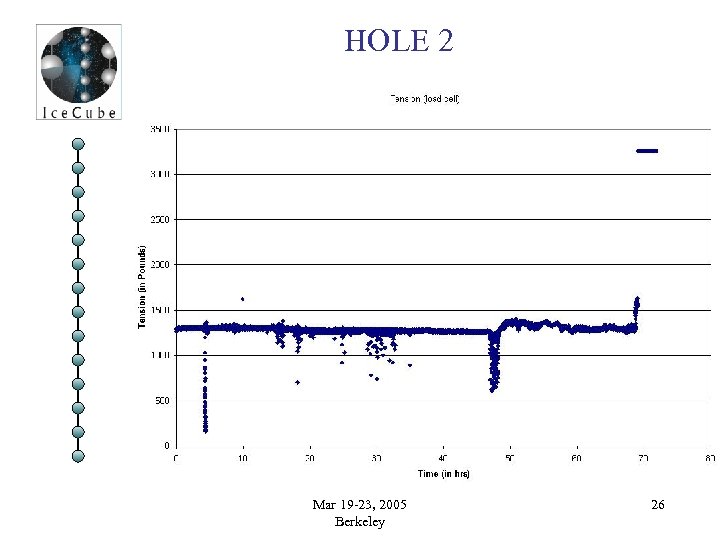

HOLE 2 Mar 19 -23, 2005 Berkeley 26

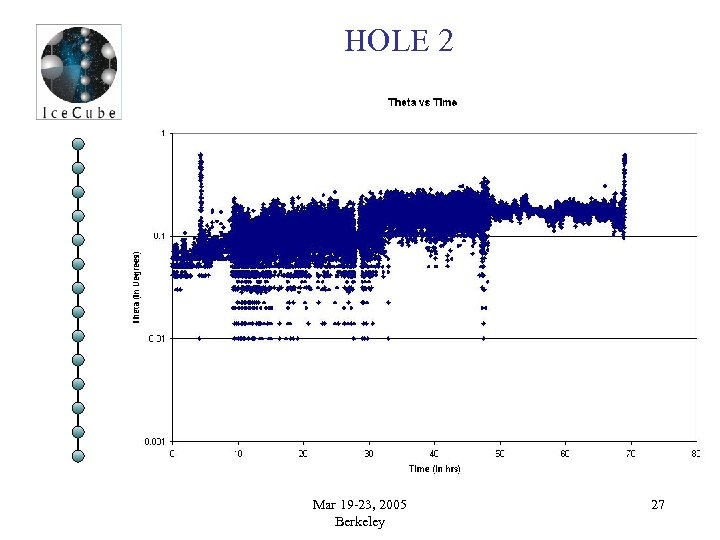

HOLE 2 Mar 19 -23, 2005 Berkeley 27

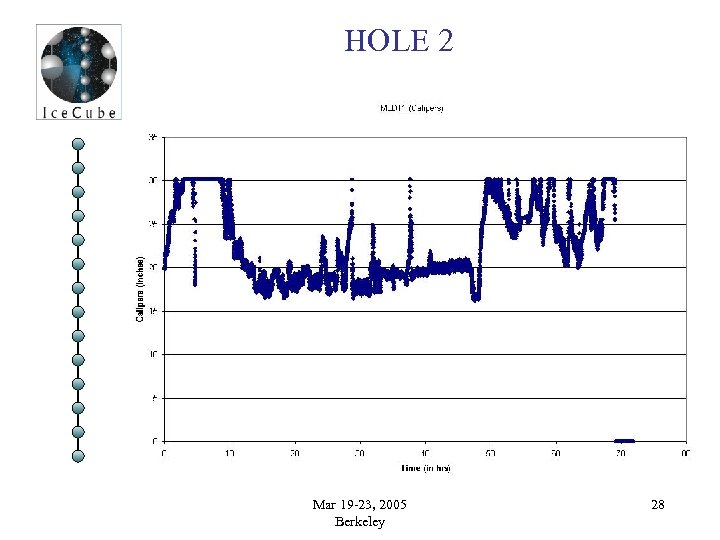

HOLE 2 Mar 19 -23, 2005 Berkeley 28

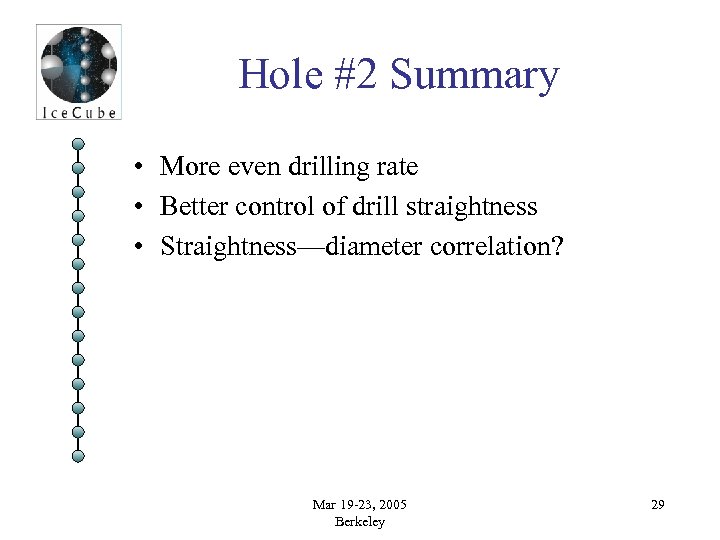

Hole #2 Summary • More even drilling rate • Better control of drill straightness • Straightness—diameter correlation? Mar 19 -23, 2005 Berkeley 29
Drill Oscillations • Lee Greenler’s talk Mar 19 -23, 2005 Berkeley 30
HOLE 2 Mar 19 -23, 2005 Berkeley 31

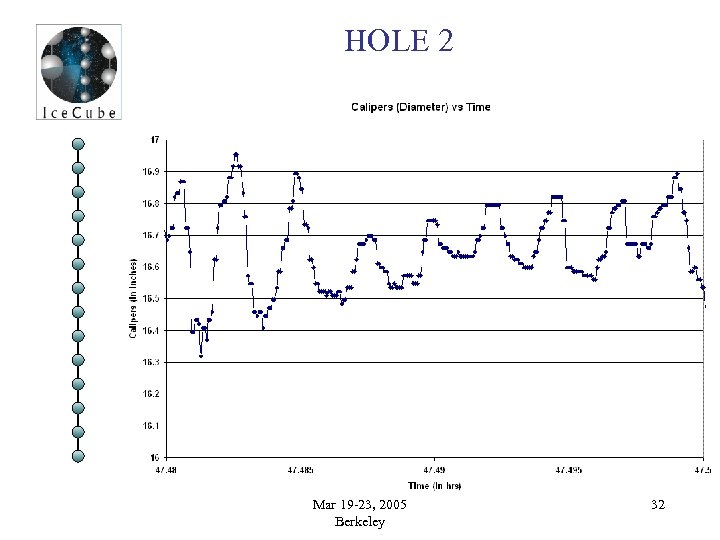

HOLE 2 Mar 19 -23, 2005 Berkeley 32

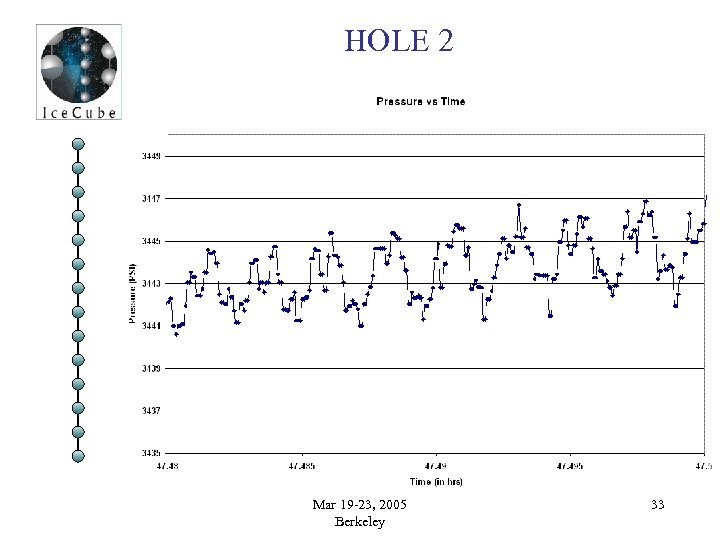

HOLE 2 Mar 19 -23, 2005 Berkeley 33

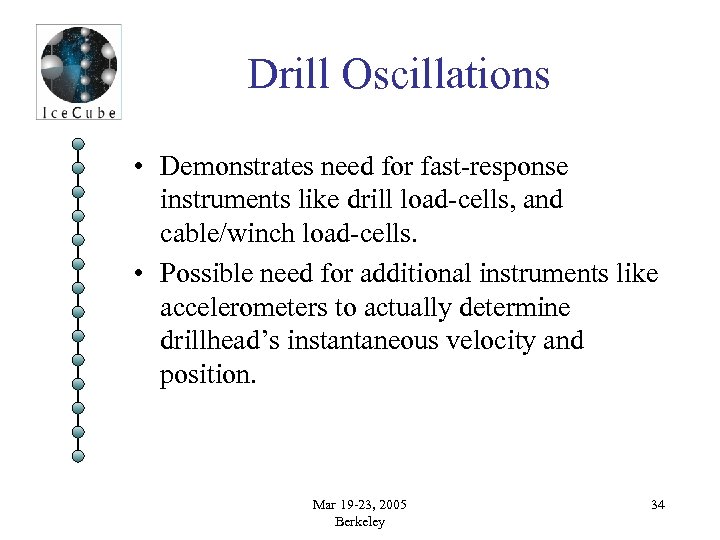

Drill Oscillations • Demonstrates need for fast-response instruments like drill load-cells, and cable/winch load-cells. • Possible need for additional instruments like accelerometers to actually determine drillhead’s instantaneous velocity and position. Mar 19 -23, 2005 Berkeley 34
Hole #2 Logging –X-Y Plot Mar 19 -23, 2005 Berkeley 35

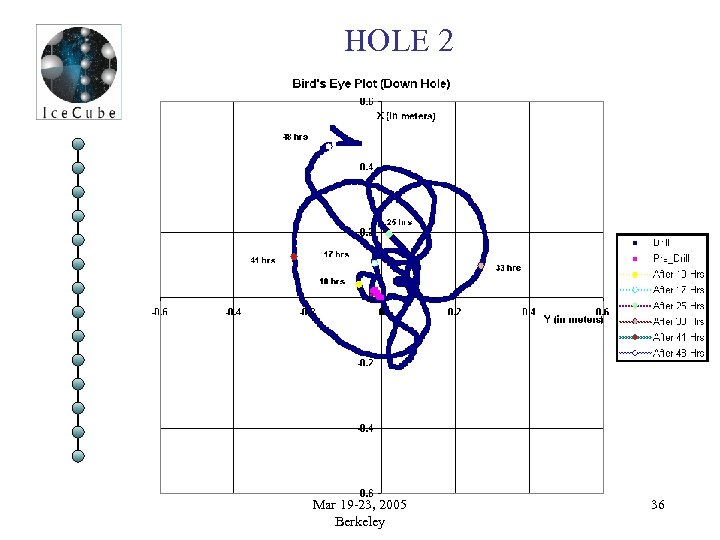

HOLE 2 Mar 19 -23, 2005 Berkeley 36

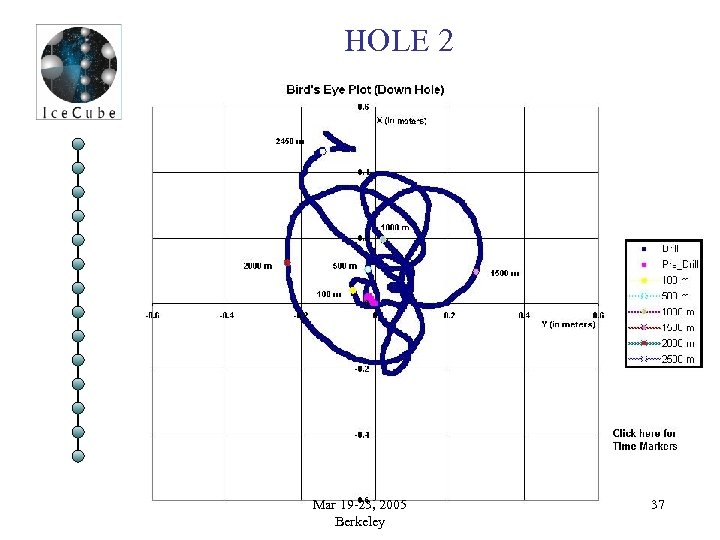

HOLE 2 Mar 19 -23, 2005 Berkeley 37

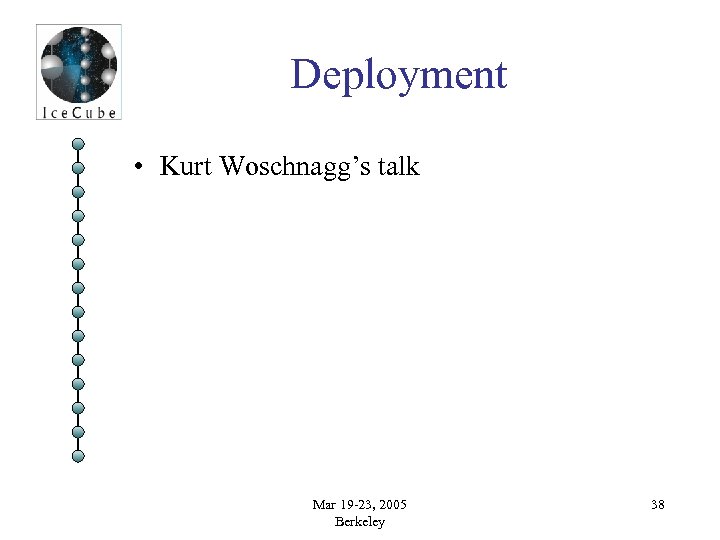

Deployment • Kurt Woschnagg’s talk Mar 19 -23, 2005 Berkeley 38

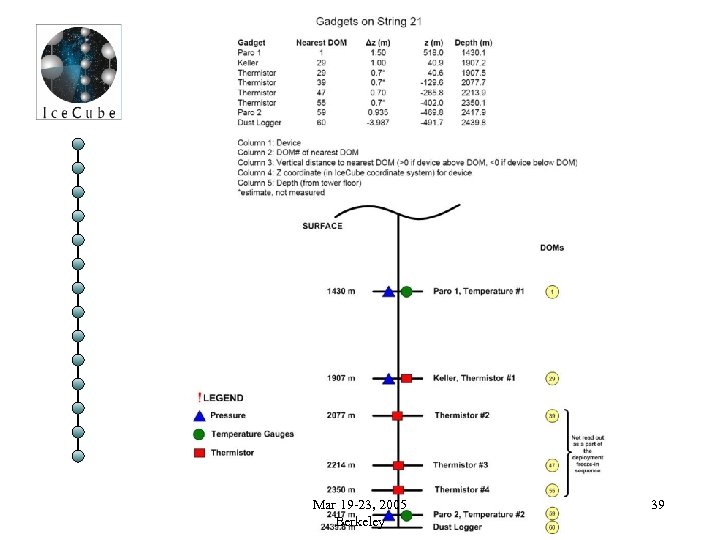

Mar 19 -23, 2005 Berkeley 39
