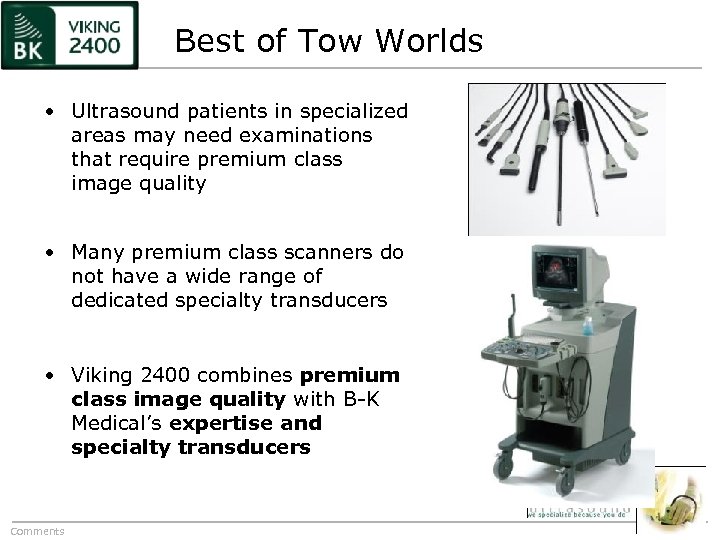

Best of Tow Worlds • Ultrasound patients in specialized areas may need examinations that require premium class image quality • Many premium class scanners do not have a wide range of dedicated specialty transducers • Viking 2400 combines premium class image quality with B-K Medical’s expertise and specialty transducers Comments

Best of two worlds The keyboard’s are complemented by intuitive On-screen control & can adjusted in height using one hand, and can be swiveled from side to side for a comfortable operating Comments

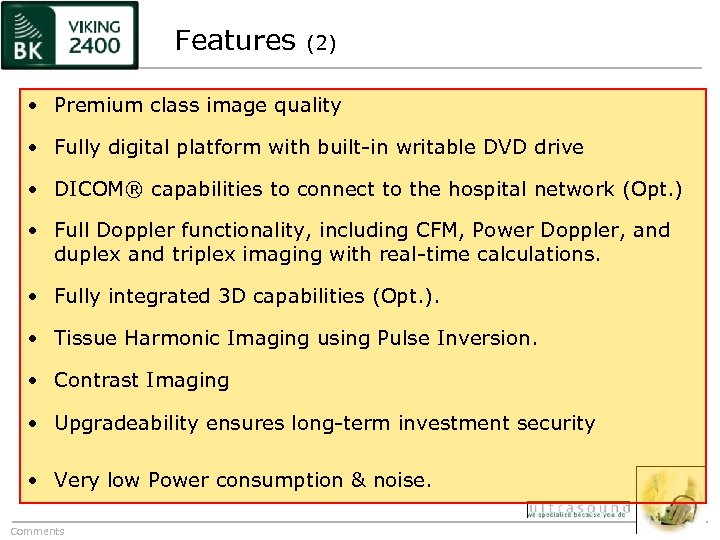

Features (2) • Premium class image quality • Fully digital platform with built-in writable DVD drive • DICOM® capabilities to connect to the hospital network (Opt. ) • Full Doppler functionality, including CFM, Power Doppler, and duplex and triplex imaging with real-time calculations. • Fully integrated 3 D capabilities (Opt. ). • Tissue Harmonic Imaging using Pulse Inversion. • Contrast Imaging • Upgradeability ensures long-term investment security • Very low Power consumption & noise. Comments

Features (1) • Special designed puncture guides for convenient intraoperative, Laparoscopic & Percutaneous interventional Procedures. • Simultaneous triplex imaging with high PRF maximizes the on-screen information • Application-specific transducers & advanced calculation packages cover a variety of clinical needs Comments

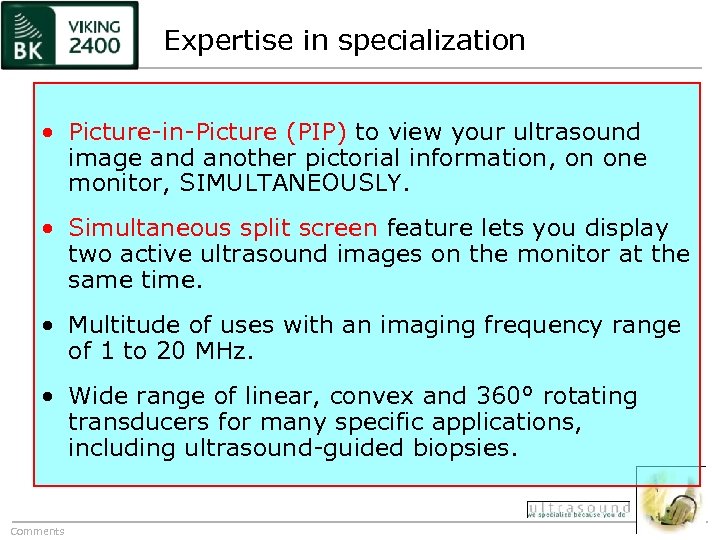

Expertise in specialization • Picture-in-Picture (PIP) to view your ultrasound image and another pictorial information, on one monitor, SIMULTANEOUSLY. • Simultaneous split screen feature lets you display two active ultrasound images on the monitor at the same time. • Multitude of uses with an imaging frequency range of 1 to 20 MHz. • Wide range of linear, convex and 360° rotating transducers for many specific applications, including ultrasound-guided biopsies. Comments

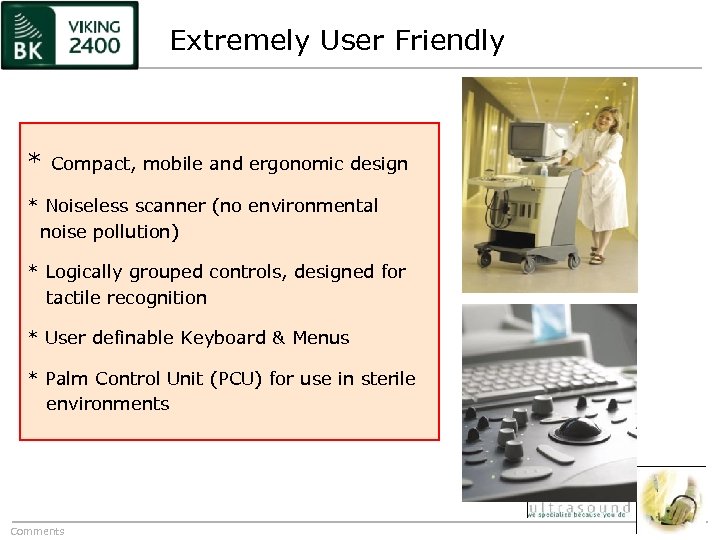

Extremely User Friendly * Compact, mobile and ergonomic design * Noiseless scanner (no environmental noise pollution) * Logically grouped controls, designed for tactile recognition * User definable Keyboard & Menus * Palm Control Unit (PCU) for use in sterile environments Comments

Imaging Modes available • B-Mode & Tissue Harmonic Imaging (THI) • B-Mode & M-Mode • Power Mode • Color Mode (Color Doppler or CFM) • Doppler Mode (Spectral Doppler) • Triplex (B-mode plus Spectral Doppler and either Color Doppler or Power Doppler) • Contrast Imaging (CI) Comments

Harmonic Imaging (1) • Better visualization • Harmonic imaging to help make biopsies more efficient • Applicable in Doppler Modes Comments

Harmonic Imaging (2) Contrast Imaging (CI) gives high sensitivity for detecting lesions. Contrast Imaging is available for laparoscopic, abdominal and intra-operative applications. Comments

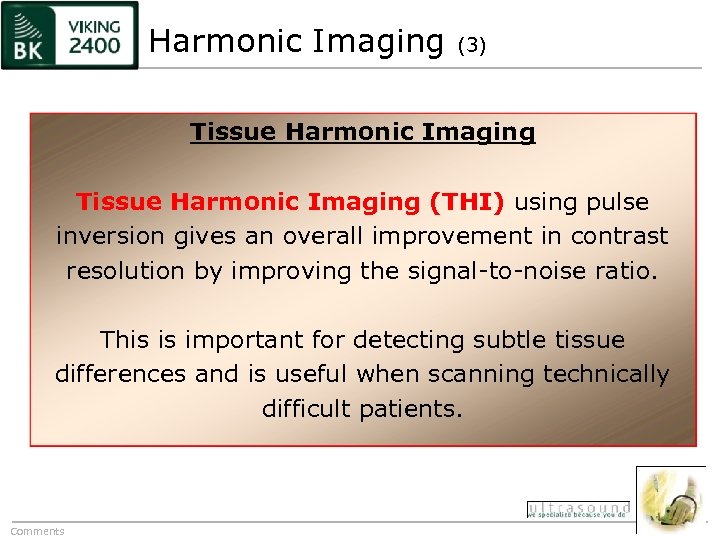

Harmonic Imaging (3) Tissue Harmonic Imaging (THI) using pulse inversion gives an overall improvement in contrast resolution by improving the signal-to-noise ratio. This is important for detecting subtle tissue differences and is useful when scanning technically difficult patients. Comments

Image Presentation High resolution digital images with a uniform focus over the whole image depth and excellent axial and lateral resolution. 192 -element transducers are supported, ensuring very high image quality in terms of axial, lateral and contrast resolution as well as penetration. Scanning at high frequencies of up to 20 MHz gives superb image quality for breast, small part, peripheral vascular and musculoskeletal scanning. Parallel quad-beam signal processing provides higher frame rates and resolution, thus increasing image performance. A high frame rate is especially valuable when studying flow dynamics in color Doppler or power Doppler mode. The simultaneous split-screen function makes it possible to display two different images live on the monitor at the same time, such as two different scanning planes (with a biplane transducer), or two different scanning modes (e. g. , B-mode and Color Doppler). Comments

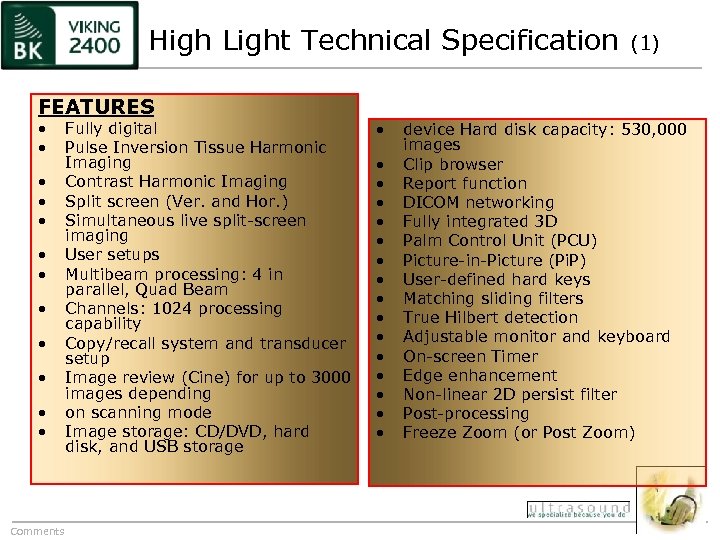

High Light Technical Specification (1) FEATURES • • • Comments Fully digital Pulse Inversion Tissue Harmonic Imaging Contrast Harmonic Imaging Split screen (Ver. and Hor. ) Simultaneous live split-screen imaging User setups Multibeam processing: 4 in parallel, Quad Beam Channels: 1024 processing capability Copy/recall system and transducer setup Image review (Cine) for up to 3000 images depending on scanning mode Image storage: CD/DVD, hard disk, and USB storage • • • • device Hard disk capacity: 530, 000 images Clip browser Report function DICOM networking Fully integrated 3 D Palm Control Unit (PCU) Picture-in-Picture (Pi. P) User-defined hard keys Matching sliding filters True Hilbert detection Adjustable monitor and keyboard On-screen Timer Edge enhancement Non-linear 2 D persist filter Post-processing Freeze Zoom (or Post Zoom)

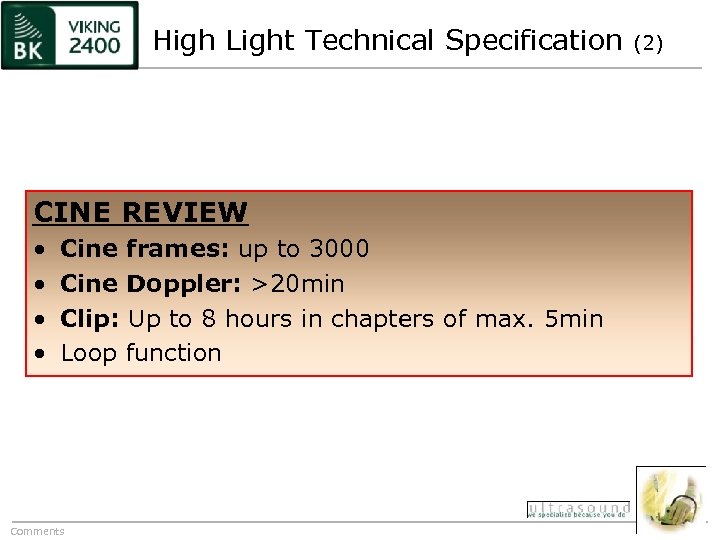

High Light Technical Specification CINE REVIEW • • Cine frames: up to 3000 Cine Doppler: >20 min Clip: Up to 8 hours in chapters of max. 5 min Loop function Comments (2)

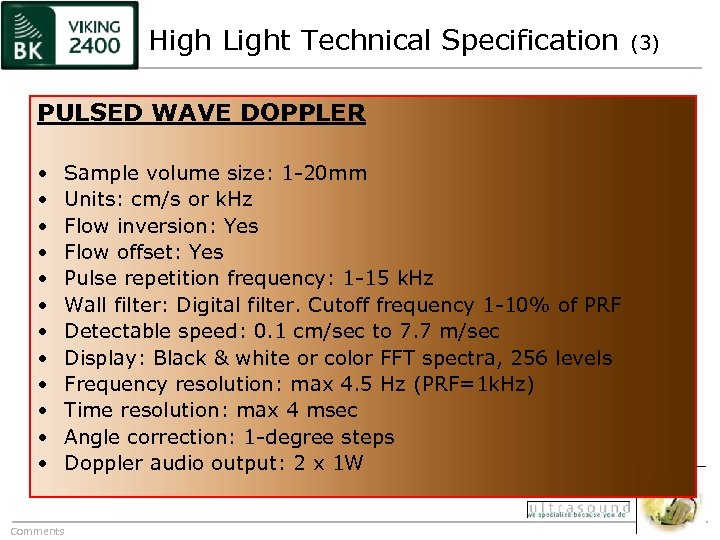

High Light Technical Specification PULSED WAVE DOPPLER • • • Sample volume size: 1 -20 mm Units: cm/s or k. Hz Flow inversion: Yes Flow offset: Yes Pulse repetition frequency: 1 -15 k. Hz Wall filter: Digital filter. Cutoff frequency 1 -10% of PRF Detectable speed: 0. 1 cm/sec to 7. 7 m/sec Display: Black & white or color FFT spectra, 256 levels Frequency resolution: max 4. 5 Hz (PRF=1 k. Hz) Time resolution: max 4 msec Angle correction: 1 -degree steps Doppler audio output: 2 x 1 W Comments (3)

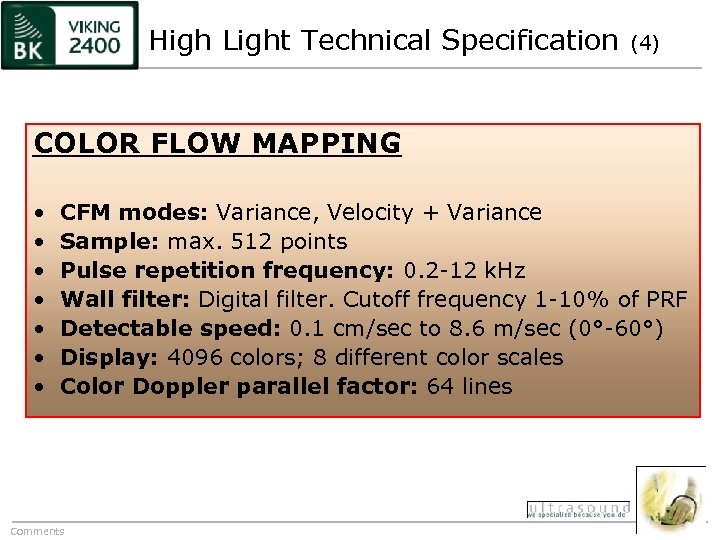

High Light Technical Specification (4) COLOR FLOW MAPPING • • CFM modes: Variance, Velocity + Variance Sample: max. 512 points Pulse repetition frequency: 0. 2 -12 k. Hz Wall filter: Digital filter. Cutoff frequency 1 -10% of PRF Detectable speed: 0. 1 cm/sec to 8. 6 m/sec (0°-60°) Display: 4096 colors; 8 different color scales Color Doppler parallel factor: 64 lines Comments

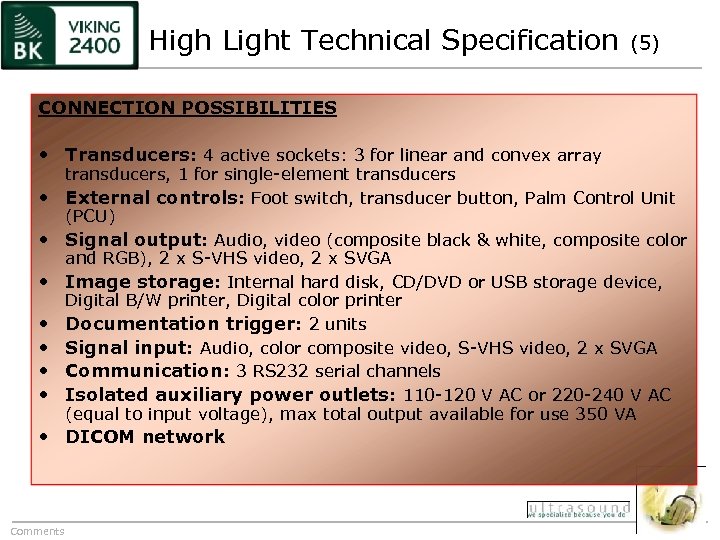

High Light Technical Specification (5) CONNECTION POSSIBILITIES • Transducers: 4 active sockets: 3 for linear and convex array • • transducers, 1 for single-element transducers External controls: Foot switch, transducer button, Palm Control Unit (PCU) Signal output: Audio, video (composite black & white, composite color and RGB), 2 x S-VHS video, 2 x SVGA Image storage: Internal hard disk, CD/DVD or USB storage device, Digital B/W printer, Digital color printer Documentation trigger: 2 units Signal input: Audio, color composite video, S-VHS video, 2 x SVGA Communication: 3 RS 232 serial channels Isolated auxiliary power outlets: 110 -120 V AC or 220 -240 V AC (equal to input voltage), max total output available for use 350 VA • DICOM network Comments

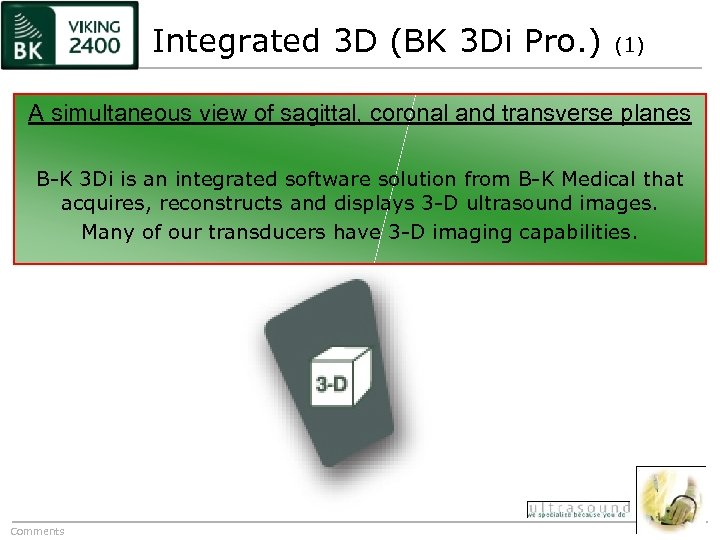

Integrated 3 D (BK 3 Di Pro. ) (1) A simultaneous view of sagittal, coronal and transverse planes B-K 3 Di is an integrated software solution from B-K Medical that acquires, reconstructs and displays 3 -D ultrasound images. Many of our transducers have 3 -D imaging capabilities. Comments

Integrated 3 D (BK 3 Di Pro. ) (2) Main Advantages: • View 3 -D images at any depth, plane and angle • Increase patient turnover • Get more thorough diagnostic possibilities Comments

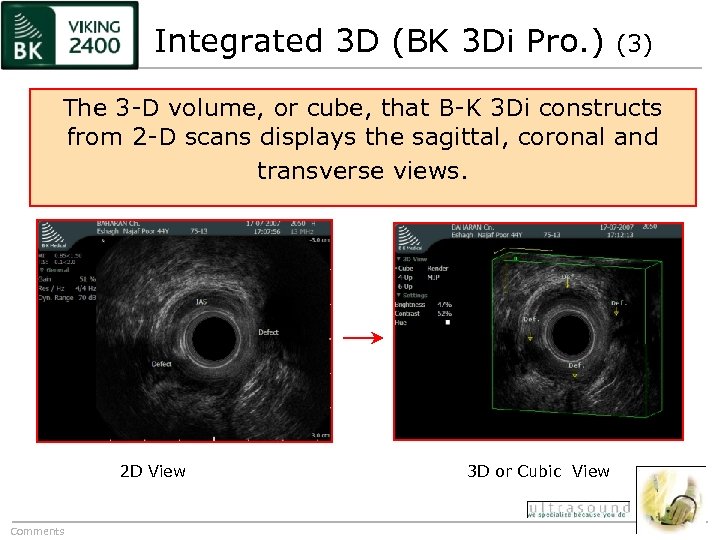

Integrated 3 D (BK 3 Di Pro. ) (3) The 3 -D volume, or cube, that B-K 3 Di constructs from 2 -D scans displays the sagittal, coronal and transverse views. 2 D View Comments 3 D or Cubic View

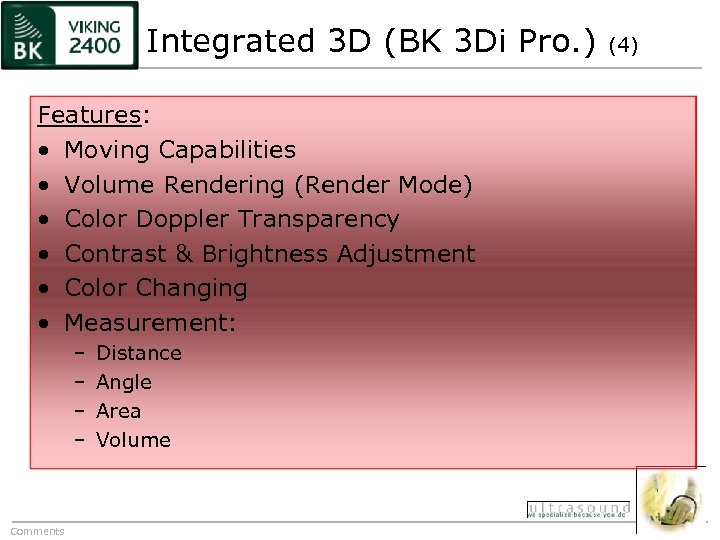

Integrated 3 D (BK 3 Di Pro. ) Features: • Moving Capabilities • Volume Rendering (Render Mode) • Color Doppler Transparency • Contrast & Brightness Adjustment • Color Changing • Measurement: – – Comments Distance Angle Area Volume (4)

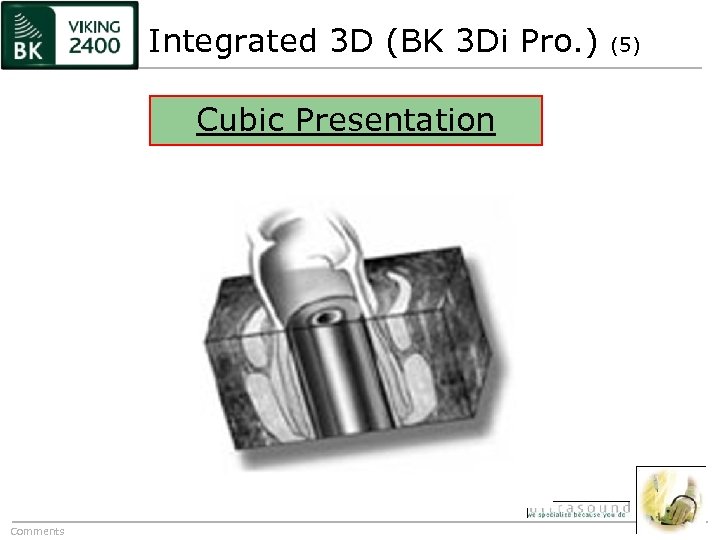

Integrated 3 D (BK 3 Di Pro. ) Cubic Presentation Comments (5)

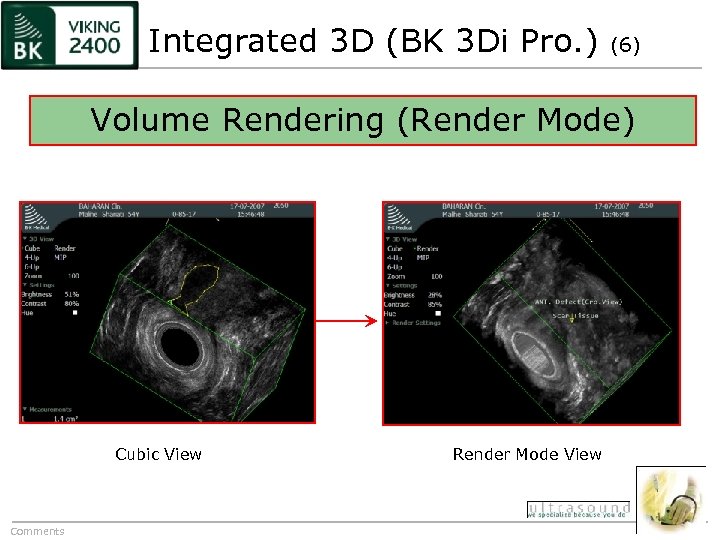

Integrated 3 D (BK 3 Di Pro. ) (6) Volume Rendering (Render Mode) Cubic View Comments Render Mode View

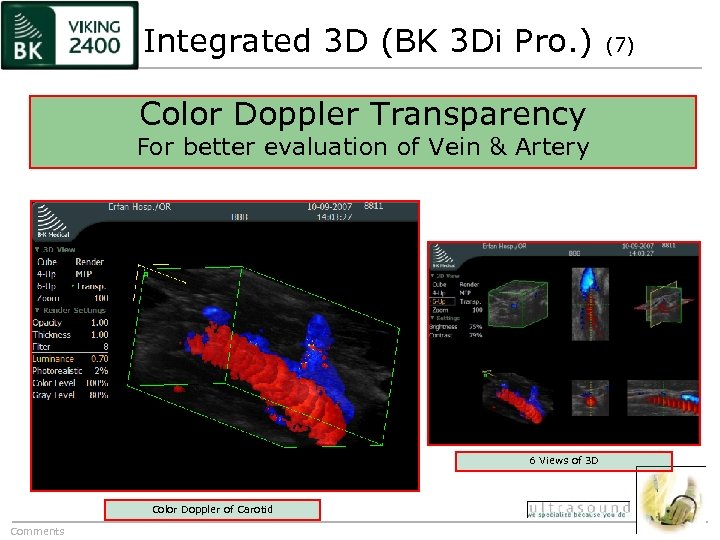

Integrated 3 D (BK 3 Di Pro. ) Color Doppler Transparency For better evaluation of Vein & Artery 6 Views of 3 D Color Doppler of Carotid Comments (7)

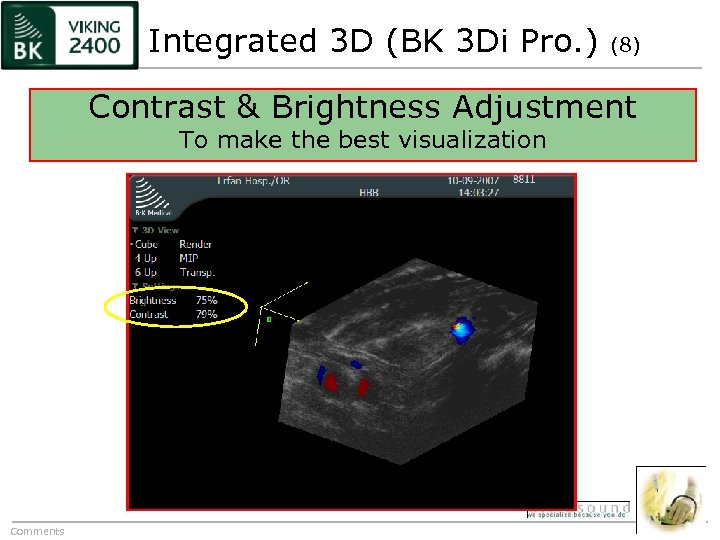

Integrated 3 D (BK 3 Di Pro. ) (8) Contrast & Brightness Adjustment To make the best visualization Comments

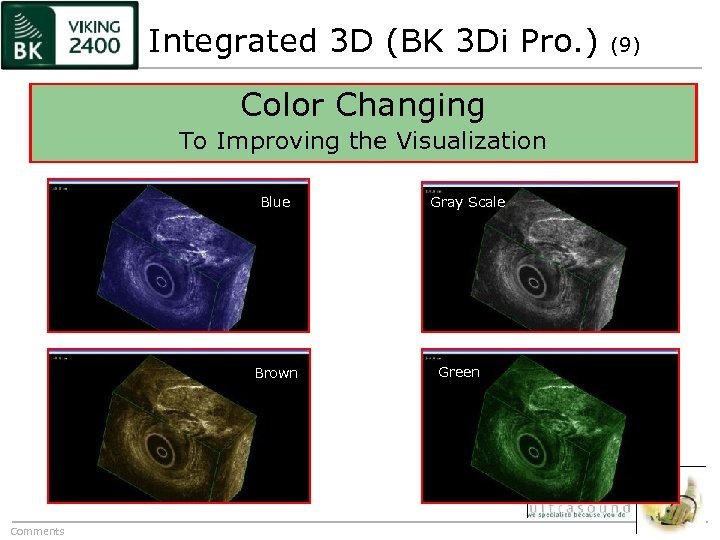

Integrated 3 D (BK 3 Di Pro. ) Color Changing To Improving the Visualization Blue Brown Comments Gray Scale Green (9)

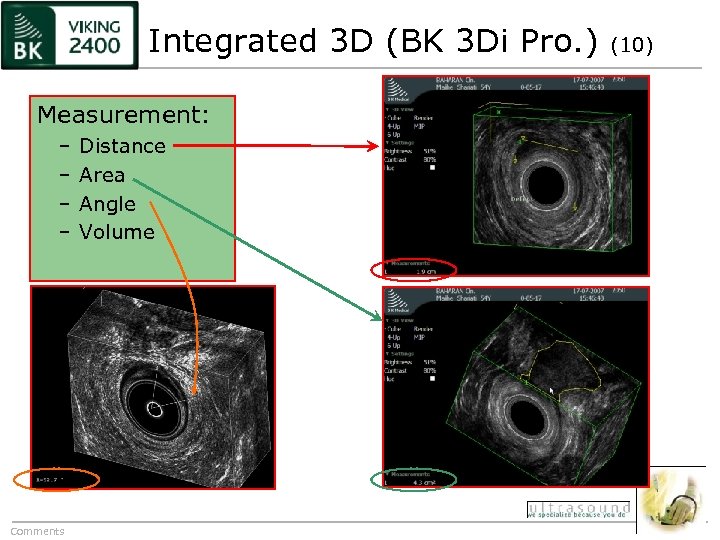

Integrated 3 D (BK 3 Di Pro. ) Measurement: – – Comments Distance Area Angle Volume (10)

BK 3 Di Applications Fetal Comments (11)

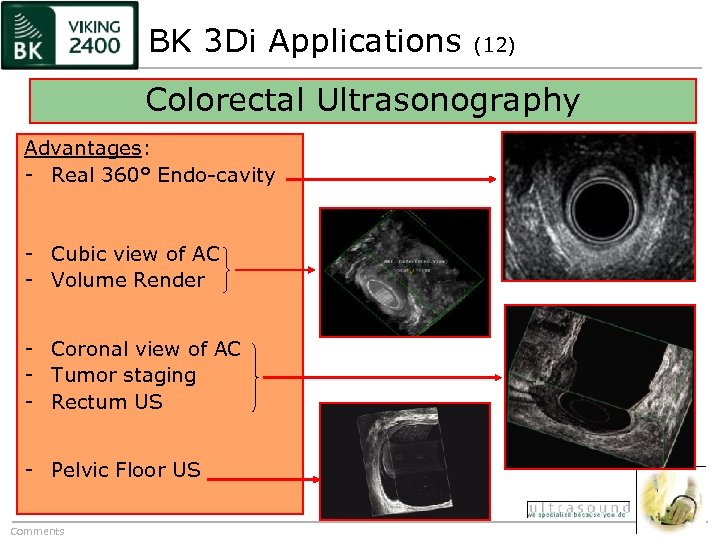

BK 3 Di Applications (12) Colorectal Ultrasonography Advantages: - Real 360° Endo-cavity - Cubic view of AC - Volume Render - Coronal view of AC - Tumor staging - Rectum US - Pelvic Floor US Comments

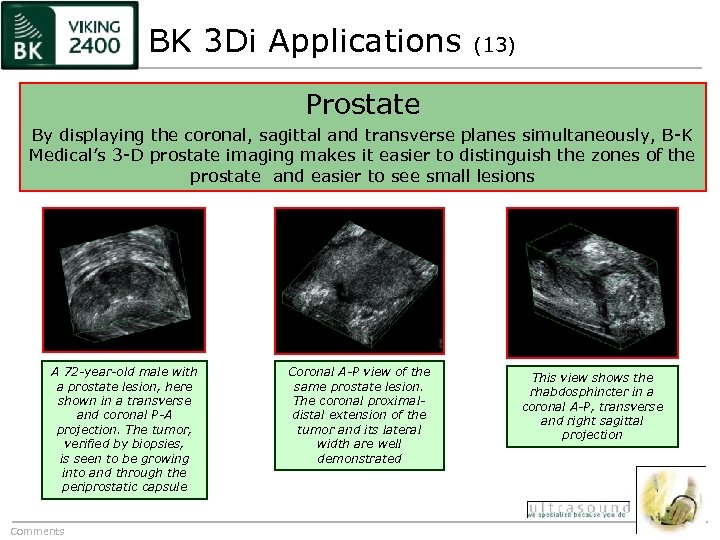

BK 3 Di Applications (13) Prostate By displaying the coronal, sagittal and transverse planes simultaneously, B-K Medical’s 3 -D prostate imaging makes it easier to distinguish the zones of the prostate and easier to see small lesions A 72 -year-old male with a prostate lesion, here shown in a transverse and coronal P-A projection. The tumor, verified by biopsies, is seen to be growing into and through the periprostatic capsule Comments Coronal A-P view of the same prostate lesion. The coronal proximaldistal extension of the tumor and its lateral width are well demonstrated This view shows the rhabdosphincter in a coronal A-P, transverse and right sagittal projection

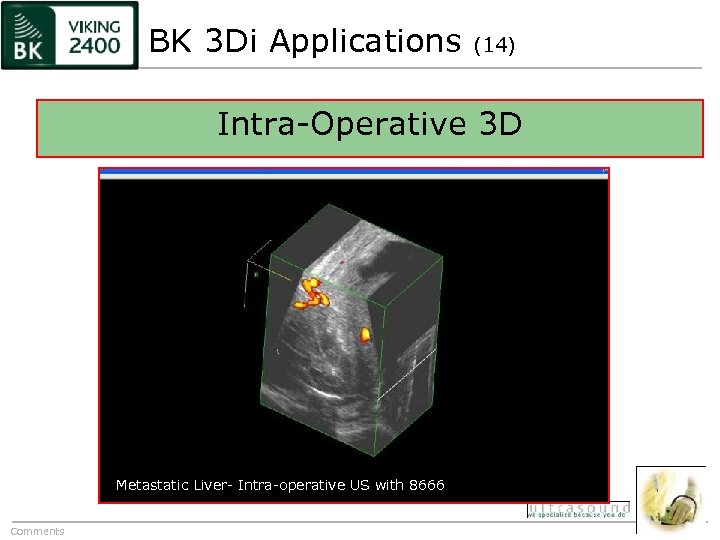

BK 3 Di Applications (14) Intra-Operative 3 D Metastatic Liver- Intra-operative US with 8666 Comments

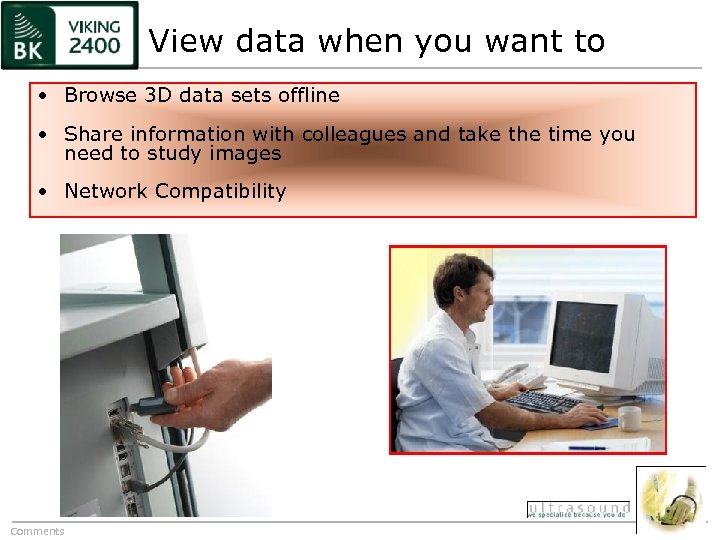

View data when you want to • Browse 3 D data sets offline • Share information with colleagues and take the time you need to study images • Network Compatibility Comments

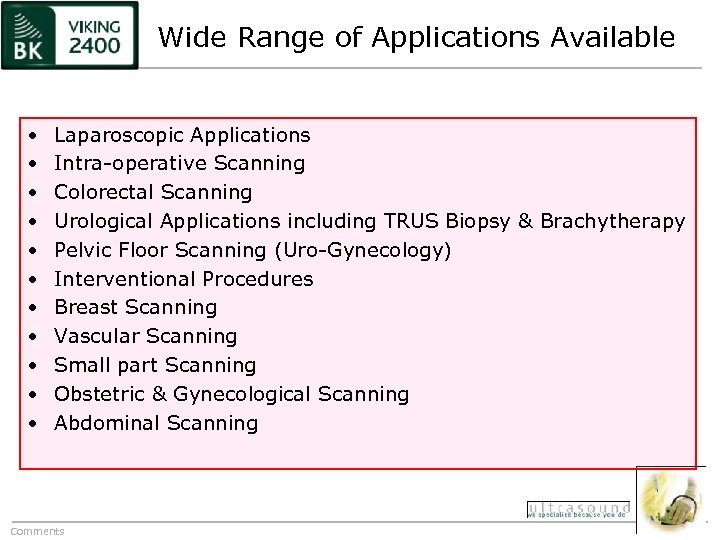

Wide Range of Applications Available • • • Laparoscopic Applications Intra-operative Scanning Colorectal Scanning Urological Applications including TRUS Biopsy & Brachytherapy Pelvic Floor Scanning (Uro-Gynecology) Interventional Procedures Breast Scanning Vascular Scanning Small part Scanning Obstetric & Gynecological Scanning Abdominal Scanning Comments

Applications - Surgery Comments

Ultrasound designed for surgery Surgery Pro Package: optimized set-ups for surgical ultrasound in: • General intra-operative • Laparoscopic and anorectal • Vascular and neurosurgery Comments

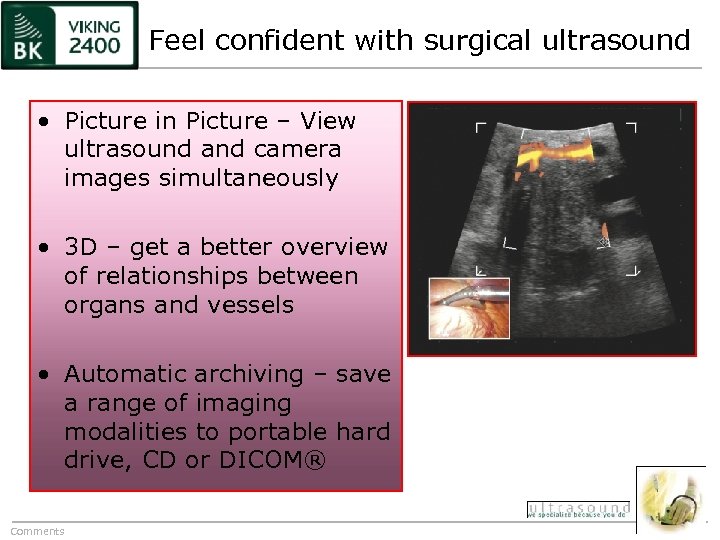

Feel confident with surgical ultrasound • Picture in Picture – View ultrasound and camera images simultaneously • 3 D – get a better overview of relationships between organs and vessels • Automatic archiving – save a range of imaging modalities to portable hard drive, CD or DICOM® Comments

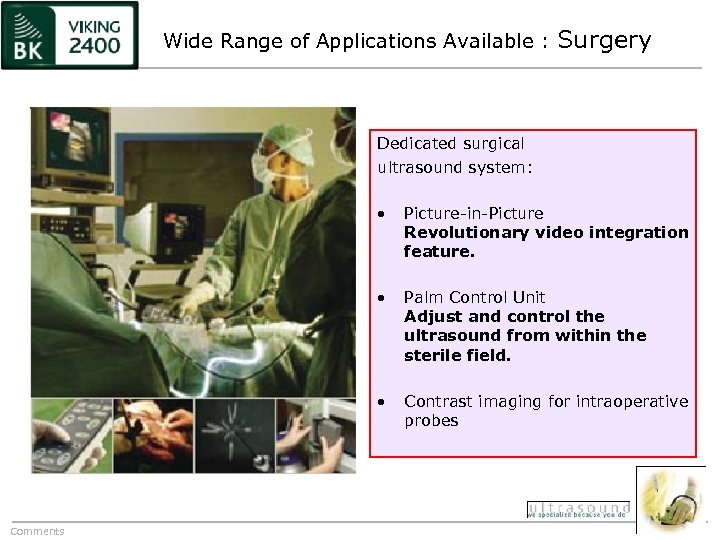

Wide Range of Applications Available : Surgery Dedicated surgical ultrasound system: • • Palm Control Unit Adjust and control the ultrasound from within the sterile field. • Comments Picture-in-Picture Revolutionary video integration feature. Contrast imaging for intraoperative probes

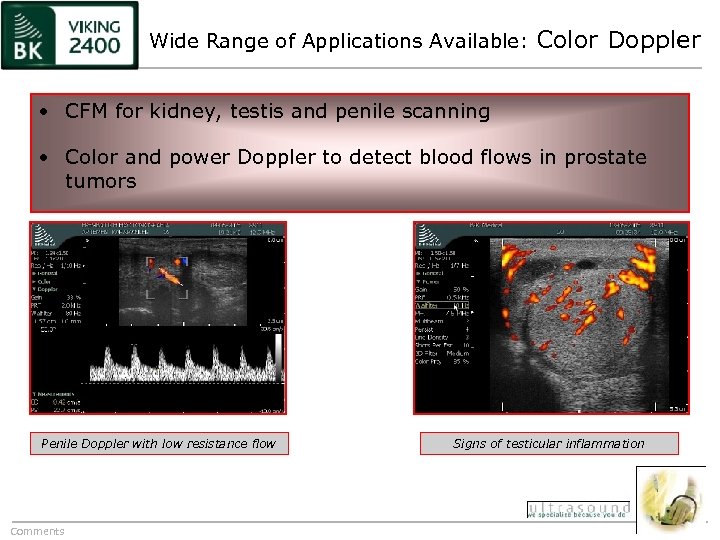

Wide Range of Applications Available: Color Doppler • CFM for kidney, testis and penile scanning • Color and power Doppler to detect blood flows in prostate tumors Penile Doppler with low resistance flow Comments Signs of testicular inflammation

Wide Range of Applications Available: Intervention Integrated puncture guides and biopsy kits designed for each specific transducer Comments

Wide Range of Applications Available: Intervention Easier, faster and safer interventional procedures Comments

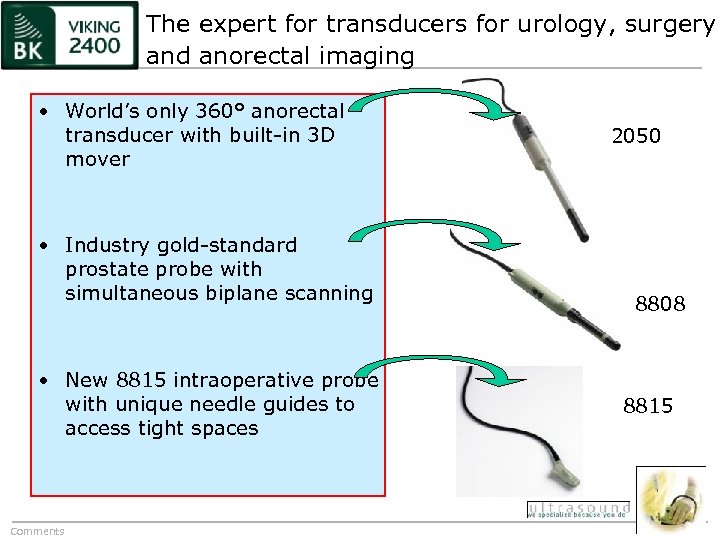

The expert for transducers for urology, surgery and anorectal imaging • World’s only 360° anorectal transducer with built-in 3 D mover • Industry gold-standard prostate probe with simultaneous biplane scanning • New 8815 intraoperative probe with unique needle guides to access tight spaces Comments 2050 8808 8815

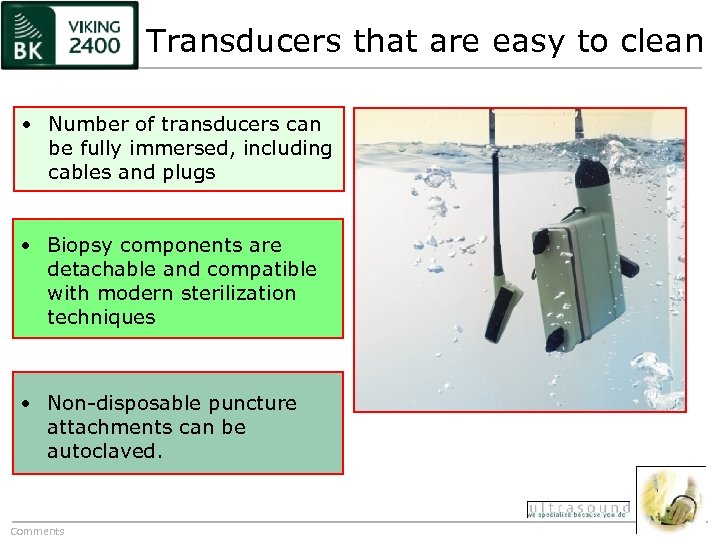

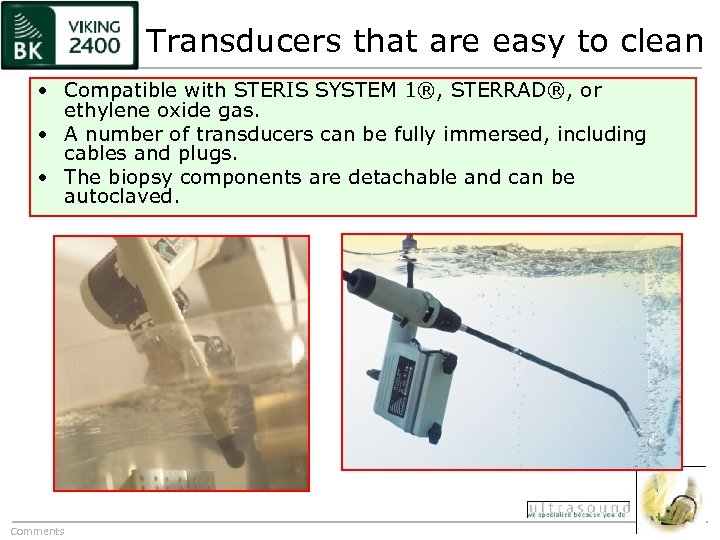

Transducers that are easy to clean • Number of transducers can be fully immersed, including cables and plugs • Biopsy components are detachable and compatible with modern sterilization techniques • Non-disposable puncture attachments can be autoclaved. Comments

Transducers that are easy to clean • Compatible with STERIS SYSTEM 1®, STERRAD®, or ethylene oxide gas. • A number of transducers can be fully immersed, including cables and plugs. • The biopsy components are detachable and can be autoclaved. Comments

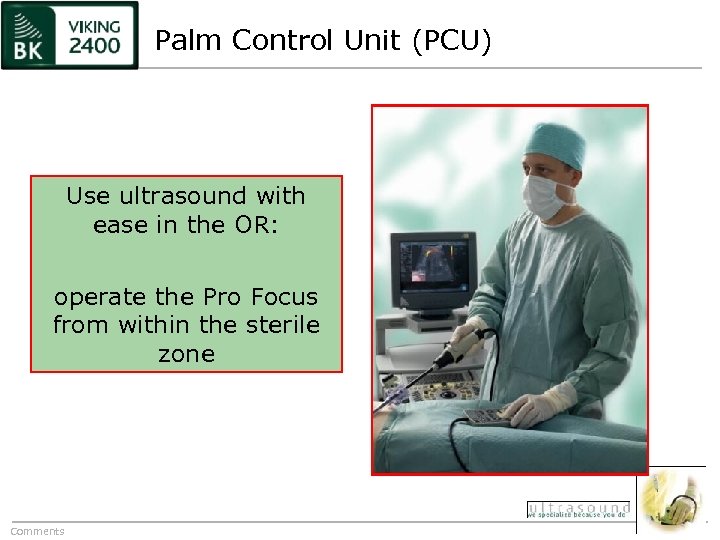

Palm Control Unit (PCU) Use ultrasound with ease in the OR: operate the Pro Focus from within the sterile zone Comments

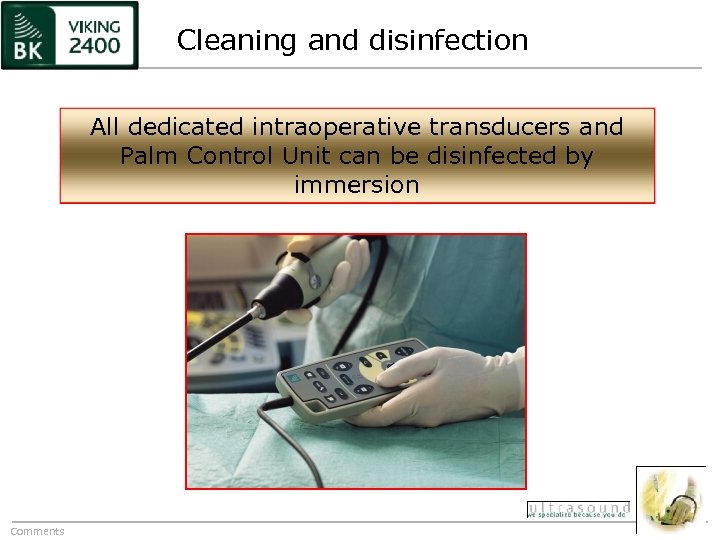

Cleaning and disinfection All dedicated intraoperative transducers and Palm Control Unit can be disinfected by immersion Comments

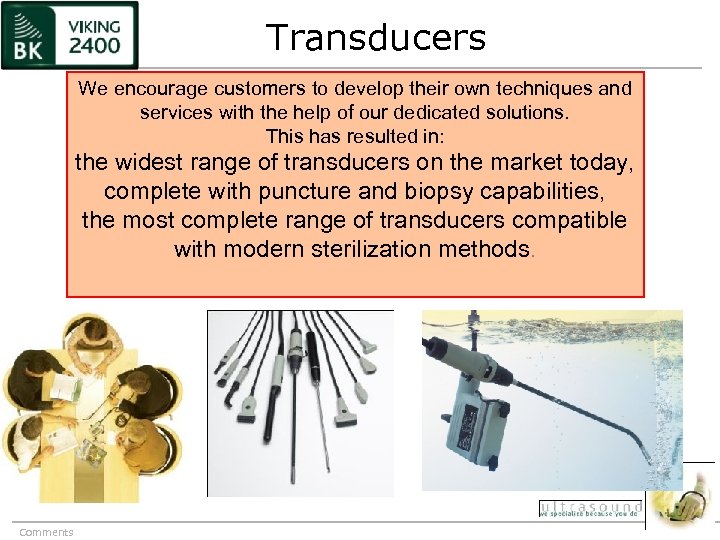

Transducers We encourage customers to develop their own techniques and services with the help of our dedicated solutions. This has resulted in: the widest range of transducers on the market today, complete with puncture and biopsy capabilities, the most complete range of transducers compatible with modern sterilization methods. Comments

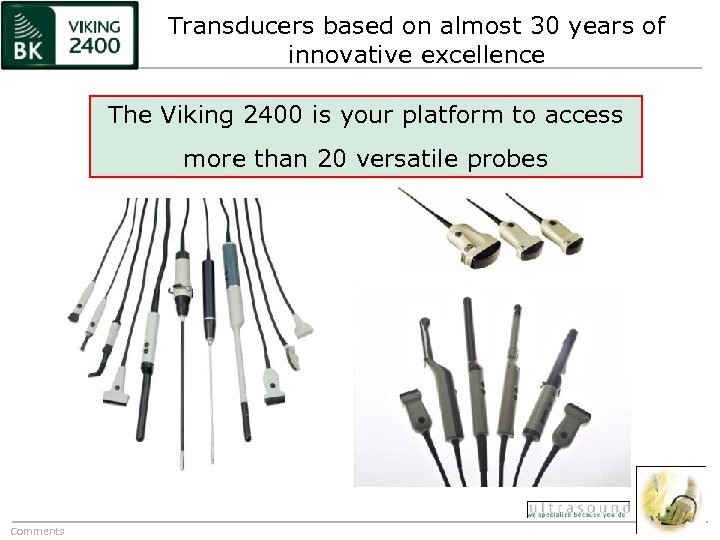

Transducers based on almost 30 years of innovative excellence The Viking 2400 is your platform to access more than 20 versatile probes Comments

Surgical Applications • • • Comments Laparoscopic ultrasound Intraoperative ultrasound Anorectal Radiofrequency ablation Peripheral vascular Breast Neurosurgery Musculoskeletal Transplant (liver & Kidney) Urology Dermatology (Skin Grafts)

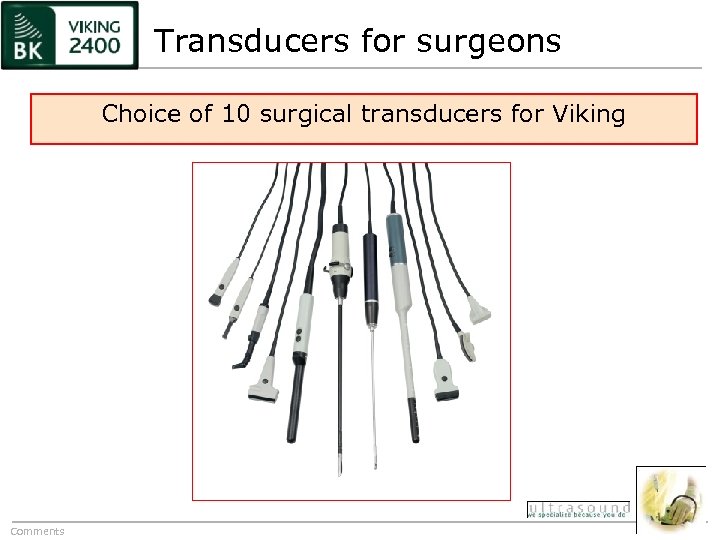

Transducers for surgeons Choice of 10 surgical transducers for Viking Comments

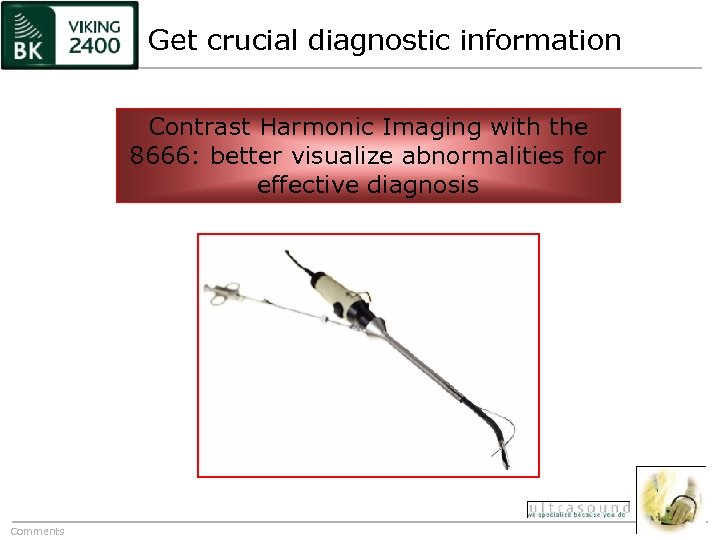

Get crucial diagnostic information Contrast Harmonic Imaging with the 8666: better visualize abnormalities for effective diagnosis Comments

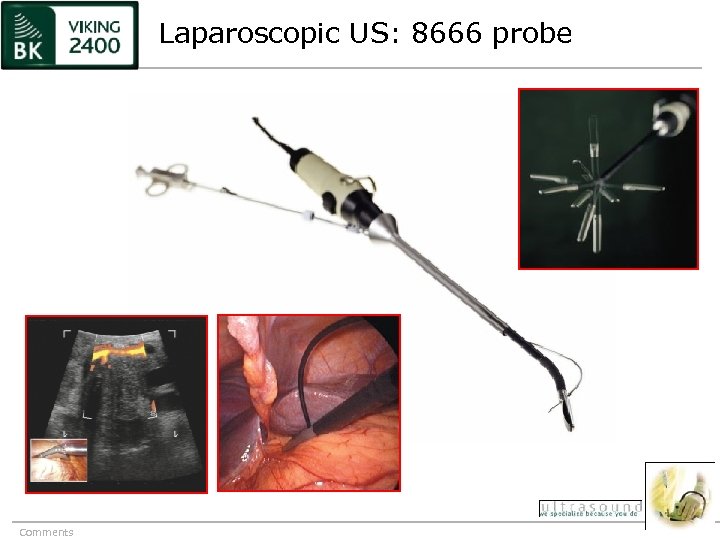

Laparoscopic US: 8666 probe Comments

Guided intervention with 8666 • 4 -way flexible scanning tip to access difficult to reach areas • Integrated puncture system built into probe; for both cytological and histological sampling Comments

Guided intervention with 8666 • Ergonomic design: adjust head using controls on handle • Compatible with modern sterilization methods Comments

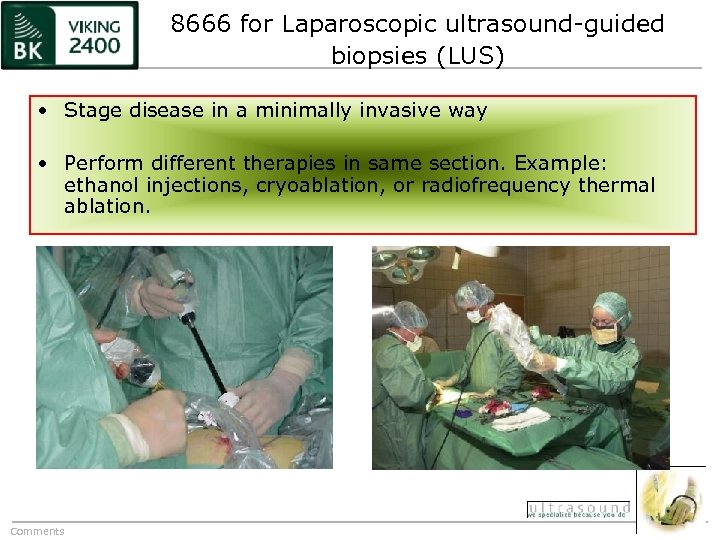

8666 for Laparoscopic ultrasound-guided biopsies (LUS) • Stage disease in a minimally invasive way • Perform different therapies in same section. Example: ethanol injections, cryoablation, or radiofrequency thermal ablation. Comments

8814: World's first surgical biplane transducer The ultimate tool for ultrasound-guided needle placement Comments

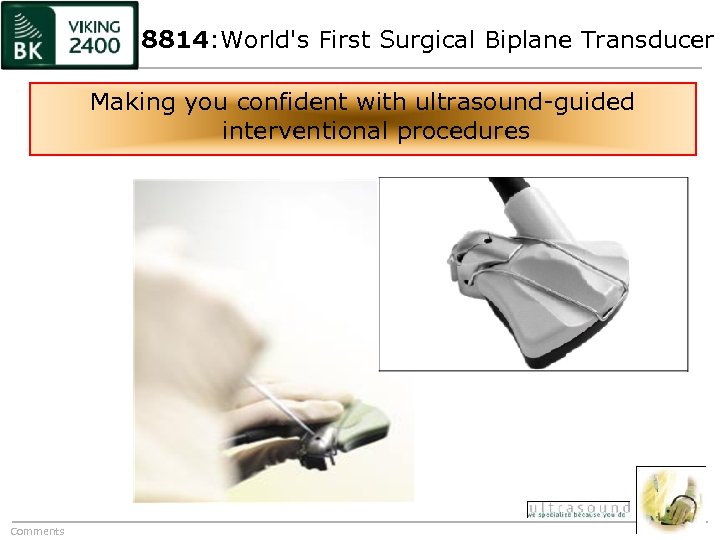

8814: World's First Surgical Biplane Transducer Making you confident with ultrasound-guided interventional procedures Comments

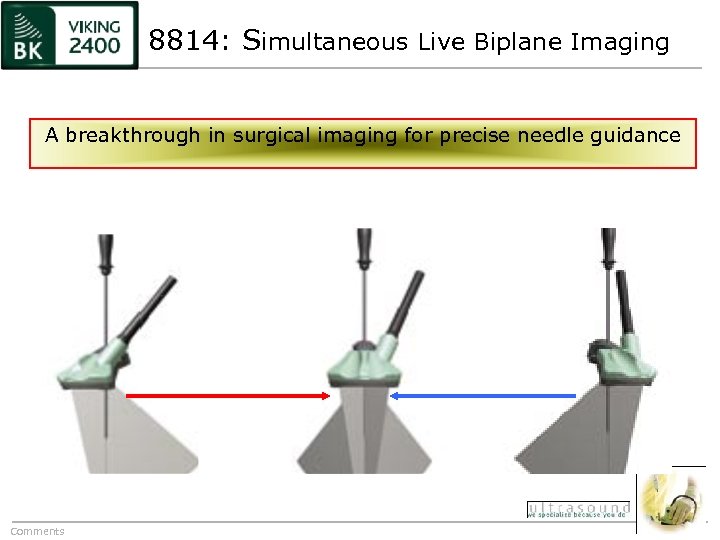

8814: Simultaneous Live Biplane Imaging A breakthrough in surgical imaging for precise needle guidance Comments

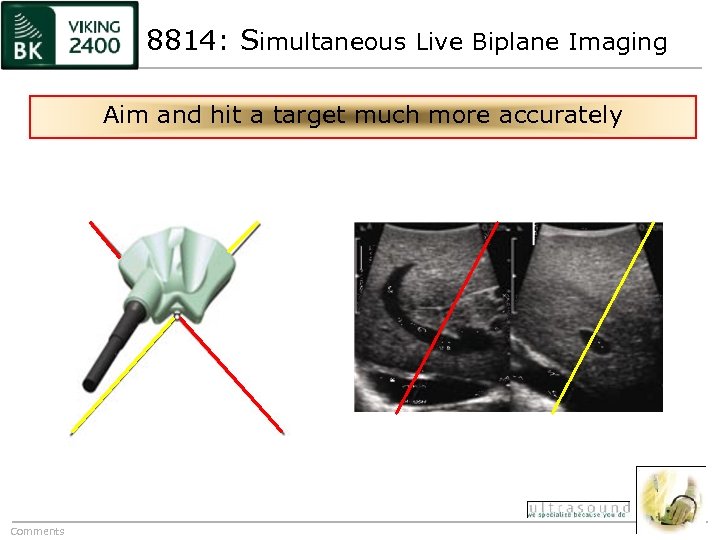

8814: Simultaneous Live Biplane Imaging Aim and hit a target much more accurately Comments

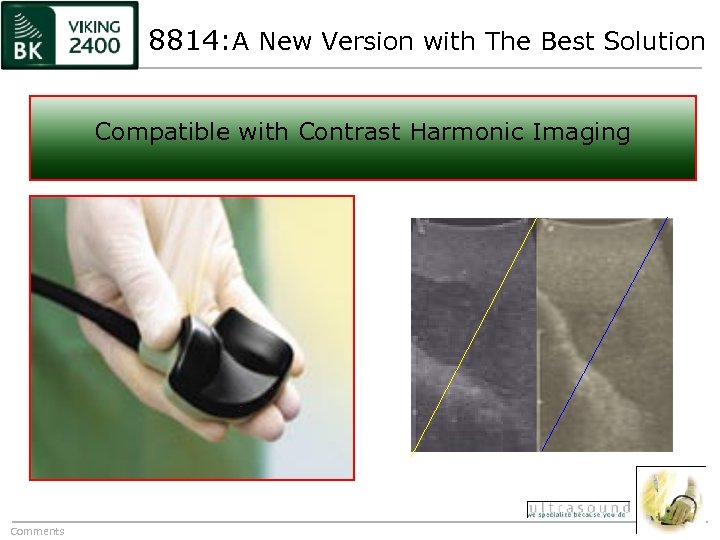

8814: A New Version with The Best Solution Compatible with Contrast Harmonic Imaging Comments

8814: Safer to Intervention The puncture attachments are easy to attach and removes again Comments

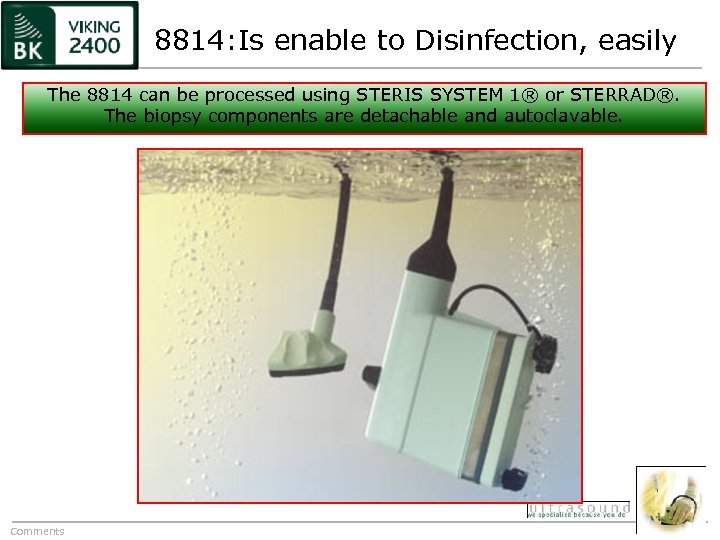

8814: Is enable to Disinfection, easily The 8814 can be processed using STERIS SYSTEM 1® or STERRAD®. The biopsy components are detachable and autoclavable. Comments

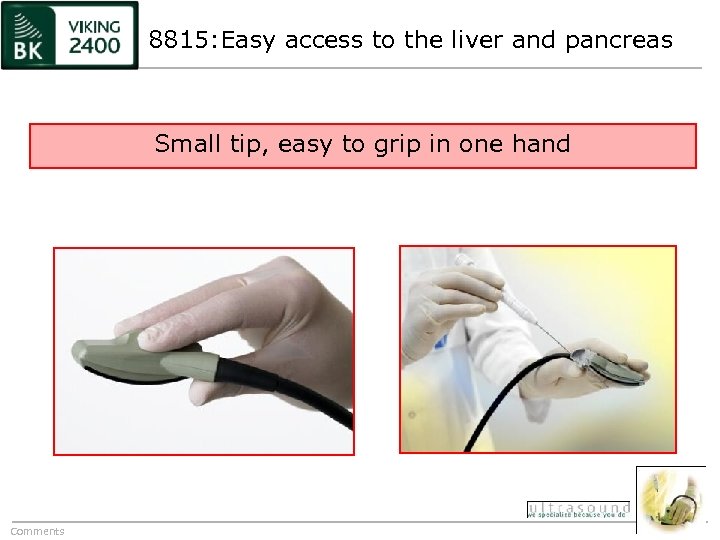

8815: Easy access to the liver and pancreas Small tip, easy to grip in one hand Comments

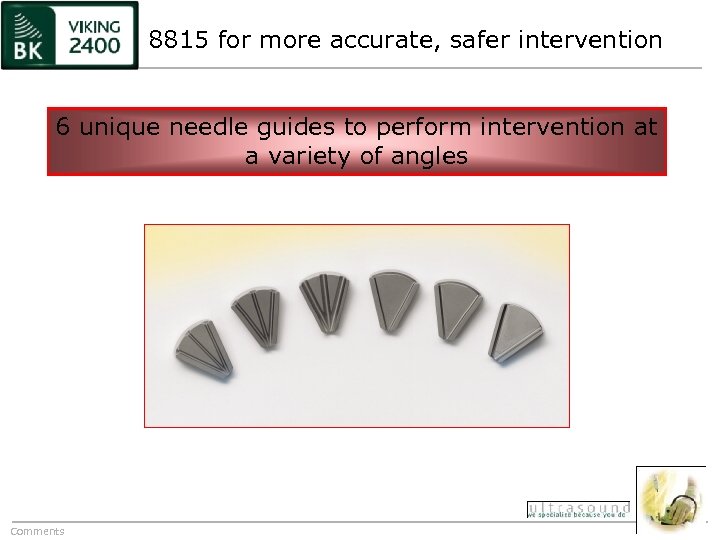

8815 for more accurate, safer intervention 6 unique needle guides to perform intervention at a variety of angles Comments

8815 for more accurate, safer intervention • Allows biopsies and other interventions through a range of acute angles • Lock the needle within the guide so you can position it properly; unlock it to take biopsy Comments

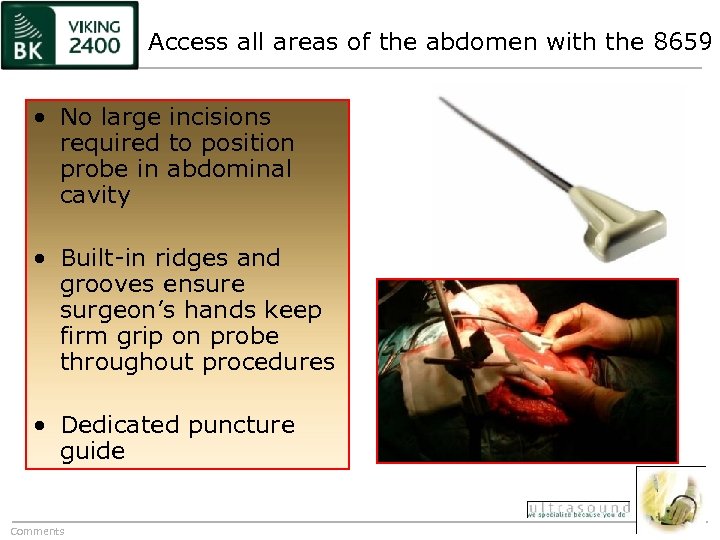

Access all areas of the abdomen with the 8659 • No large incisions required to position probe in abdominal cavity • Built-in ridges and grooves ensure surgeon’s hands keep firm grip on probe throughout procedures • Dedicated puncture guide Comments

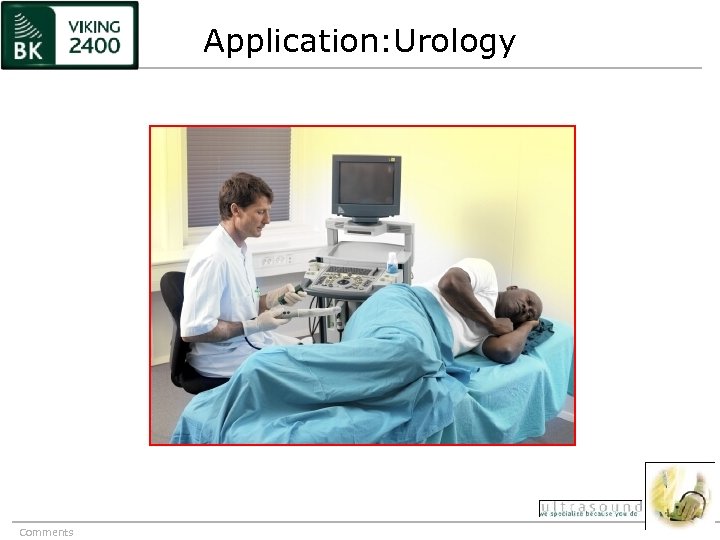

Application: Urology Comments

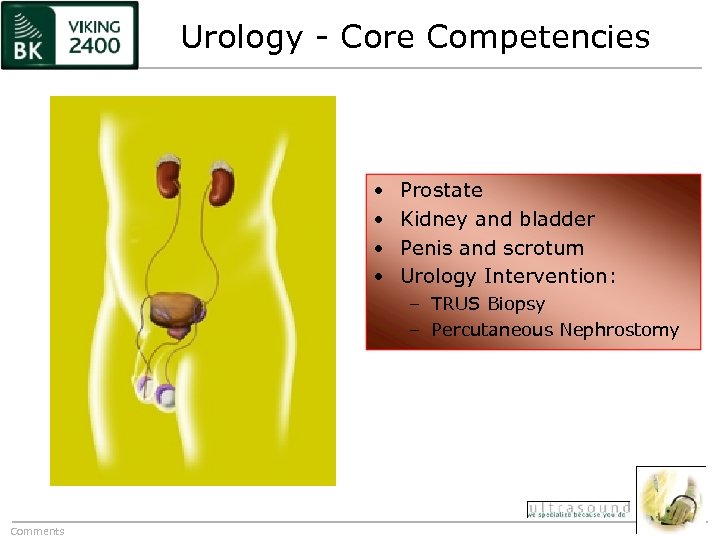

Urology - Core Competencies • • Prostate Kidney and bladder Penis and scrotum Urology Intervention: – TRUS Biopsy – Percutaneous Nephrostomy Comments

Transducers designed for urologists 8808 8803 8658 2050 Comments

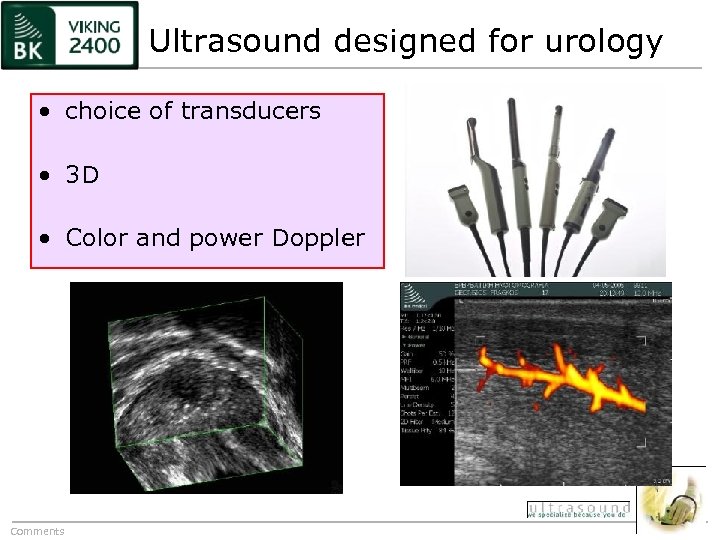

Ultrasound designed for urology • choice of transducers • 3 D • Color and power Doppler Comments

8818: New gold standard for prostate punctures • Combines biplane and End-fire possibilities • Unsurpassed IQ with frequency range 5 -10 MHz • B-K Medical patented biopsy principle • Contrast imaging (CHI) • Compatible with modern sterilization techniques Comments

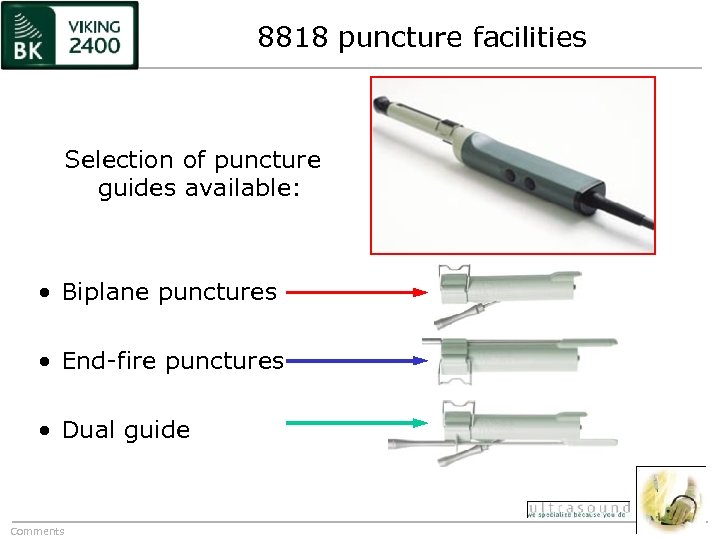

8818 puncture facilities Selection of puncture guides available: • Biplane punctures • End-fire punctures • Dual guide Comments

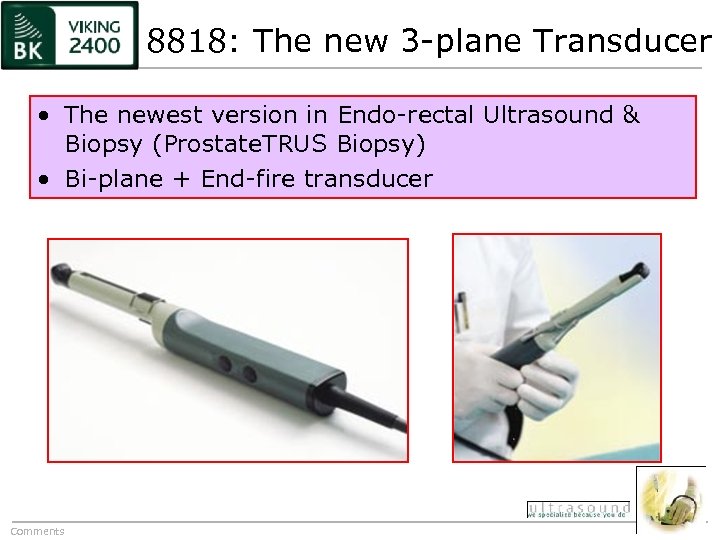

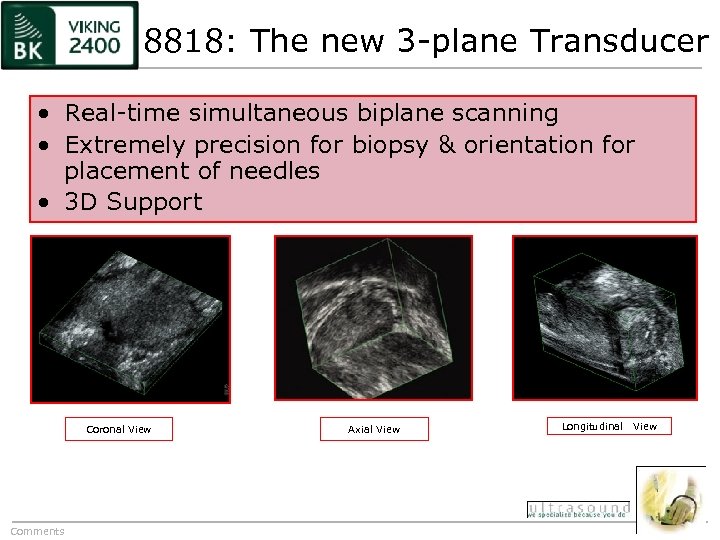

8818: The new 3 -plane Transducer • The newest version in Endo-rectal Ultrasound & Biopsy (Prostate. TRUS Biopsy) • Bi-plane + End-fire transducer Comments

8818: The new 3 -plane Transducer • Real-time simultaneous biplane scanning • Extremely precision for biopsy & orientation for placement of needles • 3 D Support Coronal View Comments Axial View Longitudinal View

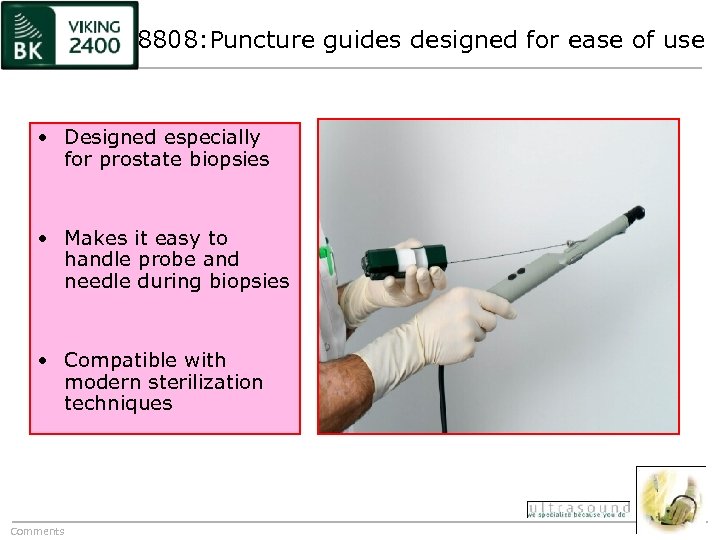

8808: Puncture guides designed for ease of use • Designed especially for prostate biopsies • Makes it easy to handle probe and needle during biopsies • Compatible with modern sterilization techniques Comments

8808: Greater certainty in correctly targeting sections for biopsies • Real-time simultaneous biplane scanning • Better orientation for placement of needles Comments

Confidence in biopsies: 8808 puncture guide Designed so you can take samples without contaminating probe Follow needle tip in both sagittal and transverse plane Sagital View Transvers View Comments

The Latest Quality & View in Brachytherapy Easy and precise volume studies and source implantation Comments

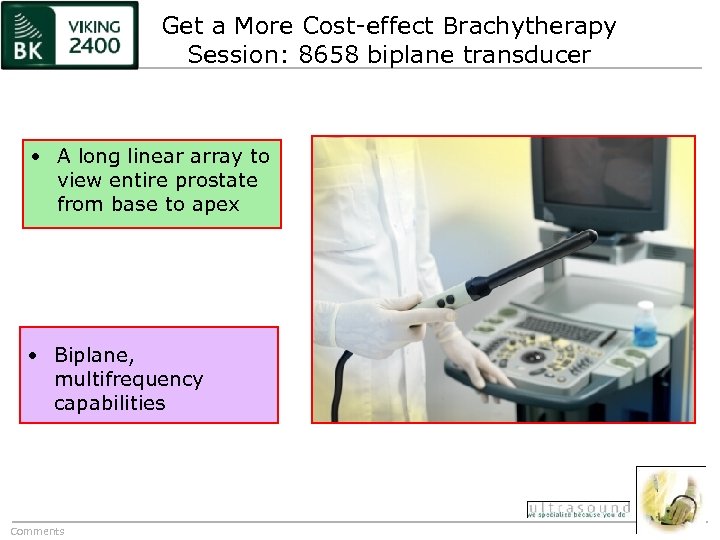

Get a More Cost-effect Brachytherapy Session: 8658 biplane transducer • A long linear array to view entire prostate from base to apex • Biplane, multifrequency capabilities Comments

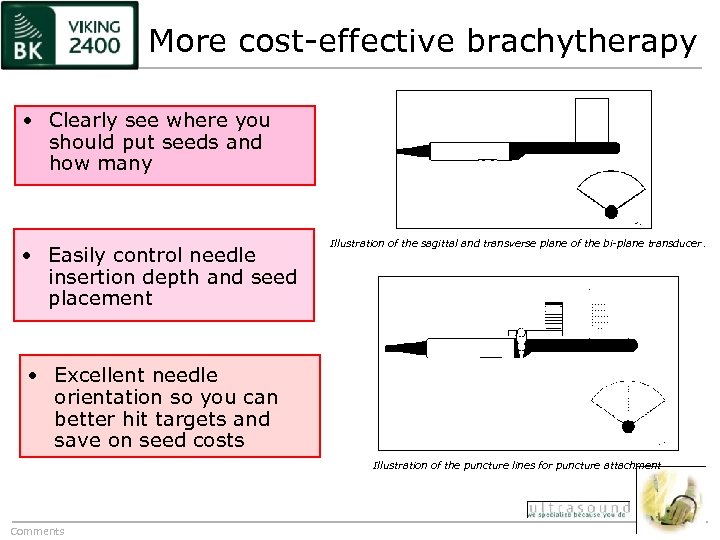

More cost-effective brachytherapy • Clearly see where you should put seeds and how many • Easily control needle insertion depth and seed placement Illustration of the sagittal and transverse plane of the bi-plane transducer. • Excellent needle orientation so you can better hit targets and save on seed costs Illustration of the puncture lines for puncture attachment Comments

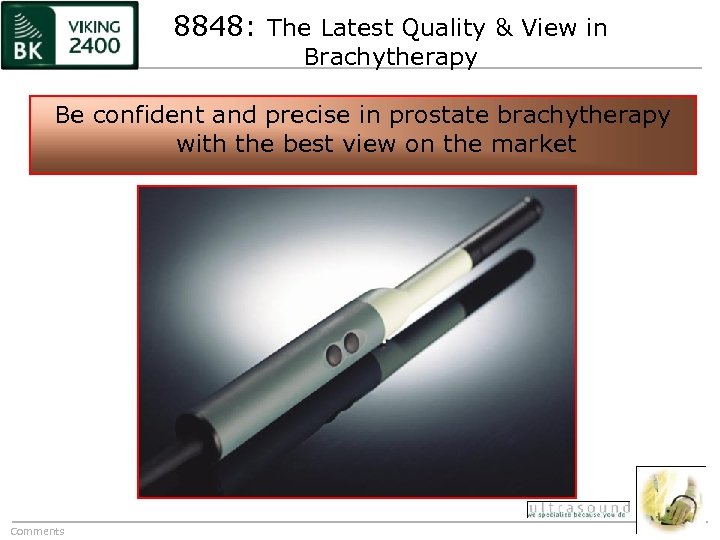

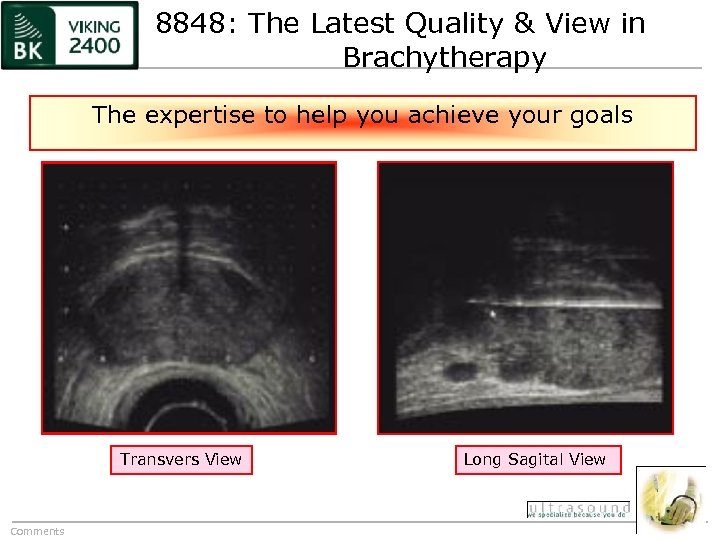

8848: The Latest Quality & View in Brachytherapy Be confident and precise in prostate brachytherapy with the best view on the market Comments

8848: The Latest Quality & View in Brachytherapy The expertise to help you achieve your goals Transvers View Comments Long Sagital View

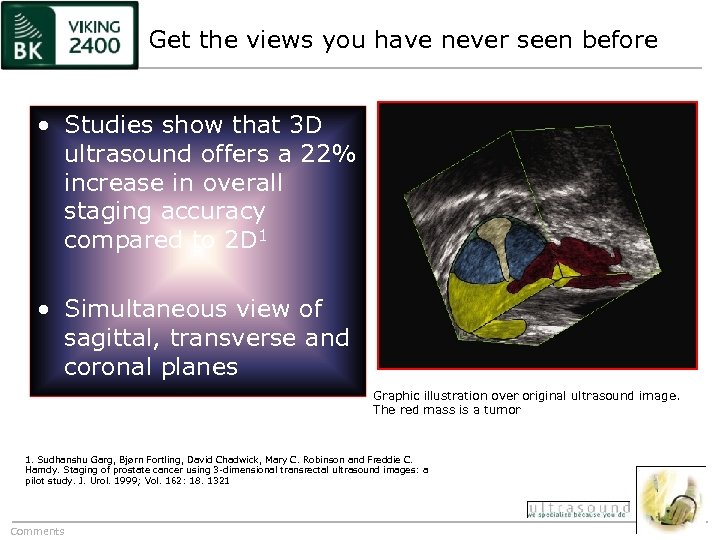

Get the views you have never seen before • Studies show that 3 D ultrasound offers a 22% increase in overall staging accuracy compared to 2 D 1 • Simultaneous view of sagittal, transverse and coronal planes Graphic illustration over original ultrasound image. The red mass is a tumor 1. Sudhanshu Garg, Bjørn Fortling, David Chadwick, Mary C. Robinson and Freddie C. Hamdy. Staging of prostate cancer using 3 -dimensional transrectal ultrasound images: a pilot study. J. Urol. 1999; Vol. 162: 18. 1321 Comments

Get clarity into complex structures of pelvic floor region Decide the best surgical course to correct incontinence Comments

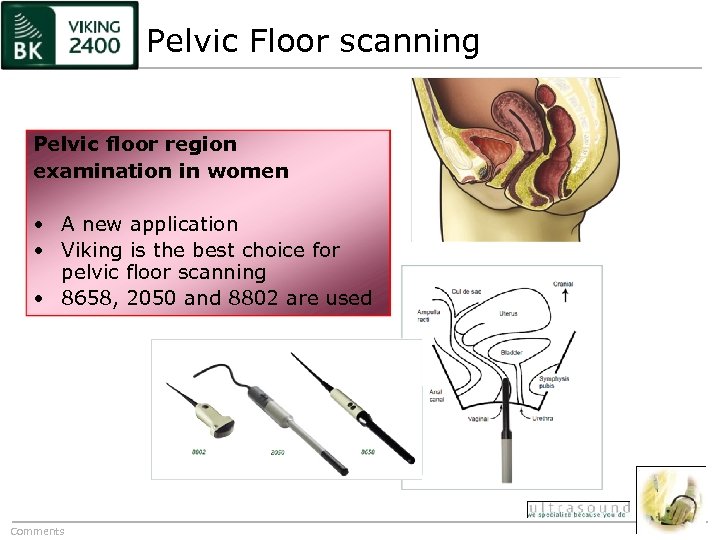

Pelvic Floor scanning • Excellent detail of pelvic floor region with 360° 2050 transducer • 8808 and 8658 to help diagnose urethral incontinence in men • 3 D Render mode • Convex abdominal probe for translabial ultrasound Comments

Pelvic Floor scanning Pelvic floor region examination in women • A new application • Viking is the best choice for pelvic floor scanning • 8658, 2050 and 8802 are used Comments

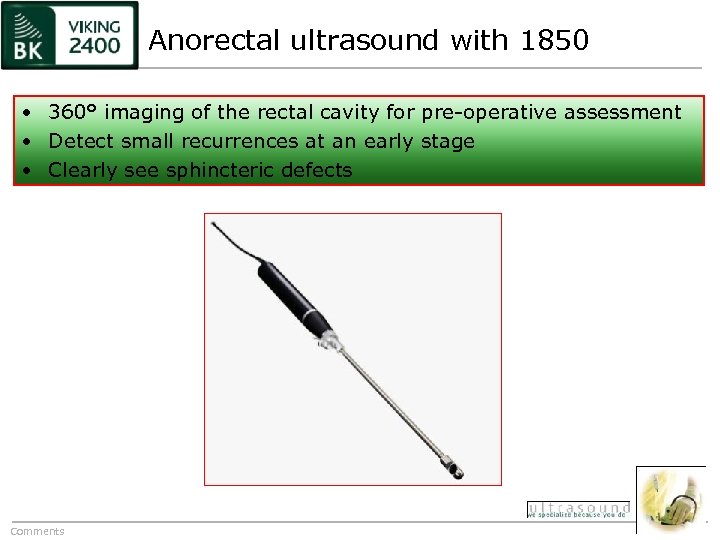

Anorectal ultrasound with 1850 • 360° imaging of the rectal cavity for pre-operative assessment • Detect small recurrences at an early stage • Clearly see sphincteric defects Comments

The latest in anorectal ultrasound: 2050 • World’s only 360° transducer with built-in 3 D mover • No moving parts come in contact with the patient: 3 D mover is fully enclosed within housing of slim probe • Acquire images for 3 D reconstruction at the touch of a button Comments

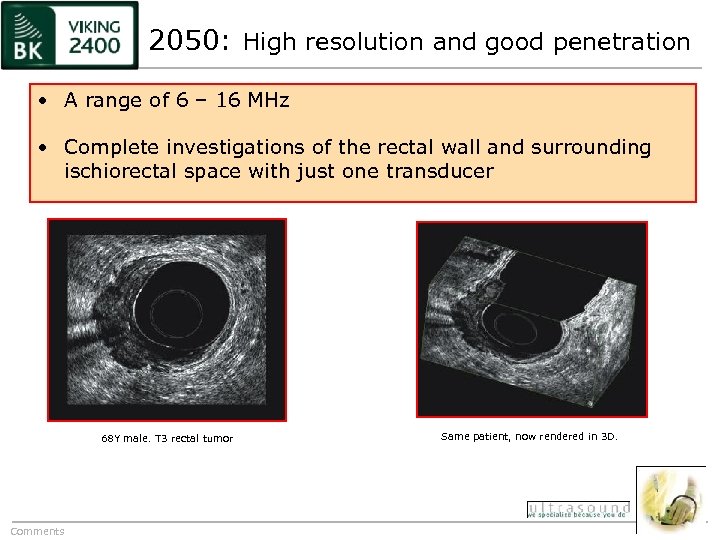

2050: High resolution and good penetration • A range of 6 – 16 MHz • Complete investigations of the rectal wall and surrounding ischiorectal space with just one transducer 68 Y male. T 3 rectal tumor Comments Same patient, now rendered in 3 D.

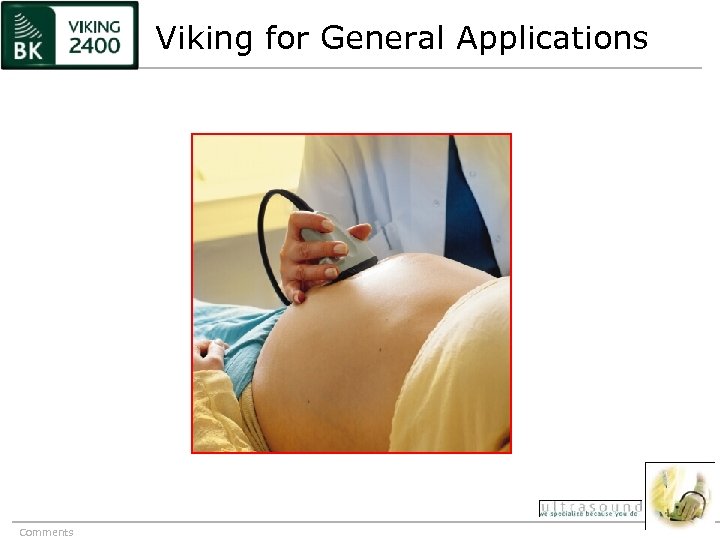

Viking for General Applications Comments

Other application areas include: Obstetrics and Gynecology • OB/Gyn Pro Package includes optimized transducer configuration as well as calculations and reports, for fast throughput • Image quality shows key fetal details Comments

Obstetrics and Gynecology • OB/Gyn Pro Package includes optimized transducer configuration as well as calculations and reports, for fast throughput • A real volume on integrated fetal 3 D • Image quality shows key fetal details Comments

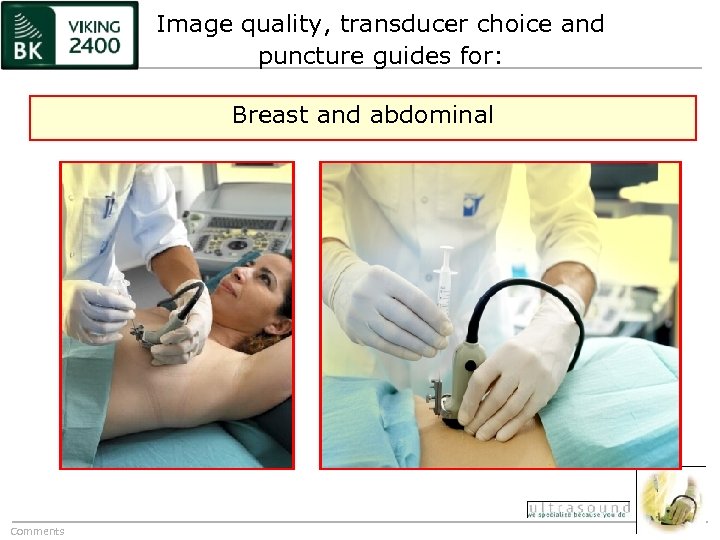

Image quality, transducer choice and puncture guides for: Breast and abdominal Comments

Image quality, transducer choice and puncture guides for: Vascular and musculoskeletal Comments

Musculoskeletal: 8809 probe Puncture guide for intervention in tight spaces Comments

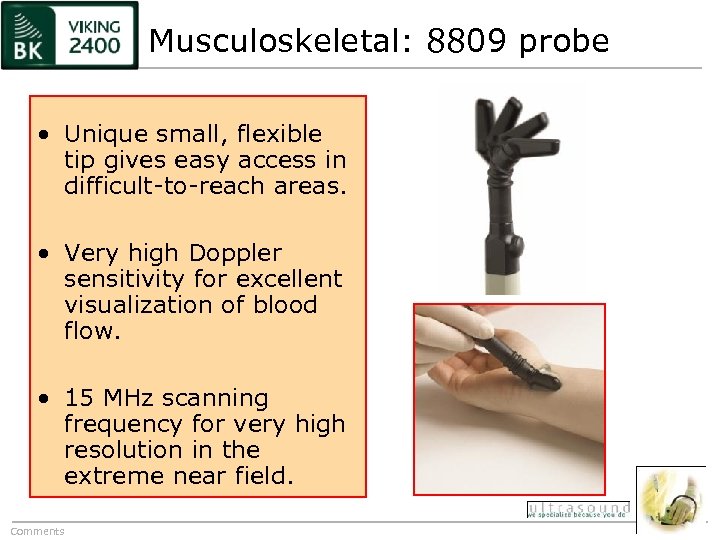

Musculoskeletal: 8809 probe • Unique small, flexible tip gives easy access in difficult-to-reach areas. • Very high Doppler sensitivity for excellent visualization of blood flow. • 15 MHz scanning frequency for very high resolution in the extreme near field. Comments

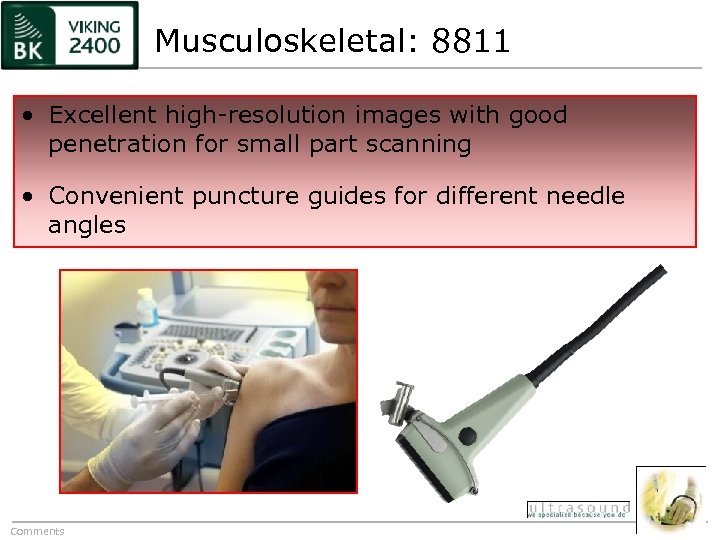

Musculoskeletal: 8811 • Excellent high-resolution images with good penetration for small part scanning • Convenient puncture guides for different needle angles Comments

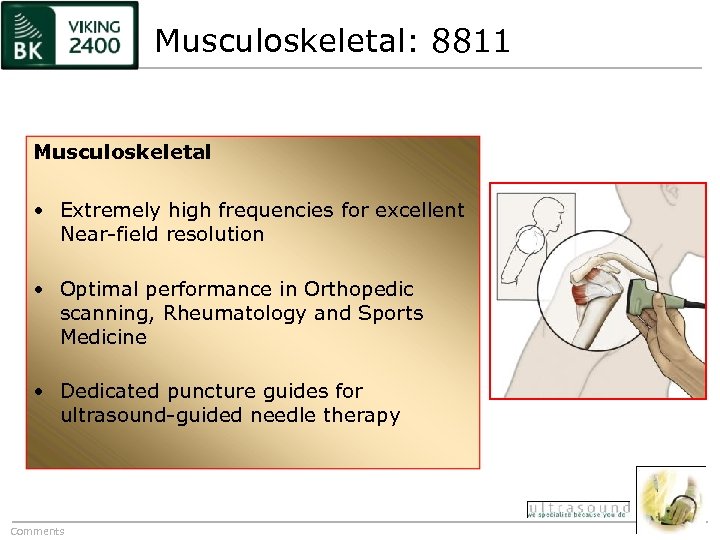

Musculoskeletal: 8811 Musculoskeletal • Extremely high frequencies for excellent Near-field resolution • Optimal performance in Orthopedic scanning, Rheumatology and Sports Medicine • Dedicated puncture guides for ultrasound-guided needle therapy Comments

Image quality, transducer choice and puncture guides for: Obstetrics and Gynecology Comments

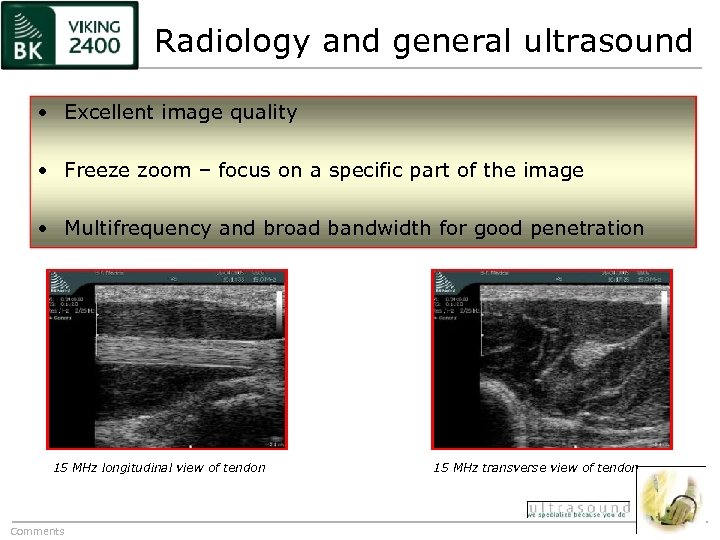

Radiology and general ultrasound • Excellent image quality • Freeze zoom – focus on a specific part of the image • Multifrequency and broad bandwidth for good penetration 15 MHz longitudinal view of tendon Comments 15 MHz transverse view of tendon

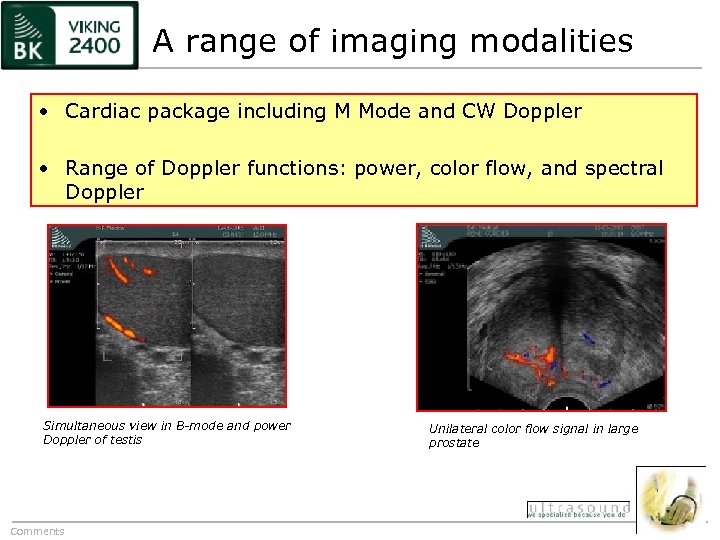

A range of imaging modalities • Cardiac package including M Mode and CW Doppler • Range of Doppler functions: power, color flow, and spectral Doppler Simultaneous view in B-mode and power Doppler of testis Comments Unilateral color flow signal in large prostate

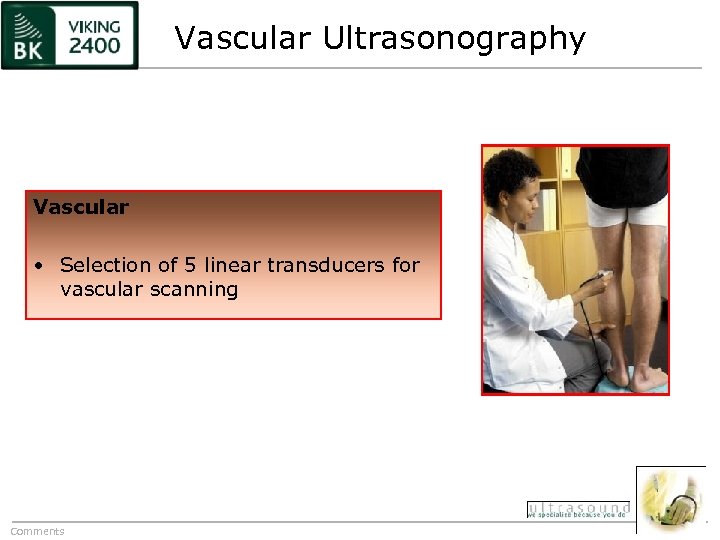

Vascular Ultrasonography Vascular • Selection of 5 linear transducers for vascular scanning Comments

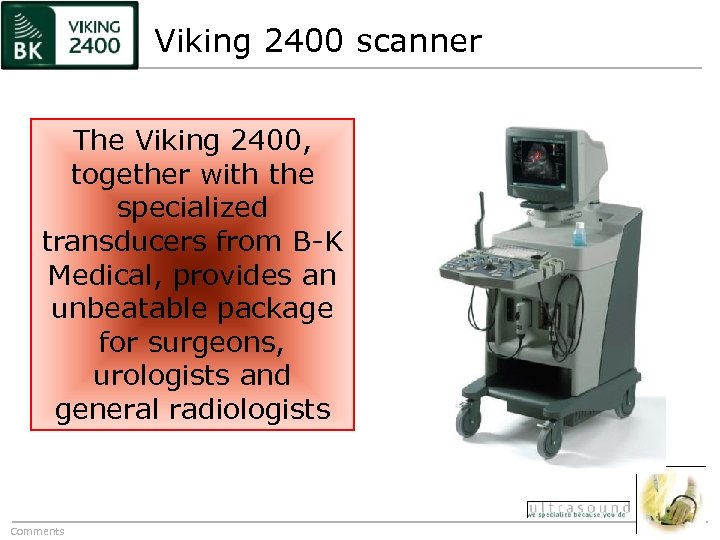

Viking 2400 scanner The Viking 2400, together with the specialized transducers from B-K Medical, provides an unbeatable package for surgeons, urologists and general radiologists Comments
