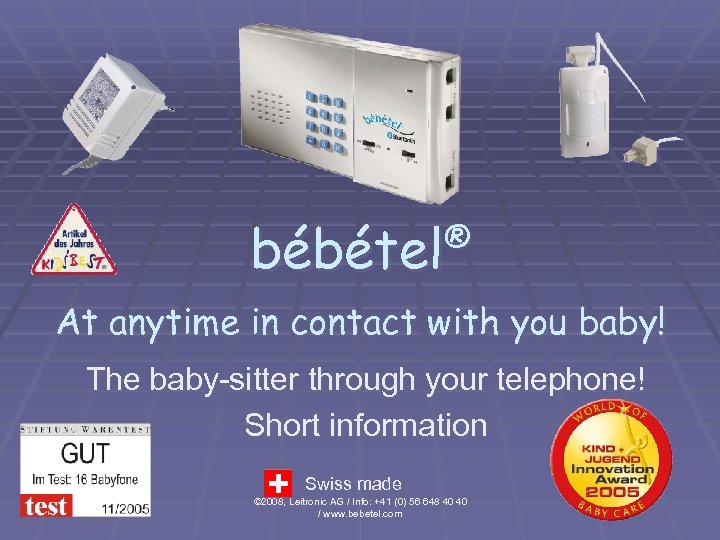

® bébétel At anytime in contact with you baby! The baby-sitter through your telephone!

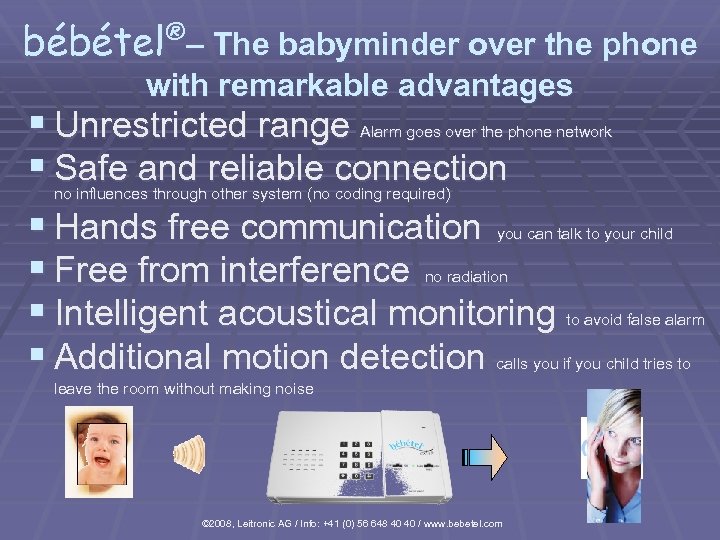

bébétel®– The babyminder over the phone with remarkable advantages § Unrestricted range § Safe and reliable connection § Hands free communication § Free from interference § Intelligent acoustical monitoring § Additional motion detection Alarm goes over the phone network no influences through other system (no coding required) you can talk to your child no radiation to avoid false alarm calls you if you child tries to leave the room without making noise © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

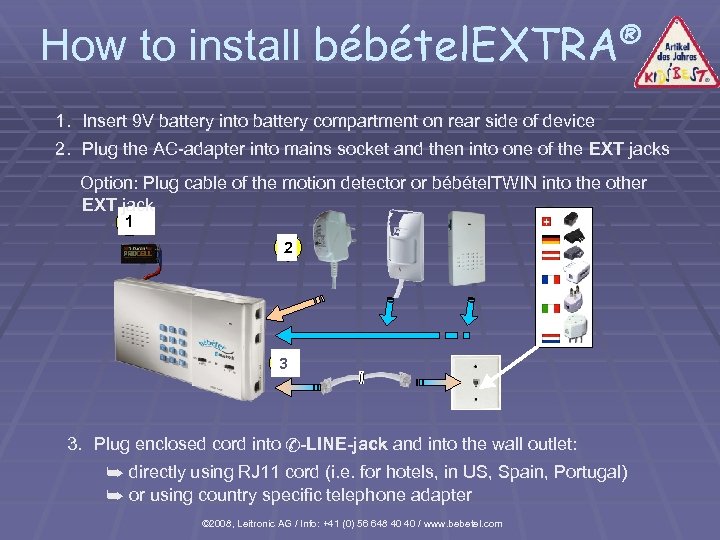

How to install ® bébétel. EXTRA 1. Insert 9 V battery into battery compartment on rear side of device 2. Plug the AC-adapter into mains socket and then into one of the EXT jacks Option: Plug cable of the motion detector or bébétel. TWIN into the other EXT jack 1 2 3 3. Plug enclosed cord into -LINE-jack and into the wall outlet: å directly using RJ 11 cord (i. e. for hotels, in US, Spain, Portugal) å or using country specific telephone adapter © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

How to install bébétel. BLUETOOTH® 1. Insert 9 V battery into battery compartment on rear side of device 2. Plug the AC-adapter into mains socket and then into one of the EXT jacks Option: Plug cable of the motion detector or bébétel. TWIN into the other EXT jack 1 2 3 mobile A phone B 3. Plug enclosed cord into -LINE-jack andtelephone line, holiday apartment, In mobile application (i. e. in hotel without into the wall outlet: camping ground) you can pair bébétel. BLUETOOTH with a BLUETOOTH mobile phone as hands-free device for hotels, in US, Spain, Portugal) å directly using RJ 11 cord only (i. e. Attention: mobile A stays with bébétel phone B with you! å using country specific telephone adapter © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

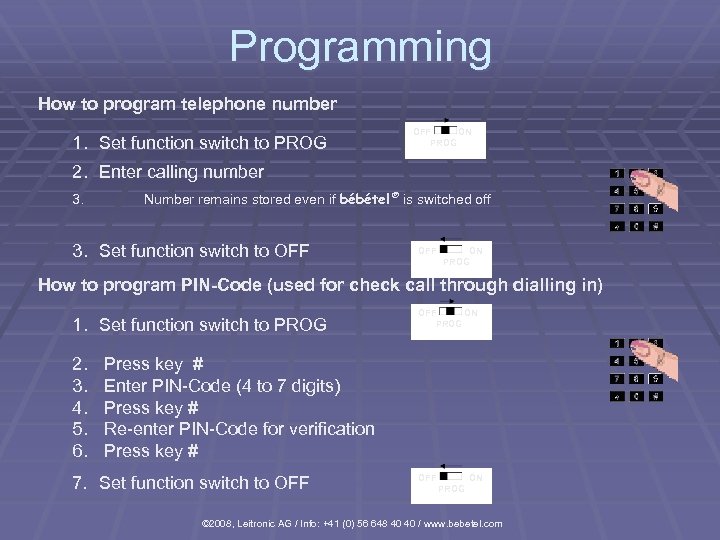

Programming How to program telephone number 1. Set function switch to PROG OFF ON PROG 2. Enter calling number 3. Number remains stored even if bébétel ® is switched off 3. Set function switch to OFF ON PROG How to program PIN-Code (used for check call through dialling in) 1. Set function switch to PROG 2. 3. 4. 5. 6. OFF ON PROG Press key # Enter PIN-Code (4 to 7 digits) Press key # Re-enter PIN-Code for verification Press key # 7. Set function switch to OFF ON PROG © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

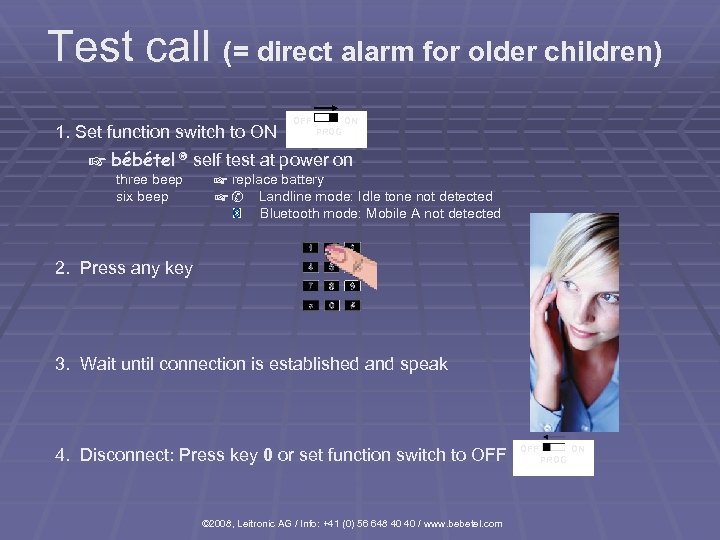

Test call (= direct alarm for older children) 1. Set function switch to ON OFF ON PROG bébétel ® self test at power on three beep six beep replace battery Landline mode: Idle tone not detected Bluetooth mode: Mobile A not detected 2. Press any key 3. Wait until connection is established and speak 4. Disconnect: Press key 0 or set function switch to OFF © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com OFF ON PROG

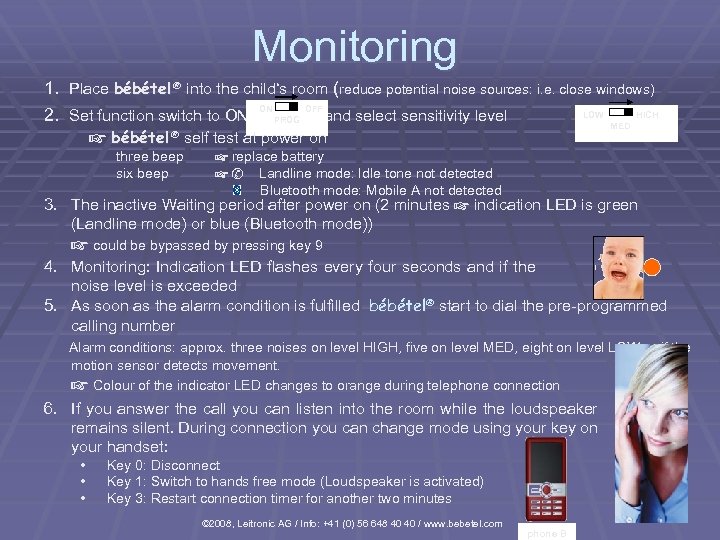

Monitoring 1. Place bébétel ® into the child‘s room (reduce potential noise sources: i. e. close windows) LOW HICH 2. Set function switch to ON ON PROG OFF and select sensitivity level MED bébétel ® self test at power on three beep six beep replace battery Landline mode: Idle tone not detected Bluetooth mode: Mobile A not detected 3. The inactive Waiting period after power on (2 minutes indication LED is green (Landline mode) or blue (Bluetooth mode)) could be bypassed by pressing key 9 4. Monitoring: Indication LED flashes every four seconds and if the noise level is exceeded 5. As soon as the alarm condition is fulfilled bébétel® start to dial the pre-programmed calling number Alarm conditions: approx. three noises on level HIGH, five on level MED, eight on level LOW or if the motion sensor detects movement. Colour of the indicator LED changes to orange during telephone connection 6. If you answer the call you can listen into the room while the loudspeaker remains silent. During connection you can change mode using your key on your handset: • • • Key 0: Disconnect Key 1: Switch to hands free mode (Loudspeaker is activated) Key 3: Restart connection timer for another two minutes © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com phone B

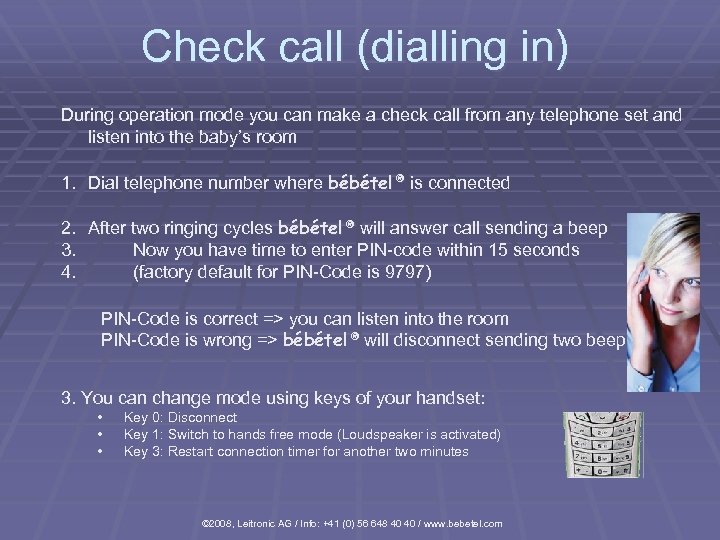

Check call (dialling in) During operation mode you can make a check call from any telephone set and listen into the baby’s room 1. Dial telephone number where bébétel ® is connected 2. After two ringing cycles bébétel ® will answer call sending a beep 3. Now you have time to enter PIN-code within 15 seconds 4. (factory default for PIN-Code is 9797) PIN-Code is correct => you can listen into the room PIN-Code is wrong => bébétel ® will disconnect sending two beep 3. You can change mode using keys of your handset: • • • Key 0: Disconnect Key 1: Switch to hands free mode (Loudspeaker is activated) Key 3: Restart connection timer for another two minutes © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

Accessories Telephone adapter set for use abroad Including different telephone adapter and 8 m extension telephone cord PIR-Set Motion detector incl. 8 m-connection cord bébétel. TWIN ® Extension unit to monitor a second room connected to bébétel ® with 8 m-connection cord Stand-alone smoke detector Alarm forwarding happens indirectly by the acoustic room monitoring © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

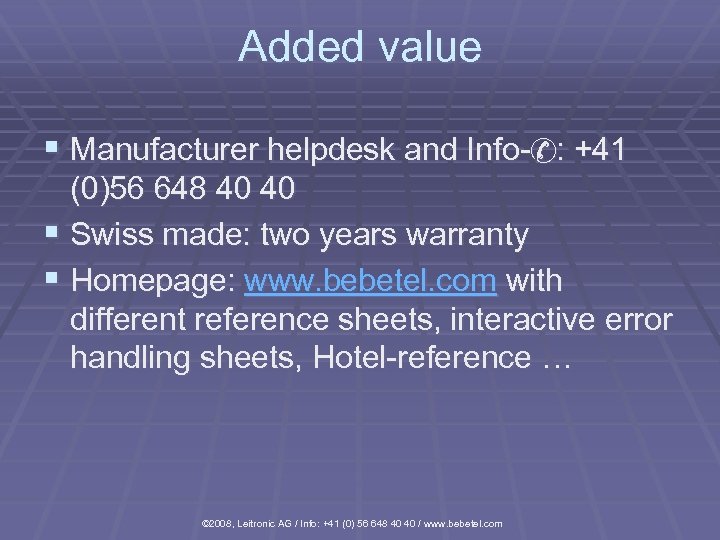

Added value § Manufacturer helpdesk and Info- : +41 (0)56 648 40 40 § Swiss made: two years warranty § Homepage: www. bebetel. com with different reference sheets, interactive error handling sheets, Hotel-reference … © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

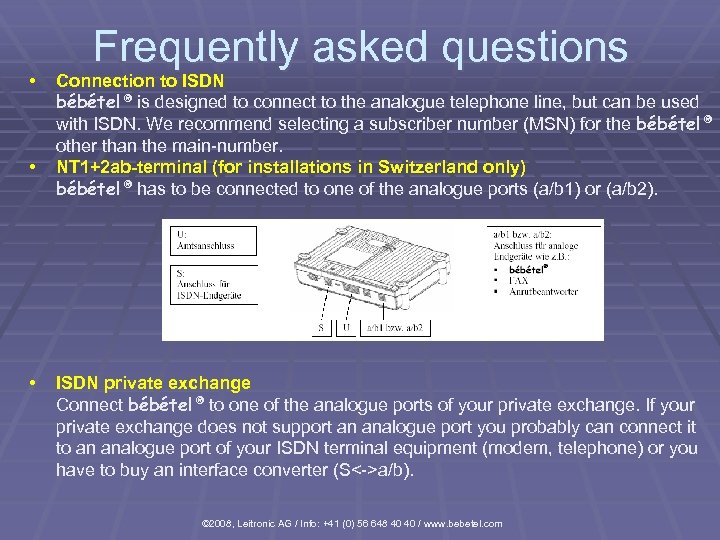

• • • Frequently asked questions Connection to ISDN bébétel ® is designed to connect to the analogue telephone line, but can be used with ISDN. We recommend selecting a subscriber number (MSN) for the bébétel ® other than the main-number. NT 1+2 ab-terminal (for installations in Switzerland only) bébétel ® has to be connected to one of the analogue ports (a/b 1) or (a/b 2). ISDN private exchange Connect bébétel ® to one of the analogue ports of your private exchange. If your private exchange does not support an analogue port you probably can connect it to an analogue port of your ISDN terminal equipment (modem, telephone) or you have to buy an interface converter (S<->a/b). © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

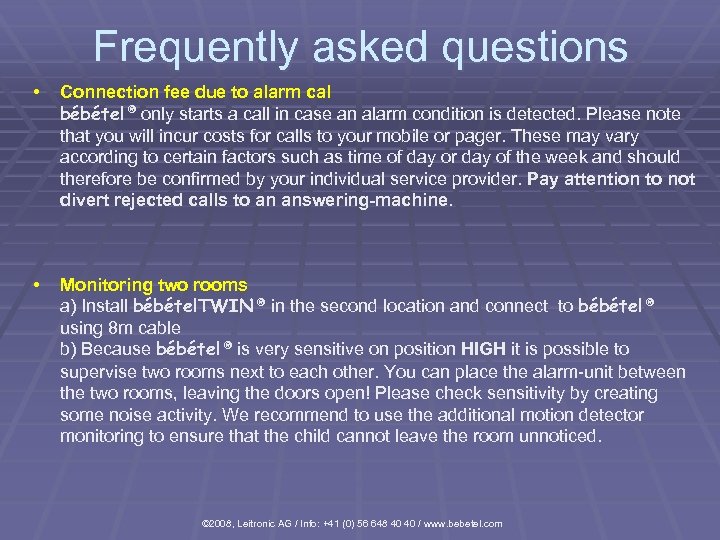

Frequently asked questions • Connection fee due to alarm cal bébétel ® only starts a call in case an alarm condition is detected. Please note that you will incur costs for calls to your mobile or pager. These may vary according to certain factors such as time of day or day of the week and should therefore be confirmed by your individual service provider. Pay attention to not divert rejected calls to an answering-machine. • Monitoring two rooms a) Install bébétel. TWIN ® in the second location and connect to bébétel ® using 8 m cable b) Because bébétel ® is very sensitive on position HIGH it is possible to supervise two rooms next to each other. You can place the alarm-unit between the two rooms, leaving the doors open! Please check sensitivity by creating some noise activity. We recommend to use the additional motion detector monitoring to ensure that the child cannot leave the room unnoticed. © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com

Other products from Leitronic AG § Easy. Alarm BASIC Technical alarms § Easy. Alarm SENIOR Emergency dialler for elderly people/patients § Easy. Alarm HOME Home security with wireless sensors § Easy. Alarm WRL HOME Home security with wireless sensors § Easy. Alarm MANDOWN Personal safety (Man Down) § Easy. Alarm ELEVATOR Elevator emergency dialler ü Simple to install ü Easy to use due to fully voice-guided user interface ü up to nine calling numbers © 2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www. bebetel. com
