Basics of Titration by Michael Margreth
Basics • One of the oldest analytical methods • Based on chemical reaction • Determination of the volume of a standard solution (titrant) • Standard solution contains a defined number of molecules • Measuring volume = counting molecules • TITRATION MEANS COUNTING!
Titration Start Titrant Sample
Titration Endpoint Titrant + Sample
Titration End Titrant + Sample
Principle of a Manual Titration Titrant - optical detection - manual control - manual addition Color indicator
All in one! • Dosing • Measuring • Controlling • Evaluation
Titrations Modes • Set Endpoint Titration SET • Monotonic Equivalence point Titration MET • Dynamic Equivalence point Titration DET • Karl Fischer Titration KFT
![Set Endpoint Titration Signal [p. H/m. V] endpoint volume](https://present5.com/presentation/9d9113d3600ba49503924d6091409a44/image-9.jpg "Set Endpoint Titration Signal [p. H/m. V] endpoint volume")
Set Endpoint Titration Signal [p. H/m. V] endpoint volume
![Monotonic Equivalence Point Titration Signal [p. H/m. V] equivalence point volume](https://present5.com/presentation/9d9113d3600ba49503924d6091409a44/image-10.jpg "Monotonic Equivalence Point Titration Signal [p. H/m. V] equivalence point volume")
Monotonic Equivalence Point Titration Signal [p. H/m. V] equivalence point volume
![Dynamic Equivalence Point Titration Signal [p. H/m. V] equivalence point volume](https://present5.com/presentation/9d9113d3600ba49503924d6091409a44/image-11.jpg "Dynamic Equivalence Point Titration Signal [p. H/m. V] equivalence point volume")
Dynamic Equivalence Point Titration Signal [p. H/m. V] equivalence point volume
Volume increment • • In MET mode the steps are always the same In DET mode the steps are calculated by the Titrando MET Mode DET Mode p. H EP 1 V [m. L]
![Karl Fischer Titration Signal [mg/min] Endpoint volume](https://present5.com/presentation/9d9113d3600ba49503924d6091409a44/image-13.jpg "Karl Fischer Titration Signal [mg/min] Endpoint volume")
Karl Fischer Titration Signal [mg/min] Endpoint volume

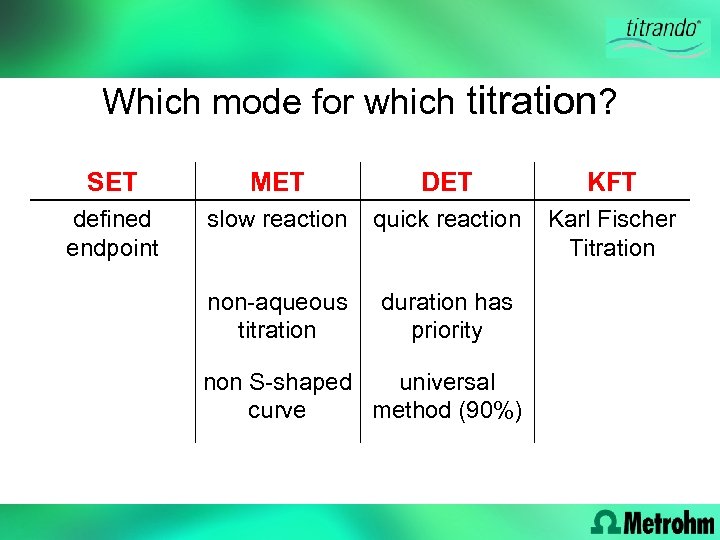

Which mode for which titration? SET MET DET KFT defined endpoint slow reaction quick reaction Karl Fischer Titration non-aqueous titration duration has priority non S-shaped universal curve method (90%)

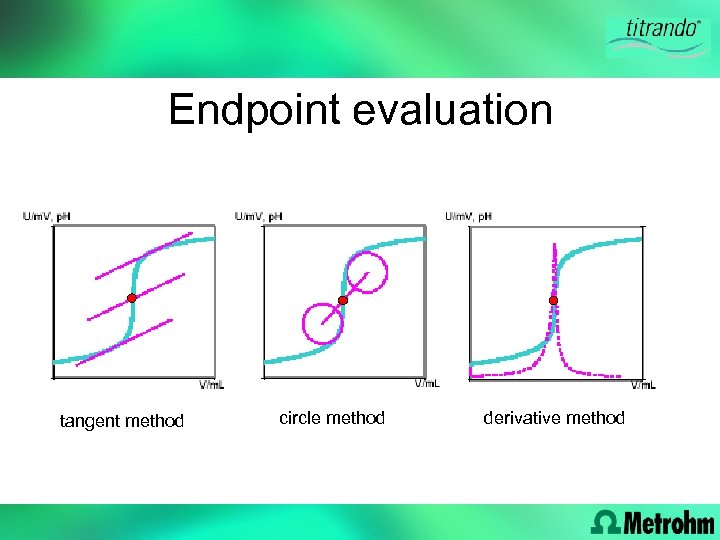

Endpoint evaluation tangent method circle method derivative method
Titration steps • sample preparation (homogeneity) • right electrode choice • possibly electrode conditioning • titrant preparation • titer determination • buret/ sample size choice • correct arrangement in titration vessel • stirrer rate • method parameters • results calculation • report

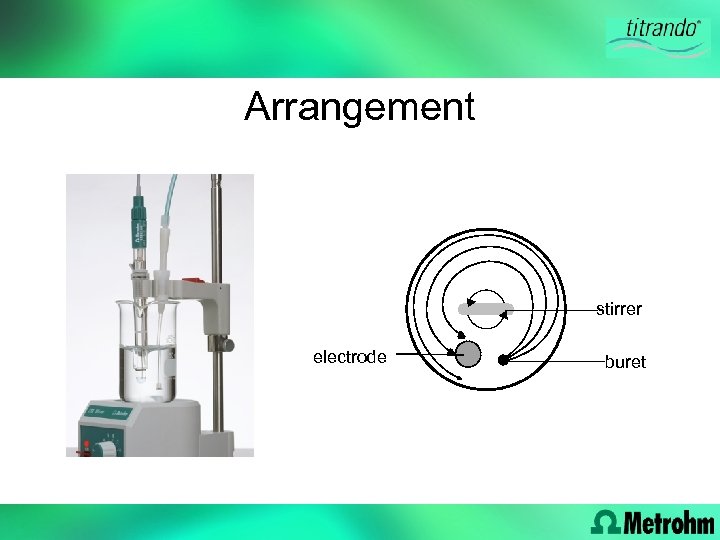

Arrangement stirrer electrode buret

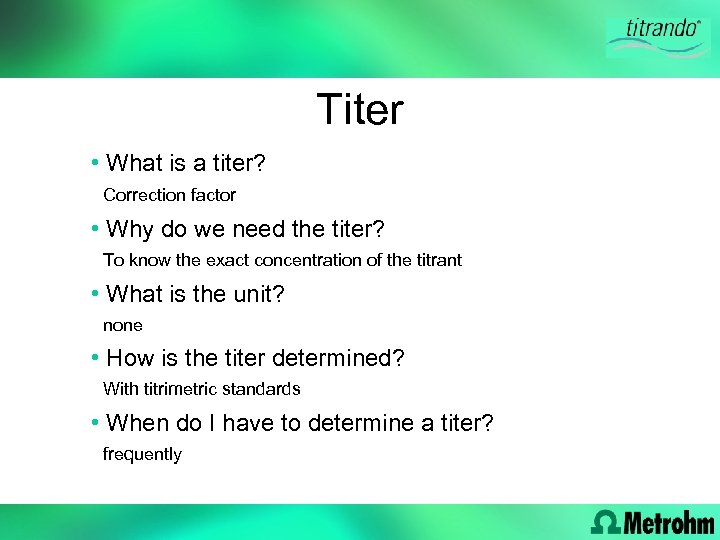

Titer • What is a titer? Correction factor • Why do we need the titer? To know the exact concentration of the titrant • What is the unit? none • How is the titer determined? With titrimetric standards • When do I have to determine a titer? frequently

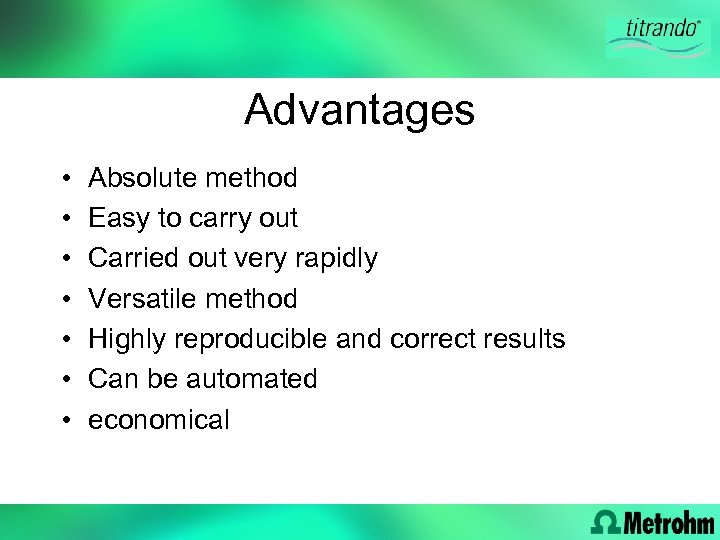

Advantages • • Absolute method Easy to carry out Carried out very rapidly Versatile method Highly reproducible and correct results Can be automated economical
Hardware definition System

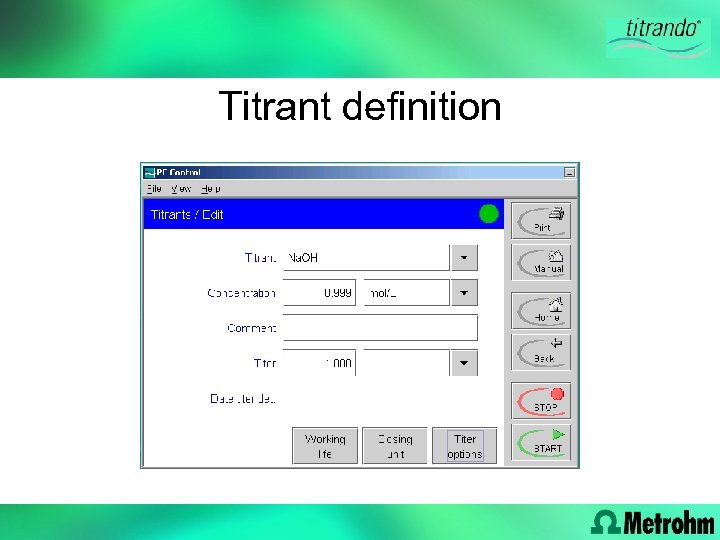

Titrant definition

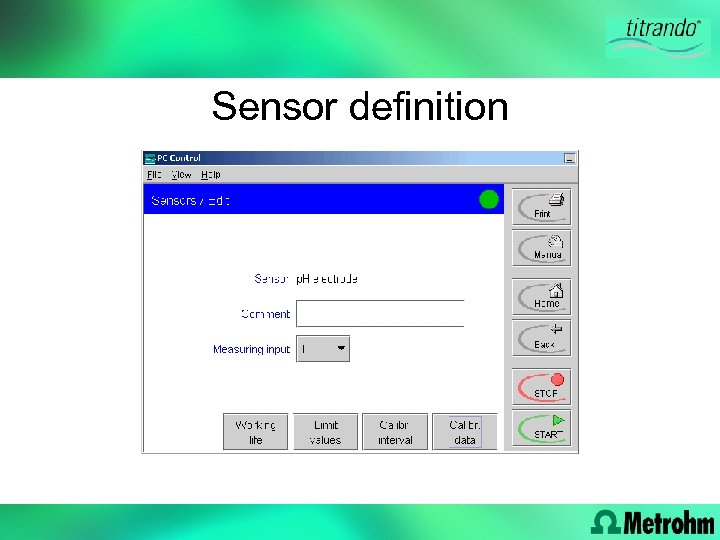

Sensor definition

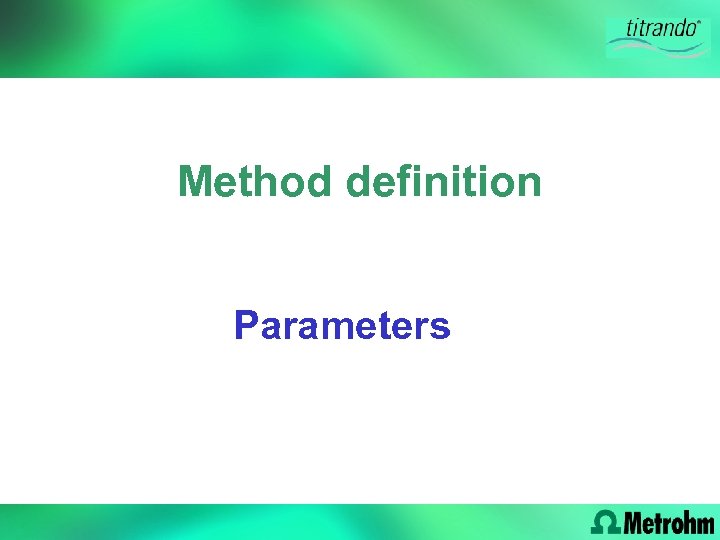

Method definition Parameters
Titration method

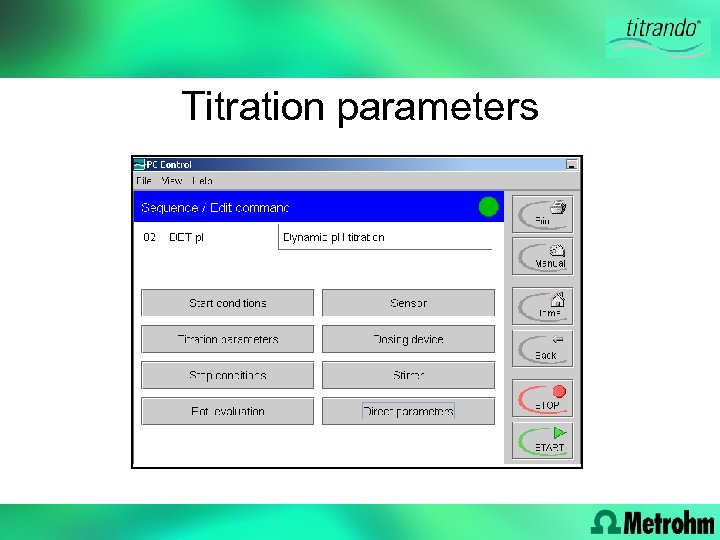

Titration parameters

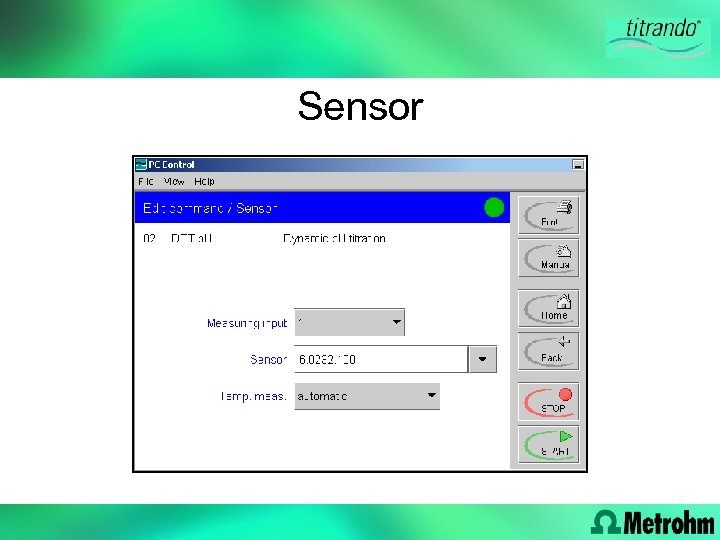

Sensor
Dosing device

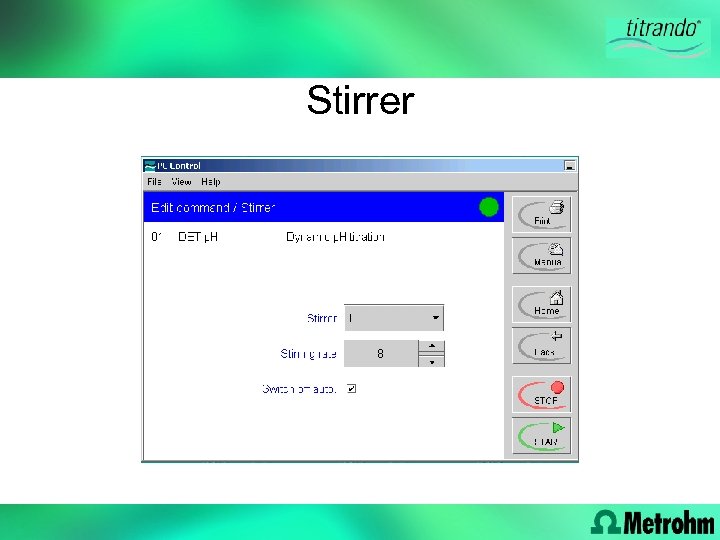

Stirrer

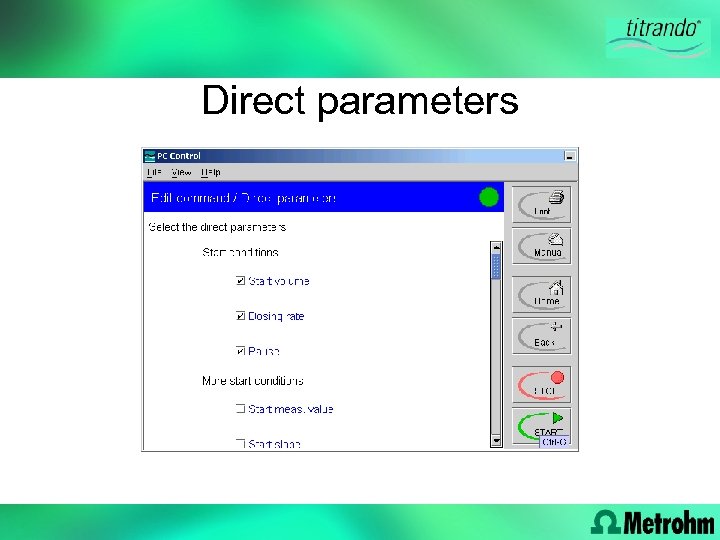

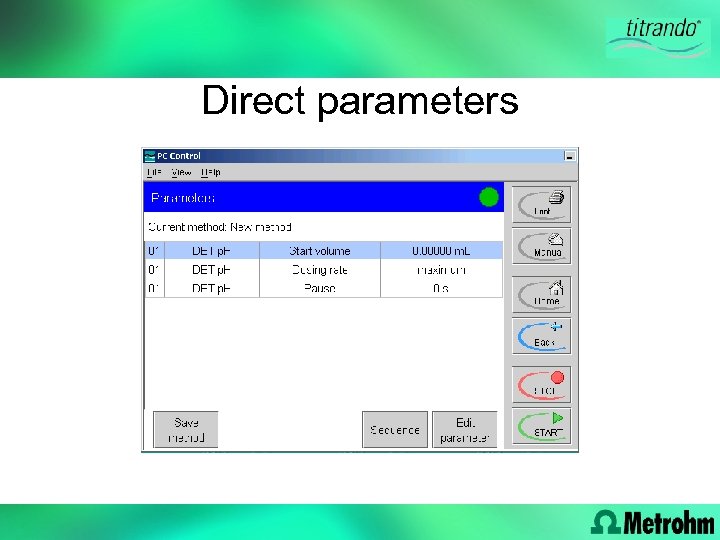

Direct parameters
Direct parameters

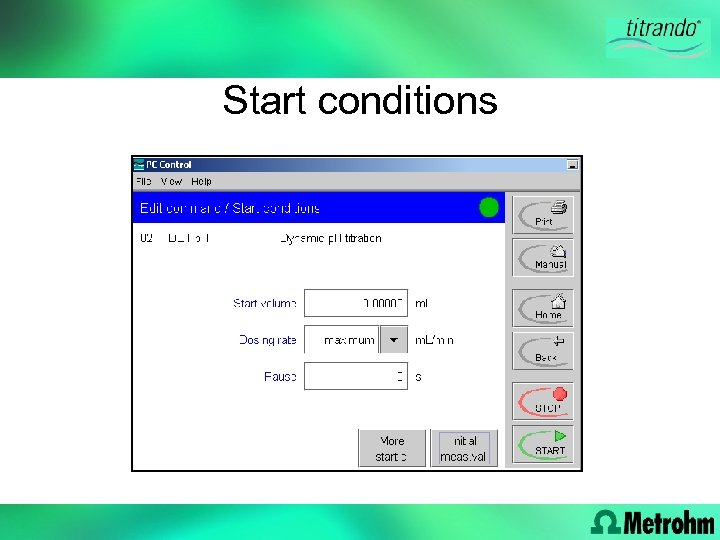

Start conditions
Titration parameters

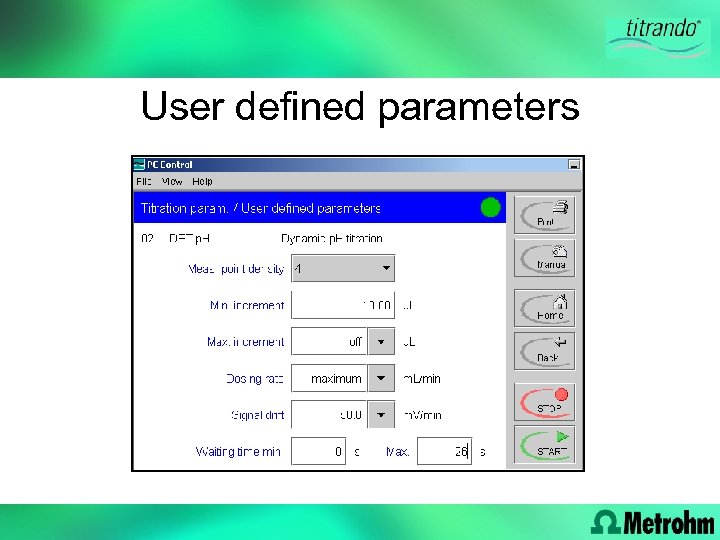

User defined parameters

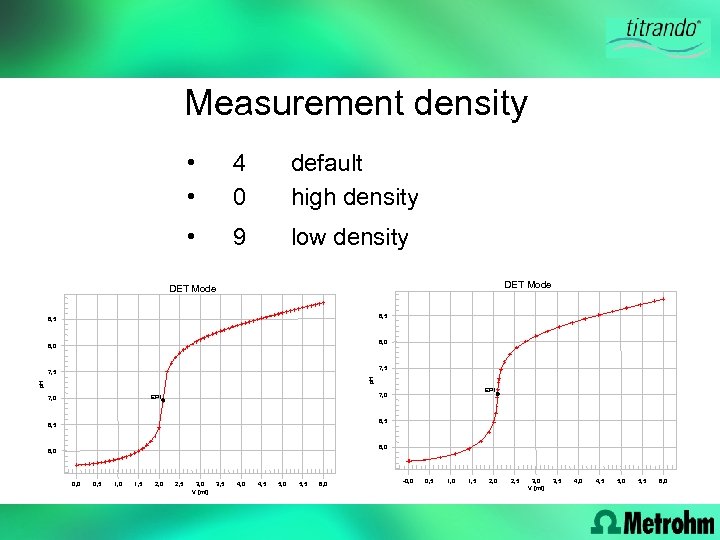

Measurement density • • 4 0 default high density • 9 low density DET Mode 8, 5 8, 0 7, 5 p. H 7, 5 EP 1 7, 0 6, 5 6, 0 0, 5 1, 0 1, 5 2, 0 2, 5 3, 0 V [ml] 3, 5 4, 0 4, 5 5, 0 5, 5 6, 0 -0, 0 0, 5 1, 0 1, 5 2, 0 2, 5 3, 0 V [ml] 3, 5 4, 0 4, 5 5, 0 5, 5 6, 0
Stop conditions
Evaluation

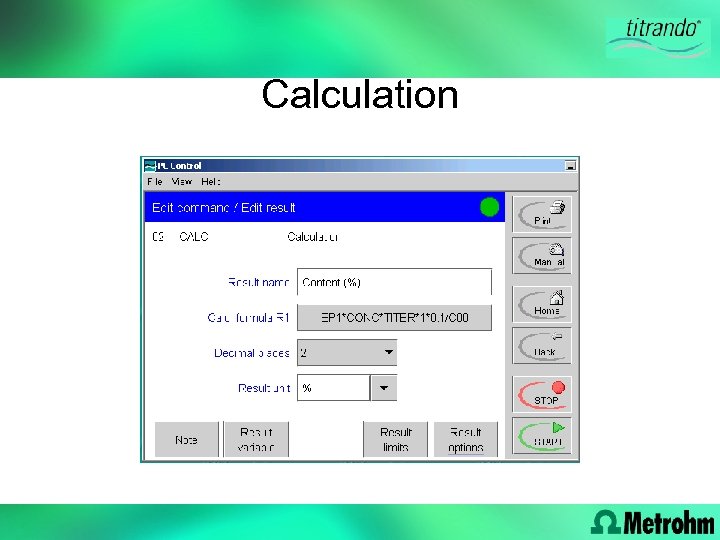

Calculation

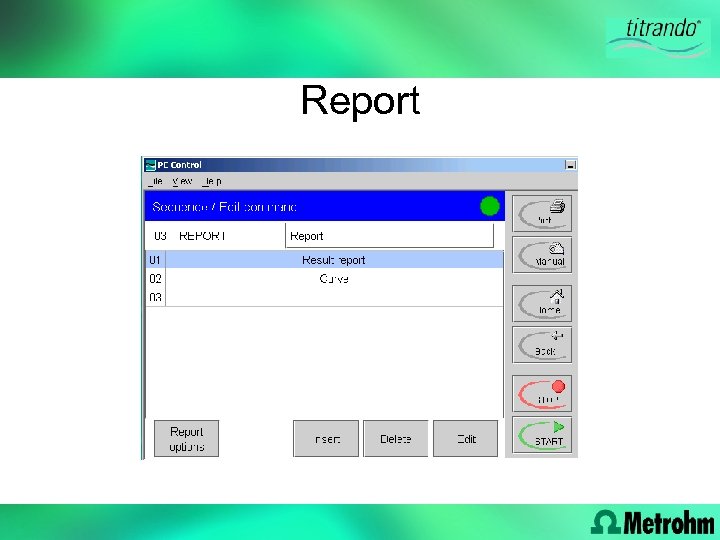

Report

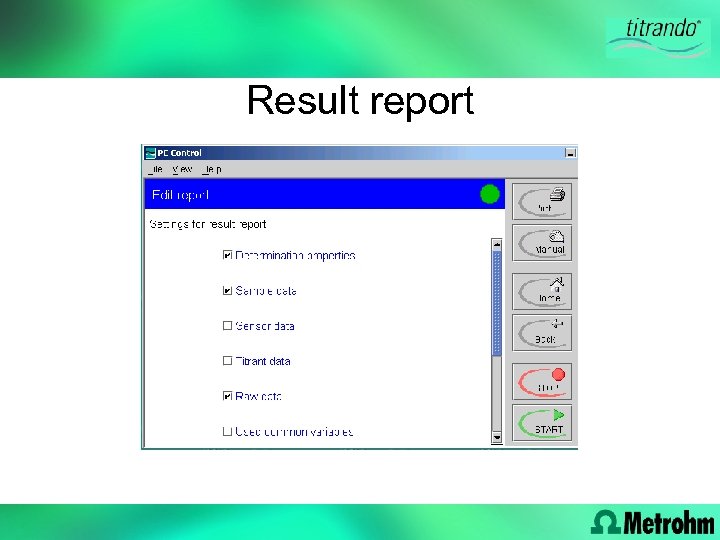

Result report

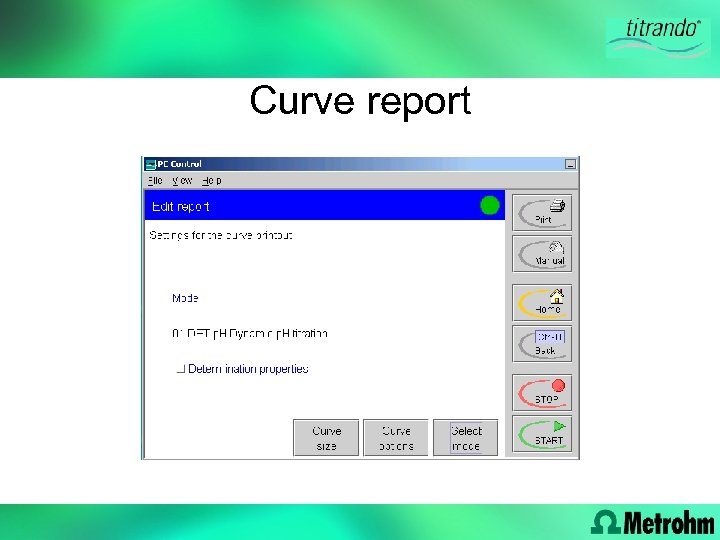

Curve report
