BARC IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, BARC IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007 Examples of Natural Circulation in PHWR by Dilip Saha and P. K. Vijayan Reactor Engineering Division Bhabha Atomic Research Centre Trombay, Mumbai 400085, INDIA

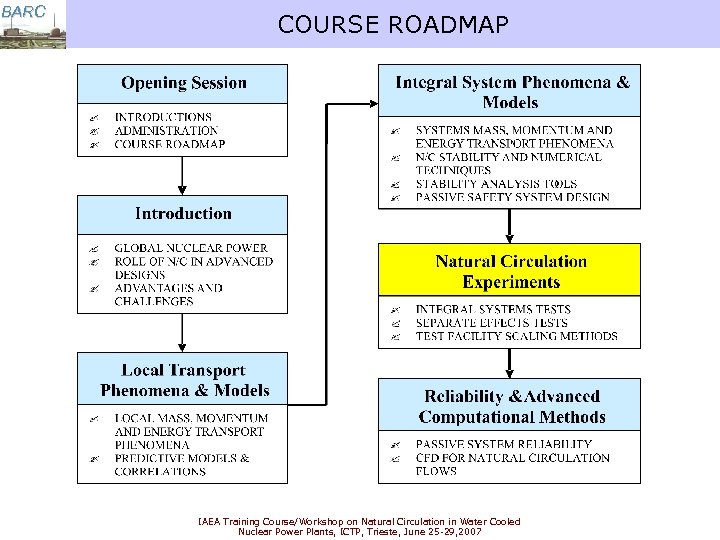

BARC COURSE ROADMAP IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power BARC COURSE ROADMAP IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

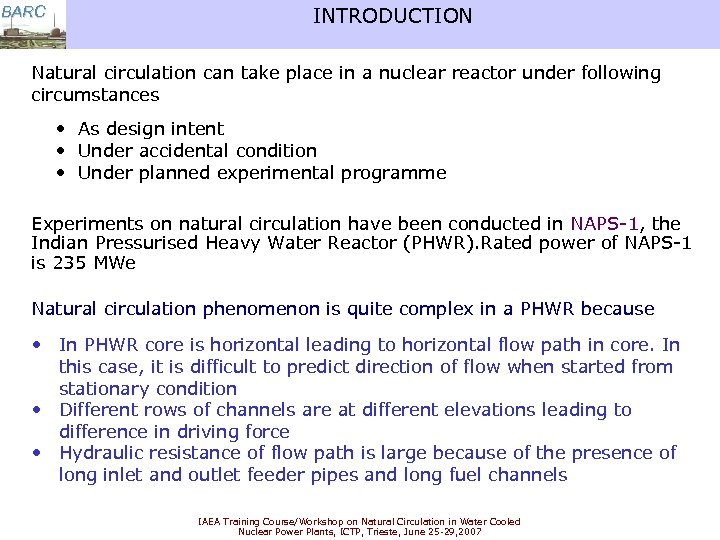

BARC INTRODUCTION Natural circulation can take place in a nuclear reactor under following circumstances BARC INTRODUCTION Natural circulation can take place in a nuclear reactor under following circumstances • As design intent • Under accidental condition • Under planned experimental programme Experiments on natural circulation have been conducted in NAPS-1, the Indian Pressurised Heavy Water Reactor (PHWR). Rated power of NAPS-1 is 235 MWe Natural circulation phenomenon is quite complex in a PHWR because • In PHWR core is horizontal leading to horizontal flow path in core. In this case, it is difficult to predict direction of flow when started from stationary condition • Different rows of channels are at different elevations leading to difference in driving force • Hydraulic resistance of flow path is large because of the presence of long inlet and outlet feeder pipes and long fuel channels IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

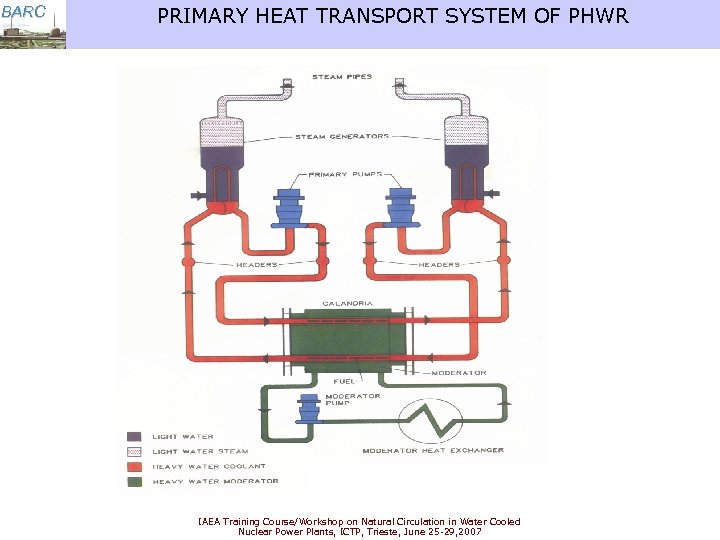

BARC PRIMARY HEAT TRANSPORT SYSTEM OF PHWR IAEA Training Course/Workshop on Natural Circulation in BARC PRIMARY HEAT TRANSPORT SYSTEM OF PHWR IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

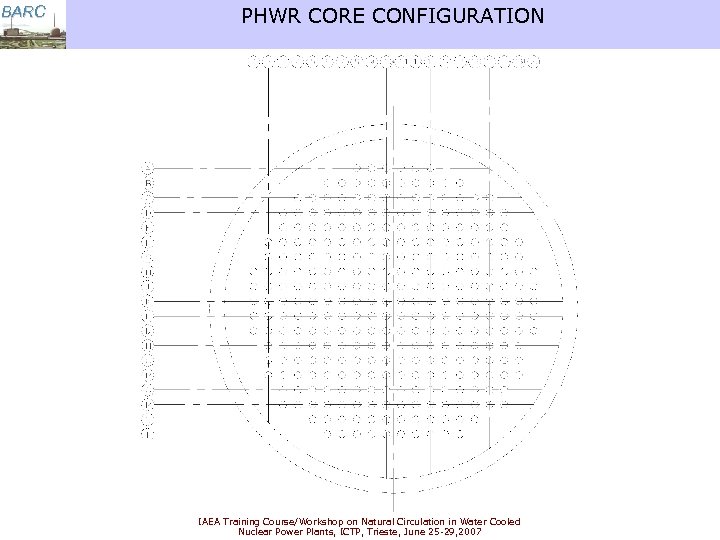

BARC PHWR CORE CONFIGURATION IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear BARC PHWR CORE CONFIGURATION IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

BARC NATURAL CIRCULATION TESTS IN INDIAN PHWR TEST OBJECTIVES Phenomenological studies were earlier carried BARC NATURAL CIRCULATION TESTS IN INDIAN PHWR TEST OBJECTIVES Phenomenological studies were earlier carried out in a simple figure-ofeight loop. Based on the results of these studies a computer code TINFLO –III was developed Tests were carried out in Unit-1 of Narora Atomic Power Station (NAPS) • To verify predictions of the code • To experimentally establish the onset of natural circulation in Indian PHWRs Tests conducted at power levels of 0. 956, 1. 991 and 3. 249 percent of full power (FP) Initial Conditions secondary side pressure of the SG : SG level : primary pressure : 14. 6 bar 12. 9 m 86 bar IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

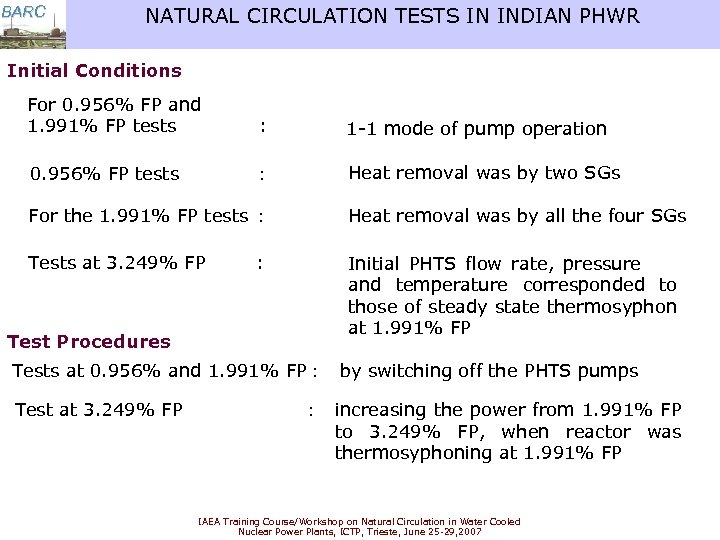

BARC NATURAL CIRCULATION TESTS IN INDIAN PHWR Initial Conditions For 0. 956% FP and BARC NATURAL CIRCULATION TESTS IN INDIAN PHWR Initial Conditions For 0. 956% FP and 1. 991% FP tests : 1 -1 mode of pump operation 0. 956% FP tests : Heat removal was by two SGs For the 1. 991% FP tests : Heat removal was by all the four SGs Tests at 3. 249% FP Initial PHTS flow rate, pressure and temperature corresponded to those of steady state thermosyphon at 1. 991% FP : Test Procedures Tests at 0. 956% and 1. 991% FP : by switching off the PHTS pumps Test at 3. 249% FP increasing the power from 1. 991% FP to 3. 249% FP, when reactor was thermosyphoning at 1. 991% FP : IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

BARC NATURAL CIRCULATION TESTS IN INDIAN PHWR Test Procedures PHTS pressure was maintained with BARC NATURAL CIRCULATION TESTS IN INDIAN PHWR Test Procedures PHTS pressure was maintained with the help of Fuelling Machine Supply Pump Parameters recorded during the tests • • • Channel flows and differential temperatures for 16 channels SG differential temperatures, pressure and level for all the four SGs Differential pressure across each RIH and the corresponding ROH PHTS pressure Neutron power and Channel outlet temperature for all the channels IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

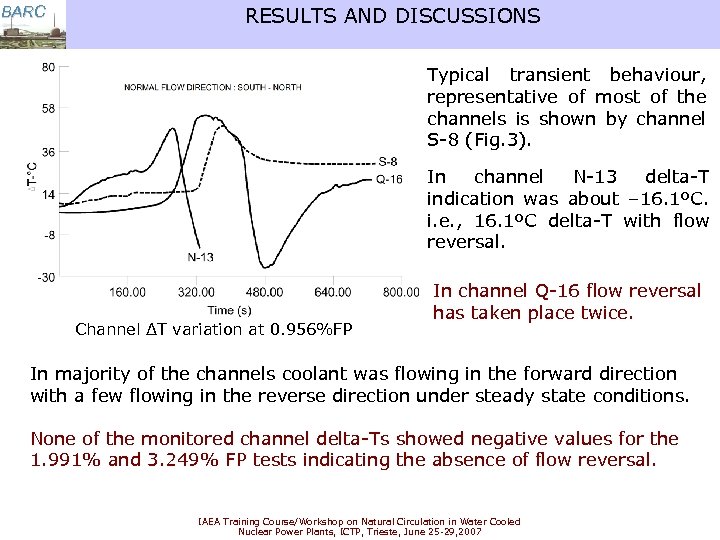

BARC RESULTS AND DISCUSSIONS Typical transient behaviour, representative of most of the channels is BARC RESULTS AND DISCUSSIONS Typical transient behaviour, representative of most of the channels is shown by channel S-8 (Fig. 3). In channel N-13 delta-T indication was about – 16. 1ºC. i. e. , 16. 1ºC delta-T with flow reversal. Channel ΔT variation at 0. 956%FP In channel Q-16 flow reversal has taken place twice. In majority of the channels coolant was flowing in the forward direction with a few flowing in the reverse direction under steady state conditions. None of the monitored channel delta-Ts showed negative values for the 1. 991% and 3. 249% FP tests indicating the absence of flow reversal. IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

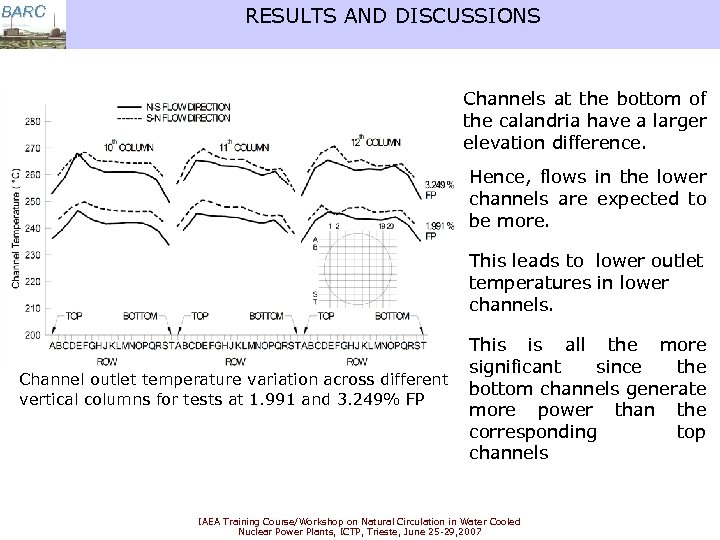

BARC RESULTS AND DISCUSSIONS Channels at the bottom of the calandria have a larger BARC RESULTS AND DISCUSSIONS Channels at the bottom of the calandria have a larger elevation difference. Hence, flows in the lower channels are expected to be more. This leads to lower outlet temperatures in lower channels. Channel outlet temperature variation across different vertical columns for tests at 1. 991 and 3. 249% FP This is all the more significant since the bottom channels generate more power than the corresponding top channels IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

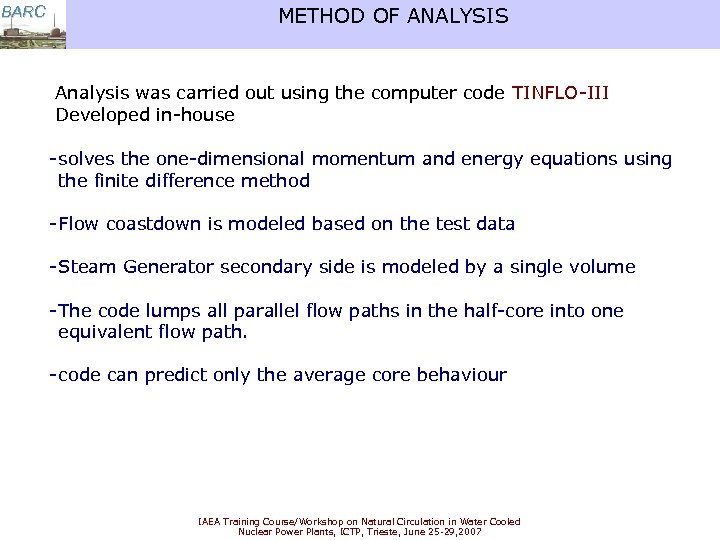

BARC METHOD OF ANALYSIS Analysis was carried out using the computer code TINFLO-III Developed BARC METHOD OF ANALYSIS Analysis was carried out using the computer code TINFLO-III Developed in-house - solves the one-dimensional momentum and energy equations using the finite difference method - Flow coastdown is modeled based on the test data - Steam Generator secondary side is modeled by a single volume - The code lumps all parallel flow paths in the half-core into one equivalent flow path. - code can predict only the average core behaviour IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

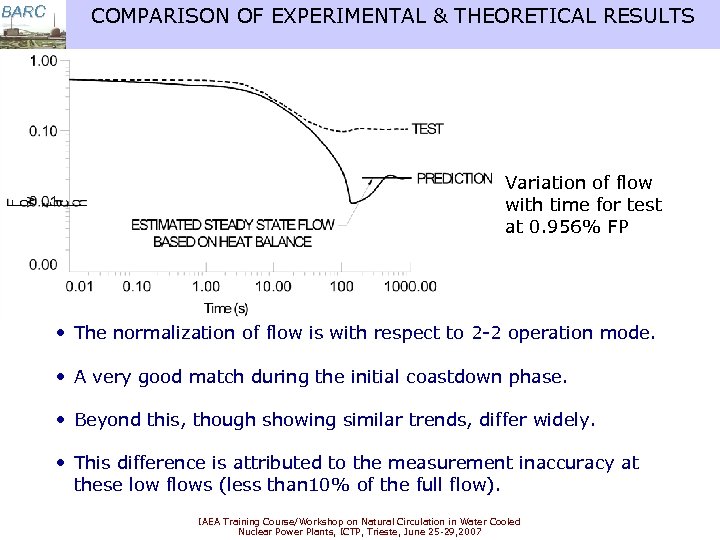

BARC COMPARISON OF EXPERIMENTAL & THEORETICAL RESULTS Variation of flow with time for test BARC COMPARISON OF EXPERIMENTAL & THEORETICAL RESULTS Variation of flow with time for test at 0. 956% FP • The normalization of flow is with respect to 2 -2 operation mode. • A very good match during the initial coastdown phase. • Beyond this, though showing similar trends, differ widely. • This difference is attributed to the measurement inaccuracy at these low flows (less than 10% of the full flow). IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

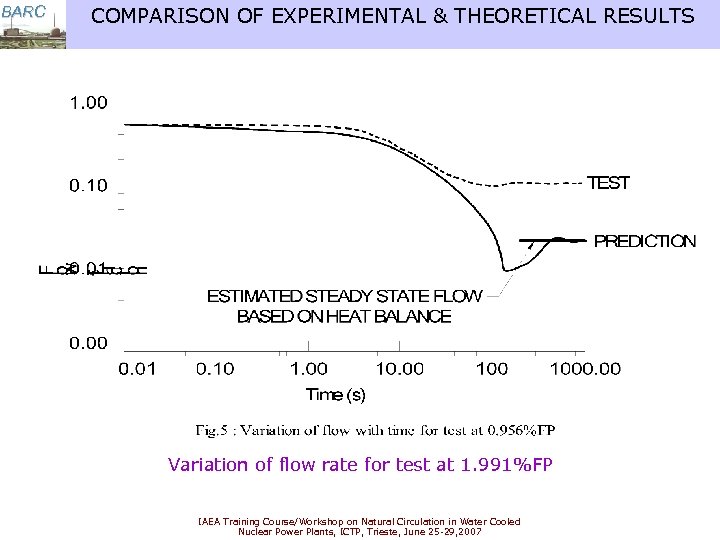

BARC COMPARISON OF EXPERIMENTAL & THEORETICAL RESULTS Variation of flow rate for test at BARC COMPARISON OF EXPERIMENTAL & THEORETICAL RESULTS Variation of flow rate for test at 1. 991%FP IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

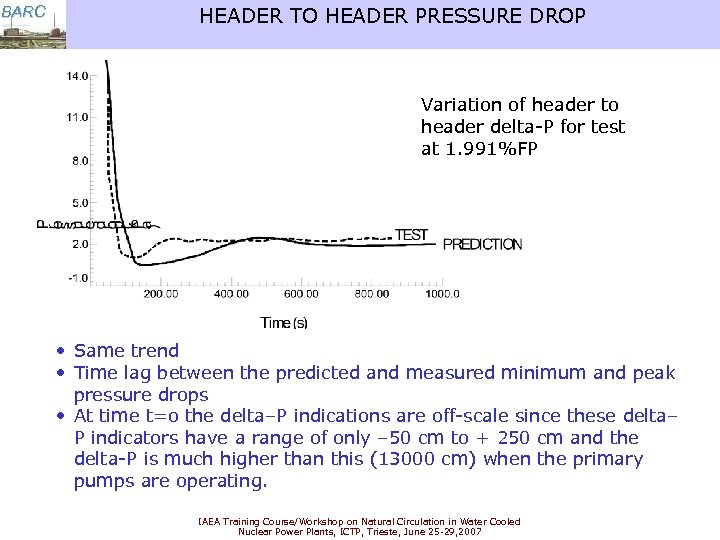

BARC HEADER TO HEADER PRESSURE DROP Variation of header to header delta-P for test BARC HEADER TO HEADER PRESSURE DROP Variation of header to header delta-P for test at 1. 991%FP • Same trend • Time lag between the predicted and measured minimum and peak pressure drops • At time t=o the delta–P indications are off-scale since these delta– P indicators have a range of only – 50 cm to + 250 cm and the delta-P is much higher than this (13000 cm) when the primary pumps are operating. IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

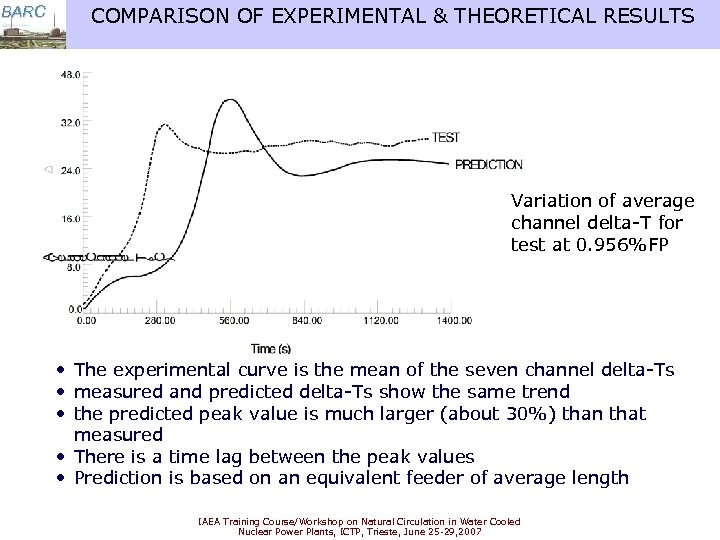

BARC COMPARISON OF EXPERIMENTAL & THEORETICAL RESULTS Variation of average channel delta-T for test BARC COMPARISON OF EXPERIMENTAL & THEORETICAL RESULTS Variation of average channel delta-T for test at 0. 956%FP • The experimental curve is the mean of the seven channel delta-Ts • measured and predicted delta-Ts show the same trend • the predicted peak value is much larger (about 30%) than that measured • There is a time lag between the peak values • Prediction is based on an equivalent feeder of average length IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

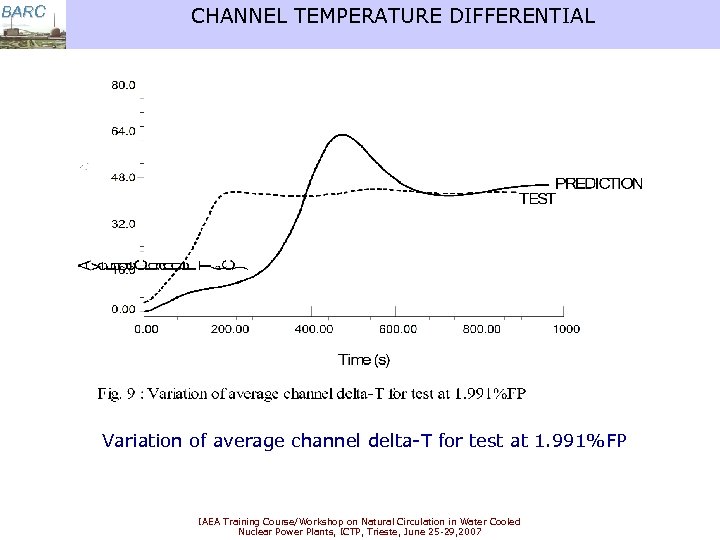

BARC CHANNEL TEMPERATURE DIFFERENTIAL Variation of average channel delta-T for test at 1. 991%FP BARC CHANNEL TEMPERATURE DIFFERENTIAL Variation of average channel delta-T for test at 1. 991%FP IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007

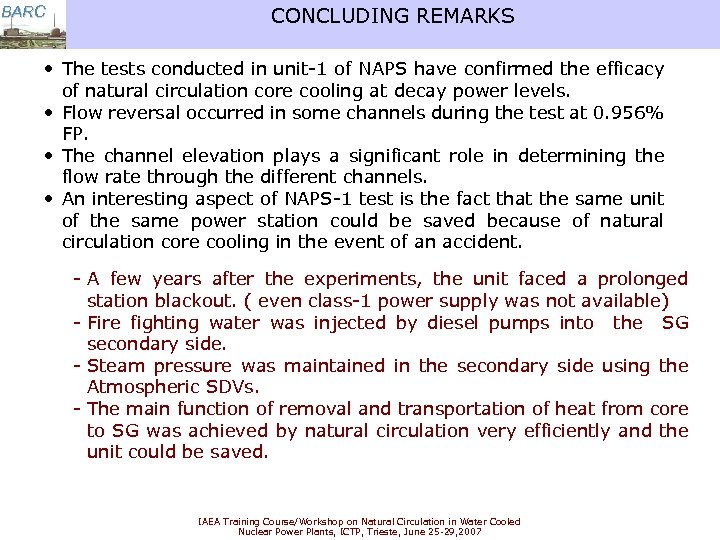

BARC CONCLUDING REMARKS • The tests conducted in unit-1 of NAPS have confirmed the BARC CONCLUDING REMARKS • The tests conducted in unit-1 of NAPS have confirmed the efficacy of natural circulation core cooling at decay power levels. • Flow reversal occurred in some channels during the test at 0. 956% FP. • The channel elevation plays a significant role in determining the flow rate through the different channels. • An interesting aspect of NAPS-1 test is the fact that the same unit of the same power station could be saved because of natural circulation core cooling in the event of an accident. - A few years after the experiments, the unit faced a prolonged station blackout. ( even class-1 power supply was not available) - Fire fighting water was injected by diesel pumps into the SG secondary side. - Steam pressure was maintained in the secondary side using the Atmospheric SDVs. - The main function of removal and transportation of heat from core to SG was achieved by natural circulation very efficiently and the unit could be saved. IAEA Training Course/Workshop on Natural Circulation in Water Cooled Nuclear Power Plants, ICTP, Trieste, June 25 -29, 2007
