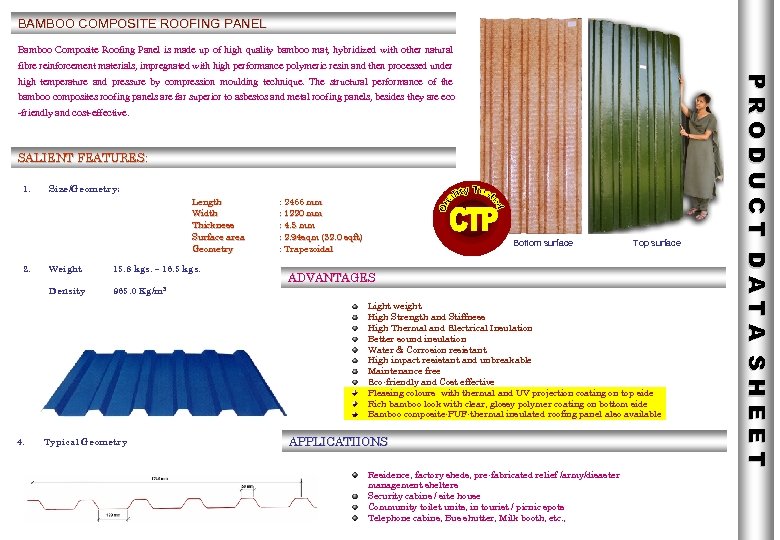

BAMBOO COMPOSITE ROOFING PANEL Bamboo Composite Roofing Panel is made up of high quality bamboo mat, hybridized with other natural fibre reinforcement materials, impregnated with high performance polymeric resin and then processed under bamboo composites roofing panels are far superior to asbestos and metal roofing panels, besides they are eco -friendly and cost-effective. SALIENT FEATURES: 1. Size/Geometry: Length Width Thickness Surface area Geometry 2. Weight 15. 8 kgs. – 16. 5 kgs. Density 965. 0 Kg/m 3 : 2466 mm : 1220 mm : 4. 5 mm : 2. 94 sqm (32. 0 sqft) : Trapezoidal Bottom surface Top surface ADVANTAGES Light weight High Strength and Stiffness High Thermal and Electrical Insulation Better sound insulation Water & Corrosion resistant High impact resistant and unbreakable Maintenance free Eco-friendly and Cost effective Pleasing colours with thermal and UV projection coating on top side Rich bamboo look with clear, glossy polymer coating on bottom side Bamboo composite-PUF-thermal insulated roofing panel also available 4. Typical Geometry APPLICATIIONS Residence, factory sheds, pre-fabricated relief /army/disaster management shelters Security cabins / site house Community toilet units, in tourist / picnic spots Telephone cabins, Bus shutter, Milk booth, etc. , PRODUCT DATA SHEET high temperature and pressure by compression moulding technique. The structural performance of the
BAMBOO COMPOSITE ROOFING PANELS Load Vs. Deflection Plot for Bamboo Composites Roofing Panel 350 Load (Kg) 250 C-2 C-1 Linear (C-2) Linear (C-1) 200 150 100 Flexural Testing of Bamboo Composites Roofing Panel 50 0 0 2 4 6 Deflection (mm) 8 10 12 Top Side Bamboo Composites PUF insulated Roofing Panel Bottom Side Available in pleasing colours Composites Technology Park #205, Bande Mutt, Kengeri Satellite Township, Bangalore-560 060 : 6599 7605, 6558 1005, 2848 2768 Fax: 080 - 2848 2771 Email: drgopal@blr. vsnl. net. in, Website: www. compositestechnologypark. com Pioneering Innovations in Eco-friendly Materials and Products PRODUCT DATA SHEET 300

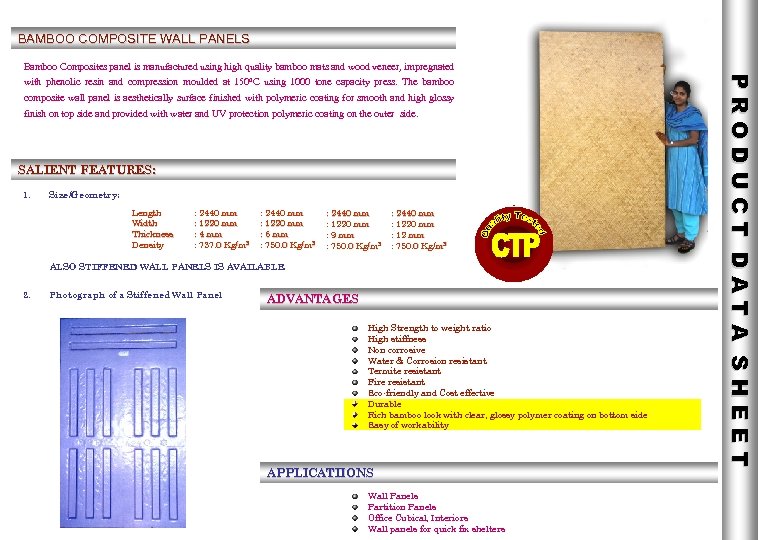

BAMBOO COMPOSITE WALL PANELS Bamboo Composites panel is manufactured using high quality bamboo mats and wood veneer, impregnated composite wall panel is aesthetically surface finished with polymeric coating for smooth and high glossy finish on top side and provided with water and UV protection polymeric coating on the outer side. SALIENT FEATURES: 1. Size/Geometry: Length Width Thickness Density : 2440 mm : 1220 mm : 4 mm : 737. 0 Kg/m 3 : 2440 mm : 1220 mm : 6 mm : 750. 0 Kg/m 3 : 2440 mm : 1220 mm : 9 mm : 750. 0 Kg/m 3 : 2440 mm : 1220 mm : 12 mm : 750. 0 Kg/m 3 ALSO STIFFENED WALL PANELS IS AVAILABLE 2. Photograph of a Stiffened Wall Panel ADVANTAGES High Strength to weight ratio High stiffness Non corrosive Water & Corrosion resistant Termite resistant Fire resistant Eco-friendly and Cost effective Durable Rich bamboo look with clear, glossy polymer coating on bottom side Easy of workability APPLICATIIONS Wall Panels Partition Panels Office Cubical, Interiors Wall panels for quick fix shelters PRODUCT DATA SHEET with phenolic resin and compression moulded at 1500 C using 1000 tone capacity press. The bamboo

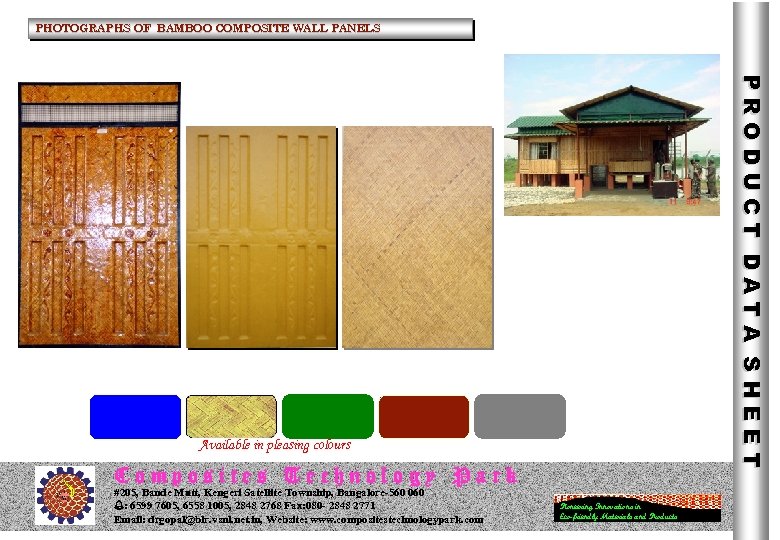

PHOTOGRAPHS OF BAMBOO COMPOSITE WALL PANELS PRODUCT DATA SHEET Available in pleasing colours Composites Technology Park #205, Bande Mutt, Kengeri Satellite Township, Bangalore-560 060 : 6599 7605, 6558 1005, 2848 2768 Fax: 080 - 2848 2771 Email: drgopal@blr. vsnl. net. in, Website: www. compositestechnologypark. com Pioneering Innovations in Eco-friendly Materials and Products

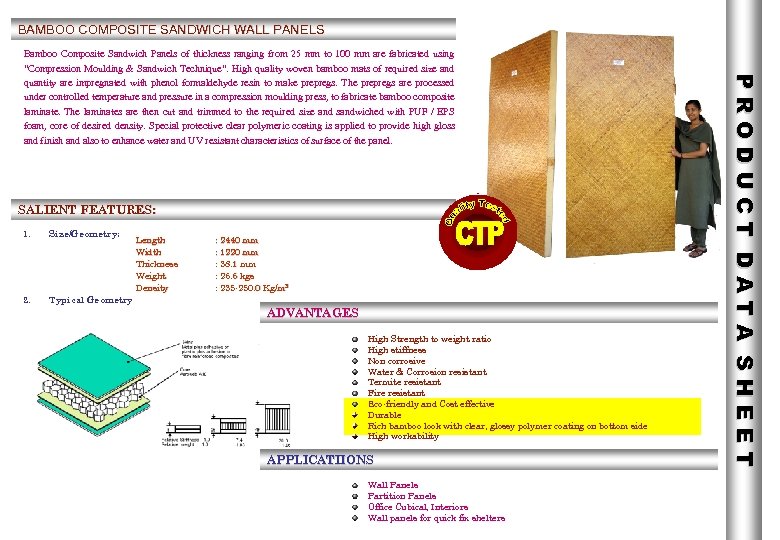

BAMBOO COMPOSITE SANDWICH WALL PANELS SALIENT FEATURES: 1. Size/Geometry: 2. Typical Geometry Length Width Thickness Weight Density : 2440 mm : 1220 mm : 38. 1 mm : 26. 6 kgs : 235 -250. 0 Kg/m 3 ADVANTAGES High Strength to weight ratio High stiffness Non corrosive Water & Corrosion resistant Termite resistant Fire resistant Eco-friendly and Cost effective Durable Rich bamboo look with clear, glossy polymer coating on bottom side High workability APPLICATIIONS Wall Panels Partition Panels Office Cubical, Interiors Wall panels for quick fix shelters PRODUCT DATA SHEET Bamboo Composite Sandwich Panels of thickness ranging from 25 mm to 100 mm are fabricated using “Compression Moulding & Sandwich Technique”. High quality woven bamboo mats of required size and quantity are impregnated with phenol formaldehyde resin to make prepregs. The prepregs are processed under controlled temperature and pressure in a compression moulding press, to fabricate bamboo composite laminate. The laminates are then cut and trimmed to the required size and sandwiched with PUF / EPS foam, core of desired density. Special protective clear polymeric coating is applied to provide high gloss and finish and also to enhance water and UV resistant characteristics of surface of the panel.

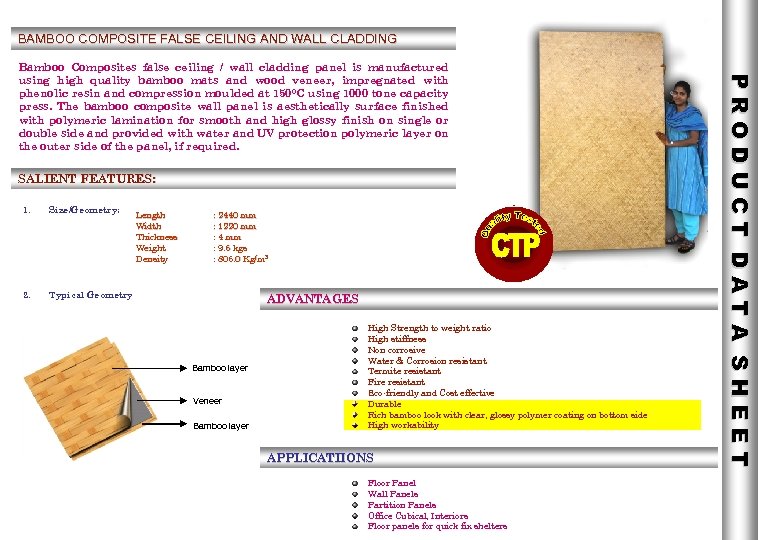

BAMBOO COMPOSITE FALSE CEILING AND WALL CLADDING SALIENT FEATURES: 1. Size/Geometry: 2. Typical Geometry Length Width Thickness Weight Density : 2440 mm : 1220 mm : 4 mm : 9. 6 kgs : 806. 0 Kg/m 3 ADVANTAGES Bamboo layer Veneer Bamboo layer High Strength to weight ratio High stiffness Non corrosive Water & Corrosion resistant Termite resistant Fire resistant Eco-friendly and Cost effective Durable Rich bamboo look with clear, glossy polymer coating on bottom side High workability APPLICATIIONS Floor Panel Wall Panels Partition Panels Office Cubical, Interiors Floor panels for quick fix shelters PRODUCT DATA SHEET Bamboo Composites false ceiling / wall cladding panel is manufactured using high quality bamboo mats and wood veneer, impregnated with phenolic resin and compression moulded at 1500 C using 1000 tone capacity press. The bamboo composite wall panel is aesthetically surface finished with polymeric lamination for smooth and high glossy finish on single or double side and provided with water and UV protection polymeric layer on the outer side of the panel, if required.

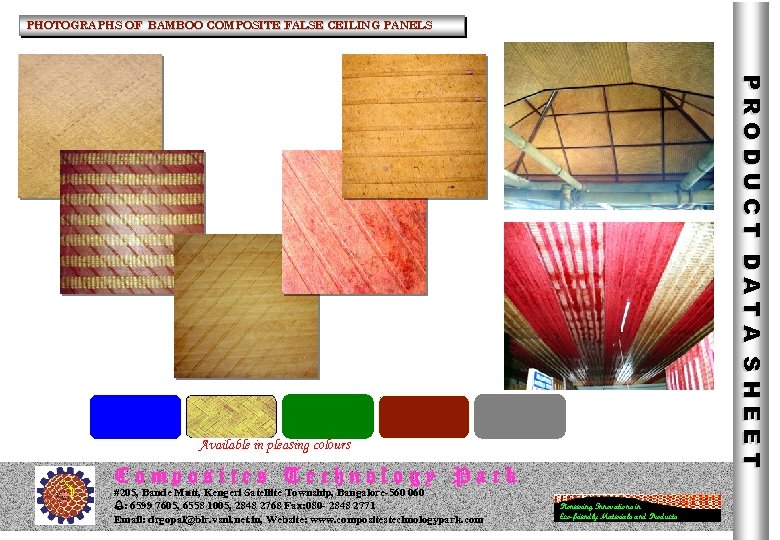

PHOTOGRAPHS OF BAMBOO COMPOSITE FALSE CEILING PANELS PRODUCT DATA SHEET Available in pleasing colours Composites Technology Park #205, Bande Mutt, Kengeri Satellite Township, Bangalore-560 060 : 6599 7605, 6558 1005, 2848 2768 Fax: 080 - 2848 2771 Email: drgopal@blr. vsnl. net. in, Website: www. compositestechnologypark. com Pioneering Innovations in Eco-friendly Materials and Products
