Backups

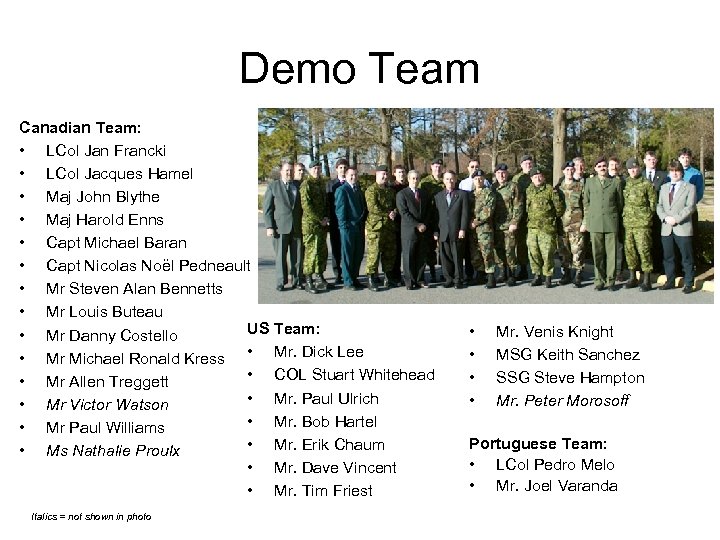

Demo Team Canadian Team: • LCol Jan Francki • LCol Jacques Hamel • Maj John Blythe • Maj Harold Enns • Capt Michael Baran • Capt Nicolas Noël Pedneault • Mr Steven Alan Bennetts • Mr Louis Buteau US Team: • Mr Danny Costello • Mr Michael Ronald Kress • Mr. Dick Lee • COL Stuart Whitehead • Mr Allen Treggett • Mr. Paul Ulrich • Mr Victor Watson • Mr. Bob Hartel • Mr Paul Williams • Mr. Erik Chaum • Ms Nathalie Proulx • Mr. Dave Vincent • Mr. Tim Friest Italics = not shown in photo • • Mr. Venis Knight MSG Keith Sanchez SSG Steve Hampton Mr. Peter Morosoff Portuguese Team: • LCol Pedro Melo • Mr. Joel Varanda

Block 1 Exchange Services • Message Exchange Mechanism: – To develop an improved fieldable formatted message (Adat. P-3) capability supporting vertical and horizontal interoperability from corps to battalion level fieldable beginning in by 2003. • Data Exchange Mechanism: – To have a (push) data exchange capability that supports vertical and horizontal interoperability of C 2 IS at all levels from corps to battalion, and is able to co-exist with the agreed MEM with an initial fielding during the period 2003 to 2005.

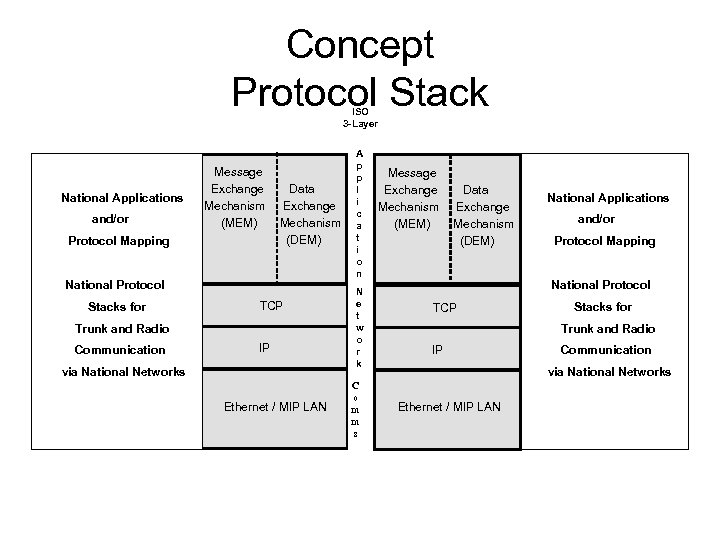

Concept Protocol Stack ISO 3 -Layer National Applications and/or Message Exchange Mechanism (MEM) Protocol Mapping Data Exchange Mechanism (DEM) National Protocol Stacks for TCP Trunk and Radio Communication IP via National Networks Ethernet / MIP LAN A p p l i c a t i o n N e t w o r k C o m m s Message Exchange Mechanism (MEM) Data Exchange Mechanism (DEM) National Applications and/or Protocol Mapping National Protocol TCP Stacks for Trunk and Radio IP Communication via National Networks Ethernet / MIP LAN

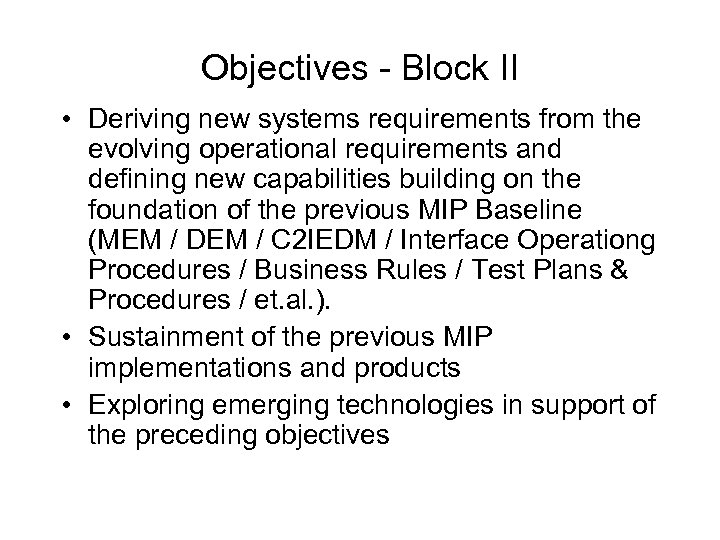

Objectives - Block II • Deriving new systems requirements from the evolving operational requirements and defining new capabilities building on the foundation of the previous MIP Baseline (MEM / DEM / C 2 IEDM / Interface Operationg Procedures / Business Rules / Test Plans & Procedures / et. al. ). • Sustainment of the previous MIP implementations and products • Exploring emerging technologies in support of the preceding objectives

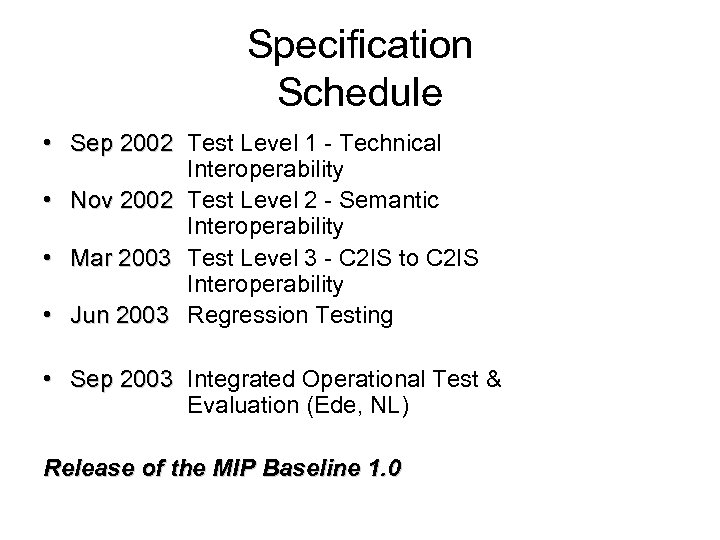

Specification Schedule • Sep 2002 Test Level 1 - Technical Interoperability • Nov 2002 Test Level 2 - Semantic Interoperability • Mar 2003 Test Level 3 - C 2 IS to C 2 IS Interoperability • Jun 2003 Regression Testing • Sep 2003 Integrated Operational Test & Evaluation (Ede, NL) Release of the MIP Baseline 1. 0

Specification Conformance • Submit change proposals to relevant NATO bodies if required – Adopted 11/03 as NATO Corporate Joint C 3 IEDM • Incorporated Change Proposals into standards • Be freely available to all NATO & Pf. P nations • Publish baseline documents to inform non-MIP members • MIP Certification

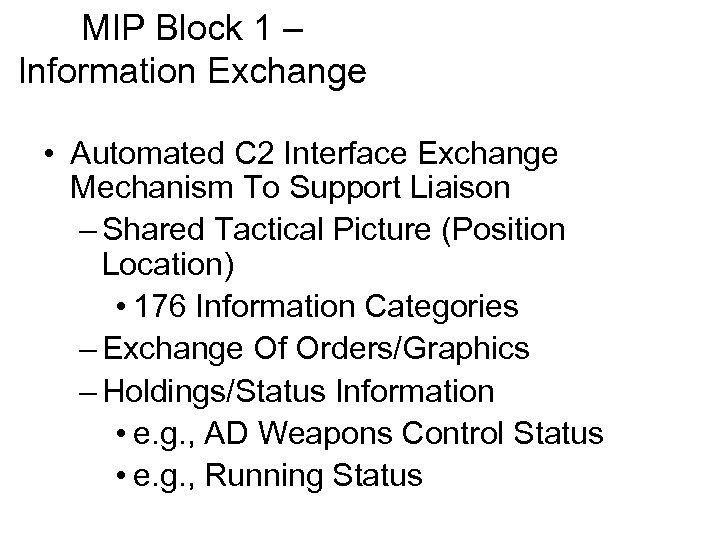

MIP Block 1 – Information Exchange • Automated C 2 Interface Exchange Mechanism To Support Liaison – Shared Tactical Picture (Position Location) • 176 Information Categories – Exchange Of Orders/Graphics – Holdings/Status Information • e. g. , AD Weapons Control Status • e. g. , Running Status

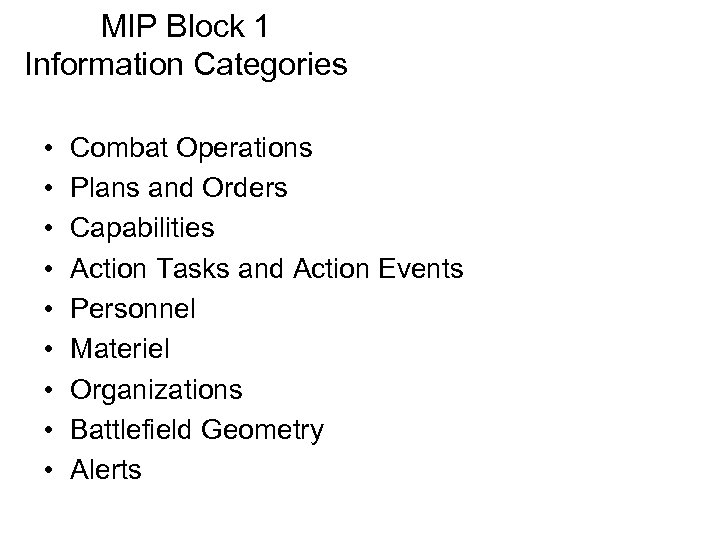

MIP Block 1 Information Categories • • • Combat Operations Plans and Orders Capabilities Action Tasks and Action Events Personnel Materiel Organizations Battlefield Geometry Alerts

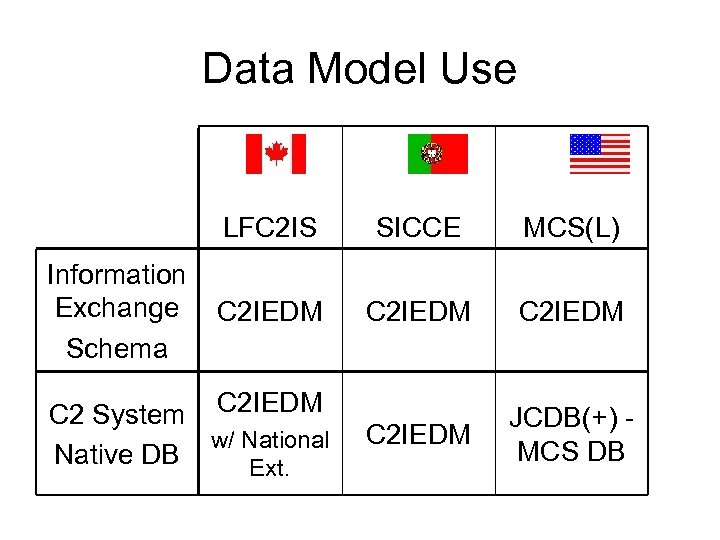

Data Model Use LFC 2 IS Information Exchange Schema SICCE MCS(L) C 2 IEDM JCDB(+) MCS DB C 2 System C 2 IEDM w/ National Native DB Ext.

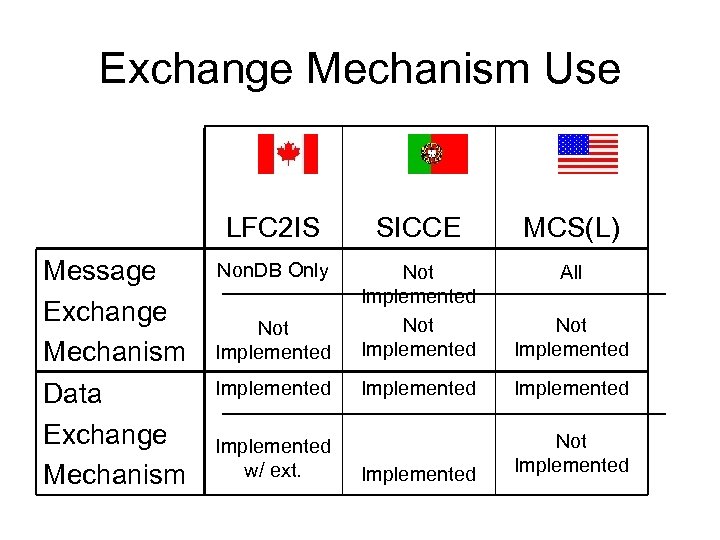

Exchange Mechanism Use LFC 2 IS Message Exchange Mechanism Data Exchange Mechanism SICCE MCS(L) Non. DB Only All Not Implemented Implemented Not Implemented w/ ext.
